Chauvet Colorado, Colorado ZoomTourWW, ColoradoZoom Tour CW Quick Reference Manual

Quick Reference Guide

Colorado™ Zoom Tour WW QRG

Page 2 of 8

About This

Guide

The Colorado™ Zoom Tour WW Quick Reference Guide (QRG) only
contains the product’s connection and mounting information,

as well as the

menu options and the DMX values.

Disclaimer

• This Quick Reference Guide does not replace the product’s User

Manual, available at www.chauvetpro.com.

• You must read ALL the disclaimers and safety notes in this document,

as well as those in the product’s User Manual before installing,
operating, or maintaining this product.

Safety

Notes

• DO NOT open this product unless instructed. It contains no

user-serviceable parts.

• DO NOT aim this product toward the Sun. The lenses could

concentrate the solar energy and cause internal overheating.

•

DO NOT look at the light source when this product is on.

•

DO NOT touch the product when it is operating because it may be
very hot.

•

DO NOT install or operate this product where there is less th an 50 cm
to the nearest surface to allow adequate ventilation around it.

•

DO NOT leave any flammable material within 50 cm from this
product while operating or connected to the power outlet to minimize
the risk of fire.

•

DO NOT mount this product overhead without using a safety cable.

• This product is for indoor use only! To prevent risk of fire or shock,

do not expose this product to rain or moisture.

• DO NOT operate this product if you see damage on the housing,

lenses, or cables. Have the damaged parts replaced by an authorized
technician immediately.

•

DO NOT connect this product to a dimmer or rheostat.

•

ONLY connect this product to a grounded and protected circuit.

What Is

Included

• One Colorado™ Zoom Tour WW

• One Neutrik® powerCON® to

Edison Plug Input Power Cord

• One Gel Frame

• One Accessory Holder

• One Warranty Card

• One Quick Reference Guide

• One Safety Cable

Colorado™ Zoom Tour WW QRG

Page 3 of 8

Features

• 1, 4, or 5-channel DMX control

• Operating modes:

1-channel: Dimmer
4-channel: Dimmer, macro, zoom, zoom reset
5-channel: WW, CW, dimmer, zoom, zoom reset

• Color temperature control with or without DMX control

• 8~27.5° zoom control with or without DMX control

• Five distinct dimming curves

• Cool and warm white LEDs

• Electronic dimmer

• Electronic power supply

• Neutrik® powerCON® connectors

• 3- and 5-pin DMX input and output connectors

• Additional power output: max 7 units @ 120 V

• LED display with password protection

• Gel frame holder (4 mm max. thickness)

• Double-bracketed yoke doubles as floor stand

• Color calibration

• Flicker-free operation for HD Video

Colorado™ Zoom Tour WW QRG

Page 4 of 8

Product

Description

The Colorado™ Zoom Tour WW is a Warm White LED wash light. A
single module houses the internal power supply, the main control, the
control panel, the LED drivers, the LED boards, and motorized moving
lenses, as well as the power and signal connectors. The Colorado™
Zoom Tour WW features a variable zoom enabling you to change the
beam angle via DMX or control panel. One mounting bracket

doubles as

a floor mount or hanging support.

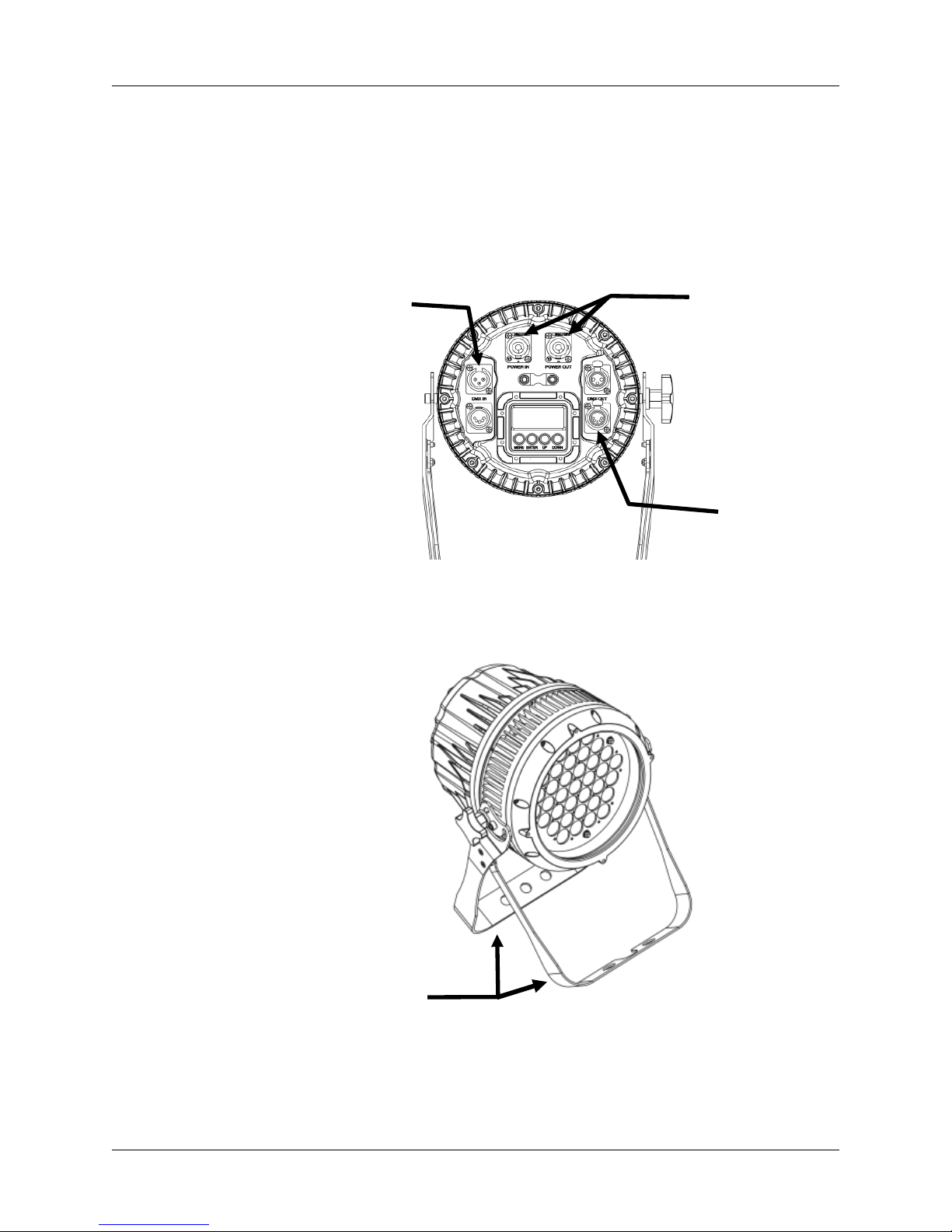

Front View

Bottom View

Power In/Out

DMX In

DMX Out

Double-

bracketed

Yoke

Colorado™ Zoom Tour WW QRG

Page 5 of 8

AC Power

This product has an auto-ranging power supply that works with an
input voltage range of 100~240 VAC, 50/60 Hz.

Power

Linking

You can link up to 7 Colorado™ Zoom Tour WW units at 120

VAC, 12 at 208 VAC, or 14 at 230 VAC.

DMX

Linking

The Colorado™ Zoom Tour WW can work with a DMX controller

when linked using a regular DMX serial connection.
If you are not familiar with the DMX standard, please download the

DMX Primer document from www.chauvetpro.com.

DMX

Connection

The Colorado™ Zoom Tour WW uses a regular DMX data

connection for its 3 DMX personalities, UNO, STD.P, and STD.W.
Download the Colorado™ Zoom Tour WW User Manual. Refer to
the Setup chapter to learn how to connect this product for DMX
operation. To learn how to configure this product for DMX
operation, refer to the Operation chapter.

Master/Slave

Connection

The Colorado™ Zoom Tour WW uses the DMX data connection for

its Master/Slave mode.
Download the Colorado™ Zoom Tour WW User Manual. Refer to

the Setup chapter to learn how to connect this product for
Master/Slave operation. To learn how to configure this product for
Master/Slave operation, refer to the Operation chapter.

Start Address

To ensure full access to all channels in each DMX mode, the highest

recommended DMX addresses are as follows:

Mode

Address

UNO

512

STD.P

509

STD.W

508

Colorado™ Zoom Tour WW QRG

Page 6 of 8

Mounting

Before mounting this product, read the Safety Notes in this guide and

in the product’s User Manual. Then, follow the mounting procedure
indicated in the Setup chapter of the User Manual.

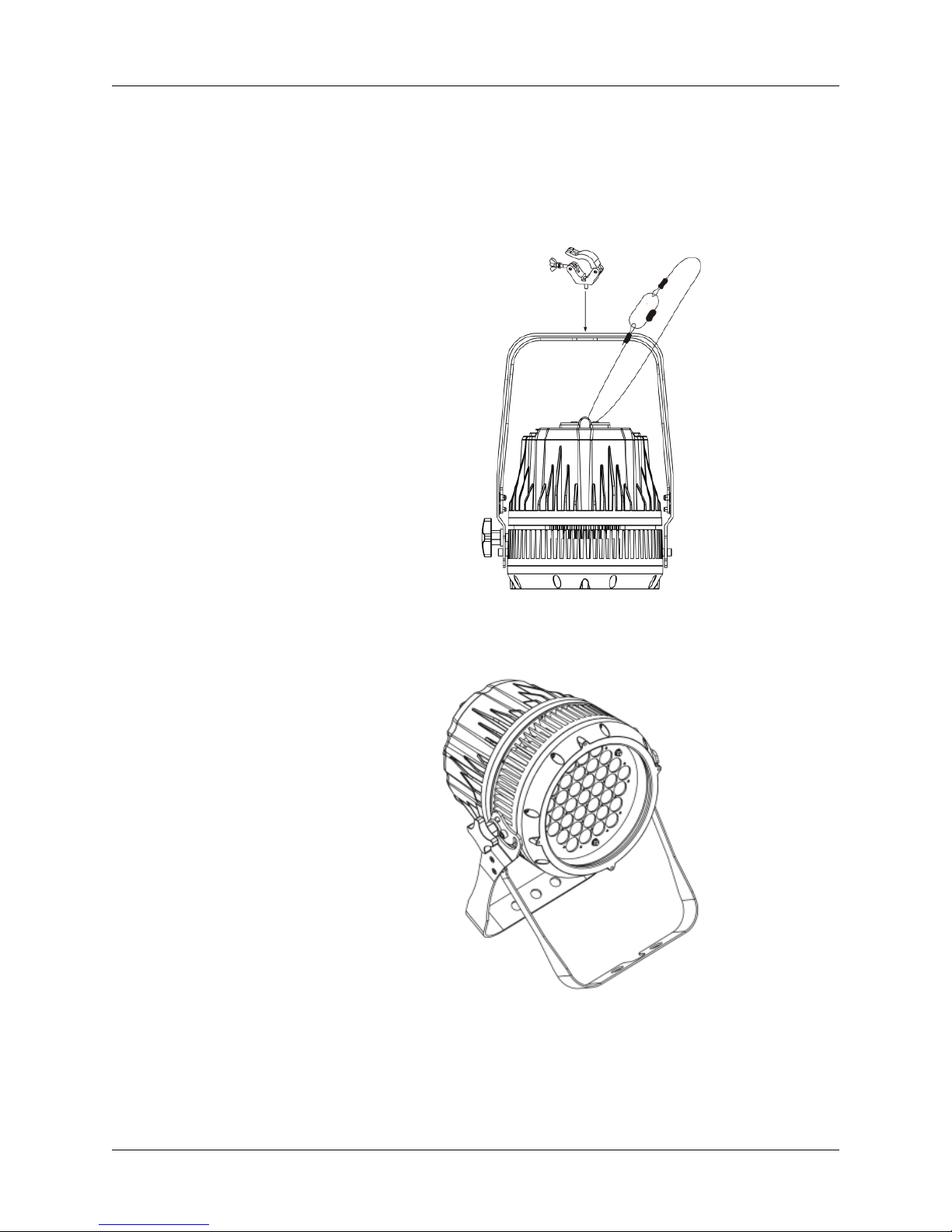

Product

Mounting

Diagram

Floor Mounting

Overhead Mounting

Colorado™ Zoom Tour WW QRG

Page 7 of 8

Programming

For details on how to program this product, please refer to the
product’s User Manual.

Control Panel

Description

Button Function

<MENU>

Exits from the current menu or function

<ENTER>

Enables the currently displayed menu or sets the
currently selected value into the selected function

<UP>

Navigates upwards through the menu list and increases
the numeric value when in a function

<DOWN>

Navigates downwards through the menu list and
decreases the numeric value when in a function

Password

After being prompted to enter the password, press:

<UP>, <DOWN>, <UP>, <DOWN>, <ENTER>.

Menu Options

Main Level

Programming Levels

Description

STAT

W.

000~255

Combines Warm White and Cool White to
generate a custom color (0~100%)

C.

Z.

Sets 8~27.5° zoom

DMX

001~512

Sets the DMX starting address

RUN

DMX

Receives signals from DMX controller

SLAV

Receives signals from Master unit

PERS

STD.W

5-channel: WW, CW, D, Z, ZR

STD.P

4-channel: D, Macro, Z, ZR

UNO

1 channel: D

SET

REST

Enter password

Defaults product

DIM

OFF

No dimmer

DIM1~4

Dimmer curve

DERR

BLAK

All LEDs turn off when DMX signal is lost

SAVE

All LEDs stay on the last command used
when the DMX signal is lost

CALE

YES

Allows calibration set ting to be changed

NO

Locks out changes to calibration

ZOOM

BASE

Sets default zoom position (full movement)

POS.1

Sets position 1 setting for zo om limit

POS.2

Sets position 2 setting for zoom limit

CALIB1 WH 01~05

W

000~255

White calibration

C.

KEY

ON/OFF

Turns the password on or off

ZOOM

POS.1

000~255

Sets the value limit of the zoom preset

POS.2

000~255

Colorado™ Zoom Tour WW QRG

Page 8 of 8

DMX Values

UNO

Channel

Function

Value

Percent/Setting

1

Master Dimmer

000  255

0~100%

STD.P

Channel

Function

Value

Percent/Setting

1

Master Dimmer

000  255

0~100%

2 Macro

000  010

011  050
051  080
081  110
111  140

141  255

No Function

White 1
White 2
White 3
White 4

White 5

3

Zoom

000  255

0~100%

4 Zoom Reset

000  200

201  220

221  255

No Function

Zoom Reset

No Function

STD.W

Channel

Function

Value

Percent/Setting

1

Master Dimmer

000  255

0~100%

2

Warm White

000  255

0~100%

3

Cool White

000  255

0~100%

4

Zoom

000  255

0~100%

5 Zoom Reset

000  200

201  220

221  255

No Function

Zoom Reset

No Function

Contact Us

World Headquarters

CHAUVET®

General Information

Address: 5200 NW 108th Avenue
Sunrise, FL 33351
Voice: [phone]
Fax: [phone]
Toll free: [phone]

United Kingdom and Ireland

CHAUVET® Europe Ltd.

General Information

Address: Unit 1C
Brookhill Road Industrial Estate
Pinxton, Nottingham, UK
NG16 6NT
Voice: [phone]

Fax: [phone]

Technical Support

Voice: [phone] (Press 4)
Fax: [phone]
Email: [e-mail]

Technical Support

Email: [e-mail]

World Wide Web

www.chauvetpro.com

World Wide Web

www.chauvetlighting.co.uk

Colorado™ Zoom Tour WW QRG – Rev. 09
© Copyright 2012 CHAUVET®

All rights reserved.
Printed in the P. R. C.
