CH-W28
Tripod Stand with Casters
USER MANUAL
CHAUVET, 3000 N 29th Ct, Hollywood, FL 33020 U.S.A
(800) 762-1084 – (954) 929-1115
FAX (954) 929-5560
www.chauvetlighting.com
Page 2
BEFORE YOU BEGIN
What is included
¾ 1 x CH-W28 Tripod Stand
¾ Mounting plate
¾ 3 x rubber caps
¾ 3 x locking casters
¾ Manual
¾ Warranty Card
Unpacking Instructions
Immediately upon receiving a product, carefully unpack the carton, check the contents to ensure that
all parts are present, and have been received in good condition. Notify the shipper immediately and
retain packing material for inspection if any parts appear damaged from shipping or the carton itself
shows signs of mishandling. Save the carton and all packing materials. In the event that a product
must be returned to the factory, it is important that the product be returned in the original factory box
and packing
Caution
• This tripod is intended for use in flat surfaces.
• Maximum Load should not exceed 65lbs.
• Maximum height should not extend 6 feet.
• Always use the safety pins provided.
• Spread tripod legs so as to prevent tip over from sudden movements.
• Take care to not over tighten knobs.
CHAUVET, 3000 N 29th Ct, Hollywood, FL 33020 U.S.A
(800) 762-1084 – (954) 929-1115
FAX (954) 929-5560
www.chauvetlighting.com
Page 3
Appendix
ASSEMBLY

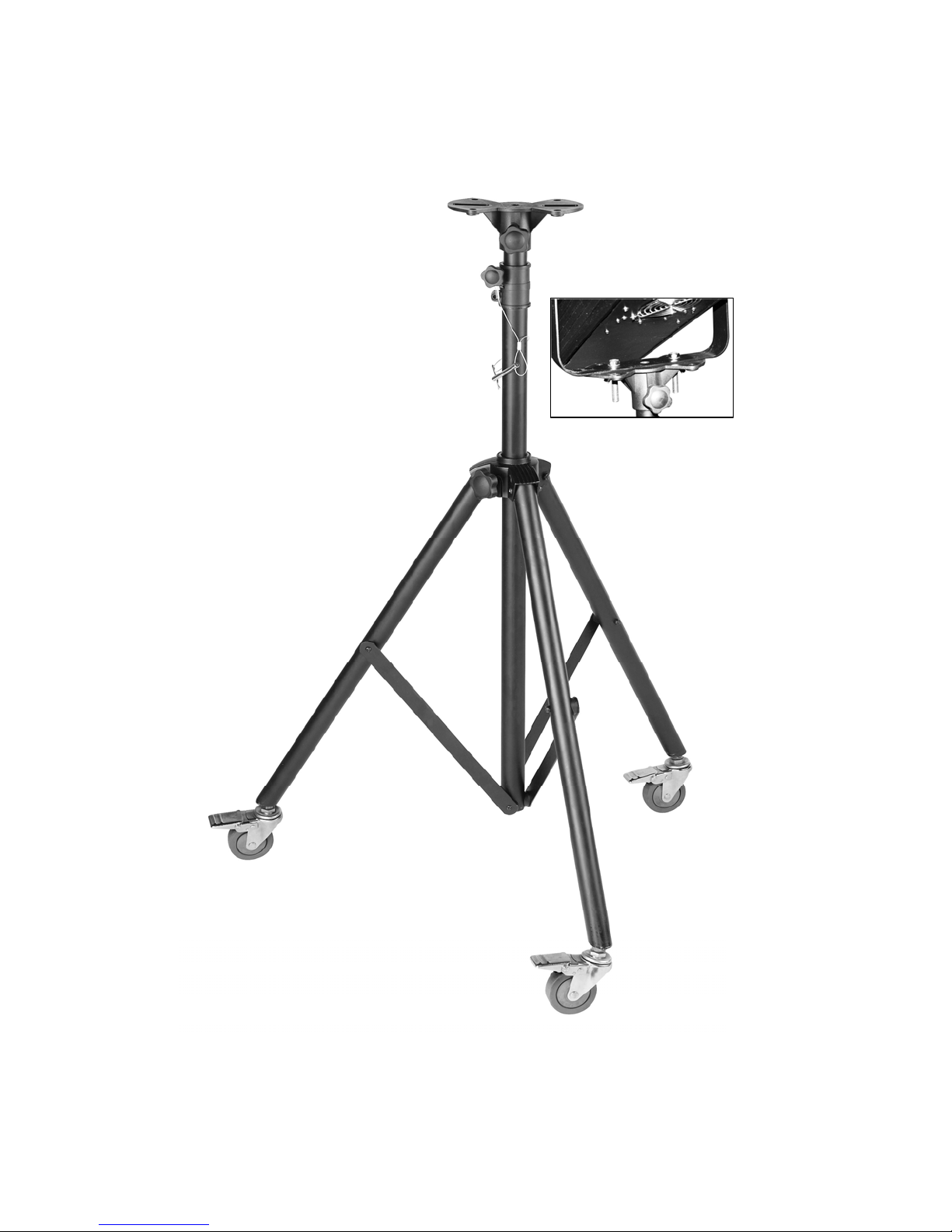

Tripod can extend 6 feet.
Mounting plate
The mounting plate fits most
speaker cups. It is also compatible
with the TFX-FS360 followspot.
Safety pin
Please use the safety pin to
prevent top loads from slipping.
Rubber caps (not shown)
Rubber caps are provided and
can be used to cover the bottom
of the tripod legs if you decide not
to use the locking casters.
Locking casters
Locking casters come loose and
will need to be assembled if
desired. The casters have a
threaded bolt that will screw into
the bottom of the tripod leg.
