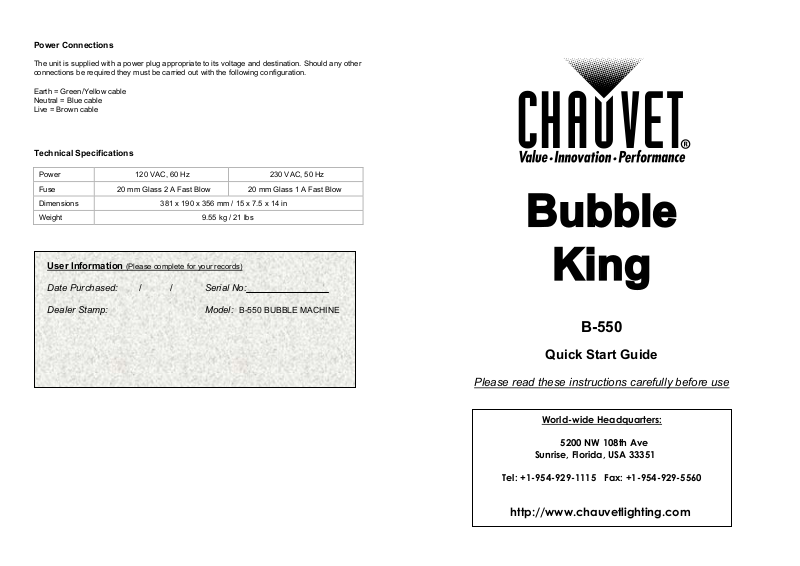

Chauvet B-550 User Manual

Power

120 VAC, 60 Hz

World-wide Headquarters:

5200 NW 108th Ave

Sunrise, Florida, USA 33351

Tel: [phone] Fax: [phone]

http://www.chauvetlighting.com

Power Connections

The unit is supplied with a power plug appropriate to its voltage and destination. Should any other
connections be required they must be carried out with the following configuration.

Earth = Green/Yellow cable
Neutral = Blue cable
Live = Brown cable

Technical Specifications

230 VAC, 50 Hz

Fuse 20 mm Glass 2 A Fast Blow 20 mm Glass 1 A Fast Blow

Dimensions 381 x 190 x 356 mm / 15 x 7.5 x 14 in

Weight 9.55 kg / 21 lbs

User Information (Please complete for your records)

Date Purchased: / / Serial No:

Dealer Stamp: Model: B-550 BUBBLE MACHINE

Bubble

King

B-550

Quick Start Guide

Please read these instructions carefully before use

Mounting Bracket

At the Rear:

Screw Cap
Fuseholder

Fan Blower
Mode Selector
Switch
Controller Socket

Bubble Wands

Optional Controllers:

Timer Remote (FCIECT-120V / FCIECT-230V)
Wireless Remote (FCIECW-120V / FCIECW-230V)

Please see the appropriate user manual included with each controller for the instructions on use.

Introduction

Congratulations on the purchase of your new CHAUVET Bubble Machine. We are confident you
will enjoy many trouble free hours with this unit. To assist with the care and use of the product we
have prepared this short guide.

Operation

This bubble machine has been designed to function on a mains power supply of either
120 VAC, 60 Hz or 230 VAC, 50 Hz and has been fitted with a suitable power plug for use with your
local voltage. Check the label on the unit and the power plug for the correct voltage.

Place the machine on a level surface and loosen the thumbscrew on the front of the unitfor fluid
tank access, see diagram (fig.1). This will allow the whole of the top cover to be lifted revealing
the fluid tank in the base. Fill the tank with quality bubble fluid only. We recommend use of
CHAUVET bubble fluid (BJU) as it has been specially formulated for use with CHAUVET
bubble machines and produces the best results. Replace the cover and tighten screws. Plug into
the mains power and stand back in amazement as you fill the area with hundreds of bubbles!

After use, ensure that all bubble fluid is drained before moving.

Installation / Mounting

The bubble machine must be used in a horizontal position sitting on a level surface or it may be
mounted using the bracket provided ensuring that the bubbles are not shooting directly at
anyone’s face or above areas of heavy traffic as bubble fluid leaves a slippery surface. Whatever
method of installation you choose, the bubble machine must not have more than a 5 degree
angle of inclination. We always suggest that for safety purposes use of a suitable hanging clamp
and safety cable is essential. CHAUVET offers a range of items, which are ideal for safe
mounting.

Mode of Operation

The B-550 accepts a range of Chauvet optional controllers. The mode selector switch on the rear
of the unit has 3 positions: On – Off – Controller. When in the “Controller” setting, the fan will
continue to run, but the wand wheel will be in standby awaiting a signal from the controller.

Fluid Tank Access

Cleaning

Cleaning your bubble machine regularly will help reduce costly parts replacement and repair
charges.

After every 40 hours of continuous operation or when the machine will be idle for a long time it is
recommended to rinse the bubble wands and fluid tank with warm water, to prevent a build-up of
residue which could reduce performance.

1. While the unit is unplugged, loosen the thumbscrew and lift cover to reveal fluid tank.

2. Empty all bubble fluid from the tank and replace with warm water. Plug the unit in and allow
it to run as usual until all wands appear to be free of residue.

3. Cleaning is now complete. Unplug the unit from power and refill with bubble fluid.

The body of the unit may be cleaned with a soft damp cloth. Store dry.

Maintenance & Servicing

Do not allow bubble fluid to become contaminated. Always replace cap after use.

Work on internal parts should be carried out by a qualified technician. Removal of any covers is
considered a breach of warranty and will not be covered under any such agreement unless
authorized first by CHAUVET.

Troubleshooting

If you experience low output, or no output at all, unplug immediately. Check fluid level, the
external fuse, and main power supply. If all appear to be OK, plug the unit in again. If you are
unable to determine the cause of the problem, do not simply continue to use as this may damage
the unit. Contact CHAUVET for servicing.

Caution

• Do not obstruct the bubble wands. Never allow children to place fingers inside the front of
the machine. Do not leave machine unattended.

• Danger of Slipping. Bubble fluid produces a slippery residue. Do not leave machine
unattended.

• Always disconnect from main power supply before cleaning or servicing.

• Never use any other type of liquid other than recommended fluid. CHAUVET provides suitable

fluids for use with this machine (BJU).

• Never drink bubble fluid. If it’s ingested, call a doctor immediately. If bubble fluid comes into
contact with eyes, rinse thoroughly with water.

• Beware of overfilling or spillage. Always mount on a flat, level surface.

• There are no user serviceable parts inside. Please contact CHAUVET for service.
