Chase SD2002 User Manual

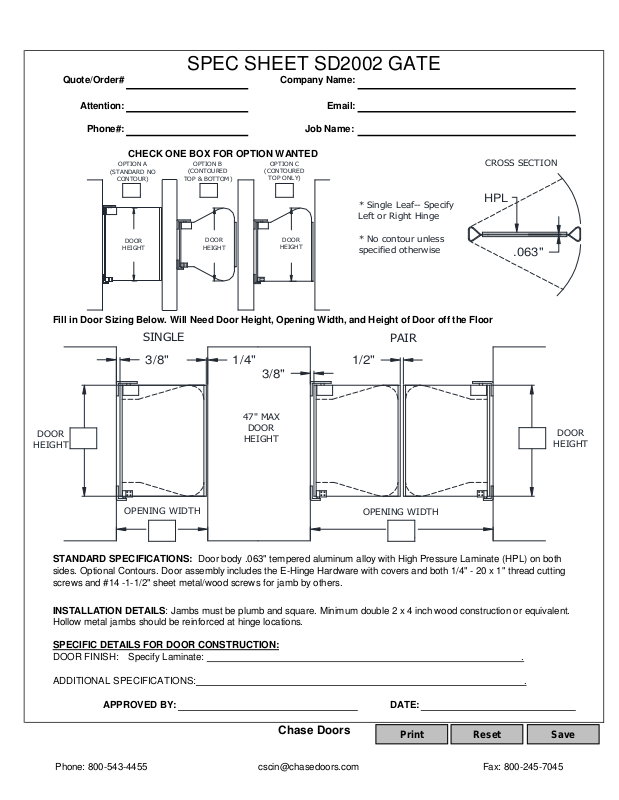

SPEC SHEET SD2002 GATE
Attention:
Email:
Print
Reset
Save
Quote/Order# Company Name:
Phone#:
Job Name:
CHECK ONE BOX FOR OPTION WANTED
OPTION A
(STANDARD NO
CONTOUR)
DOOR
HEIGHT
OPTION B
(CONTOURED
TOP & BOTTOM)
DOOR
HEIGHT
OPTION C
(CONTOURED
TOP ONLY)
DOOR
HEIGHT
* Single Leaf-- Specify
Left or Right Hinge
* No contour unless
specified otherwise
Fill in Door Sizing Below. Will Need Door Height, Opening Width, and Height of Door off the Floor
SINGLE
3/8"
1/2"1/4"
PAIR
3/8"
47" MAX
DOOR
HEIGHT
DOOR
HEIGHT
CROSS SECTION
HPL
.063"
DOOR
HEIGHT
OPENING WIDTH
OPENING WIDTH
STANDARD SPECIFICATIONS: Door body .063" tempered aluminum alloy with High Pressure Laminate (HPL) on both
sides. Optional Contours. Door assembly includes the E-Hinge Hardware with covers and both 1/4" - 20 x 1" thread cutting
screws and #14 -1-1/2" sheet metal/wood screws for jamb by others.
INSTALLATION DETAILS: Jambs must be plumb and square. Minimum double 2 x 4 inch wood construction or equivalent.
Hollow metal jambs should be reinforced at hinge locations.
SPECIFIC DETAILS FOR DOOR CONSTRUCTION:
DOOR FINISH: Specify Laminate: .
ADDITIONAL SPECIFICATIONS: .
DATE:APPROVED BY:
