Chase AD001 User Manual

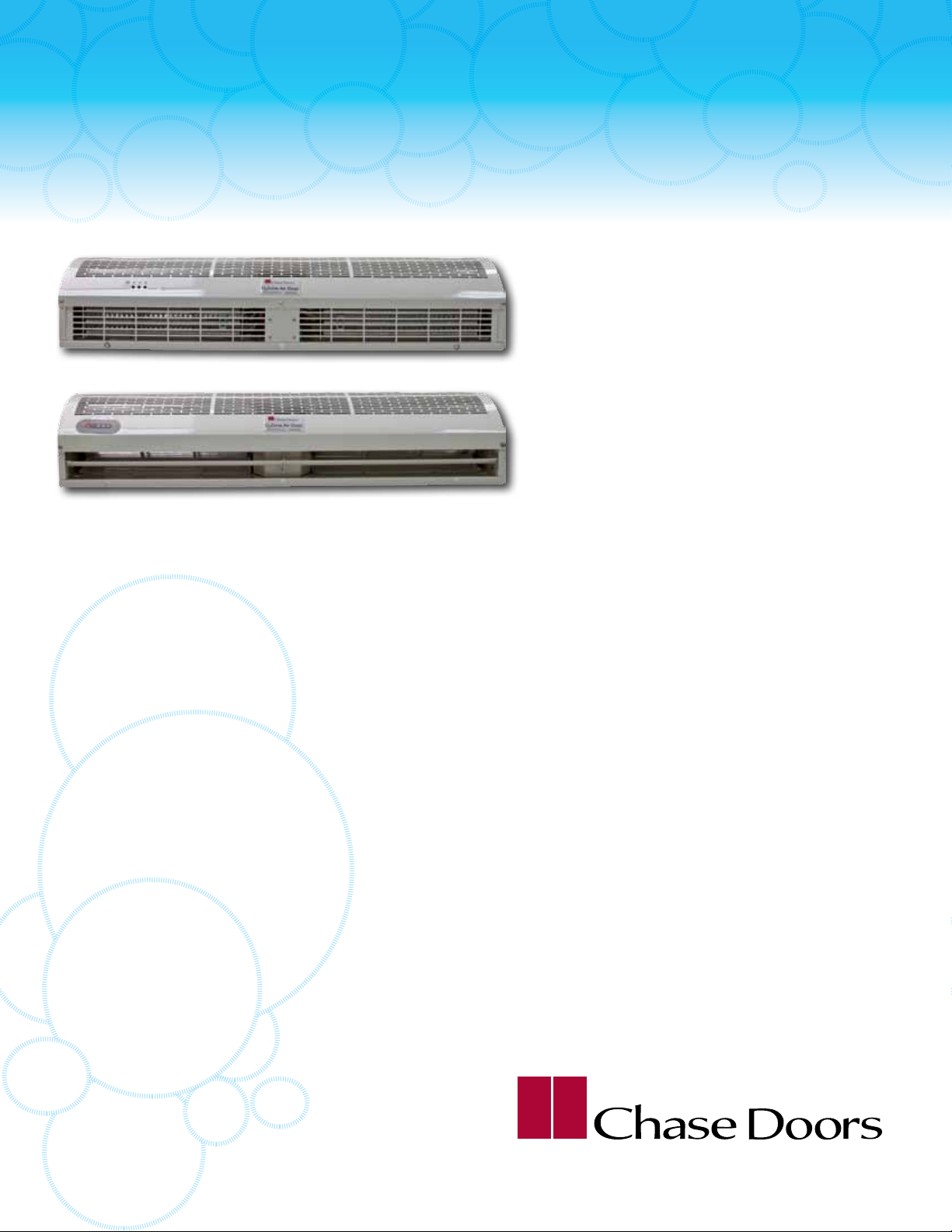

O2Zone Air Door
Heated and Non-Heated
Heated
Non-Heated
stream of air downward towards the oor, forcing a barrier between the ceiling and the oor. The barrier improves the
inside of the establishment keeping employees and customers comfortable, which will increase productivity and sales. In
short, air doors save you money, create a productive and enjoyable environment and keep unwanted pests out!
Have you walked through a restaurant, shopping center door, or mall and wondered what that intense stream of air blowing down on you was? That was most likely an air door, also known as an air curtain, which is an economical device that saves the retailer
heat the establishment during the winter and cool it during the summer. Air doors also protect the inside
of the establishment from unwanted pests, windborne debris and other pollutants.
Install O thru windows. They work by expelling a consistent
Zone air doors above doors and at drive-
2
O2Zone Air Door Advantages:
Easy to
Save money on heating and cooling by reducing air loss when
Install
Reduces
Energy
Costs
No
More
operational doors are open and closed or left open for extended period of time
Universal sensors are standard on both doors and save energy by only running when the door is in the open position
Prevents the entrance of dust, ying insects and other pollutants into establishment
Quiet operation at 41 - 60 dB, dependent upon size and model
Provides easy ow of customer trafc while maintaining continuous barrier between temperature differentials
Creates temperate atmosphere for both employees and customers enjoyment
Dampens the transfer of noise from outside
Heated air door will warm customers from frigid outdoor temperatures when entering business
Easy to install with no additional duct work required
Remote controls are standard on both units
Pests
www.chasedoors.com 800.543.4455
World’s Leading Manufacturer of Specialty Doors
O2Zone Air Door Features:
Durable, quality and high performance air doors are our top priority. O2Zone Air Door System is con­structed with 100% steel components, including the intake grill and blower wheel. The intake grill can be easily and quickly removed for fast, easy maintenance and cleaning. The air door unit is powder coated white for a superior nish. Its 1HP, 2 speed motor provides a powerful and reliable air current.
Perfect for:
Freezer/Cooler Doors
Drive-thru Windows
Entry Doors
Loading Dock
Back Doors
Patio Areas
Non-Heated
Remote
Heated Remote
Remote Controls:
Remote controls are standard on both the heated and non-heated units to allow the user to easily turn the units on or off with­out the need of a step ladder. The remote control on the heated unit also allows the user to easily adjust the temperature of the air current.
Universal Sensors:
Universal sensors are standard on the both heated and non-heated doors and save energy by only running when he door is in the open position.
Air Door Specications
NON-HEATED
Model Number
AD001 AD002 AD003 AD004 AD005
HEATED
Model Number
AD006 AD007 AD008 AD009 AD010
Diameter
of Wheel (in)
4.5
4.5
4.5
4.5
4.5
Diameter
of Wheel (in)
4.5
4.5
4.5
4.5
4.5
110~120/60 208~230/60 208~230/60 208~230/60 208~230/60
Voltage/ Freq (V/Hz)
110~120/60 110~120/60 110~120/60 110~120/60 110~120/60
Voltage/
Freq (V/Hz)
0.19 - 0.17
0.3 - 0.2
0.32 - 0.3
0.4 - 0.34
0.57 - 0.4
Max Input Power
High - Low (Hp)
0.19 - 0.17
0.3 - 0.2
0.32 - 0.3
0.4 - 0.34
0.57 - 0.4
Motor Input
Power H - L (Hp)
3000 6000 6000 8000 12000
Heater
Power (W)
Max Air Speed
High - Low (fpm)
2559 - 1968 2559 - 1968 2559 - 1968 2559 - 1968 2559 - 1968
Temp (F)
1574 - 1181
70
1574 - 1181
70
1574 - 1181
70
1574 - 1181
70 70
1574 - 1181
653 - 494
795 - 635 882 - 706 1206 - 847 1589 - 1177
Max Air Speed
High - Low (fpm)
Air Volume
High - Low (scfm)
Air Volume
High- Low (scfm)
441 - 329 559 - 417 618 - 780 712 - 459 1000 - 735
Weight (lbs)
22
26.4
28.6
34.1
50.6
Weight
(lbs)
24.2
29.7 33
38.5
52.8
Dimension (in)
24x7x8.5 36x7x8.5 40x7x8.5 48x7x8.5 71x7x8.5
Dimension (in)
24x7x8.5 36x7x8.5 40x7x8.5 48x7x8.5 71x7x8.5
World’s Leading Manufacturer of Specialty Doors
In our connuing eort to improve our products, some specicaons or descripons may change. We reserve the right to make such changes without noce or recourse.
www.chasedoors.com 800.543.4455
