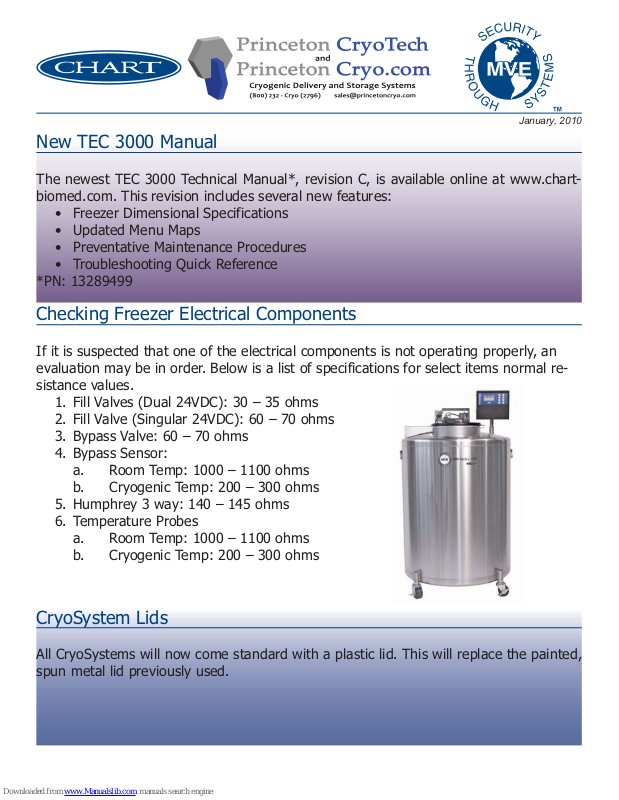

CHART TEC 3000 User Manual

Page 1

January, 2010

New TEC 3000 Manual

The newest TEC 3000 Technical Manual*, revision C, is available online at www.chartbiomed.com. This revision includes several new features:

• Freezer Dimensional Specifications

• Updated Menu Maps

• Preventative Maintenance Procedures

• Troubleshooting Quick Reference

*PN: 13289499

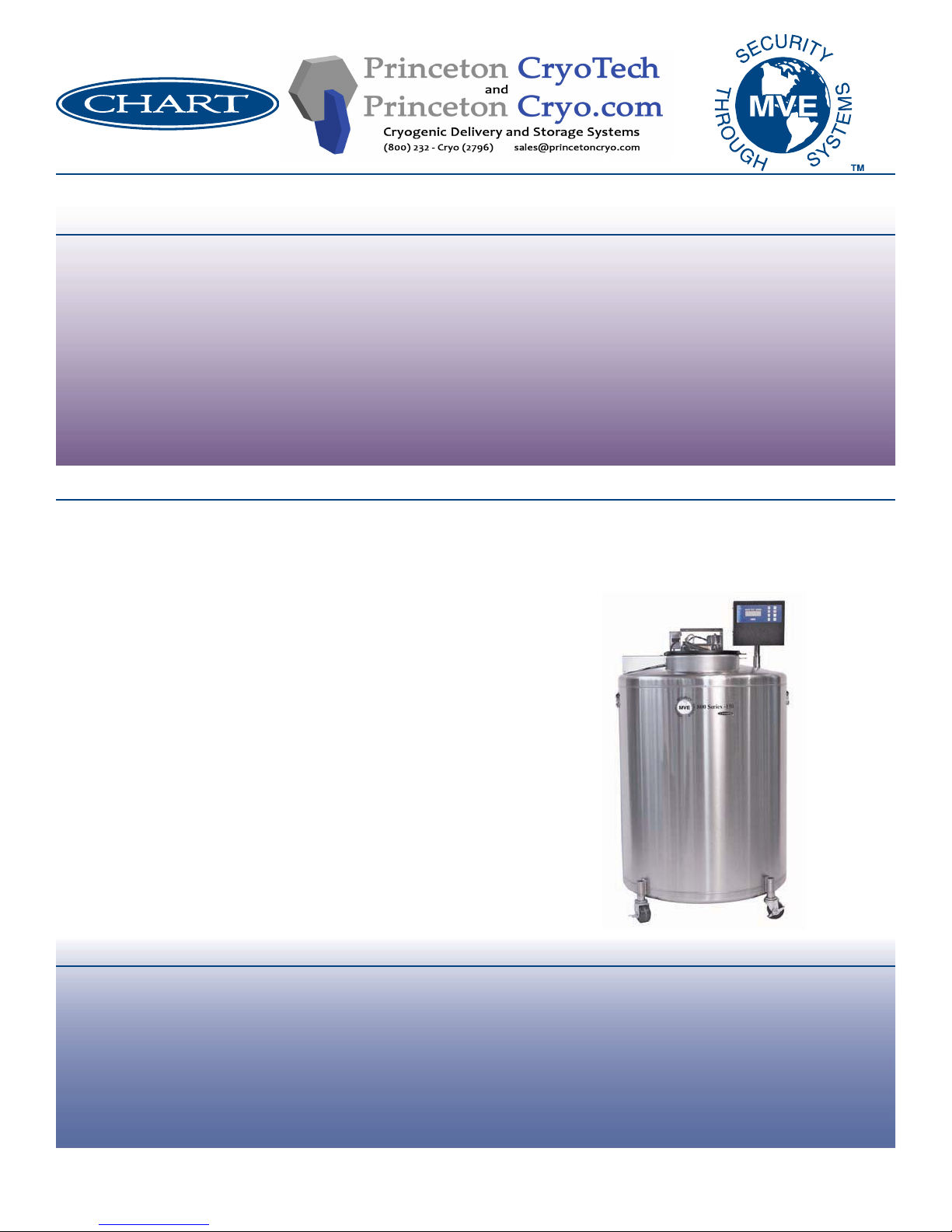

Checking Freezer Electrical Components

If it is suspected that one of the electrical components is not operating properly, an evaluation may be in order. Below is a list of specifications for select items normal resistance values.

1. Fill Valves (Dual 24VDC): 30 – 35 ohms

2. Fill Valve (Singular 24VDC): 60 – 70 ohms

3. BypassValve:60–70ohms

4. Bypass Sensor: a. Room Temp: 1000 – 1100 ohms b. Cryogenic Temp: 200 – 300 ohms

5. Humphrey 3 way: 140 – 145 ohms

6. Temperature Probes a. Room Temp: 1000 – 1100 ohms b. Cryogenic Temp: 200 – 300 ohms

CryoSystem Lids

All CryoSystems will now come standard with a plastic lid. This will replace the painted, spun metal lid previously used.

Page 2

New MVE Freezer Options

As of January 4, 2010, MVE freezer options are changing. Full auto freezers with the TEC 3000 controller wilOQRZ come equipped with+ot*as%ypassDVVWDQGDUG HTXLSPHQW. Batterybackup will be an optional accessory that will have to be added to a purchaseorder. Full auto freezers without hot gas bypass will no longer be available forpurchase. Part number changes and options are reflected in the 2010 BiologicalEquipment Price List (PN 10795610).

MVE Freezer Options

o Basic Freezer

- Manual fill freezer without plumbing or level and temperature monitoring

oFullAutoFreezerwithHotGasBypass

- Includes TEC 3000 controller, plumbing, and hot gas bypass

- Optional battery backup add-on

o MDD Freezer

- For European use only

- Complies with the European Medical Device Directive (MDD)

- Includes TEC 3000 controller, plumbing, hot gas bypass, and battery backup

The hot gas bypass feature allows the warm nitrogen gas in the supply line to be vented when a fill is initiated. This stops warm gas from entering the freezer storage space and helps maintain a stable temperature gradient w

hile increasing the efficiency by reducing unnecessary liquid nitrogen evaporation during fills. This feature will increase the efficiency of any supply system whether using liquid cylinders or a large bulk tank and vacuum insulated piping.

For specific part numbers, pricing, or questions, please contact your authorized MVE Distributor or Chart BioMedical Customer Service.
