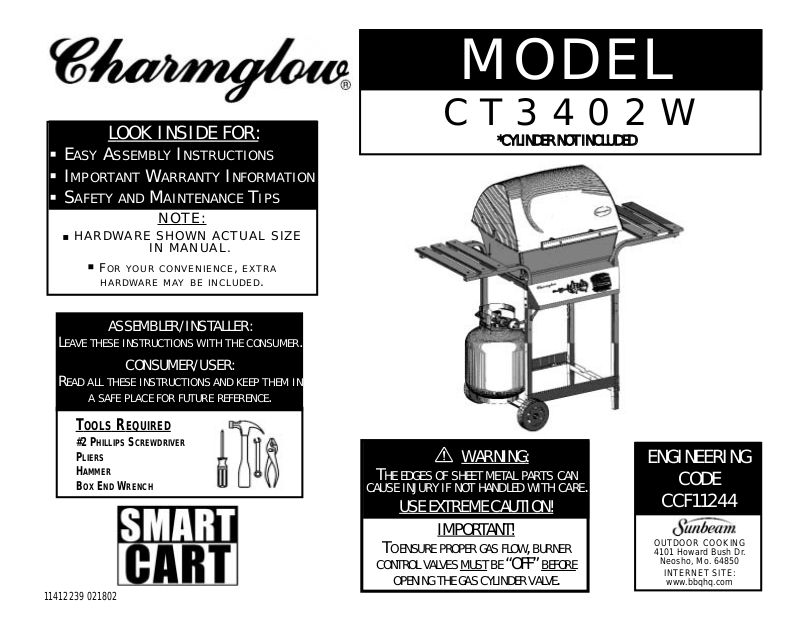

Charmglow CT3402W User Manual
ASSEMBLER/INSTALLER:
L
EAVE THESE INSTRUCTIONS WITH THE CONSUMER.
CONSUMER/USER:
R
EAD ALL THESE INSTRUCTIONS AND KEEP THEM IN
A SAFE PL ACE FOR FUTURE REFERENCE
.
11412239 021802
TOOLS REQUIRED
#2 PHILLIPS SCREWDRIVER
PLIERS
HAMMER
BOX END WRENCH
WARNING:
THE EDGES OF SHEET METAL PARTS CAN
CAUSE INJURY IF NOT HANDLED WITH CARE.
USE EXTREME CAUTION!
IMPORTANT!
TO ENSURE PROPER GAS FLOW,BURNER
CONTROL VALVES MUST
BE “OFF”BEFORE
OPENING THE GAS CYLINDER VALVE
.
LOOK INSIDE FOR:
EASY ASSEMBLY INSTRUCTIONS
IMPORTANT WARRANTY INFORMATION
SAFETY AND MAINTENANCE TIPS
NOTE:
HARDWARE SHOWN ACTUAL SIZE
IN MANUAL.
F
OR YOUR CONVENIENCE, EXTRA
HARDWARE MAY BE INCLUDED
.
OUTDOOR COOKING
4101 Howard Bush Dr.
Neosho, Mo. 64850
INTERNET SITE:
www.bbqhq.com
ENGINEERING
CODE
CCF11244
MODEL
CT3402W
*CYLINDERNOTINCLUDED
11412239 (Pg. 2)
(4) Qty
A
CK
CK
CK
CK
L
EFT
R
IGHT
BACK
FRONT
4
1
1
4
L
ABEL
4
1
B
ACK
LEFT
A1
WARNING:
Combustion by-products produced when using
this product contains chemicals known to the
State of California to cause cancer, birth defects,
or other reproductive harm.
CK
11412239 (Pg. 3)
3
17
16
3
B1
18
RIGHT
FRONT
B2
17
16
3
18
18
16
17
F
RONT
LEFT
B
TAP AXLE (3) INTO ONE HUB
CAP (17) WITH A HAMMER.
INSERT THE AXLE INTO THE BOTTOM
HOLES IN THE LEFT LEGS
.
11412239 (Pg. 4)
KR
JU
JU
JU
JU
(4) Qty
(2) Qty
BACK
42
C
C2
C1
42
49
B
ACK
KR
SOUP CAN NOT
INCLUDED
JU
11412239 (Pg. 5)
DD
DD
DD
DD
D
25
FRONT
JU
JU
27
25
D1
32
D2
NOTE VALVE AND HOSE
ORIENTATION
DD
DD
LEFT
(4) Qty
(2) Qty
11412239 (Pg. 6)
43
45
K
K
48
48a
E
45
48a
48
SPRING TAB
NOTCH
E1
48a
(2) Qty.
NOTE: THE SPRING TAB MUST BE ON TOP
AND SNAP INTO NOTCH ON ELECTRODE.
CORRECT SPRING POSITION
ELECTRODE TIP
11412239 (Pg. 7)
(2) Qty
(1) Qty
43
BACK
F
DZ
DZ
DZ
F2
UNDERNEATH VIEW
V
ENTURI
T
UBES
ORIFICE
SMALL
HEAT SHIELD
IMPORTANT: POSITION THE BURNER VENTURI TUBES
OVER THE VALVE ORIFICES.THE ORIFICES MUST BE
VISIBLE THROUGH THE VENTURI TUBE
’S AIR OPENINGS.
H
EAT SHIELD NOT
SHOWN FOR CLARITY
47
LB
L
EFT
F3
LARGE
HEAT SHIELD
47a
F1
NOTE: THE BURNER WILL HOLD
THE HEAT SHIELD IN PLACE.
11412239 (Pg. 8)
26
G
TEST THE IGNITER: A SPARK SHOULD APPEAR AT ELECTRODE TIP.
IF THE SPARK DOES NOT APPEAR:
- CHECK THE WIRE CONNECTION TO THE IGNITER.
-CHECK THE ELECTRODE INSTALLATION IN DETAIL E.
MAIN BURNER
ELECTRODE WIRE
THE ELECTRODE TIP IS LOCATED ON
THE BURNER ASSEMBLED IN THE
BOTTOM CASTING.
CK
CK
CK
CK
CK
CK
H1
9
9
9
B
ACK
R
IGHT
(12) Qty
14
14
H
BACK
RIGHT
REPEAT FOR LEFT SIDE TABLE
