ASSEMBLY INSTRUCTIONS
Description
Dimension
Cube Size : 44” X21.1” X11” NW: 36.3 LBS
GW: 41.8 LBS
COUNTER HEIGHT CHAIR WITH WOOD SEAT
- 1 -
: COUNTER HEIGHT CHAIR WITH WOOD SEAT
: W.19.68" x D.22.5" x H.42"
BEFORE ASSEMBLY
Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for
durability. Please take the time to read and follow the assembly instructions carefully.
Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment.
Please separate, identify, and count all parts and metal hardware. Compare with part list to be sure all parts are present.
If hardware is missing or you have difficulty assembling this product, please call for us.
IMPORTANT NOTE:
- Place all wooden parts on a clean and smooth surface such as a rug or carpet to avoid the parts from being
scratched.
- Remove all wrapping material, including staples & packing straps before you start to assemble.
- DO NOT tighten all screws and bolts until completely assembled.
- Keep all hardware parts out of reach of children.
PART LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have the following parts:
NO
Description
Qty
Sketch
NO
Description
Qty
Sketch
A
Chair back
1
B
Seat Frame
1
C-R
Front Leg
1
D-R
Side stretcher
1
C-L
1
D-L
1
E
Front stretcher
1
ASSEMBLY TOOLS REQUIRED
NOT INCLUDED
COUNTER HEIGHT CHAIR WITH WOOD SEAT
- 2 -

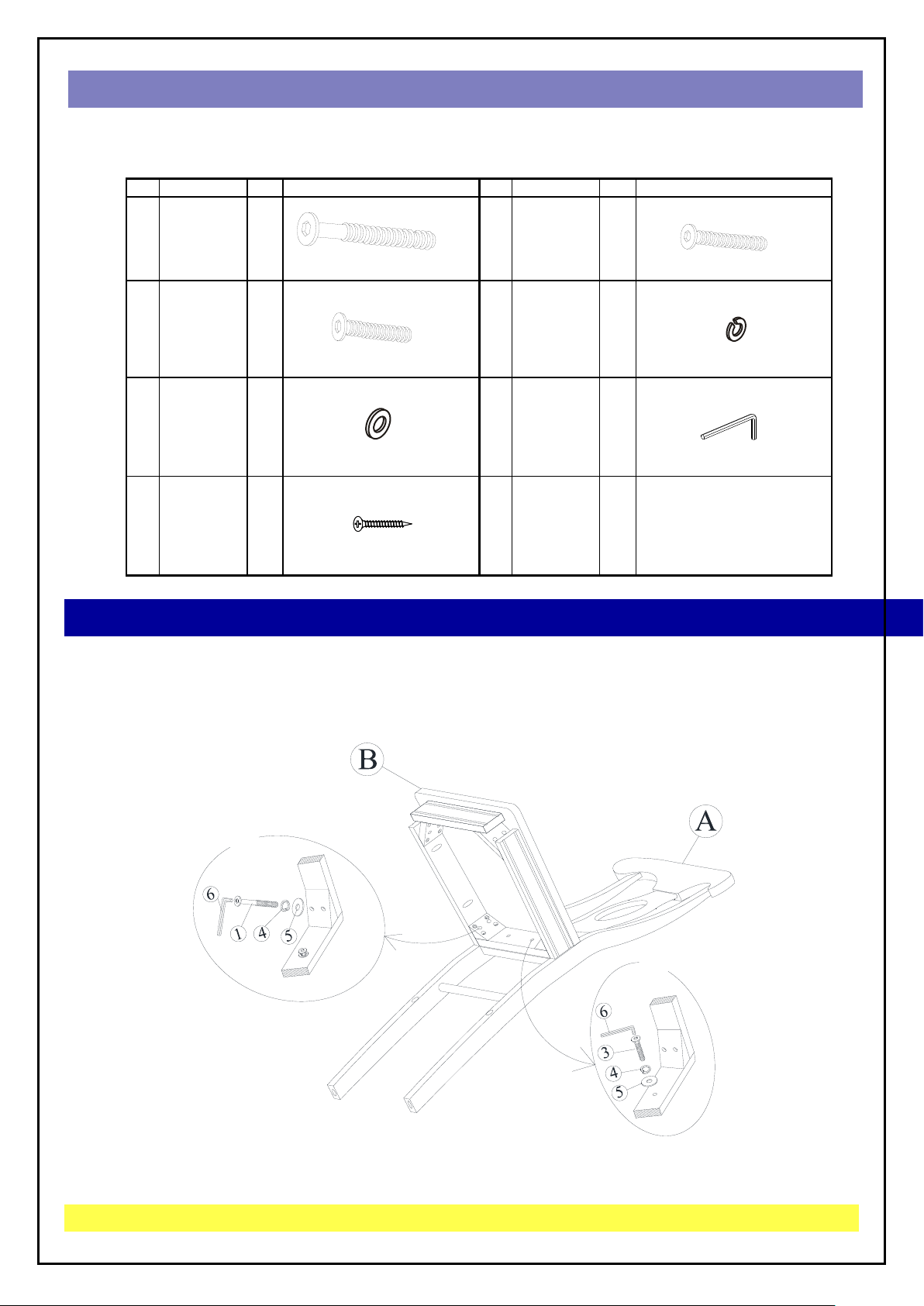

HARDWARE LIST
When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you
have all of the following hardware:
.
NO
Description
Qty
Sketch
NO
Description
Qty
Sketch
1
Long bolt
(M6x80mm)
4
2
Medium
bolt
(M6x60mm)
4
3
Short bolt
(M6x40mm)
2
4
Lock
Washer
(Ф6.5x9)
10
5
Flat Washer
(Ф6.5x19)
10
6
Allen Key
(4mm)
1
7
Screw
(M4x40mm)
6
STEP 1
Attach frame (B) to the back (A) by using bolts (3) and (1) and washers (4) and (5). Tighten with Allen
Key (6).
Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to
make sure the chair is level and then tighten the bolts.
X4
X2
COUNTER HEIGHT CHAIR WITH WOOD SEAT
- 3 -

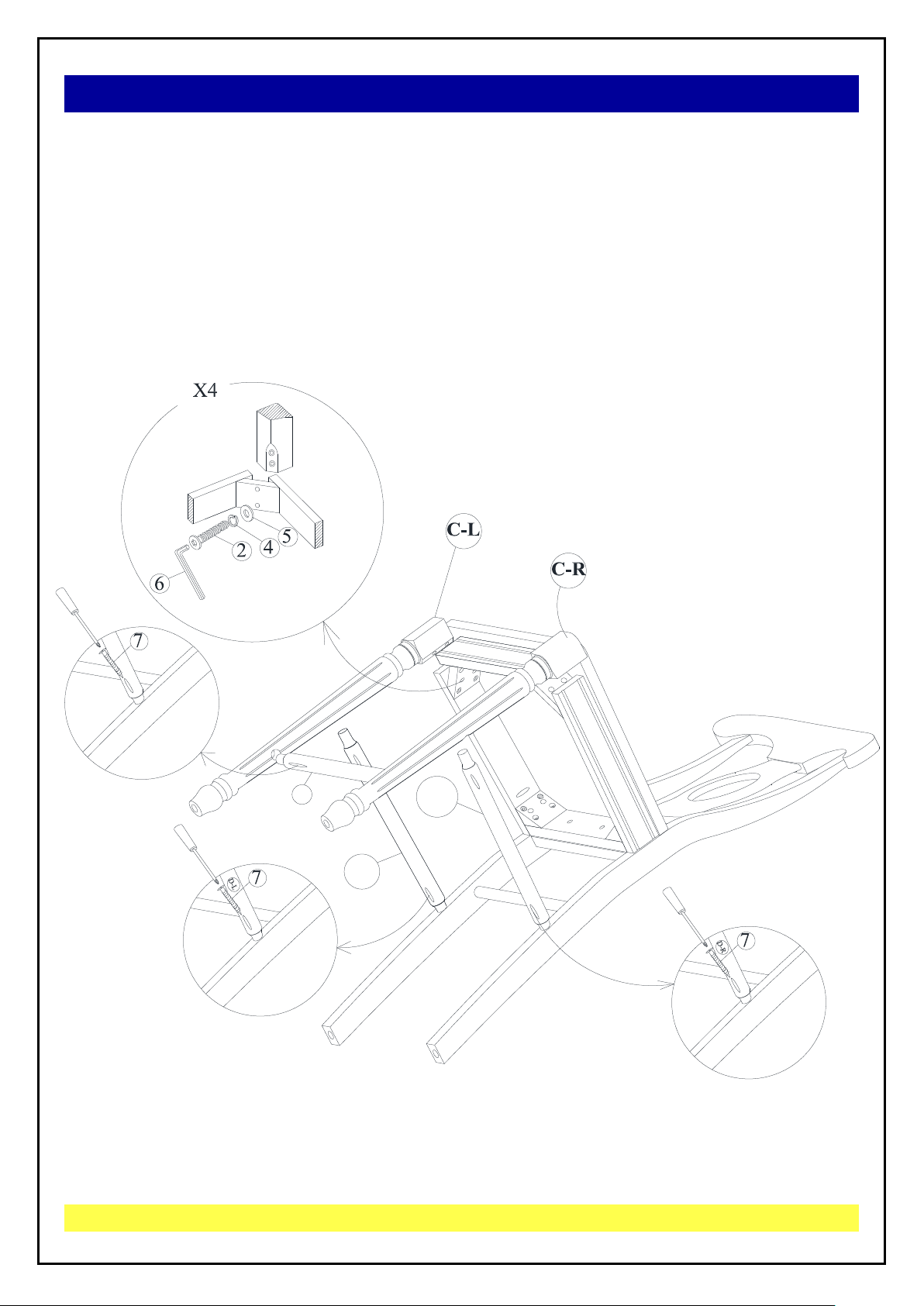

STEP 2
Attach front legs (C-L) and (C-R) to the seat frame. Use bolts (2), washers (4) and (5) .Tighten with Allen
Key (6).
Place front stretcher (E), side stretchers (D-L) and (D-R) between front and back legs, use the screw
driver to tighten the screws (7) as shown below.
Note: DO NOT tighten any of the bolts, until Place front stretcher (E), side stretchers (D-L) and (D-R)
between front and back legs the chair is assembled, then tighten the bolts and the screws.
.
D-R
E
D-L
COUNTER HEIGHT CHAIR WITH WOOD SEAT
- 4 -
