ASSEMBLING &INSTALLATION INSTRUCTIONS PRODUCT
For Chain Hang OR Ceiling Mount
WARNING! SHUT POWER OFF AT FUSE OR CIRCUIT BREAKER .

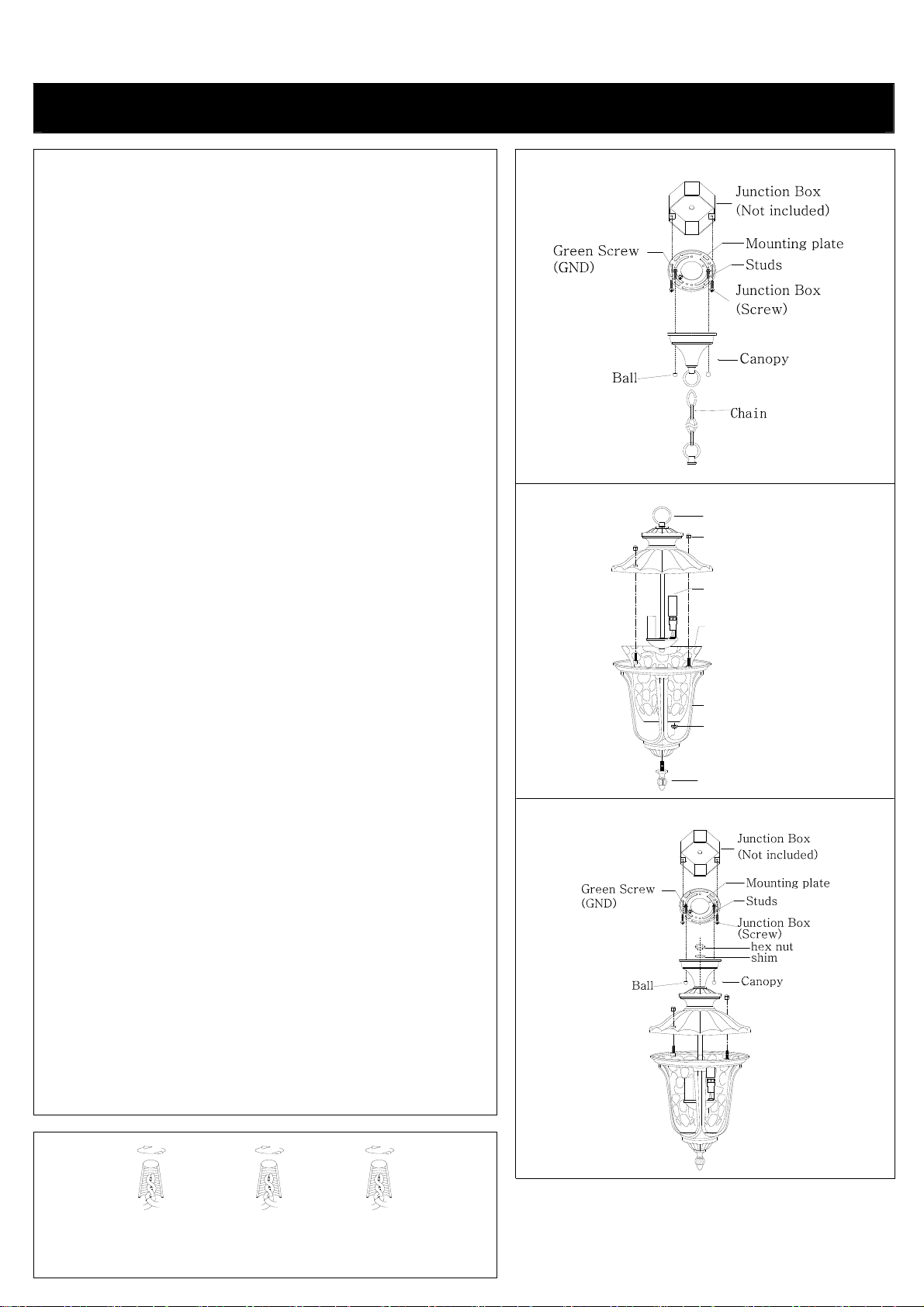

ASSEMBLING THE FIXTURE (Fig.2).
1. Put the candle sleeve(C) over the lamp holder.
2. Install the light bulbs in accordance with the fixture specifications
NOTE: DO NOT EXCEED THE SPECIFIED WATTAGE!
3. Raise the finial(F) to the bottom hole of glass frame(D) and lock it
securely with the hex nut(E) until tight. Attached glass shade into
the glass frame(D). Attached glass frame(D) to bottom of lamp
body(A), lock it securely with the hex nut(B).
HANGING THE FIXTURE (Fig.1)
1. Shut off the power at the circuit breaker and remove old fixture
from ceiling, including the old single bar.
2. Carefully unpack new fixture and lay all the parts on a clear
surface.
3. Thread the two studs into the pre-drilled holes in the Mounting
plate spaced the same distance apart as the holes in the
canopy .Attach the Mounting plate to the Junction Box with the
two Junction Box Screws as shown. The side of the Mounting
plate marked "GND" must face to out. The junction box is not
included.
4. Using proper chain pliers to open one end link of the chain
provided and connect to the fixture loop. Close the link.
5. By measuring, determine correct number of links needed for
proper hanging height. Using proper chain pliers disconnect and
discard remaining chain.
6. Lace the fixture wires through the chain.
7. Open the other end link of the chain and hang the fixture on the
loop at the ceiling. Close the link.
8. Feed the fixture wires through the loop of the canopy and pull until
taut.
9. Slide canopy up flush to ceiling, lock it securely with ball nut.
**If you not need assembly the fixture loop , please pause
and refer to Fig 4.**
1. Take out the bottom loop of the canopy, then take the canopy to the
fixture body, lock it with the shim and hex nut until tight.
2. Attach the fixture body to the ceiling, lock it securely with the ball
nut.
CONNECTING THE WIRES (Fig.3)
1. Take the black wire from the ceiling junction box and the smooth
wire leg from the fixture and twist bare ends together. Twist wire
connector onto end of wire until snug.
2. Repeat same process with white junction box wire and ribbed wire
leg of fixture wire. NOTE: Twist wires together in the same
direction you twist the wire connector onto wires.
3. If your junction box has a grounding wire (green or bare copper),
attach this wire and the bare copper wire from the fixture together
as step 1.If junction box has no ground wire, attach the bare copper
fixture wire to the green ground screw on the single bar.
4. Tuck these wire connections neatly into the ceiling outlet box and
then raise the canopy all the way to the ceiling. Lock it securely
with ball nut.
Your installation is now complete. Return power to the junction
box and test the fixture.
Fig.3
FIXTURE
WIRES
Black or
Smooth
HOUSE
WIRES
Black
(Hot)
FIXTURE
WIRES
White or
Ribbed
HOUSE
WIRES
White
(Neutral)
FIXTURE
WIRES
Bare
Copper
(Ground)
HOUSE
WIRES
Green or
Bare Copper(Ground)
Fig.1
Fig.2
A
B
C
Glass
Shade
D
E
Fig.4
F
