Ingredient Scale
R210
User’s Manual
www.charder.com
Please read this manual carefully before operating your set and retain it for future reference.
R210 Series
1 IN-00021 [REV001] 201709
CONTENTS
CONTENTS ......................................................................................................................... 1
INTRODUCTION ................................................................................................................. 2
Safety Precautions .................................................................................................................. 2
INSTALLATION .................................................................................................................... 2
Package Contents ................................................................................................................... 2
Parts Description .................................................................................................................... 3
Selecting the Location ............................................................................................................ 3
Power ..................................................................................................................................... 3
Battery Power......................................................................................................................... 3
OPERATION ........................................................................................................................ 3
Keypad and display description............................................................................................... 3
Status indicators ..................................................................................................................... 4
Turning Scale On/Off .............................................................................................................. 4
Zero Operation & Setting ........................................................................................................ 4
Changing Units of Measure ..................................................................................................... 4
SETTINGS ........................................................................................................................... 4
MAINTENANCE .................................................................................................................. 4
Cleaning ................................................................................................................................. 4
Troubleshooting ..................................................................................................................... 5
Service Information ................................................................................................................ 5
TECHNICAL DATA ................................................................................................................ 5
Specifications ......................................................................................................................... 5
Compliance ............................................................................................................................ 6
Disposal .................................................................................................................................. 6
ERROR AND STATUS MESSAGE........................................................................................... 6
Error Message ........................................................................................................................ 6
WARRANTY ........................................................................................................................ 6
R210 Series
2 IN-1458 [17002A] 201707
INTRODUCTION
This manual provides detailed instructions for the installation work, operation and maintenance instructions of the
CHARDER R210 Scale, please read this manual completely before installing and operating scale.
Safety Precautions
Please follow these safety precautions:
• Verify AC Adapter input voltage matches the local AC power supply.
• Do not insert liquids or foreign object.
• Do not operate the scale in hostile environments.
• Do not drop loads or leave permanent load on the platform. This may damage the measuring system.
• Do not place the scale upside down on the pan.
• Do not open the scale. Never attempt to make repairs yourself because this could be dangerous. The warranty is
void if this stipulation is ignored. The scale may only be opened by authorized personnel.
• Always disconnect the device from the power supply before installing, servicing, cleaning or performing
maintenance.
• Check the power cable regularly for damage. If it is damaged, immediately disconnect the device from the power
supply.
INSTALLATION
Package Contents
• R210 Scale
• AC Power Adapter
• User’s Manual
R210 Scale
AC Power Adaptor
User’s Manual
R210 Series
3 IN-00021 [REV001] 201709

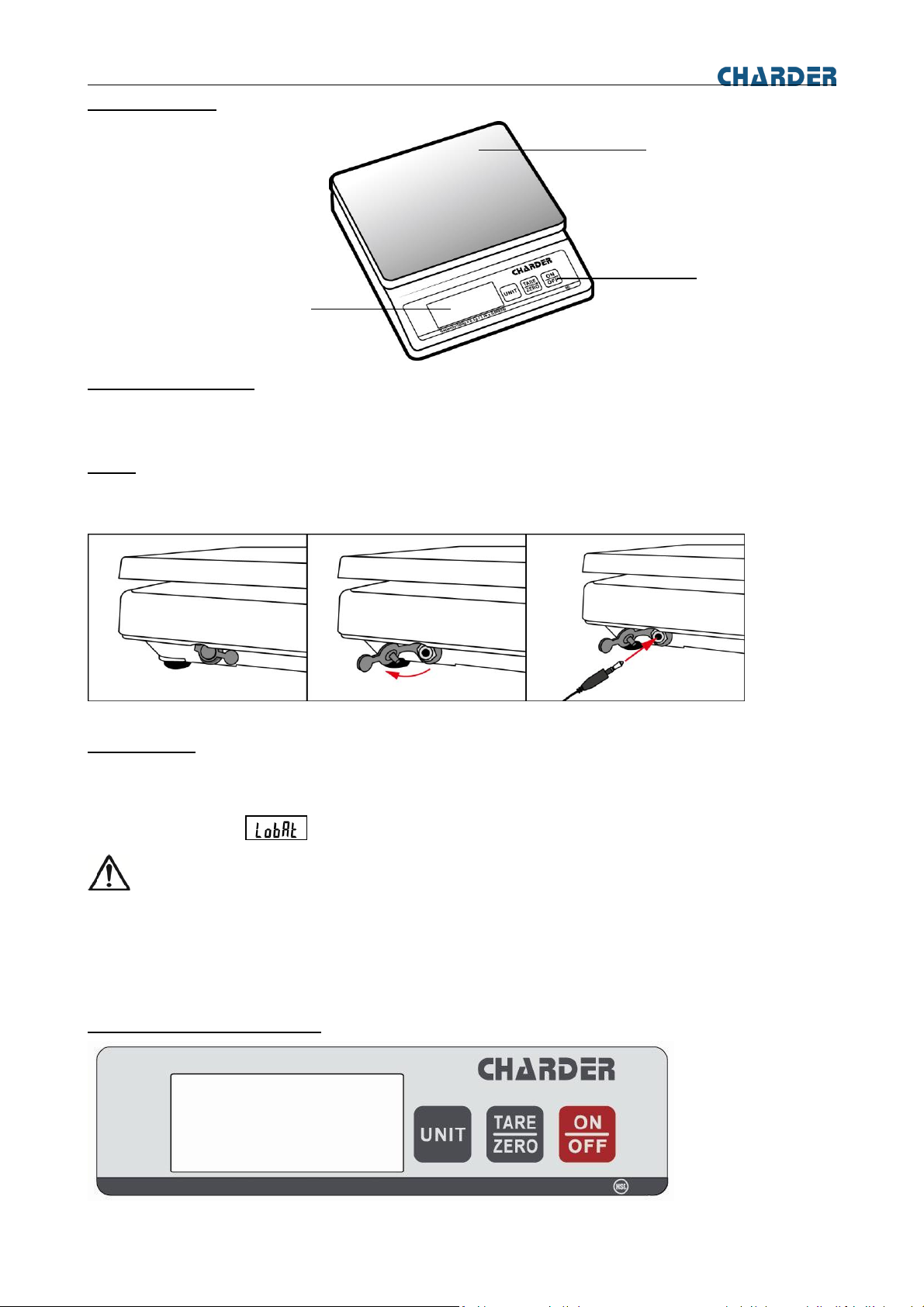

Parts Description
Selecting the Location
Select a firm, vibration-free and horizontal location for the scale. Avoid locations with direct sunlight, excessive air
current, heat sources, or rapid temperature fluctuations.
Power
Connect the AC Adaptor to the AC mains supply. Connect the plug to the AC jack on the bottom of the scale as shown
in the illustration below. The power outlet should be close to the scale and easily accessible.
Battery Power
The scale will automatically switch to battery operation if there is a power failure or the power cord is removed to
provide uninterrupted scale operation.
Note: When low battery
is displayed, the scale will shut off after 30 seconds.
CAUTION:
Risk of explosion can occur if replaced with the wrong type or connected improperly.
Do not disassemble, repair or otherwise manipulate the battery socket.
Obey the local laws and regulations on disposing the battery.
OPERATION
Keypad and display description
Stainless Steel Pan
LCD Display
Key Pad
R210 Series
4 IN-00021 [REV001] 201709

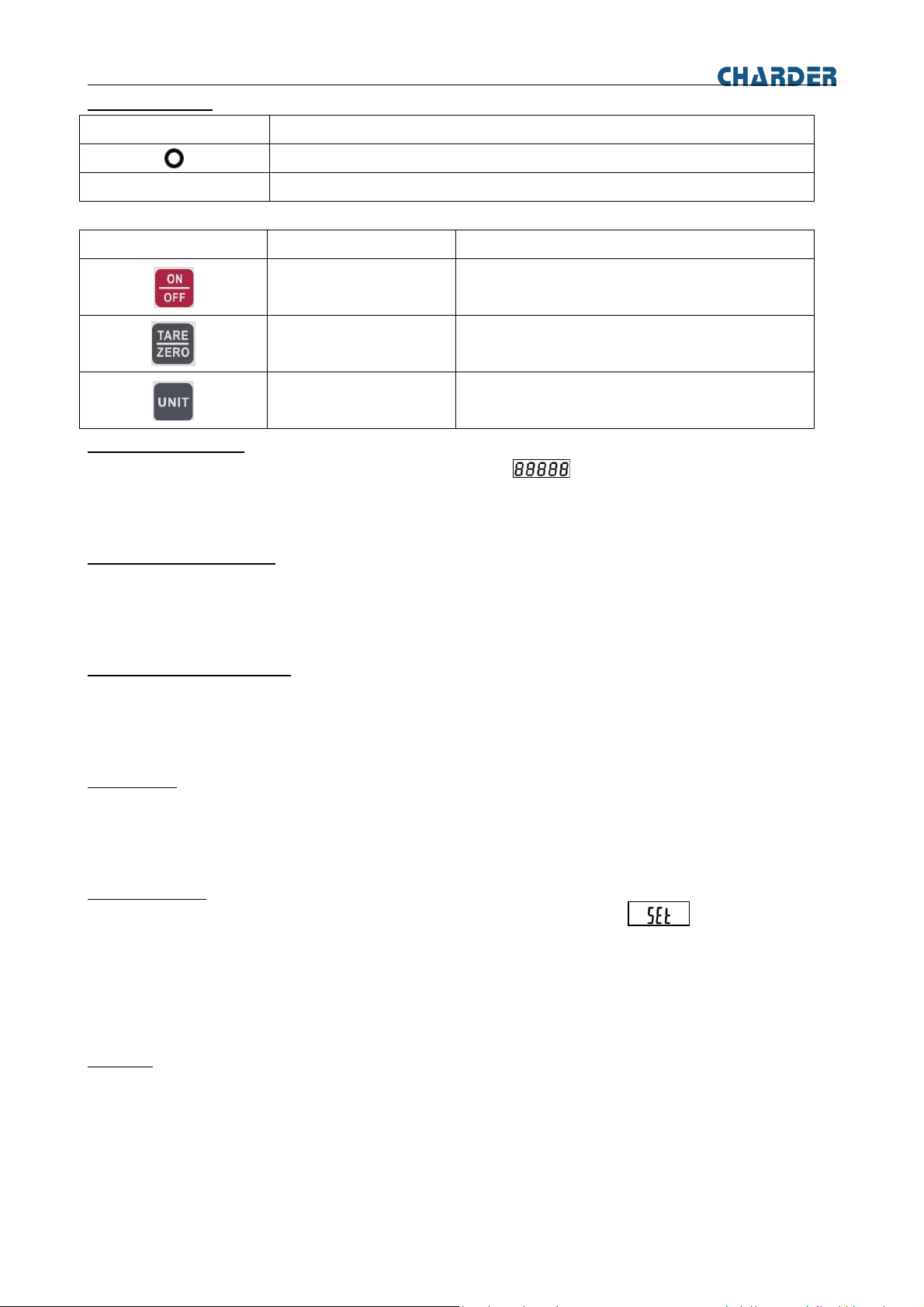

Status indicators
ICON
Description
Stability display
g / lb / oz / lb:oz /
Currently chosen weight unit
KEY
DESCRIPTION
FUNCTION
ON/OFF Switch
-Turn on and off display
Tare / Zero
-Tarring
Unit Switch
-Change the weighing units to alternate units of
measurement
Turning Scale On/Off
To turn the scale on, press the [ON/OFF] button. Scale will display and then enters the active weighing
mode.
To turn the scale off, press the [ON/OFF] button.
Zero Operation & Setting
When power on the scale and if the weight on the scale is within the initial zero tolerance, the scale will display zero
automatically.
Although there is nothing on the pan and the display is not zero, press [TARE/ZERO] button to set zero to the scale.
Changing Units of Measure
In weighing mode, use [UNIT] to display the next available measuring unit. Repeat process to scroll through all units.
SETTINGS
Tare Setting
Place an empty container on the scale and press [TARE/ZERO]. The display will show a net value of “0”.
To clear the Tare value, press [TARE/ZERO] with the pan empty.
Auto off Setting
Press [ON/OFF] and hold [TARE/ZERO] button for 3 seconds until the display show
And the display will show A_OFF, press [TARE/ZERO] to enter auto off setting and press [UNIT] to select auto turn off
time or off this function. And press [TARE/ZERO] and press [UNIT] to see End to confirm setting.
MAINTENANCE
Cleaning
Before cleaning, disconnect the power plug from power outlet and remove batteries from the appliance to power off
the unit.
• Clean with a damp cloth and a mild soap or similar agents if necessary, and buffed dry with.
• Do not use any acids, alkalis or strong active solvents to clean the housing or control panels.
R210 Series
5 IN-00021 [REV001] 201709
Troubleshooting
SYMPTOM
POSSIBLE CAUSE
REMEDY
Scale will not turn on
Battery discharged
Check the battery or adapter
Power cord not plugged in properly
Check power cord connection and
plugged in properly into the power
outlet.
Other failure
Have the scale serviced by Charder
authorized service center.
Poor accuracy
Unstable environment
Move the scale to suitable location,
refer to the manual Selecting the
Location.
Improper calibration
Perform calibration.
Service Information
If the troubleshooting section above does not resolve or describe your issue, contact your authorized Charder service
agent for further assistance or Charder Customer Support at +886-4-2406-3766 or email to info_cec@chrder.com.tw
TECHNICAL DATA
Specifications
MODEL
R210
Capacity
0.5 kg / 1 lb
2.5 kg / 5 lb
5 kg / 10 lb
Graduation
0.1 g / 0.0002 lb
0.5 g / 0.001 lb
1 g / 0.002 lb
Power Requirements
100 V - 240 V DC 15V / 0.3A AC adapter
9V battery
Weighing Units
lb:oz, oz, g, lb
Display
0.5 in LCD
5-digit 7-Segment, Character height 20 mm/0.79 in
Key Function
3 Keys
On / Off, Tare / ZERO, UNIT
Operating
Temperature and
Humidity
5°C to 35° C / 41°F to 95°F
15% - 85% RH
Application Mode
Weighing
Construction
304 Stainless Steel housing and platform, ABS plastic bottom
Platform size
150 x 120 mm / 6 x 4.7 in
Assembled
Dimensions
150 x 170 x 40 mm / 6 x 6.7 x 1.57 in
Weight
0.62 kg / 1.37 lb
R210 Series
6 IN-00021 [REV001] 201709
Compliance
The R210 is certified by NSF to comply with NSF/ANSI 169–2009. This certificate ensures that your R210
scale has been tested for food(sanitation) safety.
Disposal
In conformance with the European Directive 2002/96 EC on Waste Electrical and Electronic Equipment
(WEEE), this device may not be disposed of with domestic waste. This also applies to countries outside
the EU, according to their specific requirements.
Please dispose of this product in accordance with local regulations at the collecting point specified for
electrical and electronic equipment. For more detailed information about recycling this product, please
contact the local distributor from which you purchased this device.

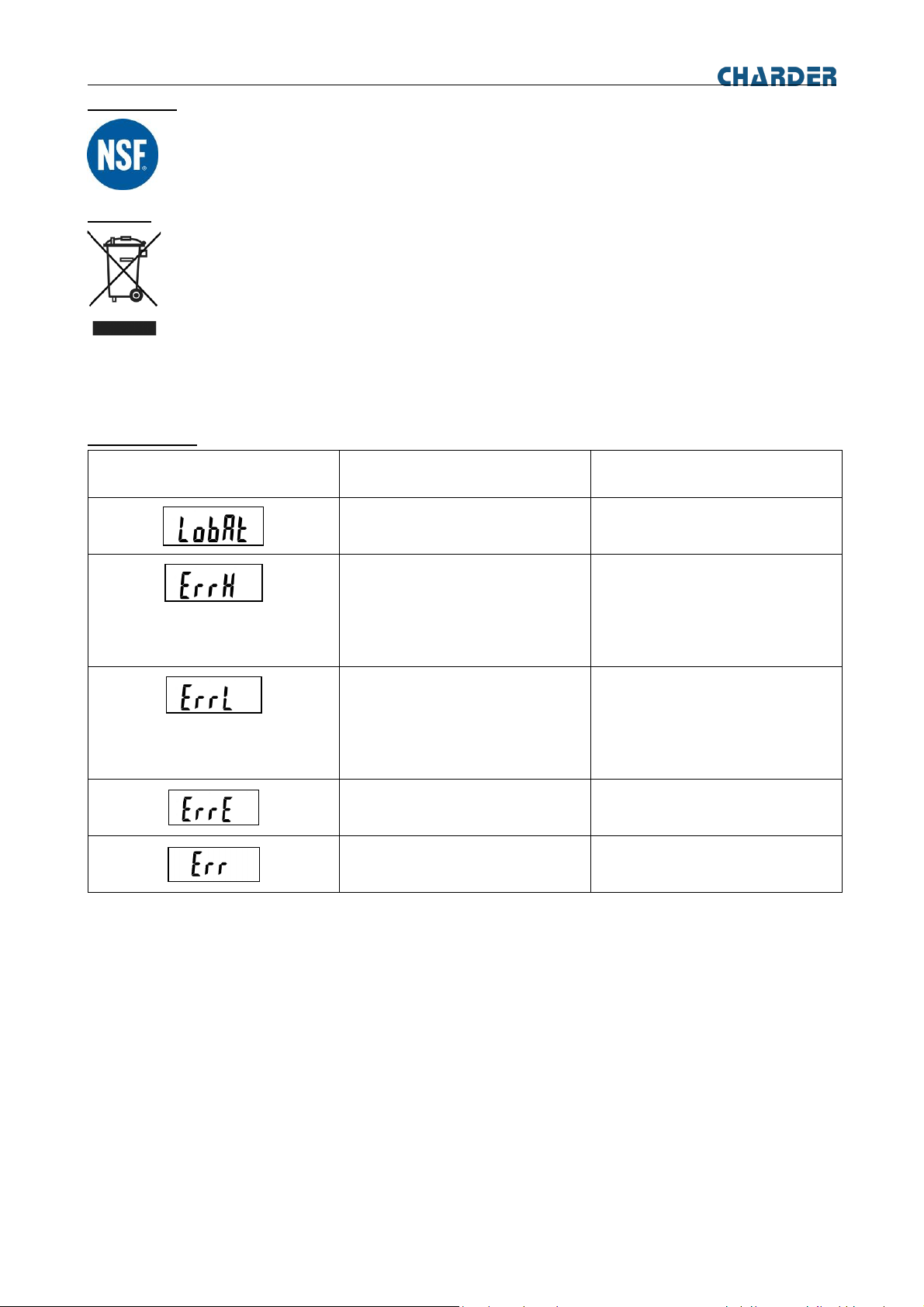

ERROR AND STATUS MESSAGE
Error Message
ERROR MESSAGE
DESCRIPTION
REMEDY
Low battery indication
Replace the battery.
Counting value is higher than the
high limit value
The scale has detected a failure with
load cell or wiring. Have the scale
serviced by Charder authorized
service center.
Counting value is lower higher than
the low limit value
The scale has detected a problem
with load cell or wiring. Have the
scale serviced by Charder authorized
service center.
Fail to write EEPROM
Have the scale serviced by Charder
authorized service center.
Overload
Remove excess weight and use scale
within its limits.
WARRANTY
Charder scales are warranted against defects in material and workmanship for a period of 1(one) year from the date
of purchase. Please retain your receipt as proof of purchase. Warranty expiration on products returned without proof
of purchase will be determined from the manufacturing date code or the date of shipment to the authorized dealer.
Coverage may be invalidated as this date is previous to purchase date. No other express or implied warranty is given
by Charder
Freight damage on returns is not covered under warranty.
This warranty does not apply for following reasons, the product has been damaged by accident or misuse, parts and
products of a consumable nature, exposed to radioactive or corrosive materials, has foreign material penetrating to
the inside of the product, or as a result of service or modification by other than Charder.
R210 Series
7 IN-00021 [REV001] 201709
Charder Electronic Co., Ltd.
No.103, Guozhong Rd.,
Dali Dist., Taichung City
41262 Taiwan (R.O.C.)
Tel: +886-4-2406 3766
Fax: +886-4-2406 5612
http://www.charder.com
