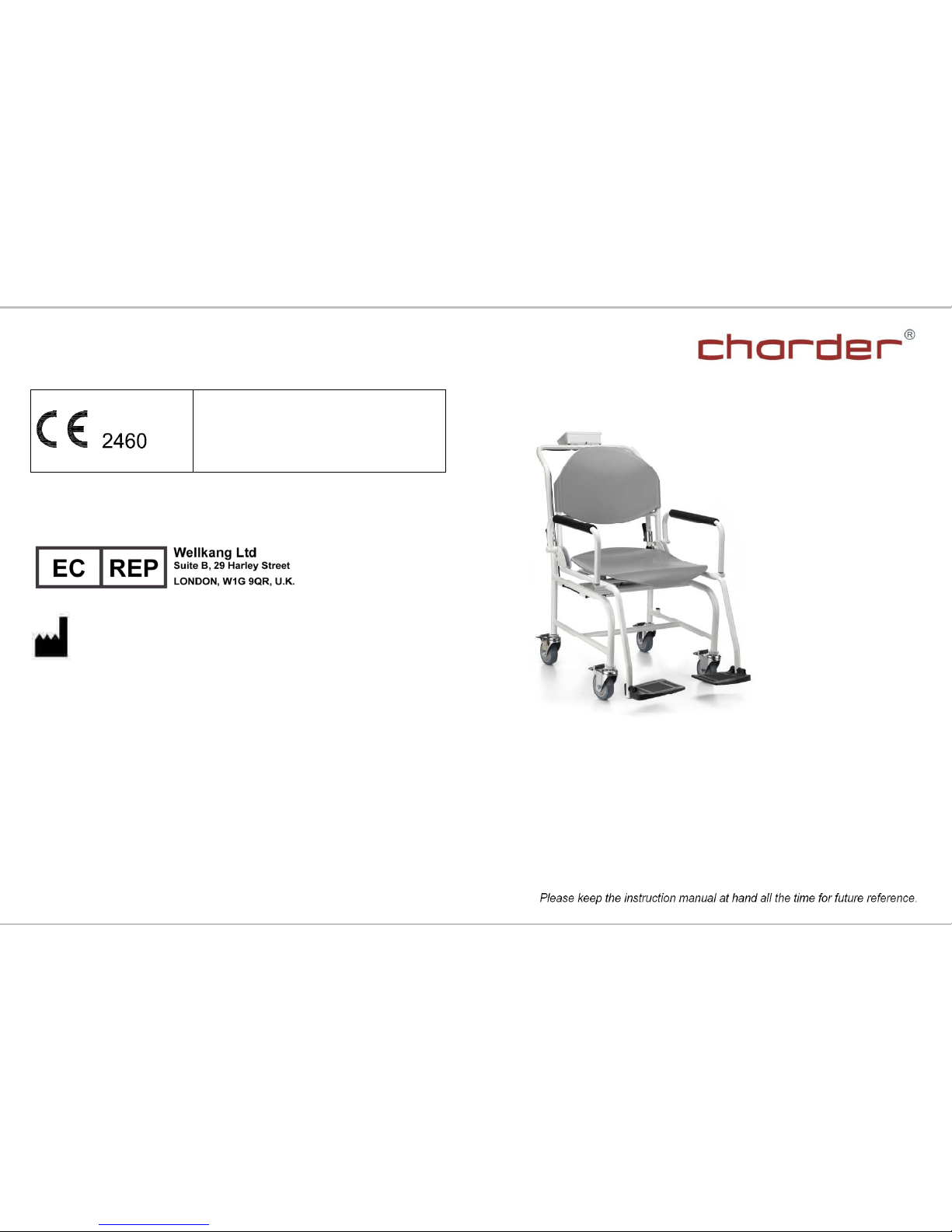

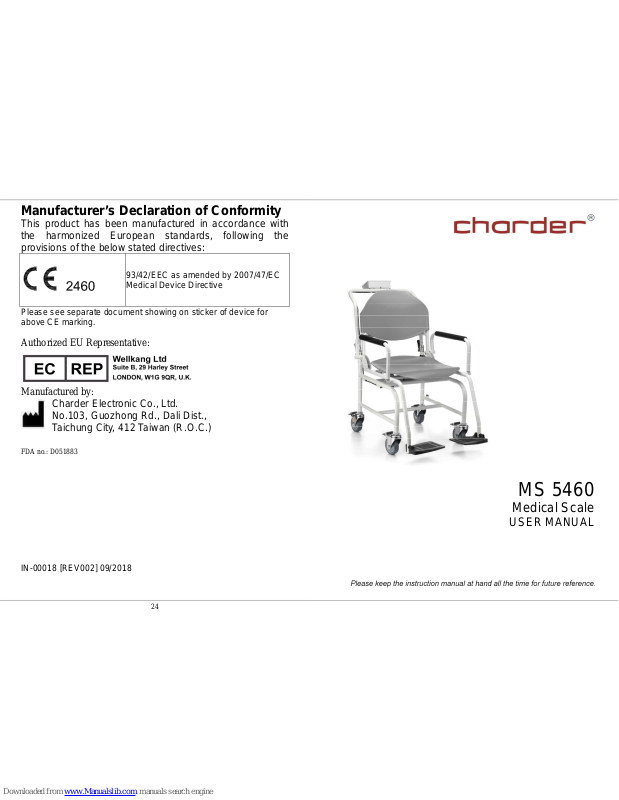

Manufacturer’s Declaration of Conformity
This product has been manufactured in accordance with
the harmonized European standards, following the
provisions of the below stated directives:
93/42/EEC as amended by 2007/47/EC
Medical Device Directive
Please see separate document showing on sticker of device for
above CE marking.
Authorized EU Representative:
Manufactured by:
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City, 412 Taiwan (R.O.C.)
FDA no.: D051883
IN-00018 [REV002] 09/2018
MS 5460
Medical Scale
USER MANUAL
Page 2
2
TABLE OF CONTENTS
PREFACE............................................................................................................................3
INTENDED USE................................................................................................................. 3
SAFETY INSTRUCTION................................................................................................... 3
CLEANING.........................................................................................................................4
MAINTENANCE ................................................................................................................ 5
WARRANTY-LIABILITY ..................................................................................................5
DISPOSING OF THE SCALE ............................................................................................5
SPECIFICATION ................................................................................................................6
PANEL.................................................................................................................................7
LCD DISPLAY SYMBOLS ................................................................................................8
SYMBOLS INFORMATION..............................................................................................8
OPERATION ....................................................................................................................... 9
SETTING...........................................................................................................................13
PRINT FUNCTION AND DATA TRANSMISSION........................................................ 14
INSTRUCTION FOR CHARGING AND USB CONNECTING .....................................18
INSTRUCTION FOR REPLACING BATTERIES...........................................................19
ERROR MESSAGE...........................................................................................................20
TROUBLESHOOTING.....................................................................................................21
23
NOTE
Page 3
22
indication
Incorrect position or other external objects within weighing area
The weighing-scale is not put in a solid & firm ground area, such
as carpet floor or lawn.
3. Connection failure for data transmission to PC or printer
Wrong connection wires or faulty wires for transmission between
the digital indicator & load cells.
Wrong indicator models
Wrong internal wiring or wire broken
In case of the following defective mode occurs, it is suggested to contact
your nearest Authorized Dealer for further technician service & repair:
1. POWER switch-on failure :
Push-button faulty
Short circuit wires - Wire broken
Safety fuse burnt out
Wire connection problem
Main power adaptor faulty – Parts Replacement
2. LCD display faulty
Possible hardware defects include: Uneven brightness in the LCD
display screen & texts color blurred, smeared rainbow screen,
incorrect decimal display
LCD PIN broken or short circuit
PCB cooper foil broken & loosed welding
Unable to save or read data – IC or transistor faulty, internal parts
broken.
LCD showing “ERRL” after switch on - Load cell damaged
Overload may cause the weigh to malfunction.
Software system crash
Resonator faulty
Load cells with faulty grinding standard.
Key buttons failure - Front key panel damaged or disconnected
3. Buzzer malfunction
Wrong welding of PVC wire
Key buttons & control panel damaged or disconnected.
3
PREFACE
Thank you for choosing CHARDER MEDICAL product. All features of this product
were designed to state of the art and are optimized for simple and straightforward
use. If you have any query or experience any problem not addressed in the
operating instructions, please contact your CHARDER MEDICAL service partner,
or visit us on the Internet at www.chardermedical.com
INTENDED USE
This scale is used to determine weight of patients who is supported by professional
personnel in rooms intended for carrying out medical care. The scale is intended to
diagnose, prevent and monitor diseases.
The weighing value can be read off after a stable weighing value has been
obtained.
Before any use, the scale must be checked for correct condition by the authorized
person.
SAFETY INSTRUCTION
Before putting the device into use, please read with care the information
given in the Operating Instructions. They contain important instructions
for installation, proper use and maintenance of the device.
The manufacturer shall not be liable for damages arising out of failure to heed the
following instructions:
These batteries should be kept away from small children. If swallowed,
promptly seek medical assistance.
Expected Service Life: 5 years
When using electrical components under increased safety requirements,
always comply with the appropriate regulations.
Improper installation will render the warranty null and void.
Ensure the voltage marked on the power supply unit matches your main
power supply.
This device is designed for use indoors.
Observe the permissible ambient temperatures for use
Ensure that the patient does not lean against the device risk of falling
The device meets the requirements for electromagnetic compatibility. Do not
exceed the maximum values specified in the applicable standards.
If you have any question, contact your local CHARDER MEDICAL
service partner.
Below symbols are used in this manual for user’s attention to prevent
misunderstanding to the product, potential damages to the product, and potential
dangers could happen to users by misusing the products.
Page 4
4
Note!
Definition: Pointing out possible problems to the user, or contents that may
confuse users and need to be clarified.
Caution!
Definition: Advice for the user to prevent damage to the product.
Warning!
Definition: Warnings for the user to prevent personal injury.
Without following these instructions may result in physical injury, damage to
the product or damage to the environment!

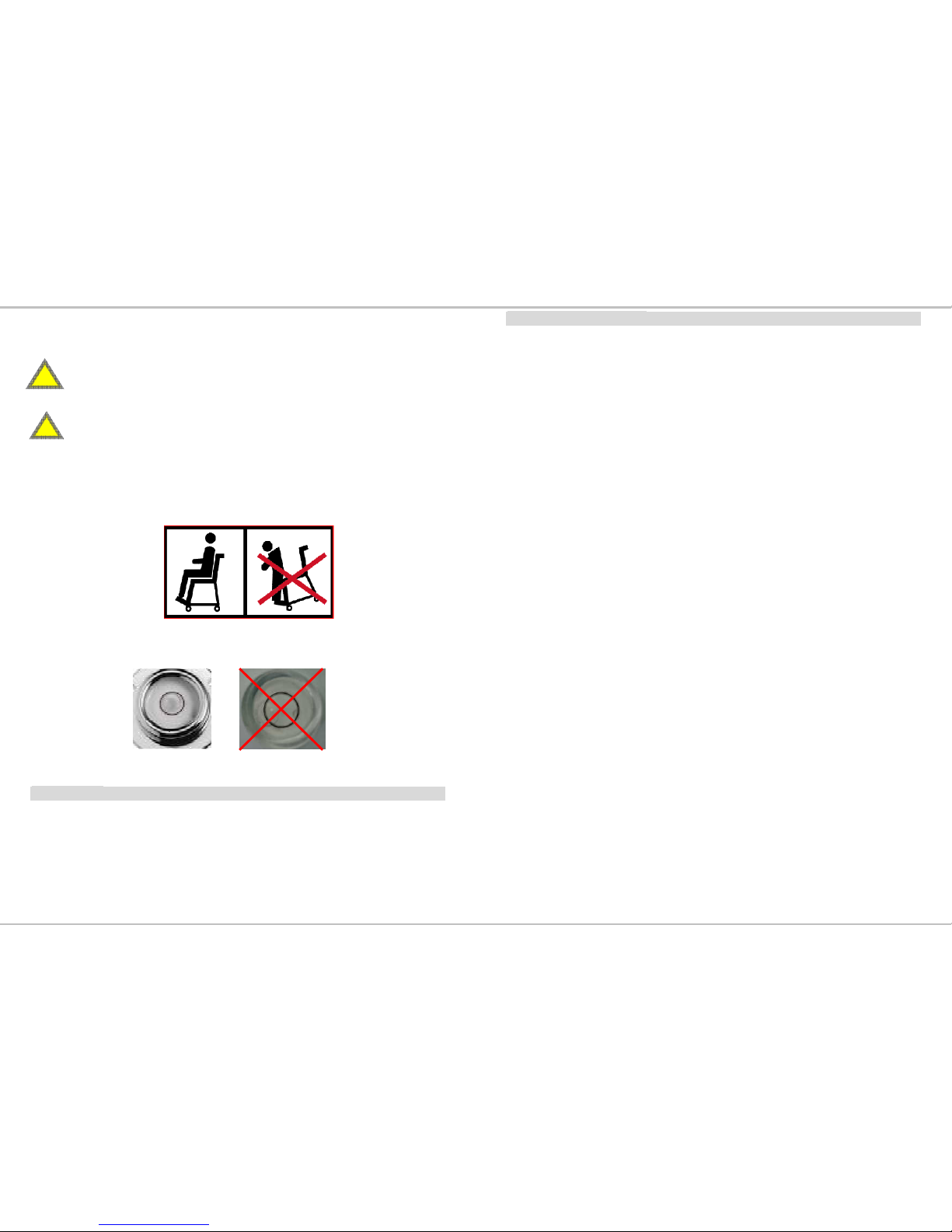

Please be noted that the footrest pedal is not designed for standing on as it is
only used for placing the feet on when weighing. Unsafe acts may cause
incidents.
Please be aware of the leveling before weighing.
The air bubble of the water balance should be in the middle of leveling.
CLEANING
We would recommend using alcohol based wipes or similar when cleaning the
scales.
Please do not use large amounts of water when cleaning the scales as this will
cause damage to the scales electronics, you should also refrain from using
corrosive liquids or high pressure washers.
Always disconnect the scales from the mains power supply before cleaning.
!
!
21
TROUBLESHOOTING
Troubleshooting for defective modes:
Original purchaser can enjoy the benefits under the effective Warranty
against functional defects in material and workmanship subject to the
terms and conditions listed in the yearly Warranty Program & Return
Policy.
Our warranty service program includes the following:
1. Technician repair service under warranty or at a service
maintenance charge depending on the workmanship for the
defective functionality or cause of damage covered by the
warranty.
2. Parts replacement from the manufacturing factory under the
warranty or at a certain cost for the replaced parts plus the
workmanship charge if not covered under the warranty.
Before you contact our Authorized Dealer in your country for technician
repair service, please read through the following section carefully:
Self-checking Tips:
Some functional defects can be identified and maintained by
users as listed below:
1. Power-on failure
Check if the main power adaptor has not plugged onto the scale
properly
Check if the battery power is running low - Replace with new
batteries
2. Indicator showing “0000” ZERO SPAN out of range
Incorrect weighing result - Avoid damages by external
environment force such as free-drop to the ground, collision by
external objects, etc.
Proper re-calibration procedure required to correct the setting of
weighing accuracy.
Interference due to RF disturbance, ground vibration…etc.
Unstable platform feet adjustments according to bubble level
Page 5
20

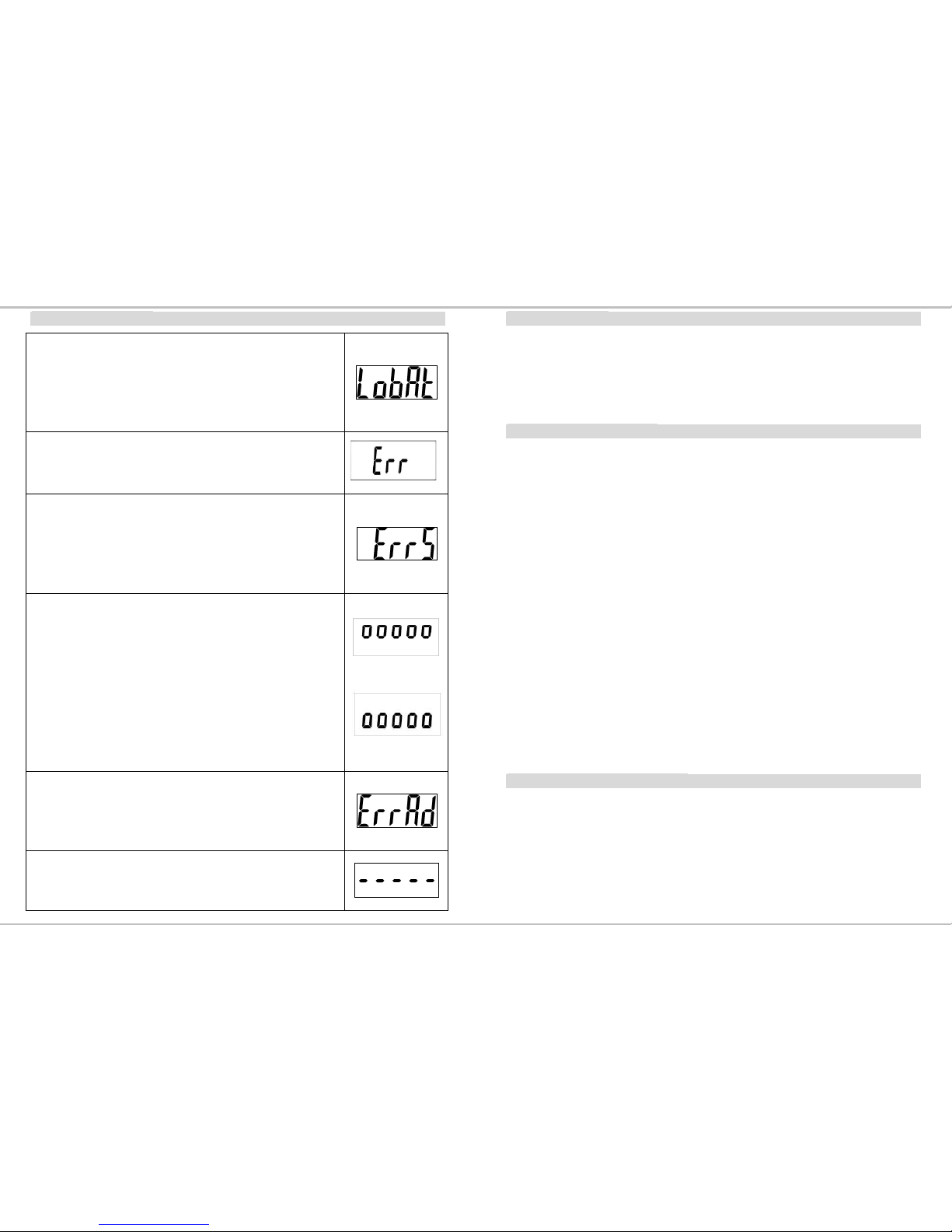

ERROR MESSAGE
Low Battery
1. Check battery voltage (>6.4V) and if needed replace new
battery for operation.
2. If the problem still persists inspect soldering of controller
PCB or replace the controller PCB.
Overload
This indicates that the scale’s load sensor(s) have been
overloaded. Reduce the loading and retry.
Counting Error
1. The signal from the load cells is too high or too low.
Please remove any weight from the scale and try to power on
again. If the scale continues to show the error message, it
indicates a fault with the electronics or wiring.
High/Low Zero Count
1. The scale is above its zero range. Please remove any
weight from the scale and power on again. If the scale
continues to show the error message, it indicates a fault with
the electronics.
2. The scale is below its zero range. Check there is nothing
jammed underneath the scale and power on again. If the
scale continues to show the error message, it indicates a fault
with the electronics.
AD Error
This indicates there is a fault with the scale’s software and is
normally caused by a fault with the PC board. Contact your
local service representative.
Negative weighing
When weight below -2kg, the display will shows “-----“.
Press ZERO to return to the normal mode.
5
MAINTENANCE
The scale does not require any routine maintenance. However, we recommend
checking the scale’s accuracy at regular intervals. The regularity of these
checks is dependent on the level of use and the state of the scale. If any
inaccuracies occur, please contact your local dealer or CHARDER MEDICAL
service partner.
WARRANTY-LIABILITY
If a fault or defect is present on receipt of the unit which is within CHARDER
MEDICAL’s scope of responsibility, CHARDER shall have the right to either
repair the fault or supply a replacement unit. Replaced parts shall be the
property of CHARDER. Should the fault repairs or replacement delivery not be
successful, the statutory provisions shall be valid. The period of warranty shall
be two years, beginning on the date of purchase. Please retain your receipt as
proof of purchase. Should your scale require servicing, please contact your
dealer or CHARDER MEDICAL Customer Service.
No responsibility shall be accepted for damage caused through any of the
following reasons: Unsuitable or improper storage or use, incorrect installation
or commissioning by the owner or third parties, natural wear, changes or
modifications, incorrect or negligent handling, overuse, chemical,
electrochemical or electrical interference or humidity, unless this is attributable
to negligence on the part of CHARDER MEDICAL.
If operating, climatic or any other influences lead to a major change in
conditions or material quality, the treaty for perfect unit functioning shall be
rendered null and void. If CHARDER provides and individual warranty, this
means that the unit supplied will be free of faults for the length of the warranty
period.
DISPOSING OF THE SCALE
This product is not to be treated as regular household waste, but should be
handed into an electrical/electronic equipment recycling centre.
You can obtain further details from your local council, your municipal waste
disposal company or the firm which you purchased the products.
Page 6
6
SPECIFICATION
Model MS5460
Capacity 250kg/550lb
Division 0.1kg/0.2lb
Accuracy ± 200g
Unit kg / lb
LCD Display 1.4 inch LCD screen with 5 digits
Dimension
Overall: 987(H) x1020(D) x 590(W) mm
Seat height: 535 mm
Seat width: 460 mm
Seat back height: 440 mm
Armrest height: 719 mm
Key Functions
UNIT , SEND, ON/OFF/ZERO , HOLD/BMI ,
TARE/BSA
Operating Temp.
and Humidity
5°C - 35°C
15% - 85% RH
Power Supply
AA Battery x 6
12V AC Adaptor
19

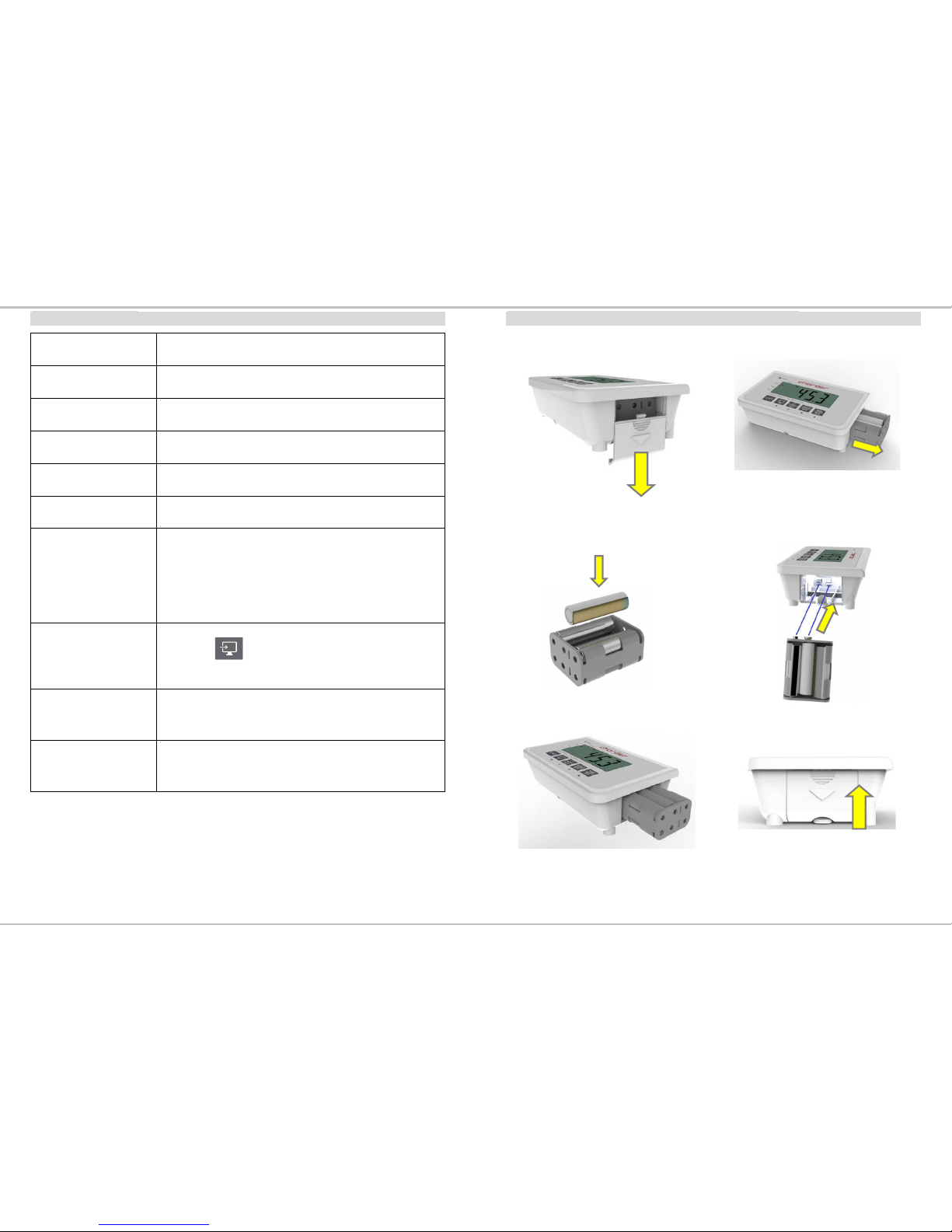

INSTRUCTION FOR REPLACING BATTERIES
1. Removing the battery cover. 2. Take out the battery housing.
3. Replacing new batteries. 4. Batteries are well installed.
5. Installing the battery housing. 6. Reinstalling the battery cover.
Page 7
18
CAUTION:
Always connect the AC adaptor with the indicator before connecting to the
mains power supply. Please disconnect the adaptor from main power supply
before taking out the AC adaptor pin from indicator.

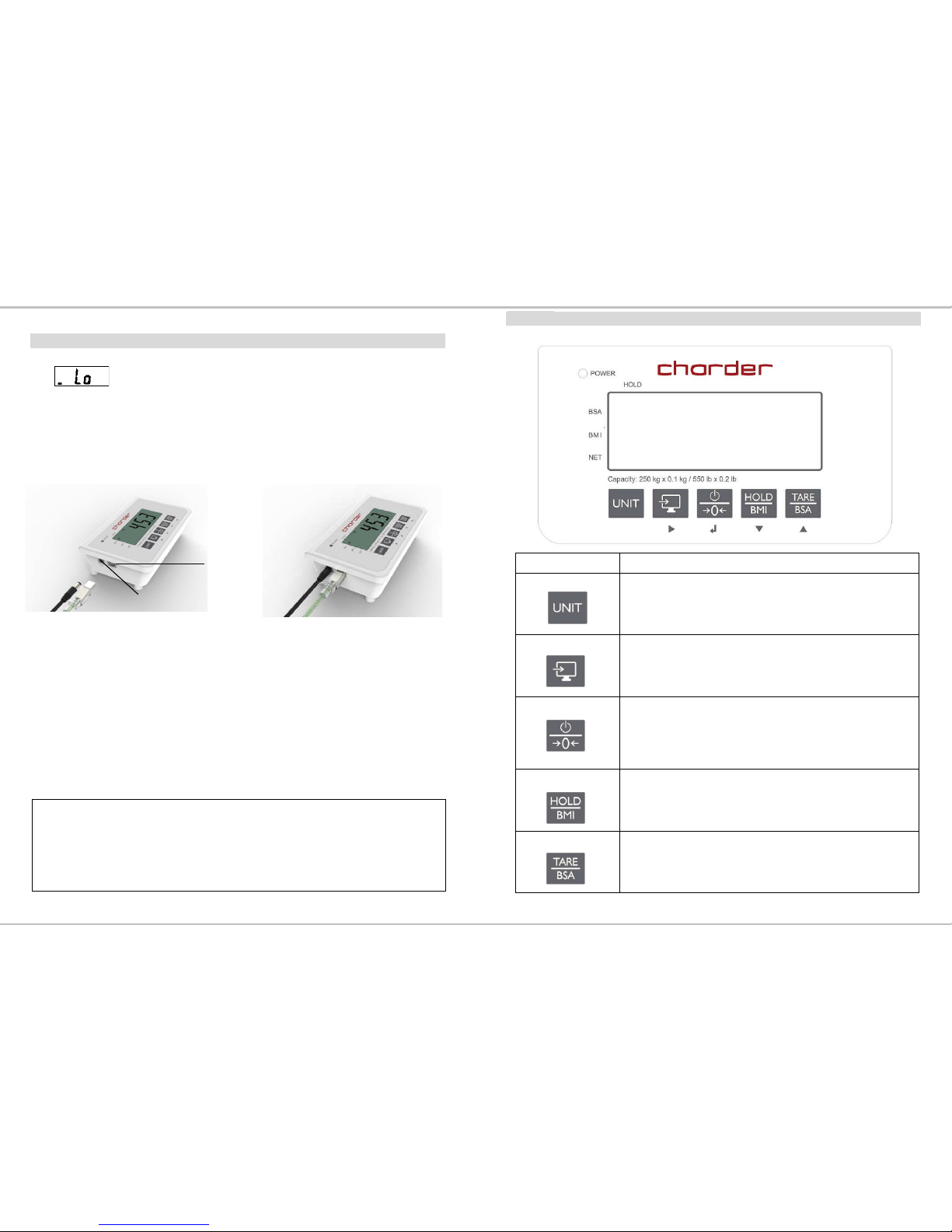

INSTRUCTION FOR CHARGING AND USB CONNECTING
If
prompt displays on the LCD, please charge the
scale with the MS5460 exclusive adaptor or replace the batteries.
Locate adaptor plug-in at the left side of indicator.
USB socket above USB symbol, and you can connect USB cable
to transfer data.
Adaptor plug
USB port
7
PANEL
Operation keys Functions
UNIT
Change unit key.
Press to switch measuring unit from kg and lb
SEND
Send data key.
Press to send measuring data to PC
ON/OFF/ZERO
Switch on and off.
Press button to turn it on. To turn it off, press and
hold the button for 1 second
Press once to set the scale to zero when scale is on
HOLD/BMI
Enable HOLD and BMI function
Press once to enable weight lock function
Press button and hold 3 secs to enable BMI mode
TARE/BSA
Press once to enable TARE function
When BMI is activated. Press TARE/BSA button to
display BSA[body surface area]
Page 8
8

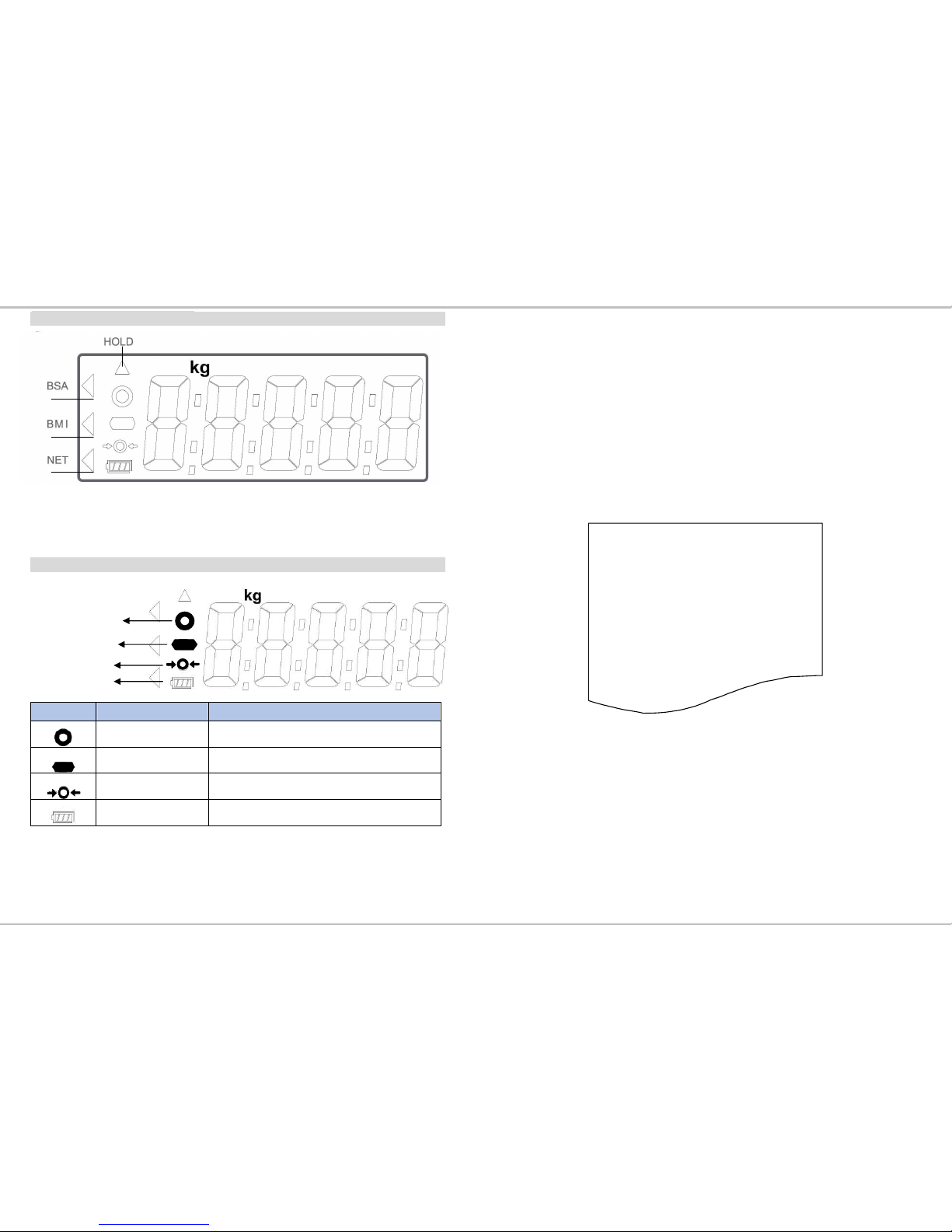

LCD DISPLAY SYMBOLS
BSA : Body surface area is activated
BMI : Body Mass Index is activated
NET : Net weight appears after press tare button
HOLD : Weight lock function is activated
SYMBOLS INFORMATION
Symbol Information Remark
Stability sign
Mark appears when weight is stable
Negative sign
When weight value is negative
Zero indication
When scale is set to zero
Battery symbol
Indicate 5 level of battery power.
Stability sign
Negative sign
Zero indication
Battery symbol
17
8. Printout Data Through USB cable connector
Click OK button to complete the setting. The PC will retrieve the
weighing & BMI data from the CHARDER scale and display on the
HyperTerminal program similar to the layout below.
While the Hyper Terminal program is running, type “P” KEY on the PC
keyboard to transmit a print command to printout from the thermal
printer on the CHARDER scale for hard copy of weighing data & BMI.
Or, press the [PRINT] button on the display panel of CHARDER scales,
the printout presented below is the standard format print layout as
well as shown on the HyperTerminal computer screen.
GROSS WEIGHT 70.00kg
TARE WEIGHT 0.00kg
NET WEIGHT 0.00kg
USER HEIGHT 170.0cm
USER B.M.I. 24.2
01/01/2017 10:00
Page 9
16
7. Port Settings for Printout
Set up as below:
Baud rate: 9600 bps
Parity check: None
Data length: 8 bits
Stop bit: 1 bit
Handshake: RTS/CTS
Data code: ASCII
USB Driver Install
The scale confirms to the USB PL2303
Make sure the computer software has a USB scale interface.
PL2303 driver download:
http://www.prolific.com.tw/US/ShowProduct.aspx?pcid=41&showlevel=0
017-0037-0041
9
OPERATION
1 Switching on/off
Switching on
Press to switch the scale on
The device shows a start-up screen with the full segmental LCD
display, software version and then 0.0 kg
Switching off
Press and hold for 3 seconds to switch scale off
Zero the scale
Press while scale is on to zeroing the scale
2 Straight weighing
1. Place weighing object/person on the scale
2. Wait until the stability sign appears
3. Read the weighing result
3 Weighing with hold
This device is provided with the integrated hold function (determination of average
value). It enables people to be weighed accurately although they are not still on the
scale plate. Once the HOLD key is pressed, the weight reading will remain on the
display after the item has been removed from the scale so the reading can easily be
read.
Note
Determination of average value is not possible when a person moves too much.
HOLD function won’t work if the weight is under 2 kg.
1. Switch on the scale. The diagnostic self-checks is performed. The
scale is ready for weighing when the „0.0 kg” displays on the
screen.
2. Place object/person on the scale.
3. Press key. When the triangle is flashing on the display,
the scale records the fluctuating weight values and then
calculates average weight and displays the result on the screen.
4. Remove object/person from the scale. The weight reading will
remain on the display.
Page 10
10
5. Press key again to return the scale to the normal weighing
mode.
6. HOLD function can be activated before or after place the weight
on the SCALE.
4 Weighing with tare
Tare function allows the user to deduct the excess weight of a single tare object
value (additional loads or clothes) from the display reading, thus calculate the
actual net weight of the object/ person.
4.1.1 Taring
Place tare object (additional loads or clothes) on scale and
press to tare the weight of object.
The zero display and the symbol NET appear.
The tare weight remains stored until it is cleared.
4.1.2 Clear the tare
Press to clear tare weight
The symbol NET disappear
The gross weight appears in the display.
5 Weighing with BMI
For BMI calculation, height is needed, therefore it is recommended to measure the
height of subject before starting weighing procedure.
1. Switch on the scale.
2. Place object/person on the scale.
3. Press key and hold for 3 seconds. First, display will show
“HOLD” and lock weight then display show “height value”.
4. Adjust height value by using (↓) and (↑) keys.
5. Switch between digits by using (→) key.
6. Press to confirm height value.
7. Display will show “HOLD” and lock weight to calculate BMI.
BMI
Height
weight
15

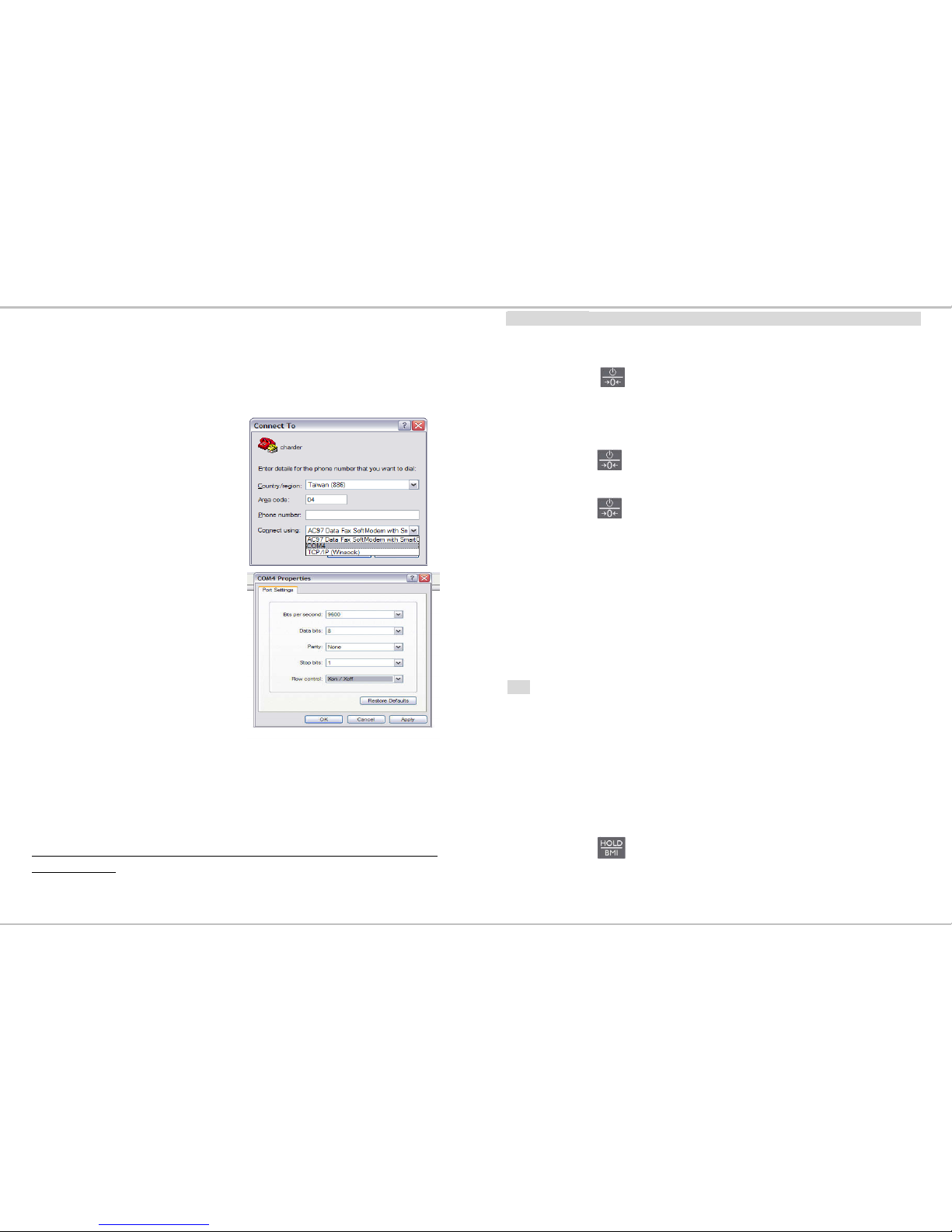

5. New Connection Description
Name the connection and click OK Button
6. Select COM Port on User PC
Click Connect to select COM port on the computer. Then click OK.
Page 11
14
PRINT FUNCTION AND DATA TRANSMISSION
The Weighing, BMI and Height results can be kept in the PC for records by using the USB
interface cable, which is connected to the USB plug at the back terminal.
After completing BMI and BSA process, simply press key to transfer the results to
the PC.
HOW TO SET UP USB CONNECTIONS ON THE PC
1. Make sure the PC hardware device has USB port version2.0 or above
compatibility. Users may need to consult with local computer
accessories dealers to select the proper USB cable length that is most
suitable to work environment for best performance, then connect the
cable first between the PC and CHARDER Scale model.
2. Run HyperTerminal program under Windows OS computer and input
printer port parameter settings, please refer to the next Section in
<Step 7> on how to setup HyperTerminal program in user’s computer
for printer port parameters.
3. Once the HyperTerminal setting is ready, make sure the USB cable is
connected properly between the user PC’s USB port and the CHARDER
Scale Model again. Press button on the Scale Display Panel for
transferring the weight & BMI data to the PC.
Hyper Terminal setting in PC for printout
Hyper Terminal is a freeware on PC Windows XP SP3 or lower to setup the
PC printer com-port with USB cable connector transmission.
For use on Windows Vista or higher please download hyper terminal
software program from Charder website:
http://www.chardermedical.com/download/dlist-4.htm

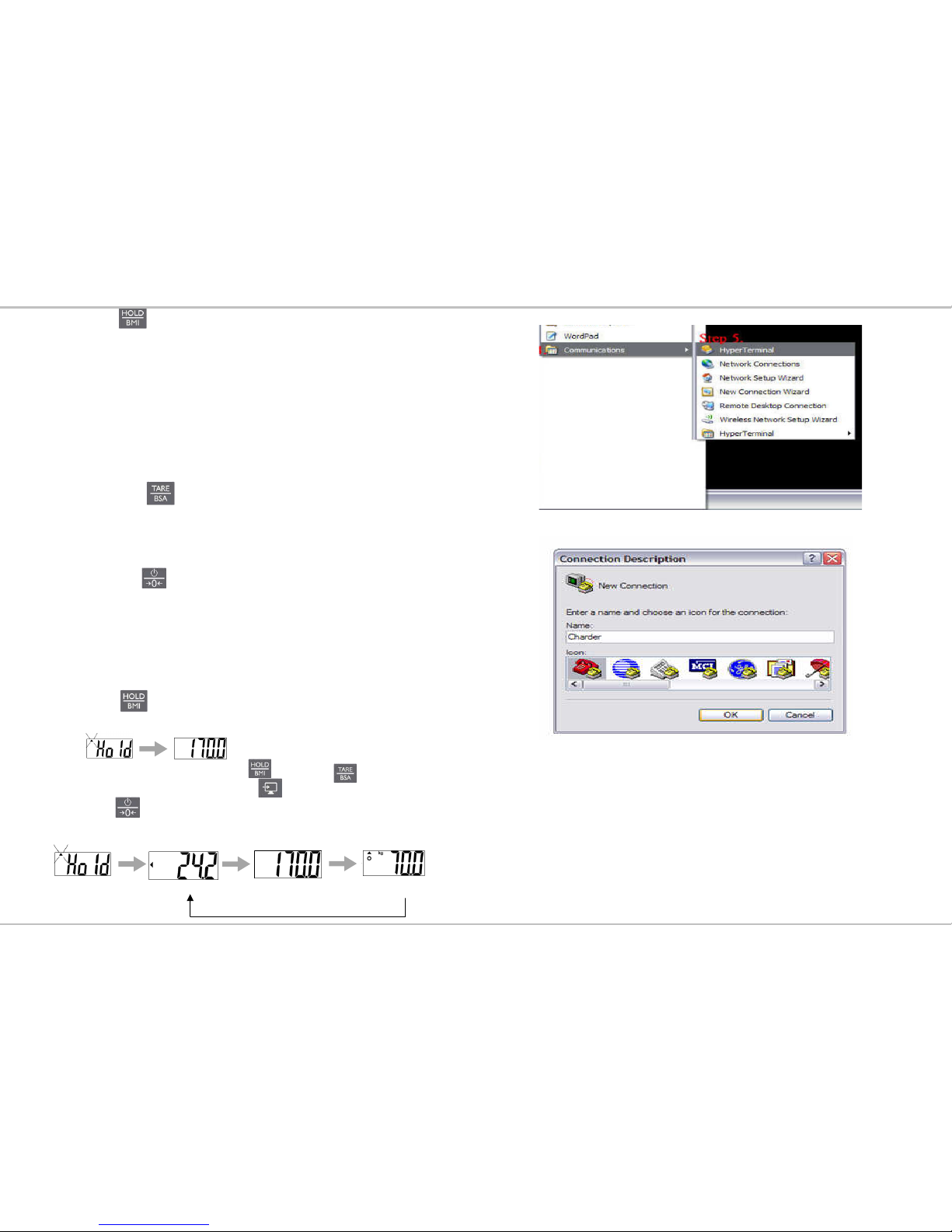

4. Start Hyper Terminal
After taking the weight and BMI, run Hyper Terminal program from the
PC’s Windows OS with the following steps:
Step.1- Click on Start Button.
Step.2- Go to All Programs.
Step.3- Select Accessories.
Step.4- Find Communications.
Step.5- In Communications section click on HyperTerminal.
11

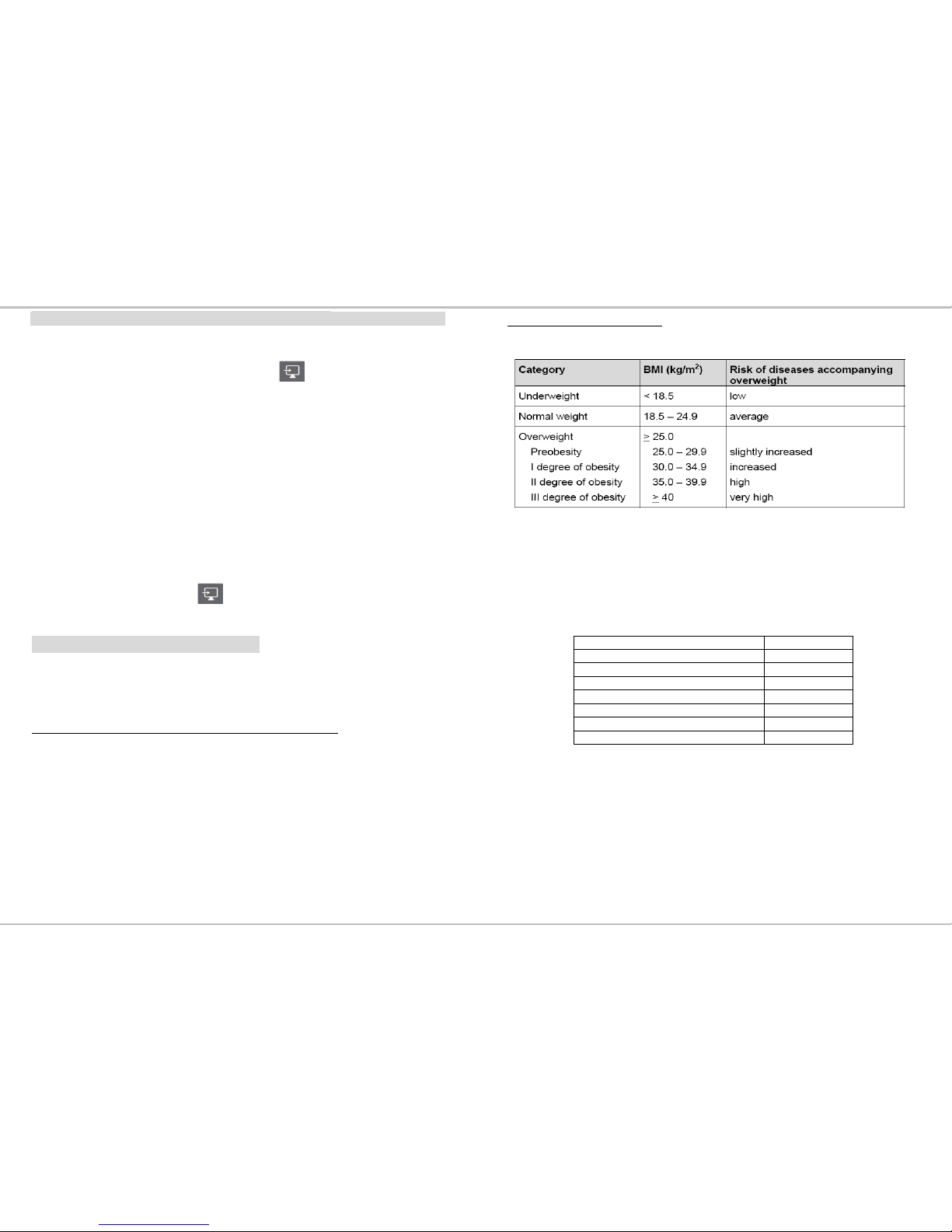

Body Mass Index Categories
Classification of weight for adults over 18 years on the basis of Body Mass Index
according to WHO, 2000 EK IV and WHO 2004 (WHO - World Health Organization).
6 Weighing with BSA
- Values for Body Surface Area (BSA) is the measured or calculated surface area of a
human body. For many clinical purposes, BSA is a better indicator of metabolic mass
than body weight because it is less affected by abnormal adipose mass. BSA is
commonly used in medicine, particularly to calculate doses of chemotherapeutic
agents and index cardiac output.
Average BSA for children of various ages, for men, and for women, are taken to
be:
Age BSA
Neonate (newborn) 0.25 m²
Child of 2 years 0.5 m²
9 years 1.07 m²
10 years 1.14 m²
12-13 years 1.33 m²
Women 1.6 m²
Men 1.9 m²
There was an average BSA of 1.73 m² for 3,000 cancer patients from 1990 to 1998 in a European
Organization for Research and Treatment of Cancer (EORTC) database.
During 2005, there was an average BSA of 1.79 m² for 3,613 adult cancer patients in the UK. Among
them, the average BSA for men was 1.91 m² and for women was 1.71 m².
However, there is some evidence that BSA values are less accurate at extremes of height and weight,
where Body Mass Index may be a better estimate.
6.1.1 Enable BSA in BMI mode
1. Starting with BMI process
2. When BMI, weight and height is playing rotationally.
Page 12
12
3. Press to play BSA value.
4. Press to return to the BMI mode.
5. Press to return to the normal mode.
BMI
Height
weight
Height
weight
BSA
13

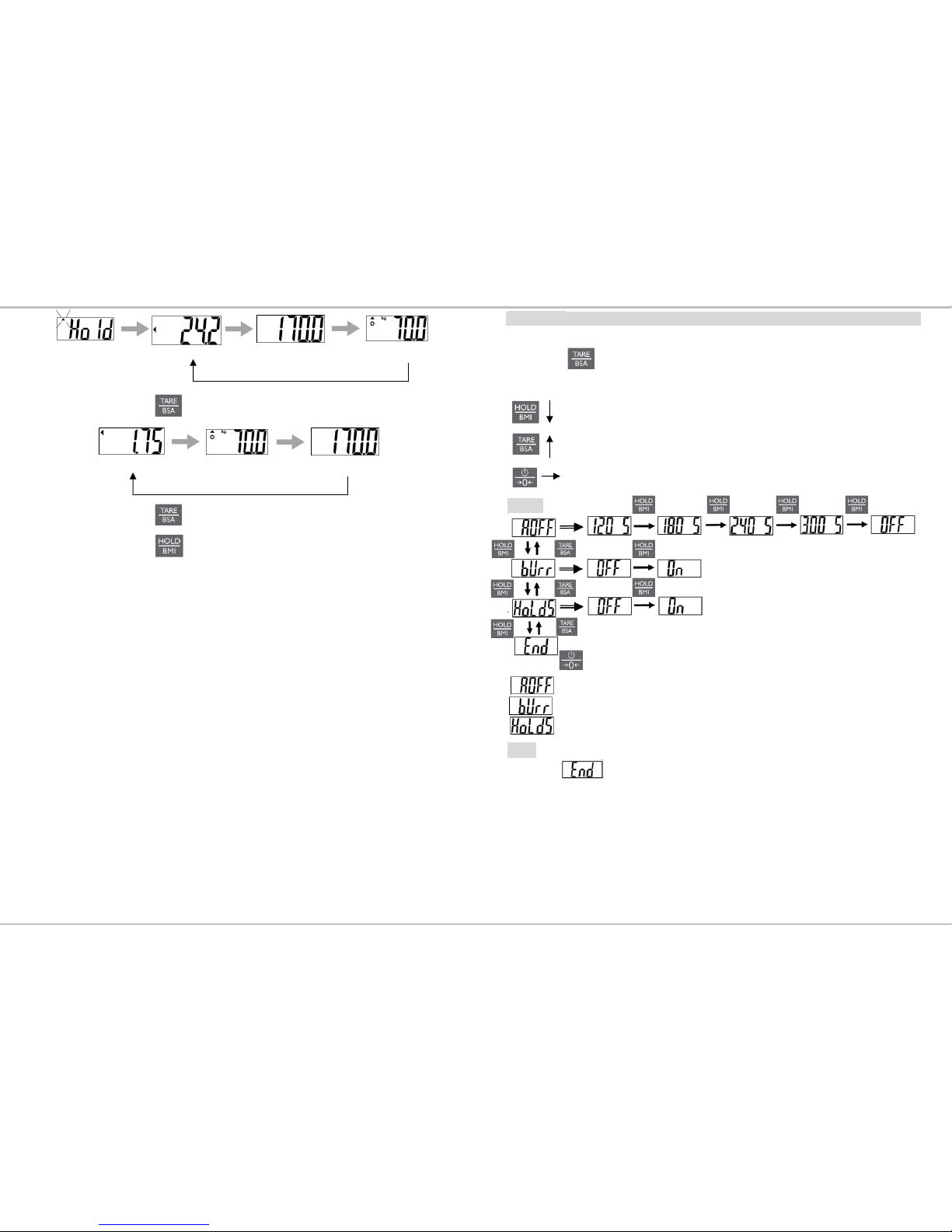

SETTING
1. Switch on the scale.
2. Press key and hold for 6 seconds to enable setting mode.
3. LCD shows “SETUP” first and then “A.OFF” appears.
Switch between modes and menu
Reverse switch between modes and menu
Confirm setting.
MENU
AUTO-OFF TIME SETUP
This enables operator to select the auto turn OFF time of the device.
BUZZER ON/OFF SETUP
Set auto-off timer between 120/180/240/300/off
Set buzzer on and off
Set HOLD function release after unload weight ON and OFF.
Note
Confirm in the menu to save all settings.
Loading...
