Charder MS5711, MS5710, MS5712, MS 4940 User Manual

Page 1
0

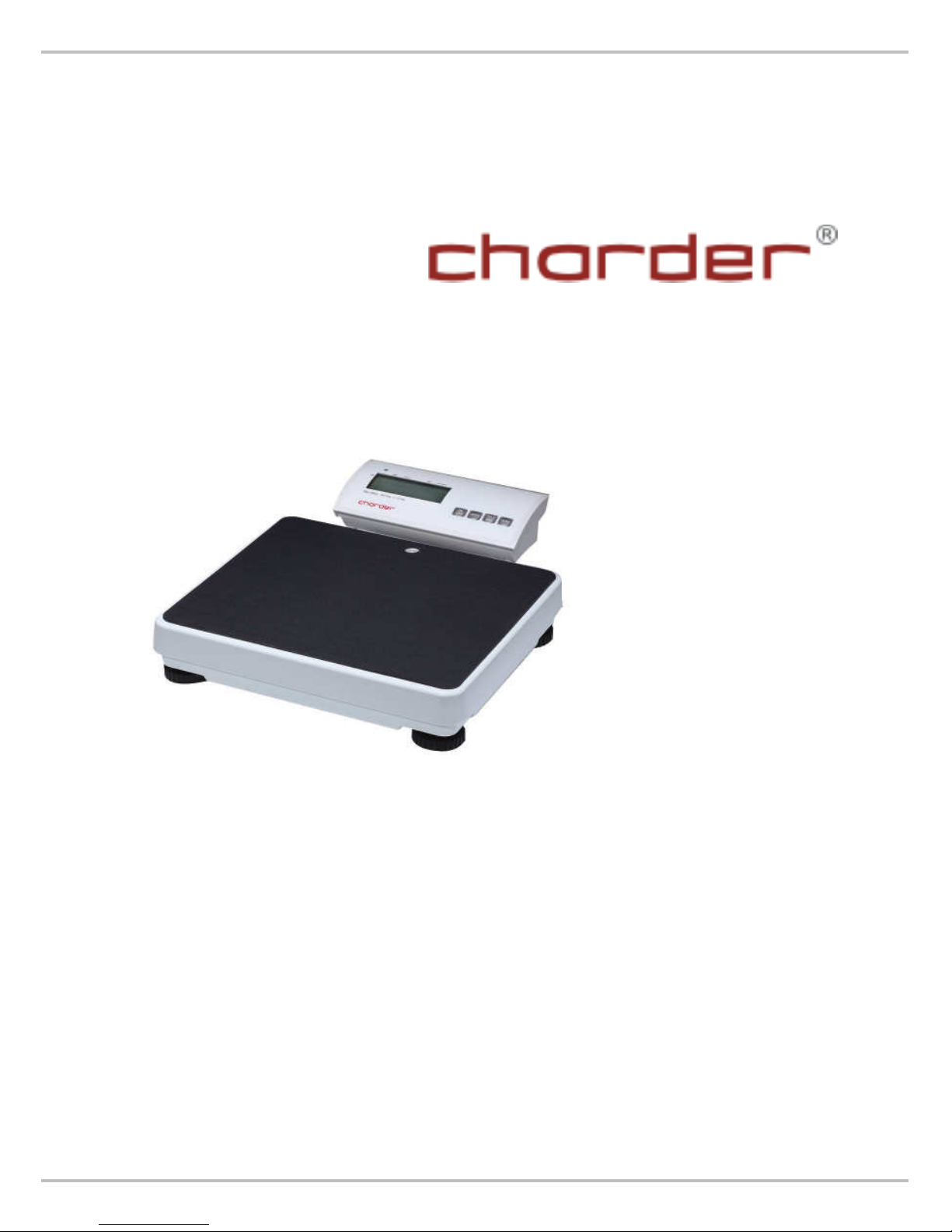

MS5710 / 5711 / 5712
Medical Scale
USER MANUAL
Please keep the instruction manual at hand all the time for future reference.
Page 2
1
TABLE OF CONTENTS
PREFACE..................................................................................................... 2
GENERAL INFORMATION....................................................................... 2
SAFETY INSTRUCTION............................................................................ 2
ENVIROMENTAL....................................................................................... 3
CLEANING.................................................................................................. 3
MAINTENANCE......................................................................................... 3
WEIGHING OPERATION........................................................................... 4
WARRANTY-LIABILITY........................................................................... 4
DISPOSING OF THE SCALE.....................................................................6
EXPLANATION OF THE GRAPHIC SYMBOLS..................................... 7
EMC GUIDANCE AND MANUFACTURER'S DECLARATION ............ 9
SPECIFICATION....................................................................................... 14
PANEL........................................................................................................ 16
KEY FUNCTION....................................................................................... 17
POWER ADAPTOR STANDARDS.......................................................... 18
LCD DISPLAY SYMBOLS....................................................................... 19
USING SCALE .......................................................................................... 20
USING HOLD FUNCTION....................................................................... 20
USING TARE FUNCTION........................................................................ 22

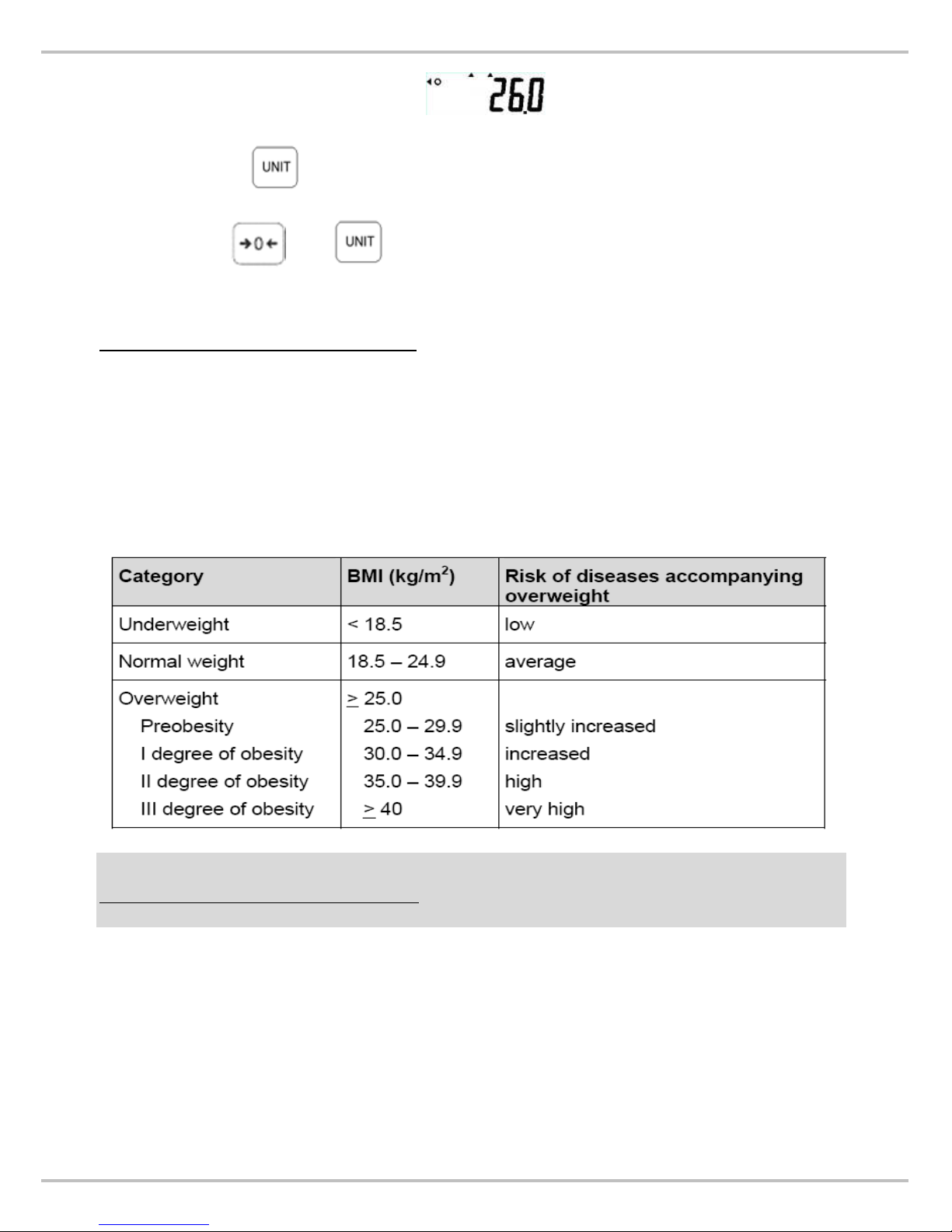

USING BMI FEATURE............................................................................. 23

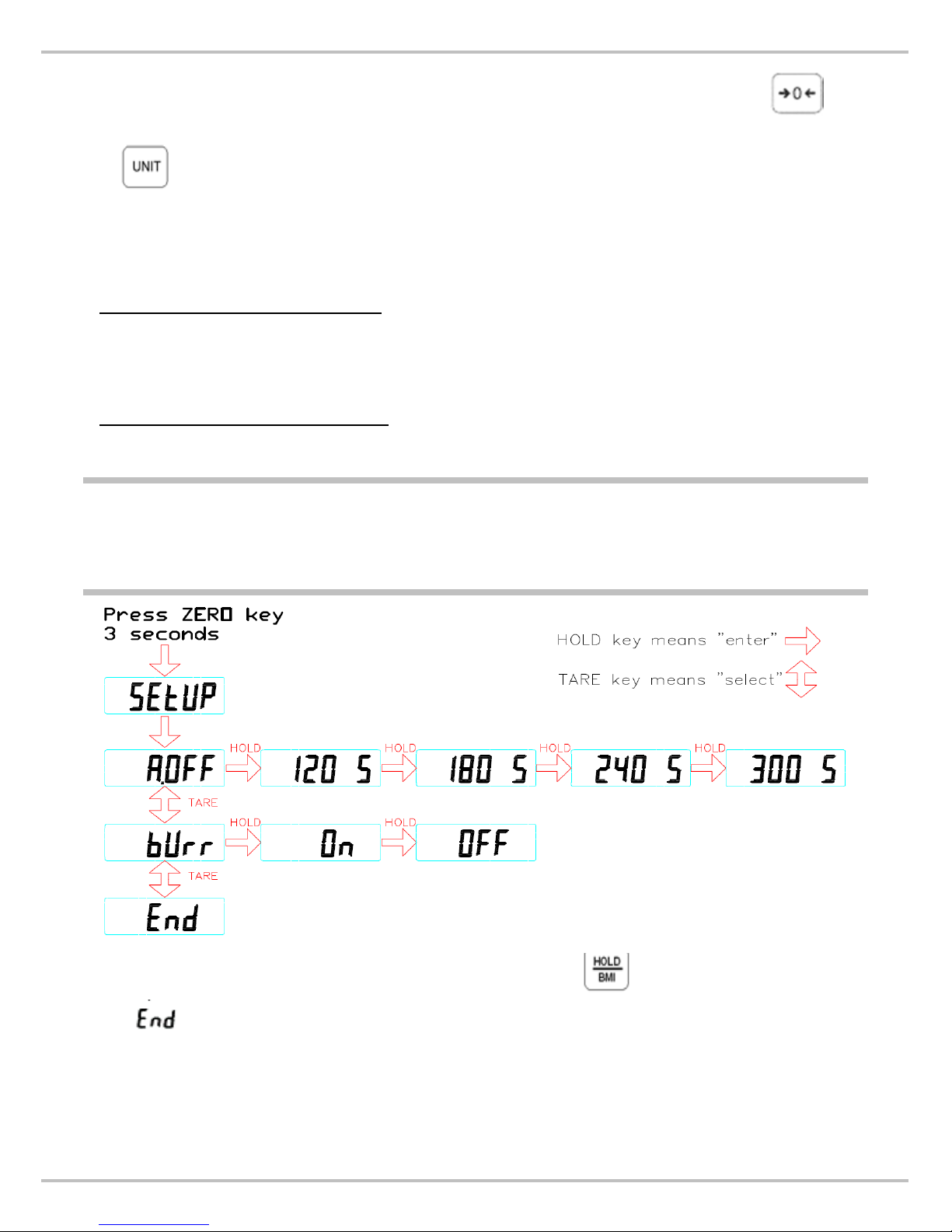

MS 5710/5711/5712: SET-UP.................................................................... 24

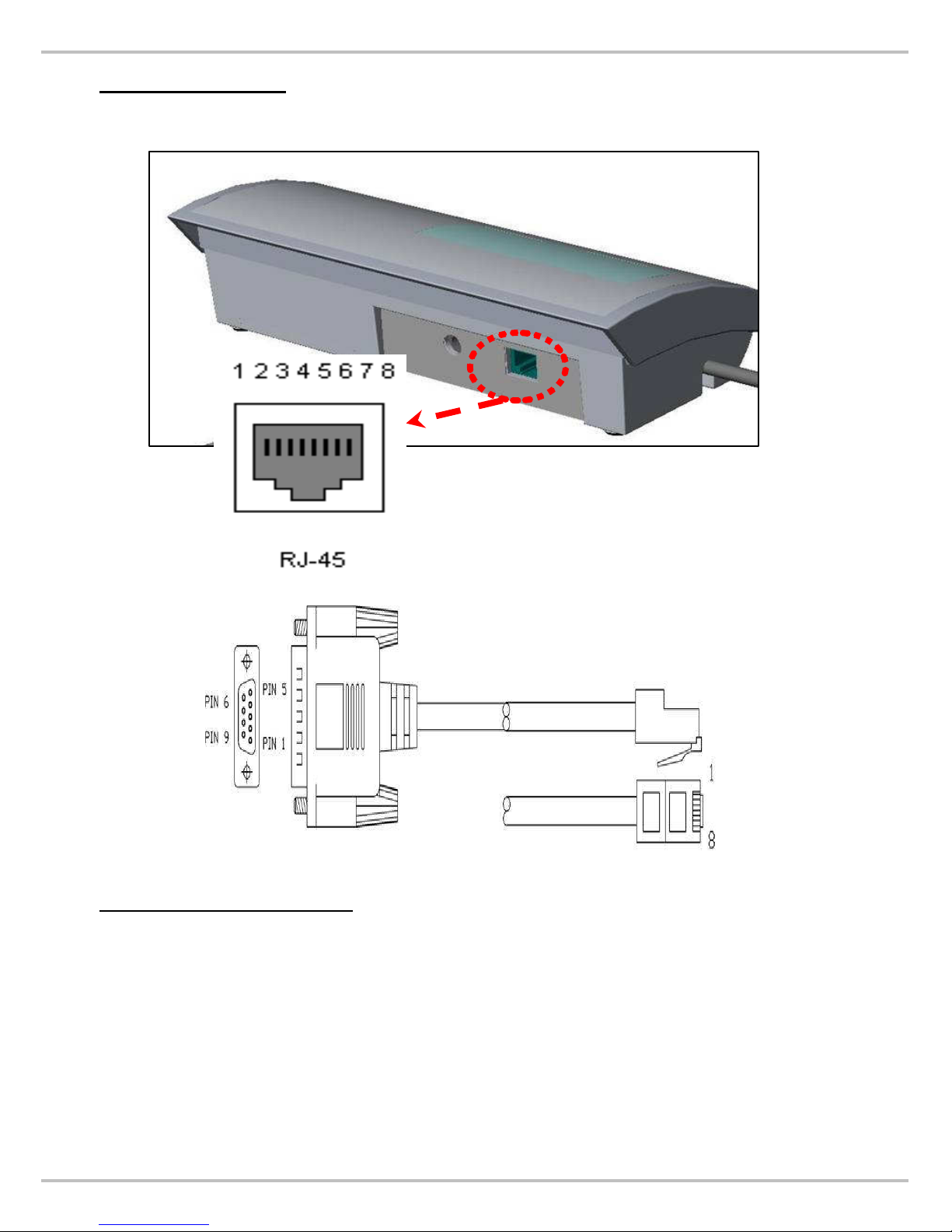

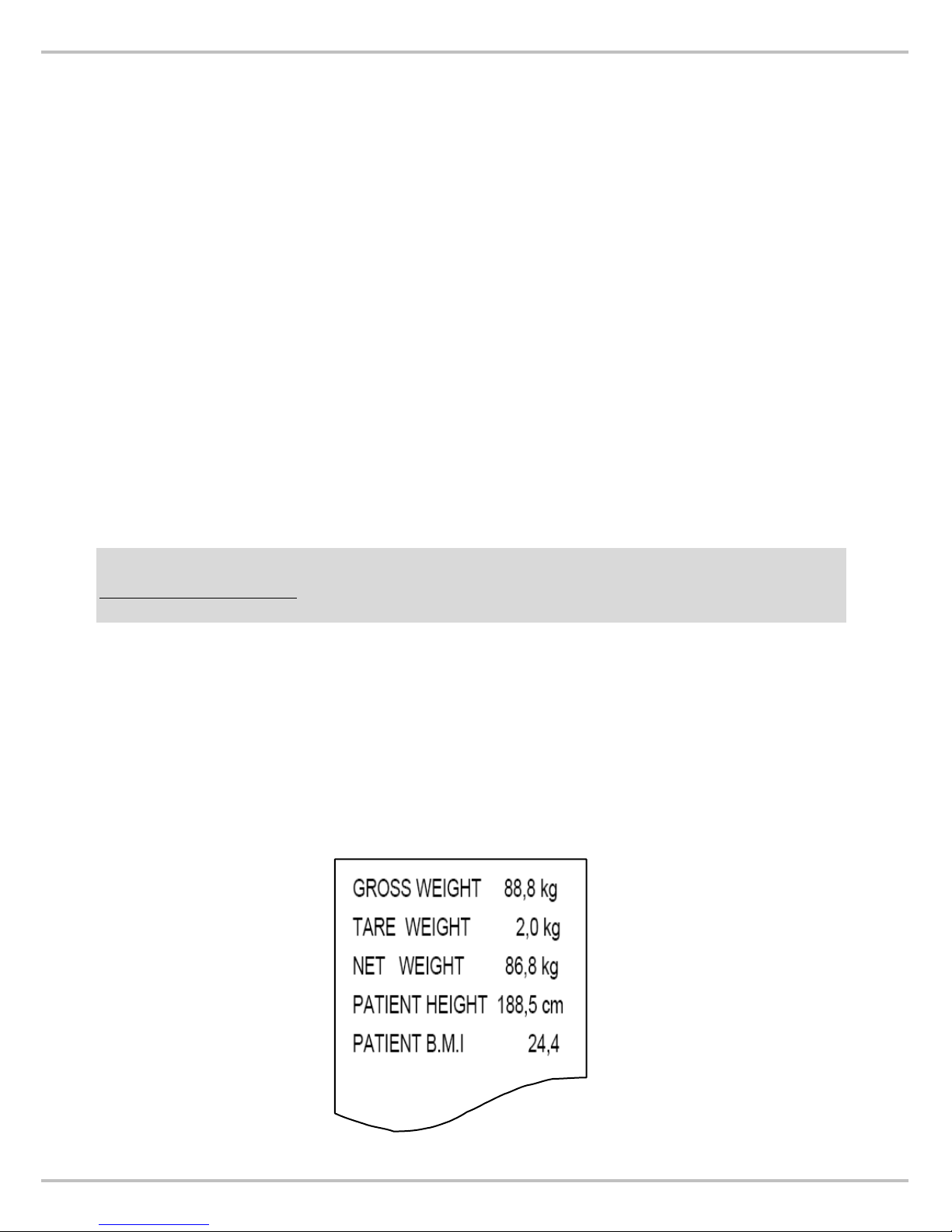

PRINT FUNCTION ................................................................................... 26

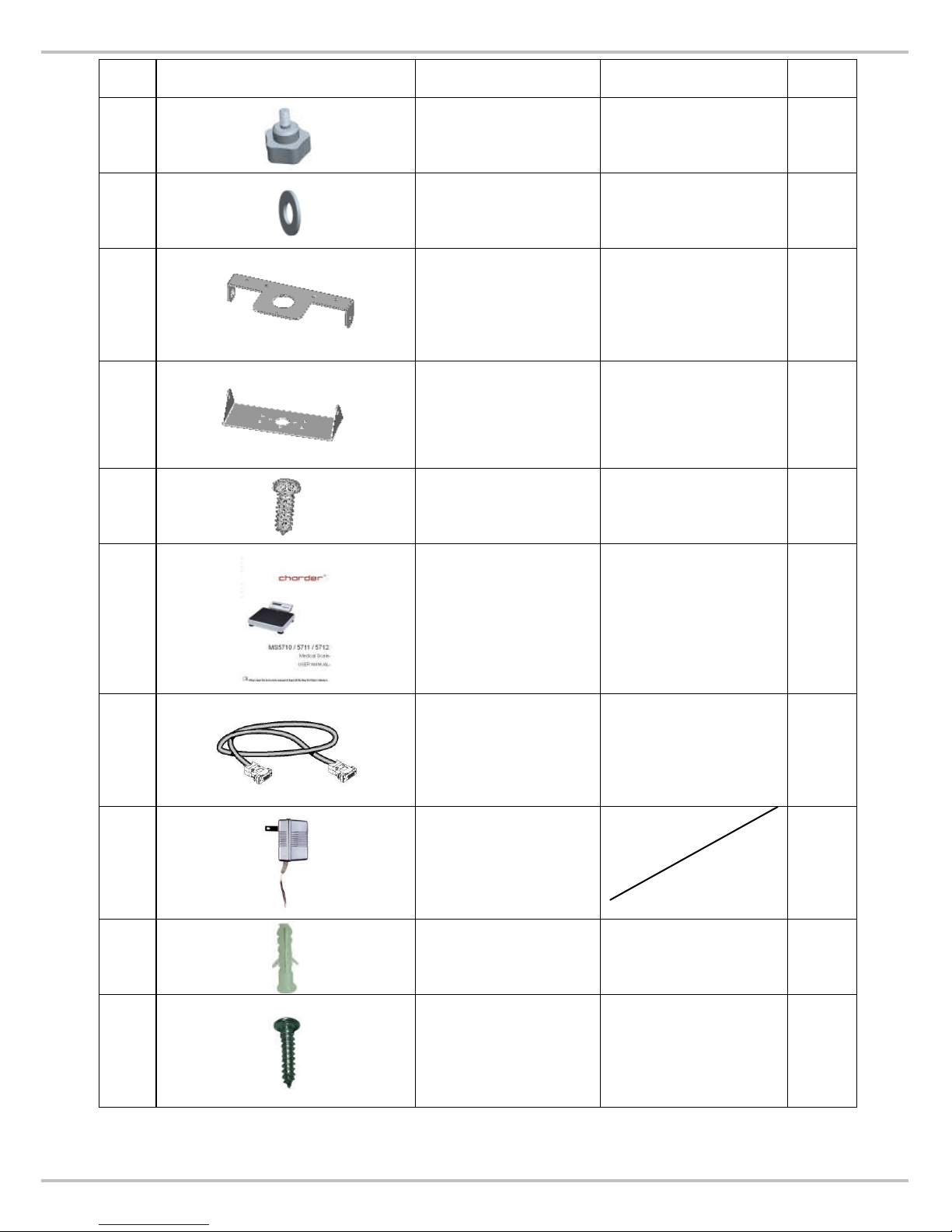

STANDARD ACCESSORIES FOR MS5712............................................ 28

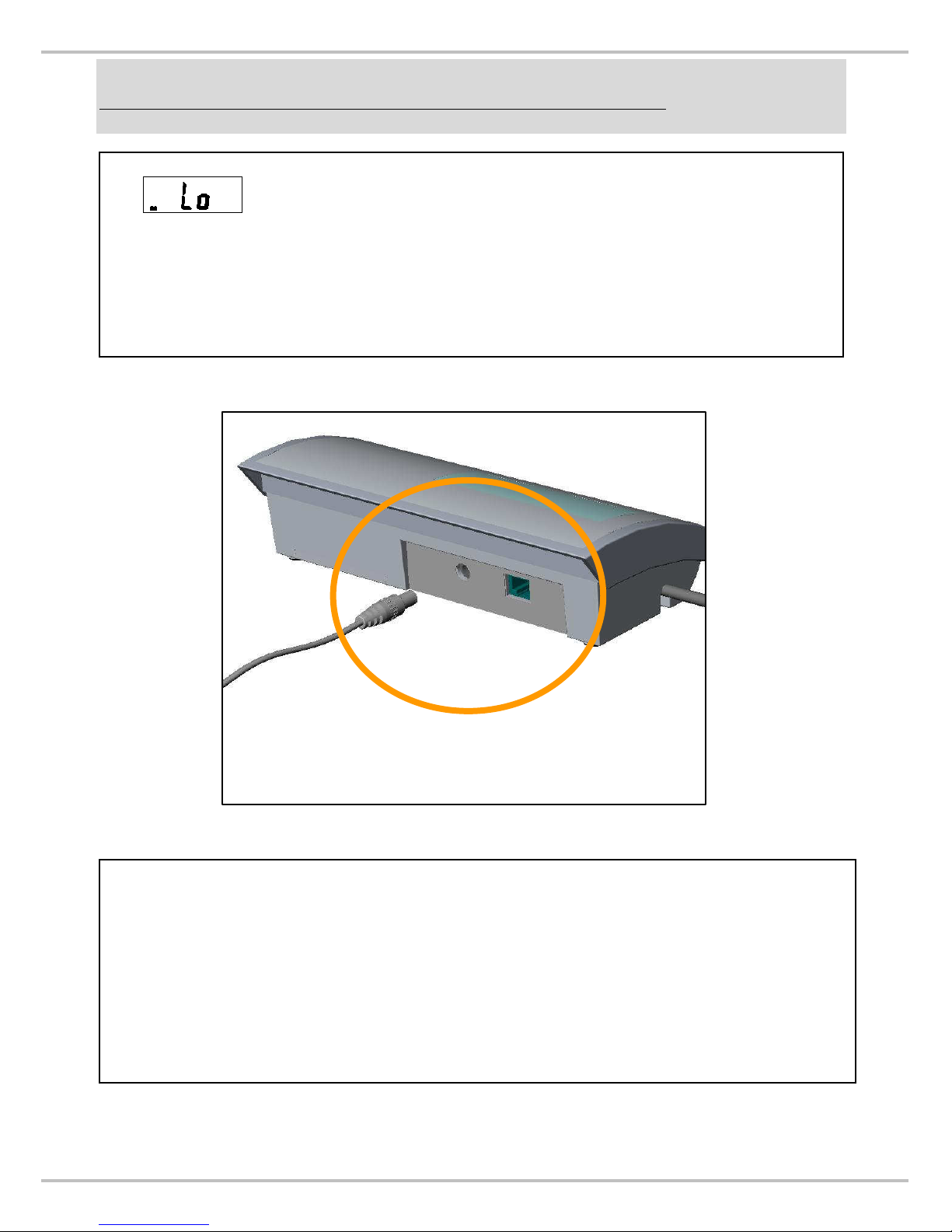

INSTRUCTION FOR CHARGING AND CONNECTING...................... 30

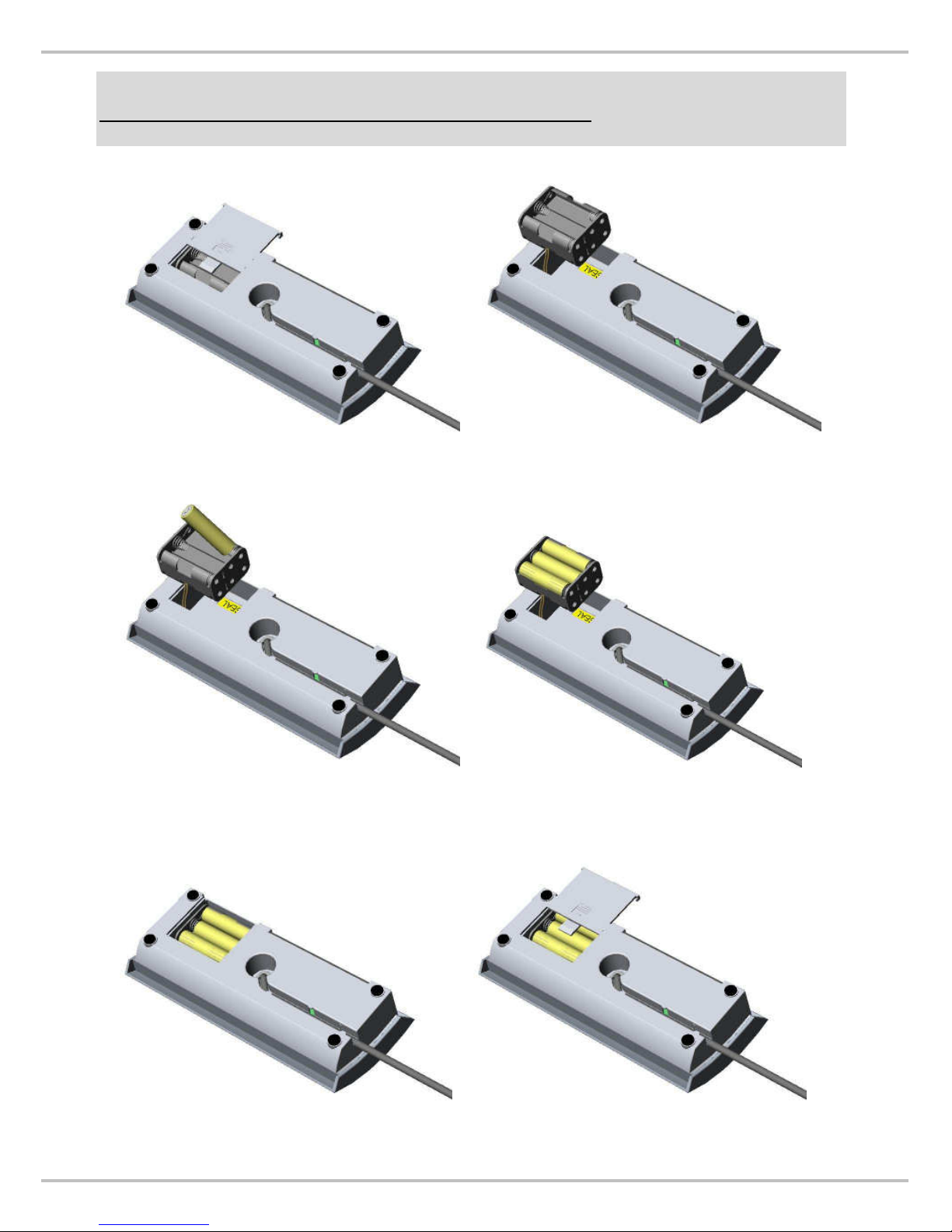

INSTRUCTION FOR REPLACING BATTERIES................................... 31

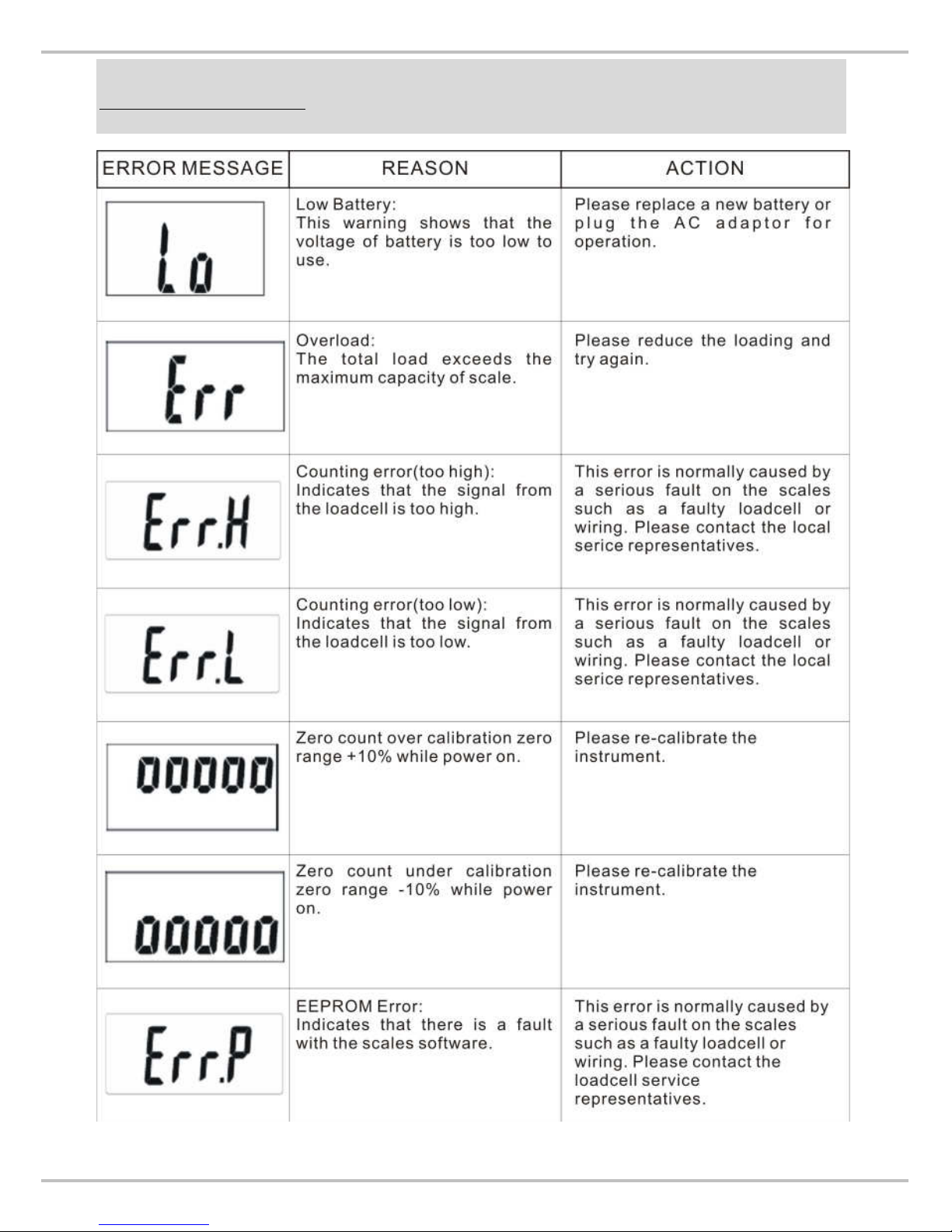

ERROR MESSAGE................................................................................... 32
TROUBLESHOOTING ............................................................................. 33
Page 3
2
PREFACE
Thank you for choosing CHARDER MEDICAL product. All features of this product were designed to state of the art and are optimized for simple and straightforward use. If you have any queries or experience any problems not addressed in the operating instructions, please contact your CHARDER MEDICAL service partner, or visit us on the Internet at www.chardermedical.com
GENERAL INFORMATION
We strongly recommend you use the scales on flat and hard surface. Any soft surface, like carpet will cause inaccuracy.
SAFETY INSTRUCTION
Before putting the device into use, please read with care the
information given in the Operating Instructions. They contain important instructions for installation, proper use and maintenance of the device. The manufacturer shall not be liable for damages arising out of failure to heed the following instructions: These batteries should be kept away from small children. If swallowed, promptly seek medical assistance.
Expected Service Life: 5 years  When using electrical components under increased safety
requirements, always comply with the appropriate regulations.
Improper installation will render the warranty null and void.  Ensure the voltage marked on the power supply unit matches
your mains power supply.
This device is designed for use indoors.  Observe the permissible ambient temperatures for use  The device meets the requirements for electromagnetic
compatibility. Do not exceed the maximum values specified in
Page 4
3
the applicable standards.
These batteries should be kept away from all children. If swallowed,
promptly seek medical assistance.
If you have any problem, please contact your local CHARDER MEDICAL service partner.
ENVIROMENTAL
All batteries contain toxic compounds; disposal of batteries
should be delegated to a competent organisation, complying with the deposit of Poisonous Waste Regulation 1972.
Please do not incinerate batteries. The optimum operating temperature for the scale is 5℃ to +35℃;
although it will operate at higher and lower temperatures the scales battery life will be adversely effected.
CLEANING
We would recommend using alcohol based wipes or similar
when cleaning the scales.
Please do not use large amounts of water when cleaning the
scales as this will cause damage to the scales electronics, you should also refrain from using corrosive liquids or high pressure washers.
Always disconnect the scales from the mains power supply
before cleaning.
MAINTENANCE
The scale does not require any routine maintenance. However, we
Page 5
4
recommend checking the scale’s accuracy at regular intervals. The regularity of these checks is dependent on the level of use and the state of the scale. If any inaccuracies occur, please contact your local dealer or CHARDER MEDICAL service partner.
WEIGHING OPERATION
Before reading detailed instructions on how to use all the weighing functions that are built into your scale, please read the following important guidelines: Always be sure that the display shows `Zero` before use, if it
does not then please press the ZERO key.
The device is designed to detect when a stable weight is
achieved, the indicator will `bleep` twice to indicate a stable weight value, your reading should be taken at this point.
WARRANTYLIABILITY
If a fault or defect is present on receipt of the unit which is within CHARDER MEDICAL’s scope of responsibility, CHARDER shall have the right to either repair the fault or supply a replacement unit. Replaced parts shall be the property of CHARDER. Should the fault repairs or replacement delivery not be successful, the statutory provisions shall be valid. The period of warranty shall be two years, beginning on the date of purchase. Please retain your receipt as proof of purchase. Should your scale require servicing, please contact your dealer or CHARDER MEDICAL Customer Service. No responsibility shall be accepted for damage caused through any of the following reasons: Unsuitable or improper storage or use,
Page 6
5
incorrect installation or commissioning by the owner or third parties, natural wear, changes or modifications, incorrect or negligent handling , overuse, chemical, electrochemical or electrical interference or humidity, unless this is attributable to negligence on the part of CHARDER MEDICAL.
Page 7
6
If operating, climatic or any other influences lead to a major change in conditions or material quality, the treaty for perfect unit functioning shall be rendered null and void. If CHARDER provides and individual warranty, this means that the unit supplied will be free of faults for the length of the warranty period.
DISPOSING OF THE SCALE
This product is not to be treated as regular household waste, but
should be handed in to an electrical/electronic equipment
recycling centre. You can obtain further details from your local council, your municipal waste disposal company or the firm which you purchased the product.
Page 8
7

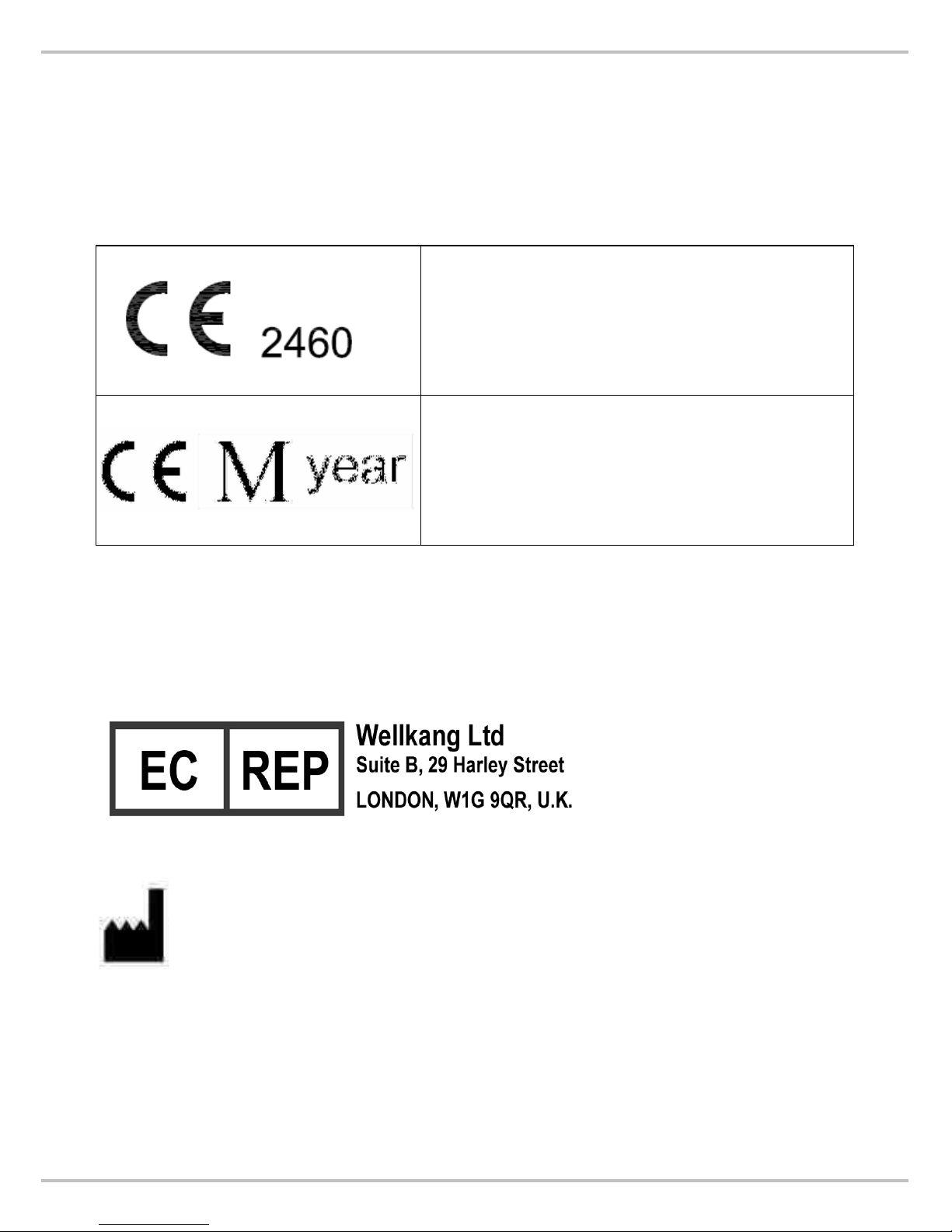

EXPLANATION OF THE GRAPHIC SYMBOLS
SN-T13000001
Designation of the serial number of every device, applied at the device.
(Number as an example)
“Please note the accompanying documents“ or “Observe operating instructions”
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist., Taichung City 412, Taiwan (R.O.C.)
Identification of manufacturer of medical product including address
Type B applied part
Page 9
8

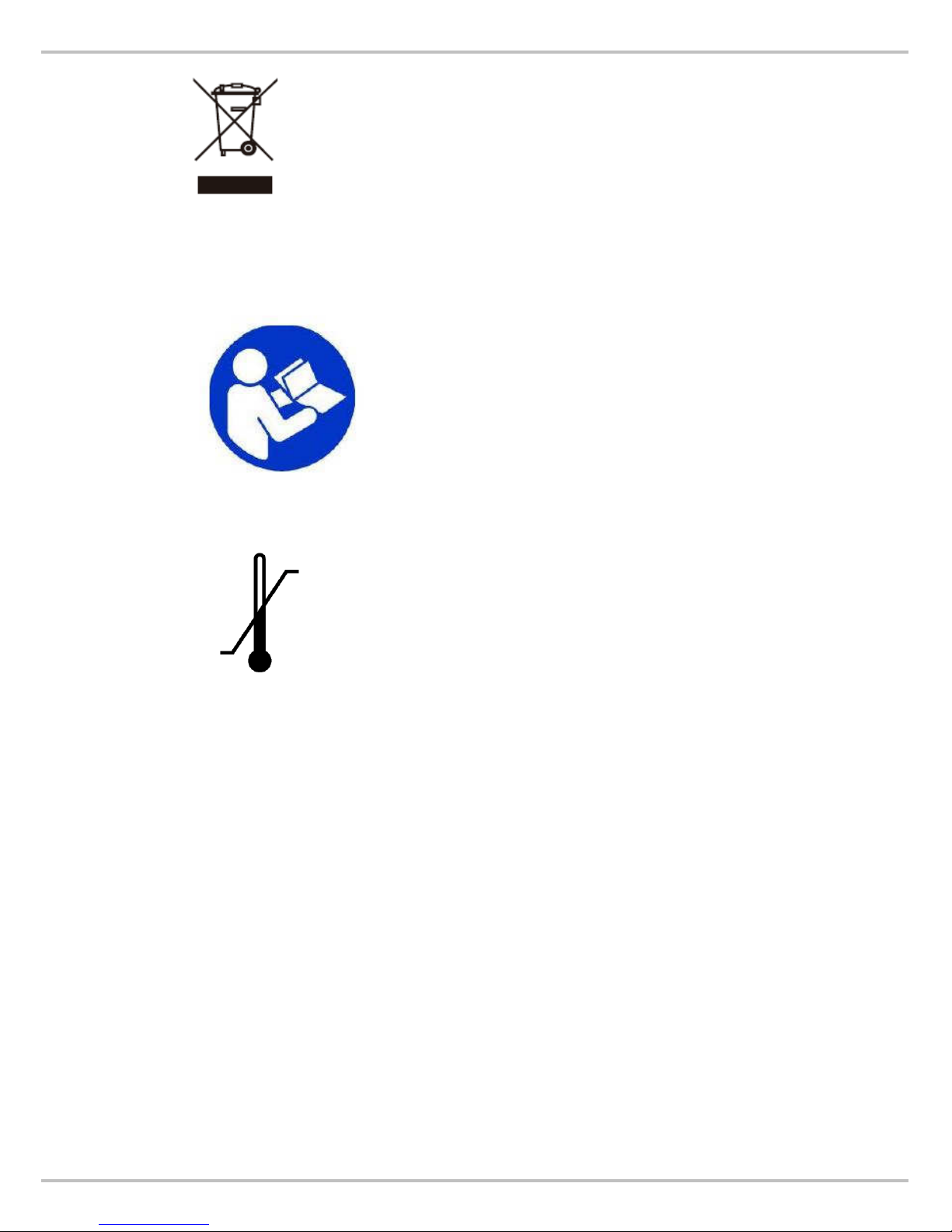

Dispose of old appliances separately from your household waste!l! Instead, take them to communal collection points.
Carefully read this operation manual
before setup and commissioning, even if you are already familiar with Charder scales.
Transport and storage temperature limit indicating the upper and the lower limit (Transport and storage temperature on packaging)
+60°C
-20°C
Page 10
9
EMC GUIDANCE AND MANUFACTURERS DECLARATION
Guidance and manufacturer’s declaration-electromagnetic emissions
The MEDICAL SCALE MS5710 is intended for use in the electromagnetic
environment specified below.
The customer or the user of the MEDICAL SCALE MS5710 should assure
that it is used in such an environment.
Emission test Compliance
Electromagnetic environment-guidance
RF emissions
CISPR 11
Group 1
The MEDICAL SCALE MS5710 uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.
RF emissions
CISPR 11
Class B
Harmonic emissions
IEC 61000-3-2
Class A
Voltage fluctuations
/flicker emissions
IEC 61000-3-3
Compliance
The MEDICAL SCALE MS5710 is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.
Page 11
10
Guidance and manufacturer’s declaration-electromagnetic immunity
The MEDICAL SCALE MS5710 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS5710 should assure that it is used in such an environment.
Immunity test
IEC 60601 test
level
Compliance
level
Electromagnetic
environment-guidance
Electrostatic discharge(ESD) IEC 61000-4-2
± 6 kV contact ± 8 kV air
± 6 kV contact ± 8 kV air
Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%
Electrical fast transient/burst IEC 61000-4-4
± 2kV for power supply lines + 1kV for input/output lines
± 2kV for power supply lines Not applicable
Mains power quality should be that of a typical commercial or hospital environment.
Surge IEC 61000-4-5
± 1kV line(s) to line(s) ± 2kV line(s) to earth
± 1kV differential mode Not applicable
Mains power quality should be that of a typical commercial or hospital environment.
Voltage Dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11
<5% UT(>95% dip in UT) for 0,5 cycle 40% UT(60% dip in UT) for 5 cycles 70% UT(30% dip in UT) for 25 cycles <5% UT(>95% dip in UT) for 5 s
<5% UT(>95% dip in UT) for 0,5 cycle 40% UT(60% dip in UT) for 5 cycles 70% UT(30% dip in UT) for 25 cycles <5% UT(>95% dip in UT) for 5 s
Mains power quality should be that of a typical commercial or hospital environment. If the user of the MEDICAL SCALE MS5710 requires continued operation during power mains interruptions, it is recommended that the MEDICAL SCALE MS5710 be powered from an uninterruptible power supply or a battery.
Page 12
11
Power frequency(50/60 Hz) magnetic field IEC 61000-4-8
3 A/m 3 A/m
The MEDICAL SCALE MS5710 power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration-electromagnetic immunity
The MEDICAL SCALE MS5710 is intended for use in the electromagnetic environment specified below. The customer or the user of the MEDICAL SCALE MS5710 should assure that is used in such and environment.
Immunity test
IEC 60601 test level
Compliance level
Electromagnetic environment-guidance
Conducted RF IEC 61000-4-6
3 Vrms 150 KHz to 80 MHz
3 Vrms
Portable and mobile RF communications equipment should be used no closer to any part of the
MEDICAL SCALE
MS5710 including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.
Recommended separation distance:
d = 1,2 √P d = 1,2 √P 80MHz to 800 MHz d = 2,3 √P 800MHz to 2,5 GHz
Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).
Page 13
12
Radiated RF IEC 61000-4-3
3 V/m 80MHz to 2,5 GHz
3 V/m
Field strengths from fixed RF transmitters, as determined by an electromagnetic site surveya, should be less than the compliance level in each frequency rangeb.
Interference may occur in the vicinity of equipment marked with the following symbol:
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a Field strengths from fixed transmitters, such as base stations for radio
(cellular/cordless) telephones and land mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the location in which the MEDICAL SCALE MS5710 is used exceeds the applicable RF compliance level above, the MEDICAL SCALE MS5710 should be observed to verify normal operation. If abnormal performance is observed, additional measures my be necessary, such as re-orienting or relocating the MEDICAL SCALE MS5710.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be les than
3 V/m.
Page 14
13
Recommended separation distance between portable and mobile RF
communications equipment and the MEDICAL SCALE
The MEDICAL SCALE MS5710 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MEDICAL SCALE MS5710 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MEDICAL SCALE MS5710 as recommended below, according to the maximum output power of the communications equipment.
Separation distance according to frequency of transmitter m
Rated maximum output
power of transmitter
W
150 kHz to 80 MHz
d =1,2√P
80 MHz to 800 MHz
d =1,2√P
800 MHz to 2,5 GHz
d =2,3√P
0,01 0,12 0,12 0,23
0,1 0,38 0,38 0,73
1 1,2 1,2 2,3
10 3,8 3,8 7,3
100 12 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
Page 15
14
SPECIFICATION
Model
MS 5710 MS 5711 / MS5712
Capacity
300kg x 0.1kg
OIML CLASS III
300kg x 0.1kg
Accuracy
±150g ±200g
Weight Unit
kg kg/lb
Certificate
Medical device/ Class III
CE
LCD Display
1.0 inch LCD display with 5 and 1/2 digits
Dimension
360*410*120mm
Key
Functions
ON/OFF , (zero),
HOLD/BMI , TARE
ON/OFF , UNIT ,
HOLD/BMI , TARE
Operating
Temp. and
humidity
5°C - 35°C
15%-85% RH
Transport and
storage
temperature
and humidity
-20°C +60°C
10%-95% RH
Power supply
Six 1.5V AAA size alkaline batteries
Page 16
15
Adaptor type: 12V
Page 17
16

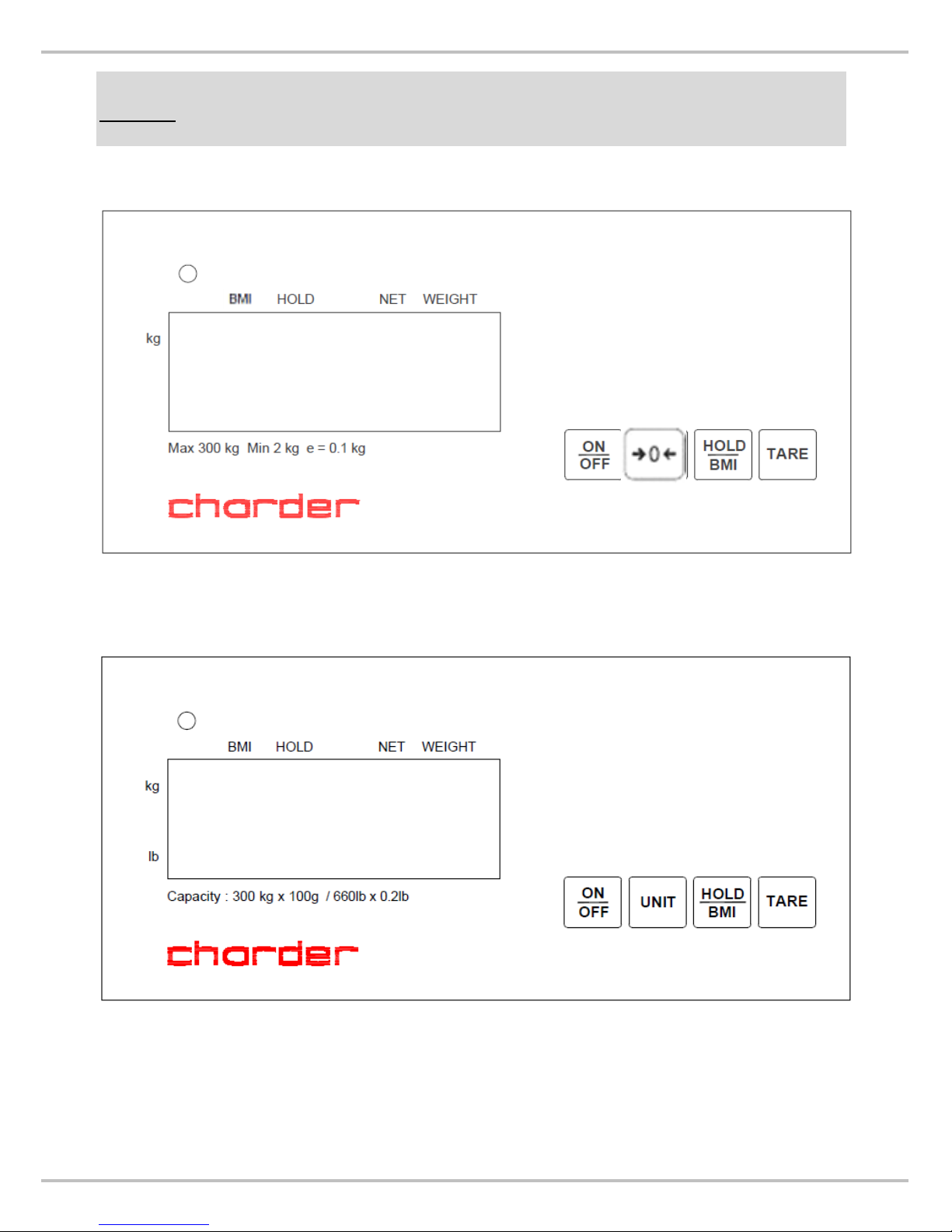

PANEL
MS 5710
MS 5711 / MS5712
Page 18
17

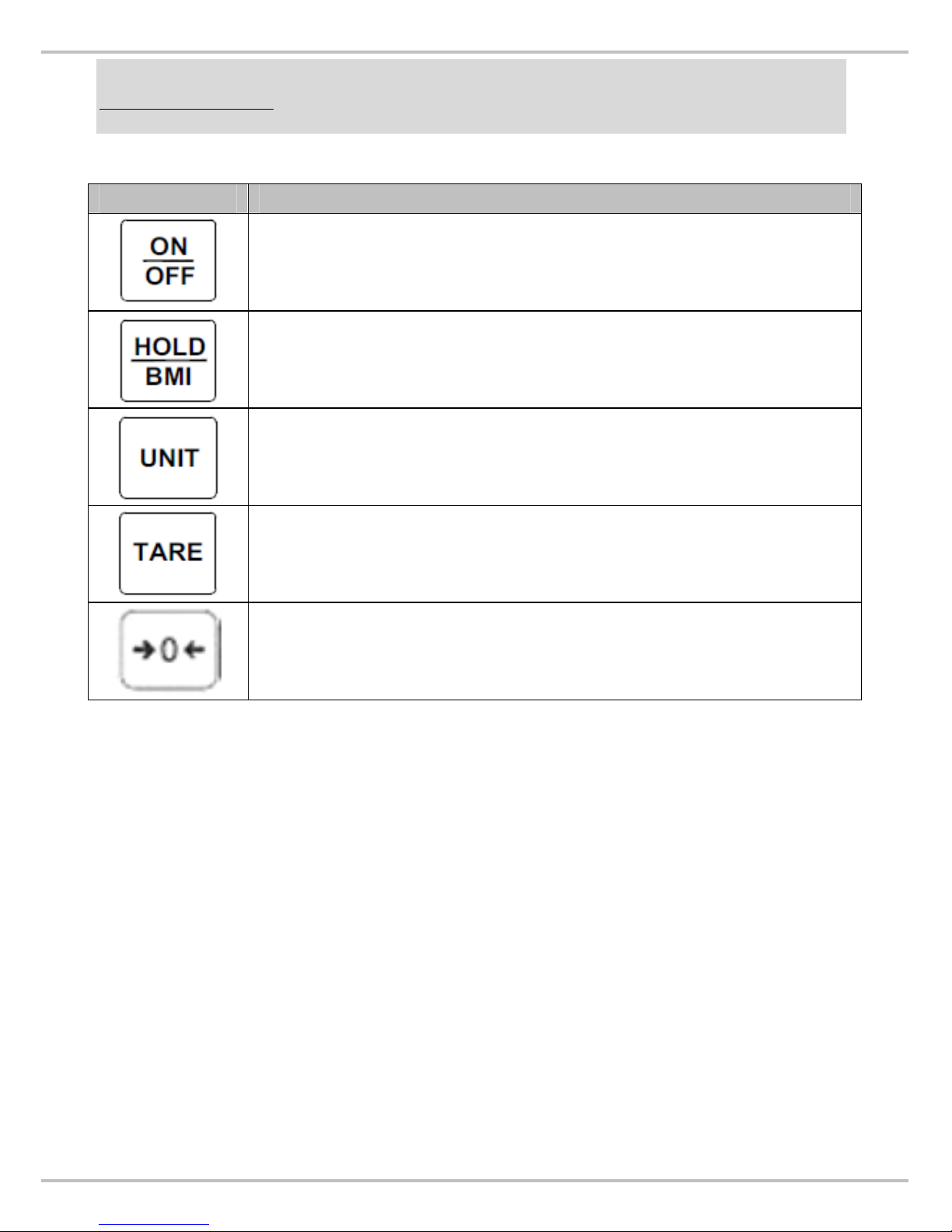

KEY FUNCTION
MS 5710 / 5711 / 5712
Key Description
Turn ON/OFF the scale
Determine Body Mass Index , To hold weighing result on the display / determine stable weighing value
Selecting measuring units between kg or lb.
Tare weight during weighing process.
To reset the display to 0.0kg display / Zero the scale (±2% of full capacity)
Page 19
18

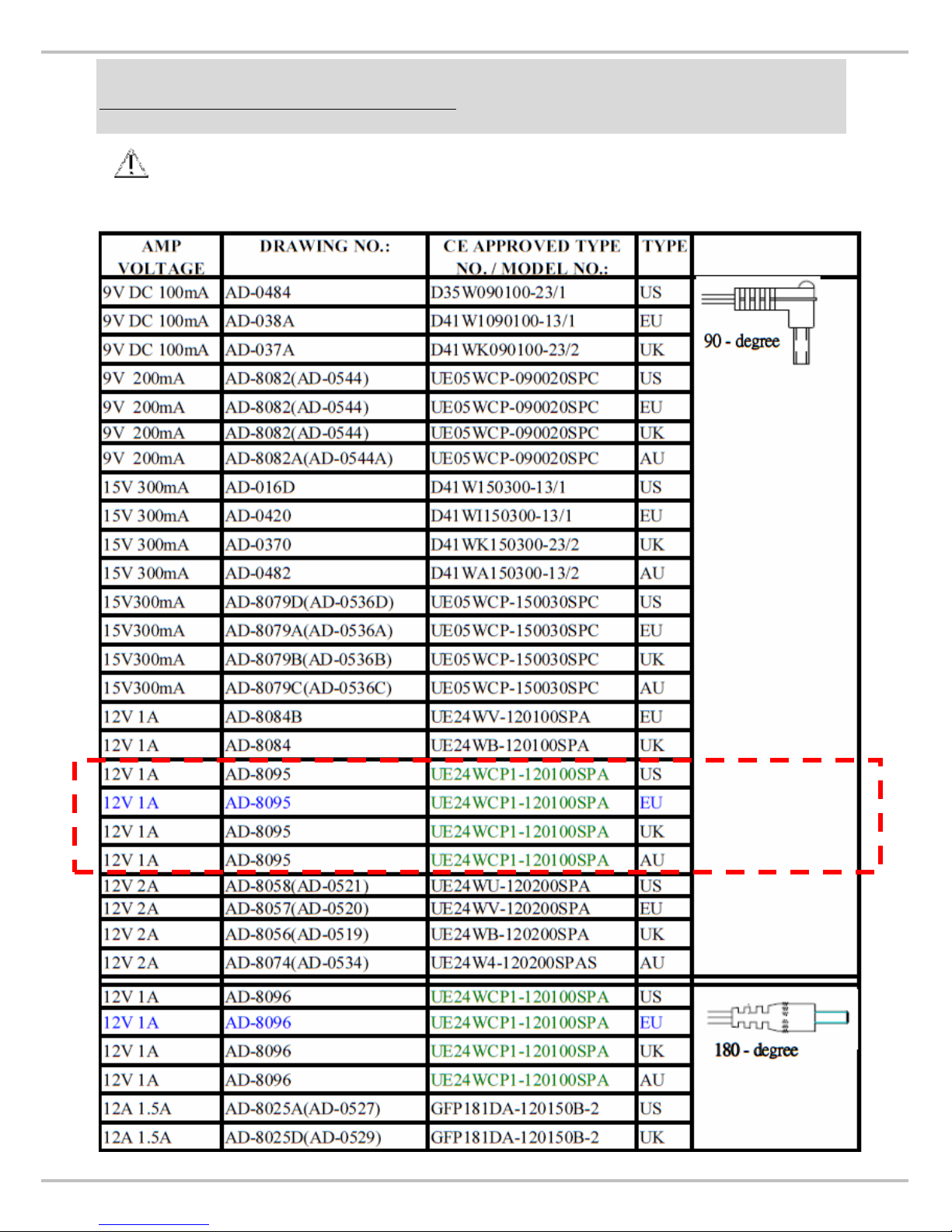

POWER ADAPTOR STANDARDS
CAUTION: The device is only compatible with restricted power
adaptors in dashed block below.
Page 20
19

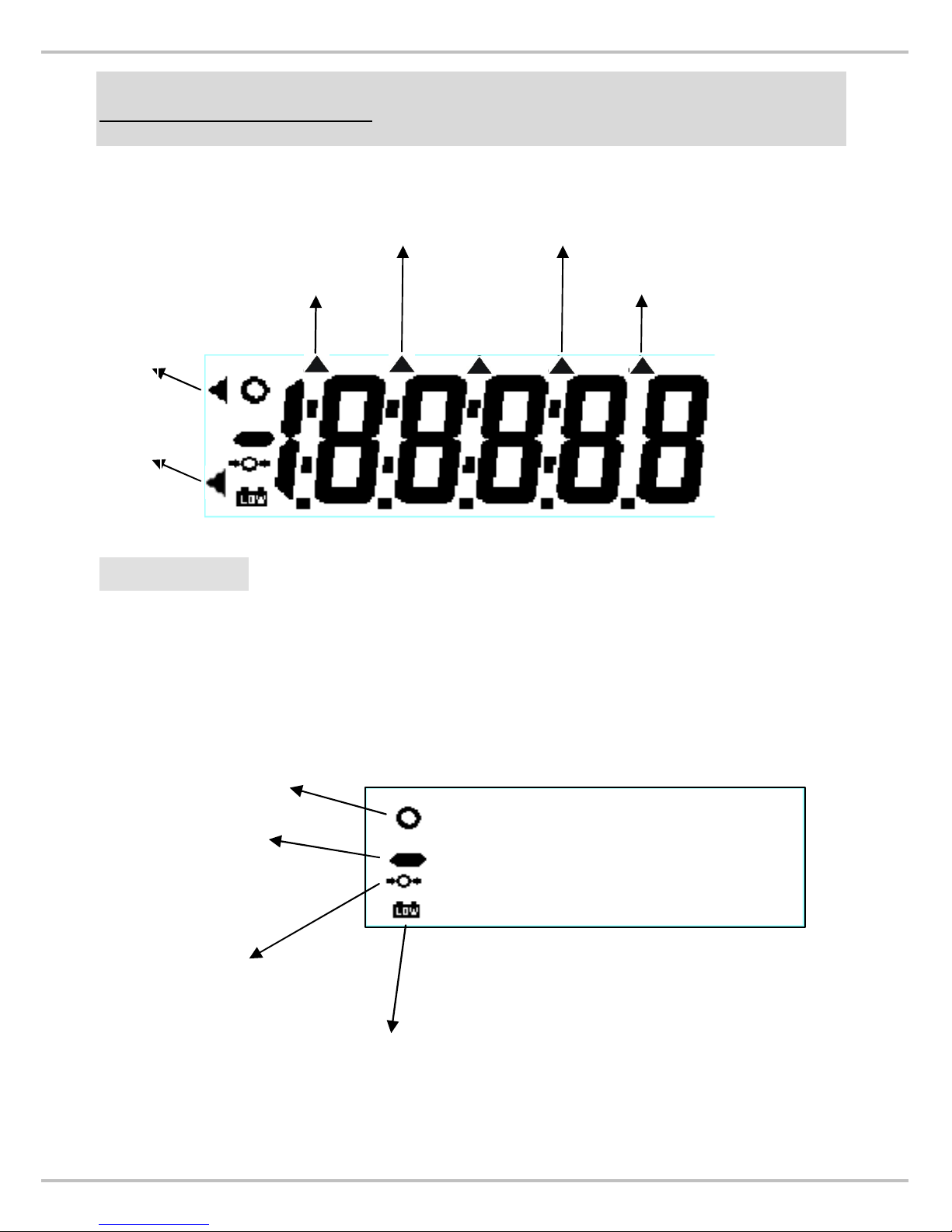

LCD DISPLAY SYMBOLS
Definitions
Stable symbol: To indicate that the weight is stable. Minor weight: Weight under zero. Zero symbols: Weight is at zero point. Low battery: Battery need to charge or replaced
Stable symbol
Minor weight
Zero symbol
Low Battery
kg
BMI Indication
NET WEIGHT I
ndicat
ion
WEIGHT Indication
Hold Indication
lb
Page 21
20
USING SCALE
WEIGHING
Switch on the scale using key. The diagnostic scale
self-check is performed and the software version is displayed.
The „0,00 kg” weight displays on the screen, now the scale is
ready for weighing.
Note: If „0,00 kg” won’t display on the screen, press key to
zero the scale, can be used any time to zero the scale. Place a person in the middle of the scale. Wait until the scale
stabilizes and stable sign (ο) shows on the screen
Direction:
If a person is heavier than the scale capacity, the display will show the „Err” prompt (= overload).
USING HOLD FUNCTION

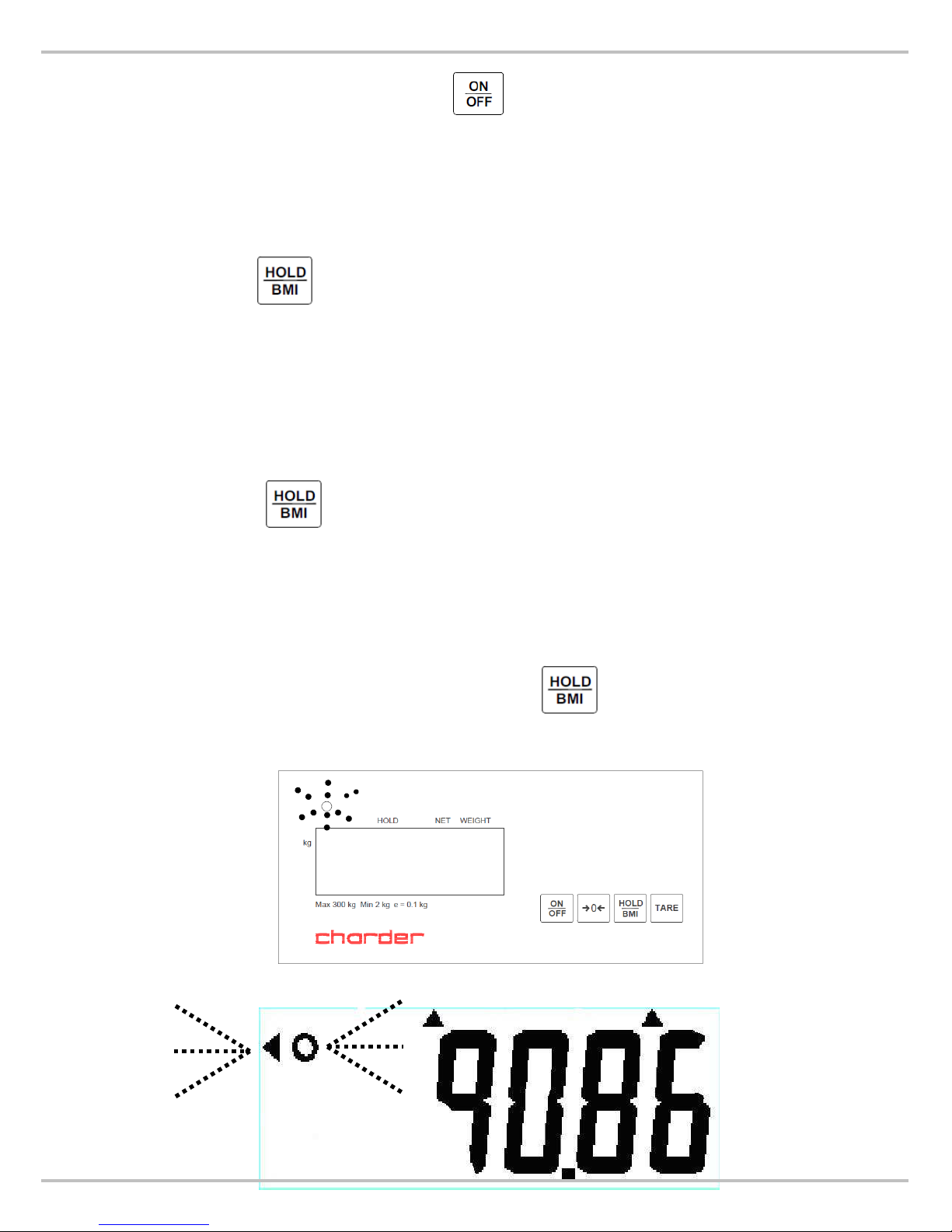

MS 5710 and MS 5711 / MS5712 are provided with the integrated hold function (determination of average value). It enables people to be weighed accurately although they are not still on the scale plate.
Once the key is pressed, the weight reading will remain on the display after the item has been removed from the scale so the
reading can easily be read. Note: Determination of average value is not possible when a person moves too much.
Page 22
21
(2)
(1)
Switch ‘ON’ the scale using key. The diagnostic self-checks
is performed. The scale is ready for weighing when the „0.0 kg” displays on the screen.
Place object/ person in the center of the scale plate.
Press the key. When the triangle is flashing on the display,
the scale records the fluctuating weight values and then calculates average weight and displays the result on the screen.
Remove the object/ person from the scale platform. The object/
person’s weight reading will remain on the display.
Press the key again to return the scale to the normal
weighing mode.
HOLD function can be activated before or after putting the
weight on the tread platform. But in case of weighing unstable
person it is recommended to press key before the person moves on the tread platform.
Page 23
22
USING TARE FUNCTION
Tare allows the user to zero the instrument to cancel the weight of a container/ clothes from the reading of the instrument, thus giving the true weight of the product/ person being tested.
Place the object need to be tare on the tread platform.
Press key after the weight stabilizes and stable sign
displays.
Place the object need to be weighed (without removing the tare
object)
To delete the saved tare value, remove the tare object from the tread
platform and press key.
Page 24
23

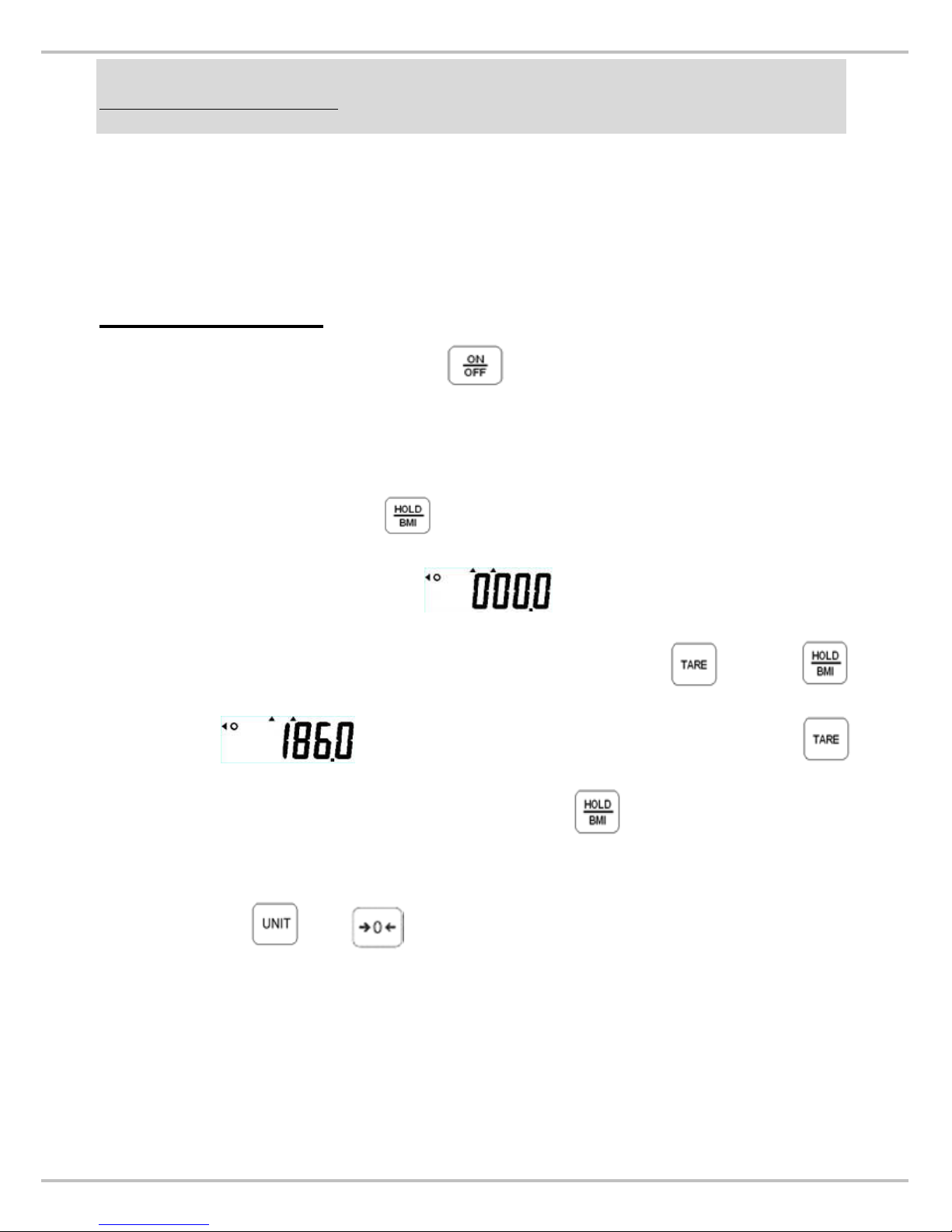

USING BMI FEATURE
For BMI calculation, height is needed, therefore it is recommended to measure the height of subject before starting weighing procedure and the height must be in centimeters.
MS 5710/5711/5712
1. Turn on the scale using key.
2. Proceed to weigh as normal.
3. After the weight is stable and stable sign displays on the
screen long press key for 3 seconds.
4. Display will change to display.
5. Enter the height of the person using and
key- (For example: To enter 186cm, use
key to change the number and Use key to move to next digit).
6. Press or key to confirm the height.
Page 25
24
7. The B.M.I. will display
8. Press again to return to normal mode.
9. Use or to reset the display to 0.0kg/ Zero the scale
Body Mass Index Categories
Classification of weight for adults over 18 years on the basis of Body Mass Index according to WHO, 2000 EK IV and WHO 2004 (WHO ­World Health Organization).
MS  SETUP
Page 26
25
MS 5710 / 5711 / 5712: Switch ON the scale and long press
or key for 3 seconds.
First “SETUP” and then “A.OFF” will display successively.
AUTO-OFF TIME SETUP This enables operator to select the auto turn OFF time of the device.
BUZZER ON/OFF SETUP This enables operator to select beep sound ON/OFF.
Auto off time: 120 sec/180 sec/240 sec/300 sec/off Buzzer: On/Off
Note: To confirm the settings, please press when
displays on the display.
Page 27
26
PRINT FUNCTION
The Weighing, BMI and Height results can be printed-out for records using RS232 interface cable (included in accessory kit), which is connected with the round plug at the back terminal. The format presented below is the standard format of results print-out and cannot be changed.
Page 28
27
RS232 Pin out
Connecting with PC-
MS 5710/5711/5712 can be connected to
PC to transfer the weighing results.
1. Start Hyper Terminal
Start Hyper Terminal program from clicking Start Menu
→ Programs → Accessories → Communication →
Hyper Terminal.
PIN 2--TXD
PIN 3--RXD
PIN 5
--
GND
PIN 2--TXD
PIN 3--RXD
PIN 5
--
GND
Page 29
28
2. New Connection Description
Give new connection a name then click OK.
3. Select Your COM Port
Click Connect to select your COM port. Usually there’s only one option for select. Then click OK.
4. Port Settings
Click Bits per second to set up rate at 9600, Data bits at 8, Parity at None, Stop bits at 1 and Flow control at Hardware. Then click OK to complete your setting.
5. Output Data
When the patient has been weighed and BMI calculated, simply press the PRINT key to output data from scale to PC or an Optional Printer.
Parameters of RS232 interface Set parameters of the scale interface on the connected device. It is not possible to change the scale parameters.
Baud rate: 9600 bps  Parity check: None  Data length: 8 bits  Stop bit: 1 bit  Handshake: RTS/CTS  Data code: ASCII.
STANDARD ACCESSORIES FOR MS
Page 30
29
No.
Accessories
Item Spec. Qty.
1
Adjustable feet
M6*15
2
2
Spacer
∮6.6*∮13
2
3
Fixed plate (top)
SS-4961 1
4
Fixed plate
(bottom
SS-4971 1
5
Tapping Screw
M3*10 3
6
User manual IN-1159 1
7
RS232 cable WR-2781 1
8
12V Adaptor
1
9
Plastic anchor
1”(white) 2
10
Screw 4*20 2
Page 31
30
CAUTION:
Always connect the AC adaptor with the indicator before
connecting to the mains power supply.
Please disconnect the adaptor from main power supply before
taking out the AC adaptor pin from indicator.
INSTRUCTION FOR CHARGING AND CONNECTING
If
prompt displays on the LCD, please charge the
scale with MS 5710/5711/5712 exclusive adaptor or replace the batteries.
Locate adaptor plug-in at the back side of indicator.
Page 32
31
INSTRUCTION FOR REPLACING BATTERIES
1. Removing the battery cover. 2. Take the battery housing out.
3. Replacing new batteries. 4. Batteries are well installed.
5. Installing the battery housing. 6. Reinstalling the battery cover.
Page 33
32
ERROR MESSAGE
Page 34
33
TROUBLESHOOTING
Troubleshooting for defective modes:
Original purchaser can enjoy the benefits under the effective Warranty
against functional defects in material and workmanship subject to the
terms and conditions listed in the yearly Warranty Program & Return
Policy.
Our warranty service program includes the following:
1. Technician repair service under warranty or at a service maintenance charge depending on the workmanship for the defective functionality or cause of damage covered by the warranty.
2. Parts replacement from the manufacturing factory under the warranty or at a certain cost for the replaced parts plus the workmanship charge if not covered under the warranty.
Before you contact our Authorized Dealer in your country for technician
repair service, please read through the following section carefully:
Self-checking Tips:
Some functional defects can be identified and maintained by users as listed below:
1. Power-on failure
Check if the main power adaptor has not plugged onto the scale
properly
Check if the battery power is running low - Replace with new
batteries
Page 35
34
2. Indicator showing “0000” ZERO SPAN out of range
Incorrect weighing result - Avoid damages by external
environment force such as free-drop to the ground, collision by
external objects, etc.
Proper re-calibration procedure required to correct the setting
of weighing accuracy.
Interference due to RF disturbance, ground vibration…etc.
Unstable platform feet adjustments according to bubble level
indication
Incorrect position or other external objects within weighing
area
The weighing-scale is not put in a solid & firm ground area, such
as carpet floor or lawn.
3. Connection failure for data transmission to PC or printer
Wrong connection wires or faulty wires for transmission between
the digital indicator & load cells.
Wrong indicator models Wrong internal wiring or wire broken
In case of the following defective mode occurs, it is suggested to contact
your nearest Authorized Dealer for further technician service & repair:
1. POWER switch-on failure :
Push-button faulty Short circuit wires - Wire broken
Safety fuse burnt out
Wire connection problem Main power adaptor faulty – Parts Replacement
Page 36
35
2. LCD display faulty
Possible hardware defects include: Uneven brightness in the LCD
display screen & texts color blurred, smeared rainbow screen,
incorrect decimal display
LCD PIN broken or short circuit PCB cooper foil broken & loosed welding Unable to save or read data – IC or transistor faulty, internal parts
broken.
LCD showing “ERRL” after switch on - Load cell damaged Overload may cause the weigh to malfunction. Software system crash Resonator faulty Load cells with faulty grinding standard. Key buttons failure - Front key panel damaged or disconnected
3. Buzzer malfunction
Wrong welding of PVC wire Key buttons & control panel damaged or disconnected.
Page 37
36
Page 38
37

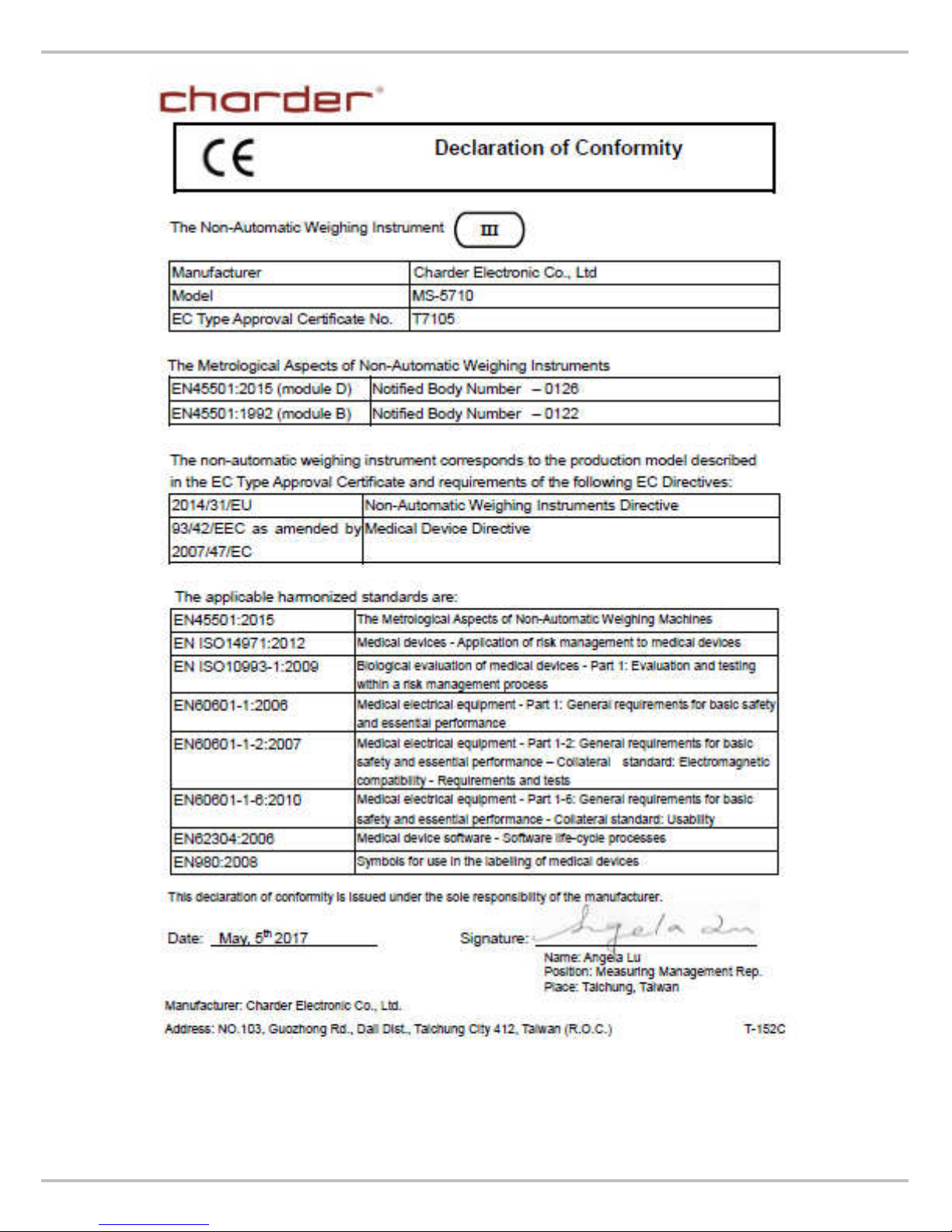

Manufacturer’s Declaration of Conformity
This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives:
93/42/EEC as amended by
2007/47/EC Medical Device Directive
2014/31/EU Non-
automatic Weighing Instruments
Directive
Please see separate document showing on sticker of device for above CE marking.
Authorized EU Representative:
Manufactured by:
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist., Taichung City 412 ,Taiwan (R.O.C.)
FDA no.: D051882 (for model MS5710. MS5711)
IN-1159 [10126M] 05/2017
Loading...
