Charder MS3400, MS3400-1 User Manual

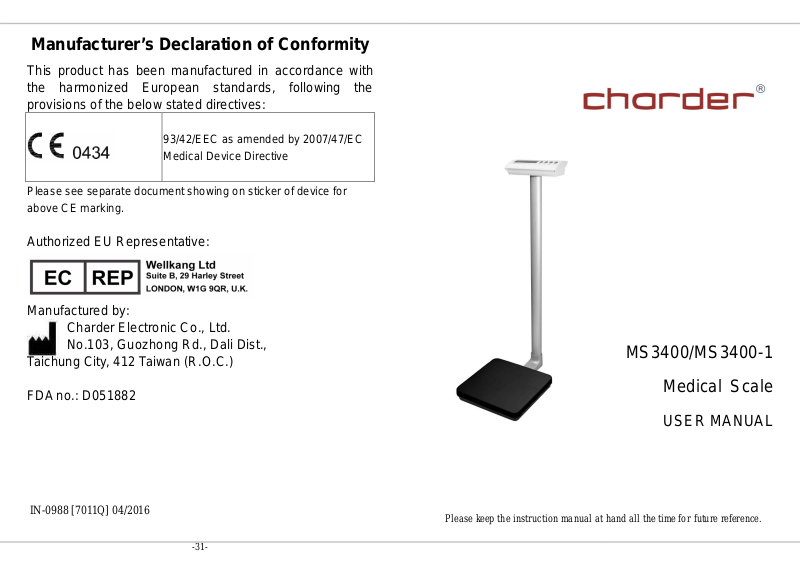

Manufacturer’s Declaration of Conformity

This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives:

93/42/EEC as amended by 2007/47/EC

Please see separate document showing on sticker of device for above CE marking.

Medical Device Directive

Authorized EU Representative:

Manufactured by:

Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist.,

Taichung City, 412 Taiwan (R.O.C.)

MS3400/MS3400-1

FDA no.: D051882

IN-0988 [7011Q] 04/2016

-31-

Medical Scale

USER MANUAL

Please keep the instruction manual at hand all the time for future reference.

-0-

TABLE OF CONTENTS

-30-

NOTE

PREFACE................................................................................................. 2

GENERAL INFORMATION .................................................................... 2

SAFETY INSTRUCTION ........................................................................ 2

ELECTROMAGNETIC COMPATIBILITY.............................................. 3

WARRANTY-LIABILITY........................................................................ 3

DISPOSING OF THE SCALE.................................................................. 4

EXPLANATION OF THE GRAPHIC SYMBOLS.................................... 5

EMC guidance and manufacturer's declaration.......................................... 7

SPECIFICATIONS ..................................................................................11

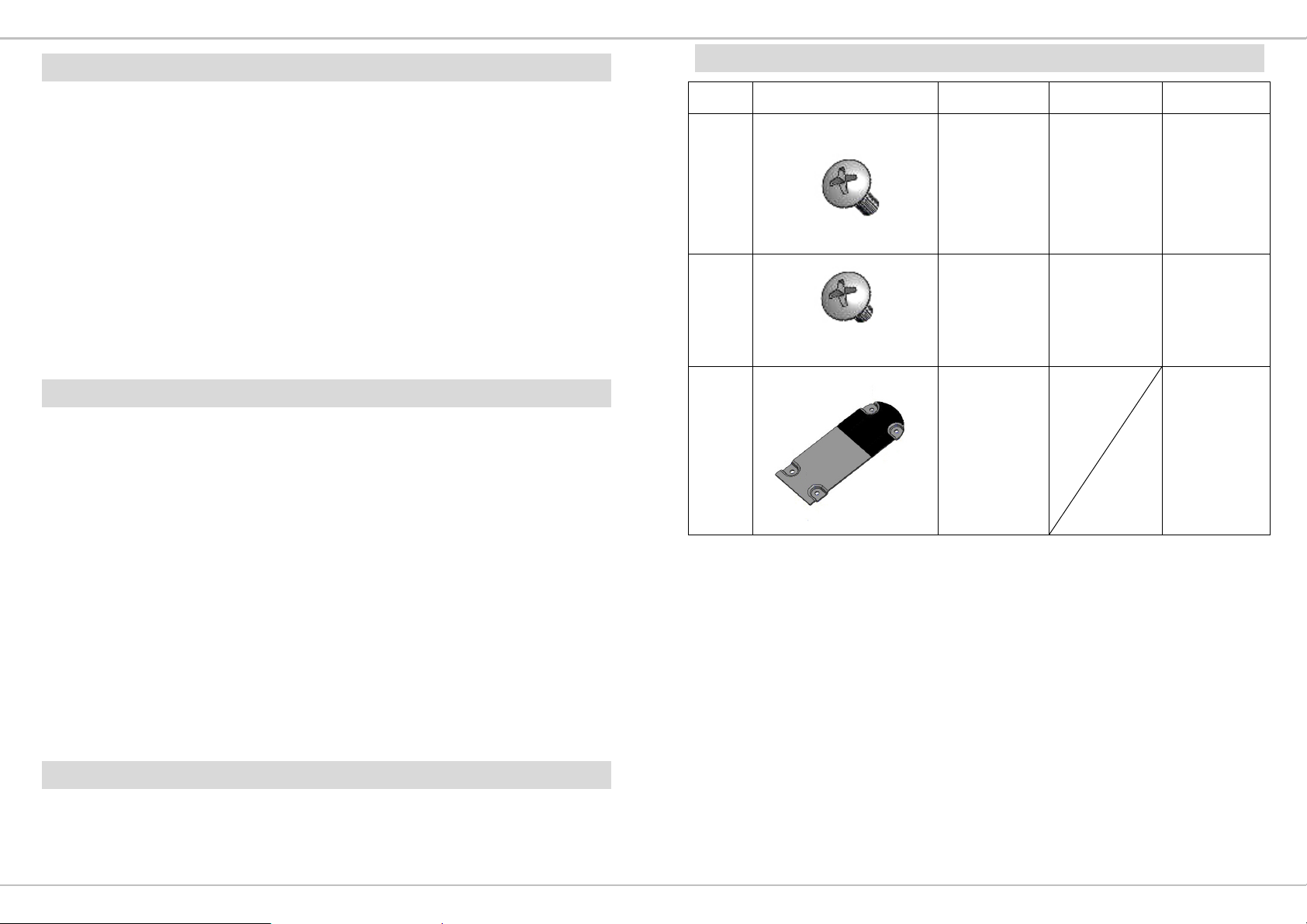

STANDARD ACCESSORIES ................................................................ 12

MEDICAL SCALE MODELS APPROVAL LIST................................... 13

POWER ADAPTOR STANDARDS ....................................................... 14

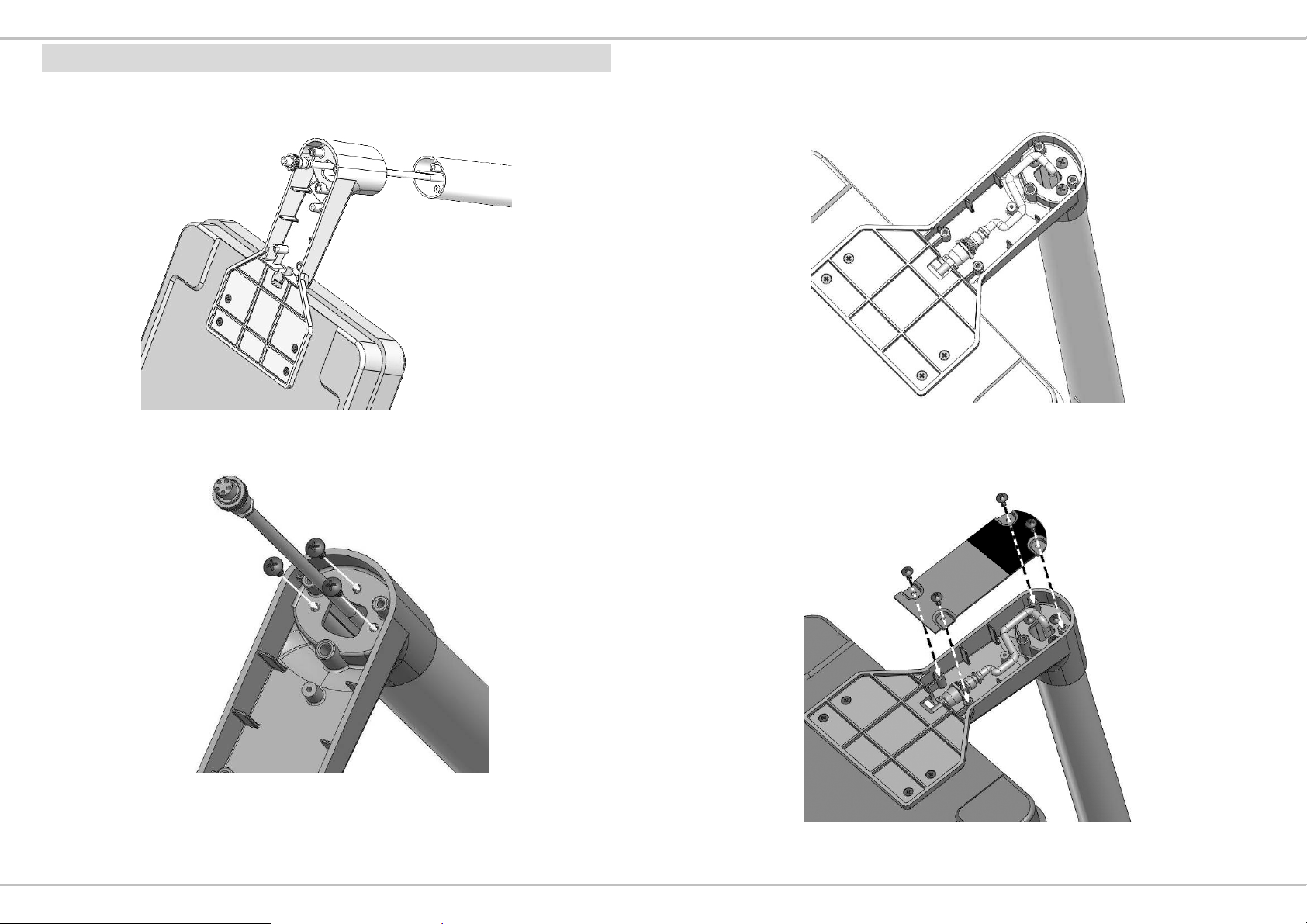

SCALE ASSEMBLY .............................................................................. 15

KEY FUNCTIONS................................................................................. 18

HOW TO USE HOLD FEATURE........................................................... 19

HOW TO USE BMI (Body Mass Index) ................................................. 19

USING TARE FUNCTION..................................................................... 19

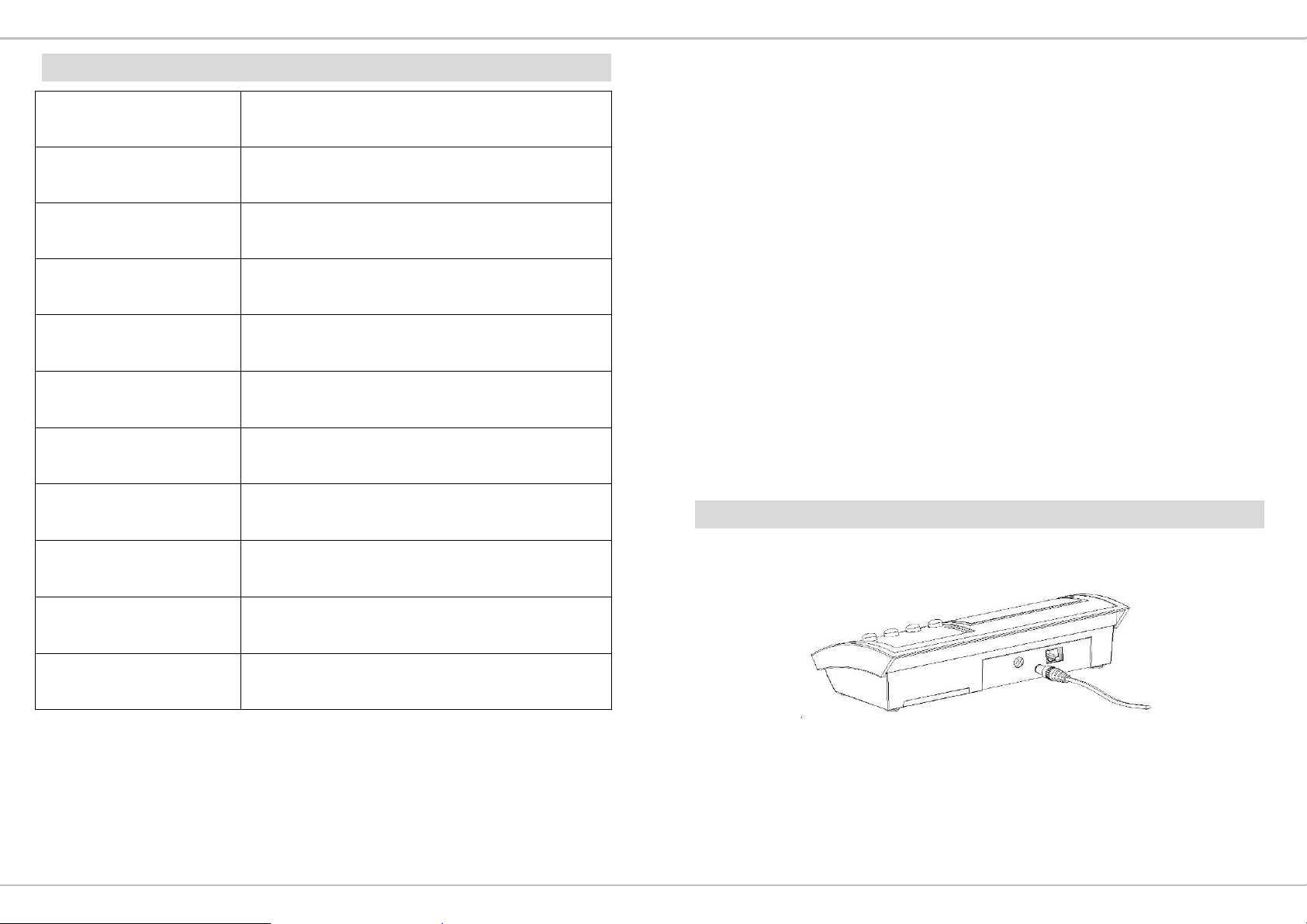

CONNECTING AC ADAPTER.............................................................. 20

CALIBRATION PROCEDURE.............................................................. 21

ASSEMBLE WITH HM201M HEIGHT ROD........................................ 22

INSTRUCTION OF USING HM201M................................................... 23

ERROR MESSAGE................................................................................ 26

TROUBLESHOOTING.......................................................................... 27

-1-

-29-

2. LCD display faulty

 Possible hardware defects include: Uneven brightness in the LCD

display screen & texts color blurred, smeared rainbow screen,

incorrect decimal display

LCD PIN broken or short circuit



 PCB cooper foil broken & loosed welding  Unable to save or read data – IC or transistor faulty, internal parts

broken.

PREFACE

Thank you for choosing CHARDER MEDICAL product. All features of this product were designed to state of the art and are optimized for simple and straightforward use. If you have any queries or experience any problems not addressed in the operating instructions, please contact your CHARDER MEDICAL service partner, or visit us on the Internet at

www.chardermedical.com

 LCD showing “ERRL” after switch on - Load cell damaged  Overload may cause the weigh to malfunction.  Software system crash  Resonator faulty  Load cells with faulty grinding standard.  Key buttons failure - Front key panel damaged or disconnected

3. Buzzer malfunction

 Wrong welding of PVC wire  Key buttons & control panel damaged or disconnected.

GENERAL INFORMATION

We strongly recommend you use the scales on flat and hard surface. Any soft surface, like carpet will cause inaccuracy.

SAFETY INSTRUCTION

Before putting the device into use, please read with care the

information given in the Operating Instructions. They contain important

instructions for installation, proper use and maintenance of the device.

The manufacturer shall not be liable for damages arising out of failure to

heed the following instructions:

 When using electrical components under increased safety

requirements, always comply with the appropriate regulations.

 Improper installation will render the warranty null and void.  Ensure the voltage marked on the power supply unit matches your

mains power supply.

 This device is designed for use indoors.  Observe the permissible ambient temperatures for use  These batteries should be kept away from small children. If swallowed,

promptly seek medical assistance.

 Expected Service Life: 5 years  The device meets the requirements for electromagnetic compatibility.

-2-

-3-

Do not exceed the maximum values specified in the applicable

-28-

standards.

If you have any problem, contact your local CHARDER MEDICAL service

partner.

ELECTROMAGNETIC COMPATIBILITY

ADVICE TO THE USER

This product is a sensitive electronic instrument and as such it may temporarily be affected by Radio Transmitting Devices being used in close proximity to it (such as Mobile Phones, Walkie Talkies, CB Radios, and Radio Model Controllers). If it does exhibit symptoms such as the display of erratic or erroneous data, try moving this product away from the source of interference or switching off that source of interference whilst you are using this product. If the problem persists then contact your local agent.

WARRANTY-LIABILITY

2. Indicator showing “0000” ZERO SPAN out of range

 Incorrect weighing result - Avoid damages by external environment

force such as free-drop to the ground, collision by external objects,

etc.

Proper re-calibration procedure required to correct the setting of



weighing accuracy.

 Interference due to RF disturbance, ground vibration…etc.  Unstable platform feet adjustments according to bubble level

indication

 Incorrect position or other external objects within weighing area  The weighing-scale is not put in a solid & firm ground area, such as

carpet floor or lawn.

3. Connection failure for data transmission to PC or printer

 Wrong connection wires or faulty wires for transmission between

the digital indicator & load cells.

 Wrong indicator models

 If a fault or defect is present on receipt of the unit which is within

CHARDER MEDICAL’s scope of responsibility, CHARDER shall have the right to either repair the fault or supply a replacement unit. Replaced parts shall be the property of CHARDER. Should the fault repairs or replacement delivery not be successful, the statutory provisions shall be valid. The period of warranty shall be two years, beginning on the date of purchase. Please retain your receipt as proof of purchase. Should your scale require servicing, please contact your dealer or CHARDER MEDICAL Customer Service.  No responsibility shall be accepted for damage caused through any of the following reasons: Unsuitable or improper storage or use,

 Wrong internal wiring or wire broken

In case of the following defective mode occurs, it is suggested to contact

your nearest Authorized Dealer for further technician service & repair:

1. Power Switch-on failure :

 Push-button faulty  Short circuit wires - Wire broken  Safety fuse burnt out  Wire connection problem  Main power adaptor faulty – Parts Replacement

-27-

TROUBLESHOOTING

-4-

incorrect installation or commissioning by the owner or third parties,

Troubleshooting for defective modes:

Original purchaser can enjoy the benefits under the effective Warranty

against functional defects in material and workmanship subject to the

terms and conditions listed in our Warranty Program & Return Policy.

Our warranty service program includes the following:

1. Technician repair service under warranty or at a service maintenance charge depending on the workmanship for the defective functionality or cause of damage covered by the warranty.

2. Parts replacement from the manufacturing factory under the warranty or at a certain cost for the replaced parts plus the workmanship charge if not covered under the warranty.

Before you contact our Authorized Dealer in your country for technician

repair service, please read through the following section carefully:

natural wear, changes or modifications, incorrect or negligent handling, overuse, chemical, electrochemical or electrical interference or humidity, unless this is attributable to negligence on the part of CHARDER MEDICAL.  If operating, climatic or any other influences lead to a major change in conditions or material quality, the treaty for perfect unit functioning shall be rendered null and void. If CHARDER provides and individual warranty, this means that the unit supplied will be free of faults for the length of the warranty period.

DISPOSING OF THE SCALE

 This product is not to be treated as regular household waste, but should be handed into an electrical/electronic equipment recycling centre.  You can obtain further details from your local council, your municipal waste disposal company or the firm which you purchased the product.

Self-checking Tips:

Some functional defects can be identified and maintained by users as listed below:

1. Power-on failure

 Check if the main power adaptor has not plugged onto the scale

properly

 Check if the battery power is running low – Replace with new

batteries.

-5-

EXPLANATION OF THE GRAPHIC SYMBOLS

the

scale.



Under

Zero



Over Zero

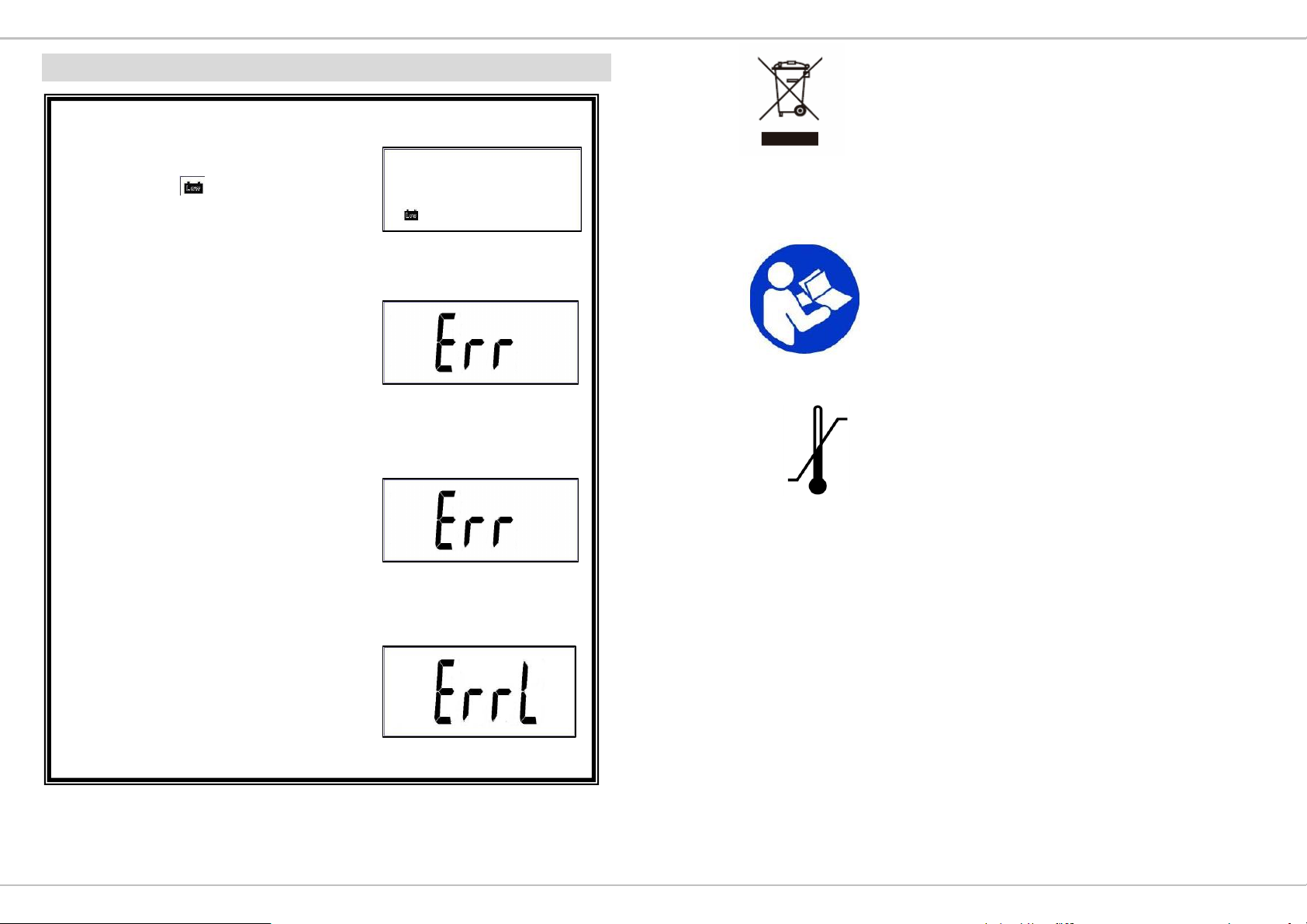

ERROR MESSAGE

SN-T13000001

Charder Electronic Co., Ltd.

No.103, Guozhong Rd., Dali Dist.,

Designation of the serial number of every device, applied at the device.

(Number as an example)

“Please note the accompanying documents“ or “Observe operating instructions”

Identification of manufacturer of medical product including address

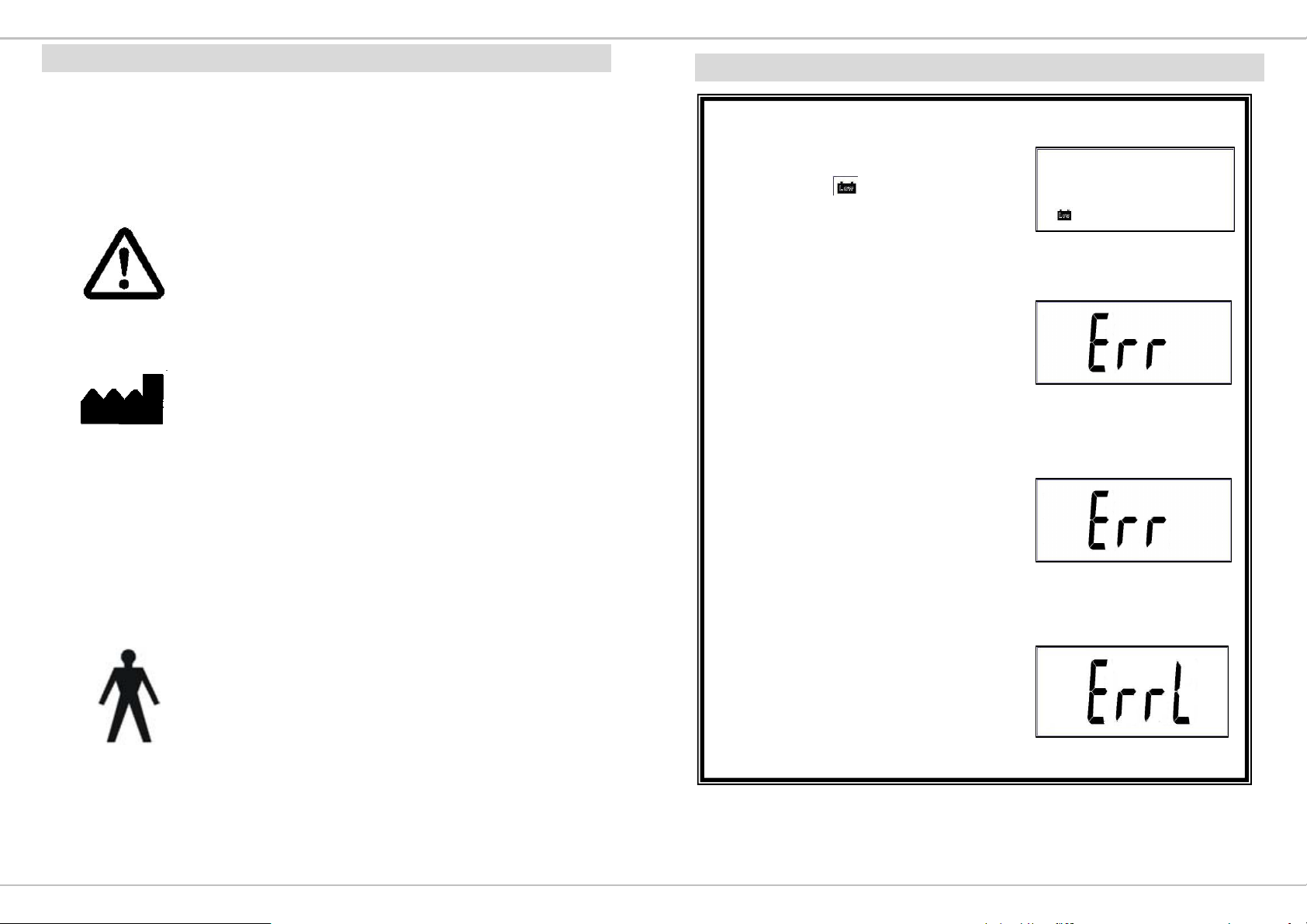

 Low Battery

If battery is running out of power, the display shows . You should charge

 Over Load

If the total load exceeds the maximum capacity of scale, the display will show the “Err” message. The weight must be removed from the platform right away.

If zero count is high than the setting range, the display will show “Err” message. The scale will shut off if the

Taichung City 412, Taiwan (R.O.C.)

“Electro-medical appliance“ with attachment for type B

status lasts 30 seconds.

If zero count is below the setting, the display will show “Errl” message. The scale will shut off if the status lasts 30 seconds.

-26-

-6-

Dispose of old appliances

his operation manual

separately from your household waste!l!

3. Measured result can be read at the place pointed by arrow.

-20°C

+60°C

Instead, take them to communal collection points.

Carefully read t before setup and commissioning, even if you are already familiar with Charder scales.

Transport and storage temperature limit indicating the upper and the lower limit (Transport and storage temperature on packaging)

NOTE: Please fold the plate when pull down through the indicator

-25-

EMC guidance and manufacturer's declaration

Guidance and manufacturer’s declaration-electromagnetic emissions

The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that it is used in such an environment.

Emission test Compliance Electromagnetic environment-guidance

RF emissions CISPR II

Harmonic emissions IEC 61000-3-2 Voltage fluctuations/flicker emissions IEC 61000-3-3

Group 1 The MS-3400-1 uses RF energy only for its internal

function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.

Class B

Class A

Compliance

The MS-3400-1 is suitable for use in all establishments, including domestic establishments and those directly connected to the public low-voltage power supply network that supplies buildings used for domestic purposes.

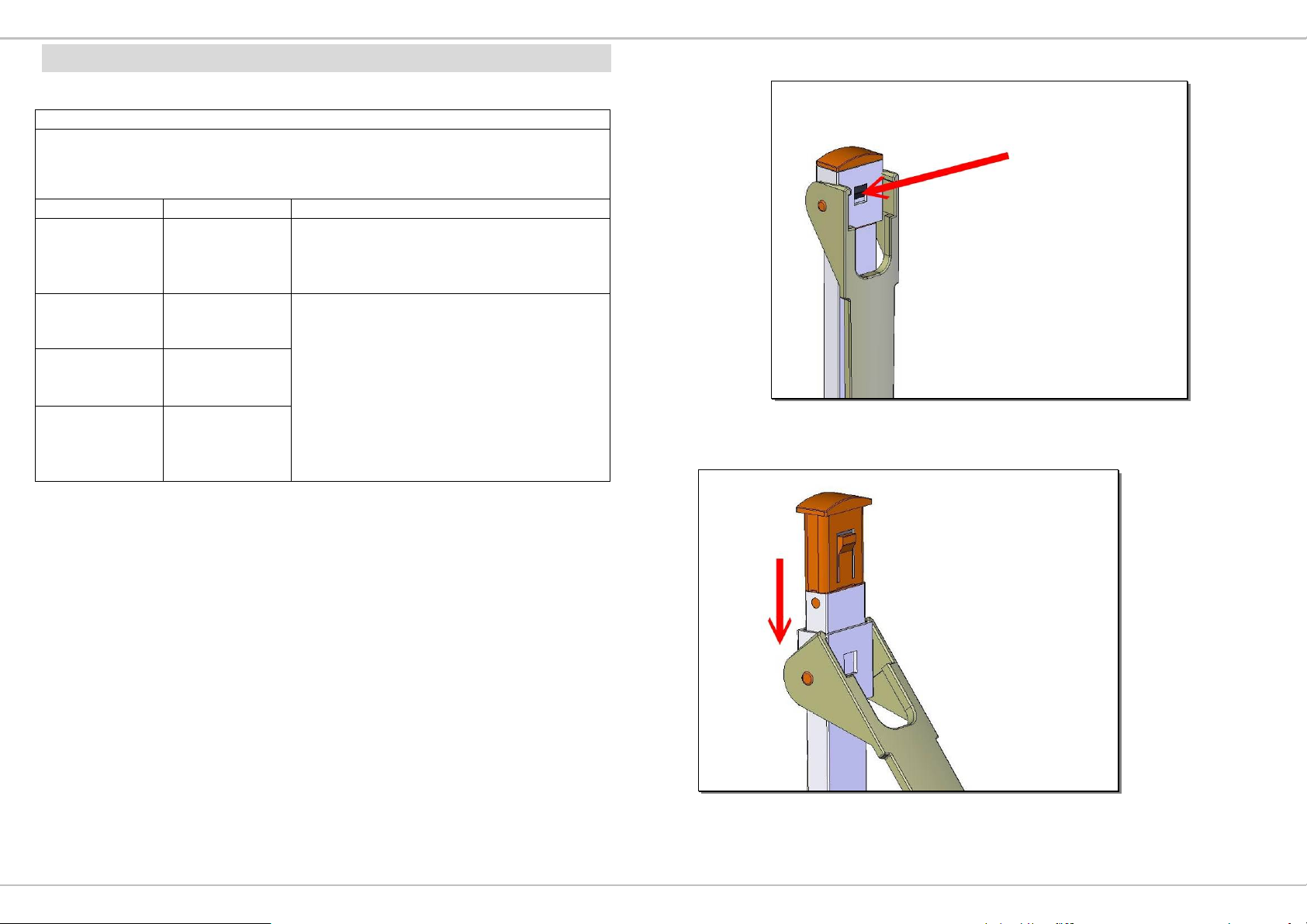

MEASURING UNDER 131 cm

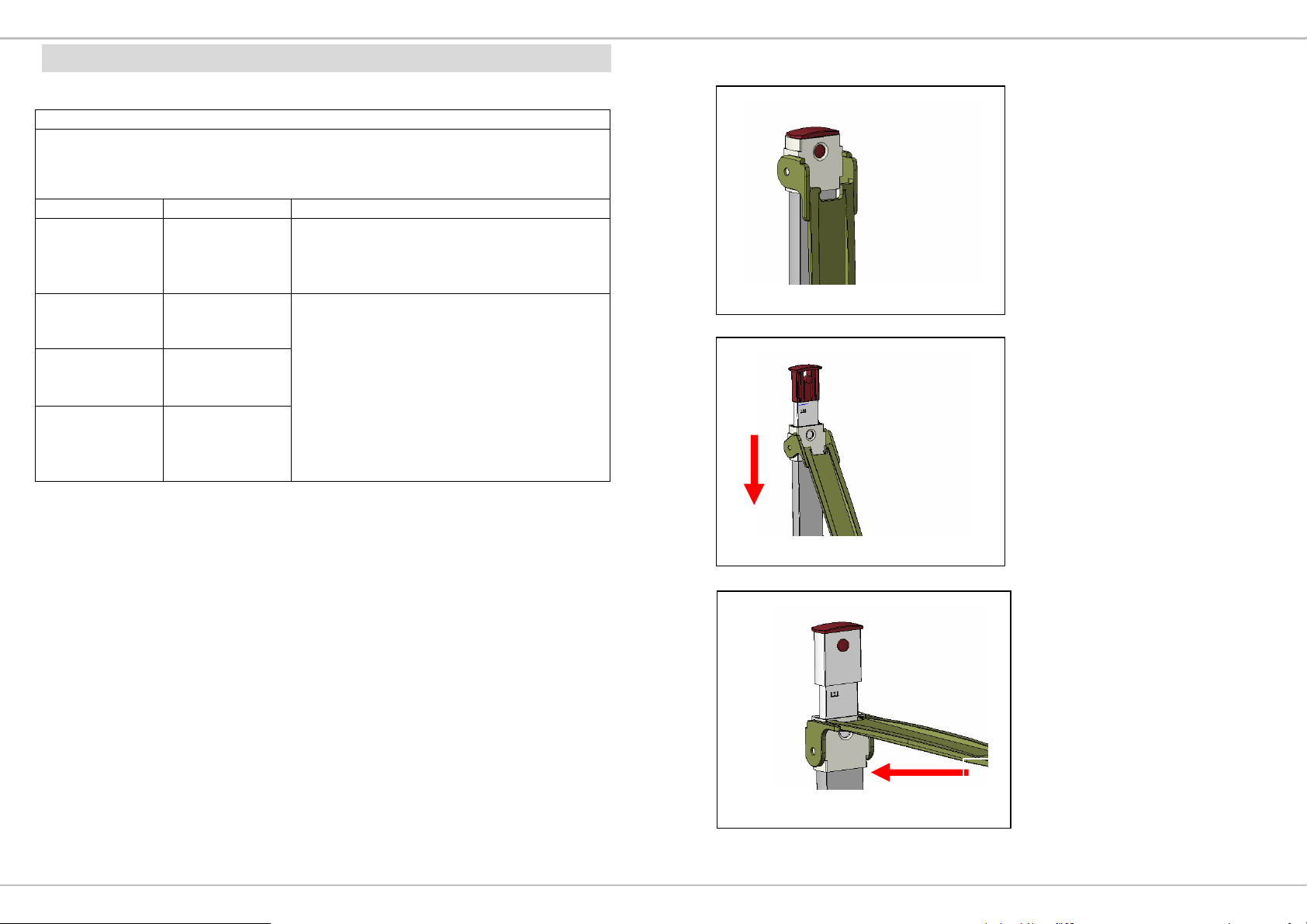

1. Fold the plate and press the tenon.

-7-

Pull down the plate while tenon has been pressed.

-24-

INSTRUCTION OF USING HM201M

IEC 60601

discharge (ESD)

transient/burst

MEASURING OVER 131 cm

Guidance and manufacturer’s declaration-electromagnetic immunity

The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that it is used in such an environment.

Immunity test

Electrostatic

IEC 61000-4-2

test level

±6kv contact ±8kv air

Compliance level Electromagnetic

environment-guidance

±6kv contact ±8kv air

Floors should be wood, concrete or ceramic tile. If floors are covered with synthetic material, the relative humidity should be at least 30%

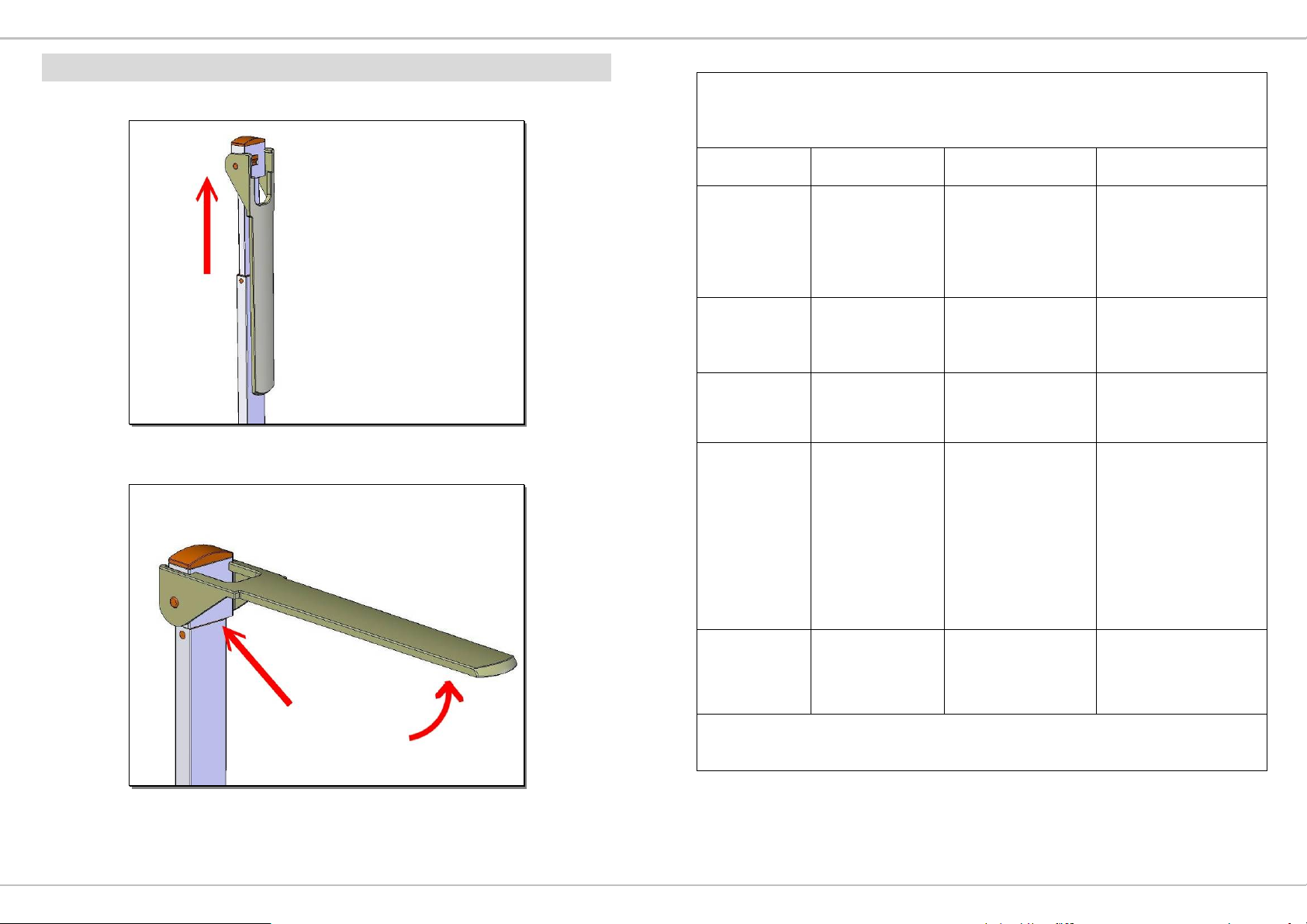

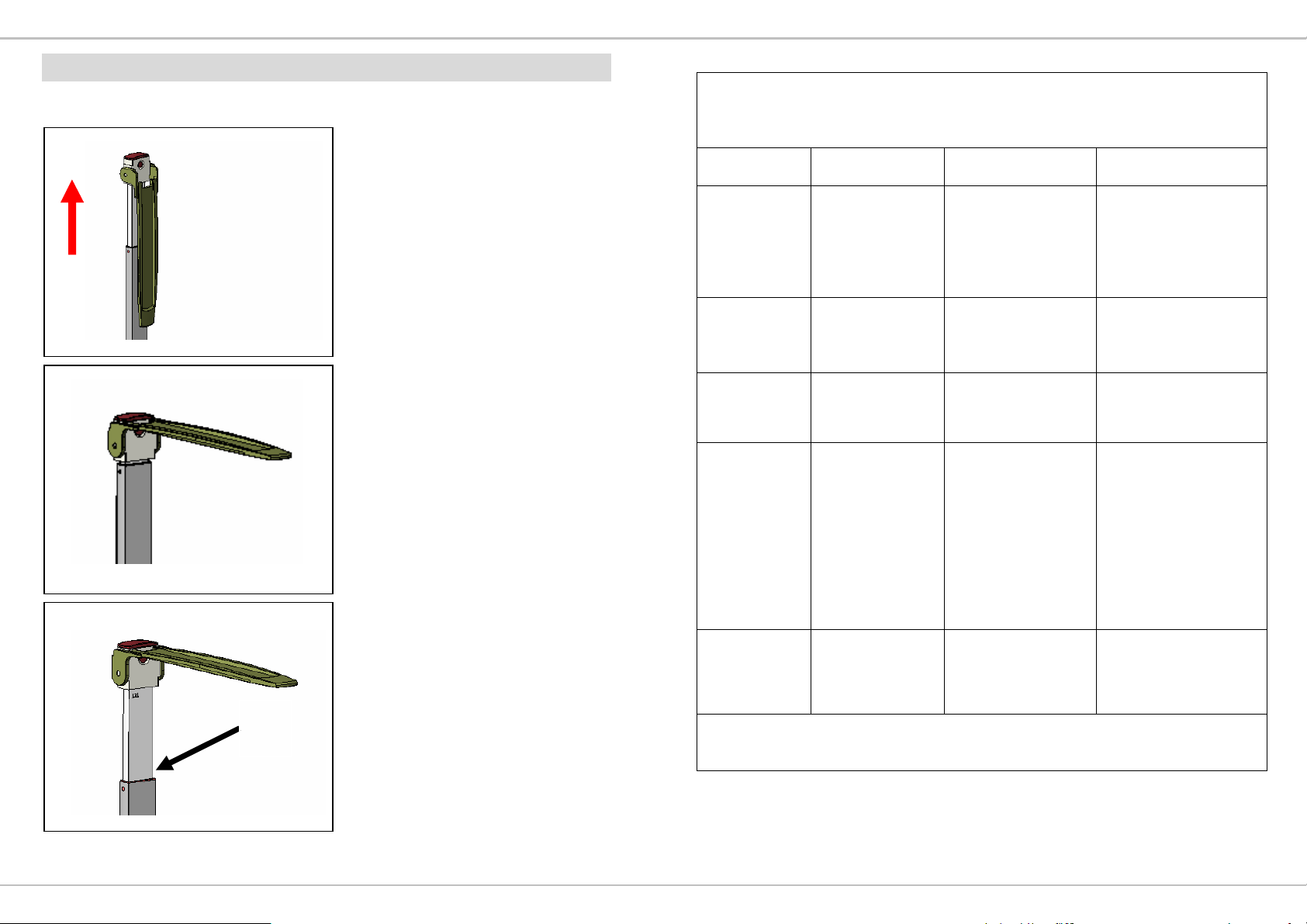

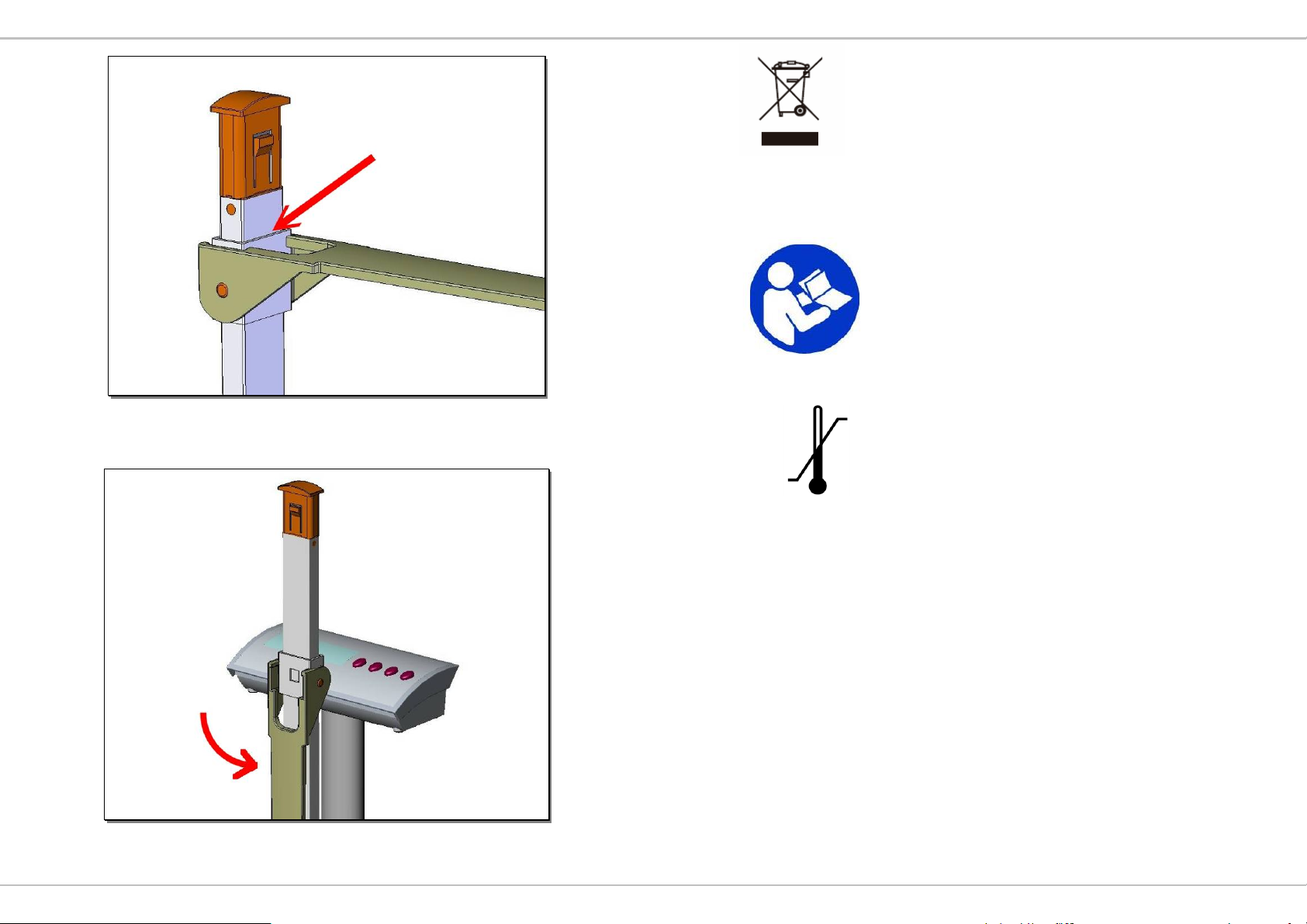

1. Pull out the rod.

Electrical fast

IEC 61000-4-4

Surge IEC 61000-4-5

Voltage Dips, short interruptions and voltage variations on power supply input lines IEC 61000-4-11

Power frequency (50/60Hz) magnetic field IEC 61000-4-8

±2kv for power supply lines ±1kv for input/output lines ±1kv differential mode ±2kv common mode

<5%UT(>95% dip in UT) for 0.5 cycle 40% UT(60% dip in UT) for 5 cycles 70% UT(30% dip in UT) for 25 cycles <5% UT(>95% dip in UT) for 5 s

3 A/m 3 A/m

±2kv for power supply lines ±1kv for input/output lines

±1kv differential mode ±2kv common mode

<5%UT(>95% dip in UT) for

0.5 cycle 40% UT(60% dip in UT) for 5 cycles 70% UT(30% dip in UT) for 25 cycles <5% UT(>95% dip in UT) for 5 s

Mains power quality should be that of a typical commercial or hospital environment.

Mains power quality should be that of a typical commercial or hospital environment. If the user of the MS-3400-1 requires continued operation during power mains interruptions, it is recommended that the MS-3400-1 be powered from an uninterruptible power supply or a battery.

The MS-3400-1 contains no

devices susceptible to magnetic

fields.

NOTE: UT is the a.c. mains voltage prior to application of the test level.

2. Level the plate and start measuring.

-23-

-8-

-9-

Guidance and manufacturer’s declaration-electromagnetic immunity

IEC 60601

The MS-3400-1 is intended for use in the electromagnetic environment specified below. The customer or the user of the MS-3400-1 should assure that is used in such and environment.

Immunity test

Conducted RF IEC 61000-4-6

Radiated RF IEC 61000-4-3

test level

3 Vrms 150 KHz to 80 MHz

3 V/m 80MHz to 2.5GHz

Compliance

level

3 Vrms

3 V/m

Electromagnetic

environment-guidance

Portable and mobile RF communications equipment should be used no closer to any part of the MS-3400-1 including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter. Recommended separation distance: d=1.2√p d=1.2√p 80MHz to 800MHz d=2.3√p 800MHz TO 2.5GHz Where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m).

Field strengths from fixed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range.b

Interference may occur in the vicinity of equipment marked with the following symbol

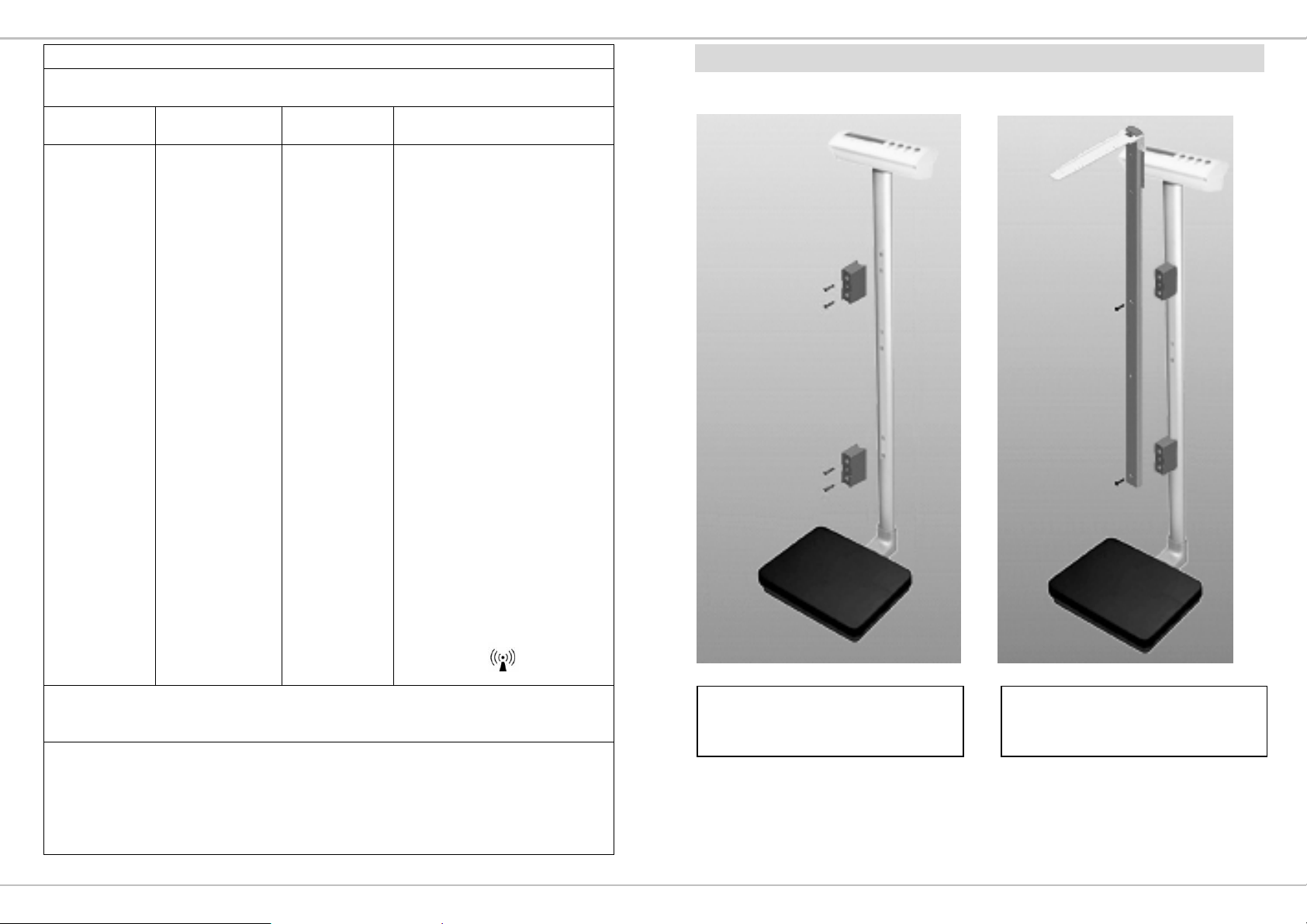

ASSEMBLE WITH HM201M HEIGHT ROD

NOTE1 At 80MHz and 800MHz, the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people. a. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land

mobile radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured observed, additional measures may be necessary, such as re-orienting or relocating the MS-3400-1.

b. Over the frequency range 150KHz to 80MHz, field strengths should be less than 3V/m.

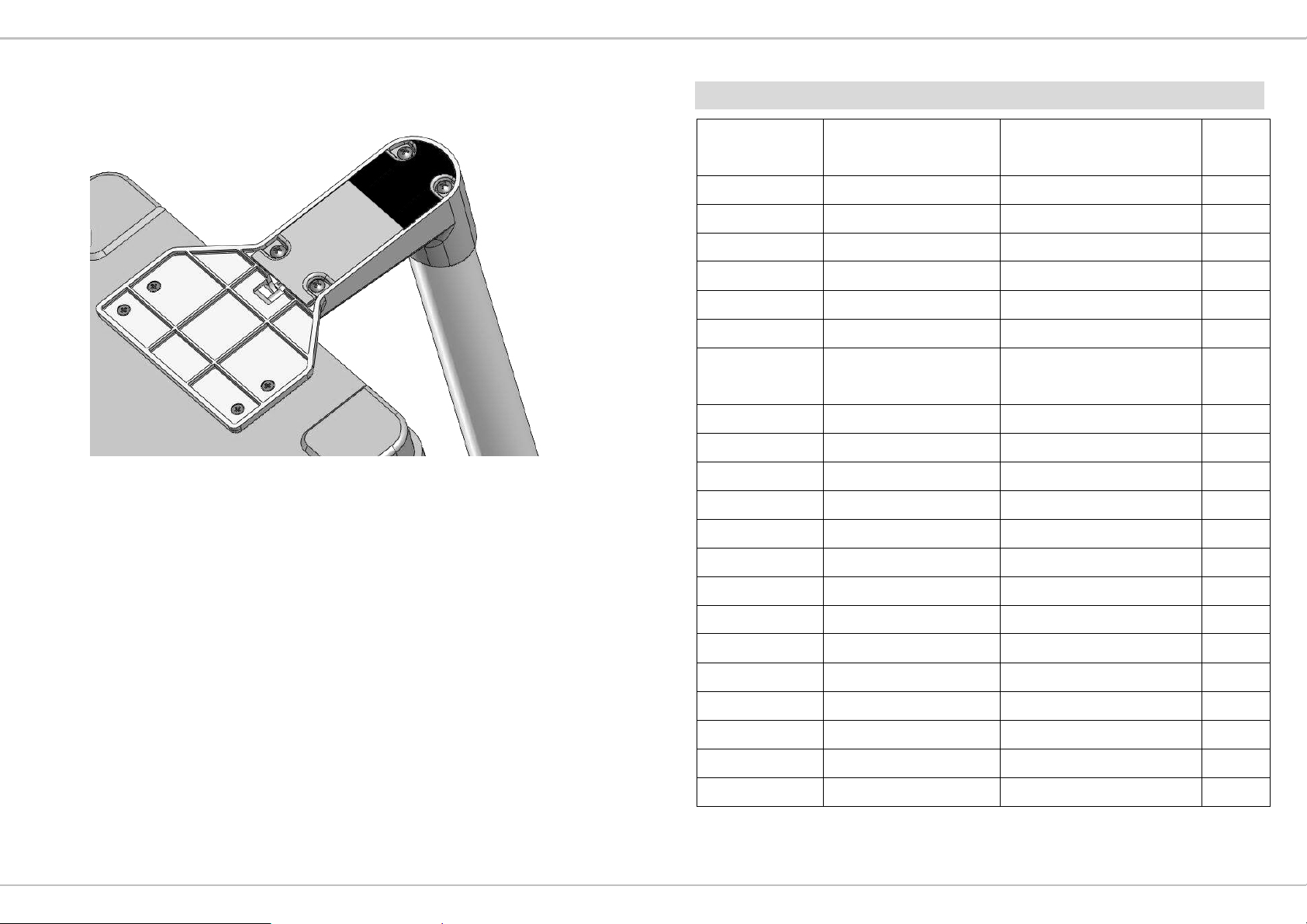

1. Fix the brackets.

2. Fix HM201M on the brackets.

-22-

-21-

-10-

Portable and mobile RF communications equipment and the MS-3400-1

Recommended separation distance between

CALIBRATION PROCEDURE

1) Keep pressing ON/ZERO/OFF and press UNIT/WEIGHT 3 times simultaneously.

2) LCD display shows zero count value between 2000 to10000.

3) Press TARE, display shows “0”.

4) Press UNIT/WEIGHT to select calibration weight unit (kg/lb)

5) Load 200 kg or 500 lb.

6) Display will show span count value (kg: 8000 ~ 20000 / lb : 9100 ~ 22650).

7) Press TARE, display will show “CAL”, and then show 200.0kg /

500.0 lb.

8) Remove the weight, and the calibration procedure is finished.

The MS-3400-1 is intended for use in the electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the MS-3400-1 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the MS-3400-1 as recommended below, according to the maximum output power of the communications equipment.

Rated

maximum

output power

of transmitter

W

Separation distance according to frequency of transmitter

m

150KHZ to 80MHZ

d=1.2√p

80MHZ to 800MHZ

d=1.2√p

800MHZ to

2,5GHZ

d=1.2√p

0,01

0,1

1

0,12

0,38

1,2

0,12

0,38

1,2

0,23

0,73

2,3

10

100

3,8

12

3,8

12

7,3

23

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m) can be estimated using the equation applicable to the frequency of the transmitter, where p is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.

SPECIFICATIONS

-20-

1. Place the tare object (additional loads or clothes) onto the

Model MS 3400 / MS 3400-1 (DP 2700)

Capacity 300 kg x 0.1 kg

Accuracy ±150g

Weight Unit kg / lb

Operating Temp. &

Humidity

Transport and Storage

Temperature & Humidity

+ 5°C ~ + 35°C

15% - 85% RH

- 20°C + 60°C

10% - 95% RH

LCD Display 1.0” LCD digital display

Platform size: 310 x 310 mm

Dimension

Column Height: 900mm

HOLD/BMI , UNIT/WEIGHT , ON/ZERO/OFF ,

Key Functions

TARE

tread platform.

2. Press [TARE] key after the weight stabilizes and stable sign displays. Remove the tare object from the platform first, so the display will return to zero for the second time weighing of the gross weight.

3. Place the gross object/person to be weighed (Including the tare object on the tread platform)

4. The weighing result is the Net weight of the item / person.

5. To delete the saved tare value, remove the tare object from the tread platform and press [TARE] key.

CONNECTING AC ADAPTER

Plug in AC adapter or put in batteries as power source.

Power Supply

12V- 15V adapter

1.5V AAA battery * 6

Optional Accessories HM201M height rod 60 ~ 205 cm / 6ft 9inch

-11-

(For rechargeable version)

Please connect to AC adapter to charge your scale for at least 14 hours before first use. Fully charged rechargeable batteries could provide approximately eight hours of continuously use.

HOW TO USE HOLD FEATURE

-12-

STANDARD ACCESSORIES

By using the HOLD function the identified weight will be stored and is shown on the display even if you stepped already off the scale.

1) Press ON/ZERO/OFF to turn on the scale.

2) Step on the scale, wait until stable zero symbol O appears.

3) Press HOLD/BMI while subject is being weighed.

4) An arrow will blink and point HOLD mark on the panel.

5) Step off the scale, and the weight value will continue showing on the display.

6) Press HOLD/BMI again to disable HOLD function.

HOW TO USE BMI (Body Mass Index)

1) Press HOLD/BMI for at least 3 seconds to enter BMI setting mode.

2) A pre-set height value (in centimeter) will show, and the first digit will blink.

3) Press UNIT/WEIGHT to change the value.

4) Press HOLD/BMI to set next digit.

No. Accessories Item Spec Qty 1

M4 Screw M4*0.7*15 3

2

M4 Screw M4*0.7*8 4

3

Bottom

1

Cover

5) Input height value of weighed person digit by digit.

6) When input completed, press TARE, and 0.0kg will shown on the display.

7) Step on the platform, and the display will show the weight and BMI value alternately.

8) Step down and press HOLD/BMI to leave BMI setting mode.

USING TARE FUNCTION

[TARE] key function allows the user to deduct the excess weight of a single tare object value (additional loads or clothes) from the display reading, thus calculate the actual net weight of the object/ person.

-19-

MEDICAL SCALE MODELS APPROVAL LIST

The Medical Scales MS3400-1 listed below are the certified models under the Council Directive

2007/47/EC

for standard of safety, health protection and accurate metrology characteristics of medical scales:

PRODUCT

DESCRIPTION

Medical Scale MBF6000, MBF6010, MS21Neo, MS2320,

MS2501, MS3800, MS4610, MS4940, MS5410, MS5710, MS3700-1, MS4900, MS5810, MS5811, MS2350, MS2504, MS3830, MS3910, MS4640, MS4910, MS5440, MS5730, MS6001, MS5900, MS4200, MS4202L, MS2400, MS3500, MS4400, MHS2500, MHS2600, MHS2510, MHS2610, MS21neoV, MS6000,

MS6111, MS6110, MS4201 Height Measurement

HM-80P , HM-80M , HM-200P , HM-200PW ,

HM101M, HM110M, HM201M, HM230M,

HM202P

PRODUCT MODEL NO. CLASS

Im

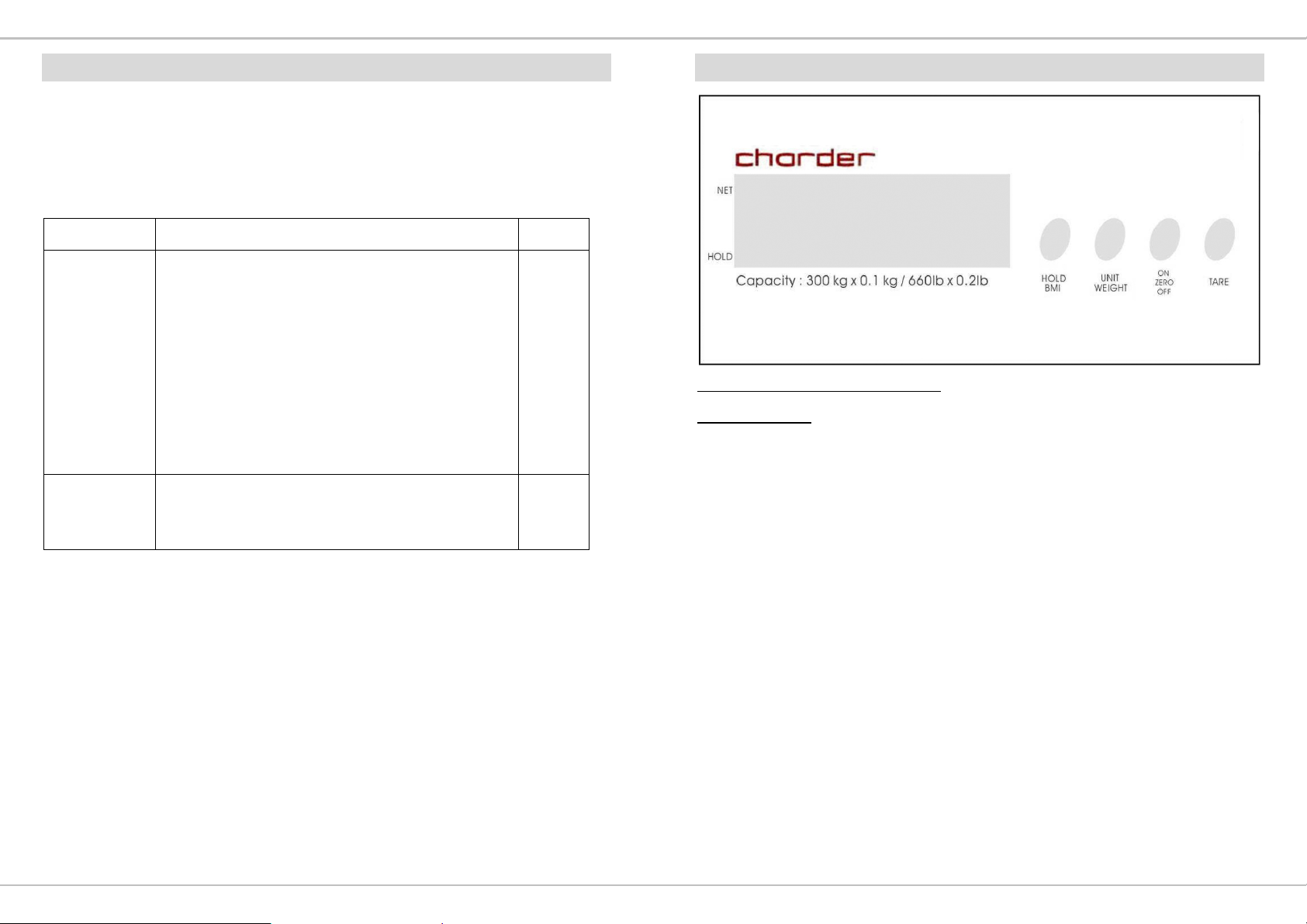

KEY FUNCTIONS

INDICATOR MODEL NO.: DP 2700

Description:

TARE

Tare the weight of excess object in advance so that the user can measure the net weight of the object / person at ease without removing the tare object again.

ON/ZERO/OFF

Key to power scales ON, OFF and ZERO.

UNIT/WEIGHT

Key to switch kg or lb, and to change height value under BMI mode.

HOLD/BMI

HOLD key and BMI (Body Mass Index) key

-13-

-18-

-17-

POWER ADAPTOR STANDARDS

5. Complete

AMP

VOLTAGE

DRAWING NO.: CE APPROVED TYPE NO.

/ MODEL NO.:

TYPE

9V DC 100mA AD-038A REV 007 D41W1090100-13/1 EU

9V DC 100mA AD-0484 REV 001 D35W090100-23/1 US

9V DC 100mA AD-0484 REV 001 SP35-90100 US

9V DC 100mA AD-037A REV 003 D41WK090100-13/2 UK

9V 200mA AD-8082A REV 001 UE05WCP-0900205PC AU

12V 2A AD-8057 REV 001

UE24WV-120200SPA EU

(AD-0520)

12V 2A AD-8058 REV 001 UE24WU-120200SPA US

12V 2A AD-8056 REV 001 UE24WB-120200SPA UK

12V 2A AD-8074 REV 001 UE24W4-120200SPAS AU

12V 1A N/A UE24WV-120100SPA EU

12V 1A N/A UE24WV-120100SPA UK

15V300mA AD-8079A UE05WCP-150030SPC EU

15V300mA AD-016D REV 001 D41W150300-13/1 US

15V300mA AD-8064 REV 001 MTP121UL-120100A US

15V300mA AD-8079B REV 001 UE05WCP-150030SPC UK

15V300mA AD-8079C REV 001 UE05WCP-150030SPC AU

15V 300mA AD-0420 REV 004 D41WI150300-13/1 EU

15V 300mA AD-0370 REV003 D41WK150300-13/2 UK

15V 300mA AD-0482 REV 004 D41WA150300-13/2 AU

-14-

-15-

SCALE ASSEMBLY

-16-

1. Plug the column into the column seat.

2. Screw in three M4*0.7*15 screws.

3. Arrange the cable along the gap in the column seat.

4. Cover the bottom cover and screw in four M4*0.7*8 screws

Manufacturer’s Declaration of Conformity

This product has been manufactured in accordance with the harmonized European standards, following the provisions of the below stated directives:

93/42/EEC as amended by 2007/47/EC

Please see separate document showing on sticker of device for above CE marking.

Medical Device Directive

Authorized EU Representative:

Manufactured by:

Charder Electronic Co., Ltd. No.103, Guozhong Rd., Dali Dist.,

Taichung City, 412 Taiwan (R.O.C.)

MS3400/MS3400-1

FDA no.: D051882

IN-0988 [7011Q] 04/2016

-31-

Medical Scale

USER MANUAL

Please keep the instruction manual at hand all the time for future reference.

-0-
