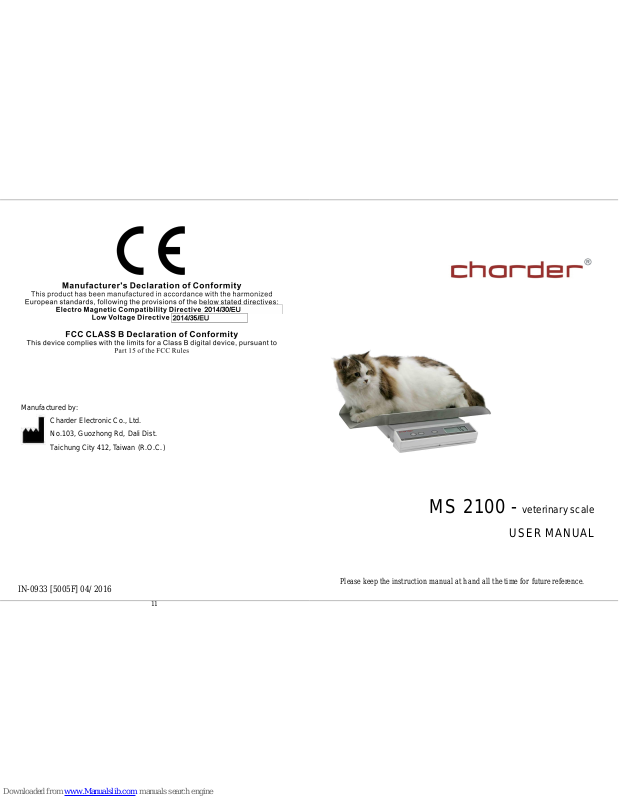

Page 1
11
Manufactured by:
Charder Electronic Co., Ltd.
No.103, Guozhong Rd, Dali Dist.
Taichung City 412, Taiwan (R.O.C.)
IN-0933 [5005F] 04/ 2016
0
MS 2100 -
veterinary scale
USER MANUAL
Please keep the instruction manual at hand all the time for future reference.
Page 2
1
TABLE OF CONTENTS
PREFACE................................................................................................. 2
GENERAL INFORMATION .................................................................... 2
SAFETY INSTRUCTION ........................................................................ 2
ENVIROMENTAL ................................................................................... 3
CLEANING.............................................................................................. 3
MAINTENANCE ..................................................................................... 3
WEIGHING OPERATION ....................................................................... 4
WARRANTY-LIABILITY........................................................................ 4
DISPOSING OF THE SCALE.................................................................. 5
SPECIFICATIONS ................................................................................... 6
KEY FUNCTIONS................................................................................... 7
POWER SUPPLY..................................................................................... 8
HOW TO SWITCH ON THE SCALE....................................................... 8
ERROR MESSAGE.................................................................................. 9
10
Page 3
9
ERROR MESSAGE
3. UNDER ZERO
If zero count is below the setting range, the
display will show “Errl” message. The scale
will turn off in 30 seconds if the status
continues.
4. OVERLOAD
If the total load exceeds the maximum capacity
of the scale, the display will show “Err”
message. The weight must be removed
immediately from the surface.
2. OVER ZERO
If zero count is higher than the setting range,
the display will show “Err” message. The scale
will turn off in 30 seconds if the status
continuous.
1. LOW BATTERY
If battery is discharged, the display will show
LOW. The operator should replace the
battery.
2
PREFACE
Thank you for choosing CHARDER MEDICAL product. All features of this
product were designed to state of the art and are optimized for simple and
straightforward use. If you have any queries or experience any problems
not addressed in the operating instructions, please contact your
CHARDER MEDICAL service partner, or visit us on the Internet at
www.chardermedical.com
GENERAL INFORMATION
We strongly recommend you use the scales on flat and hard surface. Any
soft surface, like carpet will cause inaccuracy.
SAFETY INSTRUCTION
Before putting the device into use, please read with care the
information given in the Operating Instructions. They contain important
instructions for installation, proper use and maintenance of the device.
The manufacturer shall not be liable for damages arising out of failure to
heed the following instructions:
When using electrical components under increased safety requirements,
always comply with the appropriate regulations.
Improper installation will render the warranty null and void.
Ensure the voltage marked on the power supply unit matches your mains
power supply.
This device is designed for use indoors.
Observe the permissible ambient temperatures for use
The device meets the requirements for electromagnetic compatibility. Do
not exceed the maximum values specified in the applicable standards.
If you have any problem, contact your local CHARDER MEDICAL service
partner.
Page 4
3
ENVIROMENTAL
All batteries contain toxic compounds; disposal of batteries should be
delegated to a competent organisation, complying with the deposit of
Poisonous Waste Regulation 1972.
Please do not incinerate batteries.
The optimum operating temperature for the scale is 5℃ to +35℃; although
it will operate at higher and lower temperatures the scales battery life will
be adversely effected.
CLEANING
We would recommend using alcohol based wipes or similar when cleaning
the scales.
Please do not use large amounts of water when cleaning the scales as this
will cause damage to the scales electronics, you should also refrain from
using corrosive liquids or high pressure washers.
Always disconnect the scales from the mains power supply before
cleaning.
MAINTENANCE
The scale does not require any routine maintenance. However, we
recommend checking the scale’s accuracy at regular intervals. The
regularity of these checks is dependent on the level of use and the state of
the scale. If any inaccuracies occur, please contact your local dealer or
CHARDER MEDICAL service partner.
8
POWER SUPPLY
The MS 2100 uses 9V alkaline battery or AC adapter as its power supply.
CAUTION: always connect the AC adapter to the MS 2100 before
connecting to the mains power supply. Disconnect from the mains power
supply before disconnecting the adapter from the MS 2100.
HOW TO SWITCH ON THE SCALE
Switching on the scale by pressing button ON/OFF.
Scale is ready for use when LCD shows “8888” and then “0.00”
To ensure correct weighing
1. Place the scale on stable, level surface.
2. Place an animal on platform and press hold.
3. Wait briefly until the weight shown on the display.
4. You will acquire the weight of animal.
Page 5
7
KEY FUNCTIONS
KEYS
ON/TARE/OFF
1. Press to switch on the scale.
2. Press to tare the weight of subject and acquire net weight.
kg/lb
1. Press to switch between kg or lb.
HOLD
1. Press to lock the weight.
2. Press HOLD key again to release and disable the function.
4
WEIGHING OPERATION
Before reading detailed instructions on how to use all the weighing
functions that are built into your scale, please read the following important
guidelines:
Always be sure that the display shows `Zero` before use, if it does not then
please press the ZERO key.
The Professional Medical scale is designed to detect when a stable weight
is achieved, the indicator will `bleep` twice to indicate a stable weight value,
your reading should be taken at this point.
WARRANTY-LIABILITY
If a fault or defect is present on receipt of the unit which is within
CHARDER MEDICAL’s scope of responsibility, CHARDER shall have the
right to either repair the fault or supply a replacement unit. Replaced parts
shall be the property of CHARDER. Should the fault repairs or replacement
delivery not be successful, the statutory provisions shall be valid. The
period of warranty shall be two years, beginning on the date of purchase.
Please retain your receipt as proof of purchase. Should your scale require
servicing, please contact your dealer or CHARDER MEDICAL Customer
Service.
No responsibility shall be accepted for damage caused through any of the
following reasons: Unsuitable or improper storage or use, incorrect
installation or commissioning by the owner or third parties, natural wear,
changes or modifications, incorrect or negligent handling , overuse,
chemical, electrochemical or electrical interference or humidity, unless this
is attributable to negligence on the part of CHARDER MEDICAL.
Page 6
5
If operating, climatic or any other influences lead to a major change in
conditions or material quality, the treaty for perfect unit functioning shall be
rendered null and void. If CHARDER provides and individual warranty, this
means that the unit supplied will be free of faults for the length of the
warranty period.
DISPOSING OF THE SCALE
This product is not to be treated as regular household waste, but should be
handed in to an electrical/electronic equipment recycling centre.
You can obtain further details from your local council, your municipal
waste disposal company or the firm which you purchased the product.
6
SPECIFICATIONS
Model # MS 2100
Maximum
Capacity
44 lb / 20 kg
Readability ½ oz / 10 g
Accuracy
±1oz / ±20g
Weighing Unit lb / kg
Power Supply 9V alkaline battery
9V -12V AC adapter
Dimension 520 * 300mm
LCD Display 1.0” LCD display with 4 active digits
Tray Stainless Steel Platform
Operating
Temperature
5°C / 35°C
Keys kg/lb, ON/TARE/OFF, HOLD
