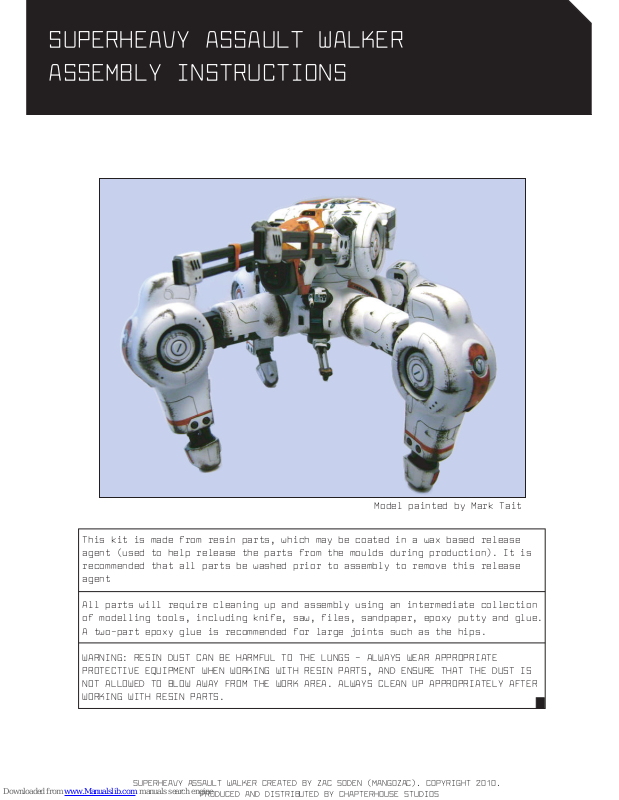

SUPERHEAVY ASSAULT WALKER
ASSEMBLY INSTRUCTIONS

This kit is made from resin parts, which may be coated in a wax based release
agent (used to help release the parts from the moulds during production). It is
recommended that all parts be washed prior to assembly to remove this release
agent

All parts will require cleaning up and assembly using an intermediate collection
of modelling tools, including knife, saw, files, sandpaper, epoxy putty and glue.
A two-part epoxy glue is recommended for large joints such as the hips.

WARNING: RESIN DUST CAN BE HARMFUL TO THE LUNGS - ALWAYS WEAR APPROPRIATE
PROTECTIVE EQUIPMENT WHEN WORKING WITH RESIN PARTS, AND ENSURE THAT THE DUST IS
NOT ALLOWED TO BLOW AWAY FROM THE WORK AREA. ALWAYS CLEAN UP APPROPRIATELY AFTER
WORKING WITH RESIN PARTS.

SUPERHEAVY ASSAULT WALKER CREATED BY ZAC SODEN (MANGOZAC). COPYRIGHT 2010.

PRODUCED AND DISTRIBUTED BY CHAPTERHOUSE STUDIOS

Model painted by Mark Tait

UPPER LEG

LOWER LEG

JOINT AXLE

JOINT COVER

DISC

PISTON ENDS

PISTONS

FOOT

1. Insert upper leg into lower leg

2. Push joint axle through holes

3. Glue joint cover disc over each end
of axle.

Note: pistons may require cutting to
length to suit selected pose.

1

3

2

SUPERHEAVY ASSAULT WALKER ASSEMBLY INSTRUCTIONS
Page 1 - LEG

Repeat for all four legs
