Page 1
224 Sunesta
Page 2
Page 3
DESCRIPTION
PARTS IDENTIFICATION GUIDE INDEX
224 SUNESTA
2012 MODEL YEAR
ID. PAGE NO.
DESCRIPTION PAGE
NO.
Deck - Overhead View (includes the following)
Anchor Lid & Hardware
Bow Navigation Light
Bucket Seat Options
Cleats
Forward Transom Shower Option
GPS Antenna Option
Horn & Grill
Ladder
Sirius Satellite Antenna
Ski Locker Lid & Hardware
Stern Ladder Lid & Hardware
Swim Platform Mat
Windshields
Xtreme Wakeboard Tower Speakers & Light Bar
Hull/Deck Exterior (includes the following)
Aft Transom Shower Option
Anchor Line Hanger
Chafe Guard
Bow Eye
Docking Lights Option
Drain Plug
Fuel Fill
Midget Vent
Motor Box Hinges, Cupholders & Rails
Portlight Option
Rubrails & Inserts
Side Vents & Covers
Stern Rail W/Ski Eye
Thru Hulls
Transom Trim Panels & Stereo Remotes
Universal Backing Plate
Wakeboard Tower Options
Wakeboard Tower With Xtreme Models
Waste Fitting Option
Water Fill Option
8, 10 9, 11
12, 14, 16 13, 15, 17
Dash/Helm (includes the following)
Capacity Plate
Compass
Console
Console Lighting
Console Remote
Depth Finder Option
Fire Extinguisher Light
GPS Electronics
MP3 Plug & iPod Holder
Perfect Pass Panel W/Xtreme Models
Power Plug
Shifter & Engine Components
Speakers
Steering Wheel
Storage Tub & Cup Holders
Subwoofer Option
Tilt Steering
Trim Switch W/Xtreme Models
Windshield Braces
18 19, 21
Page 4
e
DESCRIPTION
PARTS IDENTIFICATION GUIDE INDEX
224 SUNESTA
2012 MODEL YEAR
ID. PAGE NO.
DESCRIPTION PAGE
NO.
Cockpit (includes the following)
Anchor Locker Components
Anchor Option
Bow Entry Step & Hardware
Bow Ladder
Circuit Breaker Panel
Cockpit Lighting
Console Storage Doors & Hardware
Cupholders
Deck Plates
Fire Port
Grab Handles
Hand Pump (CE Packages)
Liner Drains
Motor Box Shocks & Brackets
Pedestals & Base Mounting Rings
Speakers
Stereo & Components
Storage Mats
Storage Tubs
Table W/Side Mount Base Option
Transom Gate & Insert
Walk Thru Door & Hardware
Cockpit Galley (includes the following)
Air Pump Option
Battery Panel
Counter Top
Galley Doors & Hardware
Grab Rail
Igloo Cooler
Sink Drain
Sprayer
Storage Mats
Waste Basket
22, 24, 26 23, 25, 27
28 29
Head (includes the following)
Door Seal
Head Door & Hardware
Head Lighting
Head Liner
Head Pan
Porta Pottie
Storage Nets
Windshield Braces
Deck Undersid
Cup Holders & Drain Hoses
Drains & Hoses
Fire Extinguisher Option
Forward Transom Shower
Fuel Lines
Base Mounting Rings
Speakers
Storage Tubs
Trash Chute
Ventilation Hoses
(includes the following)
30 31
32, 34, 36 33, 35, 37
Page 5
w
s
DESCRIPTION
PARTS IDENTIFICATION GUIDE INDEX
224 SUNESTA
2012 MODEL YEAR
ID. PAGE NO.
DESCRIPTION PAGE
NO.
EngineWell (includes the following)
Ballast Tank & Components
Battery Trays
Bilge Pump & Hardware
Float Switch
Fuel Tank & Components
Pole Light Storage
Raw Water Pick Up W/Xtreme Models
Steering Cable
Transducers
Water Pump & Fittings
Water Tank & Components
Fresh Water (includes the following)
Stainless Steel Transom & Bow Shower Option 44 45
Interiors - Overhead Vie
Bow Backrests
Bow Filler Cushion Option
Bow Wrap
Motor Box Cushions & Backrests
Port & Starboard Bow Cushions
Snap In Cockpit Carpet Option
Stern Backrests
Stern Seating Cushions
Interiors - Side Panels (includes the following)
Port Upper Side Panel
Port Lower Side Panel
Starboard Upper Side Panel
Starboard Lower Side Panel
(includes the following)
38, 40, 42 39, 41, 43
46 47
48 49
Interiors - Carpet Board
Bow Storage Carpet Boards
Cooler Close Outs
Cooler Foam
Deck Carpet
Galley Close Outs
Headliner
Helm Console Storage Carpet Boards
Hull Carpet
(includes the following)
50 51
Page 6
Page 7
224 Sunesta
Page 8
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Overhead View
18
11
17
3
16
14
13
19
15
1
2
3
4
5
7
12
3
11
6
3
7
3
8
3
10
9
Page 9
PARTS IDENTIFICATION GUIDE
R
y
224 SUNESTA
2012 MODEL YEA
Overhead View
Item No. Part Number Description Qty. U.O.M.
1 25.00000 LIGHT - BOW LIGHT BI COLOR HIDEAWAY 1 EA
2 21.00003 HORN - W/SS GRILL 1 EA
3 66009-1 6 INCH CLEAT-HOLLOW BASE 6 EA
3a 66816C1 CLEAT - PULL UP 6IN NEAT CLEAT W/LOGO (Option: Premium Pkg) 8 EA
4 51.00013 WINDSHIELD - STARBOARD FRONT (Option: Wraparound Windshield) 1 EA
5 51.00016 WINDSHIELD - STARBOARD WING (Option: Wraparound Windshield) 1 EA
6 41.00013 HINGE - 2-1/2" X 2" RND CORNER CAST 2 EA
7 1045-SPL-009-P ROUND LIGHT BASE PACKARD CONNECTOR 1 EA
8 2340-3669 HINGE - 2 1/4 X 1 1/2 SWAGED FM 2 EA
9 38.00044 LID - STERN LADDER LID 1 EA
10 24.00013 LATCH- MODIFIED M1 2" SLAM W/O EGRESS "N" 2 EA
10a TPL-3XP LADDER - 3 STEP CURVED GRAB RAIL - SLIDING 1 EA
10b 04.00072 STBD - LADDER SHIM 2 EA
10c SC-WTP-SR WHITE SEAT CLEATS 1 EA
11 FDP-4WS FLOOR DRAIN PULL WHITE 1 EA
12 38.00302 LID - AFT SKI LID WHITE PULL DRAIN RTM SDNS 1 EA
13 51.00015 WINDSHIELD - PORT WING 1 EA
14 51.00001 WINDSHIELD - PORT FRONT 1 EA
15 51.00014 WINDSHIELD - CENTER PANEL 1 EA
16 41-00002 MAGNETIC WINDOW HOLDER SS 20X10 STRIKE 1 EA
17 34.00127 SHOWER - SS TRANSOM W/8' SS HOSE & HIGH END BRASS (Opt: SS Transom/Bow Shower) 2 EA
18 38.00050 LID - ANCHOR LID 1 EA
18a 1266 LATCH - NON LOCKING FLIP/ TWIST SS 1 EA
19 66434-1 HINGE STRAP 4 INCH - 94 2 EA
Not Pictured 1632SPL054 LIGHT-ALL ROUND 66" OAH W/ 5 DEG. FOR BEND 1 EA
Not Pictured SRA-40B SATELLITE ANTENNA SIRIUS (Option: Sirius Satellite Radio) 1 EA
Not Pictured 44.00074 SIRIUS - CONNECT TUNER (Option: Sirius Satellite Radio) 1 EA
Not Pictured 60.00006 MATS - GRAY SWIM PLATFORM (Option: Swim Platform Logo Mat) 1 ST
Not Pictured 60.00061 MATS - SWIM PLATFORM BROWN EVA 5MM(Option: Swim Platform w/ driftwood) 1 ST
Not Pictured 41.00022 PLATE - SS SKI STORAGE LID PLATE 1 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 10
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Overhead View
2
1
Page 11
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Overhead View
Black Accent Cockpit:
Item No. Part Number Description Qty. U.O.M.
1 31.00071 SEAT - STD STBD BUCKET-ZEUS BLACK 1 EA
1a 31.00061 SEAT - PREMIUM BUCKET -ZEUS BLACK (Opt: Prem Seat) 1 EA
2 31.00072 SEAT - STD PORT BUCKET-ZEUS BLACK 1 EA
2a 31.00061 SEAT - PREMIUM BUCKET -ZEUS BLACK (Opt: Prem Seat) 1 EA
Blue Accent Cockpit:
Item No. Part Number Description Qty. U.O.M.
1 31.00081 SEAT - STD STBD BUCKET-MARINER BLUE 1 EA
1a 31.00065 SEAT - PREMIUM BUCKET -MARINER BLUE (Opt: Prem Seat) 1 EA
2 31.00082 SEAT - STD PORT BUCKET-MARINER BLUE 1 EA
2a 31.00065 SEAT - PREMIUM BUCKET -MARINER BLUE (Opt: Prem Seat) 1 EA
Red Accent Cockpit:
Item No. Part Number Description Qty. U.O.M.
1 31.00073 SEAT - STD STBD BUCKET SEAT-REGAL 1 EA
1a 31.00062 SEAT - PREMIUM BUCKET SEAT-REGAL (Opt: Prem Seat) 1 EA
2 31.00074 SEAT - STD PORT BUCKET SEAT-REGAL 1 EA
2a 31.00062 SEAT - PREMIUM BUCKET SEAT-REGAL (Opt: Prem Seat) 1 EA
Yellow Accent Cockpit:
Item No. Part Number Description Qty. U.O.M.
1 31.00077 SEAT - STD STBD BUCKET-SUNDANCE 1 EA
1a 31.00064 SEAT - PREMIUM BUCKET -SUNDANCE (Opt: Prem Seat) 1 EA
2 31.00078 SEAT - STD PORT BUCKET-SUNDANCE 1 EA
2a 31.00064 SEAT - PREMIUM BUCKET -SUNDANCE (Opt: Prem Seat) 1 EA
Driftwood Cockpit:
Item No. Part Number Description Qty. U.O.M.
1 31.00179 SEAT - STBD BUCKET - SILVERTEX TAUPE 1 EA
1a 31.00180 PREMIUM BUCKET SEATS (REQUIRES DRIFTWOOD PACKAGE) 1 EA
2 31.00178 SEAT - PORT BUCKET - SILVERTEX TAUPE 1 EA
2a 31.00180 PREMIUM BUCKET SEATS (REQUIRES DRIFTWOOD PACKAGE) 1 EA
NOTE: Numbers with letter designations represent parts included with
primary numbered part for which there is no photo representation.
Page 12
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA

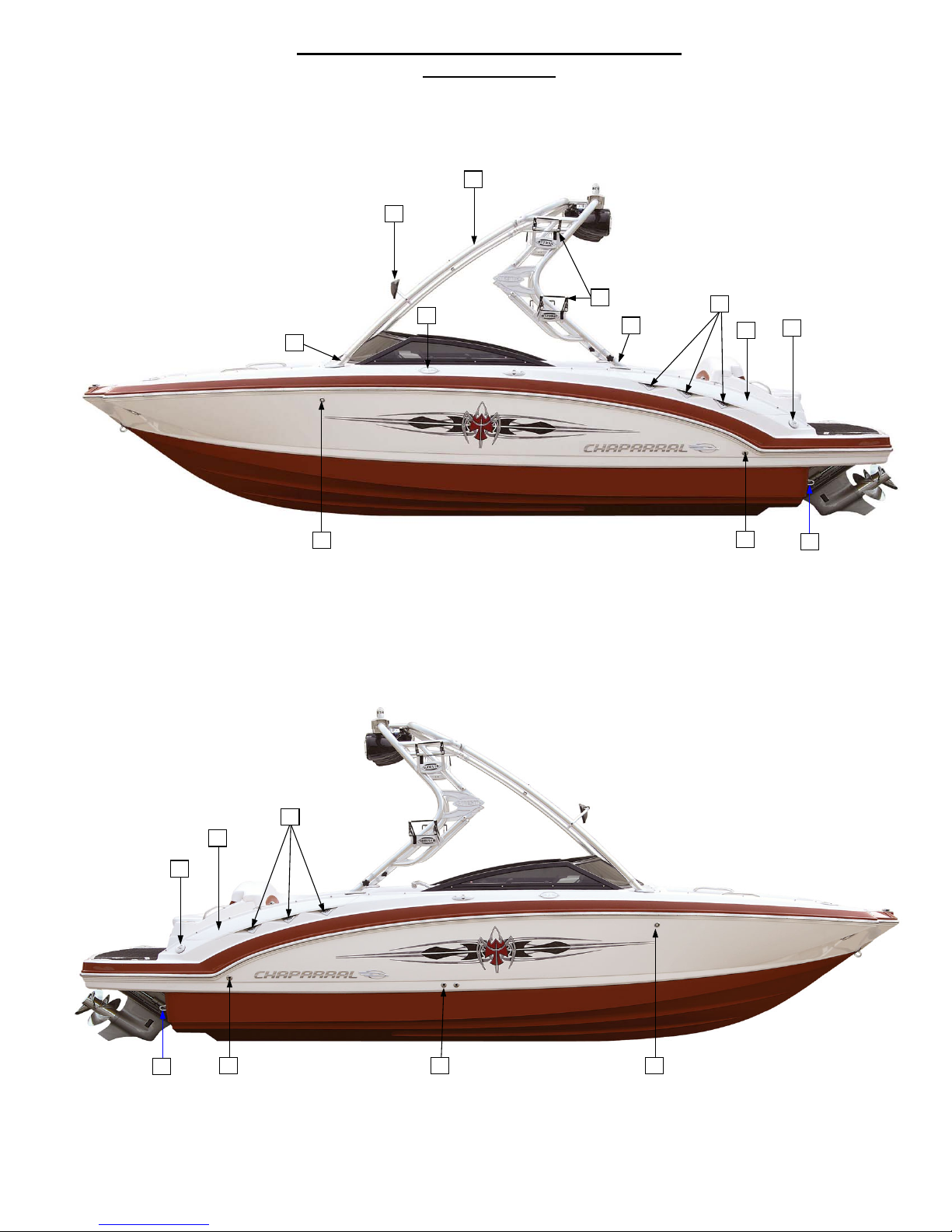

Hull/Deck Exterior
13
12
10
14
11
6
11
1
3
2
5
4
1
7
3
4
9
8
15
Page 13
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Hull/Deck Exterior
Item No. Part Number Description Qty. U.O.M.
1 41.00012 VENT - 4" SS HIGH POLISHED (SQUARE FLANGE) 6 EA
2 38.00047 COVER - PORT VENT COVER (TEMPORARY) 1 EA
3 27.00067 FILL - SS ANGLED VENTED DECK FILL GAS 2 EA
4 STESW1003 1/2 X 3 7/16 BOW EYE 2 EA
4a 474A UNIVERSAL BACKING PLATE 2 EA
5 47.00023 THRU HULL - 1 1/2" SHORT THRU HULL SCUPPER (Option: CE Pkg) 1 EA
6 954 VENT- SS FLUSH MOUNT W/ 90 DEGREE 5/8 ELBOW (Option: Pump Out Pottie) 1 EA
7 38.00046 COVER - STBD VENT COVER (TEMPORARY) 1 EA
8 47.00018 THRU HULL - 3/4" SS SHORT THRU HULL (Cockpit Galley Drain) 1 EA
9 47.00018 THRU HULL - 3/4" SS SHORT THRU HULL (Bilge Pump Drain) 1 EA
10 56.00041 WAKEBOARD TOWER - OA 360 WAKEBOARD RACK (Opt: Wakeboard Tower) 4 EA
Parts Not Pictured Which Are Associated With Hull/Deck Exterior:
Not Pictured 47.00018 THRU HULL - 3/4" SS SHORT THRU HULL (Motor Lid Drain) 1 EA
Not Pictured 27.00072 FILL - SS STRAIGHT VENTED DECK FILL WASTE (Option: Pump Out Pottie) 1 EA
Not Pictured S516-6-SS PORTLIGHT - OPENING SS OUTER/PLAS. INNER (Option: Porta Pottie & Pump Out Pottie) 1 EA
Not Pictured 596406 964 MSD SANI POTTIE PLATINUM 1 EA
Not Pictured 56.00037 WAKEBOARD TOWER - MOUNTING PAD/FOOTSET W/HARDWARE (Opt: Wakeboard Tower) 1 EA
Not Pictured 56.00034 WAKEBOARD - WAKEBOARD TOWER (Option: Wakeboard Tower) 1 EA
Not Pictured 56.00035 WAKEBOARD TOWER - SUNSHADE SUNESTA (Opt: Wakeboard Tower) 1 EA
Not Pictured 08.00119 ARCH - HINGED TOWER TOP - WHITE (Arch Tower Options) 1 EA
Not Pictured 08.00118 ARCH - HINGED TOWER TOP - BLACK (Arch Tower Options) 1 EA
Not Pictured 06.00066 PLATE - SS SPEAKER HOLE COVER (Arch Tower Options) 2 EA
Not Pictured 06.00067 BRACKET - ARCH SECURING (Arch Tower Options) 2 EA
Not Pictured 08.00122 ARCH - HINGED TOWER TOP - FIXED BOARD RACK (Arch Tower Options) 2 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 14
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Hull/Deck Exterior
3
4
1
2
2 4
5
1
Page 15
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Hull/Deck Exterior
Item No. Part Number Description Qty. U.O.M.
1 STA2416H12 SS INSERT 3/4 X 12 4 EA
2 V21-9659CRA14D 14' CREAM RIGID PVC RUBRAIL 1 EA
2a V21-9659CRA18D 18' CREAM RIGID PVC RUBRAIL 2 EA
Parts Not Pictured Which Are Associated With Hull/Deck Exterior:
Not Pictured 28.00016 RUB RAIL SET- WHITE PVC RUB RAIL AND S.S. INSERT 1 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 16
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Hull/Deck Exterior
1
3
2
4
5
9
8
10
6
4
5
7
6
Page 17
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Hull/Deck Exterior
Item No. Part Number Description Qty. U.O.M.
1 5852-1 SS DOCKING LIGHT W/PLUG (Option: Premium Pkg & Docking Lights) 1 ST
2 2340-840 MIDGET VENT 1 1/2 X 1 3/4 1 EA
3 41.00020 CHAFE GUARD - 217SUN (Option: Premium Package) 1 EA
3a ALHSW1/2X1.5X5 ANCHOR LINE HANGER 1 EA
3b BOWSW1001 BOW EYE - 1/2 X 3 7/16 BOW EYE 1 EA
3c 474A UNIVERSAL BACKING PLATE 1 EA
4 36-00001 RAIL- 7.375" STUD GRAB RAIL FLARED ENDS SS 304 2 EA
5 12.00003 CUP HOLDER - 1014 316L CUP HOLDER W/2 SPRINGS 2 EA
6 42.00011 HINGE - 4" x 4" RND CORNERS, 6 HOLES - MOTORBOX 2 EA
7 36.00013 RAIL - STERN RAIL W/SKI EYE 1 EA
8 34.00127 SHOWER - SS TRANSOM W/8' SS HOSE & HIGH END BRASS (Opt: SS Transom/Bow Shower) 2 EA
9 27.00071 FILL - SS ANGLED VENTED DECK FILL WATER 1 EA
10 44.00079 REMOTE - STEREO BLACK(Option: Convenience Pkg) 1 EA
10a 44.00082 CABLE - 35' REMOTE EXT HARNESS (Option: Convenience Pkg) 1 EA
10b 44.00083 CABLE -REMOTE 2-WAY Y-CABLE (Option: Convenience Pkg) 1 EA
Parts Not Pictured Which Are Associated With Hull/Deck Exterior:
Not Pictured 714-1-PLB DRAIN PLUG 1 EA
Not Pictured 47.00023 THRU HULL - 1 1/2" SHORT THRU HULL SCUPPER 1 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 18
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
18
5
4
3
Dash/Helm
19
1
2
6
17
16
15
14
13
12
11
10
7
8
9
1
Page 19
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Dash/Helm
Item No. Part Number Description Qty. U.O.M.
1 17-00013 LIGHT KIT & OWNERS MANUAL FOR DOM(FE241) (Option: Fire Ext & CE Pkg) 1 EA
2 44.00052 SPEAKER - COAXIAL PANASONIC SPEAKER 4 EA
2a 44.00053 SPEAKER - COVER CHAPARRAL SHOCKWAVE 6.5" 4 EA
3 38.00048 CONSOLE - STBD CONSOLE 1 EA
3a 38.00649 CONSOLE - STBD DRIFTWOOD (Opt. Driftwood Pkg.) 1 EA
4 02.00040 CONSOLE - CONSOLE SHROUD/INSTRUMENT PANEL 1 EA
5 51.00008 WINDSHIELD - S217 SS WINDSHIELD BRACE 1 EA
6 44.00079 REMOTE - STEREO BLACK 1 EA
6a 44.00080 CABLE - 10' REMOTE EXT HARNESS 1 EA
7 44.00109 CABLE - AUX IN/USB COMBO W/PLUG 1 EA
8 883709A03 GEN II SIDE MOUNT SHIFTER (Merc Engines) 1 EA
8a 3888318 CONTROL -XACT SIDE MOUNT W/HRNS,CUT OFF SWITCH (Volvo Engines) 1 EA
9 12.00003 CUP HOLDER - 1014 316L CUP HOLDER W/2 SPRINGS 8 EA
9a 33.00008 TUB - STORAGE TUB W/CUPHOLDER - CAMEL 1 EA
10 40.00048 BRACKET - 40SSP3-1/3HOLES-BALL PEM 1 EA
11 42.00015 GAS SPRING - 70LB GAS SPRING - HEF - 10M ENDS 1 EA
12 42.00046 BRACKET - BR-204-32 316 SS ANGLE BRACKET 3 EA
13 49.00134 FOAM - 18 7/8 X 33 1/4 DIE CUT W/PSA 1 EA
14 15.00024 ELECTRONICS - IPOD HOLDER 1 EA
15 25.00015 LIGHT - BLUE LED BULKHEAD LIVE WELL LIGHT 3 EA
16 43.00015 STEERING WHEEL - THREE SPOKES - MODEL 832 1 EA
17 SH91810 PRO SERIES SPLINE TILT MECHANISM 1 EA
17a SH91523 QUICK CONNECT TILT HELM 1 EA
18 13.00034 COMPASS - TREK COMPASS, FLUSH, BLK, W/PLUG (Option: Conv Pkg) 1 EA
19 15.00030 ELECTRONICS - 531 GPS (Option: Garmin 531 C GPS) 1 EA
19a 15.00062 ELECTRONICS - 541 GPS (Option: Garmin 541 C GPS) 1 EA
19b 15.00029 ELECTRONICS - FLUSH MOUNT KIT FOR 531/541 GPS (Garmin Options) 1 EA
Parts Not Pictured Which Are Associated With Dash/Helm:
Not Pictured 01.00049 OWNER'S MANUAL DISC - 2012 SUNESTA 1 EA
Not Pictured 01-00004 OWNERS INFO.BAG - 18.5 X 15 BLUE CHAPARRAL CANVAS 1 EA
Not Pictured 01.00010 OWNER MANUAL - INTERNATIONAL MULTI LANGUAGE 1 EA
Not Pictured 44.00048 SPEAKER - SUBWOOFER 10" PANASONIC (Option: Premium Pkg) 1 EA
Not Pictured 44.00111 SUBWOOFER COVER - 10IN 304SS (Option: Premium Pkg) 1 EA
Not Pictured 44.00054 SPEAKER - COVER CHAPARRAL SHOCKWAVE 10" (Option: Premium Pkg) 1 EA
Not Pictured 44.00052 SPEAKER - COAXIAL PANASONIC SPEAKER (Option: Premium Pkg) 4 EA
Not Pictured 15.00187 ELECTRONICS - MERCURY DTS SMART TOW PACKAGE (Opt. Smart Tow) 1 EA
Not Pictured 15.00190 ELECTRONICS - VOLVO EVC ZERO OFF PACKAGE (Opt. Zero Off) 1 EA
Not Pictured 15.00114 ELECTRONICS - 521 GPS (INTERNATIONAL) 1 EA
Not Pictured 44.00110 SPEAKER COVER - COAXIAL 304SS (Option: Premium Speaker Upgrade) 4 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 20
Page 21
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Dash/Helm
Part Number Description Qty. U.O.M.
Mercruiser Engines:
01.00005 USER GUIDE - MERCURY SINGLE ENGINE SMART CRAFT GUI
123-0120 HOSE - 1/2 FLAME RET.SPLIT COND.
151-0400 HOSE - 4MM PITOT TUBING
15768A3 TRIM LIMIT SPACER
84-865772A01 CONTROL TRIM HRNS WITH NEW PLUG
883709A03 CONTROL - CHROME SIDE MOUNT SHIFTER
CC67914 TFXTREME GEN II MERC CABLE
For Mercrusier Bravo 3 Engines Add:
15768A3 TRIM LIMIT SPACER 1 EA
Volvo Engines:
01.00006 USER GUIDE - VOLVO SINGLE ENGINE VP GUIDE
151-0400 HOSE - 4MM PITOT TUBING
34.00029 FITTING - 1/4 MPT X 3/8 FLARE MALE 90 ELL
34.00100 CONDUIT - 1" X 1D
3888318 CONTROL -XACT SIDE MOUNT W/HRNS,CUT OFF SWITCH
CC63315 15FT VOLVO EXTREME CABLE
CC63316 16FT VOLVO EXTREME CABLE
1EA
16 FT
20 FT
1EA
1EA
1EA
2EA
1EA
22 FT
1EA
1FT
1EA
1EA
1EA
Page 22
PARTS IDENTIFICATION GUIDE
R
ANCHOR LOCKER AREA
224 SUNESTA
2012 MODEL YEA
Cockpit
1
2
3
4
5
6 6
7
9
BOW SEATING AREA
14
17
16
5
7
4
8
10
11
AFT
PORT BOW WALK
THRU AREA
12
15
13
14
18
FWD
19
20
21
18
AFT
22
PORT CENTER COCKPIT
23
24
16
FWD
Page 23
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Cockpit
Item No. Part Number Description Qty. U.O.M.
1 42.00017 BRACKET - ANGLED SS BRACKET - ANCHOR LID 1 EA
2 40.00025 SHOCK - 20LB 12INCH 10MM 1 EA
3 40.00048 BRACKET - 40SSP3-1/3HOLES-BALL PEM 1 EA
4 18W-26012 RECESS BUMPER W/ WASHER 2 EA
5 117090 SLIDING WINDOW LOCK-SS 2 EA
6 100500 ANCHOR RETAINER 2 EA
7 ISTRB34034 COOLER CUSHION CLEAT #2 2 EA
8 27.00004 LADDER - BOW 4 STEP W/CURVED HANDLE-2.5 BUMPERS 1 EA
9 5168 WASHER (CLEAR) 2 EA
10 04.00031 STEP - BOW ENTRY STEP/COOLER LID 1 EA
10a 2340-3669 HINGE - 2 1/4 X 1 1/2 SWAGED FM 2 EA
10b 05.00009 FASTENER - DUAL LOCK FASTENER 2 EA
11 42.00034 HINGE - 2.0" x 4.50" x 4.0" (Option: Bow Filler Cushion) 1 EA
11a 42.00079 BRACKET - BOW FILLER SECURITY 1 EA
12 45.00050 BASE - STAINLESS STEEL SIDE MOUNT TABLE 2 EA
13 45.00060 TABLE - SIDE MOUNT TABLE LEG (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 1 EA
14 36.00024 RAIL - GRAB FLARED END 15" 3 EA
15 3-1110 FIBERGLASS COCKPIT TABLE (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 1 EA
16 12.00003 CUP HOLDER - 1014 316L CUP HOLDER W/2 SPRINGS 8 EA
17 44.00052 SPEAKER - COAXIAL PANASONIC SPEAKER 4 EA
17a 44.00053 SPEAKER - COVER CHAPARRAL SHOCKWAVE 6.5" 4 EA
18 130210 HINGE - 2 7/8 X 3 1/4 SS 2 EA
19 14.00539 PLATE - CAPACITY 224SUN/X224 12 PERSON 1750 PERSON 1 EA
19a 14.00781 PLATE - CANADIAN COMPLIANCE (Canadian Boats Only) 1 EA
19b 14.00828 PLATE - CE CAPACITY 9 PERSON 800KG/224KW (Option: CE Pkg) 1 EA
19c 14.00651 PLATE - 2011 AUSTRALIAN BUILDER 9 PERSON/675-800KG 1 EA
20 41-00006 PLATE - STRIKER PLATE 7/8 WIDE 1 EA
21 42.00020 HINGE - 2 7/8" X 3 1/4" SS WITH STOP 1 EA
22 33.00007 STORAGE - STORAGE TUB 1 EA
23 36-00001 RAIL- 7.375" STUD GRAB RAIL FLARED ENDS SS 304 2 EA
24 02.00038 DASH - PORT DOOR BLACK 1 EA
24a 02.00099 DOOR - PORT BLACK W/O SILVER INSERT (Opt. Driftwood Pkg.) 1 EA
Parts Not Pictured Which Are Associated With Cockpit:
Not Pictured 75906-54 SEAT - 6 1/2IN PEDESTAL 2 EA
Not Pictured 60.00000 MAT - SKI LOCKER MAT 30" X 84" 1 EA
Not Pictured 60.00001 MAT - BOW MAT 31" x 53" CUT SHAPE - PORT AND STBD 2 EA
Not Pictured CHAP12-01 8 LB. SAND ANCHOR/ 14.25 INCH HANGER (Option: Galvanized Anchor) 1 EA
Not Pictured INT-STR15SX 15 INCH STRAP WITH SNAP
Not Pictured 44.00116 AMP- CLARION MARINE 4 CHANNEL CLASS A/B 4 X (Option: Premium Spkr Upgrade) 1 EA
Not Pictured 44.00093 CABLE - 1 METER RCA (Option: Premium Spkr Upgrade) 1 EA
1EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 24
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
FWD
1 2
STBD BOW WALK THRU AREA
3
6
14
Cockpit
AFT
8
4
7
6
FWD
CONSOLE STORAGE AFT
BULKHEAD (UPPER)
9
10
5
AFT
13
12
FWD
CONSOLE STORAGE AFT BULKHEAD
(LOWER)
AFT
15
11
16
STERN SEATING AREA
20
1819 9
17
Page 25
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Cockpit
Item No. Part Number Description Qty. U.O.M.
1 MR-03-100-24 LATCH 276 SSI BOW DOOR LATCH 1 EA
2 04.00030 DOOR - WALKTHRU DOOR 1 EA
3 44.00112 STEREO - WATERTIGHT HEAD UNIT - CMD7 1 EA
3a 44-00010 ANTENNA 1 EA
3b 44-00095 HARNESS - OEM WIRING HARNESS 1 EA
3c 44.00109 STEREO - WATERTIGHT HEAD UNIT - CMD7 1 EA
3d 44-00022 RCA ADAPTER - BARREL CONNECTOR VIDEO 2 EA
4 27.00007 DOOR - WALKTHRU DOOR STRIKE POLISHED 1 EA
5 13.01217 PANEL - HELM CIRCUIT BREAKER 1 EA
6 BCORD-14BW 1/4IN SHOCK CORD 500/ROLL (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 0.21 FT
6a FPH-2 SMALL HOOKS (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 2 EA
7 66105-1 PAD EYE (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 2 EA
8 25.00067 LIGHT - 1.5AMP INCANDESCENT SINGLE 2 EA
9 45.00060 TABLE - SIDE MOUNT TABLE LEG (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 1 EA
10 IST12331 TABLE LEG CLIP - SMALL (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 2 EA
11 1375W3X3/8 WHITE VINYL BUMP ON TRIM 7 FT
12 60.00005 MAT - CONSOLE STORAGE MAT 1 EA
13 IST12319 TABLE HOLDER TOP (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 1 EA
13a IST34322 TABLE HOLDER HINGE FOR IST12319 (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 1 EA
14 45.00037 BASE - TABLE BASE (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 1 EA
15 33.00009 TUB - STORAGE TUB W/CUPHOLDER AND SPEAKER - CAMEL 1 EA
16 44.00052 SPEAKER - COAXIAL PANASONIC SPEAKER 4 EA
16a 44.00053 SPEAKER - COVER CHAPARRAL SHOCKWAVE 6.5" 4 EA
17 12.00003 CUP HOLDER - 1014 316L CUP HOLDER W/2 SPRINGS 8 EA
18 45.00050 BASE - STAINLESS STEEL SIDE MOUNT TABLE(Opt: Table w/ Side Mnt Bases-Cockpit & Bow) 2 EA
19 34.00178 DRAIN - 1 1/2IN LOW PROFILE TM - FLAT COVER 2 EA
19a 141-0340 HOSE - 3/4 IN. MULTIFLEX 1.5 FT
20 3-1110 FIBERGLASS COCKPIT TABLE (Option: Table w/ Side Mnt Bases-Cockpit & Bow) 1 EA
Parts Not Pictured Which Are Associated With Cockpit:
Not Pictured 6860WW FIRE PORT (500 MIN) 1 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 26
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
2
1
Cockpit
5
3
1
44
AFT
8
7
PORT STERN SEATING
AFT PORT CORNER
FWD
6
6
FWD
STBD TRANSOM WALK THRU
11
10
9
13
12
AFT
Page 27
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Cockpit
Item No. Part Number Description Qty. U.O.M.
1 42.00046 BRACKET - BR-204-32 316 SS ANGLE BRACKET 3 EA
2 38.00542 MOTORBOX - SUNDECK/LOUNGE 1 EA
2a 04.9140017X TANDEM SLIDE SHIM 2 EA
3 36.00023 RAIL - GRAB FLARED END 20" 1 EA
4 40.00048 BRACKET - 40SSP3-1/3HOLES-BALL PEM 2 EA
5 40.00004 SHOCK - 316 SS GAS SPRING 2 EA
6 141-1120 HOSE - 1 1/2 IN MULTIFLEX-BLACK (Option: CE Pkg) 3.5 FT
7 954DP2 DIAPHRAGM PUMP W/SS HAND. (Option: CE Pkg) 1 EA
8 350 BUSHING SKI STORAGE 1 1 EA
9 04.00033 INSERT - TRANSOM GATE INSERT 1 EA
9a 04.00032 INSERT - CE TRANSOM GATE INSERT (Option: CE Pkg) 1 EA
10 27.00000 GATE - TRANSOM GATE STAINLESS STEEL 1 EA
11 DP40-38 1998 4 IN. WHT DECK PLATE 1 EA
12 25.00015 LIGHT - BLUE LED BULKHEAD LIVE WELL LIGHT 3 EA
13 34.00178 DRAIN - 1 1/2IN LOW PROFILE TM - FLAT COVER 2 EA
Parts Not Pictured Which Are Associated With Cockpit:
Not Pictured DP40-38 1998 4 IN. WHT DECK PLATE (Option: CE Pkg) (Replaces Fire Port on Motor Box) 1 EA
Not Pictured 60.00004 MAT - PORT AFT STORAGE MAT 1 EA
Not Pictured 94141000 224SUN GALLEY COUNTER TOP WITHOUT PRESSURE WATER
Not Pictured 94160000 224SUN GALLEY COUNTER TOP WITH PRESSURE WATER (Opt: SS Trans/Bow Shower) 1 EA
Not Pictured 42.00043 HINGE-4.5" x 33" SLOTS & FORMED BOTH SIDES MILL FI
Not Pictured 42.00048 HINGE- 3" x 32.5" SS SLOTS BOTH SIDES/FLAT/MILL FI
Not Pictured 31.00212 SLIDE - MANUAL GAS SHOCK ASSIST 1 EA
Not Pictured 38.00551X BASE - GAS GRILL
Not Pictured 41.00025 LATCH - DRAW 302 SS, 1-3/64" LATCH DISTANCE
Not Pictured 75354 MOUNT - ALUMINUM TABLE
Not Pictured 45.00066 BASE - STAINLESS STEEL TABLE - RH PULL PIN
Not Pictured 14.00670 DECAL - COCKPIT GRILL SIDE MOUNT LEG
Not Pictured 45.00071 TABLE - COCKPIT GAS GRILL LEG
Not Pictured 61.00009 GRILL - SHORESIDE SS 2 BURNER PORTABLE MARINE
1EA
2EA
1EA
1EA
2EA
1EA
1EA
1EA
1EA
1EA
NOTE: Numbers with letter designations represent parts included with
primar
01.00010 OWNER MANUAL - INTERNATIONAL MULTI LANGUAGE 1 EA
numbered part for which there is no photo representation.
Page 28
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
FWD
1
Cockpit Galley
2
AFT
FWD
FWD
5
4
6
3
7
AFT
AFT
8
FORWARD WALL OF COCKPIT GALLEY
Page 29
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Cockpit Galley
Item No. Part Number Description Qty. U.O.M.
1 97018-SS SPRAYER SOLID BRASS W/ SS HOSE & RECEPTACLE 1 EA
2 APD-290F 90 DEG. WHITE FLAT DRAIN 1 EA
2a PP-118 PUSH PLUG - VINYL 1 EA
3 24.00013 LATCH- MODIFIED M1 2" SLAM W/O EGRESS "N" 1 EA
4 04.00055 DOOR - ACCESS DOOR 15.5 X 20 NO SCREWS 1 EA
5 36.00024 RAIL - GRAB FLARED END 15" 1 EA
6 IST12333-2 UPPER AIR PUMP RETAINING BRACKET (Option: Air Pump) 1 EA
7 35-00001 PUMP - AIR, 12 VOLT. WHITE W/ DC PLUG (Option: Air Pump) 1 EA
8 IST12333-1 LOWER AIR PUMP MOUNTING RING (Option: Air Pump) 1 EA
Parts Not Pictured Which Are Associated With Cockpit Galley:
Not Pictured 05.00000 FASTENER - BUMPON 3M CLEAR SJ5382 (Bottom Side of Trash Chute Lid) 1 EA
Not Pictured 2957R 41 QT. WASTEBASKET 1 EA
Not Pictured 60.00002 MAT - GALLEY MAT - SMALL 1 EA
Not Pictured 60.00003 MAT - LARGE GALLEY 20" x 18" 1 EA
Not Pictured I6776 25QT MARINE COOLER 1 EA
Not Pictured 04.00049 PLATFORM - IGLOO COOLER PLATFORM 4 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 30
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Head
1
FWD
2
3
5
4
AFT
6
11
10
7
FWD
8
9
AFT
Page 31
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Head
Item No. Part Number Description Qty. U.O.M.
1 02.00038 DASH - PORT DOOR BLACK 1 EA
2 51.00008 WINDSHIELD - S217 SS WINDSHIELD BRACE 1 EA
3 02.00077 NET - 6" X 12" STRETCH ON CANVAS W/LG GROMMETS 2 EA
4 38.00042 DOOR - HEAD DOOR 1 EA
5 24.00010 LATCH - HEAD DOOR RT HAND MAGNETIC LATCH W/CATCH 1 EA
6 38.00049 HEAD PAN 1 EA
7 38.00055 LINER - FWD HEAD BULKHEAD LINER 1 EA
8 1375W3X3/8 WHITE VINYL BUMP ON TRIM 12 FT
9 596406 964 MSD SANI POTTIE PLATINUM (Option: Porta Pottie or Pump Out Pottie) 1 EA
10 41.00017 DOOR - MAGNETIC DOOR STRIKE - HEAD DOOR 1 EA
11 20-18460 DOOR LEVELER 1 EA
Parts Not Pictured Which Are Associated With Head:
Not Pictured 25.00067 LIGHT - 1.5AMP INCANDESCENT SINGLE 2 EA
Not Pictured 350 BUSHING SKI STORAGE 1 1 EA
Not Pictured 38.00054 HEAD LINER 1 EA
Not Pictured 28.00024 FOAM - 2" X 3/8" BLACK FOAM (3M) (Behind Fwd Head Wall) 0.583 FT
Not Pictured 47.00018 THRU HULL - 3/4" SS SHORT THRU HULL (Cabinet Upgrade Option)
Not Pictured 24-00001 LATCH- CABINET CAM/SLAM LATCH ASSY. BRUSH NICKEL (Cabinet Upgrade Option)
Not Pictured 52-00019 EDGEBANDING - HUNTINGTON MAPLE MATCH (Cabinet Upgrade Option)
Not Pictured 53498 SPACERS (Cabinet Upgrade Option)
Not Pictured 90110 165 DEGREE HINGE NO DOWEL (Cabinet Upgrade Option)
Not Pictured C1/2X100PEX 1/2 IN. PEX COLD COIL 100 FT. (Cabinet Upgrade Option)
Not Pictured F06820 1/2P X 1/2P X 1/2P TEE (Cabinet Upgrade Option)
Not Pictured 10313 DRAIN - W/BASKET STRAINER (Cabinet Upgrade Option)
Not Pictured 141-0340 HOSE - 3/4 IN. MULTIFLEX (Cabinet Upgrade Option)
Not Pictured 34.00036 SINK - SS 4" DEEP X 9" OD MIRROR (Cabinet Upgrade Option)
Not Pictured 34-00001 FAUCET- FOLDOWN 3.5 INCH SPOUT 1/2 INCH NPS THREAD (Cabinet Upgrade Option)
Not Pictured 34B1057R 1-1/2 RUBBER FLAT GASKET (Cabinet Upgrade Option)
Not Pictured 35B553 1 1/2 SLIP NUT-METAL (Cabinet Upgrade Option)
Not Pictured 74RF839901 5/8 STRAINER 90 DEGREE (Cabinet Upgrade Option)
Not Pictured DR-CB-OEM DRYROLL TISSUE HOLDER CUSTOM COLOR- (Cabinet Upgrade Option)
Not Pictured F06873 1/2P X 1/2FPT STR SWVL BS (Cabinet Upgrade Option)
1EA
1EA
6FT
2EA
2EA
3.66 FT
1EA
1EA
1.25 FT
1EA
1EA
1EA
1EA
1EA
1EA
1EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 32
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Deck Underside
1
Note: Wire net
supplied by vendor
BOW
3
2
5
6
4
2
PORT BOW
Page 33
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Deck Underside
Item No. Part Number Description Qty. U.O.M.
1 34.00127 SHOWER - SS TRANSOM W/8' SS HOSE/BRASS (Opt: SS Transom/Bow Shower) 2 EA
2 APD-290F 90 DEG. WHITE FLAT DRAIN 3 EA
2a PP-118 PUSH PLUG - VINYL 2 EA
3 141-0340 HOSE - 3/4 IN. MULTIFLEX (Bow Cooler Drain) 1 FT
4 12.00003 CUP HOLDER - 1014 316L CUP HOLDER W/2 SPRINGS 8 EA
4a 150-0380 HOSE - 3/8 IN. CLEAR PVC TUBING (Port & Stbd Bow-Fwd Cupholder) 3.5 FT
4b 150-0380 HOSE - 3/8 IN. CLEAR PVC TUBING (Port & Stbd Bow-Aft Cupholder) 4.5 FT
5 44.00052 SPEAKER - COAX PANASONIC SPKR 4 EA
5a 44.00053 SPEAKER - COVER CHAPARRAL SHOCKWAVE 6.5" 4 EA
6 104-1120 HOSE - 1 1/2 IN SANI (Option: Pump Out Porta Pottie w/Opening Port Light) 7 FT
Parts Not Pictured Which Are Associated With Deck Underside:
Not Pictured 141-0340 HOSE - 3/4 IN. MULTIFLEX (Ski Locker Drain) 3 FT
Not Pictured 301-5 3/4 IN. PLASTIC THRU-HULL 1 EA
NOTE: Numbers with letter designations represent parts included with
primary numbered part for which there is no photo representation.
Page 34
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Deck Underside
1
2
6
3
5
STBD MIDSHIP
4
7
8
9
STBD AFT
Page 35
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Deck Underside
Item No. Part Number Description Qty. U.O.M.
1 APD-290F 90 DEG. WHITE FLAT DRAIN (Stbd Aft Cockpit Floor Drain) 1 EA
1a APD-290F 90 DEG. WHITE FLAT DRAIN (Motor Lid Drain) 1 EA
2 12.00003 CUP HOLDER - 1014 316L CUP HOLDER W/2 SPRINGS (Stbd Console Tub) 8 EA
3 420-4000 HOSE- 4 IN HEAVY DUTY BLOWER 3 @ 5 FT
4 141-0340 HOSE - 3/4 IN. MULTIFLEX 4 FT
5 350-1120L HOSE - 1 1/2IN FUEL FILL 7.5 FT
6 360-0580 HOSE - 5/8 FUEL LINE TYPE A1 7.5 FT
7 44.00052 SPEAKER - COAX PANASONIC SPEAKER 4 EA
7a 44.00053 SPEAKER - COVER CHAPARRAL SHOCKWAVE 6.5" 4 EA
8 12.00003 CUP HOLDER - 1014 316L CUP HOLDER W/2 SPRINGS 8 EA
8a 150-0380 HOSE - 3/8 IN. CLEAR PVC TUBING (Port Aft Seating-Fwd Cupholder) 3.5 FT
8b 150-0380 HOSE - 3/8 IN. CLEAR PVC TUBING (Port Aft Seating-Aft Cupholder) 4.5 FT
9 75058 BASE MOUNTING RINGS 2 PR
NOTE: Numbers with letter designations represent parts included with
primary numbered part for which there is no photo representation.
Page 36
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Deck Underside
1
PORT AFT
STBD MIDSHIP @ COCKPIT GALLEY
2
STBD AFT
Page 37
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Deck Underside
Item No. Part Number Description Qty. U.O.M.
1 141-0340 HOSE - 3/4 IN. MULTIFLEX 3.5 FT
2 17.00038 FIRE EXTINGUISHER - 100CU W/O LIGHT INTN' (Option: Fire Ext & CE Pkg) 1 EA
2a 17.00026 FIRE EXTINGUISHER CABLE - 10FT MANUAL DISCHARGE 1 EA
Parts Not Pictured Which Are Associated With Deck Underside:
Not Pictured 29.00008 TRASH CHUTE 1 EA
NOTE: Numbers with letter designations represent parts included with
primary numbered part for which there is no photo representation.
Page 38
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Engine Well/Hull Interior
1
8
AFT
7
6
5
4
3
FWD
2
Page 39
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Engine Well/Hull Interior
Item No. Part Number Description Qty. U.O.M.
1 148-0580 HOSE - 5/8 WHITE SMOOTH PVC 15 FT
2 EL3458 3/4 MPT 5/8HBB NYL CPL 90 1 EA
3 98-1594 235 9.5 GAL. WATER TANK 1 EA
3a 4-0146 1.5X1.5X1/8 4IN. BRACKET 2 EA
4 F06812 1/2P X 3/4 MPT MALE ELBOW 1 EA
5 3901-0206E PUMP - AQUA KING WATER PUMP 1 EA
5a 255-213 FILTER- 1/2 PIPE THREAD FOR 3901-0206E PUMP 1 EA
6 F06816 1/2X1/2 FPT SWIVEL ELBOW 2 EA
7 EL112 11/2 MPT 11/2HBB NYLCPL90 1 EA
8 141-1120 HOSE - 1 1/2 IN MULTIFLEX-BLACK 12 FT
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 40
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Engine Well/Hull Interior
1
FWD
3
2
AFT
6
8
FWD
5
4
10
7
Page 41
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Engine Well/Hull Interior
Item No. Part Number Description Qty. U.O.M.
1 091025-00 FLEXIBLE PVC ROD HOLDER STD. PACKAGE 2 EA
2 42.00022 BRACKET - ANGLED BRACKET 1.5" x 1.5" x 3" - ALUMIN 4 EA
3 46.00043 TANK - FUEL TANK 50G 217 - PLASTIC 1 EA
3a 46.00045 TANK - FUEL TANK CE ALUMINUM 50G (Option: Int'l Fuel Tank) 1 EA
4 35ADM FLOAT SWITCH -RULE-A-MATIC 1 EA
4a 3980-1285 BRACKET- BLACK BILGE PUMP BRACKET 1 EA
4b 4-1144 BILGE PUMP BRACKET 1 EA
4c 25D2M BILGE PUMP- 500 GPH W/ DEUTSCH CONNECTORS 1 EA
4d 141-0340 HOSE - 3/4 IN. MULTIFLEX 9 FT
5 59.00003 HOSE - 3/8" X 3' CRIMPED FUEL FEED HOSE 1 EA
6 34.00037 FITTING - 3/8FL x 3/8MPT ELBOW 1 EA
7 4-1013 4 INCH FUEL TANK BRACKET (Option: CE Pkg & CE Dual Battery Setup) 2 EA
8 63.00000 DEPTH FINDER TRANSDUCER - MERCURY (Option: Convenience Pkg) 1 EA
8a 63.00001 TRANSDUCER - DEPTH/TEMP - VOLVO (Option: Convenience Pkg) 1 EA
8b 63.00003 TRANSDUCER - TRANSDUCER FUSE KIT (Option: Convenience Pkg) 1 EA
Parts Not Pictured Which Are Associated With Engine Well/Hull Interior:
Not Pictured 13.00628 KIT - SE FUEL SHUTOFF KIT (Option: Electric Shut Off Valve) 1 EA
Not Pictured 4720K15 FUEL TROL (Option: Electric Shut Off Valve) 1 EA
Not Pictured 123-1120 HOSE - 1 1/2 FLAME RET.SPLIT CON (Around battery cables at fuel tank) 4 FT
Not Pictured 116B04 1/4 FORGED BRASS ST ELBOW (Option: Electric Shut Off Valve)
Not Pictured 42.00131 BRACKET - FUEL TROL MOUNTING (Option: Electric Shut Off Valve)
Not Pictured DBN32 1/4X3/8 BRASS BARB HOSE (Option: Electric Shut Off Valve)
Not Pictured 34.00141 VALVE - 1.5 ANTI-THEFT/ANTI-SIPHON FUEL DEVICE 2
Not Pictured 42.00047X BRACKET - 2" x 36" FUEL TANK BRACKET NOTCHED 1
1EA
1EA
2EA
EA
EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 42
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Engine Well/Hull Interior
AFT
3
1
2
4
FWD
Page 43
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Engine Well/Hull Interior
Item No. Part Number Description Qty. U.O.M.
1 9090-1 BATTERY TRAY 12 1 EA
1a 9065-1 BATTERY BOX (Option: CE Pkg & Dual Battery) 1 EA
2 39.00004 BLOWER - 4" IN-LINE BLOWER W/PACKARD CONNECTORS 2 EA
3 SSC6216 16 FT. STEERING CABLE 1 EA
4 9090-1 BATTERY TRAY 12 (Option: Dual Battery) 1 EA
4a 9065-1 BATTERY BOX (Option: CE Pkg, Dual Battery ) 1 EA
Parts Not Pictured Which Are Associated With Engine Well/Hull Interior:
Not Pictured 4-1013X 4IN FUEL TANK BRACKET - PLASTIC (Option: CE Pkg ) 2 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 44
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Water System
5
1
11
10
9
4
8
2
3
4
5
6
7
5
Page 45
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Water System
Item No. Part Number Description Qty. U.O.M.
1 C1/2X100PEX 1/2 IN. PEX COLD COIL 100 FT. 15 FT
2 3901-0206E PUMP - AQUA KING WATER PUMP 1 EA
2a 255-213 FILTER- 1/2 PIPE THREAD FOR 3901-0206E PUMP 1 EA
3 C1/2X100PEX 1/2 IN. PEX COLD COIL 100 FT. 0.25 FT
4 F06820 1/2P X 1/2P X 1/2P TEE (Option: SS Transom & Bow Shower) 2 EA
5 F06842 1/2P X 1/2MPT MALE ADPTR. (Option: SS Transom & Bow Shower) 2 EA
6 F06816 1/2X1/2 FPT SWIVEL ELBOW 2 EA
7 C1/2X100PEX 1/2 IN. PEX COLD COIL 100 FT. (Option: SS Transom & Bow Shower) 11.33 FT
8 C1/2X100PEX 1/2 IN. PEX COLD COIL 100 FT. (Option: SS Transom & Bow Shower) 4 FT
9 C1/2X100PEX 1/2 IN. PEX COLD COIL 100 FT. 5 FT
10 C1/2X100PEX 1/2 IN. PEX COLD COIL 100 FT. 0.58 FT
11 98-1594 235 9.5 GAL. WATER TANK 1 EA
11a 4-0146 1.5X1.5X1/8 4IN. BRACKET 2 EA
Parts Not Pictured Which Are Associated With Water System:
Not Pictured 141-1120 HOSE - 1 1/2 IN MULTIFLEX-BLACK (Waterfill) 12 FT
Not Pictured 148-0580 HOSE - 5/8 WHITE SMOOTH PVC (Water Vent) 15 FT
Not Pictured 34.00013 SUPPORT - 1/2" BEND SUPPORT FOR PEX TUBE (Option: SS Transom & Bow Shower) 2 EA
Not Pictured EL112 11/2 MPT 11/2HBB NYLCPL90 1 EA
Not Pictured EL3458 3/4 MPT 5/8HBB NYL CPL 90 1 EA
Not Pictured F06812 1/2P X 3/4 MPT MALE ELBOW 1 EA
Not Pictured F06873 1/2P X 1/2FPT STR SWVL BS 1 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
Page 46
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Interiors - Overhead View
14
13
12
1
2
3
4
11
10
9
8
7
5
6
Page 47
T
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Interiors - Overhead View
Item No. Part Number Description Qty. U.O.M.
1 04516000 224SUN FORWARD BOW CUSHION COMMON 1 EA
1a 04516900 224SUN FORWARD BOW CUSHION SKIN 1 EA
2 04500000 224SUN STARBOARD BOW CUSHION COMMON 1 EA
2a 04500900 224SUN STARBOARD BOW CUSHION SKIN 1 EA
2b SC-WTP-SR WHITE SEAT CLEATS 3 EA
3 04508000 224SUN STARBOARD BOW WRAP COMMON 1 EA
3a 04508BLK 224SUN STARBOARD BOW WRAP SKIN BLACK 1 EA
4 04511000 224SUN STARBOARD BOW BACKREST COMMON 1 EA
4a 04511BLK 224SUN STARBOARD BOW BACKREST SKIN BLACK 1 EA
4b 04664000 X224/X244 STARBOARD BOW BACKREST COMMON 1 EA
4c 04664BLK X224/X244 STARBOARD BOW BACKREST SKIN BLACK 1 EA
5 04520000 224SUN FORWARD MOTOR BOX CUSHION COMMON 1 EA
5a 04520900 224SUN FORWARD MOTOR BOX CUSHION SKIN 1 EA
6 04521000 224SUN MOTORBOX BACKREST COMMON 1 EA
6a 04521BLK 224SUN MOTORBOX BACKREST SKIN BLACK 1 EA
6b 04662000 X224/X244 MOTORBOX BACKREST COMMON 1 EA
6c 04662BLK X224/X244 MOTORBOX BACKREST SKIN BLACK 1 EA
7 04523000 224SUN REAR MOTOR BOX CUSHION COMMON 1 EA
7a 04523900 224SUN REAR MOTOR BOX CUSHION SKIN 1 EA
7b 04.00051 HANDLE - AFT MOTOR BOX CUSHION GRAB HANDLE 1 EA
7c 42.00016 HINGE - SS MOTORBOX CUSHION HINGE 1 X 2 X 12 1 EA
8 04512000 224SUN PORT AFT CORNER BACKREST COMMON 1 EA
8a 04512900 224SUN PORT AFT CORNER BACKREST SKIN 1 EA
9 04528000 224SUN PORT AFT STORAGE REAR CUSHION COMMON 1 EA
9a 04528900 224SUN PORT AFT STORAGE REAR CUSHION SKIN 1 EA
10 04527000 224SUN PORT AFT FORWARD STORAGE CUSHION COMMON 1 EA
10a 04527900 224SUN PORT AFT FORWARD STORAGE CUSHION SKIN 1 EA
11 04509000 224SUN PORT AFT BACKREST COMMON 1 EA
11a 04509900 224SUN PORT AFT BACKREST SKIN 1 EA
12 04510000 224SUN PORT BOW BACKREST COMMON 1 EA
12a 04510BLK 224SUN PORT BOW BACKREST SKIN BLACK 1 EA
12b 04663000 X224/X244 PORT BOW BACKREST COMMON 1 EA
12c 04663BLK X224/X244 PORT BOW BACKREST SKIN BLACK 1 EA
13 04501000 224SUN PORT BOW CUSHION COMMON 1 EA
13a 04501900 224SUN PORT BOW CUSHION SKIN 1 EA
13b SC-WTP-SR WHITE SEAT CLEATS 3 EA
14 04507000 224SUN PORT BOW WRAP COMMON 1 EA
14a 04507BLK 224SUN PORT BOW WRAP SKIN BLACK 1 EA
Parts Not Pictured Which Are Associated With Interiors - Overhead View:
Not Pictured 04560000 224SUN SNAP IN COCKPIT CARPET COMPLETE 1 EA
Not Pictured 04504000 224SUN OPTIONAL BOW FILLER CUSHION COMMON 1 EA
Not Pictured 04504900 224SUN OPTIONAL BOW FILLER CUSHION SKIN 1 EA
NOTE: Numbers with letter designations represent parts included with
primar
o order a complete part, you must order the common part as well as the skin.
Black accent cockpit part numbers listed above. For other cockpit color choices, replace "BLK" with the following:
numbered part for which there is no photo representation.
BLK - White Vinyl - Black Accent - Gray Carpet
BLU - White Vinyl - Blue Accent - Gray Carpet
ICE - White Vinyl - Blue Ice Accent - Gray Carpet
RED - White Vinyl - Red Accent - Tan Carpet
YEL - White Vinyl - Yellow Accent - Tan Carpet
Page 48
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Interiors - Side Panels
1
2
4
3
Page 49
T
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Interiors - Side Panels
Item No. Part Number Description Qty. U.O.M.
1 04505000 224SUN PORT UPPER SIDE PANEL COMMON 1 EA
1a 04505BLK 224SUN PORT UPPER SIDE PANEL SKIN BLACK 1 EA
2 04502000 224SUN PORT LOWER SIDE PANEL COMMON 1 EA
2a 04502900 224SUN PORT LOWER SIDE PANEL SKIN 1 EA
3 04503000 224SUN STARBOARD LOWER SIDE PANEL COMMON 1 EA
3a 04503900 224SUN STARBOARD LOWER SIDE PANEL SKIN 1 EA
4 04526000 224SUN STARBOARD UPPER SIDE PANEL (MERCURY) COMMON 1 EA
4a 04526BLK 224SUN STARBOARD UPPER SIDE PANEL (MERCURY) SKIN BLACK 1 EA
4b 04506000 224SUN STARBOARD UPPER SIDE PANEL (VOLVO) COMMON 1 EA
4c 04506BLK 224SUN STARBOARD UPPER SIDE PANEL (VOLVO) SKIN BLACK 1 EA
NOTE: Numbers with letter designations represent parts included with
primar
o order a complete part, you must order the common part as well as the skin.
Black accent cockpit part numbers listed above. For other cockpit color choices, replace "BLK" with the following:
numbered part for which there is no photo representation.
BLK - White Vinyl - Black Accent - Gray Carpet
BLU - White Vinyl - Blue Accent - Gray Carpet
ICE - White Vinyl - Blue Ice Accent - Gray Carpet
RED - White Vinyl - Red Accent - Tan Carpet
YEL - White Vinyl - Yellow Accent - Tan Carpet
Page 50
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Interiors - Carpet Boards
1
4
5
6
7
8
2
3
9
11
10
15
14
13
16
17
Page 51
T
y
PARTS IDENTIFICATION GUIDE
R
224 SUNESTA
2012 MODEL YEA
Interiors - Carpet Boards
Item No. Part Number Description Qty. U.O.M.
1 04538000 224SUN CONSOLE STORAGE FWD CLOSEOUT COMMON 1 EA
1a 0453800C 224SUN CONSOLE STORAGE FWD CLOSEOUT SKIN TAN 1 EA
2 04515000 224SUN PORT BOW STORAGE AFT CLOSEOUT COMMON 1 EA
2a 0451500C 224SUN PORT BOW STORAGE AFT CLOSEOUT SKIN TAN 1 EA
3 04532000 224SUN COCKPIT GALLEY FORWARD UPPER CLOSE OUT COMMON 1 EA
3a 0453200C 224SUN COCKPIT GALLEY FORWARD UPPER CLOSE OUT SKIN TAN 1 EA
4 04531000 224SUN COCKPIT GALLEY FORWARD CLOSE OUT COMMON 1 EA
4a 0453100C 224SUN COCKPIT GALLEY FORWARD CLOSE OUT SKIN TAN 1 EA
5 04519000 224SUN GALLEY WIRE CLOSEOUT COMMON 1 EA
5a 0451900C 224SUN GALLEY WIRE CLOSEOUT SKIN TAN 1 EA
6 04517000 224SUN COOLER SHIM COMPLETE 1 EA
7 04522000 224SUN CONSOLE STORAGE AFT ACCESS PANEL COMMON 1 EA
7a 0452200C 224SUN CONSOLE STORAGE AFT ACCESS PANEL SKIN TAN 1 EA
8 04525000 224SUN CONSOLE STORAGE FLOORING COVER BOARD COMPLETE 1 EA
9 04529000 224SUN CONSOLE STORAGE FLOORING COVER BOARD COMPLETE 1 EA
9a 0452900C 224SUN PORT BOW STORAGE CLOSEOUT BULKHEAD SKIN TAN 1 EA
10 04530000 224SUN STARBOARD BOW STORAGE CLOSEOUT BULKHEAD COMMON 1 EA
10a 0453000C 224SUN STARBOARD BOW STORAGE CLOSEOUT BULKHEAD SKIN TAN 1 EA
11 04531000 224SUN COCKPIT GALLEY FORWARD CLOSE OUT COMMON 1 EA
11a 0453100C 224SUN COCKPIT GALLEY FORWARD CLOSE OUT SKIN TAN 1 EA
12 04533000 224SUN PORT COOLER FORWARD CLOSEOUT BULKHEAD COMMON 1 EA
12a 0453300C 224SUN PORT COOLER FORWARD CLOSEOUT BULKHEAD SKIN TAN 1 EA
13 04534000 224SUN PORT COOLER AFT CLOSEOUT BULKHEAD COMMON 1 EA
13a 0453400C 224SUN PORT COOLER AFT CLOSEOUT BULKHEAD SKIN TAN 1 EA
14 04535000 224SUN COCKPIT GALLEY AFT CLOSEOUT BULKHEAD COMMON 1 EA
14a 0453500C 224SUN COCKPIT GALLEY AFT CLOSEOUT BULKHEAD SKIN TAN 1 EA
15 04536000 224SUN COCKPIT STORAGE AFT CLOSEOUT BULKHEAD COMMON 1 EA
15a 0453600C 224SUN COCKPIT STORAGE AFT CLOSEOUT BULKHEAD SKIN TAN 1 EA
16 04537000 224SUN COCKPIT GALLEY TRASH CAN SUPPORT COMMON 1 EA
16a 0453700C 224SUN COCKPIT GALLEY TRASH CAN SUPPORT SKIN TAN 1 EA
Parts Not Pictured Which Are Associated With Interiors - Carpet Boards:
Not Pictured 0453900C 224SUN PORT BOW WALL HULL CARPET TAN 1 EA
Not Pictured 0454000C 224SUN STARBOARD BOW WALL HULL CARPET TAN 1 EA
Not Pictured 0454100C 224SUN STARBOARD REAR STORAGE HULL CARPET TAN 1 EA
Not Pictured 0454200C 224SUN PORT REAR STORAGE HULL CARPET TAN 1 EA
Not Pictured 0454300C 224SUN STARBOARD REAR WALL HULL CARPET TAN 1 EA
Not Pictured 04544000 224SUN BOW COOLER FOIL FACE FOAM COMPLETE 1 EA
Not Pictured 0454500C 224SUN DOOR DECK CARPET TAN 1 EA
Not Pictured 0454600C 224SUN FORWARD DECK CARPET TAN 1 EA
Not Pictured 0454700C 224SUN AFT STORAGE DECK CARPET TAN 1 EA
Not Pictured 0454800C 224SUN PORT FORWARD STORAGE DECK CARPET TAN 1 EA
Not Pictured 0454900C 224SUN STARBOARD FORWARD STORAGE DECK CARPET TAN 1 EA
Not Pictured 0455000C 224SUN PORT AFT STORAGE DECK CARPET TAN 1 EA
Not Pictured 0455100C 224SUN CEILING DECK CARPET TAN 1 EA
Not Pictured 0455200C 224SUN STARBOARD REAR AFT DECK CARPET TAN 1 EA
Not Pictured 04553000 224SUN PORT ENGINE WELL FOAM COMPLETE 1 EA
Not Pictured 04554000 224SUN STARBOARD ENGINE WELL FOAM COMPLETE 1 EA
Not Pictured 04556000 224SUN HEAD WALL HULL HEADLINER COMPLETE 1 EA
Not Pictured 04559000 224SUN HEAD HULL FOAM COMPLETE 1 EA
NOTE: Numbers with letter designations represent parts included with
primar
numbered part for which there is no photo representation.
o order a complete part, you must order the common part as well as the skin.
Tan part numbers listed above. For gray parts, replace the C at the end of the part number with a P
Loading...
