Chantico Fire INSERT A-05 User Manual

INSERT A-05

USER’S MANUAL

Edition : I0266#02 of 27.04.2009

1

TABLE OF CONTENTS

1. Product’s description 2
a. General characteristics 2
b. Planika and the Environment 2
c. Material specification 3
d. Overall Dimensions 3

2. Safety 4

3. Installation 6

4. Operating Instructions 13

5. Cleaning and maintenance 16

6. Additonal Information 16
a. Technical data 16
b. Utilization and recycling 16

The manual must be read carefully BEFORE you attempt to

install or use the product

2

1. Product’s Description

a. General Characteristics

This product is a modern appliance which combines all the advantages

of a traditional fireplace without any of the disadvantages.

Weighing much less than a traditional fireplace, your new fireplace is

easy and quick to install and can be ready to ignite in a matter of hours.

Within the home, the Insert A-05 is designed to create a cosy,

intimate and friendly atmosphere.

.

b. Planika and the Environment

The Insert A-05 requires no flue

. It can be used in any environment

having adequate natural ventilation. No flue also means all the heat
remains within the room.

Thanks to the use of FANOLA® alcohol-based, ecological liquid, the

operation of the Insert A-05 means clean, emission free and
environmentally friendly usage. There are no combustion residues, such as
ash or soot, to clean or remove!

PLEASE NOTE:

The Chantico Fire Insert A-05 is for indoor use only.

The Chantico Fire Insert A-05 is not a heating appliance.

3

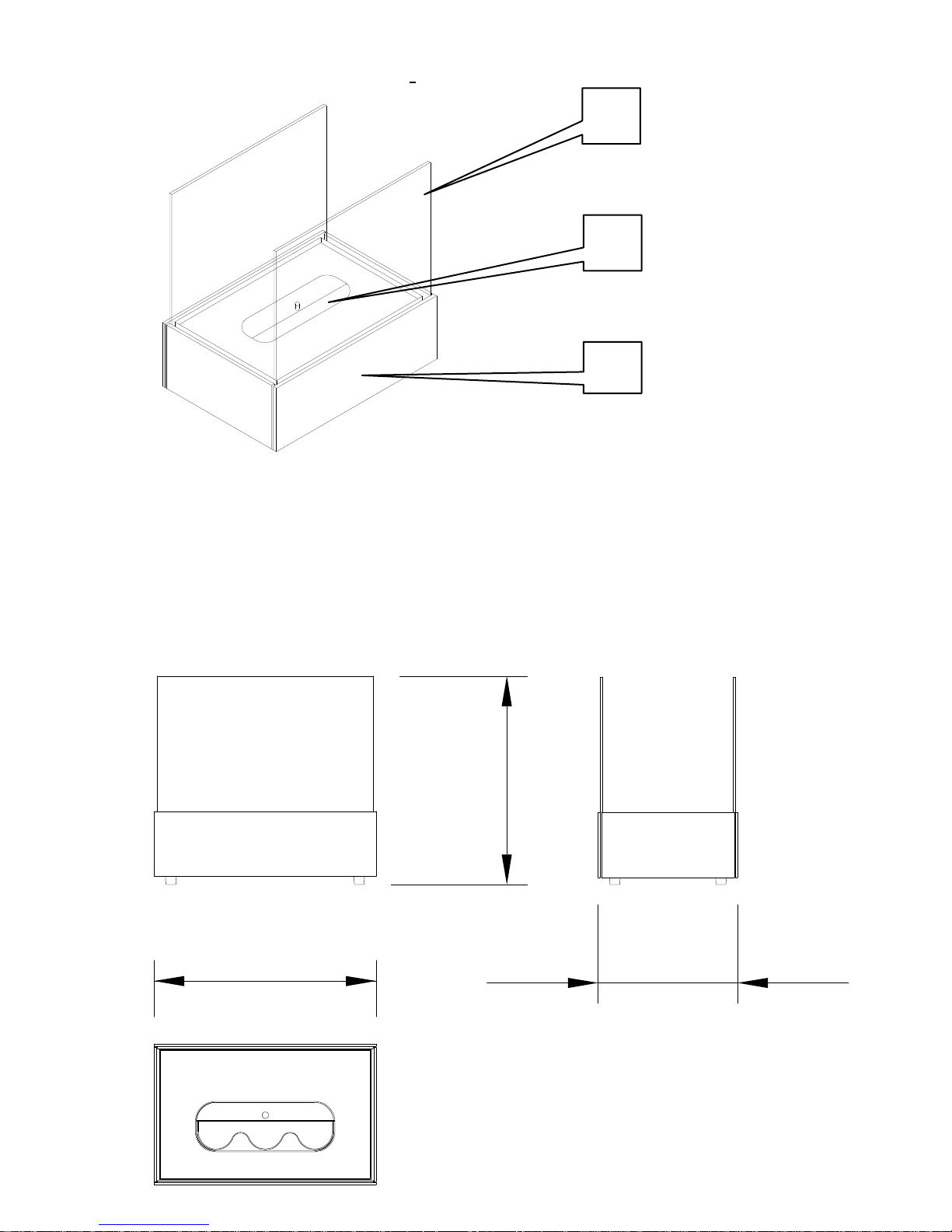

1. Material specification.

Construction materials:
A – Containier for FANOLĘ®, shutter – acid-proof polished stainless
steel,
B - Body - stainless steel coated with the heat-proof paint
C – Glass shield – tempered glass

d.

Overall dimensions

C

B

A

41cm/16,1in

2cm/6

10,2 in3

38,5cm/15,2in

4

2. Safety

In this chapter there is information concerning the responsible use of

the Insert A-05.

Complying with the following safety recommendations will avoid
damaging the product and creating potentially hazardous situations which
may result in bodily injuries.

To ensure the safe and appropriate use of the Insert A-05 you must

abide by the following guidelines:

Before assembling your Insert A-05, select its location taking into
consideration the following rules:

Do not expose to outdoor conditions. This Product is for indoor use

only.

Do not use the product in a room of an area below 24m

2

/ 258.33ft2

(or approximately 63m

3

/ 2224.82ft3).

There should be adequate natural ventilation in the room where the

Insert A-05 will be used. If required increase the ventilation by

opening a window or a door.

Do not allow children to light the Insert A-05.
Do not place the Insert A-05 in draughty areas, close to fans or other

ventilating devices.

Do not place the product in places where potentially explosive or

combustible particles may be present in the atmosphere, e.g. lacquer

fumes, industrial dust, etc.

Do not use faulty or damaged parts of the Insert A-05.
Due to high surface temperatures, keep children, pets, clothing, and

furniture away. The appliance is hot while in operation and contact
with it may cause burns to the skin.

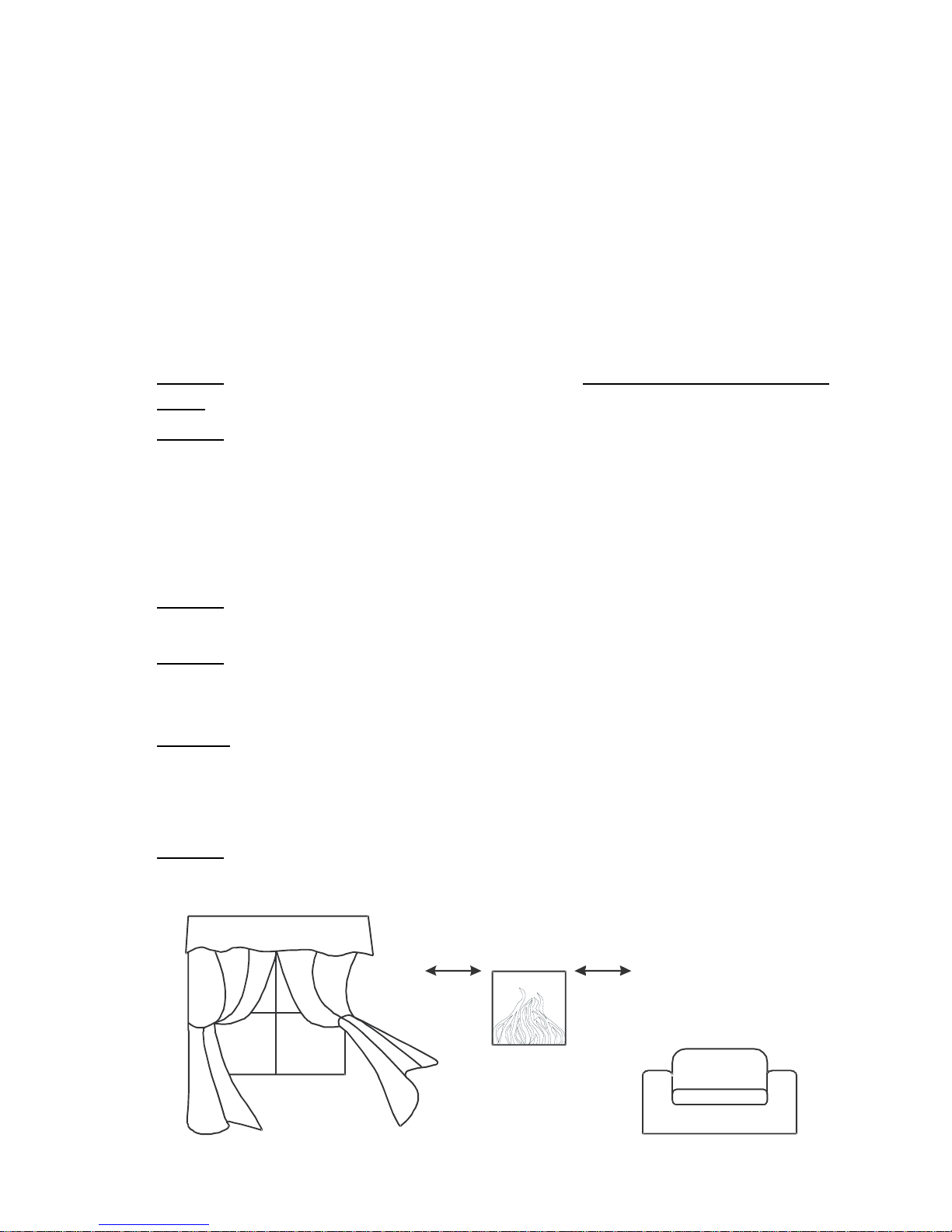

Do not place any flammable materials such as curtains, blinds, etc.

within a 100 cm (39.37 in) radius of the Insert A-05.

100 cm

100 cm

39,37 in

39,37 in

5

Do not leave a burning Insert A-05 without adult supervision.

Children and animals should not be left alone in the room while the

appliance is in usage.

Do not try to repair or alter the construction of the Insert A-05.

Use FANOLA® – clean burning & odorless liquid recommended by
the manufacturer.

Using any other liquids or fuels may result in the emission of a variety

of gases during the burning process, which may have negative effects

on the health.

The liquid is poisonous and must not be consumed.

Store the liquid in a safe place out of reach of children, pets and any

unauthorized persons.

Do not attempt to pour FANOLA® or any other liquid or fuel into

the reservoir during the burning process.

Only use the liquid designed for this type of Insert.
Do not place anything inside the fireplace which has not been

supplied by the Manufacturer.

Only use the Insert A-05 accessories provided by the Manufacturer

and in accordance with their instructions as per the Manual.

Do not touch heated elements of the Insert A-05.
Do not cover the Insert, or the ventilation slots etc. as it may cause a

fire.

6

3. Installation

Before installing the product, read Section 2 of the manual (Safety). To
ensure proper assembly and installation, please proceed as follows:

3.1 Unpack the product and remove all parts from the packaging.

A BCDEFG

3.2 Choose a suitable location for the Insert A-05 as it is presented in

Section 2.

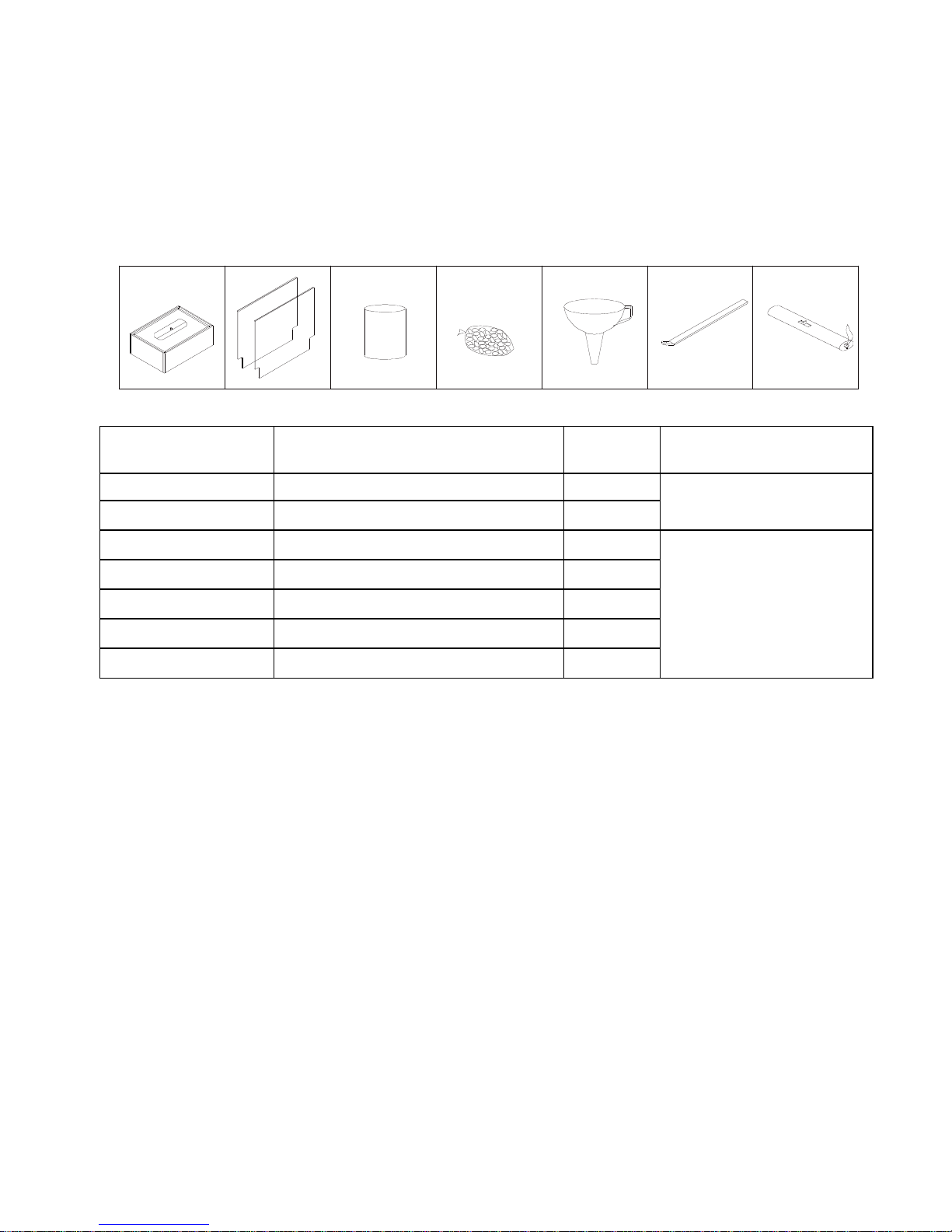

SYMBOL ELEMENT DESCRIPTION PCS USAGE

A Insert

1

Construction

elements

B

Glass shield

2

C

Measuring cup

1

Operation elements

D

Decorative stones 2

E

Funnel

1

F

Metal tool

1

G

Lighter

1

7

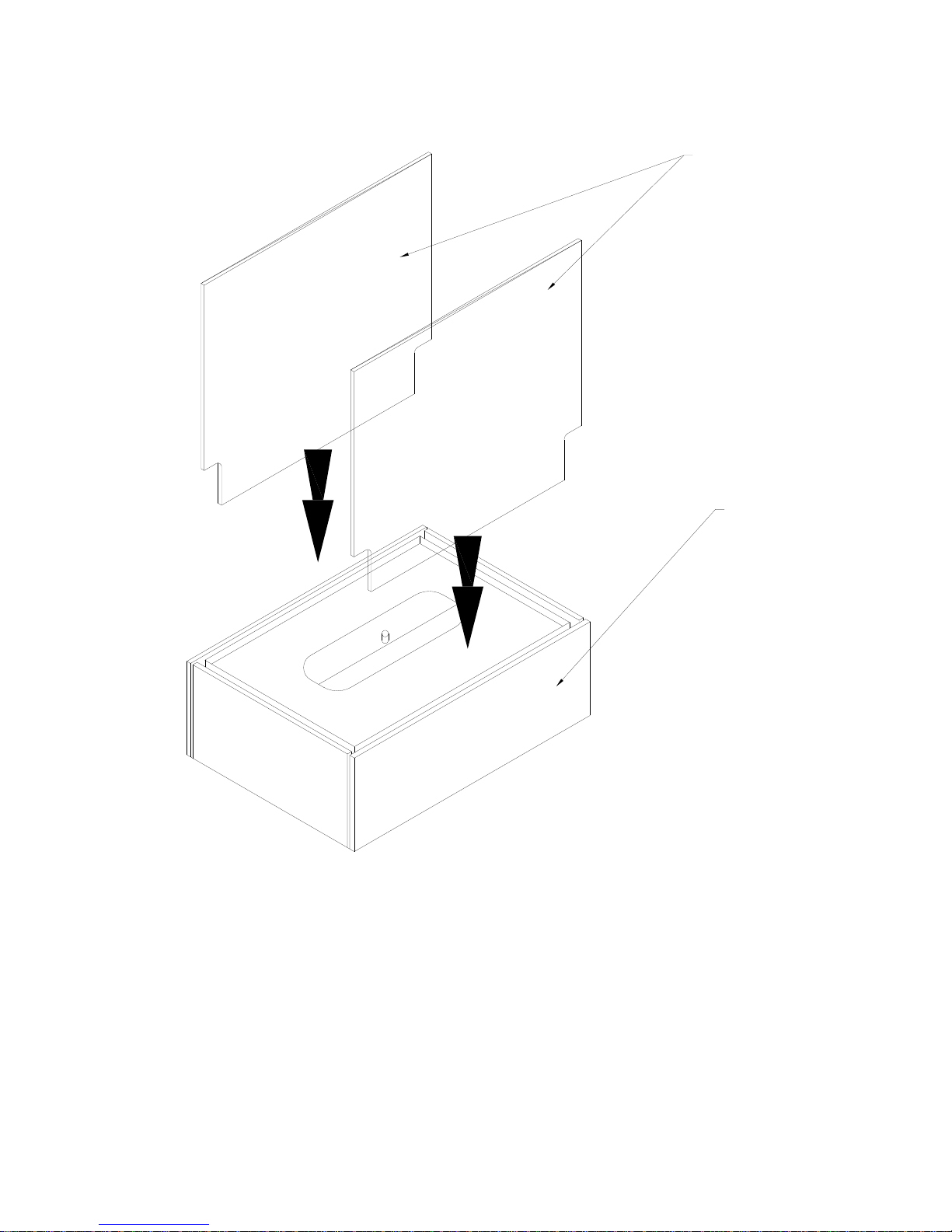

2.1. Assemble the product according to drawing.

3.4. Choose one of the installation modes:

a. The existing fireplace with a chimney.
b. The existing fireplace without a chimney. The walls of the fireplace

are made of non-flammable materials.

c. The existing fireplace without a chimney. The walls of the fireplace

are made of flammable materials.

A

B

8

Ad. a.

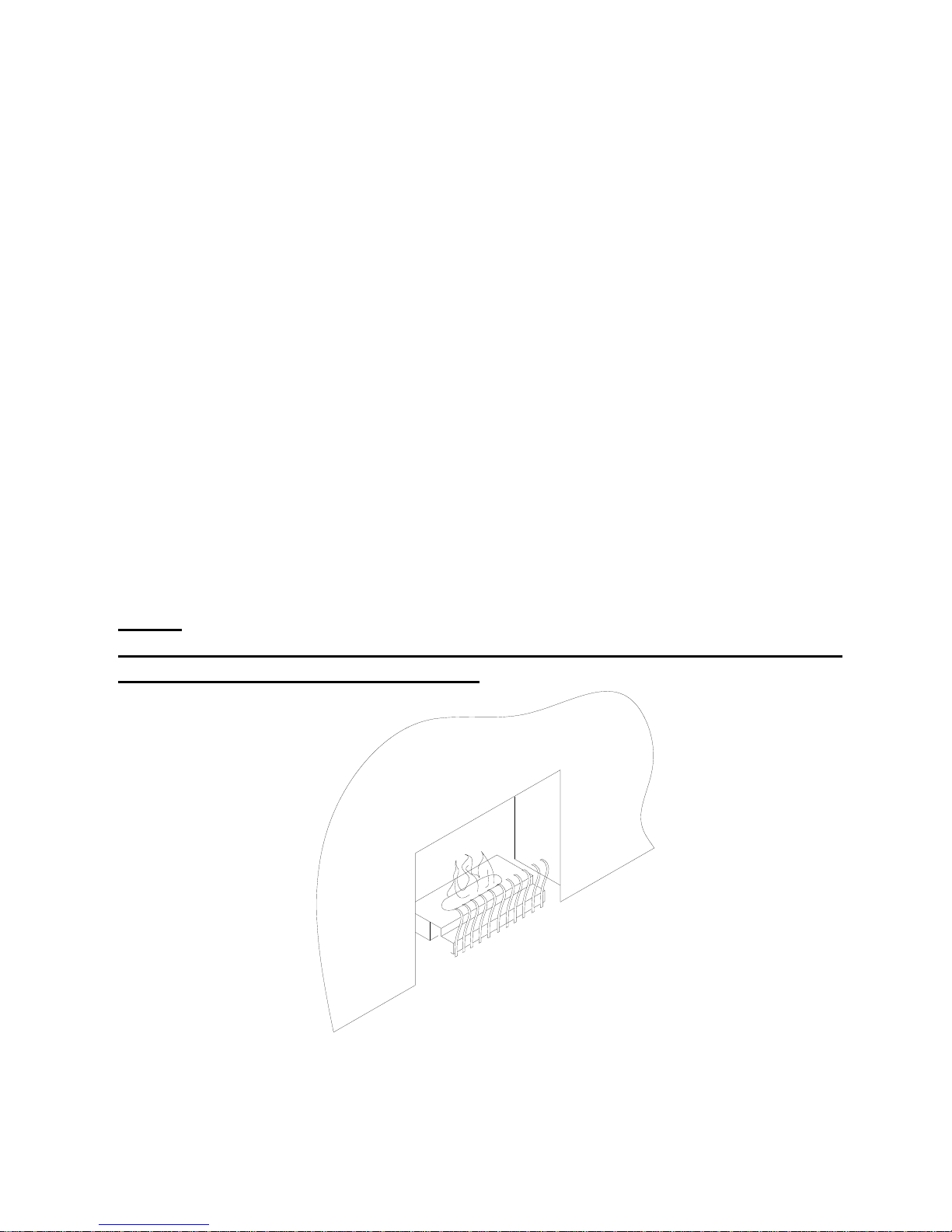

The product installation in the existing fireplace with a chimney

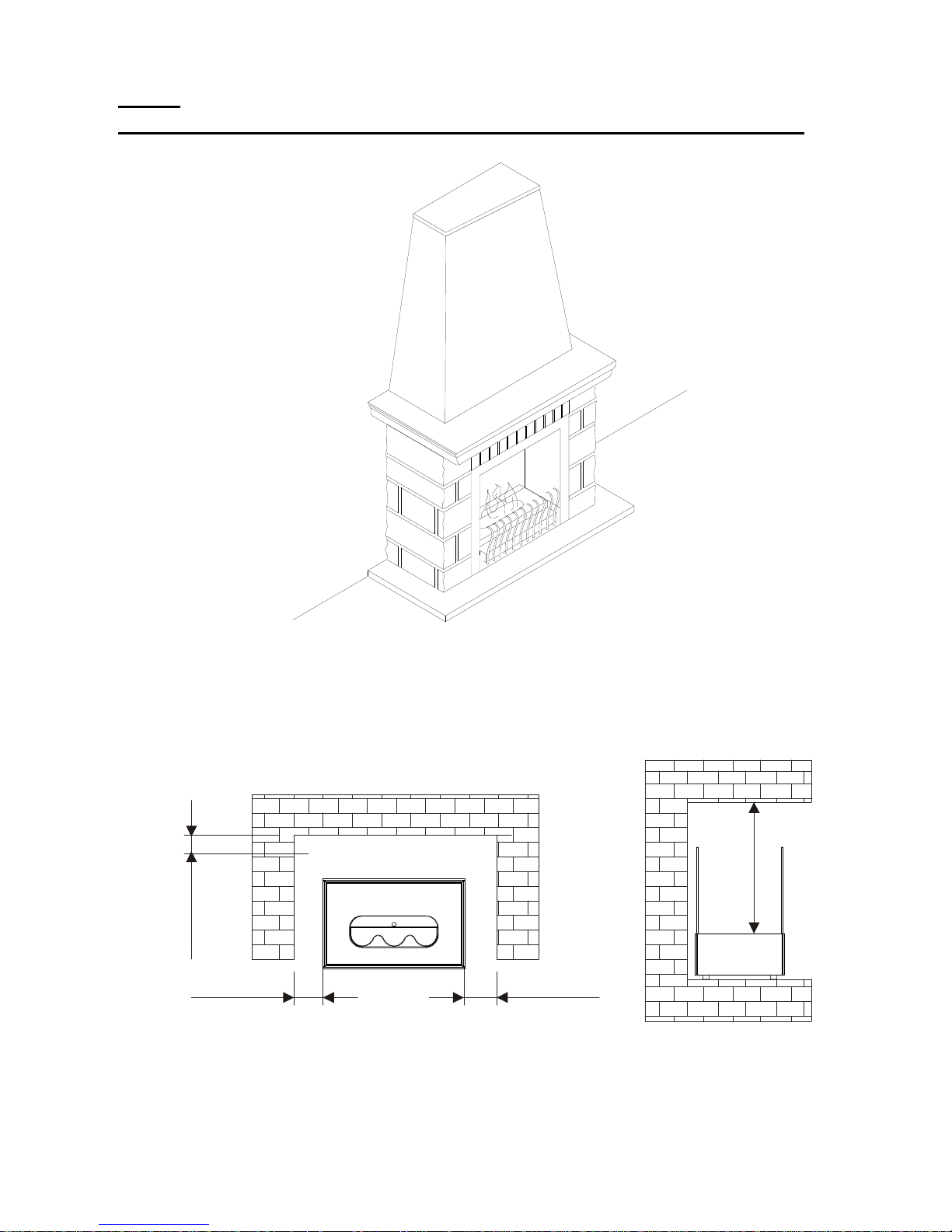

a.1 Before you put the insert in the existing fireplace, make sure that the

minimal dimensions presented in the below drawings are kept.

a.2 You should clean the inside of the chimney where the product will be

placed from ash and the rests of the burnt wood.



min 1cm/

0,39in

min 1cm/

0,39in

m

in 1c

m

/

0,39in

min 50cm/

19,7in

9

CAUTION!!
The product must not be placed in the cast iron inserts closed
with the glass door. The product may be put in the cast iron
insert when the glass door is removed

a.3 If the chimney is equipped with the air regulating system, it should be

installed in the maximum open position

a.4 If the chimney is equipped with the draught system, it should be

installed in the maximum open position (while the product is in usage,
you may try to close it but you should observe the flame. If the
draught system does not affect the size of the flame, you may set it
according to your needs).

Ad. b.
The product installation in the existing fireplace where its walls are
made of non-flammable materials

In case where the building wall is made of non-flammable materials, you

should:

10

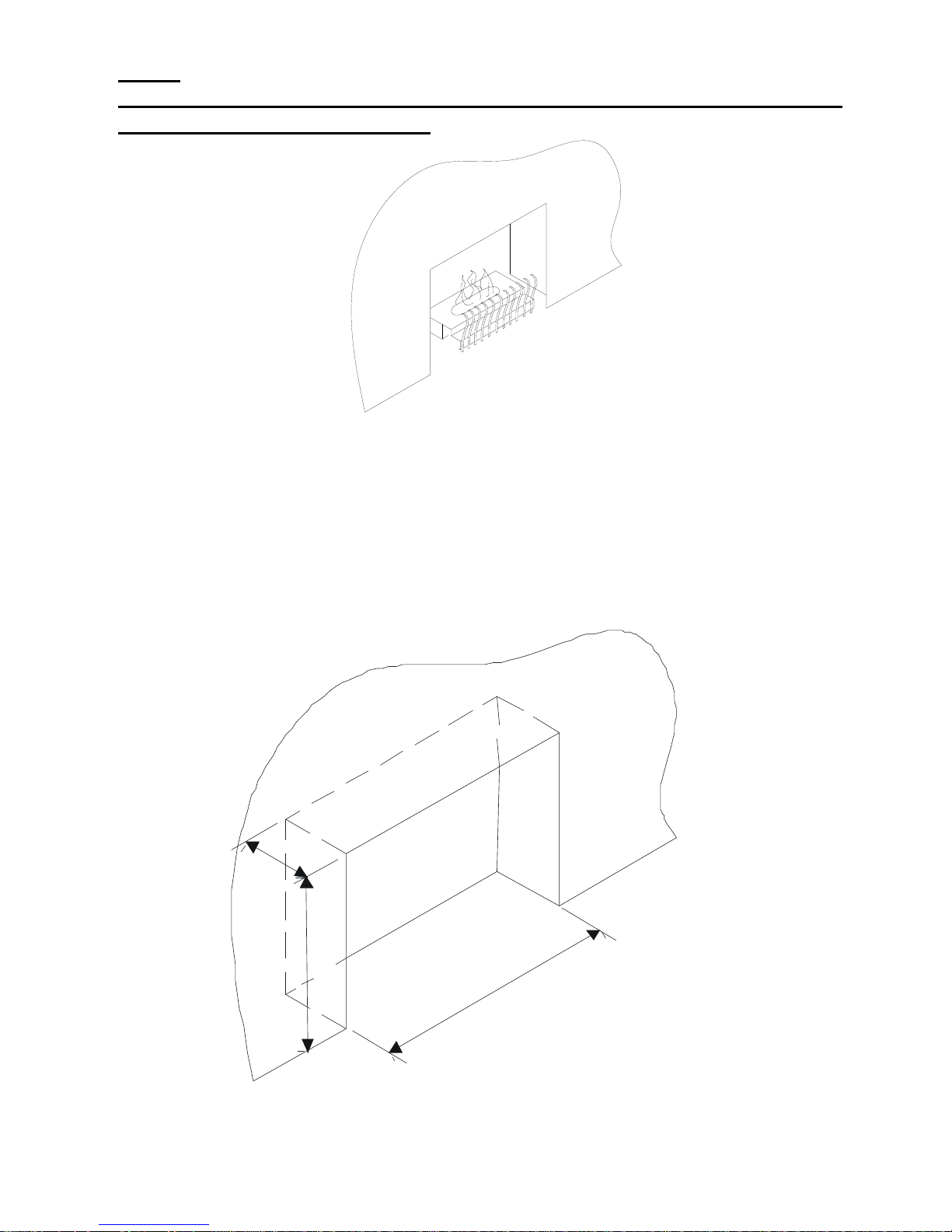

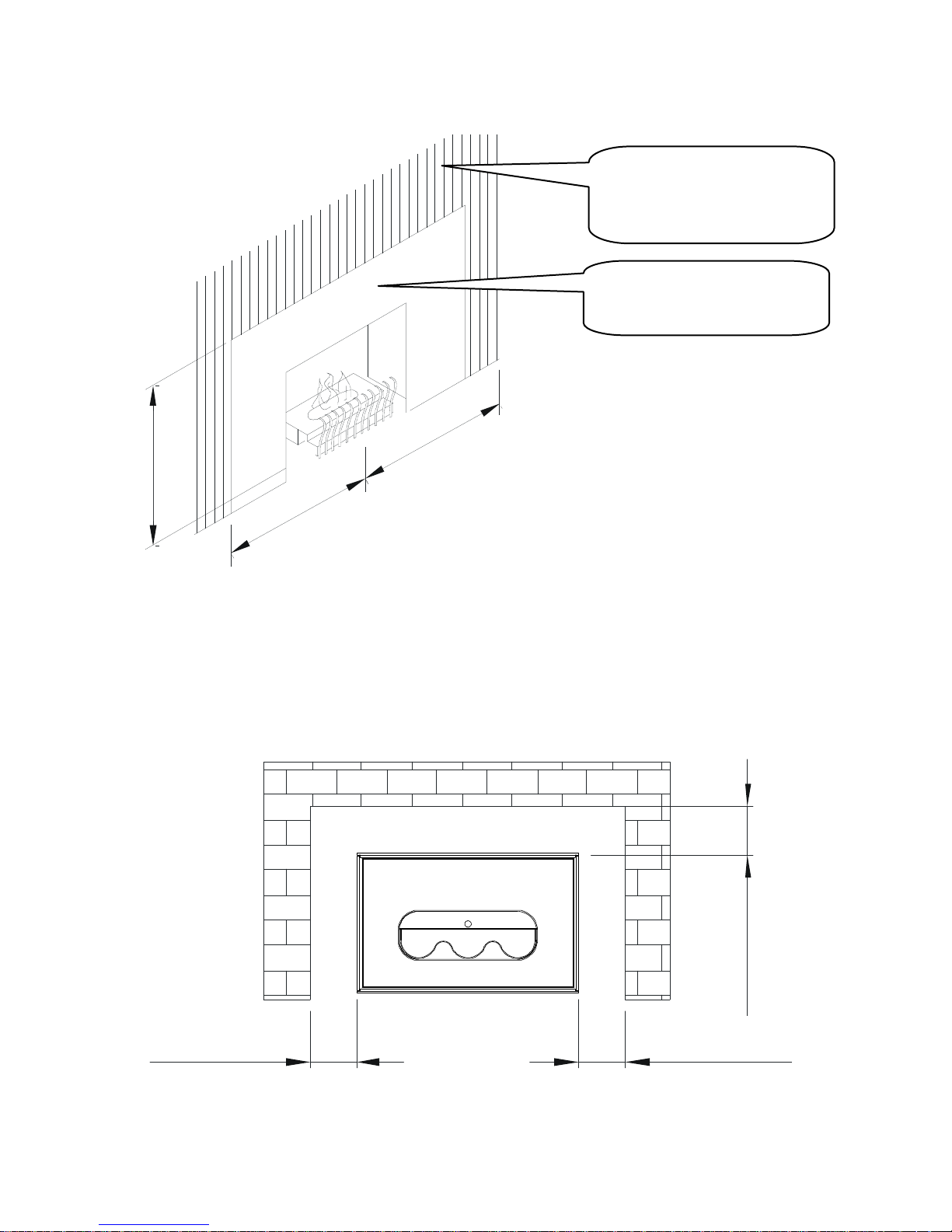

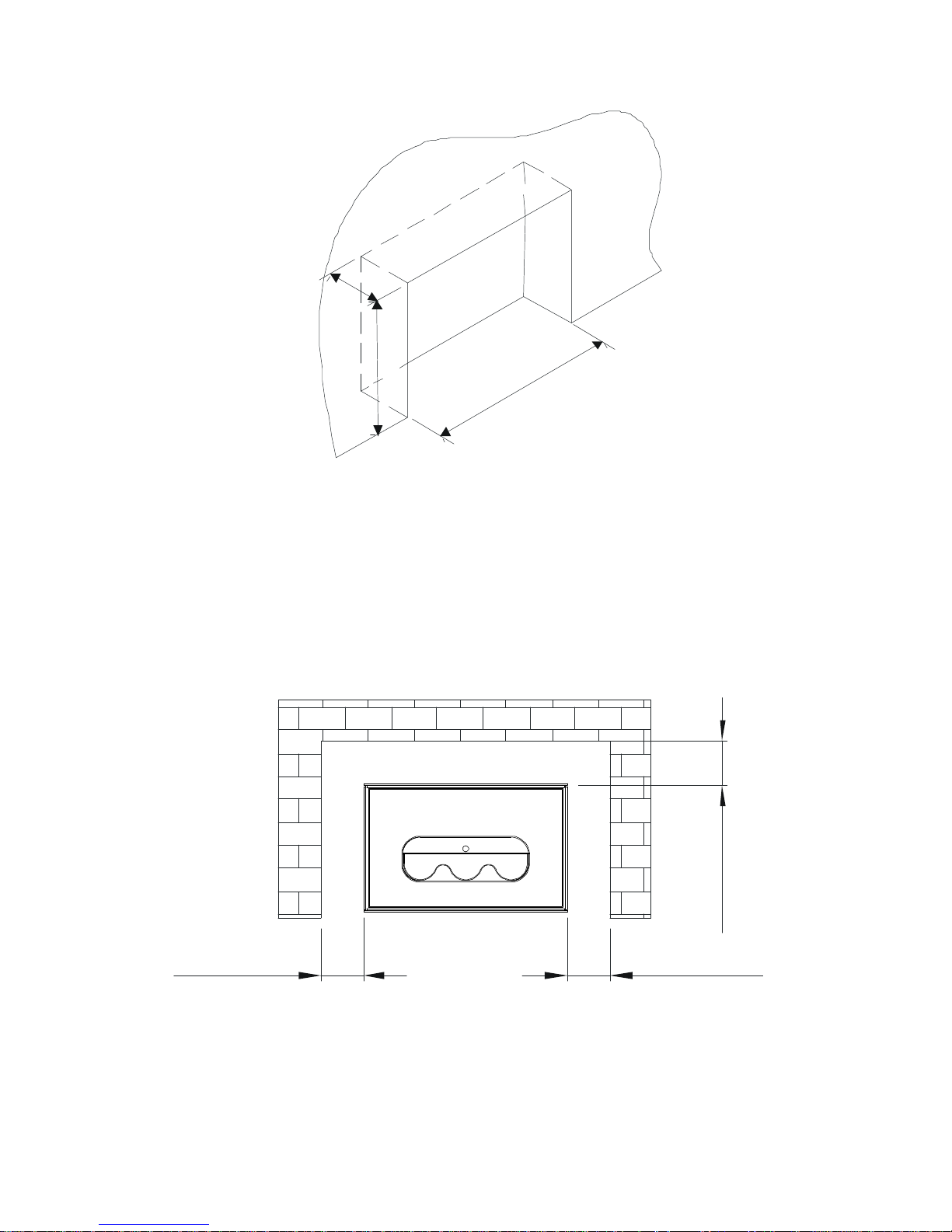

b.1 Make the recess in the wall of the minimum dimensions presented in

the drawing. To finish the recess use the non-flammable materials.

b.1 Place the insert in the place prepared so as to keep the minimum

distances from the walls of the recess.



min 10cm / 3,94in

min 10cm/

3,94in

min 10cm / 3,94in



m

i

n

6

1

c

m

/

2

4

i

n

m

i

n

3

6

c

m

/

1

4

,

2

i

n

min 70cm/27,6in

11

Ad. c.
The product installation in the existing fireplace where its walls are
made of flammable materials

In case where the building wall is made of flammable materials or in case
where potentially flammable materials such as wood have been used to
build it, you should:

c.1. Make the recess in the wall of the minimum dimensions presented in

the drawing. To finish the recess use the non-flammable materials.



m

i

n

6

1

c

m

/

2

4

i

n

m

i

n

3

6

c

m

/

1

4

,

2

i

n

min 70cm/27,6in

12

c.2. Finish the recess with any non-flammable material according to the

drawing below.

m

i

n

1

00

c

m

m

i

n

1

00

c

m

min 100cm

min 100cm/

39,37in

m

i

n

1

0

0

c

m/

3

9

,

3

7

in

m

in

1

0

0

c

m

/

3

9

,

3

7

in

c.3. Place the insert in the place prepared so as to keep the minimum
distances from the walls of the recess.

Non-flammable
material

The wall with the
flammable material is
accepted



min 10cm / 3,94in

min 10cm/

3,94in

min 10cm / 3,94in

13

CAUTION!!

The recess must be made of or finished with the non­flammable and high temperature proof materials.

3.4 Put the decorative stones but remember:

not to place the stones inside the insert
not to put the stones in layers in order to prevent the risk of their

falling into the insert

14

4. Operating Instructions

Before using the Insert A-05 read chapter 2 of the manual.

4.1. Using the supplied funnel (E), pour 4 measuring cups (C) of

FANOLA® into the reservoir.

CAUTION!

Do not pour any additional liquid into the reservoir during use as it

may cause a fire and burns.

BEFORE REFILLING THE RESERVOIR YOU SHOULD WAIT

APPROX. 20 MINUTES UNITIL THE RESERVOIR C OOLS DOWN

4.1. Be very careful not to spill the liquid outside the reservoir. If liquid is

spilt on the reservoir, dry the affected components before igniting
the flame.

4.2. Using the lighter supplied (G), ignite the liquid in the reservoir by

bringing the flame close to the surface of the liquid.

15

4.3. After a few moments you can adjust the flame size by altering the

reservoir shutter using the supplied metal tool (F).

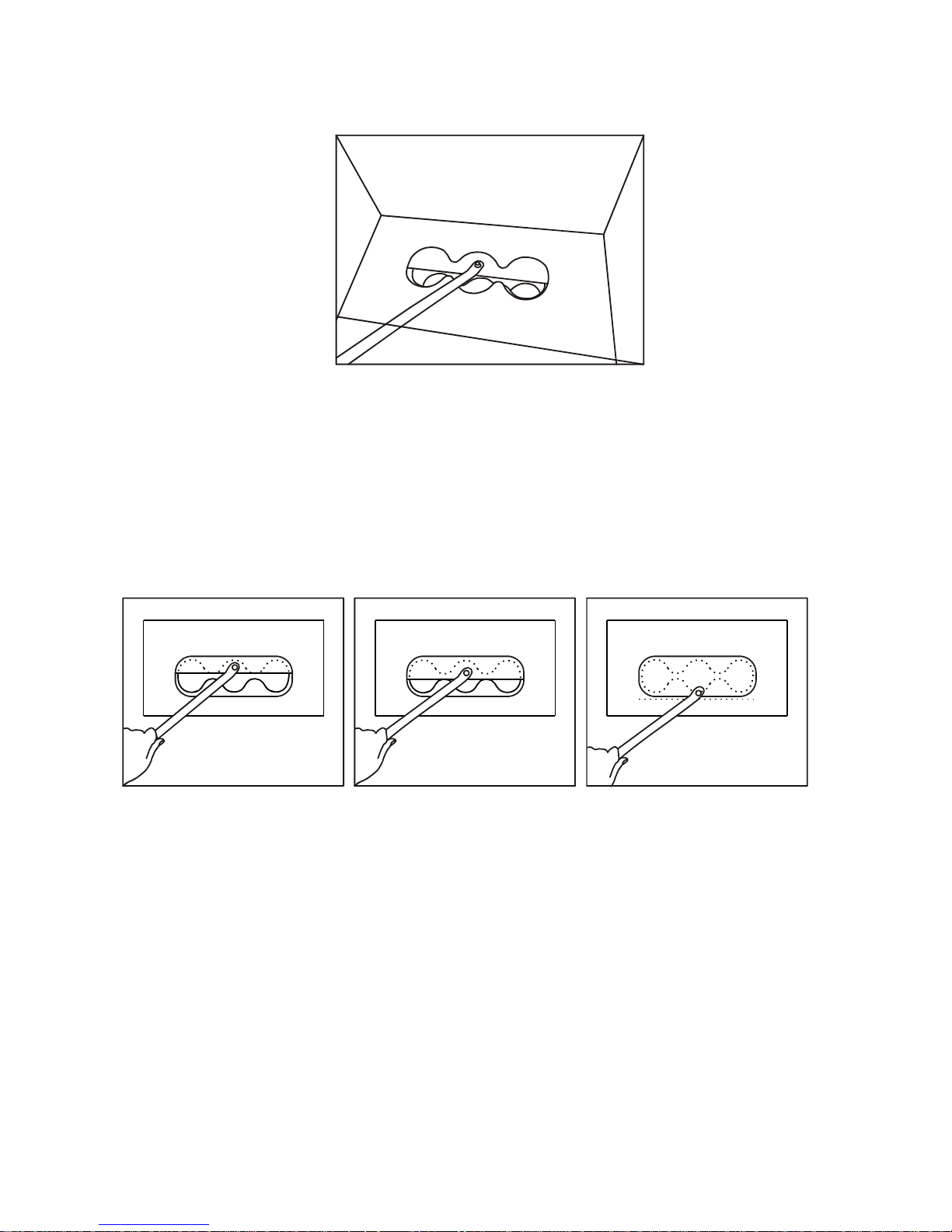

4.4. Regulate the size of the flame by altering the shutter in a range

between maximal opening and the position presented in the
drawing below. The opening range has been set for optimal
combustion. Therefore, this operating range should not be
exceeded except when wanting to extinguish the flame which can
be achieved by closing the shutter completely.

Max opening Max cover up Closure

Closing the reservoir shutter completely will cause the flame to be
extinguished.

To extinguish the flame close the reservoir shutter quickly to cutoff
the oxygen supply.
Closing the shutter slowly will not guarantee the extinguishing of
the flame.

CAUTION!
Refilling the reservoir is possible only after the liquid is burnt out

completely. Before refilling the reservoir, you should wait approx. 20
minutes until the reservoir cools down.

16

5. Cleaning and maintenance

The Insert A-05 does not require any particular maintenance except
general cleaning. To clean the casing of the product, use a soft, moist
cloth. A delicate cleaning agent (suitable for furniture) may be used if
required.

6. Additional information
a. Technical data:

Type Insert
Model A-05
Max. liquid consumption 0.57 l/h
Liquid container capacity 2l
Min. room space 24 m

2

/ 258.33 ft2 *

Recommended liquid FANOLA®
Manufacturer PLANIKA Sp. z o.o.

* - Room height h=2.6m / 8.53ft, air circulation multiplicity in the room 1/h

b. Utilization and recycling

The product is composed of furniture board and stainless steel elements.
In case of the neccessity to dispose of the product:

Act accordingly to the utilization and recycling regulations of

your country

Dispose of used fuel containers in the appropriate way

If you have any technical problems or any questions, please contact
your dealer.

You will find the latest information about our product on our web site:

www.chanticofire.com

.

You can order FANOLA® from www.fanola.com

.
