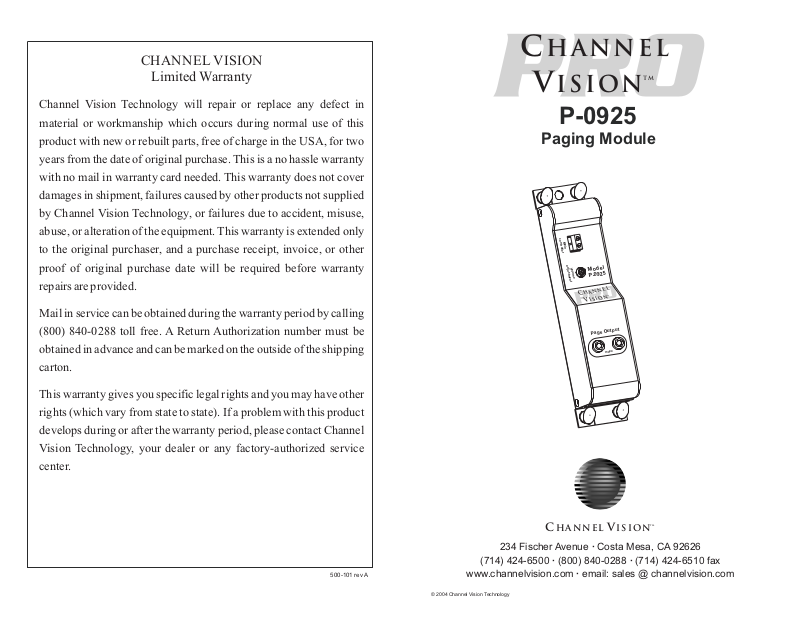

CHANNEL VISION
gy
Limited Warranty
Channel Vision Technology will repair or replace any defect in
material or workmanship which occurs during normal use of this
C
HANNEL
V
ISION
P-0925
TM
product with new or rebuilt parts, free of charge in the USA, for two
years from the date of original purchase. This is a no hassle warranty
with no mail in warranty card needed. This warranty does not cover
damages in shipment, failures caused by other products not supplied
by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only
to the original purchaser, and a purchase receipt, invoice, or other
proof of original purchase date will be required before warranty
repairs are provided.
Mail in service can be obtained during the warranty period by calling
(800) 840-0288 toll free. A Return Authorization number must be
obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other
rights (which vary from state to state). If a problem with this product
develops during or after the warranty period, please contact Channel
Paging Module
controller
Main
adjustment
Volume
Model
P-0925
HANNEL
C
TM
ISION
V
Page Output
mono
Vision Technology, your dealer or any factory-authorized service
center.
500-101 rev A
(714) 424-6500 (800) 840-0288 (714) 424-6510 fax
www.channelvision.com email: sales @ channelvision.com
© 2004 Channel Vision Technolo
CVHANNEL ISION
234 Fischer Avenue Costa Mesa, CA 92626
··
·
·
TM
The allows Channel Vision’s C-0920 or TE110 to provide an audio
7
C
V
HANNEL
ISION
TM
P-0925
output that may be connected to the paging input of a whole house
amplifier. The new Channel Vision’s form factor allows the P-0925
PRO
to be mounted in a structured wiring enclosure, a 19” rack*, or screwed to
any flat surface.
!
Enables paging from a C-0920 or TE110
!
Simple connections
!
Quick and easy installation
Volume level adjustment allows the paging signal to be increased or
decreased to match the input requirements of the paging amplifier.
Screw terminals allow easy connection to the C-0920 or TE110.
This simple 2-wire connection is not polarity sensitive.
controller
Main
adjustment
Volume
Model
P-0925
HANNEL
C
ISION
V
TM
Mounting Options
The from Channel
NEW P-1300
Vision’s Pro-series product line is
the perfect home for the P-0925.
The P-1300 is a hinged plate
designed to fit into a standard 19”
rack.
The hinges open to
P-1300
maintain a clean look and
provide easy access for
servicing equipment.
The P-1014 can also be mounted in a standard structured wiring enclosure
or screwed to a wall or flat surface as shown below.
controller
Main
adjustment
Volume
l
e
d
o
M
5
2
9
-0
P
HANNEL
C
TM
ISION
V
Output
Page
o
n
o
m
Cut or remove the
nylon snap pin.
Page Output
mono
Paging output sends audio to the paging input of whole-house audio
amplifier.
Note: be sure to use an amplifier that has an audio-sensing page input.
Such as the P-1014.
Product Dimensions: 1.5”W x 6.5"H x 1.25"D
2
TM
Model
P-0925
Mono
ISION
HANNEL
PageOutput
Volume
Main
V
C
adjustment
controller
c
o
M
n
tro
a
in
ller
a
d
Vo
ju
Model
lu
stm
m
e
P-0925
e
n
t
HANNEL
C
TM
ISION
V
utput
Page O
mono
Install screws in empty holes.
Whole House Paging with the P-
1014
C
V
HANNEL
ISION
TM
3
Channel Vision’s P-1014 A-BUS distribution module provides an integrated
audio sensing local input that can be used as a paging input. Simply make the
connections shown below and place the signal priority switch in the local position.
Room 1
TM
Room 2
Room 3
Operating Instructions
To make a page:
1. Pick up the telephone.
2. Press the activation key 3 times.
Note: the activation key may be either * or #.
This setting is determined by the TE110 or C-0920.
3. Make your announcement.
4. Hang up the telephone.
Example: (assume # is the activation key)
1. Pick up the telephone
Sat radio
DVD player
CD player
Receiver
From Telephone
Service
controller
Room 4
2. Press pound 3 times
Note: the 3rd press may produce an audible
# # #
tone in the speakers, this is normal.
3. Make the announcement
Main
adjustm
Volume
odel
M
P-0925
ent
HANNEL
C
TM
ISION
V
HANNEL
C
TM
ISION
Model
P-1014
m
te
ys
S
t
u
p
In
S
a
n
ig
S
rity
rio
P
R
Local
L
Input
V
2
e
n
o
Z
1
e
n
o
Z
x
1 4 A-BUS Distribution Module
m
te
s
y
l
al
c
o
L
n
o
Z
3
e
on
Z
IR
rs
itte
m
E
n
sio
n
a
xp
E
t
u
tp
u
O
4
e
r
e
w
o
P
s
tu
ta
S
C
D
V
4
2
+
C
D
V
2
1
+
P-1014
AB-202
STATUS
AUDIO
12VDC
L
R
TM
ByCVHANNEL ISION
AB-202
A-BUSOUTPUT
IREMITTERS
STATUS
IR
4. Hang up the telephone
Page Output
mono
6
C-0920
P-0925
From Telephone
5
Service
Paging Only
Make all connections before applying power.
House
Telephones
controller
Main
adjustment
Volume
Model
P-0925
HANNEL
C
TM
ISION
V
Page Output
o
n
o
m
To Input of
Paging System
(must be audio sensing)
Paging & Door Intercom
Make all connections before applying power.
House Telephones
Door Intercom
C-0920 or TE110
*
(set as the activation key)
IU or DP
P-0925
C-0920 or TE110
Follow this connection diagram if you only want to have whole-house
paging without a front door intercom.
Additional Notes:
The P-0925 connects to the C-0920 or TE110 the same way one of
Channel Vision’s DP or IU door stations would. Thus, if a P-0925 is
connected to the C-0920, then the a door station cannot be connected.
For systems that require both paging and front door intercom, follow the
diagram on the next page.
4
From
Telephone
Service
controller
Main
adjustment
Volume
Model
P-0925
HANNEL
C
ISION
V
TM
Page Output
o
m
To Input of
Paging System
(must be audio sensing)
o
n
P-0925
C-0920 or TE110
(set # as the activation key)
When paging and door intercom are required, two C-0920 or TE110
units must be used and they must be configured to respond to
different activation keys. Refer to C-0920 or TE110 manual for help
setting the activation key.
