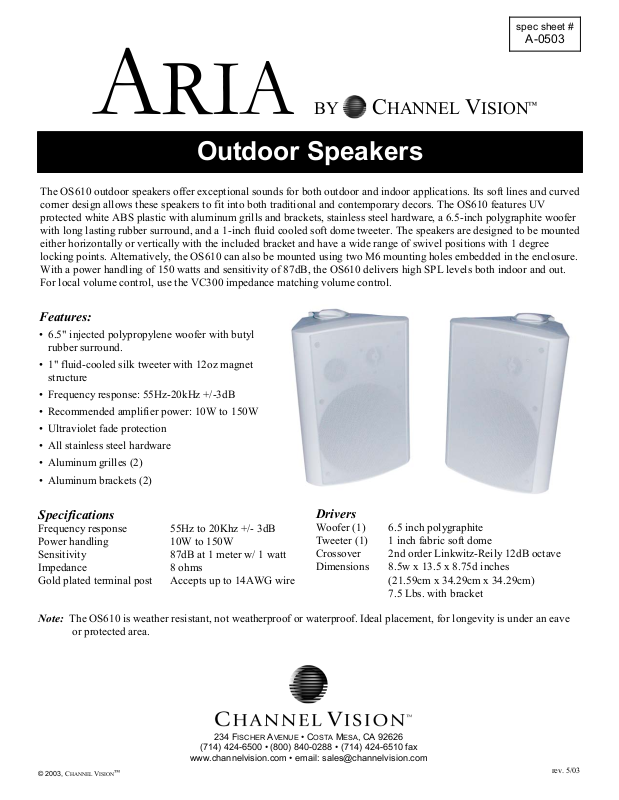

spec sheet #

A-0503

ARIA BY CHANNEL VISION

™

Outdoor Speakers

The OS610 outdoor speakers offer exceptional sounds for both outdoor and indoor applications. Its soft lines and curved
corner design allows these speakers to fit into both traditional and contemporary decors. The OS610 features UV
protected white ABS plastic with aluminum grills and brackets, stainless steel hardware, a 6.5-inch polygraphite woofer
with long lasting rubber surround, and a 1-inch fluid cooled soft dome tweeter. The speakers are designed to be mounted
either horizontally or vertically with the included bracket and have a wide range of swivel positions with 1 degree
locking points. Alternatively, the OS610 can also be mounted using two M6 mounting holes embedded in the enclosure.
With a power handling of 150 watts and sensitivity of 87dB, the OS610 delivers high SPL levels both indoor and out.
For local volume control, use the VC300 impedance matching volume control.

Features:

• 6.5" injected polypropylene woofer with butyl
rubber surround.

• 1" fluid-cooled silk tweeter with 12oz magnet
structure

• Frequency response: 55Hz-20kHz +/-3dB

• Recommended amplifier power: 10W to 150W

• Ultraviolet fade protection

• All stainless steel hardware

• Aluminum grilles (2)

• Aluminum brackets (2)

Specifications

Frequency response 55Hz to 20Khz +/- 3dB
Power handling 10W to 150W
Sensitivity 87dB at 1 meter w/ 1 watt
Impedance 8 ohms
Gold plated terminal post Accepts up to 14AWG wire

Note: The OS610 is weather resistant, not weatherproof or waterproof. Ideal placement, for longevity is under an eave
or protected area.

234 FISCHER AVENUE • COSTA MESA, CA 92626

[phone] • [phone] • [phone] fax

www.channelvision.com • email: [e-mail]

© 2003, CHANNEL VISION

™

Drivers

Woofer (1) 6.5 inch polygraphite
Tweeter (1) 1 inch fabric soft dome
Crossover 2nd order Linkwitz-Reily 12dB octave
Dimensions 8.5w x 13.5 x 8.75d inches
(21.59cm x 34.29cm x 34.29cm)

7.5 Lbs. with bracket

rev. 5/03
