Page 1
p
p
10
Channel Vision Technology will repair or replace any defect in
material or workmanship which occurs during normal use of this
roduct with new or rebuilt parts, free of charge in the USA, for ten
years from the date of original purchase. This is a no hassle warranty
with no mail in warranty card needed. This warranty does not cover
damages in shipment, failures caused by other products not supplied
by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only
to the original purchaser, and a purchase receipt, invoice, or other
roof of original purchase date will be required before warranty
repairs are provided.
Mail in service can be obtained during the warranty period by calling
(800) 840-0288 toll free. A Return Authorization number must be
obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other
rights (which vary from state to state). If a problem with this product
develops during or after the warranty period, please contact Channel
Vision Technology, your dealer or any factory-authorized service
center.
www.channelvision.com
234 Fischer Avenue, Costa Mesa, California 92626 USA
(714)424-6500 (800)840-0288 (714)424-6510 fax
email: [email protected]
500-205 rev A

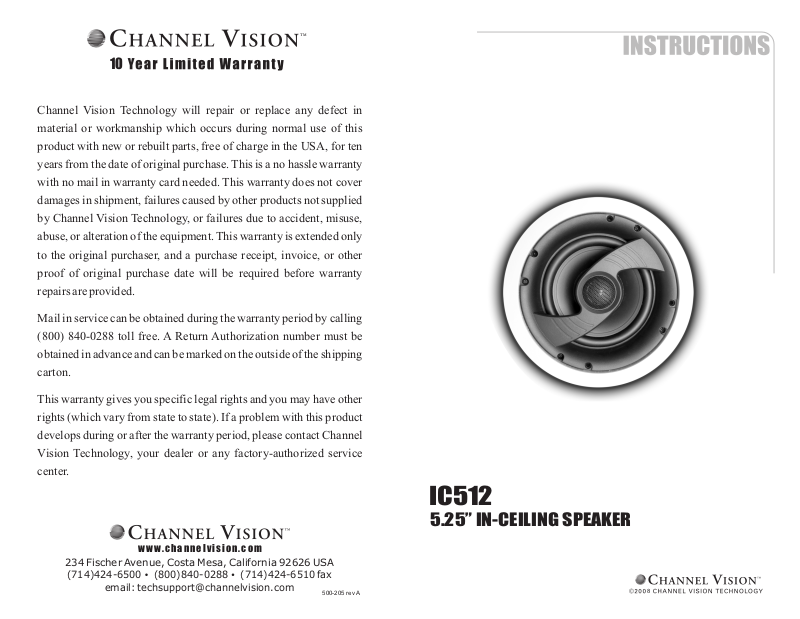

IC512
5.25” IN-CEILING SPEAKER
8
Page 2
Model IC512
Mounting screws (4)
Installation:
Use the included template to mark and cut a 6” hole in
h
drywall away from ceiling joists.
We recommend wiring with AWG 16 or larger, stranded
h
wire.
For proper phasing, both voice coils must be wired alike.
h
Connect red wires to red terminals on speaker and to red
or plus terminals on amplifier.
Features:
5 ” High performance in-ceiling loudspeaker
¼
High power handling capacity
Gold speaker terminals
Proprietary pivoting “Pole Piece” technology with 1” voice
coil, neodymium magnet, and silk soft dome
Mica-filled polypropylene woofer with butyl rubber surround
and a 18 oz magnet
Small perforated designer grille
Recommended power: 20W to 100W (peak)
Specifications:
Frequency range:
Sensitivity:
Power Handling:
Drivers:
Impedance:
Finish:
50Hz - 20kHz ± 3dB
88dB (1W/1m)
100 Watts peak
1- 1” Soft dome tweeter
1- 5 ” polypropylene woofer
¼
8 ohms
ABS plastic

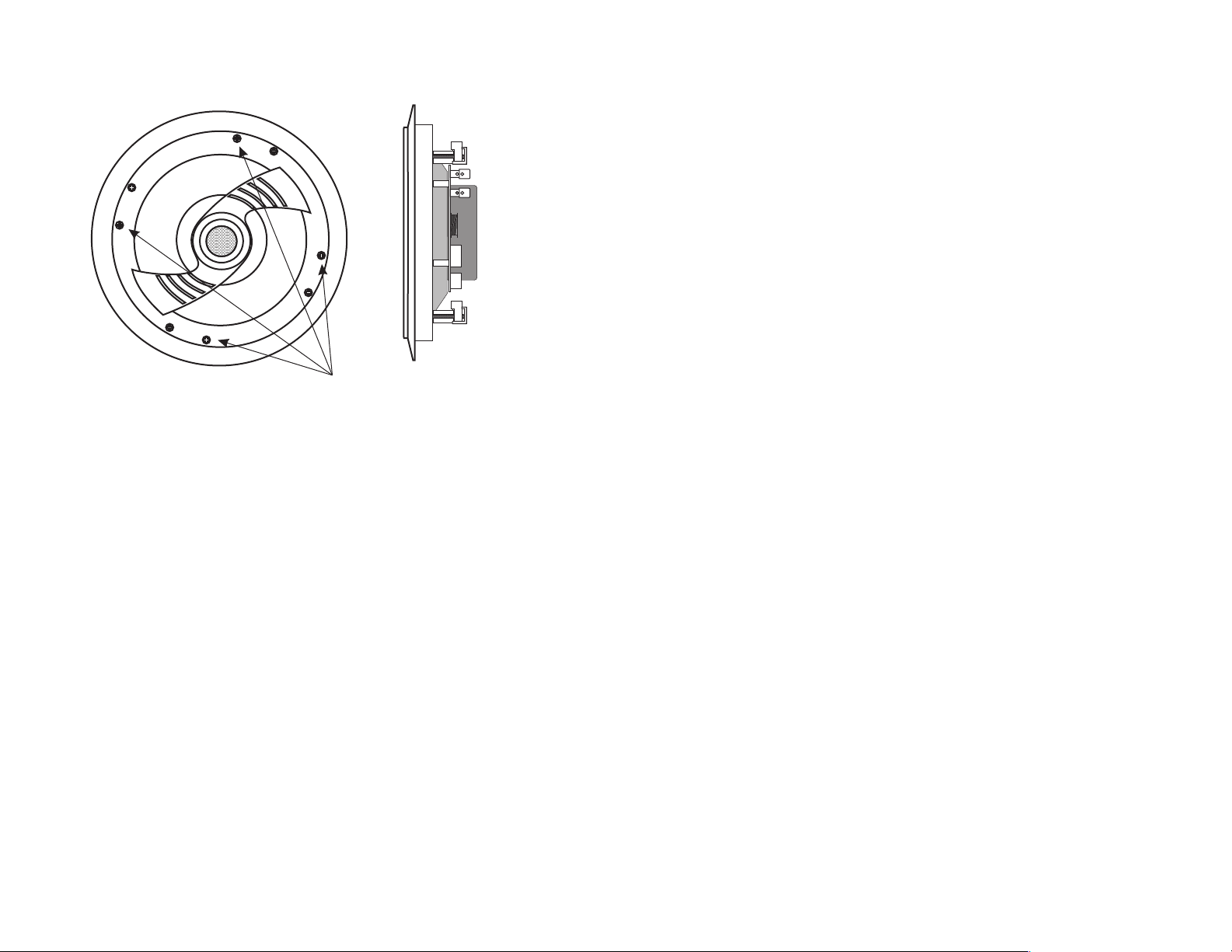

Install IC512 in hole. Tighten the mounting screws. The
h
mounting dog ears will rotate outward and grip the
drywall.
Aim tweeter
h
To control the volume of the speaker locally, use an
h
Dimensions:
Weight:
8” OD. 4.21 height
(from surface of wall board)
2.25 Lbs as shipped
”
Specifications subject to change without notice.
impedance matching volume control, such as the
Channel Vision VC-302.
