Page 1
CHANNEL VISION
Limited Warranty
Channel Vision Technology will repair or replace any defect in
material or workmanship which occurs during normal use of this
product with new or rebuilt parts, free of charge in the USA, for two
years from the date of original purchase. This is a no hassle warranty
with no mail in warranty card needed. This warranty does not cover
damages in shipment, failures caused by other products not supplied
by Channel Vision Technology, or failures due to accident, misuse,
abuse, oralteration of the equipment. This warranty is extended only
to the original purchaser, and a purchase receipt, invoice, or other
proof of original purchase date will be required before warranty
repairs are provided.
Mail in service can be obtained during the warranty period by calling
(800) 840-0288 toll free. A Return Authorization number must be
obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other
rights (which vary from state to state). If a problem with this product
develops during or after the warranty period, please contact Channel
Vision Technology, your dealer or any factory-authorized service
center.
500-023rev A
C-1158 (SAT-HD58)
HDTV Multiswitch
© 2004, Channel Vision™
CVHANNEL ISION
TM
234 Fischer Avenue Costa Mesa, CA 92626
(714) 424-6500 (800) 840-0288 (714) 424-6510 fax
www.channelvision.com email: sales @ channelvision.com
·
··
·
CHANNEL VISION
TM
Central
Page 2
C-0315
DC12V
Terr
A
B
C
D
22kHz
DC IN
Sat-HD58
CHANNEL VISION
Terr
A
B
C
D
22kHz
DC IN
Sat-HD58
CHANNEL VISION
Terr
A
B
C
D
22kHz
DC IN
Sat-HD58
CHANNEL VISION

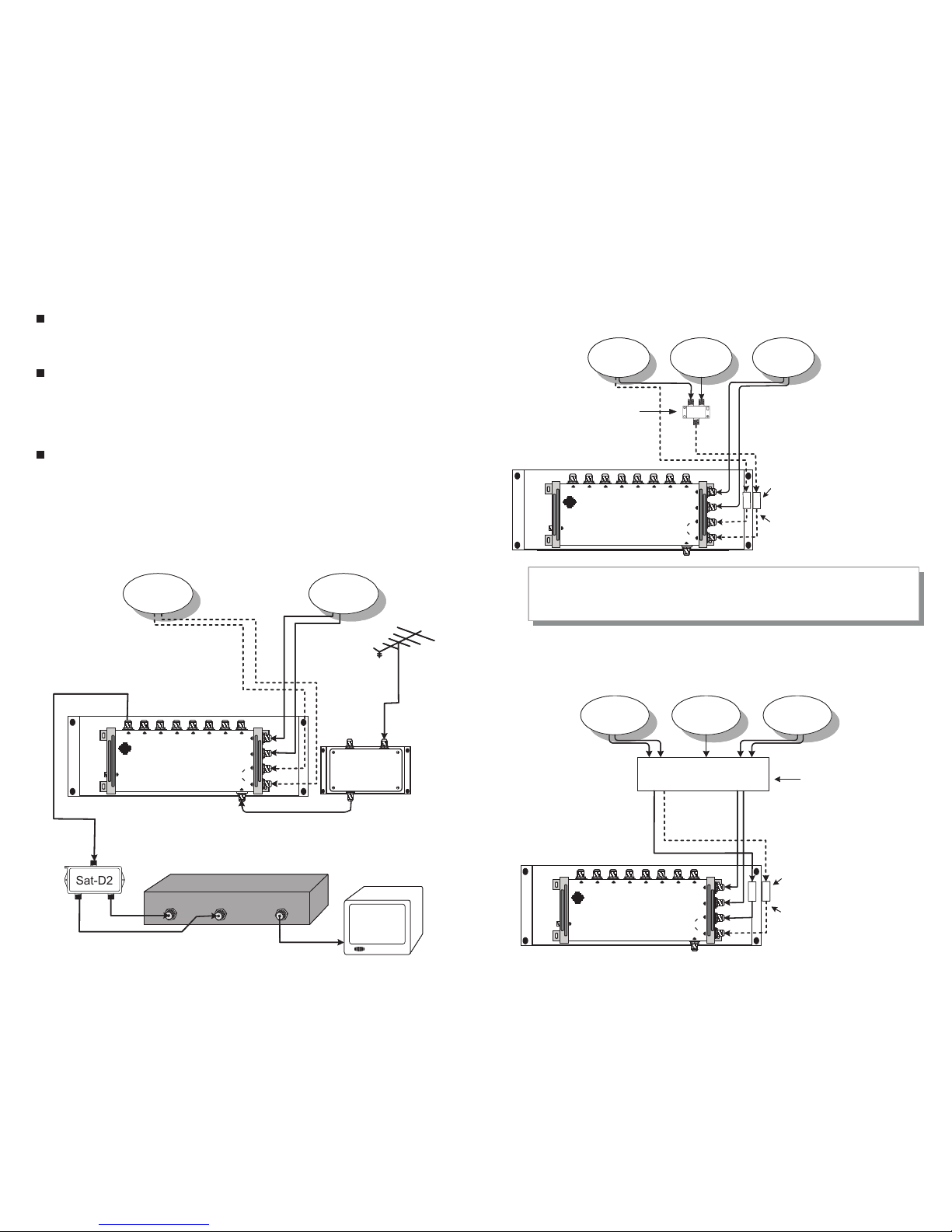

Model C-1158 (Sat-HD58) Features/Instructions:
Wiring:
119 Degree 101 Degree
Cable or
Antenna
DUO DISH LNB 119/LNB 101
Figure 1
Figure 2
Figure 3
Pre amp may be needed
119 Degree 110 Degree 101 Degree
C-KIT 110 upgrade
(for existing Direct Plus dish)
C-KIT SWITCHER
(Direct TV Product)
Note: When the 110 LNB is added to the Direct TV Dish, you must add two
22 kHz Tone Generators (Channel Vision Part # SAT-22T) to the high side of
the SAT -HD58 (port C/D)
119 Degree 110 Degree 101 Degree
RCA
5x4 integraded switch
BUILT IN TO THE ARM
OF DIRECT TV DISH
The ToneGenerators that are included with this multiswitch can be purchased separately as Channel Vision part # Sat-22T
The New 5x4 Integraded
Switch/Dish by RCA
CAUTION: Use a short coax to connect the Tone
Generators to the multiswitch. There is not enough
room to connect them directly. Attempting to do so
will damage the ToneGenerators.
CAUTION: Use a short coax to connect the Tone
Generators to the multiswitch. There is not enough
room to connect them directly. Attempting to do so
will damage the ToneGenerators.
Install two
on the high side of the multiswitch.
22 kHz Tone Generators
Install two
on the high side of the multiswitch.
22 kHz Tone Generators
Install four coax runs from the dish to the C-1158. Connect the outputs of LNB 101 to
inputs A and B and the outputs of LNB 119 to inputs C and D. Note: the existing 4x4
multiswitch must be removed. (Figure 1)
, all four
outputs of the dish are the same. Connected any two of the four outputs directly to inputs
A and B, then install the two 22 kHz tone generators in-line with the remaining two
outputs. Use short coax jumpers to connect the output of the tone generators to inputs C
and D of the C-1158. ( )
to the Terr. (Terrestrial) input on the
bottom of the C-1158, a diplexer will be needed at each TV to separate the Satellite and
Terrestrial signals. ( )
When installing a new High Definition Dish with an integrated multiswitch
Figure 3
When connecting a local Antenna/CATV feed
Figure 1
Use RG-6 for typical installs. Long runs may require RG-11.
Sat-D2
Sat. InSat. In
Ant/Catv InAnt/Catv In
Out to TVOut to TV
Typical Satellite Receiver
(Rear panel)
Terr
A
B
C
D
22kHz
DC IN
Sat-HD58
CHANNEL VISION
Terr
A
B
C
D
22kHz
DC IN
Sat-HD58
CHANNEL VISION
Model C-1158 (Sat-HD58) Features/Instructions:
Wiring:
119 Degree 101 Degree
Cable or
Antenna
DUO DISH LNB 119/LNB 101
Figure 1
Figure 2
Figure 3
Pre amp may be needed
119 Degree 110 Degree 101 Degree
C-KIT 110 upgrade
(for existing Direct Plus dish)
C-KIT SWITCHER
(Direct TV Product)
Note: When the 110 LNB is added to the Direct TV Dish, you must add two
22 kHz Tone Generators (Channel Vision Part # SAT-22T) to the high side of
the SAT -HD58 (port C/D)
119 Degree 110 Degree 101 Degree
RCA
5x4 integraded switch
BUILT IN TO THE ARM
OF DIRECT TV DISH
The ToneGenerators that are included with this multiswitch can be purchased separately as Channel Vision part # Sat-22T
The New 5x4 Integraded
Switch/Dish by RCA
CAUTION: Use a short coax to connect the Tone
Generators to the multiswitch. There is not enough
room to connect them directly. Attempting to do so
will damage the ToneGenerators.
CAUTION: Use a short coax to connect the Tone
Generators to the multiswitch. There is not enough
room to connect them directly. Attempting to do so
will damage the ToneGenerators.
Install two
on the high side of the multiswitch.
22 kHz Tone Generators
Install two
on the high side of the multiswitch.
22 kHz Tone Generators
Install four coax runs from the dish to the C-1158. Connect the outputs of LNB 101 to
inputs A and B and the outputs of LNB 119 to inputs C and D. Note: the existing 4x4
multiswitch must be removed. (Figure 1)
, all four
outputs of the dish are the same. Connected any two of the four outputs directly to inputs
A and B, then install the two 22 kHz tone generators in-line with the remaining two
outputs. Use short coax jumpers to connect the output of the tone generators to inputs C
and D of the C-1158. ( )
to the Terr. (Terrestrial) input on the
bottom of the C-1158, a diplexer will be needed at each TV to separate the Satellite and
Terrestrial signals. ( )
When installing a new High Definition Dish with an integrated multiswitch
Figure 3
When connecting a local Antenna/CATV feed
Figure 1
Use RG-6 for typical installs. Long runs may require RG-11.
Sat-D2
Sat. InSat. In
Ant/Catv InAnt/Catv In
Out to TVOut to TV
Typical Satellite Receiver
(Rear panel)
