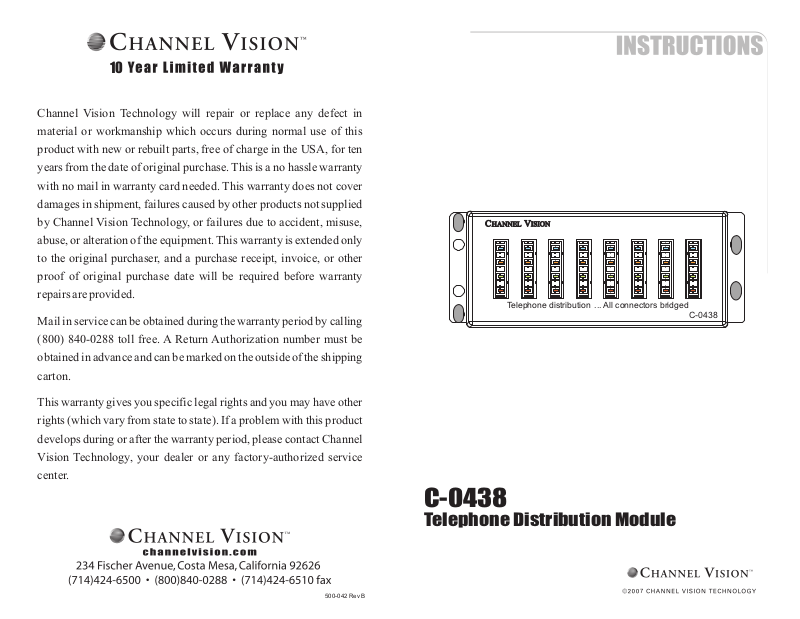

Channel Vision Technology will repair or replace any defect in
material or workmanship which occurs during normal use of this
roduct with new or rebuilt parts, free of charge in the USA, for ten
years from the date of original purchase. This is a no hassle warranty
with no mail in warranty card needed. This warranty does not cover
damages in shipment, failures caused by other products not supplied
by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only
to the original purchaser, and a purchase receipt, invoice, or other
roof of original purchase date will be required before warranty
repairs are provided.
Mail in service can be obtained during the warranty period by calling
(800) 840-0288 toll free. A Return Authorization number must be
obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other
rights (which vary from state to state). If a problem with this product
develops during or after the warranty period, please contact Channel
Vision Technology, your dealer or any factory-authorized service

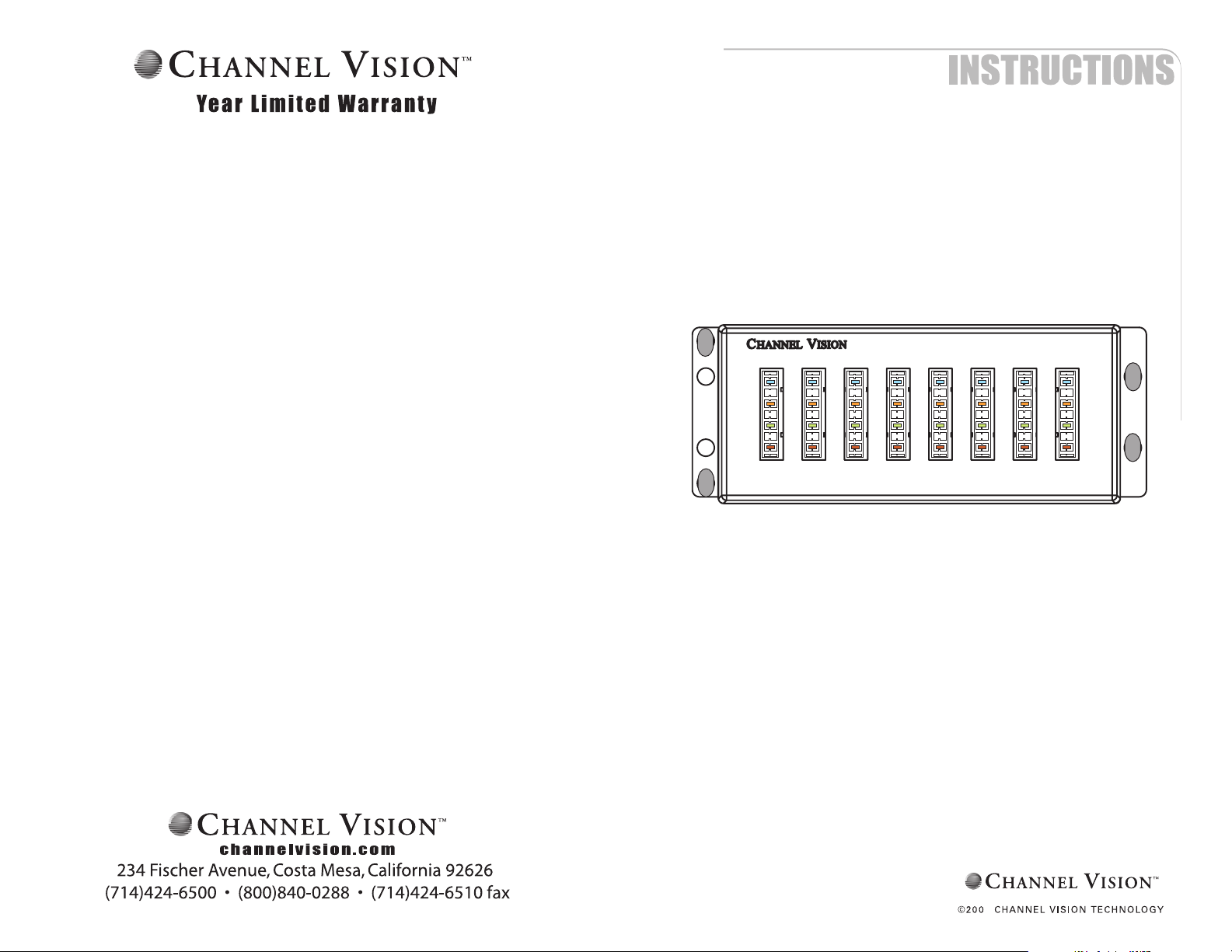

Telephone distribution ... All connectors bridged
C-0438
center.
500-042 Rev B
C-0438
Telephone Distribution Module
7
Page 2
The C-0438 is a low-cost and easy-to-use telephone distribution module
T
lA
that delivers 4 CO lines to 7 phone locations. It can be used as a
standalone phone distribution module or as an expansion module for
larger phone systems. The 110 style connectors provide a quick and
simple installation that will ensure long-lasting, trouble-free operation.
Features:
!
Compatible with all Channel Vision structured wire enclosures
!
Distributes 4 CO lines to 7 phone locations
!
Compact design to save space
!
Cost effective and easy to install

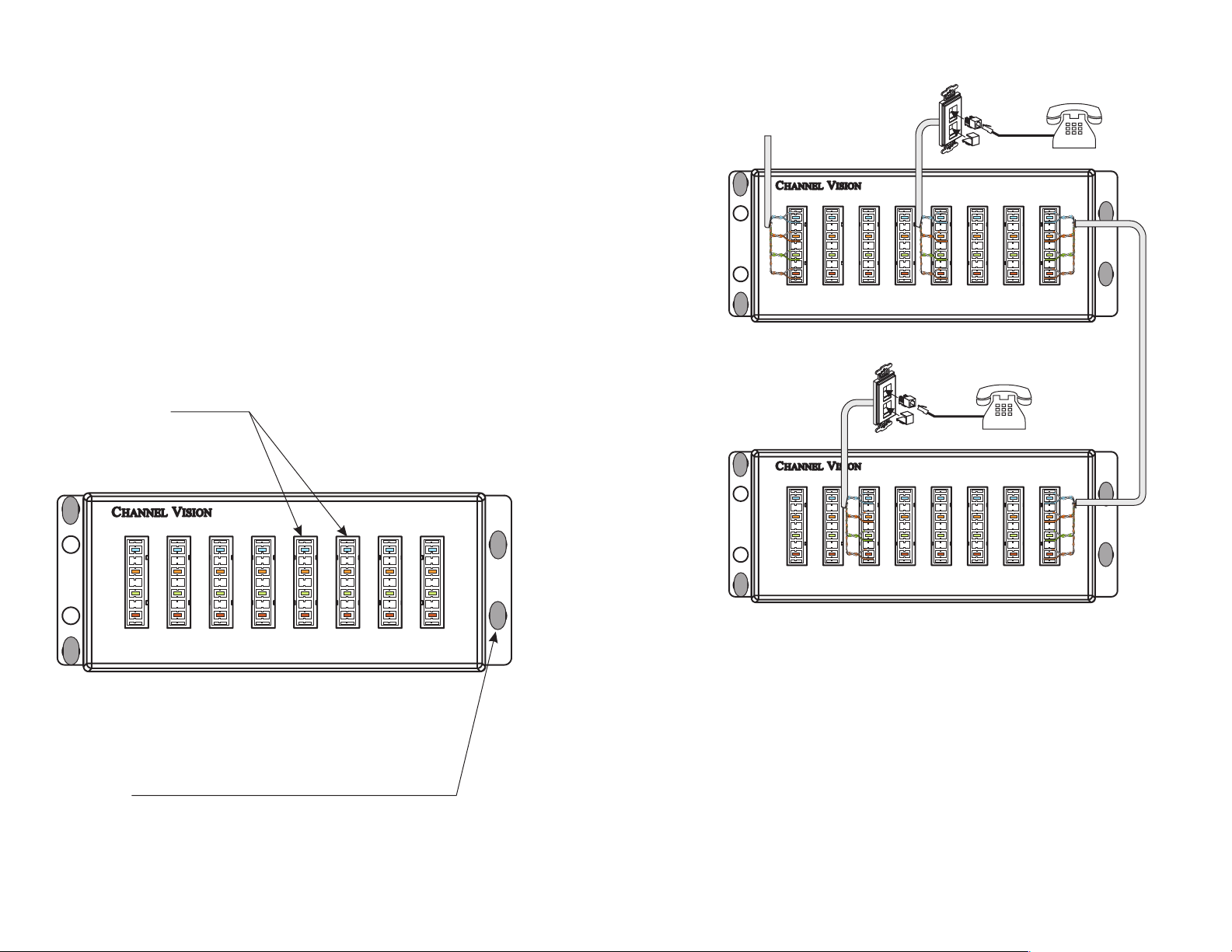

C-0438
(Front View)
110 Connectors
All connections are parallel
(there is no “In” or “Out”)
From
Telephone
Company
ypica
Telephone distribution ... All connectors bridged
pplication
Telephone
Telephone
C-0438
Telephone distribution ... All connectors bridged
C-0438
Snap Pins
Press into mounting holes in Channel Vision’s structured wire enclosure
2
Telephone distribution ... All connectors bridged
For large systems, use an additional unit for expansion
Installation:
Punch down as many as 4 incoming telephone lines on any of the
h
110 punch down connectors.
Connect the telephone wallplates in each room (see diagram). Up to
h
7 rooms can be connected by each C-0438.
Connect telephone to wallplates.
h
Specifications:
110 connectors:
Recommended wire:
Dimensions:
8 (all bridged)
CAT5 (22-24AWG)
2.5”L x 6.38” W x 0.75” D
Specifications subject to change without notice.
C-0438
3
