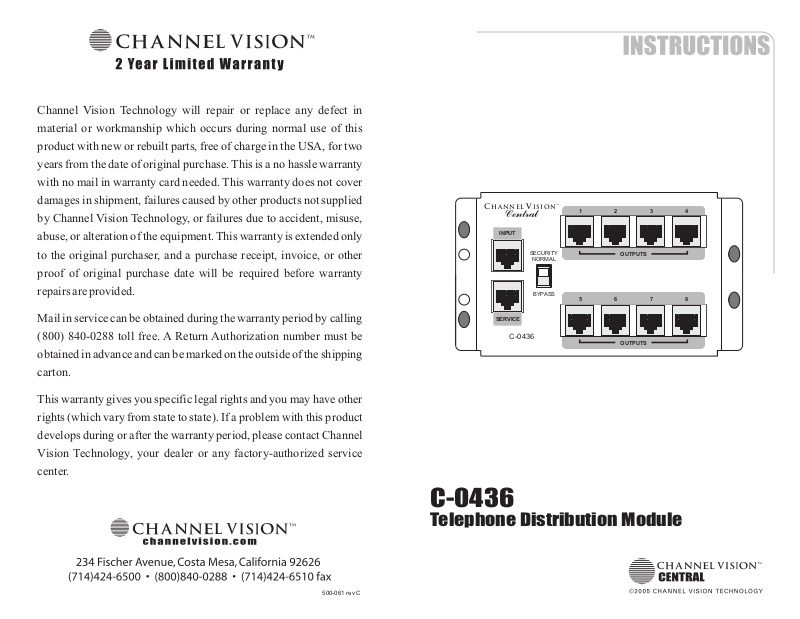

Channel Vision C-0436 User Manual
Channel Vision Technology will repair or replace any defect in
material or workmanship which occurs during normal use of this
product with new or rebuilt parts, free of charge in the USA, for two
years from the date of original purchase. This is a no hassle warranty
with no mail in warranty card needed. This warranty does not cover
damages in shipment, failures caused by other products not supplied
by Channel Vision Technology, or failures due to accident, misuse,
abuse, or alteration of the equipment. This warranty is extended only
to the original purchaser, and a purchase receipt, invoice, or other
proof of original purchase date will be required before warranty
repairs are provided.
Mail in service can be obtained during the warranty period by calling
(800) 840-0288 toll free. A Return Authorization number must be
obtained in advance and can be marked on the outside of the shipping
carton.
This warranty gives you specific legal rights and you may have other
rights (which vary from state to state). If a problem with this product
develops during or after the warranty period, please contact Channel
Vision Technology, your dealer or any factory-authorized service
center.
CVHANNEL ISION
Central
INPUT
SECURITY
NORMAL
BYPASS
SERVICE
C-0436
TM
12
56
OUTPUTS
OUTPUTS
3
7
4
8
500-061 rev C
C-0436
Telephone Distribution Module
The is a telephone module that distributes 4 Central Office lines
3
C-0436
to 8 locations. Vertical RJ-45 jacks allow convenient access to
connections. The C-0436 is ideal for small and medium size installations
which require 8 telephone locations or less. This module’s compact
design allows it to fit comfortably in even the smallest structured wiring
enclosure.
Features:
!
Outputs 4 CO lines to 8 locations
!
Service port for line-1 interrupt and alarm panel connection
!
Compact design
!
Quick and easy installation
SERVICE: Provides access to Line-1 interrupt circuit. Simple slide
switch allows you to engage or bypass the service port.
INPUT: connect up to 4 CO lines in from telephone company.
SECURITY
NORMAL
TM
12
OUTPUTS
3
4
CVHANNEL ISION
Central
INPUT
Using the Service Port
When the Service Port is engaged it interrupts Line-1 to allow an alarm
panel to seize the telephone line allowing it to call out when there is an
emergency. The security port can be engaged and disengaged by
changing the position of the slide switch located to the right.
Tip
Pin 1
Tip
Ring
Ring
Pin 8
Alarm
Panel
From Telephone Service
Alarm Panel
2
SERVICE
C-0436
BYPASS
56
OUTPUTS
7
8
OUTPUTS 1-8: Connect to wall outlets in home.
Connection Diagram
SECURITY
NORMAL
BYPASS
TM
12
56
OUTPUTS
OUTPUTS
3
4
7
8
CVHANNEL ISION
Central
INPUT
SERVICE
C-0436
SERVICE
Troubleshooting
CO Lines 2, 3, and 4 are passing through, but Line 1 is not:
The service port is engaged, but there is no alarm panel installed to
complete the circuit. Move the switch to the opposite position. Line 1
should now function properly.
Telephone service is not active at one of the outputs:
Make sure the RJ-45 connector is seated completely by disconnecting
and reconnecting the RJ-45 plug.
Make sure the problem is not at the wall plate being served by the output.
To test this, connect the problem run to one of the other outputs that is
working properly, If the problem persists, then there is something
wrong with wire run or the wall plate connections.
Examine the RJ-45 connector for irregularities. If necessary, cut off the
RJ-45 connector and make a new one.
