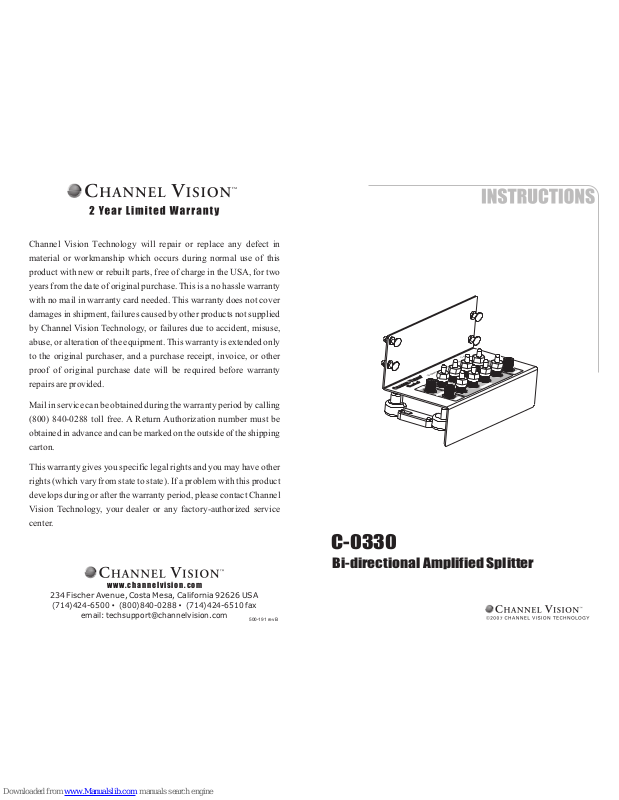

Page 1

Channel Vision Technology will repair or replace any defect in

material or workmanship which occurs during normal use of this

roduct with new or rebuilt parts, free of charge in the USA, for two

years from the date of original purchase. This is a no hassle warranty

with no mail in warranty card needed. This warranty does not cover

damages in shipment, failures caused by other products not supplied

by Channel Vision Technology, or failures due to accident, misuse,

abuse, or alterationof the equipment. This warranty is extended only

to the original purchaser, and a purchase receipt, invoice, or other

roof of original purchase date will be required before warranty

repairs are provided.

Mail in service can be obtained during thewarranty period by calling

(800) 840-0288 toll free. A Return Authorization number must be

obtained in advance and canbe marked on the outside of theshipping

carton.

This warranty gives you specific legal rightsand you may haveother

rights (which vary from state to state). If a problem with this product

develops during or after the warranty period, please contact Channel

Vision Technology, your dealer or any factory-authorized service

center.

500-191 rev B

www.channelvision.com

234 Fischer Avenue, Costa Mesa, California 92626 USA

(714)424-6500 (800)840-0288 (714)424-6510 fax

email: techsupport@channelvision.com

C-0330

Bi-directional Amplified Splitter

C-0330

Bi-directional amplifier with active return path

POWER IN

POWER

CABLE IN

CABLE

TV OUTPUTS

OUTPUTS

+4.5 dB

+4.5

12 VDC

VDC

MOD IN

MOD

1 2

6 7 8

Page 2

The is an 8-output amplified splitter with a built-in combiner for modulated signals. It allows IR signals to pass through the modulator input to the TV outputs, making it a perfect match for the E2200IR, E3200IR or E4200IR.

C-0330

Features:

8 Amplified outputs: 4.5dB Gain

Supports 1 modulator input Allows IR through the modulator input port

Amplified return path from 5-42MHz

Easy installation

Accessories Included: Power Supply

75 ohm Terminators

C-0330

Bi-directional amplifier with active return path

POWER IN

CABLE IN

TV OUTPUTS

+4.5 dB

12 VDC

MOD IN

1 2

MOD IN

Connect modulator here

TV OUTPUTS

Connect TVs here

POWER IN

Connect power supply here

12VDC, 500mA

CABLE IN

Connect the antenna or cable service feed here

Frequency Range

54-1000MHz

Return Loss (I/O)

>16dB

IR PASS

Yes

CATV FORWARD PATH

Specifications: (typical @25º C)

Specifications subject to change without notice.

Frequency Range

5-42MHz

Gain

54-60MHz

60-680MHz

680-1000MHz

3.5dB

4.5dB

5.5dB

+1.0dB

6.5dB

>16dB >18dB

7.5dB

60ns

12ns

60dBC

+23.0 dBmV

160mA

60dBC

22ns

6.5dB

Return Loss (I/O) Isolation Noise Figure@70 degrees F Group Delay (54 to 66MHz) Group Delay (66 to 88MHz) Group Delay (88 to 1000MHz) Composite Second Order Distortions Composite Triple Beat Distortions Cross Modulation Distortions Second Hum Modulation Rated Output Level @160 channels, 6MHz each Power Consumption

Flatness

CATV RETURN PATH

MIN. MAX.TYP.

5-35MHz

Gain

35-42MHz

-1.0dB

-1.5dB

0dB

-0.5dB

0.5dB

+1.0dB >16dB >20dB

20dB

55ns

56dBC

58dBC

>110dB

+43.0 dBmV

75 ohm

65mA

12VDC

53dBC

56dBC

36ns

0dB

Return Loss (I/O)

Nominal Impedance “F” Female

Isolation

Supply Voltage (DC)

Noise Figure@70 degrees F Group Delay (5 to 10MHz / 36MHz to 42MHz) Group Delay (10 to 36MHz) Composite Second Order Distortions Composite Triple Beat Distortions Cross Modulation Distortions Second Hum Modulation Rated Output Level @2 channels, 6MHz each Power Consumption

Flatness

RFI Shielding

GENERAL SPECIFICATIONS

MIN. MAX.TYP.

Operation Time

Full Time Bypass

Insertion Loss

<15.5dB

ITEM MIN. MAX.TYP.

MODULATOR PATH

Page 3

HANNEL

ISION

HANNEL

ISION

Model P-0321

CATVInput

MODInput

Output

Power

IROut

Pat.Pending

PartNo.HS-2

-WAYSPLITTER/COMBINER2

5MHz-1GHzAllPortDCpassing

HANNEL ISION

/out

OUT/in

Digital CATV

Location

Analog CATV

Location

Modulator

CATV

Channel

Vision

A0511

C-0330

P-0321

C-0330

Bi-directional amplifier with active return path

POWERIN

CABLEIN

TVOUTPUTS

+4.5dB

12VDC

MODIN

1 2

Input from

Antenna/CATV

RF OUT

DC 15V IN

OUTPUT

CABLE ANTENNA

ANTENNA + CABLE

VIDEO

AUDIO

VIDEO

AUDIO

1234

OUTPUT

Sat Receiver

IR Emitter

E4200IR

CameraCameraCamera

RF Filter

1 2

7 8 9

Power

PartNo.HS-2

-WAYSPLITTER/COMBINER2

5MHz-1GHzAllPortDCpassing

CVHANNEL ISION

/out

OUT/inOUT/in

Using the C-0330 with the Affinity (P-0321)

The C-0330 can be integrated with the P-0321 to send modulated signals through a system that has some TVs with digital cable boxes and some TVs without digital cable boxes. An RF filter can be used to remove the digital content from the TVs which do not have digital boxes. This allows modulated channels to be inserted without interference problems. The P-0321 preserves the digital content for the locations that do have digital boxes. Additional details regarding the operation of the Affinity model P-0321 can be found in its installation manual.

Power Supplies

not shown

Basic Amplified Splitter Application

Connect the C-0330 as shown and locate it at the main distribution point in the house. The C-0330 will supply the amplified TV signal to 8 TV locations.

TV set TV set

C-0330

TV set TV set

C-0330

Bi-directional amplifier with active return path

POWER IN

CABLE IN

TV OUTPUTS

+4.5 dB

12 VDC

MOD IN

1 2

6 7 8

Input from

Antenna or CATV

Connect up to 8 TVs

Terminate any unused outputs

Power

Supply

Page 4

C-0330

Bi-directional amplifier with active return path

POWERIN

CABLEIN

TVOUTPUTS

+4.5dB

12VDC

MODIN

1 2

Large System Amplified Splitter Application

The C-0330 can be cascaded for situations that require more than 8 outputs. Each of the 8 outputs of the C-0330 can feed the input of an additional C-0330 creating a system with 64 TV outputs.

(1 of 8 from this slave)

Note: For runs of 150’ or less use one of the Master outputs.

Note: For runs between 150-250’ use one of the Slave outputs.

TV set

C-0330 (Master)

C-0330 (Slave)

C-0330

Bi-directional amplifier with active return path

POWERIN

CABLEIN

TVOUTPUTS

+4.5dB

12VDC

MODIN

1 2

Input from

Antenna/CATV

Use a total of 9 C-0330s to achieve 64 TV outputs.

C-0330

Bi-directional amplifier with active return path

POWERIN

CABLEIN

TVOUTPUTS

+4.5dB

12VDC

MODIN

1 2

C-0330

Bi-directional amplifier with active return path

POWERIN

CABLEIN

TVOUTPUTS

+4.5dB

12VDC

MODIN

1 2

Power Supplies

not shown

Terminate any unused outputs

C-0330

Bi-directional amplifier with active return path

POWERIN

CABLEIN

TVOUTPUTS

+4.5dB

12VDC

MODIN

1 2

Cascaded Application with IR Control

The IR engine built into the E2200IR, E3200IR, and E4200IR can support up to 8 TV locations with IR receivers. When expanding to more rooms an IR-4000 can be used as shown to power 8 additional IR receivers. This design can support up to 15 TVs and 15 IR receivers. Note: any TV location that does not have IR receiver needs to be using model 3109.DC blocked

C-0330 (Master)

IR-4180

2101

Terminator

IR-4000

IR-4100

IR-4101

C-0330 (Slave)

C-0330

Bi-directional amplifier with active return path

POWERIN

CABLEIN

TVOUTPUTS

+4.5dB

12VDC

MODIN

1 2

Input from

Antenna/CATV

Power Supplies

not shown

CVHANNEL ISION

FromIR

engine

IR-4100

IR coax adaptor

ToT V

IRreceiver

CVHANNEL ISION

Input

IR-4000

IR coax engine

ToIR coax

adaptor

IRemitter

Pwr

IR-4100

IR-4000

RF OUT

DC 15V IN

OUTPUT

CABLE ANTENNA

ANTENNA

ANTENNA + CABLE

VIDEO

AUDIO

VIDEO

AUDIO

1234

OUTPUT

Sat Receiver

IR Emitter

E4200IR

CameraCameraCamera

RF Filter

Use DC block

& terminator

on any unused output

TV set

1 2

7 8 9

Power

789

Power
