USER MANUAL

by PCT

HIGH-DEFINITION TELEVISION

COMPATIBLE

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

PLEASE READ THIS OWNER’S GUIDE

Please take the time to follow this owner’s guide carefully. It will help you set up and operate your system properly, and enjoy all of its advanced features. Save your owner’s guide for future reference.

WARNING: To reduce the risk of ﬁ re or electric shock, do not expose the system to rain or moisture.

WARNING: This apparatus shall not be exposed to dripping or splashing, and objects ﬁ lled with liquids, such as vases, shall not be placed on the apparatus. As with any electronic products, use care not to spill liquids in any part of the system. Liquids can cause a failure and/or a ﬁ re hazard.

The CAUTION marks shown here are located on the back of your CM-7000 D2A Digital to Analog Converter.

The lightning ﬂ ash with arrowhead symbol, within an equilateral triangle, alerts the user to the presence of uninsulated dangerous voltage within the system enclosure that may be of sufﬁ cient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle alerts the user to the presence of important operating and maintenance instructions in this owner’s guide.

CAUTION To prevent electric shock, match wide blade of plug to wide slot, insert

fully.

CAUTION No open ﬂ ame sources, such as lighted candles, should be placed on the

apparatus.

BATTERIES

Please dispose of used batteries properly, following any local regulations. Do not incinerate.

WARRANTY

This Channel Master product is warranted to be free from defects in material and workmanship under normal use and service for a period of 90 days after purchase by the original purchaser. If the product does not conform to this warranty, Channel Master shall replace it if it is returned to the dealer within the 90-day warranty period, and if examination reveals to Channel Master’s satisfaction, that the product is defective. Claimants under this warranty should present their claim along with the defective product, proof-of-purchase and the Warranty Certiﬁ cate originally supplied with it, to their dealer immediately upon failure. Noncompliance with any part of this claim procedure may invalidate

this warranty in whole or in part. Contact Channel Master for details.

© 2008 Channel Master by PCT, a division of PCT International, Inc. No part of this document may be reproduced, modiﬁ ed, distributed or otherwise used without written permission. The distinctive design of the D2A Digital Converter is a trademark of Channel Master by PCT, a division of PCT International, Inc.

The Channel Master logo is used under licensed agreement.

Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Conﬁ dential Unpublished Works. © 1992-1997 Dolby Laboratories. All rights reserved.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

QUICK SET-UP GUIDE

Connect the CM-7000 using one of the methods that best matches the connections on your TV (see pages 4 to 7).

Select either Channel 3 or 4 with the CH3/CH4 switch on the back of 1. the CM-7000.

Set your TV to the corresponding Channel 3 or 4 if connecting via RF

COAXIAL CABLE (page 4).

b. Set your TV to VIDEO or AUXILIARY if connecting via RCA or RCA &

S-VIDEO CABLE (page 5).

Press MENU on the CM-7000 remote. The main menu should appear on 2. the TV screen.

Press the 3.  button and “TERRESTRIAL” should appear on the menu.

Press OK button 3 times to start the AUTO CHANNEL SCAN.4.

When the AUTO SCAN is complete, press EXIT. Use the 5.  buttons to begin watching digital TV.

INFORMATION REGARDING THE DIGITAL TV TRANSITION

Aftr February 17, 2009, a television receiver with only an analog br

oadcast tuner will require a converter box to receive full power, over the air broadcasts with an antenna due to the USA’s nationwide transiton to digital broadcasting. Analog only TVs should continue to work as before to receive low power, Class A or translator TV stations, cable/satellite services, gaming consoles, VCRs, DVD players, and similar products.

Information about the DTV transition is available at:

www.DTV.gov or 1.888.CALL.FCC

See pages 4 to 7 to view image details.

Information about subsidized coupons for digital to analog converter boxes (like the CM-7000) is available at:

www.dtv2009.gov or 1.888.DTV.2009

The CM-7000 digital to analog convert box is capable of receiving digital broadcasts via a TV antenna and displays them on an analog TV set. This converter box does not include analog pass through, so the use of an A/B switch or splitter is required to receive both digital and analag signals from one antenna (see pages 6 and 7).

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

INTRODUCTION

The Channel Master by PCT CM-7000 is a high quality HD/SD (high deﬁ nition/standard deﬁ nition) digital ATSC to analog NTSC television converter box. Using the CM7000 for direct terrestrial FTA HD reception allows users to view HD programs on SD TV sets.

The combination of a CM-7000 Digital Analog Converter with a Channel Master digital antenna is a perfect solution for terrestrial reception in a very wide range of reception conditions and landscape relief.

Power LED

FEATURES

Light*

On/Off Channel

Converts all digital video formats, • including HD (High Deﬁ nition) into SD (standard deﬁ nition) analog format

Easy installation and operation• Automatic and manual programming• Electronic Program Guide (EPG) support• On Screen Display (OSD)• Closed Caption (CC)• Full function remote control• Low power consumption• Auto-Sleep function•

* Green = ON, Orange = Stand-By, Red = Booting Up Note: Initial boot up process occurs when the unit is

ﬁ rst plugged in. Boot up may take up to 45 seconds to complete and is followed by a green LED.

For energy saving, which is in compliance with NTIA recommendations, the Auto-Sleep Function activates Standby mode four (4) hours after last user entry from the remote control, but not before the end of a currently viewed event.

Down

Channel UpIR Remote Window

Not a display window

SAFETY!

POWER Power this box only from a power source within the speciﬁ ed voltage range

To prevent electrical shock, be sure the electrical plug used on the box’s power cord matches the electrical outlet in use.

Do not open the top cover when the box is plugged into an electrical outlet.

CONNECTION Connect all peripheral devices before plugging the power cord into the electrical outlet.

Unplug power cord from the electrical outlet before disconnecting any peripheral devices.

GROUNDING Terrestrial antenna must be grounded to provide protection from lightning and build-up of

static electricity.

LIGHTNING For protection from lightning or when the box is left unattended for a long period, disconnect

it from the power source.

VENTILATION

OVERHEATING Do not install this box on soft furnishings or carpet.

LIQUIDS This box should not be exposed to liquids nor should objects ﬁ lled with liquid be placed on

The slots on the top of the CM-7000 must be left uncovered to allow proper airﬂ ow to the unit. Do not cover the top with fabric, paper, or other materials. Do not stack electronic equipment on top of the CM-7000.

Do not expose this box to direct sunlight or place it near a heater. Do not install this box in small or non-ventilated openings between furniture.

top of the box.

ENVIRONMENT CM-7000 is for indoor use only under speciﬁ ed conditions.

CLEANING Disconnect the box from the electrical outlet before cleaning.

Use a light damp cloth (no solvents) to clean the box.

SPECIFICATIONS

TUNER

Frequency Range 54 to 864 MHz Input Impedance 75 Ohm Input Connector F-Type, Female Channel Bandwith 6 MHz Input Dynamic Range -83 to -5 dBM / SNR - 15 dB

DEMODULATOR

Type 8VSB / ATSC A/53 compliant Performance ATSC A/74 compliant Input Video Formats 1080i, 720p, 480i, 480;

VIDEO

Output Format 480i Aspect Ratio 4:3 / 16:9 with letter box pan and scan

CONNECTORS

Video Composite Video RCA Component Video S-Video Audio Left / Right RCA, Stereo

RF MODULATOR

Output RF Connector F-Type, Female Channel 3 / 4, Selectable, Mono Audio

POWER

Supply 120 VAC / 60 Hz Consumption “ON” 8 W Consumption “STANDBY” 2 W Auto-Sleep Mode 4 hours after last remote control entry

GENERAL

Dimensions (W x L x H) 22 x 16 x 4 cm / 8.7 x 6.3 x 1.6 in Weight 0.9 kg / 2.0 lbs

ENVIRONMENT

Operating Temperature 0 to 60° C / 32 to 140° F Relative Humidity 10 to 90% noncondensing

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

CONNECTING - ANTENNA

CONNECTING CM-7000 TO A TV USING RF COAXIAL CABLE

FIGURE 1

Terrestrial Antenna

(outdoor or indoor)

Back of TV

Back of CM-7000

ANT INCVBS L R

GOOD

RF Coaxial Cable

CONNECTING CM-7000 TO A VCR USING RF COAXIAL CABLE

FIGURE 2

Terrestrial Antenna

(outdoor or indoor)

Back of TV

RF Coaxial Cable

Back of CM-7000

ANT INCVBS L R

GOOD

RF Coaxial Cable

OUT IN

Back of VCR

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

CONNECTING - ANTENNA

CONNECTING CM-7000 TO A TV USING RCA CABLE

Terrestrial Antenna

(outdoor or indoor)

Back of CM-7000

FIGURE 3

ANT INCVBS L R

Back of TV

BETTER

RCA Audio/Video Cable

CONNECTING CM-7000 TO A TV USING RCA & S-VIDEO CABLE

FIGURE 4

Terrestrial Antenna

(outdoor or indoor)

Back of TV

Back of CM-7000

ANT INCVBS L R

BEST

Audio RCA Cable

S-Video Cable

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

CONNECTING - NO ANALOG PASS THROUGH

VIA AUDIO/VIDEO

CM-7000 is connected to TV set via audio / video.1. Antenna is connected to TV tuner.2. Tune to analog channels with TV and select AV input for CM-7000.3.

Terrestrial

Antenna

(outdoor)

Antenna In

Back of TV

Back of CM-7000

Splitter

RF Coaxial Cable

VIA SPLITTER A/B SWITCH HOOKUP

Antenna is connected to TV tuner and CM-7000.1. Converter box modulator is combined with antenna using an A/B switch.2. Select A to watch analog signals and B to watch digital signals 3.

via CM-7000.

Terrestrial

Antenna

(outdoor)

Antenna In

ANT INCVBS L R

RCA Audio/Video Cable

Back of TV

Back of CM-7000

Splitter

RF Coaxial Cable

RF Out

Ch 3 or 4

IN IN

A/B SWITCH

ANT INCVBS L R

RF Coaxial Cable

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

CONNECTING - AUDIO/VIDEO

VIA SPLITTER COMBINER USING FILTERING DEVICE HOOKUP

Antenna is connected to TV tuner and CM-7000.1. Converter box modulator is combined with antenna using a Ch 3/4 combiner 2.

that ﬁ lters 3 and 4 from the antenna side to reduce interference. Select ??? to watch analog signals and ??? to watch digital signals 3.

Terrestrial

Antenna

(outdoor)

via CM-7000.

Antenna In

Ch 3 or 4

Back of TV

Back of CM-7000

Splitter

RF Coaxial Cable

RF Out

Ch 3 or 4

IN 3/4

Ch 3/4 Combiner

ANT INCVBS L R

RF Coaxial Cable

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

MENU TREE

DETAIL OF THE SET-UP FUNCTIONS.

CHANNEL EDIT SET UPCHANNEL SCAN

ALL CLOCKTERRESTRIAL PASSWORDSERVICE

FAVORITES LANGUAGE

DELETED UNIVERSAL RC

LOCKED DEFAULTS

VERSION LOCK

AUTO

POWER DOWN

SET UP MENU FUNCTIONS

CLOCK

Sets date and time. Has auto or manual setting. Auto setting is recommended. To set:

Press Menu1.

 menu buttons to select SET UP screen

Use 2. Press 3. OK to select CLOCK Press 4. OK to select DATE and TIME

 buttons to select AUTO DATE and

Use 5. TIME

Press 6. right button to select TIME ZONE

 buttons to change TIME ZONE

Use 7. Press 8.

 button to select DST

 buttons to change DST

Use 9. Press 10. Exit to store

LANGUAGE

Used to select between three (3) different onscreen display languages. To change:

Press 1. Menu

 buttons to select SET UP screen

Use 2. Press 3. OK to select LANGUAGE

 buttons to change LANGUAGE choice

Use 4. Press 5. OK to select Press 6. Exit to store

UNIVERSAL RC

Universal remote control function. Used to turn on or off the universal remote control function. Factory setting is set to ON. Use the Pioneer Cable Box code if using a universal remote. If using a Channel Master remote controlled rotator, you may turn the universal remote control feature OFF to avoid conﬂ icts between the rotator remote control and the converter box. To turn OFF:

Press 1. Menu

 buttons to select SETUP screen

Use 2.

CLOSED

CAPTIONED

PREFERENCES

PARENTAL

CONTROL

MOVIE

RATING

ADDITIONAL

RATING

Press 3. OK to select Universal RC Press 4. OK to select ON

 buttons to change to OFF

Press 5. Press 6. OK Press7. Exit to store

DEFAULTS

Restores setting to factory default settings. The default password is 0000. To reset password:

Press 1. Menu

 buttons to select PARENTAL CONTROL

Use 2. screen

Press 3. OK to select PASSWORD Press 4. OK then

 button to select NEW

PASSWORD Enter 5. 0000 in new password ﬁ eld

 button to select RESET PASSWORD

Press 6. Press 7. OK Password is now set to 00008.

AUTO POWER DOWN

Turns unit off after four (4) hours without user input. This is a required, energy saving feature. Factory default is ON and the unit will shut OFF after four (4) hours without user input (ex: pressing CH+, CH-, or Info). To turn off this feature:

Press 1. Menu

 buttons to select SET UP screen

Use 2. Press 3. OK and a warning screen appears

 button to select YES

Press 4. Press 5. OK Press 6. OK to uncheck the AUTO POWER DOWN box Press 7. Exit to store

The length of time to power down, and the option to turn off the warning screen are also accessed from this menu.

REMOTE CONTROL

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

Mute

Option Not used

Info Invokes the information banner

Standby Enters and exits standby mode

FAV

Exit Exit from Menu

Arrow Up



Arrow Down



Arrow Left



Arrow Right



Set volume to mute Toggles mute on / off

Invokes Menu screen Exit to previous Menu item

Invokes Channel List menu Switches between Channel List and Favorites List

Move focused item in menu or channel list

Move focused item in menu or channel map

Switch to Favorite Channel List in Channel List Menu Change selection in menu Switch to the next channel in EPG screen

Switch to Favorite Channel List in Channel List Menu Change selection in menu Switch to the previous channel in EPG screen

NOTE: To program a universal remote to operate the CM-7000 digital to analog converter box, use Pioneer cable box codes.

OK Select a channel or menu option

Back Switch to previously viewed channel

PgU Unused

PgD Unused

0 - 9 Numeric key to change channel number or numeric value

CH + Channel up

CH - Channel down

Vol + Increase volume

Vol - Decrease volume

Audio Select audio

Wide Select picture shape

Subtitle Select Closed Caption (CC)

Text Unused

Guide Invokes the EPG screen

Universal Remote Code

Entering Channel Numbers

For universal remote, use Pioneer Cable Box code

When entering channel numbers using the numeric keypad, no “.” or “-” is necessary to tune directly to a desired channel. For example: to tune to channel

8.3, press 83 and ENTER; to tune to channel 15.2, press 152 and ENTER.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

ONLINE GUIDE

CHANNEL BANNER

Provides• channel major & minor numbers, station name and current time. Gets invoked during channel number entry, channel up/down.• Automatically times out.•

INFORMATION BANNER

Provides channel major & minor numbers, station name and current time, • program name/description/duration, video resolution, audio language, rating, cc information and signal strength.

Allows user to browse thru the program description.• Info• button on remote invoke information banner. Allows user to ﬁ ne tune antenna using signal strength meter.• Banner does not timeout. Press • Info to clear.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

ONLINE GUIDE

Allows user to conﬁ gure the system with easy to use graphical interface.• Channel Edit•

Channel Scan System Setup Closed Captions Parental Control

Menu• button on remote allows access to access the menu. Use • , Menu/OK buttons to navigate the menu.

MENU - CHANNEL EDIT

Allows user to set channel as favorite.• Allows user to delete channel.• Allows user to browse locked channel.• Invoke menu using • Menu key. Navigate to channel edit options using •  keys, click OK key to access

channel edit options that allows you to set channel as a favorite or delete a channel.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

ONLINE GUIDE

CHANNEL SCAN

Automatically searches all terrestrial channels.• Automatically updates the channel list with only newly found channels.• Previously set channel properties such as favorite, delete and lock remains the same.• List the channels that are added to the channel list.• Monitor the progress of the channel scan.•

Access channel scan OSD:

Invokes menu using • Menu key. Use •  and OK keys to access channel scan. Select either terrestrial or cable to search respective channels.• Select either scan all or update and click • OK to start channel scan. Scan/update operation shows progress and lists channels as they are found.• Update is used to add channels without loosing previously found channels.•

If using an antenna rotator, the update feature allows you to turn the antenna to a different direction and add channels without loosing the previously scanned channels.

Use • Menu key return back to the previous option, Exit key to quit the menu any time.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

ONLINE GUIDE

SET UP

Provides easy user interface to set the system properties like date & time, OSD language, etc.

Set date and time either automatically or manually.• Choose English, Spanish, or French as OSD language.• Set audio options:•

- Internal speakers ON/OFF Returns all settings to factory defaults.•

To access Setup OSD:

Invokes menu using • Menu key. Use •  and OK keys to access Setup. Select Clock, Language, Defaults, and Version. Click • OK to access respective

option. Clock allows user to set the system time, time zone, daylight saving time.• Language option allows user to select OSD languages.• Use • Menu key return back to the previous option, Exit key to quit the menu

any time.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

ONLINE GUIDE

SET UP - CLOSED CAPTION

Provides easy to use interface to select one of the caption services and caption font properties

Allows user to select one of the available closed caption services (analog • and digital).

Allows font set up of the caption like size, style, edge effects, foreground • and background color/transparency.

Sample caption window displayed reﬂ ects caption preferences.•

To access Setup OSD:

Invokes menu using • Menu key. Use •  and OK keys to access Closed Captions. Select Services or Preferences. Click • OK to access respective options. Services allows access to select a service.• Preferences allows access to set captioning font preferences.• Use • Menu key return back to the previous option, Exit key to quit the menu at

any time.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

ONLINE GUIDE

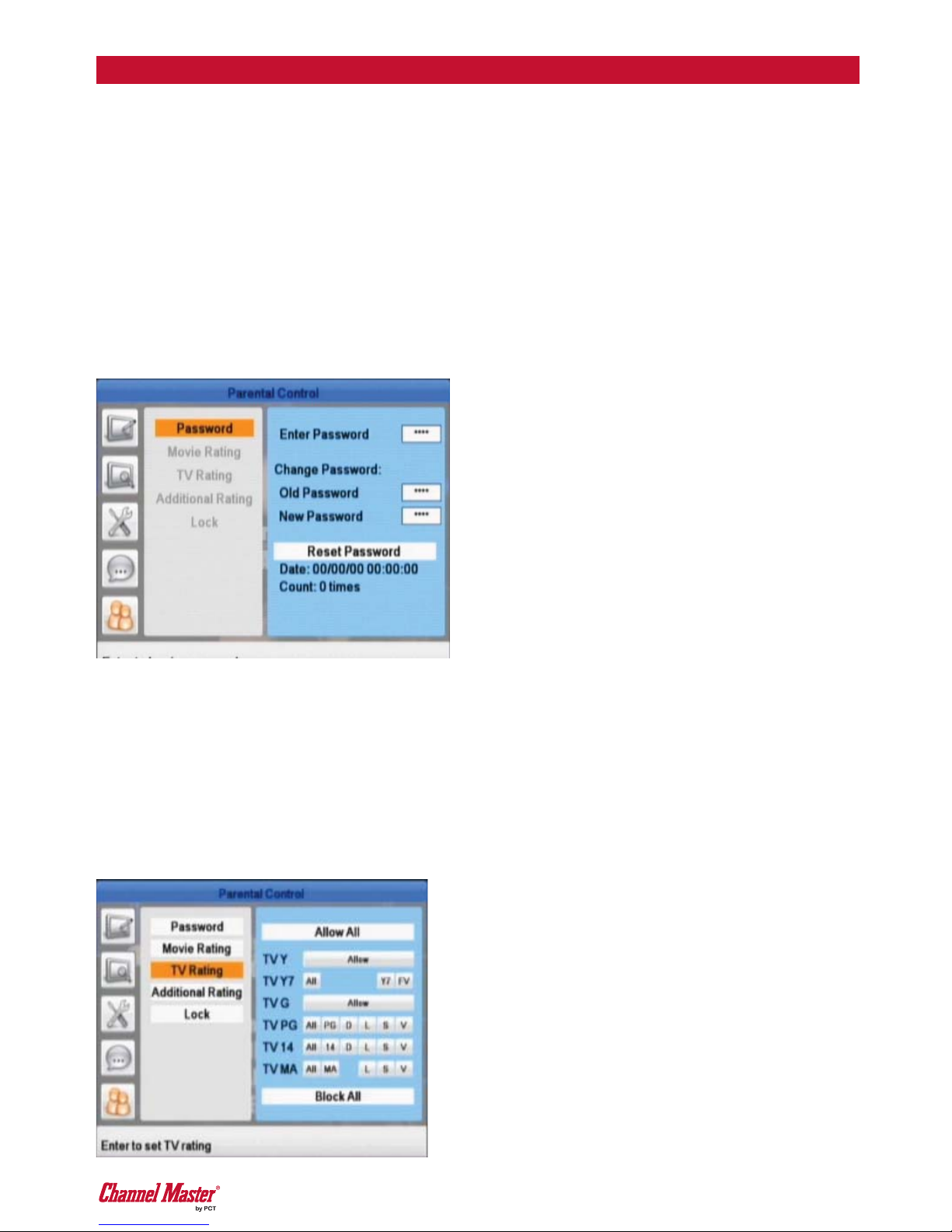

SET UP - PARENTAL CONTROL

Provides easy to use interface to set movie and TV limits to block a program based on its rating

Allows access to set, reset, and change password.• Resetting password update Date and Count that will indicate when the password •

was last reset and how many times it was reset. Allows access to set movie rating limits to block the programs exceeding the set •

rating limits. Allows access to set TV rating limits to block the programs exceeding the set rating limits.• Additional rating menu displays program DRRT and allows the user to block those ratings.• Allows access to block the channel completely irrespective of •

program ratings.

To access Setup OSD:

Invoke menu using • Menu key. Use •  and OK keys to access Parental Controls. Provide password and navigate •  and click OK to access the Movie / TV / Lock

screens. Access Movie, TV or Additional rating screen to set each limits.• Access Lock to block channel completely irrespective of rating.• Use • Menu key return back to the previous option, Exit key to quit the menu at any time.

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

ONLINE GUIDE

QUICK MENU - AUDIO

Quick menu that get invoked with single key on remote to select one of the multiple available audio.

Provides the user with quick access to the list of audio available for that • particular program.

Audio key on remote shall invoke this menu, same key shall be used to • browse thru the audio list.

Exit• key shall be used to quit this menu, or this gets timed after a few seconds.

CONTACT

CM-7000 D2A DIGITAL TO ANALOG CONVERTER

Channel Master

a division of PCT International, Inc.

2151 East Broadway Road, Suite 211 Tempe, AZ 85282-1894 USA

Engineering and Product Management

1715 West Sunrise Boulevard

Gilbert, AZ 85233-5032 USA

Customer Service

Tel +1.800.306.8948

+1.480.813.0925

Fax +1.480.545.1080 email pctcustomerservice@pctintl.com web www.channelmasterintl.com

Technical Support

tel +1.919.934.5860

fax +1.919.934.2809

email rmorgan@pctintl.com

www.channelmasterintl.com

Channel Master CM-7000, D2A CM-7000 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
