User’s Guide

Record without limitations or fees.

Important Software Notice

As with all software controlled products, unexpected behavior could arise if the user tries to perform operations in a non-routine manner. This product, like almost any other high tech product, is subject to bugs and hence Channel Master CANNOT AND DOES NOT GUARANTEE OR WARRANT THAT ALL FEATURES, SUCH AS PARENTAL CONTROLS, WILL WORK AS INTENDED UNDER ALL CIRCUMSTANCES. Channel Master endeavors to improve such conditions and will periodically download improvements.

Equipment and Software Covered by this Guide

This User Guide covers the Channel Master® DVR+™ receiver and software model Channel Master DVR+. This User Guide may cover other devices not listed here.

Document Number: 199646 Document Version: 1.0

Channel Master is a registered trademark and DVR+ is a trademark of Channel Master L.L.C.

All product names, trade names, or corporate names mentioned in this User Guide are acknowledged to be the proprietary property of the registered owners.

VUDU and the logo are trademarks of VUDU, Inc. and are used by permission.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

The terms HDMI and HDMI High-Deﬁnition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

Publishing Information

Important Safety Instructions

1 Read these instructions. 2 Keep these instructions. 3 Heed all warnings. 4 Follow all instructions. 5 Do not use the apparatus near water. 6 Clean only with a dry cloth. 7 Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8 Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers)

that produce heat.

9 Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one

wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10 Protect the power cord from being walked on or pinched, particularly at plugs, convenience receptacles, and the point

where they exit from the apparatus.

11 Only use attachments/accessories speciﬁed by the manufacturer. 12 Unplug the apparatus during lightning storms or when unused for long periods of time. 13 Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any

way, such as the power supply cord or plug is damaged, liquid has been spilled or objects have fallen into it, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

14 Do NOT expose the remote control batteries to excessive heat such as ﬁre or sunshine. 15 WARNING: To reduce the risk of ﬁre or electric shock, do not expose this apparatus to rain, moisture, dripping or

splashing.

16 The power adapter must remain easy to unplug from the power socket once the equipment is installed. 17 Some safety related markings can be found on the bottom of the apparatus. 18 CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Installation

• Locate the power adapter and receiver indoors in an open, well-ventilated area. Do not place them in an enclosure (such

as a cabinet) without proper ventilation.

• Place the receiver on its feet on a ﬁrm, stable, horizontal surface.

• Unplug the power adapter from the power socket during installation and follow all connection instructions.

• Only connect the original power adapter to the receiver. Other power adapters may damage the circuitry and cause a ﬁre

risk.

• Do NOT place heavy objects on the receiver or power adapter.

• Keep plastic packaging and small parts away from babies and children.

Protect from water

• Do NOT place objects ﬁlled with liquids, such as vases or drinks, on or near the power adapter or receiver.

General Precautions

• Do NOT remove the power adapter cover due to risk of electric shock from live parts inside.

• Do NOT allow objects to drop or be pushed inside the receiver, for example by children.

• Do NOT place naked ﬂames such as lighted candles on or near the receiver or power adapter.

Equipment Care

• Unplug the power adapter from the power socket before cleaning.

• If the power adapter or receiver is damaged, unplug it from the power socket and have it checked by qualiﬁed personnel

before operating it any further.

III

Warning and Attention Symbols

You must be aware of safety when you install and use this system. This User’s Guide provides various procedures. If you do some of these procedures carelessly, you could injure or kill yourself or damage equipment or property. Some other procedures require special attention.

The Class II equipment symbol means the equipment has additional insulation and does not need

to be grounded.

For Your Safety

Warning: To reduce the risk of ﬁre or electric shock, do not expose this appliance to rain or moisture.

Alternating Current (AC)

Direct Current (DC)

Indoor Use Only

USB Connector

WARNING: DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD. The remote control supplied with this

hours and can lead to death. Keep new and used batteries away from children. If the battery compartment does not close securely, stop using the product and keep it away from children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

product contains a coin cell battery. If the coin cell battery is swallowed, it can cause severe internal burns in just 2

Table of Contents

INTRODUCTION 1

Safety Instructions

Introduction

03 :: What’s included 04 :: Controls and connectors 05 :: Setting up your DVR+ 06 :: Using the remote control

Getting Started

10 :: Turning on your DVR+ 10 :: Programming the remote 12 :: List of Remote Codes 16 :: Recording on your DVR+ 16 :: Playing a recording 16 :: Deleting a recording 17 :: Managing recordings 17 :: Locking a recording

Using the DVR+

20 :: Changing channels 20 :: Controlling the audio

20 :: Setting audio options 21 :: Getting program info 21 :: Adjusting languages and captioning 22 :: Using VUDU™ service

Menus and Options

24 :: DVR+ Main Menu 25 :: SEARCH 25 :: DVR 26 :: GUIDE 26 :: SETTINGS

Troubleshooting

29 :: Issues and Actions

FCC, Warranty, OSS

32 :: FCC Statement 33 :: Limited Warranty 36 :: OSS Notices

Chapter 1

:: Introduction

What you’ll ﬁnd in this chapter:

• What’s included with your DVR+

• Controls and connectors

• Setting up your DVR+

• Using the remote control.

Introduction ::

Introduction

Your new Channel Master DVR+ receiver

Thank you for purchasing your new Channel Master DVR+ High Deﬁnition digital video receiver and recorder.

The DVR+ receiver is a state-of-the-art, high deﬁnition (HD), digital video recorder (DVR) combining subscription-free, Over The Air (OTA) digital television reception with the ﬂexibility of recording for later playback. It is the complete entertainment solution: an advanced, HD digital video recorder combining OTA reception and recording with access to Internet-enabled TV entertainment such as on-demand VUDU™ movies.

Internet features

Note that to access DVR+ Internet-enabled features, you must connect to a high-speed broadband Internet service. A download speed of 2 Mbps or more is highly recommended in order to enjoy on-demand high-deﬁnition movies, such as VUDU.

Using this guide

This guide is intended to help you use your new Channel Master DVR+ receiver. It describes the controls and connections required to set up and get started using the device, as well as providing lists of numbered tasks for using its many features. The ﬂow of these tasks may be illustrated using a ribbon, as shown below.

The VUDU Service

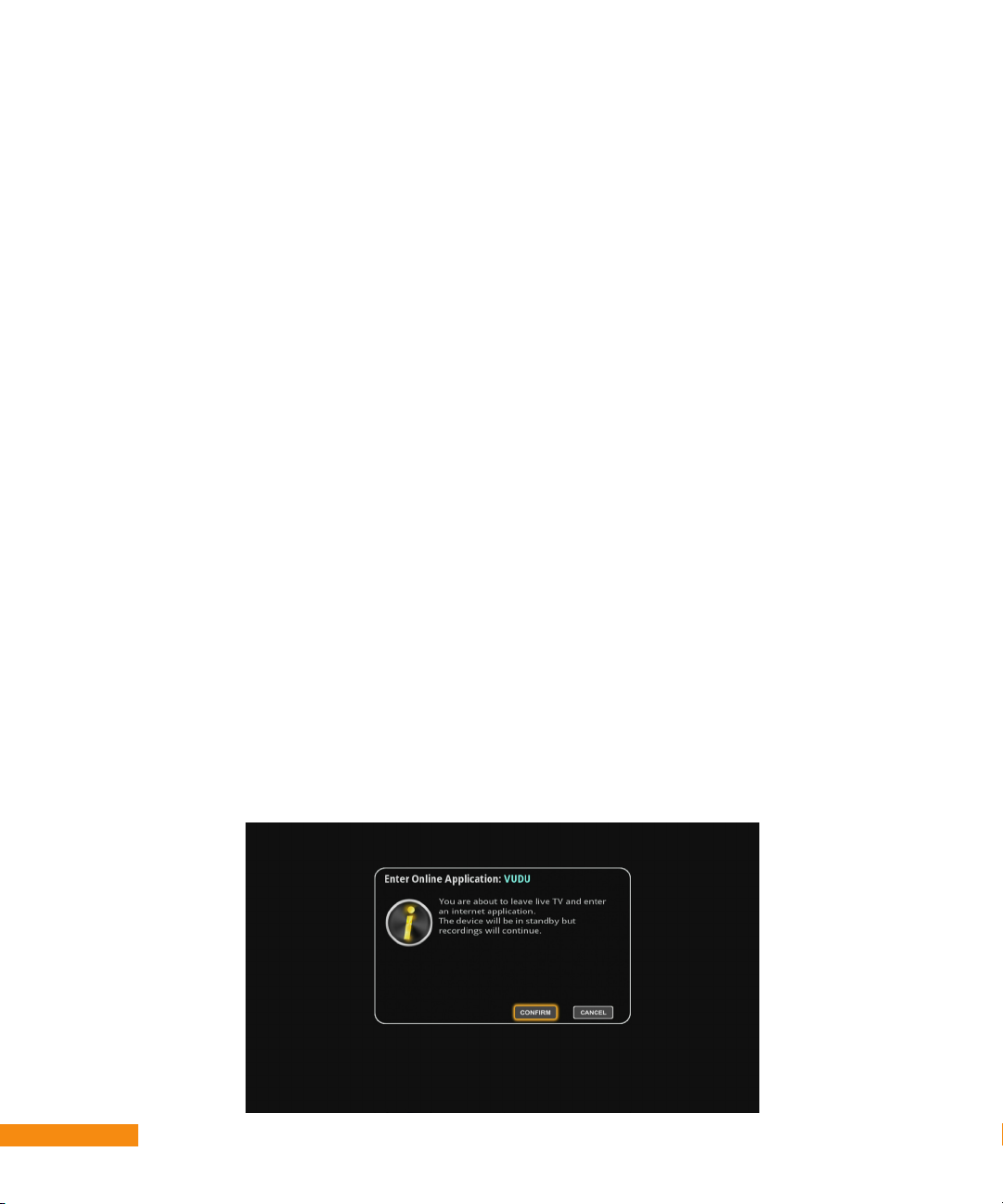

Access to rent or buy VUDU movies on-demand using your DVR+ receiver requires an account with the VUDU service. You can browse for available movies and then sign up directly from within the online application on the DVR+ receiver. Or you may use a web browser to visit www.vudu.com and select the Sign Up link to get started.

If you already have a VUDU account, then you can sign in to it from your DVR+ receiver; or if you have an account with Walmart.com, you can use that username and password to get started.

Start task with Step 1.

:: Introduction

Continue with Step 2.

Follow with Step 3.

Finish task with Step 4. Task completed.

Quick Start Guide

Record without limitations or fees.

Quick Start Guide

Stop Sheet

What is included with your DVR+

Unpack the box and familiarize yourself with each item:

• TheChannelMasterDVR+digitalvideorecorder

• QuickStartGuide

• “ReadThisFirst”StopSheet

• ACPowerSupply

Power Supply

Remote Control

• Remotecontrol(TwoCR2032batteriesincluded)

Introduction ::

Front Panel Controls

The front panel of your Channel Master DVR+ receiver features the following:

• IR Receiver to receive infrared signals from your remote control. Please do not cover or obstruct.

• Status LED to provide a visual indication of whether your DVR+ receiver is turned on (bright blue)

or in standby mode (dim blue). The bright blue light turns red when the DVR+ receiver is actively recording a program or event.

• Power button to activate your DVR+ (if it is standby mode) or put it in standby (if it is active).

IR Receiver

Receives IR signals

from remote.

Do not cover or obstruct

Status LED

Red—Active Recording

Bright Blue—On

Dim Blue—Standby

Power Button

Turns power on/off;

push and hold

to reset

Rear Panel Connections

The rear panel of your DVR+ receiver has a number of different connectors you should note.

• RFINtoconnectacoaxialcableforanOver-The-Air(OTA)televisionantenna(REQUIRED).

• OPTICAL port to connect a digital audio cable for multichannel sound output.

• HDMI port to connect a High-Deﬁnition Multimedia Interface cable for digital audio/video output.

• ETHERNET to connect a LAN cable to your router for broadband Internet service. Note that this

optional connection (or a wireless connection using the optional USB Wi-Fi adapter) is required if you wish to access Internet-enabled services such as VUDU.

• Two USB 2.0 ports to connect the optional USB WiFi adapter and/or external hard-disk/ﬂash drive for expanded DVR storage.

• IR port to connect the extension cable for an optional Infrared (IR) receiver. This increases the ﬂexibility of where you can install your DVR+ and still have it respond to remote control signals.

USB 2.0 Ports

Connects to external

hard drive/ash drive

and optional USB

Wi-Fi adapter

Connect (optional) IR extension cable

Antenna

Connects over-the-air

antenna

HDMI® Output

Provides high-

denition digital audio

and video to the TV

Digital Audio

Optical connection to a

high-quality digital sound

decoding system

Ethernet

Connects to the broadband home network (required for

extended program guide

and internet applications)

Power

Provides AC

power to DVR+

WARNING: Only use the power supply included with your DVR+ to connect it to the AC outlet.

:: Introduction

Connecting and setting up your DVR+ receiver

Connect the antenna to the receiver.

RF IN

Connects over-the-air (OTA) TV antenna

Connect the receiver to the TV.

Connect the small end of the power cord to the receiver input and plug

the other end into an AC outlet. Turn on the TV and select the correct input.

HDMI® Output

Provides high-denition digital

audio and video to the TV

Note: Only use a good-quality, shielded HDMI cable.

Power Input

Provides power to DVR+

Remove plastic battery tab from remote control by pulling it out.

Firmly pull

straight out

Follow the on-screen Setup Wizard instructions, using the remote control.

(See the following pages for more instructions on using your remote.)

Introduction ::

Using your DVR+ remote control

Selects the TV input

Input

(see Programming the

Remote Control,

page 10)

TV On/Standby

(see Programming the

Remote Control,

page 10)

Period

Used to enter

sub-channel numbers

Mute

Silence audio output from

the TV (see Programming

the Remote Control,

page 10)

DVR

Displays recorded events

Guide

View program guide

Home

Returns to home screen

from Internet apps

Exit

Close menu or guide and return to viewing

Navigation

Choose options in menus,

DVR recordings, guide,

settings and info bar

Volume

Increase/decrease TV

volume (see Programming

the Remote Control,

page 10)

Playback Control

Rewind/Pause/Fast

Forward/Skip Back/Play/

Skip Forward//Stop

Record

Record current program

or guide selection

On/Standby

DVR+ power on/standby

Numeric Keypad

Choose channel directly by its number or navigate the program guide

Zoom

Format SD picture to the desired width of program

View Main Menu for advanced options and settings

Info

Displays channel and program information

Closed Captions (CC)

Toggles closed captions on/off

Back

Return to previous guide page, menu, or channel

Colored Buttons

Use varies depending on feature

Channel

View previous/next channel

Page

Navigate guide or text pages

Audio

Displays all audio/audio description channels

:: Introduction

Mute/unmute (see Programming

the Remote Control, page 10)

View program/ channel information

Increase/decrease sound volume (see Programming

the Remote Control, page 10)

Browse up/ down to next numbered channel

Pause a program

Play a program

Rewind

Skip backward

Record remainder of current program or a program scheduled for the future in the guide

To move through the program guide, use the following buttons:

-2.5 hours

-1 day

+1 day

Fast forward

Skip forward

Stop

Record selected program

Next page of channels

Previous page of channels

Introduction ::

:: Introduction

Chapter 2

:: Getting Started

What you’ll ﬁnd in this chapter:

• Turning on your new Channel Master DVR+

• Programming the remote to control your TV

• Recording a program using your DVR+

• Playing back a recorded program

• Deleting a recorded program on your DVR+

• Managing your recorded programs

• Locking a recording with a password.

Getting Started ::

Getting Started

Turning on your new DVR+ receiver

When you switch on your DVR+ receiver for the ﬁrst time, it may take a minute for two for the unit to power up and display the Setup Wizard. This will guide you through the steps to set up your receiver and scan for subscription-free, over-the-air channels.

Highlight and select your Language & Country. Press

OK to continue.

Programming the DVR+ remote control

The remote is capable of controlling basic functions of most TVs (volume up/down, mute/unmute TV sound, TV power on/off, and change current input). To program the remote control to operate your TV, you may use either of the following methods:

• Easy Scan as described on the following page.

• Code Entry as described on pages 12-15.

:: Getting Started

Validate connections are hooked up correctly and then press OK to continue.

A Channel Scan will begin automatically. After it is complete, the next Step is displayed.

Online channels from your Internet connection are listed. Press

OK to continue.

If some channels are duplicated/unacceptable

In some areas with multiple transmitters nearby, there may be duplicate channels. If there are duplicate overthe-air channels in your local area, they will be listed in the channel 100-199 range in the guide.

If a channel’s transmission is marginal (for example, macroblocking or audio issues) and cannot be improved (see page 20), then you may consider deleting it (see page 28).

Highlight and select your Zip Code, Time Zone & Setting. Press OK to ﬁnish setup.

Programming your remote using Easy Scan

Turn on your TV.

Point the DVR+ remote control at the TV. Press and hold down both CH+ and VOL- on the remote simultaneously for at least two seconds. The blue TV button LED gives two

slow ashes to indicate successful entry into

setup mode.

Press INPUT. The TV button LED comes on.

Press TV POWER repeatedly until the TV switches off.

Turn on your TV. Hold down CH+ and

VOL- on DVR+ remote

for 2 sec until TV button ﬂashes twice.

Press INPUT. The TV button LED gives two

slow ashes to indicate that the code has been

stored successfully.

Press the INPUT button.

Press the TV

Power button

until TV is off.

Press INPUT. TV button ﬂashes twice.

Getting Started ::

Programming your remote using Code Entry

To program the remote with a 4-digit numerical code, use the steps below.

Note: Where several codes are listed for a manufacturer, it may be necessary to repeat the sequence below with each code until the correct one is found.

Hold down both the CH+ and VOL- keys simultaneously for at least two

seconds. The blue TV button LED gives two slow ashes to indicate

successful entry into the setup mode.

Using the numbered keys (keypad) on the remote control, enter the 4-digit code for your TV manufacturer within 30 seconds. The blue TV

button LED ashes for each entry.

Note: Remote codes for TVs are listed on pages 13-15.

After the fourth digit entry, the blue TV button LED gives two slow

ashes to indicate that the code has been successfully programmed.

In the event of an error, the blue TV button LED gives four rapid ashes.

If this occurs, then you will need to begin the code entry process again.

When you successfully program a code that turns your TV on and controls its volume and inputs, write down this code in the spaces provided.

Remote Code:

Hold down CH+ and

VOL- on DVR+ remote

for 2 sec until TV button ﬂashes twice.

Enter remote code listed for your TV brand. TV button ﬂashes twice.

Repeat until code works with your TV. Write down this code.

Remote Codes

The table on the following pages contains the manufacturer codes for programming the remote control to operate your TV. If your TV brand is not listed or if the codes listed for it do not work, the DVR+ remote may not be able to control your TV. In some cases, codes may operate some, but not ALL the buttons shown in this guide.

:: Getting Started

Abex 0401 4021 Acer 3291 4001 Acme 0471 ADA 0461 ADC 1431 1661 Admiral 0371 0681 1441 1661

4991 Advent 0581 0631 0871 2131 2891 3261 4931

Adventura 0151 Aiko 1011 4321 Aiwa 0411 0651 0931 1411 4731

4801 Akai 0331 0351 0781 1901 3111 3215 4141 4151 4461 5141 5171

Alleron 1711 Amark 1441 Ames 1275 Amtron 2191 AMW 0645 0825 Anaba 1375 Anam National 0271 1941 2151

2191 2331 3431 AOC 0001 0011 0251 0391 0611 0891 1221 4221 4261 Apex 0045 0191 0245 0375 0425 0431 0671 1025 1105 1891 2911 4841 5111

Archer 1441 Aspect 1271 Audiovox 2191 2451 4031 4051

4521

Aurora 3061 Axion 0881 Bang & Olufsen 1591 Belcor 0001 Bell & Howell 1261 1421 1661

1691 3421

Benq 1741 1761 2221 3871 Blue Sky 3511 3921 Bradford 2191 Broksonic 0211 0371 0851 1631

4951

Brokwood 0001 Candle 0001 0151 0961 1221 Capehart 0391 4221 CCE 3721 Celebrity 1901 Celera 0191 Centrios 1361 Centurion 1221 Cetomer 0001 1631 2901 2961 Cetronic 1941 Changhong 0191 1891 4841 Chimei 3071 Cineral 3511 4321 Citizen 0001 0351 0371 0961

1011 1221 1311 1381 1661 1941 2191 4321

Clairtone 0011 Classic 0191 1891 1941 4841 CLP 0061 CLP Classic 0001 0041 0161 Coby 2511 2521 2531 2541 2551

3351 5091 5191

Color Voice 1431 Colortyme 0001 1221 1431 Concerto 0001 1221 Concierge 1771 1781 Contec 0011 1911 1941 2191 Cornea 1471 Craig 1941 2191 Crosley 1961 Crown 1941 2191 CTX 1441 Curtis Mathes 0001 0261 0351

1191 1221 1261 1311 1421 1551 1661 1691 3421 4011 4941 5351 5371

CTX 1941 2191 Cybervision 3511 Daewoo 0001 0221 0251 0591

0721 0831 0971 1011 1081 1221 1231 1251 1431 1501 1521 1551 1561 1941 2181 4321 4681

Daytron 0001 1221 Dell 0981 1401 2041 3441 3601

3811 Diamond Vision 1211 1611 2001 4771 4811

Digimate 4301 Digistar 0381 0581 0871 1061

2451 2471 3811 3881 3901

Dimensia 1421 1691 3421 DISH Network 5491 Disney 0371 1101 Distar 3231 Dukane 1271 1981 Dumont 0001 1771 1781 Durabrand 0371 0861 0921 1381

2271 2291 5121

Dynasty 1941 Dynex 0371 2891 3141 3161 5311 Electroband 0011 1901 Electrohome 0001 1221 1921

2151 3431

Elektra 1661 Element 2401 4111 5361 5411 Elite Video 0901 Emerson 0001 0021 0031 0041

0271 0281 0291 0371 0441 0451 0691 0701 0731 0741 0851 0931 1221 1251 1261 1371 1381 1451 1461 1551 1611 1631 1681 1701 1711 1931 1941 2171 2191 2361 2761 3451 4701 4731 4751 4761 4831 4911 5231 5221 5341 Envision 0001 0071 1221 3751

4261 5401

ESA 1381 Fisher 1161 1261 1531 1581 1911

3481 5001

Fluid 2401 2421 2431 Fujitsu 0901 1711 4241 4341 Funai 0701 0931 1381 1711 1941

2191 4731 4761

Futuretec 1941 2191 Gateway 0501 GE 0001 0041 0051 0141 0261

0361 0791 0811 1221 1421 1691 1921 1951 2111 2151 3421 3431 4011 4921

Gilbralter 0001 1771 1781 Goldstar 0001 0251 0611 0761

0931 1181 1221 1501 1911 4731

GPX 4701 Gradiente 0001 2291 3661 3951

3961

Grundy 1711 2191 Guestvision 1861 GVision 4871 Haier 0671 0861 0921 1741 3831

4851

Hallmark 0001 1221 Hannspree 5451 5461 5291 Harvard 2191 Hauppauge 3791 Hello Kitty 5391 Hewlett Packard 3491 4881 Hisense 0671 2081 2211 3671

4381 4391 4671 5331 Hitachi 0001 0841 0931 1041 1221 1271 1341 1371 1481 1661 1721 1751 1801 1911 1981 2051 3341 3621 4121 4331 4731

Hyundai 4651 ILO 1141 1381 1971 2391 2481

3215 3691 4231 5031 5141 5171 IMA 2191 Innity 1171 1961 4791

Infocus 3421 Initial 2481 4231 4821 5031 5041 Insignia 0371 0581 0701 0871

0921 1241 1381 2241 2271 2891 2921 3761 3841 4371 4721 4761 5051 5061 5181

Integra 1841 Inteq 1771 1781 ISymphony 3041 Janeil 0151 JBL 1961 JC Penney 0001 0051 0251 0261

0351 0791 0811 0961 1221 1311 1421 1451 1691 1911 1921 1951 3421 3451 4011

JCB 1901 Jensen 0001 1221 2271

Getting Started ::

JVC 0311 0481 0771 0901 0941 1281 1481 1801 1911 2381 2751 4121 4201 5071 5281

Kawasaki 4741 Kawasho 0001 1221 1901 Kaypani 0391 4221 KEC 2191 1941 Kenwood 0001 1221 KLH 0191 Kloss Novabeam 0151 1021 Kogi 4871 Konka 0471 0521 0751 1241

1671 2121 2191 2241 2371 4621 4901 4971 5441

KTV 0011 1491 1681 1941 2191 Kurazai 1661 KWorld 2931 Lasonic 1211 1611 4811 Legend 0581 LG 0001 0131 0251 0611 0761

0931 1181 1221 1471 1501 1911 3001 3021 3091 3221 3281 3311 3811 4731 5271 5501 5511

LiquidVideo 0881 1111 LodgeNet 1421 1661 1691 2091

3421 4091

Loewe 1871 1961 Logik 1421 1661 1691 3421 Luce 0301 Luxman 0001 1221 LXI 0001 0261 0811 0931 1221

1261 1311 1421 1691 1961 3421 4011 4731

Magnasonic 1711 Magnavox 0001 0321 0681 0701

0961 1021 1171 1221 1801 1961 2321 4191 4641 4761 4791 4991

Majestic 1421 1661 1691 3421 Manhattan 5381 Marantz 0001 1221 1841 1961 Maxent 0501 Medion 1101 1141 2351 Megatron 0001 1221 1271 MEI 0011 Memorex 0001 0211 0371 1161

1221 1261 1421 1631 1661 1691 1711 2401 3421 4251 5001 MGA 0001 0251 1221 1581 1711 1801 1911 1921 Midland 0051 0261 0811 1691 1771 1781 4011

Mintek 4231 Minutz 1951 Misakai 1381 Mitsubishi 0001 0251 1221 1581

1711 1801 1811 1921 2701 3271

Monivision 0491 Montgomery Ward 1421 1661

1691 3421

Moteva 1261 3661 Motorola 1441 2151 3431 MTC 0001 0011 0251 0351 1221

1311

Multitech 2191 Multivision 0081 Myron & Davis 2101 NAD 0001 0401 1221 1311 4021 NEC 0001 0251 0341 1221 1431

1801 1841 2151 3431 4401

Net TV 0121 0501 Nexxtech 0871 1201 Nikkei 1941 Nikko 0001 1011 1221 4321 Niko 3581 Norcent 0511 0671 2181 NTC 1011 4321 Olevia 2431 2771 2781 2791 3081

5151 5161

OnCommand 1861 3991 OnKing 1941 Onkyo 3101 Onwa 1941 2191 Optimus 0201 0401 1571 1881

3551 4021 4691 5201

Optoma 2441 3121 Optonica 0341 1441 Orion 0281 0371 1771 1781 Panasonic 0051 0201 0951 1091

1491 1571 1651 1831 1881 1961 2151 2711 2801 3381 3401 3431 3551 3771 4691 4781 4861 5201 5481 Philco 0001 0251 0321 0961 1021 1221 1671 1801 1961 2151 2321 2941 3431 3931 Philips 0001 0161 0181 0321 0421 0541 0661 0701 0791 0911 0961 1021 1151 1171 1381 1391 1601 1741 1801 1961 2151 2321 3031 3131 3151 3171 3371 3391 3431 3541 3591 3861 3911 3971 3981 4191 4761 4791 Philips-Magnavox 0181 0681 0911 1171 1961 2321 3591 4791 4991

Pilot 0001 Pioneer 0001 0401 1221 1371 1511

1841 1981 4021 4661

Piva 2411 5021 Planar 4251 Polaroid 0191 0581 1241 2081

2271 2311 2401 2451 3741 4631 5131 Portland 0001 0251 1011 1081 1221 1551

Precision 0621 Price Club 0351

Prima 0381 0581 0631 0871 2451

3011

Princeton Graphics 1301 1441 Prism 0051 Proscan 0261 0811 1421 1691

2061 2301 3421 4011 Proton 0001 0391 0641 1221 1911 2231 4211 4221 4271

Protron 3731 4301 Proview 2401 2421 2431 Pulsar 0001 1771 1781 Pyle 3331 Quasar 0051 0201 1091 1491 1571

1831 1881 1961 2151 3431 3551 4691 5201 Radio Shack 0001 0141 0341 0931 1001 1221 1261 1421 1571 1691 1701 1911 1941 2111 2191 3421 3551 4731 4921 RCA 0001 0051 0091 0141 0251 0261 0361 0551 0811 0891 1001 1131 1221 1331 1371 1421 1521 1691 1851 1921 2011 2061 2111 2151 2251 2301 2851 2951 3421 3431 3571 4011 4921 Realistic 0001 0141 0341 0931 1001 1221 1261 1421 1571 1691 1701 1911 1941 2191 3421 3551 4731

Rhapsody 0011 Runco 1771 1781 1841 Sampo 0001 0121 0391 0501 1221

1911 4221 Samsung 0001 0101 0251 0261 0331 0351 0531 0571 0711 0781 1191 1221 1311 1501 1911 2071 2141 2721 2741 2961 3301 3321 3471 3561 4011 4941 4961 5471 5521

Samsux 1221 Samtron 0351 Sansui 0211 0371 1631 5551 Santeca 0171 Sanyo 0001 0801 1051 1161 1261

1531 1581 1911 2871 2881 2981 2991 3051 3481 5001 5241 5251 5261

Sceptre 3521 4071 5111 Scotch 0001 1221 Scott 0001 0021 0281 1221 1711

1941 2191 3215 5141 Sears 0001 0211 0261 0351 0701 0811 1221 1261 1291 1311 1381 1421 1531 1581 1691 1711 1911 1961 2021 3421 3481 4011 4761

Selectron 2471 2491 2501 Semp 3611 Sharp 0001 0341 0461 0681 0691

:: Getting Started

1221 1291 1441 2031 2201 2261 2731 3181 3191 3201 3461 4751 4991 5421

Shogun 0001 Signature 1421 1661 1691 2171

3421

Signet 2811 2821 2861 Simpson 0961 Sonic 0011 Sony 1071 1641 1731 1901 2161

2741 3531 3891 4101 4981 5321 Soundesign 0001 0961 1221 1711 1941 2191

Sova 3631 4431 Soyo 4611 5101 Spectra 1611 Specravision 2341 Squareview 1381 SSS 0001 1941 2191 Star Sight 0061 Starlite 2191 Superscan 0701 1291 2021 4761 Supersonic 0241 4701 Supra 0001 1991 Supremacy 0151 Supreme 1901 SVA 0671 2101 Sylvania 0001 0321 0371 0701

0931 0961 1021 1221 1381 1801 1821 1961 2321 2761 3701 4731 4761 Symphonic 0021 0701 0931 1381 2191 4731 4761

Syntax 2431 5151 5161 Tandy 1441 Tatung 1141 1741 2151 3431 TCL 0091 1421 1691 1851 2011

2061 2111 2301 2851 3421 3431 3571 4921

Technics 0051 Techwood 0001 0051 1221 Teknika 0001 0151 0251 0351 0961

1011 1221 1311 1421 1571 1661 1691 1711 1911 1941 2191 3421 3551

Telecaption 0821 Telerent 1421 1661 1691 3421 Tera 0001 0641 Tevion 1141 TMK 0001 1221 Toshiba 0211 0231 0341 0351 0821

1121 1191 1261 1311 1351 1541 1571 1621 1801 1841 1911 2691 3211 3551 4891 4941 5081 5531

Trutech 2461 3821 4551 Universal 0791 1951 Venturer 3781 Victor 1481 4121

Videocon 4061 Vidtech 0001 0251 1221 Viewsonic 0501 1981 3751 3801

4281 5301

Viking 0151 Viore 2831 2841 3681 5431 Visteon 3411 Vizio 1471 1741 2021 2901 3651

3741 3851 4081 5561 5571 5581 5591 5601 5611 5621 5631 5641 5651 5661 5671 5681 5691 5701 5711 Wards 0001 0021 0251 0321 0341 0791 0961 1021 1221 1321 1421 1661 1691 1711 1951 1961 3421 Westinghouse 0111 1901 2281 3241 3251 3711 3851 White Westinghouse 0601 0931 1081 1501 1521 1551 3641 4731

Yamaha 0001 0251 1221 1571 3551 Zenith 0001 0061 0131 0371 0681

0691 0931 0941 0991 1011 1031 1081 1171 1181 1191 1221 1251 1271 1471 1631 1661 1751 1771 1781 1791 2171 2291 3501 4201 4321 4731 4751 4791 4941 4991 5211 5271 5281

Getting Started ::

Recording a program using your DVR+

To record the current program you are watching on live TV, press RECORD on the remote control, OR To record a future event, press GUIDE on the remote. Use the navigation wheel to highlight the desired program, and then press RECORD on the remote control.

If more than one program with the same title is recorded, a folder

is automatically created. To watch a program in the folder, rst

highlight and select the folder, then View Folder Content, and then the individual program. You can also delete all content in a folder by deleting the folder itself.

Note: The Channel Master DVR+ receiver still records your programs when the receiver is in standby.

Playing back a recorded program on your DVR+

Press DVR on the remote.

Use the navigation wheel to highlight the program.

Press OK on the remote.

Select one of the displayed options and press OK:

• Play Recording (which plays back the event from the beginning)

• Resume Playback (if you have previously played back a portion)

• Delete

• Options

Deleting a recorded program on your DVR+

Press DVR on the remote.

Use the navigation wheel to highlight the program.

Press OK on the remote.

Select Delete from the displayed options and press OK.

Select the option to Conrm the deletion and press OK.

:: Getting Started

Managing recorded programs on your DVR+

• Schedule / History / Recordings

• Sort A-Z or by date/time

• Delete

• Search

Pause

Rewind

Skip backward

Stop

Locking a recording with a password

Press DVR on the remote. Use the navigation wheel to highlight the program.

Press OK on the remote.

Select Options. Select Lock to lock the recording. A locked recording cannot be deleted until it is unlocked with a PIN. If you have not set a PIN (numeric password), then you

must enter and conrm one in order to lock a recording.

If the recording has previously been locked, you need to enter the current PIN to unlock it. Then you can delete it. Note: If you lose or forget your PIN, then please visit support.channelmaster.com using your computer.

Fast forward

Skip forward

Play

Getting Started ::

:: Getting Started

Chapter 3

:: Using the DVR+

What you’ll ﬁnd in this chapter:

• Changing channels

• Controlling the audio

• Setting digital audio options

• Getting program information

• Adjusting languages and captioning

• Using the live pause feature on DVR+

• Using Internet-enabled online apps.

Using the DVR+ ::

Using the DVR+ receiver

Changing channels

You can change channels on your DVR+ receiver in several ways. When you are viewing live TV you can:

• Press the CH+ or CH- button on the remote control, OR

• Enter the channel number using the numeric keypad.

• Press GUIDE on the remote to view the list of all currently

available channels. Then highlight a current program on a different channel, press OK and select Watch this program.

Controlling the sound from your TV

• Press the VOL+ or VOL- button on the remote control to raise or lower the volume on your TV.

• Press the MUTE button on the remote control to turn off the sound on your TV; press MUTE again or VOL+ or VOL- to restore the sound.

Note: You must program you new Channel Master DVR+ remote to control the VOL+ or VOL- and MUTE functions of your TV. See pages 10-15 for more information on programming your remote.

Controlling digital audio

Your new DVR+ receiver offers several digital audio features to enhance your enjoyment of many programs and events. Most of these options are in the Digital Audio Setup submenu within the TV & Audio Setup menu under Settings:

If channels are missing

If there are subscriptionfree over-the-air channels in your local area that you do not see listed in the DVR+ program guide, then try the following:

• Press MENU on the remote.

• Navigate on the left to select SETTINGS.

• Scroll the list to select

Technical Information.

• Scroll the list to select

Signals and Network.

• Verify that your Signal Strength and Signal

Qualityarebothat

least 30.

• If not, then readjust your OTA antenna.

If one channel is missing, perform a Manual Scan from the Tuning submenu. If several channels are missing, then perform a Full Re-Scan instead.

Press MENU on the remote.

:: Using the DVR+

Navigate on the left to SETTINGS and press OK.

Scroll the list of Settings to highlight TV & Audio Setup and press OK.

Scroll the list of items to highlight Digital Audio Setup and press OK.

Setting your digital audio options

Many programs and events, especially those broadcast with high-deﬁnition video, also feature multiple audio channels to enhance the enjoyment through your home theater. The following options on your DVR+ can be used with other compatible equipment:

• HDMI can be set to Stereo only if you are not connecting the HDMI output of your DVR+ to a device capable of multi-channel surround sound. The default setting for this output is Auto Stereo/Surround, which will output the best audio option present in the broadcast.

• Optical Digital Audio can be set to Stereo only if you are not connecting the OPTICAL output of your DVR+ to a device capable of surround sound. The default setting for this output is Multichannel, which is supported by most equipment which will accept optical digital audio input(s).

• Midnight Mode helps you keep from disturbing others in your home by compressing the dynamic range (that is, how big a difference there is between the loudest and quietest sounds) of the digital audio output signal. The default setting for this mode is On.

Getting program information on your DVR+

A banner is displayed across the bottom of the screen for a few seconds whenever you change channels on your DVR+. This banner shows details about the current channel and programming. With this banner displayed, you can press the navigation buttons (up, down, right, and left) on the remote control to browse current or future program information for the next highest or lowest channel, or display the current or future programs scheduled on the current channel.

When watching live TV, pressing the INFO button on the remote control displays an info banner at the bottom ot the screen. Pressing INFO again dismisses the banner. When you highlight a program on now or scheduled in the future displayed in the Program Guide, a box of more detailed information will be displayed about the highlighted program. Pressing INFO again dismisses the box.

You can also use information screens to help set a new recording or stop a recording in progress:

• Press the record button on the remote control to start recording a highlighted program on now, or to set a recording for a future program.

• Press the record or the stop button again on a current program to stop a recording in progress.

Adjusting languages and captioning

There are dedicated buttons on the DVR+ remote control to help you set preferences for your audio language and enable or disable closed captioning. While watching video using your DVR+:

• Press AUDIO on the remote and highlight the language for your audio. Some available languages may not be broadcast in stereo; changing digital audio options cannot override this.

• Press CC on the remote to turn on Closed Captions if they are currently off; press the button again to turn Closed Captions back off if they are currently on.

Using the DVR+ ::

Using the live pause feature on your DVR+

While viewing programming on a channel, pressing the PAUSE button on your remote control activates an automatic memory buffer, capturing as much as 15 minutes of live TV. You can:

• Use the rewind, fast forward, skip back, skip forward, pause, and play functions of your remote control on the buffered programming. Note that you cannot move backward past the last DVR+ activation or channel change, or forward into the future.

• The live TV buffer is reset when you change channels or put your receiver into standby mode.

• If you install an external USB hard-disk drive, the live TV buffer is automatically started on

each channel change and the capacity of the buffer is extended to as much as two hours of programming.

Using the VUDU service on your DVR+

For simplicity and ease of use, access to the Internet-enabled VUDU on-demand movie application is integrated into the Program Guide available on your DVR+. By accessing the channel 200 range (see page 20 on how to change channels) from your guide, the information banner or other screens, you exit from any over-the-air TV broadcast and enter the VUDU online application running on the DVR+. (You must select the Conﬁrm option when prompted.) The DVR+ receiver will be placed in standby mode and recordings that you have set up or are in progress will continue uninterrupted.

Access to rent or buy VUDU movies on-demand using your DVR+ requires an account with the VUDU service. There are several methods you may use to get started, depending on whether you already have a VUDU username and password:

• If you do not have a VUDU or Walmart.com account, then you can browse for available movies on the service and sign up directly from within the Internet application on your DVR+ receiver.

• You also may use a computer to visit www.vudu.com, and then select the Sign Up link to get started.

• If you know your username and password for your existing VUDU account, you may sign in to it directly on your DVR+ receiver.

• If you have an account on Walmart.com, then you can use that username and password to get started.

:: Using the DVR+

Chapter 4

:: Menus and Options

What you’ll ﬁnd in this chapter:

• DVR+ Main Menu

• SEARCH

• DVR

• GUIDE

• SETTINGS

• Deleting an unwanted channel

• Setting up network connectivity

• Updating your DVR+ software.

Menus and Options ::

Menus and Options

DVR+ Main Menu

The Main Menu on your DVR+ receiver is accessed by pressing the MENU button on the remote control and is displayed arranged vertically along the left-hand side of your TV screen.

Main Menu Items

The following items appear on, and can be highlighted and selected from, the DVR+ Main Menu:

• SEARCH—to ﬁnd a program to watch or record.

• DVR—to manage and play back your recordings.

• GUIDE—to browse what’s on now and is scheduled to be

broadcast in the future. Highlighting and selecting a program or event from the guide displays a pop-up options submenu.

• SETTINGS—to set your user preferences and change a variety of options available on your DVR+ receiver.

Menu Navigation

Your DVR+ receiver’s menu screens can be navigated easily using

the“D-pad”controlinthe

center of your remote.

Pressing on the top center of the pad moves the cursor or highlight up; pressing on the bottom center moves it down; pressing the right-hand side moves right; pressing the left-hand side moves left. Finally, pressing the OK button in the center of the pad will select the currently highlighted item (like a program name) or option (like Conrm or Cancel) on your screen.

:: Menus and Options

Your DVR+ receiver’s Search function allows you to enter one or more keywords associated with programs or events you would like to ﬁnd in the electronic Program Guide. After selecting SEARCH from the DVR+ Main Menu, use the navigation buttons on your remote to highlight and select characters, including letters and numbers, that spell out the keyword(s) you wish to ﬁnd.

DVR

A Digital Video Recorder allows you to record your favorite shows, series and events without using tapes or a VCR. Selecting DVR from the Main Menu accesses the following screens and sub-menus:

• Recordings—also accessible directly from the remote control by pressing the DVR button. This shows the DVR Recordings screen listing all existing recorded programs and events.

• Schedule—accesses the DVR Scheduled Recordings screen showing programs or events that you have scheduled to record in the near future. Also accessed from the DVR Recordings screen by pressing the Blue remote button.

• Recording History—accesses the DVR Recording History screen showing programs or events that you have scheduled to record in the past. Also accessed from the DVR Scheduled Recordings screen by pressing the Blue remote button.

• DVR Setup submenu—contains the Recording Setup, Playback Setup, Re-initialize HDD, and Check Disk screens. Also accessed from the DVR Recording History screen by pressing the Blue remote button.

Recording Setup Playback Setup Re-Initialize HDD Check Disk

• Set the default start early Set default Skip Fwd Reboot, erase and Reboot the disk and end late times (0’-10’) and Back times (10-60’’) restore disk to new and report errors

Menus and Options ::

GUIDE

Selecting GUIDE from the Main Menu or pressing the GUIDE button on the remote control displays the Program Guide of the DVR+ receiver on your screen. From the guide, you can:

• Change channels to watch (or watch and record) a program on now.

• Set the DVR+ receiver to record a program on now or one scheduled in the future.

• Set a reminder for the time of a program that you want to be sure you do not miss.

SETTINGS

Selecting SETTINGS from the Main Menu displays the SETTINGS menu, containing the following sub-menus and screens:

• Languages—to change the default language for the display of menus, the language of the Primary Audio (can also be changed using the AUDIO button on the remote control), as well as enabling/disabling Closed Captioning and setting a variety of other options related to displaying on-screen captions.

• TV & Audio Setup—to change the default Display Setup (to match your TV resolution), the Digital Audio Setup and HDCP (High-Deﬁnition Copy Protection) Setup, if applicable.

• Parental Control—to protect access based on channel or ratings. A numeric password, or PIN, must be set (or entered) and conﬁrmed to enable this feature or change settings.

• User Preferences—to change the degree of Transparency of menu or guide screens. The default setting is Medium; High is more transparent, Low less so, and Solid is off.

:: Menus and Options

• Network Setup—to view or change the status and information about Internet connectivity, including setup of the optional USB WiFi adapter (see page 28).

• Power Options—to change the Inactivity Standby setting from the default of 4 hours to either 5 or 6 hours (the Off setting is not recommended).

• Technical Info—to view information about your current DVR+ software version, the status of the OTA and/or network signal, the availability of any downloadable software updates (see page 29), the notices for related open-source software, or the screen detailing set-top box (STB) health.

• Tuning—to review currently available OTA channels, manually scan for one (or more) additional channels, or fully re-scan all channels (for example, after you have repositioned or replaced your OTA antenna for better broadcast TV reception).

• Time & Date—to set or change your Zip (Postal) Code, Time Zone and Country; enable or disable the automatic time-setting option and Daylight Savings Time (DST); and set the current time of day, as well as the date, month and year.

• Factory Reset—to access options to fully Factory Reset your DVR+ (erasing any user preferences you have changed from the factory default settings) or only VUDU Reset (erasing any VUDU online movie service account information you entered).

Menus and Options ::

Deleting an unwanted channel

Pressing the MENU button, highlighting and selecting the SETTINGS menu, followed by the Tuning submenu, then Channels displays the list of scanned-in channels on your DVR+ receiver.

If you need to delete a channel (for example, it is a duplicate of another channel or it is one that you never watch), then:

• Highlight the channel in the list that you want to delete.

• Press the red color button on your remote control. A conﬁrmation message is displayed.

• Highlight and select CONFIRM to delete the highlighted channel from the list.

Setting up network connectivity

Pressing the MENU button, highlighting and selecting the SETTINGS menu, then the Network Setup submenu, displays on your screen the current status of your Internet, wired and wireless

network connectivity as well as related items and screens. From here, you can:

• Enable (On) or disable (Off) Internet Connectivity. By default, connectivity is enabled.

• View or choose your Connection Type, either Wired (the default selection for using an

Ethernet cable) or Wireless (for using an optional USB WiFi adapter; please visit www.channelmaster.com for details).

• View IP Connection Settings and disable (or re-enable) the Automatic Setup of the DVR+ Internet connection. If you select Enable (which is selected by default), the DVR+ receiver expects that it will be assigned its IP settings by a DHCP server (or DHCP-enabled router) residing on your local network. If you select Disable, then you will need to assign these settings manually yourself (for advanced users only).

• View or edit your Wireless Setup, if you chose Wireless as the Connection Type. (If Wired is selected as the Connection Type, the Wireless Setup item is unavailable.) To change Wireless Connection Settings, select Network Setup and choose to Scan for available wireless networks (if your network’s SSID/name is publicly broadcast), or choose Manual (if your network SSID/name is not publicly broadcast).

• If you chose Scan, do the following: – Highlight and select the appropriate wireless network SSID/name from the displayed list. – Then use the on-screen keyboard to enter the WiFi network password (sometimes referred to as a key or passphrase). – Select DONE and the DVR+ receiver will try to connect to the speciﬁed network. Wait for conﬁrmation that the connection is successful.

• If you chose Manual, do the following: – Highlight and select Network Name and use the on-screen keyboard to enter the (hidden) SSID/name. – Select DONE and then choose the network’s Security Protocol (Open, WEP, WPA, or WPA2). – Finally, select Key and use the on-screen keyboard to enter the WiFi network password or passphrase. – The DVR+ receiver will try to connect to the speciﬁed network. Wait for conﬁrmation that the connection is successful.

:: Menus and Options

Updating your DVR+ software

By pressing the MENU button, highlighting and selecting the SETTINGS menu, followed by the Technical Info submenu, and then Software Updates, you can:

• Manually Check for downloads. Note that a DVR+ receiver with an active connection to the Internet will periodically check for downloads automatically.

• When new downloadable software is available, a pop-up message is displayed. Follow the on-screen instructions to download and install the update.

• Wait for your DVR+ receiver to restart automatically and begin updating software. Do not turn off or remove power from the DVR+ receiver until the entire update process has been successfuly completed.

• This process may take as long as 5 minutes, after which the DVR+ receiver will restart again running the updated software. You can now operate your DVR+ receiver normally.

To update your DVR+ receiver’s software manually (for example, your DVR+ receiver is not Internet connected), you must:

• Ensure you have an empty USB ﬂash-memory (or thumb) drive formatted as FAT or FAT32. Then download the software update ﬁle from the www.channelmaster.com/website and save it on the ﬂash drive.

• Ensure that your DVR+ receiver is turned on (and not in standby mode), and then insert the drive with the update into one of the USB ports on the DVR+ rear panel.

• Wait for your DVR+ receiver to detect the updated software and display the version information. When prompted by the pop-up message, select CONFIRM to begin installing the update. See page 34 for more information about messages you may see displayed.

• This process may take as long as 5 minutes, after which the DVR+ receiver will restart again running the updated software. You can now operate your DVR+ receiver normally.

Menus and Options ::

Chapter 5

:: Troubleshooting

What you’ll ﬁnd in this chapter:

• Possible issues

• Suggested actions.

Troubleshooting ::

Troubleshooting

Signal Issues

Program Guide Issues

Online Apps Issues (network connection is required)

• Verify the coax cable to the over-the-air antenna is connected to both

the RF IN port on the back of the receiver (hand-tighten only) and also to the over-the-air antenna.

• Verify your antenna has not been moved out of proper alignment.

This can cause signal loss on some or all channels.

• Reset the receiver by pressing and holding the POWER button

located on the front panel. Verify that the LED is red or bright blue.

• If reset doesn’t work (the LED is dim blue), then place the receiver in

standby (press the POWER button), unplug it from the outlet for 15 seconds, then plug it back in. Press the button to turn it back on.

• If you see image pixelization, verify your signal strength and quality

by pressing the MENU button, highlighting and selecting the Settings menu, theTechnical Info submenu and then Signals and Network.

• The DVR+ is only capable of receiving digital TV channels and will

not tune to a channel that is still broadcasting analog TV signals.

• Visit antennaweb.org on a computer to nd out which channels in

your area are broadcasting digital TV signals.

• Verify the DVR+ receiver is connected to broadband Internet service

(recommended) in order to access an extended guide for as much as 14 days of programming. You can view current information about this connection by pressing the MENU button, highlighting and selecting the Settings menu, and then the Network Setup submenu.

• When extended guide data is available over your network

connection, both the guide screen and also info banner will display “Powered by Rovi.” You can use the color buttons on the remote control to navigate within the program guide (see page 7).

• Verify your extended guide data is up to date. Typically, this data

is updated every 24 hours. You can view when the guide was last updated by pressing the MENU button, highlighting and selecting the Settings menu, the Technical Info submenu and then STB Health.

• If your DVR+ receiver is not connected to the Internet, then the

DVR+ populates the program guide with data from the broadcast signals. Each channel decides how to populate this data, so the amount varies. Your receiver displays as much as possible.

• Verify your DVR+ is connected to the network either by a wired

connection (using an Ethernet cable) or a wireless connection (using the optional USB WiFi Adapter). Press the MENU button, highlight and select the Settings menu and then the Network Setup submenu.

• Verify that you can access the Internet from other devices connected

to the same network. If there are problems accessing the Internet, check your network equipment (for example, the WiFi router or access point). Verify the connections are correct using the documentation provided with the equipment.

:: Troubleshooting

Remote Control Issues

Recording Issues

• If your network equipment appears to be working correctly, but

you still cannot access the Internet from devices connected to the network, contact your Internet service provider for assistance.

• To enjoy high-quality video streaming from online applications such

as VUDU, a 2 Mbps minimum connection speed is recommended. If you are not sure of your connection speed, check with your Internet service provider.

• Ensure the batteries are functional; when you press a button on the

remote control, the POWER button (or TV POWER button) should

light up briey.

• Ensure the batteries are installed as indicated on the diagram inside

the battery compartment, and that you have pulled out the arrow-

shaped piece of plastic to remove it from the compartment for rst

use of the remote. Old (discharged) batteries should be replaced with (2) fresh CR2032 batteries.

• Ensure you are holding the remote control with the lens at the top of

the remote pointing directly at the front of your DVR+.

• Ensure that the IR window in the center of the DVR+ front panel is

not covered or obstructed. If your DVR+ receiver is installed in a location without a clear line-of-sight to the remote, you can obtain an optional IR extender; visit support.channelmaster.com for more information on this and other accessories.

• If the remote controls your DVR+ but not your TV, then ensure the

remote is set up correctly to control your TV (see pages 11-13). You will need to do this whenever you change batteries.

• Your DVR+ receiver must be powered on or in standby mode when a

program or event is scheduled for it to be recorded.

• If your external disk cannot be detected by DVR+ software or is not

working correctly, rst try the Check Disk option on the DVR Setup

submenu of the DVR menu. This will reboot the drive.

• If you would like to keep more recordings than there is space on

internal memory, consider purchasing a USB external hard-disk drive for additional storage and connecting it to one of the USB ports on your DVR+ rear panel (see page 4). When an external drive is connected, additional DVR features are made available such as recording two programs at once and pausing live TV.

• View issues causing DVR timers to fail (such as insufcient tuners,

recording capacity or signal strength) by pressing the MENU button, highlighting and selecting the DVR menu, then Recording History.

• Verify that event timers are set as DVR timers, not as Reminder

timers. Conrm an event recording is set up by looking for a red

triangle on the corner of the guide listing for the event.

• Verify that there is sufcient storage space for your recordings. You

can delete any watched recordings to save space.

• To enable simultaneous recording of programs on two different

channels, connect an external USB hard-disk drive. For more details, visit www.channelmaster.com.

Troubleshooting ::

Audio Issues

Software Update Issues

Parental Control Issues

• If your DVR+ receiver’s audio sounds distorted, then you can:

– Try a different channel to see if the fault lies in the transmission of the signal. – Try to see if the fault lies with your reception of the channel’s signal(s) by ensuring that your over-the-air antenna is installed and aimed correctly (for example, away from tall buildings and metal obstacles). – Verify the strength and quality of your OTA signal by pressing the MENU button, highlighting and selecting the Settings menu, followed by the Technical Info submenu, then Signals & Network. – Verify the cables between your antenna and DVR+ receiver, as well as the HDMI cable between your DVR+ receiver and TV, are connected correctly. – If the audio issue persists, change the HDMI audio output for the DVR+ receiver to Stereo Only by pressing the MENU button, highlighting and selecting the Settings menu, followed by the TV & Audio Setup submenu, then Digital and Audio Setup.

• If you are manually updating your DVR+ software using a USB

ash-memory drive, you may see one of the following messages

displayed after inserting the drive into a USB port:

– EHD Insufcient Disk Size. Some ash-memory drives have

multiple small partitions, or even zero partitions. Try reformatting the drive to have a single primary partition, or you may want to try using a different ash drive. – A USB download has been detected which is already present on your device. In this case, your DVR+ receiver has been updated to the same version of software as you have on the

ash drive. It is up to date, so no update is needed.

• I change the channel and a Locked Channel message is

displayed requesting the PIN (password). Parental Control has been activated and the channel has been locked. See page 26.

• I change the channel and a Parental Lock Activated or Rating

Locked message is displayed requesting the PIN (password). The program or event currently on this channel has been locked. See page 26.

• I choose a program or event in the guide and a message is

displayed requesting a PIN (password). Parental Control has been activated and the channel or the program or event has been locked. See page 26.

:: Troubleshooting

Chapter 6

:: FCC, Warranty, OSS

What you’ll ﬁnd in this chapter:

• FCC Statement

• Limited Warranty

• Open Source Software Notices.

FCC, Warranty, OSS ::

FCC Statement, Limited Warranty, OSS

The following FCC Statement applies to DVR+

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Do not make changes or modications to this equipment. This could void the user’s authority to operate the

equipment.

:: FCC, Warranty, OSS

The following Limited Warranty applies to DVR+

Limited Warranty Period:

CHANNEL MASTER DVR+ has a limited (1) year Warranty from the original purchase date with a valid proof of purchase from an authorized retailer. A sales receipt or other document showing that you purchased the product is considered proof of purchase. Certain limitations and exclusions apply.

What is covered by this limited warranty?

CHANNEL MASTER warrants the original CHANNEL MASTER branded product hardware and accessories contained in the original packaging against defects in materials and workmanship when used normally in accordance with CHANNEL MASTER’s published guidelines for a period of (1) year from the date of original purchase by the end-user purchaser. CHANNEL MASTER’s

guidelines include but are not limited to information contained in technical specications, user

manuals and service communications. (90) Days of complimentary software/user support is also included in this Warranty, software and user support outside of (90) days will be subject to additional charges. This Warranty is valid only in the United States and Canada.

What is NOT covered by this limited warranty?

This Warranty does not apply to any non- CHANNEL MASTER branded hardware products or any software and data services, even if packaged or sold with CHANNEL MASTER hardware. Manufacturers, suppliers, or publishers, other than CHANNEL MASTER, may provide their own warranties to you but CHANNEL MASTER, in so far as permitted by law, provides their products “AS IS”. Software distributed by CHANNEL MASTER with or without the CHANNEL MASTER brand (including, but not limited to system software) is not covered by this Warranty. Please refer to the licensing agreement accompanying the software for details of your rights with respect to its use. CHANNEL MASTER does not warrant that the operation of the CHANNEL MASTER product will be uninterrupted or error-free. CHANNEL MASTER is not responsible for damage arising from failure to follow instructions relating to CHANNEL MASTER’s product use. Shipping charges to return products under warranty back to CHANNEL MASTER is not covered.

How to Obtain Warranty Service?

Consumers with a valid proof of purchase from an authorized retailer can return any In-Warranty CHANNEL MASTER product to the Warranty department for repair or replacement. For InWarranty service the consumer must email Technical Support and request an RMA number in order to return the product. The returned product must have the RMA number visible on the box and must include the bill of sale showing the unit is within the warranty period. If the unit is found to be defective under our Warranty Policy CHANNEL MASTER will repair or replace the item at no charge. Products outside of the warranty period should not be returned to CHANNEL MASTER with the exception of any product requested by Technical Support to be accessed for quality assurance purposes. Technical Support: techsupport@channelmaster.com

GENERAL TERMS:

1.1 Subject to the provisions of this Warranty, CHANNEL MASTER warrants that the equipment

described in Paragraph 1.2 will conform to our specications in all material respect and that the

equipment will be free from material defects in materials and workmanship during the Limited Warranty period.

1.2 This Warranty applies to all original purchases by consumers of CHANNEL MASTER products (“Equipment”). The warranties set forth herein are not transferable. 1.3 The Effective period of this Warranty will start on the date of purchase of the Equipment from an authorized retailer and will end, for the Equipment, (1) year later (for all hardware and components). Software is not covered even if packed or sold with CHANNEL MASTER hardware, unless otherwise expressed or provided herein (in each case the “Warranty Period”).

FCC, Warranty, OSS ::

RETURN OF EQUIPMENT UNDER WARRANTY:

2.1 If an item of Equipment malfunctions or fails in normal use within the applicable Warranty Period: (a) The Customer shall notify CHANNEL MASTER within thirty (30) days of the problem. (b) CHANNEL MASTER will, at its option, either resolve the problem over the telephone or provide the customer with a Return Authorization (“RMA”) Number and the address to which the customer may ship the defective item; (c) If the problem can not be resolved over the telephone, the Customer shall attach a label showing the RMA number to each returned item, and include a description of the problem. The Customer shall, at his or her own cost, properly pack the item to be returned, mark the RMA# on the outside of the box, prepay the insurance and shipping charges, and ship the item to the specied CHANNEL MASTER location. (d)

Unauthorized return of any equipment, whether in or out of warranty, will be subject to a handling charge, in addition to all repair and all transportation charges. (e) CHANNEL MASTER will, at its sole option, repair or replace the returned item. If replaced, the replacement item may be new or refurbished; if refurbished it will be equivalent in operation to new Equipment. If a returned item is replaced by CHANNEL MASTER, the Customer agrees that the returned item will become the property of CHANNEL MASTER. (f) CHANNEL MASTER will complete the exchange of CHANNEL MASTER manufactured equipment returned under this Warranty within a reasonable time, subject to lead-times from factory, and will make a good faith effort to minimize any and all delays where possible; and (g) CHANNEL MASTER will, at its cost, ship the repaired item or replacement to the Customer. If the Customer requests express shipping, the Customer will pay CHANNEL MASTER an expediting fee. 2.2 Equipment which is repaired or replaced by CHANNEL MASTER under this Warranty will be covered under all of the provisions of this Warranty for the remainder of the applicable Warranty period (for that particular equipment). 2.3 If equipment is repaired beyond effective warranty dates or if abnormal usage

had occurred, Customer shall be charged applicable rates and the Customer will be advised of the estimated

charges prior to repair by CHANNEL MASTER’s authorized service center. 2.4 The price of out-ofwarranty repairs payable by the Customer will be based on standard labor and parts prices in effect at the time of the repair. CHANNEL MASTER will use its best efforts to ensure that the cost of such repair, exchange, refurbishing, or substitution will not exceed the original price of Product. 2.5 If the problem reoccurs within the warranty period, CHANNEL MASTER will, at its option: (a) re-perform the service; (b) replace the product pursuant to the terms of this warranty, (c) permit Customer to return the product and issue a refund pursuant to this warrant, or (d) refund the amount the Customer paid for the services. PRODUCT MODIFICATION:

3.1 CHANNEL MASTER reserves the right to make changes or improvements to its products, during subsequent production, without incurring the obligation to install such changes or improvements on previously manufactured or sold products. FORCE MAJEURE: 4.1 CHANNEL MASTER will not be liable if its performance under this warranty becomes commercially impracticable due to any contingency beyond

CHANNEL MASTER’s reasonable control, including acts of God, res, ood, wars, sabotage, civil unrest,

accidents, labor disputes or shortages, government laws, rules and regulations, whether valid or invalid, inability to obtain material, discontinuation of third part data or services, equipment or transportation,

incorrect, delayed or incomplete specications, drawings or data supplied by Customer (collectively “Force

Majeure”).

LIMITATIONS AND QUALIFICATIONS OF WARRANTY:

5.1 This Limited Warranty extends only to the original purchaser of the Equipment and is in lieu of

all other express or implied warranties, including those of merchantability and tness for a particular

purpose. This Warranty does not apply to any damage, defect of failure caused by: (a) any part of the

equipment having been modied, adapted, repaired, maintained, transported or relocated by any person;

(b) Storage or environmental characteristics which do not conform to the applicable sections of the appropriate Equipment Manual or Instruction Sheet; (c) Failure to conform with the Equipment Operating Instructions in the applicable Equipment Manual or Instruction Sheet; (d) External causes, including external electrical stress or lightning, or use in conjunction with incompatible equipment, unless such use was with CHANNEL MASTER’s prior written request; (e) Cosmetic damage; (f) Accidental damage,

negligence, modication, mishandling, abuse or misuse; or (g) Force Majeure. Warranty does not cover:

(a) Labor charges for installation or setup of the product. (b) Any taxes imposed on CHANNEL MASTER for units replaced or repaired under this warranty. (c) Installation, performance of, or repair of: audio/ video cabling, telephone line, or accessory attachments used with the product. (d) Product replacement because of misuse, accident, lightning damage, unauthorized repair, or other cause not within the control of CHANNEL MASTER. Please note that removing the cover of the Unit for any reason voids the warranty.

:: FCC, Warranty, OSS

(e) Reception transmission problems caused by signal conditions, telephone line, or cable or antenna systems outside the unit. (f) Damages to, or viruses that may infect your Unit or other devices arising from the use of unauthorized third party devices in connection with your Unit. (g) Incidental or consequential damages resulting from the product. (Some states (or jurisdictions) do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.)

(h) A product that has been modied or adapted to enable it to operate in any country other than the

country for which it was designed, manufactured, approved and/or authorized, or repair of products

damaged by these modications. (i) A product used for commercial or institutional purposes. (j)

Access connections (telephone or broadband), including charges from your communications provider.

LIMITATION ON DAMAGES:

6.1 THIS WARRANTY IS THE CUSTOMER’S EXCLUSIVE WARRANTY FOR THE EQUIPMENT, CHANNEL MASTER SPECIFICALLY DISCLAIMS ALL OTHER WARRANTIES OF ANY KIND, EXPRESSED OR IMPLIED, INCLUDING ANY WARRANTIES OF FITNESS FOR A PARTICULAR PURPOSE AND OF MERCHANTABILITY. 6.2 CHANNEL MASTER WILL NOT BE LIABLE IN TORT, INCLUDING LIABILITY IN NEGLIGENCE OR STRICT LIABILITY, AND WILL HAVE NO LIABILITY AT ALL FOR INJURY TO PERSONS OR PROPERTY. CHANNEL MASTER’S LIABILITY FOR FAILURE TO FULFILL ITS OBLIGATIONS UNDER THIS WARRANTY OR ANY OTHER LIABILITY UNDER OR IN CONNECTION WITH THE EQUIPMENT WILL BE LIMITED TO THE AMOUNT OF THE PURCHASE PRICE OF THE EQUIPMENT AT THE TIME OF ORIGINAL PURCHASE. THE REMEDIES STATED IN THIS WARRANTY ARE THE CUSTOMER’S EXCLUSIVE REMEDIES AGAINST CHANNEL MASTER REGARDING THE EQUIPMENT. 6.3 EVEN IF CHANNEL MASTER HAS BEEN NOTIFIED OF THE POSSIBILITY OF THEM, CHANNEL MASTER WILL NOT BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, INCLUDING LOST PROFITS AND REVENUES, FAILURE TO REALIZE EXPECTED SAVINGS, ANY CLAIM AGAINST A CUSTOMER BY A THIRD PARTY, OR ANY OTHER COMMERCIAL OR ECONOMIC LOSSES OF ANY KIND. 6.4 THESE LIMITATIONS AND DISCLAIMERS ARE NOT MADE BY CHANNEL MASTER WHERE PROHIBITED BY LAW.

FCC, Warranty, OSS ::

The following Open-Source Software Notices apply to DVR+

is product uses certain open source operating system soware distributed pursuant to GNU General Public Licence Version 2 and GNU Lesser General Licence Version 2. e following soware components are licensed under the GNU General Public License (GPL) version 2, a copy of which is provided with this product. GNU GENERAL PUBLIC LICENSE Version 2, June 1991 Copyright @ 1989, 1991 Free Soware Foundation, Inc., Franklin Street, Fih Floor, Boston, MA 02110-1301 USA Linux Kernel Copyright @ 1991-2007 Linus Torvalds and other contributors Busybox Copyright @ 1999 - 2007 Bruce Perens, Erik Andersen, Rob Landley, Denys Vlasenko and other contributors. Badblocks Copyright @ 1992 - 1994 Remy Card, 1995 - 1999 eodore Ts\’o,, 1999 David Beattie Copyright @ 1998 - 2008 Patrick McHardy, Harald Welte, Jozsef Kadlecsik, Martin Josefsson, Yasuyuki Kozakai, Pablo Neira Ayuso, James Morris, Marc Boucher, Rusty Russell and other contributors. libstdc++ Copyright @ 1988 - 2009 Free Soware Foundation, Inc. libgcc_s Copyright @ 1988 - 2007 Free Soware Foundation, Inc. gcc Copyright @ 1989, 1992 - 2008 Free Soware Foundation, Inc. e2fsck Copyright @ 1993, 1994, 1995, 1996, 1997 eodore Ts’o fdisk Copyright @ 1992 A. V. Le Blanc fsck Copyright @ 1993 - 2005 eodore Ts’o. Ifcong Copyright @ 1993 MicroWalt Corporation kill

:: FCC, Warranty, OSS

Copyright @ 1993 David I. Bell, 1999, Rt-Control Inc., 2000 Lineo, Inc. libav Copyright (C) 1989, 1991 Free Soware Foundation, Inc. libglib Copyright (C) 1991 Free Soware Foundation, Inc. libiconv Copyright (C) 2007 Free Soware Foundation, Inc. <http://fsf.org/> libintl Copyright (C) 1989, 1991 Free Soware Foundation, Inc. mke2fs\212 Copyright @ 1994 - 2005 eodore Ts’o. ps Copyright @ 1998-2002 by Albert Cahalan; route Copyright @ 1994 Free Soware Foundation, Inc. sfdisk Copyright @ 1995 Andries E. Brouwer shared-mime Copyright (C) 1989, 1991 Free Soware Foundation, Inc. tune2fs Copyright @ 1992 - 1994 Remy Card wpa_supplicant copyright 2002-2012 Jiuni Malinen and contributors

e following soware components are licensed under the GNU Lesser General Public License (LGPL) version 2.1, a copy of which is provided with this product. GNU LESSER GENERAL PUBLIC LICENSE Version 2.1, February 1999 Copyright @ 1991, 1999 Free Soware Foundation, Inc. ld-uClibc-0.9.29 Copyright @ 1994-2000 Eric Youngdale, Peter MacDonald, David Engel, Hongjiu Lu and Mitch D’Souza libdirect (c) Copyright 2001-2007 e DirectFB Organization (direct.org) (c) Copyright 2000-2004 Convergence (integrated media) GmbH All rights reserved.

FCC, Warranty, OSS ::

Written by Denis Oliver Kropp <dok@direct.org>, Andreas Hundt <andi@schlustig.de>, Sven Neumann <neo@direct.org>, Ville SyrjÃ¤lÃ¤ <syrjala@sci.> and Claudio Ciccani <klan@users.sf.net>. libnl Copyright (C) 1991, 1999 Free Soware Foundation, Inc. libproc-3.2.8 Copyright @ 1995 Martin Schulze, 1996 Charles Blake libtermcap Copyright @ 1985, 1986, 1993 - 1995 Free Soware Foundation, Inc. Libusb Copyright (C) 1991, 1999 Free Soware Foundation, Inc. uClibc Copyright @ 1999 - 2007 Erik Andersen, Mike Frysinger, Ricard Wanderlof, Joakim Tjernlund, Paul Mundt, Jan-Benedict Glaw and other contributors.

:: FCC, Warranty, OSS

Channel Master 7500GB16 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
