Instruction and Assembly Manual

TYPE 900 - .9m
TYPE 100 - 1.0m
TYPE 120 - 1.2m

SMC ANTENNA WITH AZ/EL CAP MOUNT

.90m, 1.0m & 1.2m SMC ANTENNA SYSTEM

WITH

AZ/EL CAP MOUNT

8000284

Rev. H

3/99

1315 Industrial Park Drive, P.O.Box 1416
Smithfield, N.C.27577 U.S.A.
[phone] ■ Fax [phone]

(UK) Limited

Premier Business Park, Croft Head Road, Off Philips Road
Whitebirk Industrial Estate
Blackburn, Lancashire England BB1 5UE
[phone] ■ Fax [phone]

VSAT ANTENNA/MOUNT/LNB

LIMITED TWELVE (12) MONTH WARRANTY

This CHANNEL MASTER®equipment is warranted to be free from defects in material and workmanship under normal use and
service. CHANNEL MASTER shall repair or replace defective equipment, at no charge, or at its option, refund the purchase price, if
the equipment is returned to CHANNEL MASTER not more than twelve (12) months after shipment. Removal or reinstallation of
equipment and its transportation shall not be at the cost of CHANNEL MASTER except CHANNEL MASTER shall return repaired or
replaced equipment freight prepaid.

This W arranty shall not apply to equipment which has been repaired or altered in an y way so as to affect its stability or durability, or which
has been subject to misuse, negligence or accident.This W arranty does not co ver equipment which has been impaired b y se v ere weather
conditions such as excessive wind, ice, storms, lightning, or other natural occurrences over which CHANNEL MASTER
has no control, and this Warranty shall not apply to equipment which has been operated or installed other than in accordance with the instruc­tions furnished by CHANNEL MASTER.

Claimants under this W arranty shall present their claims along with the defectiv e equipment to CHANNEL MASTER immediately upon f ail­ure.Non-compliance with any part of this claim procedure may invalidate this warranty in whole or in part.

THIS W ARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER AGREEMENTS AND W ARRANTIES , ANY IMPLIED W ARRANTY OF MER­CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE IS LIMITED IN DURATION TO THE DURATION OF THIS
WARRANTY. CHANNEL MASTER DOES NOT AUTHORIZE ANY PERSON TO ASSUME FOR IT THE OBLIGATIONS CONTAINED IN
THIS WARRANTY AND CHANNEL MASTER NEITHER ASSUMES NOR AUTHORIZES ANY REPRESENTATIVE OR OTHER
PERSON TO ASSUME FOR IT ANY OTHER LIABILITY IN CONNECTION WITH THE EQUIPMENT DELIVERED OR PROVIDED.

IN NO EVENT SHALL CHANNEL MASTER BE LIABLE FOR ANY LOSS OF PROFITS, LOSS OF USE, INTERRUPTION OF
BUSINESS, OR INDIRECT, SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND.

In no event shall CHANNEL MASTER be liable for damages in an amount greater than the purchase price of the equipment.
Some states do not allow limitations on how long an implied warranty lasts, or allow the exclusion or limitation of incidental or

consequential damages, so the above limitations or exclusions may not apply to you.

DANGER!!!

WATCH FOR WIRES! Installation of this product near power lines is dangerous.For your own safety ,follow these impor­tant safety rules.

1. Perform as many functions as possible on the ground.

2. Watch out for overhead power lines.Check the distance to the power lines before starting installation.We recommend
you stay a minimum of 6 meters (20 feet) from all power lines.

3. Do not use metal ladders.

4. Do not install antenna or mast assembly on a windy day.

5. If you start to drop antenna or mast assembly, get away from it and let it fall.

6. If any part of the antenna or mast assembly comes in contact with a power line, call your local power company.
DO NOT TRY TO REMOVE IT YOURSELF! They will remove it safely.

7. Make sure that the mast assembly is properly grounded.

WARNING!!!

Assembling dish antennas on windy days can be dangerous. Because of the antenna surface, even slight winds
create strong forces.For example, a 1.0m antenna facing a wind of 32 km/h (20 mph) can undergo forces of 269 N (60
lbs). Be prepared to safely handle these forces at unexpected moments.Do not attempt to assemble, move or mount a
dish on windy days or serious,even fatal accidents may occur .Channel Master is not responsible or liable for damage
or injury resulting from antenna installations.

SITE SELECTION

The first and most important consideration when choosing a prospective antenna site is whether or
not the area can provide an acceptable “look angle” at the satellites.A site with a clear, unobstructed view from a suitable
roof or wall facing south, southeast or southwest is required.Your antenna site must be selected in advance so that you will
be able to receive the strongest signal available.To avoid obstructions, it is important to conduct an on-site survey with a
portable antenna.

As with any type of construction, a local permit may be required before installing an antenna. It is the owner’s
responsibility to obtain any and all permits.

INTRODUCTION

This manual covers the installation of the Channel Master 1.0m
& 1.2m SMC antenna system with AZ/EL cap mount and
Ku-single polarity feed.

For best results in the assembly process, perform each step
in the same sequence as listed in this manual.

ASSEMBLY TOOLS REQUIRED

The following list of tools are those required for hand assembly and installation of the antenna.
1 - Ratchet Wrench (³⁄₈”Drive) 1 - 10mm Nut Driver 1 - 13mm Socket (³⁄₈”Drive)

1 - 13mm Open/Box End Wrench 1 - Phillips Screwdriver 1 - Compass

GRADE 8.8 (8G) - YELLOW COLOR GRADE 2 - SILVER COLOR

M6 M8 M10 M12 M16 M20 #10 ¹⁄₄ IN. ⁵⁄₁₆ IN. ³⁄₈ IN. ¹⁄₂ IN. ⁵⁄₈ IN. ³⁄₄ IN. 1 IN.

7 18 32 58 144 260 32 6 11 20 43 92 124 259

FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS FT-LBS

9.5 24 43 79 195 353 3.6 8 15 27 58 125 168 351

N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m N-m

APPLY 24 N-m (18 FT-LBS) OF TORQUE TO M8 BOLT

APPLY 11 FT-LBS (15 N-m) OF TORQUE TO ⁵⁄₁₆ BOLT

BOLT TORQUE

GROUND POLE INSTALLATION

2³⁄₈”O.D. x 72” LONG

72

37

d

36

1" to 2"
SLOPE FOR
WATER RUN OFF

GRADE

BELOW
FROST LINE

OVAL END

MIN.
DIA.

2³⁄₈" O.D.
PIER
FOUNDATIONS

72

37

d

48"

1" to 2"
SLOPE FOR
WATER RUN OFF

GRADE

BELOW
FROST LINE

OVAL END

MIN.
DIA.

NOTE:

48" may be

increased, concrete

and length of rebar

will increase
accordingly.

2³⁄₈" O.D.

DEEP
FROST LINE
FOUNDATIONS

(SEE NOTE)

1-1.5"

APPROX.

2"

(4) #3 x 24" MIN.

AT 90˚ APART

(SEE NOTE)

ANT WIND VEL. DIM “d” CONC VOL. DIM “d” CONC VOL. GROUND POLE

80 MPH 9” 1.5 FT

3

7” 1.2 FT

3

90 MPH 11” 2.2 FT

3

7” 1.2 FT

3

Mo.611652931

.90M 100 MPH 13” 3.0 FT

3

8” 1.5 FT

3

110 MPH 15” 4.0 FT

3

10” 2.4 FT

3

SEE NOTE 1

125 MPH 18” 5.8 FT

3

12” 3.5 FT

3

80 MPH 10” 1.8 FT

3

7” 1.2 FT

3

Mo.611652931

1.0M 90 MPH 13” 3.0 FT

3

8” 1.5 FT

3

100 MPH 15” 4.0 FT

3

9” 1.9 FT

3

SEE NOTE 2

108 MPH 16” 4.6 FT

3

10” 2.4 FT

3

PIER FOUNDATIONS DEEP FROST LINE FOUNDATIONS

POLE SPECIFICATIONS:

2” SCH 40 2³⁄₈” O.D.x .154 Wall x 72” Long Steel - CM PN 611652931 w/Oval End and
Powder Paint Finish.

1. When wind velocity exceeds 108 MPH on the .90m antenna at heights shown, the
ground pole must be a heavy wall pipe as f ollows:2” pipe (2³⁄₈” O.D .) Schedule 80

(.218”

wall thickness) and purchased locally.Field weld ¹⁄₄ x 1¹⁄₂ x 5 key as shown in

Fig.1.0

to prevent rotation in the concrete or use 3”O.D. ground pole and AZ/EL cap.

2. These charted values based on using Model 611652931 ground pole, 2.375 O.D. x

1.54 wall.When wind velocity exceeds 108 MPH, use 3”O.D .ground pole and AZ/EL
cap.

3. Pole and f oundation design based on the follo wing criteria:(a) Uniform Building Code
Exposure C and 1.5 stability factor , (b) Vertical soil pressure of 2000 pounds per square
foot, (c) Lateral soil pressure of 400 pounds per square foot, (d) Concrete compres­sive strength of 2500 pounds per square inc h in 28 days.

4. CAUTION - The foundation design shown does not represent an appropriate design
for any specific locality since soil conditions v ary and may not meet design criteria given
in Note 1.You should consult a local professional engineer to determine your soil con­ditions and appropriate foundation.

6"

APPROX.

KEY

¹⁄₄ x 1¹⁄₂ x 5

FIELD WELD

.21
.21

FIG. 1.0

L

A

d

36

(B)

1" to 2"
SLOPE FOR
WATER RUN OFF

GRADE

#3 REBAR X DIA. OF PIER,
INSERT THRU HOLE IN
TUBE & CENTER

BELOW
FROST LINE

MIN.
DIA.

NOTE:

Clearance

increases at

elevations

greater than 23˚.

3" O.D.

PIER
FOUNDATIONS

L

A

d

48"
(B)

1" to 2"
SLOPE FOR
WATER RUN OFF

GRADE

#3 REBAR

LENGTH = d MIN LESS 1"

INSERT THROUGH

HOLE IN TUBE & CENTER

(4) #3 x 24" MIN.

AT 90˚ APART

(SEE NOTE)

BELOW
FROST LINE

MIN.
DIA.

NOTE:

48" may be

increased, concrete

and length of rebar

will increase

accordingly.

3" O.D.

DEEP
FROST LINE
FOUNDATIONS

(SEE NOTE 2)

1-1.5"

APPROX.

2"

OPTIONAL

GROUND POLE INSTALLATION

3”O.D. x 68” & 72” LONG

ANT WIND VEL. DIM “L” DIM “A” DIM “d” CONC VOL. DIM “L” DIM “A” DIM “d” CONC VOL. GROUND POLE

80 MPH 9” 1.5 FT

3

7” 1.2 FT

3

90 MPH 11” 2.2 FT

3

7” 1.2 FT

3

.90M 110 MPH 68” 37” 13” 3.0 FT

3

68” 37” 8” 1.5 FT

3

Mo.611652731

110 MPH 15” 4.0 FT

3

10” 2.4 FT

3

See Note 2

125 MPH 18” 5.8 FT

3

12” 3.5 FT

3

80 MPH 10” 1.8 FT

3

7” 1.2 FT

3

90 MPH 13” 3.0 FT

3

8” 1.5 FT

3

1.0M 110 MPH 68” 37” 15” 4.0 FT

3

68” 37” 10” 2.4 FT

3

Mo.611652731

110 MPH 17” 5.2 FT

3

11” 2.9 FT

3

See Note 2

125 MPH 20” 7.2 FT

3

14” 4.7 FT

3

80 MPH 14” 3.5 FT

3

9” 1.9 FT

3

90 MPH 17” 5.2 FT

3

11” 2.9 FT

3

1.2M 110 MPH 72” 39” 19” 6.5 FT

3

72” 39” 13” 4.1 FT

3

Mo.611685101

110 MPH 22” 8.7 FT

3

15” 5.4 FT

3

See Note 2

125 MPH 25” 11.2 FT

3

19” 8.7 FT

3

PIER FOUNDATIONS DEEP FROST LINE FOUNDATIONS

POLE SPECIFICATIONS:

3” O.D.x .120 Wall x 68” Long Steel w/Powder Paint Finish - CM PN 611652731.
3” O.D.x .148 Wall x 72” Long Steel w/Powder Paint Finish - CM PN 611685101.

1. Pole and foundation design based on the following criteria: (a) Uniform Building Code Exposure C and 1.5 stability factor, (b) Vertical
soil pressure of 2000 pounds per square foot, (c) Lateral soil pressure of 400 pounds per square f oot, (d) Concrete compressiv e strength
of 2500 pounds per square inch in 28 days.

2. If Model 6851 (3” x 72”) is used for .90m and 1.0m Antenna Dimension “B” on pier foundation must be increased by 4” and concrete
volume will increase accordingly.

3. CAUTION - The foundation design shown does not represent an appropriate design for any specific locality since soil conditions vary
and may not meet design criteria given in Note 1.You should consult a local professional engineer to determine your soil conditions
and appropriate foundation.

ASSEMBLY AND INSTALLATION

The AZ/EL Cap Mount can be installed on a 2³⁄₈”or 3”O.D.
ground tube, roof, or wall mount depending on model.
The appropriate mount should be assembled and in place
before installing the AZ/EL cap.

As the AZ/EL cap mount is factory preassembled, there is
no assembly required for the mount.

ASSEMBLING ANTENNA TO CAP MOUNT

Install four M8 x 60mm (2³⁄₈”) carriage bolts (1) into holes
in center of reflector and assemble to cap mount flanges.
(Reference Fig.2.0) Install four lock washers (2) and hex nuts
(3) on bolts.Tighten and torque to 11 ft.-lbs (15 N-m).

IMPORTANT! Bottom feed leg hole to be located as shown
in Fig. 2.0.

INSTALLING CAP MOUNT ON MOUNT TUBE

Lift reflector/cap mount assembly and slide cap mount
onto mount tube (Reference Fig. 2.1). Swivel antenna
assembly until reflector faces southward.

Tighten M8 clamp nuts so that the antenna assembly is
held stationary on tube, but can be swiveled with slight
pressure.

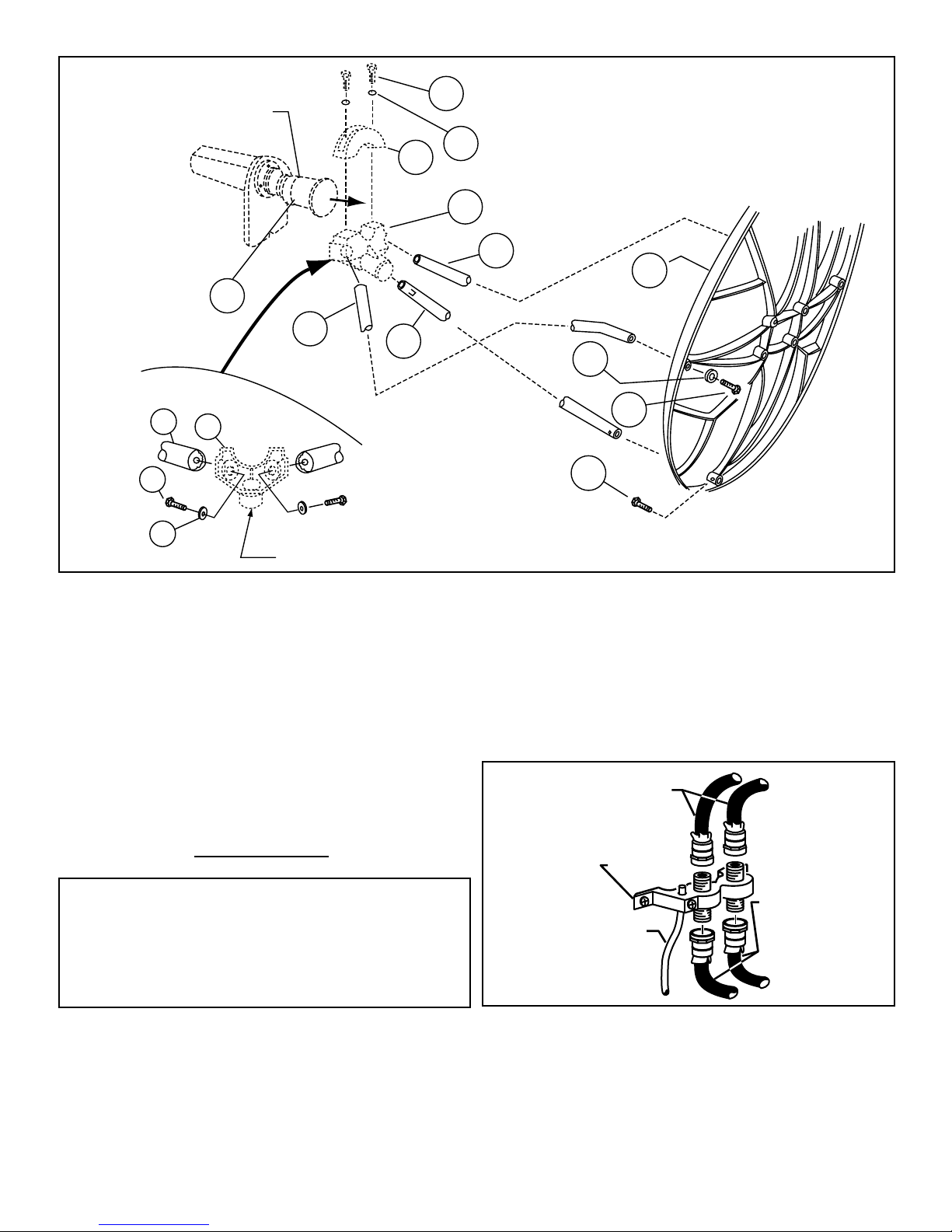

FEED AND FEED LEGS INSTALLATION

Assemble feed assembly and feed legs to antenna as
shown in Fig.2.2.

Insert bottom feed leg (4) into hole in bottom edge of
antenna (5). NOTE: Bottom feed leg is the one with a
slight bend on one end of leg, lance on opposite end,
and is shorter than the two side legs (6).

Install side legs (6) to antenna.From back side of antenna,
secure with M6 x 30mm (¹⁄₄”x 1³⁄₁₆”) hex bolts and
¹⁄₄” special (⁷⁄₈” O.D.) flat washer (7 & 8). Do not tighten.

Insert bottom leg (4) into hole on center of junction block*
(9) until lance on leg is engaged.

Insert one side leg (6) into junction block* (9) and secure
with M6 x 30mm (¹⁄₄”x 1³⁄₁₆”) hex bolts and ¹⁄₄” flat
washer (7 & 10).Do not tighten.

Insert opposite side leg (6) into junction block* (9)
and secure with M6 x 30mm hex bolt and ¹⁄₄” flat washer
(7 & 10). Tighten and torque bolts securing side legs

to junction block and antenna to 4 ft-lbs (5.4 N-m).

Tighten self tapping screw (31) with bottom f eed leg (make
sure screw engages hole in leg).

Refer to feed instructions pac ked with f eed to assemble and
install the feed assembly.

*NOTE:Junction block (9) is packed with feed assembly.

ANTENNA

MOUNT

ASSEMBLY

BOTTOM FEED LEG HOLE

2

3

1

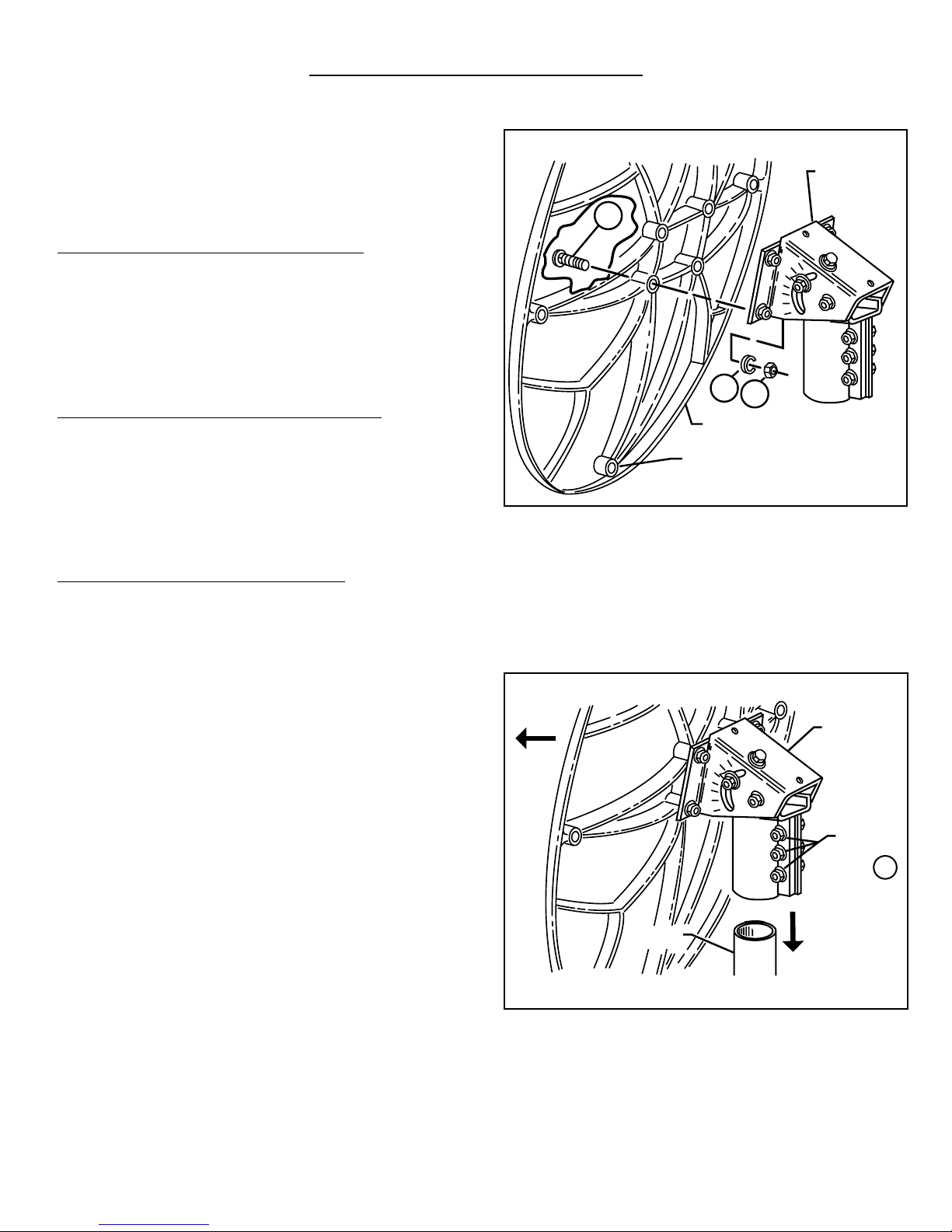

FIG. 2.0 - ASSEMBLING REFLECTOR TO AZ/EL

CAP MOUNT

S

CLAMP

NUT

MOUNT

TUBE

MOUNT

ASSEMBLY

3

FIG. 2.1 - INSTALLING ANTENNA/MOUNT

ASSEMBLY ONTO MOUNT TUBE

IMPORTANT: Sealing RF coaxial connector:

The copper-plated center conductor in the RF coaxial cable,
which connects receiver to LNB, can experience electrolysis
corrosion at the LNB connector. Moisture and DC current
cause this type of corrosion.T o pre vent corrosion, apply a mod ­erate coat of silicon grease to the center conductor and then
wrap the entire connection with COAX-SEAL®tape
to seal.

(COAX-SEAL®IS A REGISTERED TRADEMARK OF UNIVERSAL ELECTRONICS, INC.)

GROUNDING

Ground pole, antenna mount assembly and f eed cables m ust
be grounded in accordance with current National Electric
Code and local electric codes to protect from surges due to
nearby lightning strikes.The illustration below illustrates a typ­ical grounding method.

Clamps that provide a solid connection between ground wire
and ground source should be used.

ALL INST ALLATIONS T O CONFORM TO

THE LATEST ISSUE OF THE

NATIONAL ELECTRIC CODE.

FIG. 2.3 - GROUNDING FEED CABLES

*Ground Block

NEC SECTION 810-20

*Groundwire

NEC SECTION 810-20

*Items Not

Supplied

*Coaxial Cable

From LNB

*Coaxial Cable

To Receiver

FIG. 2.2 - INSTALLATION OF FEED AND FEED SUPPORT LEGS TO ANTENNA

7

15

8

5

6

9

11

13

12

4

6

14

CLAMP
SURFACE

9

6

7

10

Junction Block (9)

ANTENNA ALIGNMENT PROCEDURE

Alignment with the satellite is obtained by setting polar­ization, elevation and azimuth. Char ts 1, 2 & 3 are to
determine the values for your earth station antenna site.
“∆L”is the difference between the earth station antenna site
longitude and the satellite longitude. Use “∆L” and your
earth station latitude to obtain polarization,
elevation or azimuth setting.

POLARIZATION OF FEED

Loosen feed horn M6 clamp bolts (12) and turn feed clock­wise or counterclockwise, depending on being east or
west of the satellite as shown on Chart 1.Align marks on
the horn clamp and appropriate mark on the hor n scale
clamp is installed with arrow pointed toward antenna as
shown in Fig.3.0.Keep cable groov e on header in the down
position when adjusting polarization. NOTE: Single

Polarity Feed is factory assembled for vertical polar­ity. If horizontal polarity is desired, rotate feed 90˚
(clockwise or counterclockwise).

ELEVATION

To obtain elevation v alue f or your satellite, ref er to chart 2.
Loosen bolts in curved slots of AZ/EL Housing ¹⁄₈ to ¹⁄₄ a
turn (Ref. Fig. 3.1). Turn elevation adjustment bolt clock­wise to decrease elevation and counterclockwise to
increase elevation.Align the pointer with appropriate mark
at the desired elevation reading (Ref. Fig. 3.1). NOTE:

Degree values shown on elev ation scale are Beam;that
is when the antenna face is vertical mechanical ele­vation is 0˚,while the Beam Elevation (signal) is 22.6˚.

This will be an approximate setting. Optimum setting
achieved when fine tuning.Temporarily tighten elevation
bracket nuts.

AZIMUTH

Use Chart 3 and determine your azimuth setting. Values
in chart must be adjusted for magnetic deviation for your
location for correct compass reading.Rotate the antenna
and mount, pointing it to the correct compass reading for
your location and satellite (Ref.Fig.3.2). Slowly sweep the
antenna in azimuth until a signal is found.If the desired sig­nal is not found, increase or decrease
elevation setting and repeat the azimuth sweep.

FINE TUNING

Use a signal strength measuring device for final adjust­ments to obtain maximum antenna performance.Alternate
between elevation and azim uth fine tuning to reach max­imum signal strength until no improvement can be detected.
Tighten all hardware.Torque for M8 round head, square
neck bolts is 15 N-m (11 ft-lbs).

-40

+40

0

12

ALIGNMENT

MARK

ARROW

FIG. 3.0

FEED
ASSEMBLY

FIG. 3.0 - POLARIZATION OF THE FEED

20˚

30˚
0˚

10˚

20˚

30˚

40˚

50˚

60˚

70˚

ELEVATION ADJUSTING BOLT

POINTER

PIVOT BOLT

AZ/EL
HOUSING

CLAMP
BOLT

FIG. 3.1 - SETTING ANTENNA ELEVATION

FIG. 3.2 - ROTATING ANTENNA FOR AZIMUTH

0 1020304050607080

0

20

40

60

80

10

30

50

70

90

ANTENNA

FEED

NORTHERN SOUTHERN

POLARIZATION CHART SIGN VALUES (+ OR -) HEMISPHERE HEMISPHERE

ANTENNA SITE WEST OF SATELLITE LONGITUDE - +
ANTENNA SITE EAST OF SATELLITE LONGITUDE + -

EARTH STATION LATITUDE IN DEGREES NORTH OR SOUTH OF EQUATOR

POLARIZATION + OR – (SEE ILLUSTRATION)

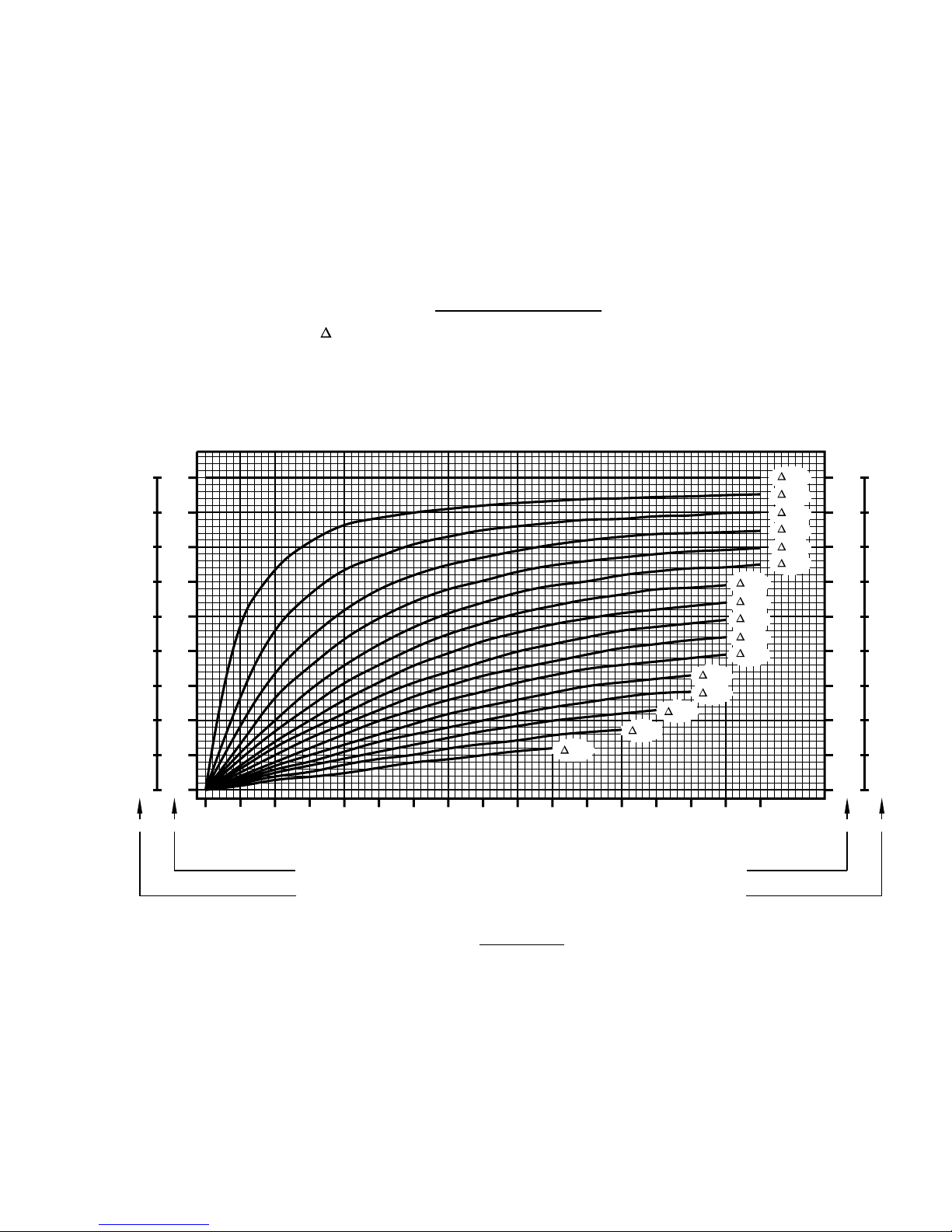

" L" IS THE DIFFERENCE BETWEEN THE EARTH STATION

ANTENNA SITE LONGITUDE AND THE SATELLITE LONGITUDE

POLARIZATION CHART

+–

75°

60°

40°

30°

20°

15°

10°

5°

Feed Rotation (Facing Antenna)
For + Polarization, Rotate CCW (Counter Clockwis

For - Polarization, Rotate CW (Clockwise)

90

80

70

60

50

40

30

20

10

0 1020304050607080

0

EARTH STATION LATITUDE IN DEGREES NORTH OR SOUTH OF EQUATOR

ELEVATION IN DEGREES

" L" IS THE DIFFERENCE BETWEEN THE EARTH STATION

ANTENNA SITE LONGITUDE AND THE SATELLITE LONGITUDE

ELEVATION CHART

CHART 2

5°

10°

15°

20°

25°

30°

35°

40°

45°

50°

55°

60°

65°

70°

75°

50°

125

°

120°

115

°

110

°

105

°

100

°

95°

90

°

85

°

80

°

75°

70°

65°

50°

47.5°
45°

42.5°

40°

37.5

°

35°

32.5

°

30

°

27.5

°

25

°

47.5°
45°

42.5°
40°

37.5°

35°

32.5°

30°

27.5°
25°

0 5 10 15 20 25 30 35 40 45 50 55 60 65 70 75 80

180

190

200

210

220

230

240

250

260

270

180

170

160

150

140

130

120

110

90

270

[AZIMUTH COLUMN READING WHEN EARTH STATION IS WEST OF SATELLITE]
[AZIMUTH COLUMN READING WHEN EARTH STATION IS EAST OF SATELLITE]

EARTH STATION ANTENNA LATITUDE (IN DEGREES NORTH OR SOUTH OF EQUATOR)

EARTH STATION ANTENNA AZIMUTH (IN DEGREES)

" L" IS THE DIFFERENCE BETWEEN THE EARTH STATION

ANTENNA SITE LONGITUDE AND THE SATELLITE LONGITUDE

AZIMUTH CHART

CHART 3

0°
5°
10°
15°
20°
25°

30°

35°
40°
45°
50°

55°
60°

65°

70°

75°

NORTHERN

HEMISPHERE

SOUTHERN

HEMISPHERE

WEST EASTWESTEAST

0

10

20

30

40

50

60

70

80

90

360

350

340

330

320

310

300

290

280

270

PARTS AND HARDWARE LISTING

2

3

25

2

26

3

23

24

3

23

2

17 22

21

20

19

17

2

3

16

17

18

19

1

FIG. 4.0 - AZ/EL CAP MOUNT

ITEM PART NO. DESCRIPTION QTY.

1 2070022-01 BOLT-ROUND HEAD, SQUARE NECK M8X60 4
2 2603300-01 WASHER-LOCK M8 (⁵⁄₁₆)8

3 2460800-01 NUT-HEX M8 4
16 2010105-03 HOUSING AZ/EL 1
17 2503300-01 WASHER FLAT M8 (⁵⁄₁₆) 5
18 2060006-01 BOLT-HEX M8 x 130 1
19 2070022-03 BOLT-ROUND HEAD, SQUARE NECK M8 x 20 3
20 2070022-05 BOLT-ROUND HEAD, SQUARE NECK M8 X 35, MO.6031 3
21 2020343-02 CLAMP-WELDMENT, 2³⁄₈ O.D. 1
21 2020322-02 CLAMP-WELDMENT, 3” O.D. 1
22 1010047-01 PAD - ABRASIVE 1
23 2380075-01 NUT-ELASTIC STOP M8, MO. 6031 4
24 2380067-02 NUT-SWIVEL/SPECIAL 1
25 2010119-01 POINTER 1
26 2509002-01 WASHER-SPHERICAL 1

– 6010213-01 MOUNT ASSY.2³⁄₈”O.D. –

– 6010017-01 MOUNT ASSY.3” O.D. –

7

15

8

5

6

9

11

13

12

4

6

14

CLAMP
SURFACE

9

6

7

10

Junction Block (9)

PARTS AND HARDWARE LISTING

FIG. 4.1 - ANTENNA, ANTENNA FEED (LNB) & FEED SUPPORT LEGS

ITEM PART NO. DESCRIPTION QTY.

4 2020329-07 LEG BOTTOM (.90m) 1

4 2020329-02 LEG-BOTTOM-FEED (1.0m) 1

4 2020329-03 LEG-BOTTOM-FEED (1.2m) 1

5 3040642-02 REFLECTOR-SMC-1.0m 1

5 3040646-02 REFLECTOR-SMC-1.2m 1

5 3040681-02 REFLECTOR-SMC .90m 1

6 6010100-05 LEG-SIDE-FEED (1.0m) 2

6 6010100-06 LEG-SIDE-FEED (1.2m) 2

6 6010100-07 LEG-SIDE-FEED (.90m) 2

7 2060008-01 BOLT-HEX M6 x 30 4

8 2509010-01 WASHER, FLAT ¹⁄₄ x ⁷⁄₈”2
9* 3040667-04 BLOCK-JUNCTION 1
10 2502700-01 WASHER-FLAT ¹⁄₄ x ³⁄₄”O.D. 2

11* 3040663-01 CLAMP-HALF-JCT. 1
12* 2050610-20 BOLT HH M6 x 20 2
13* 2480600-01 WASHER-FLAT M6 x ¹⁄₂”O.D. 2
14* VARIES KU-FEED ASSY. 1

15 2060009-01 SCREW-TPG-SPL M6 1

*Provided in feed assembly.

HARDWARE SORTER

M8 x 60mm Round Head Square Neck Bolt

Item 1, PN 2070022-01

M4 x 12mm Phillips Head Screw

PN 2430070-04

M8 x 20mm Round Head Square Neck Bolt

Item 19, PN 20700022-03

M8 x 35mm Round Head Square Neck Bolt

Item 20, PN 2070022-05

Washer, Flat - ¹⁄₄" x ³⁄₄" OD

Item 10, PN 2502700-01

Washer, Flat - ¹⁄₄" x ⁷⁄₈" OD

Item 8, PN 2509010-01

M6 x 30mm Hex Head Bolt

Item 7, PN 2060008

M4 x 10mm Phillips Head Screw

PN 2430070

M6 T apping Screw

Item 15, PN 2060009

Hardware illustrations are true size.

Place actual hardware on top of illustration to identify.
