Page 1
DVR USER MANUAL | 1/1
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
DIGITAL VIDEO RECORDER (DVR) USER’S MANUAL
CHANNEL SAFETY SYSTEMS t: 0845 884 7000
Peterseld Business Park f: 0845 884 6000
Bedford Road
Peterseld
Hampshire e: [email protected]
GU32 3QA w: www.channelsafety.co.uk
™
i
The complete professional CCTV kit
from Channel Safety Systems
Page 2
DVR USER MANUAL | 1/2
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
CONTENTS
1. Safety Instructions ............................................................................................. 5
2. Chapter 1: Features
........................................................................................... 6
3. Chapter 2: Overview ......................................................................................... 7
3.1. Front Panel
.................................................................................................. 7
3.1.1 8CH CIF DVR Front Panel
....................................................................... 7
3.1.2 16CH-CIF DVR Front Panel
..................................................................... 8
3.2. Rear Panel
.................................................................................................... 9
3.2.1 8CH-CIF DVR Rear Panel
...........................................................................9
3.2.2 16CH-CIF DVR Rear Panel
..................................................................... 10
3.3 8-CH Remote Controller
........................................................................... 11
3.4 16-CH Remote Controller
.......................................................................... 12
3.5 Mouse operation
........................................................................................ 13
4. Chapter 3: DVR Installation
............................................................................ 14
4.1 HDD Installation (Applicable to the model with HDD drawer)
.............. 14
4.2 Camera and Monitor Connection
............................................................ 14
4.3 Power Supply connection
......................................................................... 14
5. Chapter 4: DVR Boot up
.................................................................................. 15
5.1 System Initialization
.................................................................................. 15
5.2 Live Interface
............................................................................................ 15
6. Chapter 5: DVR Menu
.................................................................................... 16
6.1 Pop-up Menu
............................................................................................ 16
6.2 Main Menu Guide
..................................................................................... 17
6.3 Main Menu
................................................................................................ 18
6.3.1 Display
................................................................................................... 18
6.3.2 Output Mode
..........................................................................................19
6.3.3 Privacy Zone
............................................................................................20
6.3.4 Record set: Record Parameters
.............................................................. 21
6.3.5 Schedule
..................................................................................................21
6.3.6 Main Stream
...........................................................................................22
6.3.7 Search: Record Search
............................................................................ 22
6.3.8 Channel Select
........................................................................................ 23
6.3.9 Event Search
..........................................................................................23
6.3.10 File Backup
.............................................................................................24
6.3.11 File Backup: File Based On Event
..........................................................24
6.3.12 File Backup: File Based On Time
........................................................... 25
6.3.13 Media Player Backup
........................................................................25-26
6.3.14 Log Search
.............................................................................................27
Page 3
DVR USER MANUAL | 1/3
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.15 Network: Network set ............................................................................27
6.3.16 Router’s Port Forwarding
.......................................................................27
6.3.17 Sub Stream
..............................................................................................27
6.3.18 Email Set
.................................................................................................28
6.3.19 Mobile Set
...............................................................................................28
6.3.20 DDNS Set
................................................................................................. 29
6.3.21 Alarm: Motion
........................................................................................ 29
6.3.22 Alarm Set
................................................................................................30
6.3.23 Device: Hard Disk Drive Set
...................................................................31
6.3.24 PTZ Set
....................................................................................................32
6.3.25 Serial Set
.................................................................................................33
6.3.26 System: General
...................................................................................... 33
6.3.27 DST Set
.................................................................................................... 33
6.3.28 Network Time Protocol (NTP) Service
...................................................34
6.3.29 Users
...................................................................................................34-35
6.3.30 Information
............................................................................................36
6.3.31 Advanced: Maintained
......................................................................... 36
6.3.32 Event
.......................................................................................................37
6.4 Menu Lock
................................................................................................. 37
6.5 Screen Mode
.............................................................................................. 37
6.6 PTZ Control
................................................................................................ 38
6.7 PIP Mode
.................................................................................................... 39
6.8 Record search
............................................................................................ 39
6.9 Mute
........................................................................................................... 39
6.10 Manual Record
.......................................................................................... 39
6.11 Stop record
................................................................................................ 39
6.12 Start Sequence
........................................................................................... 39
6.13 Start Cruise
................................................................................................ 39
7. Chapter 6: Web Application Manager
........................................................... 40
7.1 Plug-in download and installation
........................................................... 40
7.2 Web Application Manager Log-in
............................................................ 41
7.3 Live interface
............................................................................................. 41
7.3.1 Menu Bar
.............................................................................................. 43
7.3.2 Live Display
........................................................................................... 44
7.3.3 PTZ Control
............................................................................................. 45
7.3.4 Video Control
.........................................................................................45
7.3.5 Record Search
......................................................................................... 46
7.3.7 Playback Control
...............................................................................47-48
7.3.8 Configuration
......................................................................................... 49
7.3.9 Display Configuration
............................................................................ 49
CONTENTS CONTINUED....
Page 4
DVR USER MANUAL | 1/4
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.10 Record ................................................................................................... 50
7.3.11 Network Parameters
.........................................................................51-52
7.3.12 Alarm Set
................................................................................................53
7.3.13 Device
......................................................................................................54
7.3.14 System
................................................................................................55-56
7.3.14 Advanced
...........................................................................................57-59
7.3.15 Local Setting
........................................................................................... 60
7.3.16 Logout
.....................................................................................................60
8. Chapter 7: Appendix
...................................................................................... 61
8.1 Operation Function Table
.................................................................... 61-63
8.2 Record Alarm setting
................................................................................ 64
8.3 Troubleshooting
........................................................................................ 65
8.4 Usage Maintenance
.................................................................................. 65
8.5 System Connection Diagram
.................................................................... 66
8.6 Accessories
................................................................................................. 67
CONTENTS CONTINUED....
Page 5
DVR USER MANUAL | 1/5
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
SAFETY INSTRUCTIONS
Please read all the safety instructions and user manual before the equipment is operated.
1. Power sources
This equipment should be operated only from the type of power source indicated on the marking label. If you are
not sure of the type of power, please consult your supplier.
2. Objects and Liquid
Never push objects of any kind through openings of this equipment and / or spill liquid of any kind on the equipment as they may touch dangerous voltage points or short out parts that could result in a fire or electric shock.
3. Heat sources
Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including am-
plifiers that produce heat.
4. Environment
Be careful to ensure your DVR is not installed in a dusty environment or near any magnetic fields.
5. Cleaning
Unplug this equipment from the wall outlet before cleaning it. Do not use liquid aerosol cleaners. Use a damp
soft cloth for cleaning.
6. Extreme weather conditions
Unplug this equipment during lightning storms or when unused for long periods of time.
7. Transportation of equipment
Do not place this equipment on unstable trolleys, stands, or tables. When a trolley is used, use caution when
moving the trolley / apparatus combination to avoid injury from tip-over. Disconnect the power before moving
the equipment. And the equipment should be moved with care.
8. Attachment
Never add any attachments and/or equipment without the approval of the manufacturer, as such additions may
result in the risk of fire, electric shock and other personal injury.
9. Correct Batteries
Risk of explosion occurs if battery is replaced by an incorrect type. Therefore you must use the same type of
battery as the one being used in the product.
10. Ventilation.
Do not block any ventilation openings, installation of the equipment in the rack should be such that the amount
of airflow required for safe operation of the equipment is not compromised.
11. Overloading
Do not overload wall outlets and extension cords to avoid the risk of fire or electric shock.
12. Reliable Earth connections (Grounding)
Reliable grounding of rack mounted equipment should be maintained. Particular attention should be given to
supply connections other than direct connections to the branch circuit.
Page 6
DVR USER MANUAL | 1/6
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
CHAPTER 1: FEATURES
Features:
• H. 264 video compression format; supports D1 resolution
• ADPCM audio compression format
• Windows Graphical interface; embedded real-time Linux2.6 operation system
• Friendly Menu reminder
• Multiple operation modes (Preview, record, playback, backup, network surveillance and mobile phone moni-
toring)
• Supports Double Encode bit network transmission
• Supports remote live surveillance via 3G mobile networks
• Supports Zoom in/out and sequence function
• The video package time is adjustable
• Multiple alarm record modes
• Rear USB2.0 ports for back-up, upgrade and mouse operation
• With IR remote control operation
• Multiple language OSD
• Support auto-maintain
Function Brief and Description
Real time monitoring
Double video output; with monitor, VGA virtual output port or HDMI Output; Support net-viewer and MP
live surveillance and also support zoom in/out, auto
sequence and PIP display.
Record
H.264 video compression format; record quality/resolution/frame rate adjustable, multiple record modes
(Always, Scheduled, Manual, Alarm, Motion detection
and remote record)
Record storage
Support SATA large capacity HDD and save real-time
record image to HDD.
Playback
Support DVR single CH and multiple CH Search/Playback of recorded files.
Backup
Support DVR backup via USB flash drive, removable
drive, Recorder and network.
Alarm Setting
Supports HDD & video input alarm management and
external alarm signal inputs.
Network operation
Supports remote surveillance by authority users to
increase system security.
Mouse Operation
Supports Mouse operation for faster menu navigation.
PTZ Control Supports PTZ camera operations through RS-485.
Page 7
DVR USER MANUAL | 1/7
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
CHAPTER 2: OVERVIEW
3.1 Front Panel
3.1.1 8CH CIF DVR Front Panel
Item
Key title or
Indicator
Function & Description
1 USB Port Connect to USB2.0 port
2 PLAY Enter into Pop-up Menu; Play record file.
3 PAUSE Pause / play frame by frame manually
4 STOP Stop playing or stop manual record
5 REC Press the button to start manual record.
6 PTZ Enter into PTZ control interface
7 REW
Move to left; Rewind function;
decrease PTZ rotation speed and parameter value;
On preview mode, holding pressing the button to switch GUI operation device
8 Down key Move down
9 FWD
Right key, F. Forward key; increase PTZ rotation speed and Parameter value.
Enter into Pop-up Menu; Play record file.
10 MENU/ESC Enter into Main menu, exit or stop playing
11 IR Receiver Receives IR signal from Remote Controller
12 SEARCH Record search
13 MUTE Mute on/off
14 CH- Switch to previous channel
15 CH+ Switch to next channel
16 ALL On live mode, clicking the button will switch to Quad display.
17 Up key Move up
18 menu Enter menu, select
19 Power Indicator If the “Green” indicator is on the system is getting power normally.
20 HDD Indicator
When the “Red” indicator flashes it means the hard drive is being read or written
to.
Page 8
DVR USER MANUAL | 1/8
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
3.1.2 16CH CIF DVR Front Panel
Item Type
Key title or
Indicator
Function & Description
1
Indicator
HDD indicator
When the “Red” indicator flashes it means the hard drive is being
read or written to.
2 Power indicator If the “Green” indicator is on, the system is getting power normally
3 IR Receiver Receives IR signal from Remote Control
4
Complex Key
Menu Enter into main menu / Exit
5 PTZ Enter into PTZ control, select [Enter] / [Edit] operation
6
Direction Key
UP Move up
7 RIGHT Move right / FWD
8 DOWN Move down
9 LEFT Move left / RWD
10
Channel
Select &
numeric input
Single Channel
and numeric
key
1. Number 1~9 stand for numeric 1~9 and CH 1~9.
2. CH11-CH16 select method: press firstly numeric key 1 and then
other numeric key. For example CH16 select firstly press 1, and then
press 6.
3. Holding press key 0 for three seconds may convert current output device
11 Rec. Manual record Press the button to start manual record
12
Play Control
Stop Stop playing and stop manual record
13 By frame Play frame by frame
14 Play Convert to play status
15 Mute Open or close audio input
16 Multi Display Live display Quad mode, 9-split and 16-split mode
17 USB Port USB Port Connect to USB2.0 port
Page 9
DVR USER MANUAL | 1/9
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
3.2 Rear Panel
3.2.1 8CH CIF DVR Rear Panel
Item Physical port Function & Description
1 Video input Connect CH1-16 (Virtual) video input（BNC interface（
2 Video output (UP) Main video output; (Down) Spot output (BNC interface)
3 Audio input Connect CH1-4 audio signal input (BNC interface)
4 Audio output
Connect audio signal output, including spot main audio output and sequence audio output (BNC interface)
5 Audio input Connect (CH5~CH16) Audio input
6 Ethernet: Port Connect LAN, Ethernet (RJ45 interface)
7 Power Switch Turn Power on and off
8 HDMI HDMI Output
9 VGA Port Connect to VGA monitor, such as PC monitor
10 USB Port Connect USB mouse
11 RS-485/Sensor/Alarm RS485/Sensor/Alarm interface (see pin outs below)
12 Power Port Connect power supply - DC12V 4A
Page 10
DVR USER MANUAL | 1/10
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
3.2.2 16CH CIF DVR Rear Panel
Item Physical port Function & Description
1 Video input Connect CH1-16 (Virtual) video input（BNC interface（
2 Video output Connect monitor output(BNC interface)
3 Audio input Connect CH1-4 audio signal input (BNC interface)
4 Audio output 2CH output; BNC (interface（
5 Ethernet: Port Connect LAN, Ethernet (RJ45 interface)
6 Power Switch Turn Power on and off
7 HDMI HDMI Output
8 VGA Port Connect to VGA monitor, such as PC monitor
9 USB Port Connect USB mouse
10 RS-485/Sensor/Alarm RS485/Sensor/Alarm interface (see pin outs below)
11 Power Port Connect power supply - DC12V 5A
RS485/Sensor/Alarm port functions:
Alarm input: Connect [-] port of your sensor to G (GND) pin, and [+] port to channel input according to the
alarm device you purchased. Alarm output: Connect to the two ports marked with “out” PTZ Port-Connect
your camera to RS-485A and RS485B accordingly.
Page 11
DVR USER MANUAL | 1/11
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
3.3 8-CH Remote Controller
Item Key function
1 Channel select 1-8; Numeric key
2
Numeric key; Clicking numeric “0” allow you
switch to GUI (Graphical user Interface) function
3 Multiple display mode
4 Enter into Main menu/Exit
5 Up arrow key, Volume adjust
6 Down arrow key, Volume adjust
7 Left/Down key,
8
Select key/Edit key;
Confirm the selected operation.
9 Rewind key
10
Enter into record search menu;
Play key
11 Forward key
12 Record key
13 Pause/Sequence key
14 Stop manual record; stop playing
15 Testing
16 Mute on/off
Page 12
DVR USER MANUAL | 1/12
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
3.4 16-CH Remote Controller
Key Title Key Function
REC Press the button to enter into manual record.
SEARCH Press the button to enter into record search menu
2×2 Enter into Quad display
3×3 Enter into 9-split display
4×4 Enter into 16-split display
AUTO Enter into dwell time display
0~9 Channel select; numeric key
DISPLAY MODE
Multiple CH display (Quad, 9-split, 16-split and full screen
display（
Up direction key
Down direction key
◀/▶
Left/right direction key; also decrease/increase parameter
value of control bar.
ENTER Select [Enter] / [Edit] operation
Menu/ESC Enter into/exit Main menu
PIP PIP display mode
MUTE Mute key
FWD Forward（x2（x4（x8（
REW Rewind（x2（x4（x8（
PLAY Enter into record search, play record event
STOP Stop play / manual play
PAUSE/
FRAME
Pause / play frame by frame
SLOW （1/2（1/4（1/8（Slow play
Z+ Zoom out video area
Z- Zoom in video area
F+ Extend focus
F- Extend focus
I+ Increase PTZ brightness
I- Decrease PTZ brightness
PTZ Allow you set preset bit and control PTZ.
LOCK Lock system
Page 13
DVR USER MANUAL | 1/13
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Type Function
Click left key of Mouse
In menu lock mode, Enter into pop-up menu and clicking any sub menu to pop up
Log-in window; on menu unlock mode, enter into pop-up menu, and then clicking left key to enter into any sub menu directly.
After entering into main menu, clicking left key could enter into any sub menu;
On [Detailed file] menu mode, clicking left key could playback one recording file.
Change the status of check box and motion detection area.
Clicking combo box to access pull-down menu; Click left key to stop dwell time
display when dwell time display is activated.
By clicking left key you can adjust Color control bar and volume control bar.
Clicking combo box to access pull-down menu
By clicking left key you can select values in edit boxes or pull-down menu and supports Chinese word input, special symbol, numeric and character input, use instead
of [Enter- ] or [Backspace - ]
Click right key of Mouse
In live display mode, clicking right key will display pop-up menu (shown as Picture
5-1).
In Main menu or sub menu mode, clicking right key will exit current menu
.
Double-click Left key of
Mouse
In live display or playback mode, double-clicking left key will maximize the screen.
Moving Mouse Select menu item
Sliding Mouse
On motion mode, sliding mouse will select motion area; On [Color set] menu
mode, sliding mouse will adjust color control bar and volume control bar.
3.5 Mouse Operation
Alongside using the buttons of the front panel of your DVR or remote controller, you can also use the mouse to
perform system operations.
Page 14
DVR USER MANUAL | 1/14
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
CHAPTER 3: DVR INSTALLATION
4.1 HDD Installation (Applicable to the model with HDD drawer)
Caution: Please do not install or take out hard drive when CVR is running!
(1) The model has a HDD drawer. Please use provide key to take out the HDD drawer and put HDD into the drawer
correctly.
(2) Cut power first, and then remove screws and open DVR upper cover carefully;
(3) Insert Power Cord and data cable into Pin of hard drive securely;
(4) Remove the screws on the HDD bracket; fix the HDD to the bracket and then fix the bracket with HDD to DVR
body
(5) Put the upper cover back carefully, re-attach screws.
Note: If user requires higher performance HDD, We strongly recommend you use a special hard drive for security
and protection
4.2 Camera and Monitor Connection
Connect camera cable to video input of DVR, and from video output of DVR to Monitor via BNC connector (Refer
to section 3.2 - Rear Panel); or
If the camera is a PTZ speed dome, you could connect RS485 A & B to the according port of DVR respectively (refer
to system figuration on Chapter 8).
4.3 Power Supply Connection
Please only use the power adapter supplied with the DVR.
After the power is on please make sure the video I/O is connected well to the audio device with RCA cable.
Page 15
DVR USER MANUAL | 1/15
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
CHAPTER 4: DVR BOOT UP
5.1 System Initialization
CHAPTER 3: DVR BOOT UP
5.2 Live Interface
After connecting the DVR to the Power outlet and
pressing the Power button on the front panel, you will
enter into the system initializing screen shown in Picture
5-1
After finishing initialization the system will enter into
<Live> screen. Picture 5-2 shows the 16-split display
defaulted by system, which shows no video input
status. Once there are video inputs, the screen will
display live images from the cameras. In Live mode, if
you use the mouse to double-click the live image of any
channel, the image will be maximized to full screen,
by double-clicking again, image will come back to the
16-split display mode; clicking the right button of the
mouse will enter into a Pop-up Menu; clicking the left
button of the mouse allows you select menu items; and
clicking any area outside the menu
allows you exit the Pop-up menu.
Note: When internal HDD is not connected or an error occurs, the character “H” will appear on the first channel
of the live screen and accompany buzzer alarm. If you want to close the buzzer alarm, please enter into [Main
menu Alarm] to set HDD loss, HDD space not enough and alarm output to “off”
Picture 5-1
Picture 5-2
Page 16
DVR USER MANUAL | 1/16
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
CHAPTER 5: DVR MENU
6.1 Pop-up Menu
After finishing system initialization, right click your mouse on the
main interface mode to enter into the Pop-up Menu. Now you
can complete the perform parameter setting and operate on Main
Menu, Multi-Pics, PTZ, PIP, Rec. Search, Mute, Manual record, Start
Rolling, Start Cruise and Vo Switch etc.
By clicking [0] key on the remote controller or holding press [Esc]
key on the front panel of the DVR could switch the system to the
other output device.
Picture 6-1
Page 17
DVR USER MANUAL | 1/17
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.2 Main Menu Guide
Page 18
DVR USER MANUAL | 1/18
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3 Main Menu
On <Live> mode, click [Menu] button on the front panel
or Remote controller to enter into Main menu interface
shown as Picture 6-2. And also you can click [ ] icon
to enter the main menu screen. In Main Menu mode,
you can control device management settings, such as
Display, Record, Network, Search, Device
6.3.1 Display
Go to <Main menu - Display - Live> option and enter into the <Display> setting interface shown as
Picture 6-3.
Picture 6-2
Picture 6-3
Picture 6-4
Channel: allows you to setup the channel you desire.
Name: allows you to setup the channel name, and system
support up to eight characters.
Position: allows you to setup the display position of each
channel.
Colour: Click [Setup] option to enter into the [Color setup]
interface shown as Picture 6-4.
Covert: allows you to enable [Live] surveillance screen.
Show time: allows you to set the system time which appears
in the <Live> screen.
Record time: When set to “Enable”, you can record the
system time into the record history.
Copy: allows you to copy all data from one channel to an
other.
Picture 6-4 shows the Colour Menu where you can adjust
image brightness, saturation, contrast and hue
parameters of each channel.
Explanation
1. The modifications will be available after clicking [APPLY] button on the bottom of the sub-menu windows and
being prompted to save and then clicking [ok] button.
2. If you want to cancel the modification, click [Exit] button to exit the menu.
3. When clicking [DEFAULT] button, all system default values will be reset to default value.
4. System default value indicates the value pre-set at the factory.
Page 19
DVR USER MANUAL | 1/19
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.2 Output Mode
Go to [Main menu-Display-Output] to enter into
the output set interface as shown in Picture 6-5.
Click [Live] to pop up the interface shown as in
Picture 6-6. Now you can perform the channel
sequence setting.
Picture 6-5
Picture 6-6
Click [Spot output] option and set relative
parameters shown as Picture 6-7.
Click [Spot sequence] to enter into the
interface shown as Picture 6-8.
Picture 6-7
Picture 6-8
Video output: Support CVBS output Live and Spot mode simulta-
neously. (Live is the main output, and Spot is the auxiliary output.)
CH Sequence: the option is defaulted to “Off” and the sequence
time is 5 seconds. Users can activate as desired.
Rotate time: allows you to set the sequence time. Minimum time
can be set to 3 seconds.
VGA/HDMI Resolution: allows you to select VGA or HDMI
output, including 800x600, 1024x768, 1280x1024, 1440x900 and
HDMI.
Display Mode:
Live output: display window will include Single, Quad, 9-split and
16-split mode; Spot output: display window will include Single,
Quad and 9-split mode.
Transparency: allows you to adjust the menu’s transparency, and
its range is 1~128.
Margin: allows you to adjust the whole screen’s margin. For De-
tails or operation please refer to Picture 6-10. (On following page)
Volume: allow you adjust the DVR volume shown as Picture 6-11.
(On following page)
Picture 6-9
Page 20
DVR USER MANUAL | 1/20
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.3 Privacy Zone
Picture 6-10 Picture 6-11
This function allows you to setup the privacy zone parameters according to Picture 6-12. Each channel can be
set up to four privacy zones. Please follow the steps below to setup:
1. Select the area no (Area 1 ~ Area 4);
2. Click [Setup] to adjust the position of the mask area;
3. After finishing adjusting the position, right click your mouse to return back to[Privacy zone] interface;
4. Click [Apply] to save the above setting.
Picture 6-12 Picture 6-13
This figure is only for D9016 / CIF model reference
Page 21
DVR USER MANUAL | 1/21
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.4 Record set: Record Parameters
6.3.5 Schedule
Go to [Main menu-Record-Record Para] to enter into the interface shown as Picture 6-14.
Channel: allows you to setup the channel you desire.
Record: allows you to setup the record status
(Enable/Disable) of each channel
Pack Duration: indicates maximum continuous record
time (15, 30, 45 and 60 min).
Pre-record: Motion detection and I/O triggered record
support Pre-record function.
Click [Main Menu-Record-Schedule] to enter into the interface shown as Picture 6-15.
[Channel] option allows you to select the channel you desire.
To setup weekly schedules, tick-select the box of the record status
you want (Alarm, General, or No Record) and then click on each
box in the schedule time line that you want this method applied
to. You can use the [Copy – To] pull-down menus and Copy
button to copy settings from one day to another day or all days.
Picture 6-14
Picture 6-15
After you complete the schedule you can activate it by clicking
the [Apply] button.
You can also click on the Default button to use the system de-
faults.
Explanation: Under the <record> menu and <search> menu,
• The original color stands for no record
• “Red” stands for alarm record
• “Yellow” stands for Motion record
• “Green” stands for normal record
Page 22
DVR USER MANUAL | 1/22
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.7 Search: Record Search
6.3.6 Main Stream
Go to [Main menu-Record-Main Stream] to enter into the interface shown as Picture 6-16.
Resolution: support D1, HD1 and CIF.
Frame rate: PAL: 1-25 f/s ; NTSC: 1-30 f/s.
Bit rate: uses can select the relative value by the drop down
menu.
Audio: When tick-selecting the option, system will record
video stream with audio simultaneously
Picture 6-16
Click [Main Menu-Search-Record Search] to enter into the interface shown as Picture 6-17
.
Channel: allows you to select the channel(s) you desire to
search.
Date Search: In the Video Search screen, users can search
for records in a specific date. To execute a video search, high-
light and select the numeric date field, then click a detailed
time frame of the specific date. The system will start the
playback from the first record of this time frame.
Picture 6-17
Time Search: In the <Search screen>, user can search for a specific date and time for a recording and view it in Playback
mode. This is useful if you are hunting for a specific recording of an incident, if you know the date and time that it
occurred.
File List: click [File List] button to enter into the [Event Search] screen shown as Picture 6-19, the video records for the
time frame will appear in the screen.
Playback Mode: You can use the Playback Control bar to operate the Fast Forward (X2, X4 and X8), Slow play (1/2, 1/4
and 1/8 speed), Play, Pause/Frame, Rewind(X2, X4 and X8). When ending playback, the DVR will return back to previous
menu shown as Picture 6-20.
Play control Bar: the play control bar will display the current playing processing as shown in Picture 6-20. (On Following
Page) If the user clicks any time at the control bar and no recording exists, the system will automatically return to the
previous menu.
Page 23
DVR USER MANUAL | 1/23
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.8 Channel Select
6.3.9 Event Search
Click [Main Menu-Search-Record search] to enter
into the interface shown below in Picture 6-18
Then tick-select the channel you want to playback;
and click [Play] button to enter into the playback
mode shown in Picture 6-19
Picture 6-18
Picture 6-19
Click [Main Menu-Search-Event Search] to enter into the interface shown in Picture 6-20.
You can highlight and double-click the desired record for playback. You can also can filter the records you want to view
based on date, time, channel and record mode search.
(First Page): Goes to the first page on the list. When you
view other pages, clicking [First] button brings you back to Page
one.
(Previous page): Goes to the previous pages of current
page.
(Next page): Goes to the next pages of the current page.
(Last page): Goes to the last page.
ALL (Select All): Allows you to select all the events on the current page.
Inverse (Select Invert): Allows you to select other events on the current page except those you have currently selected.
Page 24
DVR USER MANUAL | 1/24
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.10 File Backup
6.3.11 File Backup: File Based On Event
In the [File List] mode, if you wish to backup records, tick-select the BAK check-boxes which correspond to the records you
want and click the[Backup] button to enter into the menu illustrated in Picture 6-20
You can backup the recorded files based on event or time.
Select USB as backup device and click
[Apply] button as shown in Picture
6-21.
Select DVD as backup device and click
[Apply] button, and then you enter into
the menu shown as Picture 6-21.
Picture 6-21
After backup finished, please click [OK] button shown in Picture
6-22.
Note:
File will be saved as *.264 format.
You could playback the record files via DVR Client player. When
installing Dvrclient, system will auto install the player.
Please make sure the back-up device is connected well before
backup.
Picture 6-22
Page 25
DVR USER MANUAL | 1/25
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.12 File Backup File Based On Time
6.3.13 Media Player Backup
You can also allow back-up record files based on time. Please follow the steps below to back up these files
(Details operations please refer to section ):
1. Input start time and end time on the time edit box;
2. Click [Search] button;
3. Tick-select all the files you desire to backup;
4. Click the [Backup] on the bottom.
1. Copy one backup file to your PC.
2. Open Playback player and click “+” icon or button to find/select the backup file, and then click
[open] button.
3. Highlight the file you have selected and click [Play] button.

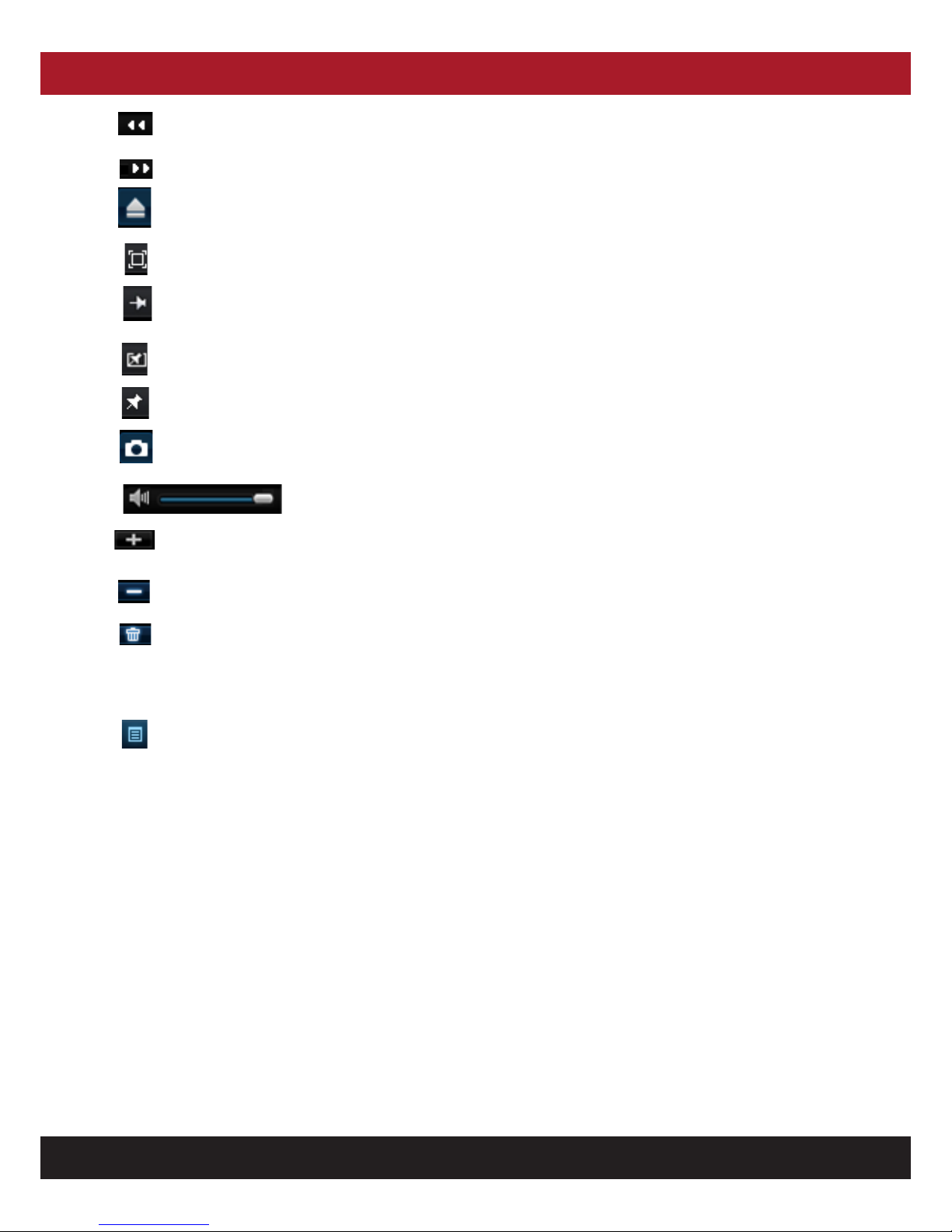

Play button: click the icon to playback the backup record;
Pause button: click the icon to pause the backup record;
Stop button: click the icon to stop the backup record;
Next: Click the icon to play next record;
Prev.: Click the icon to play previous record
Page 26
DVR USER MANUAL | 1/26
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Slow button: click the icon to play the backup record at 1/2, 1/4, 1/8 and 1/16 speed.
FF button: click the icon to fast forward the backup record at x2, x4, x8 and/or x16 speed.
Open: click the icon to open one record file.
Click the icon to enter into full screen mode.
Click the icon to never place one target to top.
Click the icon to place one target to top.
Click the icon to place the record playing to the top.
Snapshot button: click the icon to capture the live image and save the captured one to directory:\\video client\
capture.
Volume Adjust: click the icon to adjust the volume.
Add folder or file to player.
Delete one file in the list
Delete all the files in the list
Unfold or fold the list files
Advance Configuration: click the icon to set one capture path and language shown as Picture 6-23
Picture 6-23
Page 27
DVR USER MANUAL | 1/27
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.14 Log Search
Go to [Main menu-Search-Log] option to enter into the Log search interface shown in Picture 6-25.
Picture 6-25
Here you can preview the log information you have searched.
Click [Backup] to export all the log information which is
listed below in picture 6-26 (For other button functions
please refer to previous section Event Search)
Picture 6-26
6.3.15 Network: Network Set
Click [Main menu-Network-Network] to enter into the below interface shown as Picture 6-27.
After selecting network mode - such as DHCP, PPPOE or static
allocation- and setting up web ports you can visit DVR remotely
through a network or internet.
UPnP (Universal Plug and Play) function: If router supports UPnP
function and you set <UPnP> to “On”, the system will
automatically forward port to router.
DNS: DNS server is generally provided by local ISP. Enter the IP address of your DNS here.
Picture 6-27
Page 28
DVR USER MANUAL | 1/28
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
When selecting DHCP from the Type, A router will automatically
allocate IP address for your DVR. After restarting each time, the
IP address captured by your DVR may be different. So, port
forwarding is required when you visit a remote DVR.
1. Select DHCP and click [Save] button;
2. Exit and restart DVR;
3. Input media port and web port
4 Set IP address captured by DVR and web port to a router
5 Visit a remote DVR http: // public net IP: web port (such
as: 8080) http: //intranet IP: web port (such as: 8080 - only use for
Intranet)
6 Input the IP address of your domain name server
Picture 6-28
Please Note:
1. All the parameters you set are available only when you click [Apply] and after the system is restarted.
2. Users need to change MAC addresses when there are multiple DVRs at the same local area network. For details
shown in Picture 6-28, please refer to section System Information.
When selecting Static from the Type, user can directly input IP
address, Subnet Mask, Gateway and DNS
1. Set your net type to Static;
2. Set media port number (such as 9000), and the port
needs to be forwarded to a router.
3. Input web port number (such as 8080), and the port
needs to be forwarded to a router;
4. Input a specified IP address to [IP address] column;
5. The Subnet Mask, gateway and DNS server should be
consistent with your router’s configurations.
6. Input DNS address. Please check router first. The setting
should be consistent with the router’s
7. Click [Apply] button
8. Now you could remotely visit the DVR via IP http: // pub-
lic net IP: web port (such as: 8080) http: //intranet IP: web port
(such as: 8080 - only use for Intranet) Shown in Picture 6-30
Picture 6-29
Picture 6-30
When selecting PPPoE form the Type, user can input user name
and password provided by ISP and set Media and Web port. And
now you can visit your remote DVR by using the IP address cap-
tured after registering a domain name and web port and con-
nect to your DVR via public network.
Page 29
DVR USER MANUAL | 1/29
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.16 Router’s Port Forwarding
6.3.17 Sub Stream
Port forwarding is required when you want to access the DVR connected to the router from outside of the router’s
network. If PPPoE is selected, port forwarding is not required.
1. Input router’s IP address from IE-based browser to open the
Router configuration interface shown as Picture 6-31;
2. Click [Transmittal rule] option to take you to the port the-
forwarding instructions for your router;
3. The DVR IP address for the intranet should be
<192.168.1.101>, you should forward server port and web port to
this IP address respectively.
4. Now user can visit the DVR remotely.
Picture 6-31
Please Note: The router’s port forwarding interface may be different, however, when entering into virtual server, users
will always need forward port (range: 1025~65535) of router to IP address of DVR allocated or automatically captured,
and select [All] or [Both] in corresponding protocol column and save the above setting.
The above steps may differ from the router device depending on the manufacturer.
Go to [Main menu-Network-Sub Stream] to enter into the interface shown as Picture 6-32
Video: allows you to open or close the sub stream output. If you
select “Enable” the system will select sub-stream preview.
Frame rate: allows you to set net transmittal frame rate. Users
can select the relative value by the drop down menu.
Bit rate: allows you to set net transmittal bit rate. Users can
select the relative value by the drop down menu.
Audio: When tick-selecting the option, system will record video
and audio simultaneously.
Picture 6-32
Page 30
DVR USER MANUAL | 1/30
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.18 Email Set
6.3.19 Mobile Set
Click [Main Menu-Network-Email] option to enter into the email set interface shown as Picture 6-33
SSL: is a security link transport protocol. You can encrypt your
communication info (including your email) using SSL to prevent
hackers from monitoring your email or communication info and
even your password.
Please set SSL to “On” via Gmail.com server, and set to “Off” via
other mail server.
SMTP Port: indicate one kind of mail transmittal port opened
by Simple Message Transfer Protocol (SMTP). The port number for
most mails is 25 except Gmail server (Port No.: 465).
SMTP server: indicates server address you used.
Sender address: indicates sender’s email address. The email
address should be consistent with the server you use. That is to
say, when you use email address – [email protected], the according
server should be smtp.gmail.com.
The DVR is currently compatible with mobile phones Andriod, Windows Mobile or Symbian operating systems and Iphone
and Blackberry on 3G networks.
Click [Main menu-Network-Mobile] to enter into the [Mobile]
interface shown as Picture 6-36.
User Name: indicate user name of DVR,
Password: indicate user password of DVR, and also support
numbers and characters and 1~15 bits length
Mobile port: Mobile monitoring port. Setting range is between
1024 and 65535.
Picture 6-34
Picture 6-35
Picture 6-36
Please note that the mobile port can not duplicate the port you
have set to the networks to.
Page 31
DVR USER MANUAL | 1/31
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.20 DDNS Set
DDNS (Dynamic DNS) is a service that registers a domain name and the floating IP address with the DDNS server so that
the domain name can be routed to the IP address; even if the IP address is changed in a dynamic IP system.
Users can visit a remote DVR by using DDNS on above three types (Static, DHCP and PPPoE)
You can apply for a DDNS account for free at the web
www.dyndns.org.
You can register on DVR2009.3322.org or dyndns.org website
and get a domain name, user name, and password.
Server: select DDNS provider
Host name: input the host domain name you have registered
at dynamic domain name system, such as: DVR2009.3322.org;
User Name: Input the user name registered before applying
for a domain name;
Password: Input a password you set when registering a user
name.
Click [Apply] button and restart the DVR; and then enter the
domain name (such as: http://superdvr.3322.org:8080) to visit
your remote DVR.
6.3.21 Alarm: Motion
Click [Main menu-Alarm-Motion] to enter into the menu shown in Picture 6-38
Channel: allows you to enable/disable the motion function
for any channel.
Area: Click the [Setup] button to enter into area setup
interface shown as Picture 6-39. (On following page)
Sensitivity: allows you to set the sensitivity level of motion
detection from high to low with 8 being the most sensitive
option.
Alarm out: allow you connect external alarm sensor.
Latch time: You can set how long the buzzer will sound when
object move is detected (10s, 20, 40s, 60s);
Show Message: You can set a show message on the screen
when the motion alarm is detected.
Picture 6-37
Picture 6-38
Buzzer time: you can set how long the buzzer will sound when motion is detected (10s, 20, 40s, 60s);
Send Email: Allows you to set the alarm images to be sent to a specified email.
Page 32
DVR USER MANUAL | 1/32
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.8.2 Alarm Set
Full screen Alarm:
The function is defaulted to “On”. When the motion is detected, the corresponding channel will
be switched to the full screen mode.
Record Channel: the record channel will be activated when the motion is detected.
Post Recording: you can set how long the alarm record will last when alarm ends (30s, 1minute（2minute（5minute).
Copy: allows you to copy current channel parameters to any other channel or all channels.
Picture 6-39
The channel will be divided into a 15X12grid (PAL mode) or a
15X10grids (NTSC mode). When any object moves into the motion
detection area (displayed in red) the motion detection will be
triggered. (In the semi-transparent area the motion detection is not
activated.)
Click [Main Menu-Alarm-Alarm In] to enter into the menu shown in Picture 6-40. Now you can adjust alarm setting
based on different variables.
Alarm Type
No.: Allows you to select a specified channel
I/O Status: allows you select the three options – NO (Normal
Open), NC (Normal Close) and OFF. Set to “Normal Open”, I/O
status Alarm will be activated while sensor is ON; set to
“Normal Close”, I/O status alarm will be activated while sensor
is OFF; set to “OFF”, I/O status alarm will not be triggered.
Alarm out: allows you to connect the external alarm sensor.
Latch time: you can set how long when the buzzer will sound
when external sensor alarm is detected (10s, 20, 40s, 60s);
Show Message: You can set show message on the screen
when a sensor alarm is detected.
Buzzer time: you can set how long the buzzer will sound when sensor alarm is detected (Off, 10s, 20, 40s, 60s);
Send Email: Allows you to set the alarm images to be sent to a specified email.
Full screen Alarm: The function is defaulted to “On”. When motion detection or an external alarm is triggered, the
corresponding channel will be switched to the full screen mode.
Record Channel: allows you to select the channels you want to record.
Post Recording: you can set how long the alarm record will last when the alarm ends (30s, 1minute, 2minutes,
5minutes);
Copy: allows you to copy all the settings from one channel to other.
Picture 6-40
Page 33
DVR USER MANUAL | 1/33
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Alarm Type Function
Video Loss
Sends an alarm when the DVR can’t receive video signals (such as, camera
damage, a cable is broken or damaged or there is a power supply malfunction).
Motion Detection
When an object moves into the motion detection area, an alarm will be triggered.
You can adjust the sensitivity level to suit the needs of your application
environment.
I/O Status
System can convert the alarm signal triggered by an external sensor into signal
identified by system.
HDD loss
When a Hard Drive is not detected (HDD damage, power supply malfunction), or
HDD auto-overwrite is off, or there is not enough system memory, an alarm will be
triggered.
6.3.23 Device: Hard Disk Drive Set
Click [Main menu-Device-HDD] to enter into the menu shown as Picture 6-42.
Picture 6-42 This figure is only for D9016 / CIF model references
When the DVR is connected to a HDD, the system will automatically detect if the HDD is connected or not;
If the cable connected to the HDD is loose or the HDD is abnormal, the HDD status will be shown as “No Disk”.
If the HDD needd to be formatted,the status will be shown as “no format”, otherwise, the HDD status will be
shown as “Normal”
Picture 6-43
This figure is only for D9016 / CIF model reference
Page 34
DVR USER MANUAL | 1/34
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.24 PTZ Set
No.:
Indicates the HDD No pre-seted by system.
Status: This will be available only when the HDD has been formatted.
Total Space – Total size of the hard drive installed. ( 8 CH DVR = 500 GB
16 CH DVR = 500GB )
Free Space – Total amount of free space available on the hard drive.
Useable Rec. Time – Free space available given in hours.
Auto-overwrite – When set to ENABLE the DVR will record over the oldest files on the hard drive. The DVR will
always be able to record events as they happen, however, it does means that you’ll need to get important events
off the HDD before they’re overwritten; if overwrite is set to DISABLE the DVR will stop recording once the DVR
is full. Whilst you will not lose any old footage, you do run the risk of missing new events as they happen.
Be sure you want to do this before selecting it.
HDD Format – Formatting the HDD will erase all data (i.e. footage) which is stored on it, and re-create the FAT
(file allocation table).
Note: It is an important first step when configuring your DVR to make sure that the hard drive (HDD) options are
correctly set. We strongly suggest that you format the HDD before you start the first recording.
Click [Main Menu-Device-PTZ] to enter into the below window shown as Picture 6-44
Picture 6-44 This figure is only for D9016 / CIF model reference
You can select the channel you desire to control and set PTZ protocol (Pelco-D or Pelco-P), Baud Rate (1200, 2400,
4800, 9600), Data bit (8, 7, 6, 5), Stop bit (1, 2), Parity Check (None, Odd, Even, Mark, Space), Address Code and
Cruise status respectively. Please note the PTZ device can be activated only when a channel in connection with
the PTZ camera is selected.
Page 35
DVR USER MANUAL | 1/35
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.25 Serial Set
6.3.27 DST Set
Enter into the [Main menu-Device-Serial] Menu shown in Picture 6-45
To operate the DVR via a keyboard, it is required to set the
communication protocol.
Baud rate: set baud rate of serial communication.
Data bit: set data bit of serial communication.
Stop bit: set stop bit.
Parity Check: set parity check to <None> or other.
Picture 6-45
6.3.26 System: General
Click [Main Menu-System-General] to enter into the menu shown in Picture 6-46
You will be allowed to modify system date, time, date/time
format, language, video format and auto logout.
Picture 6-46
Picture 6-47
Click the [DST Setup] button to enter into the menu shown
in Picture 6-47.
Here you can set the DST status and mode.
Page 36
DVR USER MANUAL | 1/36
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.28 Network Time Protocol (NTP) Service
6.3.29 Users
Click [Main menu-System-General] to enter into the menu shown as Picture 6-48
NTP Service: Allows you to enable/disable the NTP function.
Server Address: currently supports pool.ntp.org.
Time Zone: System supports thirty Time Zones.
Update now: Click the [Update Now] button to change the
above NTP set.
Picture 6-48
Picture 6-49
Please Note: The above change will be available only when the system is connected to the internet; and
When the NTP function is set to “Enable”. The system will calibrate the time at every 00:07:50 and every
start-up.
Click [Main Menu-System-users] option and you enter into the menu shown in Picture 6-49
The model supports up to seven users with one Admin account and six normal users.
Click [Edit] button to enter into the [User Edit] menu shown
in Picture 6-50 (On the following page)
Page 37
DVR USER MANUAL | 1/37
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
The user names can consist of eight characters, passwords
can consist of between 0~9 and its fixed-length is 6 bit.
Picture 6-50
Picture 6-51
[Admin] is authorized to set the normal user’s authority
levels.
Log Search: allows you tocheck the entire system log.
Parameter: allows you to set all the parameters.
Maintain: allows you to update version, recover
ex-factory value, device reboot and shut down.
Disk Manage: allows you to manage and control the
HDDs.
Remote Login: allows you to remotely login to the DVR.
Rotate Control: allows you to sequence live screens for
all the channels.
Manual record: allows you to manually start/stop record.
Backup: Tick-select the option, the user is allowed to
backup the recordings of all the channels.
Live: Tick-select the option and the user is allowed to view
all the live images for all the channels.
Playback: Tick-select the option and the user is allowed to
playback the recording you selected.
PTZ control: Tick-select the option and the user is allowed
to perform the PTZ operation for the selected channel.
Page 38
DVR USER MANUAL | 1/38
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.3.30 Information
Click [Main Menu-System-Info] and then enter into the menu shown in Picture 6-52
Picture 6-52
Her users can check the current Device name, Device ID, Device
type, Device S/N, MAC address, IE version, Software version,
Panel version etc.
6.3.311 Advanced: Maintained
Click [Main menu-Advanced-Maintain] to enter into the maintain interface shown as Picture 6-53
Auto Reboot: you can set the system to auto reboot
regularly (daily/weekly/monthly) as per user’s needs.
Load Default: If [Load Default] is selected, you can
initialize the system to the factory defaults.
Reboot: Click [Reboot] button to manually restart DVR
system.
Shutdown: Click the [Shutdown] button to shutdown the
device.
System Upgrade:
1. You can insert a USB memory stick into the USB port
for updating;
2. Do not take out the USB memory stick or break the
connection during the update.
3. When the update is done, system will be
automatically restarted.
4. Please manually recover factory default setting after
system rebooting.
Picture 6-53
Page 39
DVR USER MANUAL | 1/39
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.11.2 Event
Click [Main menu-Advanced-Events] to enter into the <Events> menu shown in Picture 6-54
Event Type: support the three abnormal types: Disk No Space,
Disk Error and Video Loss.
Enable: allows you to activate the abnormal alarm.
Alarm out: select [Enable] or [Disable]
Latch time: you can set how long the buzzer will sound when
the external sensor alarm is detected (10s, 20, 40s, 60s);
Show Message: You can set to show a message on the screen
when sensor alarm is detected.
Buzzer time: you can set how long the buzzer will sound
when an abnormal alarm is triggered (Off, 10s, 20, 40s, 60s);
Send Email: Allows you to send the alarm images to a
specified email.
You can click [ ] icon to lock system interface when leaving
the DVR. If you want to login to the DVR again, you would input
your device code, user ID and password to unlock the menu shown
inPicture 6-55
Please Note: The administrator has full authority over the Main
Menu operations and can limit a common user’s operation.
Picture 6-55
Picture 6-54
The model displays 4/8 live images in the sequence of single, 4-split and 9-split modes.
If you enter into 4-split mode, the live images will be displayed in turn CH1~4, CH5~8…and CH13~16.
If you enter into 9-split mode, the live images will be displayed in turn CH1~9 - CH10~16.
6.4 Menu Lock
6.5 Screen Mode
Page 40
DVR USER MANUAL | 1/40
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
We introduced setting PTZ parameters previously in section 6.3.24 – PTZ Set. Here we will discuss how to operate
the PTZ controls.
Click the [ ] icon to enter into [PTZ control] menu shown as Picture 6-56. Now users can control the cameras
with Pan, Tilt and Zoom capabilities.
Click [Zoom-/+] button to zoom in / out the image; Click [Focus -/+] button to focus the image; Click [Iris -/+]
button adjust iris to open or close.
Cruise Set
Open auto cruise function on the PTZ setting menu if you want to setup cruise function (system default: off), and
set up cruise channel, cur point and total quantity and stop time etc
How to set pre-set point
Total: set up pre-set point quantity
Cur Point: indicates starting point cruised. System default point is 01. The model support up to 255 pre-set points.
Stop time: sets the stop time at each point
GO TO: allows you to go to a specific preset point.
Set: allows you to set a set of specific preset points of a PTZ camera.
1. Select a camera you desire to set a preset point;
2. Adjust the camera in a desired direction;
3. Click [Set] to set the point as preset point;
4. Click [Save] to save the preset point;
5. Follow the above step to add one more preset point.
Save: save all the preset points
Clean: allows you to delete one selected preset point.
Note: Up to 254 pre-sets per one camera can be stored. However, the actual preset quantity differs depending
on the PTZ performance.
Picture 6-56
6.6 PTZ Control
Page 41
DVR USER MANUAL | 1/41
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
6.7 PIP Mode
6.8 Record Search
6.9 Mute
6.10 Manual Record
6.11 Stop Record
6.13 Start Cruise
6.12 Start Sequence
You can display a Picture-in-Picture in live mode. PIP has two display modes, including 1X1 display mode and 1X2
display mode, as shown below.
1x1 display mode 1x2 display mode
You can enter into the [Record Search] menu from Pop-up menu conveniently and quickly and search/playback
the record histories. Refer to Record search as detailed in Section 6.3.7
Click the [
] icon, or press the <Mute> button on the front panel of the DVR and Remote controller to mute
of the sound.
You can start manual record function, or you can click the [
] button on the Front panel or Remote controller
to activate manual record.
To stop recording quickly, please click the icon [
] or [Stop] button on the front panel of the DVR or remote
the controller.
In the single mode, when entering into [Start sequence] menu, auto-sequence will be conducted at the set
interval.
If multiple presets are specified, the PTZ camera will automatically move to the entire preset one at a time whilst
the user activates [Start Cruise
] options. If you want to stop cruise, please click [ ] icon on the [Tool]
column.
Page 42
DVR USER MANUAL | 1/42
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
CHAPTER 6: WEB APPLICATION MANAGER
7.1 Plug-in Download and Installation
Open your web browser and input the IP address and web port of DVR, for example:http://172.18.6.202:8080/ .
If your computer is connected to internet, it will download and install “ActiveX” Plug-in automatically. If your
computer system is Vista, you may need to setup the user authority. Shown below select: Start - setup - control
panel Tick “√” use UAC (User Account Control) to help protect your computer and confirm OK.
Vista system:
Vista
Win-7 system:
WIN7-1
Picture 7-1
WIN7-2
Reminder: If the plug-in program is not downloaded successfully, please check if your browser’s safety level or
firewall setting is too advanced. Please open IE - Select tools - Internet options - Internet Custom level - Enable
the options (shown in Picture 7-1)
If running the web application for the first time, you need about one minute
to finish download and install plug-in, please wait patiently.
Please Note: If you want to use the undated webcam at one computer which
you already login before, please delete the old IE webcam and click [Start Run] to input the command characters: “regsvr32/u HiDvrOcx.ocx”, then login
again.
Page 43
DVR USER MANUAL | 1/43
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.2 Web Application Manager Log-in
7.3 Live Interface
After plug-in installation, please input your user name, password and client port number; and select <Main
stream> or <sub stream>, and then tick-select <Open All Channels Preview>;
Now click [Log-in] button; you are now allowed to access at
the remote DVR and monitor live video images using Web
browser anytime from virtually anywhere.
Please Note: If the defaulted password is empty, the system
allows the Administrator to set new passwords as per the
instructions given in section configuration [System set - User Configuration] menu.
Picture 7-2
After successfully logging-in to the web manager; you will enter into the Live interface shown in Picture 7-3
Picture 7-3
7.3.1 Menu Bar
The Menu bar includes [Live], [Replay], [Configuration], [Path Configuration] and [Logout] options
Page 44
DVR USER MANUAL | 1/44
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.2 Live Display
After running the Web Application Manager on your local PC, the system will be defaulted to enter into the
<Live> interface shown in Picture 7-3 on the previous page. You can click the [Play] button to Open/close live images and enter into on-spot record and Capture, quad, 9-split or 16-split mode by operating the control bar on
the bottom of screen.
By clicking the icon this will close/open the current channel’s live mode
Or you can click on any <Live> window to get the menu as shown in Picture 7-4
Volume switch
Record icon: recordings will be saved to a specified location after starting record.
Snapshot function: allows you to capture live images and save to a specified location.
The image should be saved as *.BMP file format.
Show bit rate: show current bit rate;
Original Proportions: show original proportions.
Picture 7-4
:CH Display mode
:Allows you to open all the <live> channels
:Allows you to close all the <live> channels
:Displays previous channel
:Displays next channel
:Click the icon to enlarge current window to full screen; by right-clicking you can now select
<Exit full screen>
Page 45
DVR USER MANUAL | 1/45
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.3 PTZ Control
7.3.4 Video Control
7.3.5 Playback
1: PTZ moving Direction control: allows you to control the PTZ camera direction.
And the middle button is called [Auto-cruise] button.
2. PTZ speed control bar
3: Iris, Focus and Zoom control
4: Preset setting/clear; Start cruise /stop cruise
Picture 7-5
Adjust video Hue;
Adjust video brightness;
Adjust video Contrast;
Adjust video saturation;
Restore factory default settings.
Picture 7-6
Click [ ] icon to enter into <playback> menu shown Picture 7-7 below.
Picture 7-7
The Web Application Manager supports up to 4 channels playback simultaneously.
Page 46
DVR USER MANUAL | 1/46
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.6 Record Search
Firstly, select one day you want to check and tick-select <synchronise Playback> and the channels you desire to
playback shown as Picture 7-8
Picture 7-8
Secondly, select record type (Normal record, Alarm record and All) and then click the search button shown as
Picture 7-9. On the time axis, at the bottom of the screen shows that red is for alarm record, yellow stands for
normal record and (original part green) stands for no record during this period
Picture 7-9
If you tick-select the synchronised option, that means the selected channel will playback simultaneously;
alternatively, you can separately control the channels playback.
Thirdly, Click [ ] icon to start the record playback. When mouse cursor hovers on the time axis, the current time
will appear in the screen.
Click [ / ] icon to zoom in/out the time bar display ratio shown as Picture 7-9 above.
Page 47
DVR USER MANUAL | 1/47
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk

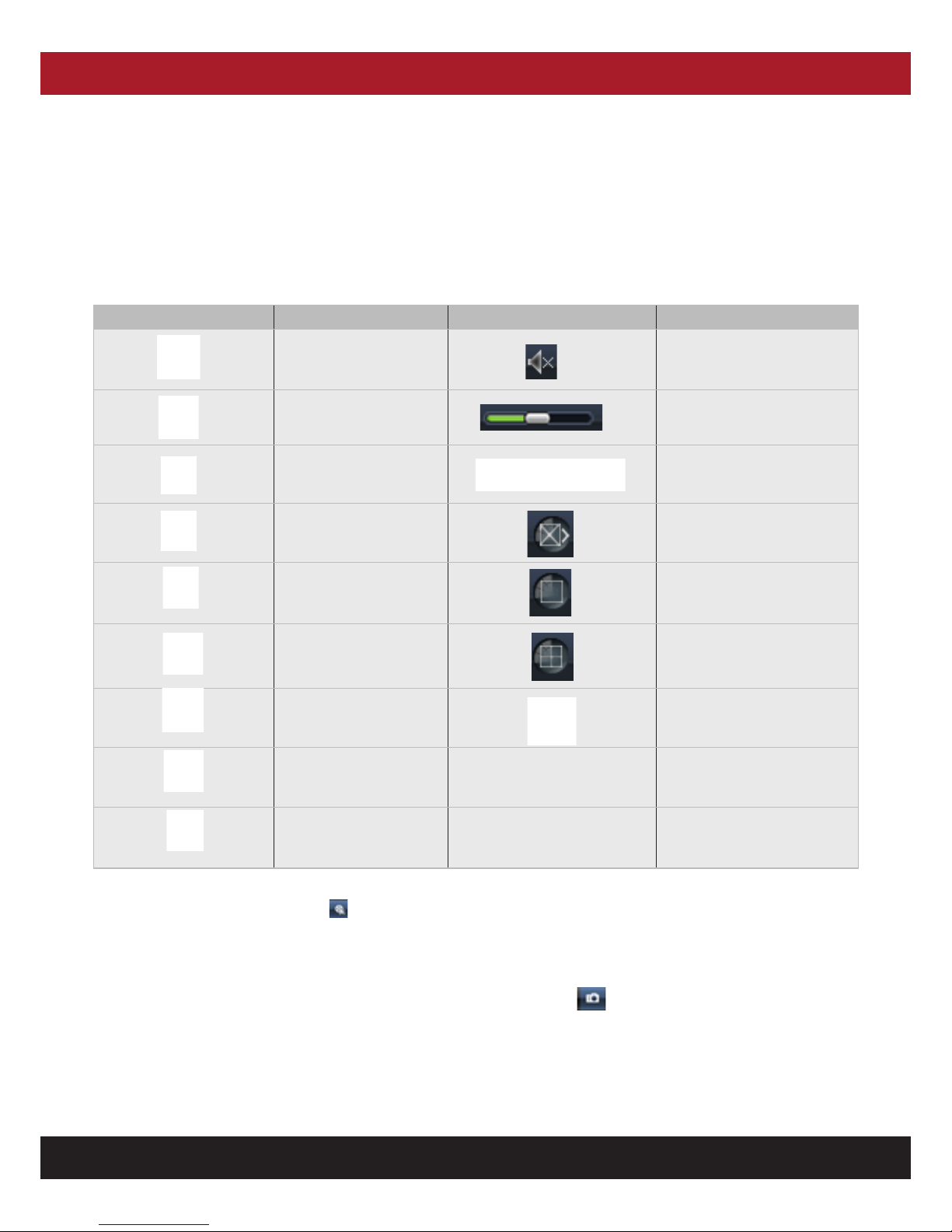

7.3.7 Playback Control
The playback control bar is shown in picture 7-10 below:
Picture 7-10
Playback control descriptions:
Key Description Key Description
Play Open/close audio
Pause Volume adjust
Stop
Playback control bar
(x1/2,1/4,1/8, normal, x2,
x4, x8)
By frame Stop all play backs
Clip Single channel mode
Capture Quad mode
Download Full screen
Open all the channels
Stop all the channels
Record file clip
After opening playback, click the [ ] icon to clip the selected file; and click again to stop the clip function.
Record clip file will be saved as *.264 format.
Snapshot function
Move the mouse cursor to the channel you want to capture, and click [ ] icon to capture the live images
remotely. After capturing the images successfully, you are allowed to save it to a specified location, as shown in
Picture 7-11. The captured file will be saved as *.BMP file format
Page 48
DVR USER MANUAL | 1/48
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-11
Record file download
Click the [ ] icon to enter into the menu shown in Picture 7-12.
Picture 7-12
Tick-select the record files you want to download and click [Start download]
The System will download the record files in turn and save to local PC.
Page 49
DVR USER MANUAL | 1/49
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.8 Configuration
7.3.9 Display Configuration
Click the [Configuration] option to enter into the [Config] menu shown in Picture 7-13 below. Here you set
Display configuration, Record, Network, Alarm, Device, System parameters and Advanced according to your
actual request.
From the [Display] option you can navigate to Live and Privacy zone settings.
1. Live: Allows you to modify the channel name, Position, Show time and Record time. If the show time is
set to <disable>, the current system time will not appear on the screen on Live mode; and if the record time is set
to <off>, the system time can’t be found in the record file.
Picture 7-13
2. Privacy zone: Each channel could be set up to four privacy zones as shown in Picture 7-14 below. For
details of parameters please refer to section Privacy Zone. If you want to delete a privacy zone, please firstly select
one zone, and then click the <Clear> button and click <Save> on the right corner.
Picture 7-14
Page 50
DVR USER MANUAL | 1/50
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.10 Record
Click the <Record> option to navigate sub-options: Record parameter, Schedule and Main stream.
1. Record Parameters: Under the [Record parameters] option, you can set channel, record enable, pack
time and Pre-record status shown as Picture 7-15
Picture 7-15
2. Schedule: For detailed parameters please refer to DVR local setting.
Green stands for Normal record; Yellow stands for Motion detection; Red stands for I/O triggered record.
See Picture 7-16 below.
Picture 7-16
3. Main Stream: Detailed settings please refer to DVR local setting. Here users can modify the resolution,
frame rate, Bit rate and audio of the record channel. See Pictures 7-17 on the next page.
Page 51
DVR USER MANUAL | 1/51
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-17 This figure is only for D9016 / CIF model reference
7.3.11 Network Parameters
Select <Network> option to navigate to it’s sub-options: Network, sub stream, Email, mobile and DDNS configuration.
The model supportd three network type, including Static, DHCP and PPPoE
Static: System default <Static> as its network type. Users can allocate IP and perform Port forwarding for the
DVR according to a different router. When set <UPNP> to “On”, the user does not need to set port forwarding.
Once you modify the network parameters successfully, the DVR will automatically restart.
Picture 7-18
DHCP: Set the network type to “DHCP” shown in Picture 7-19 on the next page. Relative parameters should be
consistent with the DVR local settings.
Page 52
DVR USER MANUAL | 1/52
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-19
Set network type to “PPPoE” shown in Picture 7-20 below. Its user name and password should be consistent with
the DVR local settings.
Picture 7-20
Sub stream (shown in Picture 7-21 on the next page): Relative parameters should be consistent with the
DVR local settings.
Page 53
DVR USER MANUAL | 1/53
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-21
Email setting: Click on [Email setting] to allow you to set the alarm email configuration parameters shown in
Picture 7-22 below. Detailed parameters should be consistent with the DVR local setting.
Picture 7-22
Mobile: Its user name, password and mobile port No should be consistent with the DVR local settings shown in
Picture 7-23 on the next page.
Page 54
DVR USER MANUAL | 1/54
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-23
DDNS Setting: After the user applies for a DDNS service shown in Picture 7-24 below, you can enable <DDNS>
function under any one network type mode (Static, DHCP and PPPoE). Now you remotely visit the DVR through
the domain name (http://domain name: port No). Settings should be consistent withthe DVR local settings.
Picture 7-24
Page 55
DVR USER MANUAL | 1/55
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.12 Alarm Set
Click <Alarm> option to navigate to its sub-options: Motion, I/O Alarm shown in Picture 7-25 below.
Picture 7-25
Motion Detection: allows you to configure its <Sensitivity>, <Alarm out>, <Alarm record> and <Alarm Capture>
etc. Settings should be consistent with the DVR local settings (Shown in Picture 7-26).
Picture 7-26
I/O Alarm: allows you to configure <I/O Status>, <Alarm output>, <I/O Alarm record> and <Alarm email> etc.
Settings should be consistent with the DVR local setting (Shown in Picture 7-27 on the next page).
Page 56
DVR USER MANUAL | 1/56
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.13 Device
Picture 7-27
Click <Device> to navigate to its sub-options: HDD and PTZ.
HDD: allows you to check out HDD status and overwritten time shown in Picture 7-28 (On the next page).
Settings should be consistent with the DVR local setting.
Picture 7-28
PTZ Configuration (shown in Picture 7-29 on the next page) setting should be consistent with the DVR local
settings.
Page 57
DVR USER MANUAL | 1/57
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-29
7.3.13 System
Click <System> option to navigate to its sub-options: General, Users and information.
General: Users could check the DVR’s language and video system, and also set the system time, date format, DST
and NTP shown in Picture 7-30 below. Settings should be consistent with the DVR local settings.
Picture 7-30
Users: Allows you to configure user name and password shown in Picture 7-31(On the next page). Settings
should be consistent with the DVR local settings.
Page 58
DVR USER MANUAL | 1/58
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-31
Information: Allows you to check the device name, number, type, MAC address, software version, IE version and
hardware version shown in Picture 7-32 below.
Picture 7-32
Page 59
DVR USER MANUAL | 1/59
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.14 Advanced
Click <Advanced> to navigate to its sub-options: System update, Load default, Events and system maintain etc.
System Update: allows you to upgrade the DVR system remotely shown in Picture 7-33 below.
Picture 7-33
Please follow the below steps to upgrade the system:
a. Select the upgrade file path shown in Picture 7-34. Please note that the format of upgrade file is *.sw.
Picture 7-34
a. Click <Start update>, the processing bar will display current upgrade status shown in Picture 7-35 (On the
next page).
Page 60
DVR USER MANUAL | 1/60
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-35
Load Default: allows you to recover the defaulted parameters of the DVR remotely shown in Picture 7-36.
Settings should be consistent with the DVR local settings.
Picture 7-36
Events: allows you to configure abnormal type, buzzer output time, alarm email and show message shown in
Picture 7-37 (On the next page). Settings should be consistent with the DVR local settings.
Page 61
DVR USER MANUAL | 1/61
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Picture 7-37
Maintain: allows you to set the auto system maintain for the DVR remotely shown in Picture 7-38 below. Settings
should be consistent with the DVR local setting.
Picture 7-38
Page 62
DVR USER MANUAL | 1/62
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
7.3.16 Logout
7.3.15 Local Setting
Under the <Local setting> option, users can set the record path of record file (Live record and Playback clip file),
download path of remote file, Snapshot path, File type (H.264 and AVI) and Internal shown in Picture 7-39 below.
Picture 7-39
Click the [ ] icon to return back the log-in interface.
Page 63
DVR USER MANUAL | 1/63
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
CHAPTER 7: APPENDIX
8.1 Operation Function Table
Type Title Description Page
Basic Setting
Time setting
Set system date/time,
display format and daylight saving time
26
Language select
Set system language
27
Channel setting
Set CH title and position; adjust image color
parameter value; set CH
display to ON / Off and
time display/recording
time overlaying to On/
Off.
9
Record setting
Set image quality, resolution, volume, record mode
an pack time
10
Record search
Time based search, channel
based search and rec. mode
based search.
12
Record Playback
Specified time playback,
scheduled playback, file list
playback
12
Playback mode
Play, play frame by frame,
multi-speed forward and
multi-speed rewind
13
File backup
USB and removable HDD
backup, DVD recorder backup and network download
13
HDD Manage
Check HDD status, usage
space, setting HDD autooverwrite
15
VID/AUD Setting
Adjust VGA resolution,
select system and volume
control, set interval and
channel display
26
Page 64
DVR USER MANUAL | 1/64
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Advanced Setting
User password
Set or modify user password
26
Alarm setting
Set HDD loss, HDD space,
video loss, I/O status, alarm
management and Email
alarm notifications
15
Motion detection
Set on/off status of MD;
select sensitivity and set motion detection area.
25
PTZ setting
Select CH and set PTZ protocol, baud rate and PTZ
address for the CH
19
Mobile surveillance
Set user name, password
and server port.
19
System maintenance
Set system auto maintenance, maintenance time
regularly, system upgrade,
ex-factory default value
recovery and manual restart
system
27
Display mode
PIP display, Zoom in/out,
split mode, auto sequence
and cruise display
Network Setting
Network and Port
setting
Select network mode and
set net-viewer port, web
port, DNS and DDNS parameters.
10
Network Function
Live display
Real time video surveillance
remotely
32
Remote record
Set record mode and status
of DVR remotely
32
Remote playback
Check local record history
via network
32
PTZ control
Remotely control PTZ camera, position, focus, zoom
and iris etc.
37
parameter set of
DVR remotely
Set local CH display, record,
alarm, PTZ control parameter value via network
32
Network download
Backup record file via network
32
Page 65
DVR USER MANUAL | 1/65
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
Auxiliary Function
System info
Check device ID, software
version and MAC address
27
（（
In addition to illustrating
picture, Parenthesis generally indicate optional parameter value of previous menu.
Menu button
Enter
Clicking the button will save
current parameter.
Default Recovery
Clicking the button will recover current parameters to
the system defaults.
ESC
Clicking the button will exit
the current menu.
Basic application
Guide
（1Time setting
Adjust system time
26
Format HDD
15
（2HDD Manage
Set network type and web
port (except PPPoE, which
other type needs forward
web port router of DVR.
10
Modify MAC address
27
（3Net setting
Set relative parameter
19
PTZ setting, Record set and
Language select etc
（4System Info
（5Mobile Monitoring
Other
Page 66
DVR USER MANUAL | 1/66
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
8.2 Record Alarm Settings
Please refer the below matrix: “” stands for “only alarm but no record”; “AMR” stands for “alarm record”; “NLR”
stand for “normal record”; and “NOR” stand for “ no record”.
Once the alarm is triggered, alarm icon will occur, and when many alarms are triggered, alarm remarks will occur
on the screen.
In the record mode, [
] icon or [ ] icon will appear on the screen. But when [ ] icon and [ ] icon appears
on the screen it means that a motion alarm has been triggered. When the [ ] icon appears on the screen, that
means HDD alarm has occurred.
Record alarm
setting
Alarm
icon
Record Mode
Scheduled recording
Record after power on
AMR NLR NOR Manual Record
MD alarm
AMR AMR NLR NLR
Alarm mode
I/O triggered
alarm
AMR AMR NLR NLR
HDD loss, HDD Full
Video Loss Video Loss （
（
T
T
T
T
T
T
T
T
T
T
T
T
Page 67
DVR USER MANUAL | 1/67
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
1. Q: What can I do if the system does not detect the HDD?
A: Check if the power supply system is properly connected and the data cord and power cables are securely connected
2. Q: We have changed the password but can’t remember the new password, how can we access the system?
A: If you forget system password, please consult with the service personnel.
3. Q: We are not getting any video signal on the DVR, what is wrong?
A: Check the camera video cable and connections; or check the monitors video cable and connections; or
confirm that the camera has the power and / or check camera lens setting.
4. Q: Why do some of the channels display just a blank screen even if they receive video sources?
A: Check if the camera is connected to the system properly; check if the camera is properly supplied with
power.
5. Q: Can the DVR have problems if it gets too hot, how can I prevent this?
A: The DVR has a fan to help it dissipate heat while it is running. Please place the DVR in a place where
there is good air circulation and away from heat sources to increase stability and life span of the DVR.
6. Q: “Record” Can not work normally, how do I deal with this?
A: Check if the current screen is in Play mode, pressing [Stop] button to exit the Play mode and then you
can enter into the [Record] function.
7. Q: Why is the Remote Controller not working normally?
A: Check if the battery needs replacing; or check if the Remote Controller is broken.
8. Q: Can we record whilst playing-back?
A: Yes, you can do it. The system records whilst playing-back.
9. Q: Can we erase some of the recorded files from the DVR.
A: Considering the safety factor, you can’t delete the recorded file directly from the device. When you
actually erase all the recorded files, please select HDD format function
10. Q: Why does the Buzzer keep sounding?
A: Please check if the motion detection is on and if the system has detected motion, make sure the HDD
is being detected and has sufficient space available; check if video output has been lost.
11. Q: Why can’t stop [Stop] function?
A: Pressing [Stop] button only can stop manual record. If you want to stop Scheduled record, please revise
to [No Record] during this period.
8.4 Troubleshooting
8.5 Usage Maintenance
1. Please make sure the DVR is kept away from heat sources.
2. Clean regularly, keeping the DVR aeration and not stacking on top of other devices will allow suitable
heat dissipation.
3. Please do not plug in RS-232 and RS-485 when power is on to avoid any damage to the port.
4. Please check the HDD cable and data cable to avoid the cable aging.
5. Please avoid other electronic device interfere once; video/audio signal of DVR, or static electricity and
induced voltage damage to DVR.
6. Suggest users replace the BNC cable regularly to keep signal input stable.
Page 68
DVR USER MANUAL | 1/68
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
8.6 System Connection Diagram
8-CH-CIF
16-CH CIF
Page 69
DVR USER MANUAL | 1/69
CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk
8.7 Accessories
Power Cord Power Adaptor USB Mouse
Software CD
16 CH & 4/8 CH Remote Controller
or
Page 70
DIGITAL VIDEO RECORDER (DVR) USER’S MANUAL
CHANNEL SAFETY SYSTEMS t: 0845 884 7000
Peterseld Business Park f: 0845 884 6000
Bedford Road
Peterseld
Hampshire e: [email protected]
GU32 3QA w: www.channelsafety.co.uk
Loading...
