Channel 1515 Users Manual

Turning Your Headset On and Off

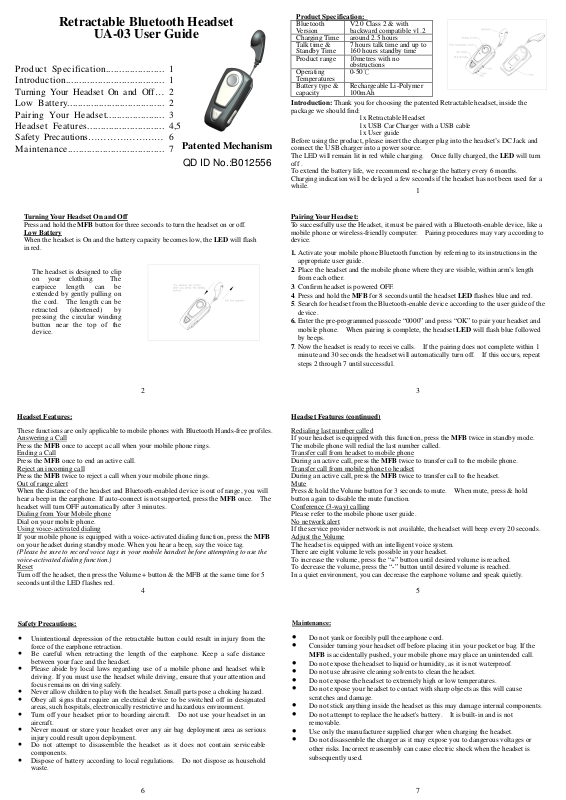

Retractable Bluetooth Headset

User Guide

Ma

intenance....................................

7

Safety

Prec

aution

s:

Headset Features

(continued

)

Headset Features:

Product Specification:

Introduction:

Thank you for choosing

the p

atented

Retractable headset, inside the

Pairing Your Headset:

UA-03

Product Specification...................... 1

Introduction..................................... 1

Turning Your Headset On and Off… 2

Low Battery..................................... 2

Pairing Your Headset...................... 3

Headset Features............................. 4,5

Safety Precautions…………………… 6

Patented Mechanism

QD ID No.:B012556

Bluetooth
Version
Charging Time around 2.5 hours
Talk time &
Standby Time
Product range 10metres with no

Operating
Temperatures
Battery type &
capacity

package we should find:

Before using the product, please insert the charger plug into the headset’s DC Jack and
connect the USB charger into a power source.
The LED will remain lit in red while charging. Once fully charged, the LED will turn
off .
To extend the battery life, we recommend re-charge the battery every 6 months.
Charging indication will be delayed a few seconds if the headset has not been used for a
while.

V2.0 Class 2 & with
backward compatible v1.2

7 hours talk time and up to
160 hours standby time

obstructions
0-50

℃

Rechargeable Li-Polymer
100mAh

1x Retractable Headset
1x USB Car Charger with a USB cable
1x User guide

1

Press and hold the MFB button for three seconds to turn the headset on or off.

Low Battery

When the headset is On and the battery capacity becomes low, the LED will flash
in red.

The headset is designed to clip
on your clothing. The
earpiece length can be
extended by gently pulling on
the cord. The length can be
retracted (shortened) by
pressing the circular winding
button near the top of the
device.

2

These functions are only applicable to mobile phones with Bluetooth Hands-free profiles.
Answering a Call
Press the MFB once to accept a call when your mobile phone rings.
Ending a Call
Press the MFB once to end an active call.
Reject an incoming call
Press the MFB twice to reject a call when your mobile phone rings.
Out of range alert
When the distance of the headset and Bluetooth-enabled device is out of range, you will
hear a beep in the earphone. If auto-connect is not supported, press the MFB once. The
headset will turn OFF automatically after 3 minutes.
Dialing from Your Mobile phone
Dial on your mobile phone.
Using voice-activated dialing
If your mobile phone is equipped with a voice-activated dialing function, press the MFB
on your headset during standby mode. When you hear a beep, say the voice tag.

(Please be sure to record voice tags in your mobile handset before attempting to use the
voice-activated dialing function.)

Reset
Turn off the headset, then press the Volume + button & the MFB at the same time for 5
seconds until the LED flashes red.

•

Unintentional depression of the retractable button could result in injury from the
force of the earphone retraction.

•

Be careful when retracting the length of the earphone. Keep a safe distance
between your face and the headset.

•

Please abide by local laws regarding use of a mobile phone and headset while
driving. If you must use the headset while driving, ensure that your attention and
focus remains on driving safely.

•

Never allow children to play with the headset. Small parts pose a choking hazard.

•

Obey all signs that require an electrical device to be switched off in designated
areas, such hospitals, electronically restrictive and hazardous environment.

•

Turn off your headset prior to boarding aircraft. Do not use your headset in an
aircraft.

•

Never mount or store your headset over any air bag deployment area as serious
injury could result upon deployment.

•

Do not attempt to disassemble the headset as it does not contain serviceable
components.

•

Dispose of battery according to local regulations. Do not dispose as household
waste.

4

6

To successfully use the Headset, it must be paired with a Bluetooth-enable device, like a
mobile phone or wireless-friendly computer. Pairing procedures may vary according to
device.

1. Activate your mobile phone Bluetooth function by referring to its instructions in the

appropriate user guide.

2. Place the headset and the mobile phone where they are visible, within arm’s length

from each other.

3. Confirm headset is powered OFF.

4. Press and hold the MFB for 8 seconds until the headset LED flashes blue and red.

5. Search for headset from the Bluetooth-enable device according to the user guide of the

device.

6. Enter the pre-programmed passcode “0000” and press “OK” to pair your headset and
mobile phone. When pairing is complete, the headset LED will flash blue followed
by beeps.

7. Now the headset is ready to receive calls. If the pairing does not complete within 1
minute and 30 seconds the headset will automatically turn off. If this occurs, repeat
steps 2 through 7 until successful.

3

Redialing last number called
If your headset is equipped with this function, press the MFB twice in standby mode.
The mobile phone will redial the last number called.
Transfer call from headset to mobile phone
During an active call, press the MFB twice to transfer call to the mobile phone.
Transfer call from mobile phone to headset
During an active call, press the MFB twice to transfer call to the headset.
Mute
Press & hold the Volume button for 3 seconds to mute. When mute, press & hold
button again to disable the mute function.
Conference (3-way) calling
Please refer to the mobile phone user guide.
No network alert
If the service provider network is not available, the headset will beep every 20 seconds.
Adjust the Volume
The headset is equipped with an intelligent voice system.
There are eight volume levels possible in your headset.
To increase the volume, press the “+” button until desired volume is reached.
To decrease the volume, press the “-” button until desired volume is reached.
In a quiet environment, you can decrease the earphone volume and speak quietly.

Maintenance:

•

•

•

•

•

•

•

•

•

•

Do not yank or forcibly pull the earphone cord.
Consider turning your headset off before placing it in your pocket or bag. If the
MFB is accidentally pushed, your mobile phone may place an unintended call.
Do not expose the headset to liquid or humidity, as it is not waterproof.
Do not use abrasive cleaning solvents to clean the headset.
Do not expose the headset to extremely high or low temperatures.
Do not expose your headset to contact with sharp objects as this will cause
scratches and damage.
Do not stick anything inside the headset as this may damage internal components.
Do not attempt to replace the headset's battery. It is built-in and is not
removable.
Use only the manufacturer supplied charger when charging the headset.
Do not disassemble the charger as it may expose you to dangerous voltages or
other risks. Incorrect reassembly can cause electric shock when the headset is
subsequently used.

5

7

CHANNEL ENTERPRISES (H.K.) LTD.

Product Name: Retractable Bluetooth Headset
Model No.: UA-03

FCC ID: WD31515

THIS DEVICE COMPLIES WITH PART
OPERA TION IS

SUBJECT TO THE FOLLOWING TWO CONDITIONS:

15 THE FCC RULES.

(1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE
(2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED

INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION

, AND

,

.
