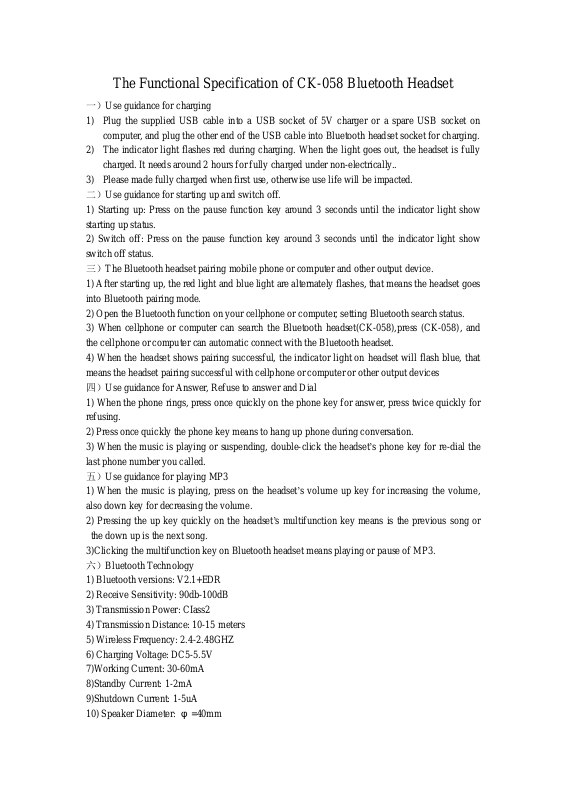

The Functional Specification of CK-058 Bluetooth Headset
一）Use guidance for charging
1) Plug the supplied USB cable into a USB socket of 5V charger or a spare USB socket on
computer, and plug the other end of the USB cable into Bluetooth headset socket for charging.
2) The indicator light flashes red during charging. When the light goes out, the headset is fully
charged. It needs around 2 hours for fully charged under non-electrically..
3) Please made fully charged when first use, otherwise use life will be impacted.
二）Use guidance for starting up and switch off.
1) Starting up: Press on the pause function key around 3 seconds until the indicator light show
starting up status.
2) Switch off: Press on the pause function key around 3 seconds until the indicator light show
switch off status.
三）The Bluetooth headset pairing mobile phone or computer and other output device.
1) After starting up, the red light and blue light are alternately flashes, that means the headset goes
into Bluetooth pairing mode.
2) Open the Bluetooth function on your cellphone or computer, setting Bluetooth search status.
3) When cellphone or computer can search the Bluetooth headset(CK-058),press (CK-058), and
the cellphone or computer can automatic connect with the Bluetooth headset.
4) When the headset shows pairing successful, the indicator light on headset will flash blue, that
means the headset pairing successful with cellphone or computer or other output devices
四）Use guidance for Answer, Refuse to answer and Dial
1) When the phone rings, press once quickly on the phone key for answer, press twice quickly for
refusing.
2) Press once quickly the phone key means to hang up phone during conversation.
3) When the music is playing or suspending, double-click the headset’s phone key for re-dial the
last phone number you called.
五）Use guidance for playing MP3
1) When the music is playing, press on the headset’s volume up key for increasing the volume,
also down key for decreasing the volume.
2) Pressing the up key quickly on the headset’s multifunction key means is the previous song or
the down up is the next song.
3)Clicking the multifunction key on Bluetooth headset means playing or pause of MP3.
六）Bluetooth Technology
1) Bluetooth versions: V2.1+E DR
2) Receive Sensitivity: 90db-100dB
3) Transmission Power: CIass2
4) Transmission Distance: 10-15 meters
5) Wireless Frequency: 2.4-2.48GHZ
6) Charging Voltage: DC5-5.5V
7)Working Current: 30-60mA
8)Standby Current: 1-2mA
9)Shutdown Current: 1-5uA
10) Speaker Diameter: φ =40mm
11) Speaker Impedance: 32Ω
The multifunction key of blue-tooth
headset
The multifunction key of telephone
Federal Communications Commission (FCC) Interference
Statement
This equipment has been tested and found to comply with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generate, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device
must accept any interference received, including interference that may
cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s authority to
operate this equipment.
RF exposure warning
This equipment complies with FCC radiation exposure limits set forth
for an uncontrolled environment.
This equipment must not be collocated or operating in conjunction with
any other antenna or transmitter.
