Champtek N-4060 User Manual

User’s Manual

Copyright © 2011.

This manual is copyrighted, with all rights reserved. Under the copyright laws, this manual may not, in
whole or in part, be copied, photocopied, reproduced, translated or converted to any electronic medium or
machine readable form without prior written consent of the manufacturer.

Important

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
EN55022, and with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful interference when the equipment is operated
in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the user’s manual, may cause harmful interference to radio
communications. Operation of the equipment in a residential area is likely to cause harmful interference in
which case the user will be required to correct the interference at his own expense. Any unauthorized
changes or modifications to this equipment could void the user’s authority to operate this equipment.

For CE-countries:

- This equipment is in conformity with the CE standards.

P/N: 0145-NOV0011 Dec 2011

Table of Contents

Preface ................................................................................................... i

Chapter 1 Product Overview ....................................................................... 1

1.1 Unpacking ............................................................................ 2

1.2 Declaration of Conformity ...................................................... 4

1.3 Scanning Barcodes ............................................................... 6

1.4 Scanner Labelling ................................................................. 7

Chapter 2 Installation .................................................................................. 9

2.1 Connecting the Scanner ...................................................... 10

2.2 Interface Selection .............................................................. 12

2.3 Installing the Scanner on a Counter Surface .......................... 13

Appendices ............................................................................................... 16

A Connector Types and Pin Definitions ..................................... 17

B Technical Specifications ...................................................... 19

C Interface Type .................................................................... 21

D Maintaining the Scanner ...................................................... 22

E Controlling the Scanner From the POS System ...................... 23

F Troubleshooting .................................................................. 24

Preface

This N-4060 is the continuation of the excellent optical design experience and
with a new back-end design, to create an outstanding product performance and
reliability. This scanner features high inerrability, flexibility, scanning, and
decoding capability. It is ideally suited for supermarkets, pharmacies, petrol
stations, and other similar retail stores.

Based on the standard product reliability, the product design concept is fully
focused on user’s context and mode. It also reduces time and cost.

Our solutions provide instant and accurate scanning, making the checkout
process more efficient for you and more convenient for your customers.

z Reduce checkout lines at busy times, including weekends and holidays.
z Create additional points-of-sale anywhere in the store by enabling sales

associates to access POS systems in real-time and complete transactions
on the store floor.

z True presentation scanning, with Omni-directional and pass-by scan

capabilities offer a faster and more natural way of working.

The N-4060 reads all popular barcode symbologies, and supports a wide range
of scan pattern. In addition, this scanner also provides an aggressive first-pass

scanning, reducing the time that takes to scan products, increasing customer
satisfaction and employee efficiency. Another important feature of this scanner

is its programmable sleep mode which is designed to save power on this
scanner. If the scanner is not used within a programmable period of time, the
scanner switches off automatically. The scanner can be re-activated by pressing
the Sleep/Wake Button. The N-4060 is available in two color versions, both
supporting multiple interfaces for communication with any host system. The
multiple interface versions are: RS-232 + USB + P-USB + Keyboard
Wedge(Option).

This manual contains two chapters and six appendices. The first chapter
describes this scanner and its general features. The description for installation
can be found in the second chapter. Precisely follow the instructions for the
installation of the scanner. Default settings can be changed with the barcode
labels from the Configuration Guide that came with the scanner. Appendix A
gives the pin definition for the Data ports of the scanner. The pin definition may
be required when you want to make a new cable for communication with the

POS/computer. Technical specifications of this scanner can be found in
Appendix B. Refer to Appendix C for the interface cable types. For maintaining
the scanner and controlling the scanner from the POS system, they can be
found in Appendix D & E. Refer to Appendix F for troubleshooting if the scanner
is not working properly.

Chapter 1 Product Overview

Product Overview

2

1.1 UNPACKING

Remove the scanner and its accessories from the box and packing material.
Refer to the packing list to make sure you have received all the items ordered.
Visually inspect the scanner and accessories for any evidence of physical
damage. Refer to the figure on page 21 to locate the interface cable and make
sure that the scanner interface corresponds with the host system interface.
Immediately contact your supplier if anything appears to be damaged, or if the
supported interface does not correspond with the host system interface.

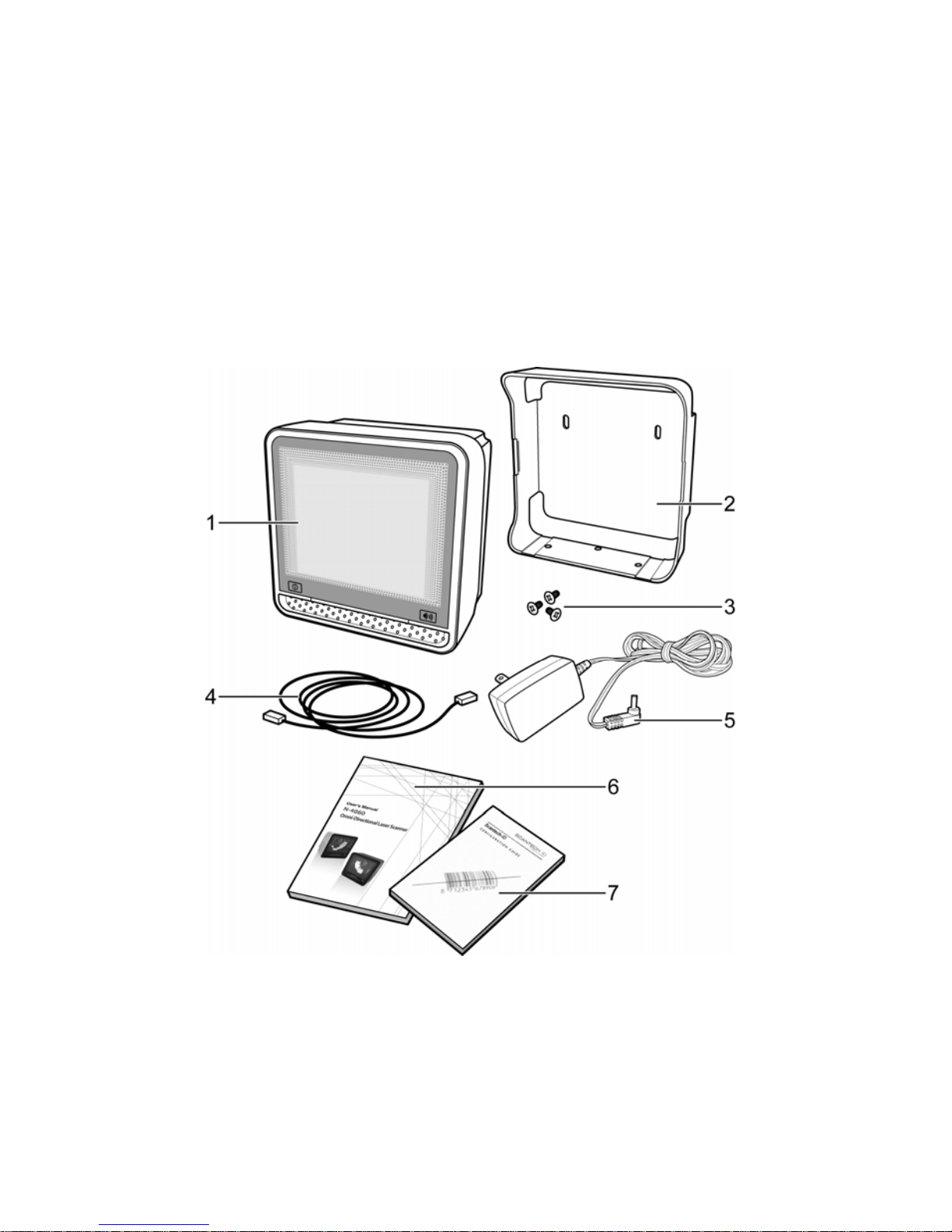

1. Scanner 4. Interface Cable 7. Configuration Guide

2. Bracket 5. Power Adapter

3. Screws 6. User’s Manual

Product Overview

3

The specific parts of this scanner are:

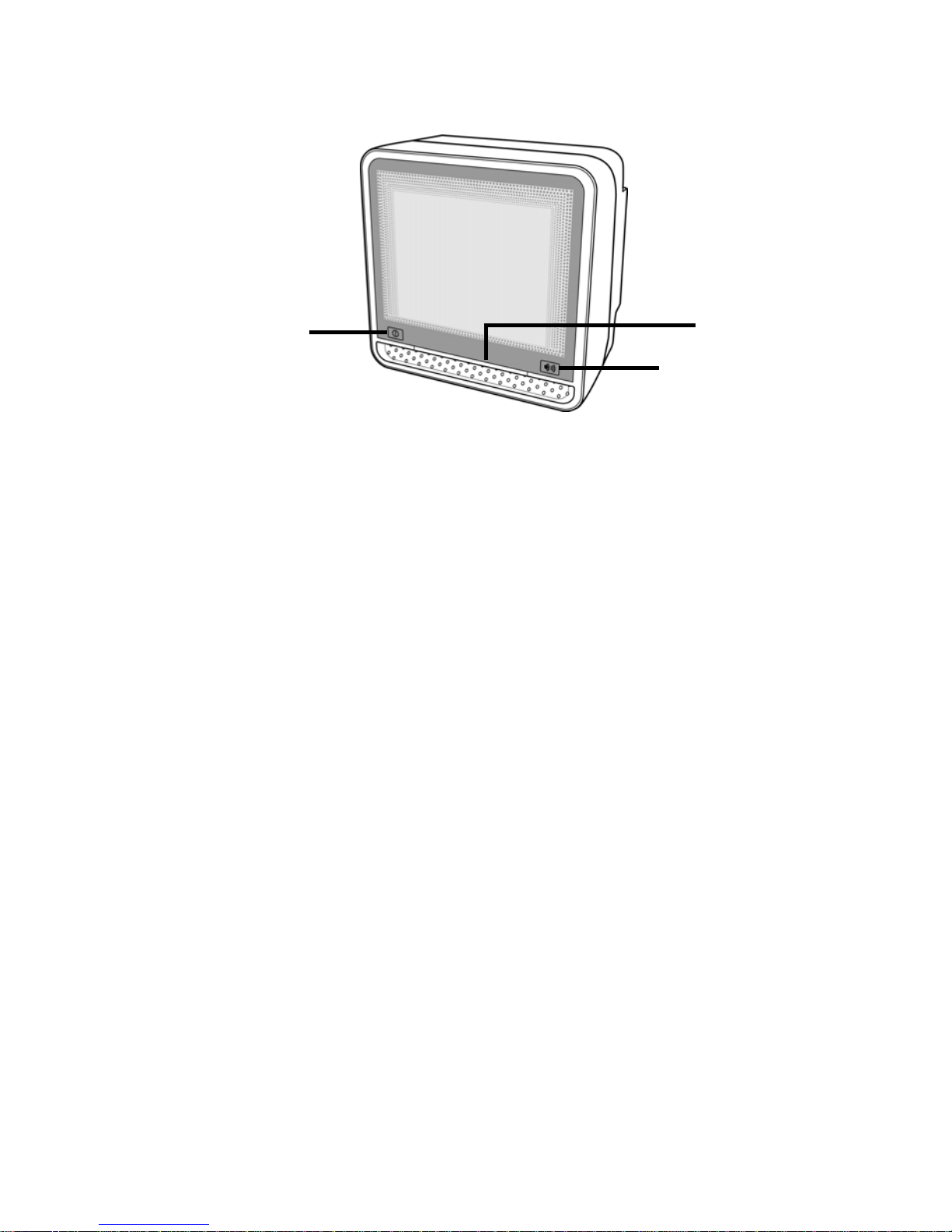

1. Sleep/Wake Button

- Press this button for 3 seconds, the scanner

manually enters sleep mode.

- When a sleep mode time-out is programmed,

the scanner can be activated by pressing this
button. Moreover, the scanner may be
automatically activated when any barcodes or
objects pass-by the scanner.

NOTE: The default value for the sleep mode
time-out is set to 10 minutes. When the
scanner is in sleep mode, the LED is
intermittently flashing blue.

2. LED

-

A

blue LED indicates that the scanner is ready
to read a barcode. An orange LED indicates a
good read.

3. Volume Button

- The beep is heard whenever data has been

read correctly. The frequency and volume can
be adjusted.

Standard parts & accessories:

Interface Cable

- One of various types of cable to connect the

host computer / POS system.

Power

A

dapter

- Power the scanner via the AC power outlet if

the scanner is not directly powered.

2

3

Product Overview

4

1.2 DECLARATION OF CONFORMITY

Will comply with the following product specifications:

Laser Safety: - IEC 825-1
Electrical Safety: - EN 60950
EMC: - EN 55022:2006 + A1:2007

- EN 61000-3-2: 2006

- EN 61000-3-3: 1995 + A1:2001 + A2:2005

- EN 55024:1998 + A1:2001 + A2:2003

- IEC 61000-4-2: 1995 + A1: 1998 + A2: 2000;

- IEC 61000-4-3: 2006 + IEC: 61000 -4-4: 2004;

- IEC 61000-4-5: 2005 + IEC: 61000 -4-6: 2003; +A1: 2004 +A2: 2006;

- IEC 61000-4-8: 1993 + A1: 2000; IEC 61000 -4-11:2004

LVD: - EN 60950-1:2006+A11 1:2009

- IEC 60950-1:2005 (2

nd

Edition)+Am 1：2009

Laser Safety

German:

Der Strichcode-Scanner entspricht den Sicherheitsvorschriften nach IEC 825-1 (1993) für ein
Laserprodukt der Klasse I. Er entspricht auch U.S. 21CFR1040, anwendbar auf ein Laserprodukt der
Klasse IIa. Vermeiden Sie langzeitiges Hineinblicken in direktes Laserlicht.

Dutch:

De scanner voldoet aan de veiligheidsnormen IEC 825-1 (1993) voor een Klasse I laserproduct.
Tevens voldoet de scanner aan U.S. 21CFR1040, van toepassing op een Klasse IIa laserproduct.
Vermijd langdurig kijken in direct laserlicht.

French:

Le scanner est conforme aux normes de sécurité IEC 825-1 (1993) s’appliquant à un produit laser
de la classe I. Il est également conforme à la U.S. 21CFR1040 telle qu’elle s’applique à un produit
laser de la classe IIa. Eviter de rester exposé longtemps à la lumière directe du laser.

Danish:

Skanneren er i overensstemmelse med sikkerhedsstandarden IEC 825-1 (1993) for laserprodukter i
klasse I. Den er også i overensstemmelse med U.S. 21CFR1040, der gælder for laserprodukter i
klasse IIa. Undgå at se direkte på laserlys i længere perioder.

Finnish:

Skanneri täyttää luokan I lasertuotteelle IEC 825-1:ssä (1993) asetetut turvavaatimukset. Se täyttää
myös U.S. 21CFR1040:ssa asetetut vaatimukset siltä osin kuin ne koskevat luokan IIa lasertuotetta.
Vältä pitkäaikaista suoraan laservaloon katsomista.

Swedish:

Avsökaren uppfyller säkerhetsnormen IEC 825-1 (1993) för laserprodukter av klass 1. Den uppfyller
dessutom U.S. 21CFR1040 som gäller för laserprodukter av klass IIa. Undvik att titta i direkt
laserljus under längre perioder.

Product Overview

5

Norwegian:

Skanneren er i samsvar med sikkerhetsstandarden IEC 825-1 (1993) for laserprodukter i klasse I.
Den er også i samvar med U.S. 21CFR1040 for laserprodukter i klasse IIa. Unngå å se langvarig på
direkte laserlys.

Italian:

Lo scanner è conforme alle norme di sicurezza IEC 825-1 (1993) relative ad un prodotto laser di
Classe 1. È inoltre conforme alla norma U.S. 21CFR1040 relativa ad un prodotto laser di Classe IIa.
Evitare l'esposizione prolungata all'emissione diretta di luce laser.

Portuguese:

O scanner está conforme as normas de segurança IEC 825-1 (1993) para a Classe 1 dos produtos
laser. Também está conforme a norma U.S. 21CFR1040 aplicada nos produtos laser da Classe IIa.
Evite expor os olhos directa e prolongadamente aos raios laser.

Spanish:

El scanner reune las normas de seguridad IEC 825-1 (1993) para un producto laser de Clase 1. Y
también reune las normas U.S. 21CFR1040 que se aplican a un producto laser de Clase IIa. Se debe
evitar mirar muy fijo en luz lasérica directa.

English:

The scanner complies with safety standard IEC 825-1 (1993) for a Class I laser product. It also
complies with U.S. 21CFR1040 as applicable to a Class IIa laser product. Avoid long term viewing of
direct laser light.

Optical:

The use of optical instruments with this product will increase eye hazard. Optical instruments include
binoculars, microscopes and magnifying glasses but do not include eye glasses worn by the user.

Radiant Energy:

The scanner uses a low-power laser diode operating at 630…670 nm in an opto-mechanical scanner
resulting in less than 0.6 mW peak output power. Laser light observed at 13 cm (5.1 in.) above the
window through a 7 mm (0.28 in.) aperture and averaged over 1000 seconds is less than 3.9 µW
per CDRH Class IIa specification. Do not attempt to remove the protective housing of the scanner,
as unscanned laser light with a peak output up to 0.8 mW could be accessible inside.

Laser Light Viewer:

The scanner window is the only aperture through which laser light may be observed on this product.
A failure of the scanner motor, while the laser diode continues to emit a laser beam, may cause
emission levels to exceed those for safe operation. The scanner has safeguards to prevent this
occurrence. If, however, a stationary laser beam is emitted, the failing scanner should be
disconnected from its power source immediately.

Adjustments:

Do not attempt any adjustments to or alteration of this product. Do not remove the scanner’s
protective housing. There are no user-serviceable parts inside.

CAUTION: Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous laser light
exposure.

Product Overview

6

1.3 SCANNING BARCODES

This scanner is an omni-directional presentation scanner featuring a 7-directional
scan field with a 24-line scan pattern. Barcode labels can easily be read by
presenting them to the scanner.

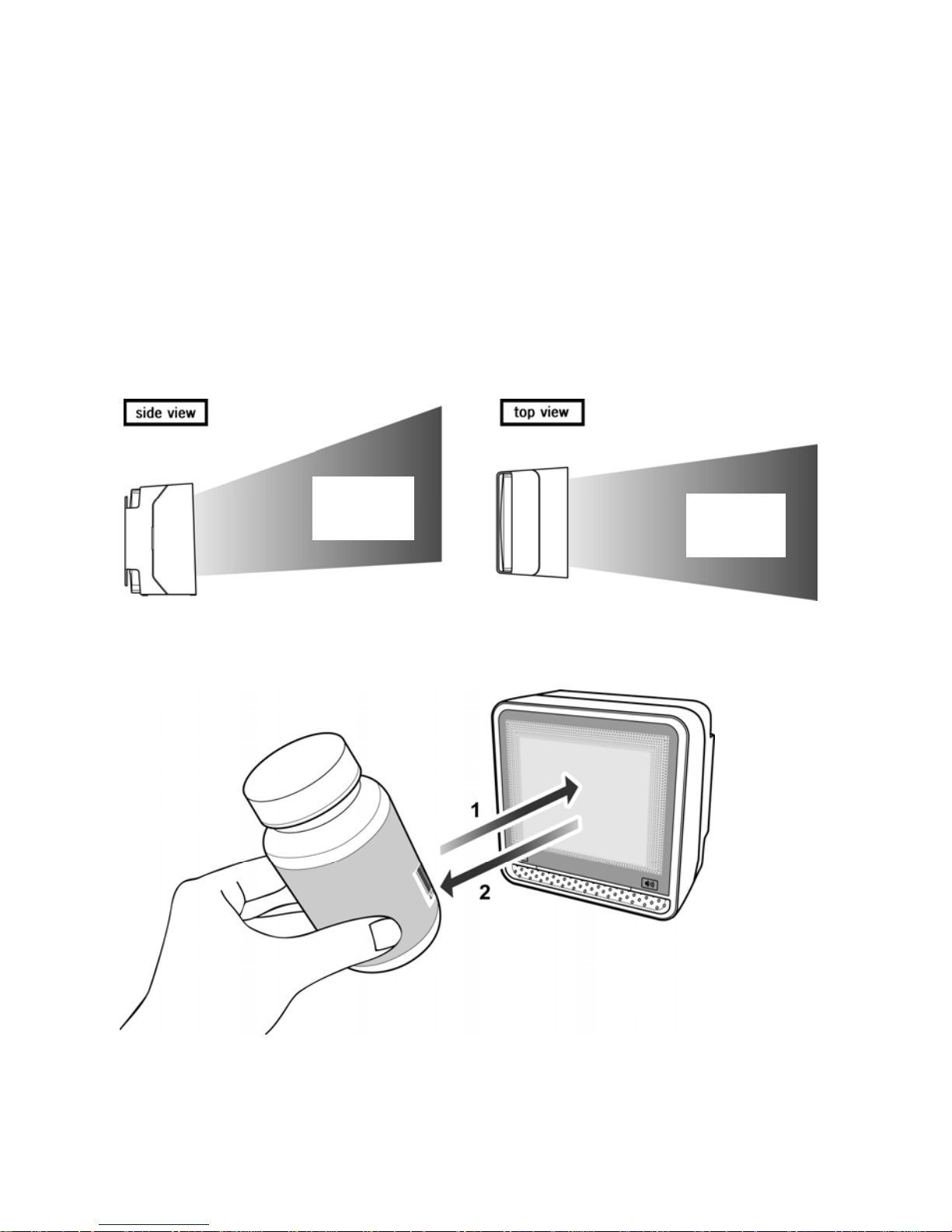

The scanner's scan pattern is illustrated in the figure below. The optimal reading
zone lies between 2 and 30 cm from the scanner window. The scan depth varies
depending on the size of the barcode.

Scanning a barcode label, do the following:

Scan

Pattern

1.

A

lign the label facing the scanner and move

the product towards the scanner.
¾ The orange LED indicates the barcode

is read.

2. After the barcode is read, move the label

from the scanner.

Scan

Pattern

Product Overview

7

The scanner will automatically enter the sleep mode if it the scanner is left idle
for 10 minutes. During sleep mode, the scanner is automatically activated when
it senses the presence of a barcode.

NOTE

With the Sleep mode feature, it helps user to conserve energy and
extend the scanner life.

1.4 SCANNER LABELLING

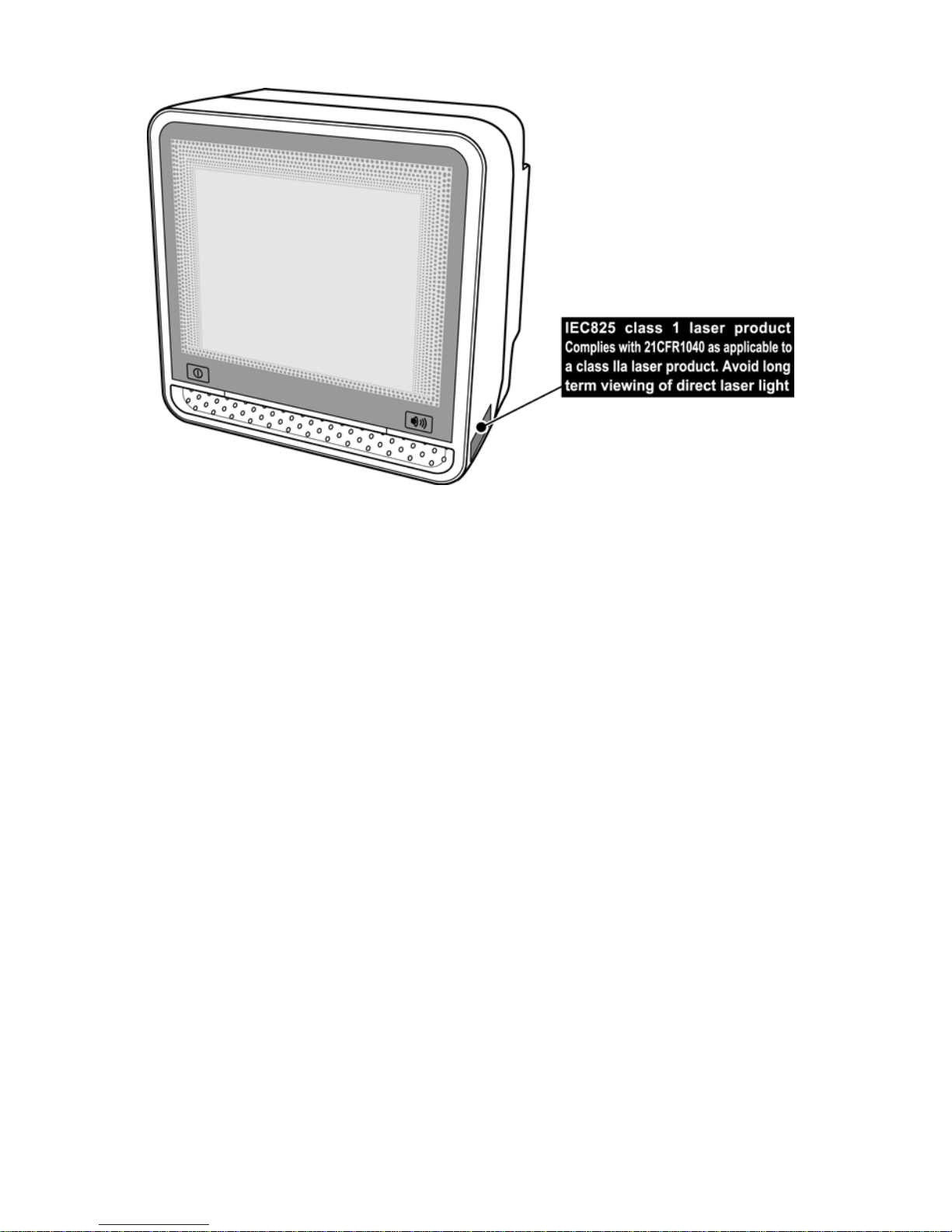

Two labels are presented on the housing of this scanner as indicated in
the figure below. Two labels are also visible through the scanner window.
All labels are attached by the manufacturer and should not be removed.

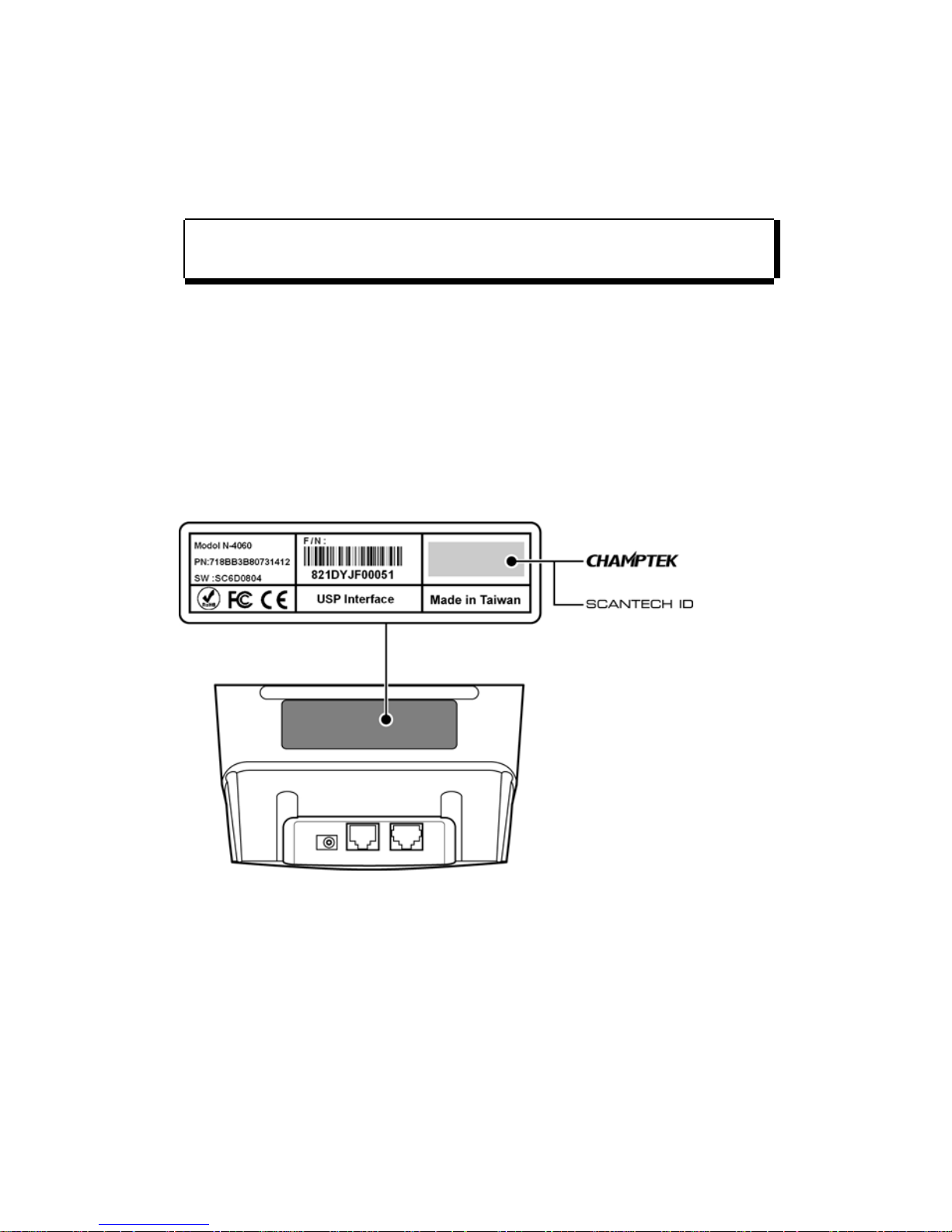

The scanner’s serial number is found underneath the barcode label as depicted
in the figure above. This official registration number is strictly related to the
device. The supplier may ask for this number when the scanner needs servicing.

(Sold in China)

(Sold in other regions

except China)

Product Overview

8

Chapter 2 Installation

Installation

10

This scanner can be installed on a counter surface. Instructions for installation
on a counter surface are given in Section 2.3.

Due to many POS systems on the market, a variety of communication cables are
available. Make sure that you have the right cable to connect the scanner to
your POS or computer.

NOTE

The scanner and the host system must be switched off before
starting the installation of the scanner. By following this precaution
you prevent any electrical damage.

You are advised to install the scanner in an air circulated place out
of direct sunlight.

2.1 CONNECTING THE SCANNER

To properly connect the scanner, do the following:

1. Plug the interface cable and ensure the scanner is properly connected to

the host.

2. Connect the power adapter. The scanner will automatically activate and

detect the setup interface.

3. Press the Volume Button repeatedly to adjust the frequency and volume

level.

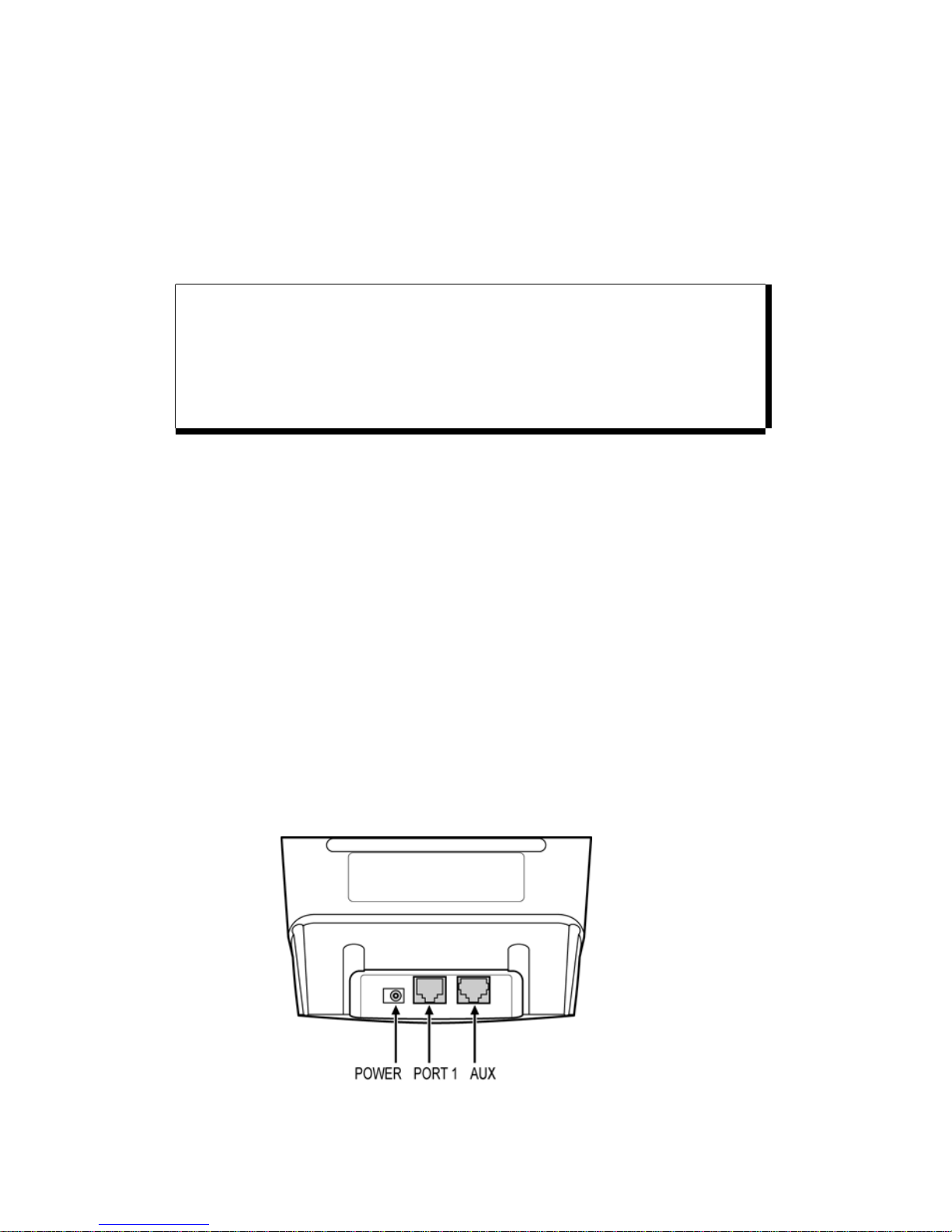

Use the illustration below to see where to connect your cable(s) to the scanner.

Installation

11

To change another interface cable:

1. Press and hold the Sleep/Wake Button until the scanner enters sleep mode.

2. Remove the power adapter.

3. Change the interface cable.

4. Connect the power adapter again to activate the scanner and detect the

new connection.

NOTE

If you use “Direct Powering”, the power is supplied by the host and
you do not need to connect an external power supply to the Power
Input entry.

Installation

12

2.2 INTERFACE SELECTION

This scanner allows you to connect your host system using four different
interface cables: RS232, Keyboard Wedge, USB, and Powered USB(Option). On
powering up, the scanner senses the type of the interface used and switches to
the appropriate protocol.

Installation

13

2.3 INSTALLING THE SCANNER ON A COUNTER SURFACE

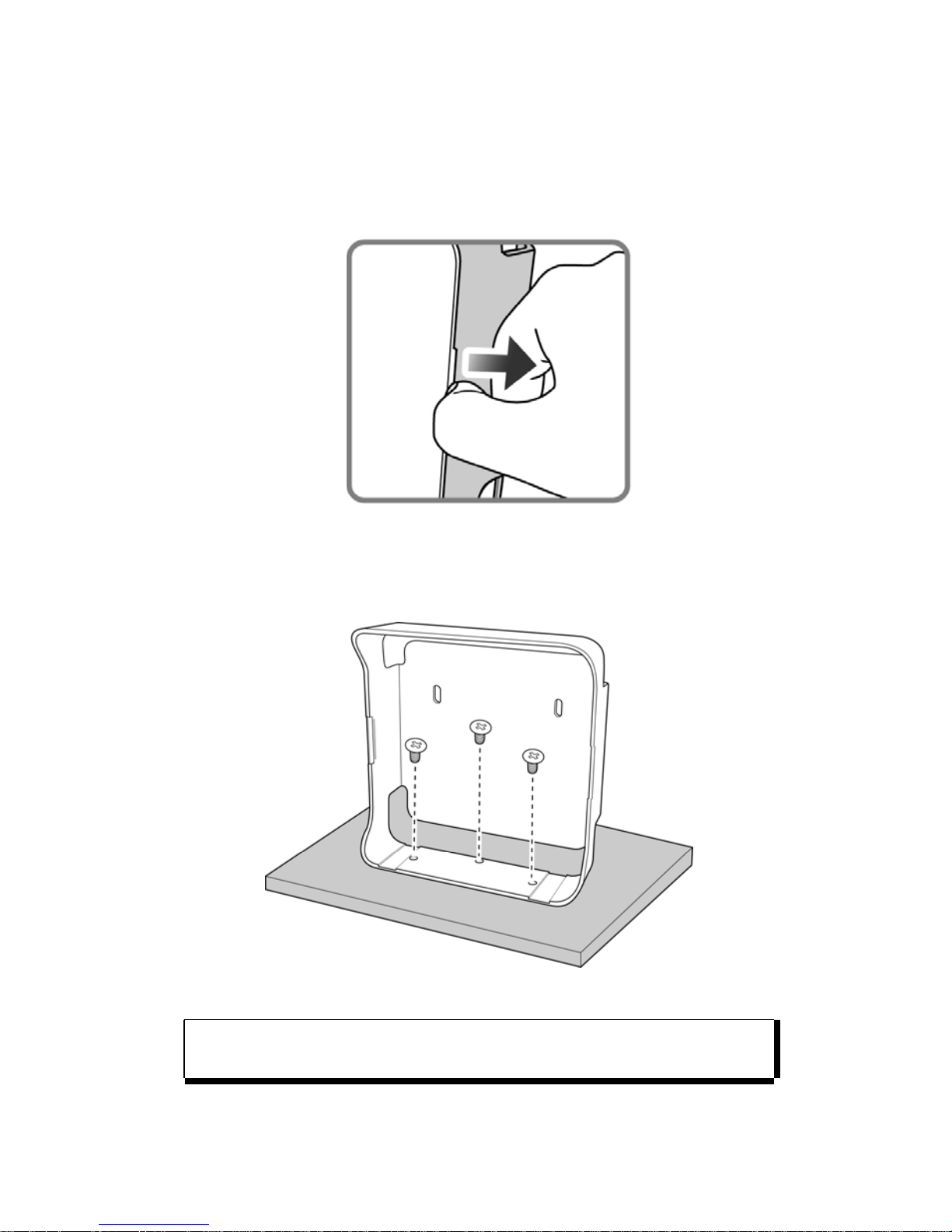

To install this scanner on a counter surface, follow the instructions below.

1. Remove the bracket from the back of the scanner.

2. Place the bracket on a counter surface and fasten the bracket to the

surface with three screws as illustrated in the figure.

NOTE

 Use the bracket as a template to mark the places for the

mounting holes at the counter surface and drill three holes.

Installation

14

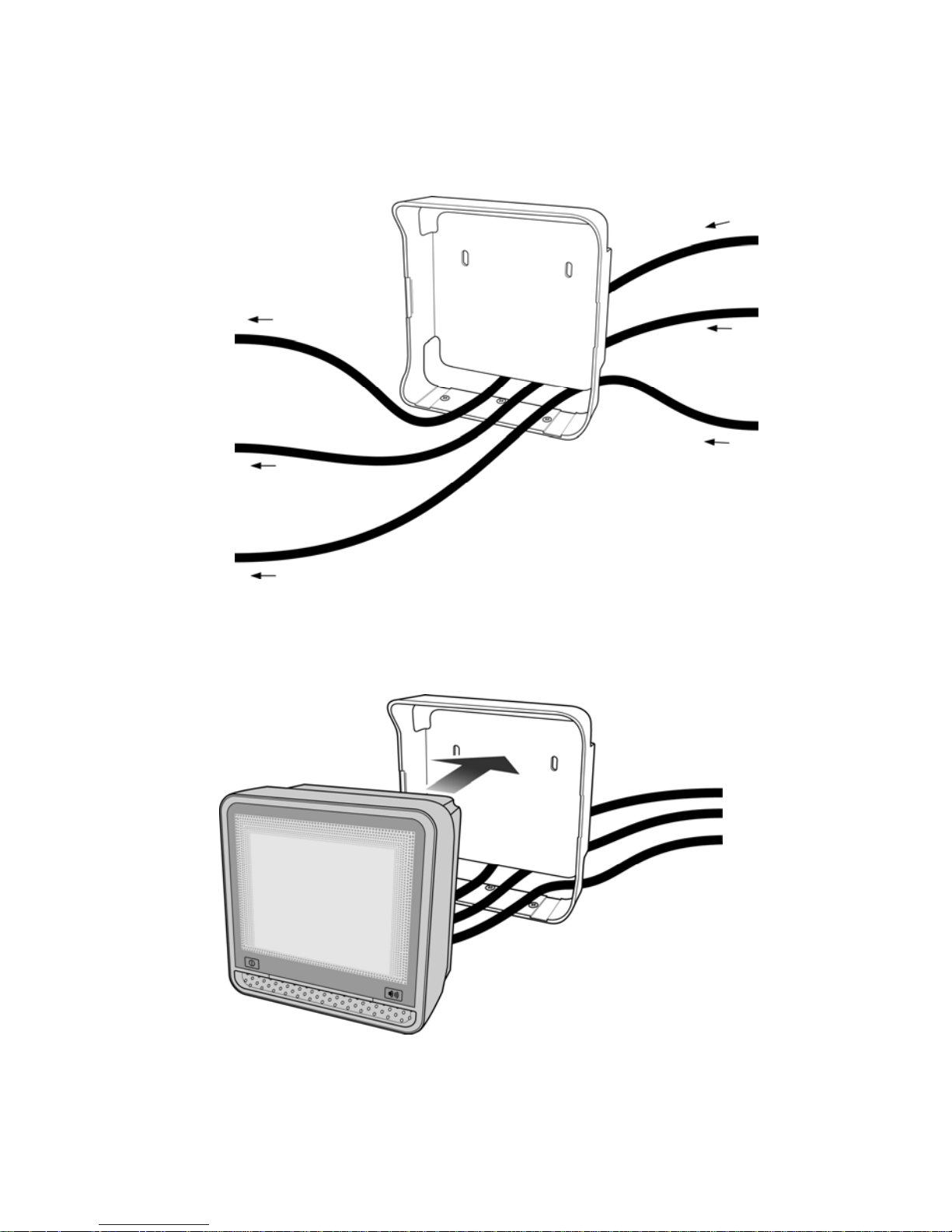

3. Lead the communication cable and power supply cable through the slit.

4. Make sure that connectors and cables are placed as indicated in the figure

and attach the scanner to the bracket.

5. Plug the remote ends of all cables into the appropriate connections of your

host POS-system.

to socket for
power supply

AUX (optional)

to Data port 1
of scanner

Coming from
power supply

Coming from
host system

Coming from AUX
equipment (optional)

Installation

15

6. If you are using an external power supply, power on this scanner by

plugging the power supply into an AC power outlet. Switch on the host
system.

IMPORTANT

To activate USB or KBW interface, scan the following codes
from the Configuration Guide:

1. Open the scanner Programming Mode by scanning code 1.1.

2. Return to factory default settings by scanning code 1.3.

Once this scanner is installed, you can start scanning barcode labels. If you want
to change the default settings of the scanner, proceed to the Configuration
Guide which came with this scanner.

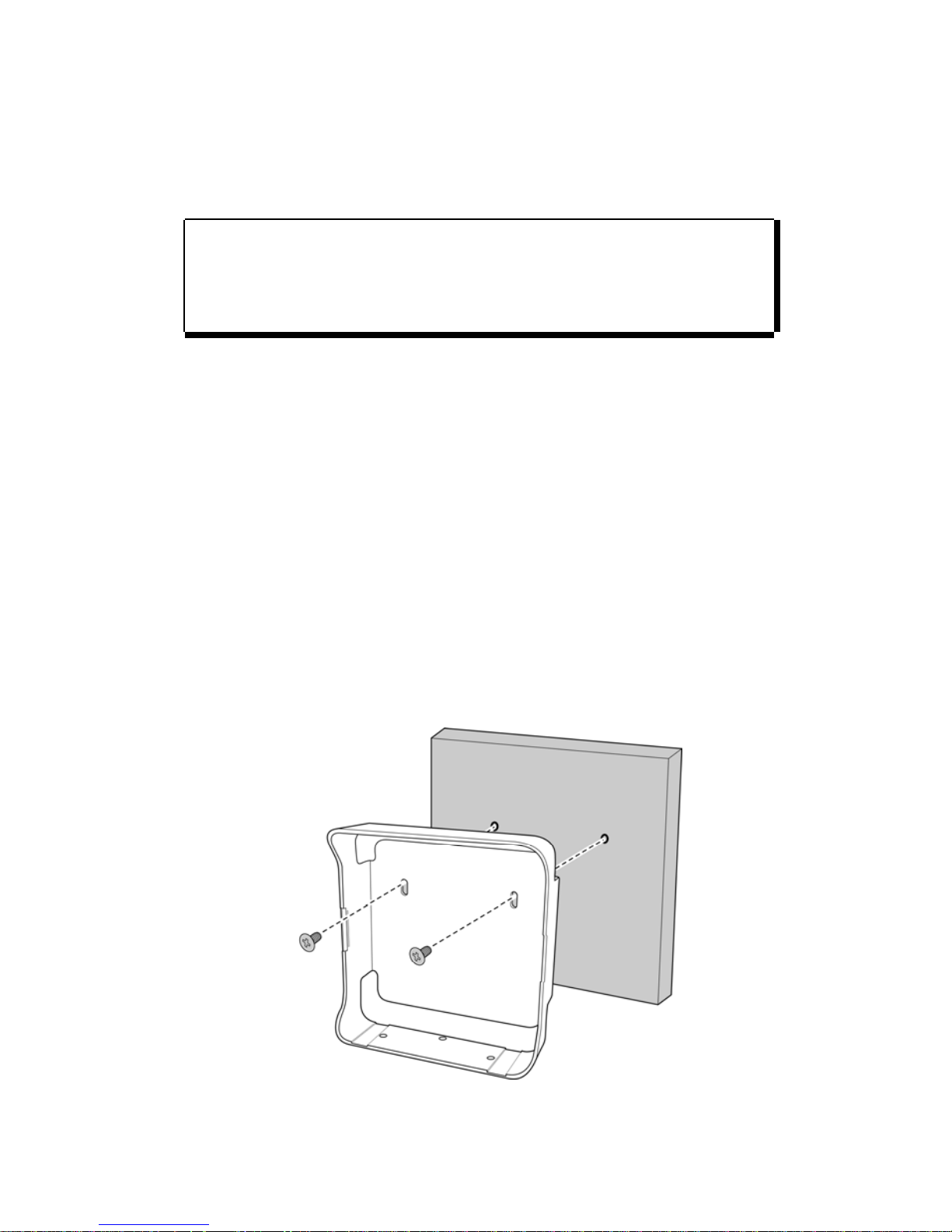

Wall mount installation

To install the bracket on the wall, do the following:

4. Locate an ideal position on the wall.

5. Use the bracket as a template to mark the places for the mounting holes

and drill two holes.

6. Fasten the bracket to the surface with two screws as illustrated in the

figure.

Appendices

A. Connector Types and Pin Definitions

B. Technical Specifications

C. Interface Type

D. Maintaining the Scanner

E. Controlling the Scanner From the POS System

F. Troubleshooting

Appendices

17

A CONNECTOR TYPES AND PIN DEFINITIONS

This scanner supports triple interface in one standard unit: RS232, Keyboard
Wedge (KBW) and USB/USB plus power. The various pin definitions for the
applicable data port are given on page 17 and 18. The connector to be
used for the port is indicated below.

To activate USB or KBW interface, follow this sequence:

1. Plug in the appropriate interface cable and then power up the

scanner.

2. Scan the following codes from the Configuration Guide:

- Open the scanner Programming Mode by scanning code 1.1

- Return to factory default settings by scanning code 1.3

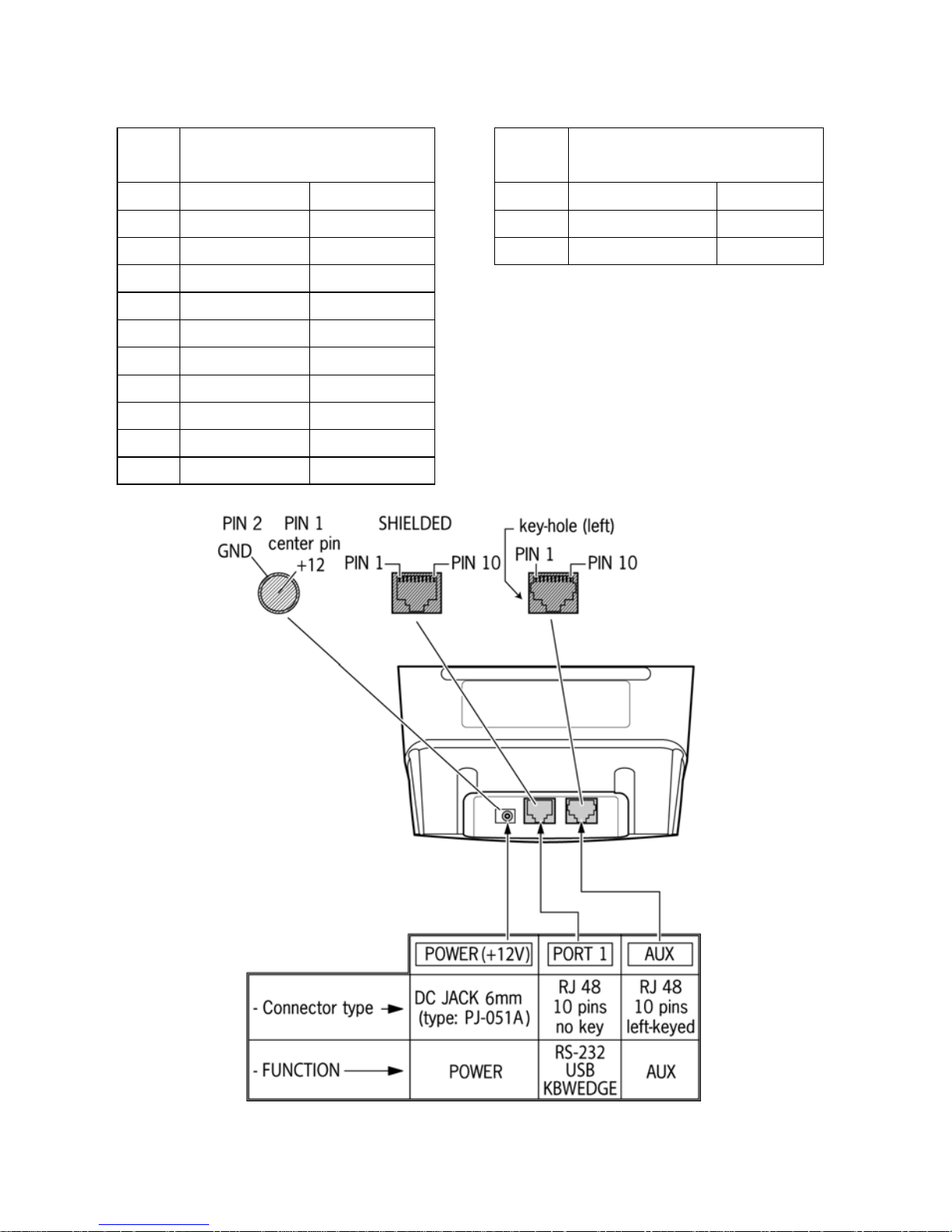

Pin definitions for multiple interface: Connector: RJ-48, 10 pins

Multiple Interface

RS-232 KBW USB Powered USB

Pin Description Description Description Description Remark

1 - - IFID IFID IFID = Interface ID
2 CTS PC-Clock - - ­3 RxD PC-Data - - ­4 TxD KB-Data - - IFID = Interface ID
5 RTS KB-Clock - - ­6 Ground Ground Ground Ground Ground
7 - PC - 5V PC - 5V - -

8 - - - +12V

Direct Power,

may be used to

power scanner

9 -

IFID: connect

to ‘6’

D + D +

IFID = Interface ID

D + = USB data

10 - -

D - D -

D  = USB data

Appendices

18

Pin definition for all scanner versions:

AUX Port for HH scanner

POWER

Pin Description Direction Pin Description Direction

1 +5 VDC output 1 +12

V

input
2 CTS input 2 GND
3 RXD input
4 (reserved)

-

5 RTS output
6 GND -
7 (reserved)

-

8 (reserved)

-

9 (reserved)

-

10 (reserved)

-

Appendices

19

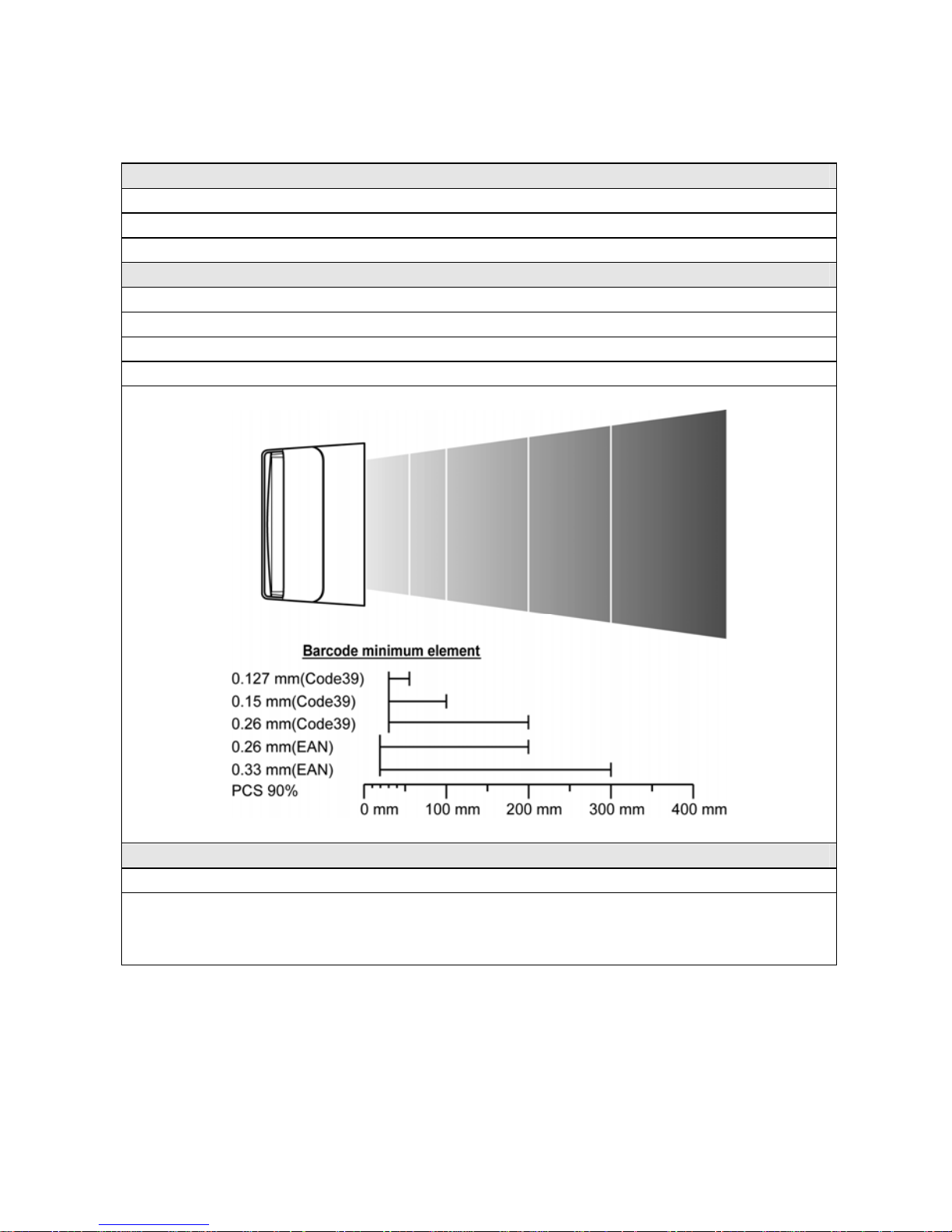

B TECHNICAL SPECIFICATIONS

Electrical

Power Supply Voltage 100 – 240 V ac 50/60 Hz (adapter)
DC Input to Scanner 12VDC
Interfaces RS-232 + USB + Powered-USB + Keyboard Wedge

Optical

Light Source Visible laser diode (650 nm)
Depth of Field 300 mm EAN 0.33mm/13mil PCS@90%
Scan Pattern 7 directions scan field, 24 lines scan pattern
Scan Rate 2400 scans / second

Decoding

Barcode Types Auto discriminates all standard 1D codes.
GS1 databar family, Omnidirectional, Stacked

Omnidirectional, Expanded, Expanded Stacked ,
Truncated and Limited.

Appendices

20

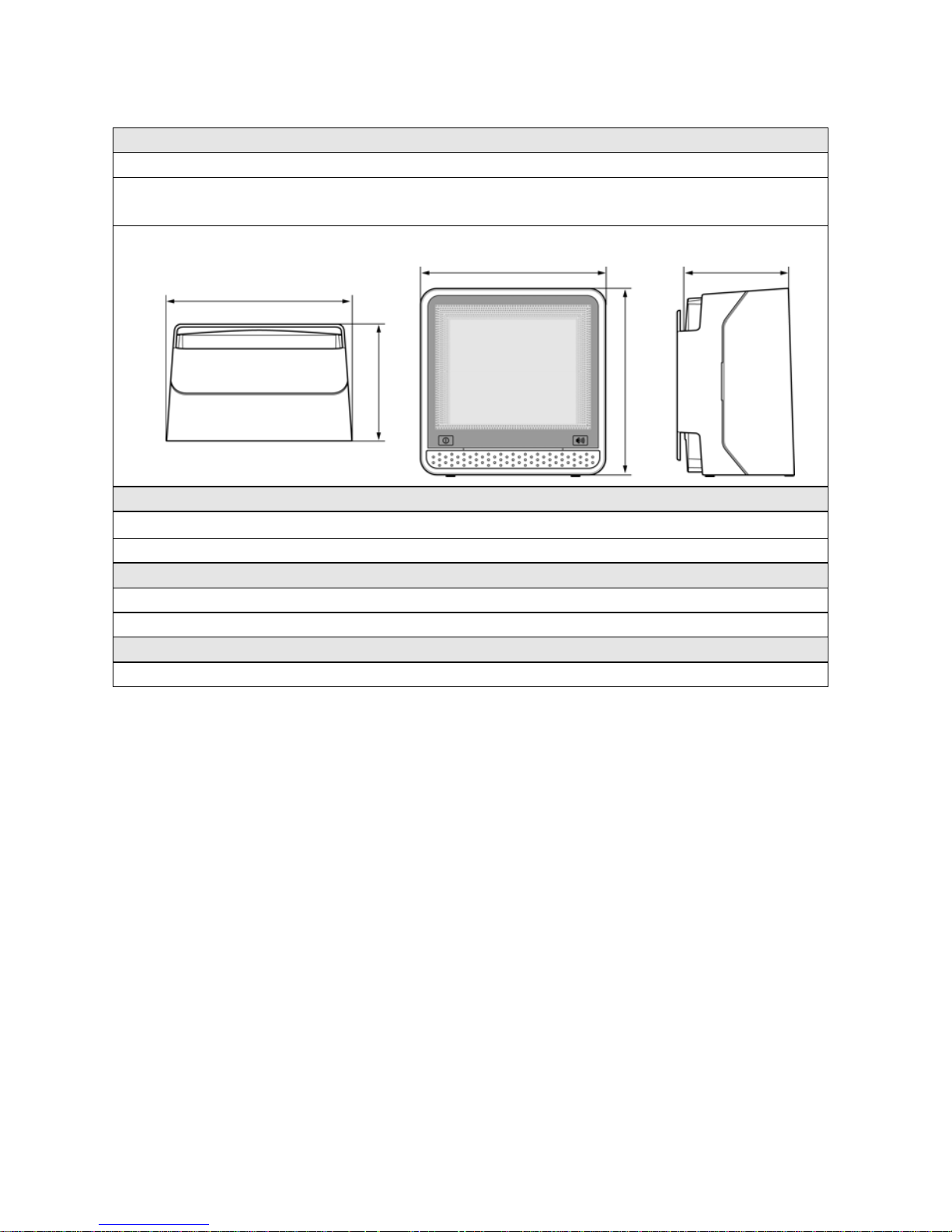

Physical

Weight 450 g
Dimensions H x W x D : 152.07 x 152.02 x 90.22 mm

: 5.99 x 5.98 x 3.55 inch

Environmental

Operating Temperature 0° C ~ 40° C
Humidity 5% ~ 95% RH (non-condensing)

Safety

Laser Safety IEC 825-1 Class I, U.S. CDRH: 21CFR1040 Class II a
Electrical Safety EN 60950 second edition

EM Compatibility

Radio and TV Interference EN 55024/22, FCC Part 15 class B, CNS 13438

152.07

152.07

90.22

95.15

152.02

Appendices

21

C INTERFACE TYPE

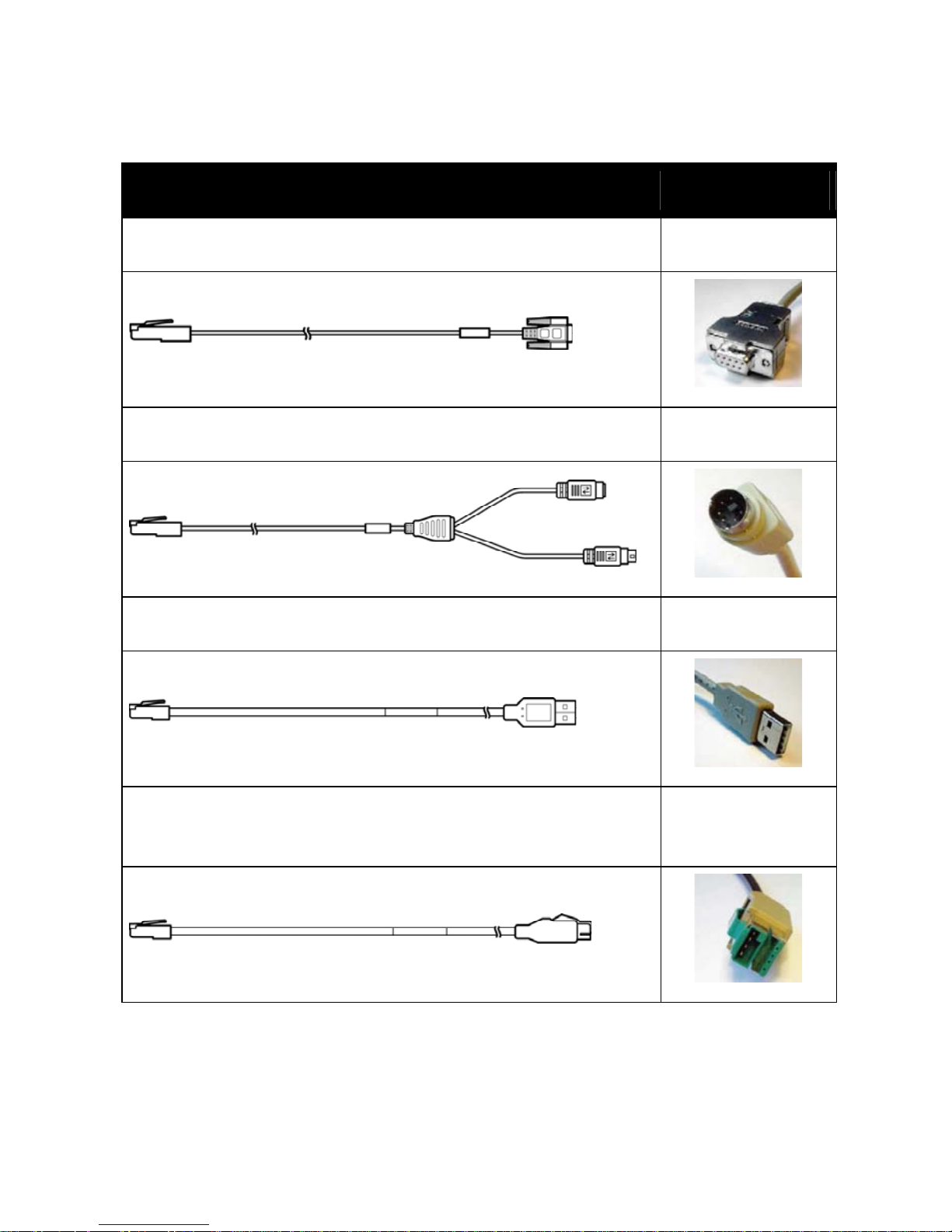

Interface Cable Connector Type

RS232 (Product Number: 0114-S806121)

Sub-D 9-pin

Keyboard Wedge (Product Number: 0114-S805121)

Standard PS2

USB (Product Number: 0114-S802121)

USB connector

Powered USB (Product Number: 0114-S801121)

Powered USB

connector

Appendices

22

D MAINTAINING THE SCANNER

This scanner requires little maintenance. Only occasional cleaning of the scanner
window is necessary to remove dirt and fingerprints. Cleaning can be performed
during operation with a non-abrasive glass spray cleaner and a soft lint-free
cloth.

Appendices

23

E CONTROLLING THE SCANNER FROM THE POS

SYSTEM

This scanner can be controlled from the POS system via the RS232C interface.
Control is achieved by transmitting the following single byte commands to the
scanner. In the default setting the following commands are available (more
details upon request):

ASCII Code Function Byte Also Called:

05 Hex power-up re-initialization ENQ or <Ctrl-E>
OE Hex enable (cancel disable) Shift Out or <Ctrl-N>
OF Hex disable Shift In or <Ctrl-O>
12 Hex sleep DC2 or <Ctrl-R>
14 Hex wake (cancel sleep) DC4 or <Ctrl-T>

When the scanner is disabled (indicated by the blinking red LED), the motor of
the scanner will stay on until the scanner goes into sleep mode.

Scanner
control

POS system

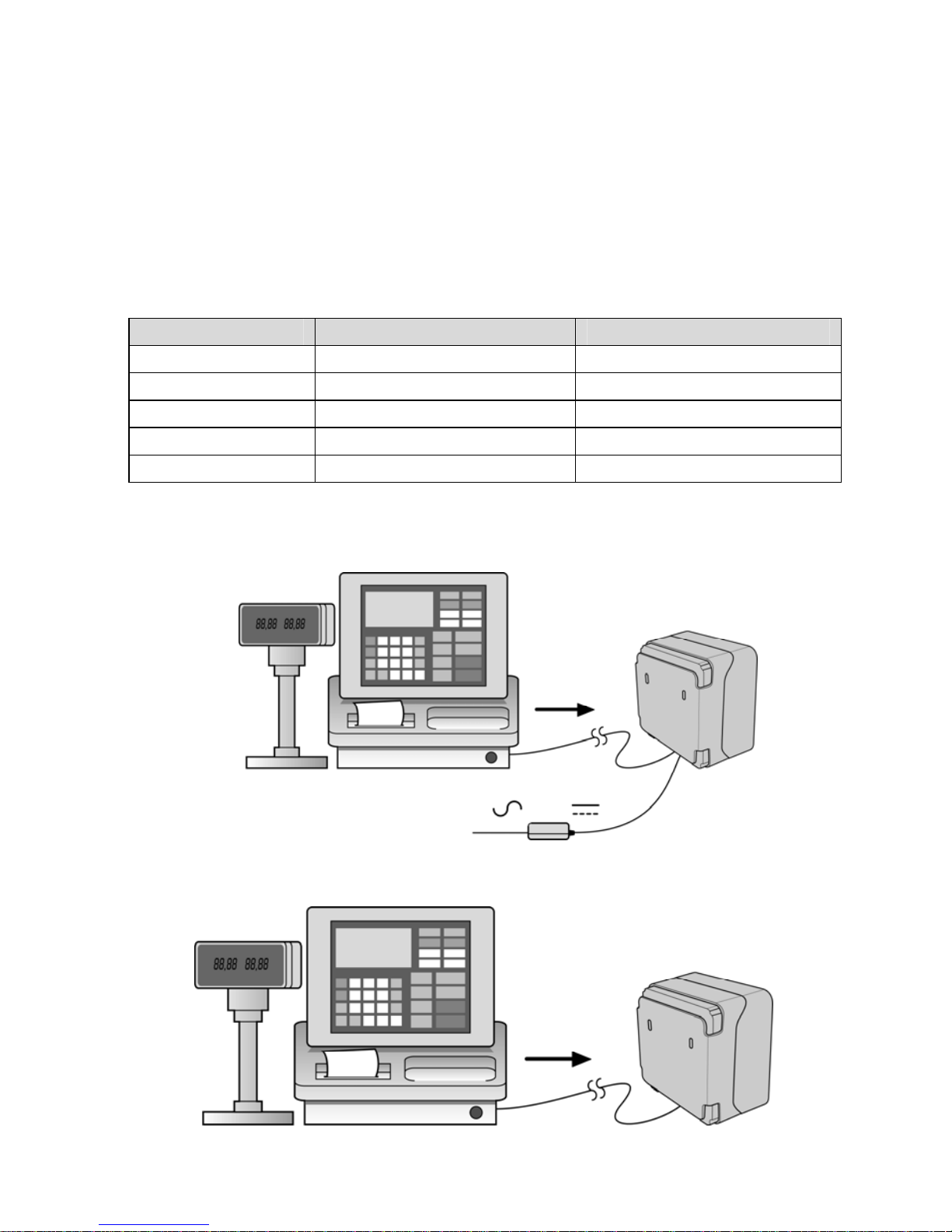

Powered with external power supply

Direct powering

Scanner
control

Appendices

24

F TROUBLESHOOTING

This section contains information on solving problems you may encounter when
using the scanner. If troubles occur, take a moment to read the information in
this section. However, before referring to the diagnostic tips make sure that the
scanner is installed as described in Chapter 2 and that all cables are properly
connected.

Problems Diagnostic Tips

The scanner is on but a barcode
cannot be read. The LED is blue.

 The scanner window is dirty. Clean

the scanner window as described in
the Maintenance section.

 The presented barcode type is not

enabled. Select the barcode type
with the Configuration Guide.

 The scanner is disabled by the host.
 The barcode type you presented to

the scanner is not supported by the

scanner.
The scanner is on, but the motor is not
rotating. A barcode cannot be read.
The LED is intermittently flashing
orange.

 The scanner is in sleep mode. Press

the Sleep/Wake Button to reactivate

the scanner or use the wake

protocol.
The LED is alternating blue/orange.  Mirror motor is defective and must

be replaced (Authorized personnel

only).
The LED is alternating blue/orange and
beeps are heard.

 Possible failure of the detecting

protective circuit. Immediately

disconnect the scanner from its

power source. Contact your

supplier.
The scanner does not accept more
than two or three barcodes.

 There is no proper handshaking with

the host system. Switch the host

system on and check connection

and communication settings.

Appendices

25

Problems Diagnostic Tips

The LED is blinking blue/orange.  The ambient temperature is too

high. Make sure the scanner has
enough air ventilation and is not
placed in direct sunlight.

The LED remains blue.  The scanner is continuously reading

a barcode. Remove all barcode
labels from the scan volume of the
scanner and try again.

 The scanner cannot send the data

to the host system. There is no
proper handshaking between the
scanner and the host. Scanner
buffer is full. Make sure that all
cables are connected and your host

system is ready to receive data.
A barcode is read by the scanner but
not accepted by the host system.

 The communication cable is not

connected to the serial port of your

host system. Refer to the manual of

your host system to locate the serial

port.

 The communication settings of the

host and scanner do not match.

Ensure that the setting values for

both devices are the same. For

proper adjustment values see the

Configuration Guide.

 The communication cable does not

suit your host system. Contact your

supplier for the correct

communication cable.

 The data format is not supported by

the software running on the host

system.

Appendices

26

Problems Diagnostic Tips

USB is not working.  Unless you use USB plus power, you

need a separate power connection
to the scanner like the external
power supply.

 Restart the scanner by temporarily

disconnecting the power. This may
help the POS system to detect the
scanner. The very first time the PC
might install some general drivers,
possibly from your computer setup
CD.

 In case of KB emulation you can

select various ‘keyboard languages’
or the universal ‘Alt-input-method’.

 In a windows environment verify with

the device manager that a HID
(Human Interface Device) is installed
for the scanner.

 Ensure that both the scanner and

POS-system/Computer expect the
same USB protocol (KB emulation,
RS-232 emulation or IBM POS
protocol).
See Configuration Guide for setup
codes and reset (re-power) the
scanner after making any changes.

Due to Champtek’s/Scantech ID’s continuing product improvement programs, specifications and
features are subject to change without notice.
