25 Ton Full Beam Log Splitter
model number 060-0550-6 | contact us: 1.866.523.5218
IMPORTANT: Please read this manual carefully before operating this snowblower and save it for reference.
TABLE OF CONTENTS
2
model no. 060-0550-6 | contact us: 1.866.523.5218
TABLE OF CONTENTS 2
SAFETY INSTRUCTIONS 3
SPECIFICATIONS 18
ASSEMBLY 24
OPERATION 47
MAINTENANCE 52
STORAGE 59
TROUBLESHOOTING 60
WARRANTY 61
TABLE OF CONTENTS
For problems or questions, DO NOT RETURN TO STORE.
Please contact one of our Customer Service Agents
who would be happy to assist you.
For Customer Assistance Please Call:
1.866.523.5218

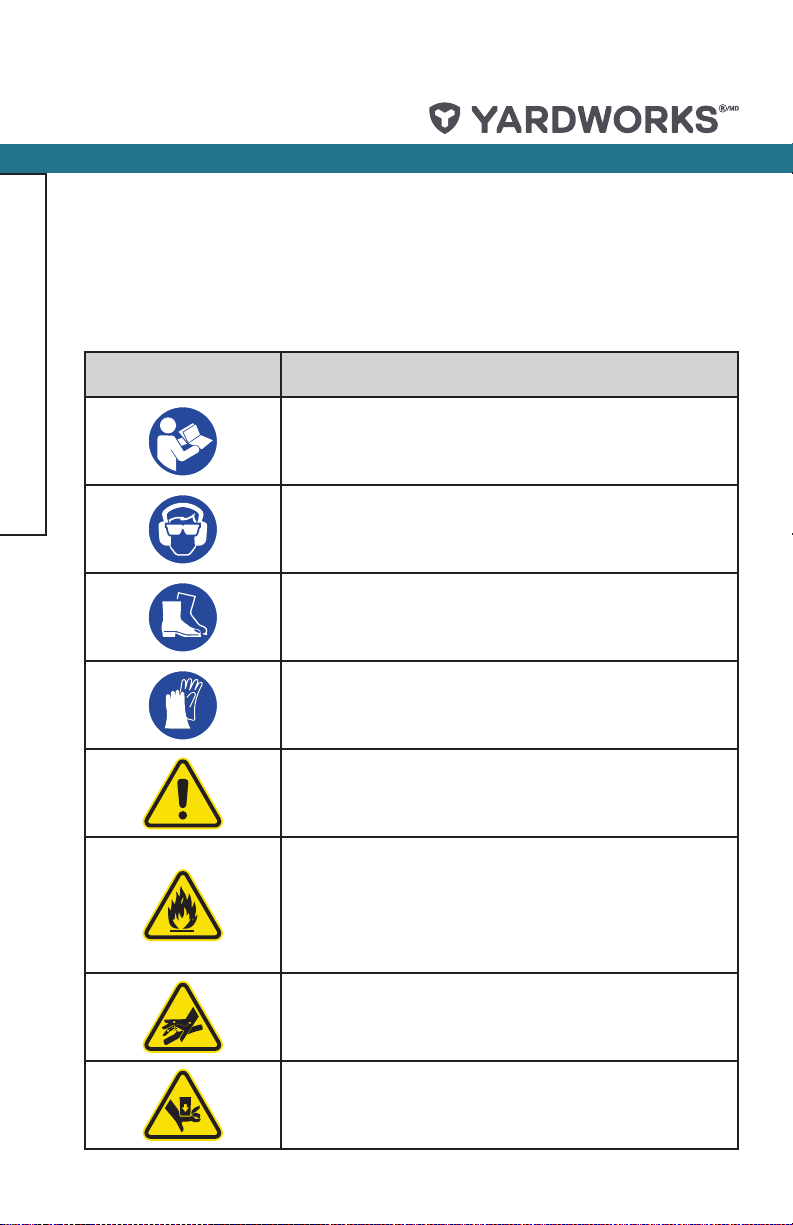

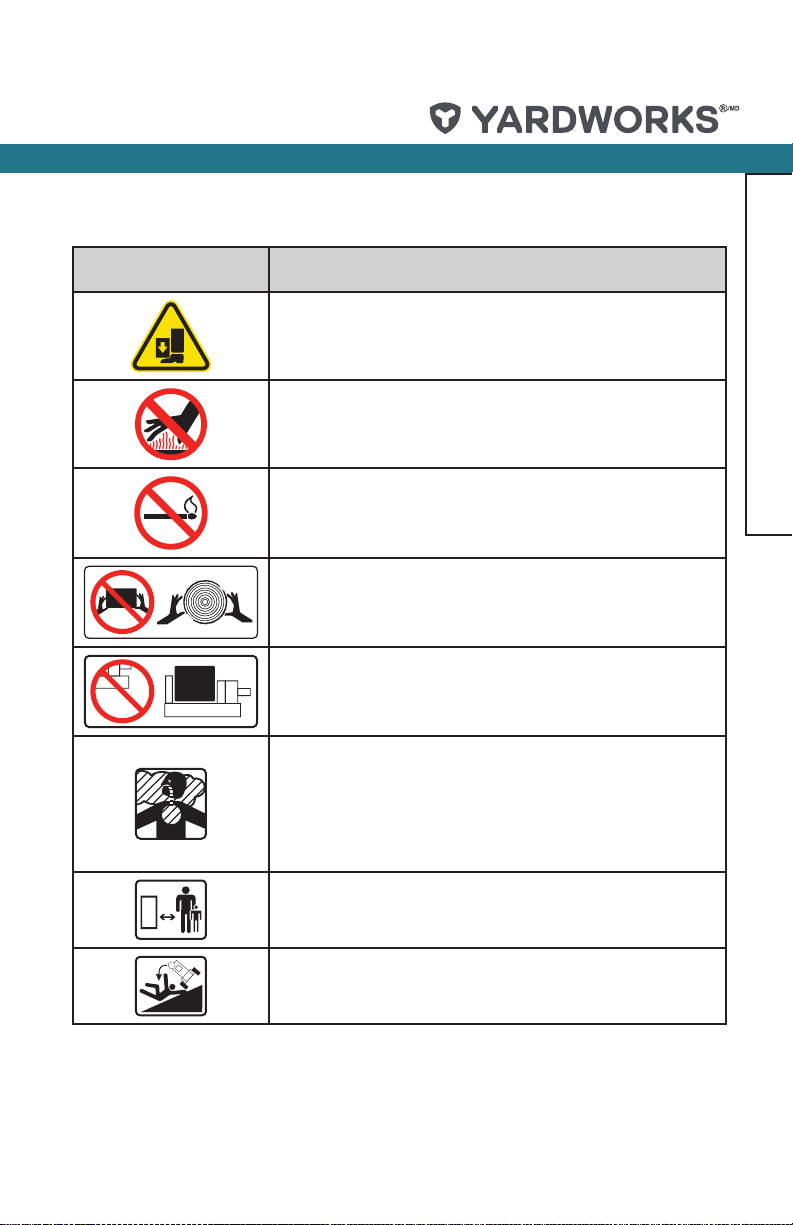

SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to possible dangers. The safety
symbols, and their explanations, deserve your careful attention and understanding. The
safety warnings do not by themselves eliminate any danger. The instructions or warnings
they give are not substitutes for proper accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate
injury.
NOTICE
NOTICE indicates information considered important, but not hazard-related (e.g., messages relating
to property damage).
3
SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
DANGER: Log splitter engine exhaust contains carbon monoxide, a colorless, odorless, poison
gas. Breathing carbon monoxide will cause nausea, dizziness, fainting or death. If you start to feel
dizzy or weak, get to fresh air immediately.
Operate log splitter outdoors only in a well ventilated area.
DO NOT operate the log splitter inside any building, including garages, basements, crawlspaces
and sheds, enclosure or compartment.
DO NOT allow exhaust fumes to enter a confined area through windows, doors, vents or other
openings.
DANGER: Using an engine indoors can kill you in minutes. Engine exhaust contains carbon
monoxide. This is a poison you cannot see or smell.
Never use inside a home or garage, even if
doors and windows are open.
Only use outside and far away from windows,
doors, and vents.
Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery
back-up according to the manufacturer’s instructions.
4
model no. 060-0550-6 | contact us: 1.866.523.5218
DANGER: Rotating parts can entangle hands, feet, hair, clothing and/or accessories. Traumatic
amputation or severe laceration can result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling drawstrings or items that could become caught.
WARNING: Operation of this equipment may create sparks that can start fires around dry
vegetation.
SAFETY INSTRUCTIONS
A spark arrestor may be required. The operator should contact local fire agencies for laws or
regulations relating to fire prevention requirements.
WARNING: Sparks can result in fire or electrical shock.
When servicing the engine:
Disconnect the spark plug wire and place it where it cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING: Running engines produce heat. Severe burns can occur on contact. Combustible
material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least 3 ft. (91.4 cm) of clearance on all sides to ensure adequate cooling.
Maintain at least 5 ft. (1.5 m) of clearance from combustible materials.
WARNING: Crush Hazard
Wedge can cut through skin and break bones. Keep all limbs away from wedge and endplate.
WARNING: Projectile Hazard
Pieces of log may be ejected from the splitter while operating. Wear ANSI approved safety glasses
when operating. Be alert.
WARNING: Keep Operator Work Zone Clear
Keep work zone clear of debris while working to ensure safe footing.
WARNING: Before removing the pin installed into the front support leg make sure hitch is
installed onto vehicle. Releasing the pin before will cause support leg to slide up and possibly
cause injury.
WARNING: Skin Injection Hazard. High pressure hydraulic oil can inject under your skin.
Make sure all fittings are tightly secure before applying pressure. Relieve system of pressure before
servicing.
5
WARNING: Towing Hazard
ALWAYS check all local and state or provincial regulations regarding towing, licensing and lights
before towing your log splitter. Review towing safety warnings in your towing vehicle manual.
Drive safely. Be aware of the added length of the log splitter. NEVER ride or transport cargo on the
log splitter. DO NOT exceed the maximum 45 MPH (72 KM/H) towing speed.
WARNING: Rapid retraction of the starter cord will pull hand and arm towards the engine faster
than you can let go. Unintentional startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could result.
When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to
avoid kickback.
CAUTION: Parts of the hydraulic circuit (cylinder, pump, valve-body, hoses) can become very
hot during operation.
WARNING: In most states towing on public streets is either prohibited or would require further
licensing or modifications. Please check with your local authorities or DMV regarding regulations,
restrictions and registration.
SAFETY INSTRUCTIONS
6
model no. 060-0550-6 | contact us: 1.866.523.5218
CAUTION: Improper treatment or use of the log splitter can damage it, shorten its life and void
your warranty.
Use the log splitter only for intended uses.
Operate only on level surfaces.
DO NOT expose log splitter to excessive moisture, dust, or dirt.
DO NOT allow any material to block the cooling slots.
DO NOT use the engine if:
– Equipment sparks, smokes or emits flames
– Equipment vibrates excessively
SAFETY INSTRUCTIONS
FUEL SAFETY
Gasoline and gasoline vapors:
– Gasoline is highly flammable and explosive.
– Gasoline can cause a fire or explosion if ignited.
– Gasoline is a liquid fuel but its vapors can ignite.
– Gasoline is a skin irritant and needs to be cleaned up immediately if spilled on skin
or clothes.
– Gasoline has a distinctive odor, this will help detect potential leaks quickly.
– In any petroleum gas fire, flames should not be extinguished unless by doing so the
fuel supply valve can be turned OFF. This is because if a fire is extinguished and a
supply of fuel is not turned OFF, then an explosion hazard could be created.
– Gasoline expands or contracts with ambient temperatures. Never fill the gasoline
tank to full capacity, as gasoline needs room to expand if temperatures rise.
When adding or removing gasoline:
DO NOT light or smoke cigarettes.
Turn the engine off and let it cool for at least two minutes before removing the gasoline cap.
Loosen the cap slowly to relieve pressure in the tank.
Only fill or drain gasoline outdoors in a well-ventilated area.
DO NOT pump gasoline directly into the engine at the gas station. Use an approved
container to transfer the fuel to the engine.
DO NOT overfill the gasoline tank.
Always keep gasoline away from sparks, open flames, pilot lights, heat and other sources
of ignition.
When starting the engine:
DO NOT attempt to start a damaged engine.
Make certain that the gasoline cap, air filter, spark plug, fuel lines and exhaust system are
properly in place.
Allow spilled gasoline to evaporate fully before attempting to start the engine.
Make certain that the log splitter is resting firmly on level ground.
When operating the log splitter:
DO NOT move or tip the log splitter during operation.
DO NOT tip the log splitter or allow fuel or oil to spill.
When transporting or servicing the log splitter:
Make certain that the fuel valve is in the OFF position, the gasoline tank is empty.
Disconnect the spark plug wire.
When storing the log splitter:
Store away from sparks, open flames, pilot lights, heat and other sources of ignition.
Do not store log splitter or gasoline near furnaces, water heaters, or any other appliances
that produce heat or have automatic ignitions.
7
SAFETY INSTRUCTIONS
DANGER: Gasoline and gasoline vapors are highly flammable and explosive.
Fire or explosion can cause severe burns or death.
WARNING: Never use a gasoline container, gasoline tank or any other fuel item that is broken,
cut, torn or damaged.
8
model no. 060-0550-6 | contact us: 1.866.523.5218
TRAINING
1. Read the Operator’s Manual completely before attempting to use this log splitter.
2. Do not allow anyone to operate your log splitter who has not read the Operator’s
Manual or has not been instructed on the safe use of the log splitter.
3. Never allow children or untrained adults to operate this machine.
4. Many accidents occur when more than one (1) person operates the log splitter. If a
helper is assisting in loading logs to be split, never actuate controls until helper is clear
of the area.
5. Never allow anyone to ride on the machine.
6. Never transport cargo on the log splitter.
SAFETY INSTRUCTIONS
7. High fluid pressures are developed in hydraulic log splitters. Pressurized hydraulic
fluid escaping through a pin hole opening can puncture skin and cause sever blood
poisoning. Therefore, the following instructions should be heeded at all times.
– Do not operate the unit with frayed, kinked, cracked or damaged hoses, fittings, or
tubing.
– Stop the engine and relieve hydraulic system pressure before changing or adjusting
fittings, hoses, tubing, or other system components.
– Do not adjust the pressure settings of the pump or valve.
– Do not check for leaks with your hand. Leaks can be detected by passing
cardboard or wood over the suspected area. Look for discoloration. If injured by
escaping fluid, see a doctor at once. Serious infection or reaction can develop if
proper medical treatment is not administered immediately.
8. Keep the operator zone and adjacent area clear for safe, secure footing.
9. Your log splitter is equipped with an internal combustion engine including a spark
arrestor but is not intended for use near any unapproved federally controlled forest,
brush, or grass covered land. Always be sure you comply with your local municipality,
provincial, and federal codes when operating your log splitter. Always take appropriate
fire-fighting equipment with you in case of an event.
10. Log splitters should be used only for splitting wood. Do not use for other purposes
unless the manufacturer provides attachments and instructions.
11. Only split wood WITH the grain. NEVER split perpendicular to the grain.
PREPARATION
1. Be thoroughly familiar with all controls and with proper use of the equipment.
2. Safety Gear:
– Always wear safety shoes or heavy boots when operating the machine.
– Always wear safety glasses or goggles when operating the machine.
– Never wear jewelry or loose-fitting clothing that might become entangled in moving
or rotating parts of the machine.
3. Make sure the splitter is on a level surface. Block tires and ensure support leg is secure
to prevent unintended movement of the log splitter during operation.
– Always operate the splitter from the manufacturer’s indicated operator zone.
4. Logs to be split on ram-type units should be cut as squarely as possible.
5. Fuel:
– Use an approved fuel container.
– Never add fuel to a running or hot engine.
– Always fill fuel tank outdoors with extreme care.
– Replace gasoline cap securely and clean up any spilled fuel.
9
SAFETY INSTRUCTIONS
10
model no. 060-0550-6 | contact us: 1.866.523.5218
OPERATION
1. Before starting this log splitter, review all safety rules. Failure to follow these rules may
result in serious injury to the operator or bystanders.
2. Be sure to confirm all hose connections and hose clamps are tight before each use. It is
possible for connections to vibrate loose over time.
3. Never leave the machine unattended with the engine operating.
4. Never operate the machine when under the influence of alcohol, drugs or medication.
5. The machine owner should instruct all operators in safe log splitter operation.
6. Always operate the log splitter with all safety equipment in place and all controls
SAFETY INSTRUCTIONS
properly adjusted for safe operation.
7. Always operate the log splitter at manufacturer’s recommended speed.
8. Always keep hands and feet clear of moving parts.
9. When loading a ram-type log splitter, place your hands on the sides of the log, not the
ends. Never place your hands or any part of your body between a log and any part of
the log splitter.
10. On ram-type log splitters, never attempt to split more than one (1) log at a time unless
the ram has been fully extended and a second log is needed to complete the separation
of the first log.
11. On ram-type log splitters on which the logs are not cut square, the longest portion of
the log should be rotated down and the most square end placed against the ram.
12. Only split logs with the grain of the wood.
13. Use only your hand to operate the log splitter controls.
14. Do not refuel the engine until it has cooled for several minutes.
MAINTENANCE AND STORAGE
1. Always shut off the engine while repairing or adjusting the splitter except as
recommended by the manufacturer.
2. Clean debris and chaff from the engine cylinder, cylinder head fins, recoil starter cover,
and muffler areas. The engine is equipped with a spark arrestor muffler, clean and
inspect it regularly (follow manufacturer’s service instructions). Replace, if damaged.
3. Never store the unit indoors with fuel in the tank. Fumes might reach an open flame
spark. Allow the engine to cool before storing in any enclosure.
4. Clear debris from movable parts, but only when the power source is shut off.
5. Check to be sure all nuts and bolts are tight to assure the equipment is in safe working
condition.
11
SAFETY INSTRUCTIONS
12
model no. 060-0550-6 | contact us: 1.866.523.5218

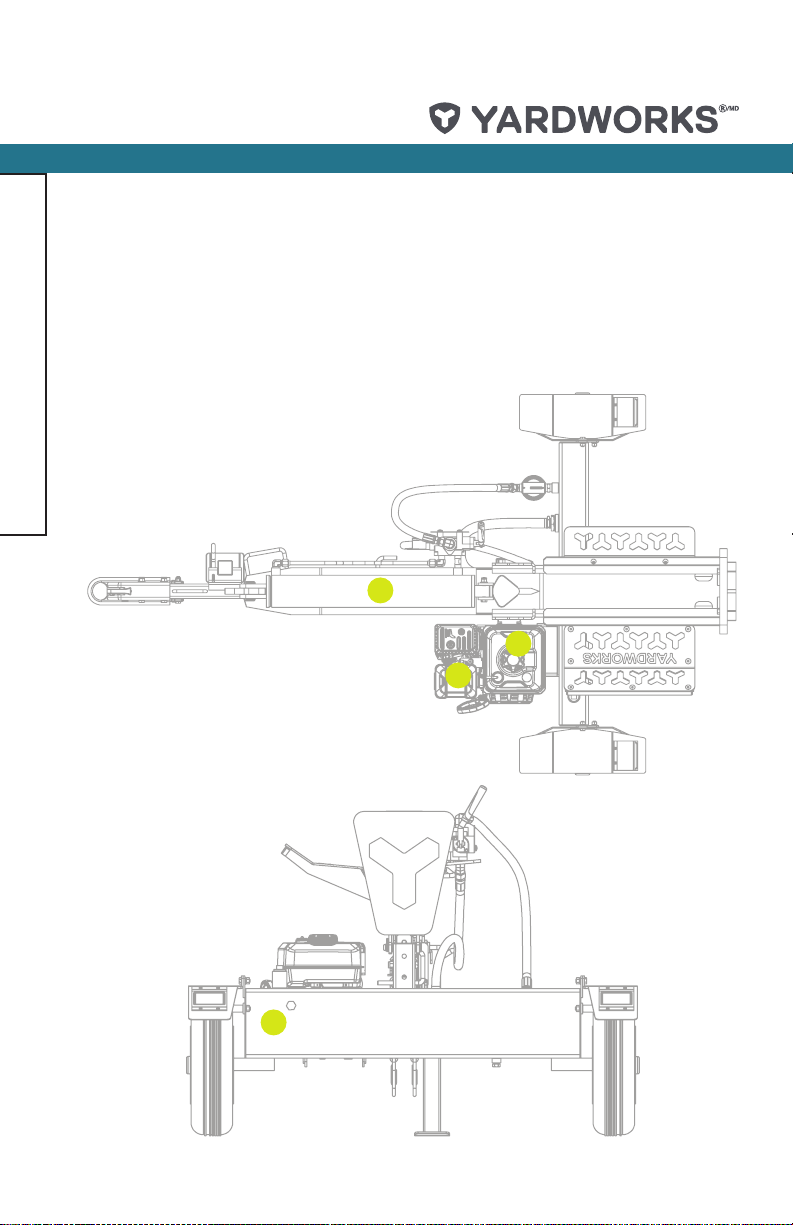

SAFETY AND DATAPLATE LABELS
These labels warn you of potential hazards that can cause serious injury. Read them
carefully.
If a label comes off or becomes hard to read, contact Technical Support Team for possible
replacement.
Top View
SAFETY INSTRUCTIONS
A
Back View
B
C
D
Label Description
1117-L-SF-B
DANGER PELIGRO WARNING ADVERTENCIA AVERTISSEMENT DANGER
HORIZONTAL WORK ZONE
AREA DE TRABAJO HORIZONTAL
ZONE DE TRAVAIL HORIZONTALE
VERTICAL WORK ZONE
AREA DE TRABAJ O VERTICAL
ZONE DE TRAVAIL VERTI CALE
2018-L-OP-A
ESSENCE SANS PL OM SEULEMENT.
Indice d’octane minimal de
87. Maximum 10 % d'éthanol.
La clasificación mínimo de 87
octano. Máximo de et anol de 10%.
GASOLINA SIN PL OMO SOLAMENTE.UNLEADED FUEL ONLY.
Minimum octane rating of 8 7.
Maximum 10% ethanol.
1966-L-SF-A
DO NOT TOUCH!
Hot surface.
WARNING
¡NO TOCAR!
Superficie caliente.
ADVERTENCIA
AVERTISSEMENT
NE TOUCHEZ PAS!
Surface chaude.
YARDWORKS
TORONTO, CANADA M4S 2B8
1.866.523.5218
MADE IN CHINA / FABRIQUÉ EN CHINE
2111-L-PR-B
MANUFACTURE DATE
DATE DE FABRICATION
SERIAL NO.
N° DE SÉRIE
MODEL
MODÈLE
100876
CTC 060-0550-6
XXXX
XXXXXXXXXXXX
13
A
B
Safety Symbols
Fuel
SAFETY INSTRUCTIONS
C
D
Hot Surface
Dataplate
14
model no. 060-0550-6 | contact us: 1.866.523.5218
SAFETY SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn
their meaning. Proper interpretation of these symbols will allow you to more safely operate
the product.
Symbol Meaning
Read Operator’s Manual. To reduce the risk of injury, user must read
and understand operator’s manual before using this product.
SAFETY INSTRUCTIONS
Eye and Ear Protection. Always wear safety goggles or safety
glasses with side shields, and as necessary a full face-shield as well
as full ear protection when operating this product.
Footwear. Always wear safety shoes or heavy boots when operating
the machine.
Gloves. Always wear nonslip, heavy-duty protective gloves when
operating this product.
Safety Alert. Precautions that involve your safety.
Risk of Fire/Explosion. Fuel and its vapours are extremely
flammable and explosive. Fire can cause severe burns or death. Do
not add fuel while the product is operating or still hot.
Open Flame Alert. Fuel and its vapours are extremely flammable and
explosive. Keep fuel away from smoking, open flames, sparks, pilot
lights, heat, and other ignition sources.
Skin Injection Hazard. High pressure hydraulic oil can inject under
your skin. Make sure all fittings are tightly secure before applying
pressure. Relieve system pressure before servicing.
Always keep hands away from the wedge and the ram. Moving parts
can crush or cut.
Symbol Meaning
Always keep feet away from the wedge and the ram. Moving parts can
crush or cut.
Hot Surface. To reduce the risk of injury or damage, avoid contact
with any hot surface.
15
Risk of Fire. Fuel and its vapours are extremely flammable and
explosive. Fire can cause severe burns or death. Do not add fuel while
the product is operating or still hot.
Hold logs on sides when loading. Keep hands and feet away from
cylinder, wedge, and partially split logs.
Never place hands or any part of the body between a log and any part
of the log splitter.
Do not split logs against the grain. Split logs end to end in the
direction of the grain only.
Toxic Fumes. The engine exhaust from this product contains
chemicals known to cause cancer and birth defects and other
reproductive harm.
Risk of Asphyxiation. This engine emits carbon monoxide, an
odourless, colourless poison gas. Breathing carbon monoxide can
cause nausea, fainting or death. Use only in a well-ventilated area.
Clearance. Keep all objects including others at least 10 feet (3m)
from this machine.
Only one person should operate the log splitter and load the logs
Never operate on an incline. Make sure the splitter is on a level
surface. Block tires and ensure support leg is secure to prevent
unintended movement of the log splitter during operation.
SAFETY INSTRUCTIONS
16
model no. 060-0550-6 | contact us: 1.866.523.5218

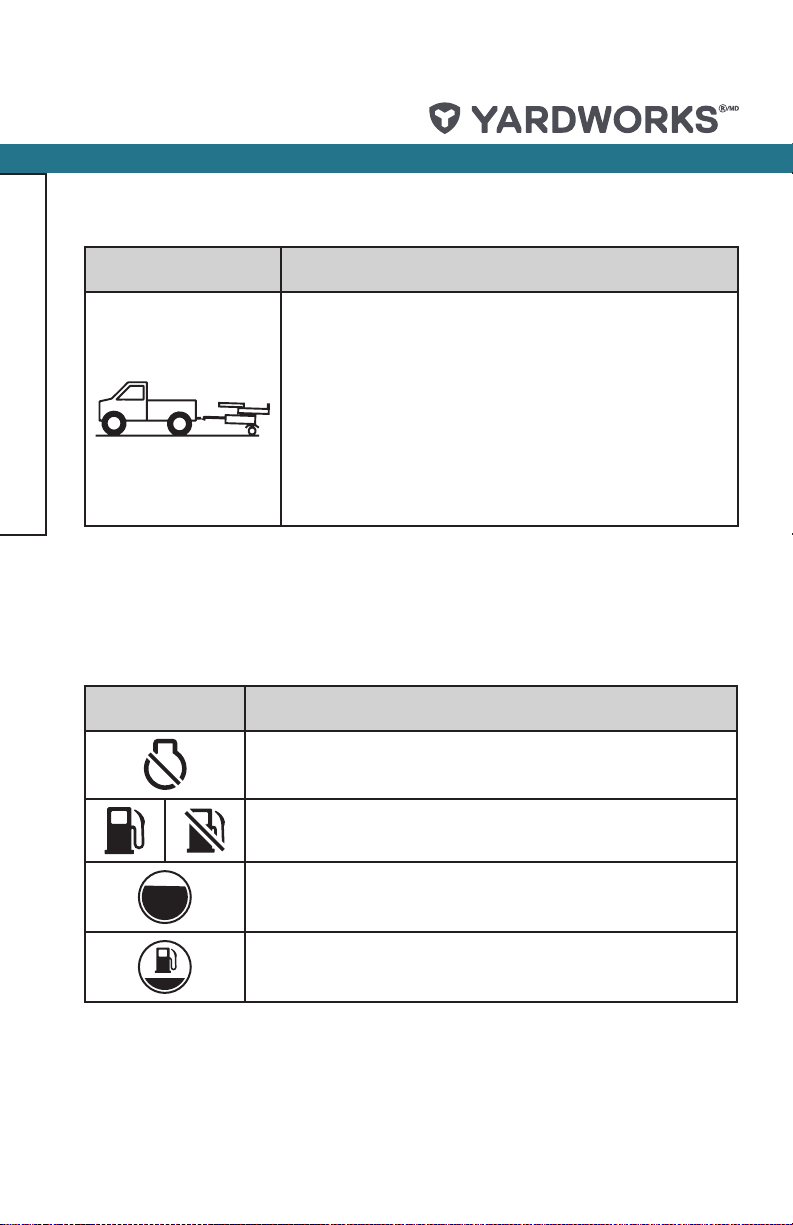

Symbol Meaning
DO NOT exceed the maximum 45 MPH (72 KM/H) towing speed.
Always check all local, state or provincial regulations regarding
towing, licensing and lights before towing your log splitter. Review
MAX. 45 MPH (72 km/h)
SAFETY INSTRUCTIONS
SAFETY SYMBOLS
Some of the following symbols may be used on this product. Please study them and learn
their meaning. Proper interpretation of these symbols will allow you to more safely operate
the product.
towing safety warnings in your towing vehicle manual.
In most states towing on public streets is either prohibited or would
require further licensing or modifications. Please check with your
local, state, or provincial authorities regarding regulations, restrictions
and registration.
Any modifications required to meet these laws are the responsibility of
the purchaser.
Symbol Meaning
STOP or OFF
Fuel/Gasoline Valve ON/OFF
Fuel Gauge: Full
Fuel Gauge: Empty

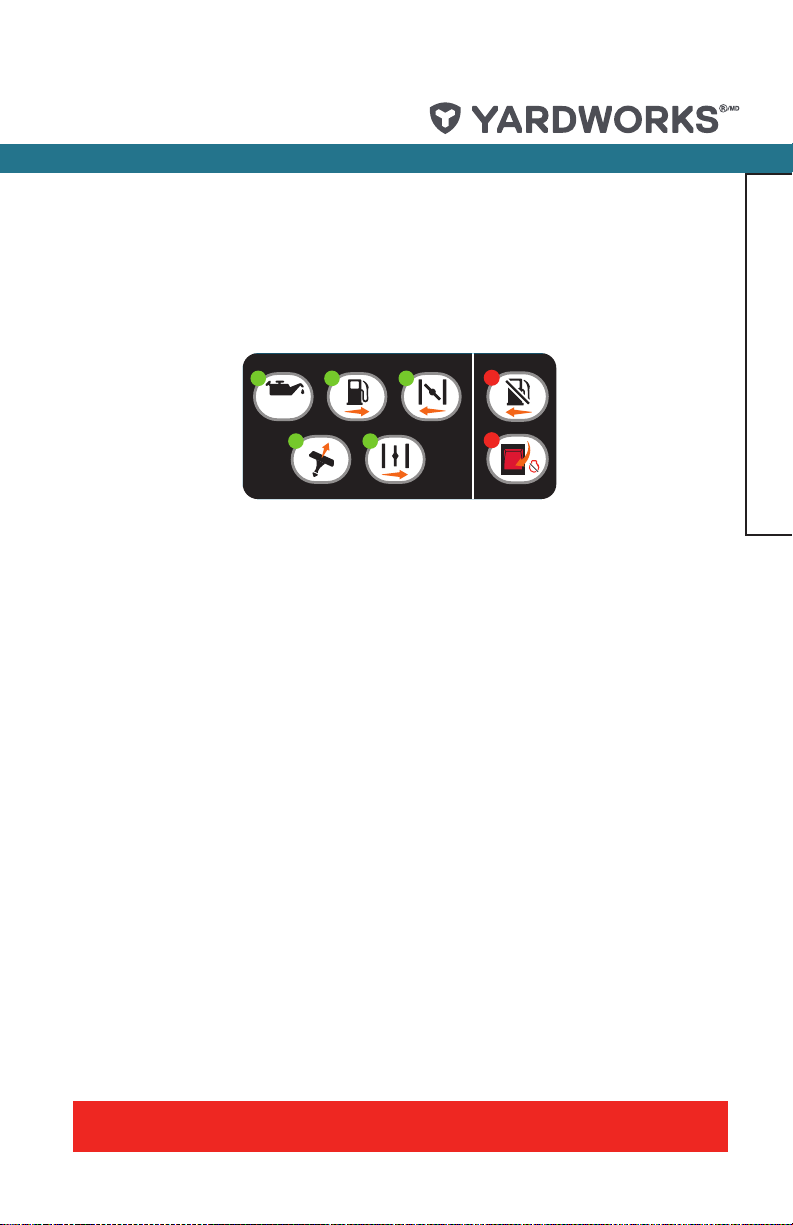

QUICKSTART LABEL SYMBOLS
3112-L-OP-A
1
10W-30
2
1
2
3
54
Some of the following symbols may be used on this product. Please study them and learn
their meaning. Proper interpretation of these symbols will allow you to more safely operate
the product.
17
SAFETY INSTRUCTIONS
Starting the Engine
1. Check oil level.
Recommended oil is 10W-30.
2. Turn the fuel valve to “ON” position.
3. Move choke lever to “CHOKE”
position.
4. Pull the recoil cord.
5. Move the choke lever to “RUN”
position.
DANGER: Move log splitter outside and far away from windows, doors and intake ventilation
covers.
Stopping the Engine
In an emergency, turn the engine switch
to the “OFF” position.
Under normal operation:
1. Turn the fuel valve to the “OFF”
position.
2. Let the engine run until fuel starvation
has stopped the engine. This usually
takes few minutes.
Important: Always ensure that the fuel
valve is in the “OFF” position when the
engine is not in use.
18
model no. 060-0550-6 | contact us: 1.866.523.5218
model no. 060-0550-6 | contact us: 1.866.523.5218
LOG SPLITTER
Ram Force 25 Ton
Cycle Time 11 seconds
Hydraulic Tank Capacity 4 gal (15.1 L)
Total Hydraulic Oil System Capacity 4.5 gal (17 L)
Max Log Length 24 in. (61 cm)
Max Log Weight 100 lb (45 kg)
Coupler Ball Size 2 in. (5.1 cm)
Tire Size 16 in. (40.6 cm)
Max Towing Speed 45 mph (72 km/h)
Cylinder Size 3.9 × 22.6 in. (10 × 57.5 cm)
Cylinder Rod Size 1 9/16 in. (4 cm)
SPECIFICATIONS
Gear Pump 2-stage
Max Pressure 3900 PSI
Max Flow Capacity 14 GPM (53 LPM)
Control Valve Detent (auto-return)
Gross Weight 498.3 lb (226 kg)
Net Weight 430 lb. (195 kg)
Height 39.3 in. (99.8 cm)
Width 51.3 in. (130.2 cm)
Length 86.9 in. (220.8 cm)
ENGINE
Brand Champion Power Equipment
Model R224P / GB225
Displacement 224 cc
Start Type Recoil
OIL
DO NOT OVERFILL.
Type See chart below
Capacity 16.9 fl. oz. (500 ml)
Recommen ded Engine Oil Type
10W-30
5W-30 Full Synthetic
-20 0 20 40 60
°F
-28.9
°C -17. 8 -6.7 4.4 15.6 26.7 37. 8 48.9
Ambient temperature
10W- 405W-30
80 100 120
HYDRAULIC OIL SYSTEM
Capacity 4.5 gal (17 L)
For year round use in warmer climates (always ABOVE 0˚C / 32˚F):
– ISO 32/SAE10W
– Universal Hydraulic Oil
For year round use in colder climates (BELOW 0˚C / 32˚F):
– Automatic Transmission Fluid
Replacement filters:
– Fram PH9342
– K&N HP-2008
– Wix 51361
FUEL
Use regular unleaded gasoline with a minimum octane rating of 87 and an ethanol content
of less than 10% by volume. DO NOT USE E15 or E85. DO NOT OVERFILL.
Gasoline Capacity 0.8 gal. (3.1 L)
19
SPECIFICATIONS
SPARK PLUG
OEM Type F6RTC
Replacement Type NGK BPR6ES or equivalent
Gap 0.028-0.031 in. (0.7-0.8 mm)
VALVE
Intake Clearance 0.0039-0.0059 in. (0.1-0.15 mm)
Exhaust Clearance 0.0059-0.0079 in. (0.15-0.2 mm)
NOTICE: Weather will affect engine oil and engine performance. Change the type of engine oil
used based on weather conditions to suit the engine needs.
NOTICE: A technical bulletin regarding valve adjustment procedures is available at
www.championpowerequipment.com.
20
model no. 060-0550-6 | contact us: 1.866.523.5218
IMPORTANT MESSAGE ABOUT TEMPERATURE
Your product is designed and rated for continuous operation at ambient temperatures up
to 40°C (104°F). When your product is needed it may be operated at temperatures ranging
from -10°C (2°F) to 50°C (122°F) for short periods of time. If exposed to temperatures
outside this range during storage, it should be brought back within this range before
operation. In any event, the product must always be operated outdoors, in a well-ventilated
area and away from doors, windows and vents.
SPECIFICATIONS
NOTICE: When temperature is below 32ºF (0ºC) use Automatic Transmission Fluid (Dexron-III
or similar).
