Champion Power Equipment 5000-Watt Generator Operator's Manual for All Serial Numbers in

at championpowerequipment.com

OPERATOR'S MANUAL

MODEL #100812

5000W PORTAbLE GENERATOR

or visit championpowerequipment.com

SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure

to do so could result in serious injury. This manual should remain with the product. Speciﬁcations, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice. This product meets the requirements of the PGMA (Portable Generator Manufacturers’ Association) standard ANSI/PGMA G300-2015 (Safety and Performance

of Portable Generators).

REV 20200824 Champion Power Equipment, Inc., Santa Fe Springs, CA USA

AN IMPORTANT MESSAGE ABOUT TEMPERATURE:

Your Champion Power Equipment product is designed and rated for continuous operation at ambient temperatures up to 40°C (104°F). When your product is needed your product may be operated at temperatures ranging from -15°C (5°F) to 50°C (122°F) for short periods. If the product is exposed to temperatures outside this range during storage, it should be brought back within this range before operation. In any event, the product must always be operated outdoors, in a well-ventilated area and away from doors, windows and other vents.

Have questions or need assistance?

Do not return this product to the store!

WE ARE HERE TO HELP!

Visit our website:

www.championpowerequipment.com

for more info:

• Product Info & Updates

• Frequently Asked Questions

– or –

Call our Customer Care Team Toll-Free at:

1-877-338-0999

• Tech Bulletins

• Product Registration

*We are always working to improve our products. Therefore, the enclosed product may differ slightly from the image on the cover.

TABLE OF CONTENTS

100812

6250 Starting Watts / 5000 Running Watts

Recoil Start

PORTABLE GENERATOR

Introduction ............................. 1

Manual Conventions. . . . . . . . . . . . . . . . . . . . . . . . 2

Safety Rules ............................. 3

Controls and Features ......................5

Generator ............................. 5

Power Panel ........................... 6

Parts Included ......................... 7

Wheel Kit .......................... 7

Other ............................. 7

Assembly ............................... 8

Remove the Generator from the Shipping Carton .. 8

Install the Wheel Kit ..................... 8

Install the Support Leg ................... 8

Install the Handle ....................... 8

Add Engine Oil ......................... 9

Add Fuel ............................ 10

Grounding ........................... 10

Operation .............................. 11

Generator Location ..................... 11

Surge Protection ....................... 11

Starting the Engine ..................... 11

Connecting Electrical Loads ............... 12

Stopping the Engine .................... 12

Grounding ........................... 12

Do Not Overload Generator ................ 12

Capacity .......................... 12

Power Management ................... 12

Operation at High Altitude ............... 13

Maintenance and Storage ................... 14

Engine Maintenance .................... 14

Oil .............................. 14

Spark Plugs ........................ 14

Air Filter .......................... 14

Spark Arrester ...................... 15

Cleaning .......................... 15

Adjustments ........................ 15

Maintenance Schedule ................ 15

Generator Maintenance .................. 16

Storage ............................. 16

Generator Storage .................... 16

Speciﬁcations ........................... 17

Engine Speciﬁcations ................... 17

Generator Speciﬁcations ................. 17

Fuel ............................... 17

Oil ................................ 17

Spark Plugs .......................... 17

Maintenance Valve Clearance .............. 17

An Important Message About Temperature .... 17

Wiring Diagram ........................ 18

Parts Diagram ........................ 19

Parts List ............................ 20

Engine Parts Diagram ................... 21

Engine Parts List ...................... 22

Troubleshooting. . . . . . . . . . . . . . . . . . . . . . . . . . 23

ENGLISH 100812

INTRODUCTION

Introduction

Congratulations on your purchase of a Champion Power Equipment product. Champion Power Equipment and Champion Engine Technology designs, builds, and supports all of our products to strict speciﬁcations and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service.

Every effort has been made to ensure the accuracy and completeness of the information in this manual, and we reserve the right to change, alter and/or improve the product and this document at any time without prior notice.

Since CPE/CET highly value how our products are designed, manufactured, operated and are serviced, and also highly value your safety and the safety of others, we would like you to take the time to review this product manual and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please always exercise common sense and always error on the side of caution when operating the product to ensure no accidents, property damage, or injury occurs. We want you to continue to use and be satisﬁed with your CPE/CET product for years to come.

Record the model and serial numbers as well as date and place of purchase for future reference. Have this information available when ordering parts and when making technical or warranty inquiries.

Champion Power Equipment Support

1-877-338-0999

Model Number

100812

Serial Number

Date of Purchase

Purchase Location

For O il Ty pe see ‘Add Engine Oil‘ section. For Fuel Type see ‘Add Fuel‘ section.

100812 ENGLISH

MANUAL CONVENTIONS

This manual uses the following symbols to help differentiate between different kinds of information. The safety symbol is used with a key word to alert you to potential hazards in operating and owning power equipment. Follow all safety messages to avoid or reduce the risk of serious injury or death.

DANGER

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

CAUTION

CAUTION used without the safety alert symbol indicates a potentially hazardous situation which, if not avoided, may result in property damage.

NOTE

If you have questions regarding your generator, we can help. Please call our help line at 1-877-338-0999

SAFETY RULES

ENGLISH 100812

WARNING

Read this manual thoroughly before operating your generator. Failure to follow instructions could result in serious injury or death.

DANGER

Generator exhaust contains carbon monoxide, a colorless, odorless, poison gas. Breathing carbon monoxide will cause nausea, dizziness, fainting or death. If you start to feel dizzy or weak, get to fresh air immediately.

Operate generator outdoors only in a well ventilated area. DO NOT operate the generator inside any building, including garages, basements, crawlspaces and sheds, enclosure or compartment, including the generator compartment of a recreational vehicle. DO NOT allow exhaust fumes to enter a conﬁned area through windows, doors, vents or other openings. DANGER CARBON MONOXIDE: using a generator indoors CAN KILL YOU IN MINUTES.

DANGER

Generator produces powerful voltage.

DO NOT touch bare wires or receptacles. DO NOT use electrical cords that are worn, damaged or frayed. DO NOT operate generator in wet weather. DO NOT allow children or unqualiﬁed persons to operate or service the generator Use a ground fault circuit interrupter (GFCI) in damp areas and areas containing conductive material such as metal decking. Use approved transfer equipment to isolate generator from your electric utility and Notify your utility company before connecting your generator to your power system.

WARNING

Sparks can result in ﬁre or electrical shock.

When servicing the generator:

Disconnect the spark plug wire and place it where it cannot contact the plug. DO NOT check for spark with the plug removed. Use only approved spark plug testers.

WARNING

DANGER

Rotating parts can entangle hands, feet, hair, clothing and/or accessories. Traumatic amputation or severe laceration can result.

Keep hands and feet away from rotating parts. Tie up long hair and remove jewelry. Operate equipment with guards in place. DO NOT wear loose-ﬁtting clothing, dangling drawstrings or items that could become caught.

WARNING

Operation of this equipment may create sparks that can start ﬁres around dry vegetation.

A spark arrestor may be required. The operator should contact local ﬁre agencies for laws or regulations relating to ﬁre prevention requirements.

Running engines produce heat. Severe burns can occur on contact. Combustible material can catch ﬁre on contact.

DO NOT touch hot surfaces. Avoid contact with hot exhaust gases. Allow equipment to cool before touching. Maintain at least 3 ft. (91.4 cm) of clearance on all sides to ensure adequate cooling. Maintain at least 5 ft. (1.5 m) of clearance from combustible materials.

WARNING

Medical and Life Support Uses.

In case of emergency, call 911 immediately. NEVER use this product to power life support devices or life support appliances. NEVER use this product to power medical devices or medical appliances. Inform your electricity provider immediately if you or anyone in your household depends on electrical equipment to live. Inform your electrical provider immediately if a loss of power would cause you or anyone in your household to experience a medical emergency.

100812 ENGLISH

SAFETY RULES

DANGER

Fuel and fuel vapors are highly ﬂammable and extremely explosive. Fire or explosion can cause severe burns or death. Unintentional startup can result in entanglement, traumatic amputation or laceration.

When adding or removing fuel:

Turn the generator off and let it cool for at least two minutes before removing the fuel cap. Loosen the cap slowly to relieve pressure in the tank. Only ﬁll or drain fuel outdoors in a well-ventilated area. DO NOT pump gas directly into the generator at the gas station. Use an approved container to transfer the fuel to the generator. DO NOT overﬁll the fuel tank. Always keep fuel away from sparks, open ﬂames, pilot lights, heat and other sources of ignition. DO NOT light or smoke cigarettes.

When starting the generator:

DO NOT attempt to start a damaged generator. Make certain that the gas cap, air ﬁlter, spark plug, fuel lines and exhaust system are properly in place. Allow spilled fuel to evaporate fully before attempting to start the engine. Make certain that the generator is resting ﬁrmly on level ground.

When operating the generator:

DO NOT move or tip the generator during operation. DO NOT tip the generator or allow fuel or oil to spill.

When transporting or servicing the generator:

Make certain that the fuel shutoff valve is in the off position and the fuel tank is empty. Disconnect the spark plug wire.

When storing the generator:

Store away from sparks, open ﬂames, pilot lights, heat and other sources of ignition.

WARNING

Cancer and Reproductive Harm – www.P65Warnings.ca.gov

WARNING

Rapid retraction of the starter cord will pull hand and arm towards the engine faster than you can let go. Unintentional startup can result in entanglement, traumatic amputation or laceration. Broken bones, fractures, bruises or sprains could result.

When starting engine, pull the starter cord slowly until resistance is felt and then pull rapidly to avoid kickback. DO NOT start or stop the engine with electrical devices plugged in.

CAUTION

Exceeding the generator’s running capacity can damage the generator and/or electrical devices connected to it.

DO NOT overload the generator. Start the generator and allow the engine to stabilize before connecting electrical loads. Connect electrical equipment in the off position, and then turn them on for operation. Turn electrical equipment off before stopping the generator. DO NOT tamper with the governed speed. DO NOT modify the generator in any way.

CAUTION

Improper treatment or use of the generator can damage it, shorten its life and void your warranty.

Use the generator only for intended uses. Operate only on level surfaces. DO NOT expose generator to excessive moisture, dust, or dirt. DO NOT allow any material to block the cooling slots. If connected devices overheat, turn them off and disconnect them from the generator. DO NOT use the generator if:

– Electrical output is lost – Equipment sparks, smokes or emits ﬂames – Equipment vibrates excessively

ENGLISH 100812

CONTROLS AND FEATURES

Read this owner’s manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference.

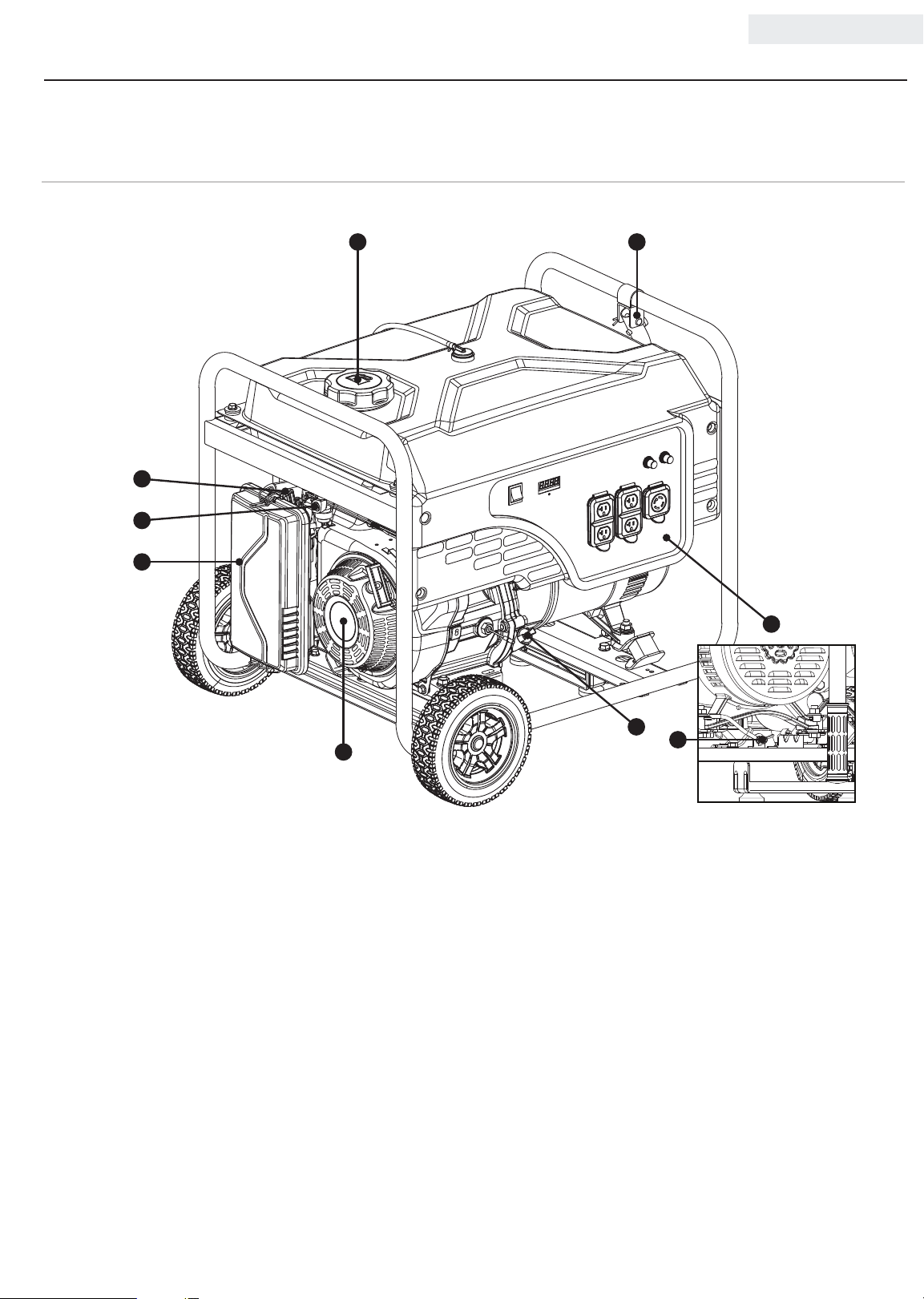

Generator

1 8

(1) Fuel Tank – 5.7 gallon (21.5 L) capacity fuel tank.

(2) Choke – Used to start the engine.

(3) Fuel Valve – Turn this valve to the “ON” position to

supply fuel to the engine.

(4) Air Filter – Protects the engine by ﬁltering dust

and debris from the intake air.

(5) Recoil Starter – Used to start the engine.

(6) Oil Filler Cap – Check and ﬁll engine oil level.

(7) Power Panel – See “Power Panel” section.

(8) Handle

(9) Ground Terminal – Consult an electrician for local

grounding regulations.

100812 ENGLISH

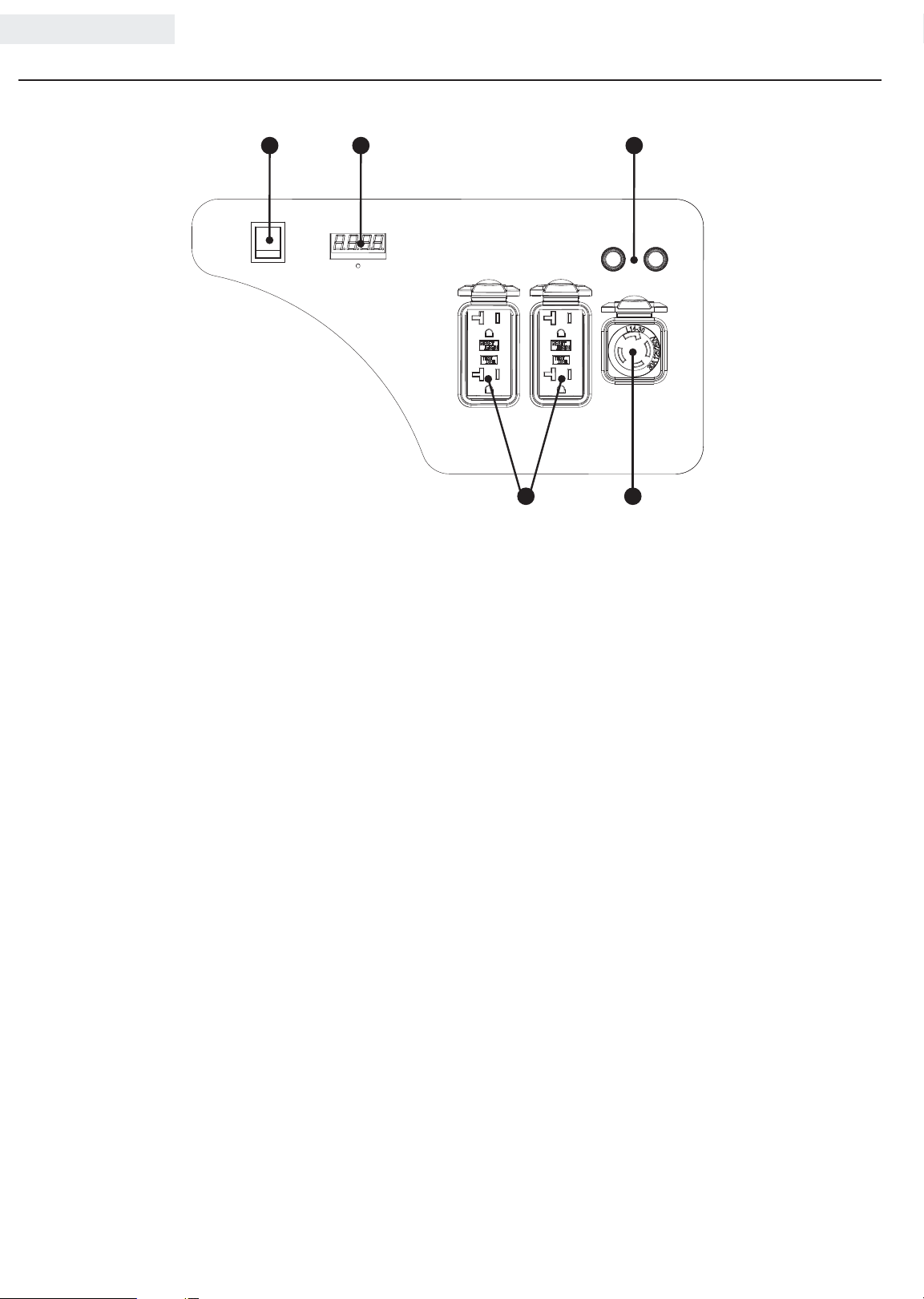

Power Panel

CONTROLS AND FEATURES

1 2 3

(1) Engine Switch – Used to turn the generator on and

off.

(2) Intelligauge – Three mode digital meter for

displaying running hours, voltage and hertz.

(3) Circuit Breakers – Protects the generator against

electrical overloads. Push to reset breaker.

(4) 120 Volt AC, 20 Amp Duplex (2)

(GFCI 5-20R) – May be used to supply electrical power for the operation of 120 Volt AC single phase 60 Hz electrical loads.

(5) 120/240 Volt AC, 30 Amp Twist-Lock Receptacle

(NEMA L14-30R) – May be used to supply electrical power for the operation of 120/240 Volt AC, single phase 60 Hz electrical loads.

CONTROLS AND FEATURES

Parts Included

Your 100812 Gasoline Powered Generator ships with the following parts:

Wheel Kit

– 8 in. Wheel ...........................2

– Roll Pin (Ø16x90 for Wheel) ................2

– R-Pin ...............................2

– Handle ..............................1

– Support Leg w/Vibration Mounts .............1

– Flange Bolt (M8x16 for Support Leg) ..........2

– Nut (M8) .............................2

– Roll Pin (Ø8x40 for Handle) ................1

– R-Pin (R5 for Handle) ....................1

Other

– Oil ........................ 1.2 qt. (1.1 L)

– Oil Funnel ............................1

ENGLISH 100812

100812 ENGLISH

ASSEMBLY

Your generator requires some assembly. This unit ships from our factory without oil. It must be properly serviced with fuel and oil before operation. If you have any questions regarding the assembly of your generator, call our help line at 1-877-338-0999. Please have your serial number and model number available.

Remove the Generator from the Shipping Carton

1. Set the shipping carton on a solid, ﬂat surface.

2. Remove everything from the carton except the generator.

3. Carefully cut each corner of the box from top to bottom. Fold each side ﬂat on the ground to provide a surface area to install the wheel kit and support leg.

Install the Wheel Kit

CAUTION

The wheel kit is not intended for over-the-road use.

1. Before adding fuel and oil, tip the generator on it’s side.

2. Slide the wheel roll pin (#12) through the wheel (#13) from the outside.

3. Slide the roll pin through the mount point on the frame.

4. Secure the R-Pin (#14).

5. Repeat steps 2-4 to attach the second wheel.

Install the Support Leg

1. Align the Support Foot (#36) with the holes on the frame.

2. Insert an M8x16 ﬂange bolt (#41) through each hole from the bottom.

3. Secure each bolt with an M8 nut (#35) from the top.

Install the Handle

1. Place the Handle inside the mounting channel on the frame.

2. Secure the Handle to the frame using a Roll Pin (25).

3. Place an R-Pin (26) on the end of the Roll Pin and fasten securely.

ASSEMBLY

OIL

ENGLISH 100812

Add Engine Oil

CAUTION

DO NOT attempt to crank or start the engine before it has been properly ﬁlled with the recommended type and amount of oil. Damage to the generator as a result of failure to follow these instructions will void your warranty.

NOTE

The generator rotor has a sealed, pre-lubricated ball bearing that requires no additional lubrication for the life of the bearing.

NOTE

The recommended oil type is 10W-30 automotive oil.

1. Place the generator on a ﬂat, level surface.

Add Engine Oil Cont’d.

NOTE

Check oil often during the break-in period. Refer to the Maintenance section for recommended service intervals.

CAUTION

The engine is equipped with a low oil shut-off and will stop when the oil level in the crankcase falls below the threshold level.

NOTE

We consider the ﬁrst 5 hours of run time to be the break-in period for the unit. During the break in period stay at or below 50% of the running watt rating and vary the load occasionally to allow stator windings to heat and cool. Adjusting the load will also cause engine speed to vary and help seat piston rings. After the 5 hour break-in period, change the oil.

2. Remove oil ﬁll cap/dipstick to add oil.

3. Add up to 1.2 qt. (1.1 L) of oil (included) and replace oil ﬁll cap/dipstick. DO NOT OVERFILL.

4. Check engine oil level daily and add as needed.

NOTE

Once oil has been added, a visual check should show oil about 1-2 threads from running out of the ﬁll hole. If using the dipstick to check oil level, DO NOT screw in the dipstick while checking.

MAX

OIL DIP STICK

Degrees Celsiusº

Full Synthetic 5W-30

Degrees Fahrenheitº

(Outside)

NOTE

Weather will affect engine oil and engine performance. Change the type of engine oil used based on weather conditions to suit the engine needs.

NOTE

Synthetic oil may be used after the 5 hour initial break-in period. Using synthetic oil does not increase the recommended oil change interval.

100812 ENGLISH

ASSEMBLY

Add Fuel

1. Use clean, fresh, regular unleaded fuel with a minimum octane rating of 87 and an ethanol content of less than 10% by volume.

2. DO NOT mix oil with fuel.

3. Clean the area around the fuel cap.

4. Remove the fuel cap.

5. Slowly add fuel to the tank. DO NOT OVERFILL. Fuel can expand after ﬁlling. A minimum of ¼ in. (6.4 mm) of space left in the tank is required for fuel expansion, more than ¼ in. (6.4 mm) is recommended. Fuel can be forced out of the tank as a result of expansion if it is overﬁlled, and can affect the stable running condition of the product. When ﬁlling the tank, it is recommended to leave enough space for the fuel to expand.

Add Fuel Cont’d.

NOTE

Our engines work well with 10% or less ethanol blend fuels. When using blended fuels there are some issues worth noting:

– Ethanol-gasoline blends can absorb more water

than gasoline alone.

– These blends can eventually separate, leaving

water or a watery goo in the tank, fuel valve and car buretor.

– With gravity-fed fuel supplies, this compromised

fuel can be drawn into the carburetor and cause damage to the engine and/or potential hazards.

– There are only a few suppliers of fuel stabilizer

that are formulated to work with ethanol blend fuels.

– Any damages or hazards caused by using

improper fuel, improperly stored fuel, and/ or improperly formulated stabilizers, are not

covered by manufacture’s warranty. It is advisable to always shut off the fuel supply, run the engine to fuel starvation and drain the tank when the equipment is not in use for more than 30 days.

6. Screw on the fuel cap and wipe away any spilled fuel.

CAUTION

Use regular unleaded gasoline with a minimum octane rating of 87.

Do not mix oil and gasoline. Fill tank to approximately ¼ in. (6.4 mm) below the top of the tank to allow for fuel expansion. DO NOT pump gas directly into the generator at the gas station. Use an approved container to transfer the fuel to the generator. DO NOT ﬁll fuel tank indoors. DO NOT ﬁll fuel tank when the engine is running or hot. DO NOT overﬁll the fuel tank. DO NOT light cigarettes or smoke when ﬁlling the fuel tank.

WARNING

Grounding

Your generator must be properly connected to an appropriate ground to help prevent electric shock.

WARNING

Failure to properly ground the generator can result in electric shock.

A ground terminal connected to the frame of the generator has been provided on the power panel. For remote grounding, connect of a length of heavy gauge (12 AWG minimum) copper wire between the generator ground terminal and a copper rod driven into the ground. We strongly recommend that you consult with a qualiﬁed electrician to ensure compliance with local electrical codes.

Pouring fuel too fast through the fuel screen may result in blow back of fuel at the operator while ﬁlling.

OPERATION

ENGLISH 100812

Generator Location

NEVER operate the generator inside any building, including garages, basements, crawlspaces and sheds, enclosure or compartment, including the generator compartment of a recreational vehicle. Please consult your local authority. In some areas, generators must be registered with the local utility. Generators used at construction sites may be subject to additional rules and regulations. Generators should be on a ﬂat, level surface at all times. (Even while not in operation) Generators must have at least 5 ft. (1.5 m) of clearance from all combustible material. In addition to clearance from all combustible material, generators must also have at least 3 ft. (91.4 cm) of clearance on all sides to allow for adequate cooling, maintenance and servicing. Generators should never be started or operated in the back of a SUV, camper, trailer, in the bed of a truck (regular, ﬂat or otherwise), under staircases/stairwells, next to walls or buildings, or in any other location that will not allow for adequate cooling of the generator and/or the mufﬂer. DO NOT contain generators during operation. Allow generators to properly cool before transport or storage. Place the generator in a well-ventilated area. DO NOT place the generator near vents or intakes where exhaust fumes could be drawn into occupied or conﬁned spaces. Carefully consider wind and air currents when positioning generator.

Failure to follow proper safety precautions may void

manufacturer’s warranty.

Surge Protection

CAUTION

Voltage ﬂuctuation may impair the proper

functioning of sensitive electronic equipment.

Electronic devices, including computers and many programmable appliances use components that are designed to operate within a narrow voltage range and may be affected by momentary voltage ﬂuctuations. While there is no way to prevent voltage ﬂuctuations, you can take steps to protect sensitive electronic equipment.

1. Install UL1449, CSA-listed, plug-in surge suppressors

on the outlets feeding your sensitive equipment.

Surge suppressors come in single- or multi-outlet styles. They’re designed to protect against virtually all short-duration voltage ﬂuctuations.

Starting the Engine

1. Make certain the generator is on a ﬂat, level surface.

2. Disconnect all electrical loads from the generator. Never start or stop the generator with electrical devices plugged in or turned on.

3. Turn the Fuel Valve to the “ON” position.

4. Flip the engine switch to the “ON” position.

5. Move the choke lever to the “CHOKE” position.

6. Pull the starter cord slowly until resistance is felt and then pull rapidly

7. Do not over-choke. As soon as engine starts, move the choke lever to the “RUN” position.

WARNING

Do not operate or store the generator in rain, snow, or wet weather.

Using a generator or electrical appliance in wet conditions, such as rain or snow, or near a pool or sprinkler system, or when your hands are wet, could result in electrocution.

WARNING

During operation the mufﬂer and exhaust fumes produced will become hot. If adequate cooling and breathing space are not supplied, or if the generator is blocked or contained, temperatures can become extremely heated and may lead to ﬁre.

NOTE

Keep choke lever in “Choke” position for only 1 pull of the recoil starter. After ﬁrst pull, move choke lever to the “Run” position for up to the next 3 pulls of the recoil starter. Too much choke leads to sparkplug fouling/engine ﬂooding due to the lack of incoming air. This will cause the engine not to start.

NOTE

If the engine starts but does not run make certain that the generator is on a ﬂat, level surface. The engine is equipped with a low oil sensor that will prevent the engine from running when the oil level falls below a critical threshold.

100812 ENGLISH

OPERATION

Connecting Electrical Loads

1. Let the engine stabilize and warm up for a few minutes after starting

2. Plug in and turn on the desired 120/240 Volt AC single phase, 60 Hz electrical loads.

– DO NOT connect 3-phase loads to the generator. – DO NOT connect 50 Hz loads to the generator. – DO NOT overload the generator.

NOTE

Connecting a generator to your electric utility company’s power lines or to another power source may be against the law. In addition this action, if done incorrectly, could damage your generator and appliances and could cause serious injury or even death to you or a utility worker who may be working on nearby power lines. If you plan to run a portable electric generator during an outage, please notify your electric utility company immediately and remember to plug your appliances directly into the generator. Do not plug the generator into any electric outlet in your home. Doing so could create a connection to the utility company power lines. You are responsible for ensuring that your generator’s electricity does not feed back into the electric utility power lines. If the generator will be connected to a building electrical system, consult your local utility company or a qualiﬁed electrician. Connections must isolate generator power from utility power and must comply with all applicable laws and codes.

Grounding

The generator system ground connects the frame to the ground terminals on the power panel. The system ground is connected to the AC neutral wire.

Do Not Overload Generator

Capacity

Follow these simple steps to calculate the running and starting watts necessary for your purposes.

1. Select the electrical devices you plan on running at the same time.

2. Total the running watts of these items. This is the amount of power you need to keep your items running.

3. Identify the highest starting wattage of all devices identiﬁed in step 1. Add this number to the number calculated in step 2. Surge wattage is the extra burst of power needed to start some electric driven equipment. Following the steps listed under “Power Management” will guarantee that only one device will be starting at a time.

Power Management

Use the following formula to convert voltage and amperage to watts:

Stopping the Engine

1. Turn off and unplug all electrical loads. Never start or stop the generator with electrical devices plugged in or turned on.

2. Let the generator run at no-load for several minutes to stabilize internal temperatures of the engine and generator.

3. Turn the Fuel Valve to the “OFF” position.

4. Let the engine run until fuel starvation has stopped the engine. This usually takes a few minutes.

5. Press the engine switch to the “OFF” position.

Important: Always ensure that the Fuel Valve and the Engine Switch are in the “OFF” position when the engine is not in use.

NOTE

If the engine will not be used for a period of two (2) weeks or longer, please see the Storage section for proper engine and fuel storage.

Volts x Amps = Watts

To prolong the life of your generator and attached devices, follow these steps to add electrical load:

1. Start the generator with no electrical load attached

2. Allow the engine to run for several minutes to stabilize.

3. Plug in and turn on the ﬁrst item. It is best to attach the item with the largest load ﬁrst.

4. Allow the engine to stabilize.

5. Plug in and turn on the next item.

6. Allow the engine to stabilize.

7. Repeat steps 5-6 for each additional item.

NOTE

Never exceed the speciﬁed capacity when adding loads to the generator.

OPERATION

Operation at High Altitude

The density of air at high altitude is lower than at sea level. Engine power is reduced as the air mass and airfuel ratio decrease. Engine power and generator output will be reduced approximately 3½% for every 1000 feet of elevation above sea level. This is a natural trend and cannot be changed by adjusting the engine. At high altitudes increased exhaust emissions can also result due to the increased enrichment of the air fuel ratio. Other high altitude issues can include hard starting, increased fuel consumption and spark plug fouling. To alleviate high altitude issues other than the natural power loss, Champion Power Equipment can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting Customer Support. Installation instructions are also available in the Technical Bulletin area of the Champion Power Equipment internet site. The part number and recommended minimum altitude for the application of the high altitude carburetor main jet is listed in the table below. In order to select the correct high altitude main jet it is necessary to identify the carburetor model. For this purpose, a code is stamped on the side of the carburetor. Select the correct main jet part number corresponding to the carburetor code found on your particular carburetor.

ENGLISH 100812

Carb. Code High Alt. Jet Part Number Min. Altitude

100155680

Z910-2

100062832

3281 ft. (1000 m)

6562 ft. (2000 m)

WARNING

Operation using the alternative main jet at elevations lower than the recommended minimum altitude can damage the engine. For operation at lower elevations, the standard main jet must be used. Operating the engine with the wrong engine conﬁguration at a given altitude may increase its emissions and decrease fuel efﬁciency and performance.

100812 ENGLISH

DRAIN bOLT

MAINTENANCE AND STORAGE

The owner/operator is responsible for all periodic maintenance.

WARNING

Never operate a damaged or defective generator.

WARNING

Tampering with the factory set governor will void your warranty.

WARNING

Improper maintenance will void your warranty.

NOTE

Maintenance, replacement, or repair of emission control devices and systems may be performed by any non-road engine repair establishment or individual.

Complete all scheduled maintenance in a timely manner. Correct any issue before operating the generator.

Oil Cont’d.

NOTE

Once oil has been added, a visual check should show oil about 1-2 threads from running out of the ﬁll hole. If using the dipstick to check oil level, DO NOT screw in the dipstick while checking.

Spark Plugs

1. Remove the spark plug cable from the spark plug.

2. Use the spark plug tool (not included) that shipped with your generator to remove the plug.

3. Inspect the electrode on the plug. It must be clean and not worn to produce the spark required for ignition.

4. Make certain the spark plug gap is 0.6 - 0.8 mm or (0.024 - 0.031 in.).

NOTE

For service or parts assistance, contact our help line at 1-877-338-0999

Engine Maintenance

To prevent accidental starting, remove and ground spark plug wire before performing any service.

Oil

Change oil when the engine is warm. Refer to the oil speciﬁcation to select the proper grade of oil for your operating environment.

1. Remove the oil drain plug with a 12 mm socket and extension (not included).

2. Allow the oil to drain completely.

3. Replace the drain plug.

4. Remove oil ﬁll cap/dipstick to add oil.

5. Add up to 1.2 qt. (1.1 L) of oil and replace oil ﬁll cap/dipstick. DO NOT OVERFILL.

6. Dispose of used oil at an approved waste management facility.

0.6 - 0.8 mm (0.024 - 0.031 in.)

5. Refer to the spark plug recommendation chart when replacing the plug.

6. Carefully thread the plug into the engine.

7. Use the spark plug tool (not included) to ﬁrmly install the plug.

8. Attach the spark plug wire to the plug.

Air Filter

1. Remove the snap-on cover holding the air ﬁlter to the assembly.

2. Remove the foam element.

3. Wash in liquid detergent and water. Squeeze thoroughly dry in a clean cloth.

4. Saturate in clean engine oil.

5. Squeeze in a clean, absorbent cloth to remove all excess oil.

6. Place the ﬁlter in the assembly.

7. Reattach the air ﬁlter cover and snap in place.

MAINTENANCE AND STORAGE

ENGLISH 100812

Spark Arrester

1. Allow the engine to cool completely before servicing the spark arrester.

2. Remove the two screws holding the cover plate which retains the end of the spark arrester to the mufﬂer.

3. Remove the spark arrester screen.

4. Carefully remove the carbon deposits from the spark arrester screen with a wire brush.

5. Replace the spark arrester if it is damaged.

6. Position the spark arrester in the mufﬂer and attach with the two screws.

CAUTION

Failure to clean the spark arrester will result in degraded engine performance.

NOTE

Federal and local laws and administrative requirements indicate when and where spark arresters are required. When ordered, spark arresters are required for operation of this generator in National Forest lands. In California, this generator must not be used on any forest-covered land, brush-covered land, or grass-covered land unless the engine is equipped with a spark arrester.

Cleaning

CAUTION

Adjustments

The air-fuel mixture is not adjustable. Tampering with the governor can damage your generator and your electrical devices and will void your warranty. CPE recommends that you contact our service line at 1-877-338-0999 for all other service and/or adjustment needs.

Maintenance Schedule

Follow the service intervals indicated in the following maintenance schedule. Service your generator more frequently when operating in adverse conditions. Contact our helpline at 1-877-338-0999 to locate the nearest Champion Power Equipment certiﬁed service dealer for your generator or engine maintenance needs.

Every 8 hours or daily

Check oil level

Clean around air intake and mufﬂer

First 5 Hours

Change oil

Every 50 hours or every season

Clean air ﬁlter

Change oil if operating under heavy load or in hot environments

Every 100 hours or every season

Change oil

Clean/Adjust spark plug

Check/Adjust valve clearance*

Clean spark arrester

Clean fuel tank and ﬁlter*

Every 250 hours

Clean combustion chamber*

Every 3 years

Replace fuel line

*To be performed by knowledgeable, experienced owners or Champion Power Equipment certiﬁed dealers.

DO NOT spray engine with water.

Water can contaminate the fuel system.

Use a damp cloth to clean exterior surfaces of the engine. Use a soft bristle brush to remove dirt and oil. Use an air compressor (25 PSI) to clear dirt and debris from the engine.

100812 ENGLISH

MAINTENANCE AND STORAGE

Generator Maintenance

Make certain that the generator is kept clean and stored properly. Only operate the unit on a ﬂat, level surface in a clean, dry operating environment. DO NOT expose the unit to extreme conditions, excessive dust, dirt, moisture or corrosive vapors.

CAUTION

DO NOT use a garden hose to clean the generator.

Water can enter the generator through the cooling slots and damage the generator windings.

Use a damp cloth to clean exterior surfaces of the generator. Use a soft bristle brush to remove dirt and oil. Use an air compressor (25 PSI) to clear dirt and debris from the generator. Inspect all air vents and cooling slots to ensure that they are clean and unobstructed.

Storage

The generator should be started at least once every 14 days and allowed to run for at least 20 minutes. For longer term storage, please follow these guidelines.

Generator Storage

1. Add a properly formulated fuel stabilizer to the tank.

2. Be sure all appliances are disconnected from the generator.

3. Run the generator for a few minutes so the treated fuel cycles through the fuel system and carburetor.

4. Turn the fuel valve to the “Off” position.

5. Let the generator run until fuel starvation has stopped the engine. This usually takes a few minutes.

6. The generator needs to cool completely before cleaning and storage.

7. Clean the generator according to the maintenance section.

8. Change the oil.

9. Remove the spark plug and pour about 1⁄2 ounce (14.8 mL) of oil into the cylinder. Crank the engine slowly to distribute the oil and lubricate the cylinder.

10. Reattach the spark plug.

11. Store the unit in a clean, dry place out of direct

sunlight.

Generator Storage Cont’d.

NOTE

Our engines work well with 10% or less ethanol blend fuels. When using blended fuels there are some issues worth noting:

– Ethanol-gasoline blends can absorb more water

than gasoline alone.

– These blends can eventually separate, leaving

water or a watery goo in the tank, fuel valve and car buretor.

– With gravity-fed fuel supplies, this compromised

fuel can be drawn into the carburetor and cause damage to the engine and/or potential hazards.

– There are only a few suppliers of fuel stabilizer

that are formulated to work with ethanol blend fuels.

– Any damages or hazards caused by using

improper fuel, improperly stored fuel, and/ or improperly formulated stabilizers, are not

covered by manufacture’s warranty. It is advisable to always shut off the fuel supply, run the engine to fuel starvation and drain the tank when the equipment is not in use for more than 30 days.

DANGER

Generator exhaust contains odorless and colorless carbon monoxide gas.

To avoid accidental or unintended ignition of your generator during periods of storage, the following precautions should be followed:

– When storing the generator for short or extended

periods of time make sure that the Engine

Switch and the Fuel Valve are set in the OFF

position.

SPECIFICATIONS

ENGLISH 100812

Engine Speciﬁcations

– Model ...........................FH300

– Displacement .......................292cc

– Typ e ........................4-Stroke OHV

– Start Type .........................Recoil

Generator Speciﬁcations

– Model .......................... 100 812

– Running Wattage .................5000 Watts

– Starting Wattage .................6250 Watts

– AC Load ...................... 120/240 V

– Phase ............................Single

– Frequency .........................60 Hz

– Fuel Capacity ............. 5.7 gallons (21.5 L)

– Gross Weight ...............162 lb. (73.5 kg)

– Net Weight .................152.1 lb. (69 kg)

– Height .................... 25.2 in. (64 cm)

– Width ...................25.7 in. (65.4 cm)

– Length. . . . . . . . . . . . . . . . . . . 30.1 in. (76.5 cm)

Fuel

Fuel capacity is 5.7 gallons (21.5 L). Use regular unleaded gasoline with a minimum octane rating of 87 and an ethanol content of less than 10% by volume.

Oil

Use 10W-30 automotive oil. Oil capacity is up to 1.2 qt. (1.1 L). DO NOT OVERFILL. Please reference the following chart for recommended oil types for use in the generator.

NOTE

Weather will affect engine oil and engine

performance. Change the type of engine oil used

based on weather conditions to suit the engine

needs.

Spark Plugs

OEM spark plug: LG F6RTC Replacement spark plug: NGK BPR6ES or equivalent

Make certain the spark plug gap is 0.6 - 0.8 mm or (0.024 - 0.031 in.).

Maintenance Valve Clearance

– Intake: 0.10 – 0.15 mm (0.004 – 0.006 in.)

– Exhaust: 0.15 – 0.20 mm (0.006 – 0.008 in.) Note: Tech bulletin regarding the valve adjustment procedure is on www.championpowerequipment.com.

An Important Message About Temperature

Degrees Celsiusº

Full Synthetic 5W-30

Degrees Fahrenheitº

(Outside)

100812 ENGLISH

Wiring Diagram

Control Panel Symbolic Circuit

L14-30R

Neutral Post

Engine Switch

Y/G

SPECIFICATIONS

GrayGr

OrangeO

Red

Br Brown

JG EFS IG

WhiteW

Blue

Green

BlackBl

YellowY

Wire Color

OFF

Switch State

G1520LA A G1520LA B

Breaker(20A)

Y/G

VFT

W W

Y/G

Breaker(20A)

Y/G

Earthing

Amplifier

Ignition Coil

Spark Plug

Oil level Switch

Fuel Solenoid

MW 2

MW 1

Generator Symbolic Circuit

EXW

AVR

Engine Symbolic Circuit

SPECIFICATIONS

Parts Diagram

ENGLISH 100812

100812 ENGLISH

# Part Number Description Qty

100011530-0002 Flange Bolt M6 × 16 4

100156472- 0001 Panel Assembly 1

100019842 Protect Panel 1

100077161 Control Panel 1

100019772-0001 Switch 1

100019890 Intelligauge 1

100088270

100088267 Receptacle Cover L14-30R 1

100052461-0001

100020021 Receptacle L14-30R 1

100019754

100123528-0001 Roll Pin Ø16 × 90 2

100020702-0001 8 In. Wheel 2

100023414-0001 R-pin 2

100077374-0001 Frame 1

100005138 Clamp Ø9.5 × 8 1

100021153 Fuel Valve 1

100136768-0001 Fuel Tank 1

100032382 Fuel Level Filter Assembly 1

100008968 Reversal Valve 1

100010439-0002 Washer Ø6.5 × 2 × Ø25 4

100011268-0003 Flange Bolt M6 × 25 5

100091755 Fuel Tank Cap 1

100009075 Rubber Damper 1

100011047-0003 Roll Pin Ø8 × 40 1

100023415-0001 R-pin, R5 1

100078539-0001 Handle Assembly 1

100078540-0001 Handle 1

100031982 Sheath, Handle 1

100010828-0002 Butterﬂy Type Nut M6 1

100010920-0002 Flat Washer Ø6 2

100010886-0004 Spring Washer Ø6 2

100011025-0001 Lock Washer Ø6, Toothed 1

100011421-0003 Flange Nut M6 1

100011453-0003 Lock Nut M8, Flange 6

100020978-0001 Support Leg Assembly 1

100011452-0003 Lock Nut M6, Flange 3

100020659-0001 Support Leg 1

100 021015 Vibration Mount 2

100011265-0003 Flange Bolt M6 × 18 2

100011311-0005 Flange Bolt M8 × 16 4

100000563 Cable Ties, L=85 mm 1

100011570-0001 Big Flange Bolt M6 × 12 1

100018662-0001 Generator End Cover 1

100011250-0002 Flange Bolt M5 × 14 2

Receptacle Cover GFCI 5-20R, Duplex

Receptacle GFCI 5-20R, Duplex

20Amp Circuit Breaker, Push Button

# Part Number Description Qty

100020167 Support, End Cover 1

100011252-0001 Flange Bolt M5 × 18 7

100018611 AVR 1

100018595 Carbon Brush Assembly 1

100010885-0004 Spring Washer Ø5 3

100010919-0002 Flat Washer Ø5 1

100 018701 Terminal Block 1

100011296-0001 Flange Bolt M6 × 160 4

100018572 End Housing 1

100011456-0003 Flange Nut M10 × 1.25 4

100 02102 9 Protective Plate 1

100009983 Grounding Line 150 mm 1

100031984 Vibration Mount, Support 4

100011381-0002 Flange Bolt M10 × 1.25 × 40 4

100011393-0001 Flange Bolt M10 × 1.25 × 250 1

100010888-0002 Spring Washer Ø10 1

100010905-0001 Washer Ø10 1

100077436-0002 Flange Bolt M5 × 193 2

100 018 476 Flange Nut M5 2

100077191 Alternator Assembly 1

100077489 Stator Cover 1

100077486

100077487 Rotor Assembly 1

100018560 Cooling Fan 1

100000657 Cable Clamp 1

1ZC7DF0A5 Engine, 292 cc 1

100018704 Rubber Plug 1

100 021036 Holder, Air Cleaner 1

100005148 Clamp 1 2

100000658 Clamp 2 2

100006128 Connection Tube Assembly 1 1

100077409

100008945 Carbon Canister 650 cc 1

100011261-0004 Flange Bolt M6 × 12 2

100008675-0001 Holder, Carbon Canister 1

100011553-0001 Flange Bolt M8 × 32 2

100010887-0004 Spring Washer Ø8 2

100006938 Gasket, Exhaust Pipe 1

100077372 Exhaust Mufﬂer Assembly 1

100011260-0004 Flange Bolt M6 × 10 6

100006814 Mufﬂer Cover 1

100006495 Mufﬂer 1

100006594 Spark Arrester Assembly 1

100006999 Plate, Spark Arrester 1

100011247-0003 Flange Bolt M5 × 8 2

10012 0180 Breaker Cover 2

Stator Assembly, Ø190 × 120 mm

Connection Tube Assembly, 850mm

SPECIFICATIONS

Engine Parts Diagram

ENGLISH 100812

100812 ENGLISH

Parts List

# Part Number Description Qty

100011264-0003 Flange Bolt M6 × 16, GB5789 9

100002337 Cylinder Head Cover(Cpe) 1

100031973 Breather Tube 1

100 01018 6 Gasket, Cylinder Head Cover 1

100011463-0002 Flange Nut M6 2

100004433 Rocker Arm Assembly 2

100004513 Shaft, Rocker Arm 1

100004507 Retainer, Rocker Arm 1

100004505 Bolt, Rocker Arm 2

100004479 Guide Plate, Push Rod 1

100011261-0004 Flange Bolt M6 × 12 6

100007112 Air Guide, Lower 1

100004516 Valve Spring Seat, 182F 2

100004576 Valve Collet 4

100004570 Spring Valve 2

100004602 Oil Seal, Valve 2

100004575 Valve Spring Seat, 173F 2

100002470 Flange Bolt M10 × 1.25 × 87 4

100 010 389 Stud Bolt M8 × 35 2

100006940 Gasket, Exhaust Pipe 1

100011422-0004 Flange Nut M8 2

100006989 E xhaust Pipe 1

100011216-0001 Flange Bolt M6 × 14 2

100008500 Gasket, Second Air Valve 1

100008497 Second Air Valve 1

100 010 36 3 Stud Bolt M6-8 × 98 2

100005574 Gasket, Insulator 1

100005609 Insulator, Carburetor 1

100005933 Gasket, Carburetor 1

100005518-0001 Carburetor 1

100005955 Gasket, Air Filter Base, 173F 1

100004747 Air Filter Assembly 1

100005024 Air Filter Base 1

100004878 Air Filter Separator 1

100004895 Air Filter Clip 2

100004798

100004781 Air Filter Element 1

100004874 Air Filter Cover 1

100011452-0003 Lock Nut M6, Flange 2

100002406 Cylinder Head 1

100009378 Spark Plug(F6RTC) 1

100 01022 2 Gasket, Cylinder Head 1

100 01056 2 Dowel Pin Ø12 × 20 2

100004411 Push Rod 2

100004554 Valve Exhaust 1

100004531 Valve Intake 1

100004268 Lifter, Valve 2

100003252 Piston Ring Set 1

100003157 1st Piston Ring 1

100003198 2nd Piston Ring 1

100003288 Oil Ring 1

100003221 Circlip 2

100003093 Piston 1

100003129 Wrist Pin 1

100003453 Connecting Rod 1

100003432 Bolt, Connecting Rod 2

100011217-0002 Flange Bolt M6 × 16 2

Gasket, Air Filter Cover, 173F-2

# Part Number Description Qty

100010037 Oil Level Sensor 1

100007113 Shroud 2 1

100 0107 88 Bearing TM6206 - P63 2

100003951 Crankshaft 1

100004320 Camshaft 1

100010522-0001 Washer Ø16 × Ø24 × 0.5 1

100030244 Washer Ø30 × Ø40 × 0.2 1

100 010159 Gasket, Crankcase Cover 1

100 01055 3 Dowel Pin Ø9 × 12 1

100003010 Cover, Crankcase 1

100011324-0001 Flange Bolt M8 × 38 7

100017652

100011329-0001 Flange Bolt M8 × 45 1

100032059-0001 Oil Dipstick Assembly 1

100 010544 Dowel Pin Ø7 × 14 1

100008303 Gear, Governor 1

100002444 Cylinder Head Shield 1

100007884 Spring, Governor 1

100007930 Spring, Throttle Return 1

100007957 Rod, Governor 1

100008400 Arm, Governor 1

100011309-0002 Flange Bolt M8 × 14 2

100008060 Control Assembly 1

100007989 Pin, Shaft 1

100017631 Oil Seal Ø8 × Ø14 × 4 1

100010518-0001 Washer Ø8 × Ø20 × 0.8 1

100007979 Shaft, Governor Arm 1

100002776 Crankcase 1

100017832 Pipe, Fuel, Ø4 × Ø10 × 155 1

100005138 Clamp Ø9.5 × 8 1

100000676 Rubber Block 1

100 010 467 Washer Ø12 × Ø20 × 2 2

100 010275 Drain Bolt, M12 × 1.5 × 15 2

100 017647 Oil Seal Ø30 × Ø46 × 8 1

100007114 Shroud 3 1

100009327 Ignition Module 1

100009362 Bolt M6 × 28, Ignition 2

100009562 Flywheel 1

100007032 Cooling Fan 1

100007560 Pulley, Starter 1

100011460-0001 Flange Nut M16 × 1.5 1

100007343-0003 Recoil Starter Assembly 1

100007663-0007 Fan Cover 1

100

100007407-0004 Recoil Starter 1

101

100010894-0001 Washer Ø6 3

102

100011565-0001 Flange Bolt M6 × 10 3

103

100000667 Clamp Ø8 × 8 1

104

100000655 Wire Clip B 1

105

100127019 Cylinder Head Assembly 1

106

100085766 Fuel Bowl O-Ring 1

107

100 08915 4 Main Jet Standard 1

10015 568 0

108

100062832

100134226 O-Ring, Solenoid Valve Base 1

109

100134227 O-Ring, Solenoid Valve 1

110

Oil Seal Ø30 × Ø46 × 8, Spiral Grain

Main Jet Altitude 10002000m

Main Jet Altitude 20003000m

TROUBLESHOOTING

Problem Cause Solution

Generator will not start No fuel Add fuel

Faulty spark plug Replace spark plug

Unit loaded during start up Remove load from unit

Generator will not start; Generator starts but runs roughly

Generator shuts down during operation Out of fuel Fill fuel tank

Generator cannot supply enough power or overheating

No AC output Cable not properly connected Check all connections

Generator gallops Engine governor defective Contact the help line

Repeated circuit breaker tripping Overload Review load and adjust. See “Power

Low oil level Fill crankcase to the proper level

Place generator on a ﬂat, level surface

Choke in the wrong position Adjust choke

Spark plug wire loose Attach wire to spark plug

Low oil level Fill crankcase to the proper level. Place

generator on a ﬂat, level surface

Generator is overloaded Review load and adjust. See “Power

Management”

Insufﬁcient ventilation Check for air restriction. Move to a well

ventilated area

Connected device is defective Replace defective device

Circuit breaker is open Reset circuit breaker

Faulty brush assembly Replace brush assembly (Service Center)

Faulty AVR (auto voltage regulator) Replace AVR (Service Center)

Loose wiring Inspect and tighten wiring connections

Other Contact the help line

Management”

Faulty cords or device Check for damaged, bare or frayed wires.

Replace defective device

ENGLISH 100812

For further technical support:

Technical Service

Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 tech@championpowerequipment.com

WARRANTY*

CHAMPION POWER EQUIPMENT 3 YEAR LIMITED WARRANTY

Warranty Qualiﬁcations

To register your product for warranty and FREE lifetime call center technical support please visit:

https://www.championpowerequipment.com/register

To complete registration you will need to include a copy of the purchase receipt as proof of original purchase. Proof of purchase is required for warranty service. Please register within ten (10) days from date of purchase.

Repair/Replacement Warranty

CPE warrants to the original purchaser that the mechanical and electrical components will be free of defects in material and workmanship for a period of three years (parts and labor) from the original date of purchase and 270 days (parts and labor) for commercial and industrial use. Transportation charges on product submitted for repair or replacement under this warranty are the sole responsibility of the purchaser. This warranty only applies to the original purchaser and is not transferable.

Do Not Return The Unit To The Place Of Purchase

Contact CPE’s Technical Service and CPE will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, CPE will, at its option, authorize evaluation, repair or replacement of the defective part or component at a CPE Service Center. CPE will provide you with a case number for warranty service. Please keep it for future reference. Repairs or replacements without prior authorization, or at an unauthorized repair facility, will not be covered by this warranty.

Other Exclusions

This warranty excludes:

– Cosmetic defects such as paint, decals, etc.

– Wear items such as ﬁlter elements, o-rings, etc.

– Accessory parts such as starting batteries, and storage

covers.

– Failures due to acts of God and other force majeure events

beyond the manufacturer’s control.

– Problems caused by parts that are not original Champion

Power Equipment parts.

When applicable, this warranty does not apply to products used for prime power in place of a utility.

Limits of Implied Warranty and Consequential Damage

Champion Power Equipment disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY AND THE ATTACHED U.S. EPA and/or CARB EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE) ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit.

This warranty gives you certain legal rights which may change from state to state or province to province. Your state or province may also have other rights you may be entitled to that are not listed within this warranty.

Warranty Exclusions

This warranty does not cover the following repairs and equipment:

Normal Wear

Products with mechanical and electrical components need periodic parts and service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts and/or labor if the product is deemed to have been misused, neglected, involved in an accident, abused, loaded beyond the product’s limits, modiﬁed, installed improperly or connected incorrectly to any electrical component. Normal maintenance is not covered by this warranty and is not required to be performed at a facility or by a person authorized by CPE.

*Except as otherwise stipulated in any of the following enclosed Emission Control System Warranties (when applicable) for the Emission Control System: U.S. Environment Protection Agency (EPA) and/or California Air Resources Board (CARB).

Address

Champion Power Equipment, Inc. 12039 Smith Ave. Santa Fe Springs, CA 90670 USA www.championpowerequipment.com

Customer Service

Toll Free: 1-877-338-0999 info@championpowerequipment.com Fax no.: 1-562-236-9429

Technical Service

Toll Free: 1-877-338-0999 tech@championpowerequipment.com  EMERGENCY 24 HOUR SUPPORT: 1-562-20 4-1188

Contact Information

CHAMPION POWER EQUIPMENT, INC. (CPE),

THE UNITED STATES ENVIRONMENTAL PROTECTION AGENCY (U.S. EPA)

AND THE CALIFORNIA AIR RESOURCES BOARD (CARB) EMISSION CONTROL SYSTEM WARRANTY

Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air Resources Board (CARB) Exhaust and Evaporative emissions regulations.

YOUR WARRANTY RIGHTS AND OBLIGATIONS:

The US EPA, California Air Resources Board, and CPE are pleased to explain the Federal and California Exhaust and Evaporative Emission Control Systems Warranty on your 2020 small off-road engine (SORE) and engine powered equipment. In California, new equipment that

use small off-road engines (SORE) must be designed, built and equipped to meet the State’s stringent anti-smog standards. CPE must warrant the exhaust and evaporative emission control system on your small off-road engine (SORE) for the period listed below,

provided there has been no abuse, neglect, unapproved modiﬁcation, or improper maintenance of your equipment leading to the failure of the exhaust and evaporative emission control systems.

Your evaporative emission control system may include parts such as: carburetors, fuel tanks, fuel lines, (for liquid fuel and fuel vapors), fuel caps, valves, canisters, ﬁlters, clamps, connectors, and other associated components. Also included for your exhaust emission control system may be the fuel-injection system, the ignition system, catalytic converter and other exhaust emission related assemblies. Where a warrantable condition exits, CPE will repair your small off-road engine (SORE) at no cost to you including diagnosis, parts and labor.

MANUFACTURER’S WARRANTY COVERAGE:

This exhaust and evaporative emission control system is warranted for two years. If any exhaust and evaporative, emission related part on your engine or equipment is defective in, the part will be repaired or replaced by CPE.

OWNER WARRANTY RESPONSIBILITIES:

As the small off-road engine (SORE) owner, you are responsible for the performance of the required maintenance listed in your Owner’s Manual. CPE recommends that you retain all your receipts covering maintenance on your small off-road engine (SORE), but CPE cannot deny warranty coverage solely for the lack of receipts.

As the small off-road engine (SORE) owner, you should be aware that CPE may deny you warranty coverage if your small off-road engine (SORE) or a part has failed due to abuse, neglect, improper maintenance or unapproved modiﬁcations.

You are responsible for presenting your small off-road engine to an Authorized CPE distribution center, service center or alternate service outlet as described in (3)(f) below or CPE dealer or CPE, Santa Fe Springs, Ca. as soon as the problem exists. The warranty repairs shall be completed in a reasonable amount of time, not to exceed 30 days.

If you have any questions regarding your warranty coverage, you should contact:

Champion Power Equipment, Inc.

Customer Service 12039 Smith Ave.

Santa Fe Springs, CA 90670

1-877-338-0999

tech@championpowerequipment.com

EXHAUST AND EVAPORATIVE EMISSION CONTROL SYSTEM WARRANTY

The following are speciﬁc provisions relative to your Exhaust and Evaporative Emission Control System (ECS) Warranty Coverage.

1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (SORE) (for other states,

1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.

2. GENERAL EMISSIONS WARRANTY COVERAGE CPE warrants to the original, end-use purchaser of the new engine or equipment and to each subsequent purchaser that each of its small off-road engines (SORE) is:

2a. Designed, built and equipped to conform to U.S. EPA emissions standards for spark-ignited engines at or below 19 kilowatts and

all applicable regulations adopted by the California Air Resources Board and

2b. Free from defects in materials and workmanship that cause the failure of a warranted part to be identical in all material respects

to the part as described in the engine manufacturer’s application for certiﬁcation for a period of two years.

3. THE WARRANTY ON EXHAUST AND EVAPORATIVE EMISSION-RELATED PARTS WILL BE INTERPRETED AS FOLLOWS:

3a. Any warranted part that is not scheduled for replacement as required maintenance in the Owner’s Manual shall be warranted for

the ECS Warranty Period. If any such part fails during the ECS Warranty Period, it shall be repaired or replaced by CPE according to Subsection “d” below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any remainder of the ECS Warranty Period.

3b. Any warranted, exhaust and evaporative emissions-related part which is scheduled only for regular inspection as speciﬁed in the

Owner’s Manual shall be warranted for the ECS Warranty Period. A statement in such written instructions to the effect of “repair or replace as necessary”, shall not reduce the ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall be warranted for the remainder of the ECS Warranty Period.

3c. Any warranted, exhaust and evaporative emissions-related part which is scheduled for replacement as required maintenance in

the Owner’s Manual shall be warranted for the period of time prior to the ﬁrst scheduled replacement point for that part. If the part fails prior to the ﬁrst scheduled replacement, the part shall be repaired or replaced by CPE according to Subsection “d” below. Any such exhaust and evaporative emissions-related part repaired or replaced under the ECS Warranty, shall be warranted for the remainder of the ECS Warranty Period prior to the ﬁrst scheduled replacement point for such emissions-related part.

3d. Repair or replacement of any warranted, exhaust and evaporative emissions-related part under this ECS Warranty shall be

performed at no charge to the owner at a CPE Authorized Service Outlet.

3e. The owner shall not be charged for diagnostic labor which leads to the determination that a part covered by the ECS Warranty is in

fact defective, provided that such diagnostic work is performed at a CPE Authorized Service Outlet.

3f. CPE shall pay for covered exhaust and evaporative emissions warranty repairs at non-authorized service outlets under the

following circumstances: i. The service is required in a population center with a population over 100,000 according to U.S. Census 2000 without a CPE

Authorized Service Outlet AND

ii. The service is required more than 100 miles from a CPE Authorized Service Outlet. The 100 mile limitation does not apply in the

following states: Alaska, Arizona, Colorado, Hawaii, Idaho, Montana, Nebraska, Nevada, New Mexico, Oregon, Texas, Utah and Wyoming.

3g. CPE shall be liable for damages to other original engine components or approved modiﬁcations proximately caused by a failure

under warranty of an emission-related part covered by the ECS Warranty.

3h. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted exhaust and evaporative emission-related parts

sufﬁcient to meet the expected demand for such exhaust and evaporative emission-related parts.

3i. Any CPE Authorized and approved exhaust and evaporative emission-related replacement part may be used in the performance

of any ECS Warranty maintenance or repair and will be provided without charge to the owner. Such use shall not reduce CPE’s warranty obligation.

3j. Unapproved add-on or modiﬁed parts may not be used to modify or repair a CPE engine. Such use voids this ECS Warranty and

shall be sufﬁcient grounds for disallowing an ECS Warranty claim. CPE shall not be liable hereunder for failures of any warranted parts of a CPE engine caused by the use of such an unapproved add-on or modiﬁed part.

EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list applicable to the engine)

Systems covered by this

warranty

Fuel Metering System Carburetor and internal parts (and/or pressure regulator or fuel injection system), Air/fuel ratio

feedback and control system, Cold start enrichment system. Air Induction System Controlled hot air intake system, Intake manifold, Air ﬁlter. Ignition System Spark plug, Magneto or electronic ignition system, Spark advance/retard system. Exhaust Gas Recirculation (EGR)

System Air Injection System Air pump or pulse valve, Valves affecting distribution of ﬂow, Distribution manifold. Catalyst or Thermal Reactor

System Particulate Controls Traps, Filters, Precipitators, and any other device used to capture particulate emissions. Miscellaneous items used in

Above Systems Evaporative Controls Fuel Tank, Fuel Cap, Fuel Lines (for liquid fuel and fuel vapors), Fuel Line Fittings, Clamps, Pressure

EGR valve body, and carburetor spacer if applicable, EGR rate feedback and control system.

Catalytic Converter, Thermal Reactor, Exhaust Manifold.

Vacuum, Temperature, and time sensitive valves and switches, Electronic Controls, Hoses, Belts,

Connectors, and Assemblies.

Relief Valves, Control Valves, Control Solenoids, Electronic Controls, Vacuum Control Diaphragms,

Control Cables, Control Linkages, Purge Valves, Gaskets, Liquid/Vapor Separator, Carbon Canister,

Canister Mounting Brackets, Carburetor Purge Port Connector.

Parts Description

TO OBTAIN WARRANTY SERVICE:

You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours. Alternate service locations deﬁned in Section (3)(f) above must be approved by CPE prior to service. Claims for repair or adjustment found to be caused solely by defects in material or workmanship will not be denied because the engine was not properly maintained and used.

If you have any questions regarding your warranty rights and responsibilities, or to obtain warranty service, please write or call Customer Service at Champion Power Equipment, Inc.

Champion Power Equipment, Inc.

12039 Smith Ave.

Santa Fe Springs, CA 90670

1-877-338-0999

Attn.: Customer Service

tech@championpowerequipment.com

Champion Power Equipment 5000-Watt Generator Operator's Manual for All Serial Numbers in

Specifications and Main Features

Frequently Asked Questions

User Manual
