40010
Rev 40010-20070427
Owner’s Manual and Operating Instructions
4000 Peak Watts / 3500 Running Watts
PORTABLE GENERATOR
Table of Contents
Introduction ..................................... 1
Portable Power Generator........................ 1
Accessories................................................ 1
This Booklet.............................................. 1
Manual Conventions.........................2
Safety Rules......................................3
Controls and Features.......................5
Generator..................................................5
Power Panel..............................................6
Parts Included ..........................................7
Assembly ..........................................8
Remove the Generator from the
Shipping Carton........................................8
Add Engine Oil .........................................8
Add Fuel....................................................8
Grounding.................................................8
Operation .......................................10
Generator Location.................................10
Grounding............................................... 10
Surge Protection..................................... 10
Starting the Engine................................. 10
Connecting Electrical Loads................... 10
Stopping the Engine...............................10
Do Not Overload Generator ....................11
Capacity................................................11
Power Management.............................11
Wattage Reference Chart........................ 12
Maintenance................................... 13
Engine Maintenance............................... 13
Oil........................................................ 13
Spark Plugs ......................................... 13
Air Filter.............................................. 13
Spark Arrester..................................... 14
Cleaning .............................................. 14
Adjustments........................................ 14
Maintenance Schedule........................ 14
Generator Maintenance.......................... 14
Storage ........................................... 15
Engine Storage........................................15
Generator Storage...................................15
Specifications ................................. 16
Engine Specifications..............................16
Generator Specifications.........................16
Fuel..........................................................16
Oil............................................................16
Spark Plugs .............................................16
Valve Clearance.......................................16
Parts Diagram......................................... 17
Parts List.................................................18
Wiring Diagram ..................................... 20
Troubleshooting ............................. 21
Warranty ........................................22
Warranty Qualifications .........................22
Repair/Replacement Warranty..............22
Do not return the unit to the
place of purchase ....................................22
Warranty Exclusions...............................22
Normal Wear.......................................22
Installation, Use and Maintenance.....22
Other Exclusions.................................22
Limits of Implied Warranty and
Consequential Damage...........................22
Contact Information...............................23
Address................................................23
Customer Service ................................23
Technical Service.................................23
Notes ..............................................27
Introduction
Introduction
Congratulations on your purchase of a
Champion Power Equipment generator. CPE
designs and builds generators to strict
specifications. With proper use and
maintenance, this generator will bring years
of satisfying service.
Portable Power Generator
This unit is a gasoline engine driven,
alternating current (AC) generator. It is
designed to supply electrical power for
lighting, appliances, tools and similar
equipment.
Record the model and serial numbers as well as date and place of purchase for future reference.
Have this information available when ordering parts and when making technical or warranty
inquiries.
Champion Power Equipment Support
Accessories
Champion Power Equipment manufactures
and sells accessories designed to help you
get the most from your purchase. To find out
more about our covers, power cables and
storm kits, please visit our web site at
www.championpowerequipment.com
This Booklet
Every effort has been made to ensure the
accuracy and completeness of the
information in this manual. We reserve the
right to change, alter and/or improve the
product and this document at any time
without prior notice.
1-877-338-0999
Model Number
40010
Serial Number
Date of Purchase
Purchase Location
Rev 40010-20070427 1
Manual Conventions
Manual Conventions
This manual uses the following symbols to
help differentiate between different kinds of
information. The safety symbol is used with
a key word to alert you to potential hazards
in operating and owning power equipment.
Follow all safety messages to avoid or reduce
the risk of serious injury or death.
CAUTION
CAUTION indicates a potentially hazardous
situation which, if not avoided,
minor or moderate injury.
may
result in
CAUTION
DANGER
DANGER indicates an imminently hazardous
situation which, if not avoided,
or serious injury.
will
result in death
WARNING
WARNING indicates a potentially hazardous
situation which, if not avoided,
death or serious injury.
could
result in
CAUTION used without the safety alert symbol
indicates a potentially hazardous situation which,
if not avoided,
may
result in property damage.
NOTE
If you have questions regarding your generator,
we can help. Please call our help line at 1-877338-0999.
2 Rev 40010-20070427
Safety Rules
DANGER
Safety Rules
Generator produces powerful voltage.
WARNING
Read this manual thoroughly before operating
your generator. Failure to follow instructions
could result in serious injury or death.
WARNING
The engine exhaust from this product contains
chemicals known to the state of California to
cause cancer, birth defects, or other reproductive
harm.
DANGER
Generator exhaust contains carbon monoxide, a
colorless, odorless, poison gas. Breathing carbon
monoxide will cause nausea, dizziness, fainting or
death.
Operate generator outdoors only in a well
ventilated area
DO NOT operate the generator inside any
building, enclosure or compartment, including the
generator compartment of a recreational vehicle.
DO NOT allow exhaust fumes to enter a confined
area through windows, doors, vents or other
openings.
DANGER
Rotating parts can entangle hands, feet, hair,
clothing and/or accessories.
DO NOT touch bare wires or receptacles.
DO NOT use electrical cords that are worn,
damaged or frayed.
DO NOT operate generator in wet weather.
DO NOT allow children or unqualified persons to
operate or service the generator
Use a ground fault circuit interrupter (GFCI) in
damp areas and areas containing conductive
material such as metal decking.
Use approved transfer equipment to isolate
generator from your electric utility and Notify
your utility company before connecting your
generator to your power system.
WARNING
Sparks can result in fire or electrical shock.
When servicing the generator:
Disconnect the spark plug wire and place it
where it cannot contact the plug.
DO NOT check for spark with the plug removed.
Use only approved spark plug testers.
WARNING
Running engines produce heat.
Severe burns can occur on contact.
Combustible material can catch fire on contact.
DO NOT touch hot surfaces.
Avoid contact with hot exhaust gases.
Allow equipment to cool before touching.
Maintain at least three feet of clearance on all
sides to ensure adequate cooling.
Maintain at least five feet of clearance from
combustible materials.
Traumatic amputation or severe laceration can
result.
Keep hands and feet away from rotating parts.
Tie up long hair and remove jewelry.
Operate equipment with guards in place.
DO NOT wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
Rev 40010-20070427 3
Safety Rules
DANGER
Fuel and fuel vapors are highly flammable and
extremely explosive.
Fire or explosion can cause severe burns or
death.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
When adding or removing fuel
Turn the generator off and let it cool for at least
two minutes before removing the fuel cap.
Loosen the cap slowly to relieve pressure in the
tank.
Only fill or drain fuel outdoors in a well-ventilated
area.
DO NOT overfill the fuel tank.
Always keep fuel away from sparks, open flames,
pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.
When starting the generator
DO NOT attempt to start a damaged generator.
Make certain that the gas cap, air filter, spark
plug, fuel lines and exhaust system are properly
in place.
Allow spilled fuel to evaporate fully before
attempting to start the engine.
Make certain that the generator is resting firmly
on level ground.
When operating the generator:
DO NOT move or tip the generator during
operation.
DO NOT tip the generator or allow fuel or oil to
spill.
When transporting or servicing the
generator:
Make certain that the fuel shutoff valve is in the
off position and the fuel tank is empty.
Disconnect the spark plug wire.
When storing the generator:
Store away from sparks, open flames, pilot lights,
heat and other sources of ignition.
WARNING
Rapid retraction of the starter cord will pull hand
and arm towards the engine faster than you can
let go.
Unintentional startup can result in entanglement,
traumatic amputation or laceration.
Broken bones, fractures, bruises or sprains could
result.
When starting engine, pull the starter cord slowly
until resistance is felt and then pull rapidly to
avoid kickback.
DO NOT start or stop the engine with electrical
devices plugged in.
CAUTION
Exceeding the generator’s running capacity can
damage the generator and/or electrical devices
connected to it
DO NOT overload the generator.
Start the generator and allow the engine to
stabilize before connecting electrical loads.
Connect electrical equipment in the off position,
and then turn them on for operation.
Turn electrical equipment off and disconnect
before stopping the generator.
DO NOT tamper with the governed speed.
DO NOT modify the generator in any way.
CAUTION
Improper treatment or use of the generator can
damage it, shorten its life and void your
warranty.
Use the generator only for intended uses.
Operate only on level surfaces.
DO NOT expose generator to excessive moisture,
dust, or dirt.
DO NOT allow any material to block the cooling
slots.
If connected devices overheat, turn them off and
disconnect them from the generator.
DO NOT use the generator if:
Electrical output is lost
Equipment sparks, smokes or emits flames
Equipment vibrates excessively
4 Rev 40010-20070427
Controls and Features
Controls and Features
Read this owner’s manual before operating your generator. Familiarize yourself with the location
and function of the controls and features. Save this manual for future reference.

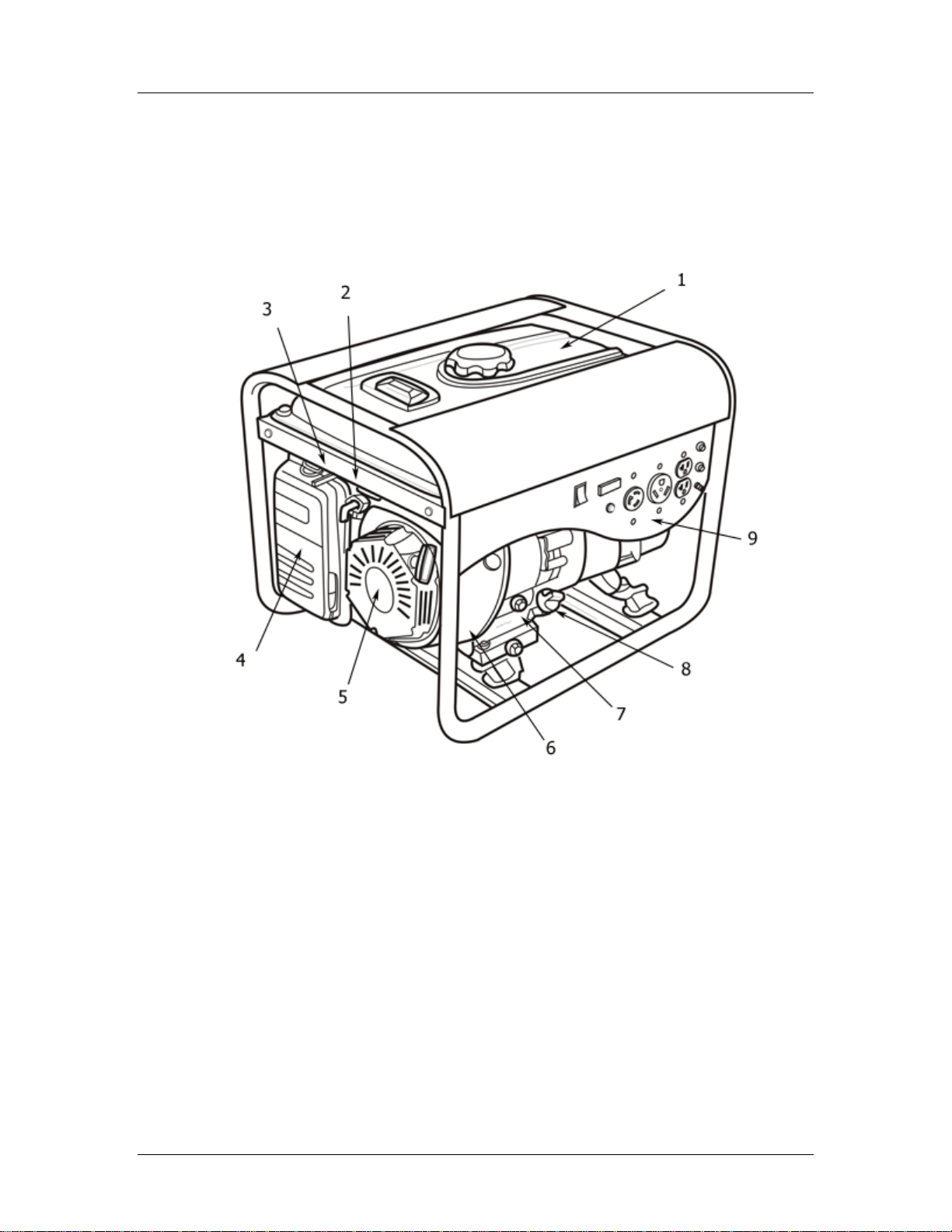

Generator
(1) Fuel Tank – 4.0 gallon capacity fuel
tank.
(2) Fuel Valve – Turn this valve to the
“On” position to supply fuel to the engine.
(3) Choke – Used to start the engine
(4) Air Cleaner – Protects the engine by
filtering dust and debris from the intake air.
(5) Recoil Starter – Used to start the
engine
Rev 40010-20070427 5
(6) Serial Number – Please have this
number available when calling for
assistance.
(7) Low Oil Sensor – Senses the level of
oil in the crankcase and shuts the engine
down if the level falls too low.
(8) Oil Filler Cap – Check and fill engine
oil level.
(9) Power Panel – See “Power Panel”
Controls and Features
Power Panel
(1) Keyed Ignition – Turn the key to the
“Start” position to start the generator. Turn
to the “Off” position to turn off the
generator.
(2) Trigital Meter – Three mode digital
meter for running hours, voltage and hertz.
(3) Circuit Breakers – Protects the
generator against electrical overload.
(4) 120 V 30 A Twist-Lock – protected by
a 25 A push-to-reset circuit breaker. This
receptacle powers 120 Volt AC, 60 Hz, single
phase loads requiring up to 30 Amps or
3000 watts of power.
(5) 120 V 30 A Recreational Vehicle
(RV) Receptacle – protected by a 25 A
push-to-reset circuit breaker. This receptacle
powers 120 Volt AC, 60 Hz, single phase
loads requiring up to 30 Amps or 3000
watts of power.
(6) 120 V 20 A Duplex – protected by a
20 A push-to-reset circuit breaker to operate
120 Volt AC, single phase, 60 Hz loads
requiring up to 20 A 0r 2400 Watts of
power.
(7) Ground Terminal – Consult an
electrician for local grounding regulations.
6 Rev 40010-20070427
Controls and Features
Parts Included
Your Model 40010 Gasoline Powered Generator ships with the following parts:
Spark Arrester Kit
Spark Arrester 1 piece
Cover Plate 1 piece
Screws, Lock Washers 2 pieces
Oil Funnel 1 piece
Wrench 1 piece
Spark Plug Socket 1 piece
Rev 40010-20070427 7
Assembly
Assembly
Your generator requires some assembly.
This unit ships from our factory without oil.
It must be properly serviced with fuel and oil
before operation.
If you have any questions regarding the
assembly of your generator, call our help
line at 1-877-338-0999. Please have your
serial number and model number available.
Remove the Generator from
the Shipping Carton
1. Set the shipping carton on a solid, flat
surface.
2. Remove everything from the carton
except the generator.
3. Carefully cut each corner of the box
from top to bottom. Fold each side flat
on the ground to provide a surface area
to set up the generator.
Add Engine Oil
NOTE
Check oil often during the break-in period. Refer
to the Maintenance section for recommended
service intervals.
NOTE
The generator rotor has a sealed, pre-lubricated
ball bearing that requires no additional lubrication
for the life of the bearing.
Add Fuel
1. Use clean, fresh, regular unleaded fuel
with a minimum octane rating of 85.
2. DO NOT mix oil with fuel.
3. Clean the area around the fuel cap.
4. Remove the fuel cap
5. Slowly add fuel to the tank. DO NOT
overfill. Allow approximately ¼ inch of
space for fuel expansion.
6. Screw on the fuel cap and wipe away any
spilled fuel.
CAUTION
DO NOT attempt to crank or start the engine
before it has been properly filled with the
recommended type and amount of oil. Damage
to the generator as a result of failure to follow
these instructions will void your warranty.
1. Place the generator on a flat, level
surface.
2. Remove oil fill cap/dipstick to add oil.
3. Add 0.63 qt (0.6 L) of oil and replace oil
fill cap/dipstick.
4. Check engine oil level daily and add as
needed.
CAUTION
The engine is equipped with a low-oil-shutoff and
the will stop when the oil level in the crankcase
falls below the threshold level.
CAUTION
Use regular unleaded gasoline with a minimum
octane rating of 85.
Do not mix oil and gasoline.
Fill tank to approximately ¼” below the top of
the tank to allow for fuel expansion.
DO NOT fill fuel tank indoors.
DO NOT fill fuel tank when the engine is running
or hot.
DO NOT overfill the fuel tank.
DO NOT light cigarettes or smoke when filling the
fuel tank.
Grounding
Your generator must be properly connected
to an appropriate ground to help prevent
electric shock.
8 Rev 40010-20070427
Assembly
of a length of heavy gauge (12 AWG
WARNING
Failure to properly ground the generator can
result in electric shock.
A ground terminal connected to the frame of
the generator has been provided on the
power panel. For remote grounding, connect
minimum) copper wire between the
generator ground terminal and a copper rod
driven into the ground. We strongly
recommend that you consult with a qualified
electrician to ensure compliance with local
electrical codes.
Rev 40010-20070427 9
Operation
Operation
Generator Location
Please consult your local authority. In some
areas, generators must be registered with
the local utility.
Generators used at construction sites may be
subject to additional rules and regulations.
This generator must have at least five feet of
clearance from combustible material. Leave
at least three feet of clearance on all sides of
the generator to allow for adequate cooling,
maintenance and servicing.
Place the generator in a well-ventilated area.
DO NOT place the generator near vents or
intakes where exhaust fumes could be drawn
into occupied or confined spaces. Carefully
consider wind and air currents when
positioning generator.
Grounding
The generator system ground connects the
frame to the ground terminals on the power
panel. The system ground is connected to
the AC neutral wire.
Surge Protection
CAUTION
Voltage fluctuation may impair the proper
functioning of sensitive electronic equipment.
Electronic devices, including computers and
many programmable appliances use
components that are designed to operate
within a narrow voltage range and may be
affected by momentary voltage fluctuations.
While there is no way to prevent voltage
fluctuations, you can take steps to protect
sensitive electronic equipment.
1. Install UL1449, CSA-listed, plug-in
surge suppressors on the outlets feeding
your sensitive equipment.
Surge suppressors come in single- or
multi-outlet styles. They’re designed to
protect against virtually all shortduration voltage fluctuations.
2. Obtain an Uninterruptible Power
Supply (UPS) device.
Most UPS devices come with a
rechargeable battery between the
electronic equipment and power supply
source. The device buffers the voltage
and protects against virtually all shortduration voltage fluctuations.
Starting the Engine
1. Make certain the generator is on a flat,
level surface.
2. Disconnect all electrical loads from the
generator. Never start or stop the
generator with electrical devices plugged
in or turned on.
3. Turn the fuel valve to the “On” position.
4. Move the choke lever to the “Choke”
position.
5. Pull the starter cord slowly until
resistance is felt and then pull rapidly
6. As engine warms up, move the choke
lever to “Run”.
NOTE
If the engine starts but does not run, make
certain that the generator is on a flat, level
surface. The engine is equipped with a low oil
sensor that will prevent the engine from running
when the oil level falls below a critical threshold.
Connecting Electrical Loads
1. Let the engine stabilize and warm up for
a few minutes after starting
2. Plug in and turn on the desired 120 Volt
AC single phase, 60 Hz electrical loads.
DO NOT connect 3-phase loads to the
generator.
DO NOT connect 50 Hz loads to the
generator.
DO NOT overload the generator.
Stopping the Engine
1. Turn off and unplug all electrical loads.
Never start or stop the generator with
electrical devices plugged in or turned
on.
2. Let the generator run at no-load for
several minutes to stabilize internal
10 Rev 40010-20070427
Operation
temperatures of the engine and
generator.
3. Flip the ignition switch to the “Off”
position.
4. Turn the fuel valve to the “Off” position.
Do Not Overload Generator
Capacity
Follow these simple steps to calculate the
running and starting watts necessary for
your purposes.
1. Select the electrical devices you plan on
running at the same time.
2. Total the running watts of these items.
This is the amount of power you need to
keep your items running.
3. Identify the highest starting wattage of
all devices identified in step 1. Add this
number to the number calculated in step
2. Surge wattage is the extra burst of
power needed to start some electric
driven equipment. Following the steps
listed under “Power Management” will
guarantee that only one device will be
starting at a time.
Power Management
Use the following formula to convert voltage
and amperage to watts:
Volts x Amps = Watts
To prolong the life of your generator and
attached devices, follow these steps to add
electrical load:
1. Start the generator with no electrical
load attached.
2. Allow the engine to run for several
minutes to stabilize.
3. Plug in and turn on the first item. It is
best to attach the item with the largest
load first.
4. Allow the engine to stabilize.
5. Plug in and turn on the next item.
6. Allow the engine to stabilize.
7. Repeat steps 5-6 for each additional
item.
NOTE
Never exceed the generator capacity when
adding loads.
Rev 40010-20070427 11
Operation
Wattage Reference Chart
Use the chart to determine approximate
wattage requirements for your equipment.
NOTE
Starting watts can exceed three times the
running watts. The values in the following table
are approximate. Refer to your tool or appliance
for actual wattage consumption.
Item
Essentials
Light Bulb 100W 100
Refrigerator/Freezer 1200 2400
Freezer 500 500
Sump Pump 600 1800
Well Pump 1 HP 2000 4000
Water Heater 4000
Security System 180
AM/FM Radio 300
Garage Door Opener 1/2 HP 500 600
Battery Charger 12V DC 110
Heating/Cooling
Air Conditioner 12000 BTU 1700 2500
Fan 300 600
Furnace Fan 1/3 HP 1200 2000
Home Appliances
Microwave 1000W 1000
Electric Range - One Element 1500
Electric Skillet 1250
Coffee Maker 1500
Clothes Washer 1200
Entertainment
CD/DVD Player 100
VCR 100
Stereo Receiver 450
Television 27" 500
PC with 15" Monitor 800
Job Site
Belt Sander 3" 1000 1500
Bench Grinder 6" 700 1500
Circular Saw 1500 1500
Compressor 1 1/2 HP 2500 2500
Edge Trimmer 500 500
Hand Drill 1/2" 1000 1000
Lawn Mower 1200 1800
Paint Sprayer 600 1200
Table Saw 2000 2000
Running
Watts
Starting
Watts
12 Rev 40010-20070427
Maintenance
6. Dispose of used oil at an approved waste
Maintenance
The owner/operator is responsible for all
periodic maintenance.
WARNING
management facility.
Never operate a damaged or defective generator.
WARNING
Tampering with the factory set governor will void
your warranty.
WARNING
Improper maintenance will void your warranty.
Complete all scheduled maintenance in a
timely manner. Correct any issue before
operating the generator.
NOTE
For service or parts assistance, contact our help
line at 1-877-338-0999.
Engine Maintenance
To prevent accidental starting, remove and
ground spark plug wire before performing
any service.
Spark Plugs
1. Remove the spark plug cable from the
spark plug.
2. Use the spark plug tool that shipped
with your generator to remove the plug.
3. Inspect the electrode on the plug. It
must be clean and not worn to produce
the spark required for ignition.
4. Make certain the spark plug gap is 0.7 -
0.8mm (0.028 - 0.031 in.).
5. Refer to the spark plug recommendation
chart when replacing the plug.
6. Carefully thread the plug into the
engine.
7. Use the spark plug tool to firmly install
the plug.
8. Attach the spark plug wire to the plug.
Air Filter
1. Remove the snap-on cover holding the
air filter to the assembly.
2. Remove the foam element.
3. Wash in liquid detergent and water.
Squeeze thoroughly dry in a clean cloth.
4. Saturate in clean engine oil.
5. Squeeze in a clean, absorbent cloth to
remove all excess oil.
6. Place the filter in the assembly.
7. Reattach the air filter cover and snap in
place.
Oil
Change oil when the engine is warm. Refer
to the oil specification to select the proper
grade of oil for your operating environment.
1. Remove the oil drain plug with a 15 mm
socket and extension.
2. Allow the oil to drain completely.
3. Replace the drain plug.
4. Remove oil fill cap/dipstick to add oil.
5. Add 0.63 qt (0.6 L) of oil and replace oil
fill cap/dipstick.
Rev 40010-20070427 13
Maintenance
Spark Arrester
1. Allow the engine to cool completely
before servicing the spark arrester.
2. Remove the two screws holding the
cover plate which retains the end of the
spark arrester to the muffler.
3. Remove the spark arrester screen.
4. Carefully remove the carbon deposits
from the spark arrester screen with a
wire brush.
5. Replace the spark arrester if it is
damaged.
6. Position the spark arrester in the
muffler and attach with the two screws.
Cleaning
CAUTION
DO NOT spray engine with water.
Water can contaminate the fuel system.
Use a damp cloth to clean exterior surfaces
of the engine.
Use a soft bristle brush to remove dirt and
oil.
Use an air compressor (25 PSI) to clear dirt
and debris from the engine.
Every 8 hours or daily
Check oil level
Clean around air intake and muffler
First 5 Hours
Change oil
Every 50 hours or every season
Clean air filter
Change oil if operating under heavy load
or in hot environments
Every 100 hours or every season
Change oil
Clean/Adjust spark plug
Check/Adjust valve clearance *
Clean spark arrester
Clean fuel tank and filter *
Every 3 years
Replace fuel line
* To be performed by knowledgeable,
experienced owners or Champion Power
Equipment certified service dealers
Generator Maintenance
Make certain that the generator is kept clean
and stored properly. Only operate the unit
on a flat, level surface in a clean, dry
operating environment. DO NOT expose the
unit to extreme conditions, excessive dust,
dirt, moisture or corrosive vapors.
Adjustments
The air-fuel mixture is not adjustable.
Tampering with the governor can damage
your generator and your electrical devices
and will void your warranty. CPE
recommends that you contact our service
line at 1-877-338-0999 for all other service
and/or adjustment needs.
Maintenance Schedule
Follow the service intervals indicated in the
schedule below.
Service your generator more frequently
when operating in adverse conditions.
Contact our help line at 1-877-338-0999 to
locate the nearest Champion Power
Equipment certified service dealer for your
generator or engine maintenance needs.
CAUTION
DO NOT use a garden hose to clean the
generator.
Water can enter the generator through the
cooling slots and damage the generator
windings.
Use a damp cloth to clean exterior surfaces
of the generator.
Use a soft bristle brush to remove dirt and
oil.
Use an air compressor (25 PSI) to clear dirt
and debris from the generator.
Inspect all air vents and cooling slots to
ensure that they are clean and unobstructed.
14 Rev 40010-20070427
Storage
5. Change the oil.
Storage
The generator should be started at least once
every 14 days and allowed to run for at least
20 minutes. For longer term storage, please
follow these guidelines.
Engine Storage
1. Allow the engine to cool completely
before storage.
2. Clean the engine according to the
instructions in the Maintenance section.
3. Drain all fuel completely from the fuel
line and carburetor to prevent gum from
forming.
4. Add a fuel stabilizer into the fuel tank.
6. Remove the spark plug and pour about
½ ounce of oil into the cylinder. Crank
the engine slowly to distribute the oil
and lubricate the cylinder.
7. Reattach the spark plug.
Generator Storage
1. Allow the generator to cool completely
before storage.
2. Turn off the fuel supply at the fuel valve.
3. Clean the generator according to the
instructions in the Maintenance section.
4. Store the unit in a clean, dry area.
5. Store in a clean, dry place out of direct
sunlight.
Rev 40010-20070427 15
Specifications
Specifications
Engine Specifications
Engine 6.5 HP OHV CPE
CARB & EPA certified
Generator Specifications
Running Wattage 3500 Watts
Starting Wattage 4000 Watts
AC Load 120 V
Phase Single
Frequency 60 Hz
Fuel Capacity 4 gallons (15 L)
Weight 105.8 lbs. (48 kg)
Height 17.91 inches (45.5 cm)
Width 17.5 inches (44.5 cm)
Length 23.25 inches (59.0 cm)
Spark Plugs
Your generator comes equipped with a ¾”
long reach plug (18mm)
Intermittent use (less than 1 hour/month) or
colder temperatures (below 60°F)
NGK B6ES or equivalent
Moderate use (less than 3 hours/month) or
seasonal temperatures (50-80°F)
NGK B7ES or equivalent
Extreme use (continuous) or hot climates
(80-100°F)
NGK B8ES or equivalent
Make certain the spark plug gap is 0.7 -
0.8mm (0.028 - 0.031 in.).
Valve Clearance
Fuel
Fuel capacity is 4 US gallons (15 L). Use
regular unleaded gasoline with a minimum
octane rating of 85.
Intake 0.13-0.17mm (0.005 – 0.007 in.)
Exhaust 0.18-0.22mm (0.007 – 0.009 in.)
Oil
Oil capacity is 0.63 qt (0.6 L).
16 Rev 40010-20070427
Specifications
Parts Diagram
Rev 40010-20070427 17
Specifications
Parts List
No. Part # Description Qty
1 ST168FD-1160100 Fuel Meter Assembly 1
2 GB819-85 Screw M5×6 2
3 ST168FD-1160200 Fuel Tank Cap 1
4 ST168FD-1160200 Fuel Tank Cap Seal 1
5 ST168F-1160500 Fuel Filler 1
6 ST168FD-1160001A Fuel Tank 1
7 GB5789-86 Bolt M6×16 4
8 ST168FD-1163000 Tank Rubber 4
9 ST168FD-1160400 Fuel Cock 1
10 ST188FD-1070006A Clip 2
11 ST168FD-1160002A Fuel Tank 1
12 ST168FD-1100200-1 Muffler 1
13 GB6177-86 Nut M6 1
14 GB5789-86 Bolt 1
15 ST168FD-1100002B Muffler Stay (I) 1
16 ST02FD-1152035 Brush Assembly 1
17 ST02FD-1151036 Brush Assembly Cover Board 1
18 ST02FD-1152002-2 Generator End Cover 1
19 GB5789-86 Bolt M5×10 2
20 ST168FD-1150230 Terminal 1
21 GB5781-87 Bolt M5×16 2
22 GB5781-86 Bolt M5×15 2
23 ST168FD-1152031 AVR 1
24 ST02FD-1152032 End Cover 1
25 GB5789-86 Flange Bolt M6×155 4
26 ST02FD-1152001 Stator Cover 1
27 ST02FD-1152020 Stator Assembly 1
28 GB5780-86 Flange Bolt M8×227 1
29 GB90-85 Washer 1
30 GB279-88 6202 Bearing 1
31 ST02FD-1152010 Rotor Comp 1
32 ST02FD-1152009 Cooling Fan 1
33 ST168FD-1030007 Crankcase Cover 1
34 GB5789-86 Flange Bolt M6×12 18
35 ST02FD-1151207-M Grounding Wire 1
36 ST05FD-1170003-B Build Up 1
37 ST05FD-1151209 Conduit 1
38 ST02FD-1151201 Build Up 1
39 ST07FD-115-0017-000100 AC 25A Circuit Breaker 1
40 ST07FD-115-0016-000100 AC 20A Circuit Breaker 1
41 ST02FD-1151208-M Grounding Bolt 1
42 ST02FD-1151200C Receptacle 5-20R 2
43 1010 TT-30 Receptacle (RV) 1
44 0220 Receptacle L5-30R 1
45 2631 Touch Switch 1
46 ST02FD-1151205A Switch 1
47 ST168FD-1150110-P-2 Control Panel 1
48 2630 Trigital Meter 1
49 ST168FD-1151201-R Control Box 1
50 ST188FD-1020001 Grommet 1
51 GB818-85 Screw M5×35 3
52 GB6170-86 Nut M8 8
53 ST02FD-1151300B Bottom Rubber I 2
54 ST02FD-1151300A Bottom Rubber II 2
55 ST168FD-1151300-J-3 Frame 1
18 Rev 40010-20070427
Specifications
No. Part # Description Qty
56 ST168FD-1151301 Ornamental 2
57 ST02FD-1151002 Muffler Cover 1
58 ST02FD-1151201A Choke Lever Comp 1
59 ST168FD-1130005 Packing 1
60 ST168FD-1130003-CPE Carburetor 1
61 ST168F-II-1000000 Engine 1
62 ST160F-1100001 Muffler Gasket 1
63 GB900-88 Stud Bolt 2
64 GB97.1-85 Washer Φ8 2
65 GB93-1987 Spring Washer Φ8 3
66 GB6170-86 Nut M8 2
67 ST168FD-1111100 Control Assembly 1
68 ST168FD-1090100 Air Cleaner Case Comp 1
69 ST168FD-1090002 Air Cleaner Seal 1
70 ST168FD-1090003 Separator 1
71 ST168FD-1090004 Element 1
72 ST168FD-1090200 Air Cleaner Cover Comp 1
73 GB5789-86 Bolt M5×10 2
74 GB93-1987 Spring Washer Φ5 2
75 ST188FD-1100010-88 Spark Arrester Cover 1
76 ST188FD-1180121 Spark Arrester Assembly 1
77 ST02FD-1150100
78 GB5789-86 Bolt M8×35 2
79 GB93-1987 Spring Washer Φ8 2
80 GB96-85 Big Washer φ8 2
81 ST182FD-1742003-UC Straight Bottom Rubber 2
Muffler Stay (II)
1
Rev 40010-20070427 19
Specifications
Wiring Diagram
20
Troubleshooting
Troubleshooting
Problem Cause Solution
Generator will not start
Generator will not start;
Generator starts but runs roughly
operation
Generator cannot supply enough
power or overheating
No AC output
Generator gallops Engine governor defective Contact the help line
Repeated circuit breaker tripping
No fuel Add fuel
Faulty spark plug Replace spark plug
Unit loaded during start up Remove load from unit
Low oil level Fill crankcase to the proper level
Place generator on a flat, level surface
Choke in the wrong position. Adjust choke.
Spark plug wire loose Attach wire to spark plug
Out of fuel Fill fuel tank Generator shuts down during
Low oil level Fill crankcase to the proper level.
Place generator on a flat, level surface
Generator is overloaded Review load and adjust. See “Power
Management”
Insufficient ventilation Check for air restriction. Move to a
well ventilated area
Cable not properly connected Check all connections
Connected device is defective Replace defective device
Circuit breaker is open Reset circuit breaker
Capacitor defective Replace capacitor (Service Center)
Faulty brush assembly Replace brush assembly (Service
Center)
Faulty AVR Replace AVR (Service Center)
Loose wiring Inspect and tighten wiring
connections
Other Contact the help line.
Overload Review load and adjust. See “Power
Management”
Faulty cords or device Check for damaged, bare or frayed
wires. Replace defective device
21
Warranty
Warranty
CHAMPION POWER EQUIPMENT
1 YEAR LIMITED WARRANTY
Effective September 1, 2006. Replaces all
undated warranties and all warranties dated
before September 1, 2006.
Warranty Qualifications
Champion Power Equipment (CPE) will
register this warranty upon receipt of your
Warranty Registration Card and a copy of
your sales receipt from one of CPE's retail
locations as proof of purchase.
Please submit your warranty registration
and your proof of purchase within ten (10)
days of the date of purchase.
Repair/Replacement
Warranty
CPE warrants to the original purchaser that
the mechanical and electrical components
will be free of defects in material and
workmanship for a period of one (1) year
from the original date of purchase (90 days
for commercial & industrial use).
Transportation charges on product
submitted for repair or replacement under
this warranty are the sole responsibility of
the purchaser. This warranty only applies to
the original purchaser and is not
transferable.
Do not return the unit to the
place of purchase
Contact CPE's Technical Service and CPE
will troubleshoot any issue via phone or email. If the problem is not corrected by this
method, CPE will, at its option, authorize
evaluation, repair or replacement of the
defective part or component at a CPE
Service Center. CPE will provide you with a
case number for warranty service. Please
keep it for future reference. Repairs or
replacements without prior authorization, or
at an unauthorized repair facility, will not be
covered by this warranty.
Warranty Exclusions
This warranty does not cover the following
repairs and equipment:
Normal Wear
Generators need periodic parts and service
to perform well. This warranty does not
cover repair when normal use has exhausted
the life of a part or the equipment as a
whole.
Installation, Use and
Maintenance
This warranty will not apply to parts and/or
labor if this generator is deemed to have
been misused, neglected, involved in an
accident, abused, loaded beyond the
generator’s limits, modified, installed
improperly or connected incorrectly to any
electrical component. Normal maintenance
such as spark plugs, air filters, adjustments,
fuel system cleaning and obstruction due to
buildup is not covered by this warranty.
Other Exclusions
This warranty excludes:
Cosmetic defects such as paint, decals, etc.
Wear items such as filter elements, o-rings,
etc.
Accessory parts such as starting batteries,
and storage covers.
Failures due to acts of God and other force
majeure events beyond the manufacturer’s
control.
Problems cause by parts that are not original
Champion Power Equipment parts.
This warranty does not apply to generators
used for prime power in place of a utility.
Limits of Implied Warranty
and Consequential Damage
Champion Power Equipment disclaims any
obligation to cover any loss of time, use of
this product, freight, or any incidental or
consequential claim by anyone from using
this generator. THIS WARRANTY IS IN
LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING
WARRANTIES OF MERCHANTABILITY
OR FITNESS FOR A PARTICULAR
PURPOSE
22 Rev 40010-20070427
Warranty
A unit provided as an exchange will be
subject to the warranty of the original unit.
The length of the warranty governing the
exchanged unit will remain calculated by
reference to the purchase date of the original
unit.
This warranty gives you certain legal rights
which may change from state to state. Your
state may also have other rights you may be
entitled to that are not listed within this
warranty.
Contact Information
Address
Champion Power Equipment, Inc.
Customer Service
10006 Santa Fe Springs Rd.
Santa Fe Springs, CA 90670
Customer Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
Fax no.: 1-562-236-9429
Technical Service
Mon – Fri 8:30 AM – 5:00 PM (PST/PDT)
Toll Free: 1-877-338-0999
tech@championpowerequipment.com
Rev 40010-20070427 23
Warranty
Champion Power Equipment, Inc (CPE),
The California Air Resources Board (CARB) and the United States Environment Protection
Agency (U.S. EPA.)
Emission Control System Warranty
Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of
California Air Resources Board (CARB) emission regulations.
YOUR WARRANTY RIGHTS AND OBLIGATIONS:
The California Air Resources Board, US EPA AND CPE are pleased to explain the Federal and
California Emission Control Systems Warranty on your 2005 and later, small off-road engine. In
California, new, small off-road engines must be designed, built and equipped to meet the State’s
stringent anti smog standards. In the other states, new engines must be designed, built and
equipped, at the time of sale, to meet U.S. EPA regulations for small non-road engines. CPE
must warrant the emission control system on your small off-road engine for the period of time
listed below, provided there has been no abuse, neglect, unapproved modification, or improper
maintenance of your small off-road engine.
Your emission control system may include parts such as the carburetor, fuel-injection system, the
ignition system, catalytic converter and fuel lines. Also included may be hoses, belts, connectors
and other emission related assemblies. Where a warrantable condition exits, CPE will repair your
small off-road engine at no cost to you including diagnosis, parts and labor.
MANUFACTURER’S EMISSION CONTROL SYSTEM WARRANTY COVERAGE:
This emission control system is warranted for two years, subject to provisions set forth below. If,
during the warranty period, emission related part on your engine is defective in materials or
workmanship, the part will be repaired or replaced by CPE.
OWNER WARRANTY RESPONSIBILITIES:
As the small off-road engine owner, you are responsible for the performance of the required
maintenance listed in your Owner’s Manual. CPE recommends that you retain all your receipts
covering maintenance on your small off-road engine, but CPE cannot deny warranty solely for the
lack of receipts or for your failure to ensure the performance of all scheduled maintenance.
As the small off-road engine owner, you should however be aware that CPE may deny you
warranty coverage if your small, off-road engine or a part has failed due to abuse, neglect,
improper maintenance or unapproved modifications.
You are responsible for presenting your small off-road engine to an Authorized CPE service
outlet, CPE dealer or CPE, Santa Fe Springs, Ca. as soon as a problem exists. The warranty
repairs should be completed in a reasonable amount of time, not to exceed 30 days.
If you have any questions regarding your warranty rights and responsibilities, you should cont act:
Champion Power Equipment, Inc.
Customer Service
10006 Santa Fe Springs Road
Santa Fe Springs, CA 90670
Tel: (888) 696-0668
The emission warranty is a defects warranty. Defects are judged on normal engine performance.
The warranty is not related to an in-use emission test.
24 Rev 40010-20070427
Warranty
EMISSION CONTROL SYSTEM WARRANTY
The following are specific provisions relative to your Emission Control System Warranty
Coverage.
Emission Control System Warranty (ECS Warranty) for 1995 and later model year California
small off-road engines (for other states, 1997 and later model year engines):
1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small offroad engines (for other states, 1997 and later model year engines). The ECS Warranty Period
shall begin on the date the new engine or equipment is delivered to its original, end-use
purchaser, and shall continue for 24 consecutive months thereafter.
2. GENERAL EMISSIONS WARRANTY COVERAGE
CPE warrants to the original, end-use purchaser of the new engine or equipment and to each
subsequent purchaser that each of its small off-road engines is:
a. Designed, built and equipped so as to conform with all applicable regulations adopted
by the Air Resources Board pursuant to its authority in Chapters 1 and 2, Part 5, Division 26 of
the Health and Safety Code, and
b. Free from defects in materials and workmanshi p that cause the failure of a warranted
part to be identical in all material respects to the part as described in the engine manufacturer’s
application for certification for a period of two years.
3. THE WARRANTY ON EMISSION-RELATED PARTS WILL BE INTERPRETED AS
FOLLOWS:
a. Any warranted part that is not scheduled for replacement as required maintenance in
the Owners Manual shall be warranted for the ECS Warranty Period. If any such part fails during
the ECS Warranty Period, it shall be repaired or replaced by CPE according to Subsection “d”
below. Any such part repaired or replaced under the ECS Warranty shall be warranted for any
remainder of the ECS Warranty Period.
b. Any warranted, emissions-related part which is scheduled only for regular inspection
as specified in the Owners Manual shall be warranted for the ECS Warranty Period. A statement
in such written instructions to the effect of “repair or replace as necessary”, shall not reduce the
ECS Warranty Period. Any such part repaired or replaced under the ECS Warranty shall be
warranted for the remainder of the ECS Warranty Period.
c. Any warranted, emissions-related part which is scheduled for re placement as required
maintenance in the Owner’s Manual shall be warranted for the period of time prior to the first
scheduled replacement point for that part. If the part fails prior to the first scheduled replacement,
the part shall be repaired or replaced by CPE according to Subsection “d” below. Any such
emissions-related part repaired or replaced under the ECS Warranty, shall be warranted for the
remainder of the ECS Warranty Period prior to the first scheduled replacement point for such
emissions-related part.
d. Repair or replacement of any warranted, emissions-related part unde r this ECS
Warranty shall be performed at no charge to the owner at a CPE Authorized Service Outlet.
e. The owner shall not be charged for diagnostic labor which leads to the determination
that a part covered by the ECS Warranty is in fact defective, provided that such diagnostic work is
performed at a CPE Authorized Service Outlet.
f. CPE shall be liable for damages to other original engine components or approved
modifications proximately caused by a failure under warranty of an emission-related part covered
by the ECS Warranty.
g. Throughout the ECS Warranty Period, CPE shall maintain a supply of warranted
emission-related parts sufficient to meet the expected demand for such emission-related parts.
h. Any CPE Authorized and approved emissi on-related replacement part may be used in
the performance of any ECS Warranty maintenance or repair and will be provided without charge
to the owner. Such use shall not reduce CPE’s warranty obligation.
Rev 40010-20070427 25
Warranty
i. Unapproved add-on or modified parts may not be used to modify or repair a CPE
engine. Such use voids this ECS Warranty and shall be sufficient grounds for disallowing an
ECS Warranty claim. CPE shall not be liable hereunder for failures of any warranted parts of a
CPE engine caused by the use of such an unapproved add-on or modified part.
EMISSION-RELATED PARTS INCLUDE THE FOLLOWING: (using those portions of the list
applicable to the engine)
Systems covered by this warranty Parts Description
Fuel Metering System Fuel regulator, Carburetor and internal parts
Air Induction System Air cleaner, Intake manifold
Ignition System Spark plug and parts, Magneto ignition system
Exhaust System Exhaust manifold, catalytic converter
Miscellaneous Parts Tubing, Fittings, Seals, Gaskets, and Clamps associated with these
Evaporative Emissions Fuel Tank, Fuel Cap, Fuel Line, Fuel Line Fittings, Clamps, Pressure
TO OBTAIN WARRANTY SERVICE:
You must take your CPE engine or the product on which it is installed, along with your warranty
registration card or other proof of original purchase date, at your expense, to any Champion
Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and
service that CPE product during his normal business hours. Claims for repair or adjustment found
to be caused solely by defects in material or workmanship will not be denied because the engine
was not properly maintained and used.
If you have any questions regarding your warranty rights and responsibilities, or to obtain
warranty service, please write or call the Customer service of Champion Power
Equipment, Inc.
Champion Power Equipment, Inc.
10006 Santa Fe Springs Road
Santa Fe Springs, CA 90670
listed systems.
Relief Valves, Control Valves, Control Solenoids, Electronic Controls,
Vacuum Control Diaphragms, Control Cables, Control Linkages, Purge
Valves, Vapor Hoses, Liquid/Vapor Separator, Carbon Canister, Canister
Mounting Brackets, Carburetor Purge Port Connector
(888) 696-0668
Attn: Customer Service
26 Rev 40010-20070427
