Champion pedals HT MIDI Interface User Manual

HT MIDI Interface

© 2015 Champion Pedals

8 channel MIDI controlled amp switcher

www.ChampionPedals.com

Introduction:

The HT MIDI Interface from Champion Pedals is a MIDI controlled

8 channel amp switcher primarily made to control Blackstar™

“HT” series amps with the 9 pin footswitch connector.

In addition to the 9 pin control, it also features 2 isolated stereo 1/4”

jacks that offer control of up to 4 more functions on 2 devices.

The HT MIDI Interface outputs can be set to latching as well as momentary.

The HT MIDI Interface features a micro USB connector and works with

Mac and PC as a driverless install.

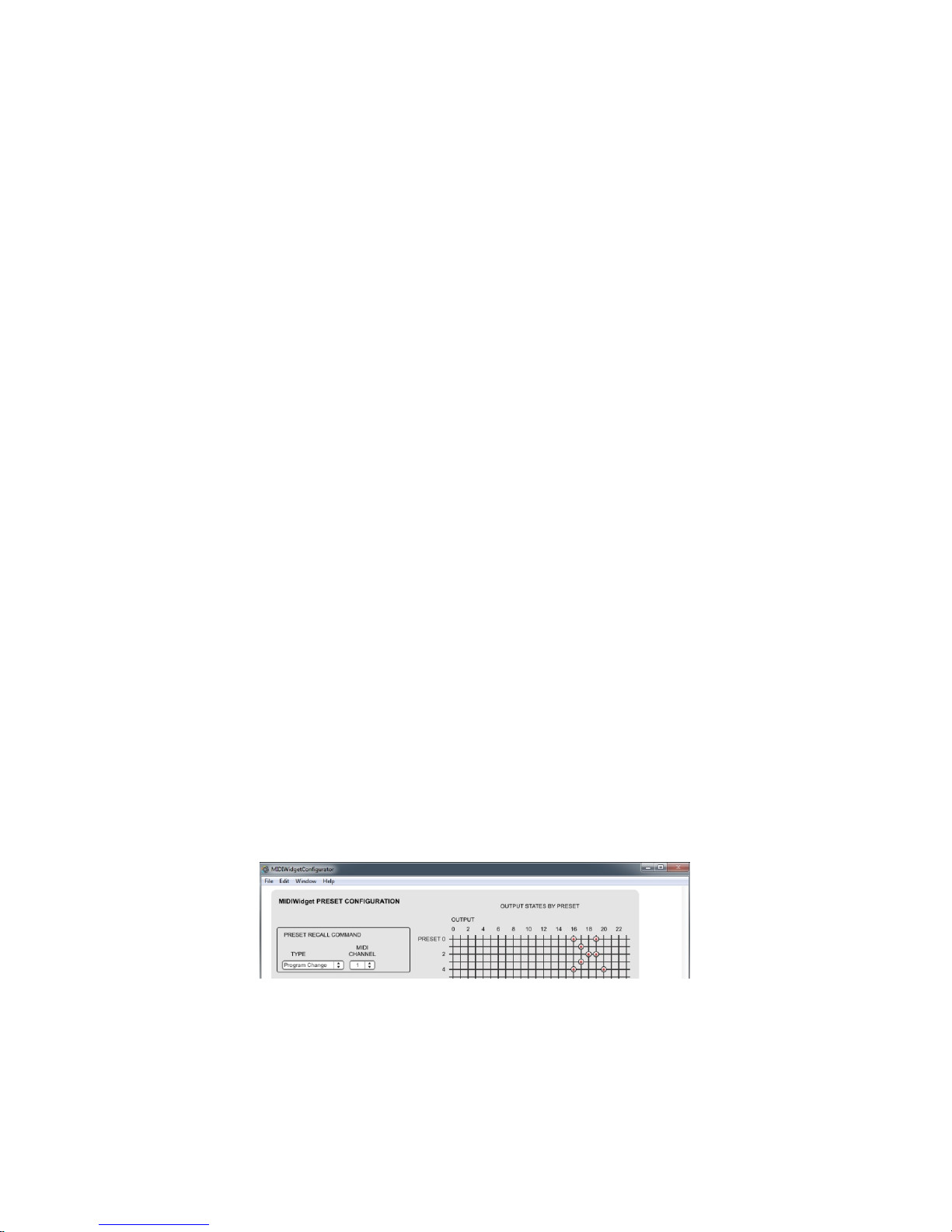

The included Configurator software is compatible with PC and Mac

and gives you an intuitive GUI interface to set the HT MIDI Interface’s

parameters if your needs differ from the default settings.

Deep editing is made easy with the Configurator® software.

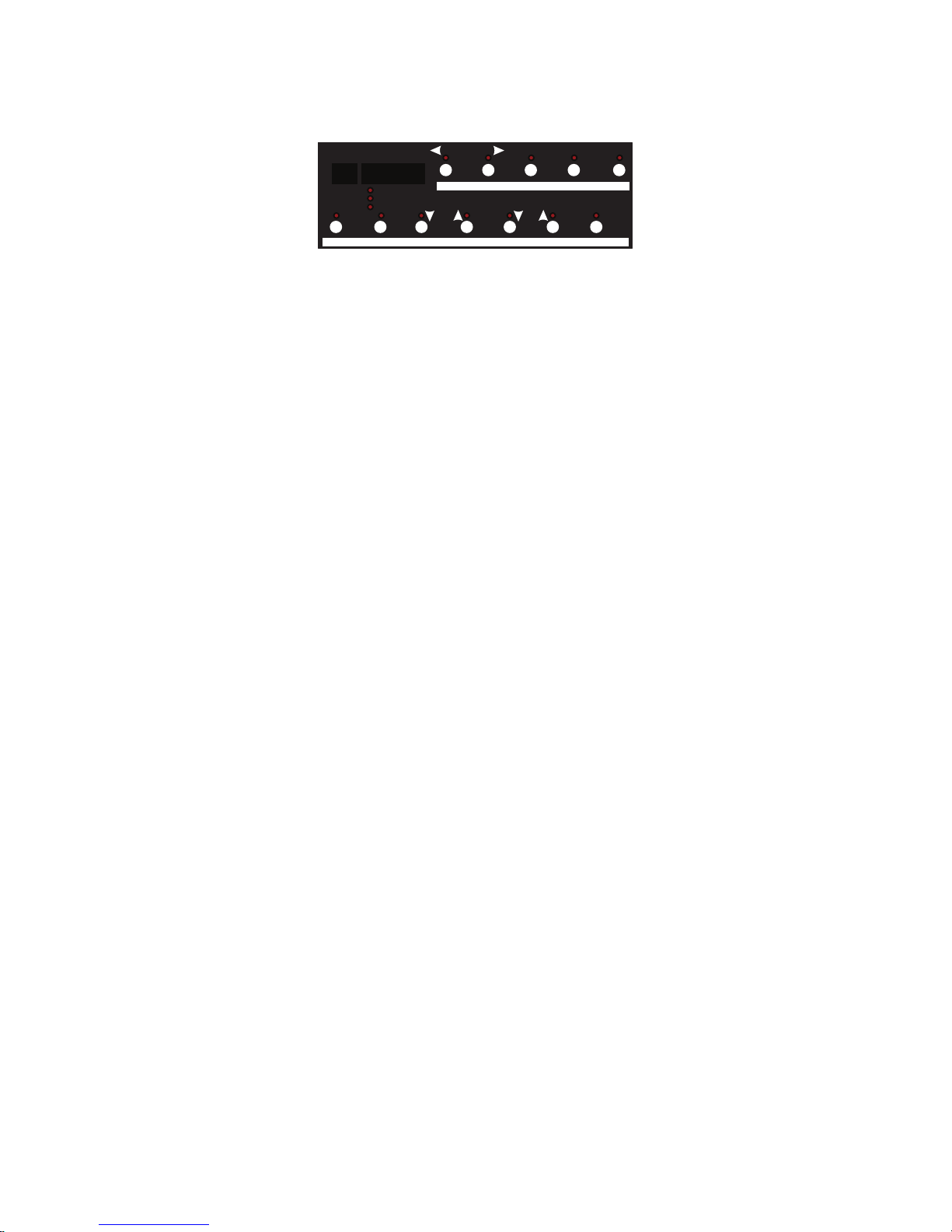

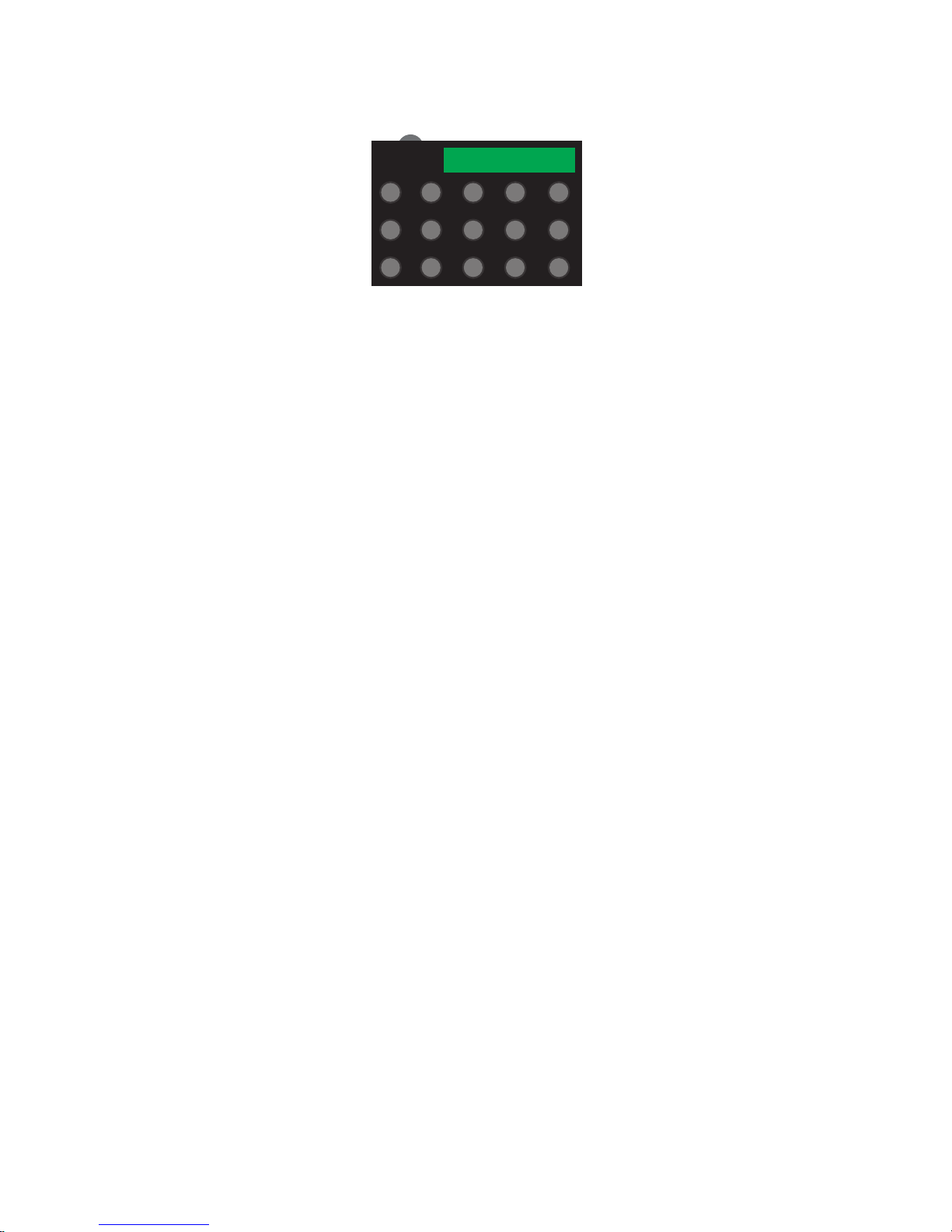

Works best with a Ground Control Pro™ or better, though it will also work

great with a Rocktron MIDI Mate™ or Behringer FCB1010™

™

www.ChampionPedals.com 1

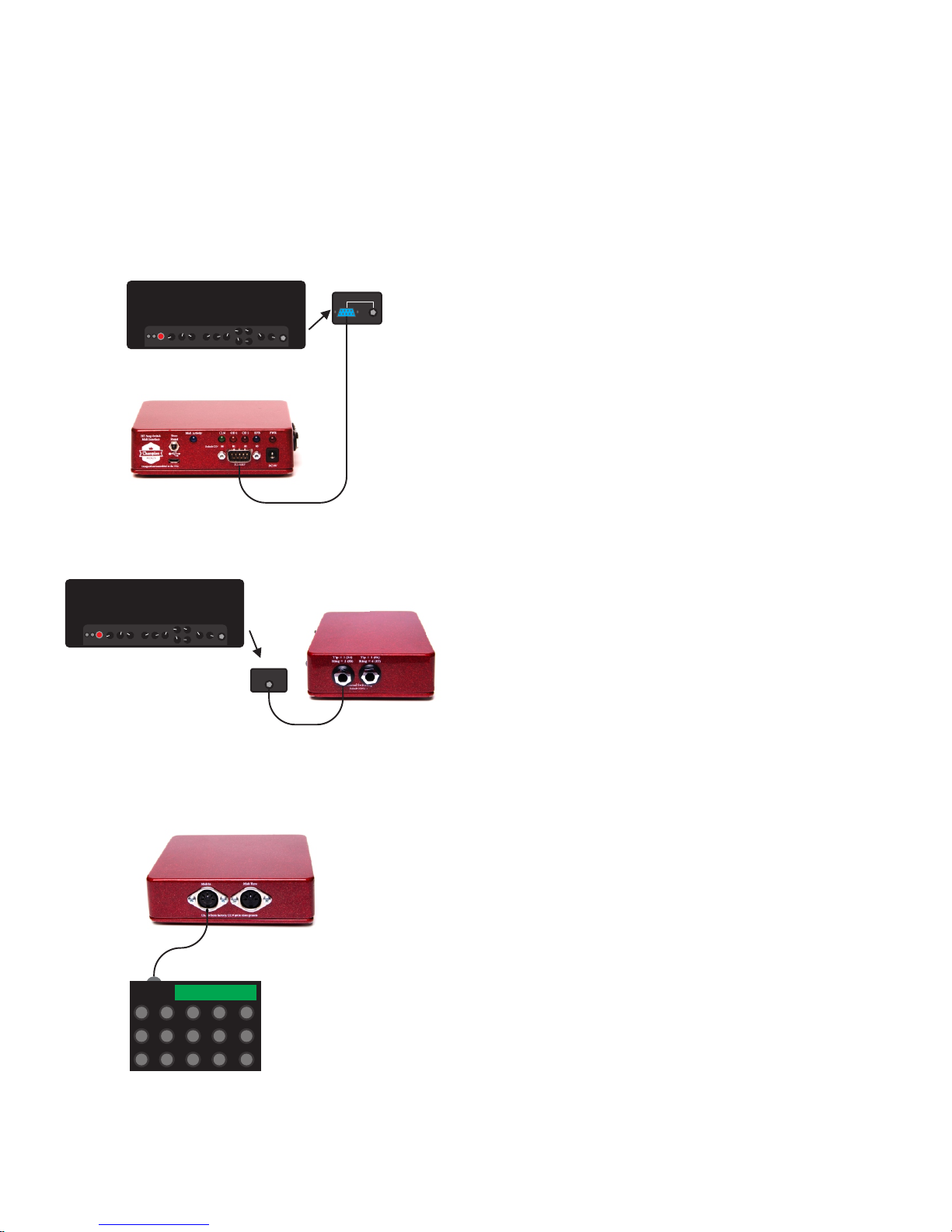

Connections:

A.

B. C. D.

E. F. G.

A. Store preset button: Press this to store a

preset. See “Preset Mode” on page 3.

B. MIDI Activity LED: Lights upon boot up and
whenever MIDI activity is received.

C. Amp LED Indicators: Shows the status of the
amp. These LEDS are powered by the amp.

D. Power LED: Lit when power is present at DC
jack G. When powered from the USB jack the
Power LED will not be lit.

E. Micro USB: Connects the HT MIDI Interface to
PC or MAC where it shows up as a MIDI interface
called “MIDI Widget” as well as providing power.

F. 9 Pin D-Sub: Connects to your Blackstar™
amp to enable MIDI control. MIDI CC#’s control the
channels by default.

H. I.

J.

G. DC9V: Connect a Boss™ style 9V adapter

here, center negative 200ma minimum.

H. MIDI In: Connect your MIDI controller here. The
Voodoo Labs Ground Control Pro™ works perfect.

I. MIDI Thru: Sends a copy of the MIDI input.

J. External Switch 1 & 2: Switches external gear.

Tip is Out 1 and Ring is Output 2.

K. External Switch 3 & 4: Switches external gear.
Tip is Out 3 and Ring is Output 4

K.

The ™ of other manufacturers are used only to designate

which products the HT Midi Interface works best with

and no affiliation or endorsement is implied.
