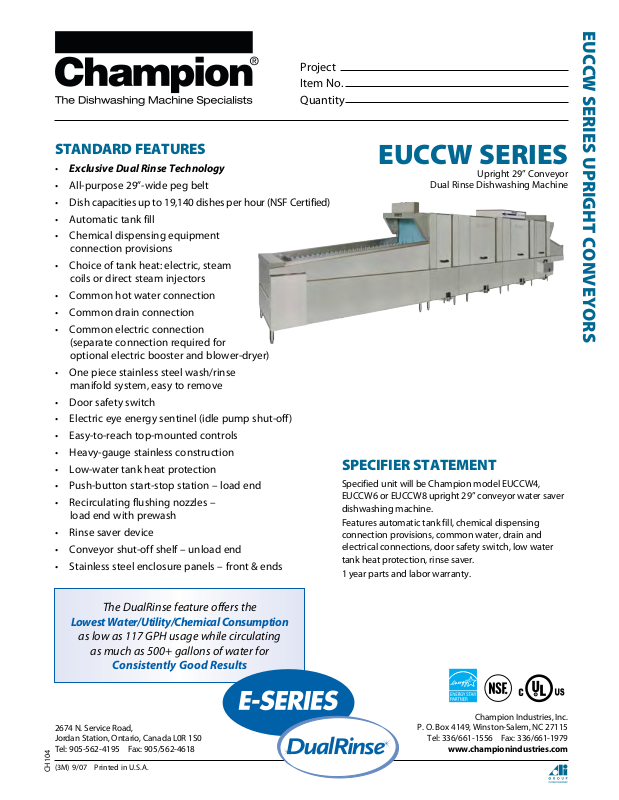

Page 1
Project
Item No.
Quantity
EUCCW SERIES UPRIGHT CONVEYORS
STANDARD FEATURES
• Exclusive Dual Rinse Technology
• All-purpose 29”-wide peg belt
• Dish capacities up to 19,140 dishes per hour (NSF Certified)
• Automatic tank fill
• Chemical dispensing equipment
connection provisions
• Choice of tank heat: electric, steam
coils or direct steam injectors
• Common hot water connection
• Common drain connection
• Common electric connection
(separate connection required for
optional electric booster and blower-dryer)
• One piece stainless steel wash/rinse
manifold system, easy to remove
• Door safety switch
• Electric eye energy sentinel (idle pump shut-off)
• Easy-to-reach top-mounted controls
• Heavy-gauge stainless construction
• Low-water tank heat protection
• Push-button start-stop station – load end
• Recirculating flushing nozzles –
load end with prewash
• Rinse saver device
• Conveyor shut-off shelf – unload end
• Stainless steel enclosure panels – front & ends
EUCCW SERIES
Upright 29” Conveyor
Dual Rinse Dishwashing Machine
SPECIFIER STATEMENT
Specified unit will be Champion model EUCCW4,
EUCCW6 or EUCCW8 upright 29” conveyor water saver
dishwashing machine.
Features automatic tank fill, chemical dispensing
connection provisions, common water, drain and
electrical connections, door safety switch, low water
tank heat protection, rinse saver.
1 year parts and labor warranty.
The DualRinse feature offers the
Lowest Water/Utility/Chemical Consumption
as low as 117 GPH usage while circulating
as much as 500+ gallons of water for
Consistently Good Results
2674 N. Service Road,
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905-562-4195 Fax: 905/562-4618
(3M) 9/07 Printed in U.S.A.
CH104
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
Page 2
EUCCW SERIES
Upright 29” Conveyor
Dual Rinse
Dishwashing Machine
Shipping weight crated: 150 lbs./ft.[68kg./m.]
Height with doors up:
Height to remove doors:
95”
100”
SPECIFICATIONS
Capacities EUCCW4 EUCCW6 EUCCW8
Dishes per hr. (NSF rated) 12,970 16135 19140
Conveyor speed (ft./min.) 8.2 10.2 12.1
Motor horsepower
Drive 1/2 Hp 1/2 Hp 1/2 Hp
Prewash 30” [762] 1 Hp 1 Hp 1 Hp
Prewash 48” [1219] 3 Hp 3 Hp 3 Hp
Wash 3 Hp 3 Hp 3 Hp
Power Rinse* N/A 3 Hp 3 Hp
Auxiliary Rinse 1/5 Hp 1/5 Hp 1/5 Hp
Water consumption
Gal. per hr. (max. use) 117 129 158
Temperatures °F
Wash (min.) 160 150 150
Power Rinse (min.)* N/A 160 160
Auxiliary Rinse (min.) 165 165 165
Final rinse (min.) 180 180 180
Heating
Tank heat Steam Electric
Wash tank 125 lbs./hr. 25 kW
Rinse tank * 100 lbs./hr. 20 kW
Auxiliary rinse 50 lbs./hr. 10 kW
Electric booster 15 15 18
(kW required for 40°F rise)
Electric booster 25 25 32
(kW required for 70°F rise)
Steam booster 75 75 90
(lbs./hr. required for 40°F rise)
Steam booster 125 125 150
(lbs./hr. required for 70°F rise)
Venting
Minimum cfm, load end 300
Minimum cfm, unload end 800
*EUCCW4 has no power rinse tank
Utilities EUCCW4
1 Electrical
Contact factory for specific machine electrical requirements
NOTE: Electric booster connection – contact Factory
2 Hot Water
3/4” NPT 180°F hot water connection.
(For machine without built-in booster)
3 Drain
2” NPT connection
4 Vents
A Load end: 300 CFM 1/4” S.P.
B Unload end: 800 CFM 1/4” S.P. With blower-dryer,
increase room ventilation by 600 CFM.
Utilities EUCCW6
1 Electrical
Contact factory for specific machine electrical requirements
NOTE: Electric booster connection – contact Factory
2 Hot Water
3/4” NPT 180°F hot water connection.
(For machine without built-in booster)
3 Drain
2” NPT connection
4 Vents
A Load end: 300 CFM 1/4” S.P.
B Unload end: 800 CFM 1/4” S.P. With blower-dryer,
increase room ventilation by 600 CFM.
Utilities EUCCW8
1 Electrical
Contact factory for specific machine electrical requirements
NOTE: Electric booster connection – contact Factory
2 Hot Water
3/4” NPT 180°F hot water connection.
(For machine without built-in booster)
3 Drain
2” NPT connection
4 Vents
A Load end: 300 CFM 1/4” S.P.
B Unload end: 800 CFM 1/4” S.P. With blower-dryer,
increase room ventilation by 600 CFM.
Booster connections may vary. Contact the Factory.
Standard Voltages (Specify choice): 208/60/3, 240/60/3, and
480/60/3. Available in 3-phase only. For non-standard 3-phase voltages,
contact the Factory.
Plumbing Notes Because of the variation in house-supplied water
pressure, a water pressure regulating valve (PRV) is needed (water
PRV is standard). Steam PRV’s may be required for pressure higher
than 30 psi. The PRVs can either be purchased from Champion or
obtained locally.
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Warning Plumbing and electrical connections should be made by
qualified personnel who will observe all the applicable plumbing,
sanitary, safety codes and the National Electrical Code.
Note Water Hammer Arrestor (meeting ASSE-1010 standard or
equivalent) to be supplied (by others) in common water supply line
at service connection.
Venting Notes
Fabricated duct size: 3-7/8” x 23-7/8” (outside dimensions)

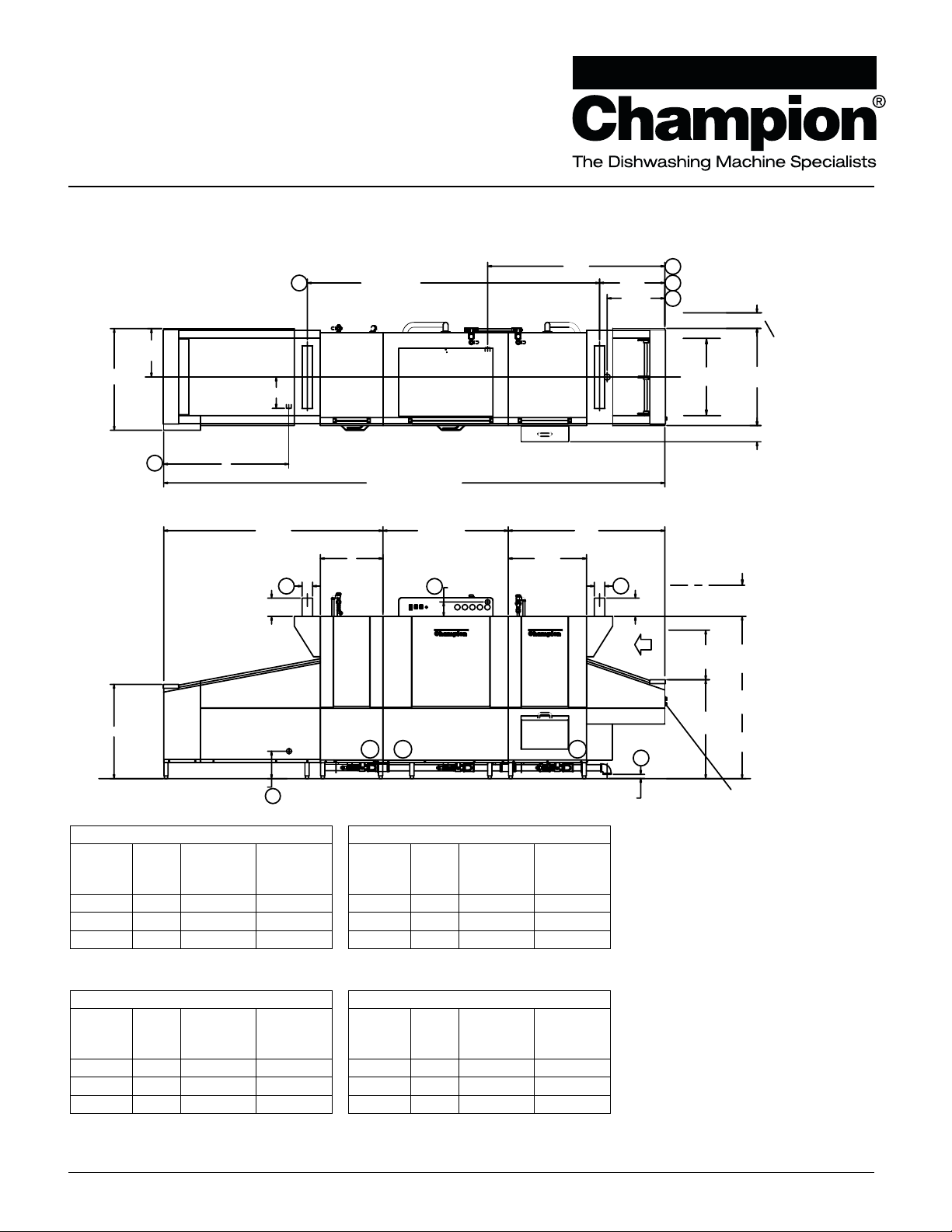

Page 3
1'-10"
[559]
9'-4" CL-CL
[2845]
5'-8"
[1727]
12" [305]
Plumbing
Clearance
100" [2540]
Door
Removal
95" [2413]
Doors Up
29" [737]
Clearance
OVERALL LENGTH "C"
CL
CL
"A"
LOAD
"B"
UNLOAD
19" [483]
Clear
62" [1575]
Machine Height
2'-6"
[762]
39" [991]
12" [305]
4' [1219]
6-1/4" [159]
6" [152]
7" [178] 7" [178]
4" [102]
4" [102]
36" [914]
2'
[610]
38"
[965]
1-5/8" [41]
10-1/2" [266]
2'-1"
[635]
18-5/8"
[473]
5-1/2"
[140]
37-1/4"
[946]
4' [1219]
WASH
2
2
4A
3
1
4B
4B
4A
1
3
Start/Stop
HP
3
1
HPHP
0.2
1/2 HP
Plumbing
Clearance
WASH
PREWASH
FINAL
RINSE
EUCCW SERIES
Upright 29” Conveyor
Dual Rinse
Dishwashing Machine
MODULAR SECTIONS: Right to Left Operation
EUCCW4
Dimensions shown in inches and [millimeters]
TABLE A
- Machine Connection
Machine Only - Electric Heat
Elec.
Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
208/60/3 119 150 150
240/60/3 102 150 150
480/60/3 52 70 70
TABLE B
- Booster Connection
40°F/22°C Rise – 15 kW Electric Built-in Booster
Elec.
Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
208/60/3 42 60 60
240/60/3 36 45 45
480/60/3 18 25 25
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Maximum
Overcurrent
Protective
Device
Maximum
Overcurrent
Protective
Device
70°F/39°C Rise - 25kW Electric Built-in Booster
Elec.
Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
Maximum
Overcurrent
Protective
208/60/3 70 90 90
240/60/3 60 80 80
480/60/3 30 40 40
Machine-steam
Elec.
Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
Maximum
Overcurrent
Protective
208/60/3 21 25 25
240/60/3 18 25 25
480/60/3 10 15 15
Contact Factory for additional voltages.
Device
Device
Notes: Load Section (A)Standard 5 ft ,
contains 30” Prewash.
Prewash also available
in a 48” HD section.
Non-standard load section
available in 12” increments.
Minimum load length 5ft
(includes 30” prewash).
Unload Section (B) Standard 5 ft
contains 24” Aux. Rinse and 36”
belt, available in 12” increments.
Built in electric booster
requires a 5 ft minimum unload.
Built in steam booster requires
a minimum 6 ft unload.
Blow dryer section adds 4ft to
overall length of machine.

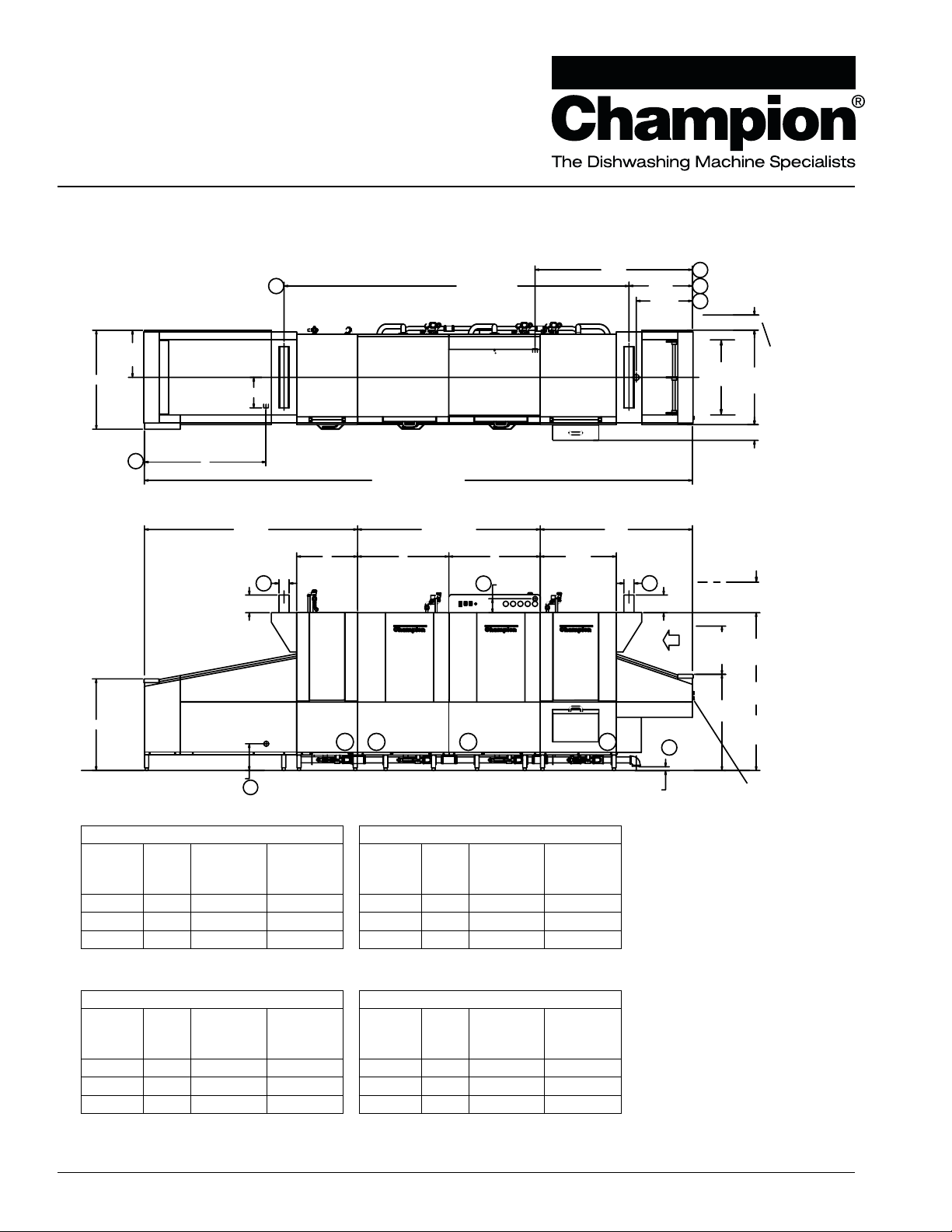

Page 4
Plumbing
Clearance
12" [305]
100" [2540]
Door
Removal
Doors Up
95" [2413]
29" Clear
[737]
OVERALL LENGTH "C"
CL
CL
"A"
LOAD
6' [1829]
WASH/RINSE
"B"
UNLOAD
19"
[483]
Clear
62" [1575]
Machine
Height
2'-6"
[762]
39" [991]
12" [305]
6" [152]
6-1/4" [159]
4'
[1219]
7" [178]
4"
[102]
2'
[610]
3'
[914]
3'
[914]
4"
[102]
7" [178]
38"
[965]
1-5/8"
[41]
36" [914]
2'-1"
[635]
1'-10"
[559]
37-1/4"
[946]
11'-4" CL-CL
[3454]
18-5/8"
[473]
5-1/2"
[140]
10-1/2"
[266]
5'-8"
[1727]
2
2
4A
3
1
4B
4B
4A
1
3
Start/Stop
HP
3
HP
3
1
HP
HP
0.2
1/2 HP
Plumbing
Clearance
POWER
RINSE
PREWASHFINAL
RINSE
WASH
EUCCW SERIES
Upright 29” Conveyor
Dual Rinse
Dishwashing Machine
MODULAR SECTIONS: Right to Left Operation
EUCCW6
Dimensions shown in inches and [millimeters]
TABLE A
- Machine Connection
Machine Only - Electric Heat
Elec.
Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
208/60/3 183 250 250
240/60/3 158 200 200
480/60/3 80 100 100
TABLE B
- Booster Connection
40°F/22°C Rise – 15 kW Electric Built-in Booster
Elec.
Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
208/60/3 42 60 60
240/60/3 36 45 45
480/60/3 18 25 25
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
Maximum
Overcurrent
Protective
Device
Maximum
Overcurrent
Protective
Device
70°F/39°C Rise - 25kW Electric Built-in Booster
Elec.
Specs.
208/60/3 70 90 90
240/60/3 60 80 80
480/60/3 30 40 40
Machine-steam
Elec.
Specs.
208/60/3 29 40 40
240/60/3 26 35 35
480/60/3 14 20 20
Contact Factory for additional voltages.
Rated
Amps
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
Minimum
Supply Ckt.
Conductor
Ampacity
Maximum
Overcurrent
Protective
Device
Maximum
Overcurrent
Protective
Device
Notes: Load Section (A) Standard
5 ft , contains 30” Prewash.
Prewash also available
in a 48” HD section.
Non-standard load section
available in 12” increments.
Minimum load length 5ft
(includes 30” prewash).
Unload Section (B)Standard 5 ft
contains 24” Aux. Rinse available
in 12” increments.
Built in electric booster requires
a 5 ft minimum unload.
Built in steam booster requires
a mininum 6 ft unload.
Blow dryer section adds 4ft to
overall length of machine

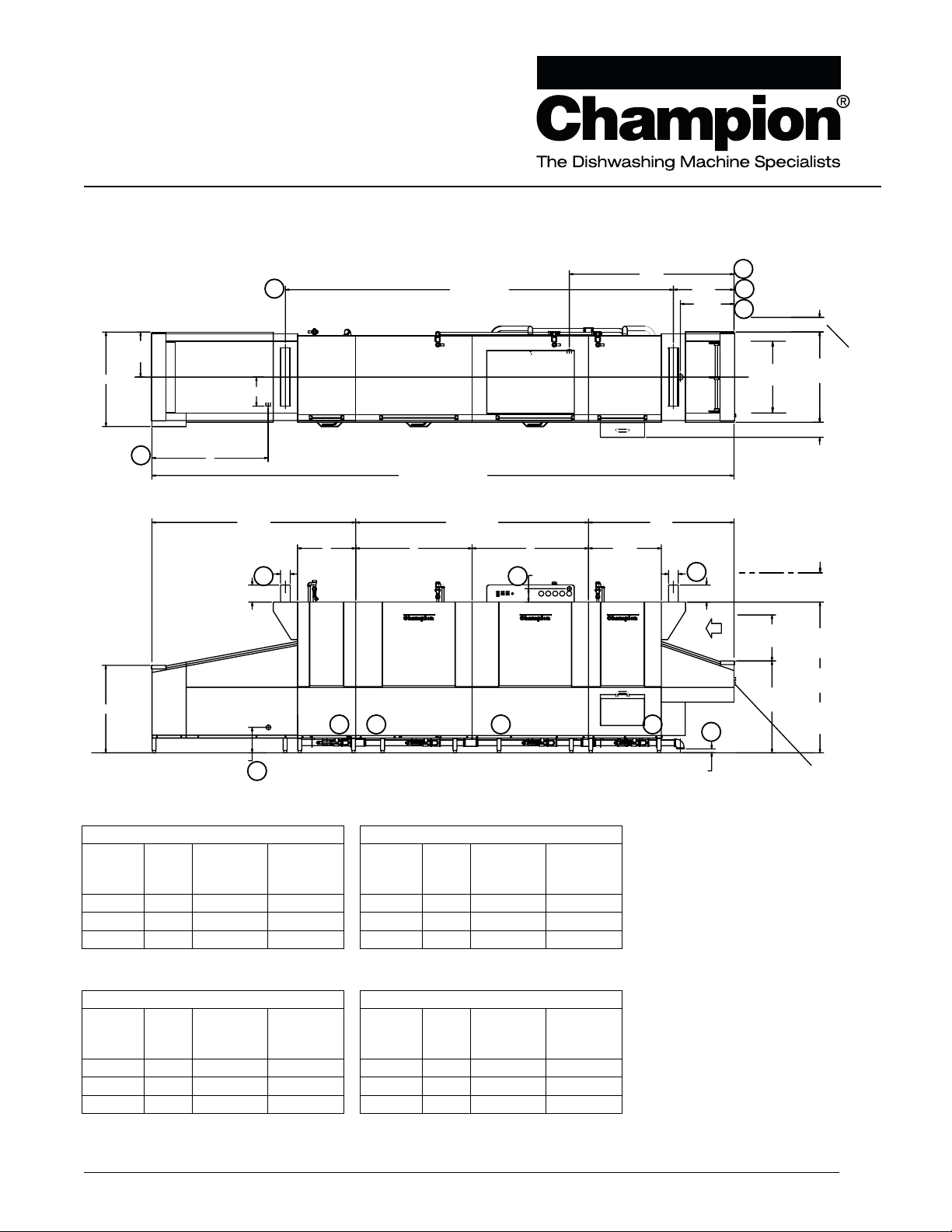

Page 5
1'-10"
2'-1"
13'-4" CL-CL
5'-8"
4'
4'
4"
5-1/2"
1-5/8"
38"
Plumbing
Clearance
12" [305]
100" [2540]
Door
Removal
Doors Up
95" [2413]
29" [737]
Clear
OVERALL LENGTH “C”
CL
CL
“A”
LOAD
8' [2438]
WASH/RINSE
“B”
UNLOAD
19" [483]
Clear
62" [1575]
Machine
Height
37-1/4"
2'
2'-6"
39" [991]
18-5/8"
[473]
12" [305]
4' [1219]
[4064]
[1727]
[559]
[946]
[762]
[102]
[965]
[41]
[140]
[635]
6" [152]
6-1/4" [159]
7" [178]
7" [178]
4" [102]
[610] [1219] [1219]
10-1/2" [266]
36" [914]
Start/Stop
1/2 HP
Plumbing
Clearance
HP
0.2HP3
HP
3
3
4A
1
2
4B
HP
1
2
4B
4A
1
3
POWER
RINSE
WASH
PREWASH
FINAL
RINSE
EUCCW SERIES
Upright 29” Conveyor
Dual Rinse
Dishwashing Machine
MODULAR SECTIONS: Right to Left Operation
EUCCW8
Dimensions shown in inches and [millimeters]
- Machine Connection
TABLE A
Machine Only - Electric Heat
Elec.
Specs.
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
208/60/3 183 250 250
240/60/3 158 200 200
480/60/3 80 100 100
TABLE B
40°F/22°C Rise – 18kW Electric Built-in Booster
Elec.
Specs.
- Booster Connection
Rated
Amps
Minimum
Supply Ckt.
Conductor
Ampacity
208/60/3 50 70 70
240/60/3 43 60 60
480/60/3 22 30 30
70°F/39°C Rise - 32kW Electric Built-in Booster
Maximum
Overcurrent
Protective
Device
Elec.
Specs.
Rated
Amps
208/60/3 89 125 125
240/60/3 77 100 100
480/60/3 39 50 50
Machine-steam
Maximum
Overcurrent
Protective
Device
Elec.
Specs.
208/60/3 29 40 40
Rated
Amps
240/60/3 26 35 35
480/60/3 14 20 20
Minimum
Supply Ckt.
Conductor
Ampacity
Minimum
Supply Ckt.
Conductor
Ampacity
Maximum
Overcurrent
Protective
Maximum
Overcurrent
Protective
Device
Device
Notes: Load Section (A)Standard 5 ft ,
contains 30” Prewash.
Prewash also available in
a 48” HD section.
Non-standard load section
available in 12” increments.
Minimum load length 5ft
(includes 30” prewash).
Unload Section (B)
Standard 5 ft contains 24” Aux.
Rinse and 36” belt, available in
12” increments.
Built in electric booster requires
Built in steam booster requires
Blow dryer section adds 4ft to
a 5 ft minimum unload.
a minimum 6 ft unload.
overall length of machine.
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Page 6
EUCCW SERIES
Upright 29” Conveyor
Dual Rinse
Dishwashing Machine
OPTIONS & ACCESSORIES
Tank heat; choices of electric, steam coil or steam injectors
Booster Heaters – stainless steel
(completely inter-plumbed, controls are inter-wired)
ectric: (40°F rise or 70°F rise)
El
Steam: (40°F or 70°F rise)
Blower Dryer, electric or steam (add 4’ to overall length)
EUCCW UPRIGHT CONVEYOR
Belts: standard peg belt, flat belt, thermal tray belt,
silverware belt, belts with upper cross rods, and other
select combination belts
Start/Stop station, unload end
Back panels, stainless steel
Conveyor, variable speed, electric
Cold water thermostat (for pre-wash)
External scrap bucket on 48” pre-wash
(standard on 30” pre-wash)
External scrap bucket on wash tank
Insulated hoods, lower panels
Motor pumps, 2 or 3 Hp optional in lieu of 1 Hp on pre-wash
Bumper rail, machine mounted
Steam pressure regulating valve (unmounted)
Drain water tempering kit (unmounted)
Vent fan control switch
Drain interlocks
Isolation switches for motors and/or electric tank heat
Fused disconnect switch for machine and/or booster
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Loading...
