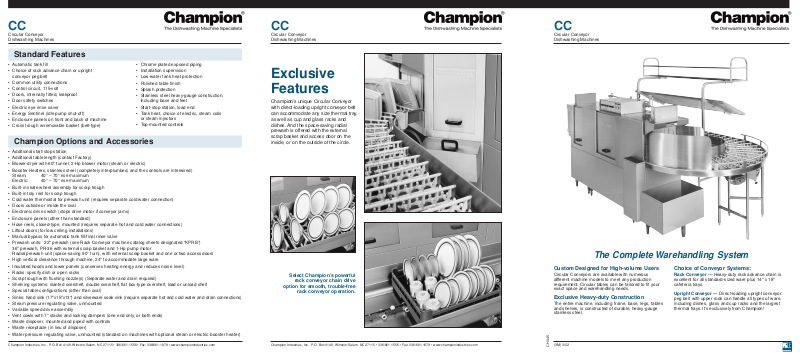

Champion CC General Manual

Circular Conveyor
Dishwashing Machines

CC

(3M) 3/02

CH045

The Complete Warehandling System

Custom Designed for High-volume Users

Circular Conveyors are available with numerous
different machine models to meet any production
requirement. Circular tables can be tailored to fit your
exact space and warehandling needs.

Exclusive Heavy-duty Construction

The entire machine, including frame, base, legs, tables
and shelves, is constructed of durable, heavy-gauge
stainless steel.

Choice of Conveyor Systems:

Rack Conveyor — Heavy-duty rack advance chain is

excellent for all standard-sized ware plus 14" x 18"
cafeteria trays.

Upright Conveyor — Direct-loading upright conveyor

peg belt with upper rods can handle all types of ware,
including dishes, glass and cup racks and the largest
thermal trays. It’s exclusively from Champion!

Circular Conveyor
Dishwashing Machines

CC

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: [phone] • www.championindustries.com Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: [phone] • www.championindustries.com

Standard Features

Champion Options and Accessories

• Additional start/stop station

• Additional table length (contact Factory)

•Blower-dryer with 60" tunnel, 2-Hp blower motor (steam or electric)

• Booster Heaters, stainless steel (completely interplumbed, and the controls are interwired)
Steam: 40° – 70° rise maximum
Electric: 40° – 70° rise maximum

• Built-in skate wheel assembly for scrap trough

• Built-in tray rest for scrap trough

• Cold water thermostat for prewash unit (requires separate cold water connection)

• Doors outside or inside the oval

• Electronic drive switch (stops drive motor if conveyor jams)

• Enclosure panels (other than standard)

• Hose reels, closed-type, mounted (requires separate hot and cold water connections)

• Liftout doors (for low ceiling installations)

•Manual bypass for automatic tank fill/final rinse valve

• Prewash units: 22" prewash (see Rack Conveyor machine catalog sheets designated “KPRB”)
36" prewash, PR-36 with external scrap basket and 1-Hp pump motor
Radial prewash unit (space-saving 90° turn), with external scrap basket and one or two access doors

• High vertical clearance through machine, 24" to accommodate large ware

• Insulated hoods and lower panels (conserves heating energy and reduces noise level)

• Racks: specify dish or open racks

• Scrap trough with flushing nozzle(s) (Separate water and drain required)

• Shelving systems: slanted overshelf, double overshelf, flat box-type overshelf, load or unload shelf

• Special table configurations (other than oval)

• Sinks: hand sink (17"x15"x13") and silverware soak sink (require separate hot and cold water and drain connections)

• Steam pressure regulating valve, unmounted

•Variable speed drive assembly

•Vent cowls with 7" stacks and locking dampers (one end only, or both ends)

•Waste disposer, mounted and piped with controls

•Waste receptacle (in lieu of disposer)

•Water pressure regulating valve, unmounted (standard on machines with optional steam or electric booster heater)

•Automatic tank fill

• Choice of rack advance chain or upright
conveyor peg belt

• Common utility connections

• Control circuit, 115-volt

• Doors, internally fitted, leakproof

• Door safety switches

• Electric eye rinse saver

• Energy Sentinel (idle pump shut-off)

• Enclosure panels on front and back of machine

• Cross trough w/removable basket (belt-type)

• Chrome plated exposed piping

• Installation supervision

•Low-water tank heat protection

•Polished table finish

• Splash protection

• Stainless steel heavy-gauge construction,
including base and feet

• Start-stop station, load end

•Tank heat, choice of electric, steam coils
or steam injectors

•Top-mounted controls
