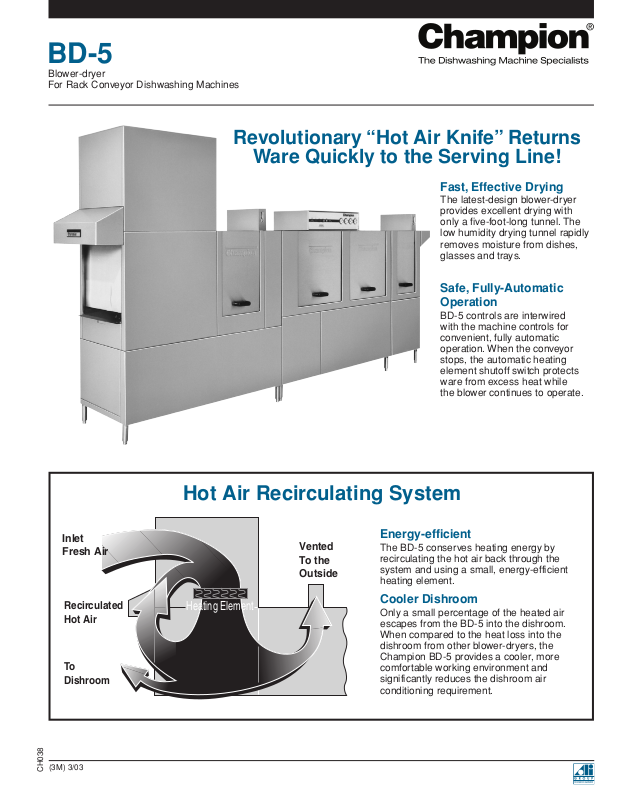

Champion BD-5 Specifications

Blower-dryer
For Rack Conveyor Dishwashing Machines

BD-5

(3M) 3/03

CH038

Revolutionary “Hot Air Knife” Returns

Ware Quickly to the Serving Line!

Fast, Effective Drying

The latest-design blower-dryer
provides excellent drying with
only a five-foot-long tunnel.The
low humidity drying tunnel rapidly
removes moisture from dishes,
glasses and trays.

Safe, Fully-Automatic
Operation

BD-5 controls are interwired
with the machine controls for
convenient, fully automatic
operation. When the conveyor
stops, the automatic heating
element shutoff switch protects
ware from excess heat while
the blower continues to operate.

Energy-efficient

The BD-5 conserves heating energy by
recirculating the hot air back through the
system and using a small, energy-efficient
heating element.

Cooler Dishroom

Only a small percentage of the heated air
escapes from the BD-5 into the dishroom.
When compared to the heat loss into the
dishroom from other blower-dryers, the
Champion BD-5 provides a cooler, more
comfortable working environment and
significantly reduces the dishroom air
conditioning requirement.

Vented
To the
Outside

Recirculated
Hot Air

To
Dishroom

Heating Element

Inlet
Fresh Air

Hot Air Recirculating System

Dimensions shown in inches and [millimeters]

Due to an ongoing value analysis program at Champion, specifications in this catalog are subject to change without notice.

Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: [phone] • www.championindustries.com

BD-5

Blower-dryer
For Rack Conveyor Dishwashing Machines

Blower-Dryer Load Amps

Electric

76
69
35

Voltage

208/60/3
240/60/3
480/60/3

Utilities

1 Electrical: Separate connection for

electric blower-dryer, only. (See box)

2Steam: Separate 3/4" NPT connection

for steam blower-dryer.
Consumption 85 lbs./hr. Regulate flow
pressure to 15 - 30 psi.

3 Condensate: 1/2" NPT blower-dryer

return to boiler.

4Vent: Unload 400 cfm @ 1/4" S.P.

Left-to-right OperationRight-to-left Operation

This BD-5 catalog sheet is designed to be
used in conjunction with the Champion Rack
Conveyor Series catalog sheets.

SPECIFICATIONS

Motor horsepower 2

Blower output cfm 1800

Heating

Electric (kW) 25
Steam (lbs./hr. required
at 15 psi flow pressure) 85

STANDARD FEATURES

•Automatic heat cutoff (when conveyor stops)

• Blower motor, 2-hp

• Blower-Dryer vent cowl on exit end

• Choice of electric or steam heat

• Control circuit, 120-volt, completely interwired with
dishwashing machine controls

• Heavy gauge stainless steel frame and cabinet

• Machine vent connection, 7" stack with locking dampers

• Separate blower-dryer “on/off” switch

• Thermal overload protection for electric blower-dryer

12 1/2"
[318]

12 1/2"
[318]

1

/4 HP

1

/4 HP

57 1/2"

[1461]

58"

[1473]

25"

[635]

16"

[406]

57

1

/2"

[1461]

58"

[1473]

8"

[203]

8"

[203]

8"

[203]

4"

[102]

4"

[102]

4"

[102]

4"

[102]

7"

[178]

8"

[203]

20"

[508]

20"

[508]

32"

[813]

2 HP

60"

[1524]

60"

[1524]

60"

[1524]

1

3

4

4

14"

[356]

DOOR

14"

[356]

DOOR

2

1

3

2

Plan View

60"

[1524]

Plan View

Side View

27 3/4"

85 3/4"

[2178]

OVERALL

HEIGHT

58"

[1473]

2 HP

1

3

4

4

2

1

3

2

Side View

66 1/2"

[1689]

66

1

/2"

[1689]

32"

[813]

Plan ViewPlan View

Side View Side View

Warning:

Plumbing and electrical connection should be made by qualified
personnel who will observe all the applicable plumbing, sanitary and
safety codes and the National Electrical Code.

Notes:

For blower-dryer installations, increase dishroom ventilation by 600 cfm.
Because of the variation in house-supplied steam pressure, a steam
pressure regulating valve (PRV) for incoming steam supply is needed.
The steam PRV can be purchased from Champion or obtained locally.
