92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

INTRODUCTION

INTRODUCTION

Congratulations on your purchase of a Champion Power
Equipment (CPE) product. CPE designs, builds, and supports
all of our products to strict specifications and guidelines. With
proper product knowledge, safe use, and regular maintenance,
this product should bring years of satisfying service.

Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time
of publication, and we reserve the right to change, alter and/
or improve the product and this document at any time without
prior notice.

CPE highly values how our products are designed,
manufactured, operated, and serviced as well as providing
safety to the operator and those around the generator.
Therefore, it is IMPORTANT to review this product manual
and other product materials thoroughly and be fully aware
and knowledgeable of the assembly, operation, dangers
and maintenance of the product before use. Fully familiarize
yourself, and make sure others who plan on operating the
product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always
exercise common sense and always err on the side of caution
when operating the product to ensure no accident, property
damage, or injury occurs. We want you to continue to use and
be satisfied with your CPE product for years to come.

When contacting CPE about parts and/or service, you will
need to supply the complete model and serial numbers of your
product. Transcribe the information found on your product’s
nameplate label to the table below

SAFETY DEFINITIONS

The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.

DANGER

DANGER indicates a hazardous situation which, if not
avoided, will result in death or serious injury.

WARNING

WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situation which, if not
avoided, could result in minor or moderate injury.



NOTICE

NOTICE indicates information considered important, but
not hazard-related (e.g., messages relating to property
damage).

CPE TECHNICAL SUPPORT TEAM

[phone]

MODEL NUMBER

92001i-EU

SERIAL NUMBER

DATE OF PURCHASE

PURCHASE LOCATION

2

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

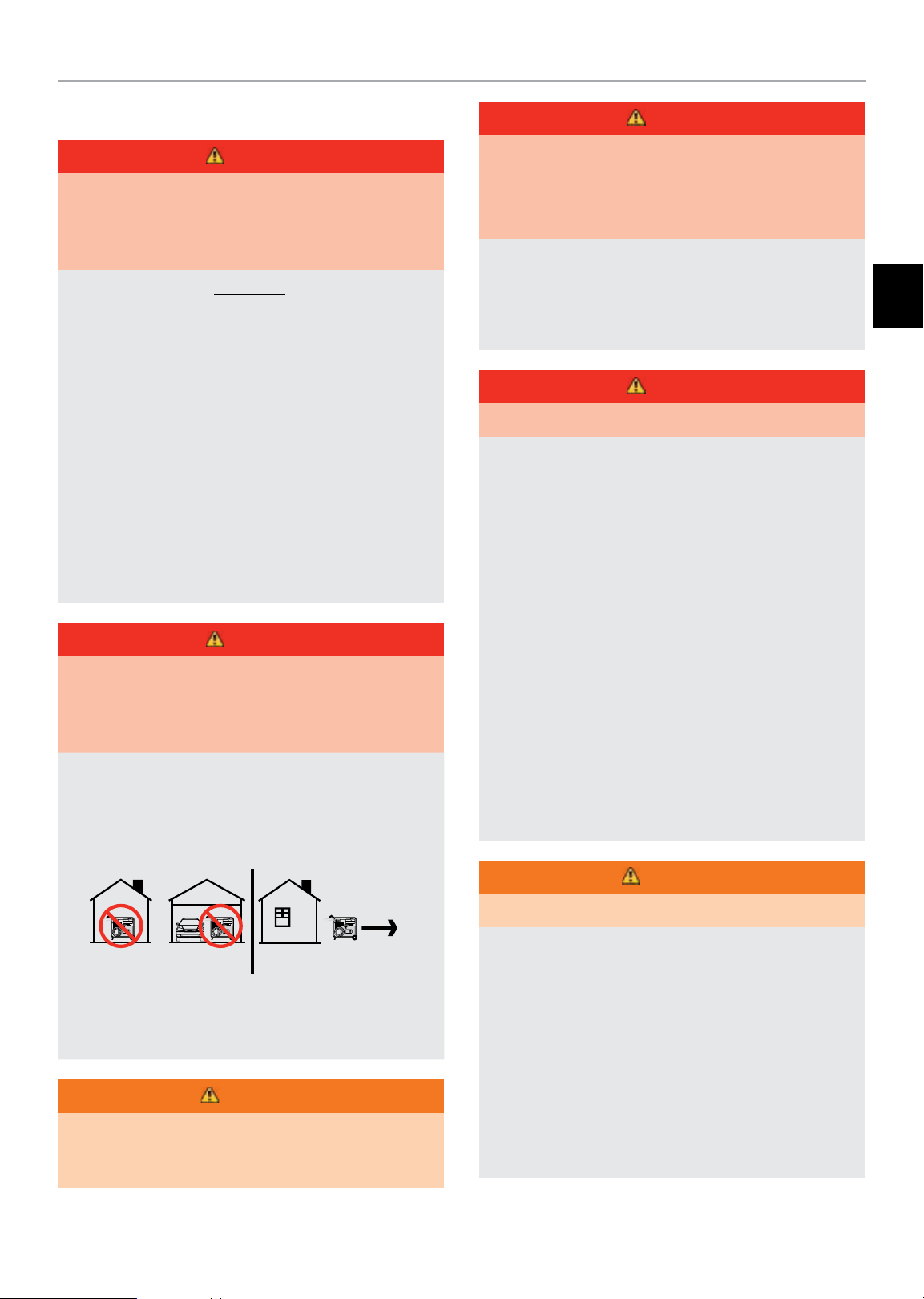

IMPORTANT SAFETY INSTRUCTIONS

IMPORTANT SAFETY INSTRUCTIONS

DANGER

Generator exhaust contains carbon monoxide, a colorless,
odorless, poisonous gas. Breathing carbon monoxide will
cause nausea, dizziness, fainting or death. If you start to
feel dizzy or weak, get to fresh air immediately.

OPERATE GENERATOR OUTDOORS ONLY IN A WELL
VENTILATED AREA AND POINT EXHAUST AWAY.

DO NOT operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle or any vehicles.

DO NOT allow exhaust fumes to enter a confined area
through windows, doors, vents or other openings.

DO NOT add or install this generator with a muffler/exhaust
extension or filtration system, by doing so with void any
warranties given.

DO NOT add or install this generator with a muffler/exhaust
extension or filtration system, by doing so with void any
warranties given.

DANGER

Using a generator indoors or in any confined spaces or any
confined spaces CAN KILL YOU IN MINUTES. Generator
exhaust contains carbon monoxide. This is a poison you
cannot see or smell.

NEVER use inside any buildings or vehicles, EVEN IF doors
and windows are open.

ONLY use OUTSIDE and far away from windows, doors,
and vents.

DANGER

Operate equipment with guards in place.

Rotating parts can entangle hands, feet, hair, clothing and/
or accessories. Traumatic amputation or severe laceration
can result.

Keep hands and feet away from rotating parts.

Tie up long hair and remove jewelry.

EN

DO NOT wear loose-fitting clothing, dangling drawstrings or
items that could become caught.

DANGER

Generator produces powerful voltage.

DO NOT touch bare wires or receptacles.

DO NOT use electrical cords that are worn, damaged or
frayed. Use only Champion electrical cords for proper
application.

DO NOT operate generator in wet weather including rain or
snow.

DO NOT allow children or unqualified persons to operate or
service the generator.

Use a ground fault circuit interrupter (GFCI) in damp areas
and areas containing conductive material such as metal
decking.

Connection to your home’s electrical system requires a
listed 30A transfer switch installed by a licensed electrician
and approved by the local authority having jurisdiction. The
connection must isolate the generator from the utility power
and must comply with all applicable laws and electrical
codes.

Install battery-operated carbon monoxide alarms or plug-in
carbon monoxide alarms with battery back-up according to
the manufacturer’s instructions.

WARNING

Although the generator contains a spark arrester, maintain
a minimum distance of 5 ft. (1.5 m) from dry vegetation to
prevent fires.

WARNING

Do not use generator for medical and life support uses.

In case of emergency, call 112 immediately.

NEVER use this product to power life support devices or life
support appliances.

NEVER use this product to power medical devices or
medical appliances.

Inform your electricity provider immediately if you or anyone
in your household depends on electrical equipment to live.

Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience
a medical emergency.

3

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

WARNING

Spark from removed spark plug wire can result in fire or
electrical shock.

When servicing the generator:

Disconnect the spark plug wire and place it where it cannot
contact the plug or any other metal object.

DO NOT check for spark with the plug removed.

Use only approved spark plug testers.

WARNING

Running engines produce heat. Severe burns can occur on
contact. Combustible material can catch fire on contact.

DO NOT touch hot surfaces.

Avoid contact with hot exhaust gases.

Allow equipment to cool before touching.

Maintain at least 3 ft. (91.4 cm) of clearance on all sides to
ensure adequate cooling.

Maintain at least 5 ft. (1.5 m) of clearance from combustible
materials.

CAUTION

Start the generator and allow the engine to stabilize before
connecting electrical loads.

Connect electrical equipment in the off position, and then
turn them on for operation.

Turn electrical equipment off and disconnect before
stopping the generator.

CAUTION

Improper treatment or use of the generator can damage it,
shorten its life or void the warranty.

Use the generator only for intended uses.

Operate only on level surfaces.

DO NOT expose generator to excessive moisture, dust,
or dirt.

DO NOT allow any material to block the cooling slots.

If connected devices overheat, turn them off and disconnect
them from the generator.

DO NOT use the generator if:

– Electrical output is lost

WARNING

Rapid retraction of the recoil cord will pull hand and arm
towards the engine faster than you can let go. Unintentional
startup can result in entanglement, traumatic amputation or
laceration. Broken bones, fractures, bruises or sprains could
result.

When starting engine, pull the recoil cord slowly until
resistance is felt and then pull rapidly to avoid kickback.

DO NOT start or stop the engine with electrical devices
plugged in and turned on.

CAUTION

Exceeding the generator’s running capacity can damage the
generator and/or electrical devices connected to it.

DO NOT overload the generator.

DO NOT tamper with the governed speed.

DO NOT modify the generator in any way.

– Equipment sparks, smokes or emits flames

– Equipment vibrates excessively

4

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

Fuel Safety

DANGER

GASOLINE AND GASOLINE VAPORS ARE HIGHLY
FLAMMABLE AND EXPLOSIVE.

Fire or explosion can cause severe burns or death.

Gasoline and gasoline vapors:

– Gasoline is highly flammable and explosive.

– Gasoline can cause a fire or explosion if ignited.

– Gasoline is a liquid fuel but it’s vapors can ignite.

– Gasoline is a skin irritant and needs to be cleaned up

immediately if spilled on skin or clothes.

– Gasoline has a distinctive odor, this will help detect potential

leaks quickly.

– Gasoline expands or contracts with ambient temperatures.

Never fill the gasoline tank to full capacity, as gasoline
needs room to expand when temperatures rise.

– In the case of any petroleum gasoline fire, flames should

never be extinguished unless the fuel supply valve can be
turned OFF. By not doing so, if a fire is extinguished and the
supply of fuel is not turned OFF, an explosion hazard could
be created.

DO NOT move or tip the generator during operation.

DO NOT tip the generator or allow fuel or oil to spill.

When transporting or servicing the generator:

Make certain that the fuel valve is in the OFF position and the
gasoline tank is empty.

Disconnect the spark plug wire.

When storing the generator:

Store away from sparks, open flames, pilot lights, heat and
other sources of ignition.

Do not store generator or gasoline near furnaces, water heaters,
or any other appliances that produce heat or have automatic
ignitions.

WARNING

Never use a gasoline container, gasoline tank, or any other
fuel item that is broken, cut, torn or damaged.

EN

When adding or removing gasoline:

DO NOT light or smoke cigarettes.

Always turn the generator off and let cool for a minimum of two
minutes before removing the gasoline cap. Afterwards, loosen
gasoline cap to relieve pressure from the gasoline tank.

Only fill or drain gasoline outdoors in a well-ventilated area.

DO NOT pump gasoline directly into the generator at the gas
station. Always use an approved fuel container to transfer the
gasoline to the generator.

DO NOT overfill the gasoline tank.

Always keep gasoline away from sparks, open flames, pilot
lights, heat and other sources of ignition.

When starting the generator:

DO NOT attempt to start a damaged generator.

Always make certain that the gasoline cap, air filter, spark plug,
fuel lines and exhaust system are properly secured, connected
and in place.

Always allow spilled gasoline to evaporate fully before
attempting to start the engine.

Make certain that the generator is resting firmly on level
ground.

When operating the generator:

5

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

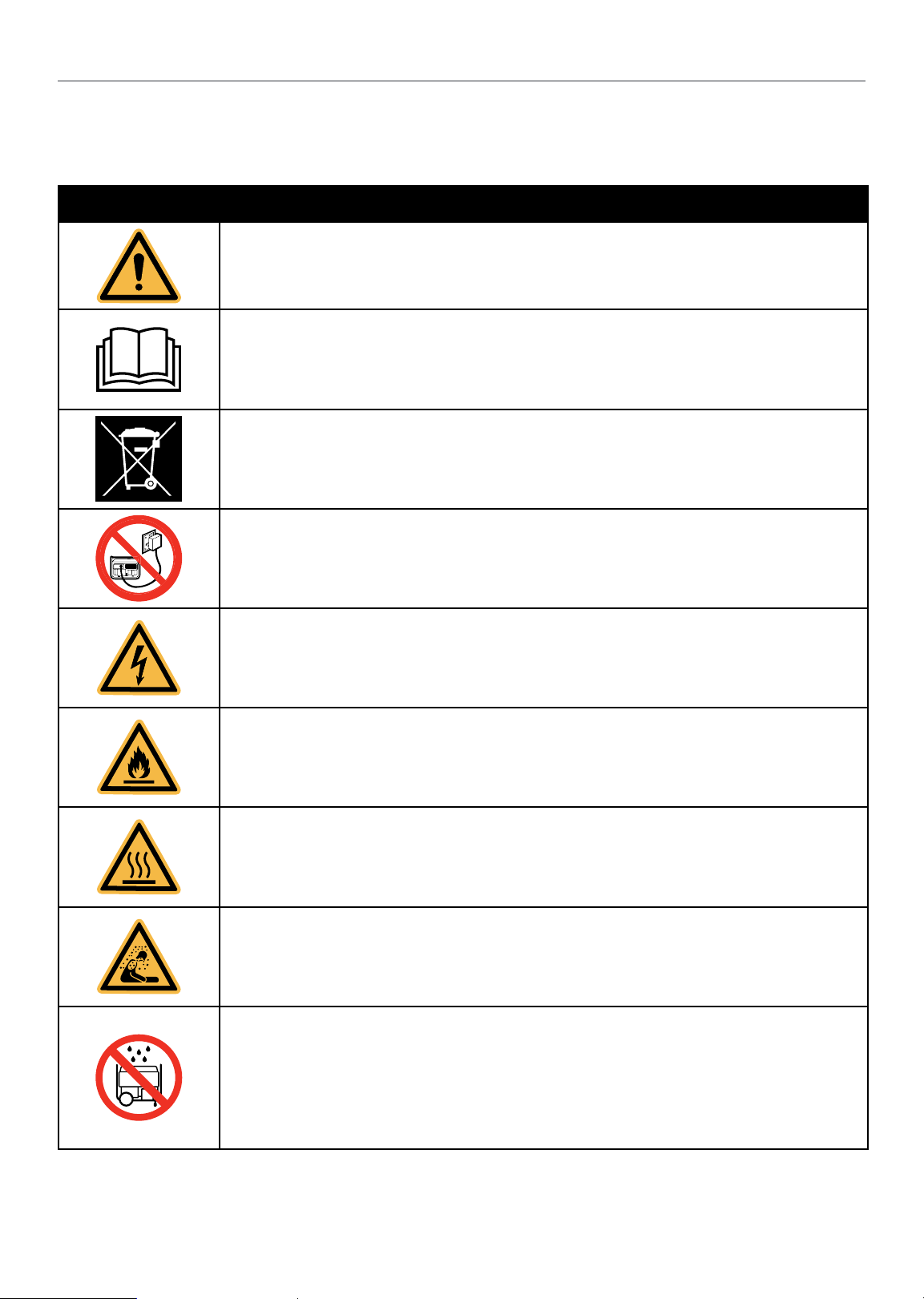

Safety Symbols

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.

SYMBOL MEANING

Caution.

Read The Operator’s Instruction Manual Before Use. To reduce the risk of injury, user must read and

understand operator’s manual before using this product.

Not For General Waste Disposal.

The generating set must not be connected to other power sources, such as the power company supply
mains.

Electric Hazard. Failure to use in dry conditions and to observe safe practices can result in electric
shock. Improper connections to a building can allow current to backfeed into utility lines, creating an
electrocution hazard. A transfer switch must be used when connecting to a building.

Fire Hazard. Fuel and its vapors are extremely flammable and explosive. Fire or explosion can cause
severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.

Risk Of Being Burnt. To reduce the risk of injury or damage, avoid contact with any hot surface.

Carbon Monoxide(co) Danger.

Wet Conditions Alert. Do not expose to rain or use in damp locations except as follows:

If you must operate in rain or damp locations, DO NOT operate without proper protection of the electrical
components.

Use of a safety canopy that is fire retardant and will provide proper air ventilation for the engines exhaust
stream can be used. Keep all objects a minimum of 5 feet (1.5m) away from the generator at all times.
Heat from the muffler surface and exhaust stream can ignite combustible materials.

6

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

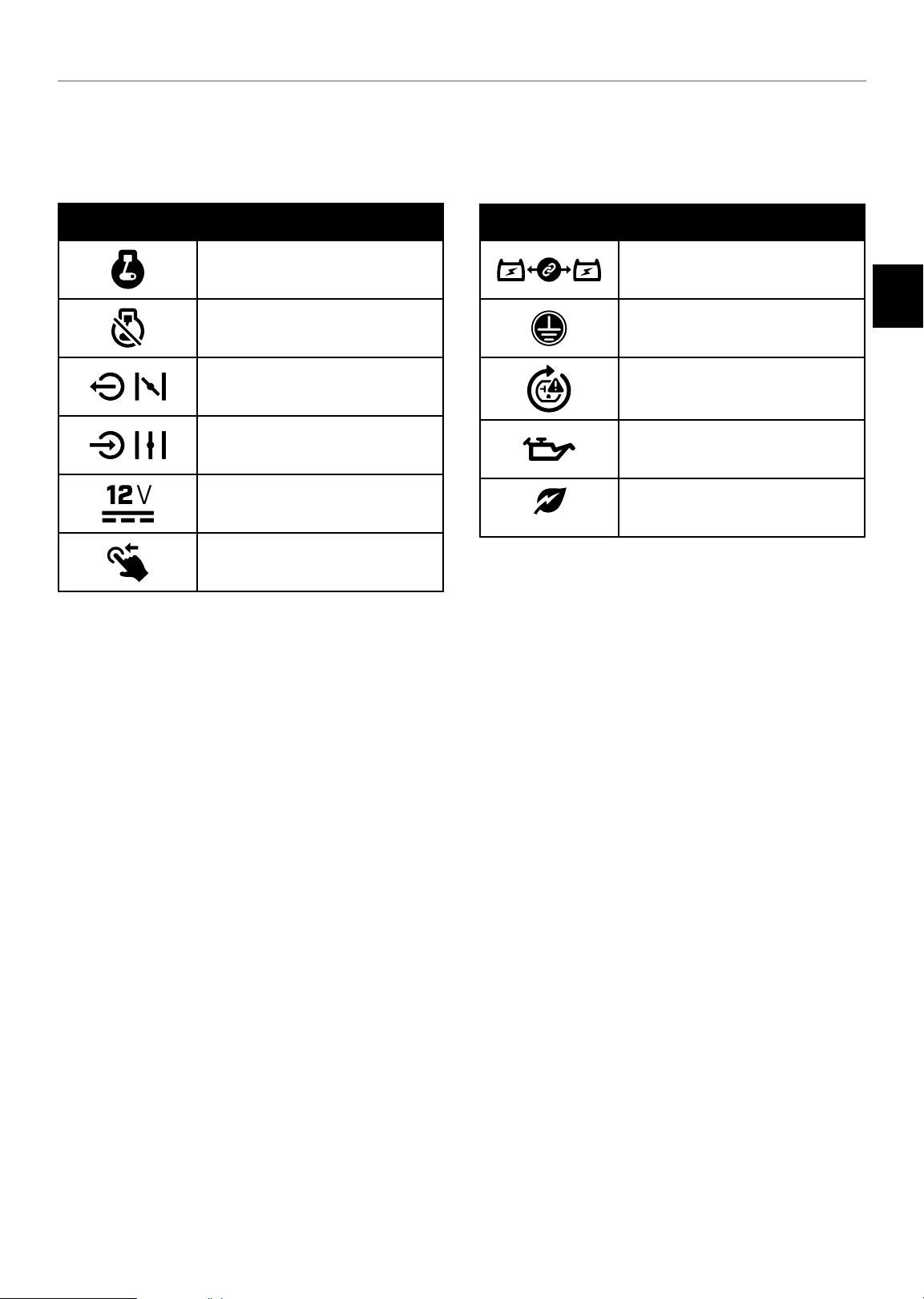

Operation Symbols

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.

SYMBOL MEANING

ON

STOP or OFF

Choke. Pull choke knob to “CHOKE”

position.

Run. Push choke knob to “RUN”
position.

12V Direct Current

Circuit Breaker Reset: Push

SYMBOL MEANING

Parallel Connection(s)

Ground Terminal

Overload Reset Switch

Low Oil

EC

O

Economy Mode Switch

EN

7

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

1

2

3

4

5

6

7

8

1

0W-3

0





2

1

1068-B

Y-L-A

IMPORTANT SAFETY INSTRUCTIONS

Quickstart Label Symbols

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of
these symbols will allow you to more safely operate the product.

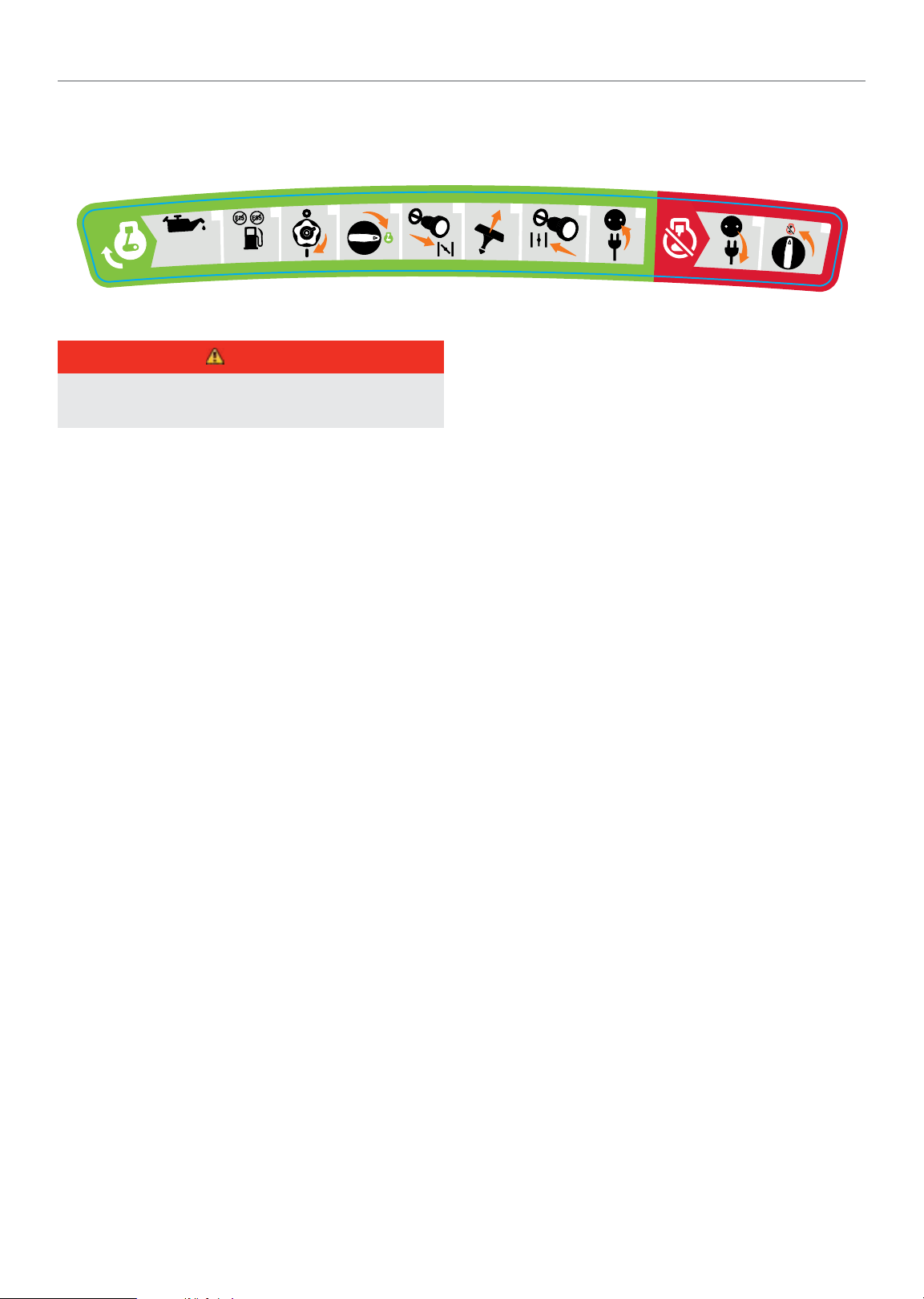

Starting the Engine

DANGER

Move generator outside and far away from windows,
doors and intake ventilation covers.

1. Check oil level.
Recommended oil is 10W-30.

2. Check gasoline level.
When adding gasoline, use a minimum octane rating of 85
and an ethanol content of 10% or less by volume.

3. Turn the fuel cap vent lever to the “ON” position.

4. Turn the fuel dial clockwise to the full “ON” position.

5. Pull choke knob to “CHOKE” position.

6. Pull the recoil cord.

7. Push the choke knob to “RUN” position.

8. Plug in desired device.

Stopping the Engine

1. Turn off and unplug all connected electrical loads.

2. Turn the fuel dial to the “STOP” position.

8

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

CONTROLS AND FEATURES

CONTROLS AND FEATURES

Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and
features. Save this manual for future reference.

Generator

6

1

2

3

5

7

4

8

EN

9

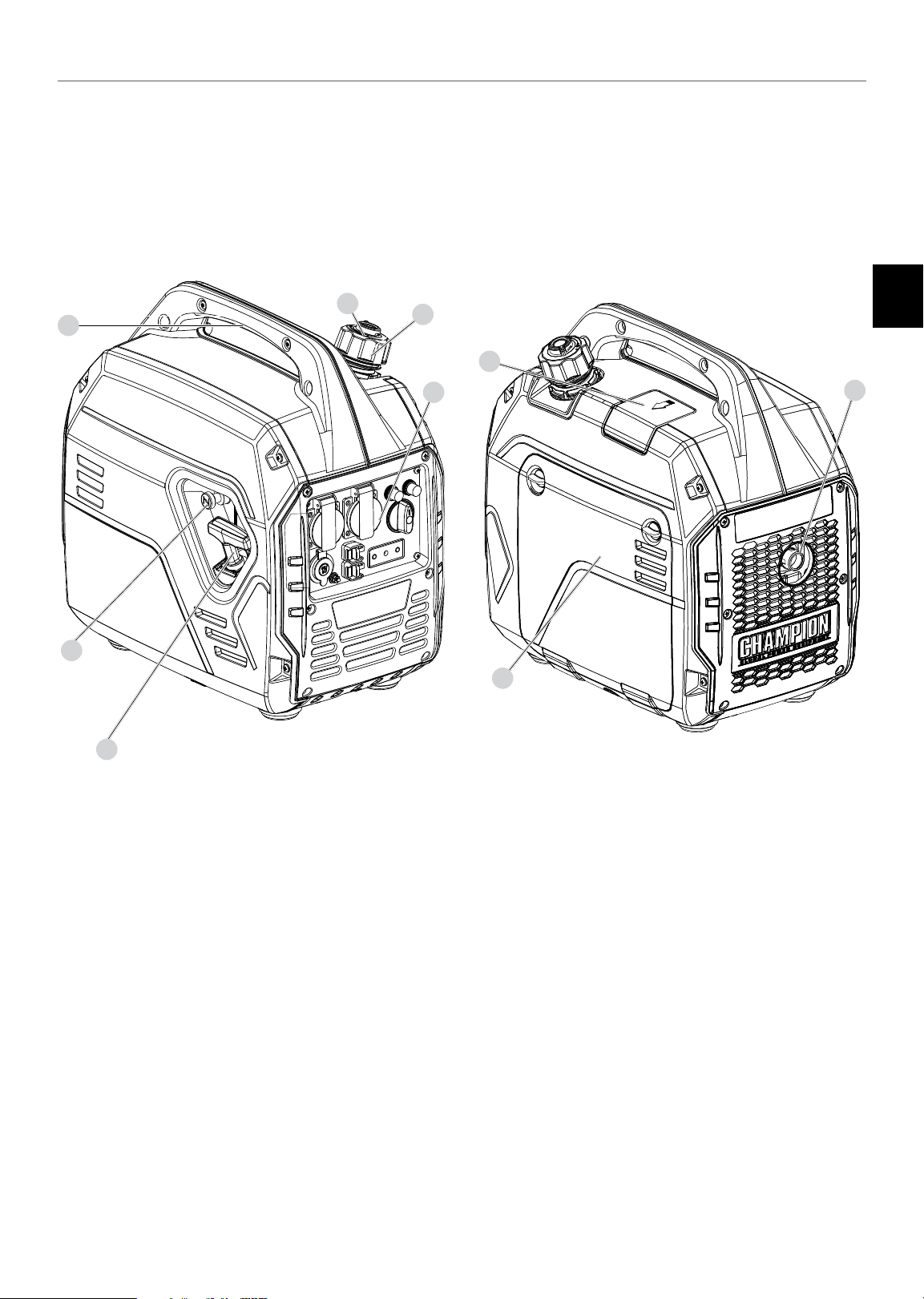

1. Carrying Handle – Used to lift or carry the unit.

2. Choke – Used to start a cold engine.

3. Recoil Starter – Used to manually start the engine

4. Control Panel – See Control Panel section.

5. Fuel Cap – Remove to add fuel.

6. Fuel Lever Vent – Turn this valve to the “ON” position to
supply air to the tank.

7. Spark Plug Access Cover

8. Maintenance Cover

9. Muffler

9

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

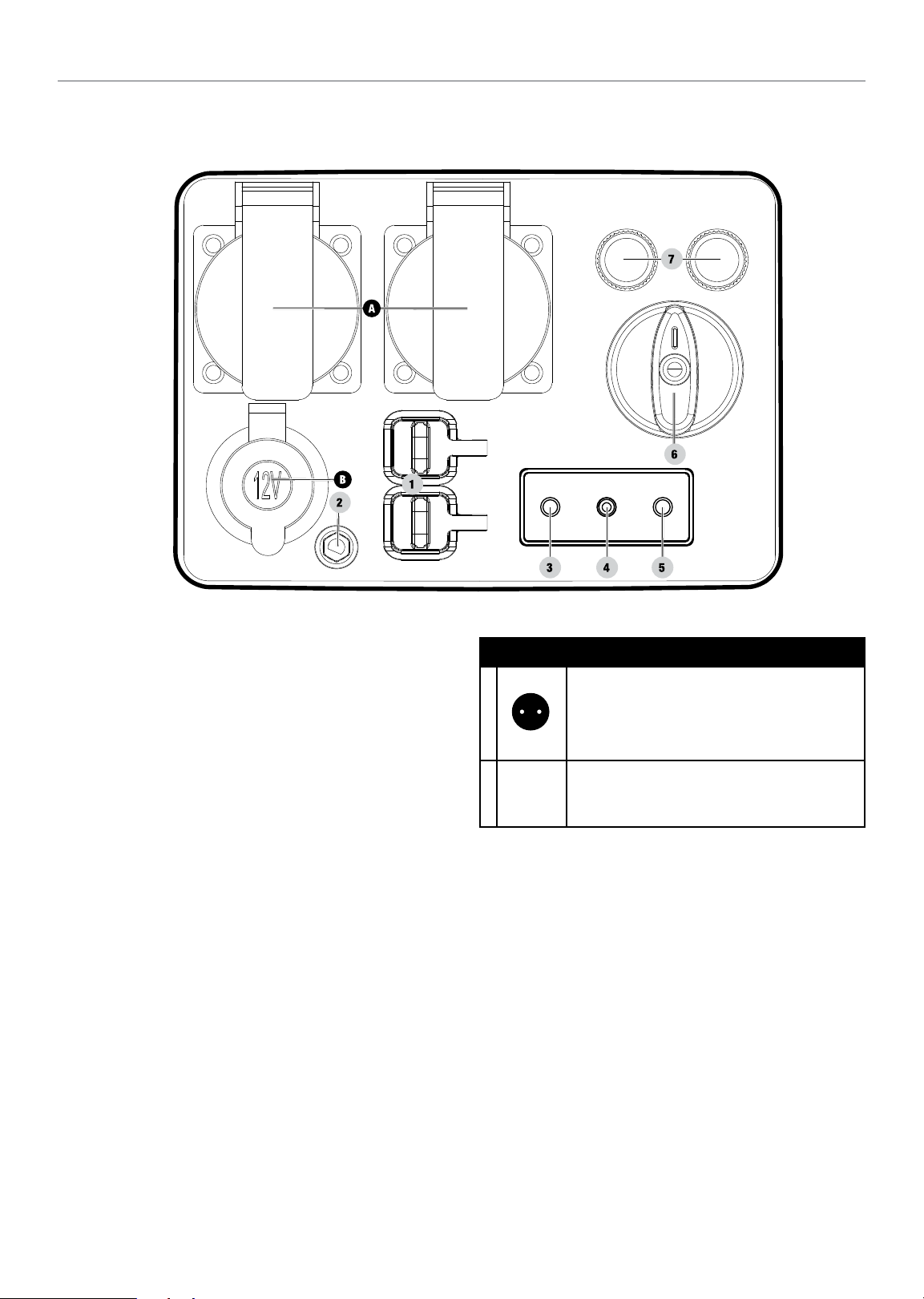

Control Panel

CONTROLS AND FEATURES

1. Parallel Outlets – Used for parallel operation (parallel kit
sold separately).

2. Ground Terminal – Consult an electrician for local
grounding regulations.

3. AC Output Indicator Button – Indicates when power is
being delivered to receptacle.

3a. Green – Systems Normal.

3b. Red Constant– Overload Warning.

3c. Red Flash– Overload Fault. Push to reset.

4. Oil Warning Indicator Light – When ON engine will shut
down and not run. Check oil level.

5. Economy Mode Button – Enables/disables automatic idle
control.

5a. OFF – Economy Mode is OFF.

5b. Green – Economy Mode is ON.

6. Fuel Dial – Used to start and stop the generator.

7. Circuit Breakers (Push Reset) – Protects the generator
against electrical overloads.

A

B

z

RECEPTACLES

(2×) 220V AC, 16A

May be used to supply power for
operation of 220 Volt AC, 16 Amp, single
phase, 50 Hz electrical loads.

12V DC, 8A (Automotive)
May be used to supply electrical power for
operation of 12 Volt DC, 8 Amp electrical loads.

10

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

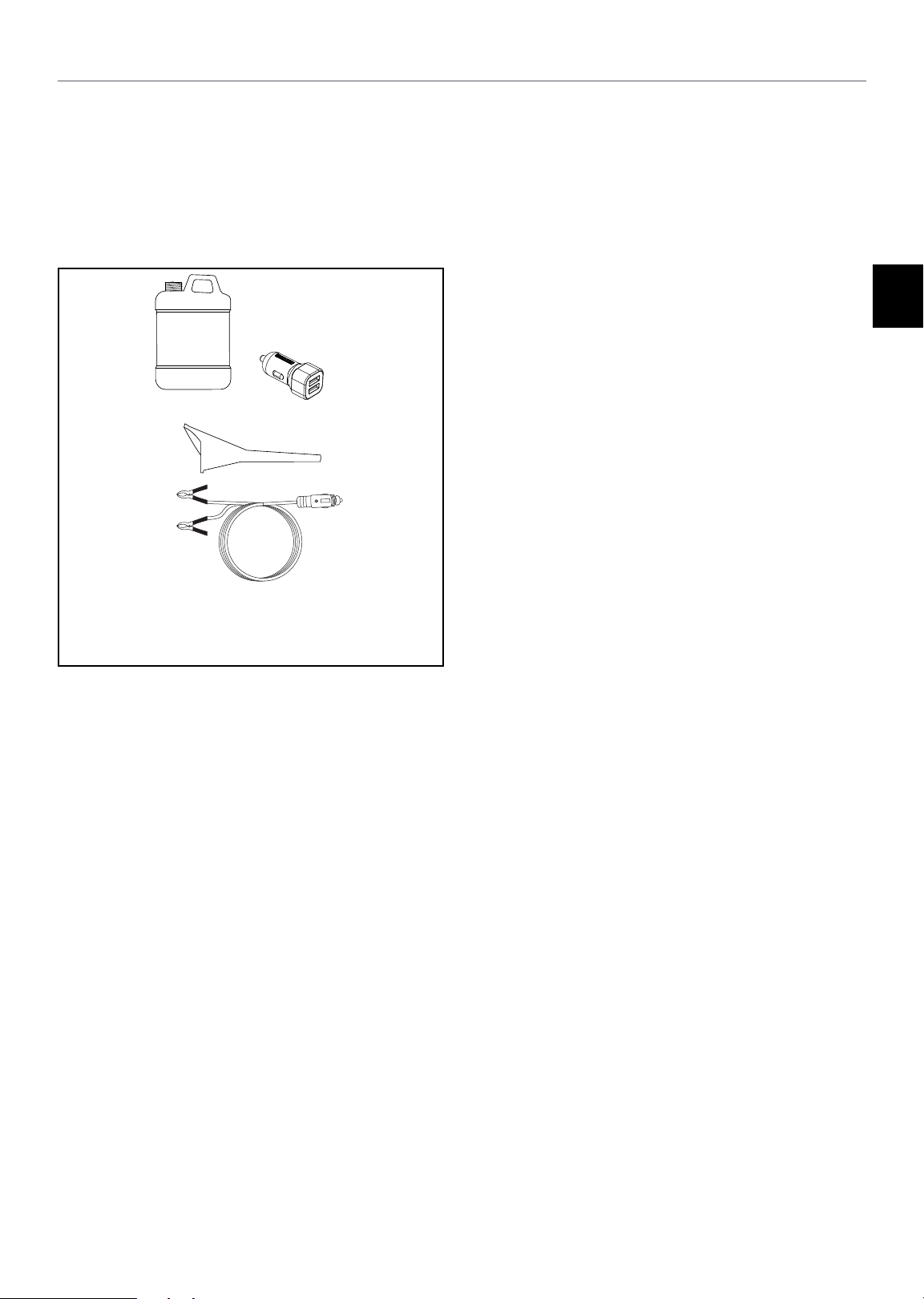

Parts Included

Accessories

Engine Oil ...................................... 500ml/16.9 fl.oz

Oil Funnel .......................................................1

Dual Port USB Adapter (5v/2.4A) ..............................1

Battery Charging Cables .......................................1

CONTROLS AND FEATURES

EN

11

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

MAX

OIL DIP STICK

ASSEMBLY

Your generator requires some assembly. This unit ships from
our factory without oil. It must be properly serviced with fuel
and oil before operation.

If you have any questions regarding the assembly of
your generator, call our Technical Support Team at
[phone]. Please have your serial number and
model number available.

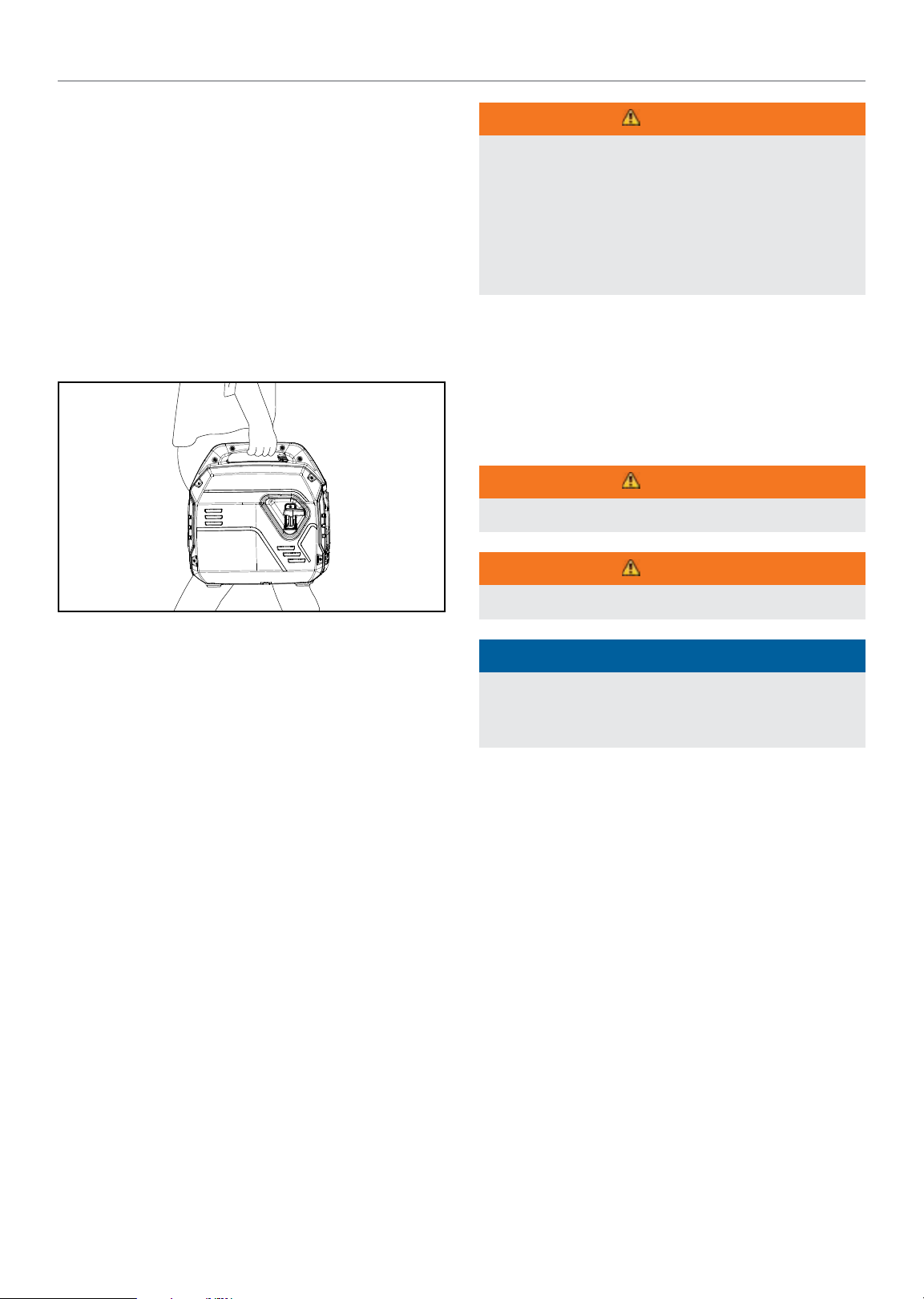

Unpacking

1. Set the shipping carton on a solid, flat surface.

2. Remove everything from the carton except the generator.

3. Using the carrying handles of the unit, carefully remove
the generator from the box (two people lifting is
recommended).

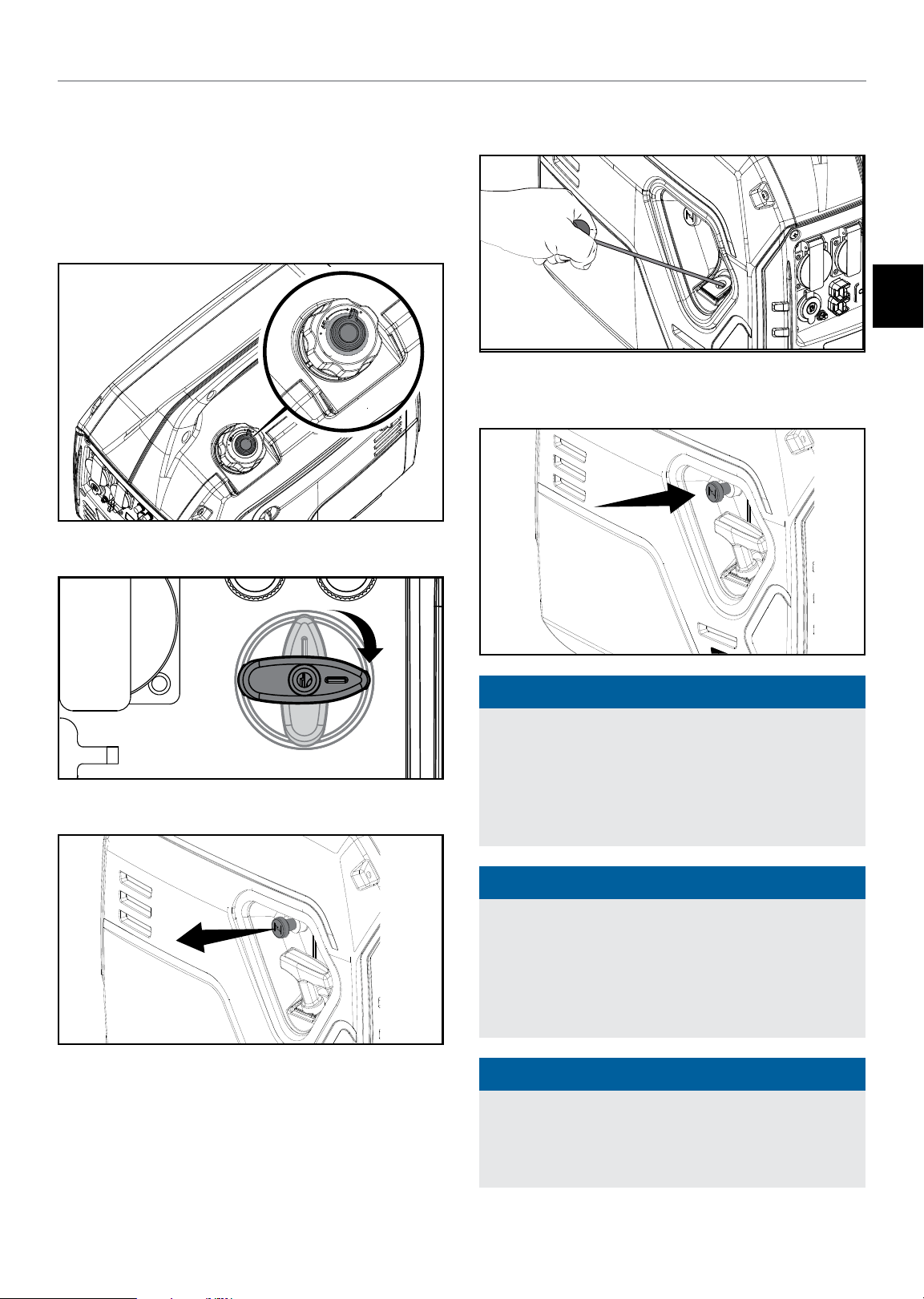

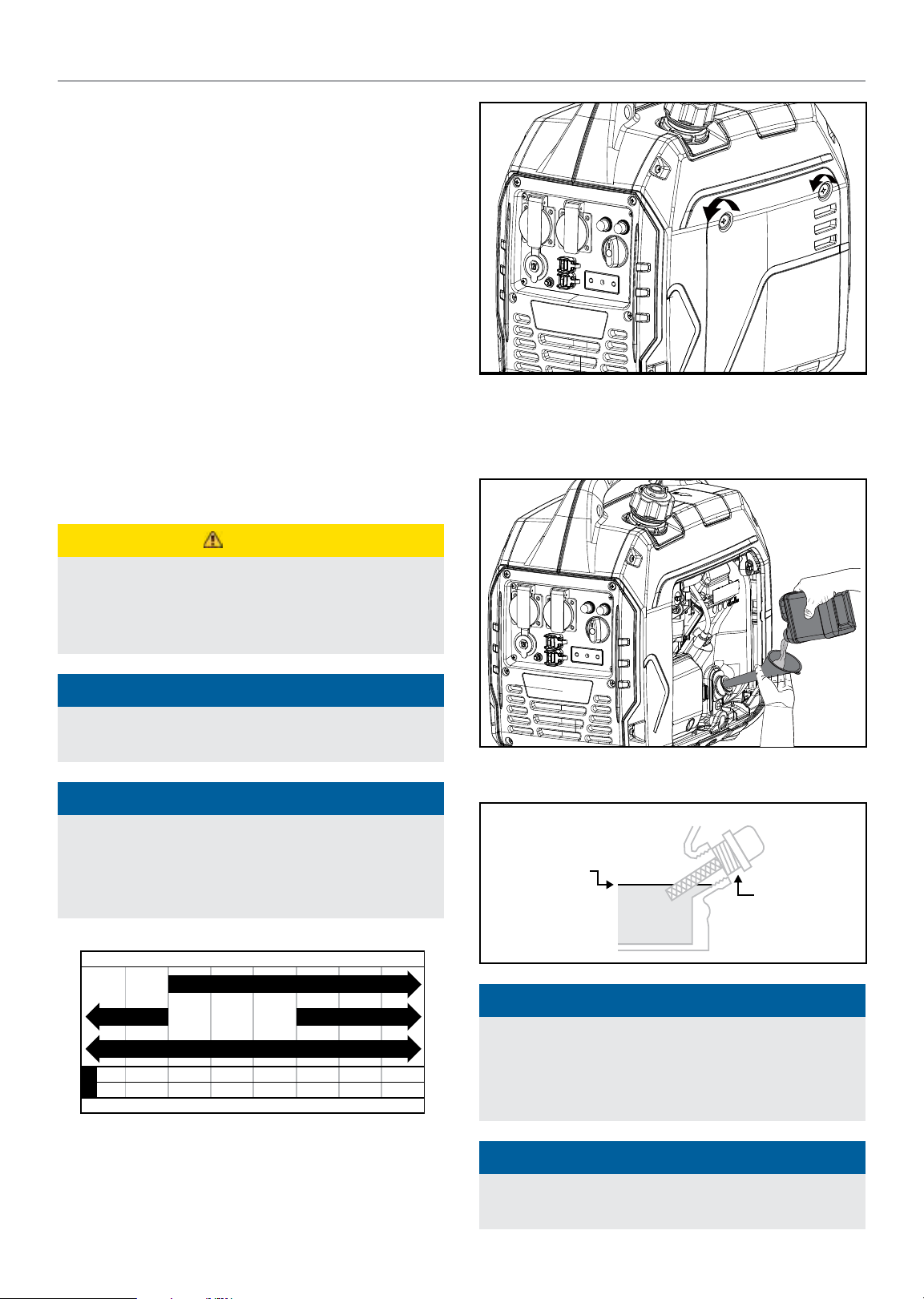

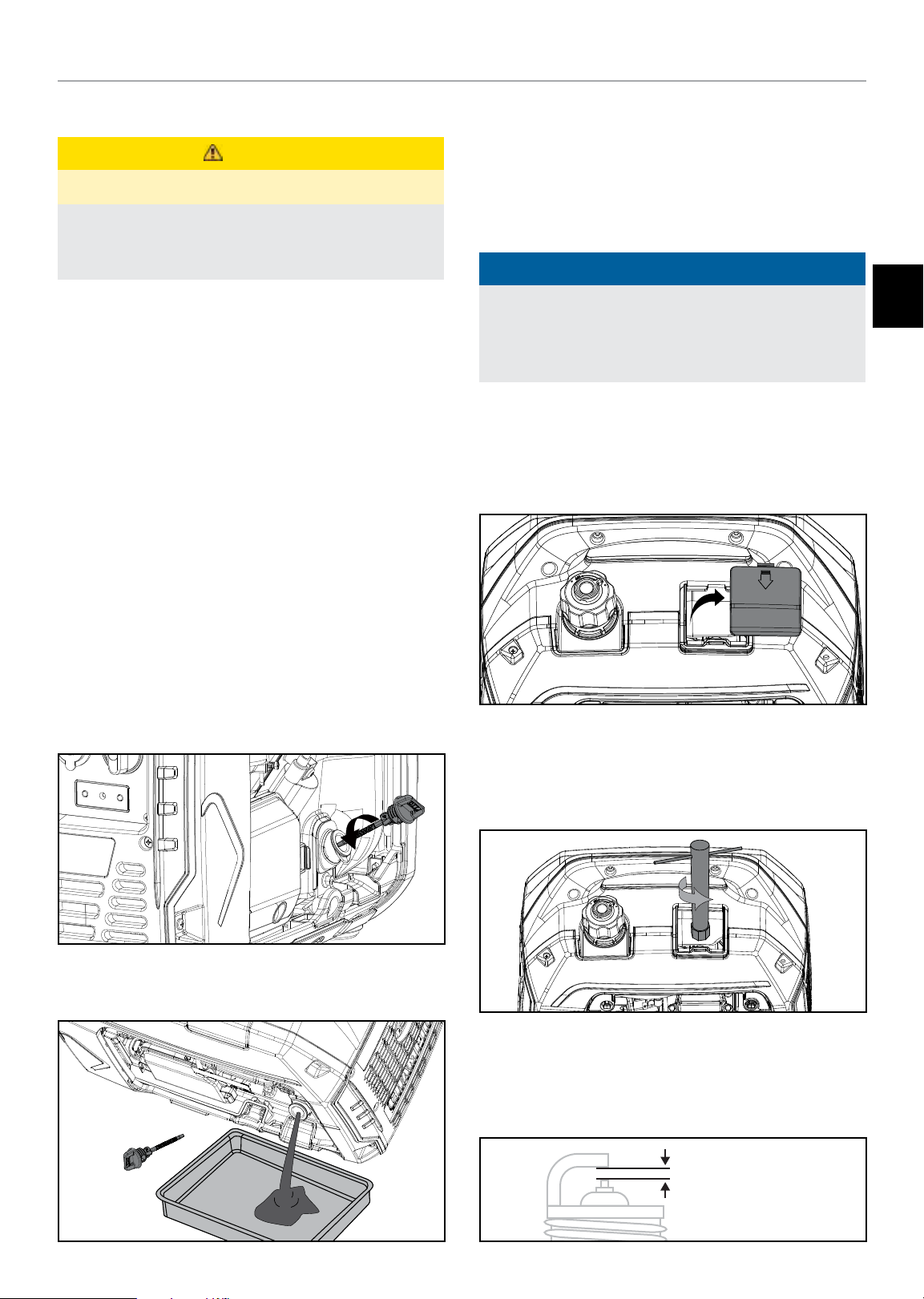

Add Engine Oil

ASSEMBLY

3. Remove oil fill cap/dipstick to add oil.

4. Using a funnel, add up to 500ml/16.9 fl.oz of oil (included)
and replace oil fill cap/dipstick. DO NOT OVERFILL.

CAUTION

DO NOT attempt to crank or start the engine before it has
been properly filled with the recommended type and amount
of oil. Damage to the generator as a result of failing to follow
these instructions will void your warranty.



NOTICE

The generator rotor has a sealed, pre-lubricated ball bearing
that requires no additional lubrication for the life of the bearing.



NOTICE

The recommended oil type for typical use is 10W-30
automotive oil.

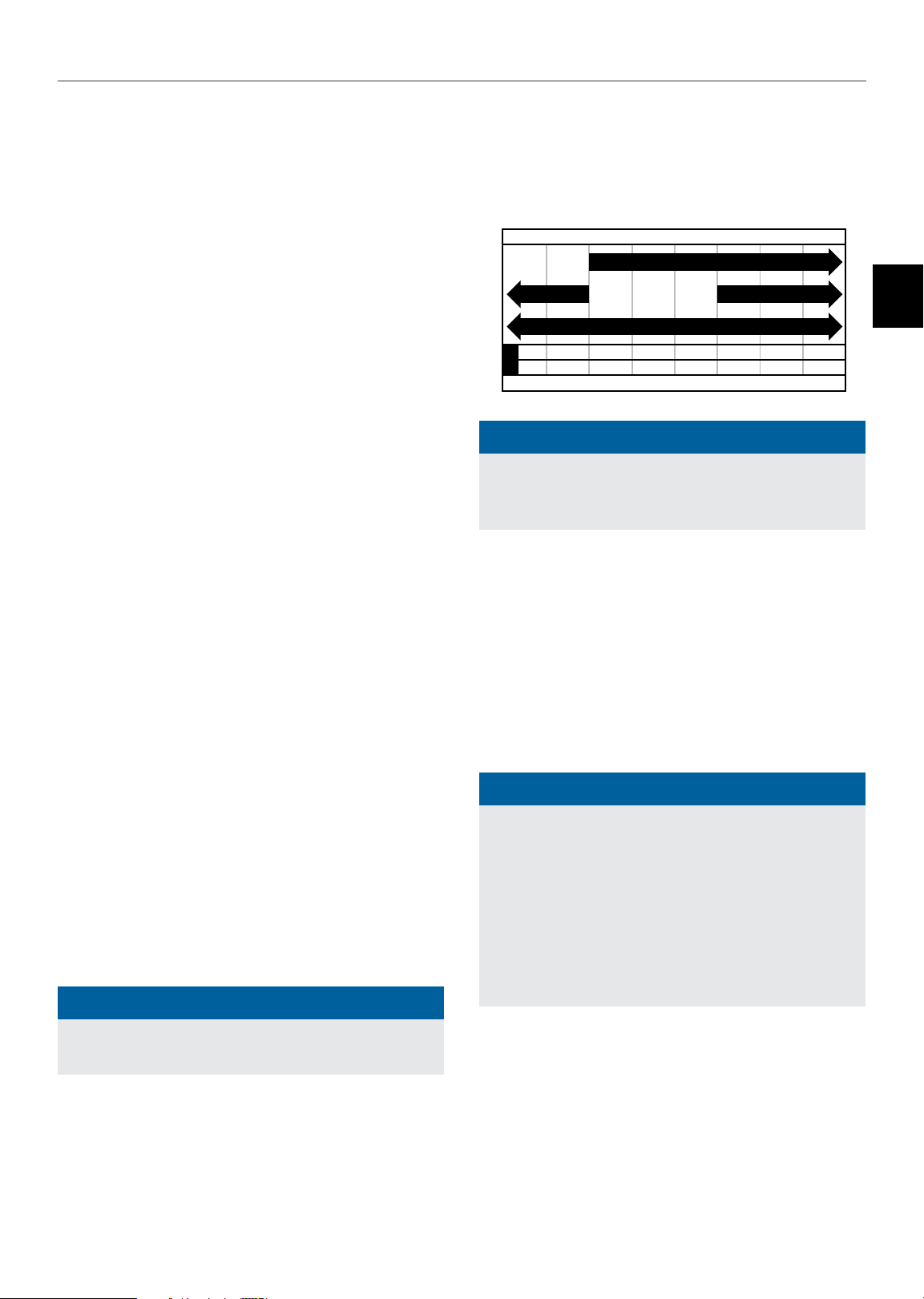

If running generator in extreme temperatures, refer to the
following chart for recommended oil type.

Recommended Oil Type / Tipo de acei te recomendado / Type d’huile recommandé

10W-30

10W- 405W-30

5W-30 Synthetic / Sintético / Synthétique

-20 0 20 40 60

°F

-28.9

-17. 8 -6.7 4.4 15.6 26.7 37.8 48.9

°C

Ambient temperature / Temperatura ambiente / Température ambiante

80 100 120

5. Check engine oil level daily and add as needed.



NOTICE

Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole.

When using the dipstick to check oil level, DO NOT screw in
the dipstick while checking.

1. Place the generator on a flat, level surface.

2. Loosen the cover screws and remove the maintenance
cover.



NOTICE

Check oil level often during the break-in period. Refer to the
Maintenance section for recommended service intervals.

12

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

ASSEMBLY

CAUTION

This engine is equipped with a low oil shut-off and will stop
when the oil level in the crankcase falls below the threshold
level.



NOTICE

The first 5 hours of run time are the break-in period for the
unit. During the break in period stay at or below 50% of the
running watt rating and vary the load occasionally to allow
stator windings to heat and cool. Adjusting the load will also
cause engine speed to vary slightly and help seat piston
rings. After the 5 hour break-in period, change the oil.



NOTICE

Synthetic oil may be used after the 5 hour initial break-in
period. Using synthetic oil does not increase the
recommended oil change interval. Full synthetic 5W­30 oil will aid in starting in cold ambient < 41º F (5º C)
temperatures.

CAUTION

Use unleaded gasoline with a minimum octane rating of 85
and an ethanol content of 10% or less by volume.

DO NOT light cigarettes or smoke when filling the tank.

DO NOT mix oil and gasoline.

DO NOT overfill the tank. Fill tank to approximately ¼ in.
(6.4 mm) below the top of the tank to allow for gasoline
expansion.

DO NOT pump gasoline directly into the generator at the
pump. Use an approved container to transfer the gasoline to
the generator.

DO NOT fill tank indoors.

DO NOT fill tank when the engine is running or hot.

WARNING

Pouring gasoline too fast through the fuel screen may result
in gasoline splashing over the generator and operator while
filling.

EN

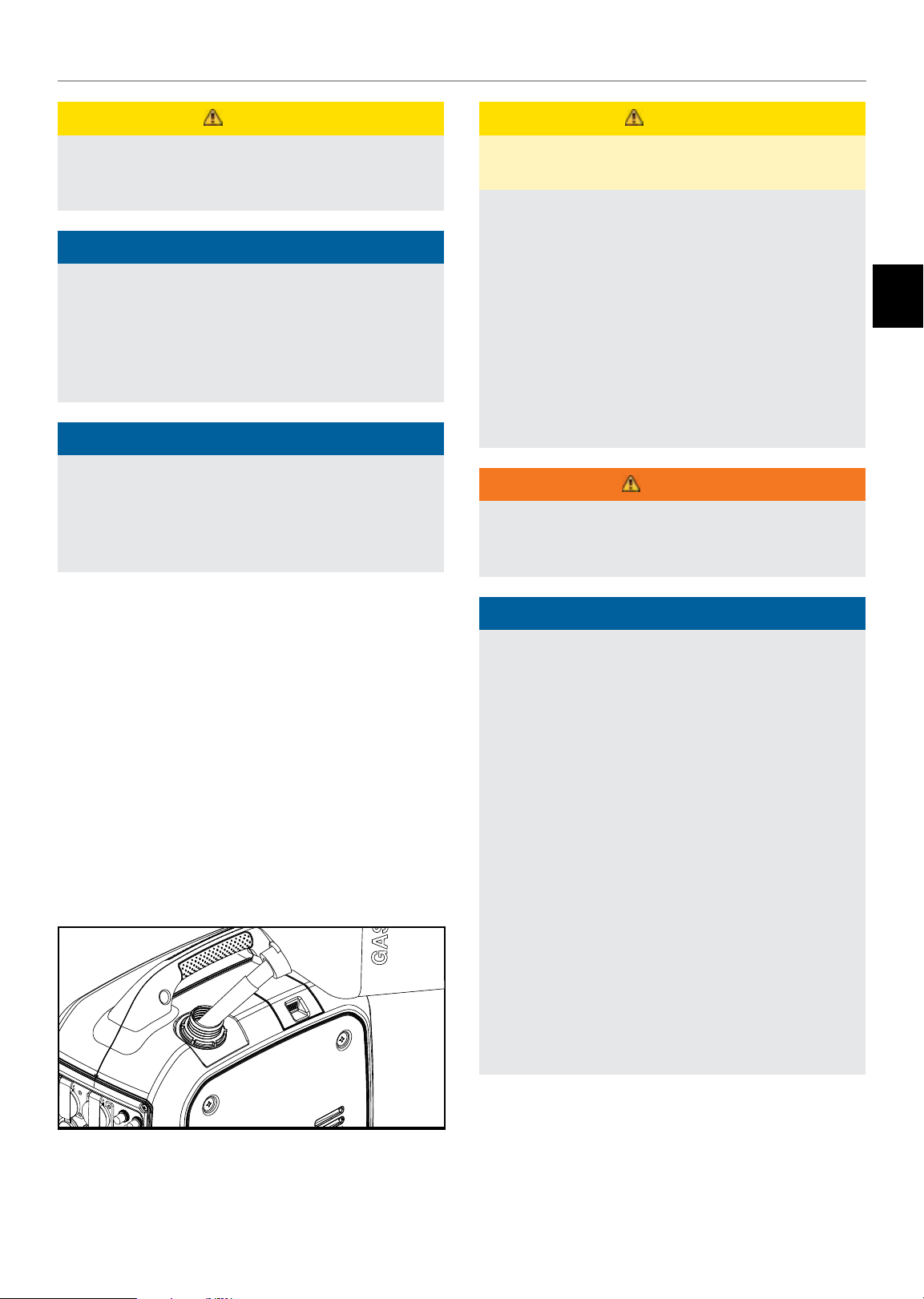

Add Fuel

Use clean, fresh, regular unleaded gasoline with a minimum
octane rating of 85 and an ethanol content of 10% or less by
volume. ybc

DO NOT mix oil with gasoline.

1. Remove the gasoline cap.

2. Slowly add gasoline to the tank. DO NOT OVERFILL.
Gasoline can expand after filling. A minimum of ¼
in. (6.4 mm) of space left in the tank is required for
gasoline expansion, although more than ¼ in. (6.4 mm) is
recommended. Gasoline can be forced out of the tank as a
result of expansion if overfilled, and can affect the stable
running condition of the generator.



NOTICE

The generator engine works well with 10% or less ethanol
blend gasoline. When using ethanol-gasoline blends there
are some issues worth noting:

– Ethanol-gasoline blends can absorb more water than

gasoline alone.

– These blends can eventually separate, leaving water or

a watery goo in the tank, fuel valve and carburetor. The
compromised gasoline can be drawn into the carburetor
and cause damage to the engine and/or potential
hazards.

– If a fuel stabilizer is used, confirm that it is formulated to

work with ethanol-gasoline blends.

– Any damages or hazards caused by using improper

gasoline, improperly stored gasoline, and/or
improperly formulated stabilizers, are not covered by
manufacturer’s warranty.

It is advisable to always shut off the gasoline supply and
run the engine to starvation after each use. See Storage
instructions for extended non-use.

3. Screw on the gasoline cap until you hear a “clicking” noise.
Wipe up any spilled fuel.

13

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

OPERATION

Grounding

Your generator must be properly connected to an appropriate
ground to help prevent electric shock.

WARNING

Failure to properly ground the generator can result in
electric shock.

A ground terminal connected to the frame of the generator has
been provided (see Controls and Features for terminal location).
For remote grounding, connect of a length of heavy gauge
(12 AWG minimum) copper wire between the generator ground
terminal and a copper rod driven into the ground. We strongly
recommend that you consult with a qualified electrician to
ensure compliance with local electrical codes.

Neutral Floating*

– Neutral circuit IS NOT electrically connected to the frame/

ground of the generator.

– The generator (stator winding) is isolated from the frame

and from the AC receptacle ground pin.

– Electrical devices that require a grounded receptacle pin

connection will not function if the receptacle ground pin is
not functional.

Neutral Bonded to Frame*

– Neutral circuit IS electrically connected to the frame/ground

of the generator.

– The generator system ground connects lower frame

cross-member below the alternator. The system ground is
connected to the AC neutral wire.

* See your Specifications section for specified type of grounding.

OPERATION

next to walls or buildings, or in any other location that will not
allow for adequate cooling of the generator and/or the muffler.
DO NOT contain generators during operation. Allow generators
to properly cool before transport or storage.

Place the generator in a well-ventilated area. DO NOT place the
generator near vents or intakes where exhaust fumes could
be drawn into occupied or confined spaces. Carefully consider
wind and air currents when positioning generator.

Failure to follow proper safety precautions may void
manufacturer’s warranty.

WARNING

Do not operate or store the generator in rain, snow, or wet
weather.

Using a generator or electrical appliance in wet conditions,
such as rain or snow, or near a pool or sprinkler system,
or when your hands are wet, could result in electrocution.

WARNING

During operation the muffler and exhaust fumes will
become hot. If adequate cooling and breathing space are
not supplied, or if the generator is blocked or enclosed,
temperatures can become extremely heated and may lead
to fire.

Surge Protection

Electronic devices, including computers and many
programmable appliances use components that are designed
to operate within a narrow voltage range and may be affected
by momentary voltage fluctuations. While there is no way to
prevent voltage fluctuations, you can take steps to protect
sensitive electronic equipment.

Generator Location

NEVER operate the generator inside any building, including
garages, basements, crawlspaces and sheds, enclosure or
compartment, including the generator compartment of a
recreational vehicle. Please consult your local authority. In
some areas, generators must be registered with the local
utility. Generators used at construction sites may be subject
to additional rules and regulations. Generators should be on
a flat, level surface at all times. (Even while not in operation)
Generators must have at least 5 ft. (1.5 m) of clearance from
all combustible material. In addition to clearance from all
combustible material, generators must also have at least 3 ft.
(91.4 cm) of clearance on all sides to allow for adequate cooling,
maintenance and servicing. Generators should never be started
or operated in the back of a SUV, camper, trailer, in the bed of
a truck (regular, flat or otherwise), under staircases/stairwells,

– Install UL1449, CSA-listed, plug-in surge suppressors on the

outlets feeding your sensitive equipment.
Surge suppressors come in single- or multi-outlet styles.
They’re designed to protect against virtually all short­duration voltage fluctuations.

14

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

OPERATION

Starting the Engine

1. Make certain the generator is on a flat, level surface.

2. Disconnect all electrical loads from the generator. Never
start or stop the generator with electrical devices plugged
in or turned on.

3. Turn the fuel cap vent lever to the “ON” position.

4. Turn the fuel dial clockwise to the full “ON” position.

6. Pull the recoil cord slowly until resistance is felt and then
pull rapidly.

EN

7. As engine warms up, push the choke knob in to the “RUN”
position.

5. Pull choke knob out to the “CHOKE” position.



NOTICE

Keep choke lever in “CHOKE” position for only 1 pull of the
recoil cord. After first pull, press the choke knob in to the
“RUN” position for up to the next 3 pulls of the recoil cord.
Too much choke leads to spark plug fouling/engine flooding
due to the lack of incoming air. This will cause the engine
not to start.



NOTICE

For gasoline restarts with hot engine in hot ambient >
86°F (30°C): If generator does not start after the first pull,

press the choke knob in to the “RUN” position for the next
3 pulls. Too much choke leads to spark plug fouling/engine
flooding due to the lack of incoming air. This will cause the
engine not to start.



NOTICE

For gas starting in cold ambient < 59°F (15°C): The
choke must be in 100% of the “CHOKE” position for manual
start procedures. Do not over-choke. As soon as engine
starts, push the choke knob in the “RUN” position.

15

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

OPERATION



NOTICE

If the engine starts but does not continue to run make
certain that the generator is on a flat, level surface. The
engine is equipped with a low oil sensor that will prevent the
engine from running when the oil level falls below a critical
threshold.

Connecting Electrical Loads

Let the engine stabilize and warm up for a few minutes after
starting.

Plug in and turn on the desired 220 Volt AC single phase, 50 Hz
electrical loads.

– DO NOT connect 3-phase loads to the generator.

– DO NOT overload the generator.

WARNING

Connecting a generator to your electric utility company’s
power lines or to another power source may be against
the law. In addition this action, if done incorrectly, could
damage your generator and appliances and could cause
serious injury or even death to you or a utility worker who
may be working on nearby power lines. If you plan to run a
portable electric generator during an outage, please notify
your electric utility company immediately and remember to
plug your appliances directly into the generator. Do not plug
the generator into any electric outlet in your home. Doing
so could create a connection to the utility company power
lines. You are responsible for ensuring that your generator’s
electricity does not feed back into the electric utility power
lines.

If the generator will be connected to a building electrical
system, consult your local utility company or a qualified
electrician. Connections must isolate generator power from
utility power and must comply with all applicable laws and
codes.

needed to start some electric driven equipment. Following
the steps listed under “Power Management” will guarantee
that only one device will be starting at a time.

Power Management

Use the following formula to convert voltage and amperage to
watts:

Volts × Amps = Watts

To prolong the life of your generator and attached devices,
follow these steps to add electrical load:

1. Start the generator with no electrical load attached.

2. Allow the engine to run for several minutes to get up to
temperature.

3. Plug in and turn on the first item. It is best to attach the
item with the largest load first.

4. Allow the engine to stabilize.

5. Plug in and turn on the next item.

6. Allow the engine to stabilize.

7. Repeat steps 5-6 for each additional item.



NOTICE

Never exceed the specified capacity when adding loads to
the generator.

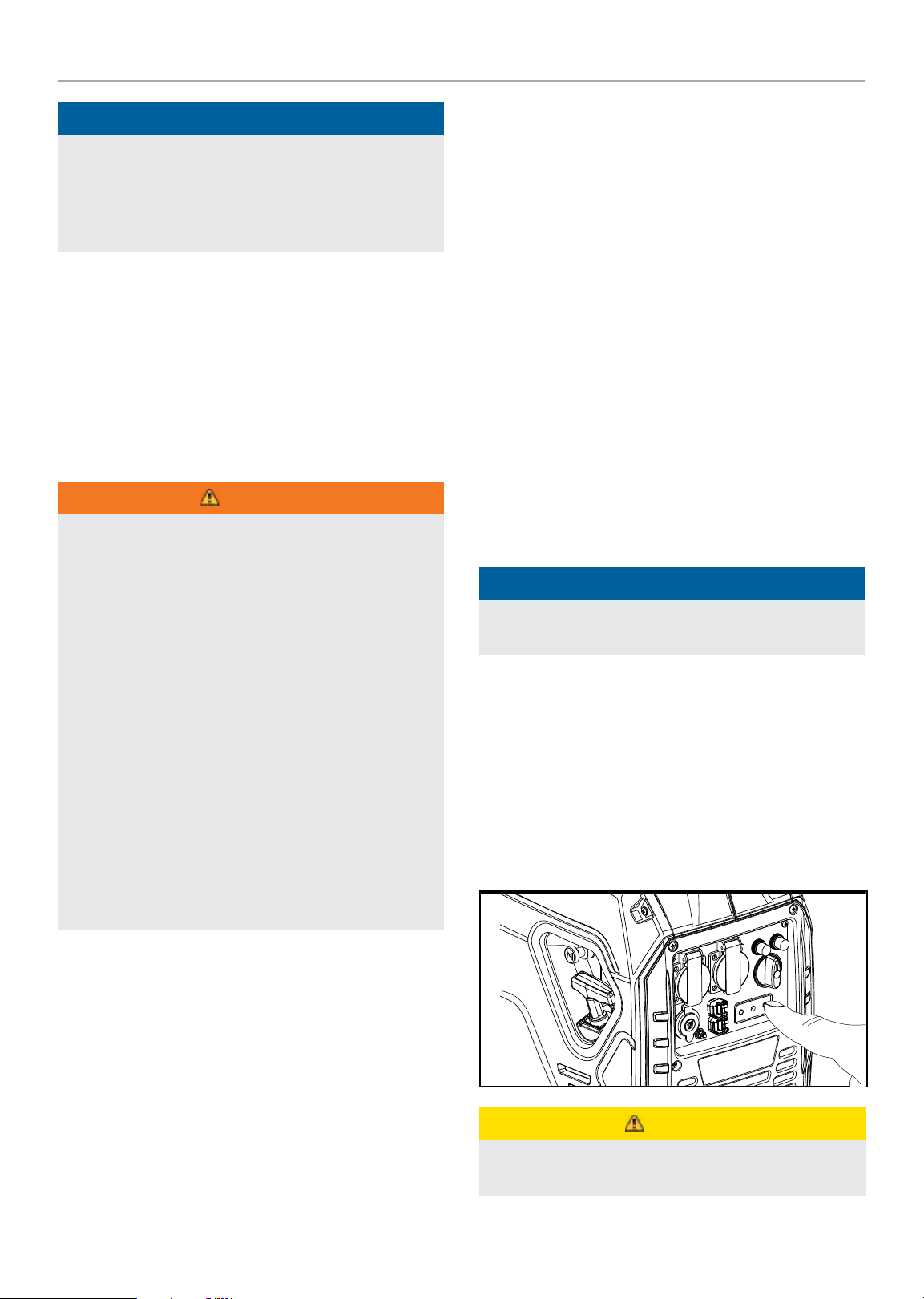

Eco (Economy) Mode

The Eco Mode button can be activated to turn on economy
control in order to minimize fuel consumption and noise while
operating the unit during times of reduced electrical output. Eco
Mode allows the engine speed to idle during periods of non-use.

The engine speed returns to normal when an electrical load is
connected. When the economy switch is off, the engine runs at
normal speed continuously.

Do Not Overload Generator

Capacity

Follow these simple steps to calculate the running and starting
watts necessary for your purposes:

1. Select the electrical devices you plan on running at the
same time.

2. Total the running watts of these items. This is the amount
of power you need to keep your items running.

3. Identify the highest starting wattage of all devices
identified in step 1. Add this number to the number
calculated in step 2. Starting wattage is the surge of power

CAUTION

For periods of high electrical load or momentary
fluctuations, the Eco Mode should be off.

16

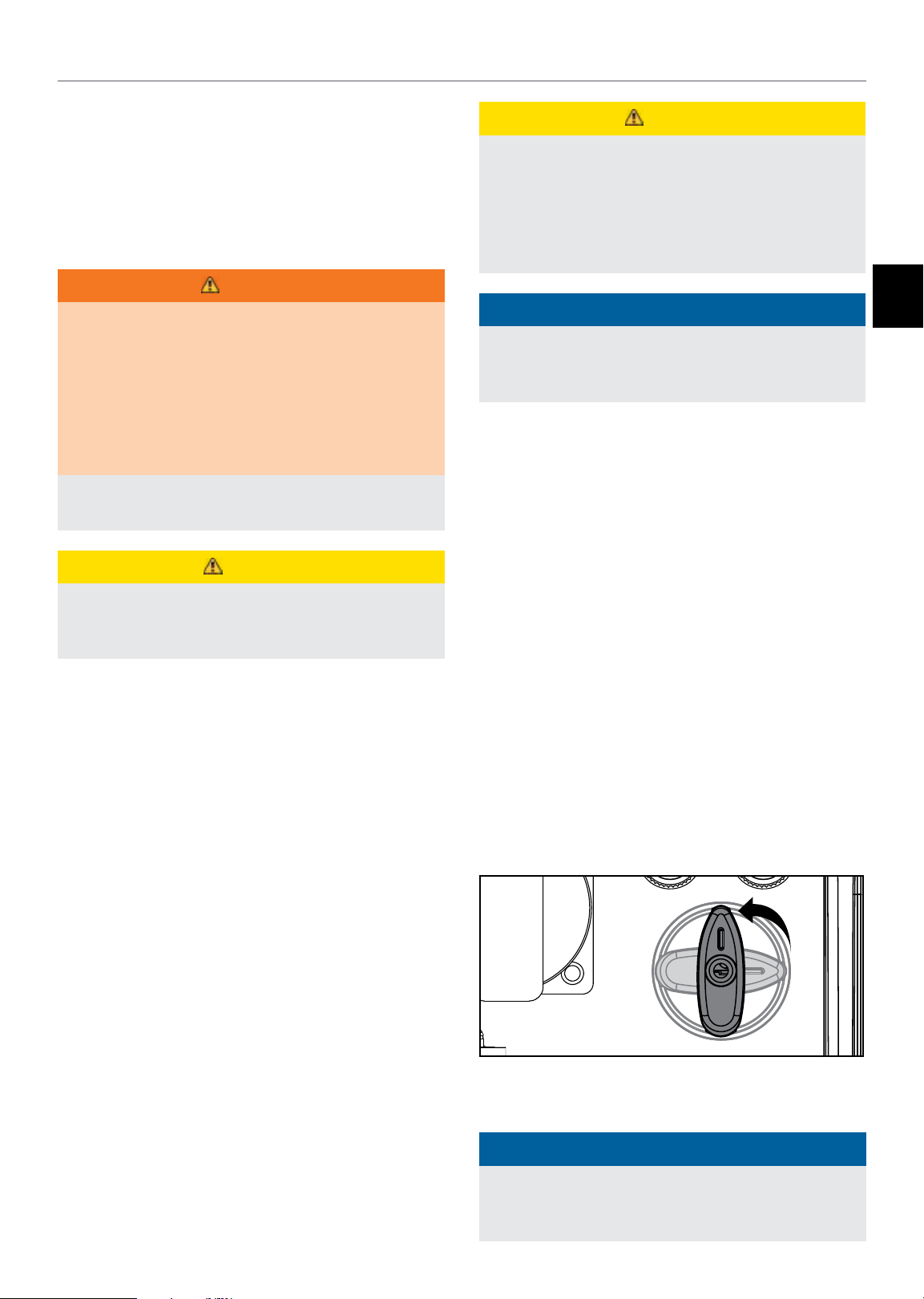

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

OPERATION

12V DC Automotive Style Outlet

The 12V DC outlet(s) can be used with supplied accessories and
other commercially available 12V DC automotive style plugs.
The DC output is unregulated and can damage some products.
Confirm the input voltage range of your item is at least 12-24V
DC. When using the DC outlet turn the Eco Mode switch to the
“OFF” position.

WARNING

DO NOT operate 12VDC device while it is plugged in to
220V/240V electrical loads, using both AC/DC together will
damage either equipment or generator.

NEVER try to run 12VDC load when ECO is turned ON, ECO
MUST be in the OFF position.

NEVER operate any 12VDC load when it is plugged into the
socket.

Prolonged exposure to engine exhaust can cause serious
injury or death.

CAUTION

While charging a device do not place on the exhaust side of
the generator. Extreme heat caused by exhaust can damage
the device, and cause a potential fire hazard.

CAUTION

Do not start the vehicle while the battery charging cable is
connected and the generator is running. It will not give the
battery a boost of power. The vehicle or the generator may
be damaged. Charge only vented wet lead acid batteries.
Other types of batteries may burst, causing personal injury
or damage.



NOTICE

Be sure all electric devices including the lines and plug
connections are in good condition before connection to the
generator.

Parallel Operation

The Champion model 92001i-EU is parallel ready and can be
operated in parallel with another Champion unit to increase
the total available electrical power. A Champion parallel kit
(optional equipment) is required for parallel operation. For a list
of compatible models or to order a parallel kit, please contact
your local distributor.

Detailed instructions for parallel kit installation and operation
of the connected generators are provided in the parallel kit
operator’s manual.

EN

Battery Charging

1. Before connecting the battery charging cable (included)
to a battery that is installed in a vehicle, disconnect the
vehicle battery ground cable from the negative (–) battery
terminal.

2. Plug the battery charging cable into the 12V DC receptacle
of the generator.

3. Connect the red (+) battery charger lead to the red (+)
battery terminal.

4. Connect the black (–) battery charger lead to the black (–)
battery terminal.

5. Start the generator.

Important: The 12V DC outlet is ONLY to be used with the
supplied 12V DC battery charging cable. The 12V DC output
is unregulated and will damage other 12V DC products. When
using the 12V DC outlet, turn the Economy mode switch to the
“OFF” position. Be sure all electric devices including the lines
and plug connections are in good condition before connection to
the generator.

Stopping the Engine

1. Turn off and unplug all electrical loads. Never start or stop
the generator with electrical devices plugged in or turned
on.

2. Let the generator run at no-load for several minutes to
stabilize internal temperatures of the engine and generator.

3. Turn the fuel dial counter-clockwise to the STOP position.

Important: Always ensure that the fuel dial and fuel lever vent
are in the “OFF” position when the generator is not in use.



NOTICE

If the generator will not be used for a period of two (2) weeks
or longer, always remove fuel and see the Storage section for
proper engine and fuel storage.

17

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

OPERATION

Moving the Generator

– ALWAYS turn the generator off and ensure the fuel valve is

closed.

– ALWAYS make sure engine and muffler are cooled down

before the generator can be handled safely (typically 15-30
minutes).

– Lift unit up by the carrying handle and move to the desired

location.

– Do not drop or strike unit or place under heavy objects.

– Failure to follow these instructions could result in personal

injury or damage to the generator.

WARNING

Operation using the alternative main jet at elevations lower
than the recommended minimum altitude can damage the
engine. For operation at lower elevations, the originally
supplied standard main jet must be used. Operating the
engine with the wrong engine configuration at a given
altitude may increase its emissions and decrease fuel
efficiency and performance.

MAINTENANCE

Make certain that the generator is kept clean and stored
properly. Only operate the unit on a flat, level surface in a clean,
dry operating environment. DO NOT expose the unit to extreme
conditions, excessive dust, dirt, moisture or corrosive vapors.

WARNING

Never operate a damaged or defective generator.

WARNING

Operation at High Altitude

The density of air at high altitudes is lower than at sea level.
Engine power is reduced as the air mass and air-fuel ratio
decrease. Engine power and generator output will be reduced
approximately 3½% for every 1000 ft. of elevation above sea
level. At high altitudes increased exhaust emissions can also
result due to the increased enrichment of the air fuel ratio.
Other high altitude issues can include hard starting, increased
fuel consumption and spark plug fouling.

To alleviate high altitude issues other than the natural power
loss, CPE can provide a high altitude carburetor main jet.
The alternative main jet and installation instructions can be
obtained by contacting our Technical Support Team. Installation
instructions are also available in the Technical Bulletin area of
the CPE website.

The part number and recommended minimum altitude for the
application of the high altitude carburetor main jet is listed in
the following table.

In order to select the correct high altitude main jet it is
necessary to identify the carburetor model. For this purpose,
a code is stamped on the side of the carburetor. Select the
correct high altitude jet part number corresponding to the
carburetor code found on your particular carburetor.

Improper maintenance will void your warranty.



NOTICE

For Emission control devices and systems, read and
understand your responsibilities for service as stated in the
Emission Control Warranty Statement of this manual.

The owner/operator is responsible for all periodic maintenance.

Complete all scheduled maintenance in a timely manner.

Correct any issue before operating the generator.

For service or parts assistance, contact our
Technical Support Team at [phone].

18

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

OPERATION

Cleaning the Generator

CAUTION

DO NOT spray generator directly with water.

Water can enter the generator through the cooling slots and
damage the generator windings. It can also contaminate the
fuel system.

1. Use a damp cloth to clean exterior surfaces of the
generator.

2. Use a soft bristle brush to remove dirt and oil.

3. Use an air compressor (25 PSI) to clear dirt and debris
from the generator.

4. Inspect all air vents and cooling slots to ensure that they
are clean and unobstructed.

To prevent accidental starting, remove and ground the spark
plug wire before performing any service.

Changing the Engine Oil

5. Add oil according to Add Engine Oil in Assembly section.
DO NOT OVERFILL. Oil not included for routine
maintenance.

6. Reinstall the maintenance cover.

7. Dispose of used oil at an approved waste management
facility.



NOTICE

Once oil has been added, a visual check should show oil
about 1-2 threads from running out of the fill hole. If using
the dipstick to check oil level, DO NOT screw in the dipstick
while checking.

Cleaning and Adjusting the Spark Plug

1. Remove the maintenance cover.

2. Remove spark plug access cap from the top panel.

EN

Change oil when the engine is warm. Refer to the oil
specification to select the proper grade for your operating
environment.

1. Set the generator on top of a work bench or table.

2. Loosen the cover screws and remove the maintenance
cover.

3. Remove oil fill cap/dipstick.

4. Tilt the generator on its side and allow the oil to drain
completely.

3. Remove the spark plug cable from the spark plug.

4. Use a spark plug socket tool (not included), or a
13/16 in. (21 mm) socket (not included )but can be bought
separately to remove the plug.

5. Inspect the electrode on the plug. It must be clean and not
worn to produce the spark required for ignition.

6. Make certain the spark plug gap is

0.024 - 0.031 in. (0.6 - 0.8 mm).

19

SPARK PLUG GAP

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

7. Refer to the spark plug types in Specifications when
replacing the plug.

8. Firmly re-install the plug.

9. Attach the spark plug cable to the spark plug.

10. Reinstall the spark plug access cap and maintenance

cover.

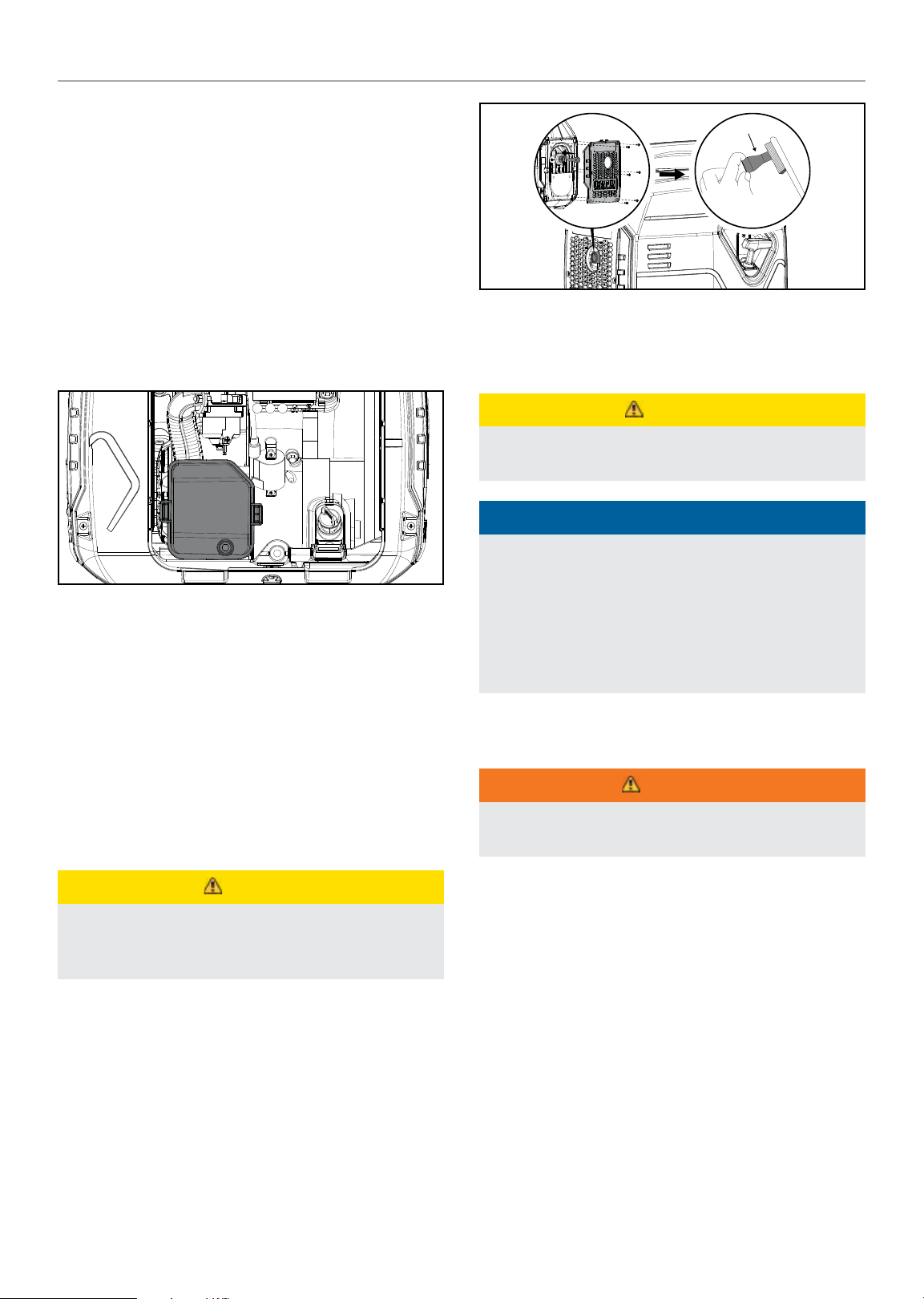

Cleaning the Air Filter

OPERATION

1. Remove the maintenance cover.

2. Locate the air filter plastic cover. Remove the screw using
a Phillips head screwdriver.

3. Remove the foam element.

4. Wash in liquid detergent and water. Squeeze thoroughly dry
in a clean cloth.

5. Saturate in clean engine oil.

6. Squeeze in a clean, absorbent cloth to remove all excess
oil.

7. Place the filter in the assembly.

8. Reattach the air filter cover.

9. Reinstall the maintenance cover and tighten the cover
screw securely.

6. Replace the spark arrestor if it is damaged.

7. Position the spark arrestor on the muffler and attach by
reversing the steps from above.

CAUTION

Failure to clean the spark arrestor will result in degraded
engine performance.



NOTICE

Federal and local laws and administrative requirements
indicate when and where spark arrestors are required.
When ordered, spark arrestors are required for operation
of this generator in National Forest lands. In California,
this generator must not be used on any forest-covered
land, brush-covered land, or grass-covered land unless the
engine is equipped with a spark arrestor.

Adjusting the Governor

WARNING

Tampering with the factory set governor will void your
warranty.

CAUTION

The filter element may contains PAHs, PAHs are harmful
for your health. Please wear gloves for protection during air
filter maintenance.

Cleaning the Spark Arrestor

1. Allow the engine to cool completely before servicing the
spark arrestor.

2. Remove the 6 screws holding the cover plate on the
muffler side of the generator.

3. Remove the screw which retains the spark arrestor to the
muf fler.

4. Remove the spark arrestor screen.

5. Carefully remove the carbon deposits from the spark
arrestor screen with a wire brush.

The air-fuel mixture is not adjustable. Tampering with
the governor can damage your generator and your
electrical devices and will void your warranty. Contact our
Technical Support Team at [phone] for all other
service and/or adjustment needs.

Maintenance Schedule

Follow the service intervals indicated in the following
maintenance schedule.

Service your generator more frequently when operating in
adverse conditions.

Contact our Technical Support Team at [phone]
to locate the nearest CPE certified service dealer for your
generator or engine maintenance needs.

20

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

STORAGE

EVERY 8 HOURS OR PRIOR TO EACH USE

 Check oil level
 Clean around air intake and muffler

FIRST 5 HOURS (BREAK IN)

 Change oil

EVERY 50 HOURS OR ANNUALLY

 Clean air filter
 Change oil if operating under heavy load or in hot

environments

EVERY 100 HOURS OR ANNUALLY

 Change oil
 Clean/adjust spark plug
 Clean spark arrestor
 Clean fuel valve filter*

EVERY 250 HOURS

 Clean combustion chamber*
 Check/adjust valve clearance*

Short Term Storage (up to 30 days)

Gasoline in the gasoline tank has a maximum shelf life of up to
1 year with the addition of properly formulated fuel stabilizers
and if stored in a cool, dry place. Gasoline in the carburetor,
however, may gum up and clog the carburetor if it isn’t used or
drained within 2-4 weeks.

If using the generator within 2 weeks, follow the steps
according to Stopping the Engine section.

1. If not using the generator for 2-4 weeks, begin by making
sure all appliances are disconnected from the generator.

2. Start the generator as instructed in Starting the Engine
section.

3. Let the engine run until fuel starvation has stopped the
engine.

4. After the engine stops, turn the dial counterclockwise to
the “STOP” position.

Mid Term Storage (30 days – 1 year)

Gasoline in the tank has a maximum shelf life of up to 1 year
with the addition of a properly formulated fuel stabilizer and
stored in a cool, dry place.

1. Be sure all appliances are disconnected from the generator.

2. Add a properly formulated fuel stabilizer to the gasoline
tank.

EN

EVERY 3 YEARS

 Replace fuel line*

* To be performed by knowledgeable, experienced owners or CPE certified

service centers.

STORAGE

DANGER

Gasoline and gasoline vapors are highly flammable and
extremely explosive.

Fire or explosion can cause severe burns or death. Only
fill or drain fuel outdoors in a well-ventilated area. DO NOT
pump gasoline directly into the generator. Use an approved
container to transfer the fuel to the generator. Never use
a gasoline container, gasoline tank, or any other fuel item
that is damaged or appears damaged. DO NOT overfill the
gasoline tank. Always keep fuel away from sparks, open
flames, pilot lights, heat and other sources of ignition.
DO NOT light or smoke cigarettes.

3. Start engine by following directions in the Starting the
Engine section.

4. Run the generator for 10 minutes so the treated gasoline
cycles through the fuel system and carburetor.

5. Let the engine run until fuel starvation has stopped the
engine.

6. After the engine stops, turn the dial counterclockwise to
the “STOP” position.

7. After fuel has run out and the engine has stopped, allow
the engine to cool.

8. Remove maintenance cover.

9. Remove the spark plug and pour about a tablespoon of oil
into the cylinder.

10. SLOWLY pull the recoil to rotate the engine to distribute
and lubricate the cylinder.

11. Re-install the spark plug and spark plug wire.

12. Re-install the maintenance cover.

13. Clean the generator according to Cleaning the Generator.

14. Store the generator in a cool, dry place out of direct
sunlight.

21

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

STORAGE

Long Term Storage (more than 1 year)

For storage over 1 year, the gasoline tank and carburetor must
be completely drained of gasoline.

1. Be sure all appliances are disconnected from generator.

2. Place inverter on blocks to allow appropriate gasoline
container or pan to slide under inverter.

3. Remove the maintenance cover.

4. Turn the fuel dial clockwise to the full “RUN” position.

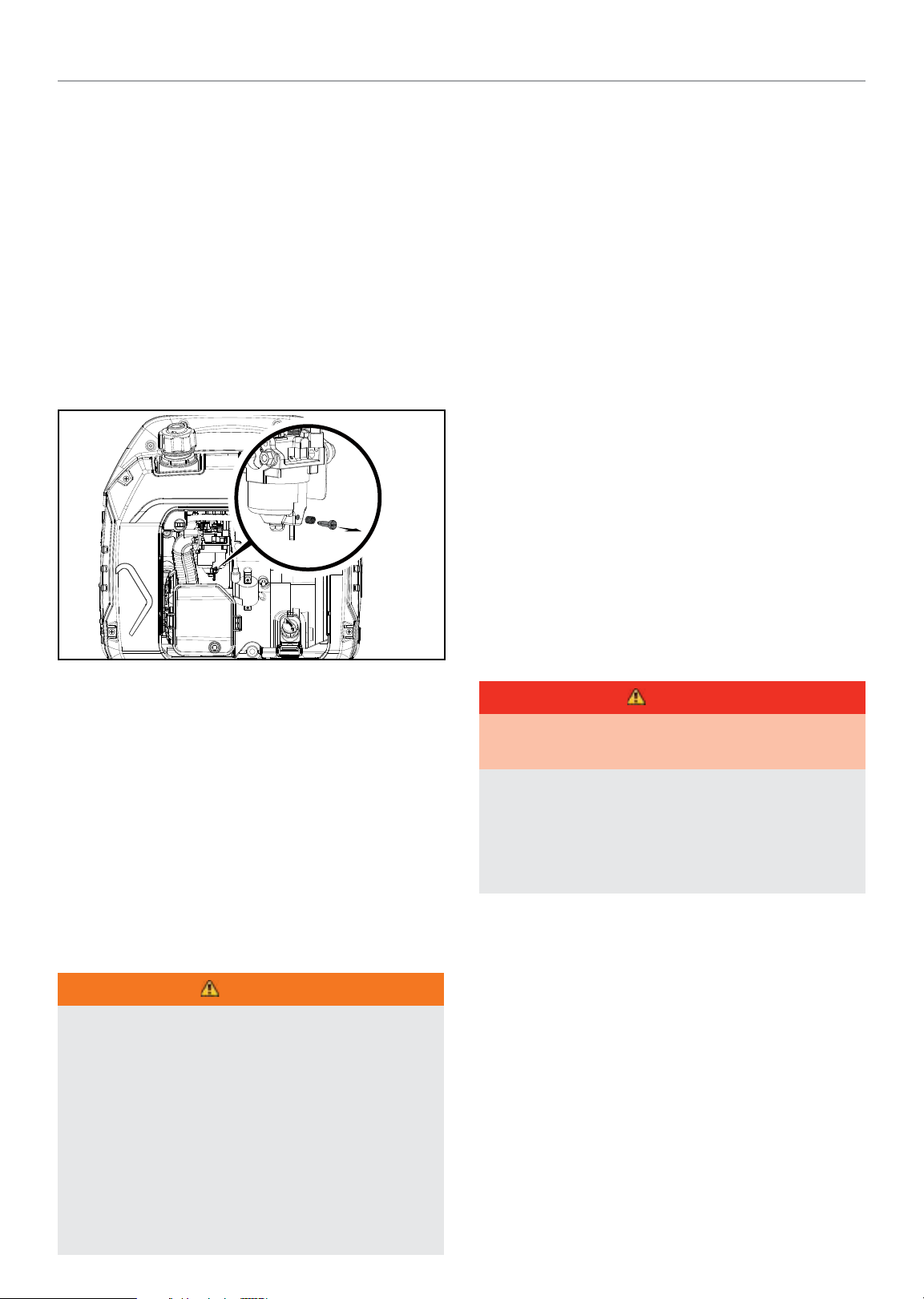

5. Using a Phillips screwdriver, rotate drain screw
counterclockwise (3) full turns. Gasoline will drain through
clear tubing out underneath the inverter. Make sure
draining gasoline empties into an appropriate container.

Removing from Storage

If the generator has been improperly stored for a long period
of time with gasoline in the gasoline tank and/or carburetor, all
fuel must be drained and the carburetor must be thoroughly
cleaned. This process involves technically advanced tasks.
For assistance please call our Technical Support Team at
[phone].

If the gasoline tank and carburetor were properly emptied of all
gasoline prior to the generator being stored, follow the below
steps when removing from storage.

1. Be sure the fuel dial is in the “STOP” position.

2. Add gasoline to the generator according to Add Fuel.

3. Move the fuel dial to the “RUN” position.

4. After 5 minutes check the carburetor and air filter areas for
any leaking gasoline. If any leaks are found, the carburetor
will need to be disassembled and cleaned or replaced. If no
gasoline leaks are found, turn the fuel dial to the “STOP”
position.

5. Check engine oil level and add clean, fresh oil if needed.
See Oil Specifications for proper oil type.

6. When gasoline stops flowing from the clear tube, rotate
drain screw clockwise until tight. Properly dispose of
the drained gasoline according to local regulations or
guidelines.

7. Turn the fuel dial to the “STOP” position.

8. Follow steps 8-12 according to Short Term Storage.

Transportation

To prevent fuel spillage when transporting or during temporary
storage, the washer should be secured upright in its normal
operating position, with the engine switch OFF. The fuel valve
lever should be turned OFF.

WARNING

When transporting:

6. Check and clear air filter of any obstructions such as bugs
or cobwebs. If necessary, clean air filter according to
Cleaning the Air Filter.

7. Start the generator according to Starting the Engine.

DANGER

Generator exhaust contains odorless and colorless carbon
monoxide gas.

To avoid accidental or unintended ignition of your generator
during periods of storage, the following precautions should
be followed:

– When storing the generator make sure the fuel dial is set

to the “STOP” position.

Do not overfill the tank. Do not operate the washer while
it is on vehicle. Take the washer off the vehicle and use
it in a well-ventilated place. Avoid a place exposed to
direct sunlight when putting the washer on a vehicle.1f the
washer is left in an enclosed vehicle for many hours, high
temperature inside the vehicle could cause fuel to vaporize
resulting in a possible explosion. Do not drive on a rough
road for an extended period with the washer on board. If
you must transport the washer on a rough road, drain the
fuel from the washer beforehand.

22

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

SPECIFICATIONS

SPECIFICATIONS

Generator Specifications

Generator Model ................................... 92001i-EU

Star t Type ............................................... Manual

Watts (Max/Running) .............................. 2200/1900

Volts AC ......................................................220

AC Amps @ 220V ........................................... 8.6

Volts DC ...................................................... 12

DC Amps ........................................................8

Frequency .................................................50 Hz

Max site altitude of installation ......................... 1500m

Measured sound pressure level (7m) .................. 58dB(A)

Measured sound pressure level (4m) .................. 72dB(A)

Noise measurement uncertainty ................... ≤1.5 dB(A)

Guaranteed sound power level .......................93 dB(A))

Max Ambient Temp (°C / °F) ...................... 40°C /104°F

Phase ..................................................... Single

Grounding Type ................................ Floating Neutral

Weight ........................................ 38.8 lb. (17.6 kg)

Length .......................................... 17.3 in. (44 cm)

Width ........................................ 11.5 in. (29.2 cm)

Height ........................................... 17.7 in. (45 cm)

Oil Specifications

DO NOT OVERFILL.

Type

........................................*See following chart

Capacity .......................................500ml/16.9 fl.oz

Recommended Oil Type / Tipo de acei te recomendado / Type d’huile recommandé

10W-30

10W- 405W-30

5W-30 Synthetic / Sintético / Synthétique

-20 0 20 40 60

°F

-28.9

°C

-17. 8 -6.7 4.4 15.6 26.7 37.8 48.9

Ambient temperature / Temperatura ambiente / Température ambiante



NOTICE

Temperature will affect engine oil and engine performance.
Change the type of engine oil used based on the
temperature to suit the engine needs.

80 100 120

Fuel Specifications

Use unleaded gasoline with a minimum octane rating of 85 and
an ethanol content of 10% or less by volume. DO NOT USE E15
or E85. DO NOT OVERFILL.

Gasoline Capacity

................................. 1.1 gal. (4 L)

EN

Engine Specifications

Model ....................................................148F-D

Displacement .............................................. 79 cc

Type ............................................... 4-Stroke OHV

Spark Plug

OE M Type .................................................E6RTC

Gap ...........................0.024 - 0.031 in. (0.6 - 0.8 mm)

Valve

Intake Clearance .............0.004-0.006 in. (0.10-0.15 mm)

Exhaust Clearance .......... 0.006-0.008 in. (0.15-0.20 mm)



NOTICE

A technical bulletin regarding valve adjustment procedures
is available at www.championpowerequipment.co.uk.

Temperature Specifications

Starting Temperature Range (°F/°C) ....... 5 to 104/-15 to 40



NOTICE

An important message about temperature: Your product
is designed and rated for continuous operation at ambient
temperatures up to 104°F (40°C). When needed, it may be
operated at temperatures ranging from 5°F (-15°C) to 122°F
(50°C) for short periods of time. If exposed to temperatures
outside this range during storage, it should be brought back
within this range before operation. In any event, the product
must always be operated outdoors, in a well-ventilated area
and away from doors, windows and vents.

23

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

WARRANTY*

WARRANTY*

CHAMPION POWER EQUIPMENT
3 YEAR LIMITED WARRANTY

Warranty Qualifications

To register your product for warranty and FREE lifetime call
center technical support please visit:

https://www.championpowerequipment.co.uk

To complete registration you will need to include a copy of
the purchase receipt as proof of original purchase. Proof of
purchase is required for warranty service. Please register within
ten (10) days from date of purchase.

Repair/Replacement Warranty

CPE warrants to the original purchaser that the mechanical
and electrical components will be free of defects in material
and workmanship for a period of three (3) years for domestic
usage or 1000 hours which comes first and One (1) Year for
commercial and industrial use or 1000 hours which ever comes
first. Transportation charges on product submitted for repair
or replacement under this warranty are the sole responsibility
of the purchaser. This warranty only applies to the original
purchaser and is not transferable. For full T&C’s please visit
www.championpowerequipment.co.uk.

Do Not Return The Unit To The Place Of
Purchase

Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.

Warranty Exclusions

This warranty does not cover the following repairs and
equipment:

Normal Wear

Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does
not cover repair when normal use has exhausted the life of a
part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts and/or labor if the product
is deemed to have been misused, neglected, involved in an
accident, abused, loaded beyond the product’s limits, modified,
installed improperly or connected incorrectly to any electrical
component. Normal maintenance is not covered by this

warranty and is not required to be performed at a facility or by a
person authorized by CPE.

Other Exclusions

This warranty excludes:

– Cosmetic defects such as paint, decals, etc.

– Wear items such as filter elements, o-rings, etc.

– Accessory parts such as starting batteries, piston rings and

storage covers.

– Failures due to acts of God and other force majeure events

beyond the manufacturer’s control.

– Problems caused by parts that are not original Champion

Power Equipment parts.

Any part(s) deemed to be damaged by the user.When applicable,
this warranty does not apply to products used for prime power
in place of a utility.

Limits of Implied Warranty and
Consequential Damage

Champion Power Equipment disclaims any obligation to
cover any loss of time, use of this product, freight, or any
incidental or consequential claim by anyone from using this
product. THIS WARRANTY AND THE ATTACHED UK EPA and/
or CARB EMISSION CONTROL SYSTEM WARRANTIES (WHEN
APPLICABLE) ARE IN LIEU OF ALL OTHER WARRANTIES,
EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the
purchase date of the original unit.

This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or
province may also have other rights you may be entitled to that
are not listed within this warranty.

24

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

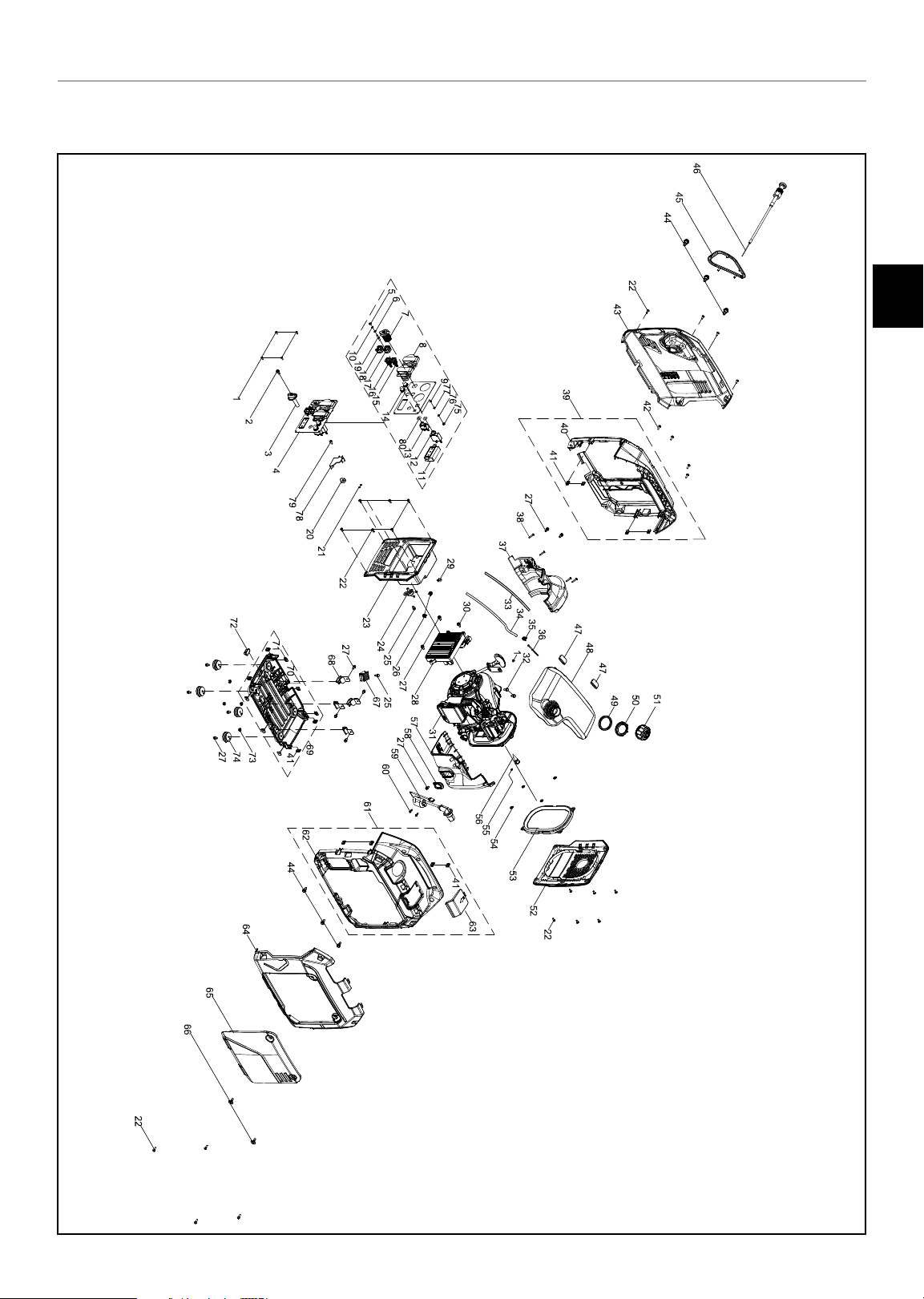

Parts Diagram

EN

25

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

Parts List

# Part Number Description Qty.

1 100010946-0001

2 100095857-0005

3 100072724

4 100162770-0002

5 100011421-0013

6 100010910-0003

7 100019782-0001

8 100020028-0003

9 100011025-0001

10 100010886-0004

11 100142155-0001

12 100019758-0001

13 100057719-0001

14 100120180-0001

15 100746006-0001

16 100746006-0002

17 100735685-0001

18 100735685-0002

19 100092320-0001

20 100083841

21 100091757

22 100081995-0001

23 100142063-0001

24 100126150

25 100011571-0002

26 100005149

27 100011570-0008

28 1001579 50

29 100000671

30 100011249-0004

31 1ZC7DFB06

32 100033099-0008

33 100131884

34 100131883-0001

Screw M4 x 10

Bolt M4 x 18

Lever, Fuel Valve

Panel Assembly

Flange Nut M6

Flat Washer Ø6

Receptacle, 12 VDC

16A EU -Ty pe
Receptacle, Black

Lock Washer Ø6,
Toothed

Spring Washer Ø6

LED Display Module

16Amp Circuit Breaker,
Push Button

8Amp Circuit Breaker,
Push Button

Cover, Circuit Breaker

Parallel Port, Square,
Red

Parallel Port, Square,
Black

Parallel Port Cover,
Square, Red

Parallel Port Cover,
Square, Black

Ground Stud

Switch Block

Circlip, Bearing Holder,
Ø1.8 x Ø6

Step Bolt

Front Panel, Black

Fuel Valve, Angle 45°

Big Flange Bolt M6 x 14

Calmp 1, Ø7.5

Big Flange Bolt M6 x 12

Inverter, 230V 50Hz

Clip Ø13

Bolt M5 x 12

Engine 79cc

Big Flange Bolt M6 x 18

Tube Sheath, Silicon
Resin

Fuel Tube, L=275mm

20

13

# Part Number Description Qty.

5

1

1

1

1

1

1

2

1

1

1

1

1

2

1

1

1

1

1

1

2

1

1

2

2

1

1

1

1

2

1

1

35 100090871 Calmp 2, Ø9.7 x 8 1
36 100009020

37 100072874

38 100011004-0003

39 100092440-0007

40 100139137-0001

41 100050562

42 100033079-0005

43 100156094-0005

44 100081994-0001

45 100092446-0001

46 100158387

47 100072727-0001

48 100072725

49 100073150

50 100008887

51 100072726-0005

52 100142062-0001

53 100072722

54 100087972

55 100011000-0002

56 100085794 Spark Arrester Assembly 1
57 100072875-0001

58 100072878

59 100097811-0001

60 100093250-0005

61 100092441-0007

62 100139138-0001

63 100092444-0005

64 100157709-0001

65 100163095-0002

66 100072713-0002 Screw 2

Fuel Strainer

Rear Air Guide

Self-tapping Screw
ST4.2 x 25

Housing Assembly, Left
Handle, Black

Housing, Left Handle,
Black

Threaded Clamp

Screw M5 x 16

Side Cover Plate, Left,
Yellow

Shaft Locating Bolt

Protection Ring, Starter
Cord

Cable

Rubber Pad

Fuel Tank, 4 L

Rubber Washer

Lock Nut

Fuel Tank Cap

Rear Panel, Muffler,
Black

O-ring Seal

Retainer Ring

Self-tapping Screw
ST4.2 x 9.5

Front Air Guide

Oil Seal

Ignition Coil

Self-tapping Screw
ST4.8 x 20

Housing Assembly, Right
Handle, Black

Housing, Right Handle,
Black

Spark Plug Maintenance
Plate, Black

Housing Cover, Right,
Yellow

Maintenance Panel,
Yellow

1

1

4

1

1

12

4

1

6

1

1

2

1

1

1

1

1

1

4

1

1

1

1

2

1

1

1

1

1

26

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

# Part Number Description Qty.

67 100716268-0001

68 100072715-0001

69 100088546

70 100072711
71 100072994-0001 Step Nut M6 6
72 100072710-0001

73 100011452-0010

74 100072712

75 100011419-0007

76 100010885-0003

77 100010919-0002

78 100714558

79 100011001-0005

80 100031552

Rectifier Bridge,
Capacitance

Vibration Mount,
Support

Housing Assembly,
Bottom, Black

Housing, Bottom, Black

Rubber Damper

Nut M6

Foot, Bottom Housing

Nut M5

Spring Washer Ø5

Plain Washer Ø5

Wire Stop Block

Self-tapping Screw
ST4.2 x 10

O-Ring

1

4

1

1

EN

1

4

4

1

1

1

1

1

2

27

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

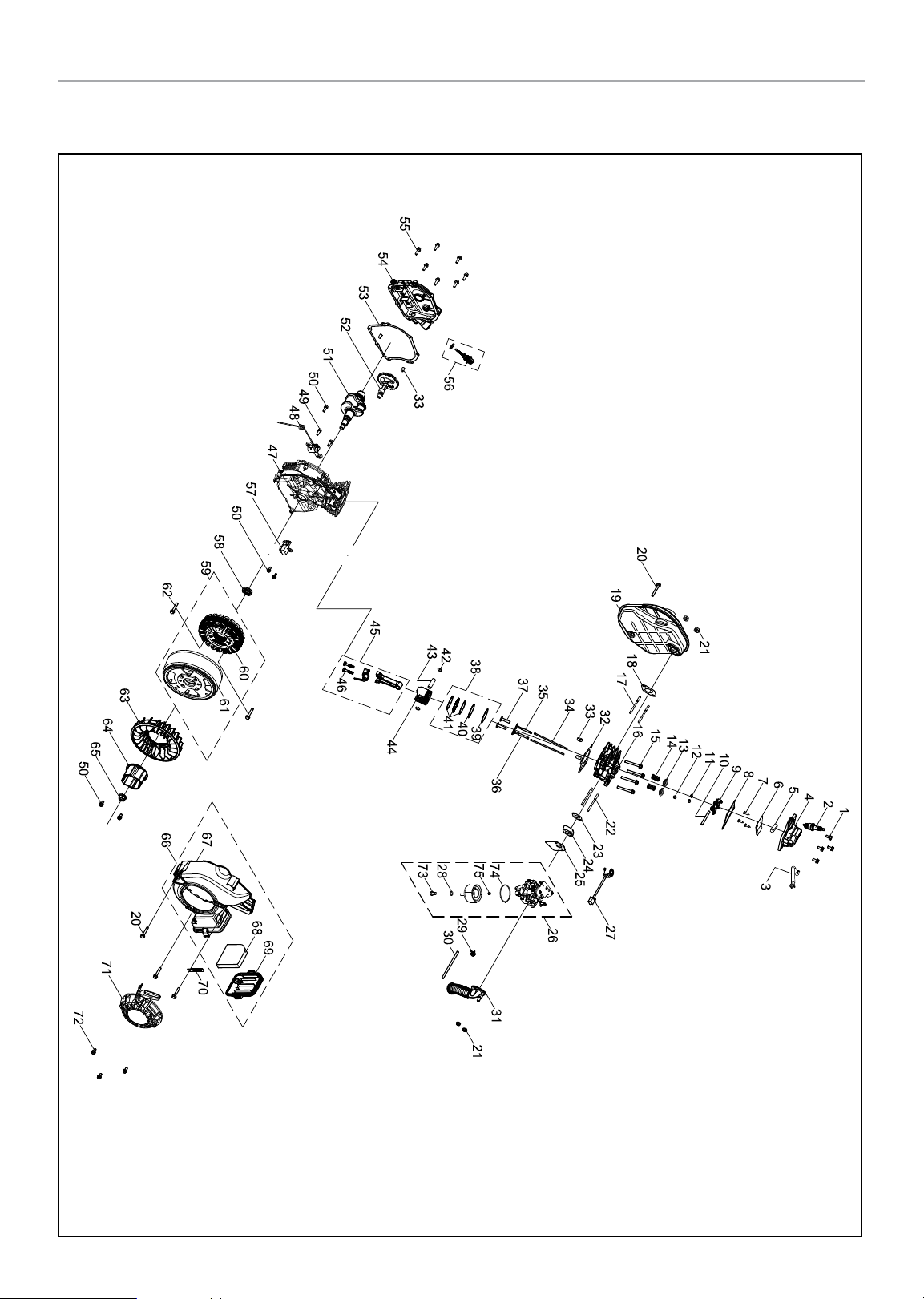

Engine Parts Diagram

28

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

Engine Parts List

# Part Number Description Qt y.

1 100033099-0008

2 100 097810

3 100154528-0001

4 100072876-0001

5 100085696

6 100085695

7 100005133-0001

8 100075052

9 100075054

10 100075053

11 100075055

12 100075058

13 100075056

14 100159357

15 100011275-0005

16 10 0148916

17 100088412-0001

18 100075043

19 100065662-0001

20 100011277-0004

21 100011452-0010

22 100010348-0001

23 100075048

24 100075049

25 100075050

26 100159122-0001

27 100061512

28 100006037

29 100005149

30 100087351-0001

31 100075035

32 100085694

33 10 00105 49

34 100075061

35 100075059

Big Flange Bolt M6 x 18

Spark Plug(E6RTC)

Breather Tube

Cylinder Head Cover
Assembly

Strainer, Cylinder Head
Cover

Inner Cover, Cylinder
Head Cover

Cross Screw M3 x 6.5

Gasket, Cylinder Head
Cover

Rocker Arm Assembly

Shaft, Rocker Arm

Valve Collet

Oil Drip Pan

Valve Spring Seat, 182F

Spring Valve

Flange Bolt M6 x 50,
GB5789

Cylinder Head

Stud Bolt M6 x 73

Muffler Pad

Exhaust Muffler
Assembly

Flange Bolt M6 x 60,
GB5789

Lock Nut M6, Flange

Stud Bolt M6 x 87

Gasket, Insulator

Insulator, Carburetor

Gasket, Carburetor

Carburetor

Stepping Motor

Fuel Bowl Mounting Bolt
Gasket

Clamp 1, Ø7.5

Oil Tube

Air Filter Hose

Gasket, Cylinder Head

Dowel Pin Ø8 x 12

Push Rod

Valve Exhaust

# Part Number Description Qt y.

4

1

1

1

1

1

3

1

2

1

2

1

2

2

4

1

2

1

1

4

4

2

1

1

1

1

1

1

1

1

1

1

4

2

1

36 100159354

37 100075036

38 100075040

39 100088147

40 100088148

41 100088146

42 100075038

43 100075039

44 10 0159355

45 100075037

46 100091043

47 100085410

48 100075063-0002

49 100031967-0008

50 100011570-0008

51 100065663

52 100159356

53 100075062

54 100072617

55 100031968-0003

56 100084322-0004

57 100092649-0001

58 100085697

59 100159353-0001

60 100158711-0001

61 100085871-0001

62 100011223-0002

63 100072871

64 100072872-0001

65 100033063-0002

66 100072873

67 100085054

68 100075483-0001

69 100075482-0001

70 100000655

71 100075051-0002

Valve Intake

Lifter, Valve

Piston Ring Set

1st Piston Ring

2nd Piston Ring

Oil Ring

Circlip

Wrist Pin

Piston

Connecting Rod

Bolt, Connecting Rod

Crankcase

Oil Level Sensor

Big Flange Bolt M6 x 16

Big Flange Bolt M6 x 12

Crankshaft

Camshaft

Gasket, Crankcase
Cover

Cover, Crankcase

Big Flange Bolt M6 x 20

Oil Dipstick Assembly,
Black

Trigger

Oil Seal Ø20 x Ø32 x 6

Alternator Assembly,
Ø150 x 44.5 mm

Stator Assembly, Fe,
Ø120 x 21 mm

Rotor Assembly,
Permanent Magneto,
Ø150 x 44.5 mm

Flange Bolt M6 x 32

Cooling Fan

Pulley, Starter

Flange Nut M12 x 1.25

Fan Cover Assembly

Fan Cover, Black

Air Filter Element

Air Filter Cover

Wire Clip B

Recoil Starter Assembly,
Black

1

2

1

1

1

EN

1

2

1

1

1

2

1

1

2

5

1

1

1

1

7

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

1

29

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

# Part Number Description Qt y.

72 100011571-0002

73 100131964

74 100131960

100163552

100163549

75

100163550

Big Flange Bolt M6 x 14

Fuel Bowl Mounting Bolt

Fuel Bowl O-Ring

Main Jet Standard

Main Jet Altitude 1000­2000m

Main Jet Altitude 2000­3000m

3

1

1

1

/

/

30

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

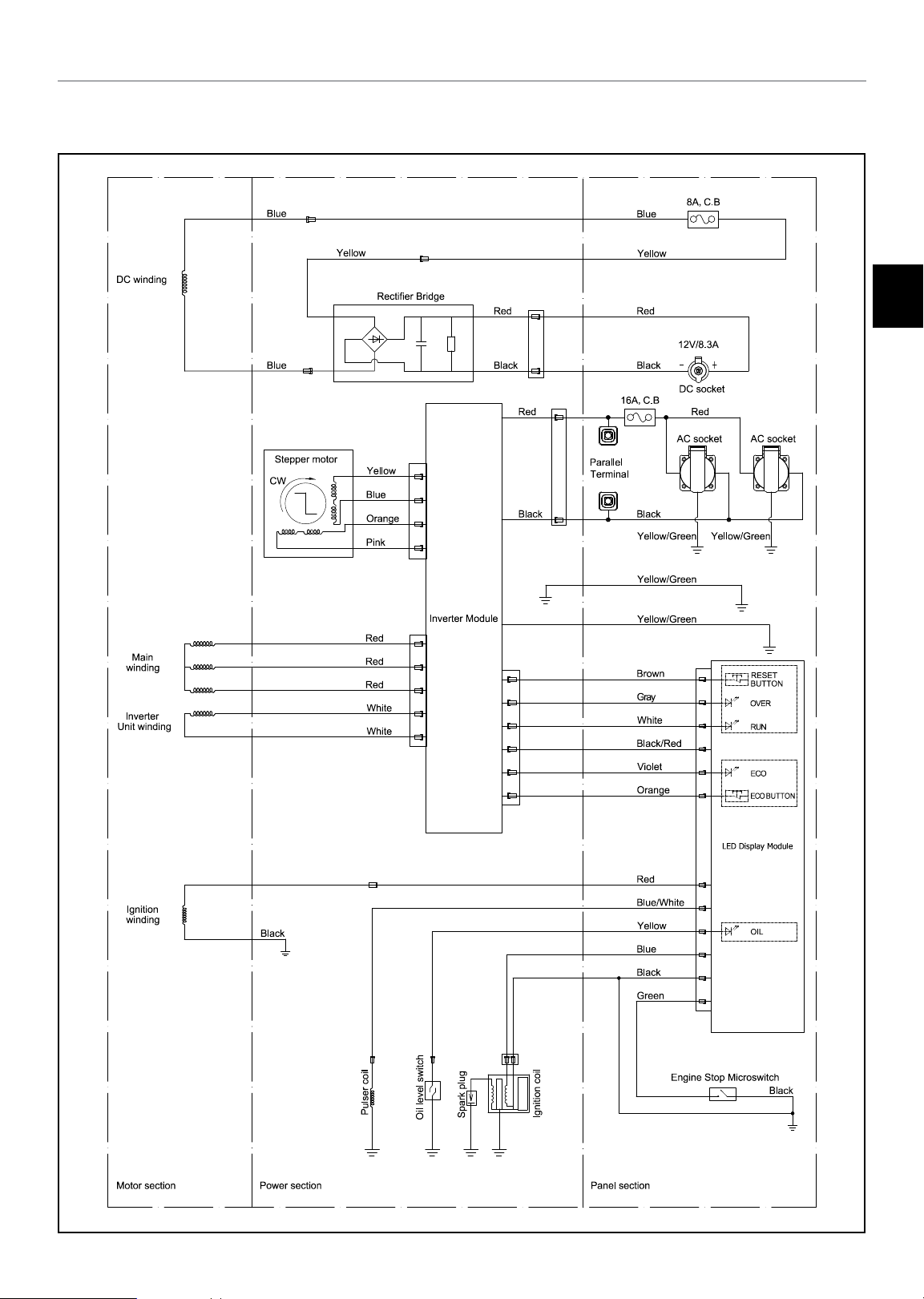

Wiring Diagram

EN

31

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

We:

EC DECLARATION OF CONFORMITY

CHAMPION POWER EQUIPMENT, INC.

12039 SMITH AVENUE, SANTA FE SPRINGS,

CA 90670, USA

Hereby declare that the following Appliance complies with the
appropriate basic safety and health requirements of the EC
Directives (see item 3 & 4) based on its design and type, as brought
into circulation by us.

This declaration relates exclusively to the machinery in the state in
which it was placed on the market, and excludes components
which are added and/or operations carried out subsequently by the
final user.

WARRANTY*

Designation / Function: Gasoline generating set

1. Type: 92001i-UK, 92001i-EU

2. Serial number: xxxxxxx – xxxxxxx（on crankcase or on air filter

cover）

3. Used harmonized standards:

- ISO 8528-13:2016

4. Applicable EC Directives:

- Machinery Directive 2006/42/EC

- Directive (EU) 2016/1628

- Noise Directive 2000/14/EC (Amended by 2005/88/EC)

- Low Voltage Directive 2014/35/EU

- EMC Directive 2014/30/EU

- RoHS Directive 2011

/65/EU

- REACH Regulations (EC) NO. 1907/2006

FI

Guaranteed sound power level:

- dB(A) for 93 92001i-UK,92001i-EU

32

92001i-EU 1900W RATED PORTABLE INVERTER GENERATOR

5. Responsible for documentation: CHAMPION POWER
EQUIPMENT, INC.
Address: 12039 SMITH AVENUE, SANTA FE SPRINGS,
CA 90670, USA

6. Person responsible for compiling the technical files established
within the EU Name, Surname: Winch Solutions LTD
Address:

Unit 17-18 Bradley Trading Estate, Bradley lane,

Standish, Greater Manchester,WN6 0XQ, UK

WARRANTY*

7. Date/Place/Authorized Signature: APRIL 21

ST

2020/HANGZHOU/LI JIE

8. Title of Signatory: GENERAL MANAGER

Note:

The person importing the products becomes responsible for
ensuring that they comply with the directives which apply to them.
At the very last, it is recommended that the importer obtain a copy
of the original Declaration of conformity from manufacturer.

FI

33

Champion Power Equipment Europe

Service & Technical Contacts

United Kingdom:

BPE Holdings
Unit 17-18
Bradley Hall Trading Estate
Bradley Lane, Standish
Wigan, WN6 0XQ, UK
Tel: [phone]
[email protected]

Sweden:

BPE Nordic AB
Valnäsgatan 2
44252 Ytterby
Sweden
Tel: [phone]
[email protected]

Germany:

BPE Solutions Deutschland GmbH
Altrottstraße 31
D-69190 Walldorf
Germany
Tel: [phone]
[email protected]

France:

BPE Solutions France SAS
3 Boulevard de Belfort
59000 Lille
France
[email protected]
