Page 1
Project
Item No.
Quantity

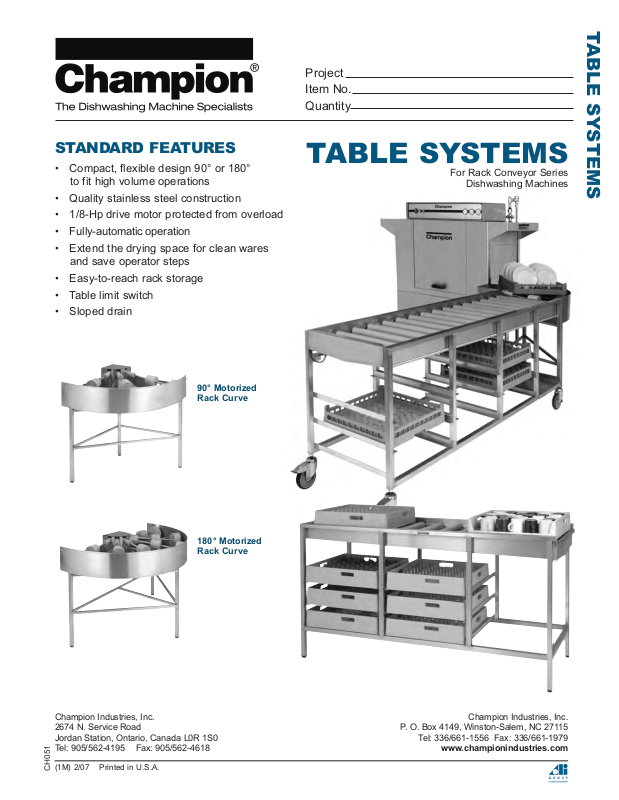

TABLE SYSTEMS
STANDARD FEATURES
• Compact, flexible design 90° or 180°
to fit high volume operations
• Quality stainless steel construction
• 1/8-Hp drive motor protected from overload
•Fully-automatic operation
• Extend the drying space for clean wares
and save operator steps
• Easy-to-reach rack storage
• Table limit switch
• Sloped drain
90° Motorized
Rack Curve
TABLE SYSTEMS
For Rack Conveyor Series
Dishwashing Machines
180° Motorized
Rack Curve
Champion Industries, Inc.
2674 N. Service Road
Jordan Station, Ontario, Canada L0R 1S0
Tel: 905/562-4195 Fax: 905/562-4618
(1M) 2/07 Printed in U.S.A.
CH051
Champion Industries, Inc.
P. O. Box 4149, Winston-Salem, NC 27115
Tel: 336/661-1556 Fax: 336/661-1979
www.championindustries.com
Page 2
30-3/4
"
30-3/4
"
(2A)
14-7/8
"
(2A)
15-7/8
"
(2A)
22
"
34-7/8
"
(2B)
29-1/2
"
(2B)
11
"
(2B)
1-7/16
"
Rollers Not Shown for Clarity
TABLE SYSTEMS
For Rack Conveyor Series
ishwashing Machines
D

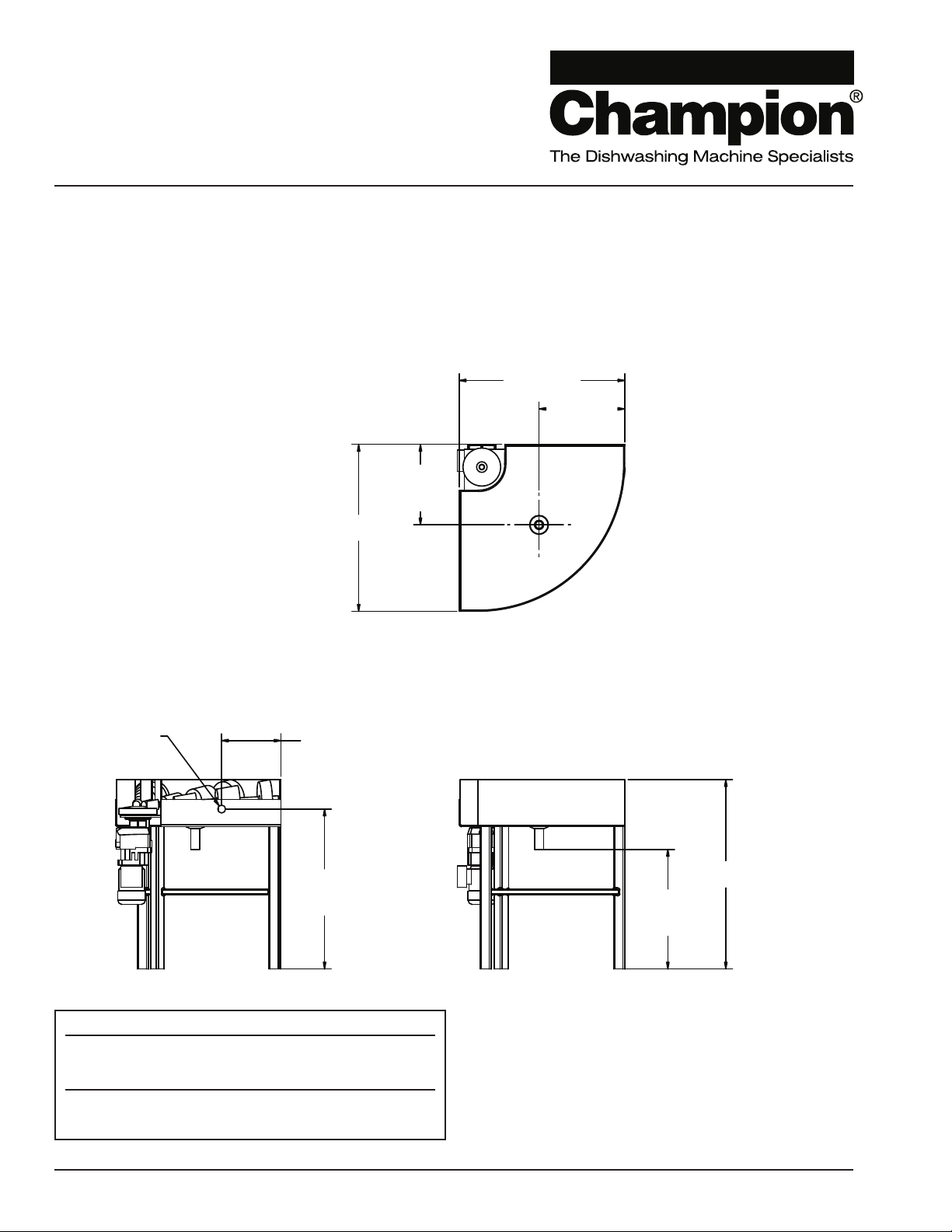

90° Motorized Rack Curve with Table
180° MRC 64 RCT
Shipping weight: 300 lbs. Shipping weight: 180 lbs.
Volume crated: 107 cu. ft. Volume crated: 60 cu. ft.
90° MRC 84 RCT
Shipping weight: 250 lbs. Shipping weight: 200 lbs.
Volume crated: 47 cu. ft. Volume crated: 72 cu. ft.
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
Note: 90° and 180° MRC must be
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
ordered with roller conveyor table.
Page 3
30-3/4
"
(2A)
12
"
55-1/8
"
34-7/8
"
(2A)
22
"
(2A)
30
"
(2B)
11
"
(2B)
29-1/2
"
(2B)
1-7/16
"
Rollers Not Shown for Clarity
TABLE SYSTEMS
For Rack Conveyor Series
ishwashing Machines
D

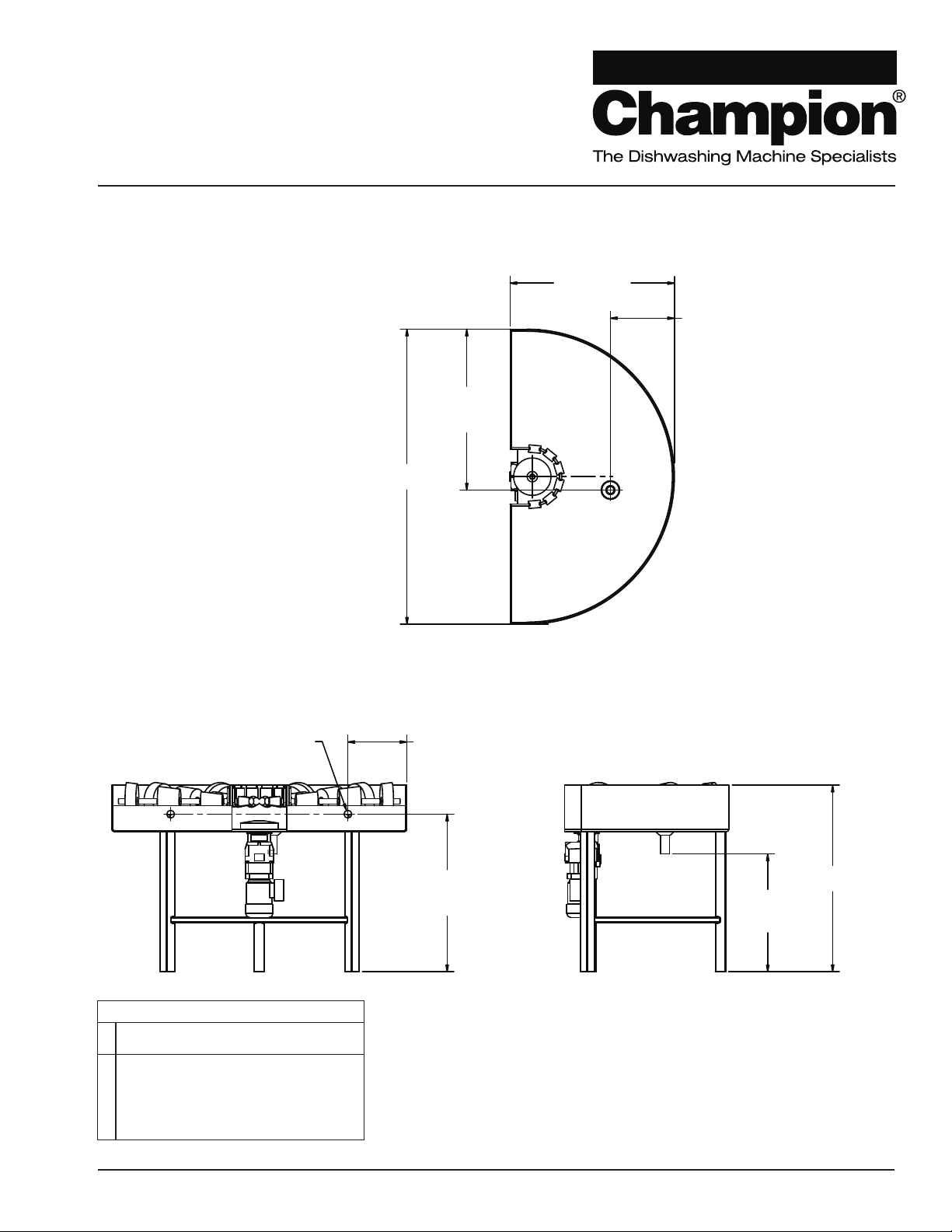

180° Motorized Rack Curve with Table
Utilities
1 Electrical - See rack machine electrical
requirements. MRC will run on same amps
2 Drain
A 1-1/4" O.D. connection.
Motorized Rack Curve.
B 1-7/16" O.D. connection.
Roller Conveyor Table.
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661-1556 • Fax: 336/661-1979 • www.championindustries.com
2674 N. Service Road, Jordan Station, Ontario, Canada L0R 1S0 • 905/562-4195 • Fax: 905/562-4618
Page 4
TABLE SYSTEMS
Left-to-right Operation
For standard 20" x 20" racks

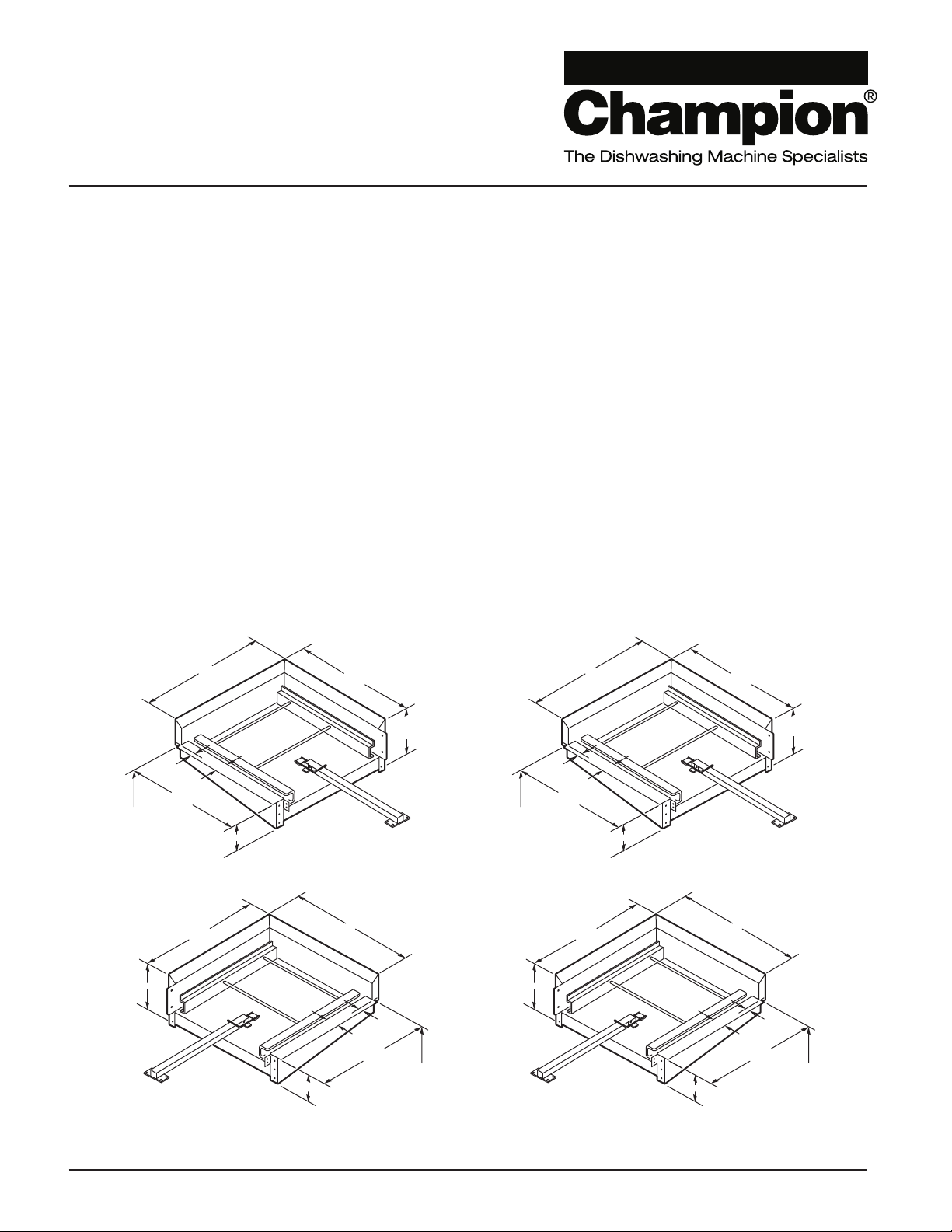

24" Cantilever Sideloader 30" Cantilever Sideloader
For 20" racks up to 30" long
Right-to-left Operation
25"
1"
2-5/8"
21-7/8"
6-3/16"
34"
to Floor
9-1/16"
23-9/16"
34"
to Floor
28-9/16"
25"
1"
2-5/8"
27-7/8"
6-3/16"
9-1/16"
28-9/16"
9-1/16"
34"
to Floor
6-3/16"
27-7/8"
2-5/8"
1"
34"
to Floor
6-3/16"
1"
21-7/8"
9-1/16"
23-9/16"
25"
Left-to-right Operation
Right-to-left Operation
2-5/8"
25"
For Rack Conveyor Series
Dishwashing Machines
• Cantilever table – load racks from the
front, offering layout flexibility and saving
valuable space
• Durable welded heavy-gauge #304
stainless steel with removable rack
guide for ease of cleaning
• Optional hood for splash protection,
cantilever tables are available with
an optional stainless steel hood with
vent cowl opening
Due to an ongoing value analysis program at Champion, specifications contained in this catalog are subject to change without notice.
Champion Industries, Inc., P. O. Box 4149, Winston-Salem, NC 27115 • 336/661/1556 • Fax: 336/661-1979 • www.championindustries.com
