Champion 500988-UK User guide

Download

Page 1

at championpowerequipment.co.uk

OPERATOR'S MANUAL

MODEL #500988-UK

3500W RATED DUAL FUEL

INVERTER GENERATOR

+44(0)-1942-715-407

or visit www.championpowerequipment.co.uk

SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do

so could result in serious injury. This manual should remain with the product.

Speciﬁcations, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.

REV 20220916

Page 2

MANUAL

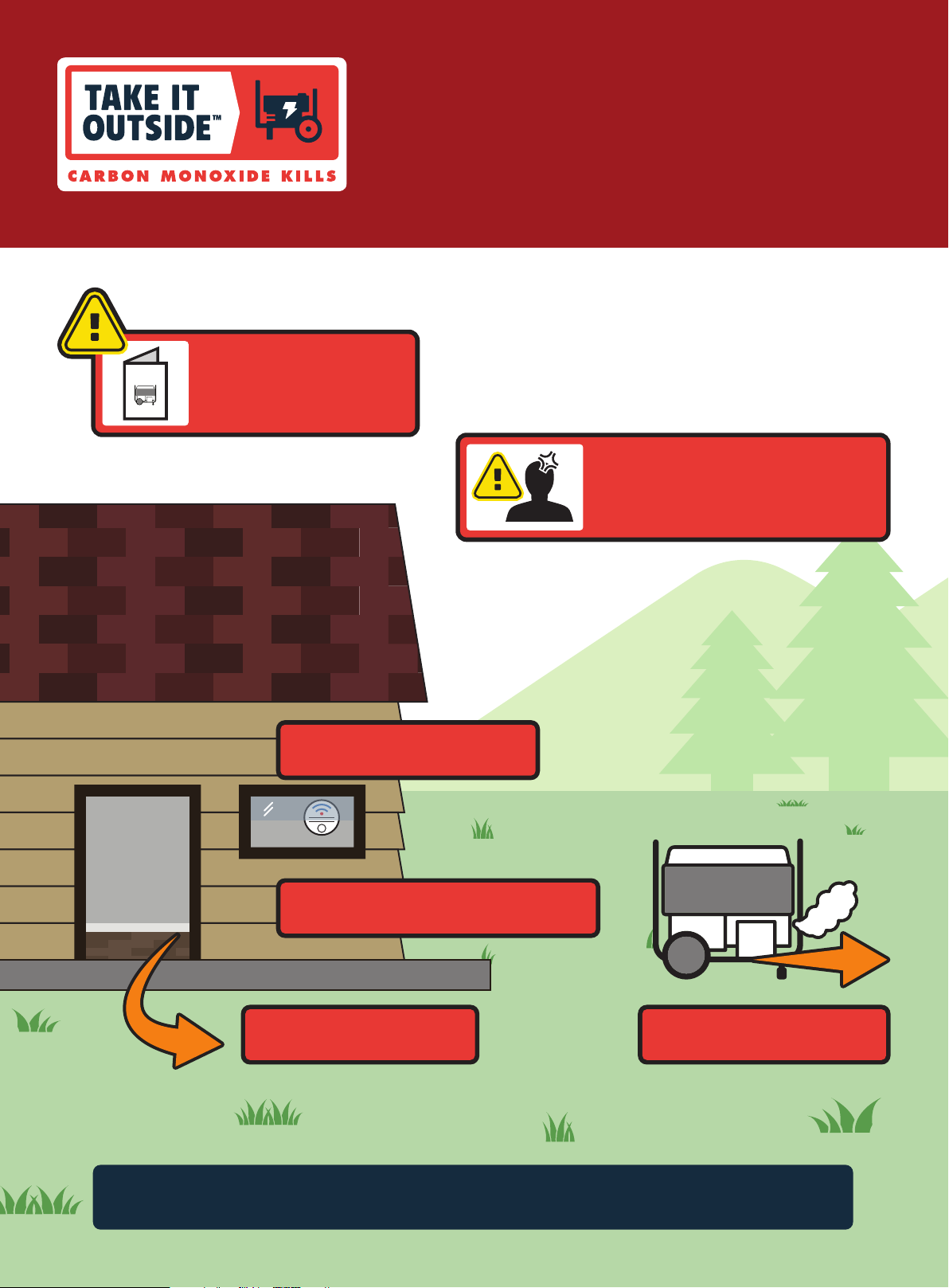

CARBON MONOXIDE SAFETY: THE BIG PICTURE

As the only safe way to use a portable generator, taking your generator outside is absolutely mandatory to keep your family safe from carbon monoxide. But there’s even more you can do. By educating yourself about all carbon monoxide risks, you’ll be better prepared to protect your family from this colorless, oderless threat.

ALWAYS READ THE OPERATOR’S MANUAL FIRST

KNOW THE SYMPTOMS

• Headache

• Nausea

• Shortness of breath

• Dizziness

• Fatigue

STAY ALERT WITH CARBON MONOXIDE DETECTORS

KEEP IT OUTSIDE AND AWAY FROM DOORS, WINDOWS, AND GARAGES

IF YOU FEEL SYMPTOMS, LEAVE RIGHT AWAY

POINT FUMES AWAY FROM NEARBY PEOPLE

www.TakeYourGeneratorOutside.com

Page 3

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

TABLE OF CONTENTS

Introduction

Safety Deﬁnitions

Important Safety Instructions

Fuel Safety ........................................................ 7

Lithium-ion Battery Safety ........................................ 8

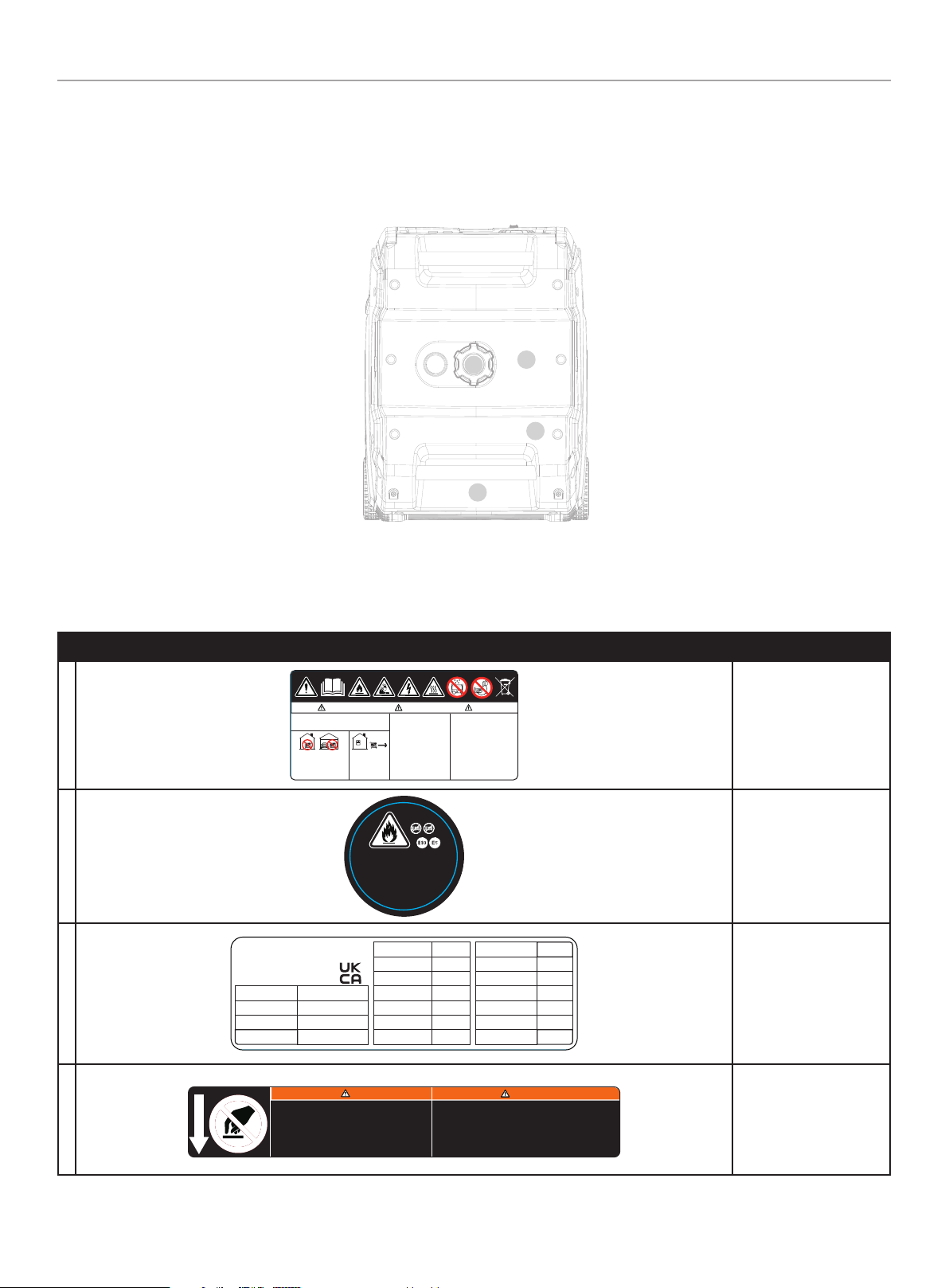

Safety and Dataplate Labels ...................................... 9

Safety Symbols ................................................... 10

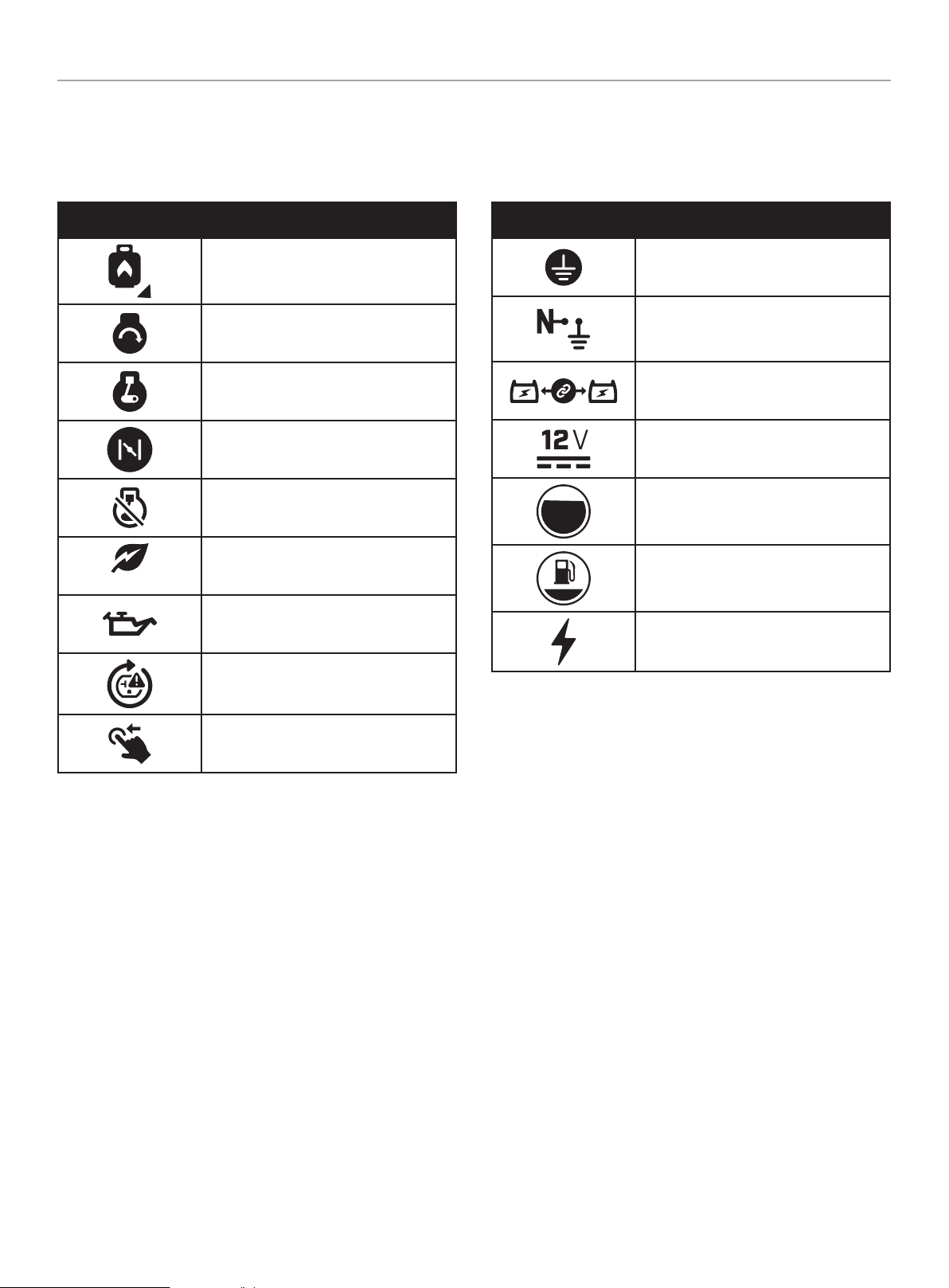

Operation Symbols ............................................... 12

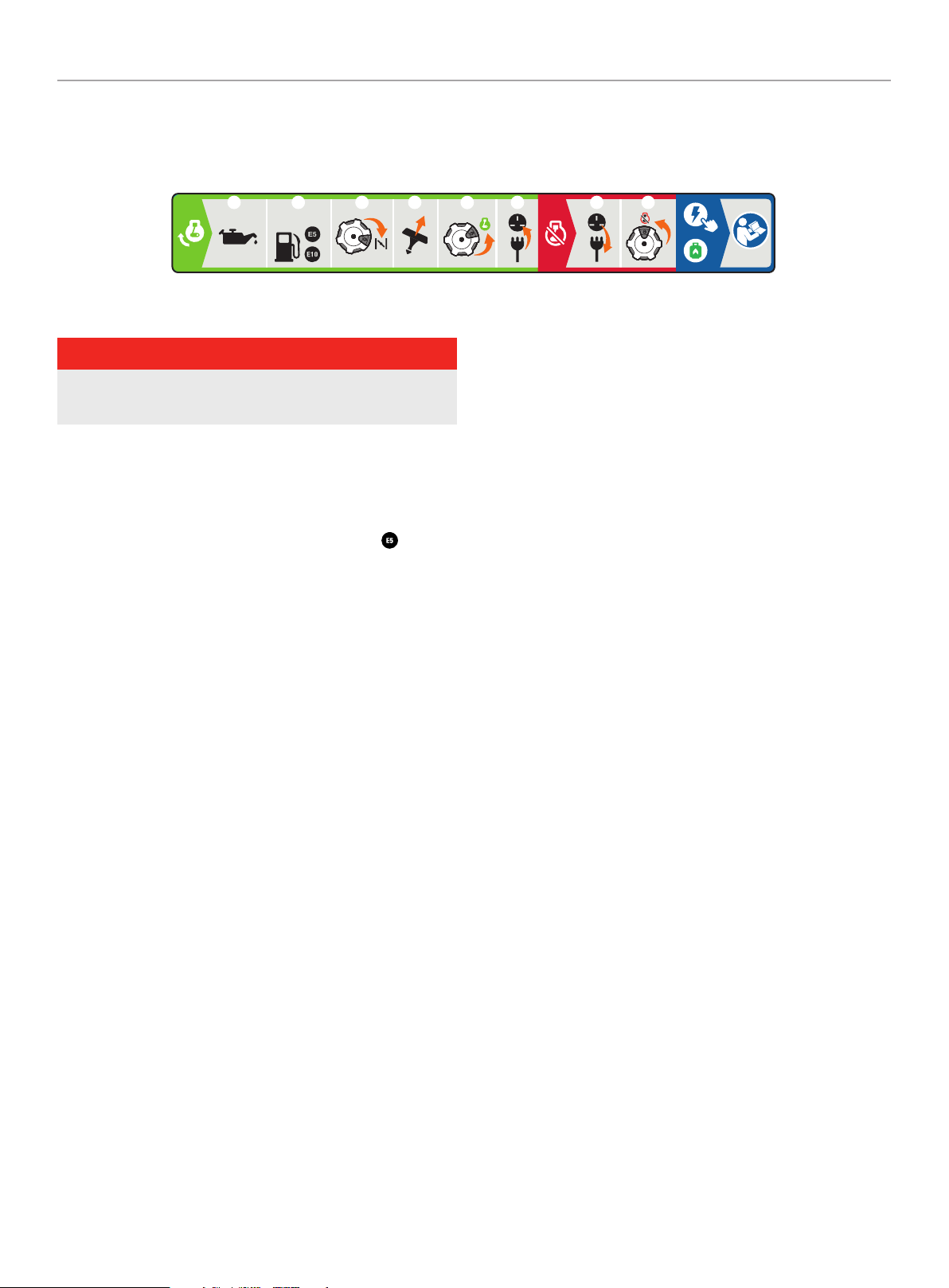

Quick Start Label Symbols....................................... 13

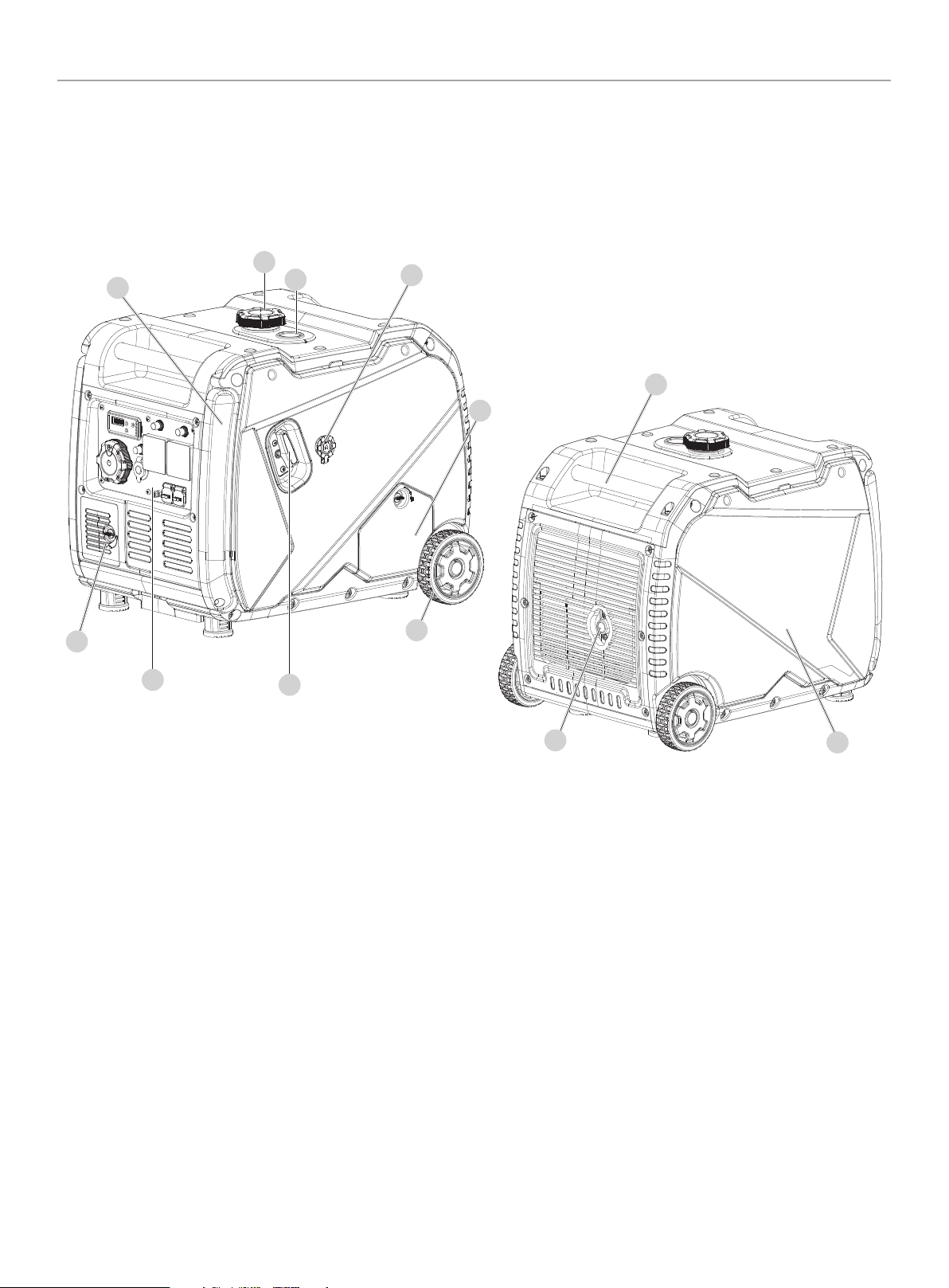

Controls and Features ................................. 14

Generator ......................................................... 14

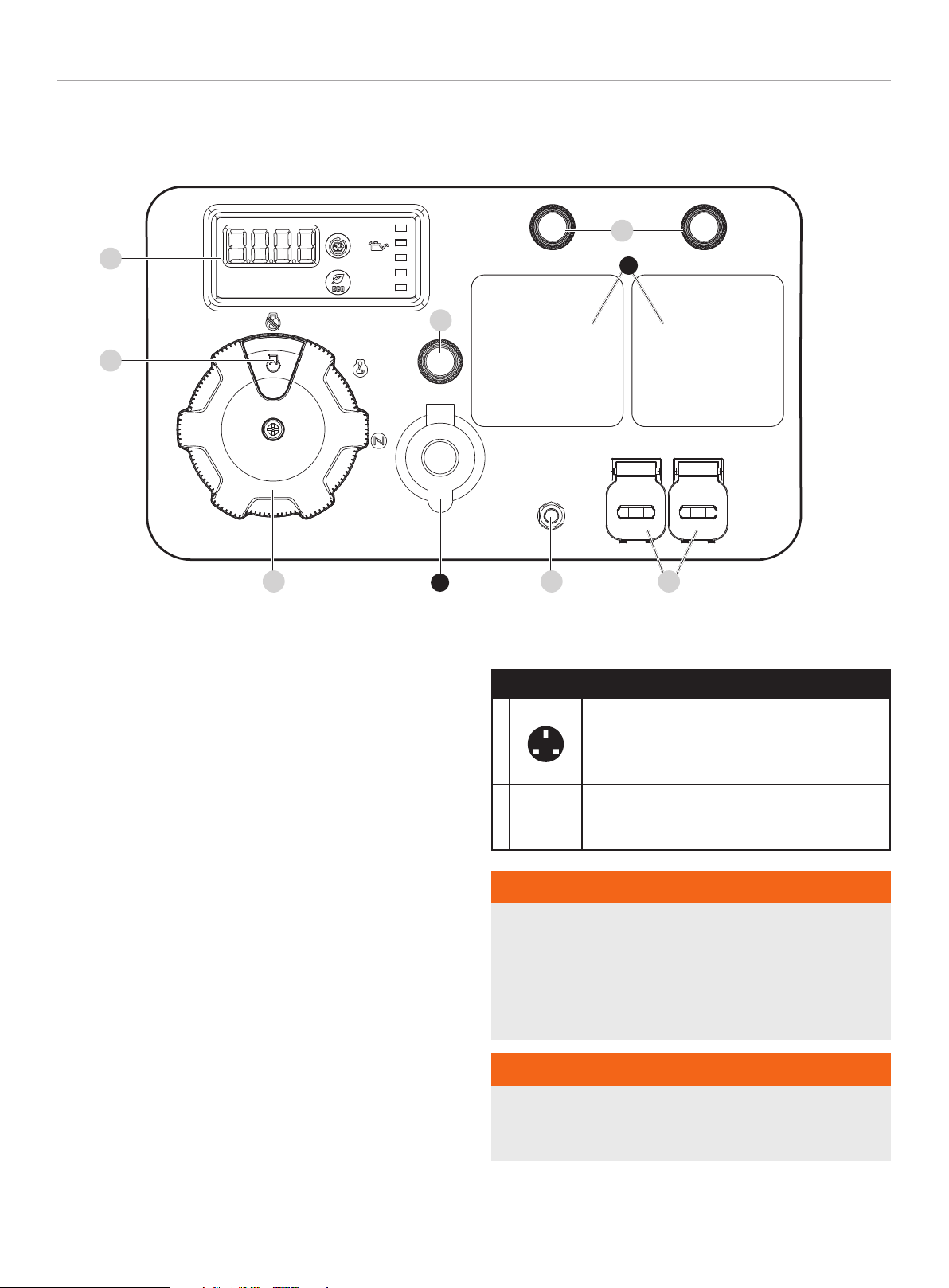

Control Panel ..................................................... 15

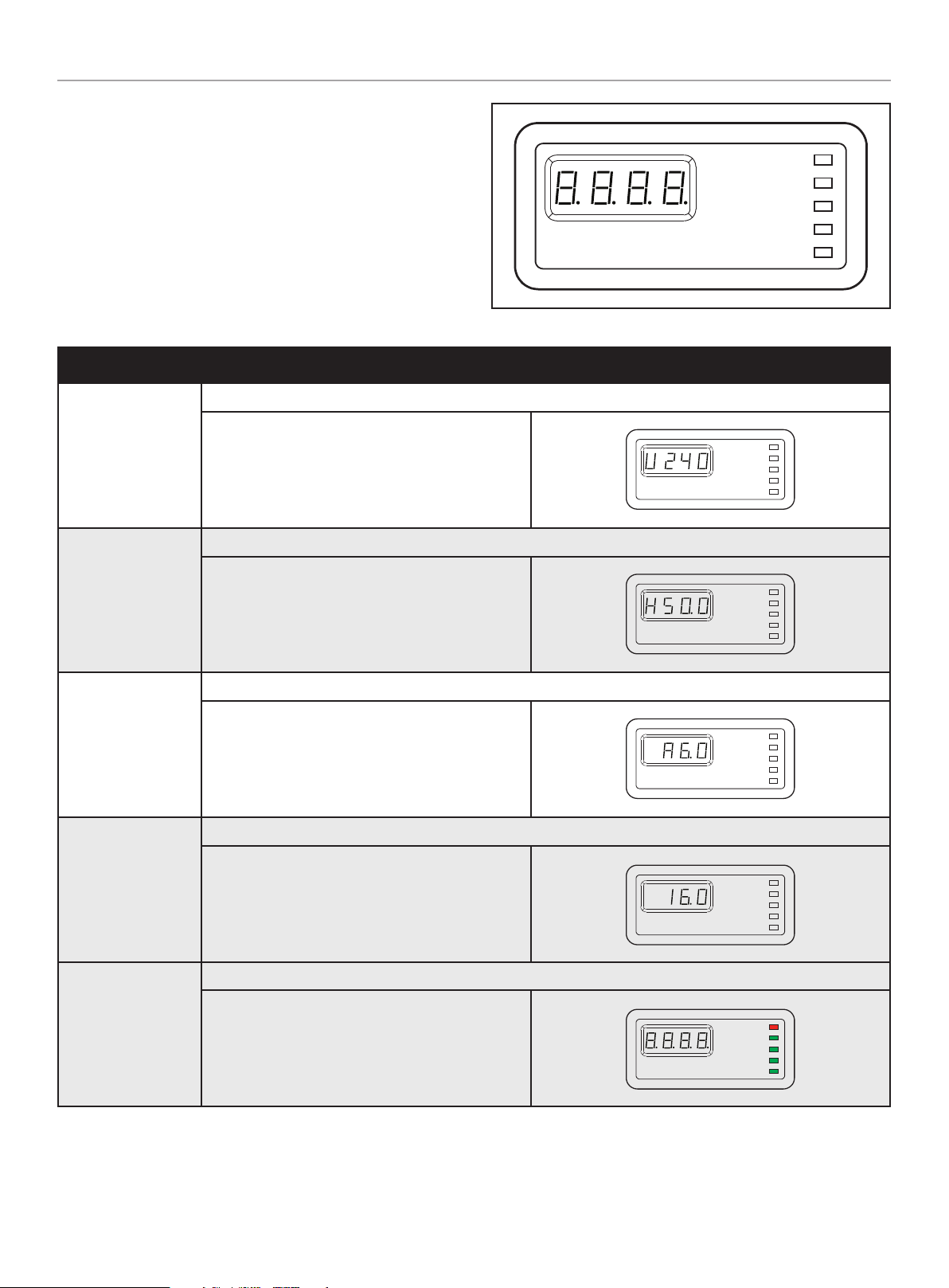

Intelligauge with Power Meter ................................... 16

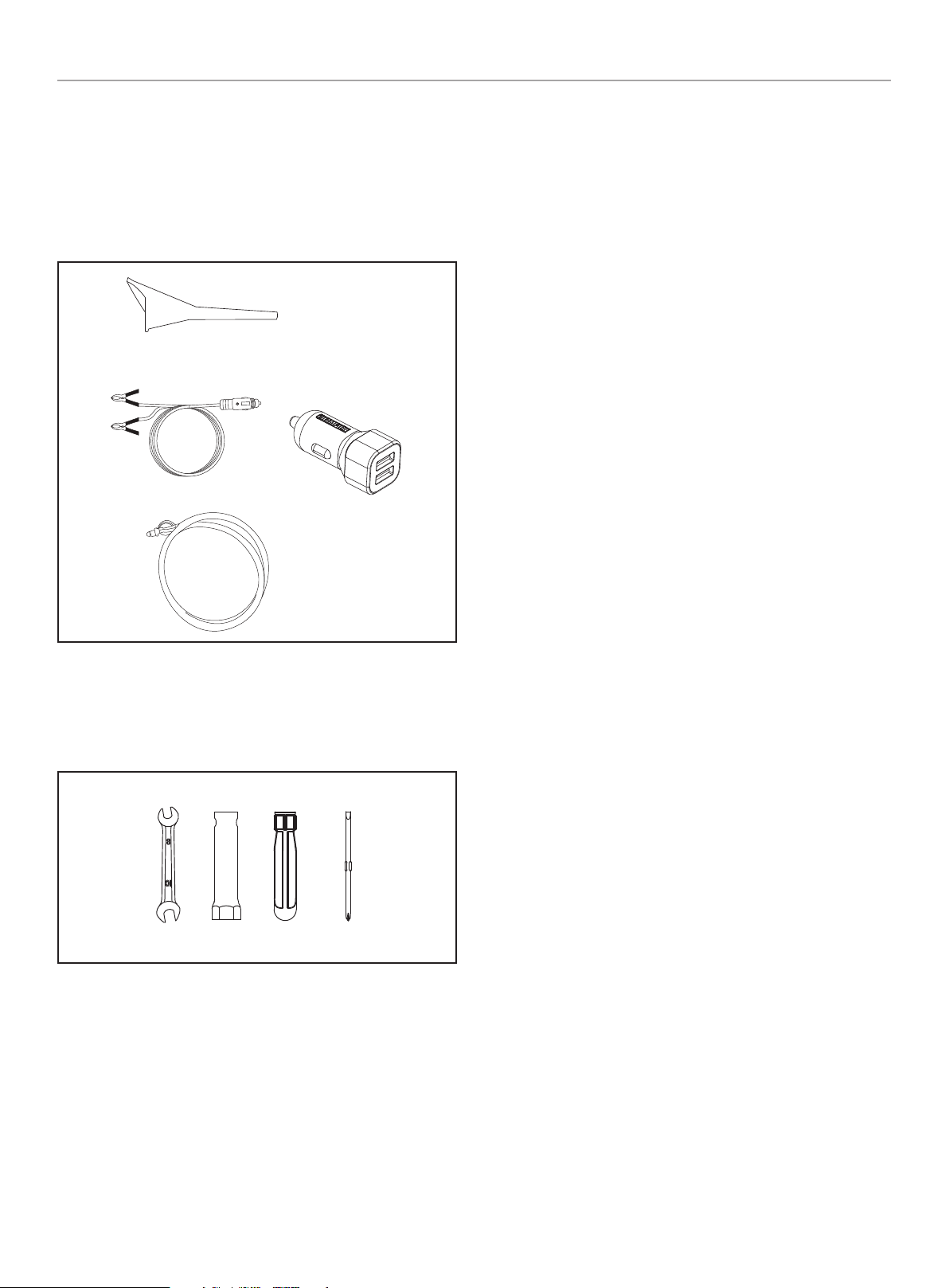

Parts Included .................................................... 17

Assembly ..................................................... 18

Unpacking ........................................................ 18

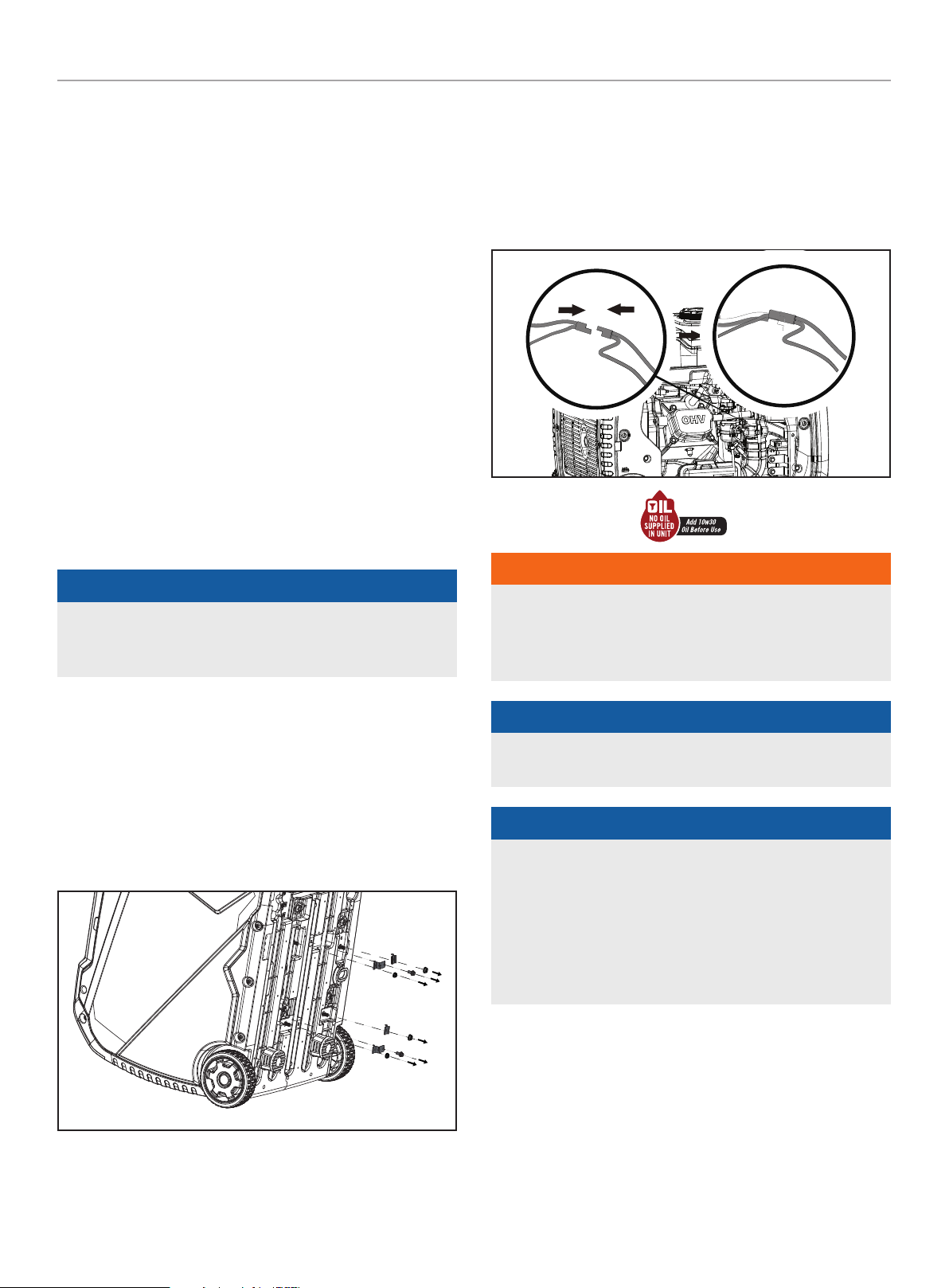

Remove Shipping Support Hardware ............................ 18

Connect the Battery .............................................. 18

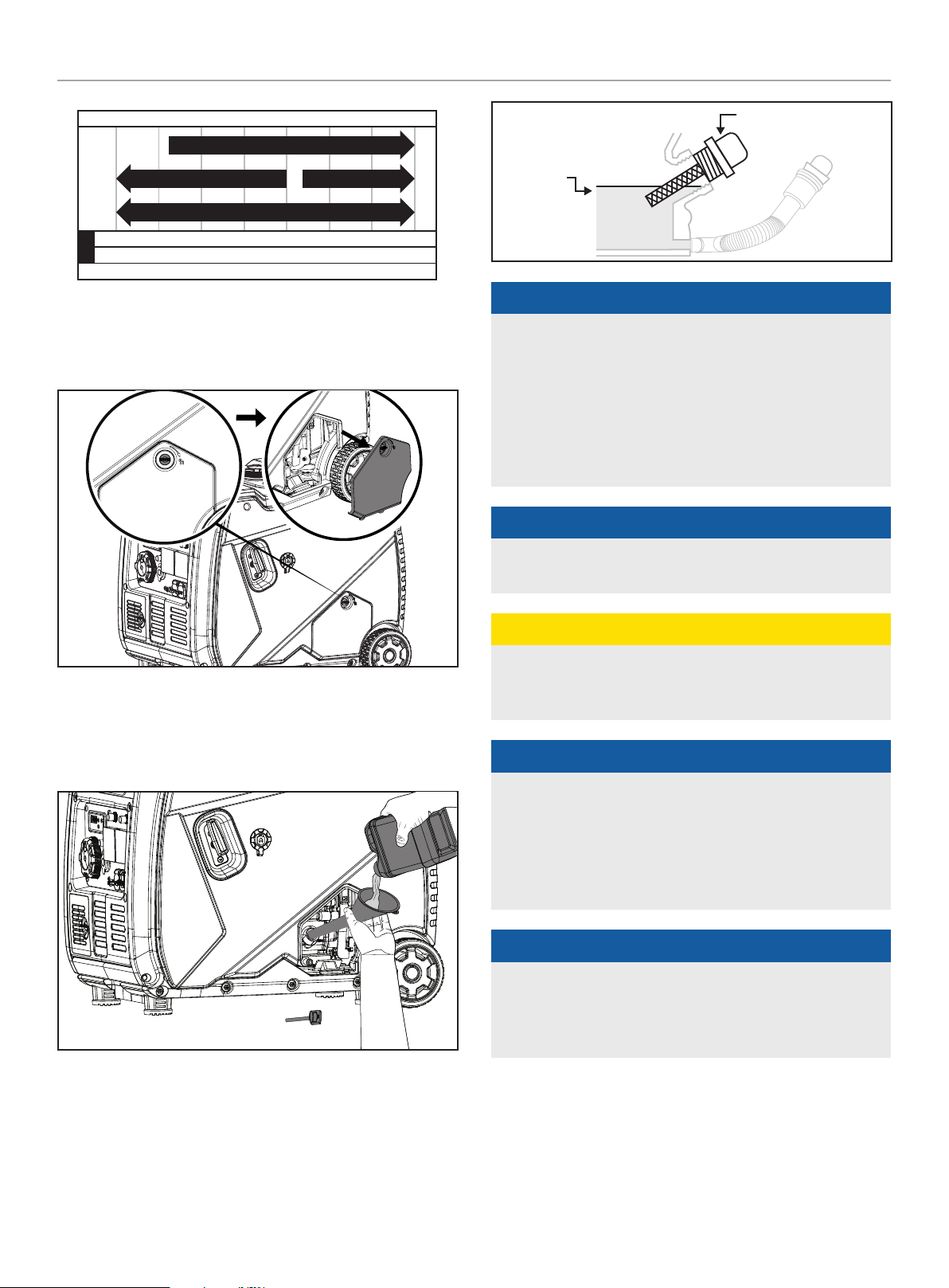

Add Engine Oil .................................................... 18

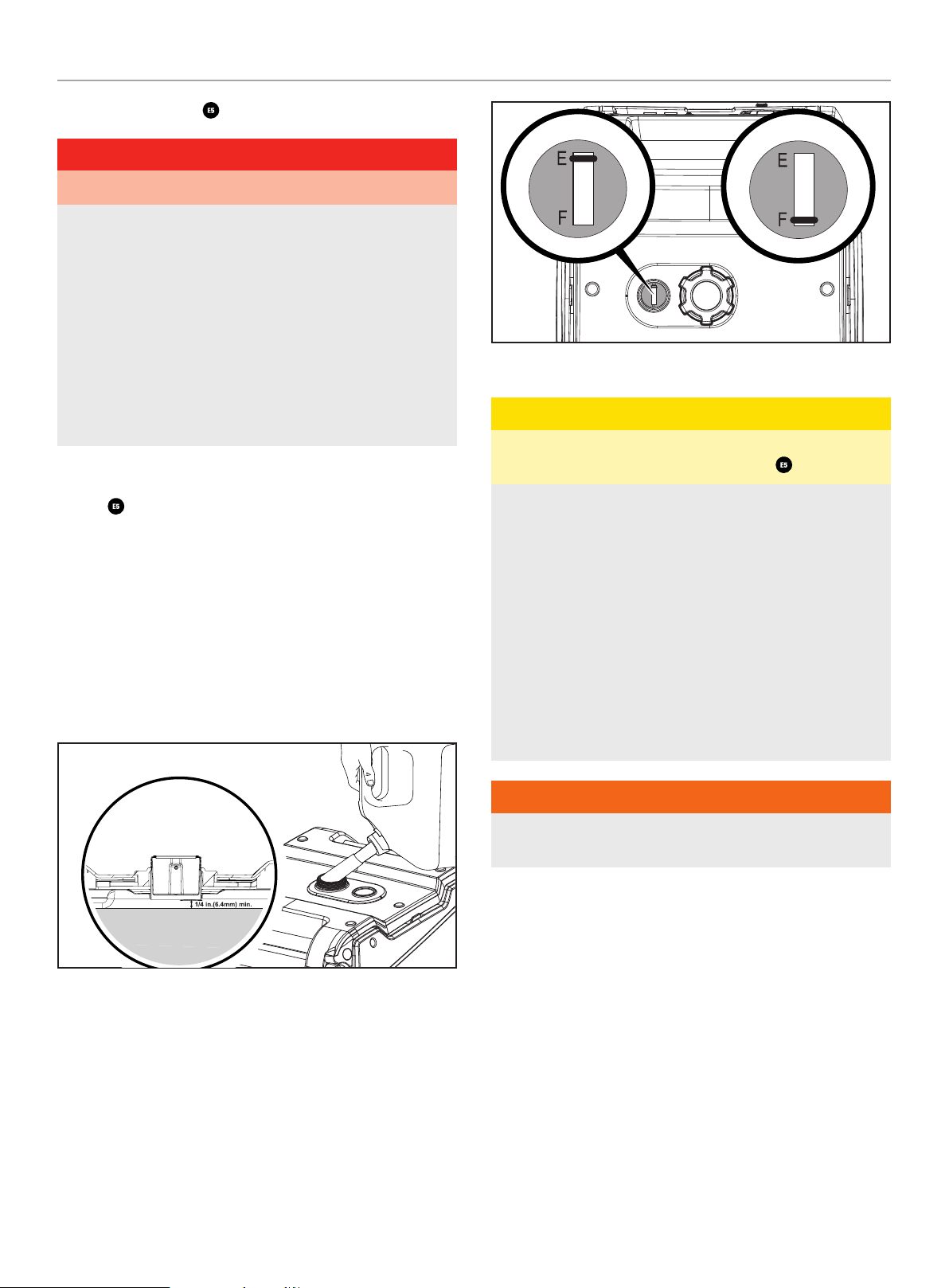

Add Fuel: Petrol y .......................................... 20

Add Fuel: Propane (LPG) ......................................... 21

Grounding ........................................................ 22

Operation .....................................................22

Generator Location ............................................... 22

Surge Protection ................................................. 23

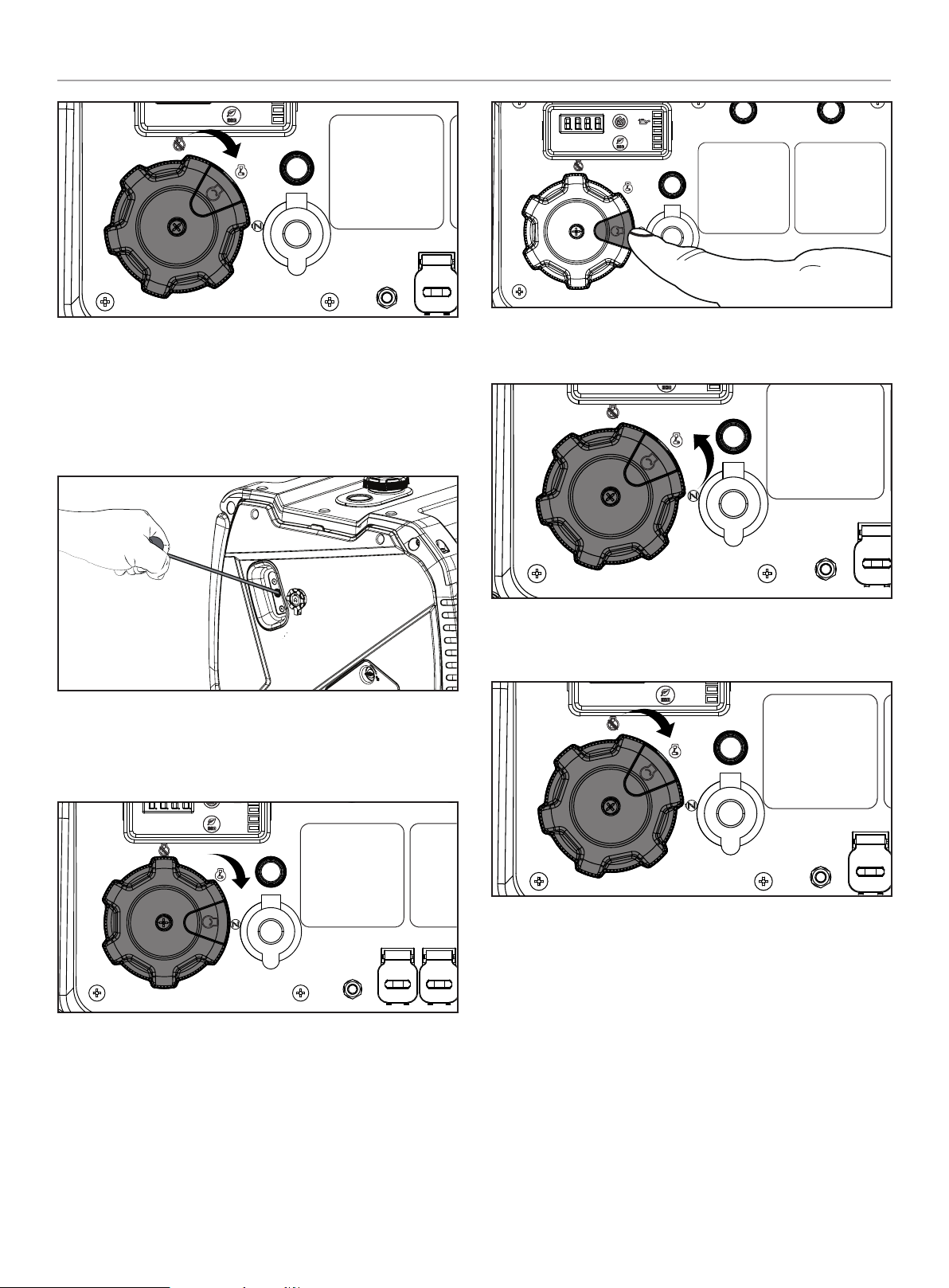

Starting the Engine: Petrol ....................................... 23

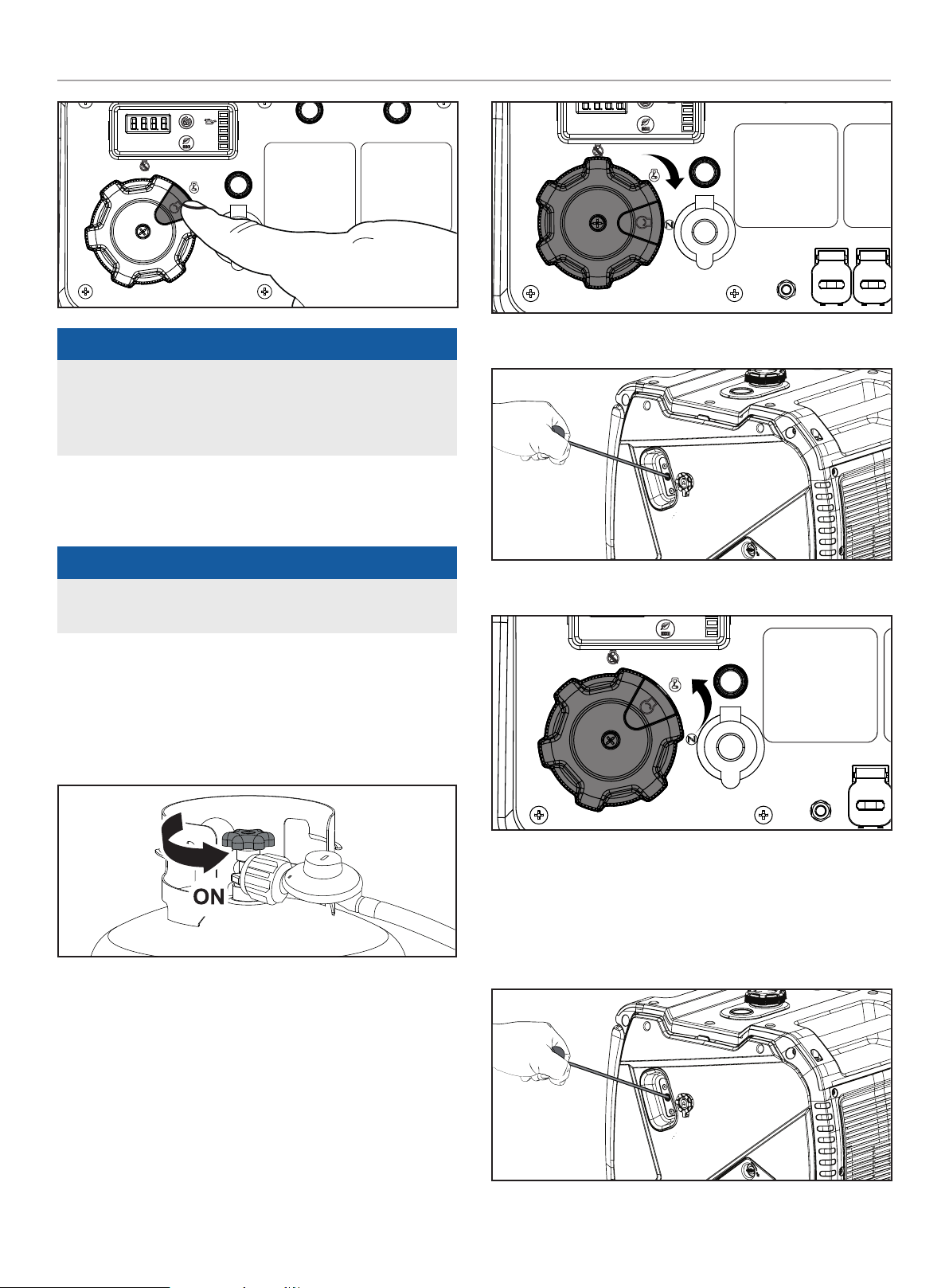

Starting the Engine: Propane (LPG) ............................. 25

Connecting Electrical Loads ..................................... 27

Do Not Overload Generator ...................................... 27

Eco (Economy) Mode ............................................. 28

12V DC Automotive Style Outlet ................................. 28

Parallel Operation ................................................29

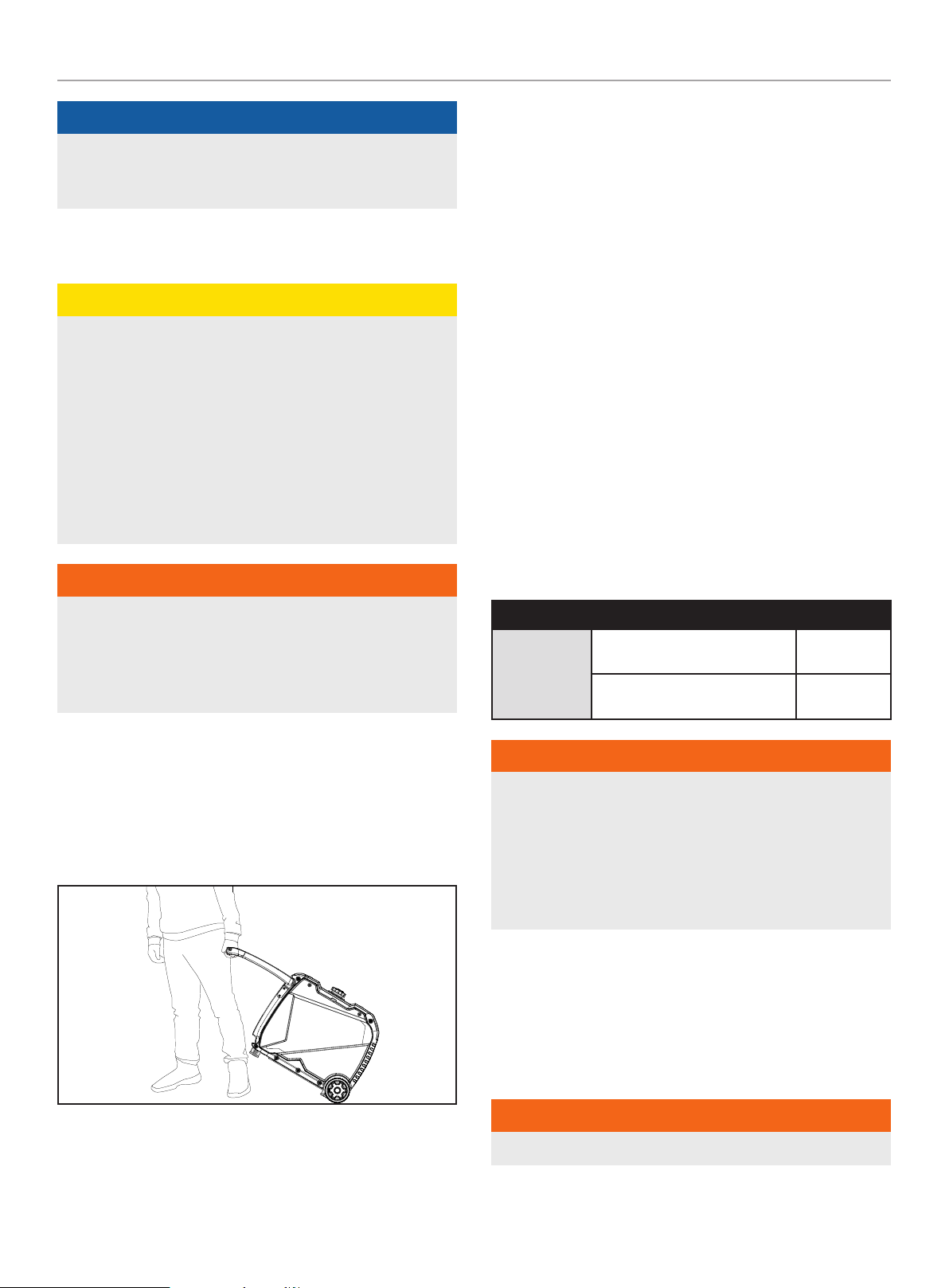

Moving the Generator ............................................ 30

Operation at High Altitude ....................................... 30

Maintenance ................................................ 30

Cleaning the Generator .......................................... 31

Changing the Engine Oil ......................................... 31

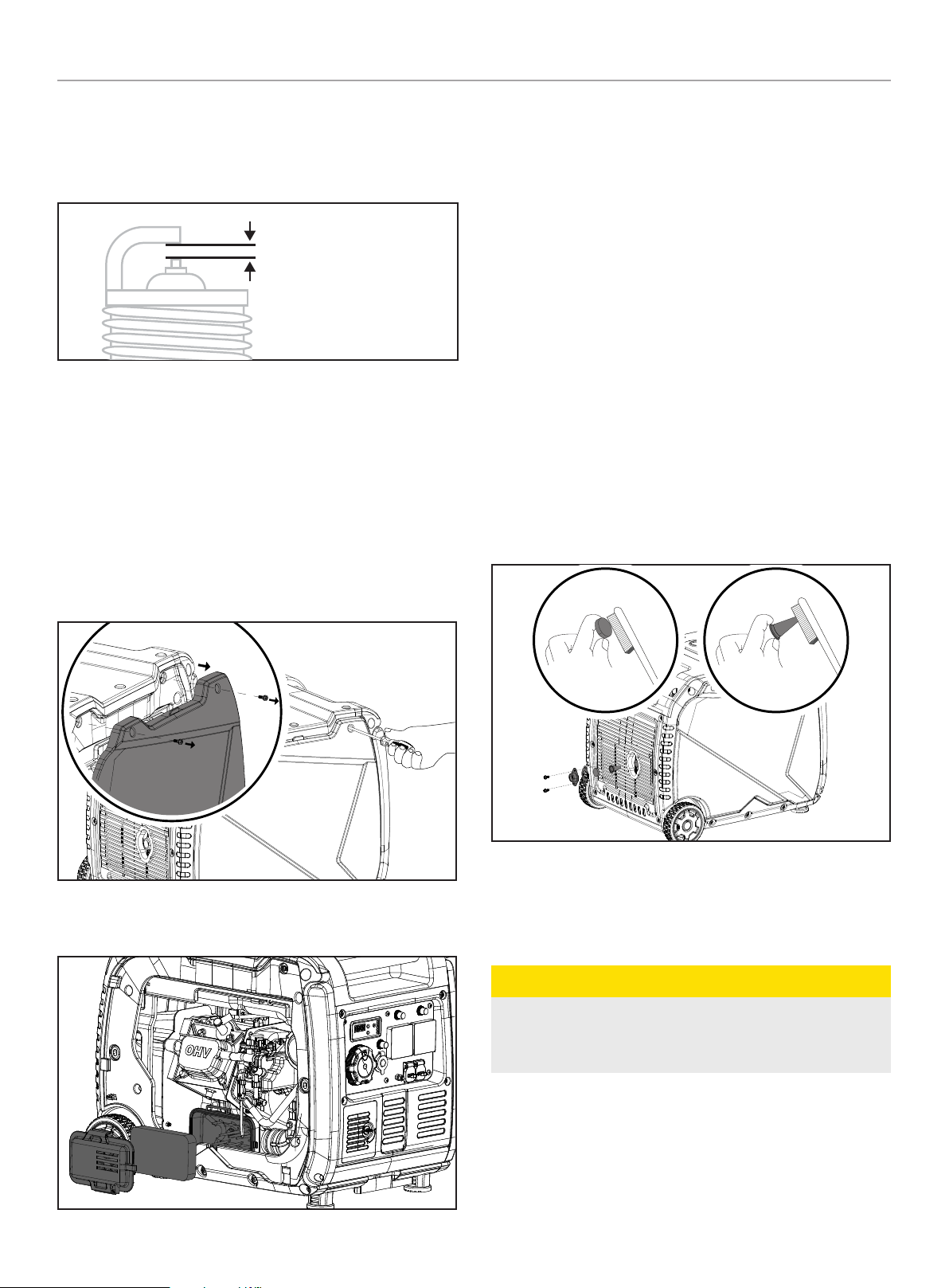

Cleaning and Adjusting the Spark Plug .......................... 31

Cleaning the Air Filter ............................................ 32

Cleaning the Spark Arrestor ..................................... 32

................................................... 4

..........................................4

....................... 5

Generator Battery

Adjusting the Governor ........................................... 33

Maintenance Schedule ........................................... 33

................................................ 33

Storage ........................................................34

Short to Mid Term Storage (up to 1 year) ....................... 34

Long Term Storage (more than 1 year) .......................... 35

Removing from Storage .......................................... 35

Speciﬁcations .............................................. 36

Generator Speciﬁcations ......................................... 36

Engine Speciﬁcations ............................................ 36

Oil Speciﬁcations ................................................. 36

Fuel Speciﬁcations ............................................... 36

Temperature Speciﬁcations ...................................... 36

Wiring Diagram ................................................... 37

Parts Diagram Figure A .......................................... 38

Parts List ......................................................... 39

Parts Diagram Figure E .......................................... 41

Parts List ......................................................... 42

Parts Diagram Figure F .......................................... 43

Parts List ......................................................... 44

Parts Diagram Figure G .......................................... 45

Parts List ......................................................... 46

Parts Diagram Figure H .......................................... 47

Parts List ......................................................... 48

Engine Parts Diagram Figure B .................................. 49

Engine Parts List ................................................. 50

Engine Parts Diagram Figure C .................................. 52

Engine Parts List ................................................. 53

Engine Parts Diagram Figure D .................................. 54

Engine Parts List ................................................. 55

Troubleshooting ...........................................56

WARRANTY*

Warranty Qualiﬁcations .......................................... 59

Repair/Replacement Warranty ................................... 59

Do Not Return The Unit To The Place Of Purchase ............. 59

Warranty Exclusions ............................................. 59

Other Exclusions ................................................. 59

Limits of Implied Warranty and Consequential Damage ........ 59

Contact Information .............................................. 59

................................................. 59

Page 4

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

INTRODUCTION

Congratulations on your purchase of a Champion Power Equipment (CPE) product. CPE designs, builds, and supports all of our products to strict speciﬁcations and guidelines. With proper product knowledge, safe use, and regular maintenance, this product should bring years of satisfying service.

Every effort has been made to ensure the accuracy and completeness of the information in this manual at the time of publication, and we reserve the right to change, alter and/or improve the product and this document at any time without prior notice.

CPE highly values how our products are designed, manufactured, operated, and serviced as well as providing safety to the operator and those around the generator. Therefore, it is IMPORTANT to review this product manual and other product materials thoroughly and be fully aware and knowledgeable of the assembly, operation, dangers and maintenance of the product before use. Fully familiarize yourself, and make sure others who plan on operating the product fully familiarize themselves too, with the proper safety and operation procedures before each use. Please always exercise common sense and always err on the side of caution when operating the product to ensure no accident, property damage, or injury occurs. We want you to continue to use and be satisﬁed with your CPE product for years to come.

SAFETY DEFINITIONS

The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention and understanding. The safety warnings do not by themselves eliminate any danger. The instructions or warnings they give are not substitutes for proper accident prevention measures.

 DANGER

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

 WARNING

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

 CAUTION

CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.



NOTICE

When contacting CPE about parts and/or service, you will need to supply the complete model and serial numbers of your product. Transcribe the information found on your product’s nameplate label to the table below

CPE TECHNICAL SUPPORT TEAM

+4 4(0)-1942-715-4 07

MODEL NUMBER

500988-UK

SERIAL NUMBER

DATE OF PURCHASE

PURCHASE LOCATION

NOTICE indicates information considered important, but not hazard-related (e.g., messages relating to property damage).

Page 5

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

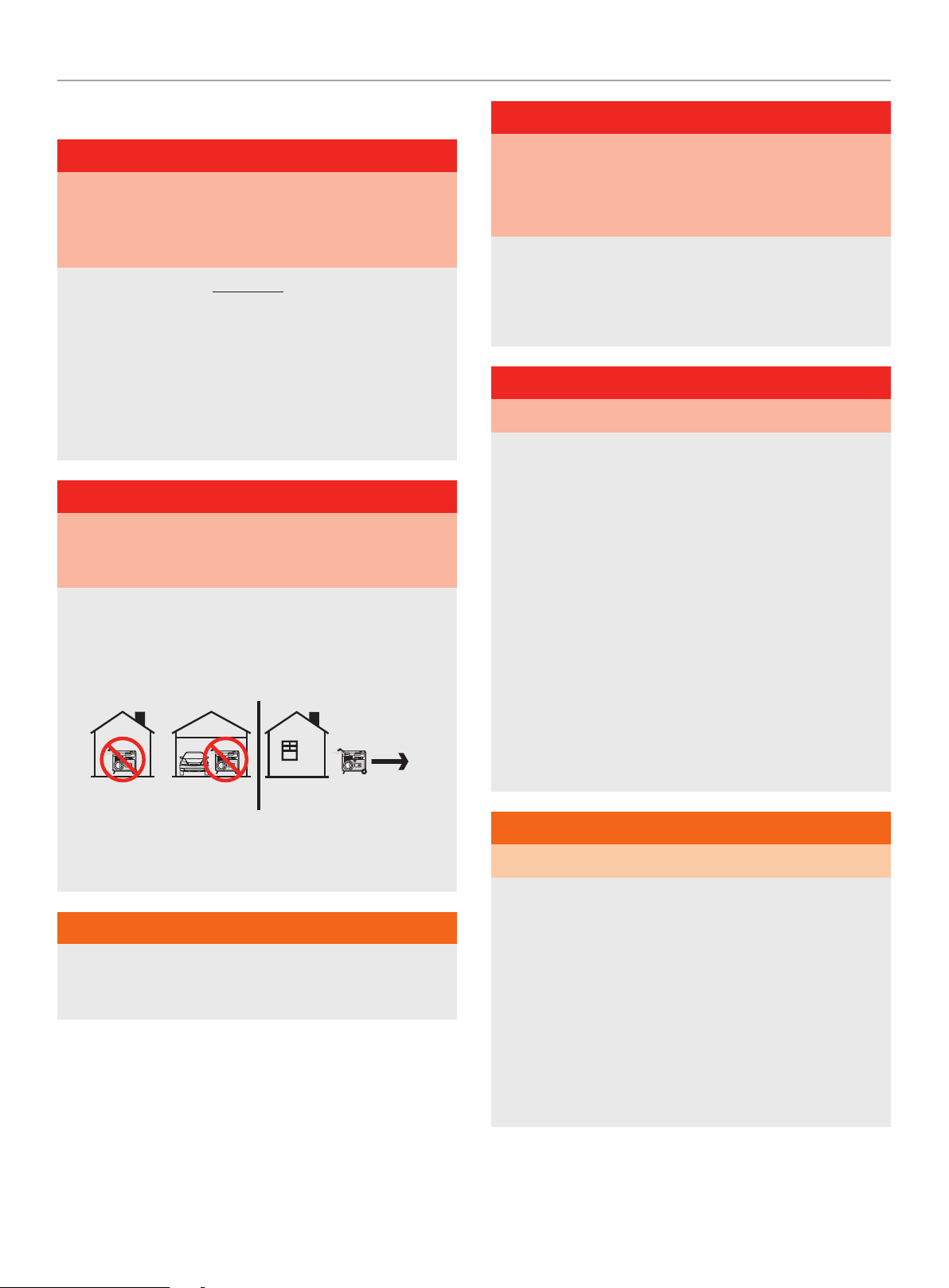

IMPORTANT SAFETY INSTRUCTIONS

 DANGER

Generator exhaust contains carbon monoxide, a colorless, odorless, poisonous gas. Breathing carbon monoxide will cause nausea, dizziness, fainting or death. If you start to feel dizzy or weak, get to fresh air immediately.

OPERATE GENERATOR OUTDOORS ONLY IN A WELL VENTILATED AREA AND POINT EXHAUST AWAY.

DO NOT operate the generator inside any ,sheds & vehicles, including garages, basements, crawlspaces and sheds, enclosure or compartment, including the generator compartment of a recreational vehicle.

DO NOT allow exhaust fumes to enter a conﬁned area through windows, doors, vents or other openings.

 DANGER

Using a generator indoors CAN KILL YOU IN MINUTES. Generator exhaust contains carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a home or garage, EVEN IF doors and windows are open.

ONLY use OUTSIDE and far away from windows, doors, and vents.

 DANGER

Operate equipment with guards in place.

Rotating parts can entangle hands, feet, hair, clothing and/or accessories. Traumatic amputation or severe laceration can result.

Keep hands and feet away from rotating parts.

Tie up long hair and remove jewelry.

DO NOT wear loose-ﬁtting clothing, dangling drawstrings or items that could become caught.

 DANGER

Generator produces powerful voltage.

DO NOT touch bare wires or sockets.

DO NOT use electrical cords that are worn, damaged or frayed. Use only Champion electrical cords for proper application.

DO NOT operate generator in wet weather including rain or snow.

DO NOT allow children or unqualiﬁed persons to operate or service the generator.

Use a ground fault circuit interrupter (GFCI) in damp areas and areas containing conductive material such as metal decking(MUST be installed separately).

Connection to your home’s electrical system requires a listed 100A transfer switch installed by a licensed electrician and approved by the local authority having jurisdiction. The connection must isolate the generator from the utility power and must comply with all applicable laws and electrical codes.

Install battery-operated carbon monoxide alarms or plug-in carbon monoxide alarms with battery back-up according to the manufacturer’s instructions.

 WARNING

Although the generator contains a spark arrester, maintain a minimum distance of 5 ft. (1.5 m) from dry vegetation to prevent ﬁres.

 WARNING

Do not use generator for medical and life support uses.

In case of emergency, call emergency services immediately.

NEVER use this product to power life support devices or life support appliances.

NEVER use this product to power medical devices or medical appliances.

Inform your electricity provider immediately if you or anyone in your household depends on electrical equipment to live.

Inform your electrical provider immediately if a loss of power would cause you or anyone in your household to experience a medical emergency.

Page 6

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

 WARNING

Spark from removed spark plug wire can result in ﬁre or electrical shock.

When servicing the generator:

Disconnect the spark plug wire and place it where it cannot contact the plug or any other metal object.

DO NOT check for spark with the plug removed.

Use only approved spark plug testers.

 WARNING

Running engines produce heat. Severe burns can occur on contact. Combustible material can catch ﬁre on contact.

DO NOT touch hot surfaces like engine or exhaust mufﬂer.

Avoid contact with hot exhaust gases.

Allow equipment to cool minimum 30mins before handling.

Maintain at least 3 ft. (91.4 cm) of clearance on all sides to ensure adequate cooling.

Maintain at least 5 ft. (1.5 m) of clearance from combustible materials.

 CAUTION

Exceeding the generator’s running capacity can damage the generator and/or electrical devices connected to it.

DO NOT overload the generator.

DO NOT tamper with the governed speed.

DO NOT modify the generator in any way.

Do Not modify or install any exhaust mufﬂer extensions, by doing so will void any warranty offered.

 CAUTION

Start the generator and allow the engine to stabilize before connecting electrical loads.

Connect electrical equipment in the off position, and then turn them on for operation.

Turn electrical equipment off and disconnect before stopping the generator.

 CAUTION

Improper treatment or use of the generator can damage it, shorten its life or void the warranty.

 WARNING

Rapid retraction of the recoil cord will pull hand and arm towards the engine faster than you can let go. Broken bones, fractures, bruises or sprains could result. Unintentional startup can result in entanglement, traumatic amputation or laceration.

When starting engine, pull the recoil cord slowly until resistance is felt (compression point), release back cord and then with one strong rapid pull to start. repeat process, Do not excessively or rigorously pull the recoil cord or otherwise you will break or damage it. By doing so you will void and warranty.

Use the generator only for intended uses.

Operate only on ﬂat level surfaces.

DO NOT expose generator to excessive moisture, dust, or dirt.

DO NOT allow any material to block the cooling slots.

If connected devices overheat, turn them off and disconnect them from the generator.

DO NOT use the generator if:

– Electrical output is lost

– Equipment sparks, smokes or emits ﬂames

– Equipment vibrates excessively

Page 7

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

Fuel Safety

 DANGER

PETROL, PETROL VAPORS AND PROPANE (LPG) ARE HIGHLY FLAMMABLE AND EXPLOSIVE.

Fire or explosion can cause severe burns or death.

Petrol and petrol vapors:

– Petrol is highly ﬂammable and explosive.

– Petrol can cause a ﬁre or explosion if ignited.

– Petrol is a liquid fuel but it’s vapors can ignite.

– Petrol is a skin irritant and needs to be cleaned up immediately

if spilled on skin or clothes.

– Petrol has a distinctive odor, this will help detect potential

leaks quickly.

– In any petroleum gas ﬁre, ﬂames should not be extinguished

unless by doing so the fuel supply valve can be turned OFF. This is because if a ﬁre is extinguished and a supply of fuel is not turned OFF, then an explosion hazard could be created.

– Gasoline expands or contracts with ambient temperatures.

Never ﬁll the gasoline tank to full capacity, as gasoline needs room to expand if temperatures rise.

Propane:

– Propane is highly ﬂammable and explosive.

– Propane is under pressure and can cause a ﬁre or explosion if

ignited.

– Propane is heavier than air and can settle in low places while

dissipating.

– Propane has a distinctive odor added to help detect potential

leaks quickly.

DO NOT pump petrol directly into the generator at the gas station. Always use an approved container to transfer the fuel to the generator.

DO NOT overﬁll the gasoline tank.

Always keep petrol away from sparks, open ﬂames, pilot lights, heat and other sources of ignition.

When starting the generator:

DO NOT attempt to start a damaged generator.

Always check that the gasoline cap, air ﬁlter, spark plug, fuel lines and exhaust system are properly in place.

Always allow spilled petrol to evaporate fully before attempting to start the engine.

Always be certain that the generator is resting ﬁrmly on level ground.

When operating the generator:

DO NOT move or tip the generator during operation.

When transporting or servicing the generator:

Always check that the fuel valve is in the OFF position and the gasoline tank is empty.

For propane compatible models, check that the LPG cylinder is disconnected and stored securely away from the generator.

Disconnect the spark plug wire.

When storing the generator:

Store away from sparks, open ﬂames, pilot lights, heat and other sources of ignition.

Do not store generator, petrol or propane cylinders near furnaces, water heaters, or any other appliances that produce heat or have automatic ignitions.

 DANGER

– In any petroleum gas ﬁre, ﬂames should not be extinguished

unless by doing so the fuel supply valve is turned OFF. This is because if a ﬁre is extinguished and a supply of fuel is not turned OFF, then an explosion hazard could be created.

– When exchanging propane cylinders, check that the cylinder

valve is of the same type.

– Always keep the propane cylinder in an upright position.

– Propane will burn skin if it comes in contact with it. Keep any

and all propane away from skin at all times.

When adding or removing petrol:

DO NOT light or smoke cigarettes.

Turn the generator off and let cool for at least two minutes before removing the petrol cap. Always loosen the cap slowly to relieve pressure in the tank.

Only ﬁll or drain petrol outdoors in a well-ventilated area.

NEVER place a petrol container, gasoline tank, propane cylinder or any combustible material in the path of the exhaust stream during operation of the engine.

 WARNING

Never use a petrol container, petrol tank, propane connector hose, propane cylinder or any other fuel item that is broken, cut, torn or damaged.

Page 8

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

Lithium-ion Battery Safety

Electrolyte inside the battery is harmful to skin and eyes. If the battery leaks and electrolyte gets in your eyes, do not rub them. Instead, rinse them with clean running water and immediately seek medical attention. If left untreated, electrolyte can cause permanent eye injury.

When using the generator:

– Do not use the battery near sources of high heat or ﬁre.

– Do not reverse or short-circuit the positive (+) or negative (-)

terminals.

– Do not use the battery in parallel or in series.

– Do not discharge battery in temperatures below 14°F (-10°C)

or above 104°F (40°C).

When charging the battery:

– Do not charge the battery with voltage over 15.0V and current

over 1.6A.

– Do not charge the battery below 32°F (0°C) or above 113°F

(45°C).

– Always remove from the battery cradle before charging

separately.

When storing the generator/battery:

– Always check that the battery connectors between the inverter

and the battery are unplugged and placed away from the battery terminals.

– Always inspect the battery case for obvious signs of physical

damage or warpage.

– Do not store the battery near sources of high heat or ﬁre.

– Store the battery in a dry, well ventilated area between

-4°F (-20°C) and 104°F (40°C).

– Do not store the battery when discharged to 20% or less state

of charge (SOC).

– The battery should be charged for 10~30 mins every 180 days

when in storage, to keep the battery in good condition.

In case of battery damage:

– If damaged, battery may emit hazardous fumes. If fumes are

present, move battery to a well-ventilated area.

– Do not try to repair the battery.

– Dispose of battery in a clear plastic bag and take to your local

municipal household hazardous waste (HHW) recycling center. Do not place it the trash for any reason.

– After charging, leave the battery sitting for 0.5 to 1 hour

before checking the voltage. If the voltage is less than 12.8V, additional charging is necessary.

– If the battery becomes hot to the touch, stop charging. Allow

battery to cool before resuming.

Page 9

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

GEFAHR DANGER

NEVER use inside house, out

building, sheds, garages, vehicles or conﬁned spaces, EVEN IF if doors and windows are open and well ventilated.

ONLY use OUTSIDE and far away from windows, doors, and vents.

DANGER

Using a generator indoors CAN K ILL YOU IN MINUTES. Generator exhaust contains carbon

monoxide. This is a poison you cannot see or sm ell.

1004-BY-L-B

Utiliser un générateur à l’intérieur

PEUT VOUS TUER EN QUELQUES MINUTES. L’échappement du

générateur contient du mon oxyde de carbone. Il s’agit d’un poison que vou s ne pouvez ni voir ni sentir.

Ne l’utilisez

JAMAIS dans la maison ou le garage MÊME SI les portes et les fenêtres

sont ouvertes. Utilisez-le UNIQUEMENT À L’EXTÉRIEUR, loin des fenêtres, portes et t rappes de ventilation.

Die Verwendung eines Stromerzeugers in geschlossenen Räumen kann Sie innerhalb weniger Minuten töten. Die StromerzeugerAbgase enthalten Kohlenmonoxid. Dieses Gift kann man weder s ehen noch riechen.

NIEMALS im Haus oder in der Garage verwende n AUCH NICHT bei geöff neten Türen und Fenstern. AUSSCH LIESSLICH im AUSSENBEREICH in gut belüfteten Zonen verwenden.

1097-BY- L-A

UNLEAD ED FUEL ONLY. Minimum octane

rating of 85 . Maximum 10% eth anol. NUR BLEIFREIES BENZIN. MindestOktanza hl 85. Maxima l 10% Ethanol.

ESSENCE SANS PLOMB SEULEMENT.

Indice d’octa ne minimal de 85.

Maximum 10 % d'étha nol.

MANUFACTURE DATE

IP Grade

SERIAL NO.

MODEL

500988-UK

XXXXXXXXXXXX

XXXX IP23M

CHAMPION POWER EQUIPMENT, INC.

12039 SMITH AVENUE SANTA FE SPRINGS, CA 90670 USA / É.-U. MADE IN CHINA Low Power Generating Set

AC AMPS

Performance Class

FREQUENCY (Hz)

RPM

PHASE

POWER FACTOR

AC VOLTS

14.6A G1

3600

1.0

240V

QUALITY CLASS

NET WEIGHT

INSULATION CLASS

MAX AMBIENT TEMP

RATED OUTPUT

MAX POWER

PROPANE WATTS

45.7kg

COP:3.5kW

3.6kW S2 5min

3.15kW

104°F/40°C

WARNING

DO NOT TOUCH!

Exhaust gases , mufﬂer and engine component s are extremely HOT a nd cause burns.

Operation of this eq uipment may create sparks that can st art ﬁres around dr y vegetation. A spark arrestor may be required. The operator should contact local ﬁre agencies for laws and reg ulations relating to ﬁre prevention requi rements. If install ed, clean every 100 hours o r every season.

1010-BY-L-A

ADVERTENCIA

NICHT ANFASSE N!

Abgase, Schalldämpfer und Motorkomponenten sind extrem heiß und verur sachen Verbrennungen.

Der Betrieb dieser G eräte kann Funken erzeug en, die in der Umgebung von trockener Vegetation Brände auslösen können. Ein Funkenfänger kann erforderlich sein. Der Betreiber s ollte sich an die örtlic hen Brandschutzbehörden wenden, um sich über die Gesetze und Vorsc hriften in Bezug auf Brandschutzanforderungen zu informieren. Wenn installiert, a lle 100 Stunden oder zu jedes J ahr reinigen.

IMPORTANT SAFETY INSTRUCTIONS

Safety and Dataplate Labels

These labels warn you of potential hazards that can cause serious injury. Read them carefully.

If a label comes off or becomes hard to read, contact Technical Support Team for possible replacement.

Top

LABEL DESCRIPTION

Safety Symbols/

CO Danger

Fuel

Dataplate

Hot Surface

Page 10

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

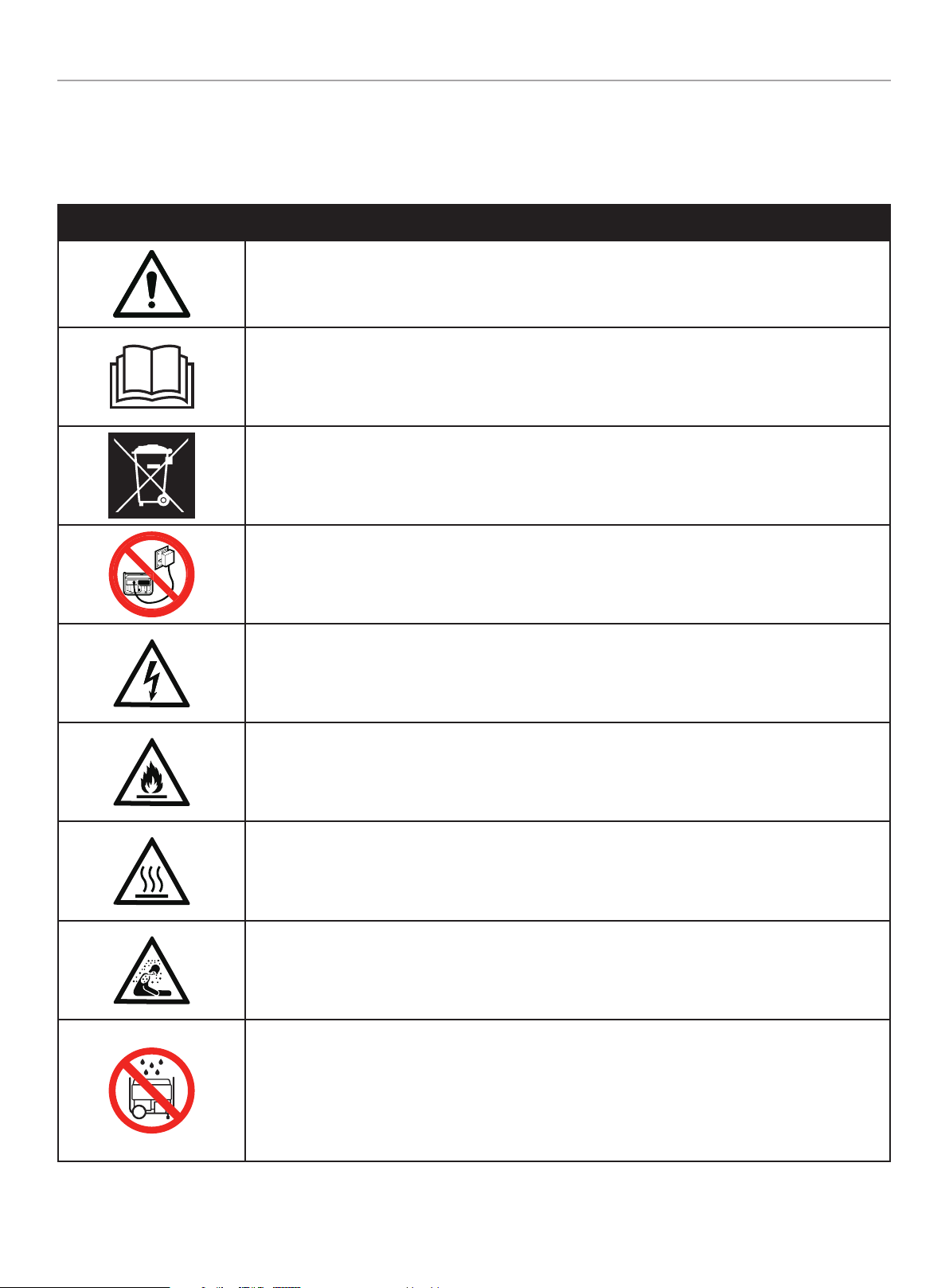

Safety Symbols

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

SYMBOL MEANING

Caution.

Read The Operator’s Instruction Manual Before Use. To reduce the risk of injury, user must read and

understand operator’s manual before using this product.

Not For General Waste Disposal.

The generating set must not be connected to other power sources, such as the power company supply mains.

Electric Hazard. Failure to use in dry conditions and to observe safe practices can result in electric shock. Improper connections to a building can allow current to backfeed into utility lines, creating an electrocution hazard. A transfer switch must be used when connecting to a building.

Fire Hazard. Fuel and its vapors are extremely ﬂammable and explosive. Fire or explosion can cause severe burns or death. Keep generator at least 5 feet (1.5m) from all objects to prevent combustion.

Risk Of Being Burnt. To reduce the risk of injury or damage, avoid contact with any hot surface.

Carbon Monoxide(co) Danger.

Wet Conditions Alert. Do not expose to rain or use in damp locations except as follows:

If you must operate in rain or damp locations, DO NOT operate without proper protection of the electrical components.

Use of a safety canopy that is ﬁre retardant and will provide proper air ventilation for the engines exhaust stream can be used. Keep all objects a minimum of 5 feet (1.5m) away from the generator at all times. Heat from the mufﬂer surface and exhaust stream can ignite combustible materials.

Page 11

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

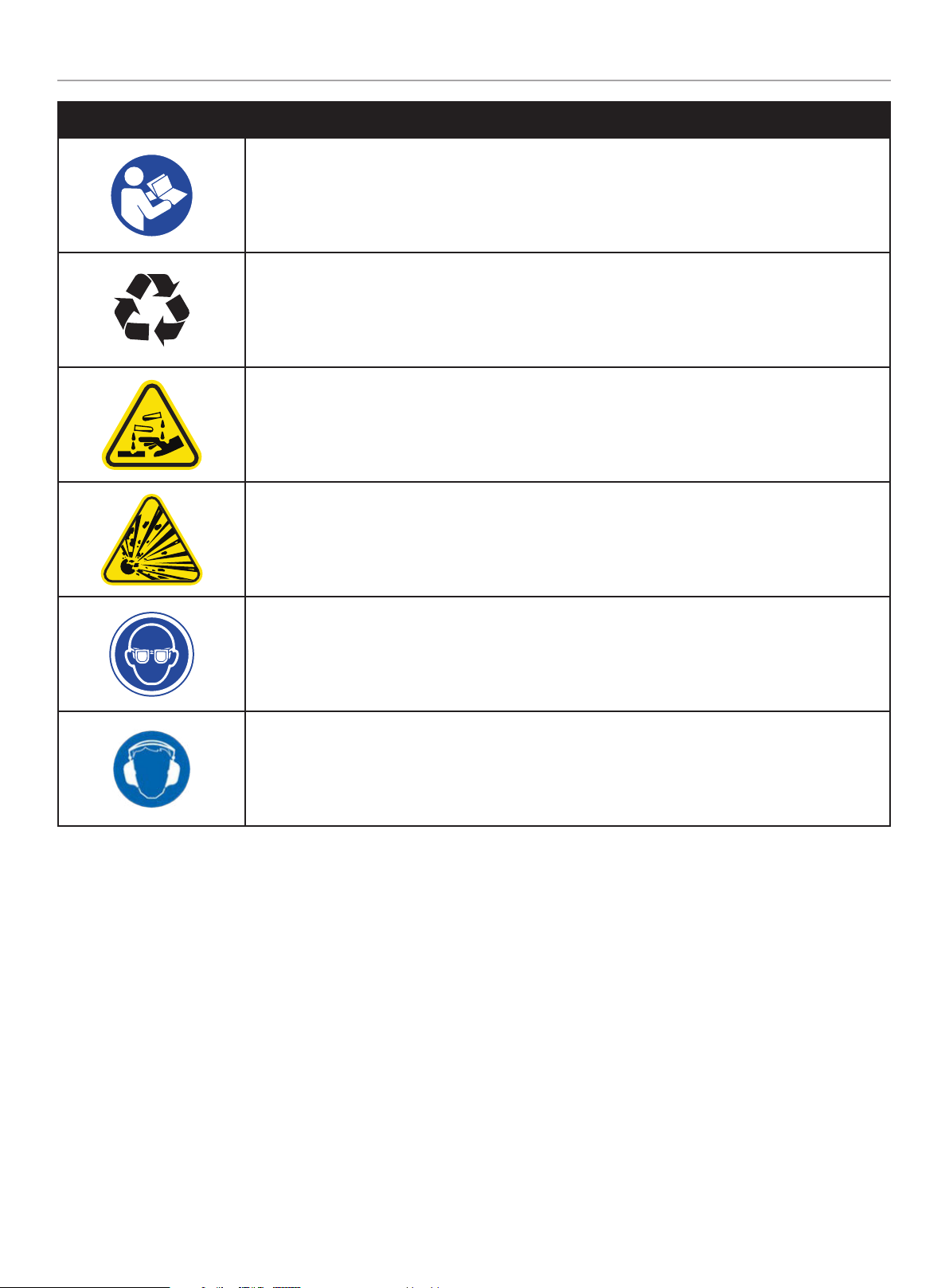

SYMBOL MEANING

Read Operator’s Manual. To reduce the risk of injury, user must read and understand operator’s manual

before using this product.

This product uses lithium-ion (Li-ion) batteries. Local, state, or federal laws may prohibit disposal of batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.

Blindness or severe burns. Electrolyte solution can cause blindness or severe burns.

IMPORTANT SAFETY INSTRUCTIONS

Shield eyes. Explosive gases can cause blindness or injury.

If damaged, battery may emit hazardous fumes. If fumes present, move battery to a well-ventilated area.

Eye protection. Always wear eye protection with side shields marked to comply with ANSI Z87.1.

It is recommended ear protection is worn working at close quarters to the generator.

Page 12

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

IMPORTANT SAFETY INSTRUCTIONS

Operation Symbols

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

SYMBOL MEANING

Propane Hose Inlet

Start

Choke

Stop or Off

Economy Mode Button

ECO

Low Oil

SYMBOL MEANING

Ground Terminal

Neutral Floating. Neutral circuit IS NOT electrically connected to the frame/

ground of the generator.

Parallel Connection(s)

12V Direct Current

Fuel Tank: Full

Fuel Tank: Empty

Power Output. Percentage of available

power from generator being used.

Overload Reset Button

Circuit Breaker Reset: Push

Page 13

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

10W-30

1

2 4 16

2711-L-OP-A

1085-BY-L-A

IMPORTANT SAFETY INSTRUCTIONS

Quick Start Label Symbols

Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to more safely operate the product.

Starting the Engine

 DANGER

Move generator outside and far away from windows, doors and intake ventilation covers.

1. Check oil level.(Not Included) Recommended oil is 10W-30.

Check petrol level.

When adding gasoline, use a minimum octane rating of 85 and an ethanol content of 10% or less by volume. y

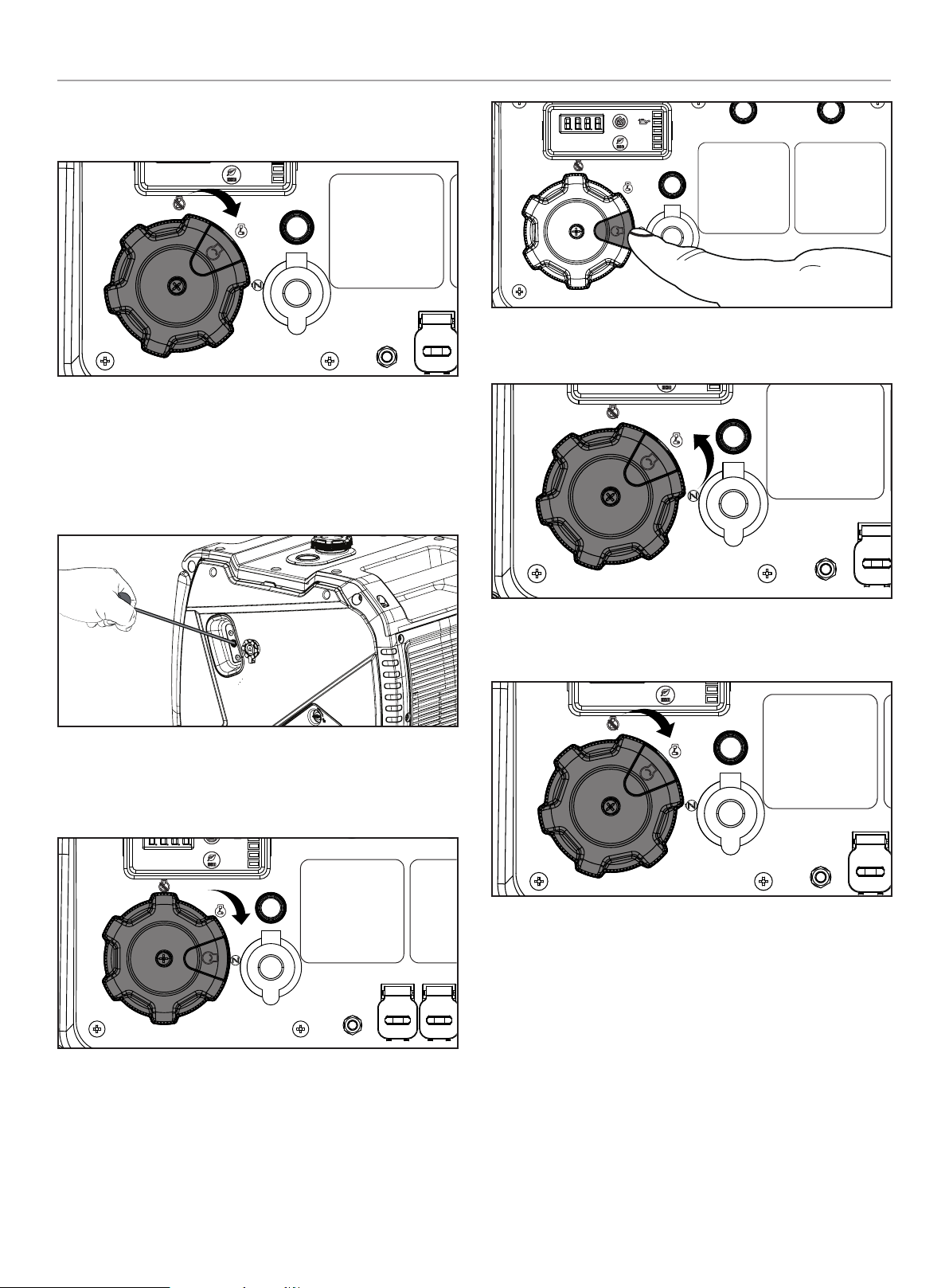

2. Turn EZ Start dial to the full “CHOKE” position.

3. Pull the recoil cord.

4. Turn the EZ Start dial to the “RUN” position.

5. Plug in desired device.

Stopping the Engine

1. Turn off and unplug all connected electrical loads.

2. Turn the EZ Start dial to the “STOP” position.

For adding fuel and starting the engine with LPG see Add Fuel:

Propane (LPG) in Assembly section and Starting the Engine: Propane (LPG) in the Operation section.

For Electric Start, see “Starting the Engine” section in the Operation section.

Page 14

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

CONTROLS AND FEATURES

Read this operator’s manual before operating your generator. Familiarize yourself with the location and function of the controls and features. Save this manual for future reference.

Generator

1. Fuel Gauge

2. Fuel Cap – Remove to add fuel.

3. Folding Handle – Used to move unit by lifting and rolling on wheels. Do not use to lift or carry the unit.

4. Battery Access Cover

5. Control Panel – See Control Panel section.

6. Recoil Starter – Used to manually start the engine.

7. Never Flat Wheels – 5 in. (12.7 cm)

8. Oil Fill Access Cover

9. LPG Inlet – Used to connect LPG fuel source to generator.

10. Carrying Handle(s) – Used to lift or carry the unit.

11. Mufﬂer

12. Maintenance Cover

Page 15

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

Control Panel

CONTROLS AND FEATURES

1. Intelligauge with Power Meter – See Intelligauge with Power Meter section.

2. Ignition Switch – Used to START the generator.

3. EZ Start Dial – Used to start, stop and choke the generator.

4. Circuit Breakers (Push Reset) – Protects the generator against electrical overloads.

5. Ground Terminal – Consult an electrician for local grounding regulations.

(2×) 240V AC, 13A

May be used to supply electrical power for operation of 240 Volt AC, 13 Amp, single phase, 50 Hz electrical loads.

12V DC, 8A (Automotive) May be used to supply electrical power for operation of 12 Volt DC, 8 Amp electrical loads.

RECEPTACLES

6. Parallel Outlets – Used to parallel two inverters together for increased power output. (parallel kit sold separately).

 WARNING

Do not operate a device while it is plugged into the 12V DC outlet. Prolonged exposure to engine exhaust can cause serious injury or death. While charging a device do no place on the exhaust side of the generator. Extreme heat caused by exhaust can damage the device, and cause a potential ﬁre hazard.

 WARNING

Do Not operate both AC and DC together, only ever use one at a time otherwise you can damage generator electrical components and(or) damage equipment.

Page 16

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

Intelligauge with Power Meter

The meter is divided into two separate displays.

The LCD displays each mode for several seconds and then automatically cycles through.

The Power Meter LED displays output in percent (%) with 100% at the top.

MODE DESCRIPTION

CONTROLS AND FEATURES

Output voltage of the generator.

Voltage (V)

Frequency (H)

Run Time (R)

Total Run Time

Example: 240 volts

Output frequency in hertz.

Example: 50.0 hertz

Run time of the generator for the current session.

Example: 6 hours

Total run time of the generator since ﬁrst operation.

Example: 16 hours

Power Meter

Power Output percentage.

Example: 100% Output

Page 17

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

Parts Included

Accessories

CONTROLS AND FEATURES

Oil Funnel

12VDC USB Adapter ................................................ 1

12VDC Battery Charging Cable ....................................1

LPG Hose with Regulator ..........................................1

...........................................................1

Tools Included

8/10 mm Wrench ...................................................1

Spark Plug Socket ..................................................1

Reversible Phillips/Flathead Screwdriver .......................... 1

Page 18

IMPORTANT

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

ASSEMBLY

Your generator requires some assembly. It must be properly serviced with fuel and oil before operation.

If you have any questions regarding the assembly of your generator, call our Technical Support Team at +44(0)-1942-715-407. Please have your serial number and model number available.

Unpacking

1. Set the shipping carton on a solid, ﬂat surface.

2. Remove everything from the carton except the generator.

3. Using the carrying handles of the unit, carefully remove the generator from the box (two people lifting is recommended).

Remove Shipping Support Hardware

To protect the generator during shipping, support hardware has been installed between the engine and frame. This hardware MUST BE REMOVED BEFORE adding oil or gasoline to the generator.



NOTICE

DO NOT attempt to run generator without ﬁrst removing the shipping support hardware. Damage to the generator as a result of not removing the hardware will void the warranty.

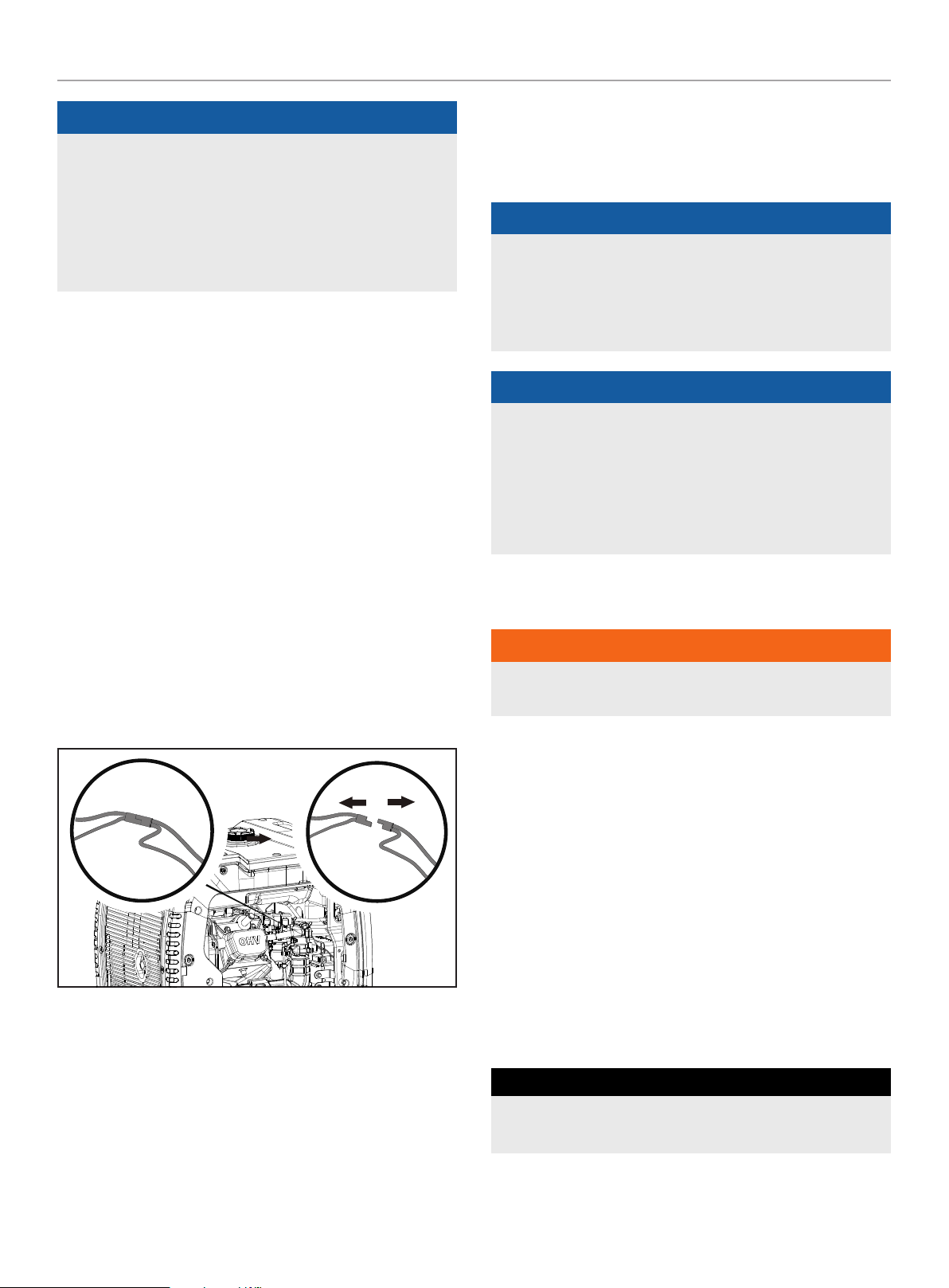

Connect the Battery

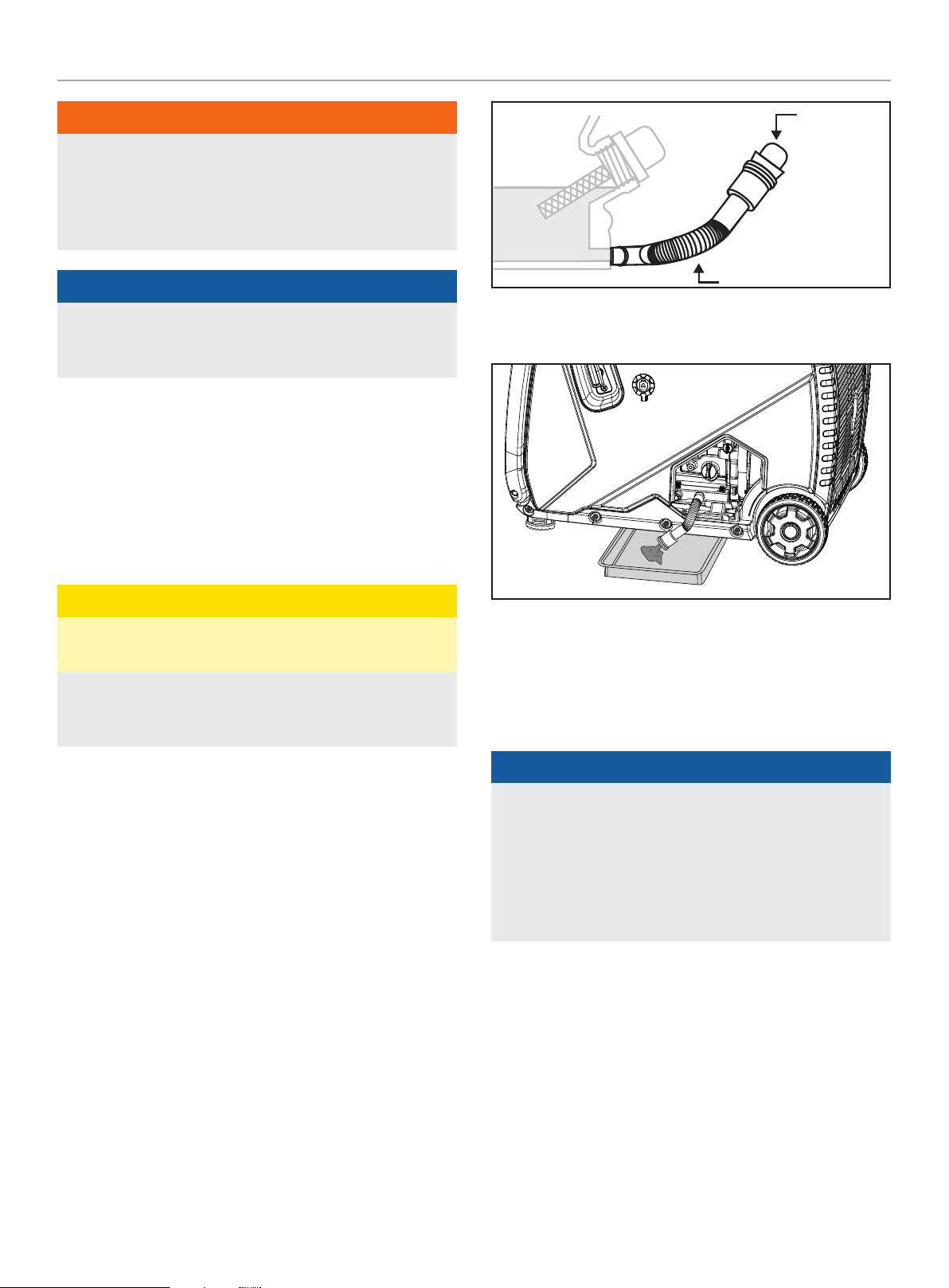

1. Remove the non recoil side maintenance cover by removing the two screws with a phillips head screw driver (included).

2. Push two halves of battery connector together tightly.

Add Engine Oil

 WARNING

DO NOT attempt to crank or start the engine before it has been properly ﬁlled with the recommended type and amount of oil. Damage to the generator as a result of failing to follow these instructions will void your warranty.

1. BEFORE ﬁlling the engine with oil or petrol, tip the generator onto the mufﬂer side. Tip onto the ﬂattened cardboard box the generator came in or other protective surface so as to not scratch the enclosure.

2. Remove the four nuts and mounting plates from the bottom side of the generator using the included 8/10 mm wrench. Nuts and spacers can be discarded.

3. Tip the generator upright.



NOTICE

The generator rotor has a sealed, pre-lubricated ball bearing that requires no additional lubrication for the life of the bearing.



NOTICE

The recommended oil type for typical use is 1Champion PowerX 10w30 oil. However, using the listed conventional oils

shown in the “Recommended Engine Oil Type” chart may be used for typical use including the ﬁrst 5 hours of the break-in run time period of the engine.

If running generator in extreme temperatures, refer to the “Recommended Engine Oil Type” chart.

Page 19

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

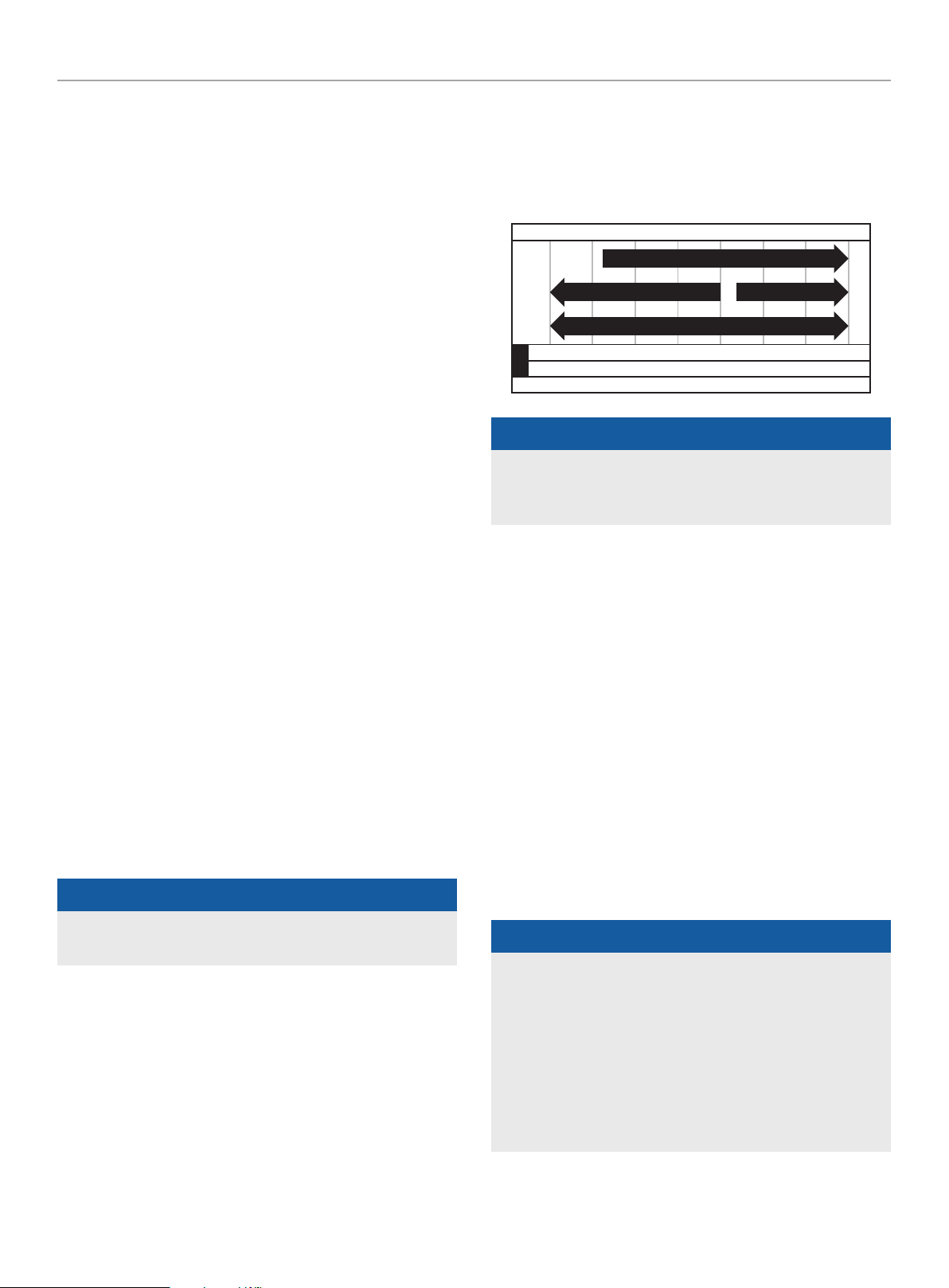

Recommended Engine Oil Type

10W-30

10W- 405W-30

5W-30 Full Synthetic

-20 0 20 40 60

°F

-28.9

°C -17. 8 -6.7 4.4 15.6 26.7 3 7.8 48.9

Ambient temperature

80 100 120

1. Place the generator on a ﬂat, level surface.

2. Turn the oil access cover fastener to the unlocked position and remove the cover.

ASSEMBLY

OIL DIP STICK

MAX



NOTICE

Once oil has been added, a visual check should show oil about 1-2 threads from running out of the ﬁll hole.

When using the dipstick to check oil levels, Do Not screw in the dipstick. Rest it against the outer side of the port to record oil level.

A general good rule is oil is full when it can be visually seen on the middle/upper threads on the port.



NOTICE

3. Remove oil ﬁll cap/dipstick to add oil.

4. Using a funnel, add up to 16.9 ﬂ. oz. (500 ml) of oil and replace oil ﬁll cap/dipstick and secure cover. DO NOT OVERFILL.

Check oil level often during the break-in period. Refer to the Maintenance section for recommended service intervals.

 CAUTION

This engine is equipped with a low oil shut-off and will stop when the oil level in the crankcase falls below the threshold level.



NOTICE

The ﬁrst 5 hours of run time are the break-in period for the unit. During the break in period stay at or below 50% of the running watt rating and vary the load occasionally to allow stator windings to heat and cool. Adjusting the load will also cause engine speed to vary slightly and help seat piston rings. After the 5 hour break-in period, change the oil.



NOTICE

Synthetic oil may be used after the 5 hour initial break-in period. Using synthetic oil does not decrease the recommended oil change interval. Full synthetic 5W-30 oil will aid in starting in cold ambient < 41º F (5º C) temperatures.

5. Check engine oil level before each use and add as needed.

Page 20

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

ASSEMBLY

Add Fuel: Petrol

 DANGER

Petrol vapors are highly ﬂammable and extremely explosive.

DO NOT light or smoke cigarettes. Fire or explosion can cause severe burns or death.

Only ﬁll or drain fuel outdoors in a well-ventilated area. DO NOT pump petrol directly into the generator. Use an approved container to transfer the fuel to the generator.

Never use a petrol container, fuel tank, or any other fuel item that is broken, cut, torn or damaged.

DO NOT overﬁll the fuel tank. Always keep fuel away from sparks, open ﬂames, pilot lights, heat and other sources of ignition.

Use clean, fresh, regular unleaded gasoline with a minimum octane rating of 85 and an ethanol content of 10% or less by volume.

This is four stroke petrol engine and requires separate oil and fuel. NEVER mix oil and fuel together.

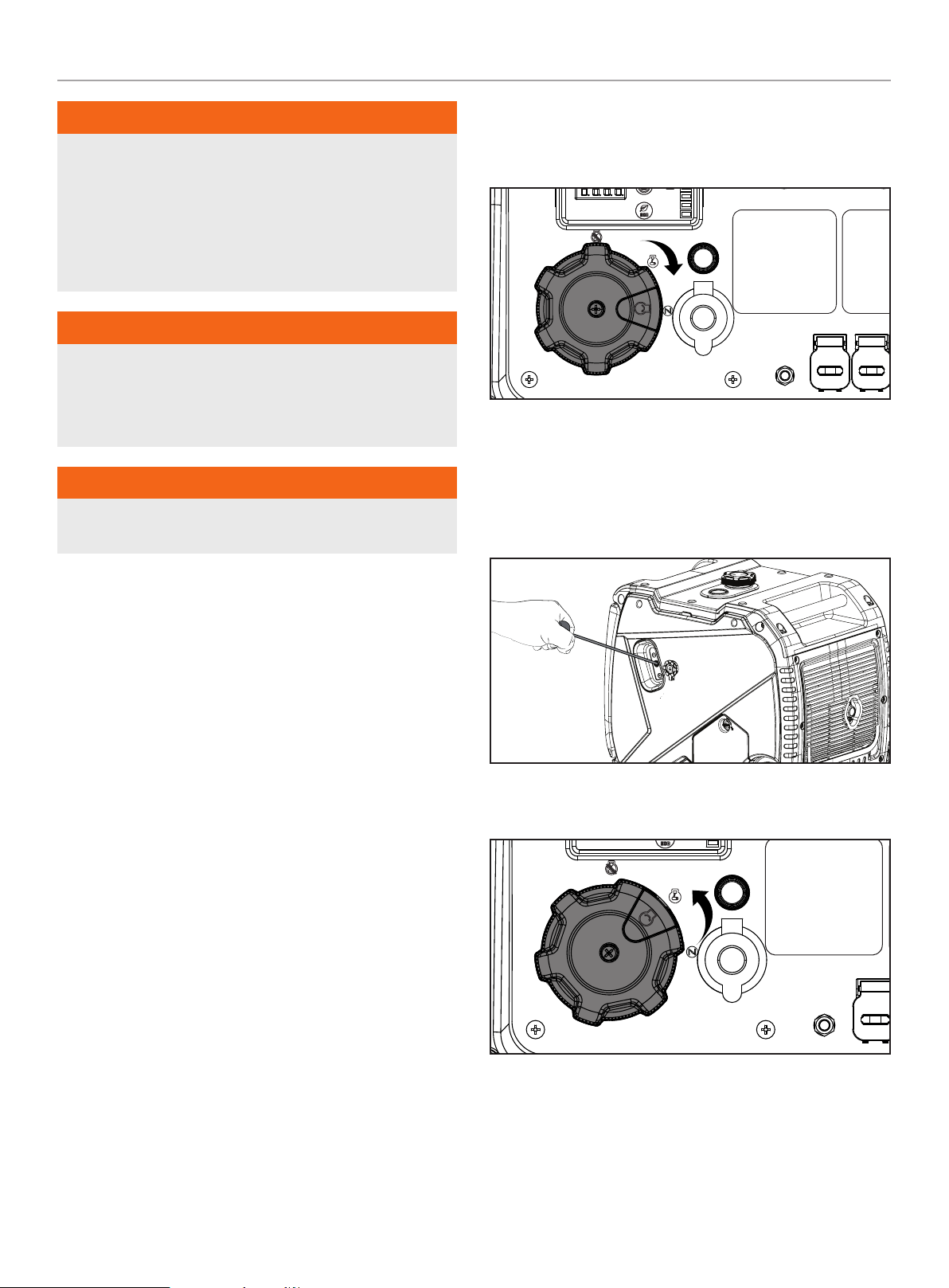

1. Remove the fuel cap.

2. Slowly add petrol to the tank. DO NOT OVERFILL. Petrol can

expand after ﬁlling. A minimum of ¼ in. (6.4 mm) of space left in the tank is required for petrol expansion, although more than ¼ in. (6.4 mm) is recommended. Petrol can be forced out of the tank as a result of expansion if overﬁlled, and can affect the stable running condition of the generator.

Empty Full

4. Screw on the gasoline cap and wipe away any spilled fuel.

 CAUTION

Use unleaded petrol with a minimum octane rating of 85 and an ethanol content of 10% or less by volume.

DO NOT light cigarettes or smoke when ﬁlling the tank.

DO NOT mix oil and petrol.

DO NOT overﬁll the tank. Fill tank to approximately ¼ in. (6.4 mm) below the top of the tank to allow for petrol expansion.

DO NOT pump petrol directly into the generator at the pump. Use an approved fuel container to transfer the gasoline to the generator.

DO NOT ﬁll or refuel tank indoors.

DO NOT ﬁll tank when the engine is running or hot allow minimum 30mins cooling before refueling.

3. The approximate fuel level is shown on the fuel gauge on top of the fuel tank.

 WARNING

Pouring petrol too fast through the fuel screen may result in petrol splashing over the generator and operator while ﬁlling.

Page 21

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR



NOTICE

The generator engine works well with 10% or less ethanol blended petrol. When using ethanol-gasoline blends there are some issues worth noting:

– Ethanol-petrol blends can absorb more water than petrol

alone.

– These ethanol blends can eventually separate, leaving

water or a watery goo in the tank, fuel valve and carburetor. The compromised gasoline can be drawn into the carburetor and cause damage to the engine and/or create potential hazards.

– If a fuel stabilizer is used, conﬁrm that it is formulated to

work with ethanol-petrol blends.

– Any damages or hazards caused by using ethanol blended

petrol higher than 10% by volume, improperly stored petrol, and/or improperly formulated stabilizers, are not covered by manufacturer’s warranty.

It is advisable to always shut off the petrol supply and run the engine to starvation after each use. See Storage instructions for extended non-use.

ASSEMBLY

7. Check all connections for leaks by wetting the ﬁttings with a solution of soap and water. Bubbles which appear or bubbles which grow indicate that a leak exists. If a leak exists at a ﬁtting then turn off the valve on the cylinder and tighten the ﬁtting. Turn the valve back on and recheck the ﬁtting with the soap and water solution. If the leak continues or if the leak is not at a ﬁtting then do not use the generator and contact customer service.



NOTICE

– The LPG hose included with this unit works with standard

20 and 30 pound LPG tanks.

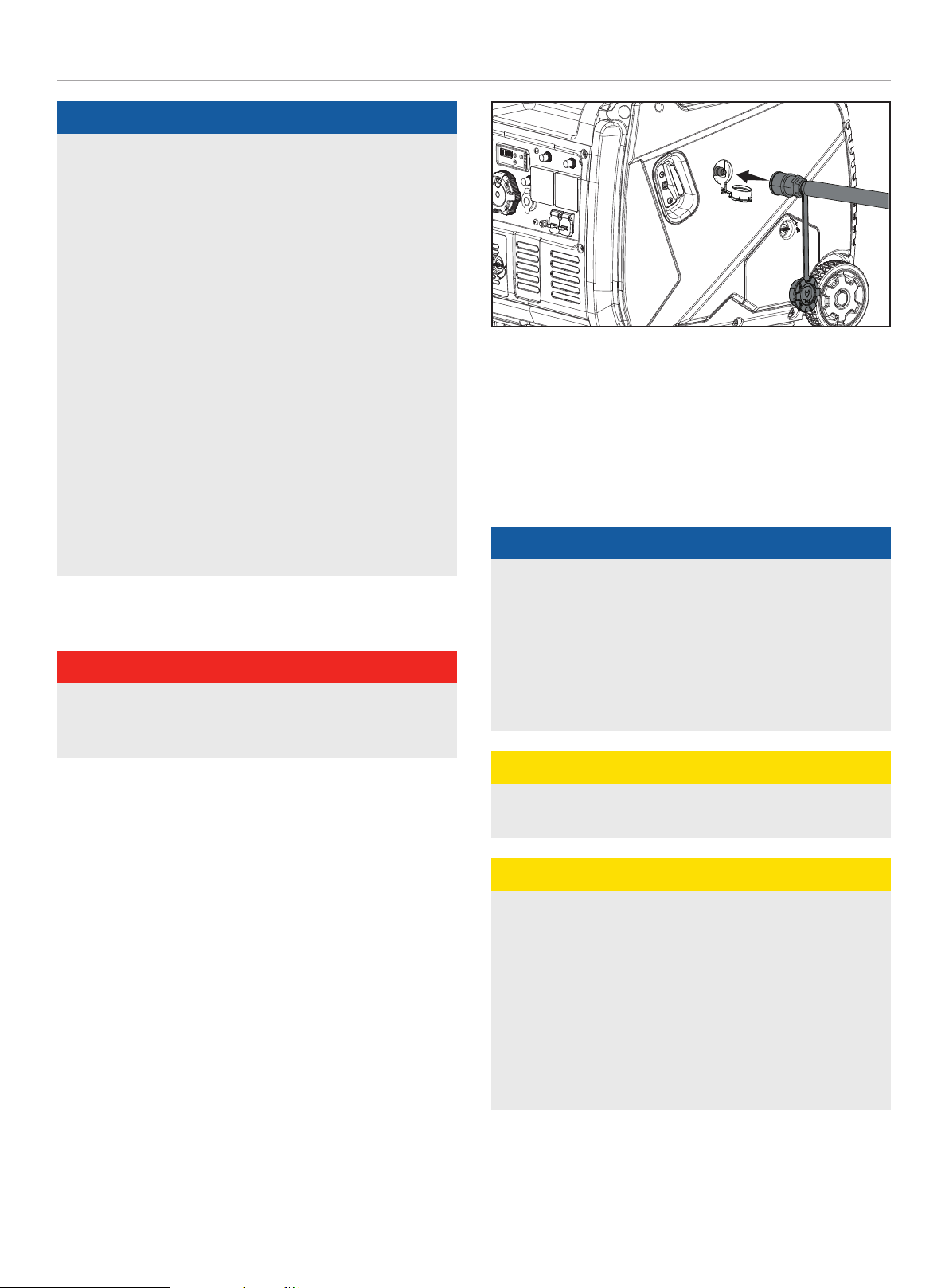

Add Fuel: Propane (LPG)

 DANGER

NEVER place the LPG (liqueﬁed petroleum gas) connector hose OR LPG cylinder tank in the path of the mufﬂer exhaust gas stream of the generator during engine operation.

1. Conﬁrm the dial is in the OFF position.

2. If using a new propane cylinder, remove the plastic cap from the cylinder valve.

3. Attach the LPG hose assembly (included) to the propane cylinder valve and hand tighten until snug. DO NOT OVER TIGHTEN.

4. Remove the rubber boot covering the propane connection port on the inverter.

5. Remove the rubber protective plug from the female connector of the LPG hose.

6. Insert the hose ﬁtting into the quick connect coupling and push in until you hear a “click” and the outside collar of the quick connect coupling moves forward.

– Verify the requaliﬁcation date on the cylinder has not

expired.

– Always position the cylinder so the connection between the

cylinder valve and generator inlet won’t cause sharp bends or kinks in the LPG hose.

 CAUTION

Do not allow children to tamper or play with the LPG cylinder or hose connections.

 CAUTION

Use approved LPG cylinders equipped with an OPD (overﬁlling prevention device) valve. Always keep the cylinder in a vertical position with the valve on top and installed at ground level on a ﬂat surface. Cylinders must not be installed near any heat source and should not be exposed to sun, rain, and dust. When transporting and storing, turn off the cylinder valve and generator LPG valve, and disconnect the cylinder. Plug the outlet, usually by a plastic protective cap, if one is available. Keep cylinders away from heat and ventilated when in a vehicle.

Page 22

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

OPERATION

 WARNING

If there is a strong smell of LPG: Close valve on the cylinder. Check all connections for leaks by wetting the ﬁttings with a solution of soap and water. Bubbles which appear or bubbles which grow indicate that a leak exists. Do not smoke or light a cigarette, or check for leaks using a match, open ﬂame source or lighter. Contact a qualiﬁed technician to inspect and repair an LPG system if a leak is found, before using the generator.

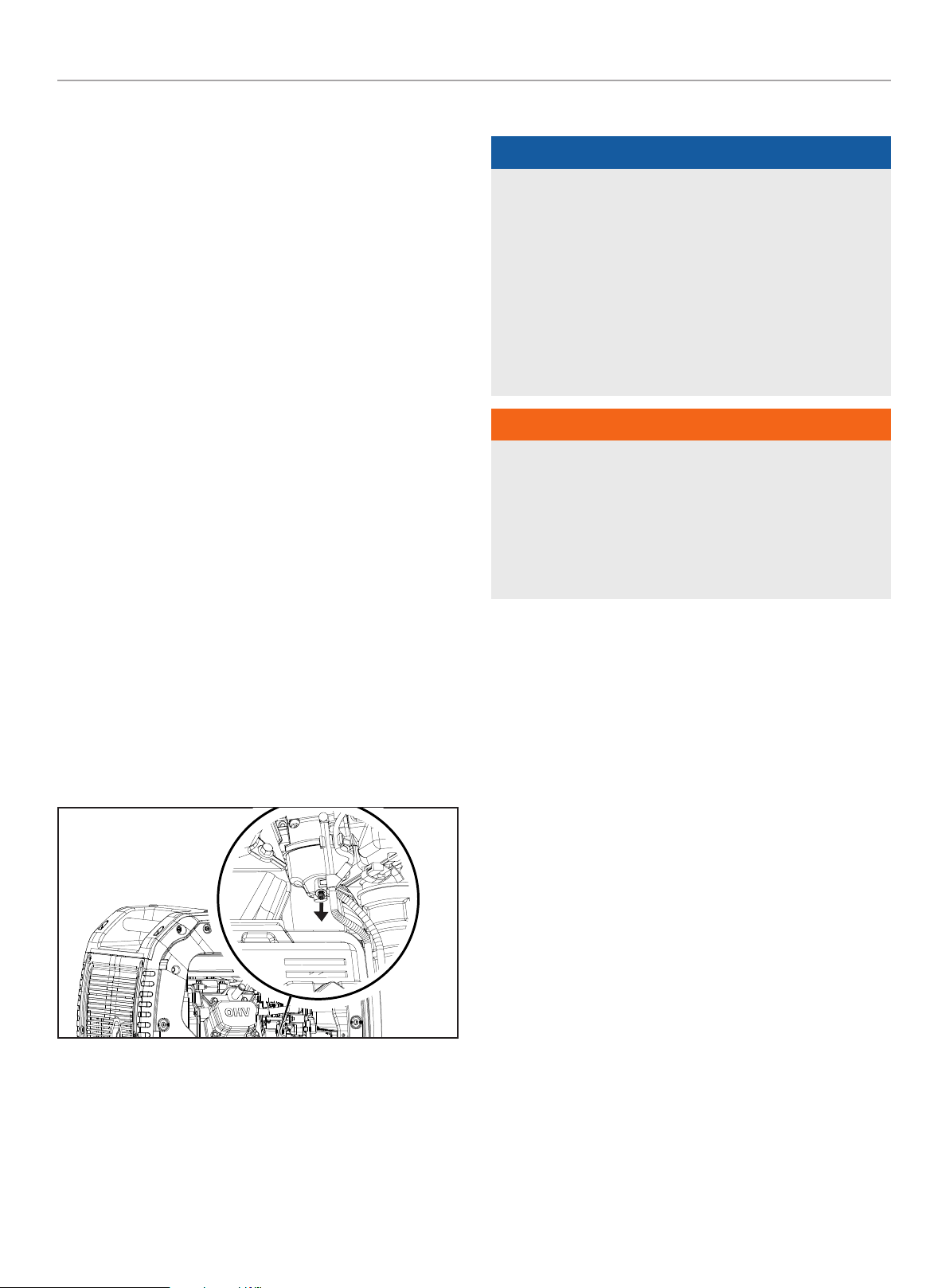

Grounding

Your generator must be properly connected to an appropriate ground to help prevent electric shock.

 WARNING

Failure to properly ground the generator can result in electric shock.

A ground terminal connected to the panel of the generator has been provided (see Controls and Features for terminal location). For remote grounding, connect a length of heavy gauge (12 AWG minimum) copper wire between the generator ground terminal and a copper rod driven into the ground. We strongly recommend that you consult with a qualiﬁed electrician to ensure compliance with local electrical codes.

Neutral Floating*

– Neutral circuit IS NOT electrically connected to the frame/

ground of the generator.

– The generator (stator winding) is isolated from the frame and

from the AC receptacle ground pin.

– Electrical devices that require a grounded receptacle pin

connection will not function if the receptacle ground pin is not functional.

Neutral Bonded to Frame*

– Neutral circuit IS electrically connected to the frame/ground of

the generator.

– The generator system ground connects lower frame cross-

member below the alternator. The system ground is connected to the AC neutral wire.

* See your Speciﬁcations section for speciﬁed type of grounding.

OPERATION

Generator Location

 WARNING

NEVER operate the generator inside any building, garage, basement, crawlspace, shed, enclosure or compartment, including a generator compartment of a recreational vehicle.

NEVER operate or start the generator in the back of an SUV, camper, trailer, truck bed (regular sides, ﬂat or other conﬁguration), under staircases, stairwells, next to walls or buildings or in any other location that will not allow for adequate cooling of the generator or for the proper exit of the exhaust ﬂow from the mufﬂer system.

DO NOT operate or store the generator in wet weather conditions such as rain or snow. Using a generator in wet conditions could result in serious injury or death due to electrocution.

In some state’s generators may be required to be registered with the local utility company when used at construction sites and may be subject to additional rules and regulations, consult your local municipal authority.

Generators should always be operated on a ﬂat, level surface at all times (even when not in operation).

Generators must have a minimum of 5 feet (1.5 m) of clearance from all combustible material.

Generators must also have a minimum of 3 feet (91.4 cm) of air ﬂow clearance on all sides to allow for adequate performance cooling, maintenance and servicing.

Always place the generator in a well-ventilated area. NEVER place the generator near air intake vents or where exhaust fumes could be drawn into occupied or conﬁned spaces.

Always carefully consider wind and air currents when positioning generator.

Always allow generators to properly cool before transport or for storage purposes.

Failure to follow proper safety precautions may result in personal injury, damage to the generator and void the manufacturer’s warranty.

Page 23

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

OPERATION

 WARNING

During operation the mufﬂer and exhaust fumes will become hot. If adequate cooling and breathing space are not supplied, or if the generator is blocked or enclosed, temperatures can become extremely heated and may lead to ﬁre.Never modify or try to install any exhaust mufﬂer extension, by doing so will result in degraded engine performance and(or) damage the generator engine.

 WARNING

Do not expose to rain or use in damp locations.

Keep all objects a minimum of 5 feet (1.5m) away from the generator at all times. Heat from the mufﬂer surface and exhaust gas stream can ignite combustible materials.

 WARNING

If you must operate in rain or damp locations, DO NOT operate without proper protection of the electrical components.

Manual Start

Cold Engine Start

3. Move the EZ Start dial to the “CHOKE” position.

4. Pull the recoil cord slowly until resistance is felt (compression point), then release the cord slowly back use one strong rapid pull to start, if the generator does not start repeat process. DO NOT rigorously or aggressively pull the recoil otherwise it will damage cord or mechanism and result in voiding your warranty.

Use of a safety canopy that is ﬁre retardant and will provide proper air ventilation for the engine exhaust gas stream may be used.

Visit championpowerequipment.com or call to ﬁnd your Storm Shield cover.

Surge Protection

Electronic devices, including computers and many programmable appliances use components that are designed to operate within a narrow voltage range and may be affected by momentary voltage ﬂuctuations. While there is no way to prevent voltage ﬂuctuations, you can take steps to protect sensitive electronic equipment.

– Install UL1449, CSA-listed, plug-in surge suppressors on the

outlets feeding your sensitive equipment. Surge suppressors come in single- or multi-outlet styles. They’re designed to protect against virtually all short-duration voltage ﬂuctuations.

Starting the Engine: Petrol

1. Make certain the generator is on a ﬂat, level surface.

2. Disconnect all electrical loads from the generator. Never start or stop the generator with electrical devices plugged in or turned on.

5. Do not over-choke. As soon as engine starts, turn the EZ Start dial to the “RUN” position.

Warm Engine Start

3. Move the EZ Start dial to the “RUN” position.

Page 24

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

OPERATION

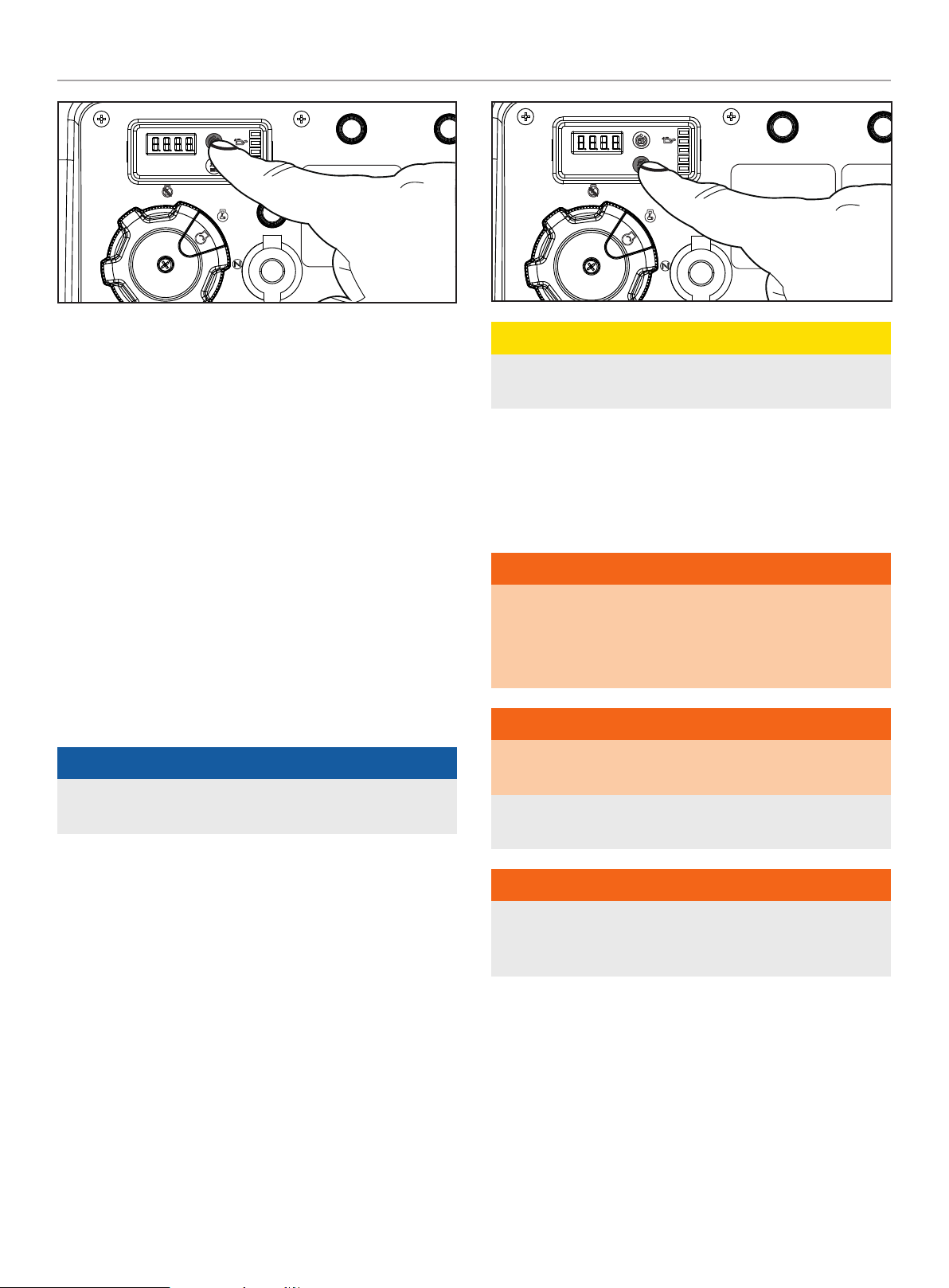

Electric Start

Cold Engine Start

3. Move the EZ Start dial to the “CHOKE” position.

5. Do not over-choke. As soon as engine starts, turn the EZ Start dial to the “RUN” position.

Warm Engine Start

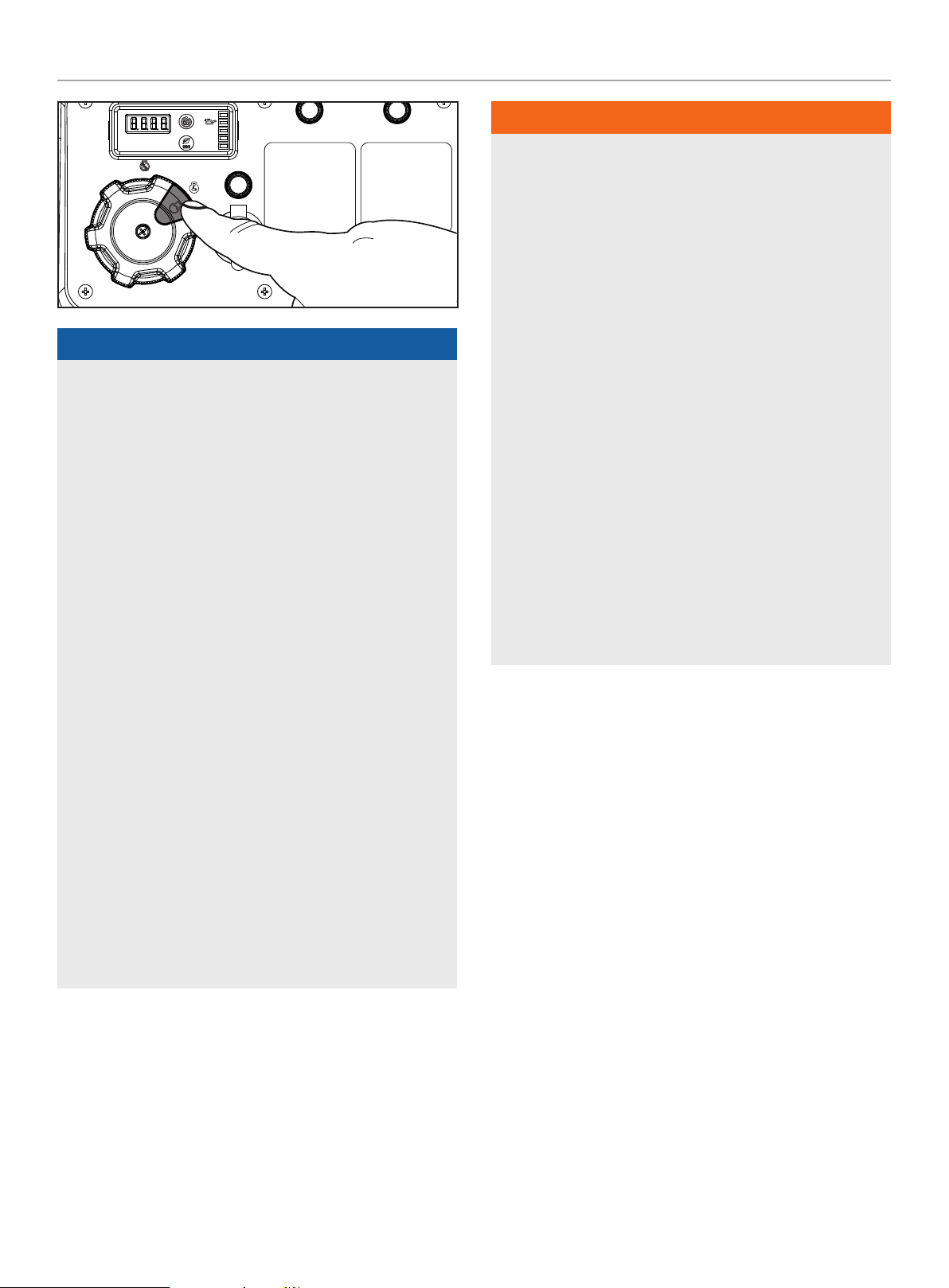

3. Turn the EZ Start dial to the “RUN” position.

4. Press and hold the yellow ignition switch on the EZ Start Dial toward the center of the dial. Release as the engine begins to start. If the engine fails to start within ﬁve seconds, release the switch and wait at least ten seconds before attempting to start the engine again.

Page 25

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

OPERATION



NOTICE

If the engine starts but does not continue to run, make certain that the generator is on a ﬂat, level surface. The engine is equipped with a low oil sensor that will prevent the engine from running when the oil level falls below a critical threshold.

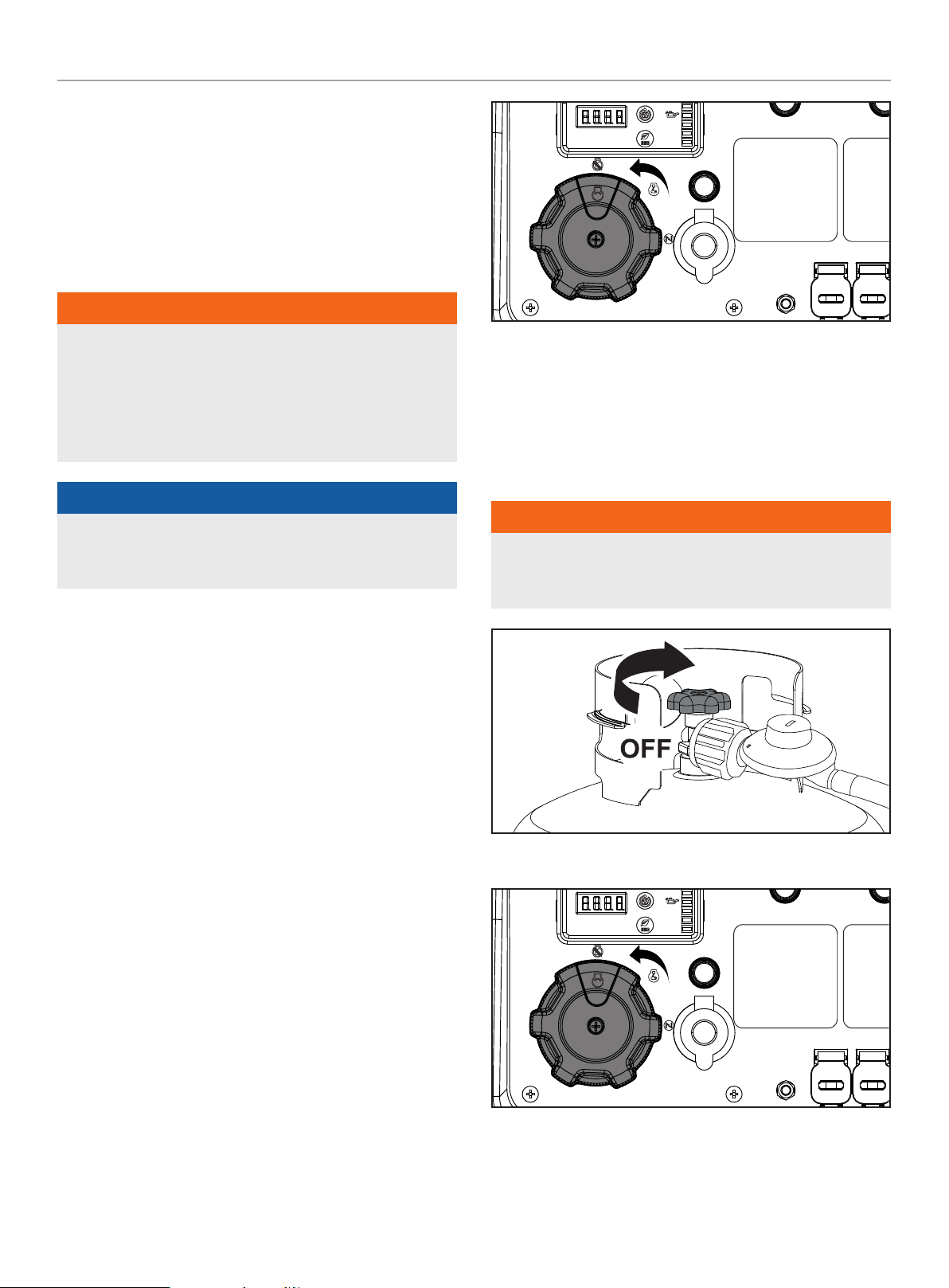

Starting the Engine: Propane (LPG)



NOTICE

Turn the generator off before attempting to switch from petrol to LPG operation.

1. Make certain the generator is on a ﬂat, level surface.

2. Disconnect all electrical loads from the generator. Never start or stop the generator with electrical devices plugged in or turned on.

3. Open the fuel valve on the propane cylinder.

5. Slowly pull the starter cord 3-5 times to prime the engine.

6. Turn the EZ Start Dial to the “RUN” position.

Manual Start

Cold Engine Start

4. Move the EZ Start dial to the “CHOKE” position.

7. Pull the recoil cord slowly until resistance is felt (compression point), then release the cord slowly back use one strong rapid pull to start, if the generator does not start repeat process. DO NOT rigorously or aggressively pull the recoil otherwise it will damage cord or mechanism and result in voiding your warranty.

Page 26

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

Warm Engine Start

4. Turn the EZ Start dial to the “RUN” position.

5. Pull the recoil cord slowly until resistance is felt (compression point), then release the cord slowly back use one strong rapid pull to start, if the generator does not start repeat process. DO NOT rigorously or aggressively pull the recoil otherwise it will damage cord or mechanism and result in voiding your warranty.

OPERATION

6. Do not over-choke. As soon as engine starts, turn the EZ Start dial to the “RUN” position.

Electric Start

Cold Engine Start

4. Move the EZ Start dial to the “CHOKE” position.

5. Press and hold the yellow ignition switch on the EZ Start Dial toward the center of the dial. Release as the engine begins to start. If the engine fails to start within ﬁve seconds, release the switch and wait at least ten seconds before attempting to start the engine again.

Warm Engine Start

4. Turn the EZ Start dial to the “RUN” position.

Page 27

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR



NOTICE

Accumulation of frost on LPG cylinder and regulators is common during operation and normally is not an indication of a problem. As LPG vaporizes and travels from the cylinder to the generator engine it expands. The amount of frost that forms can be affected by the size of the cylinder, the amount of LPG being used, the humidity of the air and other operating conditions.

In unusual situations this frost may eventually restrict the ﬂow of LPG to the generator resulting in deteriorating performance. For example, if the cylinder temperature is reduced to a very low level then the rate at which the LPG vaporizes is also reduced and may not provide sufﬁcient ﬂow to the engine. This is not an indication of a problem with the generator but only a problem with the ﬂow of LPG from the cylinder. If generator performance seems to be deteriorating at the same time that ice formation is observed on tank valve, hose or regulator then some actions may be taken to eliminate this symptom.

In these rare situations it can be helpful to reduce or eliminate the cold fuel system effects by doing one of the following:

– Exchanging fuel cylinders to allow the ﬁrst cylinder to

warm up, repeating as necessary.

– Placing the cylinder at the end of the generator near the

handle, where engine fan air ﬂows out from the generator. This air is slightly heated by ﬂowing over the engine. The cylinder should not be placed in the path of the mufﬂer outlet.

– The cylinder can be temporarily warmed by pouring warm

water over the top of the cylinder.

Connecting Electrical Loads

Let the engine stabilize and warm up for a few minutes after starting.

Plug in and turn on the desired 240 Volt AC single phase,

50 Hz electrical loads.

OPERATION

 WARNING

Always remember to plug your appliances directly into the generator and do not plug the generator power cord into any electrical outlet or connect to the circuit breaker panel in your home. Connecting a generator to your home’s electric utility company’s power lines, or to another power source, called ‘backfeeding’ is a dangerous practice that is illegal in many states and municipalities.

This action if done incorrectly could damage your generator, appliances and could cause serious injury or death to you or a utility worker when attempting to restore power during an outage occurrence in the neighborhood who may then unexpectedly encounter high voltage on the utility line and suffer a fatal shock.

Whether injuries occur or not, if installed incorrectly and not to applicable laws and codes, you may be subject to ﬁnes or the utility company may disconnect your home power should this practice be found in your home.

If the generator will be connected to a building electrical system, those connections must isolate the generator power from the utility power. You are responsible for ensuring your generator’s electricity does not backfeed into the electric utility power lines. These connections must comply with all applicable laws and codes – Consult your local utility company or a qualiﬁed electrician to properly install this connection.

Do Not Overload Generator

Capacity

Follow these simple steps to calculate the running and starting watts necessary for your purposes:

1. Select the electrical devices you plan on running at the same time.

2. Total the running watts of these items. This is the amount of power you need to keep your items running.

3. Identify the highest starting wattage of all devices identiﬁed in step 1. Add this number to the number calculated in step 2. Starting wattage is the surge of power needed to start some electric driven equipment. Following the steps listed under “Power Management” will guarantee that only one device will be starting at a time.

4. If the generator power output is cut off due to an overload condition indicated by the AC overload blinking light, lower the load by unplugging one or more items, then press the AC overload reset button before restarting the generator for continued normal operation.

– DO NOT connect 3-phase loads to the generator.

– DO NOT overload the generator.

Page 28

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

OPERATION

Power Management

Use the following formula to convert voltage and amperage to watts:

Volts × Amps = Watts

To prolong the life of your generator and attached devices, follow these steps to add electrical load:

1. Start the generator with no electrical load attached.

2. Allow the engine to run for several minutes to get up to temperature.

3. Make sure all circuit breakers are set to the run position.

4. Plug in and turn on the ﬁrst item. It is best to attach the item with the largest load ﬁrst.

5. Allow the engine to stabilize.

6. Plug in and turn on the next item.

7. Allow the engine to stabilize.

8. Repeat steps 5-6 for each additional item.



NOTICE

Never exceed the speciﬁed capacity when adding loads to the generator.

 CAUTION

For periods of high electrical load or momentary ﬂuctuations, the Eco Mode should be off.

12V DC Automotive Style Outlet

The 12V DC outlet(s) can be used with supplied accessories and other commercially available 12V DC automotive style plugs. Conﬁrm the input voltage range of your item is at least 12-24V DC.

 WARNING

12v DC is unregulated and not recommended for use any equipment except charging batteries.

Never try to operate both AC and DC together, only operate 1 at a time.

 WARNING

Do not operate a device while it is plugged in to the 12V DC outlet.

Prolonged exposure to engine exhaust can cause serious injury or death.

Eco (Economy) Mode

The Eco Mode button can be activated to turn on economy control in order to minimize fuel consumption and noise while operating the unit during times of reduced electrical output. Eco Mode allows the engine speed to idle during periods of non-use.

The engine speed returns to normal when an electrical load is connected. When the economy switch is off, the engine runs at normal speed continuously.

 WARNING

While charging a device do not place on the exhaust side of the generator. Extreme heat caused by exhaust can damage the device, and cause a potential ﬁre hazard.

External Battery Charging

1. Before connecting the battery charging cable (not included) to a battery that is installed in a vehicle, disconnect the vehicle battery ground cable from the negative (–) battery terminal.

2. Plug the battery charging cable into the 12V DC receptacle of the generator.

3. Connect the red (+) battery charger lead to the red (+) battery terminal.

Page 29

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

4. Connect the black (–) battery charger lead to the black (–) battery terminal.

5. Start the generator.

Important: The 12V DC outlet is ONLY to be used with supplied accessories and other commercially available 12V DC automotive style plugs. Be sure all electric devices including the lines and plug connections are in good condition before connection to the generator.

 WARNING

OPERATION

Do not start the vehicle while the battery charging cable is connected and the generator is running. It will not give the battery a boost of power. The vehicle or the generator may be damaged. Charge only vented wet lead acid batteries. Other types of batteries may burst, causing personal injury or damage.



NOTICE

Be sure all electric devices including the lines and plug connections are in good condition before connection to the generator.

Parallel Operation

This section has had a template updated. Use below text

The Champion model 500988-UK is parallel ready and can be operated in parallel with another Champion unit to increase the total available electrical power. A Champion parallel kit (optional equipment) is required for parallel operation. Model 75500i-WL-UK is the recommended model for this unit. For a list of compatible models or to order a parallel kit, please call customer service at +44(0)-1942-715-407 or visitwww.championpowerequipment. co.uk.Detailed instructions for parallel kit installation and operation of the connected generators are provided in the parallel

kit operator’s manual.

Propane

1. Turn off and unplug all electrical loads. Never start or stop the generator with electrical devices plugged in or turned on.

2. Let the generator run at no-load for several minutes to stabilize internal temperatures of the engine and generator.

3. Close the fuel valve on the propane cylinder.

 WARNING

When using propane the engine ignition switch is disabled and will not work, the only way to stop the generator is to close the LPG valve on the bottle. This is a safety design.

4. Turn the EZ Start dial to the “STOP” position.

Stopping the Engine

Petrol

1. Turn off and unplug all electrical loads. Never start or stop the generator with electrical devices plugged in or turned on.

2. Let the generator run at no-load for several minutes to stabilize internal temperatures of the engine and generator.

3. Turn the EZ Start dial to the “STOP” position.

Page 30

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

MAINTENANCE



NOTICE

If the generator will not be used for a period of two (2) weeks or longer, please see the Storage section for proper engine and fuel storage.

Moving the Generator

 CAUTION

– NEVER lift or carry the generator using the folding handle.

– NEVER tilt sideways while moving the generator.

– ALWAYS place the generator on its wheels in the upright

position.

– ALWAYS turn the generator off and ensure the fuel valve is

closed.

– ALWAYS make sure engine and exhaust/mufﬂer are cooled

down before the generator can be handled safely (typically 15-30 minutes).

 WARNING

Operation at High Altitude

The density of air at high altitudes is lower than at sea level. Engine power is reduced as the air mass and air-fuel ratio decrease. Engine power and generator output will be reduced approximately 3½% for every 1000 ft. of elevation above sea level. At high altitudes increased exhaust emissions can also result due to the increased enrichment of the air fuel ratio. Other high altitude issues can include hard starting, increased fuel consumption and spark plug fouling.

To alleviate high altitude issues other than the natural power loss, CPE can provide a high altitude carburetor main jet. The alternative main jet and installation instructions can be obtained by contacting our Technical Support Team. Installation instructions are also available in the Technical Bulletin area of the CPE website.

The part number and recommended minimum altitude for the application of the high altitude carburetor main jet is listed in the following table.

In order to select the correct high altitude main jet it is necessary to identify the carburetor model. For this purpose, a code is stamped on the side of the carburetor. Select the correct high altitude jet part number corresponding to the carburetor code found on your particular carburetor.

The folding handle is not long enough to hold and walk with a full stride when moving the generator. Always side step as you walk to avoid injury to your heels and/or feet. Failure to follow these instructions could result in personal injury or damage to the generator.

1. Begin by raising the folding handle, found on opposite side of wheels.

2. Using the handle, tilt the end of the generator slightly off the ground until balanced on the wheels.

3. While maintaining balance, roll the generator to the desired

location.

Carb. Code High Alt. Jet Part Number Min. Altitude

16100Z3R031000A0

16161-Z152210-00A0

16161-Z152010-00A0

3000 ft. (914 m)

6000 ft. (1829 m)

 WARNING

Operation using the alternative main jet at elevations lower than the recommended minimum altitude can damage the engine. For operation at lower elevations, the originally supplied standard main jet must be used. Operating the engine with the wrong engine conﬁguration at a given altitude may increase its emissions and decrease fuel efﬁciency and performance.

MAINTENANCE

Make certain that the generator is kept clean and stored properly. Only operate the unit on a ﬂat, level surface in a clean, dry operating environment. DO NOT expose the unit to extreme conditions, excessive dust, dirt, moisture or corrosive vapors.

 WARNING

Never operate a damaged or defective generator.

Page 31

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

DRAIN TUBE

MAINTENANCE

 WARNING

Improper maintenance will void your warranty. The owner/ user is responsible for service and maintenance of the generator including oil, spark plug, spark arrestor, ﬁlters and valve adjustments. Improper servicing or maintenance of this generator will void any warranty.



NOTICE

For Emission control devices and systems, read and understand your responsibilities for service as stated in the Emission Control Warranty Statement of this manual.

The owner/operator is responsible for all periodic maintenance.

Complete all scheduled maintenance in a timely manner.

Correct any issue before operating the generator.

For service or parts assistance, contact our Technical Support Team at +44(0)-1942-715-407.

Cleaning the Generator

DRAIN PLUG

4. Ensure the oil drain hose is lower than the engine and allow the oil to drain completely into an appropriate container.

 CAUTION

Do Not spray, pressure or power wash generator directly with water otherwise you can cause damage to electrical system.

Water can enter the generator through the cooling slots and damage the generator windings. It can also contaminate the fuel system.

1. Use a damp cloth to clean exterior surfaces of the generator.

2. Use a soft bristle brush to remove dirt and oil.

3. Use an air compressor (25 PSI) to clear dirt and debris from the generator.

4. Inspect all air vents and cooling slots to ensure that they are clean and unobstructed.

To prevent accidental starting, remove and ground the spark plug wire before performing any service.

Changing the Engine Oil

Change oil when the engine is warm. Refer to the oil speciﬁcation to select the proper grade for your operating environment.

1. Place the generator on a ﬂat level surface.

2. Turn the oil access cover fastener to the unlocked position and remove the cover.

5. Replace the oil drain plug.

6. Add oil according to Add Engine Oil in Assembly section. DO NOT OVERFILL. Oil not included for routine maintenance.

7. Dispose of used oil at an approved waste management facility.



NOTICE

Once oil has been added, a visual check should show oil about 1-2 threads from running out of the ﬁll hole. If using the dipstick to check oil level, DO NOT screw in the dipstick while checking.As a general rule on a ﬂat level surface oil is full when it can be visually seen on the middle-upper threads of the port, Do Not overﬁll otherwise it will result it poor engine performance and(or) damage to the engine

Cleaning and Adjusting the Spark Plug

1. Remove the non recoil side maintenance cover by removing the two screws with a phillips head screw driver (included).

2. Remove the spark plug cable from the spark plug.

3. Use a spark plug socket tool (included), or a 17 mm socket (not included) to remove the plug.

3. Remove the oil drain plug by turning it counter clockwise.

Page 32

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

MAINTENANCE

4. Inspect the electrode on the plug. It must be clean and not worn to produce the spark required for ignition.

5. Make certain the spark plug gap is

0.028-0.031 in. (0.7-0.8 mm).

SPARK PLUG GAP

6. Refer to the spark plug types in Speciﬁcations when replacing the plug.

7. Firmly re-install the plug.

8. Attach the spark plug cable to the spark plug.

9. Reinstall the maintenance cover.

Cleaning the Air Filter

3. Remove the foam element.

4. Wash in liquid detergent and water. Squeeze thoroughly dry in a clean cloth.

5. Saturate in clean engine oil.

6. Squeeze in a clean, absorbent cloth to remove all excess oil.

7. Place the ﬁlter in the assembly.

8. Reattach the air ﬁlter cover.

9. Reinstall the maintenance cover and tighten the cover screw securely.

Cleaning the Spark Arrestor

1. Allow the engine to cool completely before servicing the spark arrestor.

2. Remove the two screws holding the cover plate which retains the spark arrestor to the mufﬂer.

3. Remove the spark arrestor and spark arrestor screen.

4. Carefully remove the carbon deposits from the spark arrestor and spark arrestor screen with a wire brush.

1. Remove the non recoil side maintenance cover by removing the two screws with a phillips head screw driver (included).

2. Locate the air ﬁlter plastic cover and remove by pinching the clips together and pulling the cover off.

5. Replace the spark arrestor and spark arrestor screen if it they damaged.

6. Position the spark arrestor and spark arrestor screen on the mufﬂer and cover plate and screws removed in step 2.

 CAUTION

Failure to regularly check or clean the spark arrestor will result in degraded engine performance and(or) damage the engine. Recommended every 100 hours check or clean spark arrestor.

Page 33

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

MAINTENANCE



NOTICE

Federal and local laws and administrative requirements indicate when and where spark arrestors are required. When ordered, spark arrestors are required for operation of this generator in National Forest lands. In California, this generator must not be used on any forest-covered land, brush-covered land, or grass-covered land unless the engine is equipped with a spark arrestor.

Generator Battery

Your generator is equipped with an automatic battery charging circuit that charges the battery while the engine is running. The battery will maintain a proper charge if the unit is used at least once every 180 days for 2 hours with ECO mode off. If it is used less frequently, the battery should be connected to a trickle charger or battery maintainer (not included) to keep the battery properly charged.

Maximum charging rate should not exceed 1.6 amps. Follow the instructions included with the battery charger. The battery should be fully charged at least twice per year. If the battery is not able to start the engine, it can be started by manually pulling the engine recoil cord. If the battery voltage is extremely low, the charging circuit may not be able to re-charge the battery. In this case, the battery must be connected to a standard automotive style battery charger for re-charging before it can be used.

Disconnect the Battery

1. Pull two halves of battery connector apart.

2. Charge battery following the battery charger’s instructions.

3. After charging, leave the battery for 0.5 to 1 hour before checking the voltage. If the voltage is less than 12.8 volts, additional charging is necessary.



NOTICE



NOTICE

– Do not charge the battery with charging voltage over 15.0V

and charging current over 1.6A.

– Do not charge the battery below 32°F (0°C) or above

113°F (45°C).

– If the battery becomes hot to the touch, stop charging.

Allow battery to cool before resuming.

Adjusting the Governor

 WARNING

Tampering with the factory set governor will void your warranty.

The air-fuel mixture is not adjustable. Tampering with the governor can damage your generator and your electrical devices and will void your warranty. Contact our Technical Support Team at +44(0)-1942-715-407 for all other service and/or adjustment needs.

Charge the Battery

For a generator equipped with batteries for electric starting, proper battery maintenance and storage should be followed. A trickle charger or battery maintainer should be used to charge the battery while the generator is in storage. Maximum charging rate should not exceed 1.6 amps. Follow the instructions included with the trickle charger or battery maintainer. The battery should be fully charged at least once per month.

1. Remove the battery from the generator.

Maintenance Schedule

Follow the service intervals indicated in the following maintenance schedule.

Service your generator more frequently when operating in adverse conditions.

Contact our Technical Support Team at +44(0)-1942-715-407 to locate the nearest CPE certiﬁed service dealer for your generator or engine maintenance needs.

EVERY 8 HOURS OR PRIOR TO EACH USE

 Check oil level  Clean around air intake and mufﬂer

Page 34

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

STORAGE

FIRST 5 HOURS (BREAK IN)

 Change oil

EVERY 50 HOURS OR ANNUALLY

 Clean air ﬁlter  Change oil if operating under heavy load or in hot

environments

EVERY 100 HOURS OR ANNUALLY

 Change oil Champion PowerX 10w30 oil  Clean/adjust spark plug  Clean spark arrestor  Clean fuel valve ﬁlter*

EVERY 250 HOURS

 Clean combustion chamber*  Check/adjust valve clearance*

EVERY 3 YEARS

 Replace fuel line*

* To be performed by knowledgeable, experienced owners or CPE certiﬁed service

centers.

STORAGE

 WARNING

To avoid accidental or unintended ignition of your generator during periods of storage, the following precautions should be followed:

– When storing the generator make sure the EZ Start dial is

set to the “OFF” position.



NOTICE

The following storage instructions apply when petrol has been used to run the generator. NOTE: LPG does not apply and will not create build up or clog the carburetor.

Short to Mid Term Storage (up to 1 year)

Petrol in the fuel tank has a maximum shelf life of up to 1 year with the addition of properly formulated fuel stabilizers and if stored in a cool, dry place. Petrol in the carburetor, however, may gum up and clog the carburetor if it isn’t used or drained within 2-4 weeks.

If using the generator within 2 weeks, follow the steps according to Stopping the Engine section.

1. If not using the generator for more than 2 weeks, begin by making sure all appliances are disconnected from the generator.

2. Add a properly formulated fuel stabilizer to the fuel tank.

3. Start engine by following directions in the Starting the Engine section.

Page 35

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

STORAGE

4. Run the generator for 10 minutes so the treated petrol cycles through the fuel system and carburetor.

5. Turn the EZ Start dial to the “STOP” position.

6. After the engine has stopped, allow the engine to cool.

7. Remove the non recoil side maintenance cover by removing the two screws with a phillips head screw driver (included).

8. Remove the spark plug and pour about a tablespoon of oil into the cylinder.

9. SLOWLY pull the recoil to rotate the engine to distribute and lubricate the cylinder.

10. Re-install the spark plug and spark plug wire.

11. Re-install the maintenance cover.

12. Clean the generator according to Cleaning the Generator.

13. Store the generator in a cool, dry place out of direct sunlight.

Long Term Storage (more than 1 year)

For storage over 1 year, the fuel tank and carburetor must be completely drained of petrol.

1. Be sure all appliances are disconnected from generator.

2. Place inverter on blocks to allow appropriate gasoline container or pan to slide under inverter.

3. Remove the non recoil side maintenance cover by removing the two screws with a phillips head screw driver (included).

4. Turn the EZ Start dial to the full “RUN” position.

5. Using a ﬂat head screwdriver (included), rotate drain screw counterclockwise (3) full turns. Gasoline will drain through clear tubing out underneath the inverter. Make sure draining gasoline empties into an appropriate container.

Removing from Storage



NOTICE

If the generator has been improperly stored for a period longer than 30 days with ethanol blended gasoline in the gasoline tank and/or carburetor, all fuel must be drained and the carburetor must be thoroughly cleaned of ethanol build up. This process involves technically advanced tasks. For assistance please call our Technical Support Team at +44(0)-1942-715-407.

If the gasoline tank and carburetor were properly emptied of all ethanol blended gasoline prior to the generator being stored, follow the below steps when removing from storage.

 WARNING

1. Be sure the EZ Start dial is in the “STOP” position.

2. Add gasoline to the generator according to Add Fuel.

3. Move the EZ Start dial to the “RUN” position.

4. After 5 minutes check the carburetor and air ﬁlter areas for any leaking gasoline. If any leaks are found, the carburetor will need to be disassembled and cleaned or replaced. If no gasoline leaks are found, turn the EZ Start dial to the “STOP” position.

6. When gasoline stops ﬂowing from the clear tube, rotate drain screw clockwise until tight. Properly dispose of the drained gasoline according to local regulations or guidelines.

7. Turn the EZ Start dial to the “STOP” position.

8. Follow steps 7-13 according to Short to Mid Term Storage.

5. Check engine oil level and add clean, fresh oil if needed. See Oil Speciﬁcations for proper oil type.

6. Check and clear air ﬁlter of any obstructions such as bugs or cobwebs. If necessary, clean air ﬁlter according to Cleaning the Air Filter.

7. Start the generator according to Starting the Engine.

Page 36

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

SPECIFICATIONS

Generator Speciﬁcations

Generator Model

Star t Type ......................................... Electric, Manual

Watts (Max/Running) .................................. 3600/3500

Watts (LPG) (Max/Running) ............................. 3600/315 0

Volts AC .......................................................... 240

AC Amps @ 240V .............................................. 14.6

Volts DC .......................................................... 12

DC Amps ............................................................8

Frequency ..................................................... 50 Hz

Phase ......................................................... Single

Grounding Type .....................................Neutral Floating

Weight ...........................................100.8 lb. (45.7 kg)

Length ............................................. 23.2 in. (59 cm)

Width .............................................. 17.7 in. (45 cm)

Height ............................................... 20.1 in. (51 cm)

Engine Speciﬁcations

Model ...................................................... R 210N-V

Displacement .................................................212 cc

Type ................................................... 4-Stroke OHV

Spark Plug

OE M Type .....................................................F6RTC

Replacement Type ......................NGK BPR6ES or equivalent

Gap ..................................0.028-0.031 in. (0.7-0.8 mm)

Valve

Intake Clearance .................0.002-0.006 in. (0.05-0.15 mm)

Exhaust Clearance ...............0.002-0.006 in. (0.05-0.15 mm)

...................................... 500988-UK



NOTICE

Oil Speciﬁcations

DO NOT OVERFILL.

............................................ *See following chart

Type

Capacity ....................................... 16.9 ﬂ. oz. (500 ml)

Recommended Engine Oil Type

10W-30

10W- 405W-30

5W-30 Full Synthetic

-20 0 20 40 60

°F

-28.9

°C -17. 8 -6.7 4.4 15.6 26.7 37. 8 48.9

Temperature will affect engine oil and engine performance. Change the type of engine oil used based on temperature shown in the “Recommended Engine Oil Type” table.

Ambient temperature



NOTICE

80 100 120

Fuel Speciﬁcations

Use unleaded gasoline with a minimum octane rating of 85 and an ethanol content of 10% or less by volume. DO NOT USE E15 or E85. DO NOT OVERFILL.

Gasoline Capacity ................................... 2.3 gal. (8.5 L)

Propane (LPG)

– Use only an approved LPG cylinder equipped with an OPD

(overﬁlling prevention device) valve.

Temperature Speciﬁcations

Manual Starting Temperature

Range (°F/°C) ................................... 5 to 104/-15 to 40

Electric Starting Temperature

Range (°F/°C) ...................................23 to 104/-5 to 40

A technical bulletin regarding valve adjustment procedures is available at www.championpowerequipment.co.uk



NOTICE

An important message about temperature: Your product is designed and rated for continuous operation at ambient temperatures up to 104°F (40°C). When needed, it may be operated at temperatures ranging from 5°F (-15°C) to 122°F (50°C) for short periods of time. If exposed to temperatures outside this range during storage, it should be brought back within this range before operation. In any event, the product must always be operated outdoors, in a well-ventilated area and away from doors, windows and vents.

Page 37

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

Engine Parts List

# Part Number Description Qty.

6 90685-D090-0EA0

16002-Z95011000A0

160 03-Z1D0110 00A0

16001-Z01011000A0

16100-Z3R031000 A1

16112-Z 010110-

0000 16161-Z152410-

00A0 16161-Z152210-

00A0 16161-Z152010-

00A0 90681-Z010610-

0000 16652-Z800110-

00A0

90686-YBW031000M0

17001-Z1D011000A0

30 4 31-YBW0 21000A0

Carburetor Insulator Gasket

Carburetor Insulator Plate

Carburetor Gasket

Carburetor Assembly

Seal Ring, Float

Main Jet(83#)

Main Jet(81#), Altitude 3000-6000 Feet

Main Jet(79#), Altitude 6000-8000 Feet

Seal Ring

Fuel Filter

Clamp, Ø9 x Ø0.8 x 8, Army Green Zinc

Fuel Pipe, Ø4.5 x Ø8.5 x 260

Air Cleaner Gasket

Rubber Sleeve

SPECIFICATIONS

Page 38

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

TROUBLESHOOTING

Problem Cause Solution

No fuel. Add fuel. Faulty spark plug. Clean and adjust spark plug or replace.

Fill crankcase to the proper level. Place generator on a ﬂat, level surface.

Review load and adjust. See “Connecting Electrical Loads.”

Reduce AC load and press Overload Reset Button until illuminated green.

Turn the propane valve to the CLOSED position on the tank.

Review load and adjust. See “Connecting Electrical Loads.”

Check for damaged, bare or frayed wires. Replace defective device.

Engine will not start.

Engine starts but runs roughly.

Engine will not start electrically.

Engine shuts down during operation.

Generator cannot supply enough power or overheating.

Engine is running but no AC output.

Engine hunts or falters.

DUAL FUEL MODELS ONLY: Engine will not stop.

Repeated circuit breaker tripping.

Low oil level.

Spark plug wire loose. Attach wire to spark plug. Fuel valve is closed. Open fuel valve. Old fuel or water in fuel. Drain fuel and replace with fresh fuel. Flooded with fuel. Let unit stand for 10 mins. Choke in the wrong position. Move EZ Start Dial to the RUN position. Dirty air ﬁlter. Clean or replace air ﬁlter. Dirty fuel valve. Clean the fuel valve. Clogged spark arrestor. Clean spark arrestor. Generator battery is dead. Recharge generator battery. Battery switch is in the OFF position. Turn battery switch to ON position. Out of fuel. Fill fuel tank.

Low oil level.

Clogged spark arrestor. Clean spark arrestor.

Generator is overloaded.

Dirty air ﬁlter. Clean or replace air ﬁlter. Choke in wrong position. Move EZ Start Dial to the RUN position. Poor cord connection. Check all connections. Circuit breaker is open. Reset circuit breaker. Loose wiring. Inspect and tighten wiring connections.

AC Overload: Button illuminated red

Other. Contact the help line. Engine governor defective. Contact the help line. Dirty fuel valve. Clean the fuel valve. Carburetor is dirty and running lean. Contact the help line. Choke in wrong position. Move EZ Start Dial to the RUN position.

Propane valve is still open.

Overload.

Faulty power cords or device.

Circuit breaker still too hot. Let unit sit for 5 mins.

TROUBLESHOOTING

For other issues and technical support:

Technical Support Team Toll Free +44(0)-1942-715-407 [email protected]

Page 39

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

UK DECLARATION OF CONFORMITY

We:

CHAMPION POWER EQUIPMENT, INC. 12039 SMITH AVENUE, SANTA FE SPRINGS, CA 90670, USA

Hereby declare that the following Appliance complies with the appropriate basic safety and health requirements of the UKCA Directives (see item 3 & 4) based on its design and type, as brought into circulation by us.

This declaration relates exclusively to the machinery in the state in which it was placed on the market, and excludes components which are added and/or operations carried out subsequently by the final user.

Designation / Function: LOW POWER GENERATORING SETS

1. Type:500987-

UK, 500988-UK

2. Serial number: xxxxxxxxxxxxxx(on Dataplate Label and Package)

3. Used harmonized standards:

- EN ISO 8528-13:2016

4. Applicable UK Directives:

- Supply of Machinery (Safety)Regulations 2008

- Directive (EU) 2016/1628

- Noise Emission in the Environment by Equipment for use Outdoors Regulations 2001

- Electrical Equipment (Safety) Regulations 2016

- Electromagnetic Compatibility Regulations 2016

TROUBLESHOOTING

Page 40

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

TROUBLESHOOTING

5. Responsible for documentation: CHAMPION POWER EQUIPMENT, INC. Address: 12039 SMITH AVENUE, SANTA FE SPRINGS, CA 90670, USA

6. Person responsible for compiling the technical files established within the UK Name, Surname: Winch Solutions LTD Address:

Unit 17-18 Bradley Trading Estate, Bradley lane,

Standish, Greater Manchester, WN6 0XQ, UK

7. Date/Place/Authorized Signature: Aug 11th 2022/HANGZHOU/LI JIE

8. Title of Signatory:

GENERAL MANAGER

Note:

The person importing the products becomes responsible for ensuring that they comply with the directives which apply to them. At the very last, it is recommended that the importer obtain a copy of the original Declaration of conformity from manufacturer.

Page 41

500988-UK - 3500W RATED DUAL FUEL INVERTER GENERATOR

WARRANTY

WARRANTY*

CHAMPION POWER EQUIPMENT 3 YEAR LIMITED WARRANTY

Warranty Qualiﬁcations

To register your product for warranty and FREE lifetime call center technical support please visit:

https://www.championpowerequipment.co.uk

To complete registration you will need to include a copy of the purchase receipt as proof of original purchase. Proof of purchase is required for warranty service. Please register within ten (10) days from date of purchase.

Repair/Replacement Warranty

CPE warrants to the original purchaser that the mechanical and electrical components will be free of defects in material and workmanship for a period of three (3) years for domestic usage and One (1) Year for commercial and industrial use. Transportation charges on product submitted for repair or replacement under this warranty are the sole responsibility of the purchaser. This warranty only applies to the original purchaser and is not transferable. For full T&C’s please visit www.championpowerequipment.co.uk.

Do Not Return The Unit To The Place Of Purchase

Contact CPE’s Technical Service and CPE will troubleshoot any issue via phone or e-mail. If the problem is not corrected by this method, CPE will, at its option, authorize evaluation, repair or replacement of the defective part or component at a CPE Service Center. CPE will provide you with a case number for warranty service. Please keep it for future reference. Repairs or replacements without prior authorization, or at an unauthorized repair facility, will not be covered by this warranty.

Warranty Exclusions

This warranty does not cover the following repairs and equipment:

Normal Wear

Products with mechanical and electrical components need periodic parts and service to perform well. This warranty does not cover repair when normal use has exhausted the life of a part or the equipment as a whole.

Installation, Use and Maintenance

This warranty will not apply to parts and/or labor if the product is deemed to have been misused, neglected, involved in an accident, abused, loaded beyond the product’s limits, modiﬁed, installed improperly or connected incorrectly to any electrical component. Normal maintenance is not covered by this warranty and is not

required to be performed at a facility or by a person authorized by CPE.

Other Exclusions

This warranty excludes:

– Cosmetic defects such as paint, decals, etc.

– Wear items such as ﬁlter elements, o-rings, etc.

– Accessory parts such as starting batteries, and storage

covers.

– Failures due to acts of God and other force majeure events

beyond the manufacturer’s control.

– Problems caused by parts that are not original Champion

Power Equipment parts.

When applicable, this warranty does not apply to products used for prime power in place of a utility.

Limits of Implied Warranty and Consequential Damage

Champion Power Equipment disclaims any obligation to cover any loss of time, use of this product, freight, or any incidental or consequential claim by anyone from using this product. THIS WARRANTY AND THE ATTACHED U.S. EPA and/or CARB EMISSION CONTROL SYSTEM WARRANTIES (WHEN APPLICABLE) ARE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

A unit provided as an exchange will be subject to the warranty of the original unit. The length of the warranty governing the exchanged unit will remain calculated by reference to the purchase date of the original unit.

This warranty gives you certain legal rights which may change from state to state or province to province. Your state or province may also have other rights you may be entitled to that are not listed within this warranty.

Contact Information

Winch Solutions ltd

Unit 17-18 Bradley Trading Estate

Standish WN6 0XQ / UK

www.championpowerequipment.co.uk

[email protected]
