Page 1
REGISTER YOUR PRODUCT ONLINE
at championpowerequipment.com
OPERATOR'S MANUAL
MODEL #201246
120W SOLAR PANEL
or visit championpowerequipment.com
SAVE THESE INSTRUCTIONS. This manual contains important safety precautions which should be read and understood before operating the product. Failure to do
so could result in serious injury. This manual should remain with the product.
Specifications, descriptions and illustrations in this manual are as accurate as known at the time of publication, but are subject to change without notice.
4436-M-OP RE V 20230 912
EN
Champion Power Equipment, Inc.
Page 2
201246 - 120W SOLAR PANEL
TABLE OF CONTENTS
TABLE OF CONTENTS
Introduction ................................................... 3
Safety Definitions ..........................................3
Important Safety Instructions ....................... 4
Features ......................................................... 5
Solar Panel ........................................................ 5
Parts Included ..................................................... 5
Operation .......................................................6
Maintenance .................................................. 7
Cleaning the Solar Panel .......................................... 7
Frequently Asked Questions (FAQ) ................8
Specifications ................................................ 9
2
Page 3
201246 - 120W SOLAR PANEL
INTRODUCTION
INTRODUCTION
Congratulations on your purchase of a Champion Power Equipment
(CPE) product. CPE designs, builds, and supports all of our
products to strict specifications and guidelines. With proper
product knowledge, safe use, and regular maintenance, this
product should bring years of satisfying service.
Every effort has been made to ensure the accuracy and
completeness of the information in this manual at the time of
publication, and we reserve the right to change, alter and/or
improve the product and this document at any time without prior
notice.
CPE highly values how our products are designed, manufactured,
operated, and serviced as well as providing safety to the operator
and those around the generator. Therefore, it is IMPORTANT to
review this product manual and other product materials thoroughly
and be fully aware and knowledgeable of the assembly, operation,
dangers and maintenance of the product before use. Fully
familiarize yourself, and make sure others who plan on operating
the product fully familiarize themselves too, with the proper safety
and operation procedures before each use. Please always exercise
common sense and always err on the side of caution when
operating the product to ensure no accident, property damage,
or injury occurs. We want you to continue to use and be satisfied
with your CPE product for years to come.
SAFETY DEFINITIONS
The purpose of safety symbols is to attract your attention to
possible dangers. The safety symbols, and their explanations,
deserve your careful attention and understanding. The safety
warnings do not by themselves eliminate any danger. The
instructions or warnings they give are not substitutes for proper
accident prevention measures.
DANGER
DANGER indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
WARNING
WARNING indicates a hazardous situation which, if not
avoided, could result in death or serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
NOTICE
When contacting CPE about parts and/or service, you will need to
supply the complete model and serial numbers of your product.
Transcribe the information found on your product’s nameplate
label to the table below
CPE TECHNICAL SUPPORT TEAM
1-877-338-0999
MODEL NUMBER
201246
SERIAL NUMBER
DATE OF PURCHASE
PURCHASE LOCATION
NOTICE indicates information considered important, but not
hazard-related (e.g., messages relating to property damage).
3
Page 4
201246 - 120W SOLAR PANEL
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Cancer and Reproductive Harm – www.P65Warnings.ca.gov
WARNING
Read all safety warnings and all instructions. Failure to follow
the warnings and instruction may result in electric shock, fire
and cause serious injury. Save all warnings and instruction.
DANGER
Solar panel generates powerful voltage.
Keep your solar panel in a dry, well-ventilated area when not
in use.
Do not use or store solar panels near open flames or
flammable materials.
Do not operate the solar panel with damaged output cable or
connectors.
WARNING
Do not use solar panel for medical life support uses.
In case of emergency, call 911 immediately.
NEVER use this product to power life support devices or life
support appliances.
Inform your electricity provider immediately if you or anyone in
your household depends on electrical equipment to live.
Inform your electrical provider immediately if a loss of power
would cause you or anyone in your household to experience a
medical emergency.
WARNING
Solar panel produces heat. Skin burns can occur on contact.
Do not touch hot surfaces.
Allow equipment to cool before touching.
WARNING
Do not allow children or unqualified persons to operate or
service the solar panel.
Do not bend the solar panel.
Do not step on or place objects on top of the solar panel.
The output circuit of the solar panels must be correctly
connected to the device.
Do not reverse or short-circuit the positive and negative poles.
Ensure that there is no gap between the insulated connections.
If there is a gap, sparks or electrical shocks will occur.
Do not submerge the solar panel in water.
Do not leave or submerge the connector ends in water.
Do not allow corrosive chemicals or conductive fluids, such
as seawater, industrial chemicals, bleach or bleach containing
products to come in contact with the solar panel.
WARNING
To avoid fire or electrical shock hazard, observe all ratings on
the solar panel and accessory products you intend to use.
Exceeding the input specifications of the device being charged
by the solar panel can damage the devices connected to it.
DO NOT use or connect solar panels in any way that exceeds
the input specifications of the devices used with the solar
panels.
DO NOT use or connect solar panels in any way that exceeds
the current and voltage limits of the extension cable’s
wire gauge (AWG). Always consult NEC 310-16 Allowable
Ampacities of Insulated Conductors chart.
DO NOT tamper or modify the solar panel in any way.
WARNING
Improper treatment or use of the solar panel can damage it,
shorten its life or void the warranty.
Use the solar panel only for intended uses.
DO NOT expose solar panel to excessive moisture, dust, or dirt.
If connected devices overheat, turn them off and disconnect
them from the solar panel.
DO NOT use the solar panel if:
– Electrical output is lost
– Equipment sparks, smokes or emits flames
4
Page 5
201246 - 120W SOLAR PANEL
FEATURES
FEATURES
Read this operator’s manual before operating your solar panel. Familiarize yourself with the location and function of the features. Save this
manual for future reference.

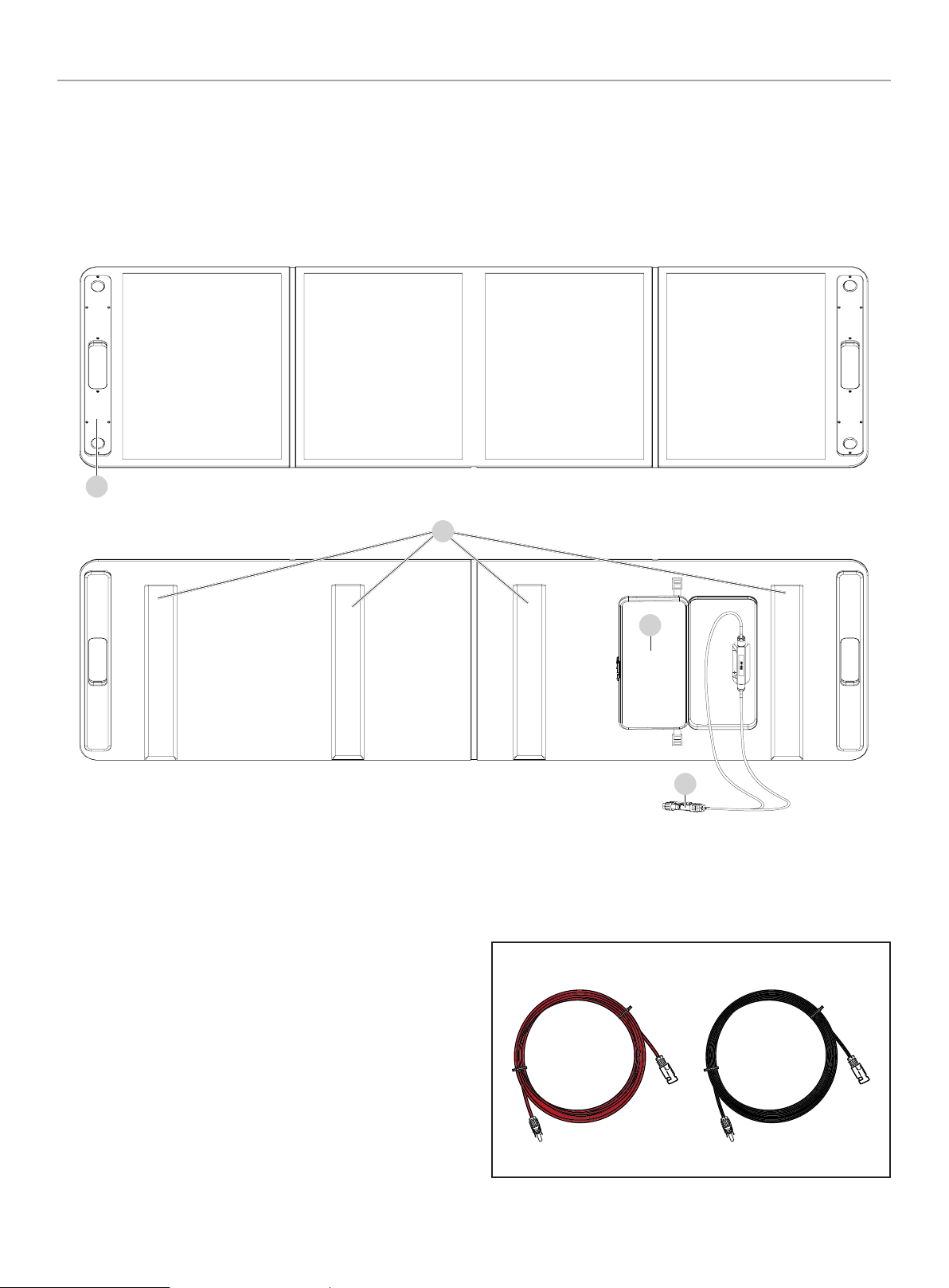

Solar Panel
Front View
1
Back View
1. Carrying Handle – Used to lift or carry the unit.
2. Kickstand – Used to support the solar panel.
3. Cable Storage Pocket – Used to store the cables and
Operator’s Manual.
4. MC4 Connectors – Used to connect to desired device or
extension cable.
2
3
4
Parts Included
Accessories
10 ft. (3 m) MC4 Extension Cable (14AWG) .......................1
5
Page 6
201246 - 120W SOLAR PANEL

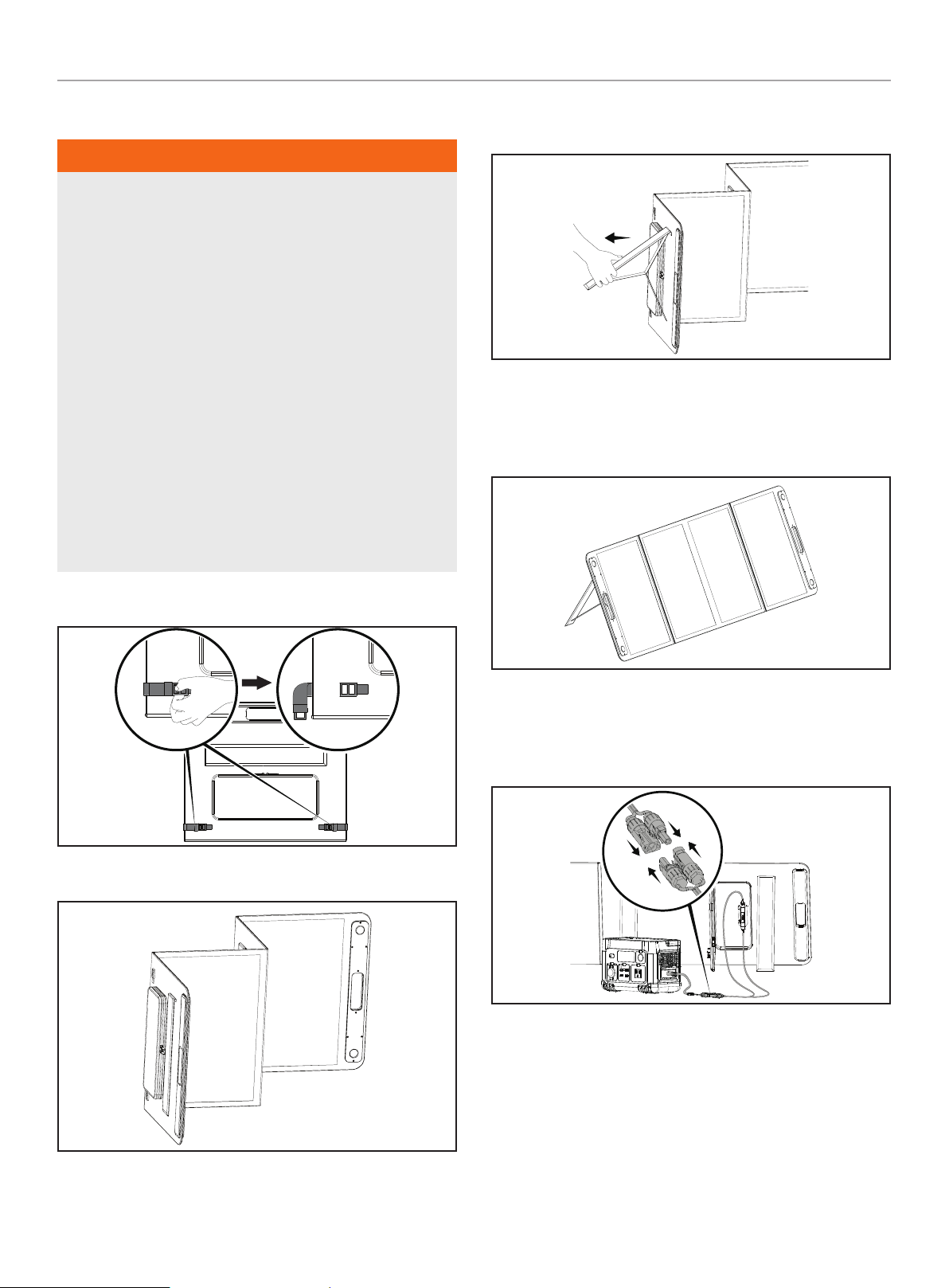

OPERATION
OPERATION
WARNING
Max open circuit voltage should never exceed the max input
voltage of the device or power station. Use a multimeter,
or consult a qualified technician, to check the solar panel’s
voltage only when the solar panel is disconnected and during
peak sunlight to get correct maximum readings. Voltages may
be higher in colder temperatures or when the solar panel is
cold.
Check your device’s operator’s manual for correct
configuration when connecting more than one solar panel.
Generally, it is not recommended to connect multiple solar
panels when charging small devices and some Power Stations
as the voltage and/or current may exceed the maximum input
specifications.
DO NOT use or connect solar panels in any way that exceeds
the current and voltage limits of the extension cable’s
wire gauge (AWG). Always consult NEC 310-16 Allowable
Ampacities of Insulated Conductors chart. This is espeically
important when connecting solar panels in parallel.
3. Extend each kick stand one by one and fully unfold the solar
panel.
4. Adjust the solar panel to face the sun as much as possible,
avoiding any shaded spots, trees, or obstructions in the sun’s
path throughout the day. Frequent and minor adjustments can
show a significant increase in power.
1. Unbuckle the storage straps.
2. Partially unfold the solar panel so it can stand on its own.
5. Remove the cables from the storage pocket. Connect the
solar panel to the device or power station. Ensure the
connectors are pressed together tightly and no gap exists.
Keep connections away from puddles and standing water.
6. Periodically adjust the solar panel to ensure it is facing the
sun at the optimal angle.
6
Page 7
201246 - 120W SOLAR PANEL
MAINTENANCE
Cleaning the Solar Panel
CAUTION
Do not scratch the solar panel with abrasive cleaning pads or
brushes. Only use damp cloth to clean. Even minor scratches
can diminish performance.
Gently wipe the surface of the solar panel with a damp cloth
to remove any dust and debris. Remove animal droppings and
stuck on objects as soon as possible.
It is important to clean the solar panel regularly as even dust
you may not see can lower the efficiency of the solar panel.
MAINTENANCE
7
Page 8
201246 - 120W SOLAR PANEL
FREQUENTLY ASKED QUESTIONS (FAQ)
Question Answer
This solar panel will work with any Champion Power Station and
Can I use this panel with any Power Station or Solar Generator?
Why can’t I achieve the rated wattage?
Can I run this panel in series or parallel with multiple panels?
most other power stations and solar generators that have MC4
connections. Third Party adapters can be purchased to fit other
connectors.
Due to thermal and power losses when converting the sun’s energy
to usable power and DC to DC conversion in the power station, no
solar panel can achieve its full rated wattage.
Always consider the weather conditions including cloudiness,
temperature, and angle to the sun. Ensure your solar panel is clean
and free of dust and within allowable range of your power stations
input specs.
Yes, always check the resulting voltage and current and your
devices operator’s manual. Running in series will increase the
voltage and running in parallel will increase the current. Do not
exceed the input specifications of the device being charged.
Especially when connecting solar panels in parallel with extension
or or other third party cables, always consult NEC Ampacity Chart to
check current does not exceed the limit of the wire gauge (AWG) and
length used.
FREQUENTLY ASKED QUESTIONS (FAQ)
Do I need a charge controller?
Is the solar panel waterproof?
Not for any Champion products and most other Power Stations.
Consult your product’s manufacturer directly for other products.
The solar panel is rated IP65 meaning it does protect from water,
light rain, and dust intrusion. However, to increase the life of your
solar panel, it is best to store indoors when not in use and avoid rain
and avoid getting soaked. Never submerge in water.
8
Page 9
201246 - 120W SOLAR PANEL
SPECIFICATIONS
Model ....................................................... 20124 6
Peak Power ...................................................120W
Solar Cell ...........................................Monocrystalline
Solar Cell Lamination ......................................... ETFE
Cell Efficiency .................................................. 22%
Voltage at Max Power (Vmp) .................................. 18.4V
Current at Max Power (lmp) ...................................6.5A
Open Circuit Voltage (Voc) ....................................21.8A
Short Circuit Current (lsc) ...................................... 6.9A
Operating Temperature (°F/°C) ................ 14 to 149/-10 to 65
Optimal Operating Temperature (°F/°C) ......................77/25
Weight ................................................13.2 lb. (6 kg)
Unfolded
Length ...........................................67.1 in. (170.4 cm)
Width .............................................21.1 in. (53.5 cm)
Height ............................................... 1.0 in. (2.5 cm)
Folded
SPECIFICATIONS
Length .............................................. 18.1 in. (46 cm)
Width .............................................21.1 in. (53.5 cm)
Height ............................................... 1.4 in. (3.6 cm)
9
Page 10
WARRANTY*
CHAMPION POWER EQUIPMENT
2 YEAR LIMITED WARRANTY
Warranty Qualifications
To register your product for warranty and FREE lifetime call center
technical support please visit:
https://www.championpowerequipment.com/register
To complete registration you will need to include a copy of the
purchase receipt as proof of original purchase. Proof of purchase
is required for warranty service. Please register within ten (10)
days from date of purchase.
Repair/Replacement Warranty
CPE warrants to the original purchaser that the mechanical and
electrical components will be free of defects in material and
workmanship for a period of two years (parts and labor) from
the original date of purchase and 180 days (parts and labor) for
commercial and industrial use. Transportation charges on product
submitted for repair or replacement under this warranty are the
sole responsibility of the purchaser. This warranty only applies to
the original purchaser and is not transferable.
Do Not Return The Unit To The Place Of
Purchase
Contact CPE’s Technical Service and CPE will troubleshoot any
issue via phone or e-mail. If the problem is not corrected by
this method, CPE will, at its option, authorize evaluation, repair
or replacement of the defective part or component at a CPE
Service Center. CPE will provide you with a case number for
warranty service. Please keep it for future reference. Repairs or
replacements without prior authorization, or at an unauthorized
repair facility, will not be covered by this warranty.
Warranty Exclusions
This warranty does not cover the following repairs and equipment:
Normal Wear
Products with mechanical and electrical components need
periodic parts and service to perform well. This warranty does not
cover repair when normal use has exhausted the life of a part or
the equipment as a whole.
Installation, Use and Maintenance
This warranty will not apply to parts and/or labor if the product is
deemed to have been misused, neglected, involved in an accident,
abused, loaded beyond the product’s limits, modified, installed
improperly or connected incorrectly to any electrical component.
Normal maintenance is not covered by this warranty and is not
required to be performed at a facility or by a person authorized by
CPE.
Other Exclusions
This warranty excludes:
– Cosmetic defects such as paint, decals, etc.
– Wear items such as filter elements, o-rings, etc.
– Accessory parts such as storage covers.
– Failures due to acts of God and other force majeure events
beyond the manufacturer’s control.
– Problems caused by parts that are not original Champion
Power Equipment parts.
Limits of Implied Warranty and
Consequential Damage
Champion Power Equipment disclaims any obligation to cover
any loss of time, use of this product, freight, or any incidental
or consequential claim by anyone from using this product. THIS
WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS
OR IMPLIED, INCLUDING WARRANTIES OF MERCHANTABILITY OR
FITNESS FOR A PARTICULAR PURPOSE.
A unit provided as an exchange will be subject to the warranty
of the original unit. The length of the warranty governing the
exchanged unit will remain calculated by reference to the purchase
date of the original unit.
This warranty gives you certain legal rights which may change
from state to state or province to province. Your state or province
may also have other rights you may be entitled to that are not
listed within this warranty.
Contact Information
Address
Champion Power Equipment, Inc.
6370 S Pioneer Way, Unit 101
Las Vegas, NV 89113 USA
www.championpowerequipment.com
Customer Service
Toll Free: 1-877-338-0999
[email protected]
Fax no.: 1-562-236-9429
Technical Service
Toll Free: 1-877-338-0999
[email protected]
24/7 Tech Support: 1-562-204-1188
Loading...
