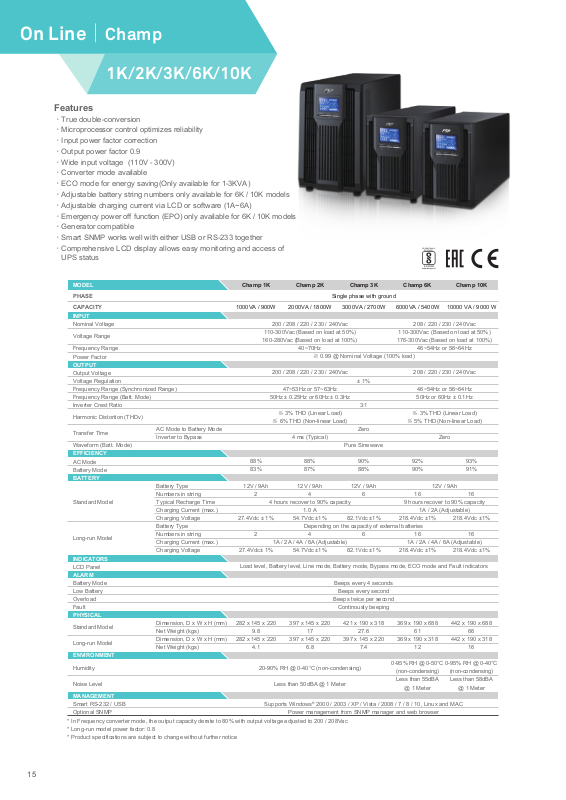

On Line│Champ
1K/2K/3K/6K/10K
Features
•True double-conversion
•Microprocessor control optimizes reliability
•Input power factor correction
•Output power factor 0.9
•Wide input voltage (110V - 300V)
•Converter mode available
•ECO mode for energy saving(Only available for 1-3KVA)
•Adjustable battery string numbers only available for 6K / 10K models
•Adjustable charging current via LCD or software (1A~6A)
•Emergency power off function (EPO) only available for 6K / 10K models
•Generator compatible
•Smart SNMP works well with either USB or RS-233 together
•Comprehensive LCD display allows easy monitoring and access of
UPS status
MODEL
PHASE
CAPACITY
INPUT
Nominal Voltage
Voltage Range
Frequency Range
Power Factor
OUTPUT
Output Voltage
Voltage Regulation
Frequency Range (Synchronized Range)
Frequency Range (Batt. Mode)
Inverter Crest Ratio
Harmonic Distortion (THDv)
Transfer Time
Waveform (Batt. Mode)
EFFICIENCY
AC Mode
Battery Mode
BATTERY
Standard Model
Long-run Model
INDICATORS
LCD Panel
ALARM
Battery Mode
Low Battery
Overload
Fault
PHYSICAL
Standard Model
Long-run Model
ENVIRONMENT
Humidity
Noise Level
MANAGEMENT
Smart RS-232 / USB
Optional SNMP
* In Frequency converter mode, the output capacity derate to 80% with output voltage adjusted to 200 / 208Vac
* Long-run model power factor: 0.8
* Product specifications are subject to change without further notice
AC Mode to Battery Mode
Inverter to Bypass
Battery Type
Numbers in string
Typical Recharge Time
Charging Current (max.)
Charging Voltage
Battery Type
Numbers in string
Charging Current (max.)
Charging Voltage
Dimension, D x W x H (mm)
Net Weight (kgs)
Dimension, D x W x H (mm)
Net Weight (kgs)
Champ 1K
1000VA / 900W
110-300Vac (Based on load at 50%)
160-280Vac (Based on load at 100%)
88%
83%
12V / 9Ah
2
27.4Vdc ± 1%
2
27.4Vdc± 1%
Load level, Battery level, Line mode, Battery mode, Bypass mode, ECO mode and Fault indicators
282 x 145 x 220
9.8
282 x 145 x 220
4.1
20-90% RH @ 0-40°C (non-condensing)
Supports Windows
Champ 2K
Single phase with ground
2000VA / 1800W
200 / 208 / 220 / 230 / 240Vac
40~70Hz
≧ 0.99 @ Nominal Voltage (100% load)
200 / 208 / 220 / 230 / 240Vac
47~53Hz or 57~63Hz
50Hz ± 0.25Hz or 60Hz ± 0.3Hz
≦ 3% THD (Linear Load)
≦ 6% THD (Non-linear Load)
4 ms (Typical)
88%
87%
12V / 9Ah
4 hours recover to 90% capacity
1A / 2A / 4A / 6A (Adjustable)
Less than 50dBA @ 1 Meter
4
1.0 A
54.7Vdc ±1%
Depending on the capacity of external batteries
4
54.7Vdc ±1%
Beeps every 4 seconds
Beeps every second
Beeps twice per second
Continously beeping
397 x 145 x 220
17
397 x 145 x 220
6.8
®
2000 / 2003 / XP / Vista / 2008 / 7 / 8 / 10, Linux and MAC
Power management from SNMP manager and web browser
Champ 3K
3000VA / 2700W
± 1%
3:1
Zero
Pure Sinewave
90%
88%
12V / 9Ah
6
82.1Vdc ±1%
6
82.1Vdc ±1%
421 x 190 x 318
27.6
397 x 145 x 220
7.4
Champ 6K
6000VA / 5400W
208 / 220 / 230 / 240Vac
110-300Vac (Based on load at 50%)
176-300Vac (Based on load at 100%)
46~54Hz or 56~64Hz
208 / 220 / 230 / 240Vac
46~54Hz or 56~64Hz
50Hz or 60Hz ± 0.1Hz
≦ 3% THD (Linear Load)
≦ 5% THD (Non-linear Load)
92%
90%
16
9 hours recover to 90% capacity
1A / 2A (Adjustable)
218.4Vdc ±1%
16
1A / 2A / 4A / 6A (Adjustable)
218.4Vdc ±1%
369 x 190 x 688
61
369 x 190 x 318
12
0-95% RH @ 0-50°C
(non-condensing)
Less than 55dBA
@ 1 Meter
Champ 10K
10000 VA / 9000 W
Zero
93%
91%
12V / 9Ah
16
218.4Vdc ±1%
16
218.4Vdc ±1%
442 x 190 x 688
66
442 x 190 x 318
16
0-95% RH @ 0-40°C
(non-condensing)
Less than 58dBA
@ 1 Meter
15
