Page 1
Auto Body Toolmart
Champ Frame Straightening Equipment, Inc.
2545 Millennium Dr., Elgin, IL 60124 (800) 382-1200
www.autobodytoolmart.com

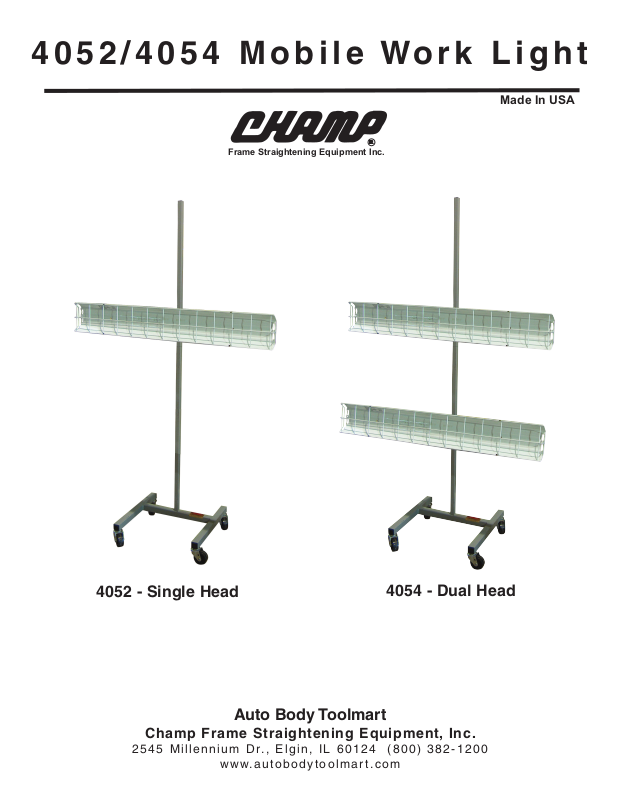

4052/4054 Mobile Work Light
Frame Straightening Equipment Inc.
Made In USA
4052 - Single Head
4054 - Dual Head
Page 2
A 1 - Support Base
B 4 - Wheels, washer, nut
C 1 - Long Vertical Mount
D 1 - Short Vertical Mount
E 1 - Light Mount (2 with Dual Head Model)
F 1 - Light Fixture with mounting bolt(2 with Dual Head Model)
G 1 - Light Fixture Cover (2 with Dual Head Model)
Parts List
A
B
C
E
G
D
F
The Champ Mobile Worklight is not suitable for use where explosion proof
lighting is required.
WARNING
Page 3
Attach wheels to Base Mount using supplied
nuts, bolts & washers
Insert Long Vertical Mounting Bar into
base. It may be necessary to tap into
place with a rubber mallet.
Slide Light Mount onto Vertical Mounting Bar.
Lock into place with Locking Knob. (Dual Head
unit will include two Light Mounts)
Insert Short Vertical Mounting Bar into
Long Vertical Mounting Bar
Bolt Light Fixture to Light Mount. (Dual Head
unit will include two Light Fixtures)
1. 2.
3. 4.
5.
6.
Attach Light Fixture Cover to Light Fixture
following the supplied instructions. (Light
Fixture instructions are inside Light Fixture.)
Use ONLY bulb size & wattage indicated on
fixture. (Bulbs not included)
Page 4
Your Champ Mobile Work Light is now ready to use. Light
head is adjustable vertically and can swivel to be used
horizontally or vertically.
Auto Body Toolmart
Champ Frame Straightening Equipment, Inc.
2545 Millennium Dr., Elgin, IL 60124 (800) 382-1200
www.autobodytoolmart.com
4052 - Single Head
4054 - Dual Head
