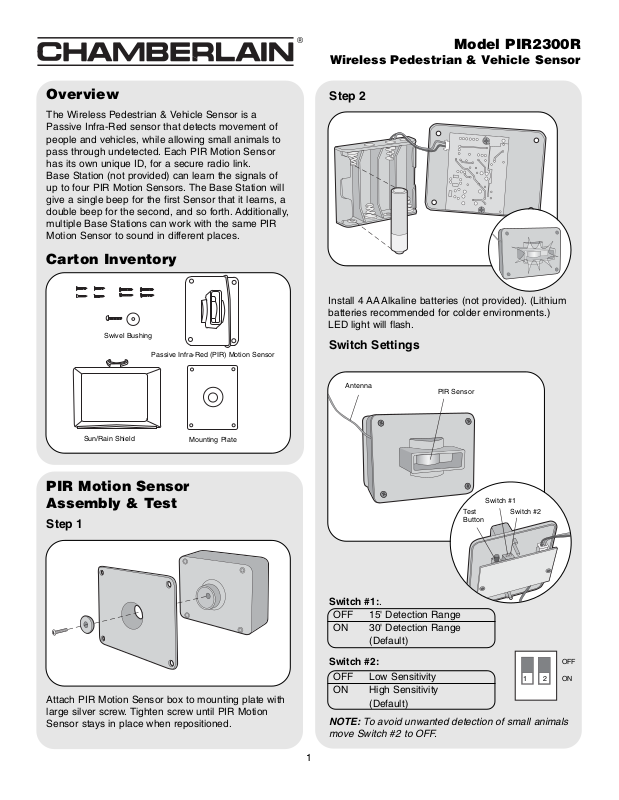

Chamberlain PIR2300R User Manual
Carton Inventory
Overview
The Wireless Pedestrian & Vehicle Sensor is a
Passive Infra-Red sensor that detects movement of
people and vehicles, while allowing small animals to
pass through undetected. Each PIR Motion Sensor
has its own unique ID, for a secure radio link.
Base Station (not provided) can learn the signals of
up to four PIR Motion Sensors. The Base Station will
give a single beep for the first Sensor that it learns, a
double beep for the second, and so forth. Additionally,
multiple Base Stations can work with the same PIR
Motion Sensor to sound in different places.
PIR Motion Sensor Assembly & Test
Step 1
Attach PIR Motion Sensor box to mounting plate with
large silver screw. Tighten screw until PIR Motion
Sensor stays in place when repositioned.
Model PIR2300R
Wireless Pedestrian & Vehicle Sensor
Passive Infra-Red (PIR) Motion Sensor
1
Swivel Bushing
Mounting Plate
Sun/Rain Shield
®
PIR Sensor
Antenna
Switch Settings
Step 2
Install 4 AA Alkaline batteries (not provided). (Lithium
batteries recommended for colder environments.)
LED light will flash.
Switch #1
Switch #2
Test
Button
Switch #1:.
Switch #2:
ON
OFF
1
2
OFF Low Sensitivity
ON High Sensitivity
(Default)
OFF 15' Detection Range
ON 30' Detection Range
(Default)
NOTE: To avoid unwanted detection of small animals
move Switch #2 to OFF.
2
Step 5
Programming PIR Motion Sensor to Base Station
Test PIR Motion Sensor by waving hand in front of
sensor. Test light should flash. Secure cover with the
smallest screws.
Step 3
Insert battery pack facing away from circuit board and
attach cover.
NOTE: Ensure the batteries do not touch the circuit
board and the antenna and battery wires are not
pinched.
Step 4
B Within 5 seconds, wave hand in front of PIR Motion
Sensor. Test light will illuminate and Base Station
will buzz.
A
B
A Ensure Base
Station and PIR
Motion Sensor are
in close proximity
to each other.
Press and release
learn button on
Base Station.
Buzzer will sound.
Step 6
PIR Motion Sensor Installation
Mount PIR Motion Sensor
horizontally on solid surface a few
feet off the ground and within 900'
of Base Station (rotate sensor to access screw
holes). Unit should be able to swivel as needed.
Attach sun/rain shield.
NOTE: Keep PIR Motion Sensor antenna away from
metal objects. Do not mount PIR Motion Sensor in
direct sunlight, near moving tree branches, or in the
path of a sprinkler system.
