RESIDENTIAL DC SOLAR

VEHICULAR SWING GATE OPERATOR

INSTALLATION MANUAL

Model LA412

LA412PKGU

Single Arm Package

LA412DC

Primary 12 VDC Actuator Arm for single swing gate applications

LA412DCS

Secondary 12 VDC Actuator Arm for dual swing gate applications

OPERATOR

REQUIRES EXTERNAL

MONITORED ENTRAPMENT

PROTECTION DEVICE

LiftMaster 845 Larch Avenue Elmhurst, IL 60126-1196

• THIS PRODUCT IS TO BE INSTALLED AND SERVICED BY A TRAINED GATE SYSTEMS

TECHNICIAN ONLY.

• This model is for use on vehicular passage gates ONLY and not intended for use on pedestrian passage gates.

• This model is intended for use in Class I vehicular swing gate applications.

• Visit LiftMaster.com to locate a professional installing dealer in your area.

• This gate operator is compatible with MyQ® and Security+ 2.0® accessories.

SAFETY 1

SAFETY SYMBOL AND SIGNAL WORD REVIEW .....................................1

USAGE CLASS ..........................................................................................2

UL325 ENTRAPMENT PROTECTION REQUIREMENTS .............................2

SAFETY INSTALLATION INFORMATION ...................................................3

GATE CONSTRUCTION INFORMATION .....................................................4

INTRODUCTION 5

CARTON INVENTORY ...............................................................................5

SPECIFICATIONS ......................................................................................6

SITE PREPARATION .................................................................................7

CHECK YOUR GATE ..................................................................................7

OVERVIEW OF TYPICAL INSTALLATION ..................................................8

INSTALLATION 9

IMPORTANT SAFETY INFORMATION .......................................................9

INSTALLATION TIPS .................................................................................9

ATTACH BRACKETS TO OPERATOR .......................................................10

DETERMINE MOUNTING LOCATION ......................................................11

POSITION THE OPERATOR .....................................................................12

SECURE THE BRACKETS ........................................................................13

INSTALL THE CONTROL BOX .................................................................14

EARTH GROUND ROD ............................................................................16

WIRE THE OPERATOR ARM TO THE CONTROL BOARD ........................16

DUAL GATES ONLY ................................................................................17

INSTALL ENTRAPMENT PROTECTION ...................................................20

INSTALL SOLAR PANEL(S) ....................................................................22

POWER WIRING .....................................................................................25

FINISH INSTALL .....................................................................................26

ADJUSTMENT 26

LIMIT AND FORCE ADJUSTMENT ..........................................................26

OBSTRUCTION TEST ..............................................................................28

PROGRAMMING 29

REMOTE CONTROLS (NOT PROVIDED) .................................................29

LIFTMASTER INTERNET GATEWAY (NOT PROVIDED) ..........................30

ERASE ALL CODES .................................................................................30

ERASE LIMITS ........................................................................................30

TO REMOVE AND ERASE MONITORED ENTRAPMENT

PROTECTION DEVICES ...........................................................................30

OPERATION 31

CONTROL BOARD OVERVIEW ................................................................31

MANUAL RELEASE .................................................................................32

RESET BUTTON ......................................................................................32

PARTY MODE .........................................................................................32

OPERATOR ALARM ...............................................................................33

REMOTE CONTROL ................................................................................33

ACCESSORY WIRING 34

EXTERNAL CONTROL DEVICES ..............................................................34

LOCKS ....................................................................................................35

MISCELLANEOUS WIRING .....................................................................35

MAINTENANCE 36

IMPORTANT SAFETY INFORMATION .....................................................36

MAINTENANCE CHART ...........................................................................36

BATTERIES .............................................................................................36

TROUBLESHOOTING 37

DIAGNOSTIC CODES ..............................................................................37

CONTROL BOARD LEDS .........................................................................40

TROUBLESHOOTING CHART ..................................................................41

APPENDIX 44

BRACKET TYPES ....................................................................................44

LIMIT SETUP WITH A REMOTE CONTROL .............................................45

REPAIR PARTS 46

CONTROL BOX ........................................................................................46

GATE OPERATOR ARM ...........................................................................46

WIRING DIAGRAM 47

STANDARD CONTROL BOX ....................................................................47

LARGE METAL CONTROL BOX ...............................................................48

ACCESSORIES 49

WARRANTY 50

TEMPLATE FOR POST BRACKET MOUNTING 51

SAFETY

SAFETY SYMBOL AND SIGNAL WORD REVIEW

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of Serious Injury or Death if you do not comply with the warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your gate and/or the gate operator if you do not comply with the cautionary statements that accompany it. Read them carefully.

IMPORTANT NOTE:

BEFORE attempting to install, operate or maintain the operator, you must read and fully

•

understand this manual and follow all safety instructions.

DO NOT attempt repair or service of your gate operator unless you are an Authorized

•

Service Technician.

MECHANICAL

ELECTRICAL

USAGE CLASS

SAFETY

CLASS I – RESIDENTIAL VEHICULAR GATE OPERATOR

A vehicular gate operator (or system) intended for use in garages or parking areas associated with a residence of one-to four single families.

CLASS II – COMMERCIAL/GENERAL ACCESS VEHICULAR GATE OPERATOR

A vehicular gate operator (or system) intended for use in a commercial location or building such as a multi-family housing unit (five or more single family units), hotel, garages, retail store, or other buildings accessible by or servicing the general public.

CLASS III – INDUSTRIAL/LIMITED ACCESS VEHICULAR GATE OPERATOR

A vehicular gate operator (or system) intended for use in an industrial location or building such as a factory or loading dock area or other locations not accessible by or intended to service the general public.

CLASS IV– RESTRICTED ACCESS VEHICULAR GATE OPERATOR

A vehicular gate operator (or system) intended for use in a guarded industrial location or building such as an airport security area or other restricted access locations not servicing the general public, in which unauthorized access is prevented via supervision by security personnel.

III

UL325 ENTRAPMENT PROTECTION REQUIREMENTS

This vehicular gate operator must be installed with at least two independent entrapment protection means as specified in the table below.

HORIZONTAL SLIDE AND SWING GATE OPERATOR

GATE OPERATOR ENTRAPMENT PROTECTION TYPES

Type A Inherent (built into the operator) entrapment

protection system

Type B1 Non-contact sensors such as photoelectric sensors

Type B2 Contact sensors such as edge sensors

The same type of device shall not be used for both entrapment protection means. Use of a single device to cover both the opening and closing directions is in accordance with the requirement; however, a single device is not required to cover both directions. This operator is provided with Type A. The installer is required to install additional entrapment protection devices in each entrapment zone.

IMPORTANT SAFETY INFORMATION

To reduce the risk of INJURY or DEATH:

• READ AND FOLLOW ALL INSTRUCTIONS.

• NEVER let children operate or play with gate controls. Keep the remote control away from children.

• ALWAYS keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.

• Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or reverse when an object activates the noncontact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of INJURY or DEATH.

• Use the emergency release ONLY when the gate is not moving.

• KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual. Have a qualified service person make repairs to gate hardware.

• The entrance is for vehicles ONLY. Pedestrians MUST use separate entrance.

• SAVE THESE INSTRUCTIONS.

SAFETY INSTALLATION INFORMATION

SAFETY

1. Vehicular gate systems provide convenience and security. Gate systems are comprised of many component parts. The gate operator is only one component. Each gate system is specifically designed for an individual application.

2. Gate operating system designers, installers and users must take into account the possible hazards associated with each individual application. Improperly designed, installed or maintained systems can create risks for the user as well as the bystander. Gate systems design and installation must reduce public exposure to potential hazards.

3. A gate operator can create high levels of force in its function as a component part of a gate system. Therefore, safety features must be incorporated into every design. Specific safety features include:

• Edges Sensors (contact) • Guards for Exposed Rollers

• Photoelectric Sensors • Screen Mesh

• Vertical Posts • Instructional and Precautionary Signage

4. Install the gate operator only when:

a. The operator is appropriate for the construction and the usage

class of the gate.

b. All openings of a horizontal slide gate are guarded or screened

from the bottom of the gate to a minimum of 6 feet (1.8 m) above the ground to prevent a 2-1/4 inches (6 cm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position.

c. All exposed pinch points are eliminated or guarded, and guarding

is supplied for exposed rollers.

5. The operator is intended for installation only on gates used for vehicles. Pedestrians must be supplied with a separate access opening. The pedestrian access opening shall be designed to promote pedestrian usage. Locate the gate such that persons will not come in contact with the vehicular gate during the entire path of travel of the vehicular gate.

6. The gate must be installed in a location so that enough clearance is supplied between the gate and adjacent structures when opening and closing to reduce the risk of entrapment. Swinging gates shall not open into public access areas.

7. The gate must be properly installed and work freely in both directions prior to the installation of the gate operator.

8. Controls intended for user activation must be located at least 6 feet (1.8 m) away from any moving part of the gate and where the user is prevented from reaching over, under, around or through the gate to operate the controls. Outdoor or easily accessible controls shall have a security feature to prevent unauthorized use. Exception: Emergency access controls only accessible by authorized personnel (e.g. fire, police) may be placed at any location in the line-of-sight of the gate.

9. The Stop and/or Reset (if provided separately) must be located in the line-of-sight of the gate. Activation of the reset control shall not cause the operator to start.

10. A minimum of two (2) WARNING SIGNS shall be installed, one on each side of the gate where easily visible.

11. For a gate operator utilizing a non-contact sensor:

a. Reference owner’s manual regarding placement of non-contact

sensor for each type of application. See Install Entrapment Protection section.

b. Care shall be exercised to reduce the risk of nuisance tripping,

such as when a vehicle trips the sensor while the gate is still moving.

c. One or more non-contact sensors shall be located where the risk

of entrapment or obstruction exists, such as the perimeter reachable by a moving gate or barrier.

12. For a gate operator utilizing a contact sensor such as an edge sensor:

a. One or more contact sensors shall be located where the risk of

entrapment or obstruction exists, such as at the leading edge, trailing edge and post mounted both inside and outside of a vehicular horizontal slide gate.

b. A hard wired contact sensor shall be located and its wiring

arranged so the communication between the sensor and the gate operator is not subject to mechanical damage.

c. A wireless device such as one that transmits radio frequency (RF)

signals to the gate operator for entrapment protection functions shall be located where the transmission of the signals are not obstructed or impeded by building structures, natural landscaping or similar obstruction. A wireless device shall function under the intended end-use conditions.

d. One or more contact sensors shall be located on the inside and

outside leading edge of a swing gate. Additionally, if the bottom edge of a swing gate is greater than 6 inches (152 mm) above the ground at any point in its arc of travel, one or more contact sensors shall be located on the bottom edge.

e. One or more contact sensors shall be located at the bottom edge

of a vertical barrier (arm).

SAFETY

GATE CONSTRUCTION INFORMATION

Vehicular gates should be installed in accordance with ASTM F2200: Standard Specification for Automated Vehicular Gate Construction. For a copy, contact ASTM directly at 610-832-9585 or www.astm.org.

1. GENERAL REQUIREMENTS

1.1 Gates shall be constructed in accordance with the provisions given for the appropriate gate type listed, refer to ASTM F2200 for additional gate types.

1.2 Gates shall be designed, constructed and installed to not fall over more than 45 degrees from the vertical plane, when a gate is detached from the supporting hardware.

1.3 Gates shall have smooth bottom edges, with vertical bottom edged protrusions not exceeding 0.50 inches (12.7 mm) when other than the exceptions listed in ASTM F2200.

1.4 The minimum height for barbed tape shall not be less than 8 feet (2.44 m) above grade and for barbed wire shall not be less than 6 feet (1.83 m) above grade.

1.5 An existing gate latch shall be disabled when a manually operated gate is retrofitted with a powered gate operator.

1.6 A gate latch shall not be installed on an automatically operated gate.

1.7 Protrusions shall not be permitted on any gate, refer to ASTM F2200 for Exceptions.

1.8 Gates shall be designed, constructed and installed such that their movement shall not be initiated by gravity when an automatic operator is disconnected, in accordance with the following.

1.8.1 Vehicular horizontal slide gate. Shall not result in continuous, unimpeded movement in either lineal direction of its travel.

1.8.2 Vehicular horizontal swing gate. Shall not result in continuous, unimpeded movement in either direction along the arc of its path of travel.

1.9 For pedestrian access in the vicinity of an automated vehicular gate, a separate pedestrian gate shall be provided. The pedestrian gate shall be installed in a location such that a pedestrian shall not come in contact with a moving vehicular access gate. A pedestrian gate shall not be incorporated into an automated vehicular gate panel.

2. SPECIFIC APPLICATIONS

2.1 Any non-automated gate that is to be automated shall be upgraded to conform to the provisions of this specification.

2.2 This specification shall not apply to gates generally used for pedestrian access and to vehicular gates not to be automated.

2.3 Any existing automated gate, when the operator requires replacement, shall be upgraded to conform to the provisions of this specification in effect at that time.

3. VEHICULAR HORIZONTAL SLIDE GATES

3.1 The following provisions shall apply to Class I, Class II and Class III vehicular horizontal slide gates:

3.1.1 All weight bearing exposed rollers 8 feet (2.44 m), or less, above grade shall be guarded or covered.

3.1.2 All openings shall be designed, guarded, or screened from the bottom of the gate to the top of the gate or a minimum of 72 in. (1.83 m) above grade, whichever is less, to prevent a 2 1⁄4 in. (57 mm) diameter sphere from passing through the openings anywhere in the gate, and in that portion of the adjacent fence that the gate covers in the open position. The gate panel shall include the entire section of the moving gate,including any back frame or counterbalance portion of the gate.

3.1.3 A gap, measured in the horizontal plane parallel to the roadway, between a fixed stationary object nearest the roadway, (such as a gate support post) and the gate frame when the gate is in either the fully open position or the fully closed position, shall not exceed 2 1/4 inches (57 mm), refer to ASTM F2200 for Exception.

3.1.4 Positive stops shall be required to limit travel to the designed fully open and fully closed positions. These stops shall be installed at either the top of the gate, or at the bottom of the gate where such stops shall horizontally or vertically project no more than is required to perform their intended function.

3.1.5 All gates shall be designed with sufficient lateral stability to assure that the gate will enter a receiver guide, refer to ASTM F2200 for panel types.

3.2 The following provisions shall apply to Class IV vehicular horizontal slide gates:

3.2.1 All weight bearing exposed rollers 8 feet (2.44 m), or less, above grade shall be guarded or covered.

3.2.2 Positive stops shall be required to limit travel to the designed fully open and fully closed positions. These stops shall be installed at either the top of the gate, or at the bottom of the gate where such stops shall horizontally or vertically project no more than is required to perform their intended function.

4. VEHICULAR HORIZONTAL SWING GATES

4.1 The following provisions shall apply to Class I, Class II and Class III vehicular horizontal swing gates:

4.1.1 Gates shall be designed, constructed and installed so as not to create an entrapment area between the gate and the supporting structure or other fixed object when the gate moves toward the fully open position, subject to the provisions in 4.1.1.1 and

4.1.1.2.

4.1.1.1 The width of an object (such as a wall, pillar or column) covered by a swing gate when in the open position shall not exceed 4 inches (102 mm), measured from the center line of the pivot point of the gate, refer to ASTM F2200 for exception.

4.1.1.2 Except for the zone specified in Section 4.1.1.1, the distance between a fixed object such as a wall, pillar or column, and a swing gate when in the open position shall not be less than 16 inches (406 mm), refer to ASTM F2200 for exception.

4.2 Class IV vehicular horizontal swing gates shall be designed, constructed and installed in accordance with security related parameters specific to the application in question.

INTRODUCTION

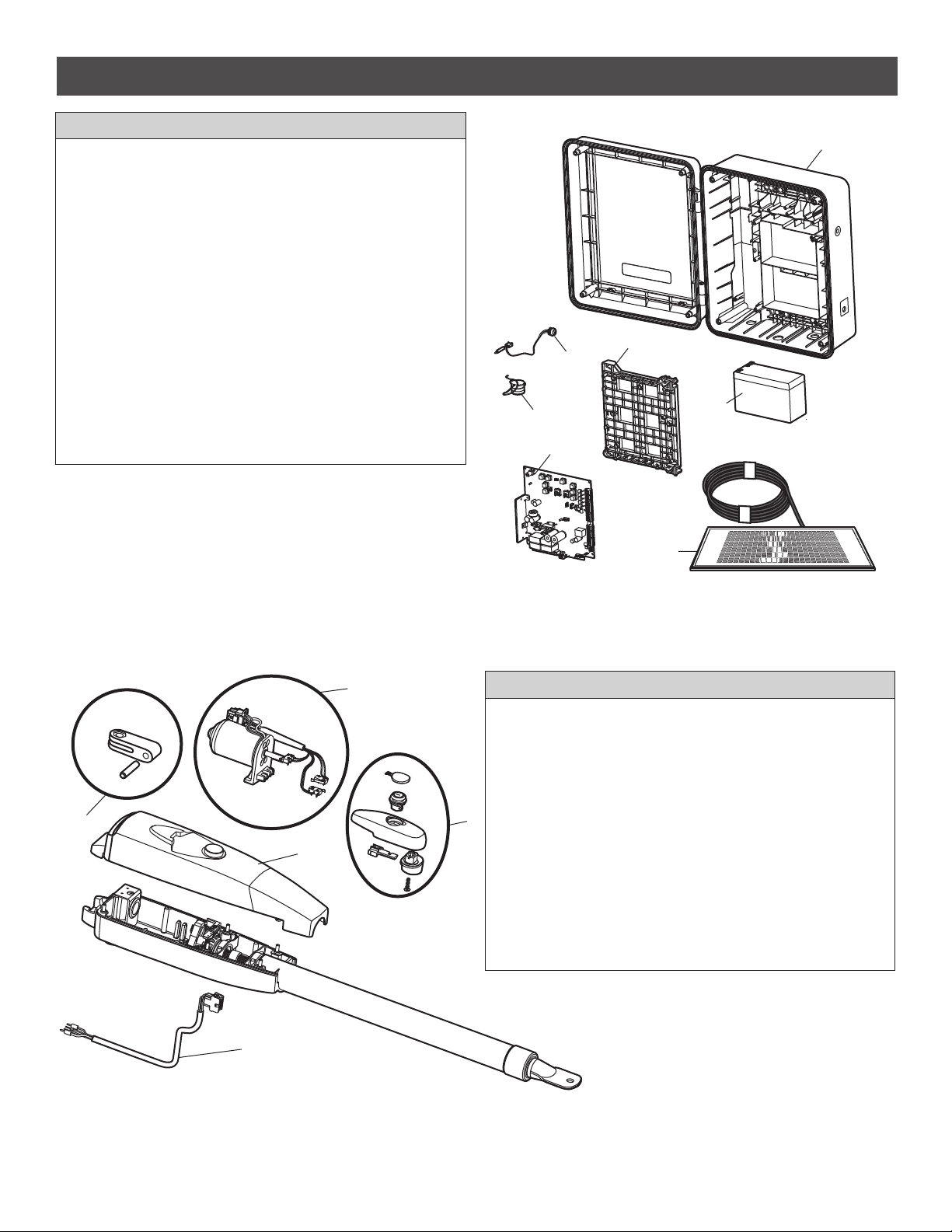

CARTON INVENTORY

NOT SHOWN: Documentation packet and hardware bag

Pull-to-Open Bracket

Standard Control Box with 2 Batteries

Gate Bracket

Cable Ties (4)

Gate Operator

Wire Nuts (6)

Post Bracket

12V 10W Solar Panel Model SOLPNL10W12V (1)

Warning Signs (2)

Pull-to-Open Bracket

Gate Bracket

Gate Operator

LiftMaster Monitored Retro-Reflective Photoelectric Sensor

LA412DCS ONLY

Watertight Connector (2)

Junction Box

Post Bracket

Connector

Extension Cable

HARDWARE INVENTORY

NOTE: Hardware quantities shown below are for LA412DC. Quantities are doubled for LA412DCS.

Flat Washer 5/16" (1)

Lock Washer 5/16" (1)

Hex Nut 3/8"-16 (3)

Hex Nut 5/16"-18 (1)

Hex Bolt 5/16"-18 x 1-1/2" (1)

Keylock Cap

Hex Bolt 3/8"-16 x 1-1/2" (1)

Carriage Bolt 3/8" x 5-15/16" (2)

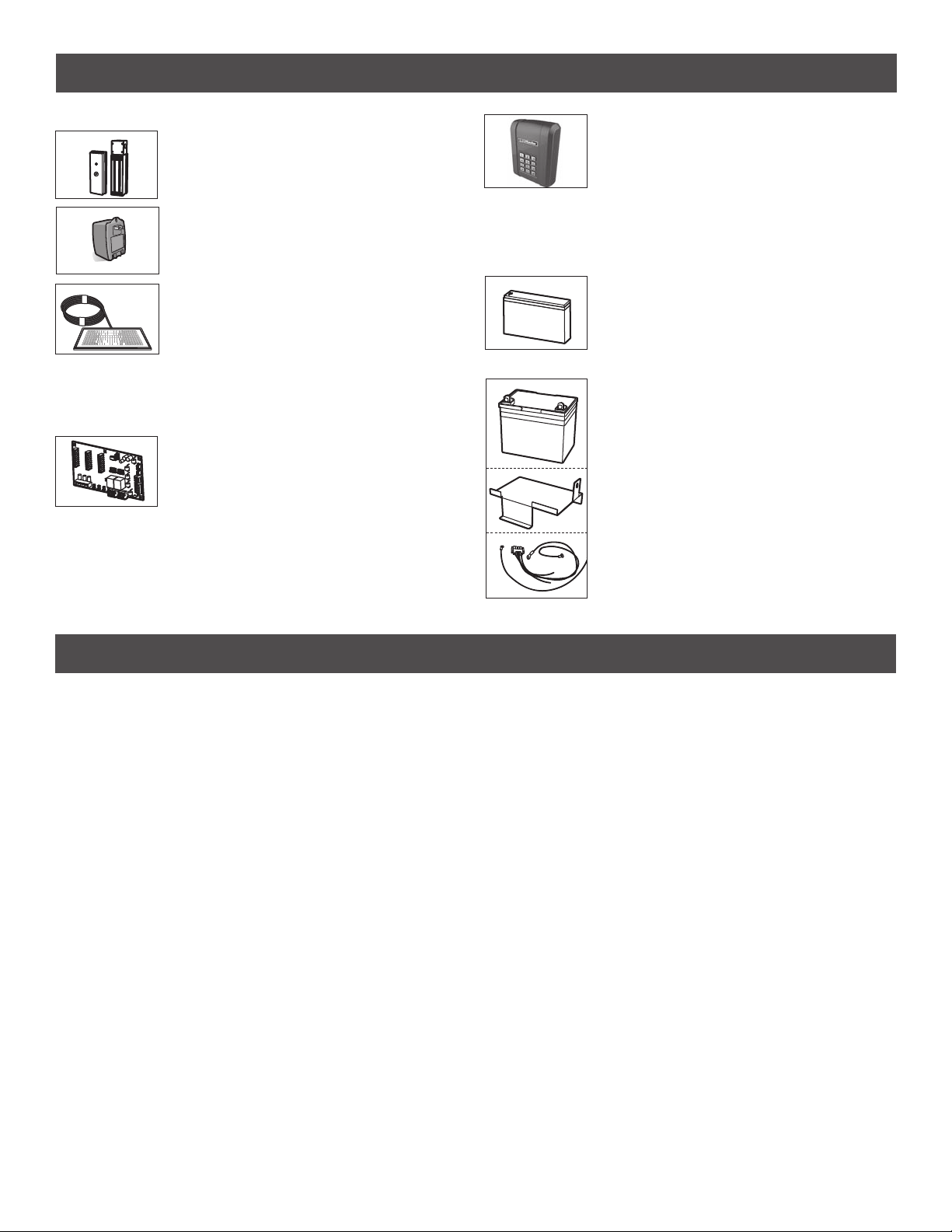

OPTIONAL ACCESSORIES (ORDERED SEPARATELY)

Large Metal Control Box for Solar Applications (Model XLSOLARCONTU)

Ideal for installations that require additional room in the control box (batteries not included). Requires two 33AH batteries, battery tray, and solar battery harness (refer to accessories).

Key (2)

Flat Washer 3/8" (3)

Pin (2)

Lock Washer 3/8" (3)

Hairpin Clip (2)

Push-to-Open Bracket (Model 50-19503)

If your application requires the gate to be pushed open, a push-to-open bracket is required (refer to accessories).

INTRODUCTION

SPECIFICATIONS

This model is intended for use in vehicular swing gate applications:

Usage Classification Class I

Main AC Supply N/A - Solar Only

System Operating Voltage 12 Vdc Battery Run / Solar Charge

Accessory Power 12 Vdc, 500mA max for ON + SW (switched)

Solar Power Max 12 Vdc at 30 watts max.

Maximum Gate Weight/Length 850 lbs. (385.6 kg) / 10 ft (3.0 m)

750 lbs. (340.2 kg) / 12 ft (3.7 m) 650 lbs. (294.8 kg) / 14 ft (4.3 m) 550 lbs. (249.5 kg) / 16 ft (4.9 m)

90 Degree Travel Time* < 23 seconds

Maximum Travel Range* 115 degrees

Maximum Daily Cycle Rate 50 cycles / day

Maximum Duty Cycle 4 min on

Operating Temperature -20°C to 60°C (-4°F to 140°F)

Expansion Board Optional

Inherent Entrapment Protection (Type A) Dual - RPM and Current Sense

External Entrapment Protection (Type B1 and/or Type B2) 3 inputs per board - any combination of up to 3 photoelectric sensors and up to 2

edge sensors

*Travel time and range are affected by A and B mounting dimensions

36-5/16"

(92.2 cm)

(10.2 cm)

1/2" DIA.

(1.3 cm DIA.)

37-3/8"

(94.9 cm)

4-1/2"

(11.2 cm)

1/4"

(0.635 cm)

Weight: 13.2 lbs. (6 kg.)

53-1/2"

(136 cm)

Standard Control Box

16-7/16"

(41.8 cm)

(36.5 cm)

14-3/8"

6-9/16"

(16.7 cm)

20-3/4"

(52.7 cm)

Large Metal Control Box

17-3/16"

(43.7 cm)

6-3/16"

(15.7 cm)

INTRODUCTION

SITE PREPARATION

Check the national and local building codes BEFORE installation.

TRENCH

Trench and install conduit. Before trenching, contact underground utility locating companies. Conduit must be UL approved for low and high voltage.

Conduit

SAFETY GATE

Entrapment protection devices are required to protect against any entrapment or safety conditions encountered in your gate application (refer to pages 20-21 for more details). Install warning signs on both sides of the gate.

LOOPS

Loops allow the gate to stay open when vehicles are obstructing the gate path. Suggested for vehicles 14 feet (4.27 m) or longer. Loops are not required but are recommended.

(Inside Property)

Gate must be constructed and installed according to ASTM F2200 standards (refer to page 4). Gate must fit specifications of operator (refer to specifications).

Entrapment Danger

CHECK YOUR GATE

Gate MUST be level. Gate and gate post MUST be plumb. Gate MUST have a smooth bottom edge, no protrusions should exist.

Warning Signs

Remove ANY/ALL wheels from the bottom of gate.

Gate MUST NOT hit or drag across ground.

Gate MUST swing freely and be supported entirely by its hinges.

INTRODUCTION

OVERVIEW OF TYPICAL INSTALLATION

Identify your installation type (refer to the Appendix in the back of the manual for more information). All the illustrations on the following pages display a typical Left-Hand Gate installation with a pull-to-open bracket. For Push-to-Open applications refer to the Appendix.

SINGLE GATE

DUAL GATE

Control Box

Solar Panel

Photoelectric

Sensors

Water Tight Conduit (not provided)

Warning Sign

Operator

Earth Ground Rod

Check national and local codes for proper depth

Edge Sensors

Photoelectric

Sensors

Photoelectric

Sensors

NOTE: One or more non-contact sensors shall be located where the risk of entrapment or obstruction exists at either the opening or closing direction. Care shall be exercised to reduce the risk of nuisance tripping, such as when a vehicle, trips the sensor while the gate is still moving.

Solar Panel

Photoelectric Sensors

Water Tight Conduit (not provided)

Control Box

Warning Sign

Primary Operator

Earth Ground Rod

Check national and local codes for proper depth

Edge Sensor

Warning Sign

Secondary Operator

Junction Box

Photoelectric Sensors

INSTALLATION

• To AVOID damaging gas, power or other underground utility lines, contact underground utility locating companies BEFORE digging more than 18 inches (46 cm) deep.

INSTALLATION TIPS

DO's

• Weld a horizontal bar across entire gate on any installation for strength. Make sure that the operator is mounted level or it will not function properly.

• Make sure there is slack in the operator cable.

Operator Cable

DON'Ts

• ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

• The operator can be mounted on top of the gate frame.

• The operator must be installed at least 12 inches from the ground.

• DO NOT install upside down.

• DO NOT install next to sprinklers or any area that may expose the

bottom of operator to water.

• DO NOT install on uphill or downhill gates.

• DO NOT install on ANY pedestrian passageways, doorways, or gates.

• DO NOT over-bend the operator cable. Doing this will cause the wires

to eventually break.

• DO NOT weld the crossbar on just a few pickets, or they could bend.

INSTALLATION

STEP 1

ATTACH BRACKETS TO OPERATOR

1. Insert the key into the lock on the release lever and turn it 180° counterclockwise.

2. Turn the release lever 180° counterclockwise. The operator is now in manual mode.

3. Assemble gate post bracket by placing pull-to-open bracket on top of post bracket.

4. Insert the bolt through both brackets and secure with washer, lock washer and nut.

5. Attach post bracket assembly to operator using pins and hairpin clips.

6. Attach gate bracket to operator using pins and hairpin clips.

Hex Bolt 3/8"

Extension Bracket

Post Bracket

Washer

Lock Washer

Nut

Post Bracket Assembly

Release Lever

Gate Bracket

Hairpin Clip

INSTALLATION

STEP 2

DETERMINE MOUNTING LOCATION

MEASURING AND MARKING FOR THE GATE BRACKET

Before proceeding, begin with the gate in the fully closed position. There are two methods for determining the proper location of the post brackets:

• Paper template (Located on the back page of this manual. Must be cut out.)

• Tape measure.

Either method will work depending on preference.

NOTE: There should only be a maximum of 4" (10.2 cm) from the center of the hinge to the edge of the post or column. If the distance is greater than 4" (10.2 cm) entrapment protection for this area is required.

TEMPLATE METHOD

1. Close the gate.

2. Place the template (provided on the back page of this manual) under the center of the gate hinge point.

3. Use a screwdriver or dowel rod to temporarily mark the location in front of the gate post.

TAPE MEASURE METHOD

1. Close the gate.

2. Place the measuring tape under the center of the gate hinge point and measure out 7 inches (17.8 cm).

3. Use a screwdriver or dowel rod to temporarily mark the location of the first measurement.

4. Measure 7 inches (17.8 cm) from the previous mark.

5. Use the screwdriver or dowel rod to mark the location of the second measurement.

TEMPLATE METHOD

TOP VIEW

Gate Post

4" (10.2 cm)

maximum

Gate Hinge Point

Gate

TAPE MEASURE METHOD

TOP VIEW

Gate Post

4" (10.2 cm)

maximum

Gate Hinge Point

Gate

7" (17.8 cm)

ALTERNATE DIMENSIONS

The ideal installation measurements are A = 7" (17.8 cm) and B = 7" (17.8 cm). If different measurements are used, the sum of A and B cannot be greater than 15" (38.1 cm).

DIMENSION CHART

7" (17.8 cm) 7" (17.8 cm)

8" (20.3 cm) 6" (15.2 cm)

7-1/2" (19.1 cm) 7-1/2" (19.1 cm)

6-1/2" (16.5 cm) 6-1/2" (16.5 cm)

6" (15.2 cm) 6" (15.2 cm)

7" (17.8 cm)

ALTERNATE DIMENSIONS

Gate Hinge Point

Gate Post

(A)

(B)

Gate

INSTALLATION

STEP 3

POSITION THE OPERATOR

NOTE: The post bracket assembly can be mounted several places on the gate post.

1. Open the gate to desired open position (no greater than 100°) and

hold operator against gate.

2. Place the operator arm against gate post at the desired position.

Temporarily secure gate post bracket with clamp. The gate operator

(arm) must be level.

3. Mark mounting holes on gate for reference. Temporarily secure the

gate bracket using a clamp.

4. Align the pull-to-open bracket to a position as CLOSE AS POSSIBLE

above the screwdriver or dowel rod.

5. Insert hex bolt through pull-to-open bracket and post bracket and

secure with washer, lock washer and nut.

Screwdriver

TEST GATE TRAVEL

NOTE: If gate does not open and close completely adjust the position of the gate bracket and mark new mounting holes.

1. Manually open and close the gate.

2. Ensure that the operator does not bind against the pull-to-open

bracket.

3. Ensure that the piston does not bottom out.

1/2" (1.3 cm)

Do not allow piston to fully extend or fully retract.

1/2" (1.3 cm)

INSTALLATION

STEP 4

SECURE THE BRACKETS

POST BRACKET

The gate operator (arm) must be level.

1. Mark holes for the post bracket. Remove the clamp and the operator, set aside.

2. Drill adequate holes in the gate post.

3. Secure the post bracket to the gate post using hardware.

GATE BRACKET

The gate operator (arm) must be level.

Some installations may require additional reinforcement be installed on the gate.

1. Drill holes in gate (or reinforcement, if necessary) that are large enough for the gate bracket mounting hardware.

2. Secure the gate operator to the gate using hardware (not provided).

3. Manually move the gate to verify that it opens and closes fully.

Hex Nuts

Lock Washers

Flat Washers

Post Bracket

Welder (Optional)

Carriage Bolts

Hex Bolt

Gate Bracket

Reinforcement Area

Flat Bar

Hex Nut

Lock Washer

Flat Washer

Welder (Optional)

Angle Iron

Wood

INSTALLATION

STEP 5

INSTALL THE CONTROL BOX

For Large Metal Control Box installation, refer to the following page.

STANDARD CONTROL BOX

WALL OR COLUMN MOUNT

The control box MUST be mounted within 5 feet (1.52 m) of the gate operator. Mount the control box as high as possible for best radio reception. Make sure the control box is level.

1. Remove the screws and open the control box.

2. Select the mounting holes (according to your application) and remove the knockouts using a screwdriver and hammer.

3. Secure the control box to mounting surface.

A. Wall or Column: Use the provided screws (4). B. Post: Use U-bolts and rubber washers (not provided) to ensure a

watertight seal. Make sure the U-bolts do not protrude more than 3/4 inch from the control box because this can short the control board.

9 1/8"

13 3/4"

POST MOUNT

6 3/8"

4 3/8"

3 7/8"

5 7/8"

4 7/8"

2 7/8"

12 1/16"

INSTALLATION

STEP 5 continued...

INSTALL THE CONTROL BOX

LARGE METAL CONTROL BOX (XLSOLARCONTU)

The control box MUST be mounted within 5 feet (1.52 m) of the gate operator. Mount the control box as high as possible for best radio reception. Make sure the control box is level.

WALL OR COLUMN MOUNT

1. Open the control box. The control box door may be removed by opening the door 90°. Lift the door from the hinges and set aside until the installation is complete.

2. Use knock outs located at the 4 corners of the control box and knock out using a screwdriver and hammer.

3. Secure the control box to mounting surface using the provided screws (4).

WALL OR COLUMN MOUNT

POST MOUNT

NOTE: The post mount option is not recommended for the 33AH battery application.

1. Open the control box. The control box door may be removed by opening the door 90°. Lift the door from the hinges and set aside until the installation is complete.

2. The control box can be mounted to a post with 'U' bolts (refer to chart). The knock out will accommodate a 3/8" diameter 'U' bolt. Select center mounting holes (top and bottom) and knock out using a screwdriver and hammer.

3. Secure the control box to mounting surface with U-bolts and rubber washers (not provided) to ensure a watertight seal.

TYPE AND SIZE 'U' BOLT OPENING

Standard 3" Round Pipe 3-1/2"

Standard 4" Square Post 4"

Standard 6" Square Post 6"

POST MOUNT

INSTALLATION

GATE 1

GATE 2

To reduce the risk of SEVERE INJURY or DEATH:

• ANY maintenance to the operator or in the area near the operator MUST NOT be performed until disconnecting the electrical power (AC or solar and battery) and locking-out the power via the operator power switch. Upon completion of maintenance the area MUST be cleared and secured, at that time the unit may be returned to service.

• Disconnect power at the fuse box BEFORE proceeding. Operator MUST be properly grounded and connected in accordance with national and local electrical codes. NOTE: The operator should be on

a separate fused line of adequate capacity.

STEP 6

EARTH GROUND ROD

Use the proper earth ground rod for your local area. The ground wire must be a single, whole piece of wire. Never splice two wires for the ground wire. If you should cut the ground wire too short, break it, or destroy its integrity, replace it with a single wire length.

1. Install the earth ground rod within 3 feet of the control box.

2. Run wire from the earth ground rod to the control box.

3. Connect the ground wire to the ground wire coming from the control board with the wire nut as shown.

NOTE: If the operator is not grounded properly the range of the remote controls will be reduced.

• ALL electrical connections MUST be made by a qualified individual.

• DO NOT install ANY wiring or attempt to run the operator without consulting the wiring diagram.

• ALL power wiring should be on a dedicated circuit and well protected. The location of the power disconnect should be visible and clearly labeled.

• ALL power and control wiring MUST be run in separate conduit.

(Control Board)

Control Box

12 Gauge Wire

STEP 7

WIRE THE OPERATOR ARM TO THE CONTROL BOARD

1. Choose a knockout in the bottom of the control box.

2. Insert the operator cable through the provided watertight connector.

3. Insert the operator cable and watertight connector into the knockout.

4. Slide the connector nut onto the operator cable.

5. Connect the operator cable wires to the connector according to the colored label on the connector (white to white, red to red, etc.).

6. Plug the connector into the GATE 1 terminal on the control board as shown.

7. Tighten the connector nut.

If installing one operator, proceed to page 20. If installing two operators, go to the following page.

Check national

and local codes

for proper

depth

Connector

(control board)

Operator Cable

Earth Ground Rod (Within 3' (0.9 m) of control box)

Watertight Connector

Connector Nut

INSTALLATION

MAX

OPEN

STOP

TEST

BUTTONS

RSAL

XMITTER

NETWORK

LEARN

BUT

REVERSAL

XMITTER

NETWORK

STEP 8

DUAL GATES ONLY

There are two options for dual gate communication: wired or wireless. Follow the directions according to your application. Do not use wired and wireless communication simultaneously. Wired dual gate applications will have a longer battery standby time than wireless applications. Wireless

dual gates will require the installation of two control boxes, one for each operator arm.

WIRELESS DUAL GATES

INSTALL A SECOND OPERATOR ARM AND CONTROL BOX

Install a second operator arm and control box by following installation steps 1-7.

TO ACTIVATE THE WIRELESS FEATURE

1. Choose a control box to be the network primary operator. All wireless accessories will need to be programmed to the primary control board.

NOTE: We recommend that all accessories and board configurations are set on the primary control board.

2. Press and release the LEARN button on the primary control board. The green XMITTER LED will light. NOTE: The operator will time out

of programming mode after 180 seconds.

3. Press and release the LEARN button again on the primary control board. The yellow NETWORK LED will light.

4. Press and release the OPEN test button to assign this operator as network primary.

5. Press and release the LEARN button on the secondary control board. The green XMITTER LED will light.

Moving Gate Can Cause

Injury or Death

6. Press and release the LEARN button again on the secondary control board. The yellow NETWORK LED will light.

7. Press and release the CLOSE test button to assign this operator as network secondary.

Both operators will beep and the yellow NETWORK LEDs will turn off indicating programming is successful.

Moving Gate Can Cause

KEEP CLEAR! Gate may move at any time without prior warning.

Do not let children operate the gate or play in the gate area. This entrance is for vehicles only Pedestrians must use separate entrance

Injury or Death

KEEP CLEAR!

time without prior warning.

Do not let children operate the gate or play in the gate area. This entrance is for vehicles only Pedestrians must use separate entrance

Gate may move at any

TO DEACTIVATE THE WIRELESS FEATURE:

1. Press and release the LEARN button on either control board. The green XMITTER LED will light.

2. Press and release the LEARN button again on the same control board. The yellow NETWORK LED will light.

3. Press and hold the LEARN button for 5 seconds. The yellow NETWORK LED will blink (operator will beep) then turn off indicating successful deactivation.

Repeat the steps for the other control board.

INSTALLATION

STEP 8 continued...

DUAL GATES ONLY

WIRED DUAL GATES

INSTALL A SECOND OPERATOR ARM

Install a second operator arm by following installation steps 1-4.

Green

White

Brown

Extension Cable

INSTALL THE EXTENSION CABLE AND JUNCTION BOX

Before digging, contact local underground utility locating companies.

1. Trench across driveway to bury the extension cable. Use PVC

conduit to prevent damage to cables.

2. Open the junction box by removing screws (4) and set aside.

3. Select holes to be used for mounting and knock out using a

screwdriver and hammer. Drill two holes in the bottom of the junction box large enough for the watertight connectors.

4. Mount the junction box within 3 feet (0.9 m) of second operator.

5. Route operator cable and extension cable through watertight

connector nut and watertight connector.

6. Insert the cables and watertight connectors into the holes in the

bottom of the junction box.

5. Slide the connector nut onto the operator cable and extension cable.

8. Remove terminals from operator cable. Connect the wires from

extension cable to the operator cable with wire nuts (strip wires and twist like colored wires together).

9. Put wires inside of junction box.

10. Secure operator and extension cables by tightening the connector

nut.

11. Reinstall cover.

Operator Cable

Connector Nut

Watertight Connector

Watertight Connector Nut

Within 3' (0.9 m)

Yellow

Blue

Red

Junction Box

Moving Gate Can Cause

KEEP CLEAR!

time without prior warning.

Do not let children operate the gate or play in the gate area. This entrance is for vehicles only Pedestrians must use separate entrance

Moving Gate Can Cause

Injury or Death

Gate may move at any

KEEP CLEAR!

time without prior warning.

Do not let children operate the gate or play in the gate area. This entrance is for vehicles only Pedestrians must use separate entrance

Injury or Death

Gate may move at any

PVC Conduit

STEP 8 continued...

GATE 1

GATE 2

INSTALLATION

DUAL GATES ONLY

WIRED DUAL GATES

WIRE THE SECONDARY OPERATOR ARM TO THE CONTROL BOARD

1. Choose a knockout in the bottom of the control box.

2. Insert the extension cable through the watertight connector.

3. Insert the extension cable and watertight connector into the knockout.

4. Slide the connector nut onto the operator cable.

5. Connect the extension cable wires to the connector according to the colored label on the connector (white to white, red to red, etc.).

6. Plug the connector into the GATE 2 terminal on the control board as shown.

7. Tighten the connector nut.

Watertight Connector

Extension

Cable

Connector Nut

(Control Board)

us a C n

a C

ath

ate

ve at an

or D y

oving

may mo

e or

njur I

Gate

arn

EAR

t pr

nce

e area.

e l

a t

vehi g o

sep t

s f

n i

s ce

t u

ra t mu en s

hi T estri Ped

Primary Operator

Connector

se u

Can Ca

h t

at an

Dea

e v

ng Ga i

y o

y m

g n

te o

Gate m

e g w r

EAR!

erate th

o th

KEE

an d l

e w

ea.

es o

en cl i

ate

ate a

t l

veh

e s

ce i ay i l

st u

u tr n

s m n

s i

a i

h T estr Ped

Secondary Operator

SET THE BIPART DELAY (SINGLE CONTROL BOX)

Occasionally in dual gate installations, one gate will need to open first and close second. This would happen if there was an ornamental overhang on one gate or if using a solenoid lock, for example. This gate is called the Primary gate and needs to be connected to Gate 1 connections on the control board. Thus, it is preferred that the control box be installed on the same side as this gate. If there is no appropriate location on that side for the control box, then mount the control box on the opposite side, but connect the operator closest to the control box to the Gate 2 connector and the operator on the opposite side to the Gate 1 connector.

1. The BIPART DELAY switch on the control board needs to be set to the ON position.

The following illustration shows a dual gate configuration with a decorative overlapping piece on the outside of the gate.

SET THE BIPART DELAY (DUAL CONTROL BOX)

BIPART DELAY/SYNCHRONIZED CLOSE

The LOCK/BIPART DELAY switch is used with dual control box applications and serves two functions:

• BIPART DELAY: The BIPART DELAY is used in applications where a

mag-lock, solenoid lock, or decorative overlay would require one gate to close before the other. The control box with the LOCK/BIPART DELAY switch ON will delay from the close limit when opening and be the first to close from the open limit.

• SYNCHRONIZED CLOSE: The BIPART DELAY is also used in

applications where one gate travels a longer distance than the other. To synchronize the closing of the gates, set the LOCK/BIPART DELAY switch to ON for both control boxes.

Primary Gate

OUTSIDE PROPERTY

Primary Gate - Connect to Gate 1 Connector on Control Board.

INSTALLATION

To prevent SERIOUS INJURY or DEATH from a moving gate:

• ALL gate operator systems REQUIRE two independent entrapment protection systems for each entrapment zone.

• Entrapment protection devices MUST be installed to protect anyone

who may come near a moving gate.

• Locate entrapment protection devices to protect in BOTH the open and close gate cycles.

• Locate entrapment protection devices to protect between moving gate and RIGID objects, such as posts, walls, pillars, or columns.

STEP 9

INSTALL ENTRAPMENT PROTECTION

This operator contains an inherent (internal) entrapment protection system and REQUIRES the addition of an external monitored entrapment protection system (non-contact photoelectric sensor or contact edge sensor) for EACH entrapment zone prior to gate movement. A monitored

device sends a pulsed signal to the operator so the operator is aware of the device. If the operator does not receive the signal from the device it will not run.

An entrapment zone is every location or point of contact where a person can become entrapped between a moving gate and a stationary object. Your application may contain one or many entrapment zones. Property owners are obligated to test entrapment protection devices monthly. Use only

LiftMaster approved entrapment protection devices (refer to the accessory page).

NON-CONTACT SENSORS

If the photoelectric sensor beam gets blocked while the gate is moving, the gate will stop and reverse. The gate will not be able to travel in that direction until the obstruction is cleared. Monitored photoelectric sensors MUST be used. If a monitored photoelectric sensor is not working or loses power or the beam is blocked, then ALL gate operation in that direction will stop.

Monitored Photoelectric Sensors

Sensors for Open Cycle

(Outside Property)

NOTE: If the distance between the open gate and the wall is less than 16" (40.6 cm) entrapment protection for this area is required.

Entrapment protection is required for the area between the gate and the curb.

(Inside Property)

Sensors for Close Cycle

CONTACT SENSORS (EDGE SENSORS)

If the electrically activated edge sensor comes in contact with an obstruction while the gate is moving, the gate will stop and reverse. The gate will not be able to travel in that direction until the obstruction is cleared.

Edge Sensor for Open Cycle Edge Sensor for Close Cycle

If utilizing a contact sensor as entrapment

For a gate operator utilizing a contact sensor, if the bottom edge of a swing gate is greater than 6 inches above the ground at any point in its arc of travel, one or more contact sensors shall be located on the bottom edge.

protection, one or more contact sensors shall be located on the inside and outside leading edge of a swing gate.

INSTALLATION

SHADOW INTERUPT EXIT

SBC

OPN

CLS

STP

COM

EYE

ONLY

EYE/

EDGE

EYE/

EDGE

COM

OPEN

TO MAIN

BOARD

POWER

–

+ +

SBC

EYE

ONLY

EYE/

EDGE

EYE/

EDGE

COM

OPEN

TO MAIN

BOARD

STEP 9 continued...

INSTALL ENTRAPMENT PROTECTION

There are three options for wiring the entrapment protection devices depending on the specific device and how the device will function. Refer to the specific entrapment protection device manual for more information. These entrapment protection device inputs are for monitored devices, which include pulsed photoelectric sensors, resistive edge sensors, and pulsed edge sensors. Only one monitored entrapment protection device may be wired to each input. Additional entrapment protection devices may be wired to the expansion board (not provided).

CONTROL BOARD

CLOSE EYES/INTERRUPT (2 Terminals)

The CLOSE EYES/INTERRUPT input is for photoelectric sensor entrapment protection for the close direction. When an obstruction is sensed during gate closing the gate will open to the full open position and resets the Timer-to-Close. This input will be disregarded during gate opening.

CLOSE EDGE (2 Terminals)

The CLOSE EDGE input is for edge sensor entrapment protection for the close direction. When an obstruction is sensed during gate closing the gate will reverse to the full open position, disengaging the Timer-to-Close. This input will be disregarded during gate opening.

Close Photoelectric Sensors

Close Edge

Open EdgeOpen Photoelectric Sensors OR

OPEN EYES/EDGE (2 Terminals)

The OPEN EYES/EDGE input is for photoelectric sensor or edge sensor entrapment protection for the open direction. When an obstruction is sensed during gate opening the gate will reverse for 4 seconds then stop. This input will be disregarded during gate closing.

EXPANSION BOARD (NOT PROVIDED)

EYE ONLY and COM

Open or Close Direction Photoelectric Sensors, the functionality is based on the switch settings (located next to the terminals)

Switch set to CLOSE: gate reverses fully when obstruction is sensed

Switch set to OPEN: gate reverses 4 seconds when obstruction is sensed

EYE/EDGE and COM

Open or Close Direction Photoelectric Sensors or Edge Sensor, the functionality is based on the switch settings (located next to the terminals)

Switch set to CLOSE: gate reverses fully when obstruction is sensed

Switch set to OPEN: gate reverses 4 seconds when obstruction is sensed

Photoelectric Sensors

Edge Sensor

INSTALLATION

STEP 10

INSTALL SOLAR PANEL(S)

SELECT SITE FOR SOLAR PANEL(S)

The solar panel(s) must be located in an open area clear of obstructions and shading for the entire day. The solar panel(s) comes with a 10 foot (3 m) cable. If a location near the control box cannot be found, an additional cable will be required. The LA412DC Solar Gate Operator is not supported in northern climates where temperatures reach below -4° F. This is due to cold weather and a reduced number of hours of sunlight during the winter months. Cycle rate may vary from solar chart for areas that reach below 32° F. Solar panels should be cleaned on a regular basis for best performance to ensure proper operation.

SOLAR ZONES

ZONE 1 (6 Hours of Sunlight/Day): Ideal for solar

application

ZONE 2 (4 Hours of Sunlight/Day): Recommended

for solar application

ZONE 3 (2 Hours of Sunlight/Day): Success of

solar application will depend on type of gate operator and location of the solar panel

NOT AVAILABLE

INSTALLATION

STEP 10 continued...

SOLAR PANEL(S)

SOLAR USAGE GUIDE

Typical System Standby Battery Current Consumption (mA)

System voltage 12V

Main board with no radios programmed 4.2 mA

One or more LiftMaster

MyQ

device or wireless dual gate programmed +3.9 mA

Expansion board +18.5 mA

Per loop detector LOOPDETLM (up to 3 loop detectors can be plugged in to the expansion board) +6.6 mA

Add up current draw by feature and accessory to determine total current draw.

remote controls programmed +1.5 mA

SOLAR GATE CYCLES PER DAY (SINGLE GATE)

BATTERY CURRENT

DRAW (mA)

10W SOLAR PANEL

20W SOLAR PANEL

30W SOLAR PANEL

(Three 10W 12V panels

in parallel)

10W SOLAR PANEL

20W SOLAR PANEL

30W SOLAR PANEL

(Three 10W 12V panels

in parallel)

All numbers are estimates. Actual results may vary.

6 100 100 82 86 32 34

25 100 100 63 67 17 19

30 100 100 58 63 14 15

50 91 98 40 44

100 43 49

6 100 100 100 100 73 82

25 100 100 100 100 55 64

30 100 100 100 100 51 59

100 100 100 77 95

200 75 100

6 100 100 100 100 100 100

25 100 100 100 100 90 100

30 100 100 100 100 85 100

100 100 100 100 100 22 39

200 100 100 51 91

659 62 35 37 14 15

25 50 53 27 29

30 48 51 25 27

50 39 42 17 19

100 19 21

6 100 100 76 85 31 35 25 100 100 67 76 24 27 30 100 100 65 73 22 25

100 78 92 33 41

200 32 44

6 100 100 100 100 47 57

25 100 100 100 100 39 48 30 100 100 100 100 37 46

100 100 100 66 86 17

200 83 100 22 39

ZONE 1 ZONE 2 ZONE 3

7AH batteries 33AH battery 7AH batteries 33AH battery 7AH batteries 33AH battery

SOLAR GATE CYCLES PER DAY (DUAL GATE)

INSTALLATION

STEP 10 continued...

INSTALL SOLAR PANEL(S)

The location of the panel(s) is critical to the success of the installation. In general, the panel(s) should be mounted using the provided angle bracket facing due south. Use a compass to determine direction. The solar panel(s) should be mounted in an area clear of all obstructions and shading from buildings and trees. If the panel(s) is not casting a shadow, the battery is not being charged.

TIPS:

• Tall trees or buildings that do not shade the solar panel(s) in the summer could shade the solar panel(s) during the winter months when the sun sits lower in the sky.

• The area around the solar panel(s) should be clear of shadows or obstructions to the sun for a 180° arc east to west.

• Wire runs should be kept as short as possible. The solar panel(s) can be located up to 100 feet (30.48 m) from the operator using #16 AWG wire in any direction, including elevating it.

• DO NOT install solar panel near potential shading or obstructions that will block the panel during any part of the day.

• To optimize the system for winter operation the angle can be increased an additional 15° (solar panel(s) sits more vertical).

Control Box

Solar Panel

(Facing South)

South

180°

Sun’s Position

South

INSTALLATION

STEP 10 continued...

INSTALL SOLAR PANEL(S)

INSTALL THE SOLAR PANEL

1. Position solar bracket on mounting surface. Mark and drill holes.

2. Insert two bolts into the track located on the back of the solar panel(s).

3. Slide bolts in track away from bolt hole and align both bolts.

4. Secure solar panel(s) to solar bracket using two washered nuts.

5. Secure solar panel(s) assembly to mounting surface using appropriate hardware.

Mounting Surface

Mounted Panel Must Face South

STEP 11

POWER WIRING

1. Connect the red wire (+) from one solar panel to the black wire (-) of the other solar panel.

2. Connect the shorter red wire (+) from the J15 plug (new wire harness) labeled DC Power to the red wire on one solar panel.

3. Connect the shorter black wire (-) from the J15 plug (new wire harness) labeled DC Power to the black wire from the other solar panel.

4. Plug the J15 plug into the control board. The control board will power up. NOTE: You may see a small spark when plugging the J15

plug into the board.

Solar Panel

Mounting Surface

Control Board

+ BATT

J15 Plug

J15

- + DC POWER

Solar Panel (Optional)

Solar Panel

Black Wire (-)

Diode

Red Wire (+)

INSTALLATION

STEP 12

FINISH INSTALL

1. Turn the release lever clockwise 180° back to the engaged position.

This engages the motor. The illustration shows the release lever in the engaged position.

2. Turn the key clockwise 180°. This locks the release lever. The

operator is now engaged.

3. Fasten warning signs to the gate with cable ties. Warning signs

MUST be installed on both sides of the gate and in plain view.

Key

Release Lever

ADJUSTMENT

LIMIT AND FORCE ADJUSTMENT

To reduce the risk of SEVERE INJURY or DEATH:

• Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a moving gate.

• Too much force on gate will interfere with proper operation of safety reversal system.

• NEVER increase force beyond minimum amount required to move gate.

INTRODUCTION

Your operator is designed with electronic controls to make travel limit and force adjustments easy. The adjustments allow you to program where the gate will stop in the open and close position. The electronic controls sense the amount of force required to open and close the gate. The force is adjusted automatically when you program the limits but should be fine tuned using the REVERSAL FORCE dial on the control board (refer to Fine Tune the Force section) to compensate for environmental changes.

The limits can be set using the control board (following page) or a remote control (refer to Limit Setup with a Remote Control in the Appendix). Setting the limits with a remote control requires a 3-button remote control programmed to OPEN, CLOSE, and STOP.

NOTE: The Test Buttons on the control board will not work until the limits have been set.

• NEVER use force adjustments to compensate for a binding or sticking gate.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Gate MUST reverse on contact with a rigid object.

ADJUSTMENT

OPEN Limit

CLOSE Limit

SET OPEN

SET CLOSE

(SE

PRESS & RELEASE

TO BEGIN

LIMIT

SET OPEN

SET CLOSE

(SE

PRESS & RELEASE

TO BEGIN

LIMIT

MOVE GATE

PRESS & RELEASE

TO BEGIN

SETUP

GATE

LIMIT

SET OPEN

SET CLOSE

PRESS & RELEASE

TO BEGIN

LIMIT

OFF

(SECONDS)

OFF

TIMER

TO CLOS

PRESS & RELEASE

TO BEGIN

SETUP

GATE

LIMIT

MOVE GATE

PRESS & RELEASE

TO BEGIN

SETUP

GATE

LIMIT

LIMIT AND FORCE ADJUSTMENT continued...

For dual gate applications the limits will have to be set for each operator. The gate MUST be attached to the operator before setting the limits and force.

INITIAL LIMITS AND FORCE ADJUSTMENT

If a mistake is made while programming the limits press the reset button to start over.

1. Set the GATE switch to the 1 position.

2. Press and release the SET OPEN and SET CLOSE buttons simultaneously to enter limit setting mode.

3. Press and hold the MOVE GATE buttons to move the gate to the open or close limit.

4. Press and release the SET CLOSE or SET OPEN button depending on which limit is being set.

5. Press and hold the MOVE GATE button to move the gate to the other limit.

6. Press and release the SET CLOSE or SET OPEN button depending on which limit is being set. The operator will exit limit setting mode.*

7. Cycle the gate open and close using the TEST BUTTONS. This automatically sets the force.

8. For dual gates set the Gate switch to the 2 position and repeat steps 2-7.

When limits are set properly the operator will automatically exit limit setting mode.

Dual Gates ONLY: When the limits are set on the secondary gate first

the control board will not exit the limit setting mode until the limits are set on the primary gate.

LIMIT SETUP LEDS

SET OPEN LED

OFF OFF NORMAL MODE Limits are set.

BLINKING BLINKING LIMIT SETTING MODE Limits are not set.

BLINKING ON LIMIT SETTING MODE Open limit is not

ON BLINKING LIMIT SETTING MODE Close limit is not

ON ON LIMIT SETTING MODE Limits are set.

SET CLOSE LED

OPERATOR MODE EXPLANATION

set.

ADJUSTMENT

OPEN Limit

CLOSE Limit

180

MIN

MAX

BATT LOW

DIAG

REVERSAL

FORCE

NETWORK

OPEN

STOP

TEST

BUTTONS

RSAL

XMITTER

NETWORK

SET OPEN

SET CLOSE

PRESS & RELEASE

OPEN

STOP

TEST

BUTTONS

RSAL

XMITTER

NETWORK

LIMIT AND FORCE ADJUSTMENT continued...

FINE TUNE THE FORCE

The REVERSAL FORCE DIAL on the control board is used for fine tuning the force in cases where wind or environmental changes may affect the gate travel.

Based on the length and weight of the gate it may be necessary to make additional force adjustments. The force setting should be high enough that the gate will not reverse by itself nor cause nuisance interruptions, but low enough to prevent serious injury to a person. The force setting is the same for both the open and close gate directions.

1. Open and close the gate with the test buttons.

2. If the gate stops or reverses before reaching the fully open or closed position, increase the force by turning the force control slightly clockwise.

3. Perform the “Obstruction Test” after every force setting adjustment (see below).

ADJUST THE LIMITS

After both limits are set and the operator is ready to run, one limit can be adjusted independently from the other by following steps 1-3 of the Initial Limit and Force Adjustment section, on page 27.

OBSTRUCTION TEST

The operator is equipped with an automatic obstruction sensing feature. If the gate encounters an obstruction during motion, the operator will automatically reverse direction of the gate for a short time and then stop the gate. After any adjustments are made, test the operator:

1. Open and close the gate with the test buttons, ensuring that the gate is stopping at the proper open and close limit positions.

2. Place a solid object between the open gate and a rigid structure. Ensure that the gate, the solid object, and the rigid structure can withstand the forces generated during this obstruction test.

3. Run the gate in the close direction. The gate should stop and reverse upon contact with the solid object. If the gate does not reverse off the solid object, reduce the force setting by turning the force control slightly counter-clockwise. The gate should have enough force to reach both the open and close limits, but MUST reverse after contact with a solid object.

4. Repeat the test for the open direction.

PROGRAMMING

OPEN

STOP

TEST

BUTTONS

RSAL

XMITTER

NETWORK

LEARN

BUT

REVERSAL

XMITTER

NETWORK

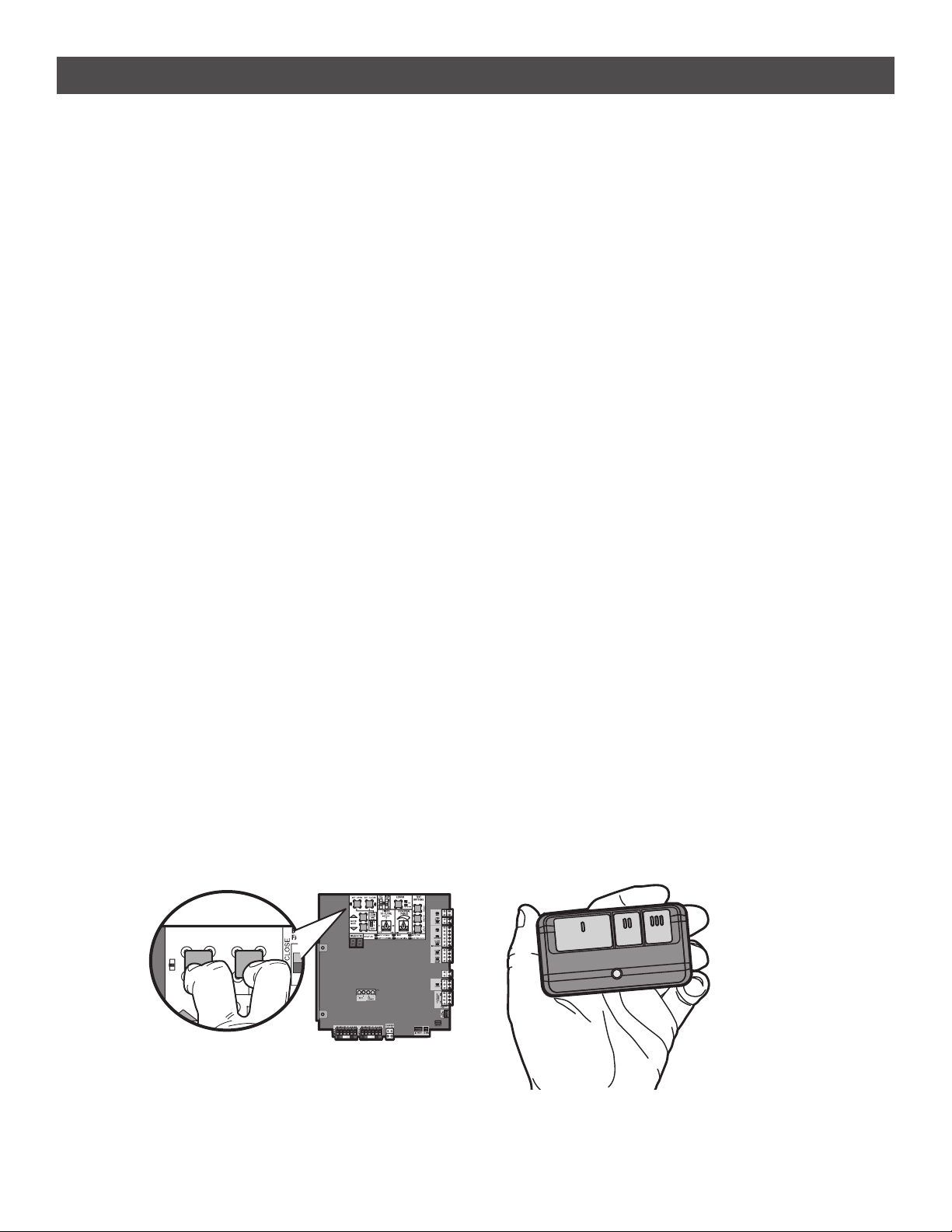

REMOTE CONTROLS (NOT PROVIDED)

A total of 50 Security+ 2.0™ remote controls and 2 keyless entries (1 PIN for each keyless entry) can be programmed to the operator. When programming a third keyless entry to the operator, the first keyless entry will be erased to allow the third keyless entry to be programmed. When the operator’s memory is full it will exit the programming mode and the remote control will not be programmed. The memory will need to be erased before programming any additional remote controls. NOTE: If

installing an 86LM to extend the range of the remote controls DO NOT straighten the antenna.

There are 3 different options for programming the remote control depending on how you would like the remote control to function. Choose a programming option:

OPTION DESCRIPTION PROGRAMMING STEPS

Single button as OPEN only

Single button (SBC) as OPEN, CLOSE, and STOP

Three separate buttons as OPEN, CLOSE, and STOP

Program a single button on the remote control for open only. The Timer-to-Close can be set to close the gate.

Program one remote control button as an open, close, and stop.

Program each remote control button as an open, close, and stop.

1. Press and release the LEARN button (operator will beep and green XMITTER

LED will light). NOTE: The operator will time out of programming mode after 30

seconds.

2. Press the OPEN button.

3. Press the remote control button that you would like to program.

1. Press and release the LEARN button (operator will beep and green XMITTER

LED will light). NOTE: The operator will time out of programming mode after 30

seconds.

2. Press the remote control button that you would like to program.

1. Press and release the LEARN button (operator will beep and green XMITTER

LED will light). NOTE: The operator will time out of programming mode after 30

seconds.

2. Press the OPEN, CLOSE, or STOP button, depending on the desired function.

3. Press the remote control button that you would like to program.

The operator will automatically exit learn mode (operator will beep and green XMITTER LED will go out) if programming is successful. To program additional Security+ 2.0™ remote controls or remote control buttons, repeat the programming steps above.

NOTICE: This device complies with part 15 of the FCC rules and Industry Canada (IC) licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This Class B digital apparatus complies with Canadian ICES-003.

This device has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

PROGRAMMING

LIFTMASTER INTERNET GATEWAY (NOT PROVIDED)

To program the operator to the LiftMaster Internet Gateway:

USING THE LEARN BUTTON ON THE OPERATOR’S CONTROL BOARD

1. Connect the ethernet cable to the LiftMaster Internet Gateway and the router.

2. Connect power to the LiftMaster Internet Gateway.

3. Create an online account by visiting www.myliftmaster.com.

4. Register the LiftMaster Internet Gateway.

5. Use an internet enabled computer or smartphone to add devices. The LiftMaster Internet Gateway will stay in learn mode for three minutes.

6. Press the Learn button twice on the primary operator (the operator will beep as it enters learn mode). The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.

USING THE RESET BUTTON ON THE OPERATOR

1. Connect the ethernet cable to the LiftMaster Internet Gateway and the router.

2. Connect power to the LiftMaster Internet Gateway.

3. Create an online account by visiting www.myliftmaster.com.

4. Register the LiftMaster Internet Gateway.

5. Use an internet enabled computer or smartphone to add devices. The LiftMaster Internet Gateway will stay in learn mode for three minutes.

6. Ensure gate is closed.

7. Give the operator an OPEN command.

8. Within 30 seconds, when the gate is at the open limit press and release the reset button 3 times (on primary gate) to put primary operator into High Band Learn Mode (the operator will beep as it enters learn mode). The LiftMaster Internet Gateway will pair to the operator if it is within range and the operator will beep if programming is successful.

The status as shown by the LiftMaster Internet Gateway app will be either “open” or “closed”. The gate operator can then be controlled through the LiftMaster Internet Gateway app.

ERASE ALL CODES

1. Press and release the LEARN button (operator will beep and green XMITTER LED will light).

2. Press and hold the LEARN button again until the green XMITTER LED flashes and then release the button (approximately 6 seconds). All remote control codes are now erased.

ERASE LIMITS

1. To erase the limits, press and hold the SET OPEN and SET CLOSE buttons simultaneously (5 seconds) until both the SET OPEN and SET CLOSE LEDs blink rapidly and the operator beeps.

2. Release the buttons and the SET OPEN and SET CLOSE LEDs will blink slowly indicating the limits will need to be set.

TO REMOVE AND ERASE MONITORED ENTRAPMENT PROTECTION DEVICES

1. Remove the entrapment protection device wires from the terminal block.

2. Press and release the SET OPEN and SET CLOSE buttons simultaneously. The SET OPEN and SET CLOSE LEDs will turn on (entering learn limit mode).

3. Press and release both SET OPEN and SET CLOSE buttons again to turn off the SET OPEN and SET CLOSE LEDs (exiting learn limit mode).

OPERATION

CONTROL BOARD OVERVIEW

1 SET OPEN Button: The SET OPEN button sets the OPEN limit. See Adjust Limits section. 2 SET CLOSE Button: The SET CLOSE button sets the CLOSE limit. See Adjust Limits section. 3 MOVE GATE Buttons: The MOVE GATE buttons will either open or close the gate when the operator is in Limit setting mode. See Adjust Limits section. 4 BATT FAIL:

• When AC power is OFF and battery voltage is critically low the gate will latch at a limit until AC power is restored or batteries voltage increases.

• Option select switch set to OPEN forces gate to automatically open and then latch at the OPEN limit until AC power is restored or battery voltage increases.

• Option select switch set to CLOSE forces gate to latch at CLOSE limit if at CLOSE limit or on next CLOSE command until AC power restored or battery voltage increases.

• Constant pressure on a hard command input overrides to open or close the gate.

• Critically low battery is less than 11.5 V

5 BIPART DELAY Switch: The LOCK/BIPART DELAY switch is used only for dual gates. See Bipart Delay section. 6 LEARN Button: The LEARN button is for programming remote controls and the network. 7 TIMER-TO-CLOSE dial: The TIMER-TO-CLOSE (TTC) dial can be set to automatically close the gate after a specified time period. The TTC is factory

set to OFF. If the TTC is set to the OFF position, then the gate will remain open until the operator receives another command from a control. Rotate the TIMER-TO-CLOSE dial to the desired setting. The range is 0 to 180 seconds, 0 seconds is OFF.

NOTE: Any radio command, single button control, or CLOSE command on the control board prior to the TTC expiring will close the gate. The TTC is reset by any signals from the open controls, loops, close edges, and close photoelectric sensors (IR’s).

8 REVERSAL FORCE dial: The REVERSAL FORCE dial adjusts the force. See Force Adjustment section. 9 TEST BUTTONS: The TEST BUTTONS will operate the gate (OPEN, STOP and CLOSE). 10 STATUS LEDs: The STATUS LEDs are diagnostic codes for the operator. See Status LED Chart in the Troubleshooting section. 11 DIAGNOSTICS Display:

followed by a "42" which indicates the operator type as LA412DC. The firmware version will show after the operator type, example "1.2".

The diagnostics display will show the operator type, firmware version, and codes. The operator type will display as "LA"

1 234 5

OPERATION

MANUAL RELEASE

In case of a power failure, the operator can be disengaged from the gate. With an operator, the release action may sometimes feel stiff/jerky, which is normal and has no effect on function. NOTE: It is normal for the

operator to run slow right after a disconnect or complete loss of AC/ battery power (the operator will need to run a complete open and close cycle).

RELEASE

1. Insert the key into the lock.

2. Turn the key counter-clockwise 180°.

3. Turn the release lever counter-clockwise 180°.

Operator is in manual mode and the gate can be opened and closed manually.

ENGAGE

1. Turn the release lever clockwise 180°. This engages the motor.

2. Turn the key clockwise 180°. This locks the release lever.

3. Remove the key and store in a safe place. The operator is now engaged.

RESET BUTTON

The reset button is located on the side of the control box and serves several functions:

• Press the reset button to stop a moving gate during a normal open/ close cycle, like a stop button.

• Press the reset button once while the gate is in open position to disable the Timer-to-Close. The gate will stay in the open position. To restart the Timer-to-Close either press the reset button or activate the gate with a programmed remote control.

• Press the reset button to shut off the alarm and reset the operator.

PARTY MODE

Press the reset button once while the gate is in open position to disable the Timer-to-Close. The gate will stay in the open position. To restart the Timer-to-Close either press the reset button or activate the gate with a programmed remote control.

Reset Button

OPERATION

OPERATOR ALARM

If a contact sensor detects an obstruction twice consecutively the alarm will sound (up to 5 minutes) and the operator will need to be reset.

When the inherent force of the operator (RPM/current sensor) detects the following (twice consecutively) the alarm will sound (up to 5 minutes) and the operator will need to be reset:

A. The operator arm or gate is incorrectly installed.

B. The gate does not meet specifications.

C. Gate hinges are too tight or broken and the gate is not moving

freely.

D. The gate is moving and a car pushes the gate.

E. A foreign object is on the gate frame while the gate is moving.

F. The gate hits the driveway, curb or other, and gets stuck or bent in

an awkward position.

Remove any obstructions. Press the reset button to shut off the alarm and reset the operator. After the operator is reset, normal functions will resume.

The operator alarm will beep 3 times with a command if the battery is low.

REMOTE CONTROL

SINGLE BUTTON CONTROL (SBC) FUNCTIONALITY

Once the remote control has been programmed the operator will operate as follows:

When gate is in the closed position, activation of the remote control button will open the gate. During the open cycle another activation of the remote control will stop the gate and the next activation of the remote control will close the gate.

When the gate is in the open position, activation of the remote control button will close the gate. If the remote control is activated while the gate is closing, the gate will stop and the next activation will open the gate.

ACCESSORY WIRING

EXTERNAL CONTROL DEVICES

EXIT (2 Terminals)

This input is a soft open command (maintained switch does not override external safeties and does not reset alarm condition). Used for exit probe, telephone entry, external exit loop detector, or any device that would command the gate to open.

• Opens a closing gate and holds open an open gate, if maintained, pauses Timer-to-Close at OPEN limit.

SHADOW (2 Terminals)

This input is used for external shadow loop detector when loop is positioned under the swing of the gate.

• Holds open gate at open limit

• Only active when the gate is at the OPEN limit, disregarded at all other times

• Pauses Timer-to-Close at OPEN limit

INTERRUPT (2 Terminals)

This input is used for photoelectric sensors and external interrupt loop detector when loop is on the outside of the gate.

• Holds open gate at open limit

• Stops and reverses a closing gate to open limit

• Pauses Timer-to-Close at OPEN limit, activates quick close and anti-tailgate features when enabled on the expansion board

(control board)

Exit

Com Shadow

Com Interrupt Com

Interrupt Loop

Shadow Loop

Exit Loop

ACCESSORY WIRING

LOCKS

MAGLOCK (2 Terminals, N.C. and COM)

Relay contact output, Normally - closed (N.C.) output for maglocks.

Relay activates prior to motor activation and during motor run. Relay is off when motor is off.

SOLENOID (2 Terminals, N.O. and COM)

Normally - open (N.O.) output for solenoid locks

Relay activates prior to motor activation and during motor run. Relay is off when motor is off.

NOTE: To conserve power for solar applications, the lock relay will only activate for four seconds near the close limit.

(control board)

Solenoid Lock

Maglock

(not provided)

MISCELLANEOUS WIRING

SINGLE BUTTON CONTROL (SBC) (2 Terminals)

Gate command sequence - Open, Stop, Close, Stop,...

Soft open (maintained switch does not override external safeties and does not reset alarm condition).

FIRE DEPARTMENT OPEN INPUT (2 Terminals)

Acts as hard open.

Maintained input overrides (ignores) external safeties (photoelectric sensor and edge), pauses Timer-to-Close momentary input logic as single button control and safeties remain active, re-enables Timer-to-Close.

ACCESSORY POWER 12 VDC, MAX 500 mA (4 Terminals)

• SWITCHED: Switched ON with gate motion (stays on 5 seconds after motion).

• UNSWITCHED: 12 Vdc voltage out to power accessories, always ON.

(main control board)

Single Button Control Station

SBC

Com

Fire Dept

Com

Fire Department

(main control board)

Accessory Power Switched

Com (-)

Acc Power +12 Vdc

Com (-) Acc Power +12 Vdc

Accessory Power Unswitched

MAINTENANCE

IMPORTANT SAFETY INFORMATION

To reduce the risk of SEVERE INJURY or DEATH:

• READ AND FOLLOW ALL INSTRUCTIONS.

• Disconnect power at the fuse box BEFORE proceeding. Operator MUST be properly grounded and connected in accordance with national and local electrical codes. NOTE: The operator should be on

a separate fused line of adequate capacity.

• NEVER let children operate or play with gate controls. Keep the remote control away from children.

• ALWAYS keep people and objects away from the gate. NO ONE SHOULD CROSS THE PATH OF THE MOVING GATE.

• The entrance is for vehicles ONLY. Pedestrians MUST use separate entrance.

• ALWAYS wear protective gloves and eye protection when changing the battery or working around the battery compartment.

• Test the gate operator monthly. The gate MUST reverse on contact with a rigid object or reverse when an object activates the non-contact sensors. After adjusting the force or the limit of travel, retest the gate operator. Failure to adjust and retest the gate operator properly can increase the risk of INJURY or DEATH.

• Use the manual disconnect release ONLY when the gate is NOT moving.

• KEEP GATES PROPERLY MAINTAINED. Read the owner’s manual. Have a qualified service person make repairs to gate hardware.

• ALL maintenance MUST be performed by a LiftMaster professional.

• Activate gate ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to gate travel.

• To reduce the risk of FIRE or INJURY to persons use ONLY LiftMaster part 29-NP712 for replacement batteries.

• SAVE THESE INSTRUCTIONS.

MAINTENANCE CHART

Disconnect all power (AC, solar, battery) to the operator before servicing. The operator's AC Power switch ONLY turns off AC power to the control board and DOES NOT turn off battery power. ALWAYS disconnect the batteries to service the operator.

DESCRIPTION TASK CHECK AT LEAST ONCE EVERY

MONTH 6 MONTHS 3 YEARS

Entrapment Protection Devices Check and test for proper operation X Warning Signs Make sure they are present X Manual Release Check and test for proper operation X Gate Inspect for wear or damage X

Accessories Check all for proper operation X Electrical Inspect all wire connections X Mounting Hardware Check for tightness X Operator Inspect for wear or damage X Batteries Replace X

NOTES:

• Severe or high cycle usage will require more frequent maintenance checks.

• It is suggested that while at the site voltage readings be taken at the operator. Using a digital voltmeter, verify that the incoming voltage to the operator is within ten percent of the operator’s rating.

BATTERIES

Batteries will degrade over time depending on temperature and usage. The operator alarm will beep 3 times with a command if the battery is low. Batteries do not perform well in extremely cold temperatures. For best performance, the batteries should be replaced every 3 years. Use only LiftMaster part 29-NP712 for replacement batteries. The standard control box comes with two 7AH batteries.

TROUBLESHOOTING

To protect against fire and electrocution:

• DISCONNECT power (AC or solar and battery) BEFORE installing or

For continued protection against fire:

• Replace ONLY with fuse of same type and rating.

servicing operator.

DIAGNOSTIC CODES

NOTE: When cycling or disconnecting power (ac/dc) to the control board, it is recommended that you unplug the J15 plug.

TO VIEW THE CODES

The codes will show on the diagnostic display.

...then press and hold the OPEN button until "Er" shows on the display.

Press and hold the STOP button...

...then press and hold the CLOSE button...

The operator will show the code sequence number followed by the code number:

CODE SEQUENCE NUMBER

The first number shown is the most recent code (example: "01"). The display will show the sequence of codes that occurred starting with "01" and going up to code "20".

A SECOND

LATER....

CODE NUMBER

The second number shown after the code sequence number is the code itself (31-99, example" "31"). Refer to the chart on the following page for an explanation of each code.

DIAGNOSTICS DISPLAY

OPEN, CLOSE, & STOP BUTTONS

TO SCROLL THROUGH THE SAVED CODES

Press the OPEN button to cycle to the most recent code ("01").

Press the CLOSE button to cycle to the oldest code (up to "20").

The operator will only keep track of up to 20 codes, then will start saving over the oldest codes as new codes occur.

TO EXIT

Press and release the STOP button to exit. The display will also time out after two minutes of inactivity.

TO RESET THE CODE HISTORY

1. Press and hold the STOP button for six seconds. The display will show "Er" then "CL" alternately for six seconds.

2. Release the STOP button. The code history has now been reset and the display will show "- -" until a new code occurs.

3. Press and release the STOP button to exit.

TROUBLESHOOTING

DIAGNOSTIC CODES continued...

Some codes are saved in the code history and some are not. If a code is not saved it will briefly appear on the display as it occurs, then disappear.

LiftMaster System Installed System Informational

Code Meaning Solution Saved

Main control board has experienced an

internal failure.

32 Linear Drive Disengaged (Arm 1) Disengage then re-engage arm. Check wiring and connections. YES 33 Linear Drive Disengaged (Arm 2)

Absolute Position Encoder Error, not getting

position information from encoder

35 Max-Run-Time Exceeded Error Check for an obstruction, then reprogram the limits. YES

Product ID Error Was the control board just replaced? If so, erase limits, enter limit setup mode

Product ID Failure Unplug product ID harness then plug back in. Disconnect all power, wait 15

38 Hard Stop Limit (Arm 1) Limit may be set too tightly against a non-resilient hard stop (re-adjust limit). 39 Hard Stop Limit (Arm 2)

Battery overvoltage Too much voltage on the battery. Check harness. Make sure there is NOT a 24V

Battery overcurrent Possible short of the battery charge harness. Check harness. Make sure you do

No battery at boot up Check battery connections and installation. Replace batteries if depleted to less

43 Exit Loop Error Failure or missing loop (SHORT or OPEN - LiftMaster Plug-in Loop Detector 44 Shadow Loop Error 45 Interrupt Loop Error 46 Wireless edge battery low Replace batteries in wireless edge. YES

Run-Distance Error Gate unbalance detected. Make sure the gate is installed on a level surface and

51 Pass-point not detected (Arm 1) Check yellow pass-point wiring. If limits are not accurate, reprogram. NO 52 Pass-point not detected (Arm 2)

Brownout occurred AC/DC board supply dipped below allowable level. Review power supply and

Wireless Second Operator Communication

Error

Disconnect all power, wait 15 seconds, then reconnect power (reboot). If issue continues, replace main control board.

Check APE assembly and wiring connections. Replace the APE assembly if necessary.

and set limits. If not, disconnect all power, wait 15 seconds, then reconnect power before changing product ID harness.

seconds, then reconnect power before replacing product ID harness.

Operator may be at end of travel (re-adjust mounting).

battery on a 12V system.

NOT have a 12V battery on a 24V system.

than 20V on a 24V system or less than 10V on a 12V system. Make sure there is NOT a single 12V battery on a 24V system.

only) Check loop wiring throughout connection. May be a short in the loop, or an open connection in the loop.

not on an excessive grade.

wiring. If rebooting, ensure enough time for discharge of power to force a fresh boot.

Check the second operator for power. If OFF, restore power and try to run the system. If powered, deactivate the wireless feature and then reprogram the second operator.

External Entrapment Protection

Inherent Entrapment Protection

YES

TROUBLESHOOTING

DIAGNOSTIC CODES continued...

Some codes are saved in the code history and some are not. If a code is not saved it will briefly appear on the display as it occurs, then disappear.

LiftMaster System Installed System Informational

Code Meaning Solution Saved

61 CLOSE EYE/INTERRUPT held more than 3 minutes Check wired input on main control board; check for alignment or 62 CLOSE EDGE held more than 3 minutes 63 OPEN EYE/EDGE held more than 3 minutes 64 CLOSE EYE/INTERRUPT held more than 3 minutes Check wired input on expansion board; check for alignment or 65 CLOSE EYE/EDGE held more than 3 minutes 66 OPEN EYE/EDGE held more than 3 minutes 67 Wireless edge triggered more than 3 minutes Check wired input for wiring issue or obstruction. YES 68 Wireless edge loss of monitoring Check wireless edge inputs. YES

99 Normal Operation

Minimum number of monitored entrapment protection devices (one) not installed.

Wireless edge triggered IF an obstruction occurred, no action required. If an obstruction did

CLOSE EYE/INTERRUPT triggered, causing reversal, preventing close, or resetting TTC

CLOSE EDGE triggered, causing reversal, preventing close, or canceling TTC

OPEN EYE/EDGE triggered, causing reversal or preventing opening

CLOSE EYE/INTERRUPT triggered, causing reversal, preventing close, or resetting TTC

CLOSE EYE/EDGE triggered, causing reversal and preventing close or canceling TTC

OPEN EYE/EDGE triggered, causing reversal or preventing opening

Close input (EYE/EDGE) communication fault from other operator

Open input (EYE/EDGE) communication fault from other operator

Close input (EYE/EDGE) communication fault (expansion board)

Open input (EYE/EDGE) communication fault (expansion board)

Force Reversal (Operator 1) Check for obstruction. If no obstruction, check that the mechanical

Force Reversal (Operator 2)

RPM / STALL Reversal (Operator 1) Check for obstruction. If no obstruction, check the operator wiring and

RPM / STALL Reversal (Operator 2)

Review monitored entrapment protection device connections.

obstruction.

NOT occur, check inputs and wiring. IF an obstruction occurred, no action required. If an obstruction did

NOT occur, check alignment, inputs, and wiring on main control board.

IF an obstruction occurred, no action required. If an obstruction did NOT occur, check alignment, inputs, and wiring on expansion board.

Check inputs and communication method between operators, either wired bus or radio. Ensure operator is powered. May have to erase the wireless communication and reprogram the two operators.

Check the connections between the main board and the expansion board.

assembly is engaged and free to move. See section on Limit and Force Adjustment, and Obstruction Test.

that the mechanical assembly is engaged and free to move. Replace APE assembly.

No action required YES

External Entrapment Protection

Inherent Entrapment Protection

YES

CONTROL BOARD LEDS

TROUBLESHOOTING

INPUT POWER

BATT CHARGING

TIMER

GATE MOVING

BATT LOW

ACC PWR OVLD

STATUS LEDS

OFF OFF state ON AC charger or Solar power

OFF Not charging ON Three stage battery charging OFF The timer is disabled ON The timer is enabled MEDIUM BLINK (1

blink per second) FAST BLINK (2 blinks

per second) FASTEST BLINK (8

blinks per second) OFF The gate is stopped ON The gate is opening or closing MEDIUM BLINK (1

blink per second) FASTEST BLINK (8

blinks per second) OFF No battery error ON Battery low BLINK (1 blink per

second) OFF OFF state

ON Accessory overload protector

available

The timer is running

The timer is paused

The timer is canceled

Operator is in E1 (single entrapment)

The operator is in E2 (double entrapment)

Battery critically low

opened

SBC INPUT

FIRE DEPT INPUT

EXIT

SHADOW

CLOSE EYES/ INTERRUPT

CLOSE EDGE

OPEN EYES/ EDGE

LOCK

INPUT LEDS

OFF Input inactive

ON Input active
