GARAGE DOOR OPENER

Model 995XD 1/2 HP

For Residential Use Only

Owner’s Manual

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

is connected and

properly aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located on the front panel of your opener.

Page 2

Introduction 2-7

Safety symbol and signal word review . . . . . . . . . . . . . . .2

Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . .3

Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-5

Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Hardware inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Assembly 8-11

Assemble the rail . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Fasten the rail to the motor unit and

install the trolley . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Attach the rail brackets . . . . . . . . . . . . . . . . . . . . . . . . . .11

Installation 11-26

Installation safety instructions . . . . . . . . . . . . . . . . . . . .11

Determine the header bracket location . . . . . . . . . . . . .12

Install the header bracket . . . . . . . . . . . . . . . . . . . . . . . .13

Attach the rail to the header bracket . . . . . . . . . . . . . . .14

Install the Protector System® . . . . . . . . . . . . . . . . . .15-17

Position the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Hang the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . .20

Install the lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Attach the emergency release rope and handle . . . . . .21

Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . . .22

Complete safety reversing sensor installation . . . . . . . .22

Fasten the door bracket . . . . . . . . . . . . . . . . . . . . . .23-24

Connect the door arm to the trolley . . . . . . . . . . . . .25-26

Adjustment 27-29

Adjust the up and down travel limits . . . . . . . . . . . . . . .27

Adjust the force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

Test the safety reversal system . . . . . . . . . . . . . . . . . . .29

Test the Protector System® . . . . . . . . . . . . . . . . . . . . . .29

Operation 30-34

Operation safety instructions . . . . . . . . . . . . . . . . . . . . .30

Using your garage door opener . . . . . . . . . . . . . . . . . . .30

Using the wall-mounted door control . . . . . . . . . . . . . . .31

To open the door manually . . . . . . . . . . . . . . . . . . . . . .31

Care of your garage door opener . . . . . . . . . . . . . . . . .32

Having a problem? . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Programming 35-36

To add or reprogram a hand-held remote control . . . . .35

To erase all codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

3-Button remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

To add, reprogram or change a Keyless Entry PIN . . . .36

Repair Parts 37-38

Rail assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

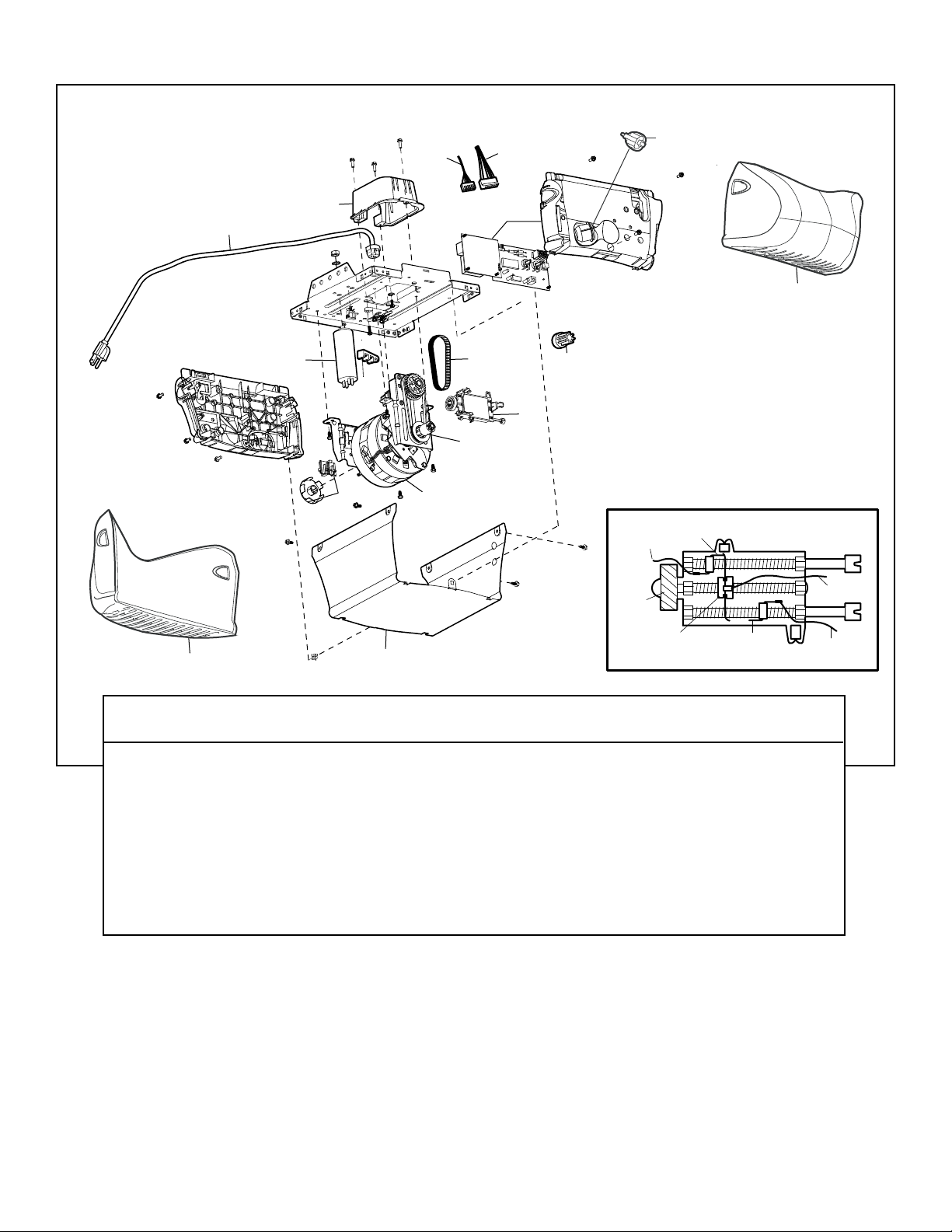

Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . .38

Accessories 39

Repair Parts and Service 40

Warranty 40

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the possibility of serious injury or death if you do not comply with the warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully.

INTRODUCTION

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.

Mechanical

Electrical

WARNING

CAUTION

WARNING

Page 3

To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the opener.

• ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.

To prevent possible SERIOUS INJURY or DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door may not reverse when required.

• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, all of which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing and operating garage door opener to avoid entanglement.

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

• Complete the following test to make sure your garage door is balanced and is not sticking or binding:

1. Lift the door about halfway as shown. Release the

door. If balanced, it should stay in place, supported entirely by its springs.

2. Raise and lower the door to see if there is any

binding or sticking.

If your door binds, sticks, or is out of balance, call a trained door systems technician.

Tools needed

During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below.

WARNING

CAUTION

WARNING

Sectional Door

One-Piece Door

Carpenter's Level (Optional)

Drill

Tape Measure

3/16", 5/16" and 5/32" Drill Bits

Pencil

Hack Saw

Wire Cutters

Claw Hammer

Pliers

Stepladder

1/2" and 3/8" Sockets and Wrench

Screwdriver

Adjustable End Wrench

Page 4

Safety Reversing Sensor

Horizontal and vertical reinforcement is needed for lightweight garage doors (fiberglass, steel, aluminum, door with glass panels, etc.). See page 23 for details.

Support bracket & fastening hardware is required. See page 19.

— — — — — — — —

Header Wall

Safety Reversing Sensor

Gap between floor and bottom of door must not exceed 1/4" (6 mm).

FINISHED CEILING

Torsion Spring

Access Door

Motor unit

Wallmounted Door Control

Rail

Extension Spring

Vertical Centerline of Garage Door

SECTIONAL DOOR INSTALLATION

Planning

Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

Depending on your requirements, there are several installation steps which may call for materials or hardware not included in the carton.

• Installation Step 1 – Look at the wall or ceiling above the garage door. The header bracket must be securely fastened to structural supports.

• Installation Step 4 – Depending upon garage construction, extension brackets or wood blocks may be needed to install sensors.

• Installation Step 4 – Alternate floor mounting of the safety reversing sensor will require hardware not provided.

• Installation Step 6 – Do you have a finished ceiling in your garage? If so, a support bracket and additional fastening hardware may be required.

• Do you have an access door in addition to the garage door? If not, Model 7702CB Emergency Key Release is required. See Accessories page.

• Look at the garage door where it meets the floor. Any gap between the floor and the bottom of the door must not exceed 1/4" (6 mm). Otherwise, the safety reversal system may not work properly. See Adjustment Step 3. Floor or door should be repaired.

SECTIONAL DOOR INSTALLATIONS

• Do you have a steel, aluminum, fiberglass or glass panel door? If so, horizontal and vertical reinforcement is required (Installation Step 12).

• The opener should be installed above the center of the door. If there is a torsion spring or center bearing plate in the way of the header bracket, it may be installed within 4 feet (1.2 m) to the left or right of the door center. See Installation Steps 1 and 12.

Header Bracket

Rail Bracket

Trolley

Straight Door Arm

Emergency Release Rope & Handle

Door Bracket

Garage Door

Curved Door Arm

Garage Door Spring

Header Wall

Rail Assembly

CLOSED POSITION

Page 5

Planning (Continued)

ONE-PIECE DOOR INSTALLATIONS

• Generally, a one-piece door does not require reinforcement. If your door is lightweight, refer to the information relating to sectional doors in Installation Step 12.

• Depending on your door’s construction, you may need additional mounting hardware for the door bracket (Step 12).

Safety Reversing Sensor

FINISHED CEILI

Support

bracket & fastening hard

ware is re

quired.

See page 19.

Safety Reversing Sensor

Access Door

Gap between floor and bottom of door must not exceed 1/4" (6 mm).

Wall-mounted Door Control

Header Wall

Motor unit

Rail

ONE-PIECE DOOR WITHOUT TRACK

ONE-PIECE DOOR WITH TRACK

Without a properly working safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• The gap between the bottom of the garage door and the floor MUST NOT exceed 1/4" (6 mm). Otherwise, the safety reversal system may not work properly.

• The floor or the garage door MUST be repaired to eliminate the gap.

WARNING

Garage Door

Header Wall

Rail Assembly

Door Arm

Emergency Release Rope & Handle

Rail Bracket

Trolley

CLOSED POSITION

Header Bracket

Straight Door Arm

Door Bracket

Curved Door Arm

Safety Reversing Sensor

Gap between floor and bottom of door must not exceed 1/4" (6 mm).

Access Door

Safety Reversing Sensor

Header Wall

Garage Door

CLOSED POSITION

Rail Bracket

Header Bracket

Door Bracket

Trolley

Curved Door Arm

Straight Door Arm

Rail Assembly

Emergency Release Rope & Handle

Page 6

Straight Door Arm Section

Curved Door Arm Section

Header Bracket

Sprocket Coupling

Remote Control Visor Clip

Trolley

Rail Support Braces (4)

Rail Assembly

Hanging Brackets

Door Bracket

Multi-Function Door Control Panel

LIGHT

Safety Labels

and

Literature

The Protector System

(2) Safety Reversing Sensors (1 Sending Eye and 1 Receiving Eye)

with attached 2-Conductor White & White/Black Bell Wire

Safety Reversing Sensor Mounting Bracket (2)

2-Conductor Bell Wire White & White/Red

Motor Unit with 2 Light Lenses

Header/Rail Brackets

SECURITY

Keyless Entry

SECURITY✚

3-Button Remote Control

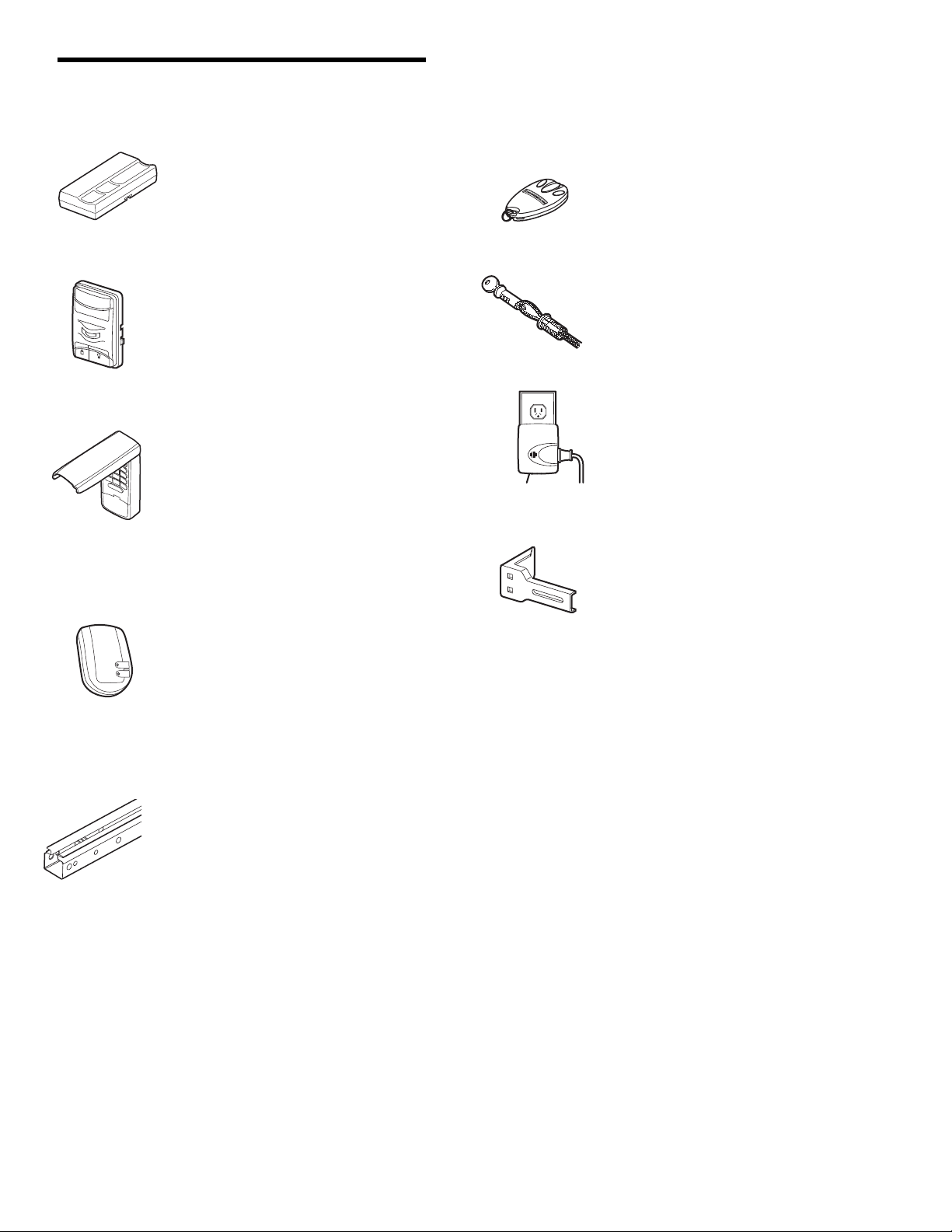

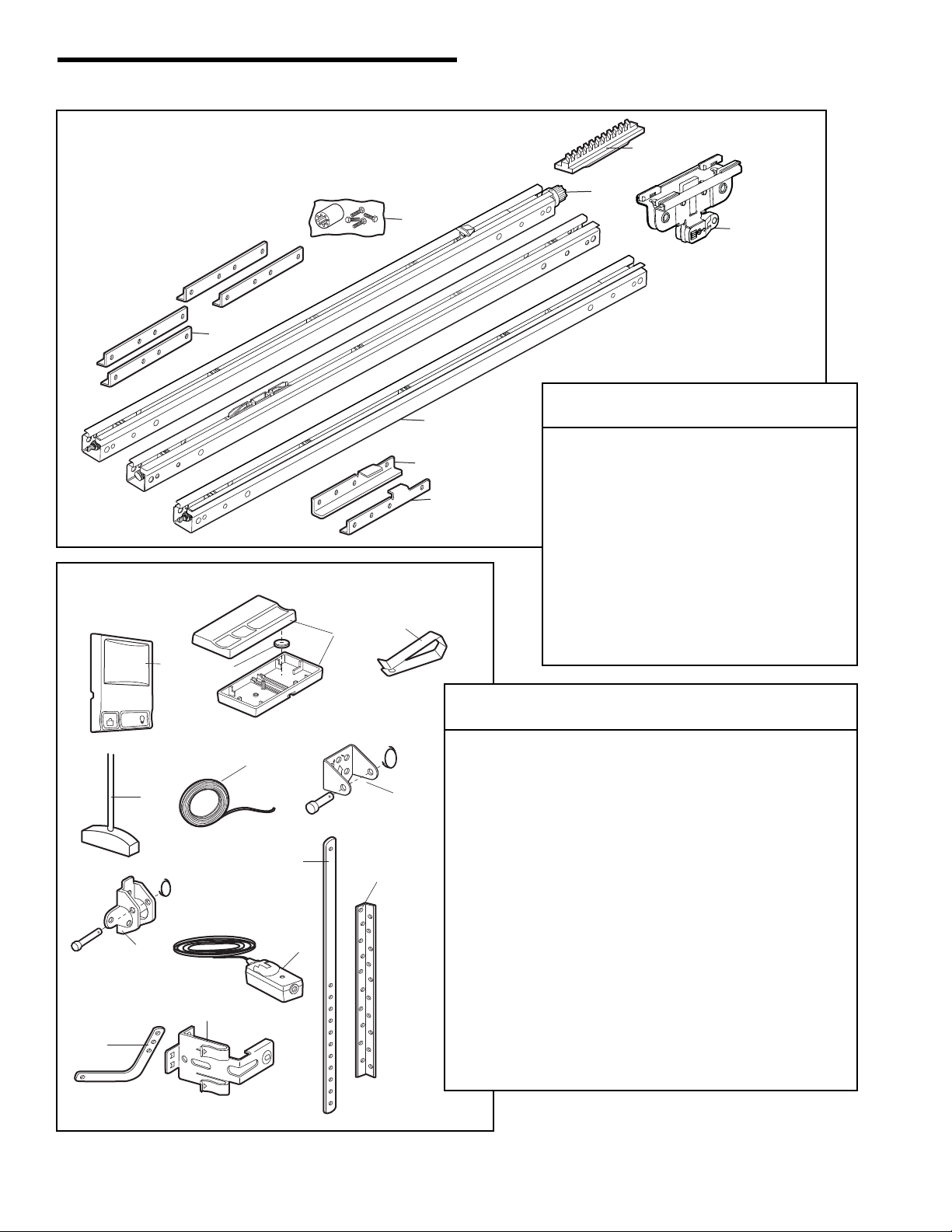

Your garage door opener is packaged in one carton which contains the motor unit and all parts illustrated below. Accessories will depend on the model purchased. If anything is missing, carefully check the packing material.

PARTS MAY BE STUCK IN THE FOAM. Hardware for assembly and installation is shown on the next page. Save the carton and packing material until installation and adjustment is complete.

Carton Inventory

Page 7

Wing Nut 1/4"-20 (2)

Carriage Bolt 1/4"-20x1/2" (2)

Handle

Nut 5/16"-18 (6)

Ring Fastener (3)

Clevis Pin 5/16"x2-3/4" (1)

Insulated Staples (30)

Drywall Anchors (2)

Clevis Pin 5/16"x1" (1)

Rope

Lock Washer 5/16" (6)

Lag Screw 5/16"-9x1-5/8" (2)

Hex Bolt 5/16"-18x7/8" (4)

Clevis Pin 5/16"x1-1/4" (1)

Lag Screw 5/16"-18x1-7/8" (2)

Screw 6ABx1-1/4" (2)

Screw 6-32x1" (2)

Spacer

Self-Threading Screw 1/4"-14x5/8"

INSTALLATION HARDWARE

Hardware Inventory

Separate all hardware and group as shown below for the assembly and installation procedures.

ASSEMBLY HARDWARE

Sleeve (2) Clip (2)

Hex bolt 1/4-20x7/16" (14) Wire Clips (6)

Sprocket Coupling Sleeve

Page 8

To prevent INJURY from pinching, keep hands and fingers away from the joints while assembling the rail.

WARNING

CAUTION

WARNING

ASSEMBLY STEP 1

Assemble the Rail

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

1. Open the rail carton and remove the contents onto a level work surface. Keep it clean and free of debris while you are working.

2. Identify the rail sections and orient the sections on a flat surface as shown. The back rail has a black gear on one end. The header rail has a black plastic rack inside the rail on the screw. The remaining section is the center rail.

NOTE: Use caution when handling the center rail section. The screw can slip out if the section is tipped up too far.

Hex Bolt 1/4-20x7/16"

HARDWARE SHOWN ACTUAL SIZE

Remove Cardboard Packing

Hanging Brackets

Rail Support Braces

Back Rail

Straight Door Arm

Hex Bolts 1/4-20x7/16"

Header Rail Brackets

Rail Assembly Carton

Hex Bolts 1/4-20x7/16"

Center Rail

Rail Assembly

Remove Cardboard Packing

Sprocket Coupling

Remove Cardboard Packing

Hex Bolts 1/4-20x7/16"

Header Rail

Page 9

Assemble the Rail (continued)

3. Attach rail support braces to the back rail. Loosely insert 1/4-20x7/16" hex bolts into the aligned holes of the end rail and rail support brace (Figure 1). Do not finger tighten.

4. Extend the drive screw a few inches from the center rail, and slide the sleeve onto the long journal (Figure 2).

5. Interlock the long and short journal of the center and back rails. Slide the sleeve over the journal connection (Figure 3).

6. Place the c-clip onto the long journal shaft (center rail) to ensure that the sleeve does not slide (Figure 4).

7. Slide the center rail so that the center rail and rail brace holes are aligned (Figure 5). Secure with bolts.

8. Tighten all hex bolts.

9. Repeat steps 3-8 for header section.

Metal Sleeve

Long Journal

Drive Screw

Rail Support Brace

Rail

Long Journal

Short Journal

C-Clip

Center Rail

Figure 1

Figure 2

Figure 3

Figure 4

Figure 5

Center Rail

Rail Support Brace

HARDWARE SHOWN ACTUAL SIZE

Metal Sleeve

Sleeve Clip

Hex Bolt 1/4-20x7/16"

Page 10

Rail Sprocket

Rail Assembly

Coupling

Motor Unit Bracket

Motor Unit Sprocket

Foam Packaging

Hex Bolts 1/4-20x7/16"

Arrow must point up

Release arm

ASSEMBLY STEP 2

Fasten the Rail to the Motor Unit and Install the Trolley

NOTE: To aid in assembly and installation, replace the foam packing around the motor unit. Remove it after Installation Step 4.

1. Working on a level surface, align the rail assembly with the motor unit, as shown.

2. Slip the coupling over the rail sprocket.

3. Slide the rail through the motor unit bracket until the coupling fits securely over the motor unit sprocket.

4. Align the four bolt holes in the rail with those in the motor unit bracket. Insert four 1/4"-20x7/16" hex bolts. Tighten securely with a 3/8" socket wrench.

5. Disengage trolley by turning the release arm down (arrow pointing up). Slide trolley onto and along the bottom of the rail until it aligns with the rack. Turn release arm up (arrow pointing away from motor unit. This will join the rack and the trolley.

Hex Bolt 1/4-20x7/16"

HARDWARE SHOWN ACTUAL SIZE

Trolley

To the motor unit

Rack

Page 11

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

WARNING

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.

2. Install garage door opener only on properly balanced and lubricated garage door. An improperly balanced door may not reverse when required and could result in SEVERE INJURY or DEATH.

3. ALL repairs to cables, spring assemblies and other hardware MUST be made by a trained door systems technician BEFORE installing opener.

4. Disable ALL locks and remove all ropes connected to garage door BEFORE installing opener to avoid entanglement.

5. Install garage door opener 7 feet (2.13 m) or more above floor.

6. Mount emergency release handle 6 feet (1.83 m) above floor.

7. NEVER connect garage door opener to power source until instructed to do so.

8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of 5 feet

(1.5 m).

• away from ALL moving parts of the door.

10. Place entrapment warning label on wall next to garage door control.

11. Place manual release/safety reverse test label in plain view on inside of garage door.

12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.

ASSEMBLY STEP 3

Attach the Rail Brackets

• Align rail brackets to end of rail assembly, as shown.

• Insert two 1/4"-20x7/16" hex bolts. Tighten securely with a 3/8" socket.

You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section.

Hex Bolt 1/4-20 x 7/16"

Hex Bolt 1/4-20x7/16"

Rail Brackets

Rail

Hex Bolt 1/4-20x7/16"

HARDWARE SHOWN ACTUAL SIZE

Page 12

INSTALLATION STEP 1

Determine the Header Bracket Location

Installation procedures vary according to garage door types. Follow the instructions which apply to your door.

1. Close the door and mark the inside vertical centerline of the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet (1.22 m) of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (see page 13) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2" (1 cm).)

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports as shown here and on page 13.

3. Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall above the high point:

• 3" (7.5 cm) above the high point for sectional door and one-piece door with track.

• 8" (20 cm) above the high point for one-piece door without track.

This height will provide travel clearance for the top edge of the door.

NOTE: If the total number of inches exceeds the height available in your garage, use the maximum height possible, or refer to page 13 for ceiling installation.

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might not reverse when required. DO NOT install header bracket over drywall.

• Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, all of which are under EXTREME tension.

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door might not reverse when required.

Header Wall

Sectional door with curved track

Highest Point of Travel

Door

Track

3" (7.5 cm)

One-piece door with horizontal track

Door

Track

Header Wall

Highest Point of Travel

3" (7.5 cm)

Header Wall

Vertical Centerline of Garage Door

Level (optional)

2x4

Structural Supports

OPTIONAL CEILING MOUNT FOR HEADER BRACKET

Unfinished Ceiling

WARNING

Door

Jamb Hardware

One-piece door without track: jamb hardware

8" (20 cm)

Highest Point of Travel

Door

Pivot

8" (20 cm)

One-piece door without track: pivot hardware

Highest Point of Travel

Header Wall

Page 13

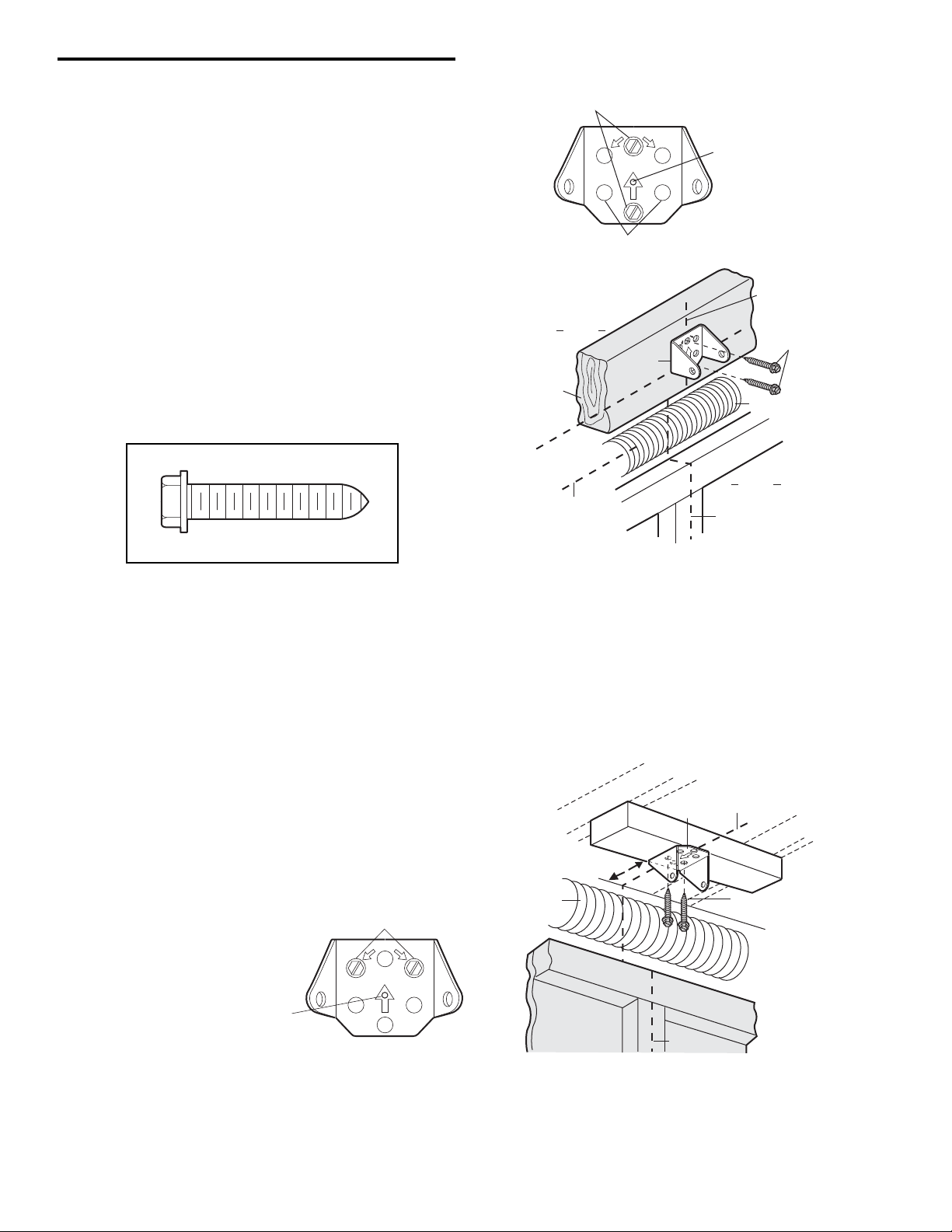

INSTALLATION STEP 2

Install the Header Bracket

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do not install the header bracket over

drywall. If installing into masonry, use concrete anchors (not provided).

WALL HEADER BRACKET INSTALLATION

• Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark the vertical set of bracket holes. Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

HARDWARE SHOWN ACTUAL SIZE

CEILING HEADER BRACKET INSTALLATION

• Extend the vertical centerline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" (15 cm) from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Lag Screws 5/16"-9x1-5/8"

Highest Point of Garage Door Travel

Vertical Centerline of Garage Door

Header Wall

Garage Door

CEILING MOUNT ONLY

Wall Mounting Holes

Optional Wall Mounting Holes

The nail hole is for positioning only. You must use lag screws to mount the header bracket.

T O

Door Spring

Header Bracket

2x4 Structural Support

Vertical Centerline of Garage Door

Horizontal Line

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning only. You must use lag screws to mount the header bracket.

Lag Screws 5/16"-9x1-5/8"

Garage Door

Vertical Centerline of Garage Door

Header Wall

– Finished Ceiling –

Header Bracket

6" (15 cm) Maximum

Vertical Centerline of Garage Door

Door Spring

Lag Screw 5/16"-9x1-5/8"

Page 14

INSTALLATION STEP 3

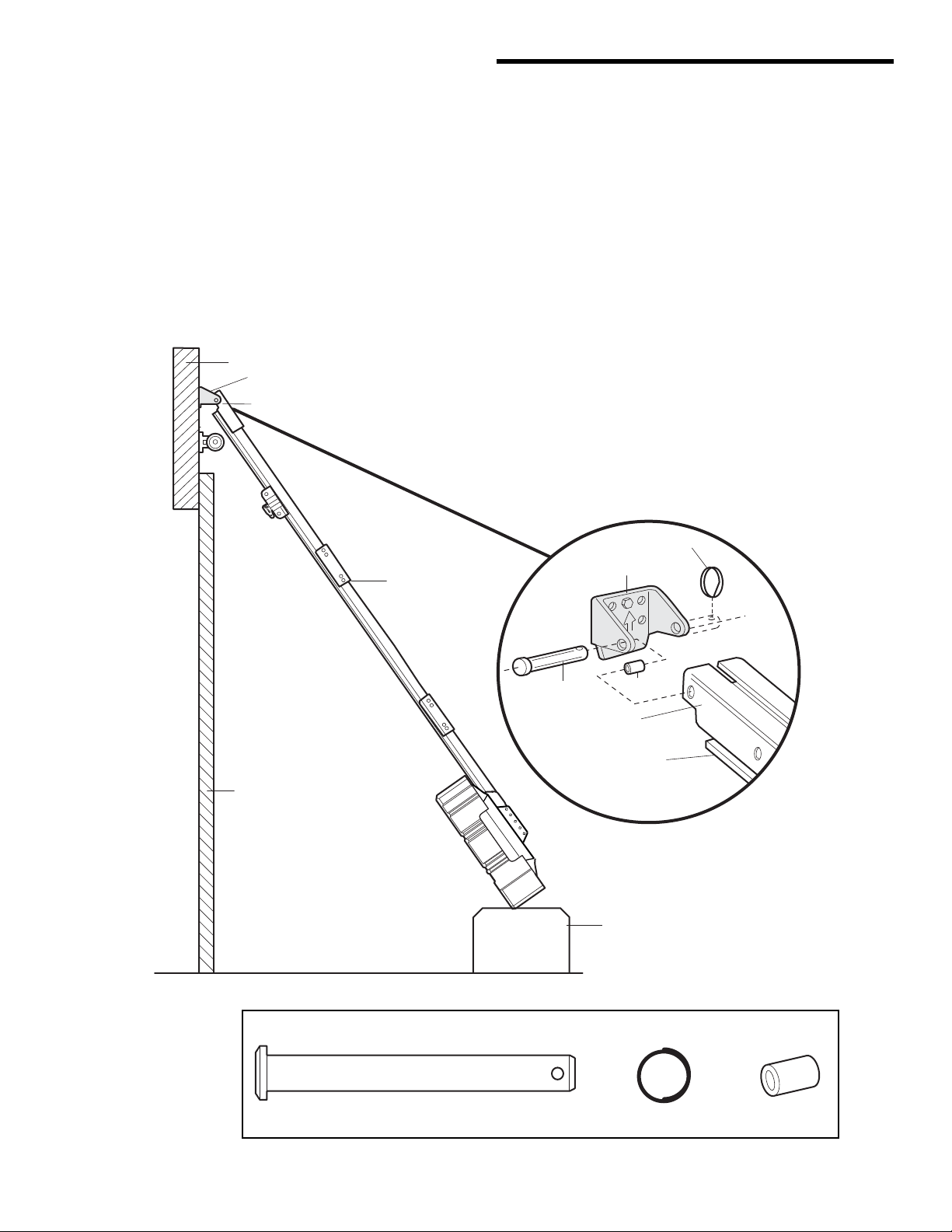

Attach the Rail to the Header Bracket

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base. NOTE: If the door spring is in the way you’ll

need help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

• Position the header/rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin 5/16"x2-3/4" as shown. Spacer can be installed on either side of rail.

• Insert a ring fastener to secure.

Header Bracket

Header/Rail Bracket

Opener Carton or Temporary Support

Header Wall

Garage Door

Rail

Clevis Pin 5/16"x2-3/4"

Ring Fastener

Spacer

Header Bracket

Header/Rail Bracket

Rail

HARDWARE SHOWN ACTUAL SIZE

Clevis Pin 5/16"x2-3/4"

Ring Fastener

Spacer

Page 15

Invisible Light Beam Protection Area

Safety Reversing Sensor 6" (15 cm) max. above floor

Facing the door from inside the garage

INSTALLATION STEP 4

Install The Protector System

The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction.

IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR

When properly connected and aligned, the sensor will detect an obstacle in the path of its electronic beam. The sending eye (with an amber indicator light) transmits an invisible light beam to the receiving eye (with a green indicator light). If an obstruction breaks the light beam while the door is closing, the door will stop and reverse to full open position, and the opener lights will flash 10 times.

The units must be installed inside the garage so that the sending and receiving eyes face each other across the door, no more than 6" (15 cm) above the floor. Either can be installed on the left or right of the door as long as the sun never shines directly into the receiving eye lens.

The mounting brackets are designed to clip onto the track of sectional garage doors without additional hardware.

If it is necessary to mount the units on the wall, the brackets must be securely fastened to a solid surface such as the wall framing. Extension brackets (see accessories) are available if needed. If installing in masonry construction, add a piece of wood at each location to avoid drilling extra holes in masonry if repositioning is necessary.

The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) may interrupt the beam while the door is closing.

Be sure power is not connected to the garage door opener BEFORE installing the safety reversing sensor.

To prevent SERIOUS INJURY or DEATH from a closing garage door:

• Correctly connect and align the safety reversing sensor. This required safety device MUST NOT be disabled.

• Install the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage floor.

WARNING

Page 16

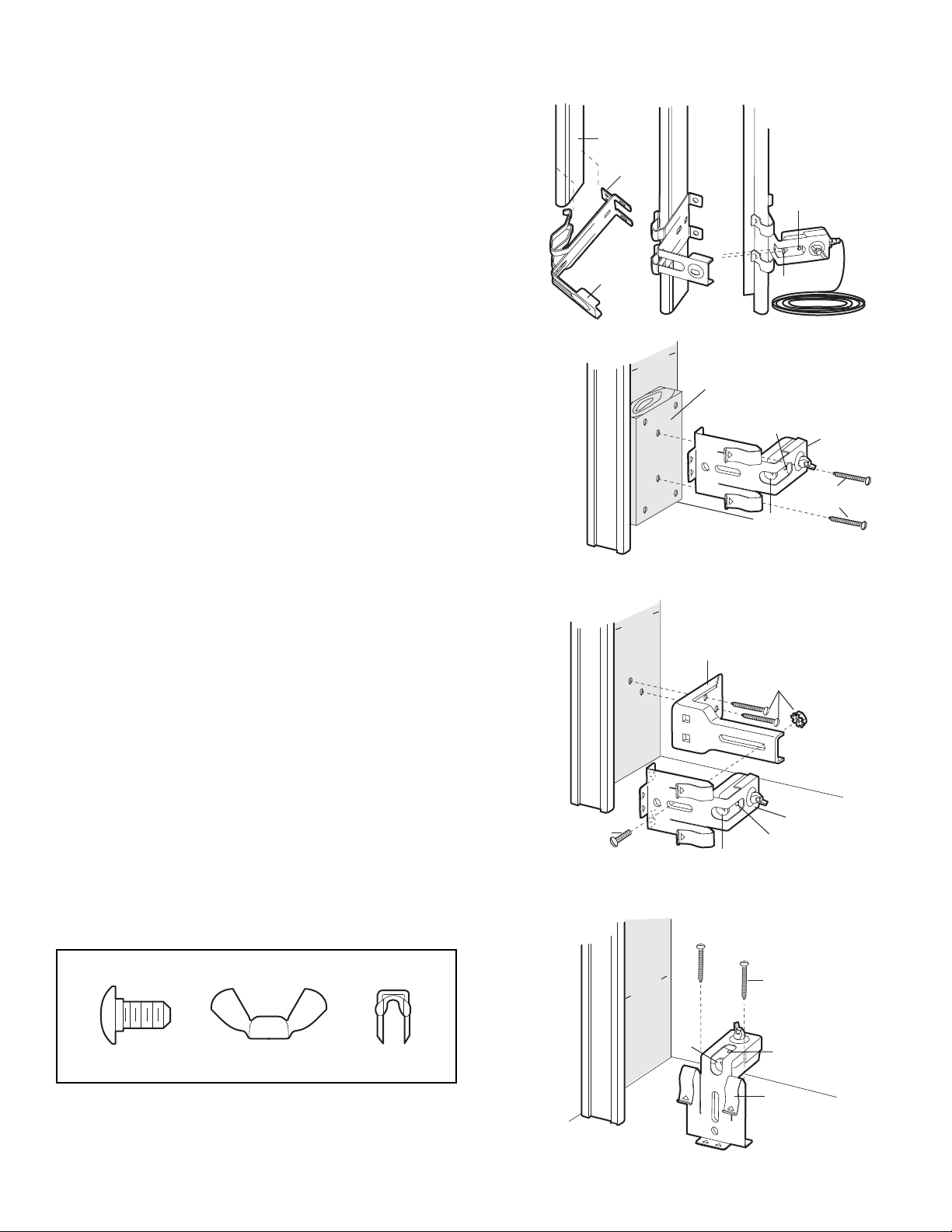

INSTALLING THE BRACKETS Be sure power to the opener is disconnected. Install

and align the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the floor. They may be installed in one of three ways, as follows.

Garage door track installation (preferred):

• Slip the curved arms over the rounded edge of each door track, with the curved arms facing the door. Snap into place against the side of the track. It should lie flush, with the lip hugging the back edge of the track, as shown in Figure 1.

If your door track will not support the bracket securely, wall installation is recommended.

Wall installation (Figure 2 & 3):

• Place the bracket against the wall with curved arms facing the door. Be sure there is enough clearance for the sensor beam to be unobstructed.

• If additional depth is needed, an extension bracket (See Accessories) or wood blocks can be used.

• Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on the wall at each side of the door, no higher than 6" (15 cm) above the floor.

• Attach brackets to wall with lag screws (Not provided).

• If using extension brackets or wood blocks, adjust right and left assemblies to the same distance out from the mounting surface. Make sure all door hardware obstructions are cleared.

Floor installation (Figure 4):

• Use wood blocks or extension brackets (See Accessories) to elevate sensor brackets so the lenses will be no higher than 6" (15 cm) above the floor.

• Carefully measure and place right and left assemblies at the same distance out from the wall. Be sure all door hardware obstructions are cleared.

• Fasten to the floor with concrete anchors as shown.

HARDWARE SHOWN ACTUAL SIZE

Figure 1

Figure 2

Figure 3

DOOR TRACK MOUNT (RIGHT SIDE)

Door Track

Lip

Sensor Bracket

WALL MOUNT (RIGHT SIDE)

Fasten Wood Block to Wall with Lag Screws (Not Provided)

WALL MOUNT (RIGHT SIDE)

Extension Bracket (See Accessories)

Inside

arage

all

Inside

arage

all

Indicator Light

Lens

Indicator Light

Lens

(Provided with Extension Bracket)

Sensor Bracket

Lag Screws (Not Provided)

Carriage Bolt 1/4"-20x1/2"

Wing Nut 1/4"-20

Staples

(Provided with Extension Bracket)

Figure 4

Inside

arage

Sensor Bracket

Indicator Light

Lens

FLOOR MOUNT (RIGHT SIDE)

Attach with Concrete Anchors

Lens

(Not Provided)

Indicator Light

Sensor Bracket

Page 17

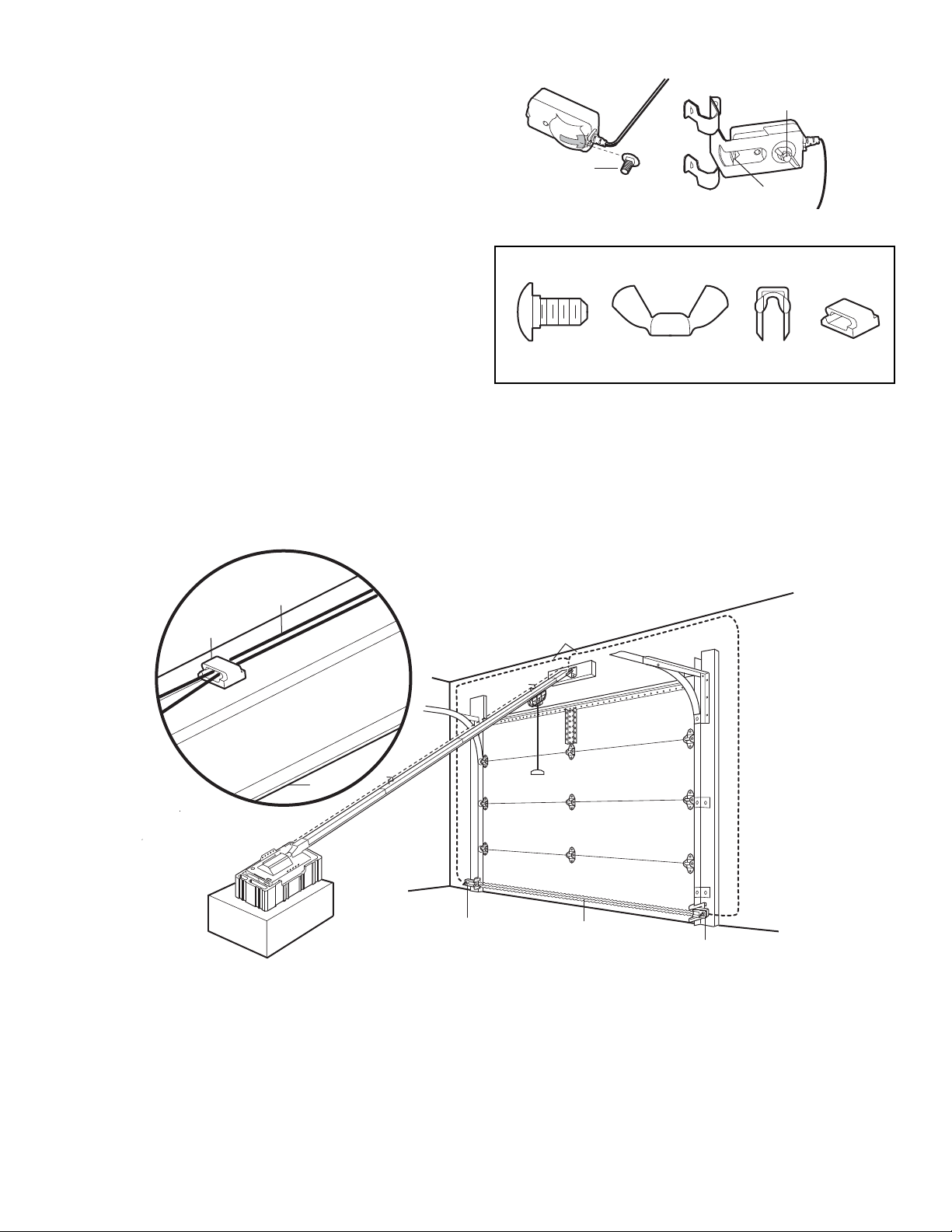

MOUNTING AND WIRING THE SAFETY SENSORS

• Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension. See Figure 5.

• Finger tighten the wing nuts.

Recommended Wire Routing

1. Using insulated staples, run the wires from both sensors to the rail at the door header (see Figure 6).

2. Run the wires through wire clip at the top of the rails.

NOTE: If your access door is near the garage door, you may choose to install the door control at this time and run the door control wire along the rail with the sensor wires. If you choose this option, follow instructions 1-3 on page 20.

Invisible Light Beam Protection Area

Safety Reversing Sensor

Bell Wire

Sensor Wire

Wire Clip

Rail

Figure 6

Carriage Bolt 1/4"-20x1/2"

Lens

Wing Nut 1/4"-20

Figure 5

HARDWARE SHOWN ACTUAL SIZE

Carriage Bolt 1/4"-20x1/2"

Wing Nut 1/4"-20

Staples

Wire Clip

Page 18

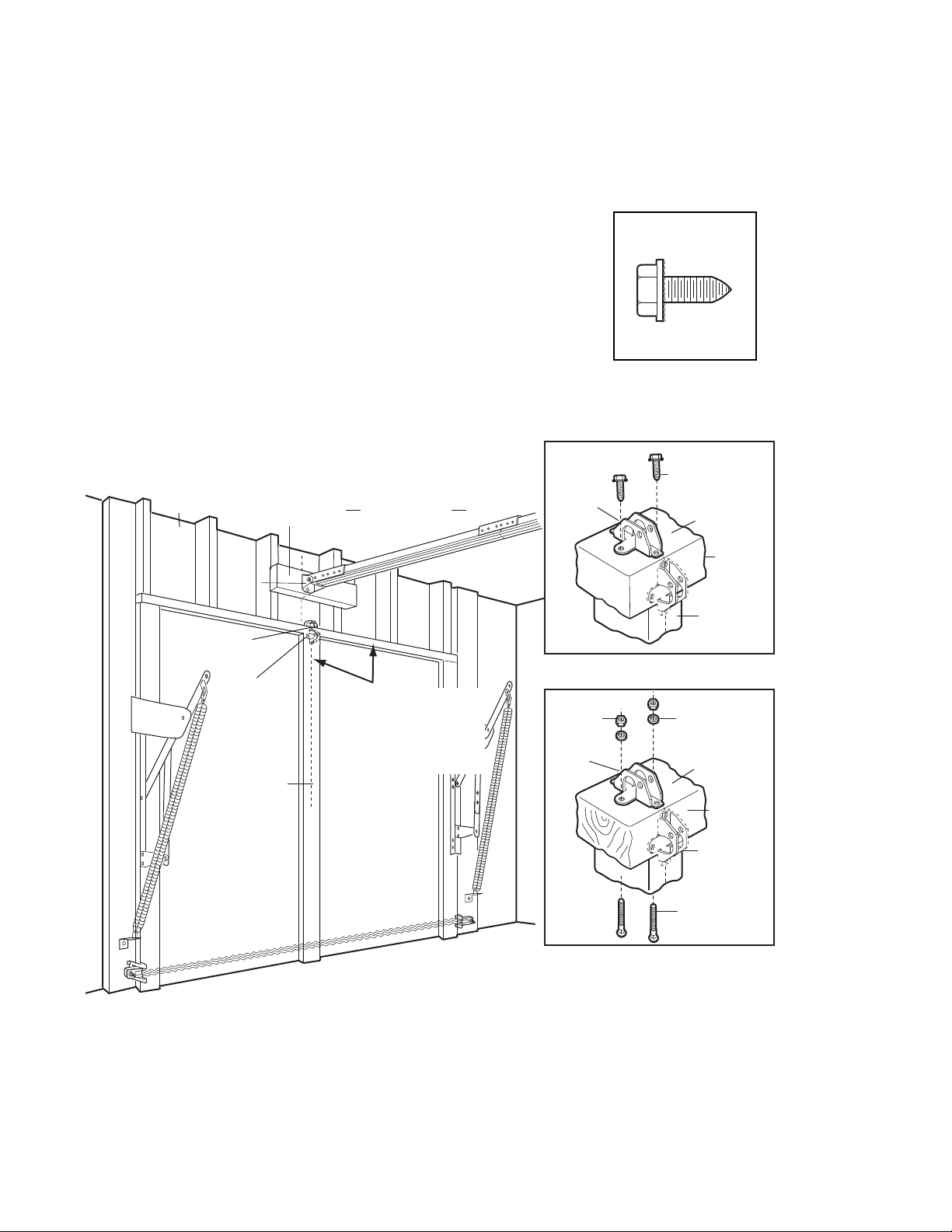

ONE-PIECE DOOR WITHOUT TRACK

A 2x4 on its side is convenient for setting an ideal doorto-rail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 on its side on the top section of the door beneath the rail.

• The top of the door should be level with the top of the motor unit. Do not position the opener more than 4" (10 cm) above this point.

INSTALLATION STEP 5

Position the Opener

Follow instructions which apply to your door type as illustrated.

SECTIONAL DOOR OR ONE-PIECE DOOR WITH TRACK

A 2x4 laid flat is convenient for setting an ideal door-torail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on the top section beneath the rail.

• If the top section or panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect inner and outer sections. Slide the outer trolley toward the motor unit. The trolley can remain disconnected until Installation Step 13 is completed.

To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.

WARNING

CAUTION

WARNING

Trolley

Release Arm

ENGAGED

RELEASED

2x4 is used to determine the correct mounting height from ceiling.

Door

Top of Door

2x4 is used to determine the correct mounting height from ceiling.

Page 19

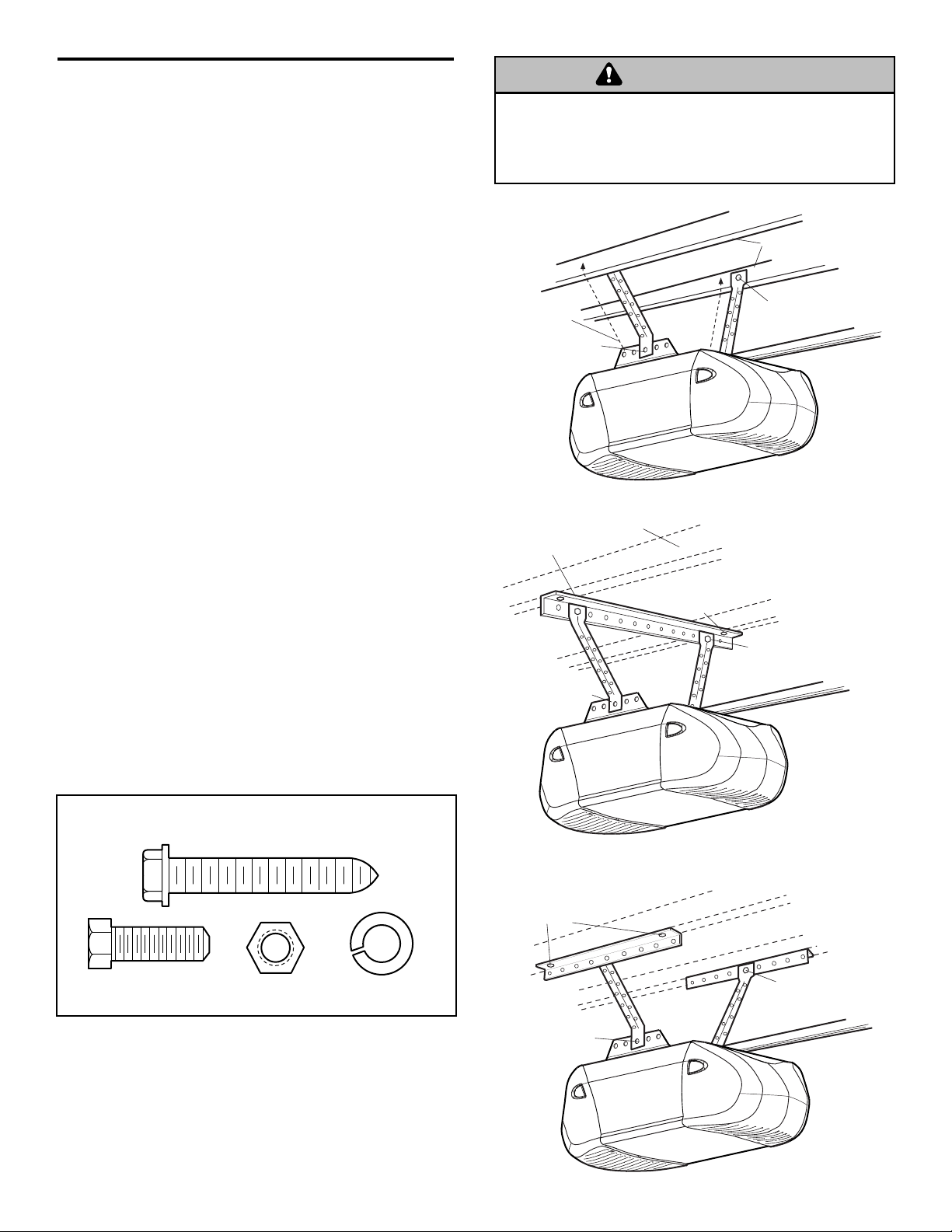

INSTALLATION STEP 6

Hang the Opener

Three representative installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On finished ceilings (Figure 2), attach a sturdy metal bracket to structural supports before installing the opener. This bracket and fastening hardware are not provided (see accessories).

Existing brackets from a previous installation may be fastened to the sides of the motor unit as in Figures 1 and 2, or to the mounting tabs as shown in Figure 3. Then continue with step 6 below.

1. Measure the distance from each side of the motor unit

to the structural support.

2. Cut both pieces of the hanging bracket to required

lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with

5/16"-18x1-7/8" lag screws.

5. Fasten the opener to the hanging brackets with

5/16"-18x7/8" hex bolts, lock washers and nuts.

6. Check to make sure the rail is centered over the door

(or in line with the header bracket if the bracket is not centered above the door).

7. Remove the 2x4. Operate the door manually. If the

door hits the rail, raise the header bracket.

NOTE: DO NOT connect power to opener at this time.

To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry.

Lag Screw 5/16"-18x1-7/8"

Hex Bolt 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"

HARDWARE SHOWN ACTUAL SIZE

Figure 1

Figure 2

Figure 3

WARNING

Measure Distance

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Bracket (Not Provided)

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Hidden Support

Lag Screws 5/16"-18x1-7/8"

Structural Supports

Lag Screws 5/16"-18x1-7/8"

FINISHED CEILING

(Not Provided) Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Lag Screws 5/16"-18x1-7/8"

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

FINISHED CEILING

(Not Provided) Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Page 20

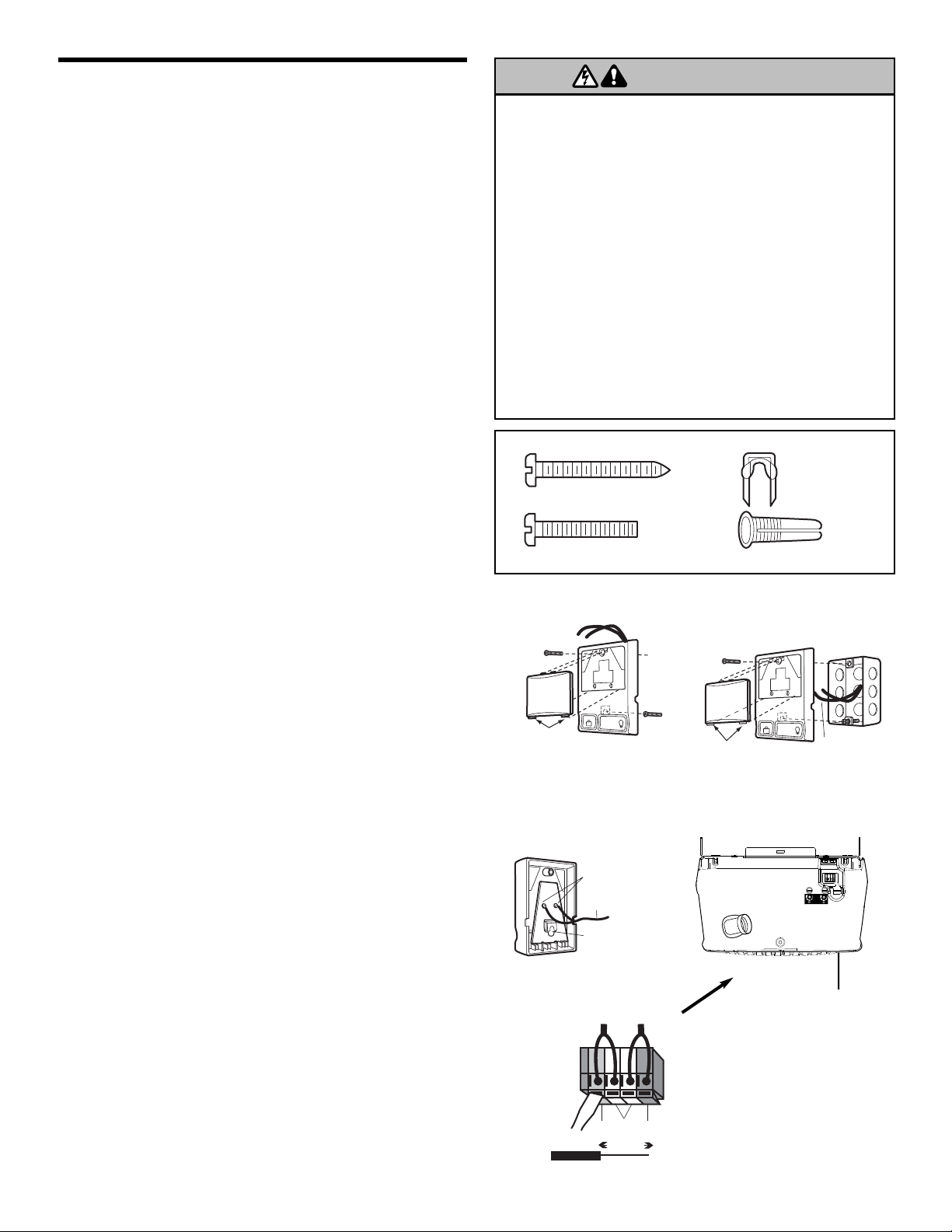

INSTALLATION STEP 7

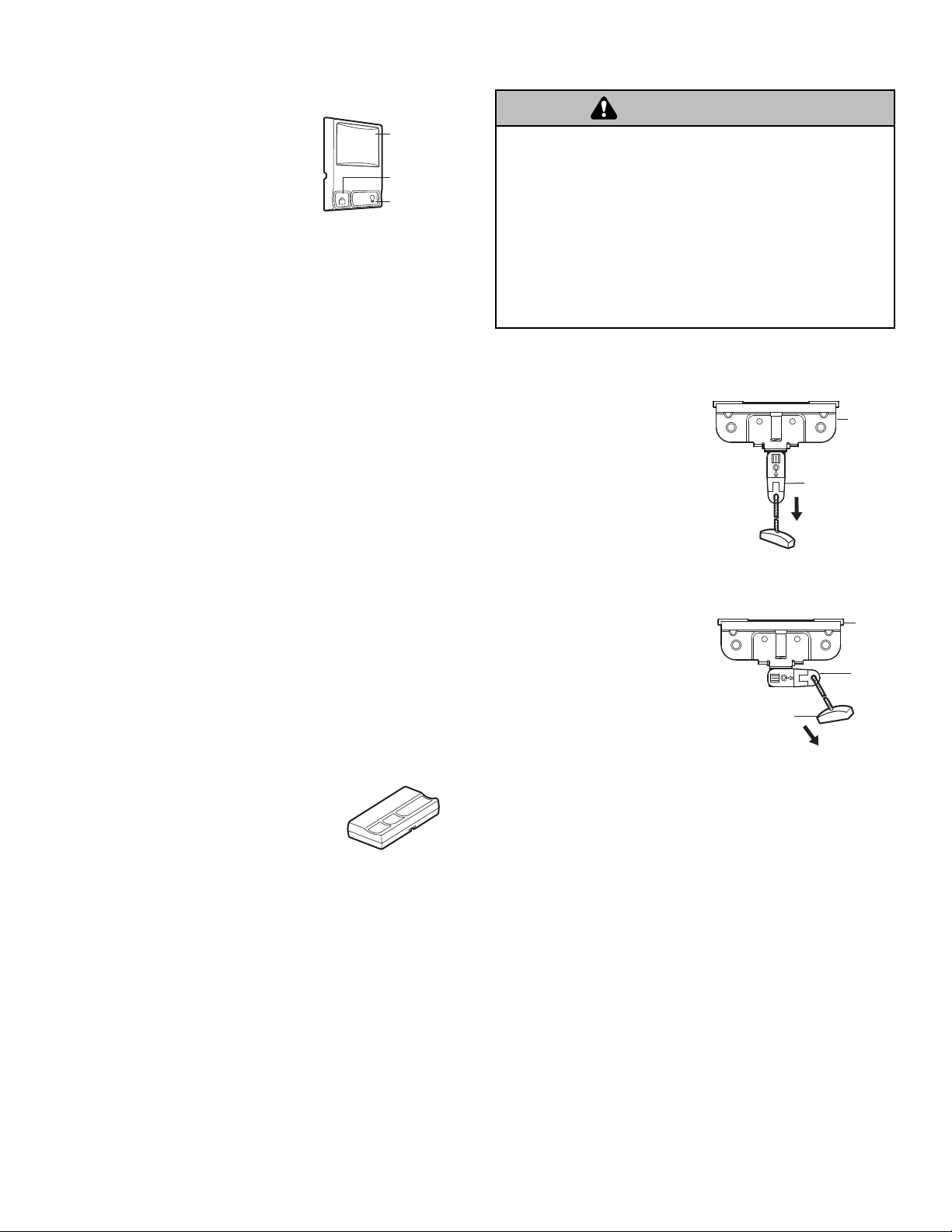

Install the Door Control

Locate door control within sight of door at a minimum height of 5 feet (1.5 m) where small children cannot reach, and away from moving parts of door and door hardware. The installation surface must be smooth and flat. If installing into drywall (Figure 1), drill 5/32" holes and use anchors provided. For pre-wired installations (as in new home construction), it may be mounted to a single gang box (Figure 2). NOTE: After installation, a green or amber

indicator light behind the cover will indicate proper connection. If not lit, the Lock and Light features will not function (reverse wires to correct).

1. Strip 7/16" (11 mm) of insulation from one end of bell wire and connect to the two screw terminals on back of door control by color: white wire to WHT and white/red wire to the RED (Figure 3).

2. Remove cover by gently prying on a side corner near the top of the cover with a small flat head screwdriver (Figure 4). Fasten with 6ABx1-1/4" self-tapping screws (drywall installation) or 6-32x1" machine screws (into gang box) as follows:

• Drill and install bottom screw, allowing 1/8" (3 mm) to

protrude above wall surface.

• Position bottom of door control on screw head and

slide down to secure. Adjust screw for snug fit.

• Install top screw with care to avoid cracking plastic

housing. Do not overtighten.

• Insert bottom tabs and snap on cover.

NOTE: The push bar may stick if the door control is not mounted on a smooth surface. If a click is not heard when pressing the push bar, loosen the two mounting screws or relocate the door control to a smoother surface.

3. (Standard installation only) Run bell wire up wall and across ceiling to motor unit. Use insulated staples to secure wire in several places. Do not pierce wire with a staple, creating a short or open circuit. If your access door is near the garage door, you may run this wire with the Safety Reversing Sensor wires along the top of the rail. See page 17.

4. Insert all wires through the opening on top of motor unit above the terminal block on the back panel (Figure 4).

5. Strip 7/16" (11 mm) of insulation from each set of bell wires. Connect bell wires to the quick-connect terminals as follows: white to white and white/red to red; white to white and white/black to grey.

NOTE: When connecting multiple door controls to the opener, twist same color wires together. Insert wires into quick-connect holes: white to white and red/white to red.

6. Use tacks or staples to permanently attach entrapment warning label to wall near door control, and manual release/safety reverse test label in a prominent location on inside of garage door.

NOTE: DO NOT connect the power and operate the opener at this time. The trolley will travel to the full open position but will not return to the close position until the sensor beam is connected and properly aligned.

Drywall Anchors

Insulated Staples

Screw 6ABx1-1/4" Control Panel (std installation)

Screw 6-32x1" Control Panel (pre-wired)

HARDWARE SHOWN ACTUAL SIZE

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is not connected BEFORE installing door control.

• Connect ONLY to 24 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garage door:

• Install door control within sight of garage door, out of reach of children at a minimum height of 5 feet (1.52 m), and away from all moving parts of door.

• NEVER permit children to operate or play with door control push buttons or remote control transmitters.

• Activate door ONLY when it can be seen clearly, is properly adjusted, and there are no obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of closing garage door.

WARNING

Figure 3

Figure 4

Bell Wire

Terminal Screws

RED

WHT

Bottom Mounting Hole

MULTI-FUNCTION WALL CONTROL PANEL

Figure 1

To Replace Insert Bottom Tabs First

STANDARD INSTALLATION

To release wire, push in tab with screwdriver tip

Door Control Connections

Red GreyWhite

Strip wire 7/16" (11 mm)

7/16" (11 mm)

Figure 2

To Replace Insert Bottom Tabs First

Safety Sensor Connections

PRE-WIRED INSTALLATION

24 Volt Bell Wire

Page 21

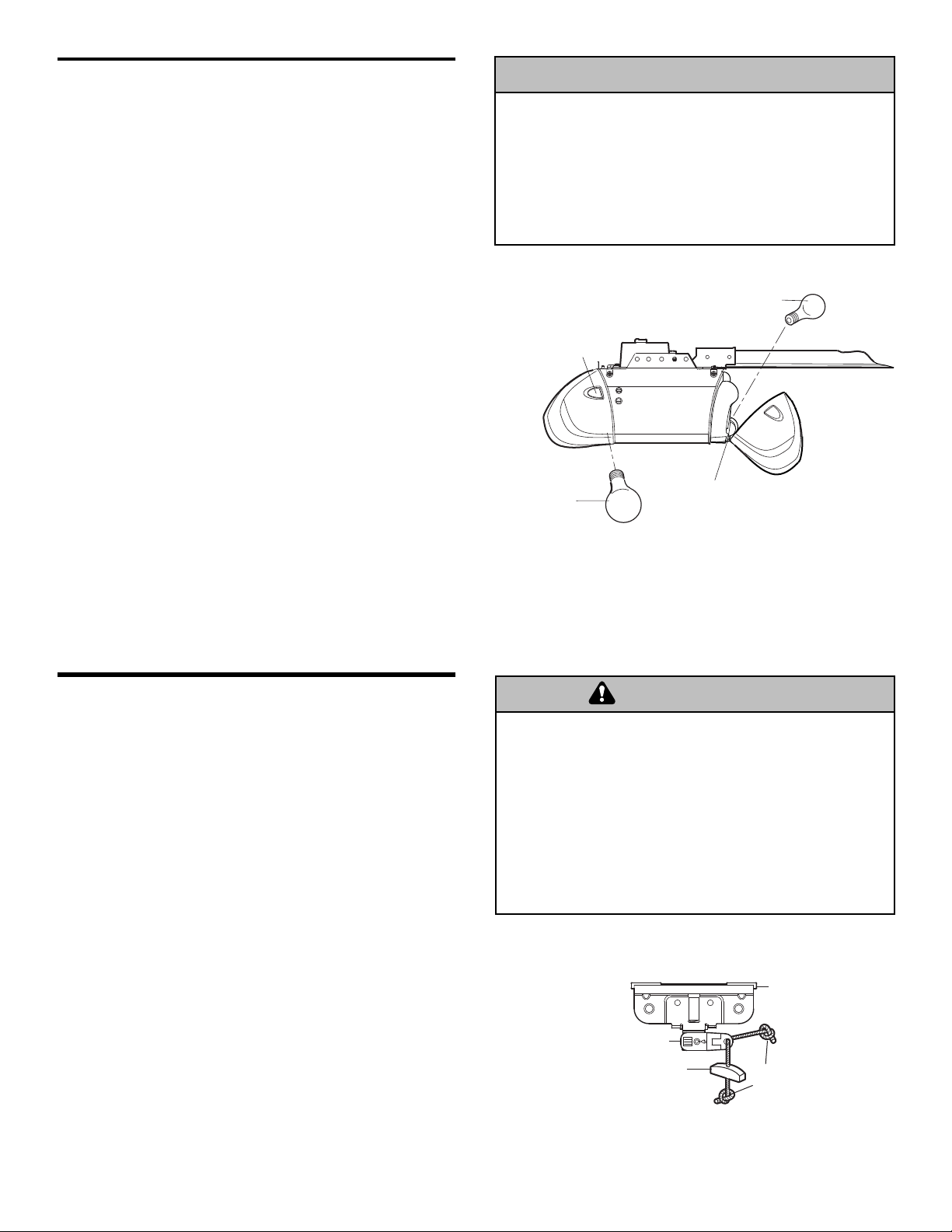

INSTALLATION STEP 8

Install the Lights

• Press the release tabs on both sides of lens. Gently rotate lens back and downward until the lens hinge is in the fully open position. Do not remove the lens.

• Install a 100 watt maximum light bulb in each socket. Light bulb size should be A19, standard neck only. The lights will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the lights will turn OFF.

• Reverse the procedure to close the lens.

• Use A19, standard neck garage door opener bulbs for replacement.

NOTE: Use only standard light bulbs. The use of short neck or speciality light bulbs may overheat the endpanel or light socket.

INSTALLATION STEP 9

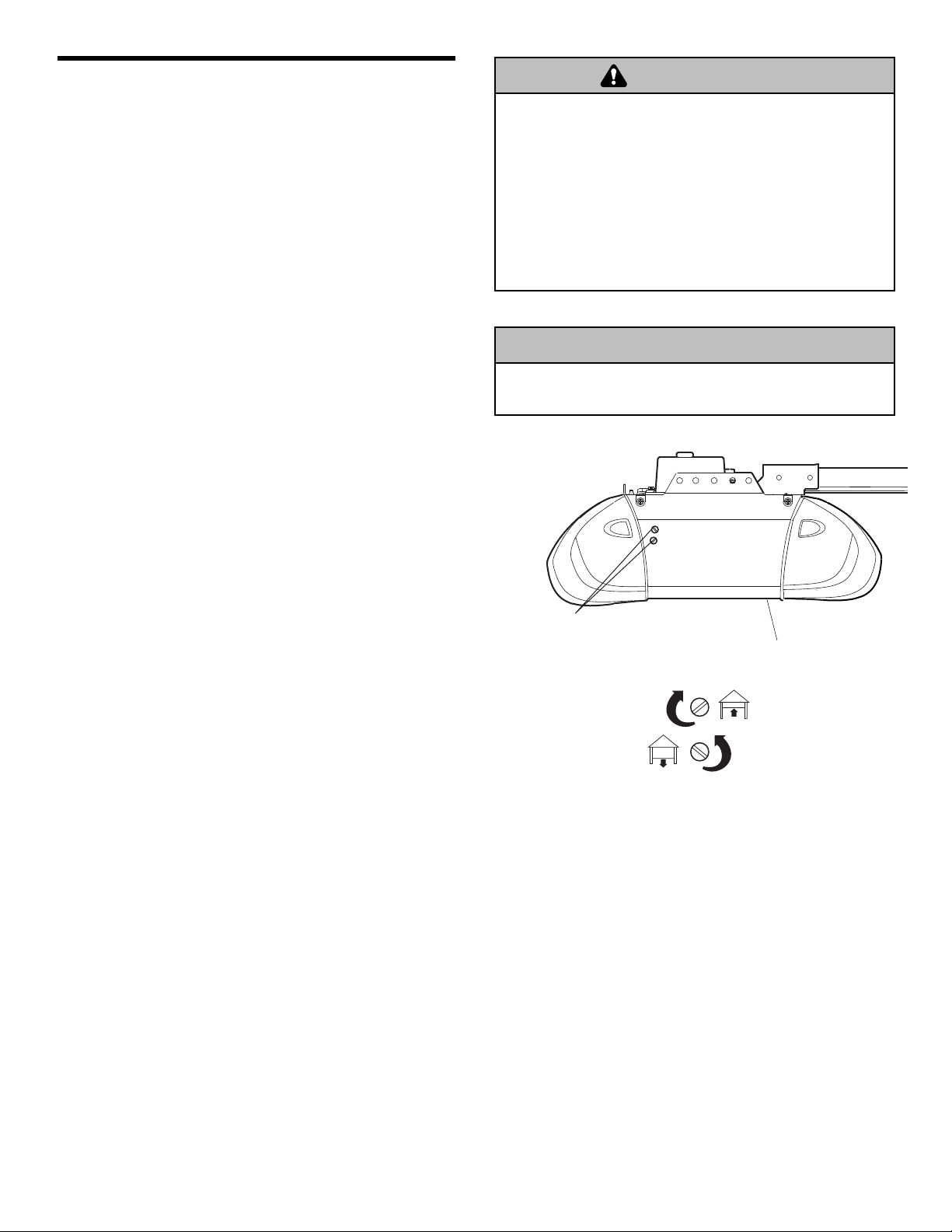

Attach the Emergency Release Rope and Handle

• Thread one end of the rope through the hole in the top of the red handle so “NOTICE” reads right side up as shown. Secure with an overhand knot at least 1" (2.5 cm) from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet (1.83 m) above the floor. Ensure that the rope and handle clear the tops of all vehicles to avoid entanglement. Secure with an overhand knot.

NOTE: If it is necessary to cut the rope, heat seal the cut end with a match or lighter to prevent unraveling.

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

WARNING

To prevent possible OVERHEATING of the endpanel or light socket:

• DO NOT use short neck or specialty light bulbs.

• DO NOT use halogen bulbs. Use ONLY incandescent.

To prevent damage to the opener:

• DO NOT use bulbs larger than 100W.

• ONLY use A19 size bulbs.

WARNING

CAUTION

WARNING

Trolley Release Arm

TIC

Overhand Knot

Emergency

Release Handle

Trolley

100 Watt (Max) Standard Light Bulb

Release Tab

100 Watt (Max) Standard Light Bulb

Lens Hinge

Page 22

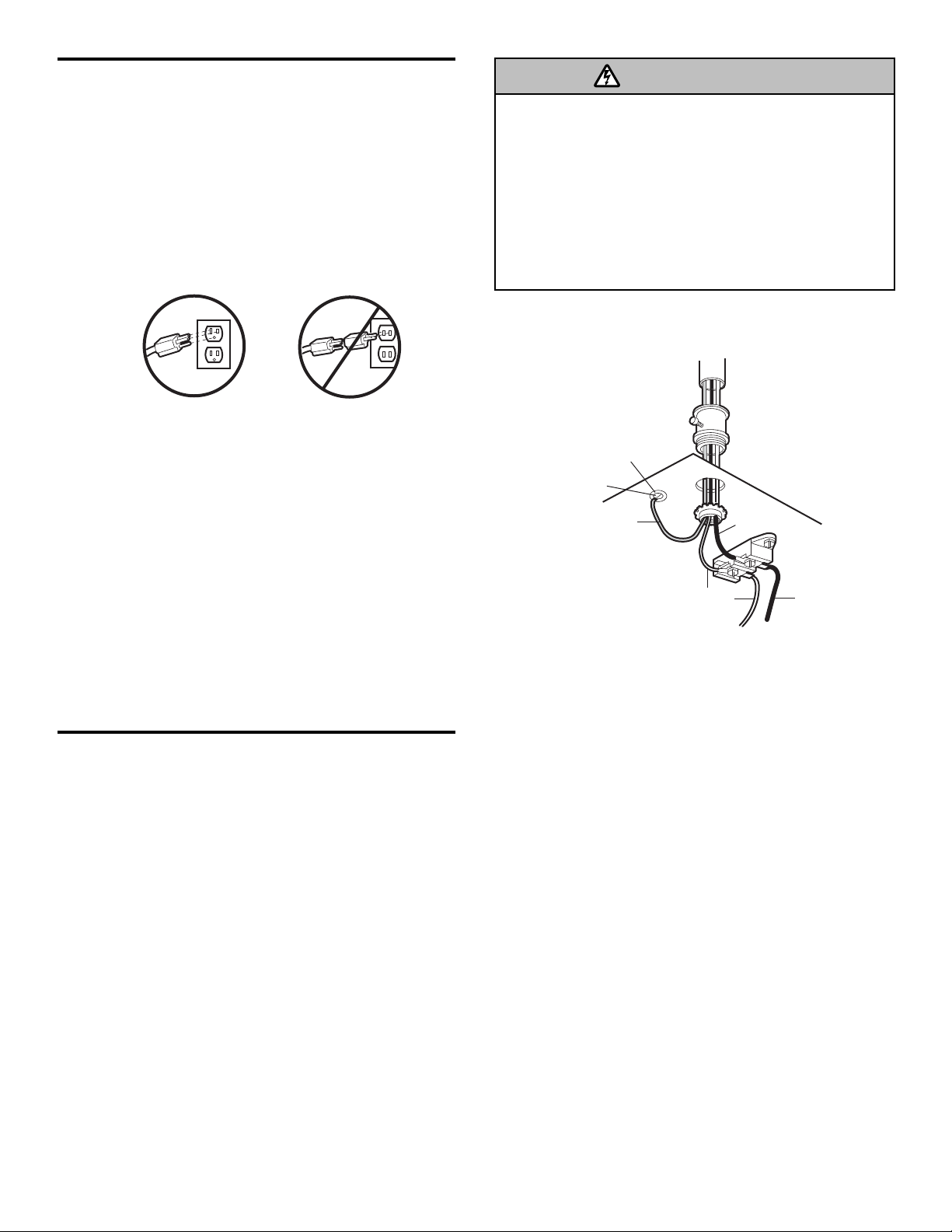

INSTALLATION STEP 10

Electrical Requirements

To avoid installation difficulties, do not run the opener until Step 11 below.

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet. If the plug doesn't fit into the outlet you have, contact a qualified electrician to install the proper outlet.

If permanent wiring is required by your local code, refer to the following procedure.

To make a permanent connection through the 7/8" hole in the top of the motor unit:

• Remove the motor unit cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on the silver terminal; and the ground wire to the green ground screw. The opener must be grounded.

• Reinstall the cover.

To avoid installation difficulties, do not run the opener until Step 11 below.

INSTALLATION STEP 11

Complete the Safety Reversing Sensor Installation

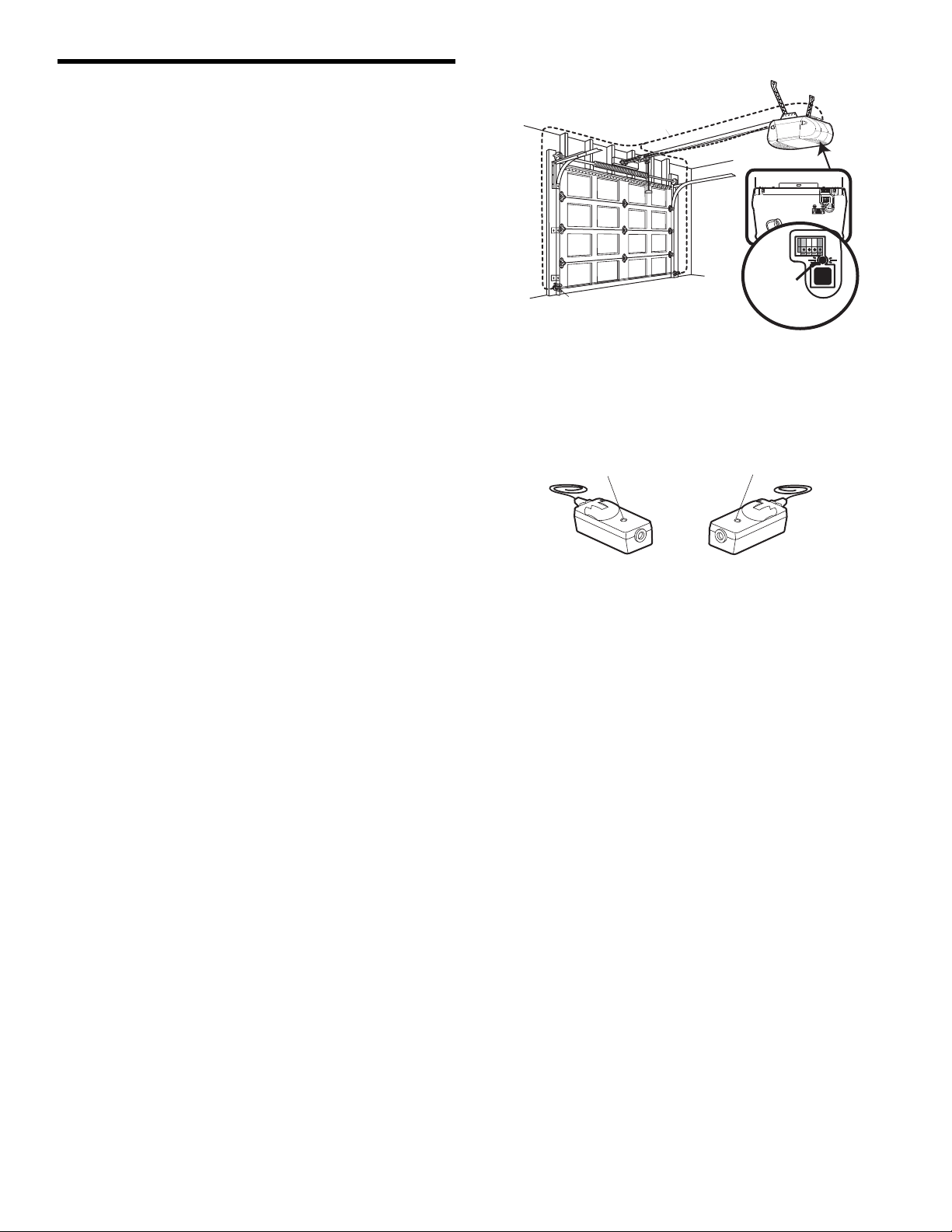

ALIGNING THE SAFETY REVERSING SENSORS

• Plug in the opener. The indicator lights in both the sending and receiving eyes will glow steadily if wiring connections and alignment are correct.

The sending eye amber indicator light will glow regardless of alignment or obstruction. If the green indicator light in the receiving eye is off, dim, or flickering (and the invisible light beam path is not obstructed), alignment is required:

• Loosen the sending eye wing nut and readjust, aiming directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust the sensor until it receives the sender’s beam. When the green indicator light glows steadily, tighten the wing nut.

RIGHT

WRONG

To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:

• Be sure power is not connected to the opener, and disconnect power to circuit BEFORE removing cover to establish permanent wiring connection.

• Garage door installation and wiring MUST be in compliance with all local electrical and building codes.

• NEVER use an extension cord, 2-wire adapter, or change plug in any way to make it fit outlet. Be sure the opener is grounded.

Ground Tab

Green Ground Screw

Ground Wire

Black Wire

PERMANENT WIRING CONNECTION

White Wire

Black Wire

WARNING

TROUBLESHOOTING THE SAFETY REVERSING SENSORS

1. If the sending eye indicator light does not glow steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can

occur at staples, or at opener connections.

• Incorrect wiring between sensors and opener.

• A broken wire.

2. If the sending eye indicator light glows steadily but the receiving eye indicator light doesn’t:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign either sensor.

NOTE: When the invisible beam path is obstructed or misaligned while the door is closing, the door will reverse. If the door is already open, it will not close. The opener lights will flash 10 times. (See page 15.)

Page 23

INSTALLATION STEP 12

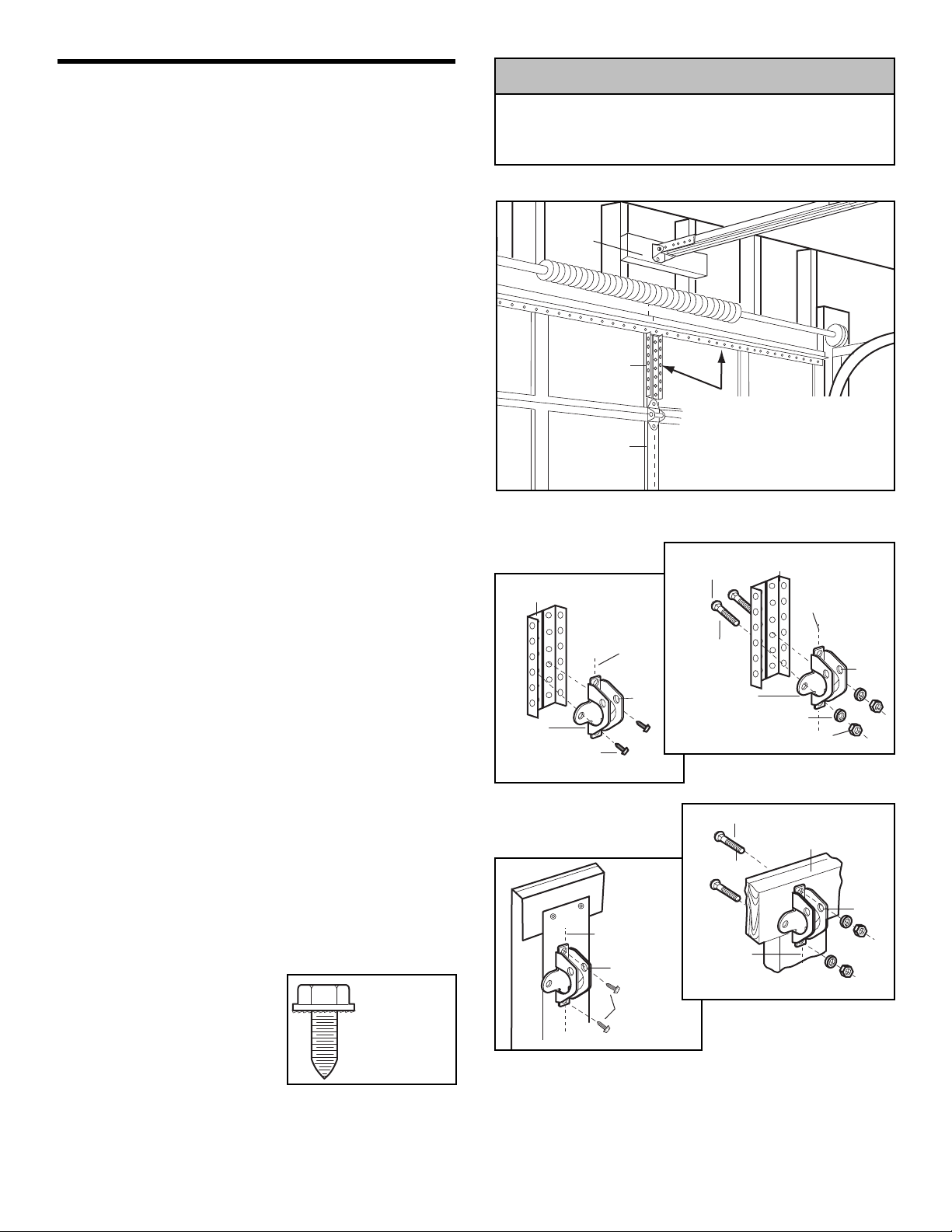

Fasten the Door Bracket

Follow instructions which apply to your door type as illustrated below or on the following page.

A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel.

Figure 1 shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an opener installation door reinforcement kit.

NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this case you will not need the door bracket; proceed to Step 13.

SECTIONAL DOORS

1. Center the door bracket on the previously marked vertical centerline used for the header bracket installation. Note correct UP placement, as stamped inside the bracket.

2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR directly below any structural support across the top of the door.

3. Mark, drill holes and install as follows, depending on your door’s construction:

Metal or light weight doors using a vertical angle iron brace between the door panel support and the door bracket:

• Drill 3/16" fastening holes. Secure the door bracket using the two 1/4"-14x5/8" self-threading screws. (Figure 2A)

• Alternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure 2B)

Metal, insulated or light weight factory reinforced doors:

• Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws (Figure 3).

Wood Doors:

• Use top and bottom or side to side door bracket holes. Drill 5/16" holes through the door and secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided). (Figure 4)

NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.

Vertical Centerline of Garage Door

Door Bracket Location

Header Bracket

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

Door Bracket

Vertical Centerline of Garage Door

Vertical Reinforcement

Self-Threading Screw 1/4"-14x5/8"

Door Bracket

Nut 5/16"-18

Bolt 5/16"-18x2"

Lock Washer 5/16"

Vertical Reinforcement

(Not Provided)

Vertical Centerline of Garage Door

Self-Threading Screw 1/4"-14x5/8"

Vertical Centerline of Garage Door

Inside Edge of Door or Reinforcement Board

Bolt 5/16"x2"

(Not Provided)

Vertical Centerline of Garage Door

Figure 1

Figure 2A

Figure 2B

Figure 3

Figure 4

Self-Threading Screw 1/4"-14x5/8"

HARDWARE SHOWN ACTUAL SIZE

Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of door bracket.

Contact your door manufacturer for reinforcement kit.

WARNING

CAUTION

WARNING

Page 24

Header Wall

Vertical Centerline of Garage Door

Finished Ceiling

Optional Placement of Door Bracket

Header

Bracket

Door Bracket

2x4 Support

For a door with no exposed framing, or for the optional installation, use lag screws 5/16"x1-1/2" (Not Provided) to fasten door bracket.

METAL DOOR

Top of Door (Inside Garage)

Door Bracket

Optional Placement

Top Edge of Door

Self-Threading Screw 1/4"-14x5/8"

Door Bracket

Top of Door (Inside Garage)

Carriage Bolt 5/16"x2" (Not Provided)

Optional Placement

Lock Washer 5/16"

Nut 5/16"-18

Top Edge of Door

WOOD DOOR

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

ONE-PIECE DOORS

Please read and comply with the warnings and reinforcement instructions on the previous page. They apply to one-piece doors also.

• Center the door bracket on the top of the door, in line with the header bracket as shown. Mark either the left and right, or the top and bottom holes.

• Metal Doors: Drill 3/16" pilot holes and fasten the bracket with the 1/4"-14x5/8" self-threading screws provided.

• Wood Doors: Drill 5/16" holes and use 5/16"x2" carriage bolts, lock washers and nuts (not provided) or 5/16"x1-1/2" lag screws (not provided) depending on your installation needs.

NOTE: The door bracket may be installed on the top edge of the door if required for your installation. (Refer to the dotted line optional placement drawing.)

Self-Threading Screw 1/4"-14x5/8"

HARDWARE SHOWN

ACTUAL SIZE

Page 25

INSTALLATION STEP 13

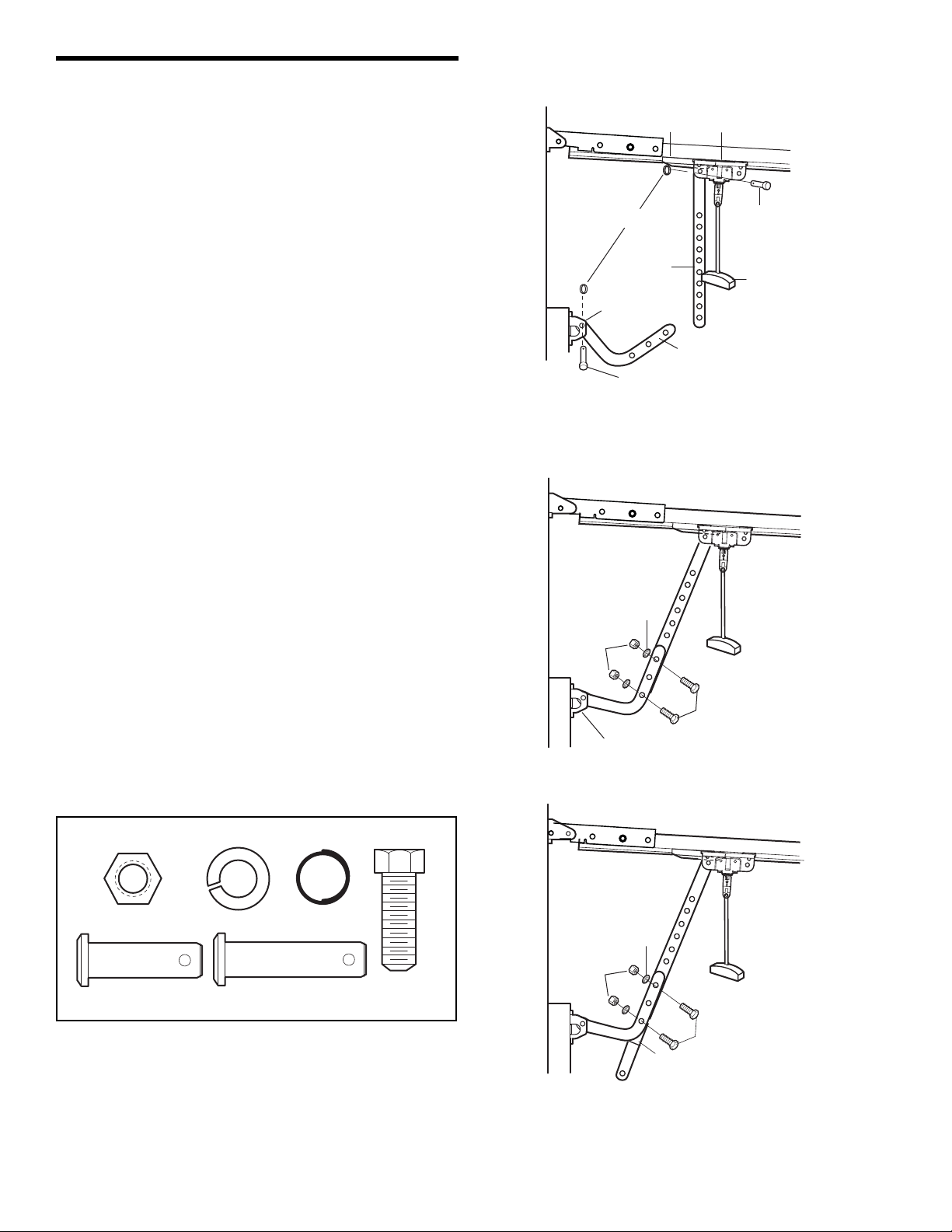

Connect Door Arm to Trolley

Follow instructions which apply to your door type as illustrated below and on the following page.

SECTIONAL DOORS ONLY

• Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2" (5 cm) as shown in Figures 1, 2 and 3.

• Figure 1:

– Fasten straight door arm section to outer trolley with

the 5/16"x1" clevis pin. Secure the connection with a ring fastener.

– Fasten curved section to the door bracket in the

same way, using the 5/16"x1-1/4" clevis pin.

• Figure 2:

– Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart as possible to increase door arm rigidity.

• Figure 3, Hole alignment alternative:

– If holes in curved arm are above holes in straight

arm, disconnect straight arm. Cut about 6" (15 cm) from the solid end. Reconnect to trolley with cut end

down as shown. – Bring arm sections together. – Find two pairs of holes that line up and join with

bolts, lock washers and nuts.

• Pull the emergency release handle toward the opener at a 45° angle so that the trolley release arm is horizontal. Proceed to Adjustment Step 1, page 27. Trolley will re-engage automatically when opener is operated.

Figure 1

Figure 2

Figure 3

HARDWARE SHOWN ACTUAL SIZE

Nuts 5/16"-18

Inner Trolley

Ring Fastener

Straight Door Arm

Door Bracket

Clevis Pin 5/16"x1-1/4"

Lock Washers 5/16"

Door Bracket

Outer Trolley

Clevis Pin 5/16"x1"

Emergency Release Handle

Curved Door Arm

Bolts 5/16"-18x7/8"

Nut 5/16"-18

Clevis Pin 5/16"x1" (Trolley)

Lock Washer 5/16"

Clevis Pin 5/16"x1-1/4" (Door Bracket)

Ring Fastener

Hex Bolt 5/16"-18x7/8"

Nuts 5/16"-18

Lock Washers 5/16"

Bolts 5/16"-18x7/8"

Cut this end

Page 26

ALL ONE-PIECE DOORS

1. Assemble the door arm, Figure 4:

• Fasten the straight and curved door arm sections together to the longest possible length (with a 2 or 3 hole overlap).

• With the door closed, connect the straight door arm section to the door bracket with the 5/16"x1-1/4" clevis pin.

• Secure with a ring fastener.

2. Adjustment procedures, Figure 5:

• On one-piece doors, before connecting the door arm to the trolley, the travel limits must be adjusted. Limit adjustment screws are located on the left side panel as shown on page 27. Follow adjustment procedures below.

• Open door adjustment: decrease UP travel limit

- Turn the UP limit adjustment screw counter-clockwise 4 turns.

- Press the Door Control push button. The trolley will travel to the fully open position.

- Manually raise the door to the open position (parallel to the floor), and lift the door arm to the trolley. The arm should touch the trolley just in back of the door arm connector hole. Refer to the fully open trolley/door arm positions in the illustration. If the arm does not extend far enough, adjust the limit further. One full turn equals 2" (5 cm) of trolley travel.

• Closed door adjustment: decrease DOWN travel limit

- Turn the DOWN limit adjustment screw clockwise 4 complete turns.

Nuts 5/16"-18

Lock Washers 5/16"

Ring Fastener

Straight Arm

Bolts 5/16"-18x7/8"

Door Bracket

Clevis Pin 5/16"x1-1/4"

Curved Door Arm

- Press the Door Control push button. The trolley will travel to the fully closed position.

- Manually close the door and lift the door arm to the trolley. The arm should touch the trolley just ahead of the door arm connector hole. Refer to the fully closed trolley/door arm positions in the illustration. If the arm is behind the connector hole, adjust the limit further. One full turn equals 2" (5 cm) of trolley travel.

3. Connect the door arm to the trolley:

• Close the door and join the curved arm to the connector hole in the trolley with the remaining clevis pin. It may be necessary to lift the door slightly to make the connection.

• Secure with a ring fastener.

• Run the opener through a complete travel cycle. If the door has a slight “backward” slant in full open position as shown in the illustration, decrease the UP limit until the door is parallel to the floor.

NOTE: When setting the up limit on the following page, the door should not have a “backward” slant when fully open as illustrated below. A slight backward slant will cause unnecessary bucking and/or jerking operation as the door is being opened or closed from the fully open position.

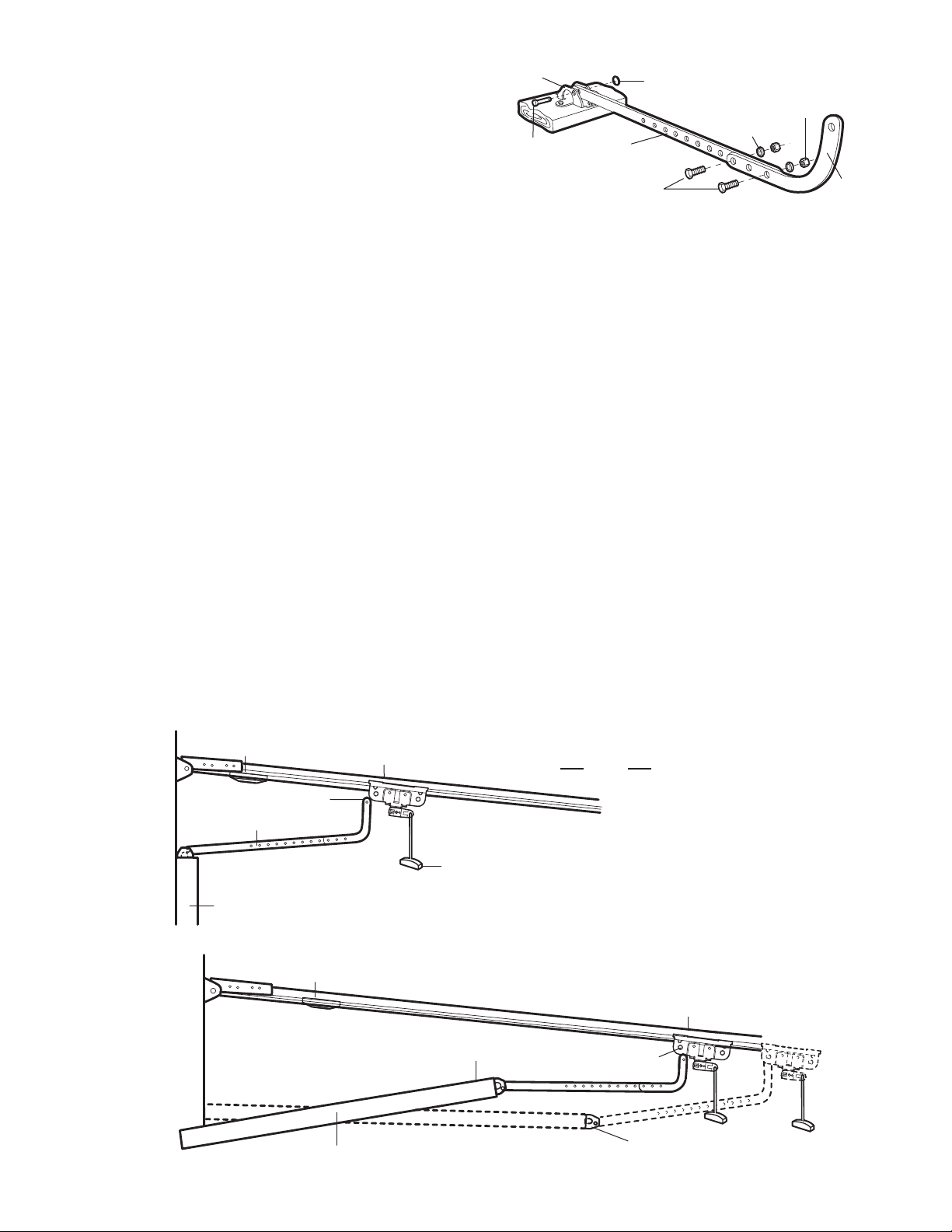

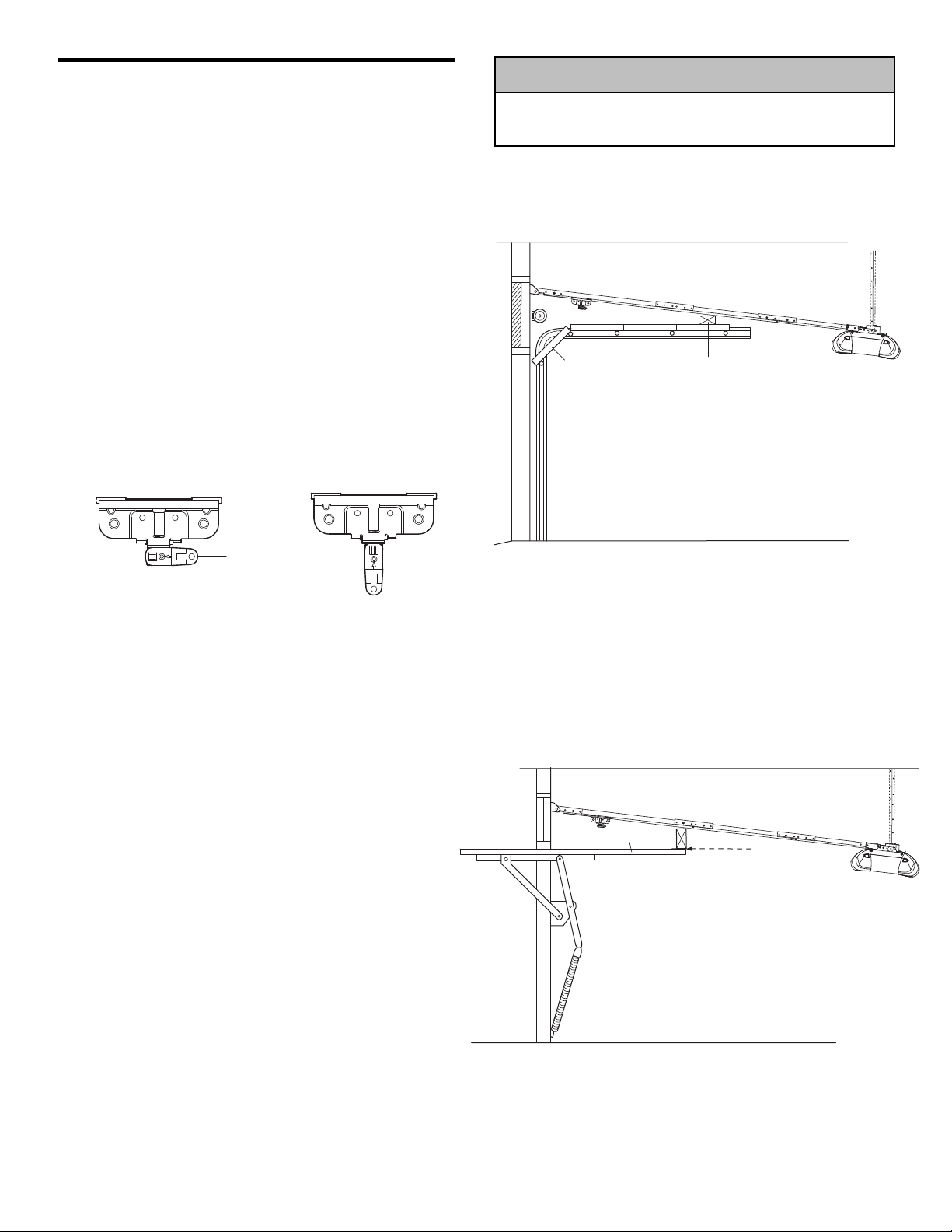

Figure 4

Closed Door

Outer Trolley

Door Arm

Emergency Release Handle

Door Arm Connector Hole

Open Door

Door with Backward Slant (Incorrect)

Correct Angle

Inner Trolley

Door Arm Connector Hole

Closed Door

Figure 5

Page 27

ADJUSTMENT STEP 1

Adjust the UP and DOWN Travel Limits

Limit adjustment settings regulate the points at which the door will stop when moving up or down.

To operate the opener, press the Door Control push bar. Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse unintentionally when fully closed?

If your door passes both of these tests, no limit adjustments are necessary unless the reversing test fails (Adjustment Step 3, page 29).

Adjustment procedures are outlined below. Read the procedures carefully before proceeding to Adjustment Step 2. Use a screwdriver to make limit adjustments.

Run the opener through a complete travel cycle after each adjustment.

NOTE: Repeated operation of the opener during adjustment procedures may cause the motor to overheat and shut off. Simply wait 15 minutes and try again.

If anything interferes with the door’s upward travel, it will stop. If anything interferes with the door’s downward travel (including binding or unbalanced doors), it will reverse.

HOW AND WHEN TO ADJUST THE LIMITS

• If the door does not open completely but opens at least 5 feet (1.5 m):

Increase up travel. Turn the UP limit adjustment screw clockwise. One turn equals 2" (5 cm) of travel.

• If door does not open at least 5 feet (1.5 m):

Adjust the UP (open) force as explained in Adjustment Step 2.

• If the door does not close completely:

Increase down travel. Turn the down limit adjustment screw counterclockwise. One turn equals 2" (5 cm) of travel.

If door still won't close completely try lengthening the door arm (page 25) and decreasing the down limit.

• If the opener reverses in fully closed position:

Decrease down travel. Turn the down limit adjustment screw clockwise. One turn equals 2" (5 cm) of travel.

• If the door reverses when closing and there is no visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing Sensors are either not installed, misaligned, or obstructed. See Troubleshooting, page 22.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on floor.

Test the door for binding: Pull the emergency release handle. Manually open and close the door. If the door is binding or unbalanced, call for a trained door systems technician. If the door is balanced and not binding, adjust the DOWN (close) force. See Adjustment Step 2.

WARNING

To prevent damage to vehicles, be sure fully open door provides adequate clearance.

WARNING

CAUTION

WARNING

ADJUSTMENT LABEL

Left Side Panel

Limit Adjustment Screws

Page 28

ADJUSTMENT STEP 2

Adjust the Force

Force adjustment controls are located on the back panel of the motor unit. Force adjustment settings regulate the amount of power required to open and close the door.

If the forces are set too light, door travel may be interrupted by nuisance reversals in the down direction and stops in the up direction. Weather conditions can affect the door movement, so occasional adjustment may be needed.

The maximum force adjustment range is about 3/4 of a complete turn. Do not force controls beyond that point. Turn force adjustment controls with a screwdriver.

NOTE: If anything interferes with the door’s upward travel, it will stop. If anything interferes with the door’s downward travel (including binding or unbalanced doors), it will reverse.

HOW AND WHEN TO ADJUST THE FORCES

1. Test the DOWN (close) force

• Grasp the door bottom when the door is about halfway through DOWN (close) travel. The door should reverse. Reversal halfway through down travel

does not guarantee reversal on a 1-1/2" (3.8 cm) obstruction. See Adjustment Step 3, page 29. If the

door is hard to hold or doesn't reverse,

DECREASE the DOWN (close) force by turning the control counterclockwise. Make small adjustments until the door reverses normally. After each adjustment, run the opener through a complete cycle.

• If the door reverses during the down (close) cycle and the opener lights aren't flashing, INCREASE DOWN (close) force by turning the control clockwise. Make small adjustments until the door completes a close cycle. After each adjustment, run the opener through a complete travel cycle. Do not increase the

force beyond the minimum amount required to close the door.

2. Test the UP (open) force

• Grasp the door bottom when the door is about halfway through UP (open) travel. The door should stop. If the door is hard to hold or doesn't stop, DECREASE UP (open) force by turning the control counterclockwise. Make small adjustments until the door stops easily and opens fully. After each adjustment, run the opener through a complete travel cycle.

• If the door doesn’t open at least 5 feet (1.5 m),

INCREASE UP (open) force by turning the control clockwise. Make small adjustments until door opens completely. Readjust the UP limit if necessary. After each adjustment, run the opener through a complete travel cycle.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Too much force on garage door will interfere with proper operation of safety reversal system.

• NEVER increase force beyond minimum amount required to close garage door.

• NEVER use force adjustments to compensate for a binding or sticking garage door.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on floor.

WARNING

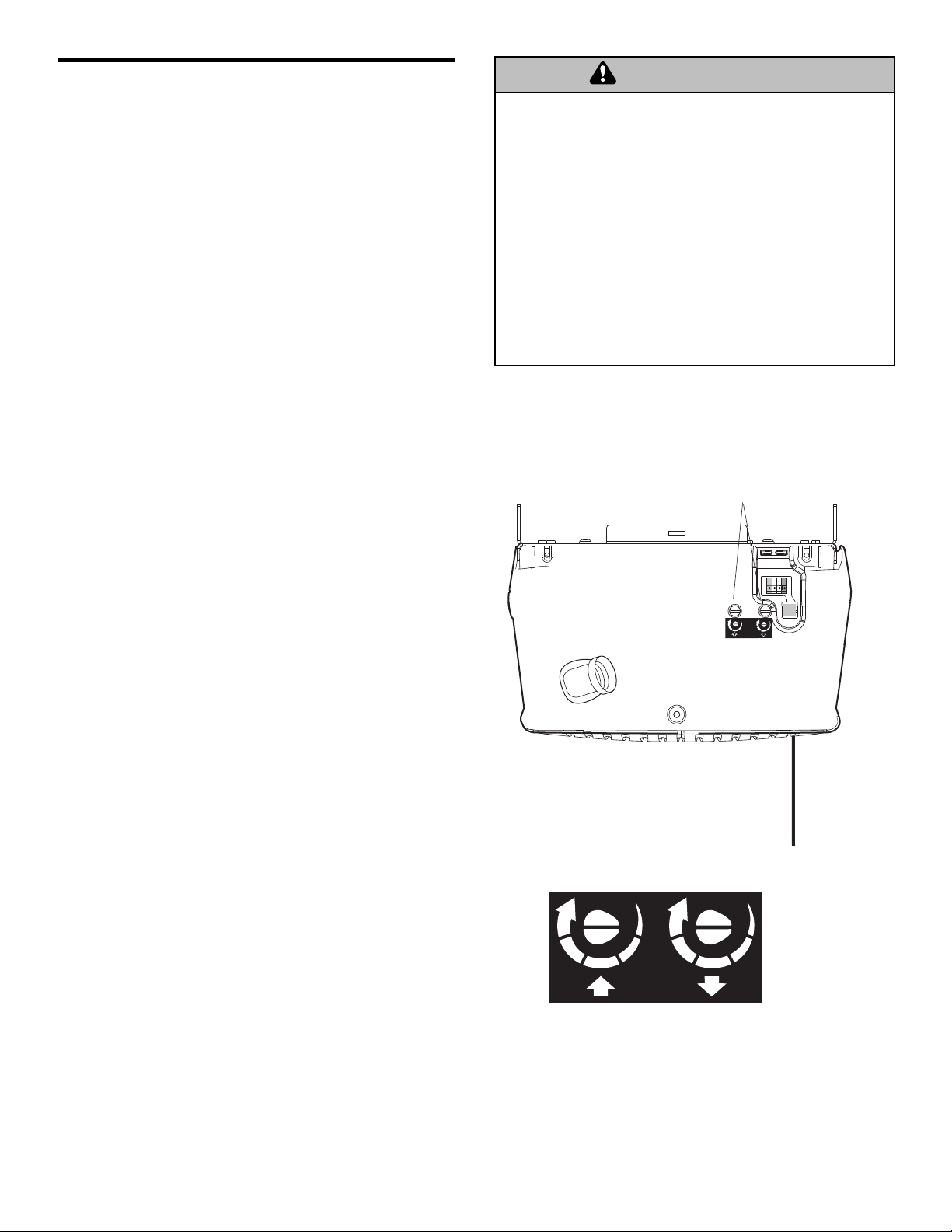

Back Panel

FORCE ADJUSTMENT LABEL

Open Force

Close Force

Force Adjustment Controls

Antenna

Page 29

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on the floor.

ADJUSTMENT STEP 3

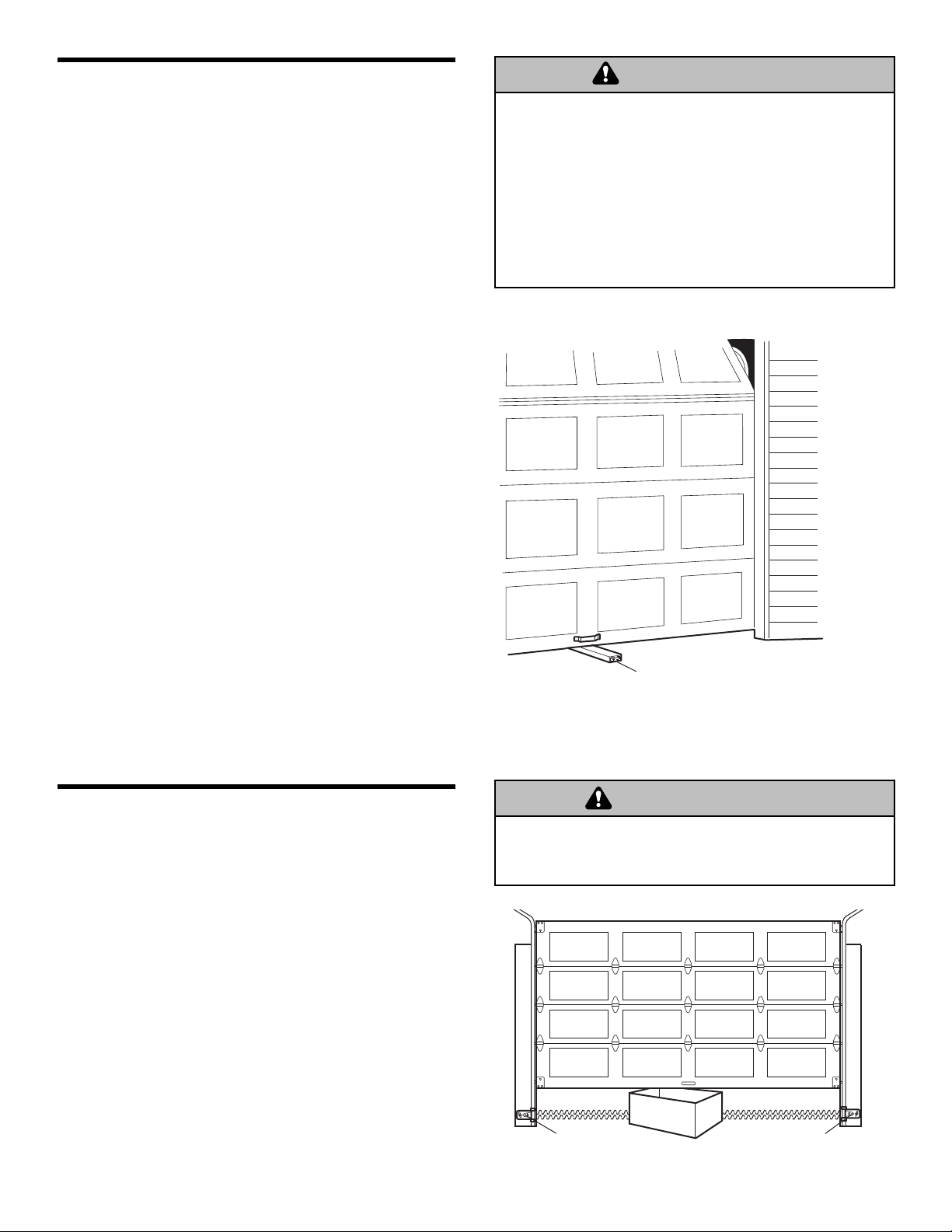

Test the Safety Reversal System

TEST

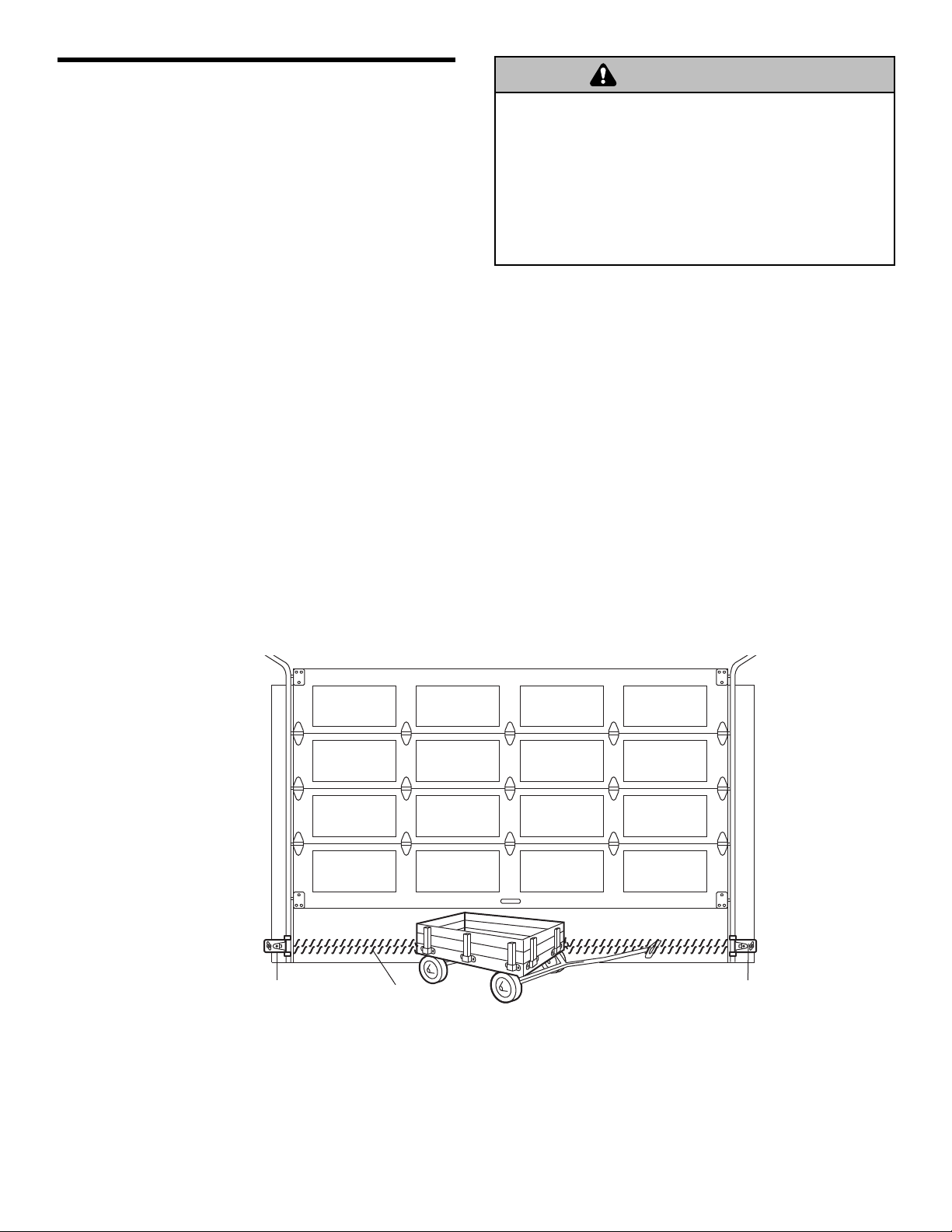

• With the door fully open, place a 1-1/2" (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door.

• Operate the door in the down direction. The door must reverse on striking the obstruction.

ADJUST

• If the door stops on the obstruction, it is not traveling far enough in the down direction. Increase the DOWN limit by turning the DOWN limit adjustment screw counterclockwise 1/4 turn.

NOTE: On a sectional door, make sure limit adjustments do not force the door arm beyond a straight up and down position. See the illustration on page 25.

• Repeat the test.

• When the door reverses on the 1-1/2" (3.8 cm) board, remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

• If the unit continues to fail the Safety Reverse Test, call for a trained door systems technician.

IMPORTANT SAFETY CHECK:

Test the Safety Reverse System after:

• Each adjustment of door arm length, limits, or force controls.

• Any repair to or adjustment of the garage door (including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

ADJUSTMENT STEP 4

Test The Protector System

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door. The door will not move more than an inch (2.5 cm), and the opener lights will flash.

The garage door opener will not close from a remote if the indicator light in either sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

If the opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6" (15 cm) above the floor), call for a trained door systems technician.

Safety Reversing Sensor

Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

WARNING

1-1/2" (3.8 cm) board (or a 2x4 laid flat)

Page 30

OPERATION

Using Your Garage Door Opener

Your Security✚®opener and hand-held remote control have been factory-set to a matching code which changes with each use, randomly accessing over 100 billion new codes. Your opener will operate with up to eight Security✚®remote controls and one Security✚®Keyless Entry System. If you purchase a new remote, or if you wish to deactivate any remote, follow the instructions in the Programming section.

Activate your opener with any of the following:

• The hand-held Remote Control: Hold the large push button down until the door starts to move.

• The wall-mounted Door Control: Hold the push button or bar down until the door starts to move.

• The Keyless Entry (See Accessories): If provided with your garage door opener, it must be programmed before use. See Programming.

When the opener is activated (with the safety reversing sensor correctly installed and aligned)

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse. If the obstruction interrupts the sensor beam, the opener lights will blink for five seconds.

6. If obstructed while opening, the door will stop.

7. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is misaligned, the door won't close from a hand-held remote. However, you can close the door with the Door Control, the Outdoor Key Switch, or Keyless Entry, if you activate them until down travel is complete. If you release them too soon, the door will reverse.

The opener lights will turn on under the following conditions: when the opener is initially plugged in; when power is restored after interruption; when the opener is activated.

They will turn off automatically after 4-1/2 minutes or provide constant light when the Light feature on the Multi-Function Door Control Panel is activated. Bulb size is A19. Bulb power is 100 watts maximum.

Security

✚

light feature: Lights will also turn on when someone walks through the open garage door. With a Multi-Function Door Control Panel, this feature may be turned off as follows: With the opener lights off, press and hold the light button for 10 seconds, until the light goes on, then off again. To restore this feature, start with the opener lights on, then press and hold the light button for 10 seconds until the light goes off, then on again.

IMPORTANT SAFETY INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

WARNING

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garage door control push buttons or remote controls.

3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there are no obstructions to door travel.

4. ALWAYS keep garage door in sight until completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPENED DOOR.

6. If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

7. NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you could fall.

9. If one control (force or travel limits) is adjusted, the other control may also need adjustment.

10. After ANY adjustments are made, the safety reversal system MUST be tested.

11. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or a 2x4 laid flat) on the floor.

12. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED (see page 3). An improperly balanced door may not reverse when required and could result in SEVERE INJURY or DEATH.

13. ALL repairs to cables, spring assemblies and other hardware, ALL of which are under EXTREME tension, MUST be made by a trained door systems technician.

14. ALWAYS disconnect electric power to garage door opener BEFORE making ANY repairs or removing covers.

15.

SAVE THESE INSTRUCTIONS.

Page 31

To Open the Door Manually

DISCONNECT THE TROLLEY:

The door should be fully closed if possible. Pull down on the emergency release handle (so that the trolley release arm snaps into a vertical position) and lift the door manually.

The lockout feature prevents the trolley from reconnecting automatically, and the door can be raised and lowered manually as often as necessary.

TO RE-CONNECT THE TROLLEY:

Pull the emergency release handle toward the opener at an angle so that the trolley release arm is horizontal. The trolley will reconnect on the next UP or DOWN operation, either manually or by using the door control or remote.

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

WARNING

Lockout position (Manual disconnect)

NOTICE

Emergency

Release Handle

(Pull at 45° angle)

Trolley Release Arm

Trolley

Trolley Release Arm (in Manual Disconnect Position)

Trolley

To reconnect

Using the Wall-Mounted Door Control

THE MULTI-FUNCTION DOOR CONTROL

Press the lighted push button to open or close the door. Press again to reverse the door during the closing cycle or to stop the door while it's opening.

Light feature

Press the Light button to turn the opener light on or off. It will not control the opener lights when the door is in motion. If you turn it on and then activate the opener, the light will remain on for 4-1/2 minutes. Press again to turn it off sooner. The 4-1/2 minute interval can be changed to 1-1/2, 2-1/2, or 3-1/2 minutes as follows: Press and hold the Lock button until the light blinks (about 10 seconds). A single blink indicates that the timer is reset to 1-1/2 minutes. Repeat the procedure and the light will blink twice, resetting the timer to 2-1/2 minutes. Repeat again for a 3-1/2 minute interval, etc., up to a maximum of four blinks and 4-1/2 minutes.

Lock feature

Designed to prevent operation of the door from hand-held remote controls. However, the door will open and close from the Door Control, the Outdoor Keylock and the Keyless Entry Accessories.

To activate, press and hold the Lock button for 2 seconds. The push button light will flash as long as the Lock feature is on.

To turn off, press and hold the Lock button again for 2 seconds. The push button light will stop flashing. The Lock feature will also turn off whenever the “learn” button on the motor unit panel is activated.

Additional feature when used with the 3-Button hand-held remote

To control the opener lights:

In addition to operating the door, you may program the remote to operate the lights.

1. With the door closed, press and hold a small remote button that you want to control the light.

2. Press and hold the Light button on the door control.

3. While holding the Light button, press and hold the Lock button on the door control.

4. After the opener lights flash, release all buttons.

Lighted Push Button

Lock Button

Light Button

Page 32

CARE OF YOUR OPENER

LIMIT AND FORCE ADJUSTMENTS:

Weather conditions may cause some minor changes in door operation requiring some re-adjustments, particularly during the first year of operation.

Pages 27 and 28 refer to the limit and force adjustments. Only a screwdriver is required. Follow the instructions carefully.

Repeat the safety reverse test (Adjustment Step 3, page 29) after any adjustment of limits or force.

MAINTENANCE SCHEDULE

Once a Month

• Manually operate door. If it is unbalanced or binding, call a trained door systems technician.

• Check to be sure door opens & closes fully. Adjust limits and/or force if necessary. (See pages 27 and 28)

• Repeat the safety reverse test. Make any necessary adjustments. (See Adjustment Step 3)

Once a Year

• Oil door rollers, bearings and hinges. The opener does not require additional lubrication. Do not grease the door tracks.

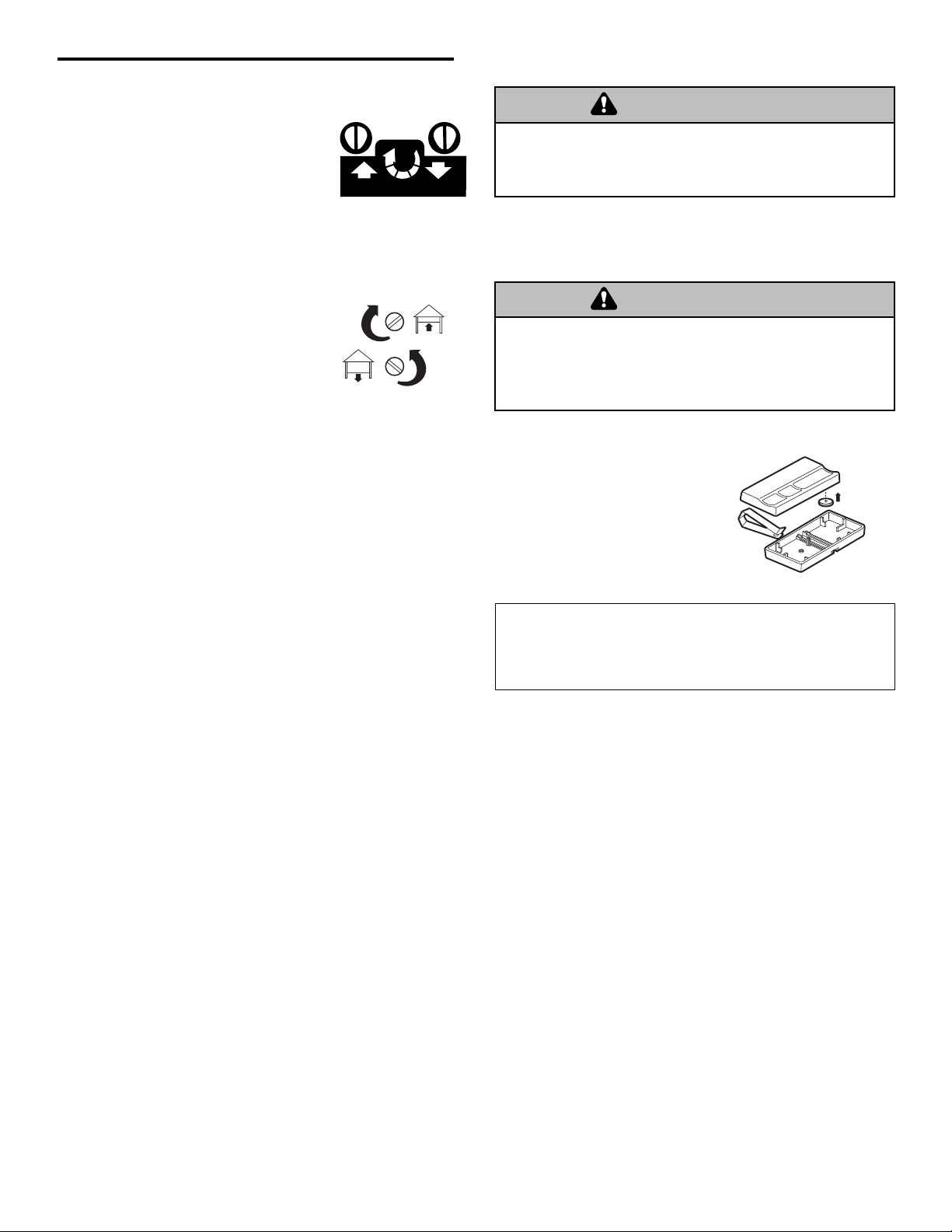

FORCE CONTROLS

397

LIMIT CONTROLS

THE REMOTE CONTROL BATTERY

The lithium battery should produce power for up to 5 years.

NOTICE: To comply with FCC and or Industry Canada rules (IC), adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor.

WARNING

To reduce risk of fire, explosion or chemical burn:

• Replace ONLY with 3V2032 coin batteries.

• Do NOT recharge, disassemble, heat above 100°C (212°F) or incinerate.

WARNING

To replace battery, use the visor clip or screwdriver blade to pry open the case as shown. Insert battery positive side up (+).

Dispose of old battery properly. Replace the battery with only

3V2032 coin cell batteries.

Battery positive side up (+)

Page 33

HAVING A PROBLEM?

1. My door will not close and the light bulbs blink on my motor unit: The safety reversing sensor must be

connected and aligned correctly before the garage door opener will move in the down direction.

• Verify the safety sensors are properly installed,

aligned and free of any obstructions. Refer to

Installation Step 4: Install The Protector System®.

• Check diagnostic LED for flashes on the motor unit

then refer to the Diagnostic Chart on the following page.

2. My remotes will not activate the door:

• Verify your Premium door control is not blinking. If it

is blinking, deactivate the Lock Mode following the instructions for Using the Multi-Function Door

Control.

• Reprogram remotes following the programming

instructions. Refer to Programming.

• If remote will still not activate your door, check

diagnostic LED for flashes on motor unit then refer to Diagnostic Chart on the following page.

3. My door reverses for no apparent reason: Repeat safety reverse test after adjustments to force or travel limits. The need for occasional adjustment for the force and limit settings is normal. Weather conditions in particular can affect door travel.

• Manually check door for balance or any binding

problems.

• Refer to Adjustment Step 2, Adjust the Force.

4. My door reverses for no apparent reason after fully closing and touching the floor: Repeat safety

reverse test after adjustments to force or travel limits. The need for occasional adjustment for the force and limit settings is normal. Weather conditions in particular can affect door travel.

• Refer to Adjustment Step 1, Adjust the UP and

DOWN Travel Limits. Decrease down travel by turning down limit adjustment screw clockwise.

5. My lights will not turn off when door is open:

• The garage door opener is equipped with a security light feature. This feature activates the light on when the safety sensor beam has been obstructed. Refer to Operation section; Using the Wall Mounted Door

Control, Light Feature.

Safety Reversing Sensor

Bell Wire

"Learn" Button LED or Diagnostic LED

Sending Eye Safety Reversing Sensor (Amber Indicator Light)

Receiving Eye Safety Reversing Sensor (Green Indicator Light)

Page 34

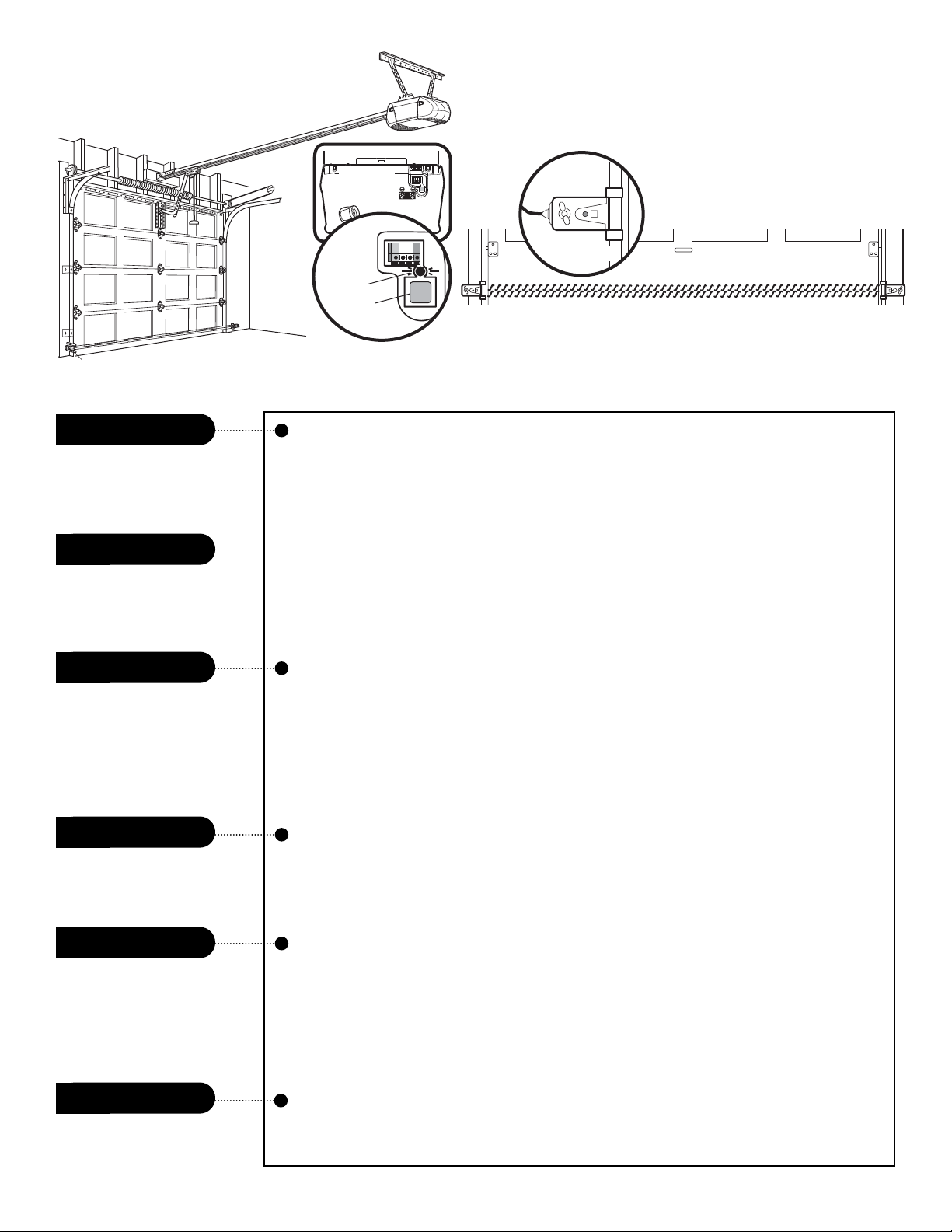

LED or Diagnostic LED

"Learn" Button

Diagnostics Located On Motor Unit

Safety Reversing Sensor

Your garage door opener is programmed with self-diagnostic capabilities. The “Learn” button/diagnostic LED will flash a number of times then pause signifying it has found a potential issue. Consult Diagnostic Chart below.

Diagnostic Chart

Symptom: One or both of the Indicator lights on the safety sensors do not glow steady.

• Inspect sensor wires for a short (staple in wire), correct wiring polarity (black/white wires reversed), broken or disconnected wires, replace/attach as needed.

• Disconnect all wires from back of motor unit.

• Remove sensors from brackets and shorten sensor wires to 1-2 ft (30-60 cm) from back each of sensor.

• Reattach sending eye to motor unit using shortened wires. If sending eye indicator light glows steadily, attach the receiving eye.

• Align sensors, if the indicator lights glow replace the wires for the sensors. If the sensor indicator lights do not light, replace the safety sensors.

Symptom: LED is not lit on door control.

• Inspect door control/wires for a short (staple in wire), replace as needed.

• Disconnect wires at door control, touch wires together. If motor unit activates, replace door control.

• If motor unit does not activate, disconnect door control wires from motor unit. Momentarily short across red and white terminals with jumper wire. If motor unit activates, replace door control wires.

Symptom: Sending indicator light glows steadily, receiving indicator light is dim or flashing.

• Realign receiving eye sensor, clean lens and secure brackets.

• Verify door track is firmly secured to wall and does not move.

Symptom: Motor has over heated; the motor unit does not operate; RPM Sensor = Short travel 6-8" (15-20 cm).

• Unplug unit to reset. Try to operate motor unit, check diagnostic code.

• If it is still flashing 5 times and motor unit moves 6-8" (15-20 cm), replace RPM sensor.

• If motor unit doesn’t operate, motor unit is overheated. Wait 30 minutes and retry. If motor unit still will not operate replace logic board.

Symptom: Motor unit doesn’t operate.

• Replace logic board because motor rarely fails.

Motor Circuit Failure. Replace Receiver Logic Board.

Motor overheated or possible RPM sensor failure. Unplug to reset.

Safety reversing sensors slightly misaligned (dim or flashing LED).

Door control or wire shorted.

Safety reversing sensors wire shorted or black/white wire reversed.

Safety reversing sensors wire open (broken or disconnected).

1 FLASH

2 FLASHES

3 FLASHES

4 FLASHES

5 FLASHES

6 FLASHES

Installed

Safety Reversing

Sensor

Page 35

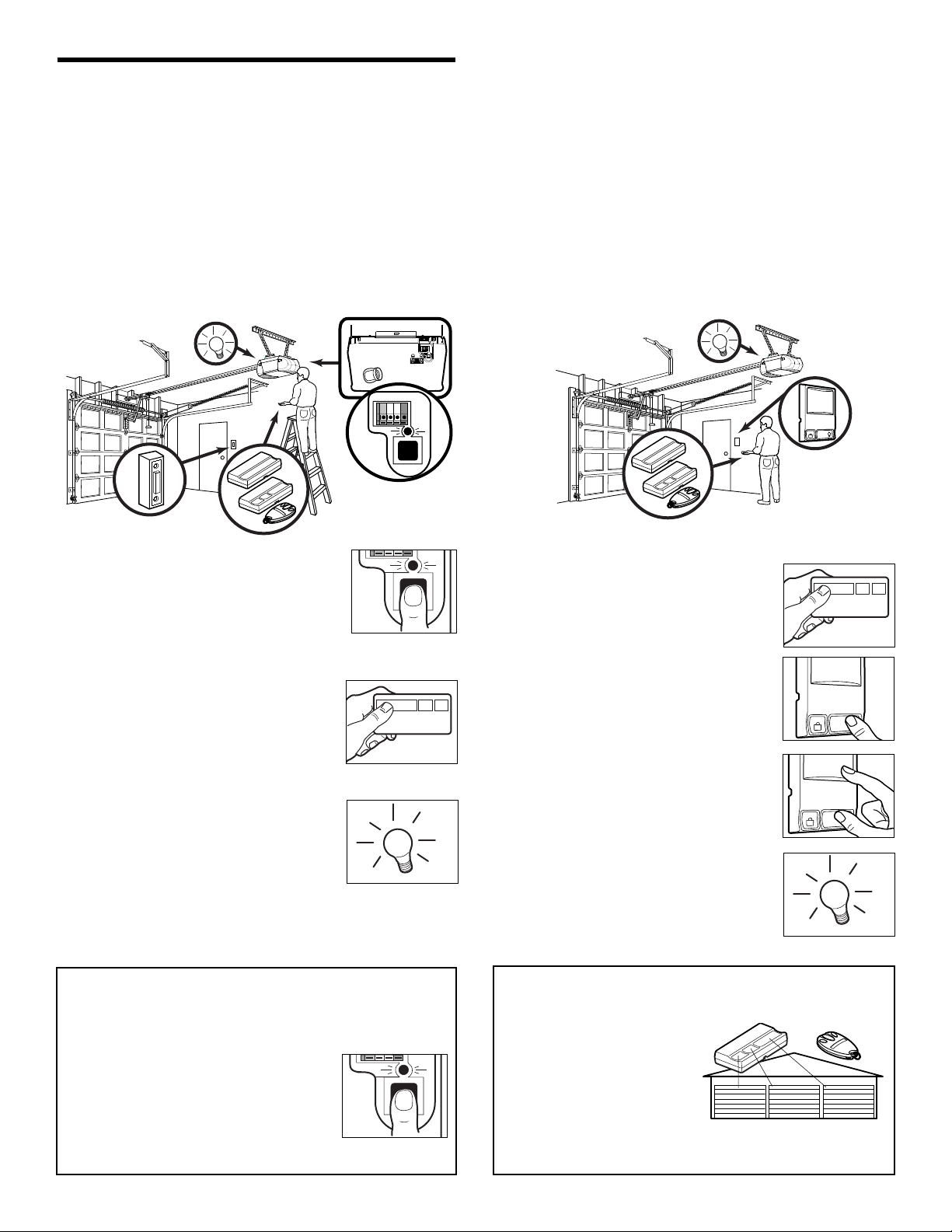

*3-Button Remotes

If provided with your garage door opener, the large button is factory programmed to operate it. Additional buttons on any Security✚

3-Button remote or compact remote can be programmed to operate other Security✚

garage door openers.

To Erase All Codes From Motor Unit

Memory

To deactivate any unwanted remote, first erase all codes:

Press and hold the “learn” button on motor unit until the learn indicator light goes out (approximately 6 seconds). All previous codes are now erased. Reprogram each remote or keyless entry you wish to use.

1. Press and release the “learn” button on the motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within 30 seconds, press and hold the button on the hand-held remote

* that

you wish to operate your garage door.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To Add or Reprogram a Hand-held Remote Control

USING THE “LEARN” BUTTON USING THE MULTI-FUNCTION DOOR CONTROL

PROGRAMMING

Your garage door opener has already been programmed at the factory to operate with your hand-held remote control. The door will open and close when you press the large push button.

Below are instructions for programming your opener to operate with additional Security✚®remote controls.

1. Press and hold the button on the hand-held remote

* that you wish to

operate your garage door.

2. While holding the remote button, press and hold the LIGHT button on the Multi-Function Door Control.

3. Continue holding both buttons while you press the push bar on the MultiFunction Door Control (all three buttons are held).

4. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

LIGHT

NOTICE: If this Security

✚

garage door opener is operated with a non-rolling code transmitter, the technical measure in the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure.

Page 36

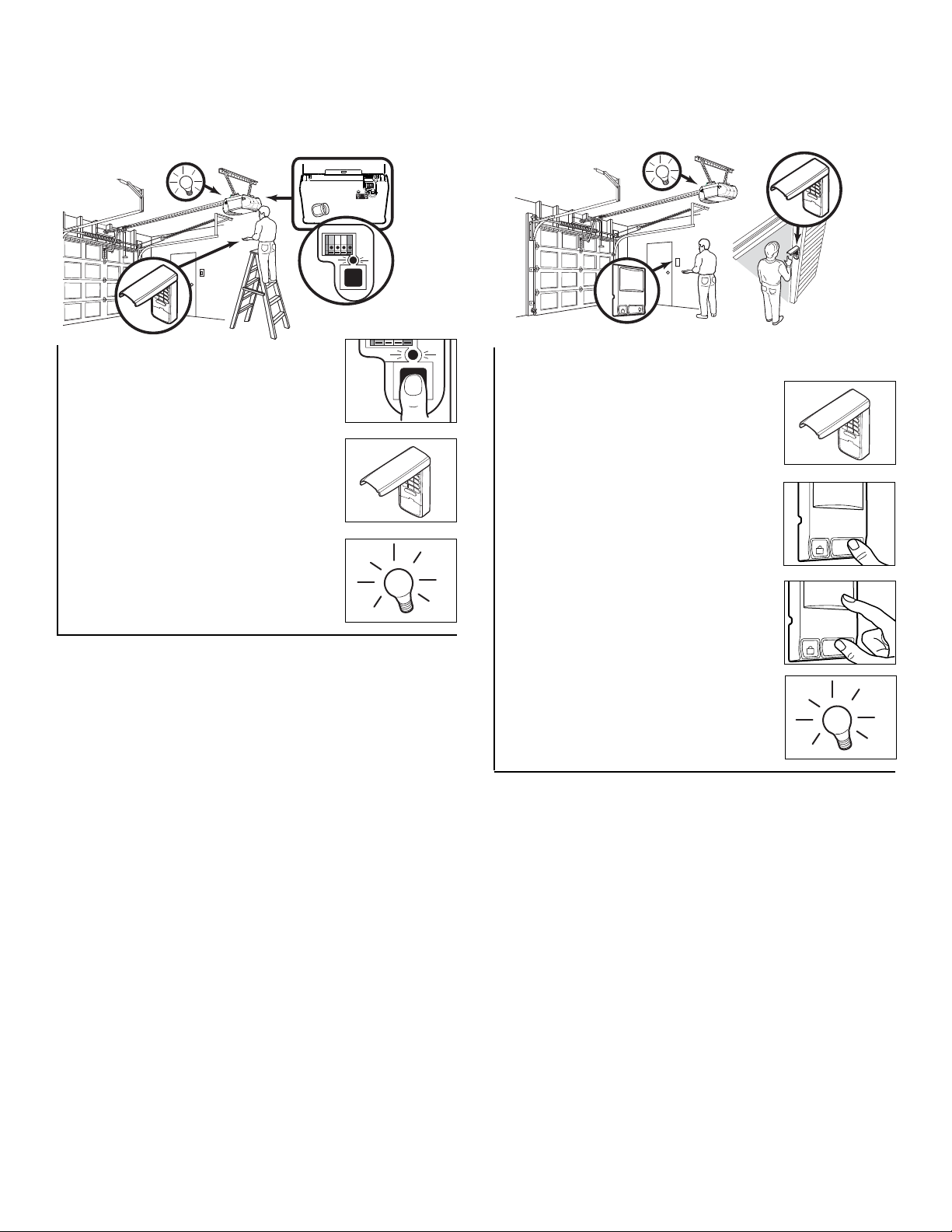

1. Enter a four digit personal identification number (PIN) of your choice on the keypad. Then press and hold ENTER.

2. While holding the ENTER button, press and hold the LIGHT button on the Multi-Function Door Control.

3. Continue holding the ENTER and LIGHT buttons while you press the push bar on the Multi-Function Door Control (all three buttons are held).

4. Release buttons when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

1. Press and release the “learn” button on motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within 30 seconds, enter a four digit personal identification number (PIN) of your choice on the keypad. Then press and hold the ENTER button.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To Add, Reprogram or Change a Keyless Entry PIN

NOTE: Your new Keyless Entry must be programmed to operate your garage door opener.

USING THE “LEARN” BUTTON USING THE MULTI-FUNCTION DOOR CONTROL

NOTE: This method requires two people if the Keyless Entry is already mounted outside the garage.

To change an existing, known PIN

If the existing PIN is known, it may be changed by one person without using a ladder.

1. Press the four buttons for the present PIN, then press and hold the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digit PIN you have chosen, then press Enter.

The motor unit lights will blink once when the PIN has been learned.

Test by pressing the new PIN, then press Enter. The door should move.

To set a temporary PIN

You may authorize access by visitors or service people with a temporary 4-digit PIN. After a programmed number of hours or number of accesses, this temporary PIN expires and will no longer open the door. It can be used to close the door even after it has expired. To set a temporary PIN:

1. Press the four buttons for your personal entry PIN (not the last temporary PIN), then press and hold the ✽ button.

The opener light will blink three times. Release the button.

2. Press the temporary 4-digit PIN you have chosen, then press Enter.

The opener light will blink four times.

3. To set the number of hours this temporary PIN will work, press the number of hours (up to 255), then press ✽.

3. To set the number of times this temporary PIN will work, press the number of times (up to 255), then press #.

The opener light will blink once when the temporary PIN has been learned.

Test by pressing the four buttons for the temporary PIN, then press Enter. The door should move. If the temporary PIN was set to a certain number of openings, remember that the test has used up one opening.To clear the temporary password, repeat steps 1-3, setting the number of hours or times to 0 in step 3.

LIGHT

One Button Close: Opener can be closed by pressing only the ENTER button if the one button close feature has been activated. This feature has been activated at the factory. To activate or deactivate this feature press and hold buttons 1 and 9 for 10 seconds. The keypad will blink twice when the one button close is active. The keypad will blink four times when one button close is deactivated.

Page 37

Installation Parts

REPAIR PARTS

Rail Assembly Parts

KEY PART NO. NO. DESCRIPTION

1 81C275 Rack 2 41A6263 Hardware bag (includes

sprocket coupling) 3 12B890 Left rail bracket 4 12B900 Right rail bracket 5 41A6264 Screw drive rail assembly

Complete 7' (2.1 m) 6 12B889 Rail support brace 7 41A6262 Complete trolley assembly 8 41A4836 Drive sprocket kit

NOT SHOWN

28A143 Rail Clips

KEY PART NO. NO. DESCRIPTION

1 41A5273-9 Multi-function door control 2 953D 3-Button remote control 3 10A20 3V 2032 Lithium battery 4 29B137 Visor clip 5 41A2828 Emergency release rope & handle assy. 6 41B4494-1 2-Conductor bell wire: white & white/red 7 41A4353 Header bracket w/clevis pin & fastener 8 41A5047 Door bracket w/clevis pin & fastener 9 41A5034 Safety sensor kit: receiving and

sending eyes with 3' (.9 m) 2-conductor

bell wire attached 10 178B34 Straight door arm section 11 12B776 Hanging bracket 12 178B35 Curved door arm section 13 41A5266-1 Safety sensor bracket

NOT SHOWN

41A4675-11 Installation hardware bag (see page 7) 114A3330 Owner’s manual 114A3330SP Owner’s manual - Spanish

Y L

G N I

I E C

TIC

Page 38

Motor Unit Assembly Parts

KEY PART NO. NO. DESCRIPTION

1 31C568 Drive shaft cover 2 41B4245 Line cord 3 30B620 Capacitor – 1/2 HP 4 41A3150 Terminal block w/screws 5 41D4671 Limit switch assembly 6 41A6241 Motor drive assy. complete

6a 20B21-1 Drive belt 7 41C4672 Screw drive RPM kit

KEY PART NO. NO. DESCRIPTION

8 41A4837-1 Worm gear and retainer 9 41A6335 Low voltage wire harness

9a 41A6334 High voltage wire harness 10 41AS050R2 Receiver logic board assy. 11 41A5525-53 Cover 12 41C22-1 Drive coupling hub 13 175B88 Light socket 14 108D79 Light lens

Brown Wire

(Down) Contact

LIMIT SWITCH ASSY.

Grey Wire

Yellow Wire

(Up) Contact

Center Limit Contact

Drive Gear

Page 39

ACCESSORIES

LOCK

LIGHT

E D

P E

CLLAD

41A5281

956D

953D

935CB

3-Button Security✚®Remote Control:

Includes visor clip.

3-Button Mini-Remote Control with Security✚®:

With key ring and fastening strip.

Outside Quick Release:

Required for a garage with NO access door.

Remote Light Control:

Enables homeowner to turn on a lamp, television or other appliance from their car with their garage door opener remote or from anywhere in their home with an additional Chamberlain Security✚

remote.

Motion Detecting Control Panel:

Multi-function door control with motion sensor that automatically turns opener lights on for 5 minutes when it detects a person entering the garage. Sensor can be easily deactivated when desired.

940D

Extension Brackets:

(Optional) For safety sensor installation onto the wall or floor.

To order call: 1-800-528-9131.

7702CB

SECURITY✚®Keyless Entry:

Enables homeowner to operate garage door opener from outside by entering a password on a specially designed keyboard. Also can add a temporary password for visitors or service persons. This temporary password can be limited to a programmable number of hours or entries.

CLDM1

7806CB

Garage Door Monitor:

Monitors the status of your garage door from inside your home. Includes monitor and 1 garage door transmitter. Additional transmitters available -

Order CLDM2 (Limit 3 transmitters per monitor).

8 Foot (2.4 m) Rail Extension Kit:

To allow an 8 foot (2.4 m) door to open fully.

Page 40

HOW TO ORDER

REPAIR PARTS

Selling prices will be furnished on request or parts will be shipped at prevailing prices and you will be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER

ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6020 S. Country Club Road

Tucson, Arizona 85706

SERVICE INFORMATION TOLL FREE NUMBER:

1-800-528-9131

CHAMBERLAIN®SERVICE

IS ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS NEAR

AS YOUR TELEPHONE. SIMPLY DIAL OUR TOLL FREE

NUMBER:

1-800-528-9131

www.chamberlain-diy.com

For professional installation, parts and service, contact

your local CHAMBERLAIN dealer. Look for him in the Yellow Pages, or call our Service number for a list of dealers in your area.

CHAMBERLAIN®ONE-YEAR LIMITED WARRANTY

LIFETIME MOTOR WARRANTY

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of one year from the date of purchase [and that the motor is free from defect in materials and/or workmanship for the lifetime of the product]. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131, toll free, before dismantling this product. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions when you call. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller's sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller's sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE ONE YEAR LIMITED WARRANTY PERIOD SET FORTH ABOVE [EXCEPT THE IMPLIED WARRANTIES WITH RESPECT TO THE MOTOR, WHICH IS LIMITED IN DURATION TO THE LIFETIME OF THE PRODUCT], AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF BATTERIES AND LIGHT BULBS OR UNITS INSTALLED FOR NON-RESIDENTIAL USE.

THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES.THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER'S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Chamberlain 995XD User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Model 995XD 1/2 HP

TABLE OF CONTENTS

INTRODUCTION

Safety Symbol and Signal Word Review

Preparing your garage door

Tools needed

Planning

SECTIONAL DOOR INSTALLATIONS

ONE-PIECE DOOR INSTALLATIONS

Carton Inventory

Hardware Inventory

Assemble the Rail

Assemble the Rail (continued)

Fasten the Rail to the Motor Unit and Install the Trolley

INSTALLATION

Attach the Rail Brackets

Determine the Header Bracket Location

Install the Header Bracket

WALL HEADER BRACKET INSTALLATION

CEILING HEADER BRACKET INSTALLATION

Attach the Rail to the Header Bracket

MOUNTING AND WIRING THE SAFETY SENSORS

ONE-PIECE DOOR WITHOUT TRACK

Position the Opener

Hang the Opener

Install the Door Control

Install the Lights

Attach the Emergency Release Rope and Handle

Electrical Requirements

Complete the Safety Reversing Sensor Installation

Fasten the Door Bracket

SECTIONAL DOORS

ONE-PIECE DOORS

Connect Door Arm to Trolley

SECTIONAL DOORS ONLY

ALL ONE-PIECE DOORS

Adjust the UP and DOWN Travel Limits

Adjust the Force

Test the Safety Reversal System

OPERATION

Using Your Garage Door Opener

To Open the Door Manually

Using the Wall-Mounted Door Control

CARE OF YOUR OPENER

HAVING A PROBLEM?

Diagnostic Chart

*3-Button Remotes

To Add or Reprogram a Hand-held Remote Control

PROGRAMMING

To Add, Reprogram or Change a Keyless Entry PIN

Installation Parts

REPAIR PARTS

Rail Assembly Parts

Motor Unit Assembly Parts

ACCESSORIES
