Chamberlain 985 User Manual

Garage Door Opener

For Residential Use Only

Owner's Manual

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

is connected and

properly aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located on the front panel of your opener.

Model 985

1/3HP

Start by reviewing these important safety alert symbols:

Contents Page

A review of safety alert symbols . . . . . . . . . . . . . .2

You'll need tools . . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety information (door locks and ropes) . . . . . . .3

Testing your garage door for sticking,

binding and balance . . . . . . . . . . . . . . . . . . . . . .3

Illustration of sectional door installation . . . . . . . .4

Illustration of one-piece door installation . . . . . . . .4

Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hardware inventory . . . . . . . . . . . . . . . . . . . . . . . .5

Assembly Section - Pages 6 – 7

Fasten T-rail to opener . . . . . . . . . . . . . . . . . . . .6

Attach chain to sprocket

and install sprocket cover . . . . . . . . . . . . . . . . .6

Tighten the chain . . . . . . . . . . . . . . . . . . . . . . . . .7

Installation Section - Pages 8– 23

Installation safety instructions . . . . . . . . . . . . . . .7

Determine header bracket location

Sectional door . . . . . . . . . . . . . . . . . . . . . . . . . .8

One-piece door . . . . . . . . . . . . . . . . . . . . . . . . .9

Install header bracket . . . . . . . . . . . . . . . . . . . .10

Attach T-rail to header bracket . . . . . . . . . . . . .11

Position the opener . . . . . . . . . . . . . . . . . . . . . .12

Hang the opener . . . . . . . . . . . . . . . . . . . . . . . .13

Install the door control . . . . . . . . . . . . . . . . . . . .14

Install the light and lens . . . . . . . . . . . . . . . . . . .15

Attach manual release rope and handle . . . . . .15

Contents Page

Electrical requirements . . . . . . . . . . . . . . . . . . .16

The Protector System

Safety reversing sensor information . . . . . . . . .17

Install the safety reversing sensor . . . . . . . . . . .18

Fasten door bracket (sectional door) . . . . . . . . .20

Fasten door bracket (one-piece door) . . . . . . . .21

Connect door arm to trolley (sectional door) . . .22 Connect door arm to trolley (one-piece door) . .23

Adjustment Section - Pages 24 – 26

Travel limit adjustments . . . . . . . . . . . . . . . . . . .24

Force adjustments . . . . . . . . . . . . . . . . . . . . . . .25

Test the Protector System® . . . . . . . . . . . . . . . .26

Test the safety reverse system . . . . . . . . . . . . .26

Operation safety instructions . . . . . . . . . . . . . . . .27

Care of your opener . . . . . . . . . . . . . . . . . . . . . . .27

Maintenance schedule . . . . . . . . . . . . . . . . . . . . .27

Operation of your opener . . . . . . . . . . . . . . . . . . .28

Receiver & remote control programming . . . . . . .29

Having a problem? . . . . . . . . . . . . . . . . . . . .30, 31

Repair parts, rail assembly . . . . . . . . . . . . . . . . .32

Repair parts, installation . . . . . . . . . . . . . . . . . . .32

Repair parts, opener assembly . . . . . . . . . . . . . .33

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

How to order repair parts . . . . . . . . . . . . . . . . . . .36

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

When you see these safety symbols on the following pages, they will alert you to the possibility of

serious injuries or death

if you do not comply with the corresponding instructions. The hazard may

come from something mechanical or from electric shock.

Read the instructions carefully.

When you see this safety symbol on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the corresponding instructions.

Read the instructions carefully.

This garage door opener is designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the safety instructions contained in this manual.

Mechanical Electrical

WARNING

CAUTIONCAUTION

You'll Need Tools

During assembly , installation and adjustment of the opener, inst ructions will call for hand tools shown below.

To avoid damage to the garage door and opener, disable locks before installing and operating the opener. Use a wood screw or nail to hold locks in the “open” (unlocked) position.

Operation at other than 120V 60 Hz will cause opener malfunction and damage.

An unbalanced garage door might not reverse when required and someone under the door could be seriously injured or killed.

If your garage door binds, sticks or is out of balance, call for professional garage door service.

Garage doors, door springs, cables, pulleys, brackets and their hardware, are under extreme tension and can cause serious injury or death.

Do not try to loosen, move or

adjust them yourself!

Ropes left on a garage door could cause someone to become entangled and killed.

Remove all ropes connected to the door before installing and operating the opener.

Identify the type and height of your door, any special conditions that exist, and any additional materials that may be required, by referring to page 4.

Test your Door

Before you begin, complete the following test to make sure your door is balanced, and is not sticking or binding:

• Lift the door about halfway as shown. Release the door. It should stay in place, supported entirely by its springs.

• Raise and lower the door to see if there is any binding or sticking.

Pencil

Carpenter's

Level

Tape Measure

Hack Saw

Wire Cutters

Stepladder

Drill

1/2" and 7/16" Sockets

and Wrench

3/16", 5/16" and

5/32" Drill Bits

WARNING

Claw Hammer

Pliers

Screwdriver

Adjustable End Wrench

CAUTIONCAUTION

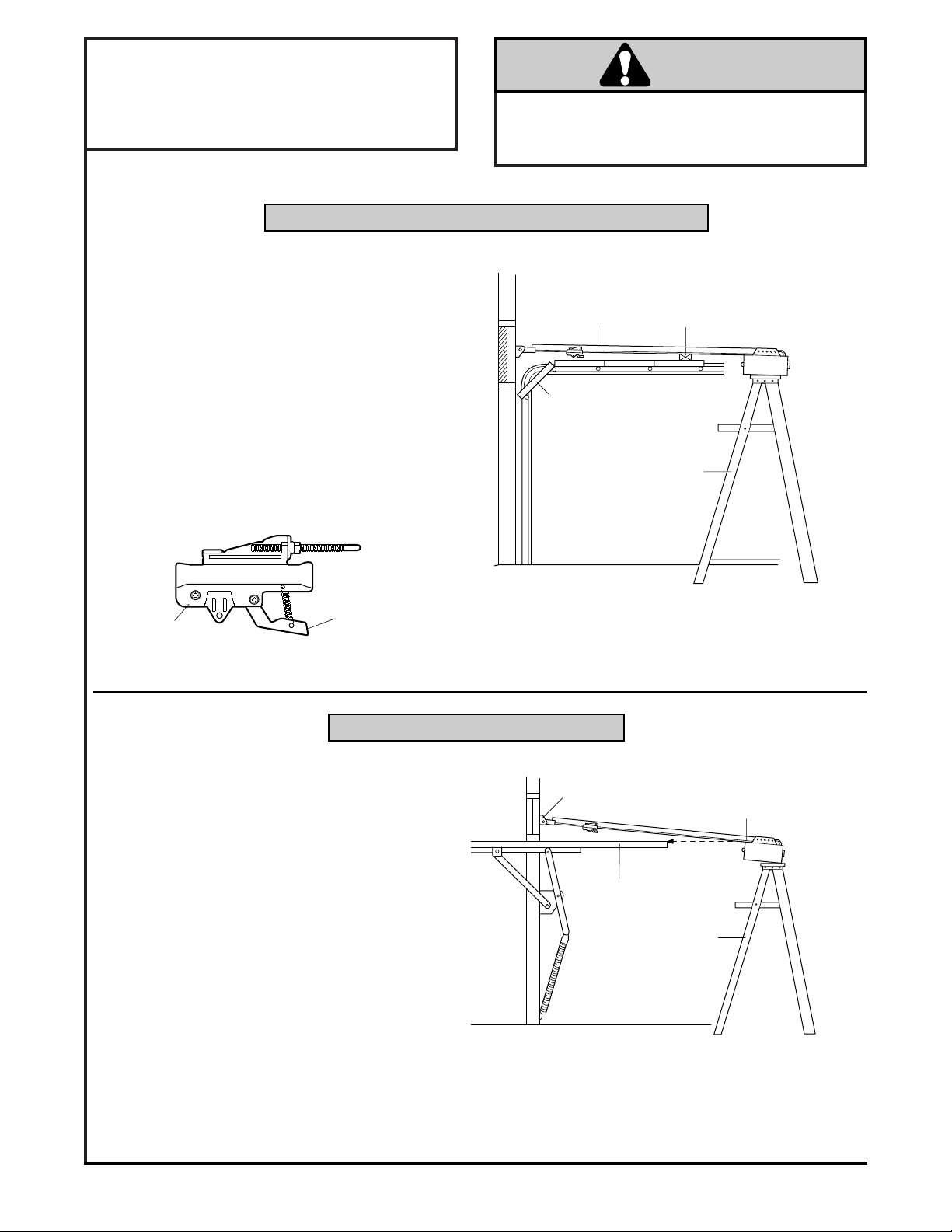

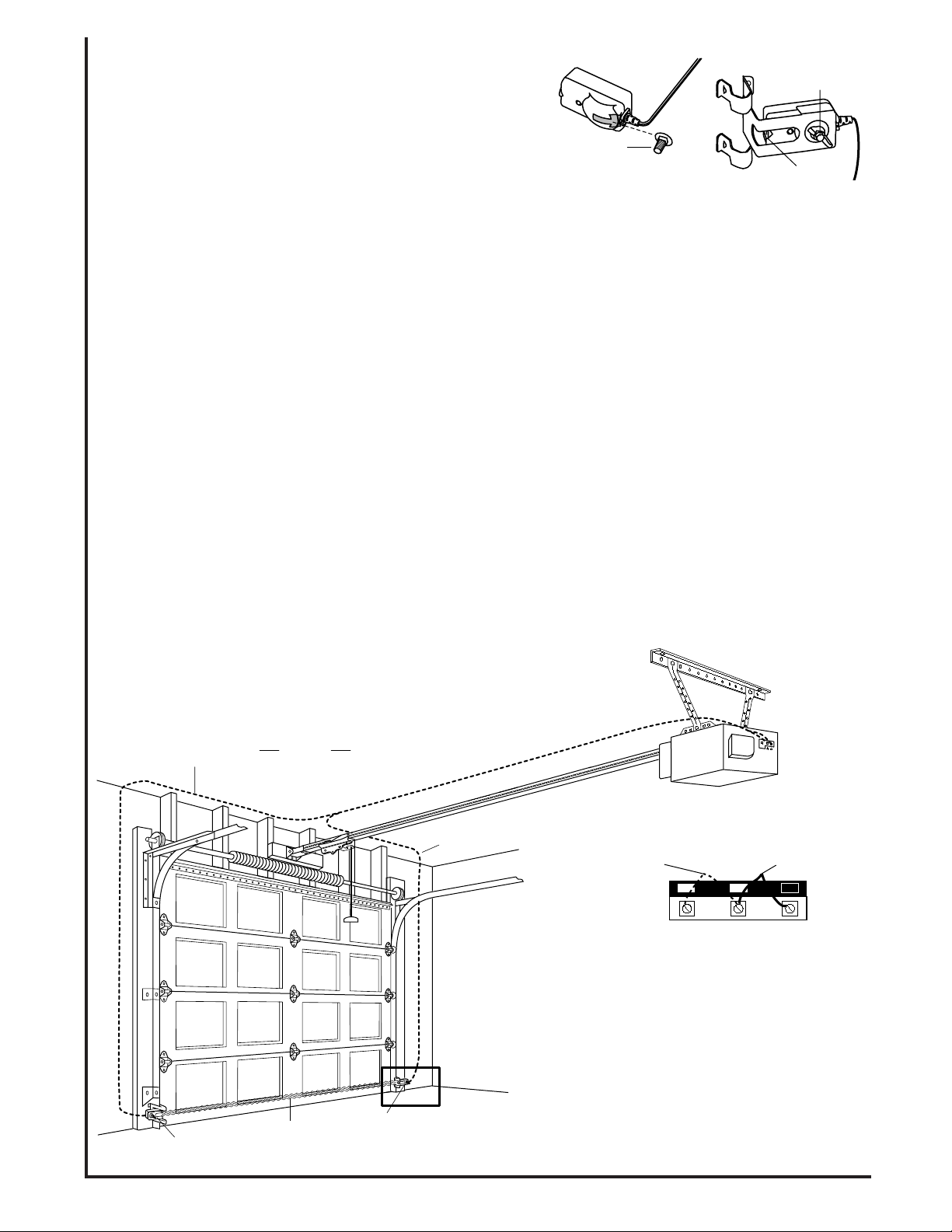

SECTIONAL DOOR

ONE-PIECE DOOR

Before you begin, survey your garage area to see whether any of the conditions below apply to your installation. You may find it helpful to refer back to this page as you proceed with the installation of your opener.

Sectional Door Installation

One-Piece Door Installation without Track

Model 1702 Outside Quick Release required if there is no access door.

One-Piece Door with Track

FINISHED CEILING

Support bracket &

Horizontal and vertical reinforcement

is needed for lightweight garage doors

(fiberglass, steel, aluminum,

door with glass panels, etc.).

See page 20 for details.

Header Wall

— — — — — — — —

Slack in Chain Tension

is Normal When

Garage Door is Closed

Torsion Spring

Door Center

fastening hardware

is required.

See page 13.

Extension Spring OR

Access Door

Floor must be level

Safety Reversing Sensor

across width of door

Slack in chain tension

is normal when

garage door is closed

Header

Wall

Access Door

Safety

Reversing

Sensor

FINISHED CEILING

Support bracket

& fastening

hardware is required.

See page 13.

Slack in chain tension

is normal when

garage door is closed.

Safety

Reversing

Sensor

Gap between floor

and bottom of door

must not exceed 1/4".

Safety

Reversing

Sensor

Access

Door

Safety

Reversing Sensor

Floor must be level

across width of door

Reversing Sensor

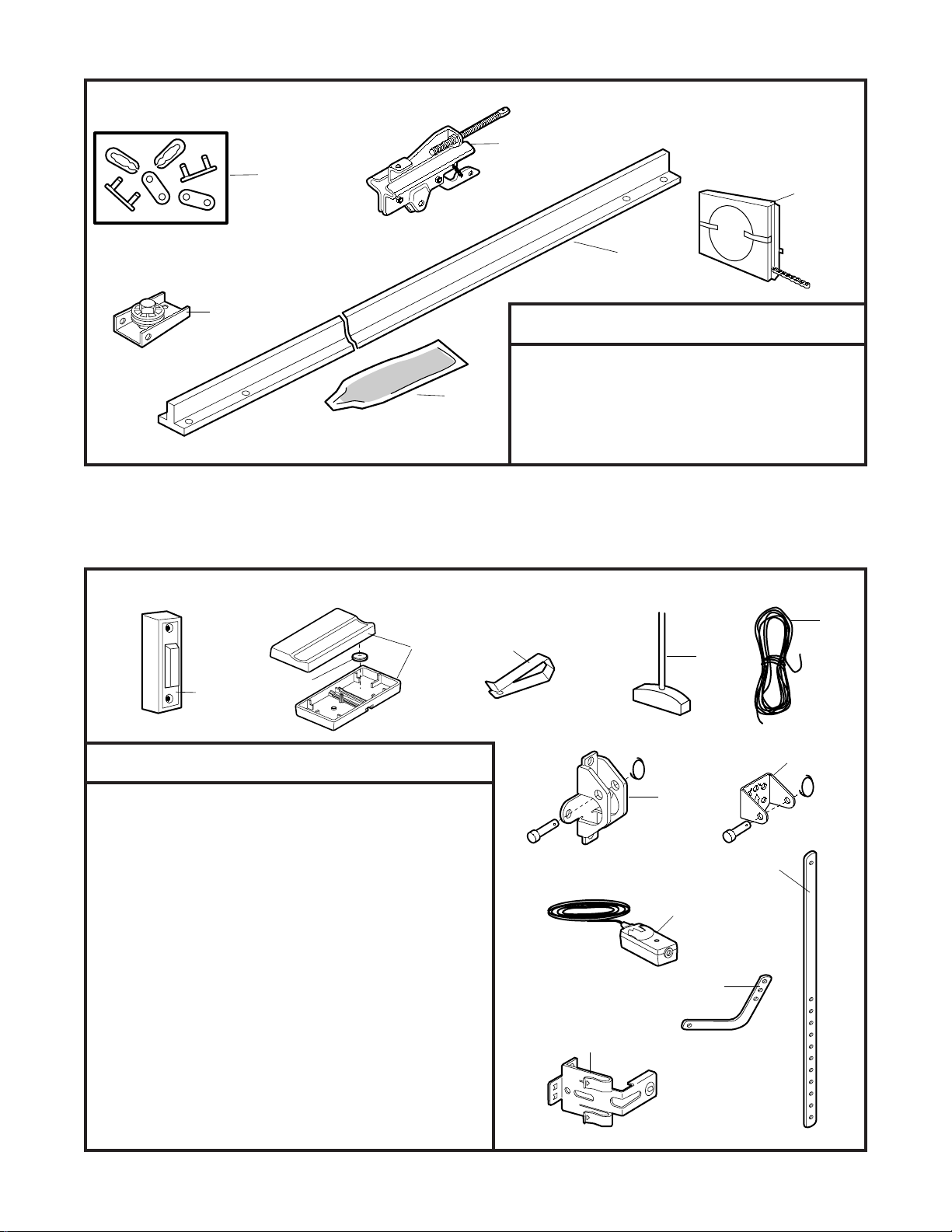

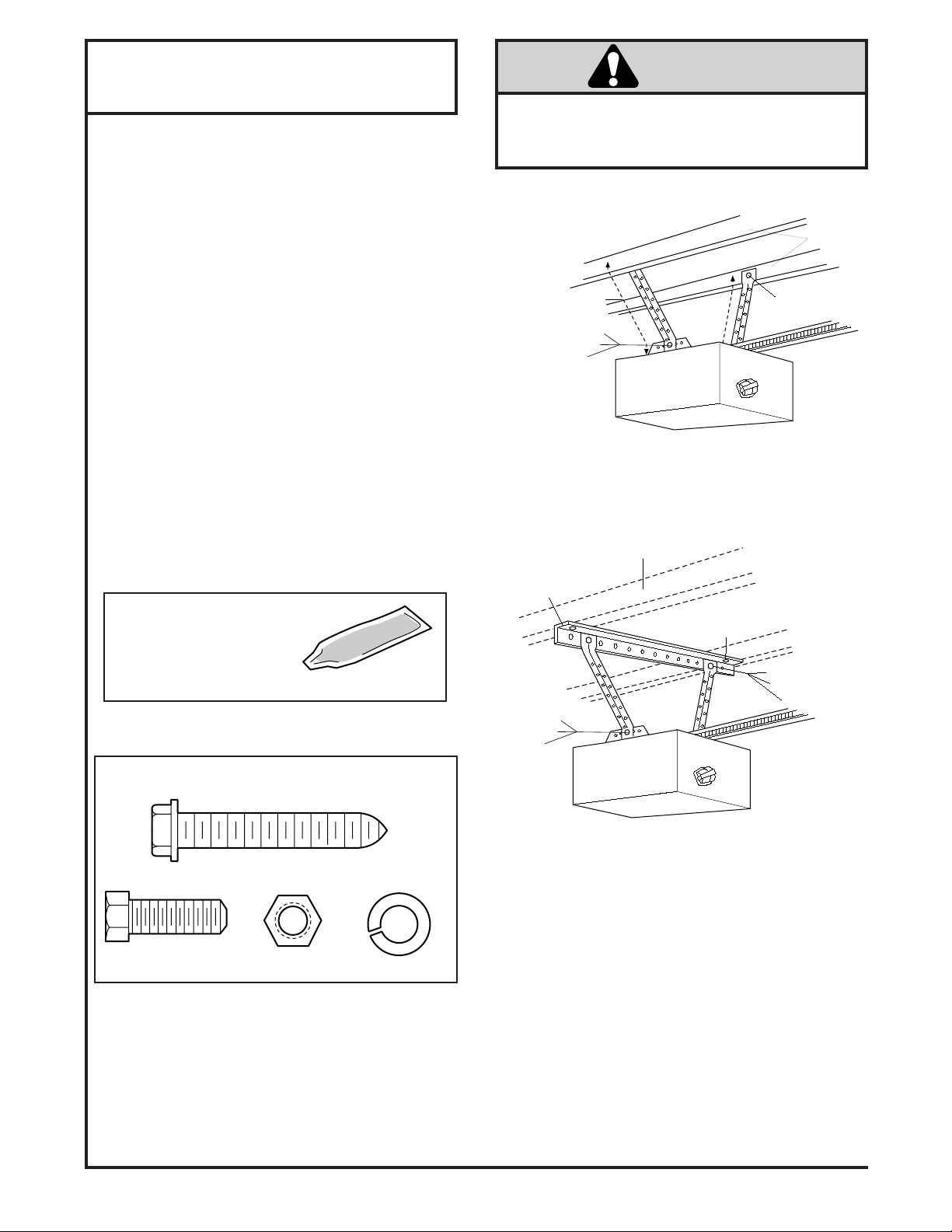

Carton Inventory

Your garage door opener is packaged in two cartons which contain all parts illustrated below. If anything is missing, carefully check the packing material. Parts may be "stuck" in the foam. Hardware for assembly and installation is also listed below.

INSTALLATION HARDWARE

Hex Screw 5/16"-18x7/8" (4) Lag Screw 5/16"-9x1-5/8" (2) Lag Screw 5/16"-18x1-7/8" (2) Carriage Bolt 5/16"-18x2-1/2" (2) Clevis Pin 5/16"x2-3/4" (1) Clevis Pin 5/16"x1-1/4" (1) Clevis Pin 5/16"x1" (1) Nut 5/16"-18 (6) Lock Washer 5/16" (6) Insulated Staples (10)

Ring Fastener (3) Dry Wall Anchors (2) Rope Handle Rail Grease

SAFETY REVERSING SENSOR INSTALLATION HARDWARE

Carriage Bolt 1/4"-20x1/2" (2) Wing Nut (2) Insulated Staples (20)

Door Control Button

with (2) 6ABx1-1/2" screws

Light Lens (1)

Single-Function Remote Control

2-Conductor Bell Wire

White & White/Red

SECURITY✚

Trolley

Door Bracket

One-Piece

CEILING MOUNT ONLY

T-rail

Remote Control

Visor Clip

Chain

Sprocket Cover

Styrofoam

Curved Door

Arm Section

Safety Sensor

Bracket (2)

Chain

Pulley Bracket

Header Bracket

(2) Safety Reversing Sensors

(1 Sending Eye and 1 Receiving Eye)

with

2-Conductor White & White/Black Bell Wire

attached

Safety Labels

and

Literature

Straight Door

Arm Section

Assembly Step 1

Attach the T-rail to the Opener

To fasten rail, use only those screws mounted in top of the opener. Failure to do so will cause serious damage to the opener.

USE ONLY THIS

TYPE AND SIZE

SCREW

Washered Screw

5/16"-18x1/2"

Styrofoam

Chain

T-rail

Hole

Assembly Step 2

Attach Chain to Sprocket and Install Sprocket Cover

• Position chain over the opener sprocket. If necessary, loosen the outer nut on the trolley to obtain more chain slack.

• Insert the second washered screw.

CAUTION: Use only the screw previously removed from opener!

• Tighten both screws securely through the T-rail into the opener as shown.

Install The Sprocket Cover:

• Insert the back tab in the opener slot. Squeeze the cover slightly and insert the front tab in the slot on the mounting plate.

• Remove the two washered screws mounted in top of opener.

• Position T-rail at a 45˚ angle to opener so one hole in T-rail and opener line up.

• Thread one of the washered screws part way in.

Use only these screws!

Use of any other screws

will cause serious damage to door opener.

• Align T-rail and styrofoam over opener sprocket. Cut tape from T-rail, chain and styrofoam.

• REMOVE STYROFOAM.

Assembly Section: Pages 6 – 7

USE ONLY THIS

TYPE AND SIZE

SCREW

Washered Screw

5/16"-18x1/2"

Opener

Sprocket

Cover

Mounting

Plate

Front Tab Slot

Back Tab Slot

Top of Opener

Proceed to Assembly Step 3, Page 7

Serious injury can result if fingers become entangled in moving opener sprocket. Attach sprocket cover securely. Never operate opener while your hand is near the opener sprocket.

CAUTIONCAUTION

WARNING

• Spin the inner nut and lock washer down the threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction shown. As you turn the nut, keep the chain

from twisting.

• When the chain is approximately 1/2" above the base of the T-rail at its midpoint, re-tighten the inner nut to secure the adjustment.

Sprocket noise can result if chain is either too loose or too tight.

When installation is complete, you may notice some chain droop with the door closed. This is normal. If the chain returns to the position shown when the door is open,

do not re-adjust the chain.

NOTE: During future maintenance,

ALWAYS

pull the manual release handle to disconnect trolley before adjusting chain.

Lock

Washer

To Tighten Outer Nut

Inner Nut

Trolley

Chain

Base of T-rail

1/2"

To Tighten

Inner Nut

Outer Nut

Assembly Step 2

Tighten the Chain

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of severe injury or death to persons:

1. READ AND FOLLOW ALL INSTALLATION INSTRUCTIONS

2. Install only on a properly balanced and lubricated garage door.

An improperly balanced door

may not reverse and could result in severe injury or death.

Repairs to cables, spring assemblies

and other hardware must be made by a professional service person before installing opener.

3. Disable all locks and remove all ropes connected to the garage door before installing the opener.

Ropes connected to a garage door can cause entanglement and death.

4. If possible, install door opener 7 feet or more above floor with the manual release handle mounted 6 feet above the floor.

5. Do not connect the opener to power source until instructed to do so.

6. Locate the Door Control within sight of the door at a minimum height of 5 feet where small children cannot reach and away from all moving parts of the door.

7. Install the User Safety Instruction Label on the wall adjacent to the Door Control and the Maintenance Instruction Label in a prominent location on the inside of the garage door.

8. Upon completion of the installation, the door must reverse when it comes in contact with a one-inch high object (or a 2x4 laid flat) on the floor.

9. Do not wear watches, rings or loose clothing while installing or servicing an opener. Jewelry or loose clothing can be caught in the mechanism of the garage door or the opener.

You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the Installation section:

WARNING

• Open your door to the highest point of travel as shown. Draw an intersecting horizontal line on the header wall 2" above the high point. This height will provide travel clearance for the top edge of the door.

Proceed to Step 2, page 10.

SECTIONAL Doors and

ONE-PIECE Door With Track

• Close the door and mark the inside vertical centerline of the garage door.

• Extend the line onto the header wall above the door.

Remember, you can fasten the header bracket within 4 feet to the left or right of the door center

only

if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (refer to page 10) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2".)

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not supplied) to securely fasten the 2x4 to structural supports as shown here and on page 9.

Installation Section: Pages 8 – 23

Sectional door with

curved track

One-piece door with

horizontal track

Installation Step 1

Determine Header Bracket Location

Installation procedures vary according to garage door types. Follow the instructions which apply to your door.

If the header bracket is not rigidly fastened to a structural support on the header wall or ceiling, the safety reverse system may not work properly (see page 26).

The door might not reverse when required, and could cause serious injury or death.

The garage door springs, cables, pulleys, brackets and their hardware are under extreme tension.

Do not attempt to loosen, move or adjust them yourself. Serious personal injury or death could result.

Call for professional

garage door service.

Finished

2x4

Header

Wall

Vertical

Guideline

Vertical

Guideline

Ceiling

WARNING

Structural

Supports

Door

Ceiling

Header

Wall

Highest Point

of Travel

Track

Header

Wall

Highest Point

Door

of Travel

Track

Header Wall

Vertical

Centerline

Vertical

Centerline of

Garage Door

2x4

Unfinished

Ceiling

Structural Supports

2x4

OPTIONAL CEILING MOUNT

FOR HEADER BRACKET

• Close the door and mark the inside vertical centerline of your garage door. Extend the line onto the header wall above door.

If headroom clearance is minimal, you can install the header bracket on the ceiling. See page 10.

•

If you need to install the header bracket on a 2x4 (on wall or ceiling), use lag screws (not supplied) to securely fasten the 2x4 to structural supports as shown.

EXAMPLE

Distance from top of door

(at highest point of travel) to floor...........................92"

Actual height of door ...........................................– 88"

Remainder................................................................4"

Add........................................................................+ 8"

Bracket height on header wall.............................= 12"

(Measure UP from top of CLOSED door.)

Proceed to Step 2, page 10.

Header Wall

Highest Point

of Travel

Door

Distance

Jamb

Hardware

ONE-PIECE Door Without Track

• Open your door to the highest point of travel as shown. Measure the distance from the top of the door to the floor. Subtract the actual height of the door. Add 8" to the remainder. (See Example).

• Close the door and draw an intersecting horizontal line on the header wall at the determined height.

If the total number of inches exceeds the height available in your garage, use the maximum height possible, or refer to page 10 for ceiling installation.

One-piece door without track

jamb hardware

One-piece door without track

pivot hardware

Read the Safety Instructions on page 8. They also apply to doors without tracks.

Header

Wall

Door

Highest Point

of Travel

Distance

Pivot

Lag Screws

5/16"-9x1-5/8"

Highest

Point of Travel

(of Garage Door)

Vertical

Center

Line

Header

Wall

Garage

Door

CEILING MOUNT ONLY

Wall

Mounting Holes

Optional

Wall Mounting

Holes

The nail hole is for positioning

only. You must use lag screws to

mount the header bracket.

CEILING MOUNT ONLY

Door

Spring

Header Bracket

2x4

Structural

Support

Vertical

Center

Line

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning only.

You must use lag screws to mount

the header bracket.

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements.

Fasten the Header Bracket to the Wall

• Center the bracket on the vertical guideline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark either set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

• Extend the vertical guideline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark holes designated for ceiling mount only. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Fasten the Header Bracket to the Ceiling

Installation Step 2

Install the Header Bracket

Hardware Shown Actual Size

Lag Screws

5/16"-9x1-5/8"

Garage

Door

Vertical

Center Line

Header

Wall

Finished

Ceiling

Header

Bracket

6" Maximum

Vertical

Center Line

Door

Spring

Lag Screw

5/16"-9x1-5/8" (2)

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base.

If the door spring is in the way you'll need help. Have someone hold the opener securely on a temporary support to allow the T-rail to clear the spring.

• Position the chain pulley bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

Installation Step 3

Attach the T-rail to the Header Bracket

Hardware Shown Actual Size

Header Wall

Header

Bracket

Chain

Pulley

Bracket

Garage

Door

T-rail

Ring Fastener

Header Bracket

Clevis Pin

5/16"x2-3/4 "

Chain Pulley

Bracket

T-rail

Temporary

Support

Clevis Pin

5/16"x2-3/4"

Ring Fastener

+ 25 hidden pages
