Page 1

GARAGE DOOR OPENER

Model 3595S 3/4 HP

For Residential Use

Install on Sectional Doors ONLY

THIS OPERATOR IS INTENDED FOR USE ONLY WITH I-BEAM RAILS.

The Chamberlain Group, Inc. 845 Larch Avenue Elmhurst, Illinois 60126-1196

www.liftmaster.com

Owner’s Manual

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located under the light lens on the left side panel of your

opener.

is connected and properly

Page 2

Introduction 2-5

Safety symbol and signal word review ....................... 2

Preparing your garage door ....................................... 3

Tools needed .............................................................. 3

Planning .................................................................... 4

Carton inventory ......................................................... 5

Hardware inventory .................................................... 5

Assembly 6-7

Attach the rail to the motor unit .................................. 6

Attach the chain spreader .......................................... 6

Attach chassis support bracket .................................. 6

Tighten the chain ........................................................ 7

Installation 7-19

Installation safety instructions .................................... 7

Determine the header bracket location ...................... 8

Install the header bracket ........................................... 9

Attach the rail to the header bracket ........................ 10

Position the opener .................................................. 10

Hang the opener ........................................................11

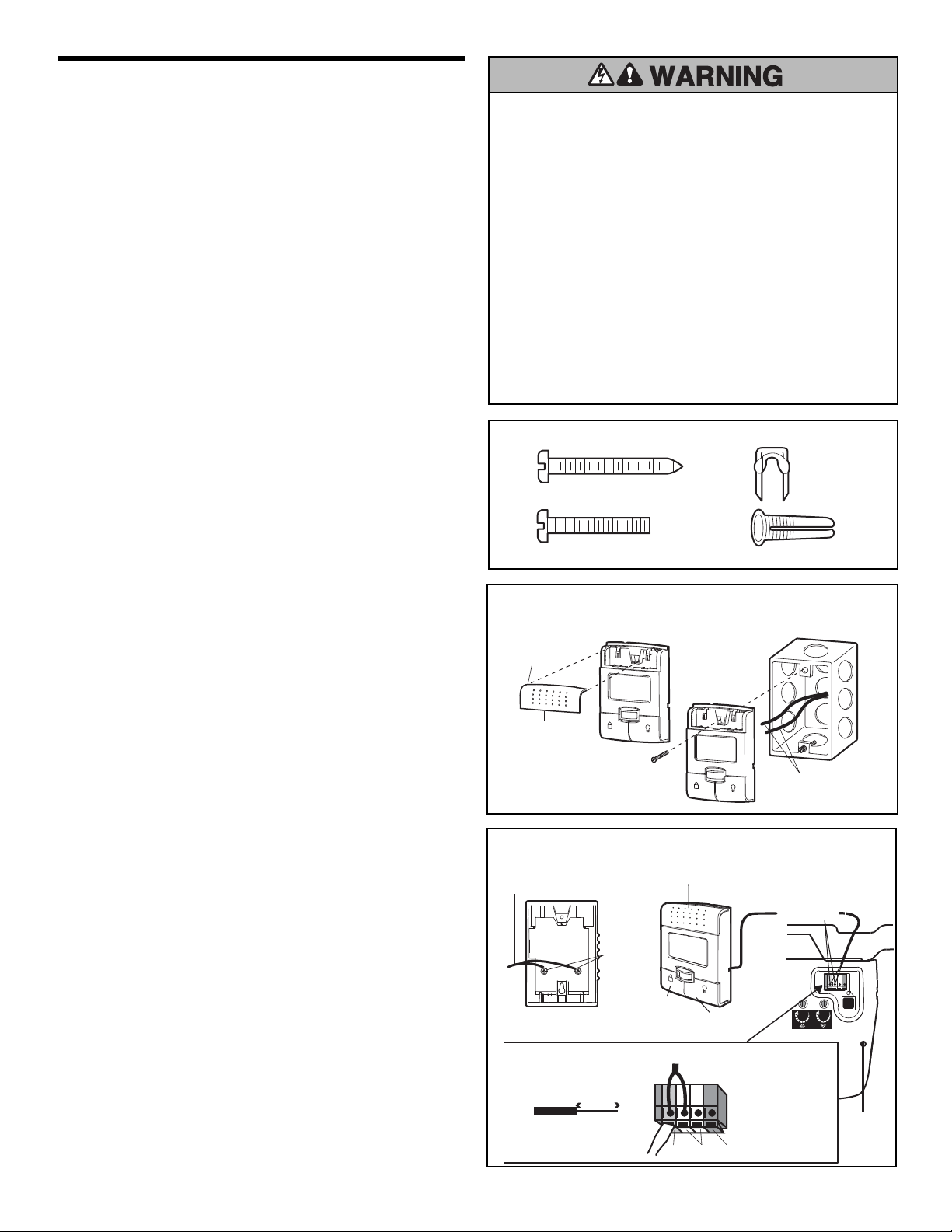

Install the door control .............................................. 12

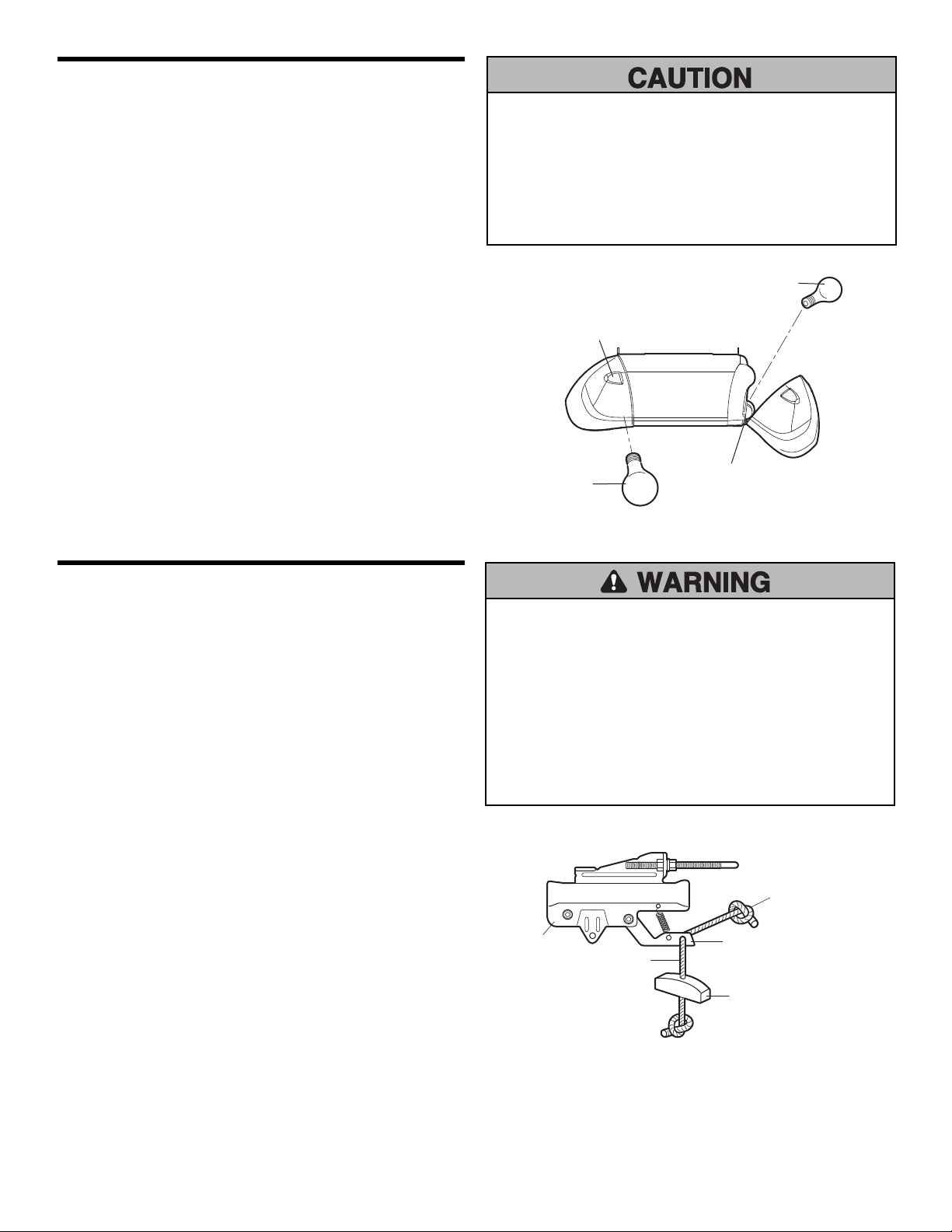

Install the light .......................................................... 13

Attach the emergency release rope and handle ...... 13

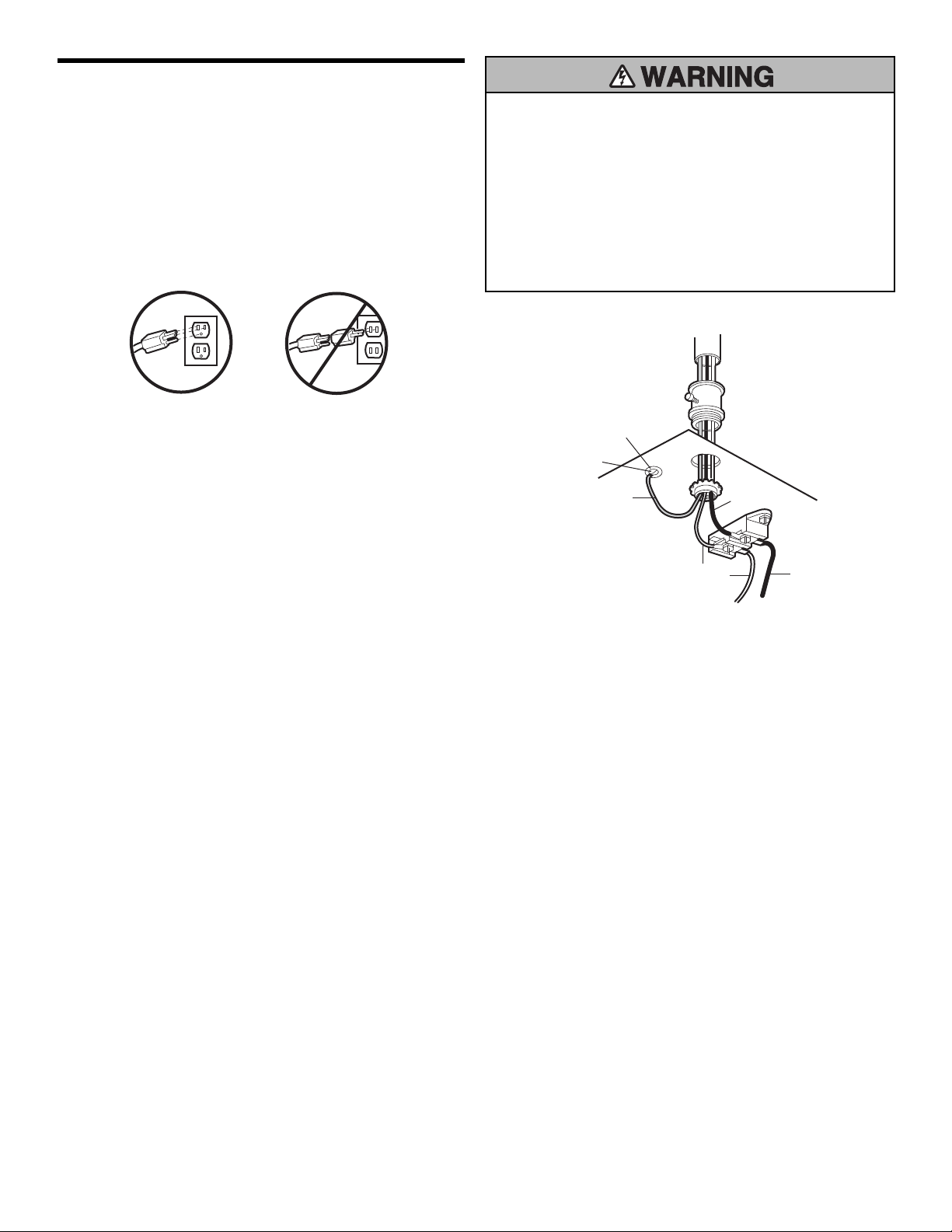

Electrical requirements ............................................. 14

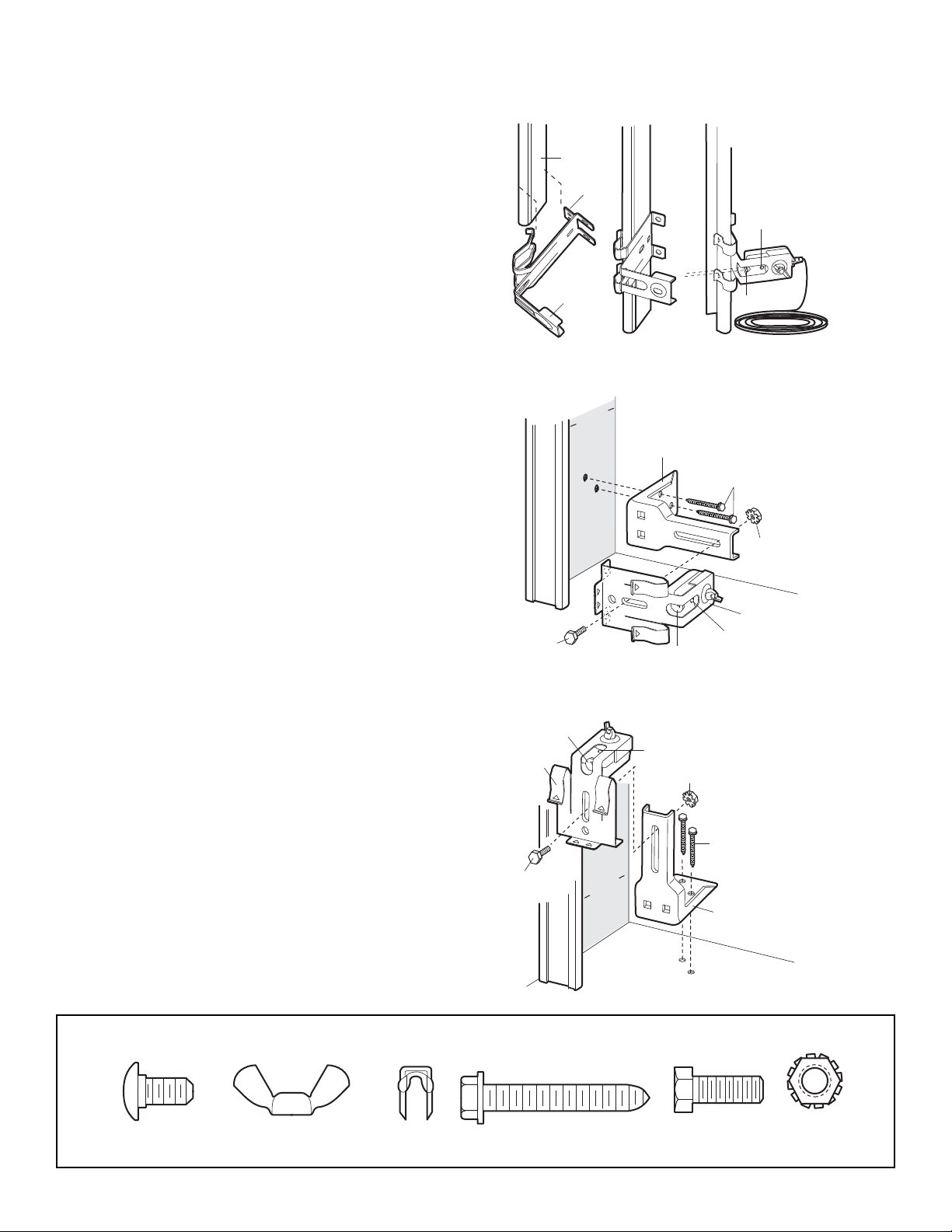

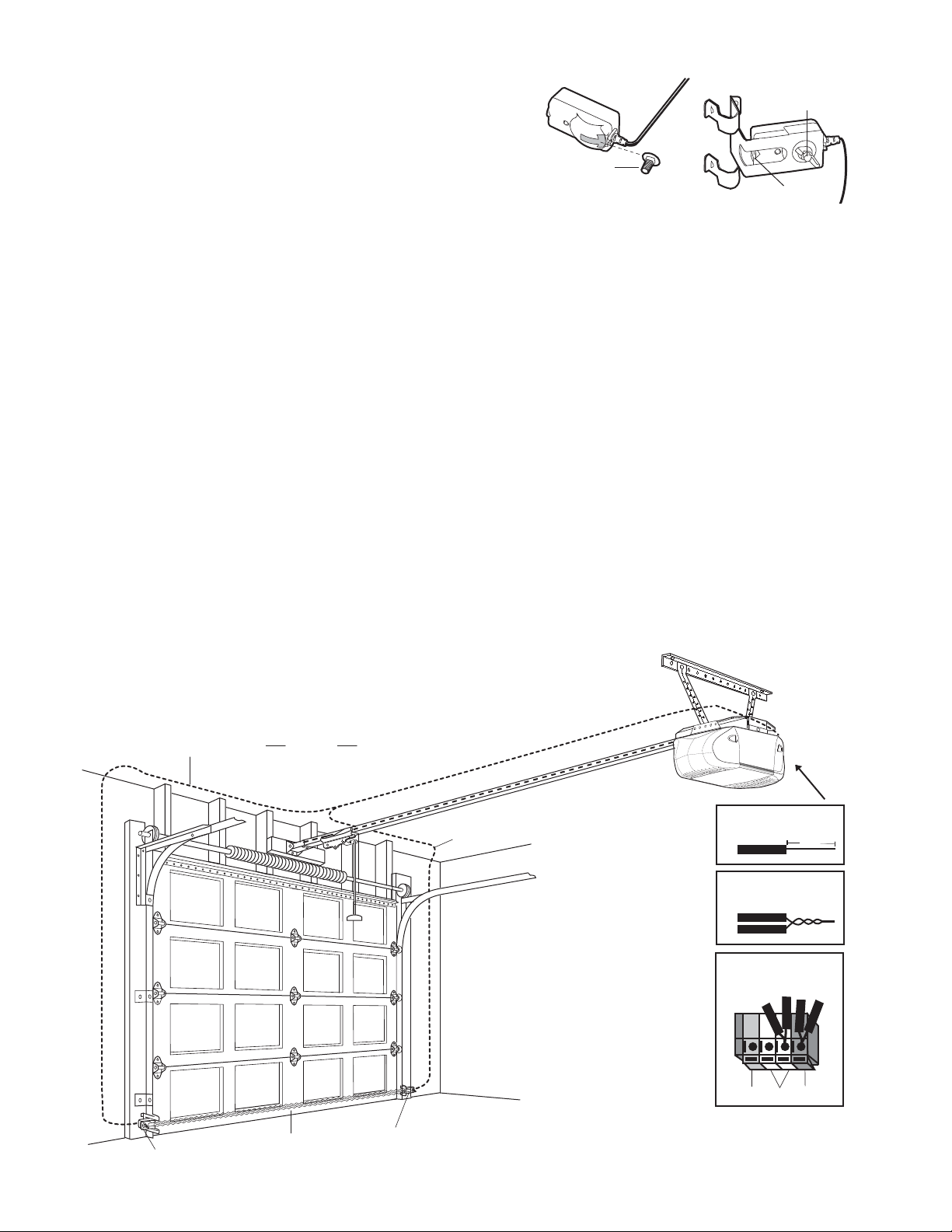

Install the Protector System® ............................... 15-17

Fasten the door bracket ........................................... 18

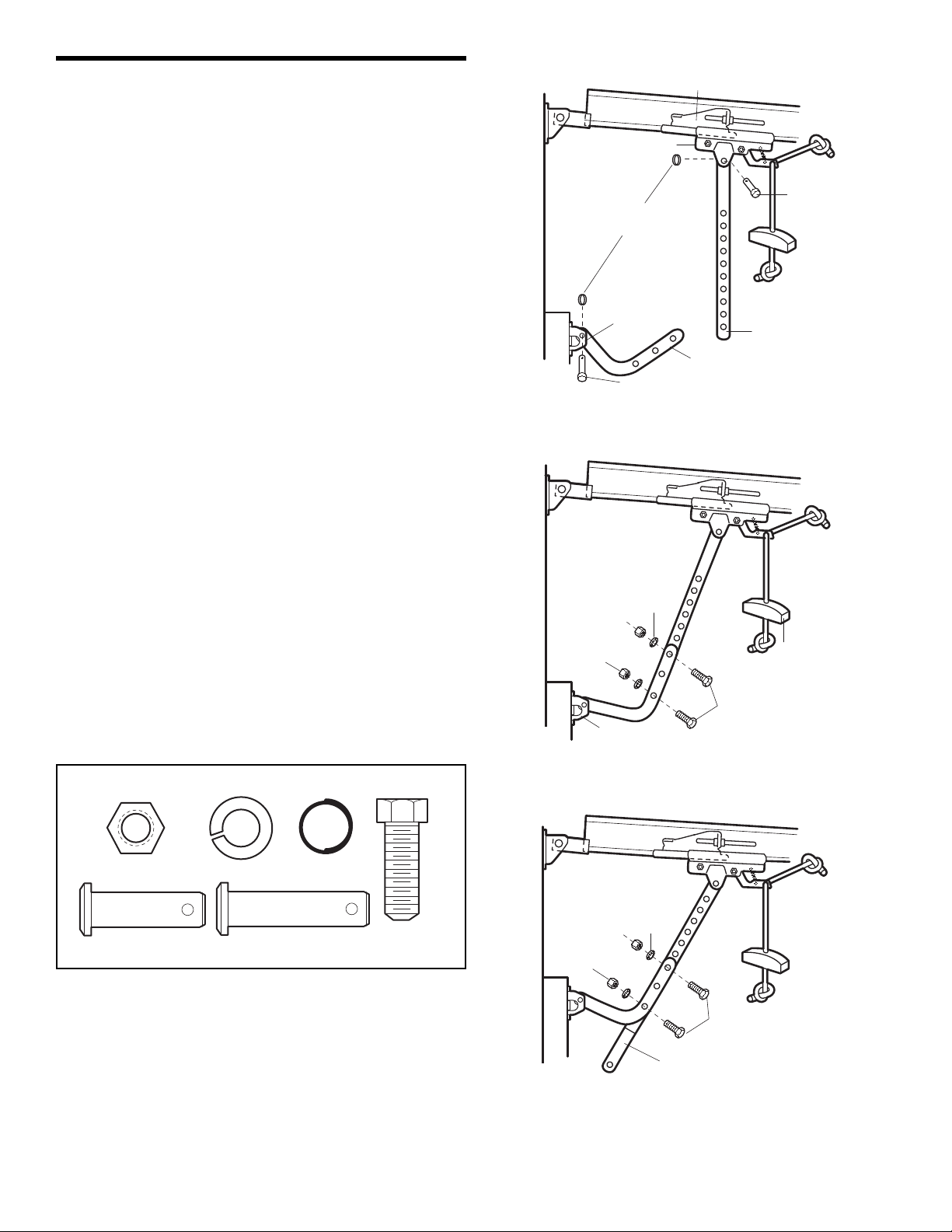

Connect the door arm to the trolley .......................... 19

Operation 23-26

Operation safety instructions .................................... 23

Using your garage door opener ............................... 23

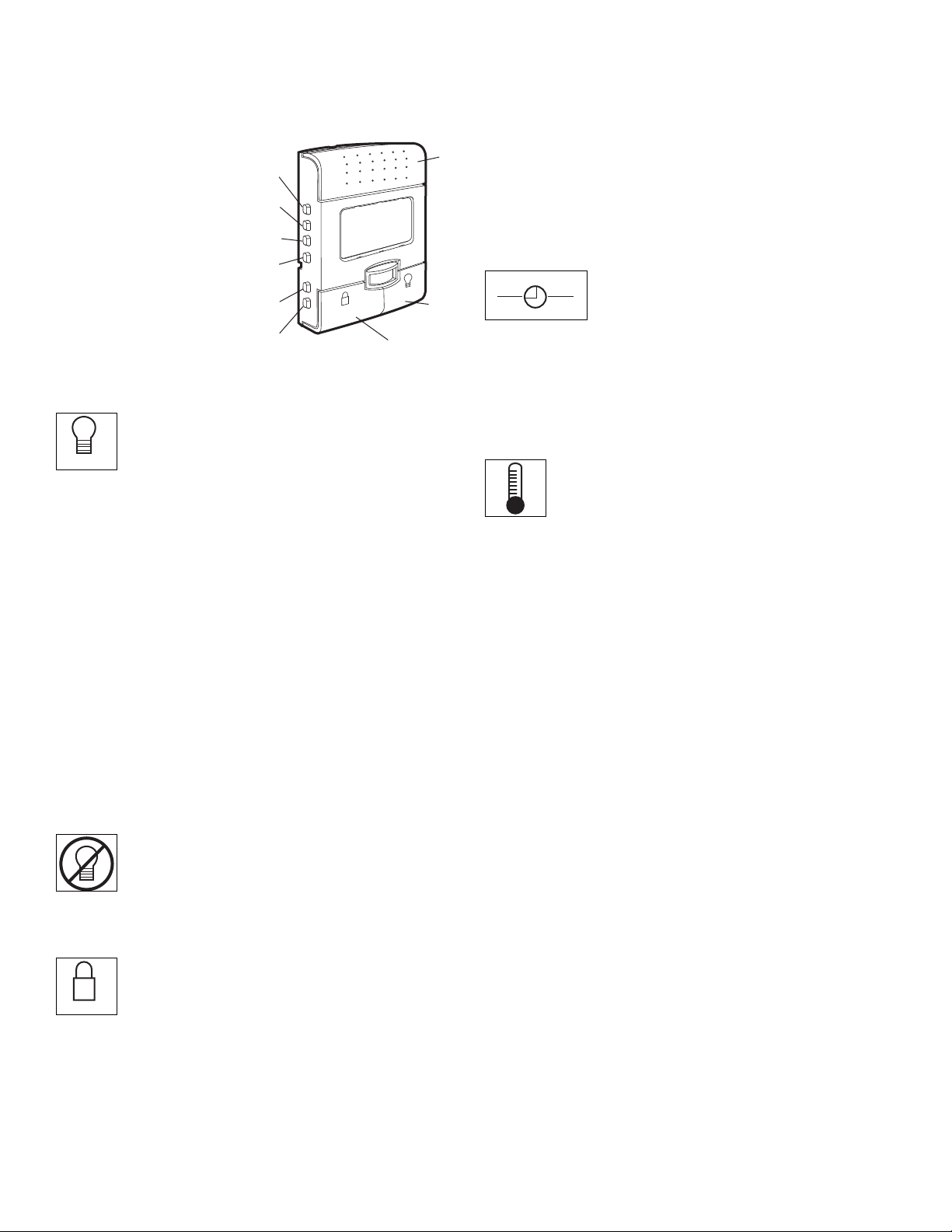

Using the wall-mounted door control ........................ 24

Using the remote control .......................................... 25

Troubleshooting ........................................................ 25

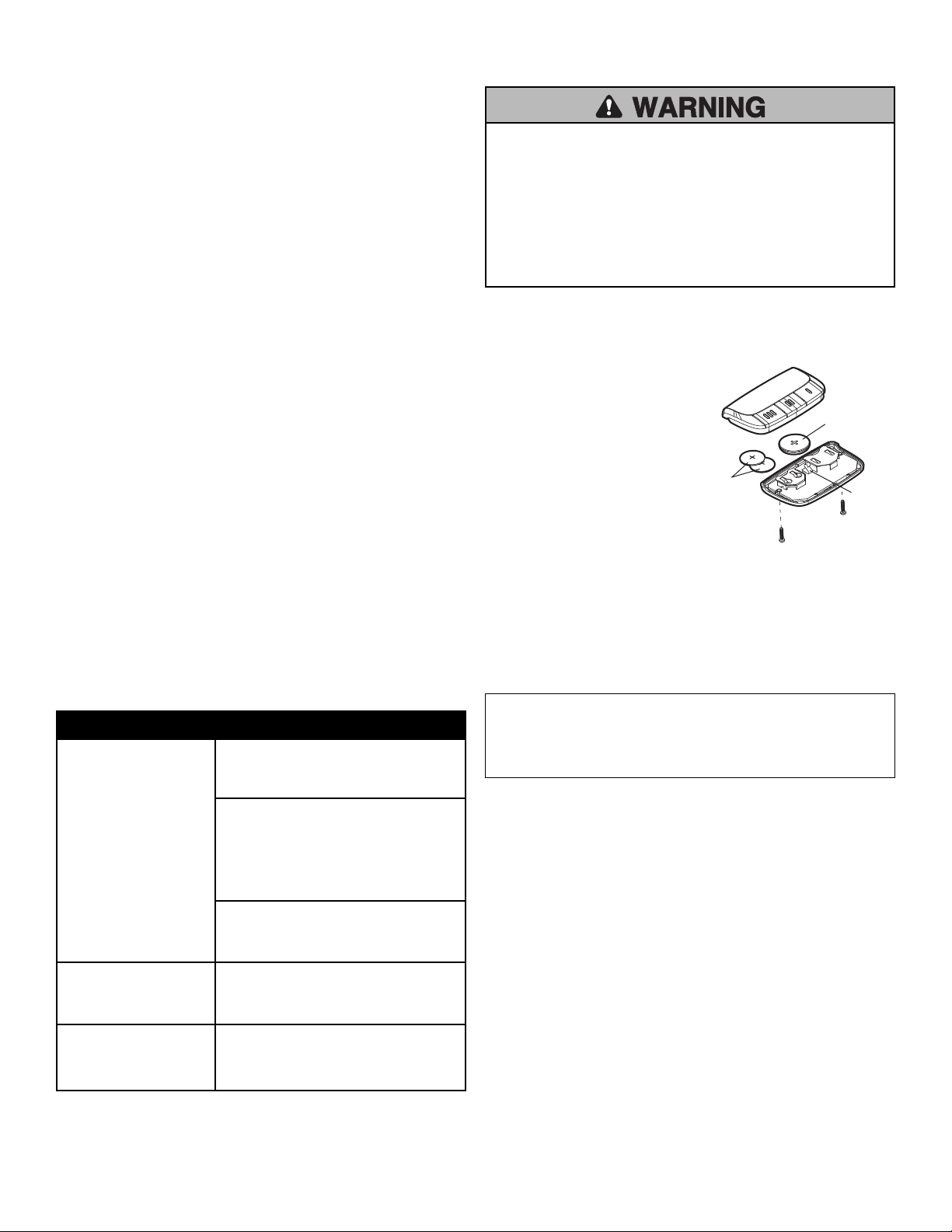

The remote control batteries .................................... 25

To open the door manually ....................................... 26

Care of your garage door opener ............................. 26

Having a problem? .............................................. 26-27

Smart Control Panel™ messages ............................ 28

Programming 29-30

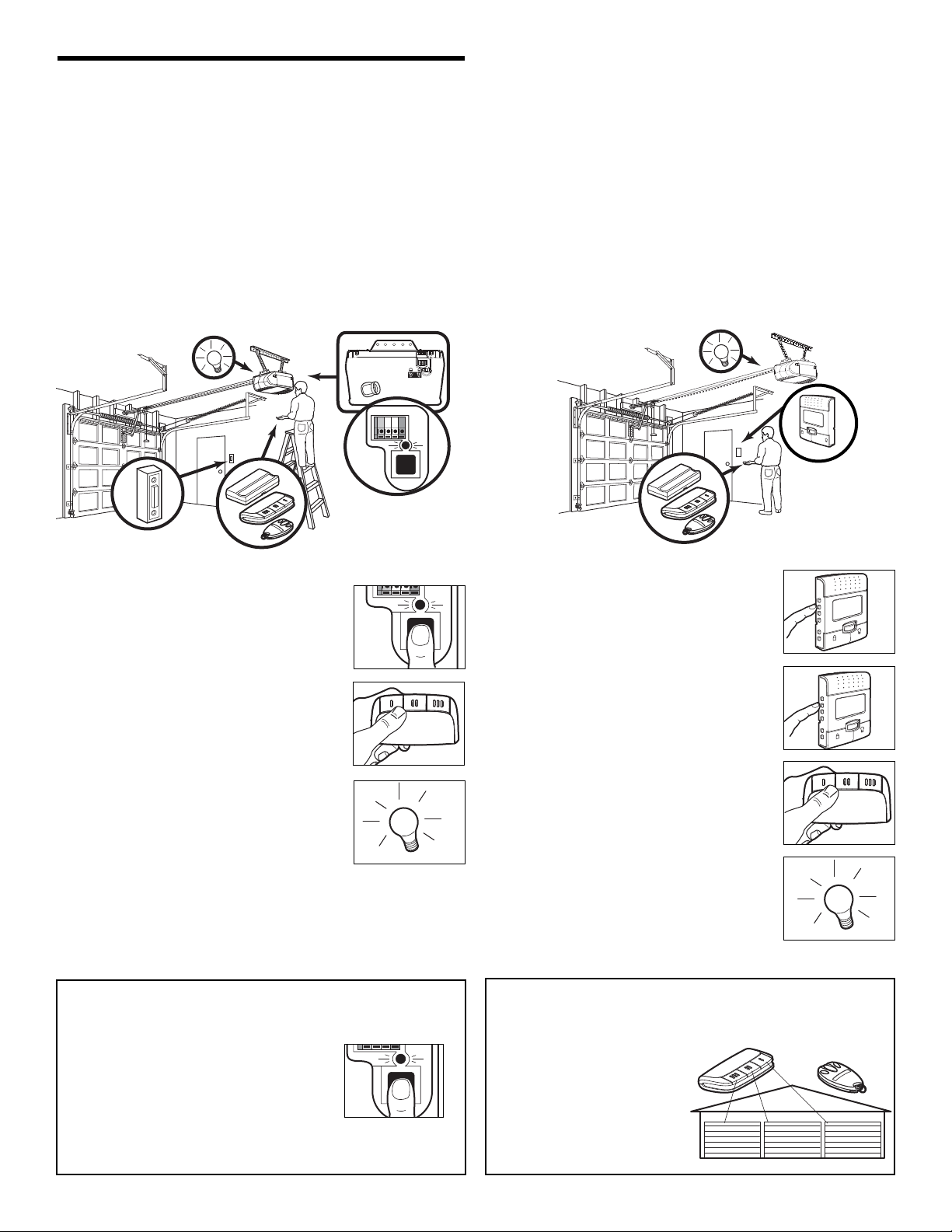

To add or reprogram a hand-held remote control .... 29

To erase all codes .................................................... 29

3-Button remotes ...................................................... 29

To add, reprogram or change

a Keyless Entry PIN ................................................. 30

Repair Parts 31-32

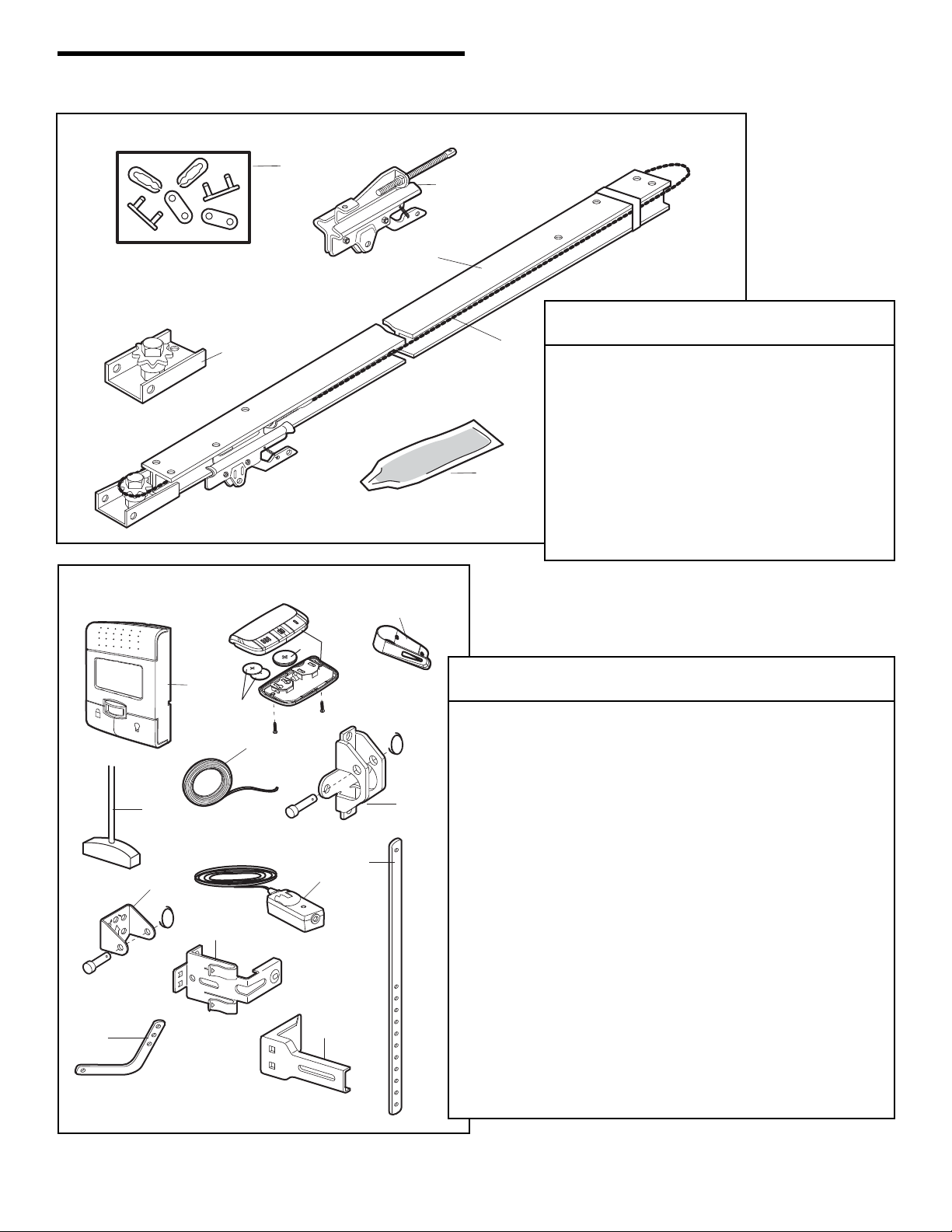

Rail assembly parts .................................................. 31

Installation parts ....................................................... 31

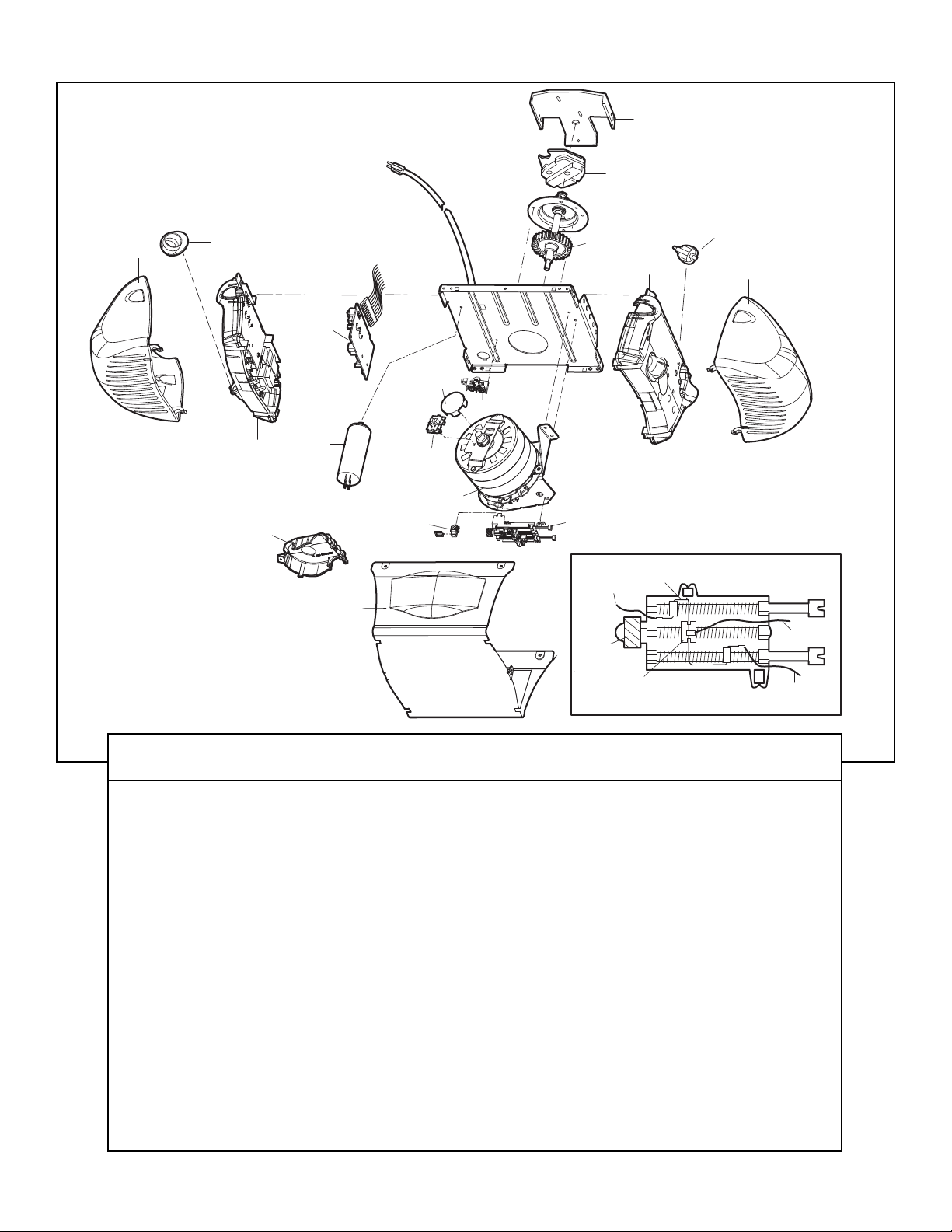

Motor unit assembly parts ........................................ 32

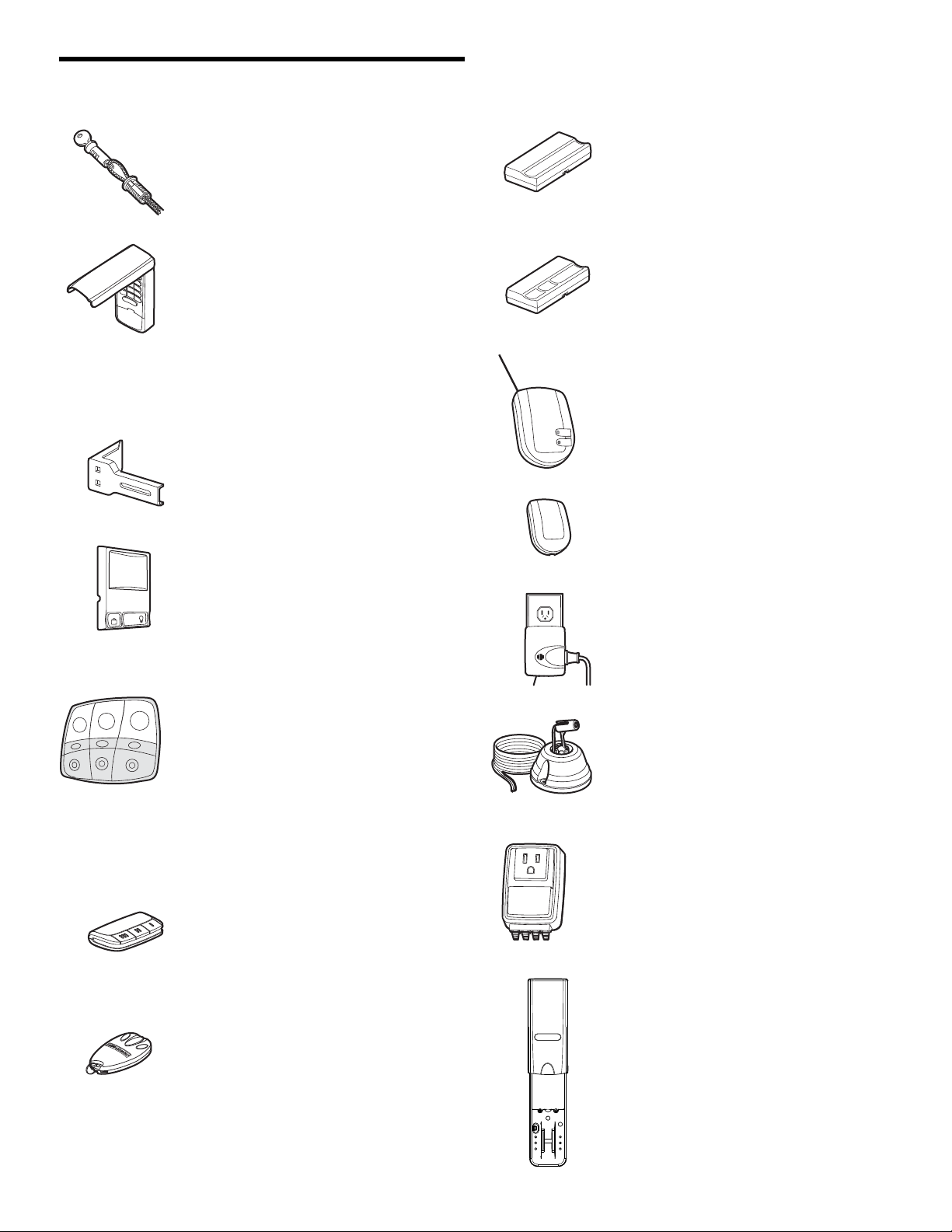

Accessories 33

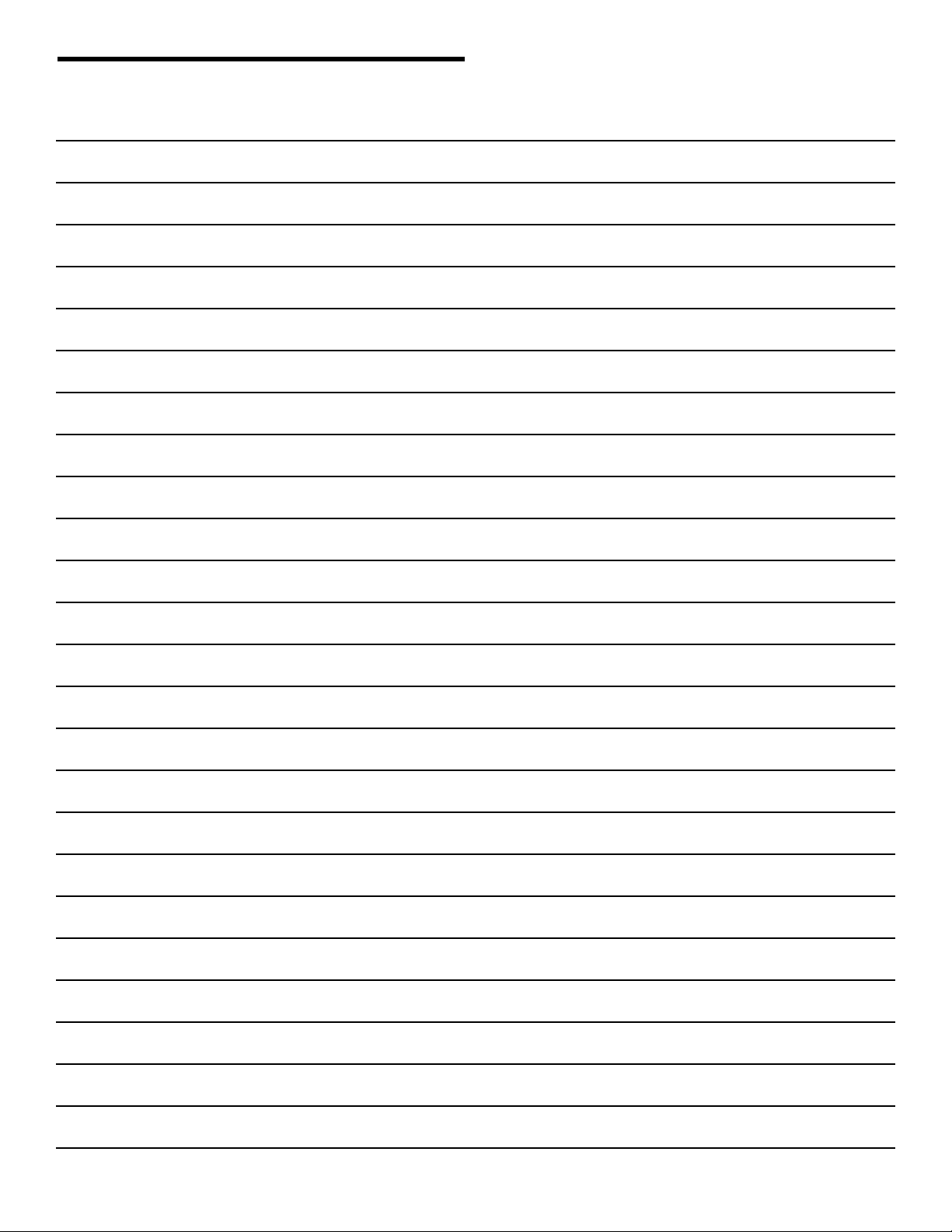

Notes 34-35

Repair Parts and Service 36

Warranty 36

Adjustment 20-22

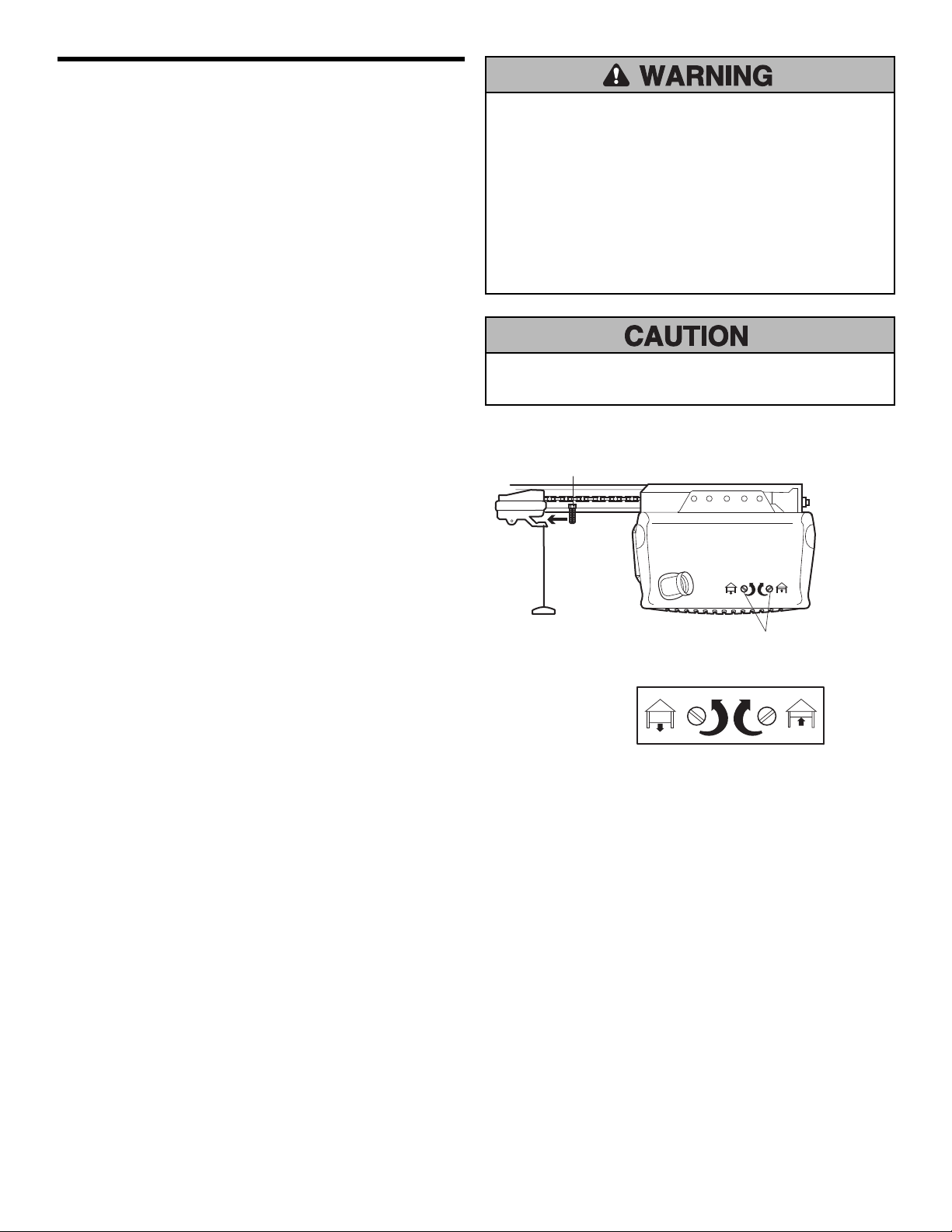

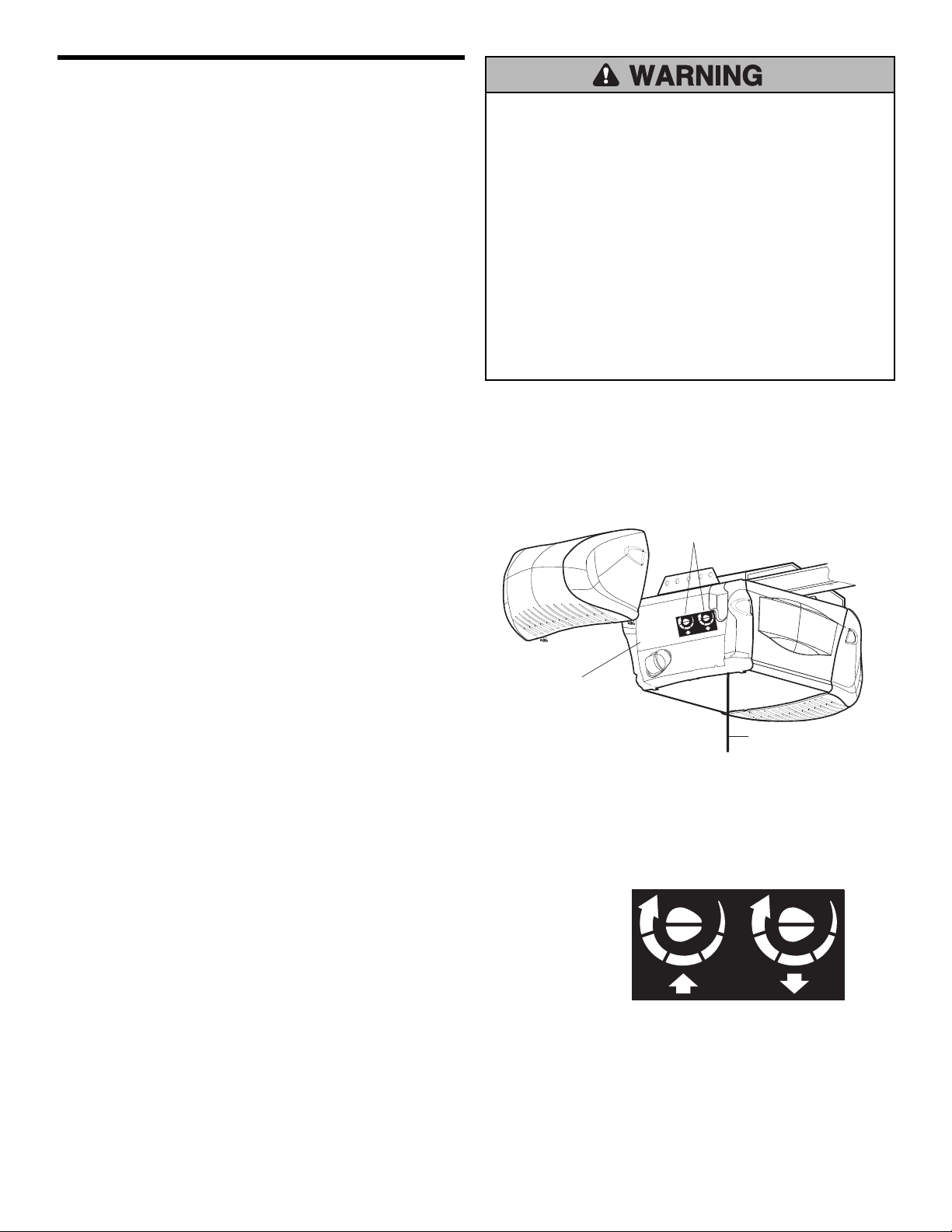

Adjust the UP and DOWN travel limits ..................... 20

Adjust the force ........................................................ 21

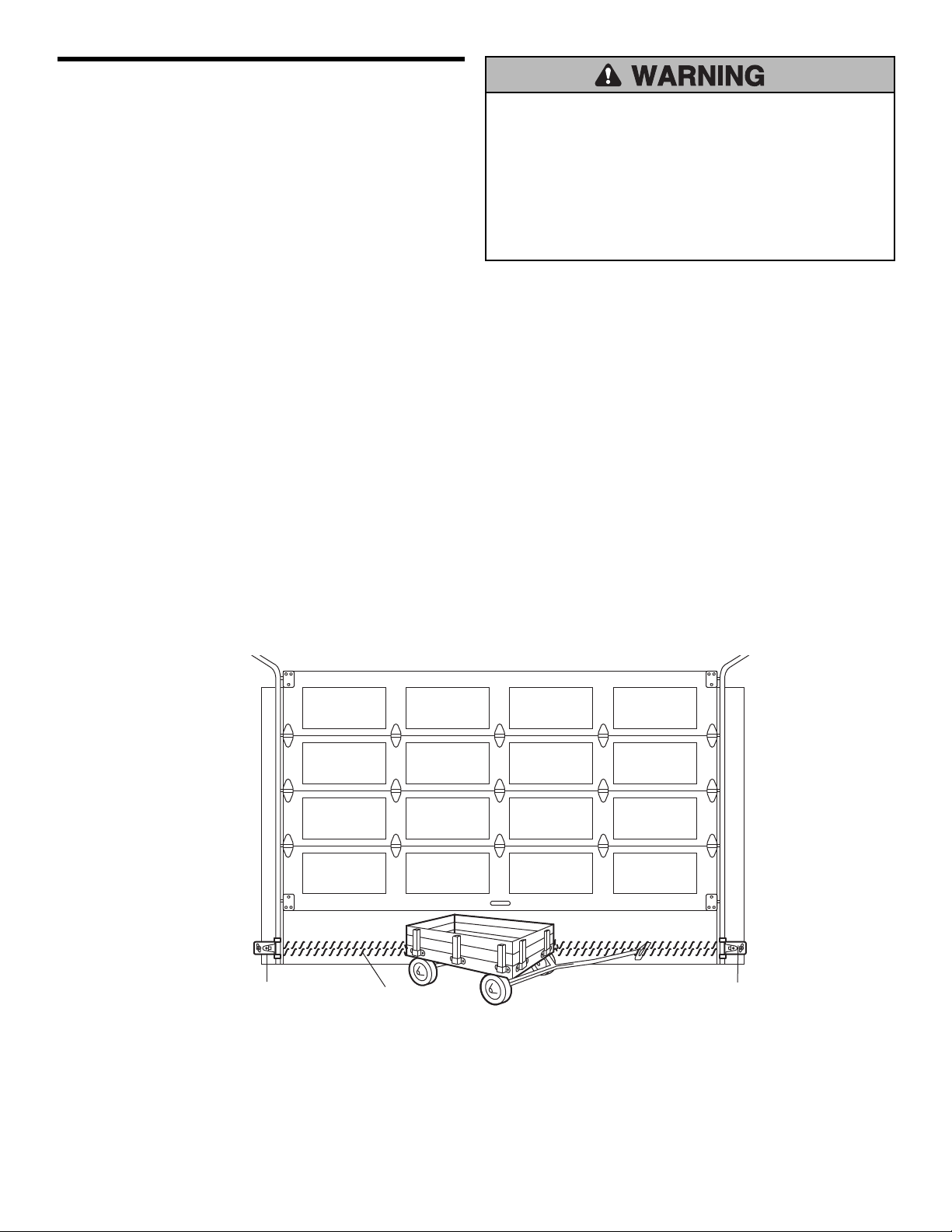

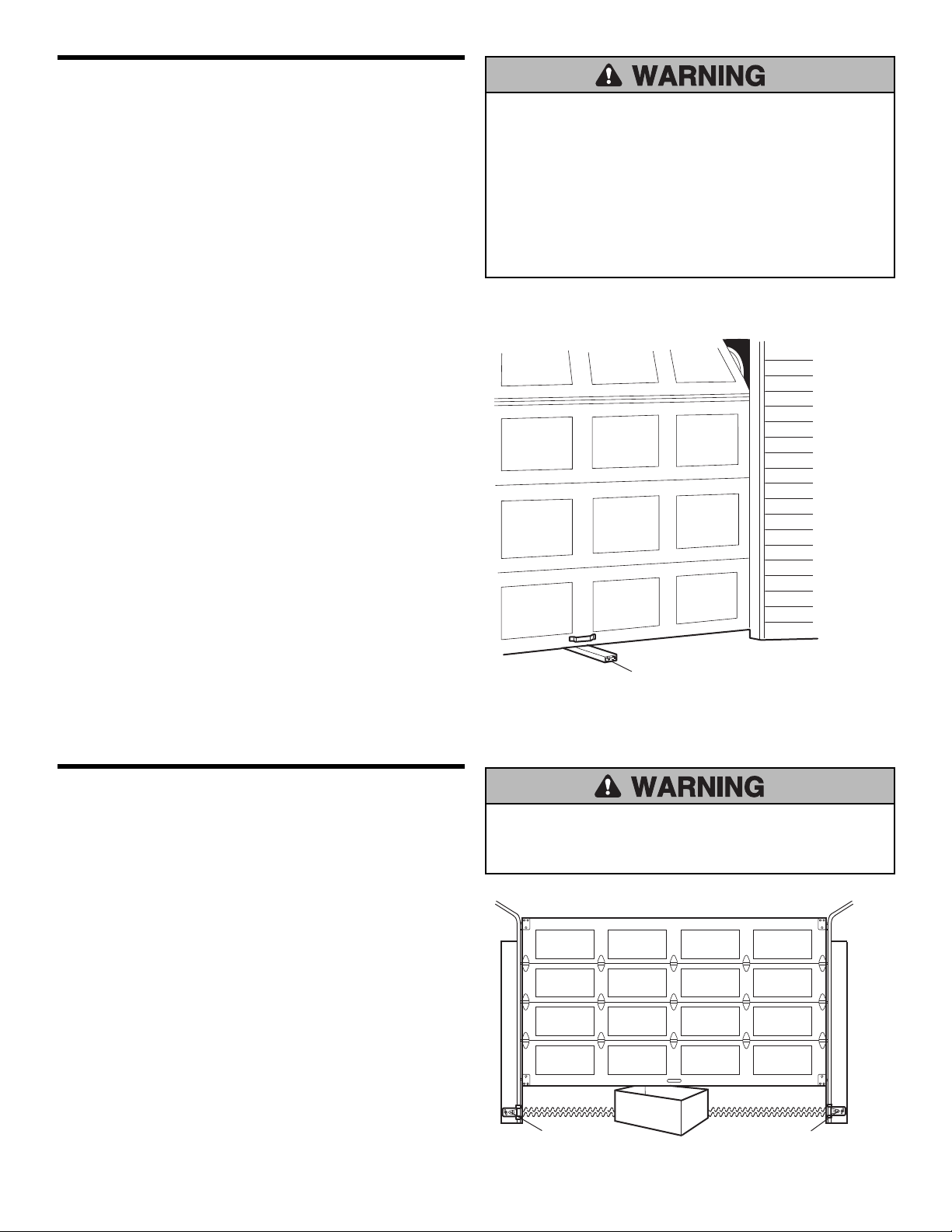

Test the safety reversal system ................................ 22

Test the Protector System® ...................................... 22

INTRODUCTION

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.

When you see these Safety Symbols and Signal Words on the following pages, they will alert you to the

Mechanical

Electrical

possibility of serious injury or death if you do not comply with the warnings that accompany them. The hazard may come from something mechanical or from electric shock. Read the warnings carefully.

When you see this Signal Word on the following pages, it will alert you to the possibility of damage to your garage door and/or the garage door opener if you do not comply with the cautionary statements that accompany it. Read them carefully.

Page 3

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

• Complete the following test to make sure your garage

door is balanced and is not sticking or binding:

1. Lift the door about halfway as shown. Release the door. If balanced, it should stay in place, supported entirely by its springs.

2. Raise and lower the door to see if there is any binding or sticking.

If your door binds, sticks, or is out of balance, call a trained door systems technician.

To prevent possible SERIOUS INJURY OR DEATH:

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door may not reverse when required.

• NEVER try to loosen, move or adjust garage door, door springs, cables, pulleys, brackets or their hardware, all of which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to garage door BEFORE installing and operating garage door opener to avoid entanglement.

To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the opener.

• ONLY operate garage door opener at 120V, 60 Hz to avoid malfunction and damage.

Stepladder

Carpenter’s Level (Optional)

Drill

Tape Measure

3/16", 5/16" and 5/32" Drill Bits

1/2" and 7/16" Sockets and Wrench

Tools needed

During assembly, installation and adjustment of the opener, instructions will call for hand tools as illustrated below.

Pencil

Hack Saw

Wire Cutters

Claw Hammer

Pliers

Screwdriver

Adjustable End Wrench

Page 4

Safety Reversing Sensor

Support bracket & fastening hardware is required. See page 11.

— — — — — — — —

Header Wall

FINISHED CEILING

Torsion Spring

Extension Spring

Safety Reversing Sensor

Gap between floor and bottom of door must not exceed 1/4" (6 mm)

Access Door

Wallmounted Door Control

Horizontal and vertical reinforcement is needed for lightweight garage doors (fiberglass, steel, aluminum, door with glass panels, etc.). See page 18 for details.

Motor Unit

Slack in chain tension is normal when garage door is closed.

Vertical Centerline of Garage Door

Planning

Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to your installation. Additional materials may be required. You may find it helpful to refer back to this page and the accompanying illustrations as you proceed with the installation of your opener.

SECTIONAL DOOR INSTALLATION

Without a properly working safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• The gap between the bottom of the garage door and the floor MUST NOT exceed 1/4" (6 mm). Otherwise, the safety reversal system may not work properly.

• The floor or the garage door MUST be repaired to eliminate the gap.

Page 5

CEILING MOUNT ONL

Chassis Support Bracket

Chain Spreader

Extension Bracket (2)

Rail

Chain Pulley Bracket

Chain

Straight Door Arm Section

Curved Door Arm Section

Safety Labels

and

Literature

2 Conductor Bell Wire White & White/Red

Smart Control Panel™

Trolley

Header Bracket

The Protector System

(2) Safety Reversing Sensors (1 Sending Eye and 1 Receiving Eye) with 2-Conduction White & White/Black Bell Wire attached

Door Bracket

Safety Sensor Bracket (2)

Motor Unit With Light Lenses

Remote Control Transmitter Visor Clip

LOCK

L GI HT

SECURITY

3-Button Remote Control Model 373P (1)

Carton Inventory

Your garage door opener is packaged in two cartons which contain the motor unit and all parts illustrated below. Accessories will depend on the model purchased. If

anything is missing, carefully check the packing material. Parts may be stuck in the foam. Hardware for installation is also listed below.

INSTALLATION HARDWARE

Hex Bolt 5/16"-18x7/8" (4) Lag Screw 5/16"-9x1-5/8" (2) Lag Screw 5/16"-18x1-7/8" (2) Clevis Pin 5/16"x2-3/4" (1) Clevis Pin 5/16"x1-1/4" (1) Clevis Pin 5/16"x1" (1) Nut 5/16"-18 (4) Lock Washer 5/16" (4) Screw 6ABx1-1/4" (2) Screw 6-32x1" (2) Self-Threading Screw 1/4"-14x5/8" (2) Washered Bolt 5/16"-18x1/2" (2) Hex Bolt 1/4"-20x5/8" (4)

Hex Screws 8-32x1" (2) Screw #8-32x3/8" Insulated Staples (30) Ring Fastener (3) Drywall Anchors (2) Rail Grease Carriage Bolt 1/4"-20x1/2" (2) Wing Nut 1/4"-20 (2) Lock Nut 1/4"-20 Lag Screw 1/4x1-1/2" (4) Rope Handle

Page 6

Washered Bolt 5/16"-18x1/2"

Lock Nut

ASSEMBLY STEP 1

Hex Screws 8-32x1"

Chain Spreader

Motor Unit Sprocket

Washers

Hex Bolts 1/4"-20x5/8" w/Lock Washers

Chassis Support Bracket

Washered Bolt 5/16"-18x1/2"

Screw #8-32x3/8"

Opener Back Flange

Opener Side Flange

6-Tooth Sprocket

Chain Spreader

Motor Unit Mounting Plate

8-Tooth Sprocket

Chain Spreader

Motor Unit Mounting Plate

Attach the Rail to the Motor Unit

To avoid installation difficulties, do not run the garage door opener until instructed to do so.

• Remove the bolt and lock nut from the top of the motor unit.

• Place rail onto the bolt mounted on the motor unit and align the back hole with the hole in the top of the unit.

• Fasten rail with the washered bolt and lock nut previously removed. Tighten securely. (Figure 1)

Remember to use only these bolts/fasteners! Any other bolts/fasteners will cause serious damage to the opener.

ASSEMBLY STEP 2

Attach the Chain Spreader

• Attach chain spreader to the motor unit with two screws (Figure 2).

• Guide the chain around the selected groove in the chain spreader, to engage either the 8-tooth sprocket or the 6-tooth sprocket (Figure 3).

NOTE: The 6-tooth sprocket is for use with Carriage

House Doors and the 8-tooth sprocket is for use with Regular Doors.

To avoid SERIOUS damage to opener, ONLY use bolts/ fasteners mounted in the top of the opener.

Figure 1

Figure 2

ASSEMBLY STEP 3

Attach the Chassis Support Bracket

• Position the rail support bracket on the unit.

• Attach the bracket to the rail with 1/4"-20x5/8" hex bolts

• Attach the bracket to the opener by inserting a

Proceed to Assembly Step 4.

Figure 3

and lock washers. Do not overtighten.

5/16"-18x1/2" washered screw through a hole in each side flange and a matching hole in the bracket. Complete the connection by inserting the #8-32x3/8" screw through the back flange and the hole in rail support (Figure 4).

To avoid possible SERIOUS INJURY to fingers from moving garage door opener:

• ALWAYS keep hand clear of sprocket while operating opener.

• Securely attach chain spreader BEFORE operating.

Figure 4

Page 7

ASSEMBLY STEP 4

WARNING

WARNINGWARNING

Tighten the Chain

To Tighten Outer Nut

Outer Nut

Lock Washer

Inner Nut

• Spin the inner nut and lock washer down the threaded shaft, away from the trolley.

• To tighten the chain, turn outer nut in the direction shown. As you turn the nut, keep the chain from

twisting.

• When the chain is approximately 1/2" (13 mm) above

the base of the rail at its midpoint, re-tighten the inner nut to secure the adjustment.

Sprocket noise can result if chain is either too loose or too tight.

When installation is complete, you may notice some chain droop with the door closed. This is normal. If the chain returns to the position shown when the door is open, do not re-adjust the chain.

NOTE: During future maintenance, ALWAYS pull the emergency release handle to disconnect trolley before adjusting chain.

You have now finished assembling your garage door opener. Please read the following warnings before proceeding to the installation section.

Trolley

Chain

Base of Rail

To Tighten Inner Nut

1/2" (13 mm)

1/2" (1.27 cm)

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS.

2. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly balanced door may not reverse when required and could result in SEVERE INJURY or DEATH.

3. ALL repairs to cables, spring assemblies and other

4. Disable ALL locks and remove ALL ropes connected to

5. Install garage door opener 7 feet (2.13 m) or more

6. Mount emergency release handle 6 feet (1.83 m) above

7. NEVER connect garage door opener to power source

hardware MUST be made by a trained door systems technician BEFORE installing opener.

garage door BEFORE installing opener to avoid entanglement.

above floor.

floor.

until instructed to do so.

8. NEVER wear watches, rings or loose clothing while installing or servicing opener. They could be caught in garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of 5 feet

(1.5 m).

• away from ALL moving parts of the door.

10. Place entrapment warning label on wall next to garage door control.

11. Place manual release/safety reverse test label in plain view on inside of garage door.

12. Upon completion of installation, test safety reversal system. Door MUST reverse on contact with a 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.

Page 8

INSTALLATION STEP 1

Header Wall

Highest Point of Travel

Door

2" (5 cm)

Track

Header Wall

Vertical Centerline of Garage Door

Level (optional)

2x4

Structural Supports

OPTIONAL CEILING MOUNT FOR HEADER BRACKET

Unfinished Ceiling

Determine the Header Bracket Location

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise garage door might not reverse when required. DO NOT install header bracket over drywall.

• Concrete anchors MUST be used if mounting header bracket or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs, cables, pulleys, brackets, or their hardware, all of which are under EXTREME tension.

• ALWAYS call a trained door systems technician if garage door binds, sticks, or is out of balance. An unbalanced garage door might not reverse when required.

SECTIONAL DOOR ONLY

1. Close the door and mark the inside vertical centerline of the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4 feet

(1.22 m) of the left or right of the door center only if a torsion spring or center bearing plate is in the way; or you can attach it to the ceiling (see page 9) when clearance is minimal. (It may be mounted on the wall upside down if necessary, to gain approximately 1/2" [1 cm].)

If you need to install the header bracket on a 2x4

(on wall or ceiling), use lag screws (not provided) to securely fasten the 2x4 to structural supports as shown here and on page 9.

3. Open your door to the highest point of travel as shown. Draw an inter secting horizontal line on the header wall 2" (5 cm) above the high point. This height will provide travel clearance for the top edge of the door.

Sectional door with curved track

Page 9

INSTALLATION STEP 2

Lag Screws 5/16"-9x1-5/8"

Highest Point of Garage Door Travel

Vertical Centerline of Garage Door

Header Wall

Garage Door

CEILING MOUNT ONLY

Wall Mounting Holes

Optional Wall Mounting Holes

The nail hole is for positioning only. You must use lag screws to mount the header bracket.

T O

Door Spring

Header Bracket

2x4 Structural Support

Vertical Centerline of Garage Door

Horizontal Line

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for positioning only. You must use lag screws to mount the header bracket.

Lag Screws 5/16"-9x1-5/8"

Garage Door

Header Wall

– Finished Ceiling –

Header Bracket

6" (15 cm)

Maximum

Door Spring

Vertical Centerline of Garage Door

Install the Header Bracket

You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the instructions which will work best for your particular requirements. Do

not install the header bracket over drywall. If installing into masonry, use concrete anchors (not provided).

WALL HEADER BRACKET INSTALLATION

• Center the bracket on the vertical centerline with the bottom edge of the bracket on the horizontal line as shown (with the arrow pointing toward the ceiling).

• Mark the vertical set of bracket holes (do not use the holes designated for ceiling mount). Drill 3/16" pilot holes and fasten the bracket securely to a structural support with the hardware provided.

HARDWARE SHOWN ACTUAL SIZE

CEILING HEADER BRACKET INSTALLATION

• Extend the vertical centerline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than 6" (15 cm) from the wall. Make sure the arrow is pointing toward the wall. The bracket can be mounted flush against the ceiling when clearance is minimal.

• Mark the side holes. Drill 3/16" pilot holes and fasten bracket securely to a structural support with the hardware provided.

Lag Screw 5/16"-9 x 1-5/8"

Page 10

INSTALLATION STEP 3

Rail

Door

2x4 is used to determine the correct mounting height from ceiling.

Attach the Rail to the Header Bracket

• Position the opener on the garage floor below the header bracket. Use packing material as a protective base. NOTE: If the door spring is in the way you’ll need

help. Have someone hold the opener securely on a temporary support to allow the rail to clear the spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin as shown.

• Insert a ring fastener to secure.

Header Wall

Header Bracket

Chain Pulley Bracket

Clevis Pin 5/16"x2-3/4"

Chain Pulley Bracket

Header Bracket

Rail

Ring Fastener

HARDWARE SHOWN ACTUAL SIZE

Ring Fastener

Clevis Pin 5/16"x2-3/4"

INSTALLATION STEP 4

Position the Opener

SECTIONAL DOOR ONLY

A 2x4 laid flat is convenient for setting an ideal door-to-rail distance.

• Raise the opener onto a stepladder. You will need help at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on the top section beneath the rail.

• If the top section or panel hits the trolley when you raise the door, pull down on the trolley release arm to disconnect inner and outer sections. Slide the outer trolley toward the motor unit. The trolley can remain disconnected until Installation Step 12 is completed.

Garage Door

Temporary Support

To prevent damage to garage door, rest garage door opener rail on 2x4 placed on top section of door.

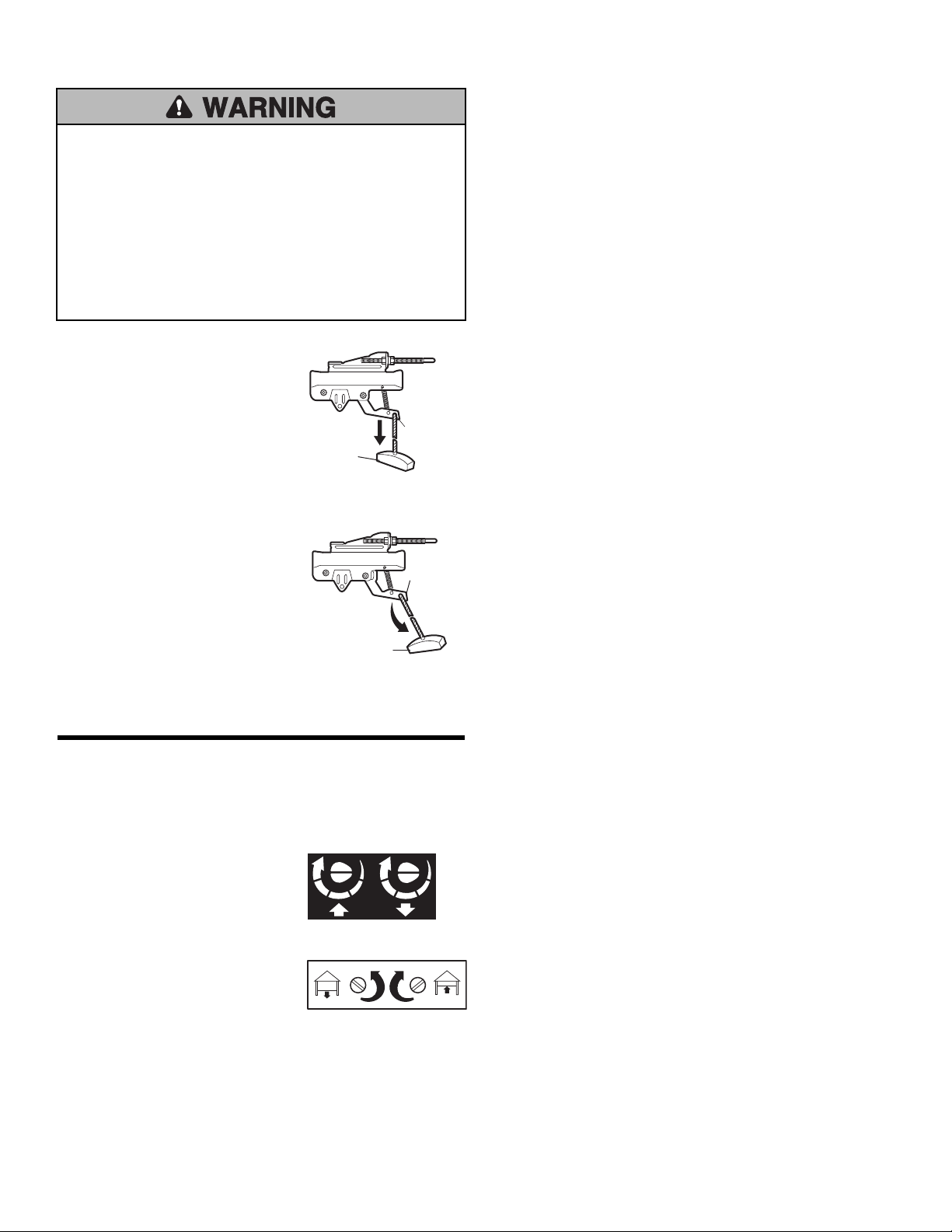

ENGAGED

Trolley Release Arm

RELEASED

Page 11

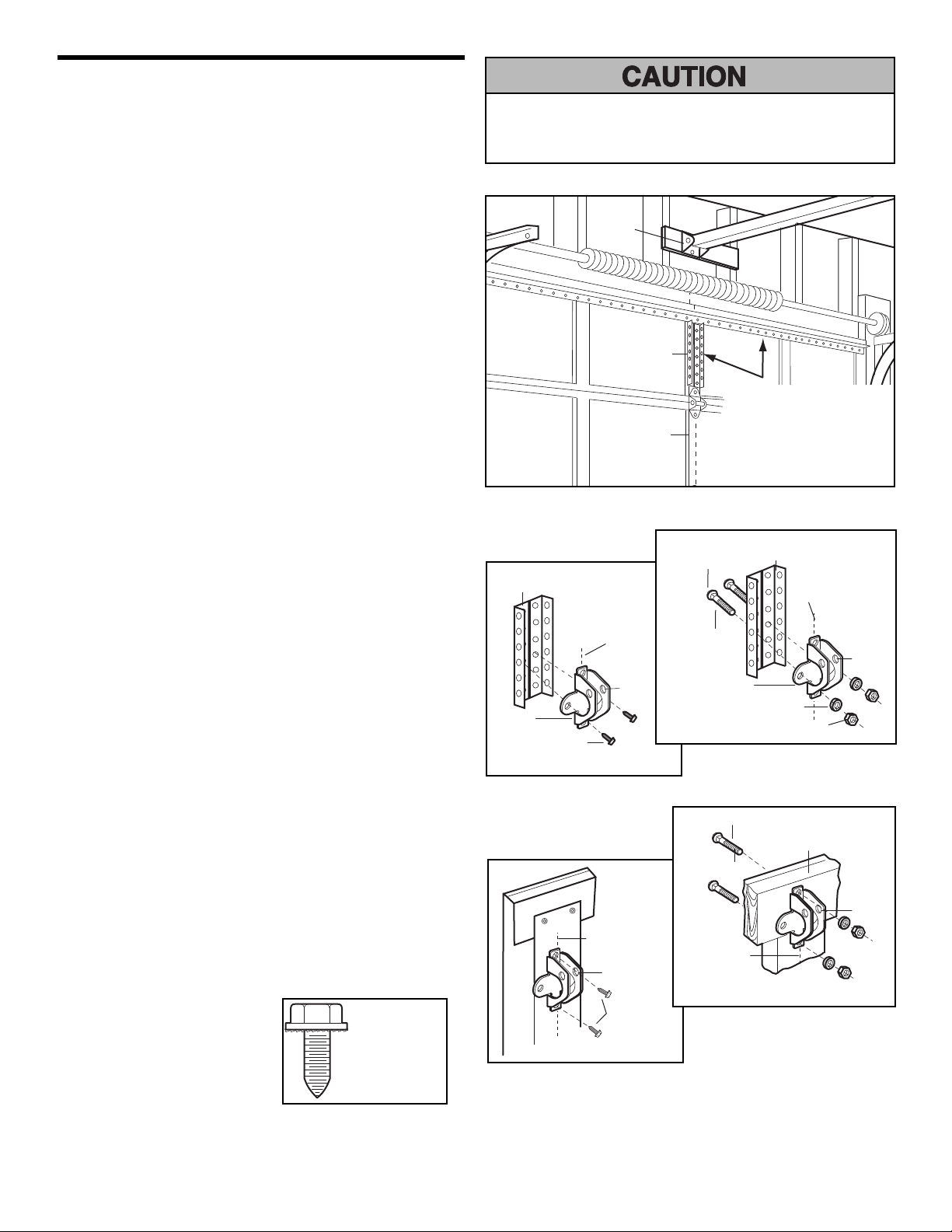

INSTALLATION STEP 5

Measure Distance

Lag Screws 5/16"-18x1-7/8"

Structural Supports

Bracket (Not Provided)

Lag Screws 5/16"-18x1-7/8"

(Not Provided) Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

FINISHED CEILING

Hidden Support

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Lag Screws 5/16"-18x1-7/8"

(Not Provided) Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

FINISHED CEILING

Bolt 5/16"-18x7/8" Lock Washer 5/16" Nut 5/16"-18

Hang the Opener

Three representative installations are shown. Yours may be different. Hanging brackets should be angled (Figure 1) to provide rigid support. On finished ceilings (Figure 2 and Figure 3), attach a sturdy metal bracket to structural supports before installing the opener. This bracket and fastening hardware are not provided.

1. Measure the distance from each side of the motor unit to the structural support.

2. Cut both pieces of the hanging bracket to required lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with 5/16"-18x1-7/8" lag screws.

5. Fasten the opener to the hanging brackets with 5/16"-18x7/8" hex bolts, lock washers and nuts.

6. Check to make sure the rail is centered over the door (or in line with the header bracket if the bracket is not centered above the door).

7. Remove the 2x4. Operate the door manually. If the door hits the rail, raise the header bracket.

8. Grease the top and underside of the rail surface where the trolley slides with rail grease.

NOTE: DO NOT connect power to opener at this time.

To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing any brackets into masonry.

Figure 1

Figure 2

HARDWARE SHOWN ACTUAL SIZE

Lag Screw 5/16"-18x1-7/8"

Hex Bolt 5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"

Figure 3

Page 12

INSTALLATION STEP 6

Drywall Anchors

Insulated Staples

Screw 6ABx1-1/4" (standard installation)

Screw 6-32x1" (pre-wired)

Strip wire 7/16"

7/16" (11 mm)

Red GreyWhite

Quick-Connect Terminals

Antenna

To release or insert wire, push in tab with screwdriver tip

Door Control Connections

Push Bar

Light Button

Lock Button

Door Control Terminal Screws

(BACK VIEW)

W 2

R 1

2-Conductor Bell Wire

LOCK

Install the Door Control

Locate door control within sight of door, at a minimum height of 5' (1.5 m) where small children cannot reach, away from moving parts of door and door hardware. If installing into drywall, drill 5/32" holes and use the anchors provided. For pre-wired installations (as in new home construction), it may be mounted to a single gang box (Figure 1).

NOTE: The functional temperature range of the door control is between -4° F (-20° C) and 122° F (50° C). Scroll speed of display is slower at lower temperatures although the door control remains fully functional.

CAUTION: Continuous exposure of the door control to temperatures below -22° F (-30° C) may damage the LCD screen.

SPECIAL NOTE: Only one 398LM can be connected to each garage door opener. If additional wall controls are desired to operate the same garage door opener, it is recommended to use model 378LM wireless wall control as the secondary door control.

1. Strip 7/16" (11 mm) of insulation from one end of bell

2. Remove push bar cover by gently prying at the lower/

• Install bottom screw, allowing 1/8" (3 mm) to protrude

• Position bottom of door control on screw head and

• Drill and install top screw with care to avoid cracking

• Replace cover by inserting top tabs first and then snap

3. (For standard installations ONLY) Run bell wire up

4. Strip 7/16" (11 mm) of insulation from end of bell wire.

NOTE: If you have any trouble with the operation of the buttons, loosen the top mounting screw. DO NOT connect power and operate the opener at this time.The trolley will travel to the full open position but will not return to the close position until the sensor beam is connected and properly aligned.

wire and connect to the two screw terminals on back of door control by color: white wire to the W (2) and white/ red wire to the R (1) (Figure 2).

middle portion of the cover with a small flat-head screwdriver. Fasten with 6AB x 1-1/4" self-tapping screws (drywall installation) or 6-32 x 1" machine screws (into gang box) as follows:

above wall surface.

slide down to secure. Adjust screw for snug fit.

plastic housing. Do NOT overtighten.

cover in place.

wall and across ceiling to motor unit. Use insulated staples to secure wire in several places. Do NOT pierce wire with a staple, creating a short or open circuit.

Connect bell wire to the quick-connect terminals on the motor unit: white to white and white/red to red (Figure 2).

To prevent possible SERIOUS INJURY or DEATH from electrocution:

• Be sure power is not connected BEFORE installing door control.

• Connect ONLY to 24 VOLT low voltage wires.

To prevent possible SERIOUS INJURY or DEATH from a closing garage door:

• Install door control within sight of garage door, out of reach of children at a minimum height of 5 feet (1.5 m) and away from ALL moving parts of door.

• NEVER permit children to operate or play with door control push buttons or remote control transmitters.

• Activate door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions to door travel.

• ALWAYS keep garage door in sight until completely closed. NEVER permit anyone to cross path of closing garage door.

HARDWARE SHOWN ACTUAL SIZE

Figure 1

REMOVE & REPLACE COVER

To Replace Insert Top Tabs First

Push Bar Cover

LOCK

IGHT

LOCK

PRE-WIRED INSTALLATION

24 Volt Bell Wire

IGHT

Figure 2

Page 13

INSTALLATION STEP 7

Install the Light

• Press the release tabs on both sides of lens. Gently rotate lens back and downward until the lens hinge is in the fully open position. Do not remove the lens.

• Install up to a 100 watt maximum light bulb in each socket. Light bulb size should be A19, standard neck only. The light will turn ON and remain lit for approximately 4-1/2 minutes when power is connected. Then the lights will turn OFF.

• Reverse the procedure to close the lens.

• Use A19, standard neck garage door opener bulbs for replacement.

NOTE: Use only standard light bulbs. The use of short neck or speciality light bulbs may overheat the endpanel or light socket.

To prevent possible OVERHEATING of the endpanel or light socket:

• DO NOT use short neck or specialty light bulbs.

• DO NOT use halogen bulbs. Use ONLY incandescent. To prevent damage to the opener:

• DO NOT use bulbs larger than 100W.

• ONLY use A19 size bulbs.

100 Watt (Max) Standard Light Bulb

Release Tab

Lens

100 Watt (Max) Standard Light Bulb

Hinge

INSTALLATION STEP 8

Attach the Emergency Release Rope and Handle

• Thread one end of the rope through the hole in the top of the red handle so "NOTICE" reads right side up as shown. Secure with an overhand knot at least 1" (25 mm) from the end of the rope to prevent slipping.

• Thread the other end of the rope through the hole in the release arm of the outer trolley.

• Adjust rope length so the handle is 6 feet (1.82 m) above the floor. Secure with an overhand knot.

NOTE: If it is necessary to cut the rope, heat seal the cut end with a match or lighter to prevent unraveling.

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

Overhand Knot

Trolley

Rope

NOTICE

Trolley Release Arm

Emergency Release Handle

Page 14

INSTALLATION STEP 9

RIGHT

WRONG

Ground Tab

Green Ground Screw

Ground Wire

Black Wire

PERMANENT WIRING CONNECTION

White Wire

Black Wire

Electrical Requirements

To avoid installation difficulties, do not run the opener at this time.

To reduce the risk of electric shock, your garage door opener has a grounding type plug with a third grounding pin. This plug will only fit into a grounding type outlet. If the plug doesn’t fit into the outlet you have, contact a qualified electrician to install the proper outlet.

If permanent wiring is required by your local code, refer to the following procedure.

To make a permanent connection through the 7/8" hole in the top of the motor unit:

• Remove the motor unit cover screws and set the cover aside.

• Remove the attached 3-prong cord.

• Connect the black (line) wire to the screw on the brass terminal; the white (neutral) wire to the screw on the silver terminal; and the ground wire to the green ground screw. The opener must be grounded.

• Reinstall the cover.

To avoid installation difficulties, do not run the opener at this time.

To prevent possible SERIOUS INJURY or DEATH from electrocution or fire:

• Be sure power is not connected to the opener, and disconnect power to circuit BEFORE removing cover to establish permanent wiring connection.

• Garage door installation and wiring MUST be in compliance with ALL local electrical and building codes.

• NEVER use an extension cord, 2-wire adapter, or change plug in ANY way to make it fit outlet. Be sure the opener is grounded.

Page 15

Invisible Light Beam Protection Area

Safety Reversing Sensor 6" (15 cm) max. above floor

INSTALLATION STEP 10

Install The Protector System

The safety reversing sensor must be connected and aligned correctly before the garage door opener will move in the down direction.

IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR

When properly connected and aligned, the sensor will detect an obstacle in the path of its electronic beam. The sending eye (with an amber indicator light) transmits an invisible light beam to the receiving eye (with a green indicator light). If an obstruction breaks the light beam while the door is closing, the door will stop and reverse to full open position, and the opener lights will flash 10 times.

The units must be installed inside the garage so that the sending and receiving eyes face each other across the door, no more than 6" (15 cm) above the floor. Either can be installed on the left or right of the door as long as the sun never shines directly into the receiving eye lens.

The mounting brackets are designed to clip onto the track of sectional garage doors without additional hardware.

Be sure power is not connected to the garage door opener BEFORE installing the safety reversing sensor.

To prevent SERIOUS INJURY or DEATH from a closing garage door:

• Correctly connect and align the safety reversing sensor. This required safety device MUST NOT be disabled.

• Install the safety reversing sensor so beam is NO HIGHER than 6" (15 cm) above garage floor.

If it is necessary to mount the units on the wall, the brackets must be securely fastened to a solid surface such as the wall framing. Extension brackets (see accessories) are available if needed. If installing in masonry construction, add a piece of wood at each location to avoid drilling extra holes in masonry if repositioning is necessary.

The invisible light beam path must be unobstructed. No part of the garage door (or door tracks, springs, hinges, rollers or other hardware) may interrupt the beam while the door is closing.

Page 16

INSTALLING THE BRACKETS Be sure power to the opener is disconnected. Install

and align the brackets so the sensors will face each other across the garage door, with the beam no higher than 6" (15 cm) above the floor. They may be installed in one of three ways, as follows:

Garage door track installation (preferred):

• Slip the curved arms over the rounded edge of each door track, with the curved arms facing the door. Snap into place against the side of the track. It should lie flush, with the lip hugging the back edge of the track, as shown in Figure 1.

If your door track will not support the bracket securely, wall installation is recommended.

Wall installation:

• Place the bracket against the wall with curved arms facing the door. Be sure there is enough clearance for the sensor beam to be unobstructed.

• If additional depth is needed, an extension bracket or wood blocks can be used.

• Use bracket mounting holes as a template to locate and drill (2) 3/16" diameter pilot holes on the wall at each side of the door, no higher than 6" (15 cm) above the floor.

• Attach brackets to wall with lag screws.

• If using extension brackets or wood blocks, adjust right and left assemblies to the same distance out from the mounting surface. Make sure all door hardware obstructions are cleared.

Floor installation:

• Use wood blocks or extension brackets to elevate sensor brackets so the lenses will be no higher than 6" (15 cm) above the floor.

• Carefully measure and place right and left assemblies at the same distance out from the wall. Be sure all door hardware obstructions are cleared.

• Fasten to the floor with concrete anchors as shown.

Figure 1

Figure 2

Hex Bolt 1/4"-20x5/8"

Figure 3

Sensor Bracket

DOOR TRACK MOUNT (RIGHT SIDE)

Door Track

Lip

Sensor Bracket

WALL MOUNT (RIGHT SIDE)

Inside

Lens

Garage Wall

Extension Bracket

Lens

FLOOR MOUNT (RIGHT SIDE)

Indicator light

Lock Nut 1/4"-20

Indicator light

Lens

Lag Screw 1/4x1-1/2"

Lock Nut 1/4"-20

Sensor Bracket

Carriage Bolt 1/4"-20x1/2"

Wing Nut 1/4"-20

Hex Bolt 1/4"-20x5/8"

HARDWARE SHOWN ACTUAL SIZE

Staples

Lag Screw 1/4x1-1/2" (4)

Inside Garage

Wall

Lag Screw 1/4x1-1/2"

Extension Bracket

Hex Bolt 1/4"-20x5/8" (2)

Lock Nut 1/4"-20 (2)

Page 17

Invisible Light Beam Protection Area

Safety Reversing Sensor

Connect Wire to Opener Quick-Connect Terminals

Bell Wire

Finished Ceiling

Quick-Connect Terminals

3. To release or insert wire, push in tab with screwdriver tip

1. Strip wire 7/16" (11 mm)

2. Twist like colored wires together

7/16" (11mm)

Red

Grey

White

Carriage Bolt 1/4"-20x1/2"

Lens

Wing Nut 1/4"-20

SENSORS

• Slide a 1/4"-20x1/2" carriage bolt head into the slot on each sensor. Use wing nuts to fasten sensors to brackets, with lenses pointing toward each other across the door. Be sure the lens is not obstructed by a bracket extension (Figure 4).

• Finger tighten the wing nuts.

• Run the wires from both sensors to the opener. Use insulated staples to secure wire to wall and ceiling.

• Strip 7/16" (11 mm) of insulation from each set of wires. Separate white and white/black wires sufficiently to connect to the opener quick-connect terminals. Twist like colored wires together. Insert wires into quick-connect holes: white to white and white/black to grey (Figure 5).

ALIGNING THE SAFETY REVERSING SENSORS

• Plug in the opener. The indicator lights in both the sending and receiving eyes will glow steadily if wiring connections and alignment are correct.

The sending eye amber indicator light will glow regardless of alignment or obstruction. If the green indicator light in the receiving eye is off, dim, or flickering (and the invisible light beam path is not obstructed), alignment is required.

• Loosen the sending eye wing nut and readjust, aiming directly at the receiving eye. Lock in place.

• Loosen the receiving eye wing nut and adjust sensor until it receives the sender’s beam. When the green indicator light glows steadily, tighten the wing nut.

Figure 4MOUNTING AND WIRING THE SAFETY REVERSING

TROUBLESHOOTING THE SAFETY REVERSING SENSORS

1. If the sending eye indicator light does not glow steadily after installation, check for:

• Electric power to the opener.

• A short in the white or white/black wires. These can

occur at staples, or at opener connections.

• Incorrect wiring between sensors and opener.

• A broken wire.

2. If the sending eye indicator light glows steadily but the receiving eye indicator light doesn't:

• Check alignment.

• Check for an open wire to the receiving eye.

3. If the receiving eye indicator light is dim, realign either sensor.

NOTE: When the invisible beam path is obstructed or misaligned while the door is closing, the door will reverse. If the door is already open, it will not close. The opener lights will blink 10 times. (If bulbs are not installed, 10 clicks can be heard.) See page 15 .

Figure 5

Page 18

INSTALLATION STEP 11

Vertical Centerline of Garage Door

Door Bracket Location

Header Bracket

HORIZONTAL AND VERTICAL REINFORCEMENT IS NEEDED FOR LIGHTWEIGHT GARAGE DOORS (FIBERGLASS, ALUMINUM, STEEL, DOORS WITH GLASS PANEL, ETC.). (NOT PROVIDED)

Door Bracket

Vertical Centerline of Garage Door

Vertical Reinforcement

Self-Threading Screw 1/4"-14x5/8"

Door Bracket

Nut 5/16"-18

Bolt 5/16"-18x2"

Lock Washer 5/16"

Vertical Reinforcement

(Not Provided)

Vertical Centerline of Garage Door

Self-Threading Screw 1/4"-14x5/8"

Vertical Centerline of Garage Door

Inside Edge of Door or Reinforcement Board

Bolt 5/16"x2"

(Not Provided)

Vertical Centerline of Garage Door

Fasten the Door Bracket

Follow instructions which apply to your door type as illustrated below or on the following page.

A horizontal reinforcement brace should be long enough to be secured to two or three vertical supports. A vertical reinforcement brace should cover the height of the top panel.

Figure 1 shows one piece of angle iron as the horizontal brace. For the vertical brace, 2 pieces of angle iron are used to create a U-shaped support. The best solution is to check with your garage door manufacturer for an opener installation door reinforcement kit.

NOTE: Many door reinforcement kits provide for direct attachment of the clevis pin and door arm. In this case you will not need the door bracket; proceed to Step 12.

SECTIONAL DOORS

1. Center the door bracket on the previously marked vertical centerline used for the header bracket installation. Note correct UP placement, as stamped inside the bracket.

2. Position the top edge of the bracket 2"-4" (5-10 cm) below the top edge of the door, OR directly below any structural support across the top of the door.

3. Mark, drill holes and install as follows, depending on your door’s construction:

Metal or light weight doors using a vertical angle iron brace between the door panel support and the door bracket:

• Drill 3/16" fastening holes. Secure the door bracket using the two 1/4"-14x5/8" self-threading screws. (Figure 2A)

• Alternately, use two 5/16" bolts, lock washers and nuts (not provided). (Figure 2B)

Metal, insulated or light weight factory reinforced doors:

• Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure 3)

Wood Doors:

• Use top and bottom or side to side door bracket holes. Drill 5/16" holes through the door and secure bracket with 5/16"x2" carriage bolts, lock washers and nuts (not provided). (Figure 4)

NOTE: The 1/4"-14x5/8" self-threading screws are not intended for use on wood doors.

Fiberglass, aluminum or lightweight steel garage doors WILL REQUIRE reinforcement BEFORE installation of door bracket.

Contact your door manufacturer for reinforcement kit.

Figure 1

Figure 2B

Figure 2A

HARDWARE SHOWN ACTUAL SIZE

Figure 4

Figure 3

Page 19

INSTALLATION STEP 12

Connect Door Arm to Trolley

Inner Trolley

SECTIONAL DOORS ONLY

• Make sure garage door is fully closed. Pull the emergency release handle to disconnect the outer trolley from the inner trolley. Slide the outer trolley back (away from the door) about 2" (5 cm) as shown in Figures 1, 2 and 3.

• Figure 1:

– Fasten straight door arm section to outer trolley with

the 5/16"x1" clevis pin. Secure the connection with a ring fastener.

– Fasten curved section to the door bracket in the same

way, using the 5/16"x1-1/4" clevis pin.

• Figure 2:

– Bring arm sections together. Find two pairs of holes

that line up and join sections. Select holes as far apart as possible to increase door arm rigidity.

• Figure 3, Hole alignment alternative:

– If holes in curved arm are above holes in straight arm,

disconnect straight arm. Cut about 6" (15 cm) from the solid end. Reconnect to trolley with cut end down as

shown. – Bring arm sections together. – Find two pairs of holes that line up and join with bolts,

lock washers and nuts.

• Proceed to Adjustment Step 1, page 20. Trolley will

re-engage automatically when opener is operated.

Figure 1

Nuts 5/16"-18

Outer Trolley

Ring Fastener

Door Bracket

Clevis Pin 5/16"x1-1/4"

Lock Washers 5/16"

Curved Door Arm

Straight Door Arm

Emergency Release Handle

Clevis Pin 5/16"x1"

HARDWARE SHOWN ACTUAL SIZE

Nut 5/16"-18

Clevis Pin 5/16"x1" (Trolley)

Lock Washer 5/16"

Clevis Pin 5/16"x1-1/4" (Door Bracket)

Ring Fastener

Hex Bolt 5/16"-18x7/8"

Figure 2

Figure 3

Door Bracket

Nuts 5/16"-18

Lock Washers 5/16"

Cut This End

Bolts 5/16"-18x7/8"

Page 20

ADJUSTMENT STEP 1

Adjust the UP and DOWN Travel Limits

Limit adjustment settings regulate the points at which the door will stop when moving up or down.

To operate the opener, press the Door Control push bar. Run the opener through a complete travel cycle.

• Does the door open and close completely?

• Does the door stay closed and not reverse unintentionally when fully closed?

If your door passes both of these tests, no limit adjustments are necessary unless the reversing test fails (Adjustment Step 3, page 22).

Adjustment procedures are outlined below. Read the procedures carefully before proceeding to Adjustment Step

2. Use a screwdriver to make limit adjustments. Run the

opener through a complete travel cycle after each adjustment.

NOTE: Repeated operation of the opener during adjustment procedures may cause the motor to overheat and shut off. Simply wait 15 minutes and try again.

NOTE: If anything interferes with the door’s upward travel, it will stop. If anything interferes with the door’s downward travel (including binding or unbalanced doors), it will reverse.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Incorrect adjustment of garage door travel limits will interfere with proper operation of safety reversal system.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on floor.

To prevent damage to vehicles, be sure fully open door provides adequate clearance.

Cover Protection Bolt

2-4"

(5-10 cm)

Left Side Panel

HOW AND WHEN TO ADJUST THE LIMITS

• If the door does not open completely but opens at least five feet (1.5 m):

Increase up travel. Turn the UP limit adjustment screw

clockwise. One turn equals 3" (7.5 cm) of travel.

NOTE: To prevent the trolley from hitting the cover

protection bolt, keep a minimum distance of 2-4" (5-10 cm) between the trolley and the bolt.

• If door does not open at least 5 feet (1.5 m):

Adjust the UP (open) force as explained in Adjustment

Step 2.

• If the door does not close completely:

Increase down travel. Turn the down limit adjustment

screw counterclockwise. One turn equals 3" (7.5 cm) of travel.

If door still won't close completely and the trolley bumps

into the pulley bracket, try lengthening the door arm (page 19) and decreasing the down limit.

• If the opener reverses in fully closed position:

Decrease down travel. Turn the down limit adjustment

screw clockwise. One turn equals 3" (7.5 cm) of travel.

Limit Adjustment Screws

ADJUSTMENT LABEL

• If the door reverses when closing and there is no visible interference to travel cycle:

If the opener lights are flashing, the Safety Reversing

Sensors are either not installed, misaligned, or obstructed. See Troubleshooting, page 17.

Test the door for binding: Pull the emergency release

handle. Manually open and close the door. If the door is binding or unbalanced, call for a trained door systems technician. If the door is balanced and not binding, adjust the DOWN (close) force. See Adjustment Step 2.

Page 21

ADJUSTMENT STEP 2

FORCE ADJUSTMENT LABEL

Antenna

Open Force

Close Force

Right Panel

Force Adjustment Controls

Adjust the Force

Force adjustment controls are located on the right side panel of the motor unit. Force adjustment settings regulate the amount of power required to open and close the door.

If the forces are set too light, door travel may be interrupted by nuisance reversals in the down direction and stops in the up direction. Weather conditions can affect the door movement, so occasional adjustment may be needed.

The maximum force adjustment range is about 3/4 of a complete turn. Do not force controls beyond that point. Turn force adjustment controls with a screwdriver.

NOTE: If anything interferes with the door’s upward travel, it will stop. If anything interferes with the door’s downward travel (including binding or unbalanced doors), it will reverse.

HOW AND WHEN TO ADJUST THE FORCES

1. Test the DOWN (close) force

• Grasp the door bottom when the door is about halfway through DOWN (close) travel. The door should reverse.

Reversal halfway through down travel does not guarantee reversal on a 1-1/2" (3.8 cm) obstruction. See Adjustment Step 3, page 22. If the door is hard to

hold or doesn't reverse, DECREASE the DOWN (close) force by turning the control counterclockwise. Make small adjustments until the door reverses normally. After each adjustment, run the opener through a complete cycle.

• If the door reverses during the down (close) cycle and the opener lights aren't flashing, INCREASE

DOWN (close) force by turning the control clockwise. Make small adjustments until the door completes a close cycle. After each adjustment, run the opener through a complete travel cycle. Do not increase the force beyond

the minimum amount required to close the door.

2. Test the UP (open) force

• Grasp the door bottom when the door is about halfway through UP (open) travel. The door should stop. If the door is hard to hold or doesn't stop, DECREASE UP (open) force by turning the control counterclockwise. Make small adjustments until the door stops easily and opens fully. After each adjustment, run the opener through a complete travel cycle.

• If the door doesn’t open at least 5 feet (1.5 m),

INCREASE UP (open) force by turning the control clockwise. Make small adjustments until door opens completely. Readjust the UP limit if necessary. After each adjustment, run the opener through a complete travel cycle.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Too much force on garage door will interfere with proper operation of safety reversal system.

• NEVER increase force beyond minimum amount required to close garage door.

• NEVER use force adjustments to compensate for a binding or sticking garage door.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on floor.

Page 22

ADJUSTMENT STEP 3

Test the Safety Reversal System

TEST

• With the door fully open, place a 1-1/2" (3.8 cm) board (or a 2x4 laid flat) on the floor, centered under the garage door.

• Operate the door in the down direction. The door must reverse on striking the obstruction.

ADJUST

• If the door stops on the obstruction, it is not traveling far enough in the down direction. Increase the DOWN limit by turning the DOWN limit adjustment screw counterclockwise 1/4 turn.

NOTE: On a sectional door, make sure limit adjustments

do not force the door arm beyond a straight up and down position. See the illustration on page 19.

• Repeat the test.

• When the door reverses on the 1-1/2" (3.8 cm) board, remove the obstruction and run the opener through 3 or 4 complete travel cycles to test adjustment.

• If the unit continues to fail the Safety Reverse Test, call for a trained door systems technician.

Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

• Safety reversal system MUST be tested every month.

• If one control (force or travel limits) is adjusted, the other control may also need adjustment.

• After ANY adjustments are made, the safety reversal system MUST be tested. Door MUST reverse on contact with 1-1/2" high (3.8 cm) object (or 2x4 laid flat) on the floor.

IMPORTANT SAFETY CHECK:

Test the Safety Reverse System after:

• Each adjustment of door arm length, limits, or force controls.

• Any repair to or adjustment of the garage door (including springs and hardware).

• Any repair to or buckling of the garage floor.

• Any repair to or adjustment of the opener.

ADJUSTMENT STEP 4

Test The Protector System

• Press the remote control push button to open the door.

• Place the opener carton in the path of the door.

• Press the remote control push button to close the door. The door will not move more than an inch (2.5 cm), and the opener lights will flash.

The garage door opener will not close from a remote if the indicator light in either sensor is off (alerting you to the fact that the sensor is misaligned or obstructed).

If the opener closes the door when the safety reversing sensor is obstructed (and the sensors are no more than 6" [15 cm] above the floor), call for a trained door systems technician.

1-1/2" (3.8 cm) board (or a 2x4 laid flat)

Without a properly installed safety reversing sensor, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door.

Safety Reversing Sensor

Page 23

OPERATION

WARNING

WARNINGWARNING

To reduce the risk of SEVERE INJURY or DEATH:

IMPORTANT SAFETY INSTRUCTIONS

1. READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS.

2. ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with garage door control push buttons or remote controls.

3. ONLY activate garage door when it can be seen clearly, it is properly adjusted, and there are no obstructions to door travel.

4. ALWAYS keep garage door in sight until completely closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

5. NO ONE SHOULD GO UNDER A STOPPED, PARTIALLY OPEN DOOR.

6. If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.

7. NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

Using Your Garage Door Opener

Your Security✚® opener and hand-held remote control have been factory-set to a matching code which changes with each use, randomly accessing over 100 billion new codes. Your opener will operate with up to eight Security✚® remote controls and one Security✚® Keyless Entry System. If you purchase a new remote, or if you wish to deactivate any remote, follow the instructions in the Programming section.

Activate your opener with any of the following:

• The hand-held Remote Control: Hold the large push button down until the door starts to move.

• The wall-mounted Door Control: Hold the push button or bar down until the door starts to move.

• The Keyless Entry (see Accessories): If provided with your garage door opener, it must be programmed before use. See Programming.

When the opener is activated (with the safety reversing sensor correctly installed and aligned):

1. If open, the door will close. If closed, it will open.

2. If closing, the door will reverse.

3. If opening, the door will stop.

4. If the door has been stopped in a partially open position, it will close.

5. If obstructed while closing, the door will reverse. If the obstruction interrupts the sensor beam, the opener lights will blink for five seconds.

8. NEVER use handle to pull garage door open or closed. If rope knot becomes untied, you could fall.

9. If one control (force or travel limits) is adjusted, the other control may also need adjustment.

10. After ANY adjustments are made, the safety reversal

system MUST be tested.

11. Safety reversal system MUST be tested every month.

Garage door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor.

12. ALWAYS KEEP GARAGE DOOR PROPERLY BALANCED

(see page 3). An improperly balanced door may not reverse when required and could result in SEVERE INJURY or DEATH.

13. ALL repairs to cables, spring assemblies and other

hardware, all of which are under EXTREME tension, MUST be made by a trained door systems technician.

14. ALWAYS disconnect electric power to garage door

opener BEFORE making any repairs or removing covers.

15.

SAVE THESE INSTRUCTIONS.

6. If obstructed while opening, the door will stop.

7. If fully open, the door will not close when the beam is broken. The sensor has no effect in the opening cycle.

If the sensor is not installed, or is misaligned, the door won’t close from a hand-held remote. However, you can close the door with the Door Control, the Outside Keylock, or Keyless Entry, if you activate them until down travel is complete. If you release them too soon, the door will reverse.

The opener lights will turn on under the following conditions: when the opener is initially plugged in; when power is restored after interruption; when the opener is activated.

They will turn off automatically after 4-1/2 minutes or provide constant light when the Light feature on the Smart Control Panel™ is activated. Bulb size is A19. Bulb power is 100 watts maximum.

✚

Security

someone walks through the open garage door. With a Smart Control Panel™, this feature may be turned off as follows: With the opener lights off, press and hold the light button for 10 seconds, until the light goes on, then off again. To restore this feature, start with the opener lights on, then press and hold the light button for 10 seconds until the light goes off, then on again.

light feature: Lights will also turn on when

Page 24

Using the Wall-Mounted

Motion Sensing

On/Off

Prog <Learn>

Hour

Minute

Language

Degrees (F/C)

Lock Button

Light Button

Push Bar

LOCK

LIGHT

LOCK

H M

Door Control

THE SMART CONTROL PANEL™

Press the push bar to open or close the door. Press again to reverse the door during the closing cycle or to stop the door while it's opening.

This door control contains a motion sensing detector that will automatically turn on the light when it detects a person entering the garage.

Light feature

Press the Light button to turn the opener light on

or off. It will not control the opener lights when the door is in motion. If you turn it on and then activate the opener, the light will remain on for 4-1/2 minutes. Press again to turn it off sooner. The 4-1/2 minute interval can be changed to 1-1/2, 2-1/2, or 3-1/2 minutes as follows: Press and hold the Lock button until the light blinks (about 10 seconds). A single blink indicates that the timer is reset to 1-1/2 minutes. Repeat the procedure and the light will blink twice, resetting the timer to 2-1/2 minutes. Repeat again for a 3-1/2 minute interval, etc., up to a maximum of four blinks and 4-1/2 minutes.

When using the opener lights as working lights, we recommend that you first disable the motion sensor. See Automatic Light Feature, below.

(PROG) Learn Feature

The door control is equipped with a PROG <LEARN> button to assist in learning remote controls to the unit. Press the PROG <LEARN> button once to initiate LEARN mode and the display will show ‘Learn Remote Control Press Learn Button Again to Confirm’. Press the PROG <LEARN> button a second time and the display will show ‘Learn Mode - Press Remote Control Button to Learn Remote.’ Press the button of the remote control to be learned and the worklight will blink to confirm the remote control has been learned.

Hour & Minute Feature

Press or hold either of these side buttons to increment the hour or minute displayed on the LCD display.

(LANG) Language Feature

Press this side button to toggle between the three languages - English, French and Spanish.

Degrees F/C Feature

Press this side button to toggle the temperature

units between Fahrenheit and Celsius.

Display Contrast Adjustment

Press and hold the light button then push the hour button to increase the contrast or the minute button to decrease the contrast.

Motion Sensing (Automatic Light Feature): The opener light will turn on automatically when a person enters the garage. When a person walks in front of the door control, the light will come on for five minutes, then shut off. This feature works by detecting body heat.

sensor when using the opener lights as working lights. Otherwise, they will turn off automatically if you are working beyond the sensors range.

hand-held remote controls. However, the door will open and close from the Door Control, the Outdoor Key Switch and the Keyless Entry Accessories.

To activate, press and hold the Lock button for 2 seconds. To turn off, press and hold the Lock button again for

2 seconds. The Lock feature will also turn off whenever the “learn” button on the motor unit panel is activated.

To disable this feature, push the motion sensing button on the side of the door control.

We recommend that you disable the motion

Lock feature

Designed to prevent operation of the door from

Page 25

Using the Remote Control

Proximity Battery

LED and Opener Batteries

Spring Contact

NOTE: To activate the remote control functions, pull out the plastic pull tab protruding from the remote control housing.

This remote control is equipped with a proximity lighting feature. When moving a hand within close proximity to the remote control, the LED lights turn on for 3 seconds. Upon successful activation of a remote control button, the LED lights will blink rapidly.

Proximity Disable Feature

The remote control will turn off the proximity lighting feature if the proximity lighting is turned on 10 consecutive times without activation of a button. To re-enable the proximity lighting, simply press a button. This function conserves battery life.

To Control the Opener Lights

With 315MHz Security✚ button can be programmed to operate the opener lights without opening the door.

1. With the door closed, press and hold the remote button that you want to control the light.

2. Press and hold the Light button on the multi-function control panel.

3. Press and hold the Lock button on the multi-function control panel.

4. After the opener lights flash, release all buttons.

Test by pressing the remote push button. The opener lights should turn on or off but the door should not move.

remote controls, a remote push

The Remote Control Batteries

To prevent possible SERIOUS INJURY or DEATH:

• NEVER allow small children near batteries.

• If battery is swallowed, immediately notify doctor. To reduce risk of fire, explosion or chemical burn:

• Replace ONLY with 3V2016 or 3V2450 coin batteries.

• Do NOT recharge, disassemble, heat above 212°F (100°C ) or incinerate.

The 3V2016 lithium batteries for the opener and LED lights (marked “LED and Opener Battery”) should last 5 years. The 3V2450 lithium battery for the proximity lighting (marked “Proximity Battery”) should last 1-2 years.

To replace the batteries, remove the two screws and open the remote control housing. Push the battery out of the holder for removal. Insert replacement batteries positive side up (+).

Dispose of old batteries properly. Replace the batteries with only 3V2016 or 3V2450 coin

cell batteries.

CAUTION: Do not bend spring contact. If bent, the proximity sensor will not work.

Troubleshooting

PROBLEM

Reduced proximity sensing (does not activate by touching top of remote control)

Dim LED lights

No rapid LED blinking after pressing a button

SOLUTION

Check if proximity lighting is disabled by pressing a button.

The Proximity Sensor may be oversensitized. Sit remote control undisturbed for 60 seconds on a non-metallic surface. This allows the sensor to recalibrate itself.

Replace 3V2450 battery with same type 3V2450 coin cell.

Replace two 3V2016 batteries with same type 3V2016 coin cells.

NOTICE: To comply with FCC and or Industry Canada (IC) rules, adjustment or modifications of this receiver and/or transmitter are prohibited, except for changing the code setting or replacing the battery. THERE ARE NO OTHER USER SERVICEABLE PARTS.

Tested to Comply with FCC Standards FOR HOME OR OFFICE USE. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Page 26

To Open the Door Manually

To prevent possible SERIOUS INJURY or DEATH from a falling garage door:

• NEVER use emergency release handle unless garage doorway is clear of persons and obstructions.

• NEVER use handle to pull door open or closed. If rope knot becomes untied, you could fall.

The door should be fully closed if possible. Pull down on the emergency release handle and lift the door manually. To reconnect the door to the opener, press the door control push bar.

The lockout feature prevents the trolley from reconnecting

Emergency Release Handle (Pull Down)

MANUAL DISCONNECT

POSITION

NOTICE

Trolley Release Arm

automatically. Pull the emergency release handle down and back (toward the opener). The door can then be raised and lowered manually as often as necessary.

Trolley Release Arm

To disengage the lockout feature, pull the handle straight down. The trolley will reconnect on the next UP or DOWN operation, either manually or by using the door

Emergency Release Handle (Down and Back)

LOCKOUT POSITION

NOTICE

control or remote.

CARE OF YOUR GARAGE DOOR OPENER

LIMIT AND FORCE ADJUSTMENTS:

Weather conditions may cause some minor changes in door operation requiring some readjustments, particularly during the first year of operation.

Pages 20 and 21 refer to the limit and force adjustments. Only a screwdriver is required. Follow the instructions carefully.

Repeat the safety reverse test (Adjustment Step 3, page 22) after any adjustment of limits or force.

FORCE CONTROLS

LIMIT CONTROLS

MAINTENANCE SCHEDULE

Once a Month

• Manually operate door. If it is unbalanced or binding, call a trained door systems technician.

• Check to be sure door opens and closes fully. Adjust limits and/or force if necessary. (See pages 20 and 21.)

• Repeat the safety reverse test. Make any necessary adjustments. (See Adjustment Step 3.)

Twice a Year

• Check chain tension. Disconnect trolley first. Adjust if necessary (See page 7).

Once a Year

• Oil door rollers, bearings and hinges. The opener does not require additional lubrication. Do not grease the door tracks.

Having a Problem?

1. The opener doesn't operate from either the Door

Control or the remote control:

• Does the opener have electric power? Plug a lamp into

the outlet. If it doesn't light, check the fuse box or the circuit breaker. (Some outlets are controlled by a wall switch.)

• Have you disabled all door locks? Review installation

instruction warnings on page 7.

• Is there a build-up of ice or snow under the door? The

door may be frozen to the ground. Remove any restriction.

• The garage door spring may be broken. Have it

replaced.

• Repeated operation may have tripped the overload

protector in the motor. Wait 15 minutes and try again.

2. Opener operates from the remote, but not from the

Door Control:

• Is the door control lit? If not, reverse the wires. If the

opener runs, check for a faulty wire connection at the door control, a short under the staples, or a broken wire.

• Are the wiring connections correct? Review Installation

Step 6, page 12.

3. The door operates from the Door Control, but not

from the remote control:

• Is the door push bar flashing? If your model has the

Lock feature, make sure it is off.

• Program the opener to match the remote control code.

(Refer to instructions on the motor unit panel.) Repeat with all remotes.

4. The remote control has short range:

• Change the location of the remote control in your car.

• Check to be sure the antenna on the side or back panel

of motor unit extends fully downward.

• Some installations may have shorter range due to a

metal door, foil backed insulation, or metal garage siding.

Page 27

Having a Problem? (Continued)

5. Opener noise is disturbing in living quarters of home:

• If operational noise is a problem because of proximity of

the opener to the living quarters, the Vibration Isolator Kit 89LM can be installed. This kit was designed to minimize vibration to the house and is easy to install.

6. The garage door opens and closes by itself:

• Be sure that all remote control push buttons are off.

• Remove the bell wire from the door control terminals

and operate from the remote only. If this solves the problem, the door control is faulty (replace), or there is an intermittent short on the wire between the door control and the motor unit.

• Clear memory and re-program all remote controls.

7. The door doesn't open completely:

• Is something obstructing the door? Is it out of balance,

or are the springs broken? Remove the obstruction or repair the door.

• I f the door is in good working order but now doesn't

open all the way, increase the up force. See Adjustment

Step 2.

• If the door opens at least 5 feet, the travel limits may

need to be increased. One turn equals 3" (7.5 cm) of travel. See Adjustment Step 1.

Repeat the safety reverse test after the adjustment is complete.

8. The door stops but doesn't close completely:

• Review the travel limits adjustment procedures on page

20.

Repeat the safety reverse test after any adjustment of door arm length, close force or down limit.

9. The door opens but won't close:

• If the opener lights blink, check the safety reversing

sensor. See Installation Step 10.

• If the opener lights don’t blink and it is a new

installation, check the down force. See Adjustment Step

2. For an existing installation, see below.

Repeat the safety reverse test after the adjustment is complete.

10. The door reverses for no apparent reason and

opener lights don’t blink:

• Is something obstructing the door? Pull the emergency

release handle. Operate the door manually. If it is unbalanced or binding, call a trained door systems technician.

• Clear any ice or snow from the garage floor area where

the door closes.

• Review Adjustment Step 2.

• If door reverses in the fully closed position, decrease the

travel limits (Adjustment Step 1).

Repeat safety reverse test after adjustments to force or travel limits. The need for occasional adjustment of the force and limit settings is normal. Weather conditions in particular can affect door travel.

11. The door reverses for no apparent reason and opener lights blink for 5 seconds after reversing:

• Check the safety reversing sensor. Remove any

obstruction or align the receiving eye. See Installation

Step 10.

12. The opener lights don't turn on:

• Replace the light bulbs (100 watts maximum). Use a

standard neck garage door opener bulb if regular bulb burns out.

13. The opener lights don't turn off:

• Is the Light feature on? Turn it off.

14. The opener strains or maximum force is needed to operate door:

• The door may be out of balance or the springs may be

broken. Close the door and use the emergency release handle to disconnect the trolley. Open and close the door manually. A properly balanced door will stay in any point of travel while being supported entirely by its springs. If it does not, disconnect the opener and call a trained door systems technician. Do not increase the

force to operate the opener.

15. The opener motor hums briefly, then won't work:

• The garage door springs may be broken. See above.

• If the problem occurs on the first operation of the

opener, door may be locked. Disable the door lock.

Repeat the safety reverse test after the adjustment is complete.

16. The opener won't operate due to power failure:

• Use the emergency release handle to disconnect the

trolley. The door can be opened and closed manually. When power is restored, press the Door Control push bar and trolley will automatically reconnect (unless trolley is in lockout position.) See page 26.

• The Outside Quick Release accessory (for use on

garages with no service door) disconnects the trolley from outside the garage in case of power failure.

17. The chain droops or sags:

• It is normal for the chain to droop slightly in the closed

door position. Use the emergency release rope and handle to disconnect the trolley. If the chain returns to the normal height when the trolley is disengaged, and the door reverses on a 2x4 laid flat, no adjustments are needed. (See page 7.)

Page 28

Smart Control Panel™ Messages

The following messages are contained within the Smart Control Panel™ and may appear during the operations of the unit:

Message

SAFETY SENSORS CHECK ALIGNMENT, BLOCKAGE OR MISWIRING. SEE OWNER’S MANUAL.

Message

SAFETY SENSORS MALFUNCTION. CHECK MISWIRING. SEE OWNER’S MANUAL.

Message

LEARN REMOTE CONTROL. PRESS LEARN BUTTON TO CONFIRM.

Meaning: This message will appear if the Safety Reversing Sensors are out of alignment, if they are blocked or if the wiring is disconnected. To clear message from Door Control do the following:

• Check to see that area is clear between the Safety Reversing Sensors.

• Check to see that the Safety Reversing Sensors are not misaligned.

• Realign receiving eye sensor, clean lens and secure brackets.

• Verify door track is firmly secured to wall and does not move.

• Check to see that the Safety Reversing Sensors’ wires are connected to the motor unit.

• If message has not cleared after the above checks, refer to message #2.

Meaning: This message will appear if the Safety Reversing Sensors are miswired. To clear the message, do the following:

• Inspect the safety sensor wires for a short (staple in wire), correct wiring polarity (black/ white wires reversed), replace/attach as needed.

• Disconnect all wires from back of motor unit.

• Remove safety sensors from brackets and shorten sensor wires to 1-2 ft. (30-60 cm) from back of each sensor.

• Reattach sending eye to motor unit using shortened wires. If sending eye indicator light glows steadily, attach the receiving eye.

• Align sensors, if the indicator lights glow replace the wires for the sensors. If the sensor indicator lights do not light, replace the safety sensors.

Meaning: This message will appear when the Prog <LEARN> button has been pressed on the Door Control. Pressing the Prog <LEARN> button again will allow the user to program an additional remote control to the opener.

Message

LEARN MODE. PRESS REMOTE CONTROL BUTTON TO PROGRAM REMOTE.

Message

LOCK MODE. REMOTE CONTROL LOCKED OUT. PRESS LOCK BUTTON TO ENABLE REMOTE.

Message

ENGLISH, FRANÇAIS AND ESPAÑOL.

Message

MOTION SENSING ON, MOTION SENSING OFF.

Meaning: This message will appear when the Prog <learn> button has been pressed a second time on the Door Control or anytime on the opener. The opener is ready to program another remote control by simply pressing the remote control button. Once the opener has ‘LEARNED’ the remote control, the worklight will blink one time.

Meaning: This message will appear when the ‘Lock’ button has been pressed and held for more than one second. This feature will disable the opener from receiving remote control signals. To exit ‘LOCK’ mode, press and hold the button for more than one second.

Meaning: This message will appear when the ‘Language’ button has been pressed. Pressing the button will toggle to the next language.

Meaning: This message will appear when the ‘MOTION SENSING’ button is pressed. The Motion Detector will toggle on or off with each press of the button.

Page 29

PROGRAMMING

7 5

LOCK

LIGHT

LOCK

LIGHT

NOTICE: If this Security the receiver of the garage door opener, which provides security against code-theft devices, will be circumvented. The owner of the copyright in the garage door opener does not authorize the purchaser or supplier of the non-rolling code transmitter to circumvent that technical measure.

Your garage door opener has already been programmed at the factory to operate with your hand-held remote control. The door will open and close when you press the large push button.

Below are instructions for programming your opener to operate with additional Security✚® remote controls.

USING THE “LEARN” BUTTON USING THE SMART CONTROL PANEL™

✚

garage door opener is operated with a non-rolling code transmitter, the technical measure in

To Add or Reprogram a Hand-held Remote Control

1. Press and release the “learn” button on the motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within 30 seconds, press and hold the button on the hand-held remote

* that

you wish to operate your garage door.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To Erase All Codes From Motor Unit

Memory

To deactivate any unwanted remote, first erase all codes:

Press and hold the “learn” button on motor unit until the learn indicator light goes out (approximately 6 seconds). All previous codes are now erased. Reprogram each remote or keyless entry you wish to use.

1. Press the Prog <Learn> button on the Smart Control Panel™.

2. Press the Prog <Learn> button again to confirm Learn Mode.

3. Press the button on the hand-held remote that you wish to operate your garage door.

4. When the motor unit lights blink, it has learned the code. If light bulbs are not installed, two clicks will be heard.

*3-Button Remotes

If provided with your garage door opener, the large button is factory programmed to operate it. Additional buttons on any

Security✚® 3-Button

remote or compact remote can be programmed to operate other garage door openers.

Security✚®

Page 30

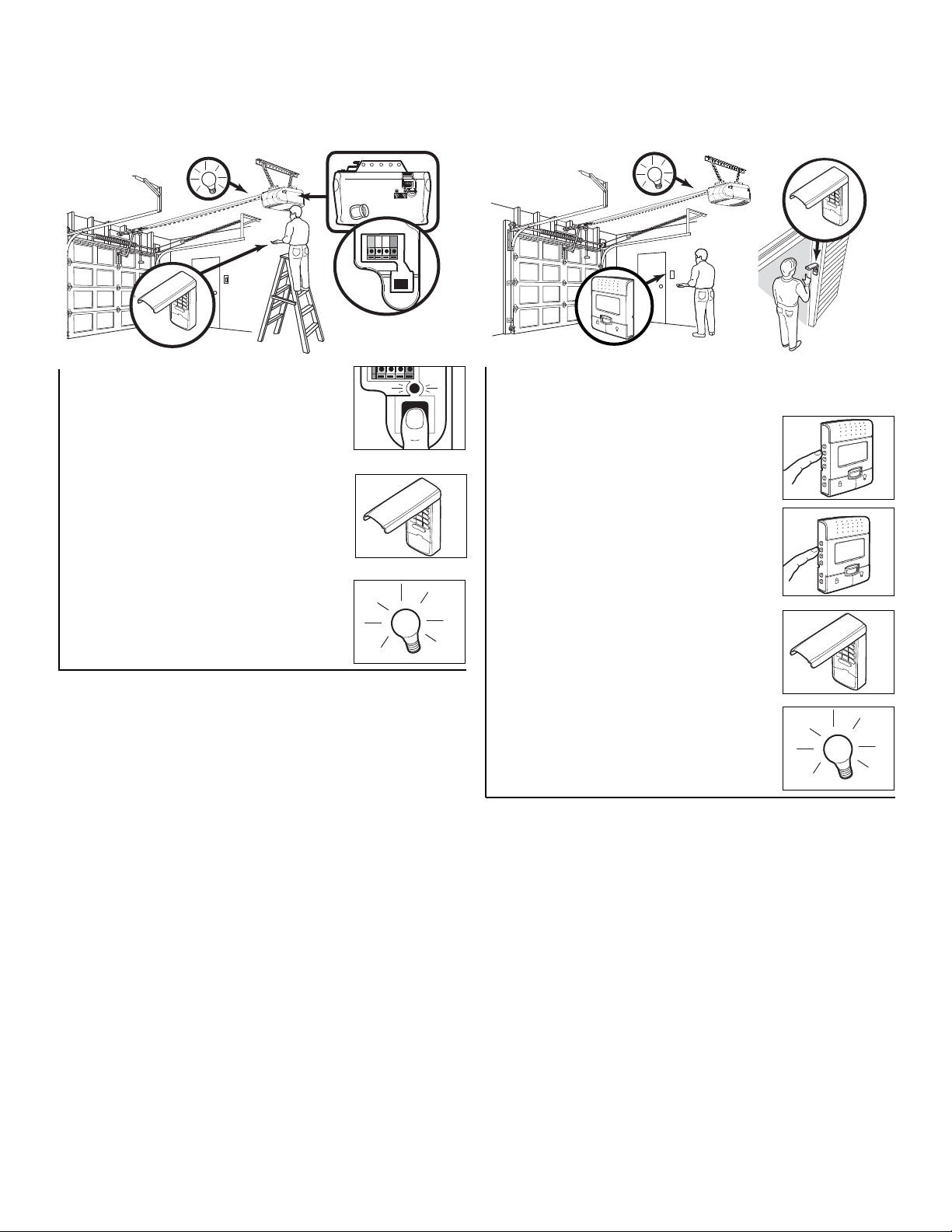

To Add, Reprogram or Change a Keyless Entry PIN

LOCK

LIGHT

LOCK

LIGHT

NOTE: Your new Keyless Entry must be programmed to operate your garage door opener.

USING THE “LEARN” BUTTON USING THE SMART CONTROL PANEL™

1. Press and release the “learn” button on motor unit. The learn indicator light will glow steadily for 30 seconds.

2. Within 30 seconds, enter a four digit personal identification number (PIN) of your choice on the keypad. Then press and hold the ENTER button.

3. Release the button when the motor unit lights blink. It has learned the code. If light bulbs are not installed, two clicks will be heard.

To change an existing, known PIN

If the existing PIN is known, it may be changed by one person without using a ladder.

1. Press the four buttons for the present PIN, then press and hold the # button.

The opener light will blink twice. Release the # button.

2. Press the new 4-digit PIN you have chosen, then press Enter.

The motor unit lights will blink once when the PIN has been learned.

Test by pressing the new PIN, then press Enter. The door should move.

To set a temporary PIN

You may authorize access by visitors or service people with a temporary 4-digit PIN. After a programmed number of hours or number of accesses, this temporary PIN expires and will no longer open the door. It can be used to close the door even after it has expired. To set a temporary PIN:

1. Press the four buttons for your personal entry PIN (not the last temporary PIN), then press and hold the ✽ button.

The opener light will blink three times. Release the button.

NOTE: This method requires two people if the Keyless Entry is already mounted outside the garage.

1. Press the Prog <Learn> button on the Smart Control Panel™.

LIGHT

LOCK

2. Press the Prog <Learn> button again to confirm Learn Mode.

3. Enter a four digit personal identification number (PIN) of your choice on the keypad. Then press enter.

4. When the motor unit lights blink, it has learned the code. If light bulbs are not installed, two clicks will be heard.

2. Press the temporary 4-digit PIN you have chosen, then press Enter.

The opener light will blink four times.

3. To set the number of hours this temporary PIN will work,

press the number of hours (up to 255), then press ✽.

3. To set the number of times this temporary PIN will work,

press the number of times (up to 255), then press #.

The opener light will blink once when the temporary PIN has been learned.

Test by pressing the four buttons for the temporary PIN, then press Enter. The door should move. If the temporary PIN was set to a certain number of openings, remember that the test has used up one opening.To clear the temporary password, repeat steps 1-3, setting the number of hours or times to 0 in step 3.

One Button Close: Opener can be closed by pressing only the ENTER button if the one button close feature has been activated. This feature has been activated at the factory. To activate or deactivate this feature press and hold buttons 1 and 9 for 10 seconds. The keypad will blink twice when the one button close is active. The keypad will blink four times when one button close is deactivated.

Page 31

REPAIR PARTS

Rail Assembly Parts

KEY PART

NO. NO. DESCRIPTION

1 4A1008 Master link kit 2 41A2780 Chain pulley bracket 3 41A3489 Complete trolley assembly 4 3707CH 7' (2.1 m) Rail assembly 3708CH 8' (2.4 m) Rail assembly 3710CH 10' (3 m) Rail assembly 5 41D3484 7' (2.1 m) Chain assembly 41D3483 8' (2.4 m) Chain assembly 41D3485 10' (3 m) Chain assembly 6 83A11-2 Rail grease

Installation Parts

LOCK

LIGHT

NOTICE

CEILING MOUNT ONLY

KEY PART NO. NO. DESCRIPTION

1 398LM Smart Control Panel™ 2 373P 3-button remote control 3 10A19 3V2016 lithium battery: Led and opener 4 10A33 3V2450 lithium battery: Proximity switch 5 29C151 Remote control visor clip 6 41A2828 Emergency release rope & handle assy. 7 41B4494-1 2-Conductor bell wire, white & white/red 8 41A5047 Door bracket w/clevis pin & fastener 9 41A4353 Header bracket w/clevis pin & fastener 10 41A5034 Safety sensor kit (receiving and sending

eyes) with 3' (.9 m) 2-conductor bell wire 11 178B34 Straight door arm section 12 178B35 Curved door arm section 13 41A5266-1 Safety sensor brackets (2) 14 41A5281 Extension brackets (2)

NOT SHOWN

41A2770-8 Installation hardware bag

(includes hardware listed on page 5). 114A3617 Owner's manual 114A3617SP Owner’s manual - Spanish

Page 32

Motor Unit Assembly Parts

Brown Wire

Drive Gear

(Down) Contact

Center Limit Contact

LIMIT SWITCH ASSY.

(Up) Contact

Grey Wire

Yellow Wire

KEY PART NO. NO. DESCRIPTION

1 41C5069 Chassis support bracket assy. kit 2 41A4208-2 Chain spreader 3 41A5658 Gear and sprocket assembly

Complete with: Spring washer, thrust washer, retaining ring, bearing plate, roll pins (2), drive gear and worm gear, helical gear w/retainer and grease

4 41A2817 Drive/worm gear kit w/grease,

roll pins (2) 5 41B4245-1 Line cord 6 41A5484 End panels w/all labels 7 4A1344 Light socket 8 108D79 Lens 9 30B652 Capacitor 10 41A3150 Terminal block w/screws 11 81C253 Limit switch drive & retainer 12 41A5640 Limit switch assembly

KEY PART NO. NO. DESCRIPTION

13 41D5563-1 Universal replacement motor &

14 41A5633-13 Cover 15 41A5532 Gear case 16 41A2822-1 Interrupter cup assembly 17 41C4398A RPM sensor assembly 18 41AC075-2S Receiver logic board assy.

19 41C5657 High voltage wire harness 41C6661 Low voltage wire harness

20 41D180-1 End panel w/all labels

NOT SHOWN

41A2826 Motor shaft bearing kit 41A2825 Opener assembly hardware kit

bracket assembly Complete with: Motor, worm, bracket, gear case, bearing assembly, RPM sensor

Complete with: Logic board, end panel w/all labels, light socket

(includes screws not designated by a number in illustration)

Page 33

CLOSED

OPEN

GHT

ACCESSORIES

1702LM Outside Quick Release:

Required for a garage with NO access door. Enables homeowner to open garage door manually from outside by disengaging trolley.

377LM

Wireless Keyless Entry with Security✚®:

Enables homeowner to operate garage door opener from outside by entering a password on a specially designed keyboard. Also can add a temporary password for visitors or service persons. This temporary password can be limited to a programmable number of hours or entries.

41A5281

Extension Brackets:

(Optional) For safety reversing sensor installation onto the wall or floor.

78LM

Multi-Function Door Control Panel:

Provides a lock feature which prevents operation of garage door opener from portable remotes and a light feature for constant light.

902LM/903LM

2 & 3 Door Multi-Function Wall Control:

Ideal for homes with up to three garage doors. Combine up to three controls into one wall control panel for a neat compact appearance. Enhanced functions include Lock Feature to lock out outside radio signals while you are away from home and turn opener lights on or off from the control panel.

373P

Security✚® 3-Button Remote Control:

Includes visor clip.

371LM

Single-Button Security✚® Remote Control:

Includes visor clip.

373W

Designer Burled Walnut 3-Button Remote Control with Security✚®:

Includes visor clip.

915LM

Garage Door Monitor:

Security for the largest door of your home!

Tells you if your garage door is open or closed. Monitors up to 4 garage doors by adding additional sensor modules.

916LM Garage Door Monitor Sensor:

Additional accessory sensor for homes with multiple garage doors.

395LM Remote Light Control:

Enables homeowner to turn on a lamp, television or other appliance from their car with their garage door opener remote or from anywhere in their home with an additional LiftMaster Security✚® remote.

975LM

Laser Park Assist:

Laser enables homeowners to precisely park vehicles in the garage.

990LM

Surge Protector:

The Garage Door Opener Surge Protector is designed to protect LiftMaster

garage door openers against damage from lightning and power surges.

370LM

3-Button Mini-Remote Control with Security✚®:

With key ring and fastening strip.

379LM-10

Fingerprint Keyless Entry:

The system uses biometric technology that enables an authorized user to gain access by scanning their fingerprint. The sensor strip on the unit makes a numeric template of the fingerprint that is unique to that user. The unit’s memory can store up to four fingerprints.

ENROLL

SEND

ENROLL

FAIL

PASS

RETRY

READY

Page 34

NOTES

Page 35

NOTES

Page 36

LIFTMASTER® SERVICE IS

ON CALL

OUR LARGE SERVICE ORGANIZATION

SPANS AMERICA

INSTALLATION AND SERVICE INFORMATION IS AS NEAR

AS YOUR TELEPHONE. SIMPLY DIAL OUR TOLL FREE

NUMBER:

1-800-528-9131

www.liftmaster.com

HOW TO ORDER

REPAIR PARTS

Selling prices will be furnished on request or parts will be

shipped at prevailing prices and you will be billed accordingly.

WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOWING INFORMATION:

• PART NUMBER

• PART NAME

• MODEL NUMBER ADDRESS ORDERS TO:

THE CHAMBERLAIN GROUP, INC.

Technical Support Group

6050 S. Country Club Road

Tucson, Arizona 85706

For professional installation, parts and service, contact your local LIFTMASTER/CHAMBERLAIN dealer. Look for him in the Yellow Pages, or call our Service number for a list of dealers in your area.

SERVICE INFORMATION

TOLL FREE NUMBER:

1-800-528-9131

LIFTMASTER® FIVE-YEAR LIMITED WARRANTY

LIFETIME MOTOR LIMITED WARRANTY

The Chamberlain Group, Inc. (“Seller”) warrants to the first retail purchaser of this product, for the residence in which this product is originally installed, that it is free from defect in materials and/or workmanship for a period of five years from the date of purchase,the motor is free from defect in materials and/or workmanship for the lifetime of the product. The proper operation of this product is dependent on your compliance with the instructions regarding installation, operation, maintenance and testing. Failure to comply strictly with those instructions will void this limited warranty in its entirety.

If, during the limited warranty period, this product appears to contain a defect covered by this limited warranty, call 1-800-528-9131, toll free, before dismantling this product. Then send this product, pre-paid and insured, to our service center for warranty repair. You will be advised of shipping instructions when you call. Please include a brief description of the problem and a dated proof-of-purchase receipt with any product returned for warranty repair. Products returned to Seller for warranty repair, which upon receipt by Seller are confirmed to be defective and covered by this limited warranty, will be repaired or replaced (at Seller’s sole option) at no cost to you and returned pre-paid. Defective parts will be repaired or replaced with new or factory-rebuilt parts at Seller’s sole option.

ALL IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE FIVE YEAR LIMITED WARRANTY PERIOD SET FORTH ABOVE EXCEPT THE IMPLIED WARRANTIES WITH RESPECT TO THE MOTOR, WHICH ARE LIMITED IN DURATION TO THE LIFETIME LIMITED WARRANTY PERIOD FOR THE MOTOR, AND NO IMPLIED WARRANTIES WILL EXIST OR APPLY AFTER SUCH PERIOD. Some States do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. THIS LIMITED WARRANTY DOES NOT COVER NON-DEFECT DAMAGE, DAMAGE CAUSED BY IMPROPER INSTALLATION, OPERATION OR CARE (INCLUDING, BUT NOT LIMITED TO ABUSE, MISUSE, FAILURE TO PROVIDE REASONABLE AND NECESSARY MAINTENANCE, UNAUTHORIZED REPAIRS OR ANY ALTERATIONS TO THIS PRODUCT), LABOR CHARGES FOR REINSTALLING A REPAIRED OR REPLACED UNIT, REPLACEMENT OF BATTERIES AND LIGHT BULBS OR UNITS INSTALLED FOR NON-RESIDENTIAL USE.

THIS LIMITED WARRANTY DOES NOT COVER ANY PROBLEMS WITH, OR RELATING TO, THE GARAGE DOOR OR GARAGE DOOR HARDWARE, INCLUDING BUT NOT LIMITED TO THE DOOR SPRINGS, DOOR ROLLERS, DOOR ALIGNMENT OR HINGES. THIS LIMITED WARRANTY ALSO DOES NOT COVER ANY PROBLEMS CAUSED BY INTERFERENCE. ANY SERVICE CALL THAT DETERMINES THE PROBLEM HAS BEEN CAUSED BY ANY OF THESE ITEMS COULD RESULT IN A FEE TO YOU.

UNDER NO CIRCUMSTANCES SHALL SELLER BE LIABLE FOR CONSEQUENTIAL, INCIDENTAL OR SPECIAL DAMAGES ARISING IN CONNECTION WITH USE, OR INABILITY TO USE, THIS PRODUCT. IN NO EVENT SHALL SELLER’S LIABILITY FOR BREACH OF WARRANTY, BREACH OF CONTRACT, NEGLIGENCE OR STRICT LIABILITY EXCEED THE COST OF THE PRODUCT COVERED HEREBY. NO PERSON IS AUTHORIZED TO ASSUME FOR US ANY OTHER LIABILITY IN CONNECTION WITH THE SALE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of consequential, incidental or special damages, so the above limitation or exclusion may not apply to you. This limited warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Chamberlain 3595S User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

TABLE OF CONTENTS

INTRODUCTION

Safety Symbol and Signal Word Review

Preparing your garage door

Tools needed

Planning

Carton Inventory

Attach the Rail to the Motor Unit

Attach the Chain Spreader

Attach the Chassis Support Bracket

Tighten the Chain

INSTALLATION

Determine the Header Bracket Location

Install the Header Bracket

Attach the Rail to the Header Bracket

Position the Opener

Hang the Opener

Install the Door Control

Install the Light

Attach the Emergency Release Rope and Handle

Electrical Requirements

IMPORTANT INFORMATION ABOUT THE SAFETY REVERSING SENSOR

ALIGNING THE SAFETY REVERSING SENSORS

TROUBLESHOOTING THE SAFETY REVERSING SENSORS

Fasten the Door Bracket

Connect Door Arm to Trolley

Adjust the UP and DOWN Travel Limits

Adjust the Force

Test the Safety Reversal System

OPERATION

Using Your Garage Door Opener

Using the Remote Control

The Remote Control Batteries

Troubleshooting

To Open the Door Manually

CARE OF YOUR GARAGE DOOR OPENER

Having a Problem?

Smart Control Panel™ Messages

PROGRAMMING

To Add or Reprogram a Hand-held Remote Control

*3-Button Remotes

To Add, Reprogram or Change a Keyless Entry PIN

REPAIR PARTS

Rail Assembly Parts

Installation Parts

Motor Unit Assembly Parts

ACCESSORIES

REPAIR PARTS
