GARAGE DOOR OPENER

Model 3585 3/4 HP

For Residential Use Only

Owner’s Manual

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System

®

is connected and properly

aligned.

■ Periodic checks of the opener are required to ensure safe operation.

■ The model number label is located under the light lens on the left side panel of your

opener.

®

2

Introduction 2-5

Safety symbol and signal word review . . . . . . . . . . . . . .2

Preparing your garage door . . . . . . . . . . . . . . . . . . . . . . .3

Tools needed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Planning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Carton inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hardware inventory . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Assembly 6-7

Attach the rail to the motor unit . . . . . . . . . . . . . . . . . . . .6

Set the belt tension . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Attach the belt cap retainer . . . . . . . . . . . . . . . . . . . . . . .7

Installation 7-22

Installation safety instructions . . . . . . . . . . . . . . . . . . . . .7

Determine the header bracket location . . . . . . . . . . . . . .8

Install the header bracket . . . . . . . . . . . . . . . . . . . . . . . .9

Attach the rail to the header bracket . . . . . . . . . . . . . . .10

Position the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Hang the opener . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Install the door control . . . . . . . . . . . . . . . . . . . . . . . . . .13

Install the light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Attach the emergency release rope and handle . . . . . .14

Electrical requirements . . . . . . . . . . . . . . . . . . . . . . . . .15

Install the Protector System® . . . . . . . . . . . . . . . . . .16-18

Fasten the door bracket . . . . . . . . . . . . . . . . . . . . . .19-20

Connect the door arm to the trolley . . . . . . . . . . . . .21-22

Adjustment 23-25

Adjust the UP and DOWN travel limits . . . . . . . . . . . . . .23

Adjust the force . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

Test the safety reversal system . . . . . . . . . . . . . . . . . . .25

Test the Protector System® . . . . . . . . . . . . . . . . . . . . . . .25

Operation 26-31

Operation safety instructions . . . . . . . . . . . . . . . . . . . . .26

Using your garage door opener . . . . . . . . . . . . . . . . . . .26

Using the wall-mounted door control . . . . . . . . . . . . . . .27

Using the remote control . . . . . . . . . . . . . . . . . . . . . . . .28

To open the door manually . . . . . . . . . . . . . . . . . . . . . . .29

Care of your opener . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

Having a problem? . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

Diagnostic chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Smart Control PanelTMmessages . . . . . . . . . . . . . . . . . .32

Programming 33-34

To add or reprogram a hand-held remote control . . . . .33

To erase all codes from motor unit memory . . . . . . . . . .33

3-Button remotes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

To add, reprogram or change a Keyless Entry PIN . . . .34

Repair Parts 35-36

Rail assembly parts . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Installation parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Motor unit assembly parts . . . . . . . . . . . . . . . . . . . . . . .36

Accessories 37

Notes 38-39

Repair Parts and Service 40

Warranty 40

TABLE OF CONTENTS

When you see these Safety Symbols and Signal Words on
the following pages, they will alert you to the possibility of
serious injury or death if you do not comply with the
warnings that accompany them. The hazard may come
from something mechanical or from electric shock. Read
the warnings carefully.

When you see this Signal Word on the following pages, it
will alert you to the possibility of damage to your garage
door and/or the garage door opener if you do not comply
with the cautionary statements that accompany it. Read
them carefully.

INTRODUCTION

Safety Symbol and Signal Word Review

This garage door opener has been designed and tested to offer safe service provided it is installed, operated,
maintained and tested in strict accordance with the instructions and warnings contained in this manual.

Mechanical

Electrical

3

To prevent damage to garage door and opener:

• ALWAYS disable locks BEFORE installing and operating the
opener.

• ONLY operate garage door opener at 120V, 60 Hz to avoid
malfunction and damage.

To prevent possible SERIOUS INJURY OR DEATH:

• ALWAYS call a trained door systems technician if garage
door binds, sticks, or is out of balance. An unbalanced
garage door may not reverse when required.

• NEVER try to loosen, move or adjust garage door, door
springs, cables, pulleys, brackets or their hardware, all of
which are under EXTREME tension.

• Disable ALL locks and remove ALL ropes connected to
garage door BEFORE installing and operating garage door
opener to avoid entanglement.

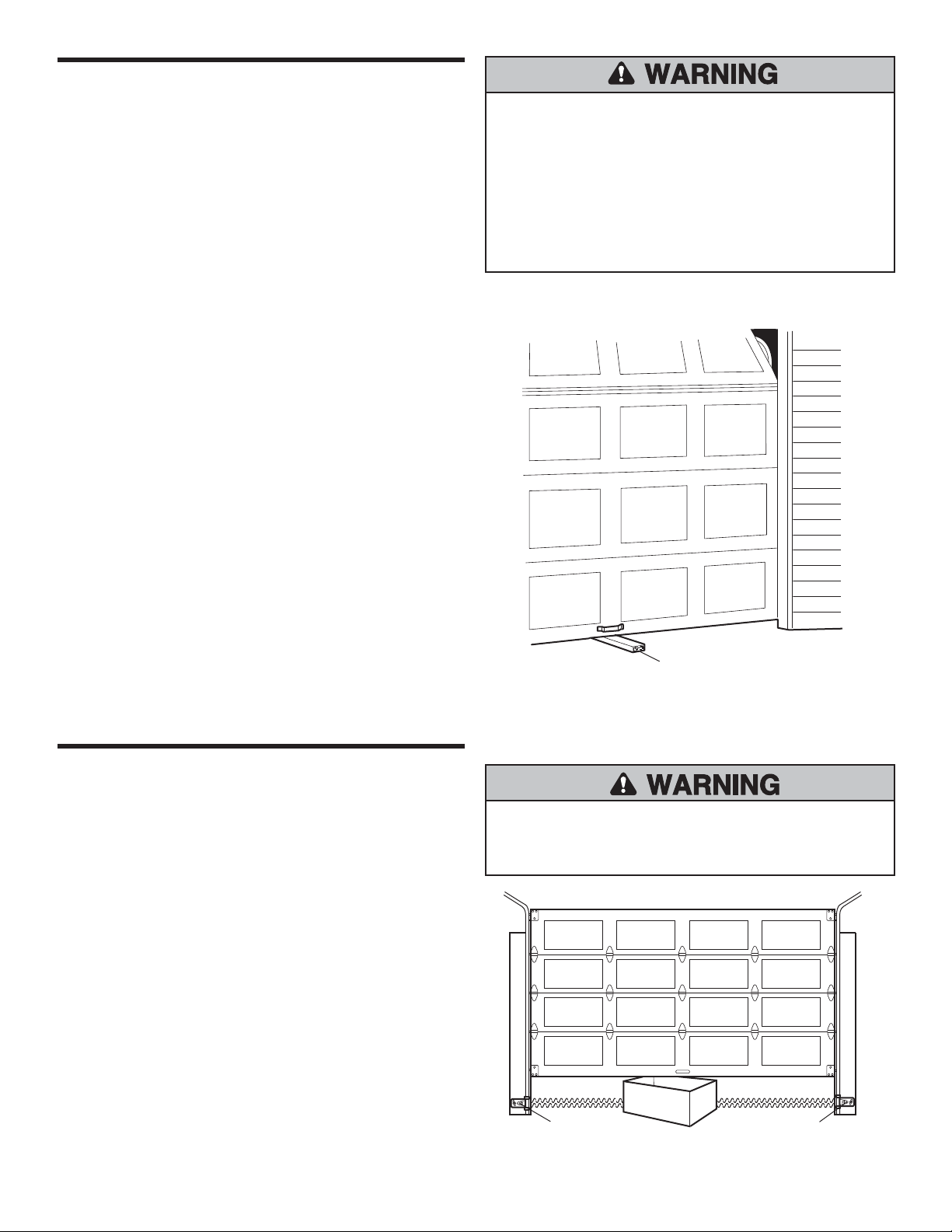

Preparing your garage door

Before you begin:

• Disable locks.

• Remove any ropes connected to garage door.

• Complete the following test to make sure your garage

door is balanced and is not sticking or binding:

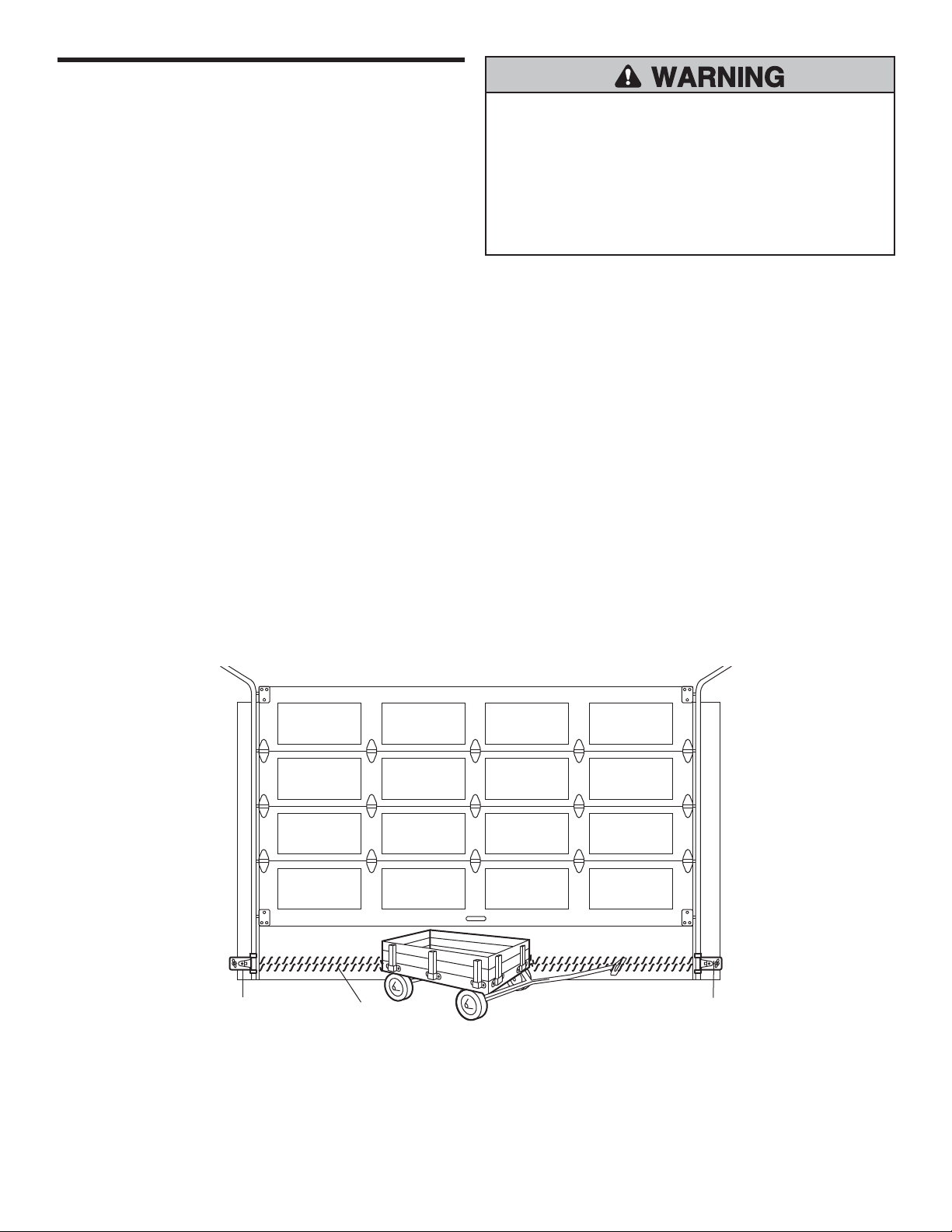

1. Lift the door about halfway as shown. Release the
door. If balanced, it should stay in place, supported
entirely by its springs.

2. Raise and lower the door to see if there is any
binding or sticking.

If your door binds, sticks, or is out of balance, call a
trained door systems technician.

Tools needed

During assembly, installation and adjustment of the
opener, instructions will call for hand tools as illustrated
below.

Sectional Door

One-Piece Door

Carpenter's
Level (optional)

Drill

2

1

Tape Measure

3/16", 5/16" and
5/32" Drill Bits

Pencil

Hack Saw

Wire Cutters

Claw Hammer

Pliers

Stepladder

1/2" and 7/16" Sockets
and Wrench

Screwdriver

Adjustable End Wrench

ONE-PIECE DOOR WITHOUT TRACK

4

Planning

Identify the type and height of your garage door. Survey your garage area to see if any of the conditions below apply to
your installation. Additional materials may be required. You may find it helpful to refer back to this page and the
accompanying illustrations as you proceed with the installation of your opener.

Access
Door

Safety
Reversing Sensor

Safety
Reversing
Sensor

Gap between floor
and bottom of door
must not exceed 1/4" (6 mm).

ONE-PIECE DOOR WITH TRACK

Safety
Reversing Sensor

Support bracket &
fastening hardware
is required.
See page 12.

— — — — — — — —

Header Wall

FINISHED CEILING

Torsion
Spring

Extension
Spring

OR

Safety
Reversing Sensor

Gap between floor and bottom
of door must not exceed 1/4" (6 mm)

Access
Door

Wall­mounted
Door
Control

Horizontal and vertical reinforcement
is needed for lightweight garage doors
(fiberglass, steel, aluminum, door with
glass panels, etc.). See page 19 for details.

Motor Unit

Vertical
Centerline
of Door

Safety
Reversing Sensor

Header
Wall

Wall­mounted
Door
Control

Gap between floor and bottom of
door must not exceed 1/4" (6 mm)

Safety
Reversing Sensor

FINISHED CEILING

Support bracket
& fastening
hardware is required.
See page 12.

Access
Door

Motor Unit

5

Your garage door opener is packaged in two cartons
which contain the motor unit and all parts illustrated
below. Accessories will depend on the model purchased.

If anything is missing, carefully check the packing
material. Parts may be stuck in the foam. Hardware for
installation is also listed below.

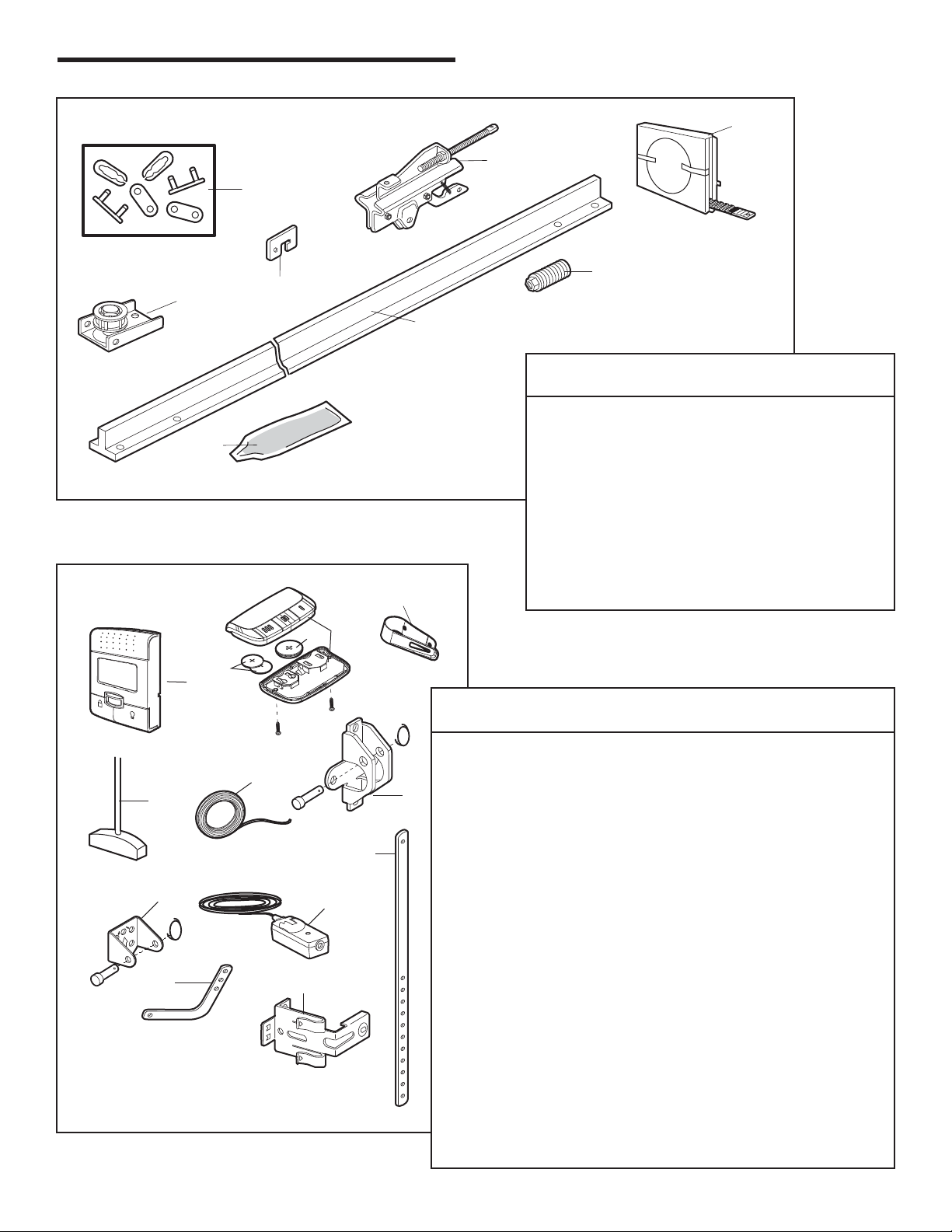

Carton Inventory

INSTALLATION HARDWARE

Hex Bolt 5/16"-18x7/8" (4)
Hex Screw #8 x 3/8" (2)
Lag Screw 5/16"-9x1-5/8" (2)
Lag Screw 5/16"-18x1-7/8" (2)
Clevis Pin 5/16"x2-3/4" (1)
Clevis Pin 5/16"x1-1/4" (1)
Clevis Pin 5/16"x1" (1)
Nut 5/16"-18 (4)
Lock Washer 5/16" (4)
Screw 6ABx1-1/4" (2)

Self-Threading Screw 1/4"-14x5/8" (2)
Screw 6-32x1" (2)
Insulated Staples (30)
Ring Fastener (3)
Drywall Anchors (2)
Rope
Handle
Rail Grease
Carriage Bolt 1/4"-20x1/2" (2)
Wing Nut 1/4”-20 (2)

Remote Control
Visor Clip

Smart Control Panel

TM

The Protector System

®

LOCK

LIGHT

LCD Motion Detecting
Door Control Console

2-Conductor Bell Wire
White & White/Red

SECURITY✚

3-Button Remote Control
Model 373P (1)

Motor Unit w/Light Lenses

®

Belt Cap Retainer

Remote Control
Transmitter Visor Clip

Styrofoam

Belt

One-Piece
Rail

Y

CEILING MOUNT ONL

UP

Door Bracket

Belt
Pulley Bracket

Safety Sensor
Bracket (2)

Trolley

Header Bracket

(2) Safety Reversing Sensors
(1 Sending Eye and 1 Receiving Eye)
with 2-Conductor White & White/Black
Bell Wire attached

Safety Labels
and
Literature

Curved Door
Arm Section

Straight Door
Arm Section

To avoid SERIOUS damage to opener, ONLY use
bolts/fasteners mounted in top of motor unit.

ASSEMBLY STEP 1

Attach the Rail to the Motor Unit

To avoid installation difficulties, do not run the garage
door opener until instructed to do so.

• Remove the bolt and lock nut from the top of the motor
unit.

• Place rail onto the bolt mounted on the motor unit and
align the back hole with the hole in the top of the unit.

• Fasten rail with the washered bolt and lock nut
previously removed. Tighten securely. Remember to

use only these bolts/fasteners! Any other
bolts/fasteners will cause serious damage to the
opener.

• Cut tape from rail, belt and styrofoam.

• REMOVE STYROFOAM.

• Position belt over the motor unit sprocket.

6

ASSEMBLY STEP 2

Set the Belt Tension

• By hand, thread the spring trolley nut on the threaded
shaft until it is finger tight against the trolley (Figure 1).
Do not use any tools.

• Insert a screwdriver tip into one of the nut ring slots and
brace it firmly against the trolley (Figure 2).

• Place a 7/16" open end wrench on the square
end. Rotate about 1/4 turn until the spring releases and
snaps the nut ring against the trolley (Figure 3).

This extends the spring for optimum belt tension.

Trolley
Threaded
Shaft

Spring/Trolley Nut

Nut
Ring

Trolley
Threaded
Shaft

Nut Ring
Slots

Square
End

Nut Ring Trolley

Nut Ring

Trolley

1" (2.5 cm) 1-1/4" (3.18 cm)

BEFORE AFTER RELEASE

Figure 1

Figure 2

Figure 3

Washered Bolt

Lock Nut

Rail
Hole

Motor unit
Sprocket

5/16"-18x1/2"

Styrofoam

7

INSTALLATION

IMPORTANT INSTALLATION INSTRUCTIONS

To reduce the risk of SEVERE INJURY or DEATH:

WARNING

WARNINGWARNING

1. READ AND FOLLOW ALL INSTALLATION WARNINGS AND

INSTRUCTIONS.

2. Install garage door opener only on properly balanced and

lubricated garage door. An improperly balanced door may
not reverse when required and could result in SEVERE
INJURY or DEATH.

3. ALL repairs to cables, spring assemblies and other

hardware MUST be made by a trained door systems
technician BEFORE installing opener.

4. Disable ALL locks and remove ALL ropes connected to

garage door BEFORE installing opener to avoid
entanglement.

5. Install garage door opener 7 feet (2.13 m) or more above

floor.

6. Mount emergency release handle 6 feet (1.83 m) above

floor.

7. NEVER connect garage door opener to power source until

instructed to do so.

8. NEVER wear watches, rings or loose clothing while
installing or servicing opener. They could be caught in
garage door or opener mechanisms.

9. Install wall-mounted garage door control:

• within sight of the garage door.

• out of reach of children at minimum height of 5 feet

(1.5 m).

• away from ALL moving parts of the door.

10. Place entrapment warning label on wall next to garage
door control.

11. Place manual release/safety reverse test label in plain view
on inside of garage door.

12. Upon completion of installation, test safety reversal
system. Door MUST reverse on contact with a
1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on
the floor.

ASSEMBLY STEP 3

Attach the Belt Cap Retainer

• Position the belt cap retainer over the motor unit
sprocket so the two holes in cap align with the two holes
in mounting plate. Attach with 8x3/8" hex screws
provided.

You have now finished assembling your garage door
opener. Please read the following warnings before
proceeding to the installation section.

To avoid possible SERIOUS INJURY to fingers from moving
garage door opener:

• ALWAYS keep hand clear of sprocket while operating opener.

• Securely attach sprocket cover BEFORE operating.

Hex Screw
#8x3/8"

HARDWARE SHOWN

ACTUAL SIZE

Motor Unit
Sprocket

Mounting Plate

Hex Screws
8x3/8"

Belt Cap
Retainer

8

INSTALLATION STEP 1

Determine the Header Bracket
Location

Installation procedures vary according to garage door
types. Follow the instructions which apply to your door.

1. Close the door and mark the inside vertical centerline of

the garage door.

2. Extend the line onto the header wall above the door.

You can fasten the header bracket within 4' (1.22 m)
of the left or right of the door center only if a torsion
spring or center bearing plate is in the way; or you
can attach it to the ceiling (see page 9) when
clearance is minimal. (It may be mounted on the wall
upside down if necessary, to gain approximately
1/2" (1 cm).)

If you need to install the header bracket on a 2x4
(on wall or ceiling), use lag screws (not provided)
to securely fasten the 2x4 to structural supports as
shown here and on page 9.

3. Open your door to the highest point of travel as shown.

Draw an intersecting horizontal line on the header wall
above the high point:

• 2" (5 cm) above the high point for sectional door and
one-piece door with track.

• 8" (20 cm) above the high point for one-piece door
without track.

This height will provide travel clearance for the top edge
of the door.

NOTE: If the total number of inches exceeds the height
available in your garage, use the maximum height
possible, or refer to page 9 for ceiling installation.

To prevent possible SERIOUS INJURY or DEATH:

• Header bracket MUST be RIGIDLY fastened to structural
support on header wall or ceiling, otherwise garage door
might not reverse when required. DO NOT install header
bracket over drywall.

• Concrete anchors MUST be used if mounting header bracket
or 2x4 into masonry.

• NEVER try to loosen, move or adjust garage door, springs,
cables, pulleys, brackets, or their hardware, ALL of which
are under EXTREME tension.

• ALWAYS call a trained door systems technician if garage
door binds, sticks, or is out of balance. An unbalanced
garage door might not reverse when required.

Header Wall

Sectional door with curved track

Highest Point
of Travel

Door

2" (5 cm)

One-piece door with horizontal track

Door

Track

Header Wall

Highest Point
of Travel

2" (5 cm)

Track

Door

Jamb
Hardware

One-piece door without track:
jamb hardware

8" (20 cm)

Highest
Point
of Travel

Door

Pivot

8" (20 cm)

One-piece door without track:
pivot hardware

Highest
Point
of Travel

Header Wall

Header Wall

Header Wall

Unfinished
Ceiling

Vertical Centerline
of Garage Door

Level
(optional)

2x4

2x4

OPTIONAL
CEILING
MOUNT
FOR
HEADER
BRACKET

Structural
Supports

HARDWARE SHOWN ACTUAL SIZE

Lag Screws
5/16"-9x1-5/8"

Highest Point of
Garage Door Travel

Vertical
Centerline of
Garage Door

Header
Wall

Garage
Door

UP

CEILING MOUNT ONLY

Wall Mounting Holes

Optional
Wall Mounting Holes

The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.

UP

CEILING MOUN

T ONL

Y

Door Spring

Header
Bracket

2x4
Structural
Support

Vertical
Centerline of
Garage Door

Horizontal
Line

UP

CEILING MOUNT ONLY

Ceiling Mounting Holes

The nail hole is for
positioning only.
You must use lag screws
to mount the header bracket.

UP

Lag Screws
5/16"-9x1-5/8"

Garage Door

Vertical
Centerline
of Garage Door

Header Wall

– Finished Ceiling –

Header

Bracket

6" (15 cm)
Maximum

Vertical
Centerline
of Garage Door

Door
Spring

9

INSTALLATION STEP 2

Install the Header Bracket

You can attach the header bracket either to the wall above
the garage door, or to the ceiling. Follow the instructions
which will work best for your particular requirements. Do

not install the header bracket over drywall. If installing
into masonry, use concrete anchors (not provided).

WALL HEADER BRACKET INSTALLATION

• Center the bracket on the vertical centerline with the
bottom edge of the bracket on the horizontal line as
shown (with the arrow pointing toward the ceiling).

• Mark the vertical set of bracket holes (do not use the
holes designated for ceiling mount). Drill 3/16" pilot
holes and fasten the bracket securely to a structural
support with the hardware provided.

CEILING HEADER BRACKET INSTALLATION

• Extend the vertical centerline onto the ceiling as shown.

• Center the bracket on the vertical mark, no more than
6" (15 cm) from the wall. Make sure the arrow is
pointing toward the wall. The bracket can be mounted
flush against the ceiling when clearance is minimal.

• Mark the side holes. Drill 3/16" pilot holes and fasten
bracket securely to a structural support with the
hardware provided.

Lag Screw
5/16"-9x1-5/8"

Header Wall

HARDWARE SHOWN ACTUAL SIZE

10

INSTALLATION STEP 3

Attach the Rail to the Header Bracket

• Position the opener on the garage floor below the
header bracket. Use packing material as a protective
base. NOTE: If the door spring is in the way you’ll need

help. Have someone hold the opener securely on a
temporary support to allow the rail to clear the spring.

• Position the rail bracket against the header bracket.

• Align the bracket holes and join with a clevis pin
as shown.

• Insert a ring fastener to secure.

Header
Bracket

Belt Pulley
Bracket

Ring

Header
Bracket

Fastener

Garage
Door

Clevis Pin
5/16"x2-3/4"

Belt Pulley
Bracket

Rail

Temporary
Support

Clevis Pin
5/16"x2-3/4"

Ring Fastener

11

ONE-PIECE DOOR WITHOUT TRACK

A 2x4 on its side is convenient for setting an ideal
door-to-rail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 on its side
on the top section of the door beneath the rail.

• The top of the door should be level with the top of the
motor unit. Do not position the opener more than
4" (10 cm) above this point.

INSTALLATION STEP 4

Position the Opener

Follow instructions which apply to your door type as
illustrated.

SECTIONAL DOOR OR ONE-PIECE DOOR WITH
TRACK

A 2x4 laid flat is convenient for setting an ideal
door-to-rail distance.

• Remove foam packaging.

• Raise the opener onto a stepladder. You will need help
at this point if the ladder is not tall enough.

• Open the door all the way and place a 2x4 laid flat on
the top section beneath the rail.

• If the top section or panel hits the trolley when you raise
the door, pull down on the trolley release arm to
disconnect inner and outer sections. Slide the outer
trolley toward the motor unit. The trolley can remain
disconnected until Installation Step 12 is completed.

To prevent damage to garage door, rest garage door opener
rail on 2x4 placed on top section of door.

Rail

Door

2x4 is used to determine
the correct mounting height
from ceiling.

Top of Motor Unit

Header
Bracket

Top of Door

2x4 is used to determine
the correct mounting height
from ceiling.

Trolley
Release Arm

ENGAGED

RELEASED

12

INSTALLATION STEP 5

Hang the Opener

Three representative installations are shown. Yours may
be different. Hanging brackets should be angled (Figure 1)
to provide rigid support. On finished ceilings (Figure 2 and
Figure 3), attach a sturdy metal bracket to structural
supports before installing the opener. This bracket and
fastening hardware are not provided.

1. Measure the distance from each side of the motor unit
to the structural support.

2. Cut both pieces of the hanging bracket to required
lengths.

3. Drill 3/16" pilot holes in the structural supports.

4. Attach one end of each bracket to a support with
5/16"-18x1-7/8" lag screws.

5. Fasten the opener to the hanging brackets with
5/16"-18x7/8" hex bolts, lock washers and nuts.

6. Check to make sure the rail is centered over the door
(or in line with the header bracket if the bracket is not
centered above the door).

7. Remove the 2x4. Operate the door manually. If the door
hits the rail, raise the header bracket.

8. Grease the top and underside of the rail surface where
the trolley slides with rail grease.

NOTE: DO NOT connect power to opener at this time.

To avoid possible SERIOUS INJURY from a falling garage door
opener, fasten it SECURELY to structural supports of the
garage. Concrete anchors MUST be used if installing any
brackets into masonry.

Bracket
(Not Provided)

Lag Screws
5/16"-18x1-7/8"

(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18

FINISHED CEILING

Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18

Lag Screws
5/16"-18x1-7/8"

(Not Provided)
Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18

FINISHED CEILING

Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18

Measure
Distance

Structural
Supports

Lag Screws
5/16"-18x1-7/8"

Bolt 5/16"-18x7/8"
Lock Washer 5/16"
Nut 5/16"-18

Hidden
Support

HARDWARE SHOWN ACTUAL SIZE

Figure 1

Figure 2

Figure 3

Lag Screw 5/16"-18x1-7/8"

Hex Bolt
5/16"-18x7/8"

Nut 5/16"-18

Lock Washer 5/16"
